Samsung RS2534WW

Model: RS2534WW

Save Part Not Listed?
product name

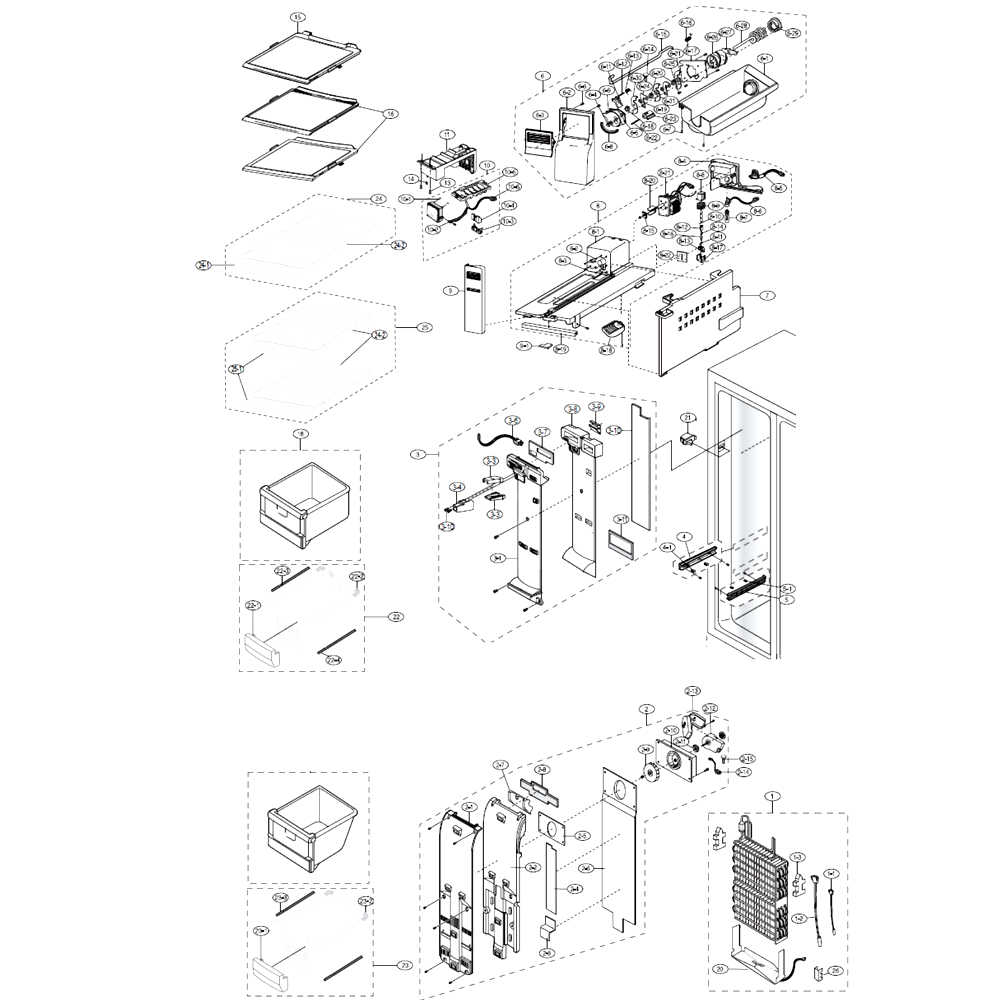

Freezer

...
...
1-1
Thermo Fuse-Assy SAM-DA47-00095C
...
1-2
Sensor-Assy SAM-DA32-10105R
...
1-3
Spacer-Evap Fre SAM-DA60-00042A
...
1
Assembly Evap-Fre SAM-DA96-00021L
...
2-1
Cover-Evap Fre SAM-DA63-00797D
...
2-2
Insulation Duct-Fre SAM-DA62-00123A
...
2-3
Guide Air-Fre SAM-DA61-00412A
...
2-4
Plate-Air SAM-DA61-00410A
...
2-5
Plate-Fan Motor SAM-DA61-00411A
...
2-6
Seal-Duct Fre,re SAM-DA62-00077C
...
2-7
Insulation Duct-Fre,sub SAM-DA62-00122A
...
2-8
Seal Duct-Fre,up SAM-DA62-00129A
...
2-9
Fan-Backward SAM-DA31-00038A
...
2-10
Case Motor SAM-DA61-00417A
...
2-11
Grommet-Motor,rear SAM-DA63-01146A
...
2-12
Motor Dc-Bldc,sensor SAM-DA31-00020E
...
2-13
Cover-Motor SAM-DA63-00713B
...
2-14
Wire Harness Motor SAM-DA39-00060K
...
2-15
Grommet-Cover Chill SAM-DA63-40167A
...
2
Assy-Cover Evap,fre SAM-DA97-00466V
...
3-1
Cover-Multi Fre,disp SAM-DA63-02181A
...
3-2
Ins-Front Sub,b SAM-DA62-00761A
...
3-3
Ins-Front Sub,a SAM-DA62-00762A
...
3-4
Cover-Multi Fre,sub SAM-DA63-02179A
...
3-5
Screw-Tapping SAM-6002-000213
...
3-6
Sensor Temp SAM-DA32-10109W
...
3-7
Seal-Sensor Fre,disp SAM-DA62-00168A
...
3-8
Ins-Multi Fre Disp SAM-DA62-00763A
...
3-9
Guide-Multi Fre Upp SAM-DA61-00495B
...
3-10
Seal-Multi Rear,disp SAM-DA62-00120A
...
3-11
Seal-Cover Multi Fre,low SAM-DA62-00082A
...
3
Assy-Cover Multi Fre Disp SAM-DA97-02006A
...
4-1
Grommet-Rail SAM-DA63-00202A
...
4
Assy-Rail Basket,l SAM-DA97-00731F
...
5-1
Grommet-Rail SAM-DA63-00202A
...
5
Assy-Rail Basket,r SAM-DA97-00730F
...
6-1
Tray Ice-Bucket SAM-DA63-00775D
...
6-2
Cover-Ice Bucket,a SAM-DA63-00777E
...
6-3
Cover-Ice Bucket,b SAM-DA63-00778B
...
6-4
Ring SAM-DA60-90125A
...
6-5
Cover-Crusher Disp SAM-DA63-10016A
...
6-6
Screw-Tapping SAM-6002-000475
...
6-7
Screw-Tapping SAM-6002-000471
...
6-8
Seal-Bucket Disp SAM-DA72-60315A
...
6-9
Washer-Plain SAM-DA60-40116A
...
6-10
Screw-Machine SAM-6001-000033
...
6-11
Guide-Ice Dispenser SAM-DA71-70003A
...
6-12
Pin SAM-DA60-90135A
...
6-13
Spring Etc-Dispenser SAM-DA61-20124A
...
6-14
Grommet-Cover Chill SAM-DA63-40167A
...
6-15
Lever-Cube SAM-DA66-00140A
...
6-16
Spring Etc-Ice Maker SAM-DA61-20139A
...
6-17
Plate-Bucket SAM-DA70-00394A
...
6-18
Nut-Hex SAM-DA60-30108A
...
6-19
Seal-Pom SAM-DA72-60313A
...
6-20
Seal-Pom SAM-DA72-60314A
...
6-21
Blade SAM-DA31-20120C
...
6-22
Pin-Spiral SAM-DA60-90136A
...
6-23
Fixer-Guard SAM-DA71-20231A
...
6-24
Blade SAM-DA31-20121A
...
6-25
Blade SAM-DA31-20122A
...
6-26
Blade-Dispenser SAM-DA31-20009A
...
6-27
Blade-Dispenser SAM-DA61-01386A
...
6-28
Clamp-Helix Dips SAM-DA61-01609A
...
6-29
Lever-Dispenser SAM-DA66-30138A
...
6-30
Blade SAM-DA31-20120A
...
6-31
Blade SAM-DA31-20120B
...
6
Tray Ice-Bucket,assy SAM-DA97-00685F
...
7
Partition-Cool SAM-DA67-00763B
...
8-1
Case-Motor Auger SAM-DA61-00262D
...
8-2
Screw-Special SAM-DA60-00001B
...
8-3
Screw-Special SAM-DA60-00001A
...
8-4
Cover-Motor Auger SAM-DA63-00793B
...
8-5
Wire Harness Sub-(em) SAM-DA96-00036A
...
8-6
Lamp Holder SAM-DA47-40112V
...
8-7
Lamp-Incandescent SAM-4713-001197
...
8-8
Valve-Solenoid SAM-DA74-40151G
...
8-9
Seal-Foam Pe SAM-DA72-60348A
...
8-10
Pin-Spring SAM-DA60-90137A
...
8-11
Pin-Spring SAM-DA60-90137B
...
8-12
Bush-Solenoid SAM-DA63-90008A
...
8-13
Saddle-Solenoid SAM-DA65-20107A
...
8-14
Spring Etc-Solenoid SAM-DA61-20140A
...
8-15
Fixer-Nut SAM-DA71-00163A
...
8-16
Gear-Solenoid SAM-DA66-90003A
...
8-17
Slider-Solenoid Disp SAM-DA61-60001A
...
8-18
Cover Lamp-Fre,disp SAM-DA63-00785A
...
8-19
Support-Case Motor Auger SAM-DA61-00239A
...
8-20
Plate-D/auger Disp SAM-DA70-20017A
...
8-21
Motor Geard SAM-DA31-00039F
...
8-22
Rubber-Solenoide SAM-DA73-00168A
...
8
Assembly Case Auger SAM-DA97-00705R
...
9-1
Cap-Partition Cool SAM-DA67-00770B
...
9
Cover-Cool SAM-DA63-00784D
...
10-1
Support-Gasket SAM-DA61-70254A
...
10-2
Guide-Ice,full SAM-DA61-00524A
...
10-3
Cover Sensor SAM-DA63-02183A
...
10-4
Fixer-Sensor,ice SAM-DA61-01799A
...
10-5
Tray-Ice SAM-DA63-01453B
...
10
Assembly Ice Maker SAM-DA97-00258C
...
11
Support-Ice Maker SAM-DA61-00244B
...
12
Fixer-Grommet Door SAM-DA71-20252A
...
13
Screw-Tapping SAM-6002-000213
...
14
Fixer-Case SAM-DA71-20270A
...
15
Shelf Fre-Mid,assy SAM-DA97-00157H
...
16
Shelf Fre-Low,assy SAM-DA97-00158L
...
18
Assy-Case Basket,up SAM-DA97-00142P
...
19
Assy-Case Basket,low SAM-DA97-00143P
...
20
Assy-Heater Drain,fre SAM-DA97-00111C
...
21
Switch Door SAM-DA34-10120C
...
22-1
Cover-Wire Basket SAM-DA63-01290B
...
22-2
Case-Wire Basket,upp SAM-DA61-00777C
...
22-3
Trim-Wire Basket,b SAM-DA64-00676A
...
22-4
Trim-Wire Basket,c SAM-DA64-00676B
...
22
Assy-Wire Basket,fre Upp SAM-DA97-00701D
...
23-1
Cover-Wire Basket SAM-DA63-01290B
...
23-2
Case-Wire Basket,low SAM-DA61-00778C
...
23-3
Trim-Wire Basket,b SAM-DA64-00676A
...
23
Assy-Wire Basket,fre Low SAM-DA97-00700D
...
24-1
Trim-Shelf Wire SAM-DA64-00670B
...
24-2
Shelf-Wire Fre ,mid SAM-DA67-00766C
...
24
Assembly Shelf Wire-Fre,mid SAM-DA97-00698D
...
25-1
Trim-Shelf Wire SAM-DA64-00670B
...
25-2
Shelf Wire Fre Low SAM-DA67-00765C
...
25
Assembly Shelf Wire-Fre Low SAM-DA97-00699D
...
26
Plate-Fre Sub SAM-DA61-00827A

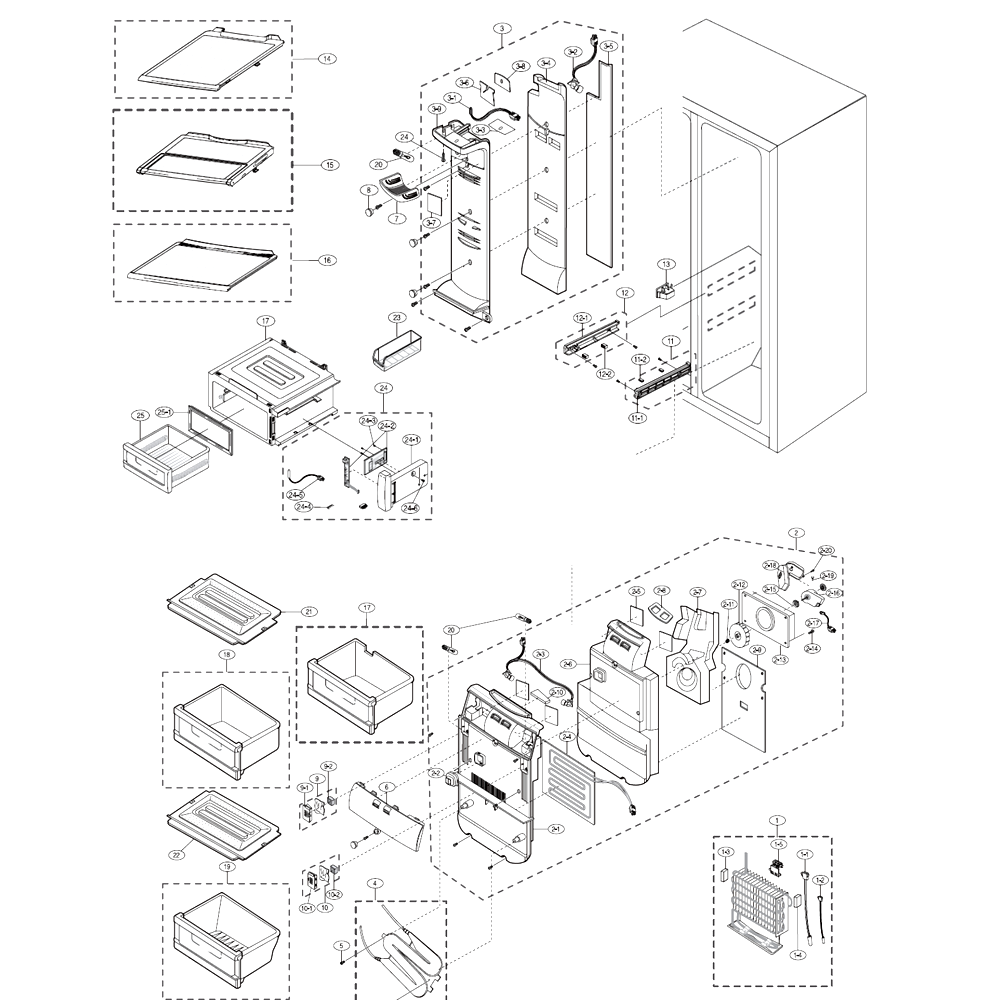

Refrigerator

...
...
1-1
Thermo-Fuse Assy SAM-DA47-00095B
...
1-2
Sensor Assy SAM-DA32-00006B
...
1-3
Spacer-Evap Ref,l SAM-DA60-00040A
...
1-4
Spacer-Evap Ref,r SAM-DA60-00041A
...
1-5
Fixer-Sensor SAM-DA61-00453A
...
1
Assy-Evap Ref SAM-DA96-00020G
...
2-1
Cover-Evap Ref SAM-DA63-00812B
...
2-2
Guide Air SAM-DA61-00560A
...
2-3
Lamp Holder SAM-DA47-00025S
...
2-4
Heater-Water Tank SAM-DA47-00094C
...
2-5
Seal-Al Foil SAM-DA62-00133A
...
2-6
Insulation-Evap Ref,a SAM-DA62-00053A
...
2-7
Insulation Evap-Ref,b SAM-DA62-00205A
...
2-8
Seal-Air Ref SAM-DA62-00083A
...
2-9
Seal-Cover Evap Re SAM-DA62-00072B
...
2-10
Seal-Cover Evap,up SAM-DA62-00158A
...
2-11
Spring Etc-Fan SAM-DA61-20128A
...
2-12
Fan-Circuit SAM-DA31-00016A
...
2-13
Case Motor SAM-DA67-00157B
...
2-14
Screw-Tapping SAM-6002-000215
...
2-15
Grommet-Motor SAM-DA63-40119A
...
2-16
Motor Dc-Ac SAM-DA31-00002S
...
2-17
Wire Harness Motor SAM-DA39-00060K
...
2-18
Cover-Motor SAM-DA63-00138B
...
2-19
Grommet-Cover Chill SAM-DA63-40167A
...
2-20
Screw-Tapping SAM-6002-000480
...
2
Assy-Cover Evap Ref SAM-DA97-01887F
...
3-1
Sensor Assy SAM-DA32-10109Y
...
3-2
Lamp Holder SAM-DA47-00025M
...
3-3
Plate-Air Multi,ref SAM-DA61-00527A
...
3-4
Insulation-Multi,ref SAM-DA62-00052A
...
3-5
Seal-Multi Ref Re SAM-DA62-00073A
...
3-6
Seal-Cover Multi Up SAM-DA62-00074A
...
3-7
Seal-Al Foil SAM-DA62-00133B
...
3-8
Seal-Cover Multi Up,b SAM-DA62-00225A
...
3-9
Cover-Multi Ref SAM-DA63-00821B
...
3
Assembly Cover-Multi Ref SAM-DA97-01293D
...
4
Tank Water-Assy SAM-DA74-00056F
...
5
Screw-Tapping SAM-6002-000215
...
6
Cover-Lamp Ref,low SAM-DA63-00814E
...
7
Cover-Lamp Ref,up SAM-DA63-00813A
...
8
Cap-Screw SAM-DA67-30266K
...
9-1
Cover-Purifier,r SAM-DA63-00856C
...
9-2
Catalyst-Ltc SAM-DA02-90106K
...
9
Cover-Purifier R,assy SAM-DA97-01485B
...
10-1
Cover-Purifier,l SAM-DA63-00855D
...
10-2
Catalyst-Ltc SAM-DA02-90106K
...
10
Cover-Purifier L,assy SAM-DA97-01484B
...
11-1
Rail-Chilled,r SAM-DA61-00295B
...
11-2
Grommet-Rail SAM-DA63-00202B
...
11
Assy-Rail Chill,r SAM-DA97-00159C
...
12-1
Rail-Chilled,l SAM-DA61-00294B
...
12-2
Grommet-Rail SAM-DA63-00202B
...
12
Assy-Rail Chill,l SAM-DA97-00173C
...
13
Switch-Door SAM-DA34-10110B
...
14
Shelf Ref,up SAM-DA67-00533F
...
15
Shelf Ref-Fold,assy SAM-DA97-01396F
...
16
Shelf Ref,low SAM-DA67-00534K
...
17
Assy-Case Convertible SAM-DA97-00320U
...
18
Assy-Case Veg,up SAM-DA97-00144P
...
19
Assy-Case Veg,low SAM-DA97-00148P
...
20
Lamp-Incandescent SAM-4713-001197
...
21
Cover-Veg Up SAM-DA63-00864C
...
22
Cover-Veg Low SAM-DA63-00865C
...
23
Tray-Utility SAM-DA67-40250E
...
24-1
Cover-Control Convertible SAM-DA63-00800F
...
24-2
Pba-Main SAM-DA41-00108A
...
24-3
Screw-Tapping SAM-6002-000426
...
24-4
Wire-Harness SAM-DA39-00215A
...
24-5
Sensor Assy SAM-DA32-10109X
...
24-6
Screw-Tapping SAM-6002-000213
...
24
Assy-Case Conv,sub SAM-DA97-00370D
...
25-1
Gasket-Convertible SAM-DA63-00820B
...
25
Assy-Tray Convertrible SAM-DA97-00371K

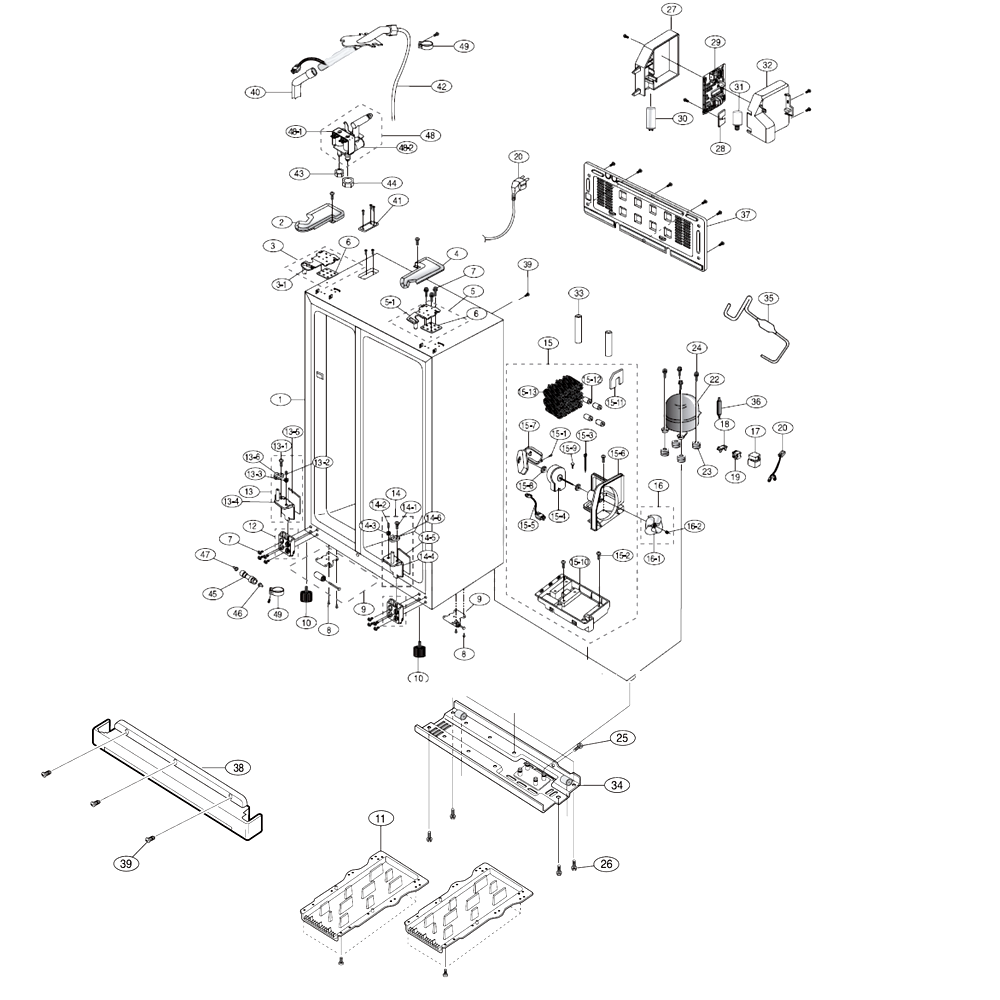

Cabinet

...
...
2
Cover Hinge Upp L SAM-DA63-01289N
...
3-1
Hinge-Upp,l SAM-DA61-01603B
...
3
Assy-Hinge Upp,l SAM-DA97-01869B
...
4
Cover Hinge Upp R SAM-DA63-01288L
...
5-1
Hinge-Upp,r SAM-DA61-01604B
...
5
Assy-Hinge Upp,r SAM-DA97-01870B
...
6
Shim-Hinge Upp SAM-DA63-50192C
...
7
Screw-Hex SAM-6009-001255
...
8
Screw-Tap Tite SAM-DA60-10122C
...
9
Caster-Front Assy SAM-DA61-00056A
...
10
Foot-Front SAM-DA61-30102A
...
11
Duct-Cabi Low SAM-DA67-01006A
...
12
Bracket-Hinge Low SAM-DA61-00459A
...
13-1
Screw-Taptype SAM-6003-001435
...
13-2
Bolt-Socket SAM-6011-001442
...
13-3
Nut-Hexagon SAM-6021-001125
...
13-4
Hinge-Low,l SAM-DA61-01607A
...
13-5
Shim Hinge-Low SAM-DA63-50207C
...
13-6
Cam-Riser SAM-DA66-00268A
...
13
Assy-Hinge Low,l SAM-DA97-01760A
...
14-1
Screw-Taptype SAM-6003-001435
...
14-2
Bolt-Socket SAM-6011-001442
...
14-3
Nut-Hexagon SAM-6021-001125
...
14-4
Hinge-Low,l SAM-DA61-01608A
...
14-5
Shim Hinge-Low SAM-DA63-50207C
...
14-6
Cam-Riser SAM-DA66-00268A
...
14
Assy-Hinge Low,r SAM-DA97-01763A
...
15-1
Screw-Tapping SAM-6002-000480
...
15-2
Screw-Special SAM-6009-001252
...
15-3
Cable-Tie SAM-6501-000122
...
15-4
Motor-Bldc SAM-DA31-00020H
...
15-5
Wire-Harness Motor SAM-DA96-00042A
...
15-6
Supt-Circuit Motor SAM-DA61-00415A
...
15-7
Cover-Motor SAM-DA63-00713A
...
15-8
Grommet-Motor,rear SAM-DA63-01146A
...
15
Assy-Tray Drain,water SAM-DA97-00367D

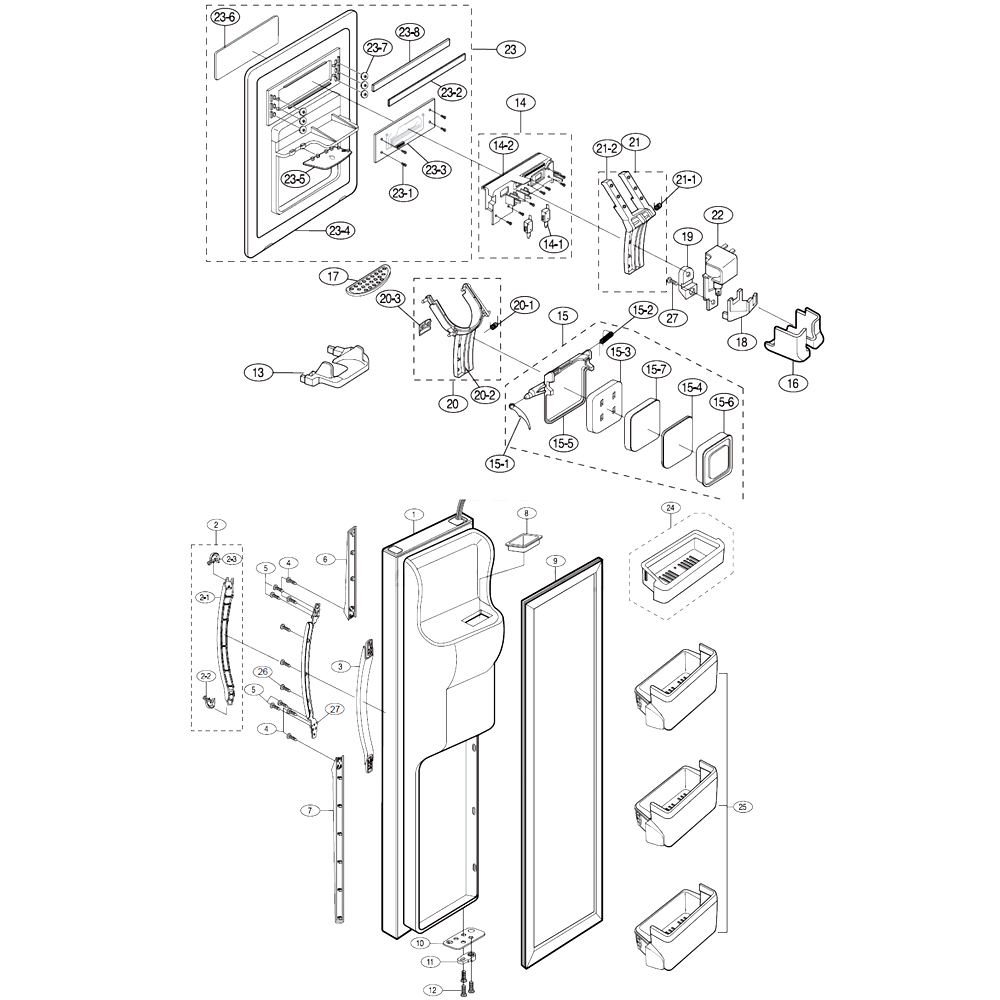

Freezer Door

...
...
1
Assembly Door Foam Fre SAM-DA91-01605H
...
2-1
Handle-Mid Front SAM-DA64-00413L
...
2-2
Handle-Trim Connect,low SAM-DA64-00415D
...
2-3
Handle-Trim Connect,upp SAM-DA64-00416D
...
2
Handle-Mid Front,assy SAM-DA97-00704Q
...
3
Handle-Mid Rear SAM-DA64-00414H
...
4
Screw-Tapping SAM-6002-000613
...
5
Screw-Tapping SAM-6002-000213
...
6
Handle-Trim Upp SAM-DA64-00418J
...
7
Handle-Trim Low SAM-DA64-00417J
...
8
Cap-Chute Ice SAM-DA67-00513A
...
9
Gasket Door-Fre Assy SAM-DA97-01800J
...
10
Stopper Door SAM-DA61-00430A
...
11
Cam Hinge-Riser,low SAM-DA66-90112C
...
12
Screw-Machine SAM-6001-000716
...
13
Guide-Lever Disp SAM-DA61-01587A
...
14-1
Switch-Micro SAM-DA34-00011A
...
14-2
Cover-Pcb Panel Rear SAM-DA63-00816A
...
14
Cover-Pcb Panel Rear Assy SAM-DA97-00409A
...
15-1
Stopper-Lever Disp SAM-DA61-00320A
...
15-2
Spring Etc-Cover Ice,route SAM-DA61-00565A
...
15-3
Seal Foam-Lex SAM-DA62-00058A
...
15-4
Seal Foam-Lex SAM-DA62-00058B
...
15-5
Cover-Ice Route,a SAM-DA63-00844A
...
15-6
Gasket-Cover Ice Route SAM-DA63-00845A
...
15-7
Cover-Ice Route,b SAM-DA63-00846A
...
15
Cover-Ice Route Assy SAM-DA63-00863A
...
16
Cover-Micro S/wtray-Dispenser SAM-DA63-01047A
...
17
Tray-Dispenser SAM-DA63-00843M
...
18
Support-Time Delay SAM-DA61-00316A
...
19
Bracket-Tube Pipe SAM-DA61-00319A
...
20-1
Spring Etc-Ice Lever Disp SAM-DA61-00337A
...
20-2
Lever-Disp Ice SAM-DA66-00196J
...
20-3
Lever-Disp Sub ,b SAM-DA66-00156B
...
20
Assembly Lever Disp-Ice SAM-DA97-00545K
...
21-1
Spring Etc-Water Lever Disp SAM-DA61-00338A
...
21-2
Lever-Disp Water SAM-DA66-00197J
...
21
Lever-Disp Water Assy SAM-DA97-00546K
...
22
Valve Solenoid SAM-DA74-40154F
...
23-1
Screw-Tapping SAM-6002-000466
...
23-2
Tape Etc-Al SAM-DA02-10013B
...
23-3
Pba Panel SAM-DA41-00204B
...
23-4
Cover Dispenser SAM-DA63-00815J
...
23-5
Cover-Lamp Dispenser SAM-DA63-00994A
...
23-6
Cover-Control Disp SAM-DA63-01169T
...
23-7
Knob-Touch SAM-DA64-00426B
...
23-8
Seal-Cutt Foam-Lex SAM-DA72-00427B
...
23
Assembly Cover-Disp SAM-DA97-01533N
...
24
Assembly Guard-Fre Upp SAM-DA97-01825A
...
25
Assembly Guard-Fre Tilt SAM-DA97-01823A
...
26
Screw-Tapping SAM-6002-000227
...
27
Reinf-Handle Mid SAM-DA61-00309A

Refrigerator Door

...
...
1
Assembly Door Foam Ref SAM-DA91-01606N
...
2-1
Handle-Mid Front SAM-DA64-00413L
...
2-2
Handle-Trim Connect,low SAM-DA64-00415D
...
2-3
Handle-Trim Connect,upp SAM-DA64-00416D
...
2
Handle-Mid Front,assy SAM-DA97-00704Q
...
3
Handle-Mid Rear SAM-DA64-00414J
...
4
Screw-Tapping SAM-6002-000613
...
5
Screw-Tapping SAM-6002-000613
...
6
Handle-Trim Upp SAM-DA64-00418J
...
7
Handle-Trim Low SAM-DA64-00417J
...
8
Guard-Ref,low Assy SAM-DA97-00824A
...
9
Guide-Bottle Ref SAM-DA71-00090A
...
10
Cover-Bracket Frame SAM-DA63-00851J
...
11
Stopper Door SAM-DA61-00430A
...
12
Cam Hinge-Riser,low SAM-DA66-90112C
...
13
Screw-Machine SAM-6001-000716
...
14
Gasket-Home Bar Out SAM-DA63-00850C
...
15
Gasket Door-Ref Assy SAM-DA97-01800K
...
16
Cover Switch-Home Bar SAM-DA63-00219B
...
17
Gasket Home Bar-S/w SAM-DA63-01100C
...
18
Switch-Door SAM-DA34-10121A
...
19
Home Bar- Assy SAM-DA97-00547K
...
20-1
Cover-Guard SAM-DA63-00825B
...
20-2
Guard-Dairy SAM-DA63-00836D
...
20
Guard-Dairy Assy SAM-DA97-00697E
...
21-1
Case-Door Recess,in SAM-DA61-00306B
...
21-2
Case-Door Recess,out SAM-DA61-00308B
...
21-3
Cover Door-Recess SAM-DA63-00826B
...
21-4
Grommet-Door Recess SAM-DA63-00991A
...
21
Case-Door Recess,assy SAM-DA97-00801E
...
22
Screw-Tapping SAM-6002-000227
...
23
Reinf-Handle Mid SAM-DA61-00309A
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
