Samsung RF28NHEDBSR/AA_0001

Model: RF28NHEDBSR/AA_0001

Save Part Not Listed?
product name

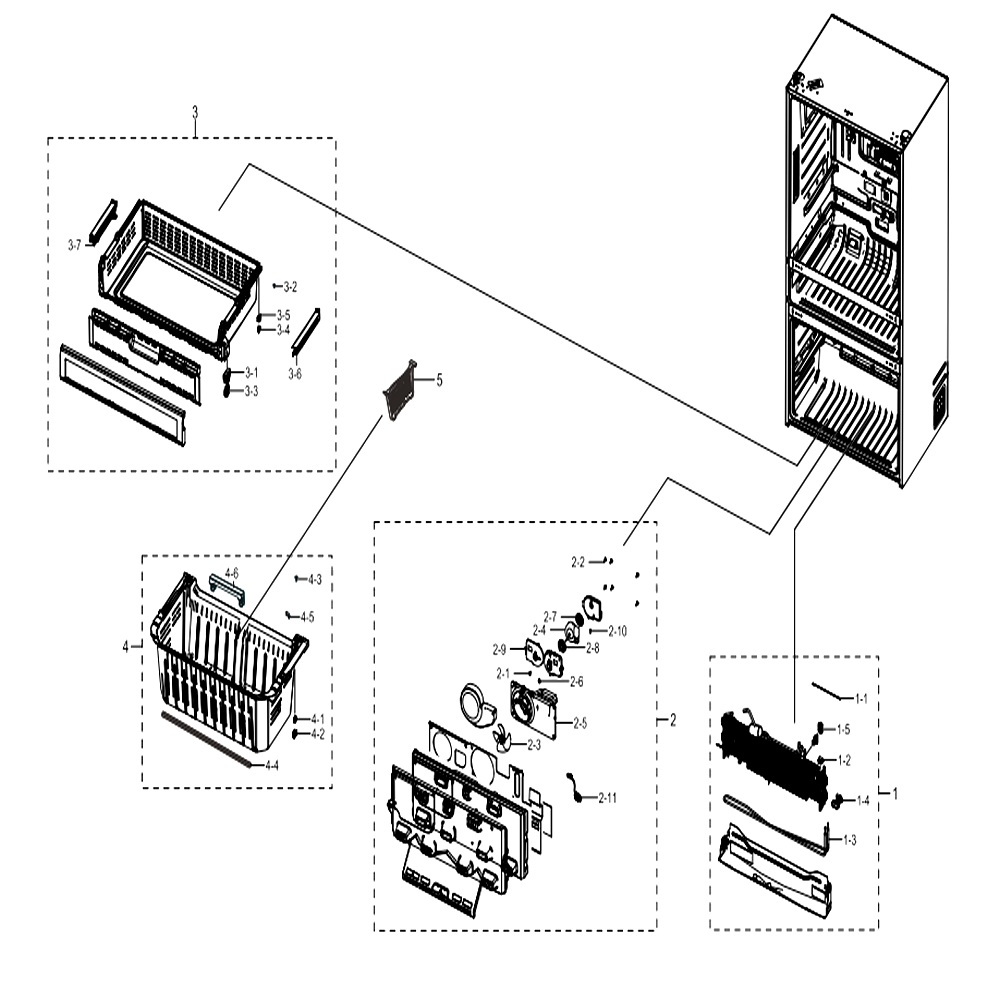

Freezer

...
...
1-1
Sensor Temp SAM-DA32-10104N
...
1-2
Thermo Bimetal-Protector SAM-DA47-00243B
...
1-3
Heater Metal Sheath SAM-DA47-00318H
...
1-4
Fixer-Heater Fre SAM-DA61-05845A
...
1-5
Fixer-Sensor Fre SAM-DA61-06182A
...
1
Assembly Evap-Fre SAM-DA96-00631D
...
2-1
Screw-Tapping SAM-6002-000213
...
2-2
Screw-Tapping SAM-6002-000215
...
2-3
Fan-Ax100w4cc-T1 SAM-DA31-00124A
...
2-4
Motor Bldc SAM-DA31-00146H
...
2-5
Case Motor-Fre SAM-DA61-05867B
...
2-6
Spring Etc-Fan SAM-DA61-20128A
...
2-7
Grommet-Motor,rear SAM-DA63-01146A
...
2-8
Grommet Motor SAM-DA63-01808A
...
2-9
Cover Motor-Bldc SAM-DA63-01809B
...
2-10
Grommet-Cover Chill SAM-DA63-40167A
...
2-11
Assembly Wire Harness-Motor SAM-DA96-00042D
...
2
Assembly Cover Evap-Fre SAM-DA97-08434E
...
3-1
Fixer-Roller Tray Fre Upp SAM-DA61-04154A
...
3-2
Screw-Tapping SAM-6002-001406
...
3-3
Roller-Tray Fre Upp SAM-DA66-00554A
...
3-4
Roller-Fre SAM-DA66-10104A
...
3-5
Fixer-Roller SAM-DA71-20277A
...
3-6
Guide-Tray Fre Upp R SAM-DA61-05185A
...
3-7
Guide-Tray Fre Upp L SAM-DA61-05186A
...
3
Assembly Tray-Fre Up SAM-DA97-08439D
...
4-1
Roller-Fre SAM-DA66-10104A
...
4-2
Fixer-Roller SAM-DA71-20145A
...
4-3
Screw-Tapping SAM-6002-000213
...
4-4
Reinf-Drawer Box SAM-DA61-03160A
...
4-5
Screw-Tapping SAM-6002-001406
...
4-6
Fixer-Rear; Aw3-14,hips,cool White,hb,s83 SAM-DA61-11261A
...
4
Assembly Tray Drawer SAM-DA97-08401C
...
5
Guide-Fre SAM-DA61-05850B

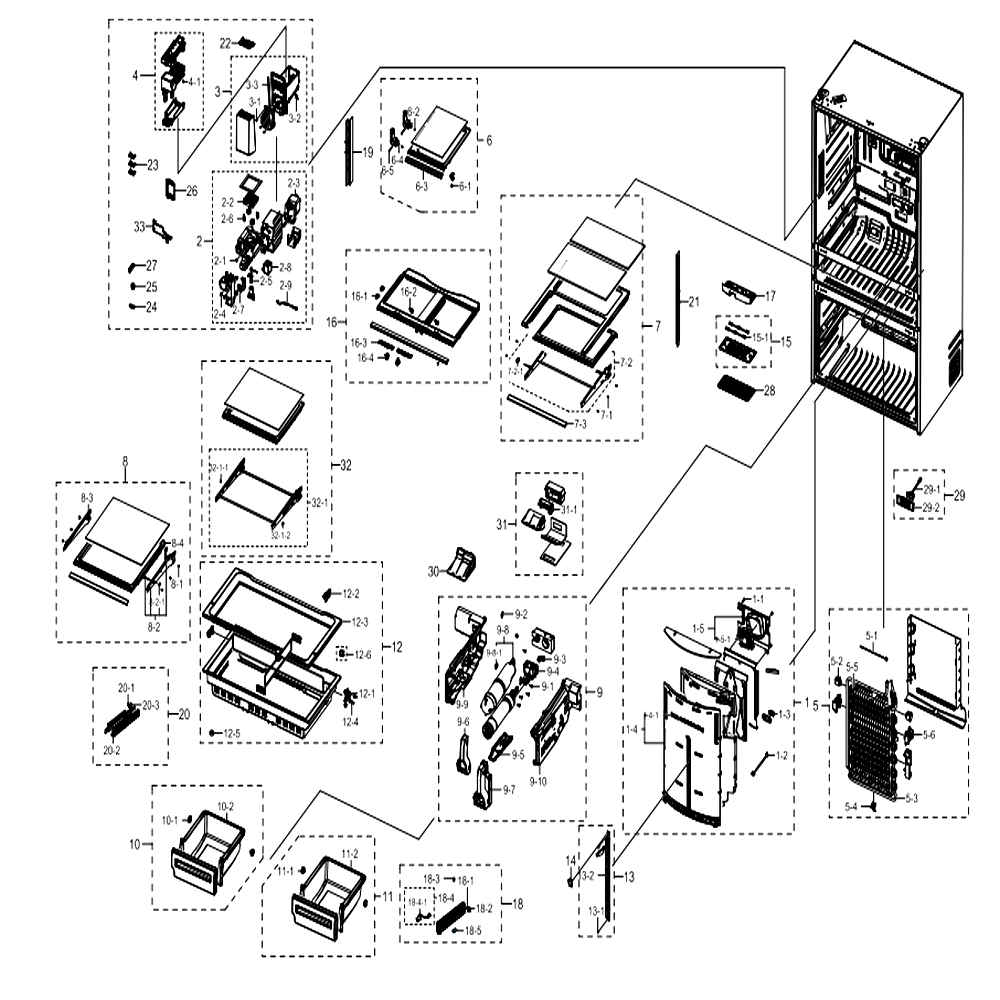

Fridge

...
...
1-1
Screw-Tapping SAM-6002-001204
...
1-2
Sensor Temp SAM-DA32-00011D
...
1-3
Grommet Fixer; Rf-H920g,rubber,black SAM-DA63-07761A
...
1-4-1
Inlay SAM-DA64-04618A
...
1-4
Assy Plate Cooling; Aw3-14,al, T0.5 SAM-DA97-16025A
...
1-5-1
Motor Bldc Fan SAM-DA31-00287A
...
1-5
Assembly Case Motor-Ref SAM-DA97-16026A
...
1
Assembly Cover Evap-Ref SAM-DA97-16028A
...
2-1
Screw-Tapping SAM-6002-000471
...
2-2
Motor Bldc Fan SAM-DA31-00070E
...
2-3
Motor Geared Ac Auger SAM-DA31-00105M
...
2-4
Screw-Special SAM-DA60-00001B
...
2-5
Spring Etc-Solenoid SAM-DA61-20140A
...
2-6
Grommet-Fan SAM-DA63-02513A
...
2-7
Fixer-Nut; Guggenheim,sts420,j2,sk5 SAM-DA71-00163B
...
2-8
Valve-Solenoid SAM-DA74-40151G
...
2-9
Assembly Wire Harness-Auger SAM-DA96-00682D
...
2
Assy Case Auger Motor; Aw4-4d,115v 60hz SAM-DA97-12540G
...
3-1
Screw-Tapping SAM-6002-000471
...
3-2
Spring Etc-Dispenser SAM-DA61-20124D
...
3-3
Gasket-Tray Ice Bucket SAM-DA63-07185A
...
3
Assy Tray Ice;fdr,t-Type F/s SAM-DA97-14474C
...
4-1
Screw-Tapping SAM-6002-000471
...
4
Assembly Ice Maker SAM-DA97-15217A
...
5-1
Sensor Temp SAM-DA32-10104N
...
5-2
Thermo Bimetal-Protector SAM-DA47-00243C
...
5-3
Heater Metal Sheath SAM-DA47-00434A
...
5-4
Plate-Evap Heater SAM-DA61-03644A
...
5-5
Fixer-Senser SAM-DA61-03683A
...
5-6
Fixer-Heater Ref SAM-DA61-05835B
...
5
Assembly Evap-Ref SAM-DA96-00842A
...
6-1
Screw-Tapping SAM-6002-001397
...
6-2
Spring Etc-Hinge Shelf SAM-DA61-03705A
...
6-3
Trim-Shelf Insert Ref Fold; Aw4,sts304,-, SAM-DA64-04223A
...
6-4
Roller-Hinge-Shelf SAM-DA66-00482A
...
6-5
Shaft-Hinge-Shelf SAM-DA66-00483A
...
6
Assembly Shelf Folder-Ref SAM-DA97-14315A
...
7-1
Screw-Tapping SAM-6002-001397
...
7-2-1
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09550A
...
7-2
Assy Hanger; Rf9000k,cool White,wt0057, S SAM-DA97-14348B
...
7-3
Trim-Shelf Quick Space SAM-DA64-03040F
...
7
Assembly Shelf-Quick Space SAM-DA97-08463B
...
8-1
Screw-Tapping SAM-6002-001397
...
8-2-1
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09549A
...
8-2
Assy Hanger-Right; Aw3-14,cool White,wt00 SAM-DA97-14322C
...
8-3
Hanger-Left; Egi-Secc,cool White,wt0057, SAM-DA61-12550A
...
8-4
Shelf-Ref Fix SAM-DA67-03779A
...
8
Assy Shelf-Ref; Aw3-14,fixed Shelf SAM-DA97-14324A
...
9-1
Screw-Tapping SAM-6002-000213
...
9-2
Clip-Fitting Lock SAM-DA61-04522A
...
9-3
Support-Case Filter SAM-DA61-05870A
...
9-4
Valve Water; Ac110~127v,230,2way,l-Wire,1 SAM-DA62-04027C
...
9-5
Tray-Water Filter SAM-DA63-05407A
...
9-6
Cap-Filter Tank SAM-DA67-02505B
...
9-7
Cover-Filter Tank SAM-DA63-05406B
...
9-8-1
Clip-Fitting Lock SAM-DA61-04522A
...
9-8
Assy Tank Water-Ref; Opus1-14,pp SAM-DA97-11283J
...
9-9
Case-Filter Tank L SAM-DA61-07225A
...
9-10
Case-Filter Tank R SAM-DA61-07226A
...
9
Assy Case Water Filter; Aw3-14,no Led SAM-DA97-14365H
...
10-1
Assembly Roller SAM-DA97-15998A
...
10-2
Case-Veg R SAM-DA61-05875B
...
10
Assembly Case Veg-Right SAM-DA97-08437D
...
11-1
Assembly Roller SAM-DA97-15998A
...
11-2
Case-Veg L SAM-DA61-05876B
...
11
Assembly Case Veg-Left SAM-DA97-08438D
...
12-1
Bracket Divider SAM-DA61-09409A
...
12-2
Bracket Divider SAM-DA61-10717A
...
12-3
Cover Convertible SAM-DA63-05401B
...
12-4
Roller-Divider SAM-DA66-00876A
...
12-5
Grommet-Handle; Rf8000mc,si,cool Gray 7c SAM-DA63-08907A
...
12-6
Fixer Wire; Rf8000mc,abs,cool White,hg-07 SAM-DA61-11991A
...
12
Assy Case Convertible; Aw3,rf9900n, Rolle SAM-DA97-11930C
...
13-1
Screw-Tapping SAM-6002-001397
...
13-2
Angle Shelf-Ref Middle; Cr-Spcc,t2.5,inox SAM-DA61-09166D
...
13
Assembly Angle Shelf-Ref Middle SAM-DA97-13844D
...
14
Assembly Cap Angle SAM-DA97-15412A
...
15-1
Assy Lamp Led; 5,cem-1,240*10,white,smaw2 SAM-DA41-00676K
...
15
Assy Case Lamp-Ref; Aw4,long Led SAM-DA97-12606B
...
16-1
Fixer-Cover Veg SAM-DA61-03166A
...
16-2
Knob-Humidity SAM-DA64-03209A
...
16-3
Lever-Humidity SAM-DA66-00718A
...
16-4
Assy Roller; Rf9000jc,24 SAM-DA97-15997A
...
16
Assembly Cover Veg-Ref SAM-DA97-08402G
...
17
Guide-French SAM-DA61-04285A
...
18-1
Fixer-Gear SAM-DA61-03154A
...
18-2
Gear; Aw3-14,pom,natural,f20-03,rail Righ SAM-DA66-00750B
...
18-3
Magnet-Ass'y SAM-DA61-02738A
...
18-4-1
Switch Reed SAM-DA34-00043H
...
18-4
Assembly W/harness-Rail SAM-DA96-00640A
...
18-5
Grommet Wire; Rf9900m,pp,natural SAM-DA63-09098A
...
18
Assy Rail; Aw4-4d(f/s),rail Middle Right, SAM-DA97-13780B
...
19
Angle-Shelf Ref Side L SAM-DA61-05898A
...
20-1
Fixer-Gear SAM-DA61-03154A
...
20-2
Cover-Rail Conv L SAM-DA63-05451A
...
20-3
Gear; Aw3-14,pom,natural,f20-03,rail Left SAM-DA66-00751B
...
20
Assy Rail; Aw4-4d(f/s),rail Middle Left, SAM-DA97-13781B
...
21
Angle-Shelf Ref Side R SAM-DA61-05897A
...
22
Case Magnet; Aw3-14,abs,cool White,hf-066 SAM-DA61-09570A
...
23
Fixer Cover; Aw3-14,hips,natural,s834s1 SAM-DA61-12488A
...
24
Valve-Fitting Pu SAM-DA62-00305A
...
25
Valve-Fitting Nut SAM-DA74-00070B
...
26
Assembly Cover-Tube Filter SAM-DA97-08413B
...
27
Tube-Fitting SAM-DA62-03914A
...
28
Cover Lamp-Ref SAM-DA63-07816A
...
29-1
Switch Reed SAM-DA34-00043J
...
29-2
Cover Reed Switch SAM-DA63-07513A
...
29
Assembly Cover Switch SAM-DA97-13783A
...
30
Cover Motor-Damper SAM-DA63-05477A
...
31-1
Motor Dc-Damper SAM-DA31-00101C
...
31
Assembly Ins-Damper Conv SAM-DA97-08430A
...
32-1-1
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09550A
...
32-1-2
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09549A
...
32-1
Assy Hanger; Aw3-14,cool White,wt0057, Sp SAM-DA97-14348C
...
32
Assy Shelf Slide-Ref; Aw3 SAM-DA97-08461D
...
33
Cover-Wire Harness Ice SAM-DA63-06894A

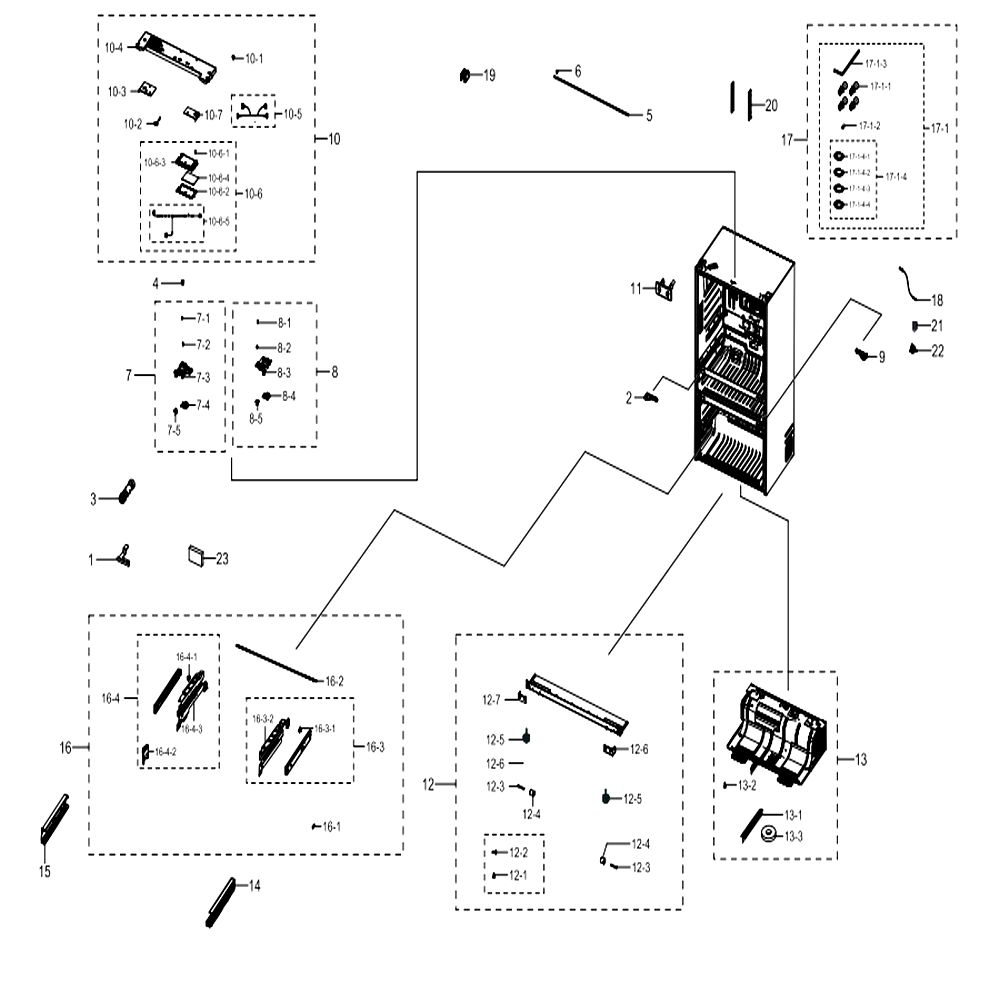

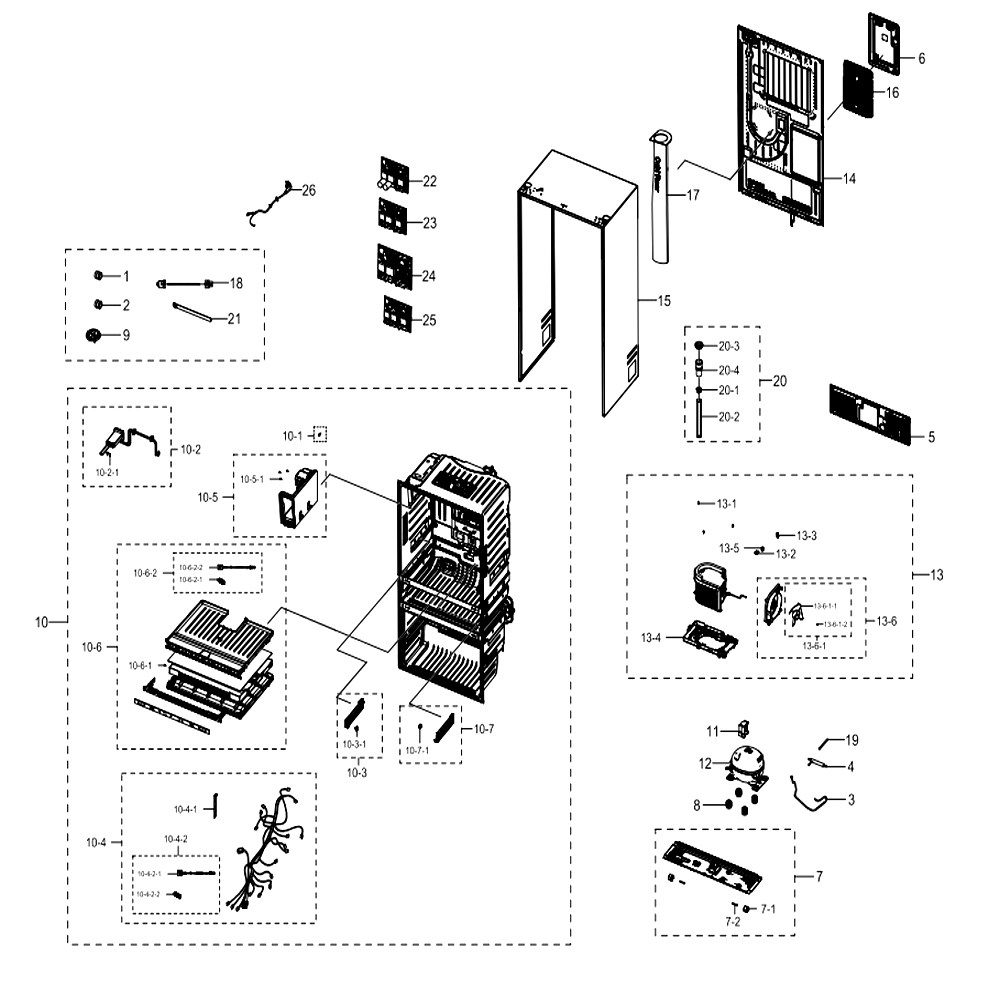

Cabinet

...
...
1
Fixer-Hinge;po-Sphc,t3,zn Coating SAM-DA61-04932B
...
2
Hinge-Middle Left; Rf9000k,zn,zndc2,zndc2 SAM-DA61-10859A
...
3
Tube-Fitting SAM-DA62-03914A
...
4
Grommet Hinge-Mid SAM-DA63-06410A
...
5
Shaft; Aw3-14,cfrp,743.0,8x8,black,door M SAM-DA66-00733B
...
6
Cap-Shaft Hole SAM-DA67-02795C
...
7-1
Screw-Tapping SAM-6002-000213
...
7-2
Screw-Tapping SAM-6002-000215
...
7-3
Hinge-Upp L SAM-DA61-08309A
...
7-4
Shim-Hinge Upp SAM-DA63-50192A
...
7-5
Cam-Auto Close L SAM-DA66-00950A
...
7
Assembly Hinge Upp-L SAM-DA97-12573A
...
8-1
Screw-Tapping SAM-6002-000213
...
8-2
Screw-Tapping SAM-6002-000215
...
8-3
Hinge-Upp R; Aw4,po-Sphc,t2.9,eletrodepos SAM-DA61-08310A
...
8-4
Shim-Hinge Upp SAM-DA63-50192A
...
8-5
Cam-Auto Close R SAM-DA66-00951A
...
8
Assy Hinge Upp-R; Aw4,t3.0,black SAM-DA97-12574A
...
9
Hinge-Middle Right; Rf9000k,zn,t4.5,zndc2 SAM-DA61-10861A
...
10-1
Screw-Tapping SAM-6002-000213
...
10-2
Switch Reed; Ul1007 Awg 22,280(680),25045 SAM-DA34-00043K
...
10-3
Plate-Cover Hinge SAM-DA61-08227A
...
10-4
Top Table; Aw3 F/hub,abs,inox Gray,hg-076 SAM-DA64-05806A
...
10-5
Assy Wire Harness-Top; T-Fdr,12vdc,all,na SAM-DA96-01174B
...
10-6-1
Screw-Tapping SAM-6002-000630
...
10-6-2
Case Safety-Out; Abs,natural SAM-DA61-11802A
...
10-6-3
Case Safety-In; Abs,natural SAM-DA61-11803A
...
10-6-4
Assy Module; Std #9 Smps,aw1-12 Hub,60w ( SAM-DA92-00610C
...
10-6-5
Assy Wire Harness-Etc; Rf8000mc,family Hu SAM-DA96-01222B
...
10-6
Assy Case Safety; Rf8000mc,f-Hub, Smps, P SAM-DA97-17698B
...
10-7
Plate-Cover Hinge R SAM-DA61-08884A
...
10
Assy Top Table; Aw3 F/hub,inox Gray, Smps SAM-DA97-19296A
...
11
Assy Cover-Fixer Water; Opus1,assy SAM-DA97-08494B
...
12-1
Screw-Tapping SAM-6002-000213
...
12-2
Screw-Tapping SAM-6002-000538
...
12-3
Caster-Rivet SAM-DA61-01920A
...
12-4
Caster-Front SAM-DA61-04702A
...
12-5
Foot-Front SAM-DA61-00805F
...
12-6
Aw4-4d,pp,inox Gra SAM-DA63-06405D
...
12-7
Aw4-4d,pp,inox Gray SAM-DA63-06389E
...
12
Assy Cabi Bottom-Front; Aw4-4d F/s,inox G SAM-DA97-12556E
...
13-1
Trim Blade; Aw2-14,pvc,gray SAM-DA64-05373C
...
13-2
Screw-Tapping SAM-6002-000213
...
13-3
Seal-Drain Hose; Aram10,pu Foam,t10,30 SAM-DA72-00238B
...
13
Assy Cabi Bottom-Rear; Aw3-14 Fdsr,no Sid SAM-DA97-08455Q
...
14
Cover-Rail Low R SAM-DA63-05409A
...
15
Cover-Rail Low L SAM-DA63-05400A
...
16-1
Magnet SAM-DA61-03769B
...
16-2
Shaft; Aw3-14,cfrp,715.1,8x8,black,door F SAM-DA66-00437H
...
16-3-1
Fixer-Gear SAM-DA61-03154A
...
16-3-2
Hanger-Rail Low R SAM-DA61-05975A
...
16-3
Assy Rail-Low Right; Aw3-14,rail Slide Lo SAM-DA97-08804F
...
16-4-1
Fixer-Gear SAM-DA61-03154A
...
16-4-2
Switch Pressure SAM-DA34-00047B
...
16-4-3
Hanger-Rail Low L SAM-DA61-05974A
...
16-4
Assy Rail-Low Left; Aw3-14,rail Slide Low SAM-DA97-08803F
...
16
Assembly Hanger-Low SAM-DA97-14382A
...
17-1-1
Fixer Handle; Aw3-14,swrch10a,m8 SAM-DA61-11161A
...
17-1-2
Cap-Wrench SAM-DA67-03197A
...
17-1-3
Wrench-Spanner SAM-DA80-00026B
...
17-1-4-1
Fastener-Hinge; Romanee Conti,pom,black SAM-DA60-00314A
...
17-1-4-2
Fastener-Hinge; Romanee Conti,pom,t1.5,bl SAM-DA60-00314B
...
17-1-4-3
Fastener-Hinge; Romanee Conti,pom,t2.0,bl SAM-DA60-00314C
...
17-1-4-4
Fastener-Hinge; Romanee Conti,pom,t2.5,bl SAM-DA60-00314D
...
17-1-4
Assy Accessory; Romanee Conti,adjustment SAM-DA99-04158A
...
17-1
Assy Install; Aw3-14,valve SAM-DA99-03490W
...
17
Assy Handle-Kit; Aw3,versailles Sts With SAM-DA99-04011J
...
18
Wire Harness-Earth SAM-DA39-20389L
...
19
Cover-Fixer Housing V SAM-DA63-02902B
...
20
Cover Lamp-Led Side SAM-DA63-07276A
...
21
Grommet; Brr9000m,nbr,capi Grommet SAM-DA63-08943A
...
22
Coil Filter SAM-DA27-00043D
...
23
Seal Cutt-Rubber; W2-05,rubber,black,t8,w SAM-DA72-60040Y

Cabinet 2

...
...
1
Fitting-Lokring 33 SAM-DA60-00280A
...
2
Fitting-Lokring 43 SAM-DA60-00281A
...
3
Pipe Connect-Suction; C1220t-O,od6.35,t0. SAM-DA62-03691A
...
4
Dryer SAM-DA62-04309B
...
5
Assy Cover Comp; Polaris,gi-Sgcc,t0.25 SAM-DA97-12749J
...
6
Assembly Cover Pcb-Panel SAM-DA97-08442D
...
7-1
Caster-Rear SAM-DA61-04703A
...
7-2
Shaft-Caster SAM-DA66-00649B
...
7
Assembly Chassis-Comp SAM-DA97-12557A
...
8
Grommet Comp; Usp05,epdm,od27.0,black SAM-DA63-02617C
...
9
Cover-Urethane SAM-DA63-03809A
...
10-1
Screw-Tapping SAM-6002-000215
...
10-2-1
Fixer Pipe; Fdr/t-Type Ice Room Model,sts SAM-DA61-12775A
...
10-2
Assy Pipe Suction; Aw3-14,compact Direct SAM-DA97-16138A
...
10-3-1
Assy Roller; Rf9000jc,24 SAM-DA97-15997A
...
10-3
Assembly Rail Veg-L SAM-DA97-11292A
...
10-4-1
Assembly Lamp Led SAM-DA41-00519Q
...
10-4-2-1
Sensor Temp SAM-DA32-00033C
...
10-4-2-2
Cover Sensor-Fre SAM-DA63-05470B
...
10-4-2
Assembly Cover-Sensor Fre SAM-DA97-08608A
...
10-4
Assy Wire Harness-Main; Aw3,dispenser, Hu SAM-DA96-01324A
...
10-5-1
Screw-Tapping SAM-6002-000471
...
10-5
Assy Case Ice; Aw4,urethane,assy SAM-DA97-12576B
...
10-6-1
Screw-Tapping SAM-6002-001204
...
10-6-2-1
Cover Sensor-Fre SAM-DA63-05470B
...
10-6-2-2
Sensor Temp SAM-DA32-00033C
...
10-6-2
Assembly Cover-Sensor Fre SAM-DA97-08608A
...
10-6
Assy Partition; Aw3-14,slim Hinge SAM-DA97-08431E
...
10-7-1
Assy Roller; Rf9000jc,24 SAM-DA97-15997A
...
10-7
Assembly Rail Veg-R SAM-DA97-11291A
...
10
Assy Liner; Aw3,f/s,f-Hub,110v,sr SAM-DA94-01582K
...
11
Cover Relay; Msv,mppo,t2.0,5v-A,black,m-H SAM-DA63-06122A
...
12
Cmp,refrigerator,r-134a; Cmp,refrigerator,r-134a SAM-NC1MV90ALP/E01
...
13-1
Screw-Tapping SAM-6002-000213
...
13-2
Grommet-Cond Sub SAM-DA63-04424A
...
13-3
Grommet-Immersion Pipe B SAM-DA63-07323A
...
13-4
Tray Drain-Water SAM-DA63-08236A
...
13-5
Grommet-Suct Pipe A SAM-DA63-40171B
...
13-6-1-1
Fan SAM-DA31-00320A
...
13-6-1-2
Spring Etc-Fan SAM-DA61-20128A
...
13-6-1
Motor Bldc Fan; Rmf002assa,1120 Rpm,12v,0 SAM-DA31-00340A
...
13-6
Assy Support-Circuit Motor; Rh9000k SAM-DA97-15765C
...
13
Assy Tray Drain Water; Aw,pfc SAM-DA97-15978B
...
14
Assy Cabi Rear; Aw4 4door,e-Cost SAM-DA97-13843F
...
15
Assy Cabi Frame; Aw3,f/s,sr,f-Hub SAM-DA97-14374P
...
16
Assy Case Pba-Main; Aw4-4d SAM-DA97-14519B
...
17
Assy Guide Hose-Bottom; Aw3-14,foam Pe SAM-DA97-14866A
...
18
Assy Wire Harness-Comp; All,all,free Volt SAM-DA96-01170A
...
19
Pipe-Connect Disc,b SAM-DA73-10190U
...
20-1
Fixer-Drain SAM-DA61-05021A
...
20-2
Tube Pvc SAM-DA62-01266B
...
20-3
Grommet-Drain SAM-DA63-02761A
...
20-4
Cap-Drain SAM-DA67-01301A
...
20
Assembly Cap-Drain SAM-DA97-04049E
...
21
Holder-Wire; Gi-Sgcc,black SAM-DB61-00206A
...
22
Assy Pcb Inverter; Inverter,rf9000k,163*9 SAM-DA92-00763B
...
23
Assembly Module SAM-DA92-00486A
...
24
Assy Pcb Eeprom; 0xc1,d607, D608,aw3-14 F SAM-DA94-04225A
...
25
Assy Module; Y-Cap Filter,aw1-12 Hub,y-Ca SAM-DA92-00941A
...
26
Cbf-Power Cord; At,usa,us3f-1,3c,125v,15a SAM-3903-001003

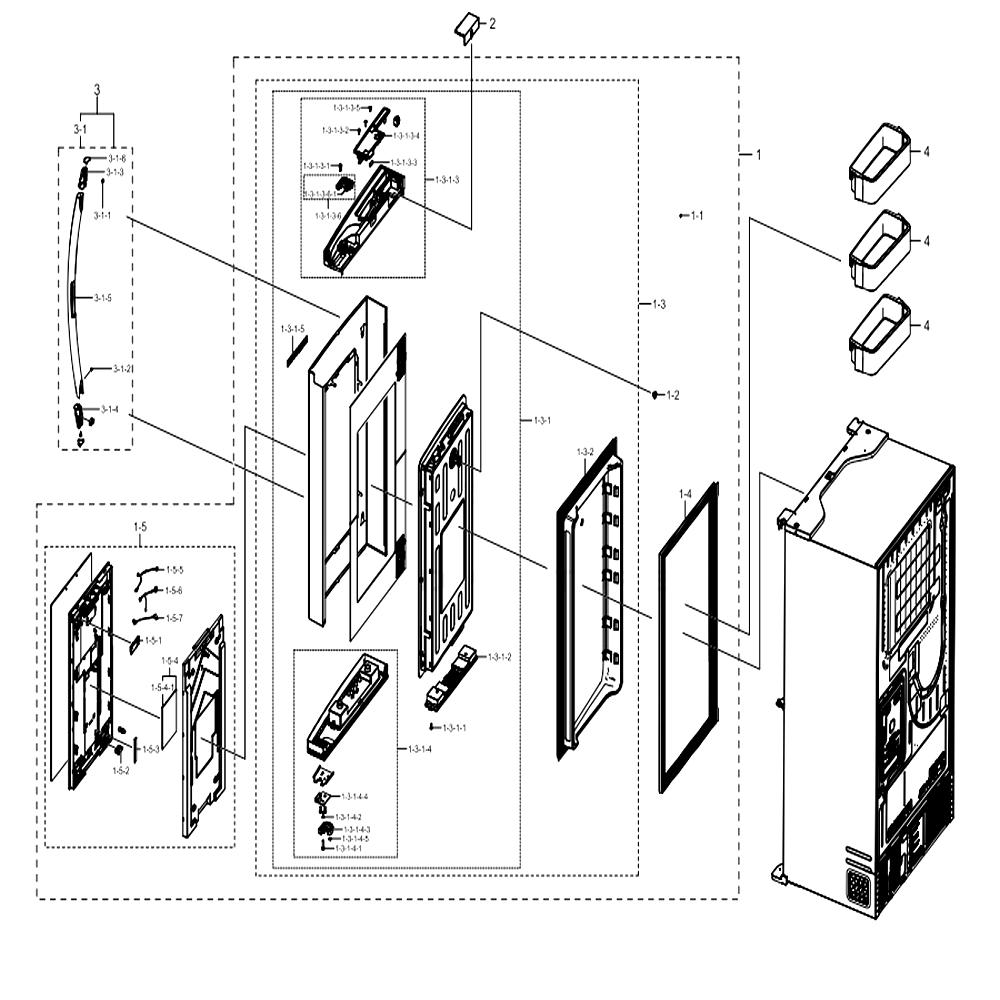

Fridge Door Right

...
...
1-1
Screw-Tapping SAM-6002-000215
...
1-2
Cap-Screw SAM-DA67-30266K
...
1-3-1-1
Screw-Tapping SAM-6002-001122
...
1-3-1-2
Assy Cover Case-Speaker; Rf9500k,inox Gra SAM-DA97-16611C
...
1-3-1-3-1
Screw-Tapping SAM-6002-000613
...
1-3-1-3-2
Screw-Tapping SAM-6002-001122
...
1-3-1-3-3
Magnet-A SAM-DA61-03769A
...
1-3-1-3-4
Cover Cap Door-Ref Up; Abs,inox Gray SAM-DA63-08826A
...
1-3-1-3-5
Cap-Shaft Hole SAM-DA67-02795C
...
1-3-1-3-6-1
Roller-Auto Close SAM-DA66-00440A
...
1-3-1-3-6
Assembly Lever-Auto Close SAM-DA97-12625A
...
1-3-1-3
Assy Cap Door-Ref Up Right; Aw3 F/hub,ino SAM-DA97-19298A
...
1-3-1-4-1
Screw-Machine SAM-6001-001377
...
1-3-1-4-2
Screw-Tapping SAM-6002-001120
...
1-3-1-4-3
Support Door-Close; Aw-Pjt,pk,m33r3a000,c SAM-DA61-02383E
...
1-3-1-4-4
Stopper-Door R; Aw4,po-Sphc,t2.9,black,t2 SAM-DA61-08196A
...
1-3-1-4-5
Grommet-Stopper SAM-DA63-40294A
...
1-3-1-4
Assy Cap Door-Ref Low Right; Aw3 F/hub,in SAM-DA97-19300C
...
1-3-1-5
Mascot SAM-DA64-04021C
...
1-3-1
Assy Plate Door-Ref Right; Aw3 F/hub,real SAM-DA97-19294C
...
1-3-2
Panel-Ref Right; Aw3 F/hub,abs,t1,w429.7, SAM-DA64-05807A
...
1-3
Assy Door Foam-Ref Right; Aw3,f-Hub,sts20 SAM-DA91-04146R
...
1-4
Assy Gasket-Ref; Aw4-4d,gray SAM-DA97-13015C
...
1-5-1
W-Lan Module; Wcm730q,ieee802.11,2.4/5ghz SAM-4709-002552
...
1-5-2
Sensor Psd; Ora1l17,5v SAM-DA32-00080A
...
1-5-3
Assy Module; Mic, 88*11*1.6t,rf9500n,88*1 SAM-DA92-00789D
...
1-5-4-1
Assy Pcb Smd; Kant-Ms_21.5" Lcd,aw4-12_F- SAM-DA94-04242A
...
1-5-4
Assy Pcb Display; Kant-Ms_21.5" Lcd,aw4-1 SAM-DA92-01071A
...
1-5-5
Assy Wire Harness-Etc; Aw1-12,wifi/bt,mic SAM-DA96-01224A
...
1-5-6
Assy Wire Harness-Etc; Aw3-14 Hub,lcd, Pr SAM-DA96-01224E
...
1-5-7
Assy Wire Harness; F_Hub 2.0,free Volt,lc SAM-DA96-01253A
...
1-5
Assy Cover Display; Aw3/4 F-Hub,27.5",s/w SAM-DA97-17068P
...
1
Assy Door Sub-Ref Right; Aw3,f-Hub,sts201 SAM-DA93-00237L
...
2
Cover Lock; Abs,t2.5,inox Gray SAM-DA63-08449A
...
3-1-1
Screw-Tapping SAM-6002-000213
...
3-1-2
Screw-Set SAM-6009-001526
...
3-1-3
Support-Handle Ref SAM-DA61-08228A
...
3-1-4
Support-Handle Ref Upp SAM-DA61-08246A
...
3-1-5
Handle Bar-Ref R; Aw1-12 & Aw4,al,t1.3,ve SAM-DA64-03756G
...
3-1-6
Cap-Supt Handle Ref SAM-DA67-02788A
...
3-1
Assy Handle Bar-Ref R; Aw4,al(a6063),vers SAM-DA97-12714C
...
3
Assy Handle-Kit; Aw3,versailles Sts With SAM-DA99-04011J
...
4
Assy Guard-Ref Right; Aw3 F/hub,aw4_Cd F/ SAM-DA97-19241A

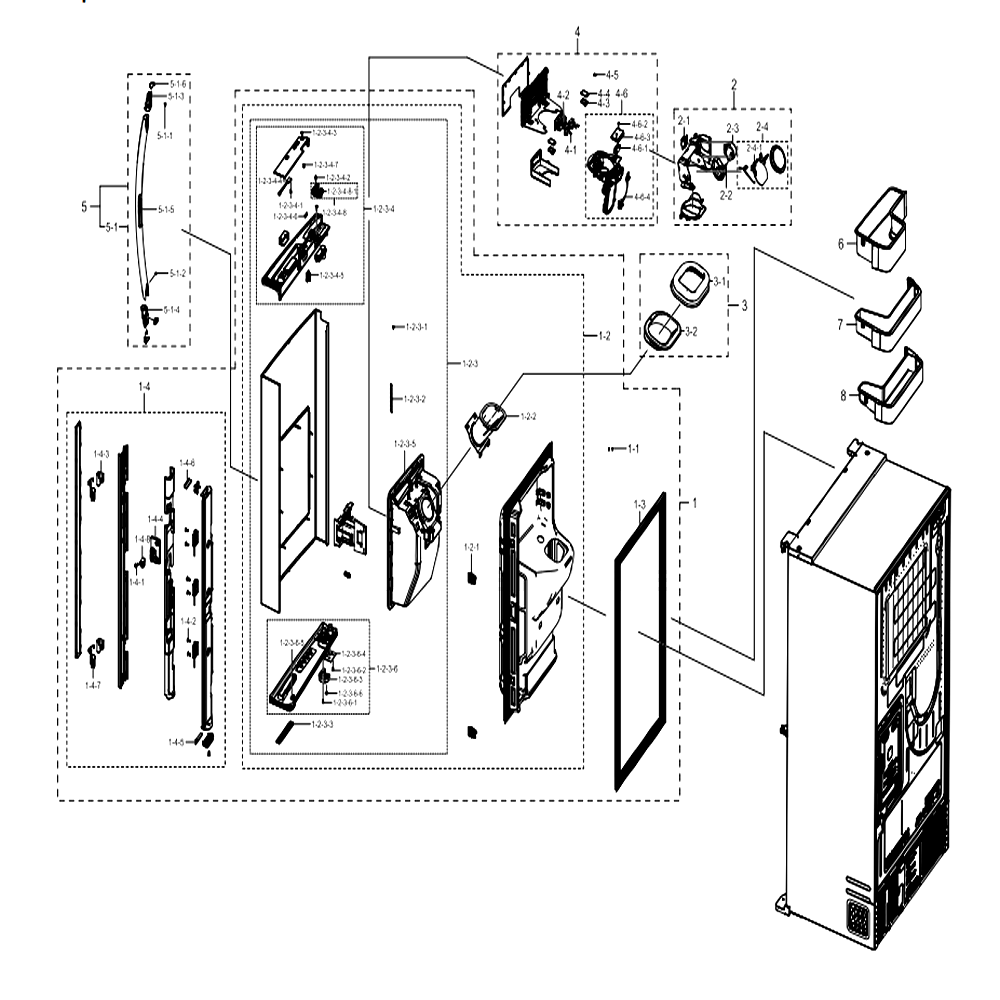

Fridge Door Left

...
...
1-1
Screw-Tapping SAM-6002-001406
...
1-2-1
Assy-Grommet French; Aw-Pjt,-,-,- SAM-DA97-05038A
...
1-2-2
Assy Guide-Ice Route; Aw4,t2.5,cool White SAM-DA97-12593A
...
1-2-3-1
Screw-Tapping SAM-6002-000217
...
1-2-3-2
Assy Lamp Led; 2,fr-4,20*30,white,smaw250 SAM-DA41-00676J
...
1-2-3-3
Cover-Cap Door Led SAM-DA63-05524A
...
1-2-3-4-1
Screw-Tapping SAM-6002-000466
...
1-2-3-4-2
Screw-Tapping SAM-6002-000613
...
1-2-3-4-3
Screw-Tapping SAM-6002-001122
...
1-2-3-4-4
Sensor Humidity SAM-DA32-00034B
...
1-2-3-4-5
Switch Door-Interlock SAM-DA34-00066C
...
1-2-3-4-6
Magnet-A SAM-DA61-03769A
...
1-2-3-4-7
Cap-Shaft Hole SAM-DA67-02795C
...
1-2-3-4-8-1
Roller-Auto Close SAM-DA66-00440A
...
1-2-3-4-8
Assembly Lever-Auto Close SAM-DA97-12625A
...
1-2-3-4
Assy Cap Door-Ref Up Left; Aw3 F/hub,inox SAM-DA97-13883Q
...
1-2-3-5
Assy Case Dispenser; Aw3 F/hub,inox Metal SAM-DA97-13952K
...
1-2-3-6-1
Screw-Machine SAM-6001-000716
...
1-2-3-6-2
Screw-Tapping SAM-6002-001120
...
1-2-3-6-3
Support Cap Door-Left; Rf9000k,pom,t3.5,k SAM-DA61-10856A
...
1-2-3-6-4
Stopper Door-L; Romanee Conti,po-Sphc,bla SAM-DA61-08816A
...
1-2-3-6-5
Grommet-Chassis Up SAM-DA63-04825A
...
1-2-3-6-6
Grommet-Stopper SAM-DA63-40294A
...
1-2-3-6
Assy Cap Door-Ref Low Left; Aw3-14,inox G SAM-DA97-14358H
...
1-2-3
Assy Plate Door-Ref Left; Aw3 F/hub,rs,di SAM-DA97-16102L
...
1-2
Assy Door Foam-Ref Left; Aw3,,f-Hub,sts20 SAM-DA91-04200K
...
1-3
Assy Gasket-Ref; Aw4-4d,gray SAM-DA97-13015C
...
1-4-1
Screw-Tapping SAM-6002-000213
...
1-4-2
Screw-Tapping SAM-6002-000630
...
1-4-3
Hinge-French SAM-DA61-08305A
...
1-4-4
Cover-Heater French SAM-DA63-03454B
...
1-4-5
Gasket-French Low; Aw-Pjt,si,gray SAM-DA63-06842B
...
1-4-6
Gasket-French Upp; Aw4,si,gray SAM-DA63-06959A
...
1-4-7
Cap-Case French SAM-DA67-01650A
...
1-4-8
Cap-Case French Mid SAM-DA67-01701A
...
1-4
Assy French; Aw3 F/hub,camera, Silver, 11 SAM-DA97-17723E
...
1
Assy Door Sub-Ref Left; Aw3,f-Hub,sts201, SAM-DA93-00228E
...
2-1
Switch-Micro SAM-3405-001117
...
2-2
Screw-Tapping SAM-6002-001364
...
2-3
Motor Geared-Disp SAM-DA31-00079D
...
2-4-1
Cover-Ice Route A SAM-DA63-04647A
...
2-4
Assembly Cover-Ice Route SAM-DA97-05368A
...
2
Assy Case-Ice Route; Aw4,120v SAM-DA97-08680E
...
3-1
Gasket; Fdsr,tpe,white SAM-DA63-08248A
...
3-2
Cap-Chute Ice SAM-DA67-03312A
...
3
Assembly Cap-Chute Ice SAM-DA97-12594A
...
4-1
Screw-Tapping SAM-6002-000630
...
4-2
Assembly Pcb Kit SAM-DA41-00217A
...
4-3
Case Lamp-Led SAM-DA61-05687A
...
4-4
Cover-Lamp-Led SAM-DA63-02446A
...
4-5
Assy Module; Dispenser Pba,aw1-12 Hub,dis SAM-DA92-00940A
...
4-6-1
Switch-Micro; 250vac,1a,80,spst-No,t105 SAM-3405-001119
...
4-6-2
Screw-Tapping SAM-6002-000630
...
4-6-3
Cover-Switch SAM-DA63-05449A
...
4-6-4
Assy Wire Harness-Display; 12vdc,ul+iec,n SAM-DA96-01223C
...
4-6
Assy Lever Dispenser; Aw3 F/hub,1-Lever SAM-DA97-12628S
...
4
Assy Cover Dispenser; Aw3 F/hub,real Sts SAM-DA97-19305A
...
5-1-1
Screw-Tapping SAM-6002-000213
...
5-1-2
Screw-Set SAM-6009-001526
...
5-1-3
Support-Handle Ref SAM-DA61-08228A
...
5-1-4
Support-Handle Ref Upp SAM-DA61-08246A
...
5-1-5
Handle Bar-Ref L; Aw1-12 & Aw4,al,t1.3,ve SAM-DA64-03756K
...
5-1-6
Cap-Supt Handle Ref SAM-DA67-02788A
...
5-1
Assy Handle Bar-Ref L; Aw4,al(a6063),vers SAM-DA97-12715C
...
5
Assy Handle-Kit; Aw3,versailles Sts With SAM-DA99-04011J
...
6
Assy Guard-Ref Up; Aw4-4d(cd) SAM-DA97-13804A
...
7
Assy Guard-Ref Middle; Aw4-4d(c/d) SAM-DA97-13818A
...
8
Assy Guard-Ref Low; Aw4-4d(c/d) SAM-DA97-13819A

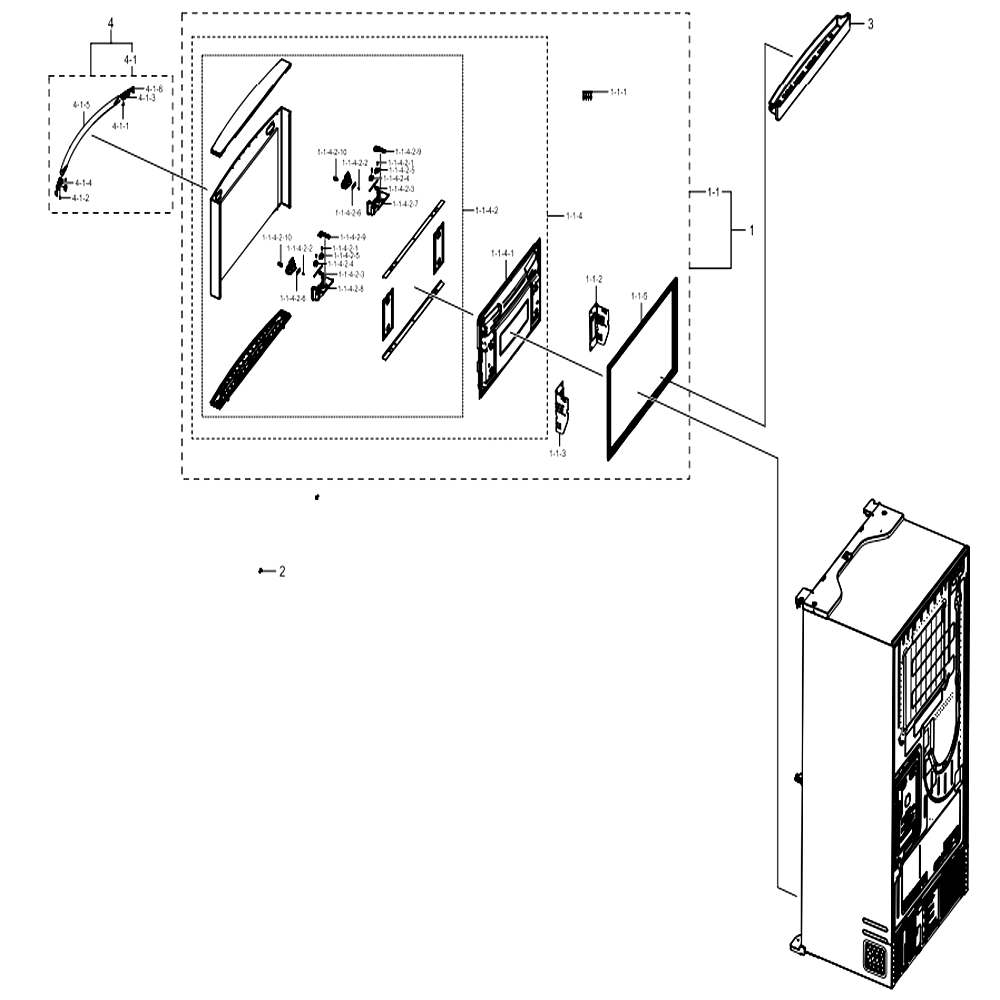

Mid Door

...
...
1-1-1
Screw-Tapping SAM-6002-000613
...
1-1-2
Hanger-Front Middle Left SAM-DA61-09248A
...
1-1-3
Hanger-Front Middle Right SAM-DA61-09249A
...
1-1-4-1
Assy Lamp Led; 2,fr-4,20*30,white,smaw250 SAM-DA41-00676J
...
1-1-4-2
Slider-Easy Handle; Aw4,pom,creamy-Sts,f2 SAM-DA61-08234A
...
1-1-4-3
Cover-Cap Door Led SAM-DA63-05524A
...
1-1-4-4-1
Screw-Tapping SAM-6002-000215
...
1-1-4-4-2
Screw-Tapping SAM-6002-000630
...
1-1-4-4-3
Spring Etc-Easy Handle SAM-DA61-04335A
...
1-1-4-4-4
Fixer-Shaft R SAM-DA61-05899A
...
1-1-4-4-5
Fixer-Shaft L SAM-DA61-05930A
...
1-1-4-4-6
Reinf-Cap Handle SAM-DA61-06658A
...
1-1-4-4-7
Fixer Handle; Aw3-14,swrch10a,m8 SAM-DA61-11161A
...
1-1-4-4
Assy Support-Left; Aw3-14,assy,inox Gray SAM-DA97-13870D
...
1-1-4-5-1
Screw-Tapping SAM-6002-000215
...
1-1-4-5-2
Screw-Tapping SAM-6002-000630
...
1-1-4-5-3
Spring Etc-Easy Handle SAM-DA61-04335A
...
1-1-4-5-4
Fixer-Shaft R SAM-DA61-05899A
...
1-1-4-5-5
Fixer-Shaft L SAM-DA61-05930A
...
1-1-4-5-6
Reinf-Cap Handle SAM-DA61-06658A
...
1-1-4-5-7
Fixer Handle; Aw3-14,swrch10a,m8 SAM-DA61-11161A
...
1-1-4-5
Assy Support-Right; Aw3-14,assy,inox Gray SAM-DA97-13871D
...
1-1-4
Assy Door Foam-Middle; Aw3 F/hub,f/hub, R SAM-DA91-04926A
...
1-1-5
Assy Gasket-Middle; Aw4-4d,gray SAM-DA97-12522Q
...
1-1
Assy Door; Aw3 F/hub,mid, Rs, No Display SAM-DA97-13797Q
...
1
Assy Door Sub-Middle; Aw3 F/hub,real Sts, SAM-DA93-00220J
...
2
Bolt-Hex SAM-6011-001656
...
3
Cover-W/harness Conv Door SAM-DA63-05462C
...
4-1-1
Screw-Tapping SAM-6002-000213
...
4-1-2
Screw-Set SAM-6009-001526
...
4-1-3
Support-Handle Fre SAM-DA61-08229A
...
4-1-4
Support-Handle Fre R SAM-DA61-08247A
...
4-1-5
Handle Bar-Fre; Aw1-12,aw4,al,t1.3,versai SAM-DA64-03945F
...
4-1-6
Cap-Handle Fre SAM-DA67-02787A
...
4-1
Assy Handle Bar-Fre; Aw4,al(a6063),versai SAM-DA97-12712C
...
4
Assy Handle-Kit; Aw3,versailles Sts With SAM-DA99-04011J

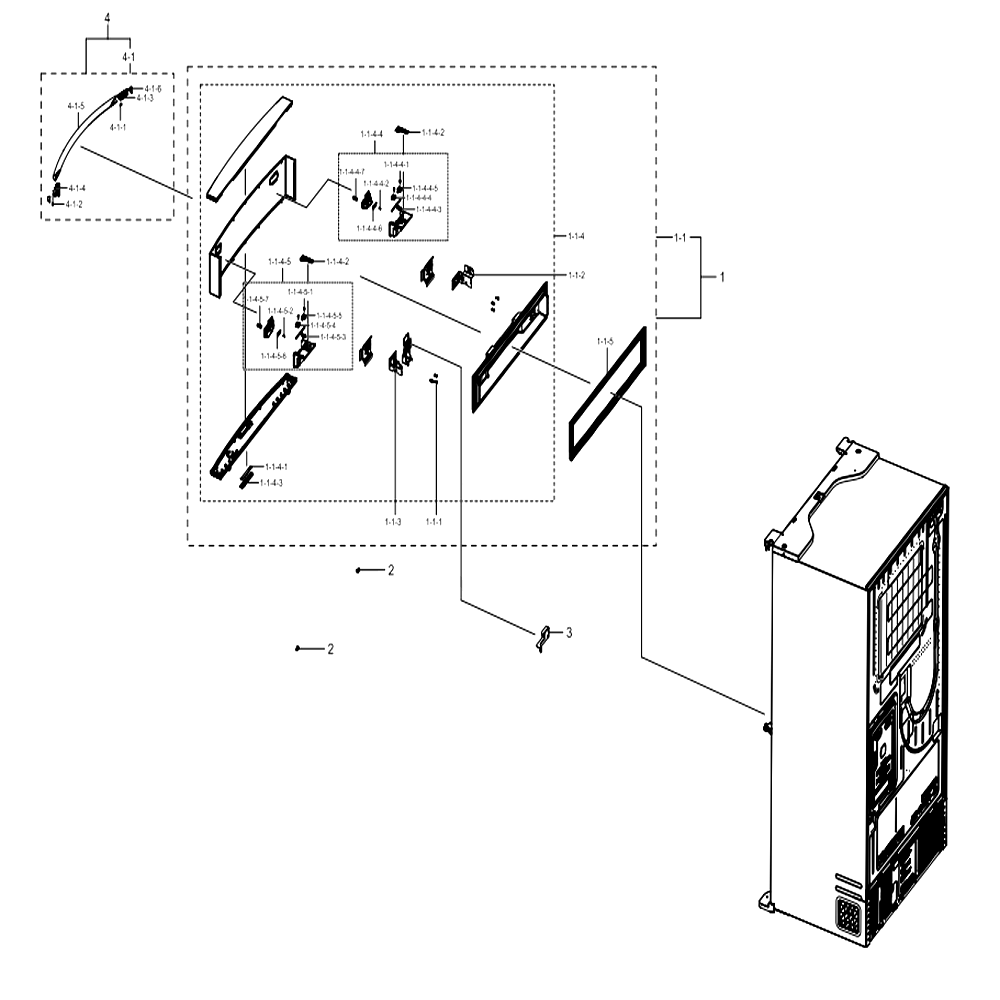

Freezer Door

...
...
1-1-1
Screw-Tapping SAM-6002-000613
...
1-1-2
Hanger-Front Left SAM-DA61-09555A
...
1-1-3
Hanger-Front Right SAM-DA61-09556A
...
1-1-4-1
Panel-Fre; Aw4-4d,abs,qu-191s,cool White SAM-DA64-04494A
...
1-1-4-2-1
Screw-Tapping SAM-6002-000215
...
1-1-4-2-2
Screw-Tapping SAM-6002-000630
...
1-1-4-2-3
Spring Etc-Easy Handle; 08 Aw1,2-Pjt,hswr SAM-DA61-04335B
...
1-1-4-2-4
Fixer-Shaft R SAM-DA61-05899A
...
1-1-4-2-5
Fixer-Shaft L SAM-DA61-05930A
...
1-1-4-2-6
Reinf-Cap Handle SAM-DA61-06658A
...
1-1-4-2-7
Support Cap Door-Left; Aw3-14,abs,hb,cr-0 SAM-DA61-08211D
...
1-1-4-2-8
Support Cap Door-Right; Aw3-14,abs,hb,cr- SAM-DA61-08226D
...
1-1-4-2-9
Slider-Easy Handle; Aw4,pom,creamy-Sts,f2 SAM-DA61-08234A
...
1-1-4-2-10
Fixer Handle; Aw3-14,swrch10a,m8 SAM-DA61-11161A
...
1-1-4-2
Assy Plate Door-Fre; Aw3-14,assy,inox Gra SAM-DA97-14544A
...
1-1-4
Assy Door Foam-Fre; Aw3 F/hub,sr, Vip SAM-DA91-04003V
...
1-1-5
Assy Gasket-Fre; Aw4-4d,gray SAM-DA97-12522S
...
1-1
Assy Door Fre; Aw3 F/hub,sr,vip SAM-DA90-09373N
...
1
Assy Door Sub-Fre; Aw3 F/hub,sr, Vip SAM-DA93-00219K
...
2
Bolt-Hex SAM-6011-001656
...
3
Guard-Fre SAM-DA63-07512A
...
4-1-1
Screw-Tapping SAM-6002-000213
...
4-1-2
Screw-Set SAM-6009-001526
...
4-1-3
Support-Handle Fre SAM-DA61-08229A
...
4-1-4
Support-Handle Fre R SAM-DA61-08247A
...
4-1-5
Handle Bar-Fre; Aw1-12,aw4,al,t1.3,versai SAM-DA64-03945F
...
4-1-6
Cap-Handle Fre SAM-DA67-02787A
...
4-1
Assy Handle Bar-Fre; Aw4,al(a6063),versai SAM-DA97-12712C
...
4
Assy Handle-Kit; Aw3,versailles Sts With SAM-DA99-04011J
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
