Samsung RF28N9780SR/AA_0002

Model: RF28N9780SR/AA_0002

Save Part Not Listed?
product name

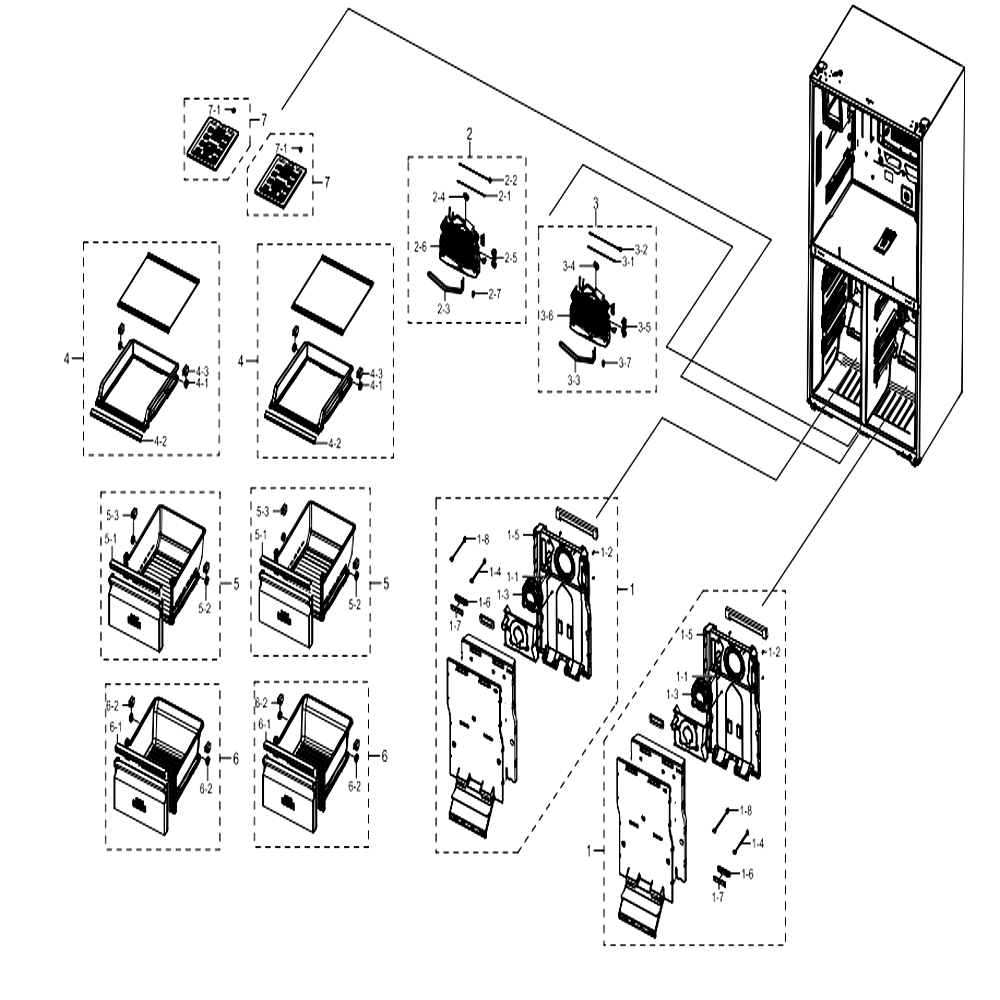

Freezer

...
...
1-1
Screw-Tapping SAM-6002-000471
...
1-2
Screw-Tapping SAM-6002-001204
...
1-3
Motor Bldc Fan; Ares2120ra,18704%,12v,m SAM-DA31-00334A
...
1-4
Sensor Temp; Dkst1329gw,queen,-50 ~ 80 SAM-DA32-00011C
...
1-5
Cover Evap-Fre Rear; Rf9000k,pp,hb,gray SAM-DA63-08291A
...
1-6
Cover-Led SAM-DA63-03056B
...
1-7
Pba-Led Lamp SAM-DA41-00519R
...
1-8
Assy-W/harness-Photosynthesis-Led; Hermes SAM-DA96-00263C
...
1
Assy Cover Evap-Fre; Rf8000k SAM-DA97-16139A
...
2-1
Sensor Temp; Dkst1329gw,aw3,-50~80??5v, SAM-DA32-10104V
...
2-2
Thermo Fuse-Assy; Ac250v,10a,109~110s SAM-DA47-00301D
...
2-3
Heater Metal Sheath; Ac120v,romanee Conti SAM-DA47-00318K
...
2-4
Fixer-Senser SAM-DA61-03683A
...
2-5
Fixer-Heater Wire Ref; Hm/ggh/haemil,pp,n SAM-DA61-06700A
...
2-6
Plate-Drain Evap Fre; Romanee Conti,al,t0 SAM-DA61-08675A
...
2-7
Plate Heater; Brf8000m,al,t0.7,a1100p-H14 SAM-DA61-12385A
...
2
Assy Evap-Fre; Rf9000k,fin Tube,120v,120w SAM-DA96-01021E
...
3-1
Sensor Temp; Dkst1329gw,aw3,-50~80??5v, SAM-DA32-10104V
...
3-2
Thermo Fuse-Assy; Ac250v,10a,109~110s SAM-DA47-00301D
...
3-3
Heater Metal Sheath; Ac120v,romanee Conti SAM-DA47-00318K
...
3-4
Fixer-Senser SAM-DA61-03683A
...
3-5
Fixer-Heater Wire Ref; Hm/ggh/haemil,pp,n SAM-DA61-06700A
...
3-6
Plate-Drain Evap Fre; Romanee Conti,al,t0 SAM-DA61-08675A
...
3-7
Plate Heater; Brf8000m,al,t0.7,a1100p-H14 SAM-DA61-12385A
...
3
Assy Evap-Fre; Rf9000k,fin Tube,120v,120w SAM-DA96-00987D
...
4-1
Roller-Fre SAM-DA66-10104A
...
4-2
Trim-Shelf Fre; Romanee,hips,s-834s1,cool SAM-DA64-04307B
...
4-3
Fixer-Roller SAM-DA71-20277A
...
4
Assy Shelf Slide-Fre; Rf9000k,assy SAM-DA97-16214B
...
5-1
Trim-Tray Fre; Romanee,hips,s834s1,cool W SAM-DA64-04323B
...
5-2
Roller-Fre SAM-DA66-10104A
...
5-3
Fixer-Roller SAM-DA71-20277A
...
5
Assy Case Basket-Fre; Rf9000k,assy SAM-DA97-16212C
...
6-1
Trim-Tray Fre; Romanee,hips,s834s1,cool W SAM-DA64-04323B
...
6-2
Roller-Fre SAM-DA66-10104A
...
6
Assy Case Basket-Fre Low; Rf9000k,assy SAM-DA97-16213B
...
7-1
Cap-Ice Pack; Rt26/28/31,pp,t1.5,-,natura SAM-DA67-02855A
...
7
Assy Shelf Ice Pack; New T9000 SAM-DA97-16132A

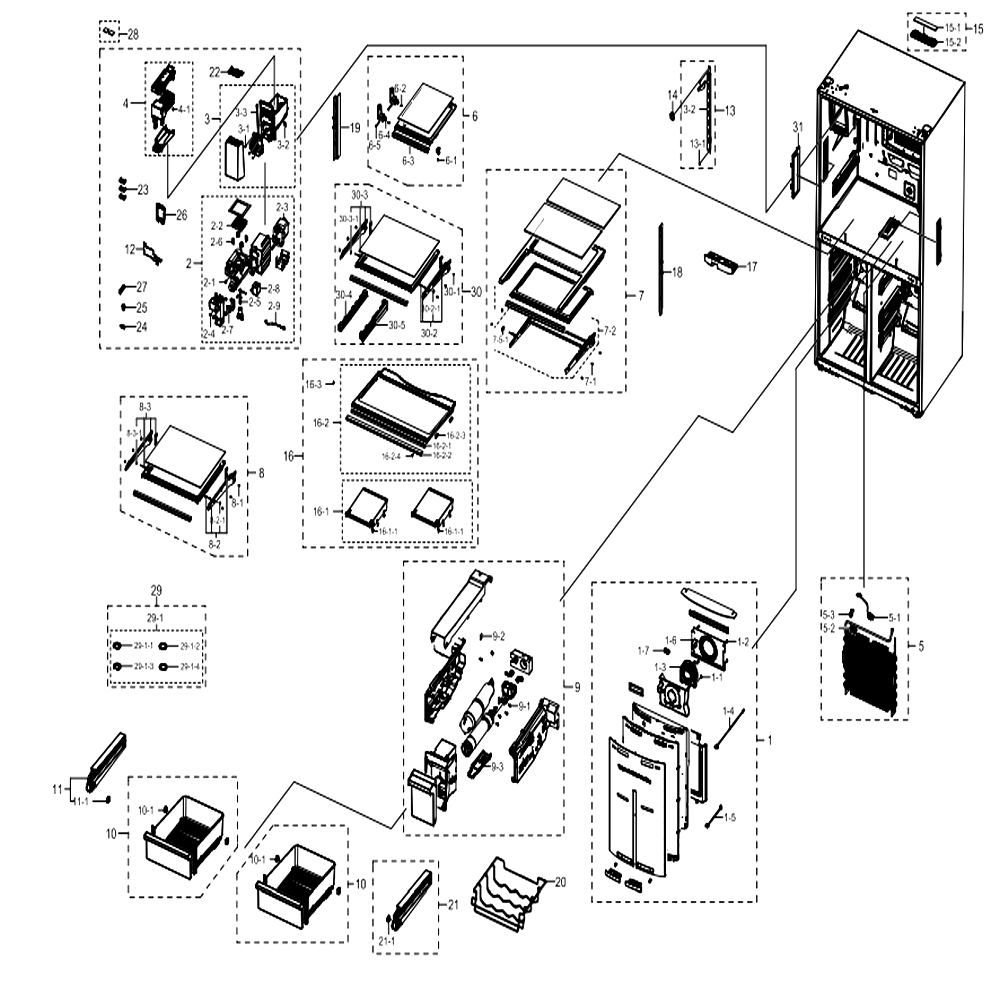

Fridge

...
...
1-1
Screw-Tapping SAM-6002-000471
...
1-2
Screw-Tapping SAM-6002-001204
...
1-3
Motor Bldc Fan; Ares2120ra,18704%,12v,m SAM-DA31-00334A
...
1-4
Sensor Temp; Dkst1329gw,queen,-50 ~ 80 SAM-DA32-00011C
...
1-5
Sensor Humidity; Da32-00034e,5v,0~100%rh, SAM-DA32-00034E
...
1-6
Case-Motor Fre SAM-DA61-08425A
...
1-7
Grommet Fixer; Rf-H920g,rubber,black SAM-DA63-07761A
...
1
Assy Cover Evap-Ref; Rf9000jc,plate Cooli SAM-DA97-15409G
...
2-1
Screw-Tapping SAM-6002-000471
...
2-2
Motor Bldc Fan SAM-DA31-00070E
...
2-3
Motor Geared Ac Auger SAM-DA31-00105M
...
2-4
Screw-Special SAM-DA60-00001B
...
2-5
Spring Etc-Solenoid SAM-DA61-20140A
...
2-6
Grommet-Fan SAM-DA63-02513A
...
2-7
Fixer-Nut; Guggenheim,sts420,j2,sk5 SAM-DA71-00163B
...
2-8
Valve-Solenoid SAM-DA74-40151G
...
2-9
Assembly Wire Harness-Auger SAM-DA96-00682D
...
2
Assy Case Auger Motor; Aw4-4d,115v 60hz SAM-DA97-12540G
...
3-1
Screw-Tapping SAM-6002-000471
...
3-2
Spring Etc-Dispenser SAM-DA61-20124D
...
3-3
Gasket-Tray Ice Bucket SAM-DA63-07185A
...
3
Assy Tray Ice;fdr,t-Type F/s SAM-DA97-14474C
...
4-1
Screw-Tapping SAM-6002-000471
...
4
Assy Ice Maker; Aw4,115v, 60hz SAM-DA97-15217D
...
5-1
Sensor Temp; Dkst1329gw,double_Insulation SAM-DA32-10104W
...
5-2
Fixer-Senser SAM-DA61-03683A
...
5-3
Fixer Wire; Aw3-Pjt,pp,t2.0,natural,hb,bj SAM-DA61-06013B
...
5
Assy Evap-Ref; Rf9000m,fin Tube,id3.3 SAM-DA96-01140B
...
6-1
Screw-Tapping SAM-6002-001397
...
6-2
Spring Etc-Hinge Shelf SAM-DA61-03705A
...
6-3
Trim-Shelf Ref; Romanee,hips,s834s1,cool SAM-DA64-04306F
...
6-4
Roller-Hinge-Shelf SAM-DA66-00482A
...
6-5
Shaft-Hinge-Shelf SAM-DA66-00483A
...
6
Assy Shelf Folder; Rf9000k,silver Trim SAM-DA97-16209B
...
7-1
Screw-Tapping SAM-6002-001397
...
7-2-1
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09550A
...
7-2
Assy Hanger; Rf9000k,cool White,wt0057, S SAM-DA97-14348B
...
7
Assy Shelf Quick Space; Rf9000k,silver Tr SAM-DA97-16210B
...
8-1
Screw-Tapping SAM-6002-001397
...
8-2-1
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09549A
...
8-2
Assy Hanger-Right; Aw3-14,cool White,wt00 SAM-DA97-14322C
...
8-3-1
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09550A
...
8-3
Assy Hanger-Left; Aw3-14,cool White,wt005 SAM-DA97-14323D
...
8
Assy Shelf Insert-Ref Fix; Rf9000k,silver SAM-DA97-16220C
...
9-1
Screw-Tapping SAM-6002-000213
...
9-2
Clip-Fitting Lock SAM-DA61-04522A
...
9-3
Tray-Water Filter SAM-DA63-05407A
...
9
Assy Case Filter; Rf9000k,110v SAM-DA97-16166B
...
10-1
Assembly Roller SAM-DA97-15998A
...
10
Assy Case Veg; Rf9000k,assy, Silver Trim SAM-DA97-16215B
...
11-1
Assembly Roller SAM-DA97-15998A
...
11
Assy Rail-Middle Left; Rf9000k,assy SAM-DA97-16223A
...
12
Cover-Wire Harness Ice SAM-DA63-06894A
...
13-1
Screw-Tapping SAM-6002-001397
...
13-2
Angle Shelf-Ref Middle; Gi-Sgcc,t2.5,inox SAM-DA61-08264C
...
13
Assy Angle Shelf-Ref Middle; Rf9000jc,ino SAM-DA97-15620B
...
14
Assembly Cap Angle SAM-DA97-15412A
...
15-1
Assy Lamp Led; 3ea,cem-1,100*20,white,sma SAM-DA41-00519P
...
15-2
Cover Lamp-Led Front; Cullinan,pc,transpa SAM-DA63-04921B
...
15
Assy Cover Lamp; Rf9000k,pc,t2.0,natural SAM-DA97-16536A
...
16-1-1
Grommet-Rail; Chilled,pa6 SAM-DA63-40305A
...
16-1
Assy Cover Veg-Up; Rf9000k,assy,apply Gro SAM-DA97-16834A
...
16-2-1
Reinf-Cover Veg SAM-DA61-04292A
...
16-2-2
Trim-Shelf Fre; Romanee,hips,s-834s1,cool SAM-DA64-04307D
...
16-2-3
Trim Shelf; Aram,pe,cool White SAM-DA64-03784A
...
16-2-4
Screw-Tapping SAM-6002-000213
...
16-2
Assy Shelf-Ref; Rf9000k,assy,silver Trim SAM-DA97-16837A
...
16-3
Screw-Tapping SAM-6002-000213
...
16
Assy Shelf Veg-Low; Rf9000k,silver Trim SAM-DA97-16221D
...
17
Guide-French SAM-DA61-04285A
...
18
Angle-Shelf Ref Side R; Gi-Sgcc,2.5,cool- SAM-DA61-08632A
...
19
Angle-Shelf Ref Side L; Gi-Sgcc,2.5,cool SAM-DA61-08693A
...
20
Assy Rack Wine; Rf9500k,f/s SAM-DA97-16721B
...
21-1
Assembly Roller SAM-DA97-15998A
...
21
Assy Rail-Middle Right; Rf9000k,assy SAM-DA97-16224A
...
22
Case Magnet; Aw3-14,abs,cool White,hf-066 SAM-DA61-09570A
...
23
Fixer Cover; Aw3-14,hips,natural,s834s1 SAM-DA61-12488A
...
24
Valve-Fitting Pu SAM-DA62-00305A
...
25
Valve-Fitting Nut SAM-DA74-00070B
...
26
Assembly Cover-Tube Filter SAM-DA97-08413B
...
27
Tube-Fitting SAM-DA62-03914A
...
28
Catalyst; T5,w100,l100,mesh+fouder Type SAM-DA02-00244A
...
29-1-1
Fastener-Hinge; Romanee Conti,pom,black SAM-DA60-00314A
...
29-1-2
Fastener-Hinge; Romanee Conti,pom,t1.5,bl SAM-DA60-00314B
...
29-1-3
Fastener-Hinge; Romanee Conti,pom,t2.0,bl SAM-DA60-00314C
...
29-1-4
Fastener-Hinge; Romanee Conti,pom,t2.5,bl SAM-DA60-00314D
...
29-1
Assy Accessory; Romanee Conti,adjustment SAM-DA99-04158A
...
29
Assy Manual; Rf9500nf,aa SAM-DA98-01758P
...
30-1
Screw-Tapping SAM-6002-001397
...
30-2-1
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09549A
...
30-2
Assy Hanger-Right; Aw3-14,cool White,wt00 SAM-DA97-14322C
...
30-3-1
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09550A
...
30-3
Assy Hanger-Left; Aw3-14,cool White,wt005 SAM-DA97-14323D
...
30-4
Rail Shelf-Left; Rf8000k,pp,cool White,bj SAM-DA61-10796A
...
30-5
Rail Shelf-Right; Rf8000k,pp,cool White,b SAM-DA61-10808A
...
30
Assy Shelf Insert-Ref Fix; Rf9000k,silver SAM-DA97-16220D
...
31
Assy Cover Lamp; Rf8000mc SAM-DA97-16143B

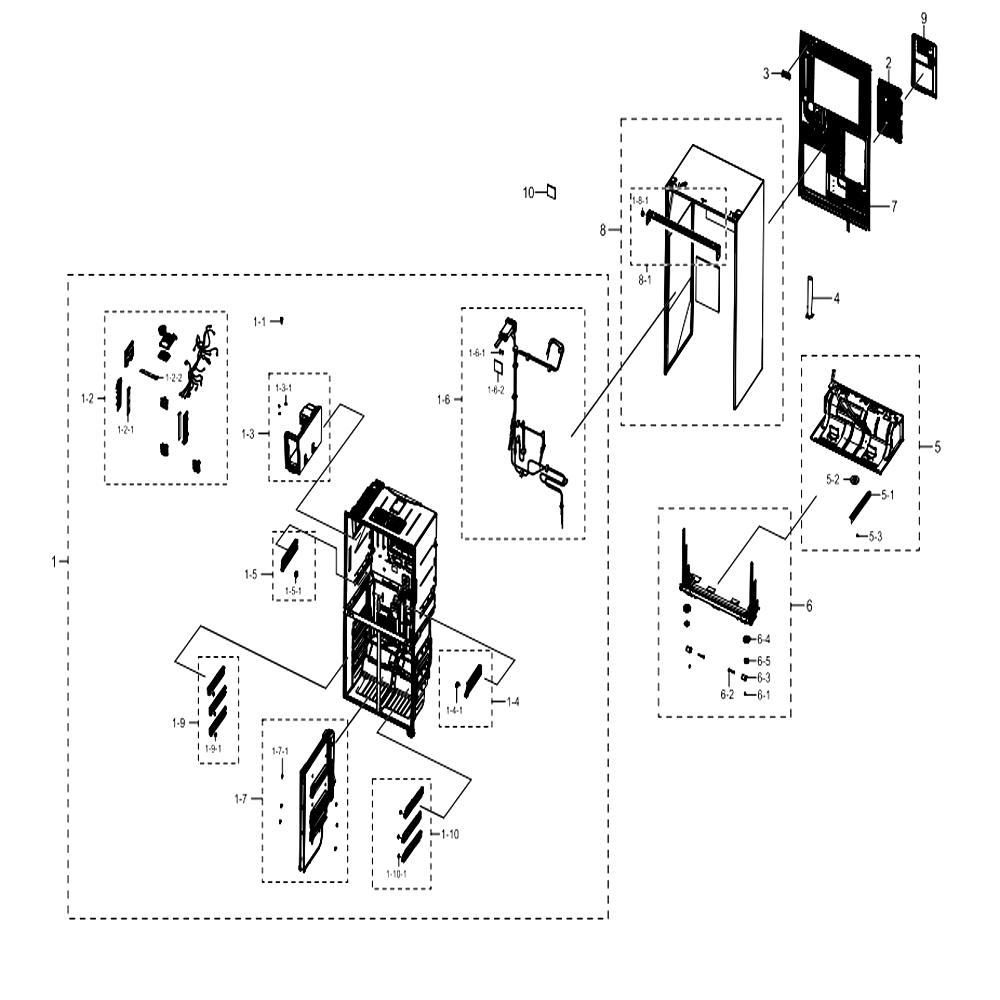

Cabinet 1

...
...
1-1
Screw-Tapping SAM-6002-000215
...
1-2-1
Assembly Lamp Led SAM-DA96-01119A
...
1-2-2
Assy Lamp Led; 6,fr-4,150*12,white,smaw25 SAM-DA96-01119B
...
1-2
Assy Wire Harness-Main; Rf9500k,i & M, Fami SAM-DA96-01179A
...
1-3-1
Screw-Tapping SAM-6002-000471
...
1-3
Assy Case Ice; Aw4,urethane,assy SAM-DA97-12576B
...
1-4-1
Assembly Roller SAM-DA97-15998A
...
1-4
Assy Rail-Ref Low Right; Rf8000k SAM-DA97-16157A
...
1-5-1
Assembly Roller SAM-DA97-15998A
...
1-5
Assy Rail-Ref Low Left; Rf8000k SAM-DA97-16153A
...
1-6-1
Fixer Pipe; Fdr/t-Type Ice Room Model,sts SAM-DA61-12775A
...
1-6-2
Seal Cutt-Rubber; Rr2500k,rubber,black,t5 SAM-DA62-01018A
...
1-6
Assy Pipe Suction; Rf9000k,dispenser SAM-DA97-16144A
...
1-7-1
Roller-Fre SAM-DA66-10104A
...
1-7
Assy Partition-Fre V; Rf8000k,depth 748 SAM-DA97-16174A
...
1-8-1
Bolt-Etc; M8,l14.1(3.4),fe-Fzb,scm435,3-B SAM-6011-001694
...
1-9-1
Roller-Fre SAM-DA66-10104C
...
1-9
Assembly Rail-Drawer L SAM-DA97-10870B
...
1-10-1
Roller-Fre SAM-DA66-10104C
...
1-10
Assembly Rail-Drawer R SAM-DA97-10880B
...
1
Assy Liner; Rf9500k,f/s,110v,dispenser,ur SAM-DA94-03028F
...
2
Case-Pba Main; Romanee-Conti,pc,ebony Bla SAM-DA61-08587A
...
3
Assy Cover-Fixer Water; Opus1,assy SAM-DA97-08494B
...
4
Assy Guide Hose-Bottom; Aw3-14,foam Pe SAM-DA97-14866A
...
5-1
Trim Blade; Aw3-14,pvc,gray SAM-DA64-05373A
...
5-2
Seal-Drain Hose; Aram10,pu Foam,t10,30 SAM-DA72-00238B
...
5-3
Screw-Tapping SAM-6002-000213
...
5
Assy Cabi Bottom-Rear; New T9000,dispense SAM-DA97-08455S
...
6-1
Screw-Tapping SAM-6002-000213
...
6-2
Caster-Rivet SAM-DA61-01920A
...
6-3
Caster-Front SAM-DA61-04702A
...
6-4
Foot-Front SAM-DA61-07972B
...
6-5
Foot SAM-DA61-07973B
...
6
Assy Cabi Bottom-Front; Rf9000k,export, U SAM-DA97-15376F
...
7
Assy Cabi Frame-Rear; Rf8000k,disp,usa SAM-DA97-15389G
...
8-1
Assy Reinf Cabi-Flange Up; Aw-Pjt SAM-DA97-06920Q
...
8
Assy Cabi Frame; Rf9500k,f/s,dispenser,ur SAM-DA97-16707F
...
9
Assy Cover Pba-Main; Romanee-Conti SAM-DA97-13181C
...
10
Seal Cutt-Rubber; Rr2500k,rubber,black,t5 SAM-DA62-01018A

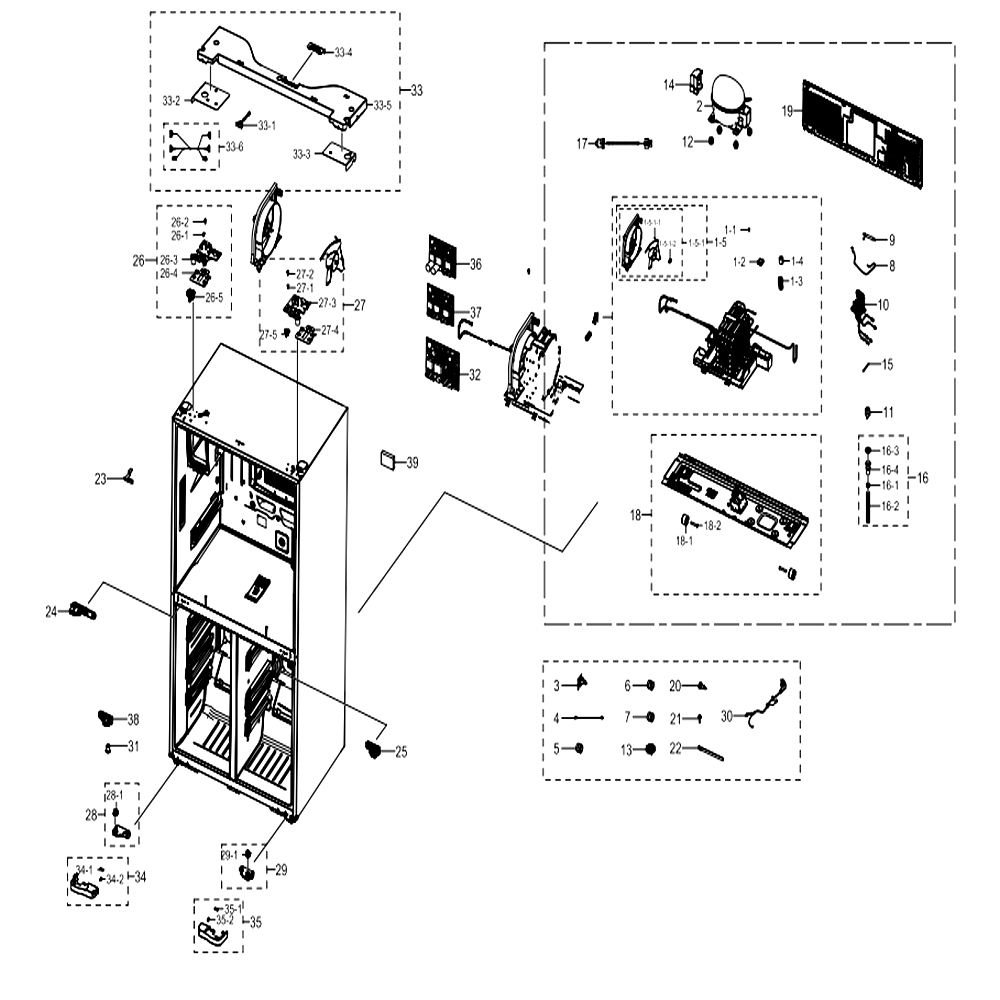

Cabinet 2

...
...
1-1
Screw-Tapping SAM-6002-000213
...
1-2
Grommet-Cond Sub SAM-DA63-04424A
...
1-3
Grommet-Immersion Pipe B SAM-DA63-07323A
...
1-4
Grommet-Suct Pipe A SAM-DA63-40171B
...
1-5-1-1
Fan SAM-DA31-00320A
...
1-5-1-2
Spring Etc-Fan SAM-DA61-20128A
...
1-5-1
Motor Bldc Fan; Rmf002assa,1120 Rpm,12v,0 SAM-DA31-00340A
...
1-5
Assy Support-Circuit Motor; Rh9000k SAM-DA97-15765C
...
1
Assy Tray Drain Water; Aw,pfc SAM-DA97-15978B
...
2
Cmp,refrigerator,r-134a; Cmp,refrigerator,r-134a SAM-NC1MV90ALP/E01
...
3
Coil Filter SAM-DA27-00043D
...
4
Wire Harness-Earth SAM-DA39-20389L
...
5
Fitting-Lokring 16; Sum23,16, 11smnpb30k SAM-DA60-00279A
...
6
Fitting-Lokring 33 SAM-DA60-00280A
...
7
Fitting-Lokring 43 SAM-DA60-00281A
...
8
Pipe Connect-Suction; C1220t-O,od6.35,t0. SAM-DA62-03691A
...
9
Dryer SAM-DA62-04309A
...
10
Valve Step; Dc12v,module,80mm,3way,all Op SAM-DA62-04617D
...
11
Grommet-Drain Hose; V2-Pjt,nbr,black SAM-DA63-00951C
...
12
Grommet Comp; Usp05,epdm,od27.0,black SAM-DA63-02617C
...
13
Cover-Urethane SAM-DA63-03809A
...
14
Cover Relay; Msv,mppo,t2.0,5v-A,black,m-H SAM-DA63-06122A
...
15
Pipe-Connect Disc,b SAM-DA73-10190U
...
16-1
Fixer-Drain SAM-DA61-05021A
...
16-2
Tube Pvc SAM-DA62-01266B
...
16-3
Grommet-Drain SAM-DA63-02761A
...
16-4
Cap-Drain SAM-DA67-01301A
...
16
Assembly Cap-Drain SAM-DA97-04049E
...
17
Assy Wire Harness-Comp; All,all,free Volt SAM-DA96-01170A
...
18-1
Caster-Rear SAM-DA61-04703A
...
18-2
Shaft-Caster SAM-DA66-00649B
...
18
Assembly Chassis-Comp SAM-DA97-12557A
...
19
Assy Cover Comp; Polaris,gi-Sgcc,t0.25 SAM-DA97-12749J
...
20
Fixer-Step,motor; Ruby,swrch1,-,zpc3-Y,- SAM-DK61-00464A
...
21
Screw-Hex SAM-DA60-10123E
...
22
Holder-Wire; Gi-Sgcc,black SAM-DB61-00206A
...
23
Fixer-Hinge;po-Sphc,t3,zn Coating SAM-DA61-04932B
...
24
Hinge-Middle Left; Rf9000n,zn,zndc2,zndc2 SAM-DA61-13159A
...
25
Hinge-Middle Right; Rf9000n,zn,zndc2,zndc SAM-DA61-13156A
...
26-1
Screw-Tapping SAM-6002-000213
...
26-2
Screw-Tapping SAM-6002-000215
...
26-3
Hinge-Up Left; Rf9000n,po-Sphc,t3,eletrod SAM-DA61-13155A
...
26-4
Shim-Hinge Upp SAM-DA63-50192A
...
26-5
Cam-Auto Close L SAM-DA66-00950A
...
26
Assy Hinge-Up Left; Rf9000n,t3,121.6,135. SAM-DA97-19422A
...
27-1
Screw-Tapping SAM-6002-000213
...
27-2
Screw-Tapping SAM-6002-000215
...
27-3
Hinge-Up Right; Rf9000n,po-Sphc,t3,electr SAM-DA61-13154A
...
27-4
Shim-Hinge Upp SAM-DA63-50192A
...
27-5
Cam-Auto Close R SAM-DA66-00951A
...
27
Assy Hinge-Up Right; Rf9000n,t3,105.4,135 SAM-DA97-19423A
...
28-1
Grommet Hinge; Romanee Conti,pom,black SAM-DA63-07231A
...
28
Assy Hinge-Low Left; Rf9000n,black Painti SAM-DA97-19473A
...
29-1
Grommet Hinge; Romanee Conti,pom,black SAM-DA63-07231A
...
29
Assy Hinge-Low Right; Rf9000n,black Paint SAM-DA97-19474A
...
30
Cbf-Power Cord; At,usa,us3f-1,3c,125v,15a SAM-3903-001003
...
31
Grommet Hinge-Mid; Romanee Conti,pom,blac SAM-DA63-07306A
...
32
Assy Pcb Eeprom; 0xe8,d601,d602,d603,d606 SAM-DA94-03040S
...
33-1
Switch Reed; Ul1007 Awg 22,280(680),25045 SAM-DA34-00043K
...
33-2
Plate-Cover Hinge SAM-DA61-08227A
...
33-3
Plate-Cover Hinge R SAM-DA61-08884A
...
33-4
Cover Hinge-B; Rf9000k,abs,inox Gray,hg-0 SAM-DA63-08442A
...
33-5
Top Table; Romanee Conti,abs,inox Gray,no SAM-DA64-04241D
...
33-6
Assy Wire Harness-Top; T-Fdr,12vdc,all,na SAM-DA96-01174B
...
33
Assy Top Table; Rf9500k,family Hub, Wifi SAM-DA97-12527R
...
34-1
Magnet-A SAM-DA61-03769A
...
34-2
Cap-Shaft Hole SAM-DA67-02795C
...
34
Assy Cover Leg-Front; Rfh920g,l SAM-DA97-14537A
...
35-1
Magnet-A SAM-DA61-03769A
...
35-2
Cap-Shaft Hole SAM-DA67-02795C
...
35
Assy Cover Leg-Front; Rfh920g,r SAM-DA97-14538A
...
36
Assy Pcb Inverter; Inverter,brf9000,155*9 SAM-DA92-00988C
...
37
Assy Module; Smps,rf9500n-Akg,110w, 12vs/ SAM-DA92-01064A
...
38
Shim Hinge-Middle; Rf9000m,pvc,t1.0,natur SAM-DA63-09082A
...
39
Seal Cutt-Rubber; W2-05,rubber,black,t8,w SAM-DA72-60040Y

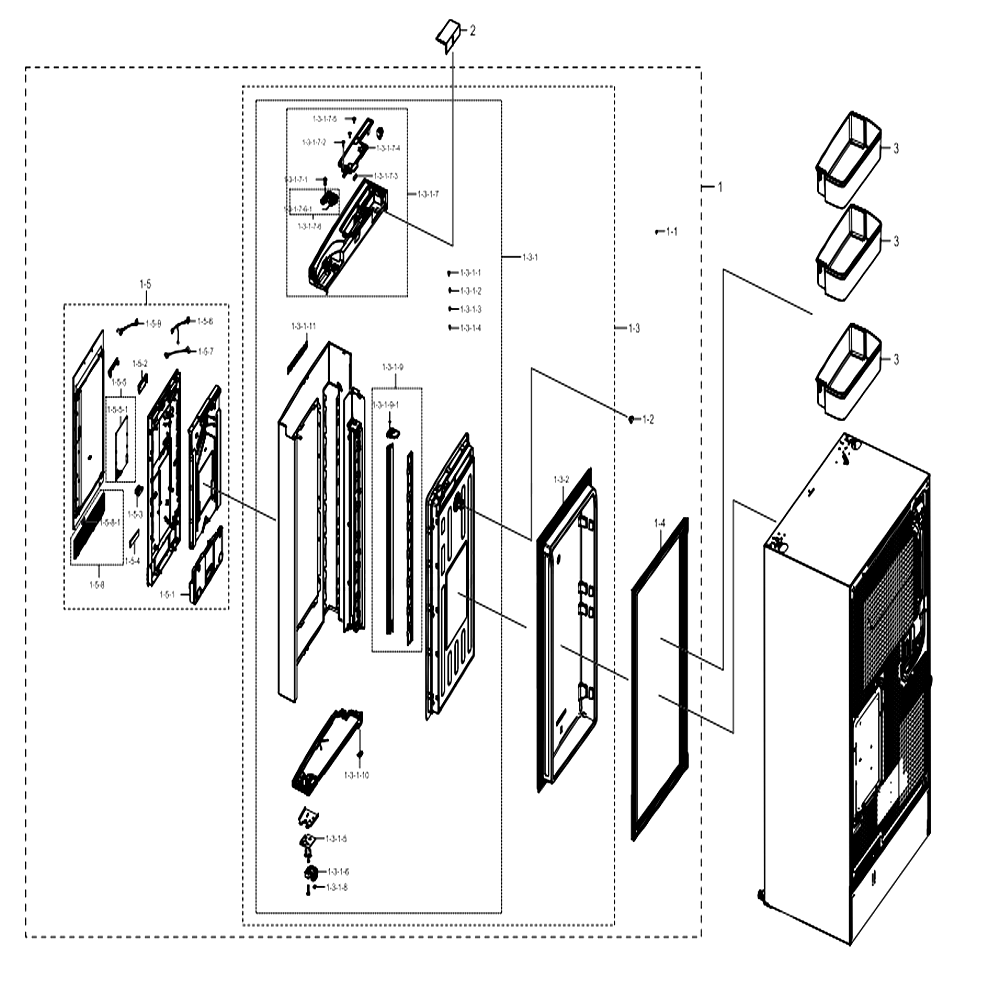

Fridge Door Right

...
...
1-1
Screw-Tapping SAM-6002-000215
...
1-2
Cap-Interlock Switch Hole; Mouton-Pjt,abs SAM-DA67-03218A
...
1-3-1-1
Screw-Machine SAM-6001-000716
...
1-3-1-2
Screw-Tapping SAM-6002-000215
...
1-3-1-3
Screw-Tapping SAM-6002-001120
...
1-3-1-4
Screw-Tapping SAM-6002-001122
...
1-3-1-5
Stopper Door-R; Romanee Conti,po-Sphc,bla SAM-DA61-08817A
...
1-3-1-6
Support Cap Door-Right; Rf9000k,pom,t3.5, SAM-DA61-10855A
...
1-3-1-7-1
Screw-Tapping SAM-6002-000613
...
1-3-1-7-2
Screw-Tapping SAM-6002-001122
...
1-3-1-7-3
Magnet-A SAM-DA61-03769A
...
1-3-1-7-4
Cover Cap Door-Ref Up; Abs,inox Gray SAM-DA63-08826A
...
1-3-1-7-5
Cap-Shaft Hole SAM-DA67-02795C
...
1-3-1-7-6-1
Roller-Auto Close SAM-DA66-00440A
...
1-3-1-7-6
Assembly Lever-Auto Close SAM-DA97-12625A
...
1-3-1-7
Assy Cap Door-Ref Up Right; Rf9500n Famil SAM-DA97-19316F
...
1-3-1-8
Grommet-Stopper SAM-DA63-40294A
...
1-3-1-9-1
Screw-Tapping SAM-6002-000215
...
1-3-1-9
Assy Trim Handle-Ref; Rf9000k,abs+al, Dis SAM-DA97-16154A
...
1-3-1-10
Grommet-Chassis Up SAM-DA63-04825A
...
1-3-1-11
Mascot SAM-DA64-04021C
...
1-3-1
Assy Plate Door-Ref Right; Rf9500n Family SAM-DA97-19314J
...
1-3-2
Panel-Ref Right; Rf9500n F/hub,abs,t1,w42 SAM-DA64-05059B
...
1-3
Assy Door Foam-Ref Right; Rf9500nf,sts201 SAM-DA91-04575S
...
1-4
Assy Gasket-Ref; Rf9000n,gray SAM-DA97-19430A
...
1-5-1
Speaker; 288*134*39,12.5w SAM-3001-002853
...
1-5-2
W-Lan Module; Wcm730q,ieee802.11,2.4/5ghz SAM-4709-002552
...
1-5-3
Sensor Psd; Ora1l17,5v SAM-DA32-00080A
...
1-5-4
Assy Module; Mic, 88*11*1.6t,rf9500n,88*1 SAM-DA92-00789D
...
1-5-5-1
Assy Pcb Smd; Kant-Ms_21.5" Lcd,rf9500n_F SAM-DA94-04233A
...
1-5-5
Assy Pcb Display; Kant-Ms_21.5" Lcd,rf950 SAM-DA92-01065A
...
1-5-6
Assy Wire Harness; F_Hub 2.0,free Volt,lc SAM-DA96-01253A
...
1-5-7
Assy Wire Harness-Etc; T-Fdr,12vdc,all,na SAM-DA96-01329B
...
1-5-8-1
Mascot; Rf9500n,ni,akg,electroforming SAM-DA64-05827A
...
1-5-8
Assy Cover Front; Rf9500 Akg Family Hub,e SAM-DA97-19330A
...
1-5-9
Assy Wire Harness-Etc; Fdr,12vdc,all,na,u SAM-DA96-01329A
...
1-5
Assy Cover Display; Rf9500n,30", Akg, Usa SAM-DA97-16622Z
...
1
Assy Door Sub-Ref Right; Rf9500nf,sts201, SAM-DA93-00169T
...
2
Cover Lock; Abs,t2.5,inox Gray SAM-DA63-08449A
...
3
Assy Guard-Ref Right; Rf9500kf,f-Hub (cd) SAM-DA97-16544A

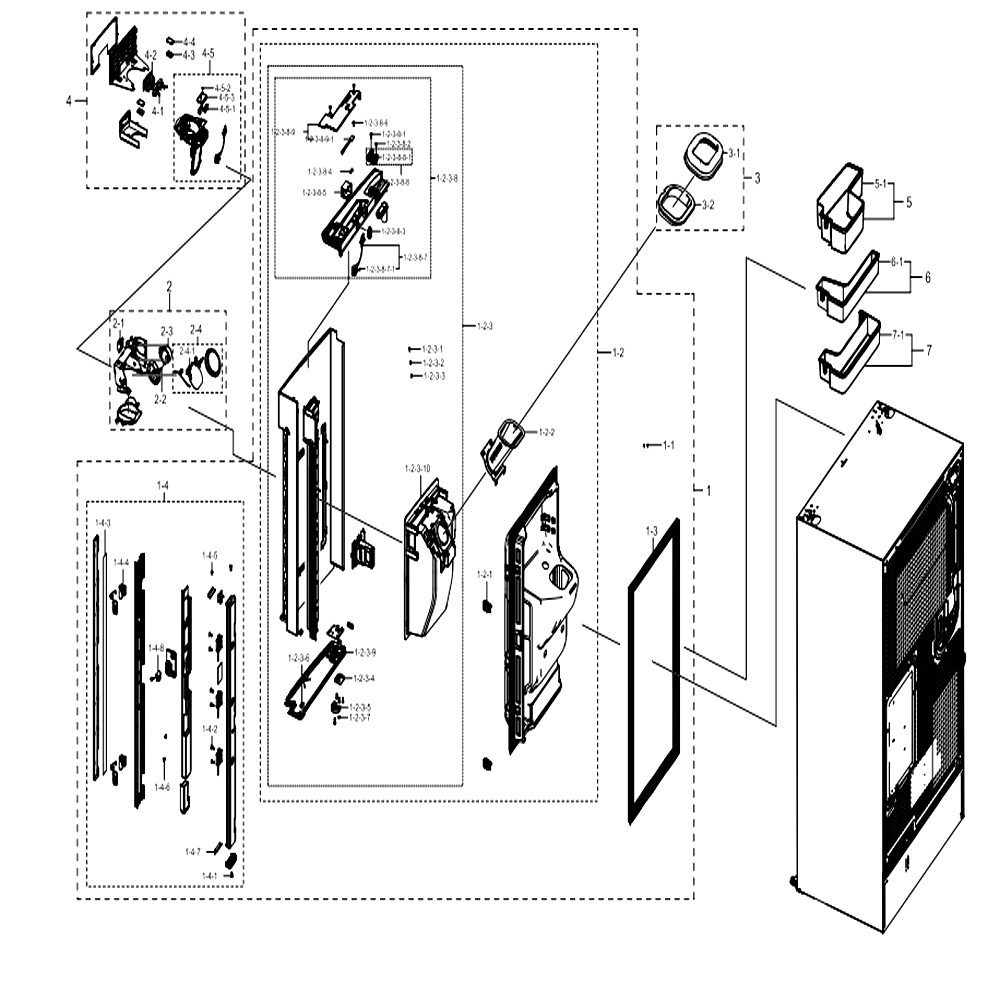

Fridge Door Left

...
...
1-1
Screw-Tapping SAM-6002-001406
...
1-2-1
Assy-Grommet French; Mouton SAM-DA97-12475A
...
1-2-2
Assy Guide Ice Route; Rf9500k SAM-DA97-16612A
...
1-2-3-1
Screw-Machine SAM-6001-000716
...
1-2-3-2
Screw-Tapping SAM-6002-001120
...
1-2-3-3
Screw-Tapping SAM-6002-001122
...
1-2-3-4
Stopper Door-L; Romanee Conti,po-Sphc,bla SAM-DA61-08816A
...
1-2-3-5
Support Cap Door-Left; Rf9000k,pom,t3.5,k SAM-DA61-10856A
...
1-2-3-6
Grommet-Chassis Up SAM-DA63-04825A
...
1-2-3-7
Grommet-Stopper SAM-DA63-40294A
...
1-2-3-8-1
Screw-Tapping SAM-6002-000613
...
1-2-3-8-2
Screw-Tapping SAM-6002-001122
...
1-2-3-8-3
Switch Door-Interlock SAM-DA34-00066C
...
1-2-3-8-4
Magnet-A SAM-DA61-03769A
...
1-2-3-8-5
Cover-Fixer Housing V SAM-DA63-02902B
...
1-2-3-8-6
Cap-Shaft Hole SAM-DA67-02795C
...
1-2-3-8-7-1
Rubber-Cap Hose SAM-DA73-00211A
...
1-2-3-8-7
Assy Wire Harness-Door; T-Fdr,100~127vac, SAM-DA96-01173A
...
1-2-3-8-8-1
Roller-Auto Close SAM-DA66-00440A
...
1-2-3-8-8
Assembly Lever-Auto Close SAM-DA97-12625A
...
1-2-3-8-9-1
Sensor Humidity SAM-DA32-00034B
...
1-2-3-8-9
Assy Cover Display; Romanee Conti,inox Gr SAM-DA97-13014A
...
1-2-3-8
Assy Cap Door-Ref Up Left; Rf9500k,inox G SAM-DA97-13847M
...
1-2-3-9
Assy Cap Door-Ref Low Left; Rf9000k,abs,i SAM-DA97-16124B
...
1-2-3-10
Assy Case Dispenser; Rf9500k,inox Metal SAM-DA97-16751A
...
1-2-3
Assy Plate Door-Ref Left; Family Hub,rf95 SAM-DA97-16162L
...
1-2
Assy Door Foam-Ref Left; Rf9500k,real Sts SAM-DA91-04584B
...
1-3
Assy Gasket-Ref; Rf9000n,gray SAM-DA97-19430A
...
1-4-1
Screw-Tapping SAM-6002-000213
...
1-4-2
Screw-Tapping SAM-6002-000630
...
1-4-3
Heater Cord-French; Ac120v,romanee-Conti, SAM-DA47-00245U
...
1-4-4
Hinge-French SAM-DA61-08305A
...
1-4-5
Screw-Tapping SAM-6002-000217
...
1-4-6
Grommet-A; Mouton12,si,cool White,name Ta SAM-DA63-07538A
...
1-4-7
Gasket-French Low; Aw-Pjt,si,gray SAM-DA63-06842B
...
1-4-8
Cap-Case French Mid SAM-DA67-01701A
...
1-4
Assy French; Rf9500k,silver, 110v, 9000k SAM-DA97-16749F
...
1
Assy Door Sub-Ref Left; Rf9500k,real Sts( SAM-DA93-00574A
...
2-1
Switch-Micro SAM-3405-001117
...
2-2
Screw-Tapping SAM-6002-001364
...
2-3
Motor Geared-Disp SAM-DA31-00079D
...
2-4-1
Cover-Ice Route A SAM-DA63-04647A
...
2-4
Assembly Cover-Ice Route SAM-DA97-05368A
...
2
Assy Case-Ice Route; Aw4,120v SAM-DA97-08680E
...
3-1
Gasket-Cap Chute Ice; Romanee Conti,si,wh SAM-DA63-07422A
...
3-2
Cap Chute Ice; Rf9500k,hips,s834s1,cool W SAM-DA67-04255A
...
3
Assy Cap Chute Ice; Rf9500k SAM-DA97-16627A
...
4-1
Screw-Tapping SAM-6002-000630
...
4-2
Assembly Pcb Kit SAM-DA41-00217A
...
4-3
Case Lamp-Led SAM-DA61-05687A
...
4-4
Cover-Lamp-Led SAM-DA63-02446A
...
4-5-1
Switch-Micro; 250vac,1a,80,spst-No,t105 SAM-3405-001119
...
4-5-2
Screw-Tapping SAM-6002-000630
...
4-5-3
Cover-Switch SAM-DA63-05449A
...
4-5
Assy Lever Dispenser; Rf9500kc SAM-DA97-12628R
...
4
Assy Cover Dispenser; Rf9500k,assy SAM-DA97-16754A
...
5-1
Guard-Dispenser; Rf9000jc,gpps,t3,tp Blue SAM-DA63-08012A
...
5
Assy Guard Dispenser; Rf9000jc,hot Stampi SAM-DA97-15558A
...
6-1
Guard-Ref Middle; Rf9000jc,gpps,t3,tp Blu SAM-DA63-08013A
...
6
Assy Guard-Ref Middle; Rf9000jc,hot Stamp SAM-DA97-15562A
...
7-1
Guard-Ref Low; Rf9000jc,gpps,t3,tp Blue,h SAM-DA63-08014A
...
7
Assy Guard-Ref Low; Rf9000jc,hot Stamping SAM-DA97-15559A

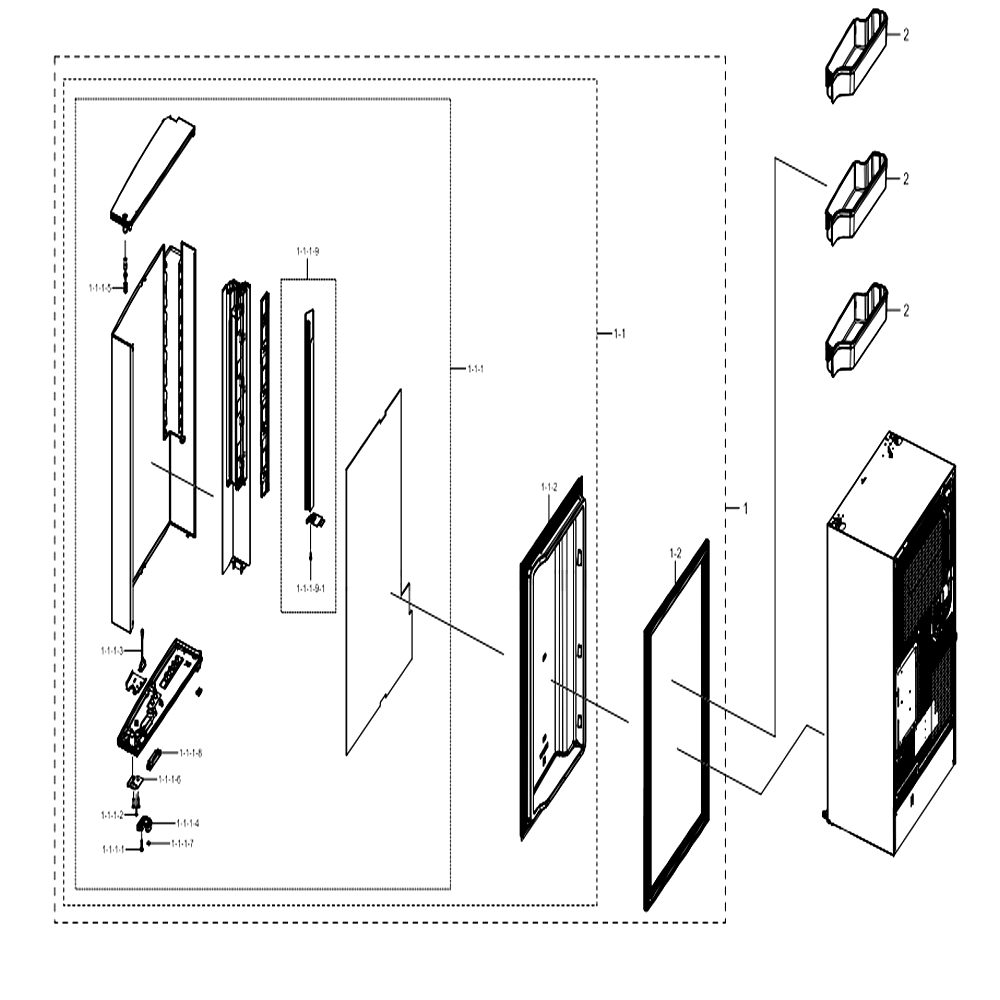

Freezer Door Right

...
...
1-1-1-1
Screw-Machine SAM-6001-000716
...
1-1-1-2
Screw-Tapping SAM-6002-001120
...
1-1-1-3
Switch Reed SAM-DA34-00043J
...
1-1-1-4
Support Door-Close; Aw-Pjt,pk,m33r3a000,c SAM-DA61-02383E
...
1-1-1-5
Spring Etc-Handle; Sveta-Pjt,sts304,6.2 SAM-DA61-05366A
...
1-1-1-6
Stopper Door-R; Romanee Conti,po-Sphc,bla SAM-DA61-08817A
...
1-1-1-7
Grommet-Stopper SAM-DA63-40294A
...
1-1-1-8
Cap Door Switch; 3050-Pjt,pp,t1.5,hb,bj75 SAM-DA67-02385M
...
1-1-1-9-1
Screw-Tapping SAM-6002-000215
...
1-1-1-9
Assy Trim Handle; Rf9000k,abs+al, Fre R SAM-DA97-16160A
...
1-1-1
Assy Plate Door-Fre Right; Rf9500m Hub 2. SAM-DA97-16720V
...
1-1-2
Panel-Fre Hb; Rf8000k,abs,qu-0191s,cool W SAM-DA64-04924A
...
1-1
Assy Door Foam-Fre Right; Rf9500m,sts201, SAM-DA91-04586J
...
1-2
Assy Gasket-Fre; Rf9000n,gray SAM-DA97-19431A
...
1
Assy Door Sub-Fre Right; Rf9500m,sts201,a SAM-DA93-00172C
...
2
Assy Guard-Fre Low A; Rf8000k,guard Fre R SAM-DA97-16184A

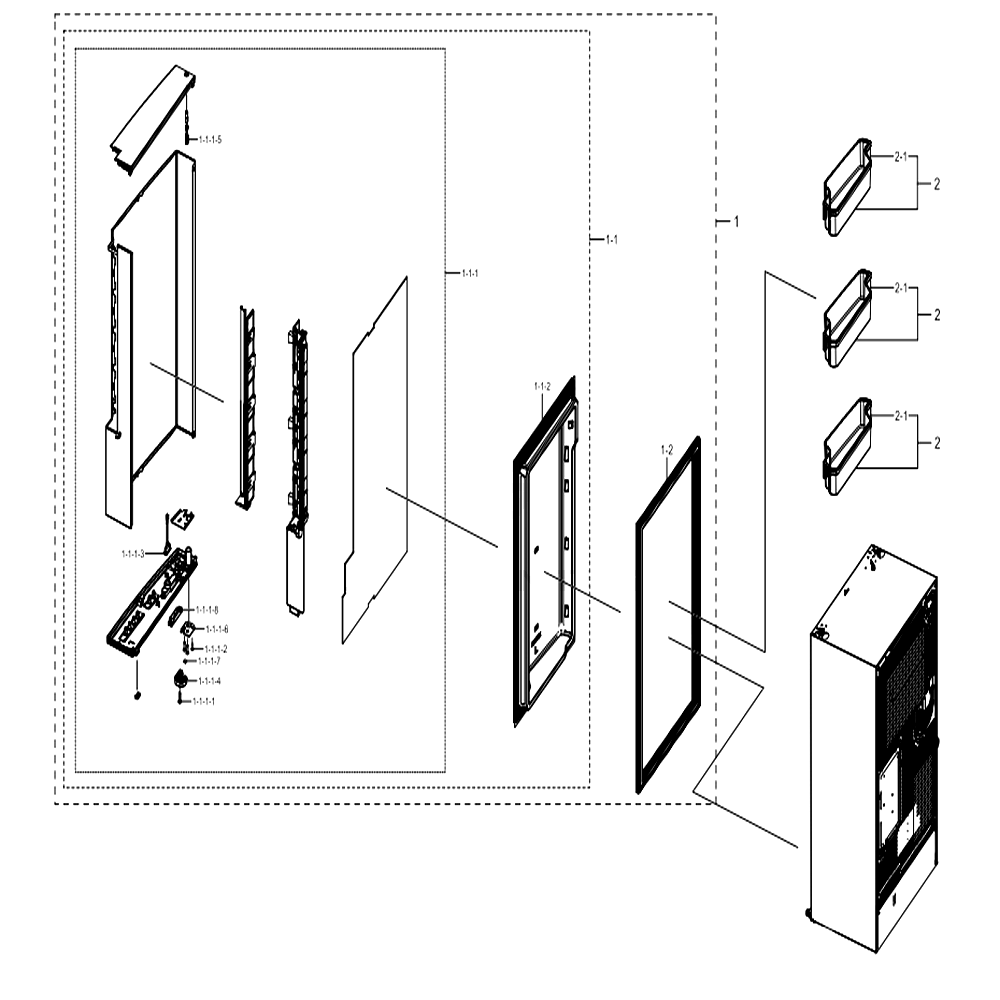

Freezer Door Left

...
...
1-1-1-1
Screw-Machine SAM-6001-000716
...
1-1-1-2
Screw-Tapping SAM-6002-001120
...
1-1-1-3
Switch Reed SAM-DA34-00043J
...
1-1-1-4
Support Door-Close; Aw-Pjt,pk,m33r3a000,c SAM-DA61-02383E
...
1-1-1-5
Spring Etc-Handle; Sveta-Pjt,sts304,6.2 SAM-DA61-05366A
...
1-1-1-6
Stopper Door-L; Romanee Conti,po-Sphc,bla SAM-DA61-08816A
...
1-1-1-7
Grommet-Stopper SAM-DA63-40294A
...
1-1-1-8
Cap Door Switch; 3050-Pjt,pp,t1.5,hb,bj75 SAM-DA67-02385M
...
1-1-1
Assy Plate Door-Fre Left; Rf9500m Hub 2.0 SAM-DA97-16161S
...
1-1-2
Panel-Fre; Rf8000k,abs,qu-0191s,cool Whit SAM-DA64-04928A
...
1-1
Assy Door Foam-Fre Left; Rf9500m,sts201,9 SAM-DA91-04585F
...
1-2
Assy Gasket-Fre; Rf9000n,gray SAM-DA97-19431A
...
1
Assy Door Sub-Fre Left; Rf9500m,sts201,90 SAM-DA93-00171C
...
2-1
Guard-Fre Left; Gpps,t3.0,tp Blue SAM-DA63-08282A
...
2
Assy Guard-Fre Low; Rf8000k,assy Guard-Fr SAM-DA97-16185A
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
