Samsung RF28K9380SR/AA_0002

Model: RF28K9380SR/AA_0002

Save Part Not Listed?
product name

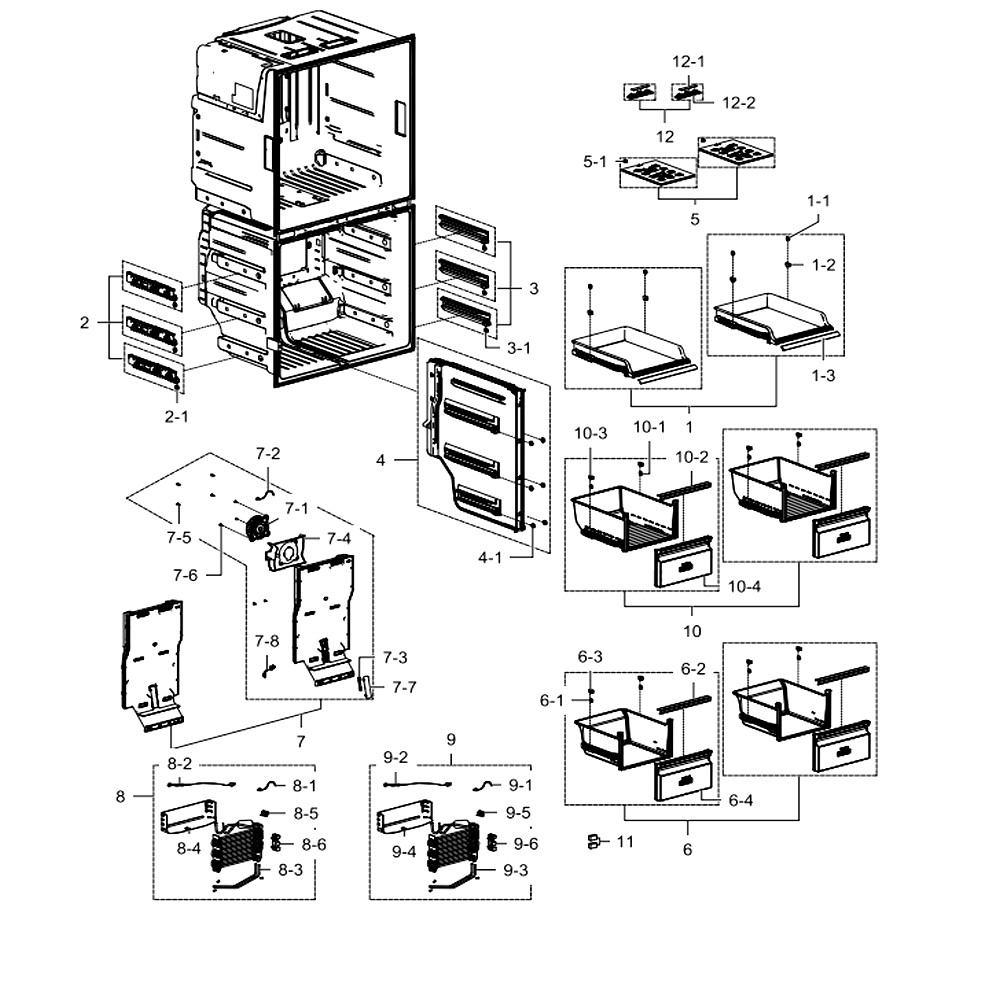

Freezer

...
...
1-1
Roller-Fre SAM-DA66-10104A
...
1-2
Fixer-Roller SAM-DA71-20277A
...
1-3
Trim-Shelf Fre; Romanee,hips,s-834s1,cool SAM-DA64-04307B
...
1
Assy Shelf Slide-Fre; Rf9000k,assy SAM-DA97-16214B
...
2-1
Roller-Fre SAM-DA66-10104C
...
2
Assembly Rail-Drawer L SAM-DA97-10870B
...
3-1
Roller-Fre SAM-DA66-10104C
...
3
Assembly Rail-Drawer R SAM-DA97-10880B
...
4-1
Roller-Fre SAM-DA66-10104A
...
4
Assy Partition-Fre V; Rf8000k,depth 748 SAM-DA97-16174A
...
5-1
Cap-Ice Pack; Rt26/28/31,pp,t1.5,-,natura SAM-DA67-02855A
...
5
Assy Shelf Ice Pack; New T9000 SAM-DA97-16132A
...
6-1
Roller-Fre SAM-DA66-10104A
...
6-2
Trim-Tray Fre; Romanee,hips,s834s1,cool W SAM-DA64-04323B
...
6-3
Fixer-Roller SAM-DA71-20277A
...
6-4
Cover Basket-Fre; Romanee Conti,gpps,tp B SAM-DA63-07203B
...
6
Assy Case Basket-Fre Low; Rf9000k,assy SAM-DA97-16213B
...
7-1
Motor Bldc-Fan SAM-DA31-00287B
...
7-2
Sensor Temp; Dkst1329gw,queen,-50 ~ 80 SAM-DA32-00011C
...
7-3
Pba-Led Lamp SAM-DA41-00519R
...
7-4
Guide Air; Romanee-Conti,hips,ntr SAM-DA61-08658B
...
7-5
Screw-Tapping SAM-6002-001204
...
7-6
Screw-Tapping; Th,+,-,1,m4,l12,pass,sts30 SAM-6002-001521
...
7-7
Cover-Led SAM-DA63-03056B
...
7-8
Assy-W/harness-Photosynthesis-Led; Hermes SAM-DA96-00263C
...
7
Assy Cover Evap-Fre; Rf8000k SAM-DA97-16139A
...
8-1
Sensor Temp SAM-DA32-10104N
...
8-2
Thermo Fuse-Assy; Ac250v,10a,109~110s SAM-DA47-00301D
...
8-3
Heater Metal Sheath; Ac120v,romanee Conti SAM-DA47-00318K
...
8-4
Plate-Drain Evap Fre; Romanee Conti,al,t0 SAM-DA61-08675A
...
8-5
Fixer-Senser SAM-DA61-03683A
...
8-6
Fixer-Heater Wire Ref; Hm/ggh/haemil,pp,n SAM-DA61-06700A
...
8
Assy Evap-Fre; Rf9000k,fin Tube,120v,120w SAM-DA96-00987D
...
9-1
Sensor Temp SAM-DA32-10104N
...
9-2
Thermo Fuse-Assy; Ac250v,10a,109~110s SAM-DA47-00301D
...
9-3
Heater Metal Sheath; Ac120v,romanee Conti SAM-DA47-00318K
...
9-4
Plate-Drain Evap Fre; Romanee Conti,al,t0 SAM-DA61-08675A
...
9-5
Fixer-Senser SAM-DA61-03683A
...
9-6
Fixer-Heater Wire Ref; Hm/ggh/haemil,pp,n SAM-DA61-06700A
...
9
Assy Evap-Fre; Rf9000k,fin Tube,120v,120w SAM-DA96-01021E
...
10-1
Roller-Fre SAM-DA66-10104A
...
10-2
Trim-Tray Fre; Romanee,hips,s834s1,cool W SAM-DA64-04323B
...
10-3
Fixer-Roller SAM-DA71-20277A
...
10-4
Cover Basket-Fre; Romanee Conti,gpps,tp B SAM-DA63-07203B
...
10
Assy Case Basket-Fre; Rf9000k,assy SAM-DA97-16212C
...
11
Seal Cutt-Rubber; Rr2500k,rubber,black,t5 SAM-DA62-01018A
...
12-1
Assy Lamp Led; 3ea,cem-1,100*20,white,sma SAM-DA41-00519P
...
12-2
Cover Lamp-Led Front; Cullinan,pc,transpa SAM-DA63-04921B
...
12
Assy Cover Lamp; Rf9000k,pc,t2.0,natural SAM-DA97-16536A

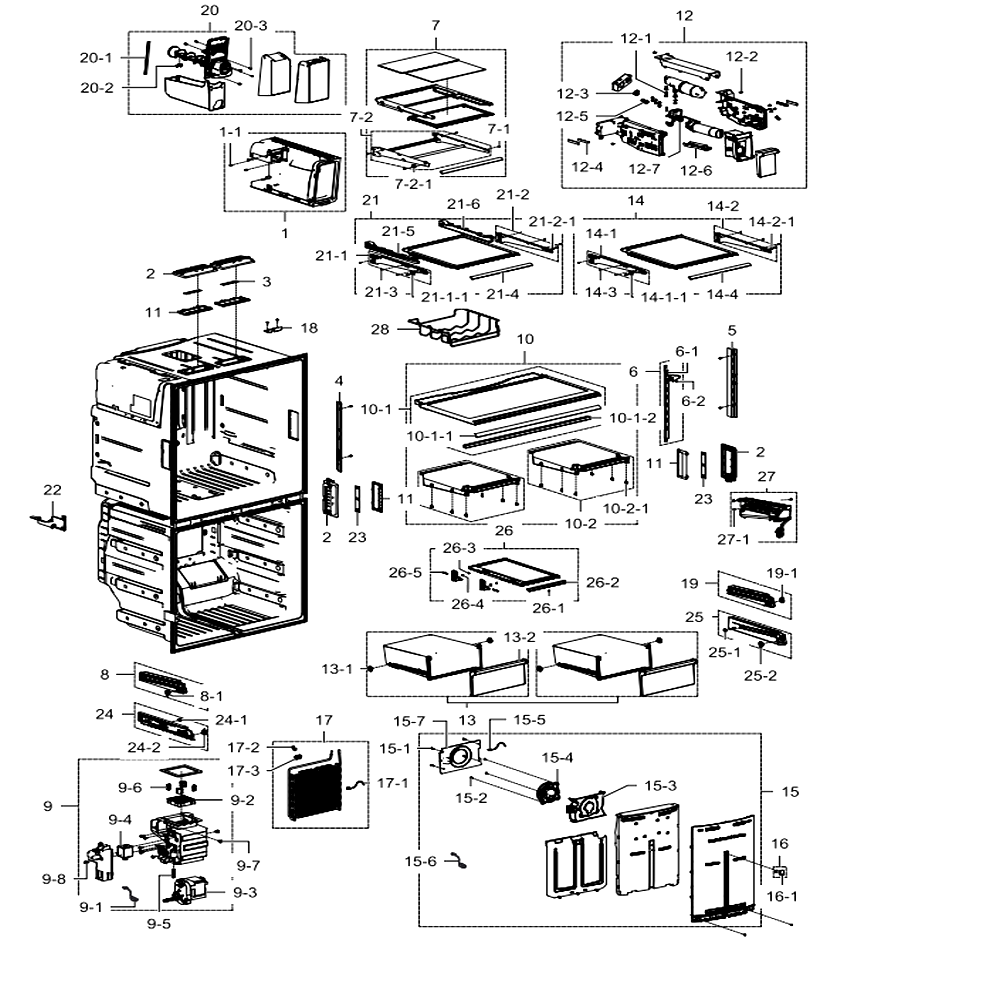

Fridge

...
...
1-1
Screw-Tapping SAM-6002-000471
...
1
Assy Case Ice; Aw4,urethane,assy SAM-DA97-12576B
...
2
Assy Case Lamp-Ref; Rf8000k SAM-DA97-16140A
...
3
Assy Lamp Led; 6,fr-4,150*12,white,smaw25 SAM-DA96-01119B
...
4
Angle-Shelf Ref Side L; Gi-Sgcc,2.5,cool SAM-DA61-08693A
...
5
Angle-Shelf Ref Side R; Gi-Sgcc,2.5,cool- SAM-DA61-08632A
...
6-1
Angle Shelf-Ref Middle; Gi-Sgcc,t2.5,inox SAM-DA61-08264C
...
6-2
Screw-Tapping SAM-6002-001397
...
6
Assy Angle Shelf-Ref Middle; Rf9000jc,ino SAM-DA97-15620B
...
7-1
Screw-Tapping SAM-6002-001397
...
7-2-1
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09550A
...
7-2
Assembly Hanger SAM-DA97-14348A
...
7
Assy Shelf Quick Space; Rf9000k,silver Tr SAM-DA97-16210B
...
8-1
Assembly Roller SAM-DA97-15998A
...
8
Assy Rail-Middle Left; Rf9000k,assy SAM-DA97-16223A
...
9-1
Assembly Wire Harness-Auger SAM-DA96-00682D
...
9-2
Motor Bldc Fan SAM-DA31-00070E
...
9-3
Motor Geared Ac Auger SAM-DA31-00105M
...
9-4
Valve-Solenoid SAM-DA74-40151G
...
9-5
Spring Etc-Solenoid SAM-DA61-20140A
...
9-6
Grommet-Fan SAM-DA63-02513A
...
9-7
Screw-Tapping SAM-6002-000471
...
9-8
Screw-Special SAM-DA60-00001B
...
9
Assy Case Auger Motor; Aw4-4d,115v 60hz SAM-DA97-12540G
...
10-1-1
Trim-Shelf Fre; Romanee,hips,s-834s1,cool SAM-DA64-04307D
...
10-1-2
Reinf-Cover Veg SAM-DA61-04292A
...
10-1
Assy Shelf-Ref; Rf9000k,assy,silver Trim SAM-DA97-16837A
...
10-2-1
Grommet-Rail; Chilled,pa6 SAM-DA63-40305A
...
10-2
Assy Cover Veg-Up; Rf9000k,assy,apply Gro SAM-DA97-16834A
...
10
Assy Shelf Veg-Low; Rf9000k,silver Trim SAM-DA97-16221D
...
11
Assy Cover Lamp; Rf8000k SAM-DA97-16143A
...
12-1
Clip-Fitting Lock SAM-DA61-04522A
...
12-2
Screw-Tapping SAM-6002-000471
...
12-3
Tube-Fitting L; Pom,dark Holder Gray,1/4i SAM-DA62-02414A
...
12-4
Cover-Led Filter SAM-DA63-05408B
...
12-5
Tube-Fitting L SAM-DA62-03103A
...
12-6
Tray-Water Filter SAM-DA63-05407A
...
12-7
Valve Water; Ac110~127v,230,2way,l-Wire,1 SAM-DA62-04027C
...
12
Assy Case Filter; Rf9000k,110v SAM-DA97-16166B
...
13-1
Assembly Roller SAM-DA97-15998A
...
13-2
Cover Veg-Left; Rf9000k,gpps,tp Blue,g-11 SAM-DA63-07800B
...
13
Assy Case Veg; Rf9000k,assy, Silver Trim SAM-DA97-16215B
...
14-1-1
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09550A
...
14-1
Assy Hanger-Left; Rf9000k SAM-DA97-14323C
...
14-2-1
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09549A
...
14-2
Assy Hanger-Right; Rf9000k SAM-DA97-14322B
...
14-3
Screw-Tapping SAM-6002-001397
...
14-4
Trim-Shelf Ref; Romanee,hips,s834s1,cool SAM-DA64-04306B
...
14
Assy Shelf Insert-Ref Fix; Rf9000k,silver SAM-DA97-16220C
...
15-1
Screw-Tapping SAM-6002-001204
...
15-2
Screw-Tapping SAM-6002-000471
...
15-3
Guide Air; Romanee-Conti,hips,ntr SAM-DA61-08658B
...
15-4
Motor Bldc-Fan SAM-DA31-00287B
...
15-5
Sensor Temp; Dkst1329gw,queen,-50 ~ 80 SAM-DA32-00011C
...
15-6
Sensor Humidity; Da32-00034e,5v,0~100%rh, SAM-DA32-00034E
...
15-7
Case-Motor Fre SAM-DA61-08425A
...
15
Assy Cover Evap-Ref; Rf9000jc,plate Cooli SAM-DA97-15409G
...
16-1
Cap Cover Evap-Ref; Rf9000jc,hips,t2.0,hb SAM-DA67-03978A
...
16
Assembly Cap Angle SAM-DA97-15412A
...
17-1
Sensor Temp SAM-DA32-10104N
...
17-2
Fixer Wire; Aw3-Pjt,pp,t2.0,natural,hb,bj SAM-DA61-06013B
...
17-3
Fixer-Senser SAM-DA61-03683A
...
17
Assy Evap-Ref; Rf9000k SAM-DA96-01140A
...
18
Guide-French SAM-DA61-04285A
...
19-1
Assembly Roller SAM-DA97-15998A
...
19
Assy Rail-Middle Right; Rf9000k,assy SAM-DA97-16224A
...
20-1
Gasket-Tray Ice Bucket SAM-DA63-07185A
...
20-2
Spring Etc-Dispenser SAM-DA61-20124D
...
20-3
Screw-Tapping SAM-6002-000471
...
20
Assy Tray Ice;fdr,t-Type F/s SAM-DA97-14474C
...
21-1-1
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09550A
...
21-1
Assy Hanger-Left; Rf9000k SAM-DA97-14323C
...
21-2-1
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09549A
...
21-2
Assy Hanger-Right; Rf9000k SAM-DA97-14322B
...
21-3
Screw-Tapping SAM-6002-001397
...
21-4
Trim-Shelf Ref; Romanee,hips,s834s1,cool SAM-DA64-04306B
...
21-5
Rail Shelf-Left; Rf8000k,pp,cool White,bj SAM-DA61-10796A
...
21-6
Rail Shelf-Right; Rf8000k,pp,cool White,b SAM-DA61-10808A
...
21
Assy Shelf Insert-Ref Fix; Rf9000k,silver SAM-DA97-16220D
...
22
Cover-Wire Harness Ice SAM-DA63-06894A
...
23
Assembly Lamp Led SAM-DA96-01119A
...
24-1
Support-Roller Pantry; Aw-Pjt,pvc,blk SAM-DA61-03176A
...
24-2
Assembly Roller SAM-DA97-15998A
...
24
Assy Rail-Ref Low Left; Rf8000k SAM-DA97-16153A
...
25-1
Support-Roller Pantry; Aw-Pjt,pvc,blk SAM-DA61-03176A
...
25-2
Assembly Roller SAM-DA97-15998A
...
25
Assy Rail-Ref Low Right; Rf8000k SAM-DA97-16157A
...
26-1
Screw-Tapping SAM-6002-001397
...
26-2
Trim-Shelf Ref; Romanee,hips,s834s1,cool SAM-DA64-04306F
...
26-3
Spring Etc-Hinge Shelf SAM-DA61-03705A
...
26-4
Roller-Hinge-Shelf SAM-DA66-00482A
...
26-5
Shaft-Hinge-Shelf SAM-DA66-00483A
...
26
Assy Shelf Folder; Rf9000k,silver Trim SAM-DA97-16209B
...
27-1
Screw-Tapping SAM-6002-000471
...
27
Assy Ice Maker; Aw4,115v, 60hz SAM-DA97-15217D
...
28
Assy Rack Wine; Rf9500k,f/s SAM-DA97-16721B

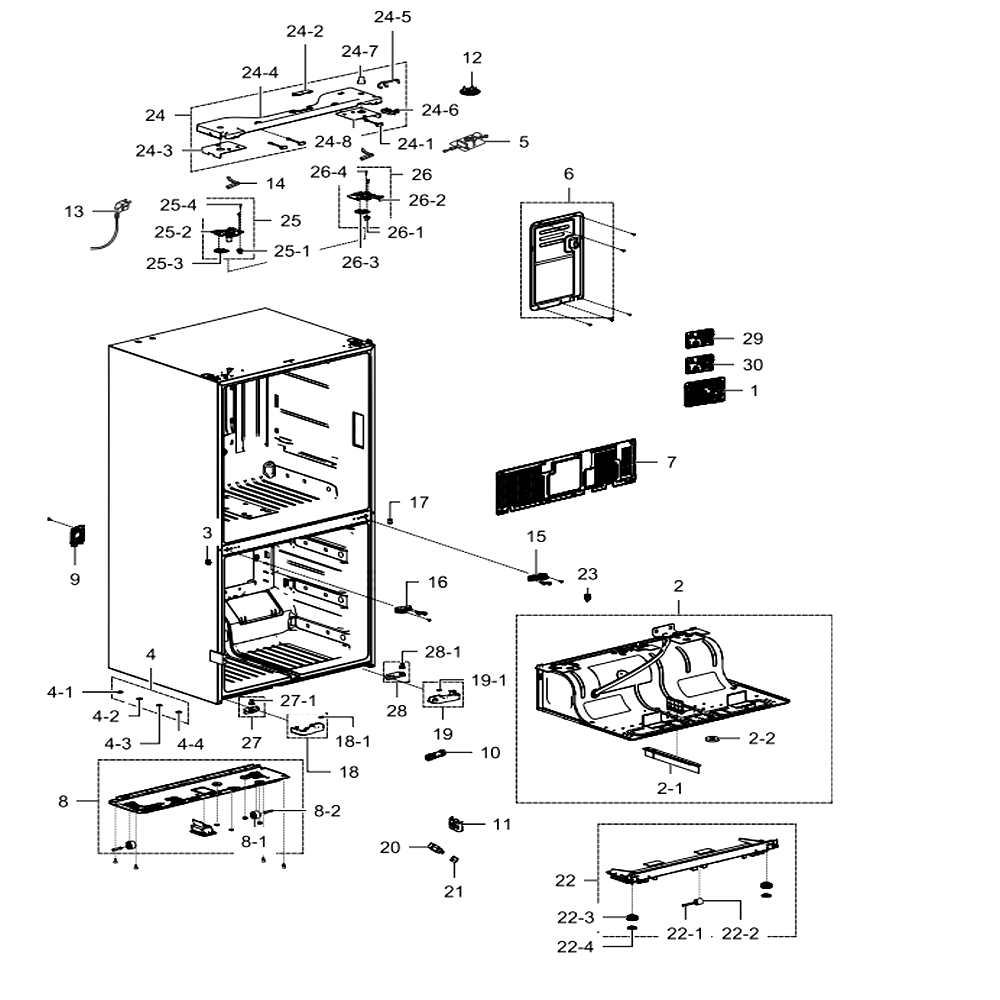

Cabinet

...
...
1
Assy Pcb Eeprom; 0x58,d601,d602,d603,d605 SAM-DA94-02862N
...
2-1
Trim-Blade; Aw2-Cd,pvc,shgs-L130-67-01g,n SAM-DA64-02950A
...
2-2
Seal-Drain Hose; Aram10,pu Foam,t10,30 SAM-DA72-00238B
...
2
Assy Cabi Bottom-Rear; New T9000,dispense SAM-DA97-08455S
...
3
Grommet Hinge-Mid SAM-DA63-06410A
...
4-1
Fastener-Hinge; Romanee Conti,pom,black SAM-DA60-00314A
...
4-2
Fastener-Hinge; Romanee Conti,pom,t1.5,bl SAM-DA60-00314B
...
4-3
Fastener-Hinge; Romanee Conti,pom,t2.0,bl SAM-DA60-00314C
...
4-4
Fastener-Hinge; Romanee Conti,pom,t2.5,bl SAM-DA60-00314D
...
4
Assy Accessory; Romanee Conti,adjustment SAM-DA99-04158A
...
5
Coil Filter SAM-DA27-00043D
...
6
Assy Cover Pba-Main; Romanee-Conti SAM-DA97-13181C
...
7
Assy Cover Comp; Polaris,gi-Sgcc,t0.25 SAM-DA97-12749B
...
8-1
Caster-Rear SAM-DA61-04703A
...
8-2
Shaft-Caster SAM-DA66-00649B
...
8
Assy Chassis Comp; Aw4-K,handle SAM-DA97-12557C
...
9
Assembly Cover-Tube Filter SAM-DA97-08413B
...
10
Tube-Fitting SAM-DA62-03914A
...
11
Fixer-Hose SAM-DA61-03467B
...
12
Cover-Urethane SAM-DA63-03809A
...
13
Cbf-Power Cord; At,usa,us3f-1,3c,125v,15a SAM-3903-001003
...
14
Fixer Hinge-Upp SAM-DA61-04932A
...
15
Hinge-Middle Right; Rf9000k,zn,t8,zndc2 SAM-DA61-10860A
...
16
Hinge-Middle Left; Rf9000k,zn,zndc2,zndc2 SAM-DA61-10859A
...
17
Grommet Hinge-Mid; Romanee Conti,pom,blac SAM-DA63-07306A
...
18-1
Magnet-A SAM-DA61-03769A
...
18
Assy Cover Leg-Front; Rfh920g,l SAM-DA97-14537A
...
19-1
Magnet-A SAM-DA61-03769A
...
19
Assy Cover Leg-Front; Rfh920g,r SAM-DA97-14538A
...
20
Valve-Fitting Pu SAM-DA62-00305A
...
21
Valve-Fitting Nut SAM-DA74-00070B
...
22-1
Caster-Rivet SAM-DA61-01920A
...
22-2
Caster-Front SAM-DA61-04702A
...
22-3
Foot-Front SAM-DA61-07972B
...
22-4
Foot SAM-DA61-07973B
...
22
Assy Cabi Bottom-Front; Rf9000k,export, U SAM-DA97-15376F
...
23
Grommet-Drain,hose; W2-Pjt,nbr,white SAM-DA63-00951B
...
24-1
Switch Reed SAM-DA34-00043A
...
24-2
Cover Hinge-B; Rf9000k,abs,inox Gray,hg-0 SAM-DA63-08442A
...
24-3
Plate-Cover Hinge SAM-DA61-08227A
...
24-4
Top Table; Fdsr,abs,inox Gray SAM-DA64-04743A
...
24-5
Assy Wire Harness-Top; All,12vdc,ul+iec,u SAM-DA96-00962H
...
24-6
Cover Top Table; Fdsr,abs,hb,ebony Black, SAM-DA63-07930A
...
24-7
W-Lan Module; Swl-Cq52/ref,16k Ref,ieee80 SAM-4709-002353
...
24-8
Plate-Cover Hinge R SAM-DA61-08884A
...
24
Assy Top Table; Rf9000k,gray,fdsr,usa SAM-DA97-14978M
...
25-1
Cam-Auto Close L SAM-DA66-00950A
...
25-2
Hinge-Upp L SAM-DA61-08309A
...
25-3
Shim-Hinge Upp SAM-DA63-50192A
...
25-4
Screw-Tapping SAM-6002-000215
...
25
Assembly Hinge Upp-L SAM-DA97-12573A
...
26-1
Cam-Auto Close R SAM-DA66-00951A
...
26-2
Hinge-Up Right SAM-DA61-09970A
...
26-3
Shim-Hinge Upp SAM-DA63-50192A
...
26-4
Screw-Tapping SAM-6002-000215
...
26
Assembly Hinge-Up Right SAM-DA97-14976A
...
27-1
Grommet Hinge; Romanee Conti,pom,black SAM-DA63-07231A
...
27
Assy Hinge-Low Left; Rf9000,black Paintin SAM-DA97-12992B
...
28-1
Grommet Hinge; Romanee Conti,pom,black SAM-DA63-07231A
...
28
Assy Hinge-Low Right; Rf9000,black Painti SAM-DA97-12993B
...
29
Assembly Module SAM-DA92-00486A
...
30
Assy Pcb Inverter; Inverter,rf9000k,163*9 SAM-DA92-00763B

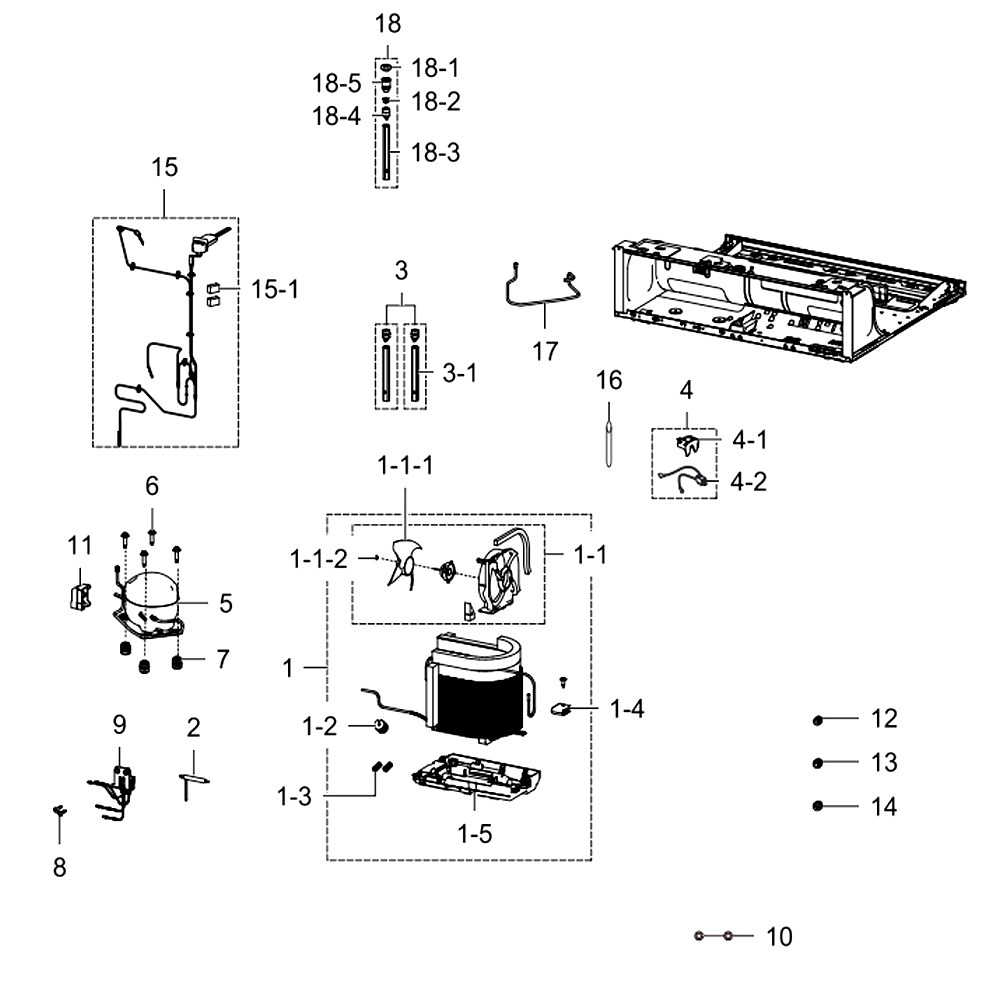

Cycle

...
...
1-1-1
Fan SAM-DA31-00320A
...
1-1-2
Spring Etc-Fan SAM-DA61-20128A
...
1-1
Assy Support-Circuit Motor; Rh9000k SAM-DA97-15765C
...
1-2
Grommet-Suct Pipe A SAM-DA63-40171B
...
1-3
Grommet-Immersion Pipe B SAM-DA63-07323A
...
1-4
Grommet-Cond Sub SAM-DA63-04424A
...
1-5
Tray Drain-Water SAM-DA63-08236A
...
1
Assy Tray Drain Water; Aw,pfc SAM-DA97-15978B
...
2
Dryer SAM-DA62-04309A
...
3-1
Tube Pvc SAM-DA62-01266E
...
3
Assembly Cap-Drain SAM-DA97-04049J
...
4-1
Relay Protector O/l SAM-DA34-00004D
...
4-2
Wire Harness-Comp SAM-DA39-00154J
...
4
Assembly Comp-Sub SAM-DA97-08310H
...
5
Cmp,refrigerator,r-134a; Cmp,refrigerator,r-134a SAM-NC1MV90ALP/E01
...
6
Bolt-Hex SAM-6011-004061
...
7
Grommet Comp SAM-DA63-02617A
...
8
Fixer-Step,motor; Ruby,swrch1,-,zpc3-Y,- SAM-DK61-00464A
...
9
Valve Step; Dc12v,module,80mm,3way,all Op SAM-DA62-04617D
...
10
Wire Harness-Earth SAM-DA39-20389L
...
11
Cover Relay; Msv,mppo,t2.0,5v-A,black,m-H SAM-DA63-06122A
...
12
Fitting-Lokring 16; Sum23,16, 11smnpb30k SAM-DA60-00279A
...
13
Fitting-Lokring 33 SAM-DA60-00280A
...
14
Fitting-Lokring 43 SAM-DA60-00281A
...
15-1
Seal Cutt-Rubber; Rr2500k,rubber,black,t5 SAM-DA62-01018A
...
15
Assy Pipe Suction; Rf9000k,dispenser SAM-DA97-16144A
...
16
Pipe-Connect Disc,b SAM-DA73-10190U
...
17
Pipe Connect-Suction; C1220t-O,od6.35,t0. SAM-DA62-03691A
...
18-1
Grommet-Drain SAM-DA63-02761A
...
18-2
Fixer-Drain SAM-DA61-05021A
...
18-3
Tube Pvc SAM-DA62-01266B
...
18-4
Grommet-Drain,hose; W2-Pjt,nbr,white SAM-DA63-00951B
...
18-5
Cap-Drain SAM-DA67-01301A
...
18
Assembly Cap-Drain SAM-DA97-04049E

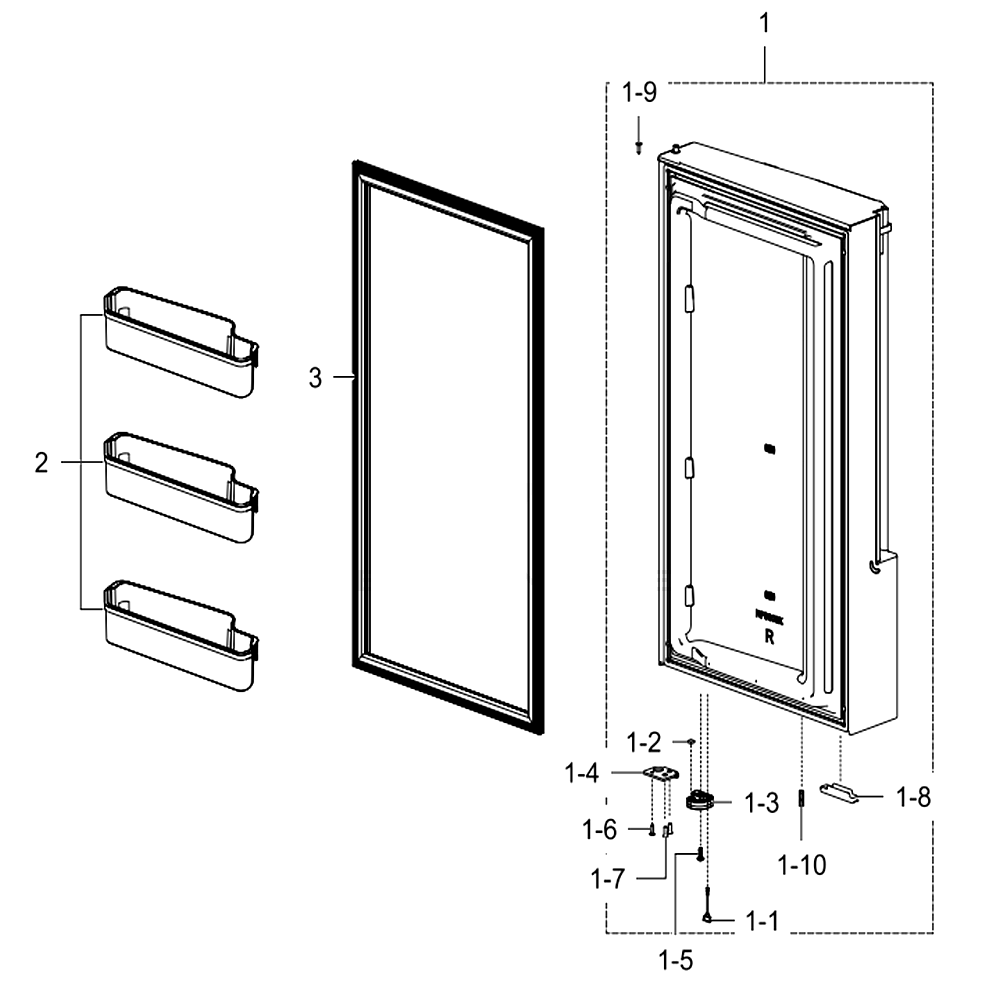

Freezer Door R

...
...
1-1
Switch Reed SAM-DA34-00043J
...
1-2
Grommet-Stopper SAM-DA63-40294A
...
1-3
Support Door-Close; Aw-Pjt,pk,m33r3a000,c SAM-DA61-02383E
...
1-4
Stopper Door-R; Romanee Conti,po-Sphc,bla SAM-DA61-08817A
...
1-5
Screw-Machine SAM-6001-000716
...
1-6
Screw-Tapping SAM-6002-001120
...
1-7
Screw-Machine; Fh,+,m5,l16,zpc(wht),swrch SAM-6001-000570
...
1-8
Cap Door Switch; 3050-Pjt,pp,t1.5,hb,bj75 SAM-DA67-02385M
...
1-9
Screw-Tapping SAM-6002-000215
...
1-10
Spring Etc-Handle; Sveta-Pjt,sts304,6.2 SAM-DA61-05366A
...
1
Assy Door Foam-Fre Right; Rf9000jc Fdsr,r SAM-DA91-04586D
...
2
Assy Guard-Fre Low A; Rf8000k,guard Fre R SAM-DA97-16184A
...
3
Assy-Gasket Door Fre; Romanee,gray SAM-DA97-12971E

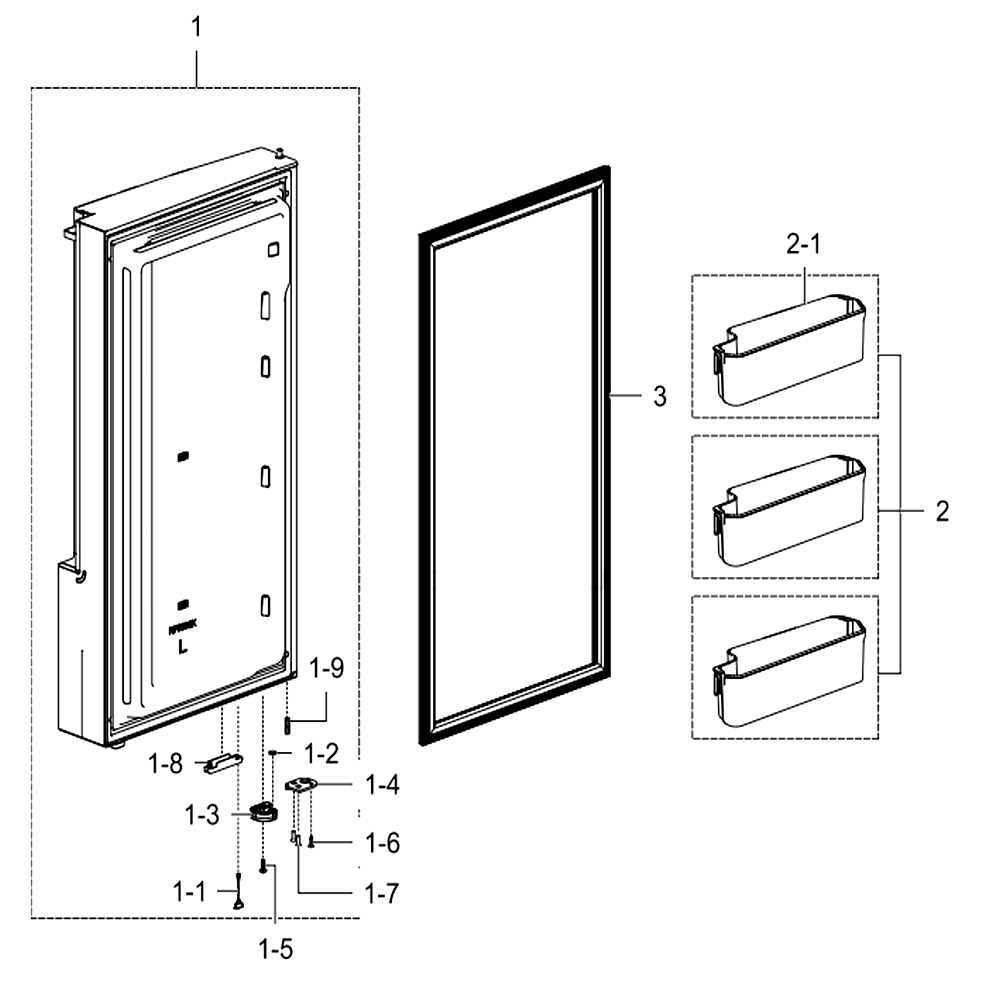

Freezer Door L

...
...
1-1
Switch Reed SAM-DA34-00043J
...
1-2
Grommet-Stopper SAM-DA63-40294A
...
1-3
Support Door-Close; Aw-Pjt,pk,m33r3a000,c SAM-DA61-02383E
...
1-4
Stopper Door-L; Romanee Conti,po-Sphc,bla SAM-DA61-08816A
...
1-5
Screw-Machine SAM-6001-000716
...
1-6
Screw-Tapping SAM-6002-001120
...
1-7
Screw-Machine; Fh,+,m5,l16,zpc(wht),swrch SAM-6001-000570
...
1-8
Cap Door Switch; 3050-Pjt,pp,t1.5,hb,bj75 SAM-DA67-02385M
...
1-9
Spring Etc-Handle; Sveta-Pjt,sts304,6.2 SAM-DA61-05366A
...
1
Assy Door Foam-Fre Left; Rf9500k,real Sts SAM-DA91-04585B
...
2-1
Guard-Fre Left; Gpps,t3.0,tp Blue SAM-DA63-08282A
...
2
Assy Guard-Fre Low; Rf8000k,assy Guard-Fr SAM-DA97-16185A
...
3
Assy-Gasket Door Fre; Romanee,gray SAM-DA97-12971E

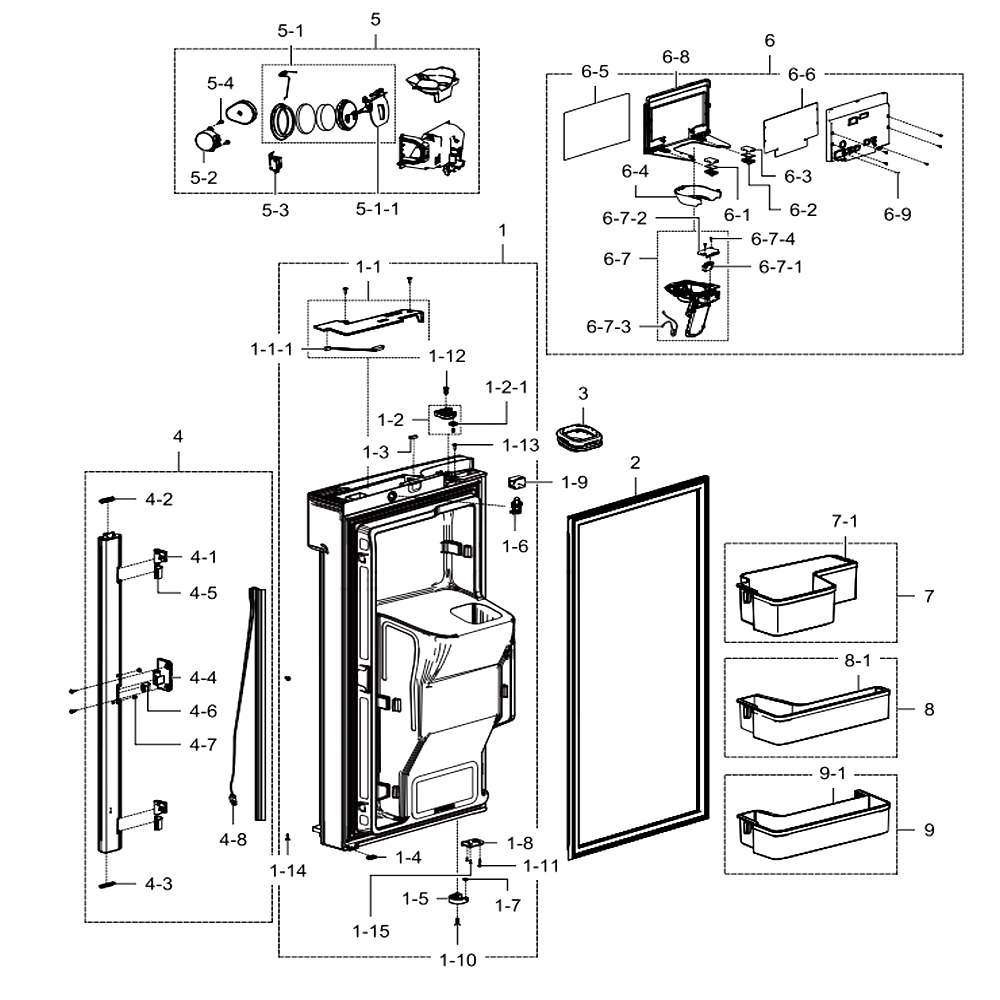

Fridge Door R

...
...
1-1
Screw-Tapping SAM-6002-000613
...
1-2-1
Roller-Auto Close SAM-DA66-00440A
...
1-2
Assembly Lever Auto Close SAM-DA97-14992A
...
1-3
Magnet SAM-DA61-03769B
...
1-4
Grommet-Chassis Up SAM-DA63-04825A
...
1-5
Stopper Door-Ref; Po-Sphc,black,eletrodep SAM-DA61-09952B
...
1-6
Support Door-Middle; Fdsr,pom,so301,cream SAM-DA61-09950A
...
1-7
Grommet-Stopper SAM-DA63-40294A
...
1-8
Screw-Machine; Fh,+,m5,l16,zpc(wht),swrch SAM-6001-000570
...
1-9
Assembly Lamp Led SAM-DA96-01119A
...
1-10
Cover Lock SAM-DA63-08235A
...
1-11
Lever; Fdsr,pom,so301,creamy Stainless,14 SAM-DA66-01134A
...
1-12
Screw-Tapping SAM-6002-000538
...
1-13
Screw-Tapping SAM-6002-000239
...
1-14
Screw-Tapping SAM-6002-000623
...
1-15
Screw-Tapping SAM-6002-001120
...
1-16
Screw-Tapping SAM-6006-001083
...
1
Assy Door Foam-Ref In; Rf9000k,real Sts(4 SAM-DA91-04487F
...
2-1
Mascot; All,ni,t0.06,l90 SAM-DA64-04021D
...
2-2
Fixer Handle; Aw3-14,swrch10a,m8 SAM-DA61-11161A
...
2-3
Reinf-Cap Handle SAM-DA61-06658A
...
2-4
Stopper Door-Ref Low SAM-DA61-09951A
...
2-5
Screw-Machine; Fh,+,m5,l16,zpc(wht),swrch SAM-6001-000570
...
2-6
Support Cap Door-Right; Rf9000k,abs,t1.5, SAM-DA61-10854A
...
2-7
Grommet Hinge-Middle SAM-DA63-07545B
...
2-8-1
Bracket Handle; Food Show Case,pom,natura SAM-DA61-09327A
...
2-8
Assy Handle; Rf9000k SAM-DA97-16134B
...
2-9-1
Screw-Tapping SAM-6002-000215
...
2-9
Assy Handle-Ref Up; Rf9000k,fdsr SAM-DA97-16575A
...
2-10
Screw-Tapping SAM-6002-001122
...
2-11
Magnet-A SAM-DA61-03769A
...
2-12
Rubber-Cap Hose SAM-DA73-00211A
...
2
Assy Door Foam-Out; Rf9000jc Fdsr,real St SAM-DA91-04574A
...
3
Assy Gasket-Ref; Rf9000jc,gray SAM-DA97-13015G
...
4
Hinge-Up; Rf9000k,po-Sphc,t4.0,t4.0,81 * SAM-DA61-10819A
...
5
Assy Gasket; Rf9000k,dark-Gray SAM-DA97-13915J
...
6-1
Support Wire-Up SAM-DA61-09976A
...
6
Assy Guard Dairy; Rf9000k,fdsr,fixer SAM-DA97-14644F
...
7-1
Support Wire-Low SAM-DA61-09948A
...
7
Assembly Guard-Ref Low Right SAM-DA97-14996A
...
8-1
Rail-Middle Right SAM-DA61-09232A
...
8-2
Grommet-Low SAM-DA63-07559A
...
8-3
Assembly Rail-Middle SAM-DA97-13887A
...
8-4
Assembly Rail-Up SAM-DA97-13895A
...
8-5
Grommet SAM-DA63-07548A
...
8-6
Screw-Tapping SAM-6002-000623
...
8
Assy Tray-Low; Aw2-14 Fdsr,roller Type SAM-DA97-14997E
...
9
Cap Reinf; Rf9000k,abs,hb,hg-0760gp,cool SAM-DA67-04145A
...
10
Cap Reinf; Rf9000k,abs,hb,hg-0760gp,cool SAM-DA67-04144A

Fridge Door L

...
...

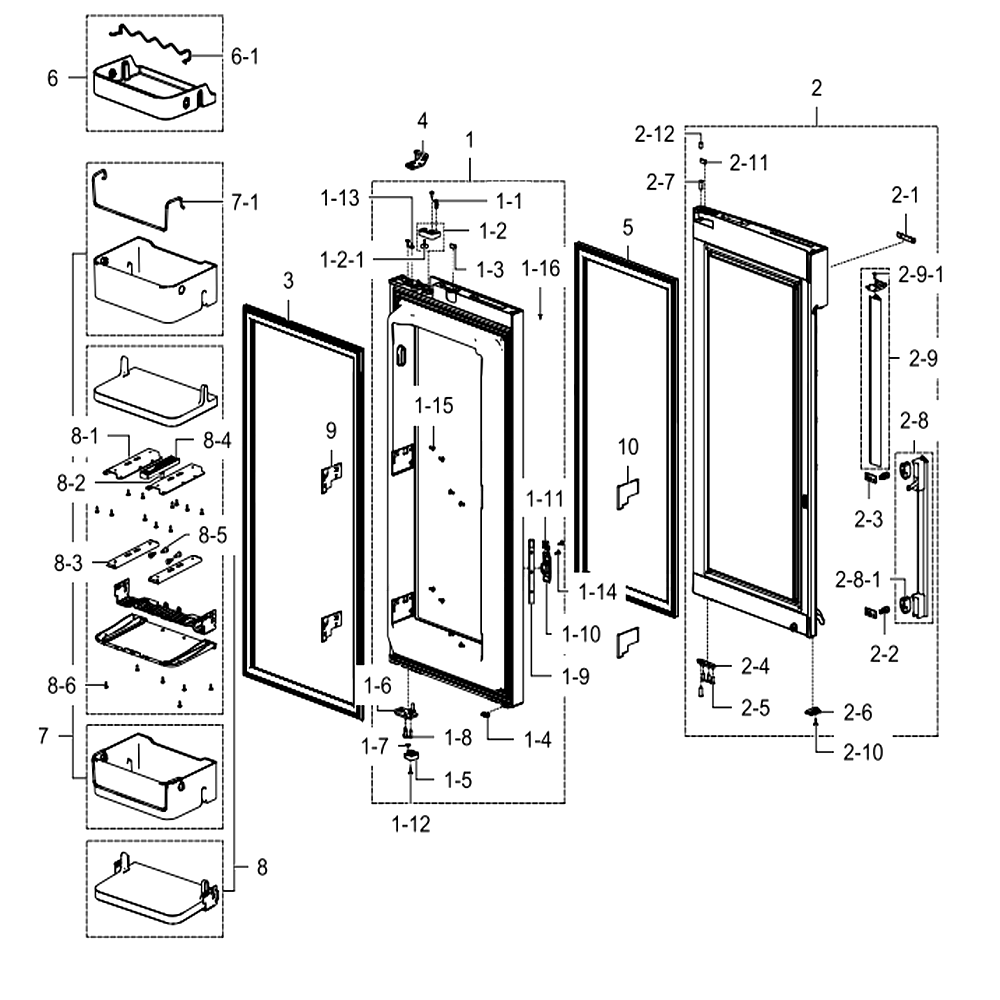

1-1-1
Sensor Humidity SAM-DA32-00034B
...
1-1
Assy Cover Display; Romanee Conti,inox Gr SAM-DA97-13014A
...
1-2-1
Roller-Auto Close SAM-DA66-00440A
...
1-2
Assembly Lever-Auto Close SAM-DA97-12625A
...
1-3
Magnet-A SAM-DA61-03769A
...
1-4
Grommet-Chassis Up SAM-DA63-04825A
...
1-5
Support Cap Door-Left; Rf9000k,pom,t3.5,k SAM-DA61-10856A
...
1-6
Switch Door-Interlock SAM-DA34-00066C
...
1-7
Grommet-Stopper SAM-DA63-40294A
...
1-8
Stopper Door-L; Romanee Conti,po-Sphc,bla SAM-DA61-08816A
...
1-9
Cover-Fixer Housing V SAM-DA63-02902B
...
1-10
Screw-Machine SAM-6001-000716
...
1-11
Screw-Tapping SAM-6002-001120
...
1-12
Screw-Tapping SAM-6002-000613
...
1-13
Screw-Tapping SAM-6002-001122
...
1-14
Screw-Tapping SAM-6002-001122
...
1-15
Screw-Machine; Fh,+,m5,l16,zpc(wht),swrch SAM-6001-000570
...
1
Assy Door Foam-Ref Left; Rf9000k,real Sts SAM-DA91-04495L
...
2
Assy Gasket-Ref; Rf9000jc,gray SAM-DA97-13015G
...
3
Assy Cap-Chute Ice; Romanee Conti,hips,12 SAM-DA97-13431A
...
4-1
Hinge-French SAM-DA61-08305A
...
4-2
Gasket-French Upp; Aw4,si,gray SAM-DA63-06959A
...
4-3
Gasket-French Low; Aw-Pjt,si,gray SAM-DA63-06842B
...
4-4
Cover-Heater French; Romanee Conti,pc,coo SAM-DA63-07287A
...
4-5
Cap-Case French SAM-DA67-01650A
...
4-6
Cap-Case French Mid SAM-DA67-01701A
...
4-7
Grommet-A; Mouton12,si,cool White,name Ta SAM-DA63-07538A
...
4-8
Heater Cord-French; Ac120v,romanee-Conti, SAM-DA47-00245U
...
4
Assy French; Rf9000k,thai Silver, 120v SAM-DA97-15342F
...
5-1-1
Cover-Ice Route A SAM-DA63-04647A
...
5-1
Assembly Cover-Ice Route SAM-DA97-05368A
...
5-2
Motor Geared-Disp SAM-DA31-00079D
...
5-3
Switch-Micro SAM-3405-001117
...
5-4
Screw-Tapping SAM-6002-001364
...
5
Assembly Guide Ice Route SAM-DA97-13829C
...
6-1
Assembly Pcb Kit SAM-DA41-00217A
...
6-2
Case Lamp-Led SAM-DA61-05687A
...
6-3
Cover-Lamp-Led SAM-DA63-02446A
...
6-4
Cover Ice SAM-DA63-07637A
...
6-5
Inlay-Film; Rf9000k,pet,black,dispenser SAM-DA64-05049B
...
6-6
Assy Module; Display(pba),rf9000k,led Whi SAM-DA92-00758B
...
6-7-1
Switch-Micro; 250vac,1a,80,spst-No,t105 SAM-3405-001119
...
6-7-2
Cover-Switch SAM-DA63-05449A
...
6-7-3
Assy Wire Harness-Dispenser; All,12vdc,al SAM-DA96-00106J
...
6-7-4
Screw-Tapping SAM-6002-000630
...
6-7
Assy Lever Dispenser; Aw4-4d,cd/no Sparkl SAM-DA97-12628N
...
6-8
Assy Cover Dispenser-Sub; New T9000, Disp SAM-DA97-15113E
...
6-9
Screw-Tapping SAM-6002-000630
...
6
Assy Cover Dispenser; New T9000,dispenser SAM-DA97-15112E
...
7-1
Guard-Dispenser; Rf9000k,gpps,caribbean B SAM-DA63-08012C
...
7
Assy Guard Dispenser; Rf9000jc,caribian B SAM-DA97-15558B
...
8-1
Guard-Ref Middle; Rf9000k,gpps,caribbean SAM-DA63-08013C
...
8
Assy Guard-Ref Middle; Rf9000jc,caribian SAM-DA97-15562B
...
9-1
Guard-Ref Low; Rf9000k,gpps,caribbean Blu SAM-DA63-08014C
...
9
Assy Guard-Ref Low; Rf9000jc,caribian Blu SAM-DA97-15559B
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
