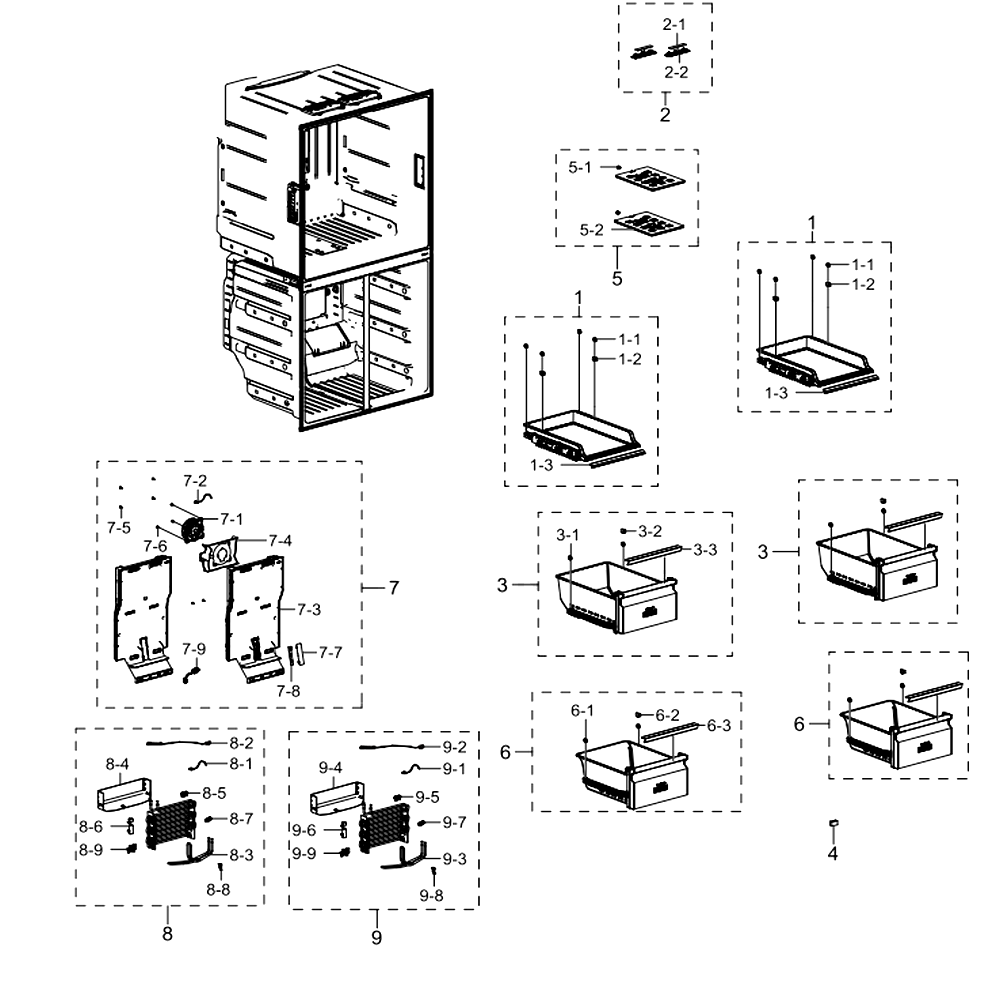

Samsung RF28K9070SR/AA_0004

Model: RF28K9070SR/AA_0004

Save Part Not Listed?
product name

Freezer

...
...
1-1
Roller-Fre SAM-DA66-10104A
...
1-2
Fixer-Roller SAM-DA71-20277A
...
1-3
Trim-Shelf Fre; Romanee,hips,s-834s1,cool SAM-DA64-04307B
...
1
Assy Shelf Slide-Fre; Rf9000k,assy SAM-DA97-16214B
...
2-1
Assy Lamp Led; 3ea,cem-1,100*20,white,sma SAM-DA41-00519P
...
2-2
Cover Lamp-Led Front; Cullinan,pc,transpa SAM-DA63-04921B
...
2
Assy Cover Lamp; Rf9000k,pc,t2.0,natural SAM-DA97-16536A
...
3-1
Roller-Fre SAM-DA66-10104A
...
3-2
Fixer-Roller SAM-DA71-20277A
...
3-3
Trim-Tray Fre; Romanee,hips,s834s1,cool W SAM-DA64-04323B
...
3
Assy Case Basket-Fre; Rf9000k,assy SAM-DA97-16212C
...
4
Seal Cutt-Rubber; Rr2500k,rubber,black,t5 SAM-DA62-01018A
...
5-1
Cap-Ice Pack; Rt26/28/31,pp,t1.5,-,natura SAM-DA67-02855A
...
5-2
Shelf Ice Pack; Rf9000k,hdpe,mild Blue SAM-DA67-04118A
...
5
Assy Shelf Ice Pack; New T9000 SAM-DA97-16132A
...
6-1
Roller-Fre SAM-DA66-10104A
...
6-2
Fixer-Roller SAM-DA71-20277A
...
6-3
Trim-Tray Fre; Romanee,hips,s834s1,cool W SAM-DA64-04323B
...
6
Assy Case Basket-Fre Low; Rf9000k,assy SAM-DA97-16213B
...
7-1
Motor Bldc Fan; Ares2120ra,18704%,12v,m SAM-DA31-00334A
...
7-2
Sensor Temp; Dkst1329gw,queen,-50 ~ 80 SAM-DA32-00011C
...
7-3
Cover Evap-Fre; Rf9000k,pp,hb,cool White, SAM-DA63-08290A
...
7-4
Guide Air; Romanee-Conti,hips,ntr SAM-DA61-08658B
...
7-5
Screw-Tapping SAM-6002-001204
...
7-6
Screw-Tapping SAM-6002-000471
...
7-7
Cover-Led SAM-DA63-03056B
...
7-8
Pba-Led Lamp SAM-DA41-00519R
...
7-9
Assy-W/harness-Photosynthesis-Led; Hermes SAM-DA96-00263C
...
7
Assy Cover Evap-Fre; Rf8000k SAM-DA97-16139A
...
8-1
Sensor Temp; Dkst1329gw,aw3,-50~80??5v, SAM-DA32-10104V
...
8-2
Thermo Fuse-Assy; Ac250v,10a,109~110s SAM-DA47-00301D
...
8-3
Heater Metal Sheath; Ac120v,romanee Conti SAM-DA47-00318K
...
8-4
Plate-Drain Evap Fre; Romanee Conti,al,t0 SAM-DA61-08675A
...
8-5
Fixer-Senser SAM-DA61-03683A
...
8-6
Fixer-Heater Wire Ref; Hm/ggh/haemil,pp,n SAM-DA61-06700A
...
8-7
Retainer; 49547-0392,polyamide,upper Tpa, SAM-6130-000386
...
8-8
Plate Heater; Brf8000m,al,t0.7,a1100p-H14 SAM-DA61-12385A
...
8-9
Fixer-Thermo Fuse; Sr-42.4636,pp,t2.0,nat SAM-DA71-20265A
...
8
Assy Evap-Fre; Rf9000k,fin Tube,120v,120w SAM-DA96-00987D
...
9-1
Sensor Temp; Dkst1329gw,aw3,-50~80??5v, SAM-DA32-10104V
...
9-2
Thermo Fuse-Assy; Ac250v,10a,109~110s SAM-DA47-00301D
...
9-3
Heater Metal Sheath; Ac120v,romanee Conti SAM-DA47-00318K
...
9-4
Plate-Drain Evap Fre; Romanee Conti,al,t0 SAM-DA61-08675A
...
9-5
Fixer-Senser SAM-DA61-03683A
...
9-6
Fixer-Heater Wire Ref; Hm/ggh/haemil,pp,n SAM-DA61-06700A
...
9-7
Retainer; 49547-0392,polyamide,upper Tpa, SAM-6130-000386
...
9-8
Plate Heater; Brf8000m,al,t0.7,a1100p-H14 SAM-DA61-12385A
...
9-9
Fixer-Thermo Fuse; Sr-42.4636,pp,t2.0,nat SAM-DA71-20265A
...
9
Assy Evap-Fre; Rf9000k,fin Tube,120v,120w SAM-DA96-01021E

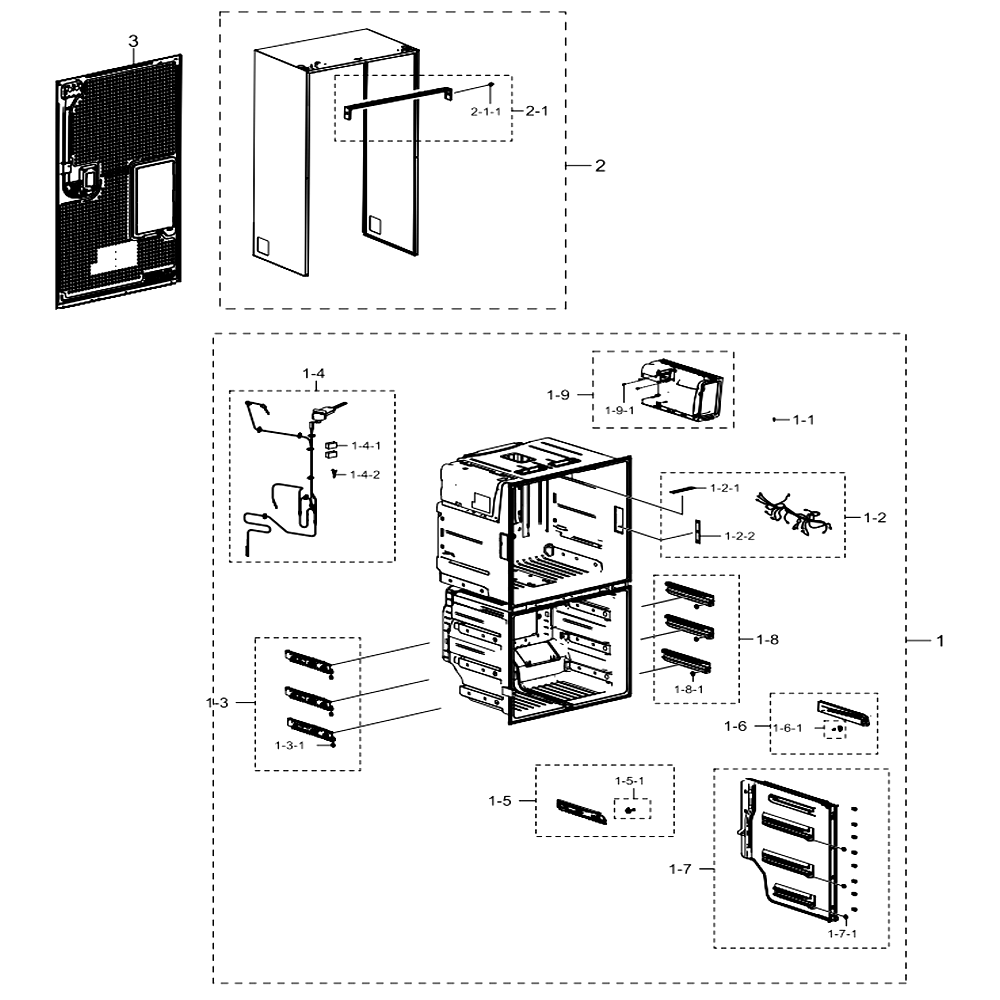

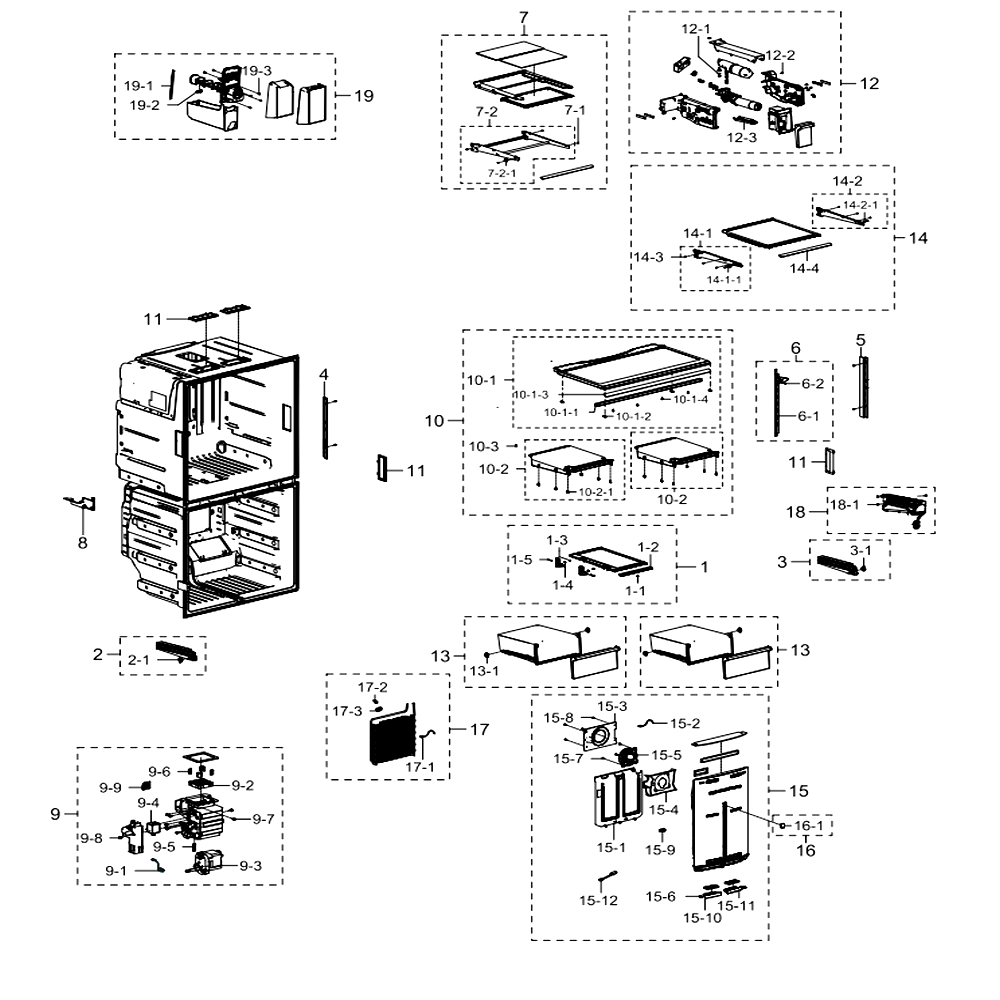

Fridge

...
...
1-1
Screw-Tapping SAM-6002-001397
...
1-2
Trim-Shelf Ref; Romanee,hips,s834s1,cool SAM-DA64-04306F
...
1-3
Spring Etc-Hinge Shelf SAM-DA61-03705A
...
1-4
Roller-Hinge-Shelf SAM-DA66-00482A
...
1-5
Shaft-Hinge-Shelf SAM-DA66-00483A
...
1
Assy Shelf Folder; Rf9000k,silver Trim SAM-DA97-16209B
...
2-1
Assembly Roller SAM-DA97-15998A
...
2
Assy Rail-Middle Left; Rf9000k,assy SAM-DA97-16223A
...
3-1
Assembly Roller SAM-DA97-15998A
...
3
Assy Rail-Middle Right; Rf9000k,assy SAM-DA97-16224A
...
4
Angle-Shelf Ref Side L; Gi-Sgcc,2.5,cool SAM-DA61-08693A
...
5
Angle-Shelf Ref Side R; Gi-Sgcc,2.5,cool- SAM-DA61-08632A
...
6-1
Angle-Shelf Ref Mid; Gi-Sgcc,t2.5,cool Wh SAM-DA61-08264A
...
6-2
Screw-Tapping SAM-6002-001397
...
6
Assy Angle-Shelf Ref Mid; Aw4,2.5,447.5,c SAM-DA97-12633A
...
7-1
Screw-Tapping SAM-6002-001397
...
7-2-1
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09550A
...
7-2
Assy Hanger; Rf9000k,cool White,wt0057, S SAM-DA97-14348B
...
7
Assy Shelf Quick Space; Rf9000k,silver Tr SAM-DA97-16210B
...
8
Cover-Wire Harness Ice SAM-DA63-06894A
...
9-1
Assembly Wire Harness-Auger SAM-DA96-00682D
...
9-2
Motor Bldc Fan SAM-DA31-00070E
...
9-3
Motor Geared Ac Auger SAM-DA31-00105M
...
9-4
Valve-Solenoid SAM-DA74-40151G
...
9-5
Spring Etc-Solenoid SAM-DA61-20140A
...
9-6
Grommet-Fan SAM-DA63-02513A
...
9-7
Screw-Tapping SAM-6002-000471
...
9-8
Screw-Special SAM-DA60-00001B
...
9-9
Fixer-Nut; Guggenheim,sts420,j2,sk5 SAM-DA71-00163B
...
9
Assy Case Auger Motor; Aw4-4d,115v 60hz SAM-DA97-12540G
...
10-1-1
Reinf-Cover Veg SAM-DA61-04292A
...
10-1-2
Trim Shelf; Aram,pe,cool White SAM-DA64-03784A
...
10-1-3
Trim-Shelf Fre; Romanee,hips,s-834s1,cool SAM-DA64-04307D
...
10-1-4
Screw-Tapping SAM-6002-000213
...
10-1
Assy Shelf-Ref; Rf9000k,assy,silver Trim SAM-DA97-16837A
...
10-2-1
Grommet-Rail; Chilled,pa6 SAM-DA63-40305A
...
10-2
Assy Cover Veg-Up; Rf9000k,assy,apply Gro SAM-DA97-16834A
...
10-3
Screw-Tapping SAM-6002-000213
...
10
Assy Shelf Veg-Low; Rf9000k,silver Trim SAM-DA97-16221D
...
11
Assy Cover Lamp; Rf8000mc SAM-DA97-16143B
...
12-1
Clip-Fitting Lock SAM-DA61-04522A
...
12-2
Screw-Tapping SAM-6002-000213
...
12-3
Tray-Water Filter SAM-DA63-05407A
...
12
Assy Case Filter; Rf9000k,110v SAM-DA97-16166B
...
13-1
Assembly Roller SAM-DA97-15998A
...
13
Assy Case Veg; Rf9000k,assy, Silver Trim SAM-DA97-16215B
...
14-1-1
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09550A
...
14-1
Assy Hanger-Left; Aw3-14,cool White,wt005 SAM-DA97-14323D
...
14-2-1
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09549A
...
14-2
Assy Hanger-Right; Aw3-14,cool White,wt00 SAM-DA97-14322C
...
14-3
Screw-Tapping SAM-6002-001397
...
14-4
Trim-Shelf Ref; Romanee,hips,s834s1,cool SAM-DA64-04306B
...
14
Assy Shelf Insert-Ref Fix; Rf9000k,silver SAM-DA97-16220C
...
15-1
Cover Evap-Rear; Rf9000jc,hips,t2,hb,natu SAM-DA63-08018A
...
15-2
Sensor Temp; Dkst1329gw,queen,-50 ~ 80 SAM-DA32-00011C
...
15-3
Case-Motor Fre SAM-DA61-08425A
...
15-4
Guide Air; Romanee-Conti,hips,ntr SAM-DA61-08658B
...
15-5
Motor Bldc Fan; Ares2120ra,18704%,12v,m SAM-DA31-00334A
...
15-6
Fixer Locker; Rf9000jc,pa66,natural,kn331 SAM-DA61-10534A
...
15-7
Screw-Tapping SAM-6002-000471
...
15-8
Screw-Tapping SAM-6002-001204
...
15-9
Grommet Fixer; Rf-H920g,rubber,black SAM-DA63-07761A
...
15-10
Cover Deodorizer-Left; Rf9000jc,hips,hb,c SAM-DA63-08102D
...
15-11
Cover Deodorizer-Right; Rf9000jc,hips,hb, SAM-DA63-08019D
...
15-12
Sensor Humidity; Da32-00034e,5v,0~100%rh, SAM-DA32-00034E
...
15
Assy Cover Evap-Ref; Rf9000jc,no Plate Co SAM-DA97-15409J
...
16-1
Cap Cover Evap-Ref; Rf9000jc,hips,t3.0,hb SAM-DA67-03978B
...
16
Assy Cap Angle; Rf9000jc SAM-DA97-15412B
...
17-1
Sensor Temp; Dkst1329gw,double_Insulation SAM-DA32-10104W
...
17-2
Fixer Wire; Aw3-Pjt,pp,t2.0,natural,hb,bj SAM-DA61-06013B
...
17-3
Fixer-Senser SAM-DA61-03683A
...
17
Assy Evap-Ref; Rf9000m,fin Tube,id3.3 SAM-DA96-01140B
...
18-1
Screw-Tapping SAM-6002-000471
...
18
Assy Ice Maker; Aw4,115v, 60hz SAM-DA97-15217D
...
19-1
Gasket-Tray Ice Bucket SAM-DA63-07185A
...
19-2
Spring Etc-Dispenser SAM-DA61-20124D
...
19-3
Screw-Tapping SAM-6002-000471
...
19
Assy Tray Ice;fdr,t-Type F/s SAM-DA97-14474C

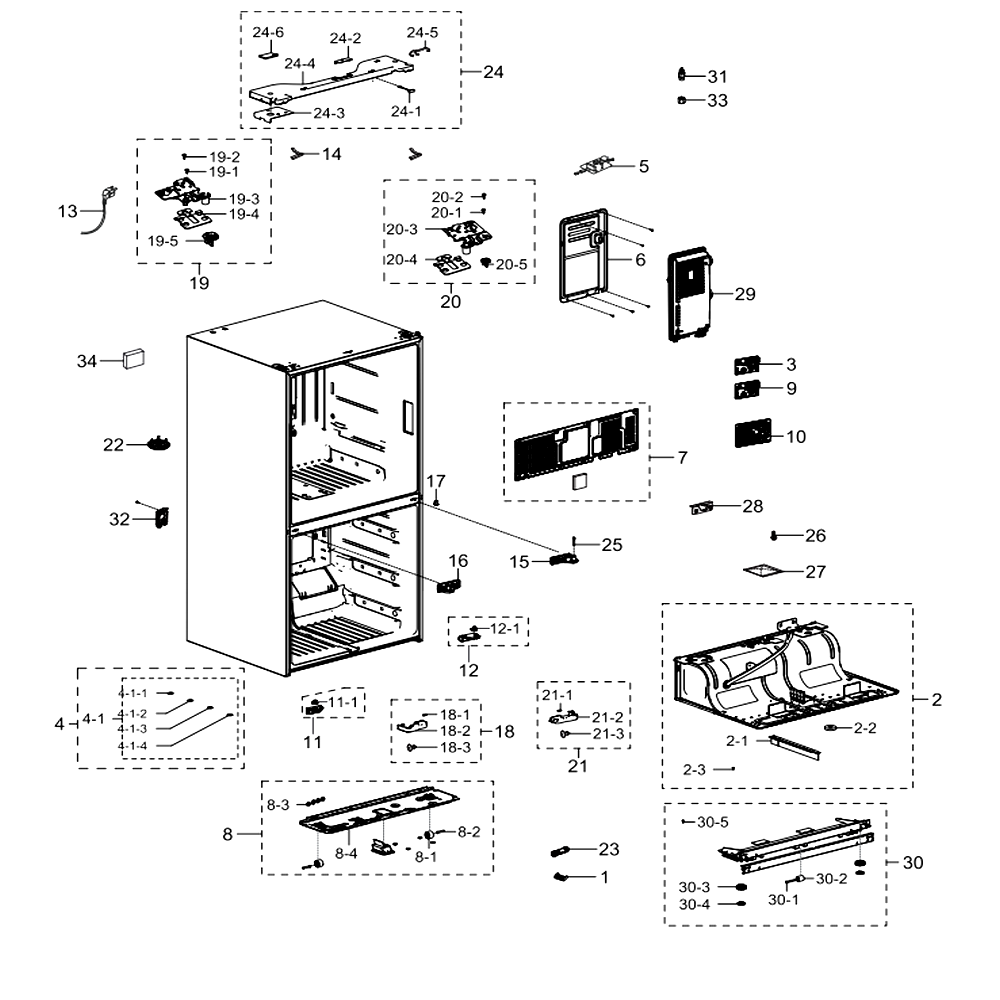

Cabinet 1

...
...
1
Fixer Cover; Aw3-14,hips,natural,s834s1 SAM-DA61-12488A
...
2-1
Trim Blade; Aw3-14,pvc,gray SAM-DA64-05373A
...
2-2
Seal-Drain Hose; Aram10,pu Foam,t10,30 SAM-DA72-00238B
...
2-3
Screw-Tapping SAM-6002-000213
...
2
Assy Cabi Bottom-Rear; New T9000,dispense SAM-DA97-08455S
...
3
Assembly Module SAM-DA92-00486A
...
4-1-1
Fastener-Hinge; Romanee Conti,pom,black SAM-DA60-00314A
...
4-1-2
Fastener-Hinge; Romanee Conti,pom,t1.5,bl SAM-DA60-00314B
...
4-1-3
Fastener-Hinge; Romanee Conti,pom,t2.0,bl SAM-DA60-00314C
...
4-1-4
Fastener-Hinge; Romanee Conti,pom,t2.5,bl SAM-DA60-00314D
...
4-1
Assy Accessory; Romanee Conti,adjustment SAM-DA99-04158A
...
4
Assy Manual; Rf9000k,rf28k**/aa SAM-DA98-01730A
...
5
Coil Filter SAM-DA27-00043D
...
6
Assy Cover Pba-Main; Romanee-Conti SAM-DA97-13181C
...
7
Assy Cover Comp; Polaris,gi-Sgcc,t0.25 SAM-DA97-12749J
...
8-1
Caster-Rear SAM-DA61-04703A
...
8-2
Shaft-Caster SAM-DA66-00649B
...
8-3
Bracket-Comp; A-Top,gi-Sgcc,t2,t2.0 SAM-DA61-01867A
...
8-4
Chassis Comp; Aw4-K,gi-Sgcc,-,t1.4 SAM-DA64-04152C
...
8
Assy Chassis Comp; Aw4-K,handle SAM-DA97-12557C
...
9
Assy Pcb Inverter; Inverter,aw3-14,163*98 SAM-DA92-00763M
...
10
Assy Pcb Eeprom; 0x48,d601,d602,d603,d607 SAM-DA94-02862B
...
11-1
Grommet Hinge; Romanee Conti,pom,black SAM-DA63-07231A
...
11
Assy Hinge-Low Left; Rf9000n,black Painti SAM-DA97-19473A
...
12-1
Grommet Hinge; Romanee Conti,pom,black SAM-DA63-07231A
...
12
Assy Hinge-Low Right; Rf9000n,black Paint SAM-DA97-19474A
...
13
At,u.s.a,canada,us3f-1,3c,125v,15a,blac K,1500,20/100/100/150,spt-3 Awg18 105c,ul/ Csa,y,n,n,n,y SAM-3903-000796
...
14
Fixer-Hinge;po-Sphc,t3,zn Coating SAM-DA61-04932B
...
15
Hinge-Middle Right; Rf9000n,zn,zndc2,zndc SAM-DA61-13156A
...
16
Hinge-Middle Left; Rf9000n,zn,zndc2,zndc2 SAM-DA61-13159A
...
17
Grommet Hinge-Mid; Romanee Conti,pom,blac SAM-DA63-07306A
...
18-1
Magnet-A SAM-DA61-03769A
...
18-2
Cover Leg-Front Left; Rfh920g,pp,hb,inox SAM-DA63-07795A
...
18-3
Cap-Shaft Hole SAM-DA67-02795C
...
18
Assy Cover Leg-Front; Rfh920g,l SAM-DA97-14537A
...
19-1
Screw-Tapping SAM-6002-000213
...
19-2
Screw-Tapping SAM-6002-000215
...
19-3
Hinge-Up Left; Rf9000n,po-Sphc,t3,eletrod SAM-DA61-13155A
...
19-4
Shim-Hinge Upp SAM-DA63-50192A
...
19-5
Cam-Auto Close L SAM-DA66-00950A
...
19
Assy Hinge-Up Left; Rf9000n,t3,121.6,135. SAM-DA97-19422A
...
20-1
Screw-Tapping SAM-6002-000213
...
20-2
Screw-Tapping SAM-6002-000215
...
20-3
Hinge-Up Right; Rf9000n,po-Sphc,t3,electr SAM-DA61-13154A
...
20-4
Shim-Hinge Upp SAM-DA63-50192A
...
20-5
Cam-Auto Close R SAM-DA66-00951A
...
20
Assy Hinge-Up Right; Rf9000n,t3,105.4,135 SAM-DA97-19423A
...
21-1
Magnet-A SAM-DA61-03769A
...
21-2
Cover Leg-Front Right; Rfh920g,pp,hb,inox SAM-DA63-07796A
...
21-3
Cap-Shaft Hole SAM-DA67-02795C
...
21
Assy Cover Leg-Front; Rfh920g,r SAM-DA97-14538A
...
22
Cover-Urethane SAM-DA63-03809A
...
23
Tube-Fitting SAM-DA62-03914A
...
24-1
Switch Reed; Ul1007 Awg 22,280(680),25045 SAM-DA34-00043K
...
24-2
Cover Hinge-B; Rf9000k,abs,inox Gray,hg-0 SAM-DA63-08442A
...
24-3
Plate-Cover Hinge SAM-DA61-08227A
...
24-4
Top Table; Romanee Conti,abs,inox Gray,no SAM-DA64-04241D
...
24-5
Assy Wire Harness-Etc; T-Fdr,12vdc,all,dc SAM-DA96-00962K
...
24-6
W-Lan Module; Swl-Cq52/ref,16k Ref,ieee80 SAM-4709-002353
...
24
Assy Top Table; Rf9000k,inox Gray,usa SAM-DA97-12527L
...
25
Shaft Hinge-Mid; Romanee Conti,swch10a,l4 SAM-DA66-00987A
...
26
Screw-Hex SAM-DA60-10123E
...
27
Catalyst; T5,w100,l100,mesh+fouder Type SAM-DA02-00244A
...
28
Guide-French SAM-DA61-04285A
...
29
Assy Case Pba-Main; Latour,t2.0 SAM-DA97-16877A
...
30-1
Caster-Rivet SAM-DA61-01920A
...
30-2
Caster-Front SAM-DA61-04702A
...
30-3
Foot-Front SAM-DA61-07972B
...
30-4
Foot SAM-DA61-07973B
...
30-5
Screw-Tapping SAM-6002-000213
...
30
Assy Cabi Bottom-Front; Rf9000k,export, U SAM-DA97-15376F
...
31
Valve-Fitting Pu SAM-DA62-00305A
...
32
Assembly Cover-Tube Filter SAM-DA97-08413B
...
33
Valve-Fitting Nut SAM-DA74-00070B
...
34
Seal Cutt-Rubber; W2-05,rubber,black,t8,w SAM-DA72-60040Y

Cabinet 2

...
...
1-1
Screw-Tapping SAM-6002-000215
...
1-2-1
Assy Lamp Led; 6,fr-4,150*12,white,smaw25 SAM-DA96-01119B
...
1-2-2
Assembly Lamp Led SAM-DA96-01119A
...
1-2
Assy Wire Harness-Main; New T9000,dispens SAM-DA96-01141B
...
1-3-1
Roller-Fre SAM-DA66-10104C
...
1-3
Assembly Rail-Drawer L SAM-DA97-10870B
...
1-4-1
Seal Cutt-Rubber; Rr2500k,rubber,black,t5 SAM-DA62-01018A
...
1-4-2
Fixer Pipe; Fdr/t-Type Ice Room Model,sts SAM-DA61-12775A
...
1-4
Assy Pipe Suction; Rf9000k,dispenser SAM-DA97-16144A
...
1-5-1
Assembly Roller SAM-DA97-15998A
...
1-5
Assy Rail-Ref Low Left; Rf8000k SAM-DA97-16153A
...
1-6-1
Assembly Roller SAM-DA97-15998A
...
1-6
Assy Rail-Ref Low Right; Rf8000k SAM-DA97-16157A
...
1-7-1
Roller-Fre SAM-DA66-10104A
...
1-7
Assy Partition-Fre V; Rf8000k,depth 748 SAM-DA97-16174A
...
1-8-1
Roller-Fre SAM-DA66-10104C
...
1-8
Assembly Rail-Drawer R SAM-DA97-10880B
...
1-9-1
Screw-Tapping SAM-6002-000471
...
1-9
Assy Case Ice; Aw4,urethane,assy SAM-DA97-12576B
...
1
Assy Liner; Rf9000k,dispenser,110v,urban SAM-DA94-02713C
...
2-1-1
Bolt-Etc; M8,l14.1(3.4),fe-Fzb,scm435,3-B SAM-6011-001694
...
2-1
Assy Reinf Cabi-Flange Up; Aw-Pjt SAM-DA97-06920Q
...
2
Assy Cabi Frame; Rf9000k,dispenser,urban SAM-DA97-16200C
...
3
Assy Cabi Frame-Rear; Rf8000k,disp,usa SAM-DA97-15389G

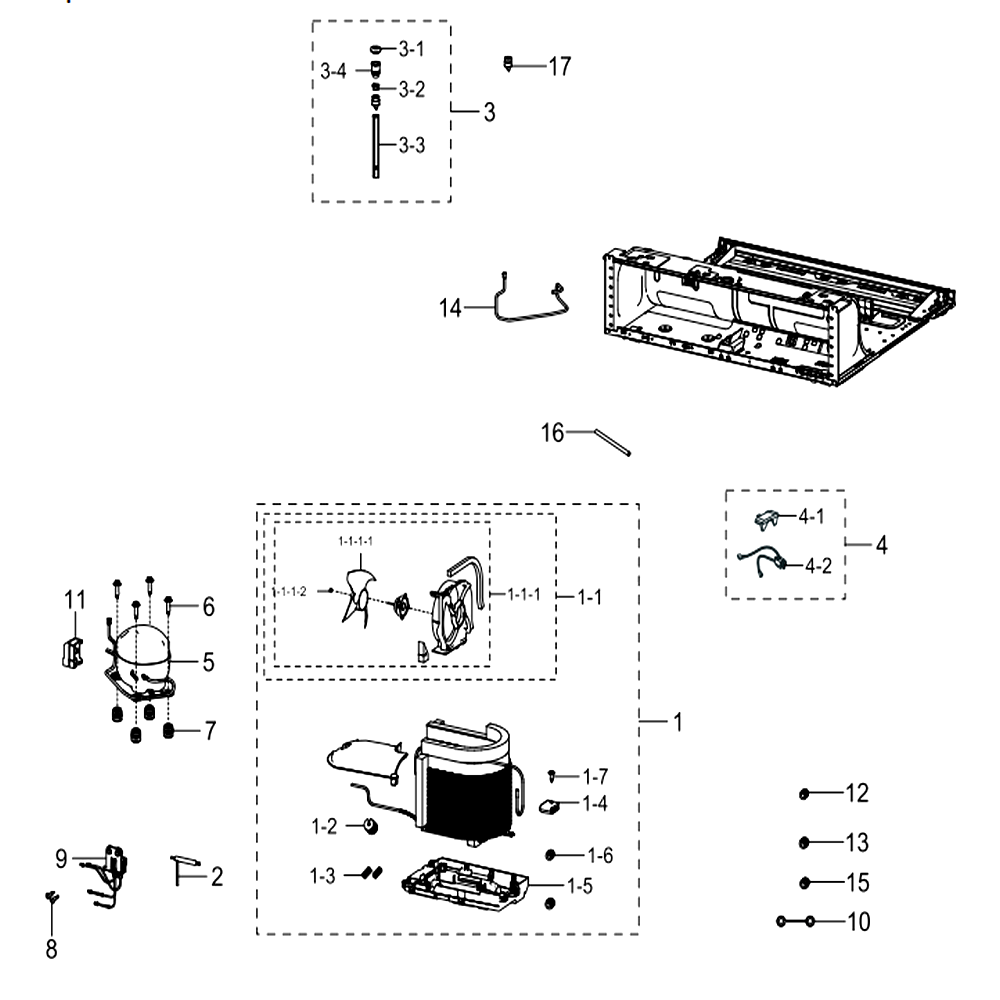

Cycle

...
...
1-1-1-1
Fan SAM-DA31-00320A
...
1-1-1-2
Spring Etc-Fan SAM-DA61-20128A
...
1-1-1
Motor Bldc Fan; Rmf002assa,1120 Rpm,12v,0 SAM-DA31-00340A
...
1-1
Assy Support-Circuit Motor; Rh9000k SAM-DA97-15765C
...
1-2
Grommet-Suct Pipe A SAM-DA63-40171B
...
1-3
Grommet-Immersion Pipe B SAM-DA63-07323A
...
1-4
Grommet-Cond Sub SAM-DA63-04424A
...
1-5
Tray Drain-Water SAM-DA63-08236A
...
1-6
Fitting-Lokring Al 12; Al,lokring 5 N Al SAM-DA60-00321A
...
1-7
Screw-Tapping SAM-6002-000213
...
1
Assy Tray Drain Water; Aw,pfc SAM-DA97-15978B
...
2
Dryer SAM-DA62-04309A
...
3-1
Grommet-Drain SAM-DA63-02761A
...
3-2
Fixer-Drain SAM-DA61-05021A
...
3-3
Tube Pvc SAM-DA62-01266B
...
3-4
Cap-Drain SAM-DA67-01301A
...
3
Assembly Cap-Drain SAM-DA97-04049E
...
4-1
Relay Protector O/l SAM-DA34-00004D
...
4-2
Wire Harness-Comp SAM-DA39-00154J
...
4
Assembly Comp-Sub SAM-DA97-08310H
...
5
Cmp,refrigerator,r-134a; Cmp,refrigerator,r-134a SAM-NC1MV90ALP/E01
...
6
Bolt-Hex SAM-6011-004061
...
7
Grommet Comp; Usp05,epdm,od27.0,black SAM-DA63-02617C
...
8
Fixer-Step,motor; Ruby,swrch1,-,zpc3-Y,- SAM-DK61-00464A
...
9
Valve Step; Dc12v,module,80mm,3way,all Op SAM-DA62-04617D
...
10
Wire Harness-Earth SAM-DA39-20389L
...
11
Cover Relay; Msv,mppo,t2.0,5v-A,black,m-H SAM-DA63-06122A
...
12
Fitting-Lokring 16; Sum23,16, 11smnpb30k SAM-DA60-00279A
...
13
Fitting-Lokring 33 SAM-DA60-00280A
...
14
Pipe Connect-Suction; C1220t-O,od6.35,t0. SAM-DA62-03691A
...
15
Fitting-Lokring 43 SAM-DA60-00281A
...
16
Pipe-Connect Disc,b SAM-DA73-10190U
...
17
Grommet-Drain Hose; V2-Pjt,nbr,black SAM-DA63-00951C

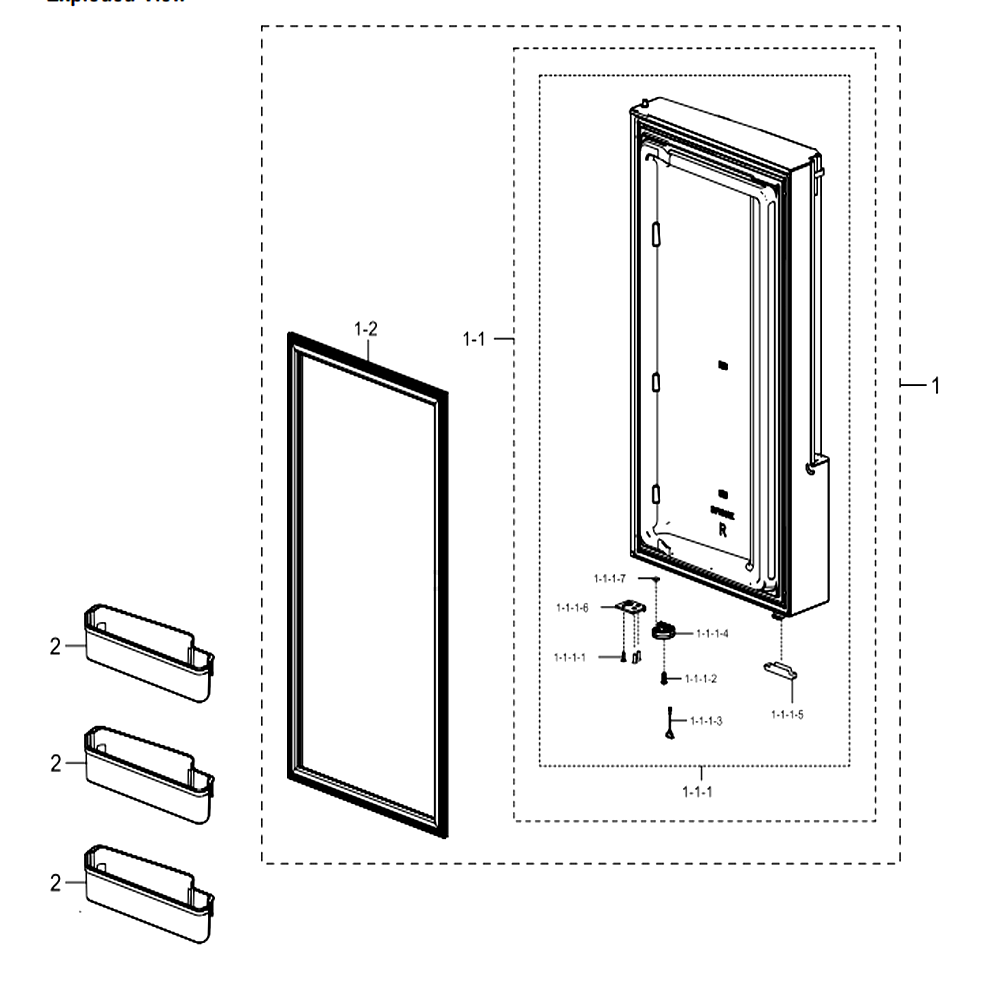

Freezer Door Right

...
...
1-1-1-1
Screw-Tapping SAM-6002-001120
...
1-1-1-2
Screw-Machine SAM-6001-000716
...
1-1-1-3
Switch Reed SAM-DA34-00043J
...
1-1-1-4
Support Door-Close; Aw-Pjt,pk,m33r3a000,c SAM-DA61-02383E
...
1-1-1-5
Cap Door Switch; 3050-Pjt,pp,t1.5,hb,bj75 SAM-DA67-02385M
...
1-1-1-6
Stopper Door-R; Romanee Conti,po-Sphc,bla SAM-DA61-08817A
...
1-1-1-7
Grommet-Stopper SAM-DA63-40294A
...
1-1-1
Assy Plate Door-Fre Right; Rf9000k,recess SAM-DA97-15394R
...
1-1
Assy Door Foam-Fre Right; Rf9000k,real St SAM-DA91-04496H
...
1-2
Assy Gasket-Fre; Rf9000n,gray SAM-DA97-19431A
...
1
Assy Door Sub-Fre Right; Rf9000k,real Sts SAM-DA93-00103A
...
2
Assy Guard-Fre Low A; Rf8000k,guard Fre R SAM-DA97-16184A

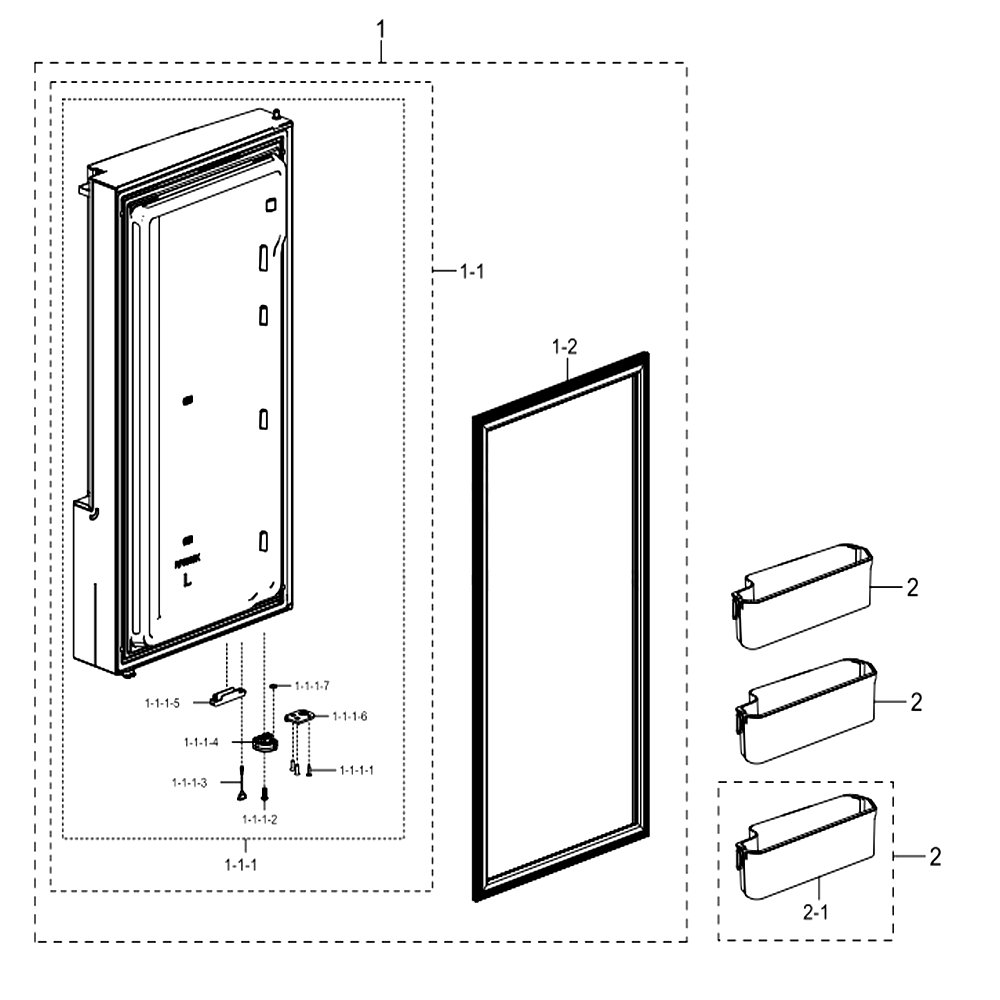

Freezer Door Left

...
...
1-1-1-1
Screw-Tapping SAM-6002-001120
...
1-1-1-2
Screw-Machine SAM-6001-000716
...
1-1-1-3
Switch Reed SAM-DA34-00043J
...
1-1-1-4
Support Door-Close; Aw-Pjt,pk,m33r3a000,c SAM-DA61-02383E
...
1-1-1-5
Cap Door Switch; 3050-Pjt,pp,t1.5,hb,bj75 SAM-DA67-02385M
...
1-1-1-6
Stopper Door-L; Romanee Conti,po-Sphc,bla SAM-DA61-08816A
...
1-1-1-7
Grommet-Stopper SAM-DA63-40294A
...
1-1-1
Assy Plate Door-Fre Left; Rf9000k,recess SAM-DA97-15383R
...
1-1
Assy Door Foam-Fre Left; Rf9000k,real Sts SAM-DA91-04497G
...
1-2
Assy Gasket-Fre; Rf9000n,gray SAM-DA97-19431A
...
1
Assy Door Sub-Fre Left; Rf9000k,real Sts( SAM-DA93-00102A
...
2-1
Guard-Fre Left; Gpps,t3.0,tp Blue SAM-DA63-08282A
...
2
Assy Guard-Fre Low; Rf8000k,assy Guard-Fr SAM-DA97-16185A

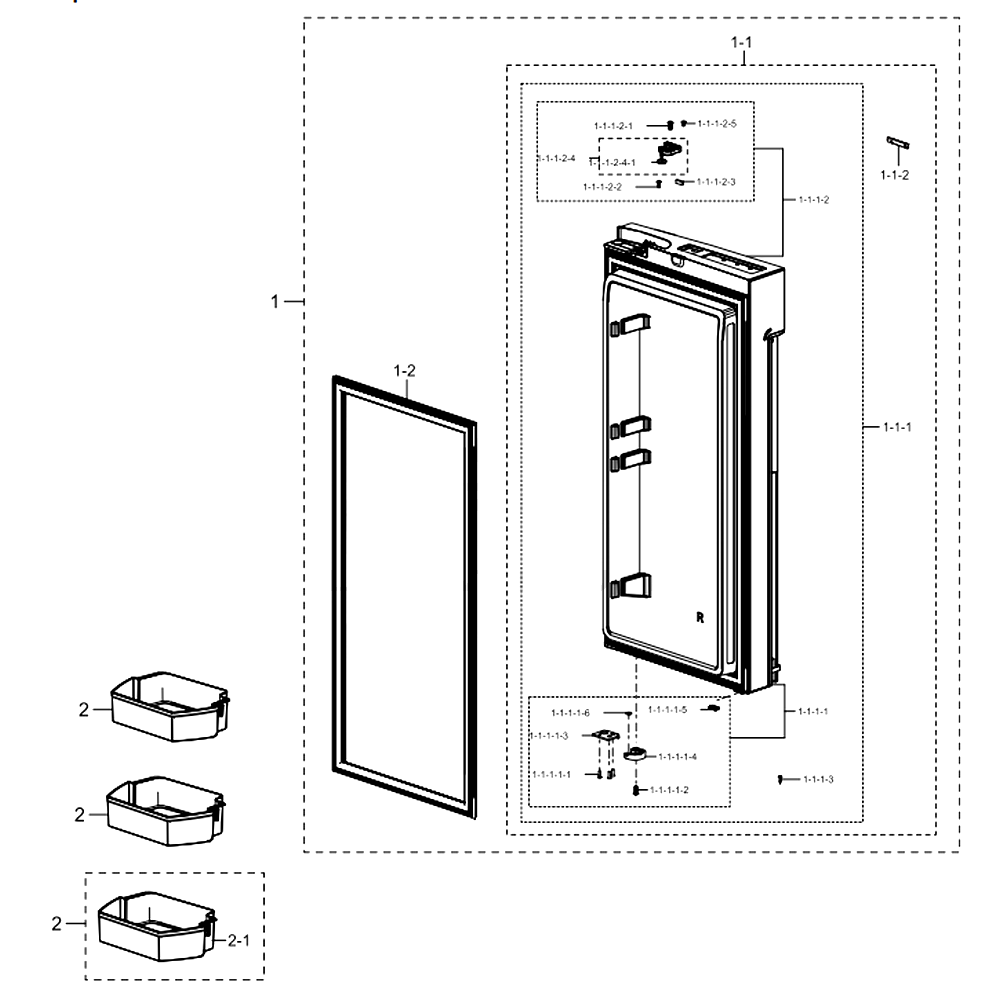

Fridge Door Right

...
...
1-1-1-1-1
Screw-Tapping SAM-6002-001120
...
1-1-1-1-2
Screw-Machine SAM-6001-000716
...
1-1-1-1-3
Stopper Door-R; Romanee Conti,po-Sphc,bla SAM-DA61-08817A
...
1-1-1-1-4
Support Cap Door-Right; Rf9000k,pom,t3.5, SAM-DA61-10855A
...
1-1-1-1-5
Grommet-Chassis Up SAM-DA63-04825A
...
1-1-1-1-6
Grommet-Stopper SAM-DA63-40294A
...
1-1-1-1
Assy Cap Door-Ref Low Right; Rf9000k,inox SAM-DA97-16595E
...
1-1-1-2-1
Screw-Tapping SAM-6002-000613
...
1-1-1-2-2
Screw-Tapping SAM-6002-001122
...
1-1-1-2-3
Magnet-A SAM-DA61-03769A
...
1-1-1-2-4-1
Roller-Auto Close SAM-DA66-00440A
...
1-1-1-2-4
Assembly Lever-Auto Close SAM-DA97-12625A
...
1-1-1-2-5
Cap-Shaft Hole SAM-DA67-02795C
...
1-1-1-2
Assy Cap Door-Ref Up Right; Romanee Conti SAM-DA97-13848E
...
1-1-1-3
Screw-Tapping SAM-6002-001122
...
1-1-1
Assy Plate Door-Ref Right; Rf9000k,recess SAM-DA97-15382N
...
1-1-2
Mascot; All,ni,t0.06,l90 SAM-DA64-04021D
...
1-1
Assy Door Foam-Ref Right; Rf9000k,real St SAM-DA91-04498F
...
1-2
Assy Gasket-Ref; Rf9000n,gray SAM-DA97-19430A
...
1
Assy Door Sub-Ref Right; Rf9000k,real Sts SAM-DA93-00100A
...
2-1
Guard-Ref Right; Rf9000jc,gpps,t3.0,tp Bl SAM-DA63-08015A
...
2
Assy Guard-Ref Right; Rf9000jc,hot Stampi SAM-DA97-15560A

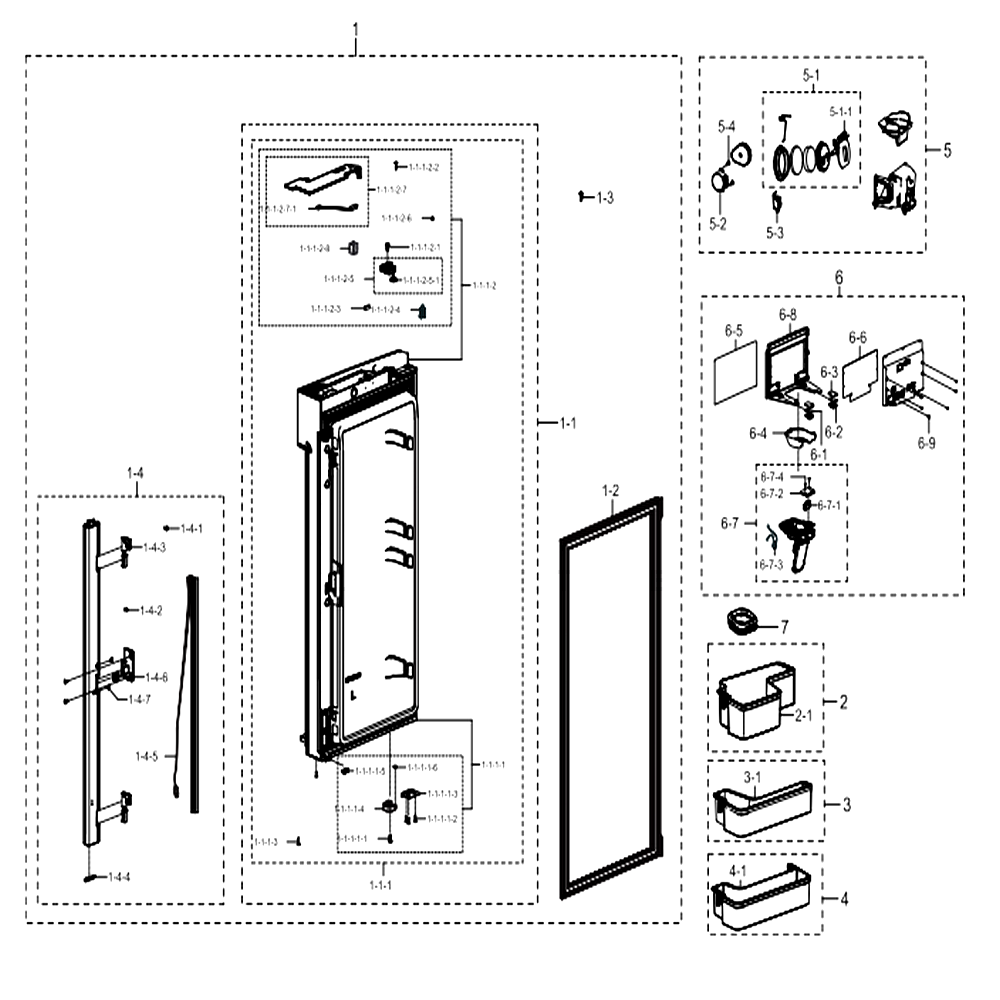

Fridge Door Left

...
...
1-1-1-1-1
Screw-Machine SAM-6001-000716
...
1-1-1-1-2
Screw-Tapping SAM-6002-001120
...
1-1-1-1-3
Stopper Door-L; Romanee Conti,po-Sphc,bla SAM-DA61-08816A
...
1-1-1-1-4
Support Cap Door-Left; Rf9000k,pom,t3.5,k SAM-DA61-10856A
...
1-1-1-1-5
Grommet-Chassis Up SAM-DA63-04825A
...
1-1-1-1-6
Grommet-Stopper SAM-DA63-40294A
...
1-1-1-1
Assy Cap Door-Ref Low Left; Rf9000k,inox SAM-DA97-16589E
...
1-1-1-2-1
Screw-Tapping SAM-6002-000613
...
1-1-1-2-2
Screw-Tapping SAM-6002-001122
...
1-1-1-2-3
Magnet-A SAM-DA61-03769A
...
1-1-1-2-4
Switch Door-Interlock SAM-DA34-00066C
...
1-1-1-2-5-1
Roller-Auto Close SAM-DA66-00440A
...
1-1-1-2-5
Assembly Lever-Auto Close SAM-DA97-12625A
...
1-1-1-2-6
Cap-Shaft Hole SAM-DA67-02795C
...
1-1-1-2-7-1
Sensor Humidity SAM-DA32-00034B
...
1-1-1-2-7
Assy Cover Display; Romanee Conti,inox Gr SAM-DA97-13014A
...
1-1-1-2-8
Cover-Fixer Housing V SAM-DA63-02902B
...
1-1-1-2
Assy Cap Door-Ref Up Left; Romanee Conti, SAM-DA97-13847J
...
1-1-1-3
Screw-Tapping SAM-6002-001122
...
1-1-1
Assy Plate Door-Ref Left; Rf9000k,t9000 H SAM-DA97-15381X
...
1-1
Assy Door Foam-Ref Left; Rf9000k,real Sts SAM-DA91-04495H
...
1-2
Assy Gasket-Ref; Rf9000n,gray SAM-DA97-19430A
...
1-3
Screw-Tapping SAM-6002-001406
...
1-4-1
Screw-Tapping SAM-6002-000213
...
1-4-2
Screw-Tapping SAM-6002-000217
...
1-4-3
Hinge-French SAM-DA61-08305A
...
1-4-4
Gasket-French Low; Aw-Pjt,si,gray SAM-DA63-06842B
...
1-4-5
Heater Cord-French; Ac120v,romanee-Conti, SAM-DA47-00245U
...
1-4-6
Cap-Case French Mid SAM-DA67-01701A
...
1-4-7
Grommet-A; Mouton12,si,cool White,name Ta SAM-DA63-07538A
...
1-4
Assy French; Rf9000k,thai Silver, 110v, A SAM-DA97-17722D
...
1
Assy Door Sub-Ref Left; Rf9000k,real Sts( SAM-DA93-00101A
...
2-1
Guard-Dispenser; Rf9000jc,gpps,t3,tp Blue SAM-DA63-08012A
...
2
Assy Guard Dispenser; Rf9000jc,hot Stampi SAM-DA97-15558A
...
3-1
Guard-Ref Middle; Rf9000jc,gpps,t3,tp Blu SAM-DA63-08013A
...
3
Assy Guard-Ref Middle; Rf9000jc,hot Stamp SAM-DA97-15562A
...
4-1
Guard-Ref Low; Rf9000jc,gpps,t3,tp Blue,h SAM-DA63-08014A
...
4
Assy Guard-Ref Low; Rf9000jc,hot Stamping SAM-DA97-15559A
...
5-1-1
Cover-Ice Route A SAM-DA63-04647A
...
5-1
Assembly Cover-Ice Route SAM-DA97-05368A
...
5-2
Motor Geared-Disp SAM-DA31-00079D
...
5-3
Switch-Micro SAM-3405-001117
...
5-4
Screw-Tapping SAM-6002-001364
...
5
Assembly Guide Ice Route SAM-DA97-13829C
...
6-1
Assembly Pcb Kit SAM-DA41-00217A
...
6-2
Case Lamp-Led SAM-DA61-05687A
...
6-3
Cover-Lamp-Led SAM-DA63-02446A
...
6-4
Cover Ice SAM-DA63-07637A
...
6-5
Inlay-Film; Rf9000k,pet,black,dispenser SAM-DA64-05049B
...
6-6
Assy Module; Display(pba),rf9000k,led Whi SAM-DA92-00758B
...
6-7-1
Switch-Micro; 250vac,1a,80,spst-No,t105 SAM-3405-001119
...
6-7-2
Cover-Switch SAM-DA63-05449A
...
6-7-3
Assy Wire Harness-Dispenser; All,12vdc,al SAM-DA96-00106J
...
6-7-4
Screw-Tapping SAM-6002-000630
...
6-7
Assy Lever Dispenser; Aw4-4d,cd/no Sparkl SAM-DA97-12628N
...
6-8
Assy Cover Dispenser-Sub; New T9000, Disp SAM-DA97-15113E
...
6-9
Screw-Tapping SAM-6002-000630
...
6
Assy Cover Dispenser; New T9000,dispenser SAM-DA97-15112E
...
7
Assy Cap-Chute Ice; Romanee Conti,hips,12 SAM-DA97-13431A
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
