Samsung RF28JBEDBSR/AA_0004

Model: RF28JBEDBSR/AA_0004

Save Part Not Listed?
product name

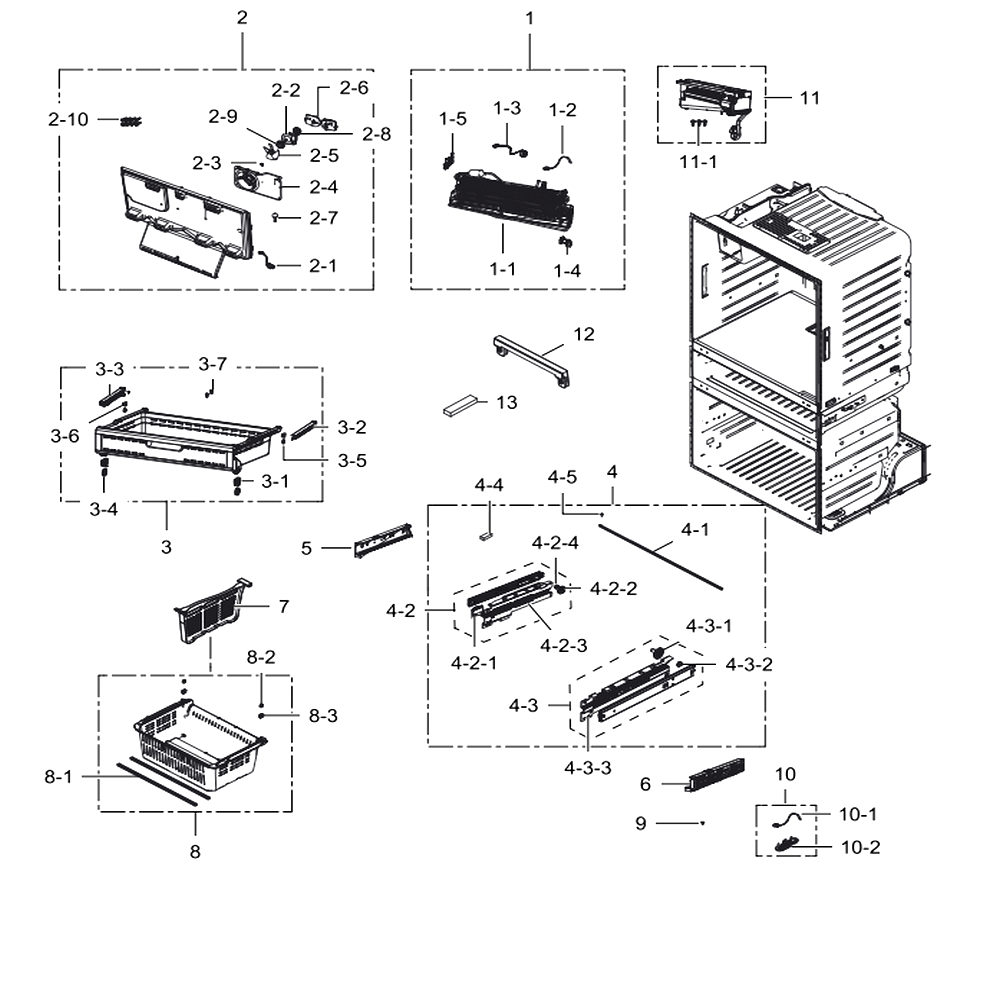

Freezer

...
...
1-1
Heater Metal Sheath SAM-DA47-00318H
...
1-2
Sensor Temp SAM-DA32-10104N
...
1-3
Thermo Bimetal-Protector SAM-DA47-00243B
...
1-4
Fixer-Heater Fre SAM-DA61-05845A
...
1-5
Fixer-Sensor Fre SAM-DA61-06182A
...
1
Assembly Evap-Fre SAM-DA96-00631D
...
2-1
Assembly Wire Harness-Motor SAM-DA96-00042D
...
2-2
Motor Bldc SAM-DA31-00146H
...
2-3
Spring Etc-Fan SAM-DA61-20128A
...
2-4
Case Motor-Fre SAM-DA61-05867B
...
2-5
Fan-Ax100w4cc-T1 SAM-DA31-00124A
...
2-6
Cover Motor-Bldc SAM-DA63-01809B
...
2-7
Grommet-Cover Chill SAM-DA63-40167A
...
2-8
Grommet-Motor,rear SAM-DA63-01146A
...
2-9
Grommet Motor SAM-DA63-01808A
...
2-10
Screw-Tapping SAM-6002-000215
...
2
Assembly Cover Evap-Fre SAM-DA97-08434E
...
3-1
Fixer-Roller Tray Fre Upp SAM-DA61-04154A
...
3-2
Guide-Tray Fre Upp R SAM-DA61-05185A
...
3-3
Guide-Tray Fre Upp L SAM-DA61-05186A
...
3-4
Roller-Tray Fre Upp SAM-DA66-00554A
...
3-5
Roller-Fre SAM-DA66-10104A
...
3-6
Fixer-Roller SAM-DA71-20277A
...
3-7
Screw-Tapping SAM-6002-001406
...
3
Assembly Tray-Fre Up SAM-DA97-08439D
...
4-1
Shaft-Gear SAM-DA66-00437B
...
4-2-1
Switch Pressure SAM-DA34-00047B
...
4-2-2
Gear-Rail L SAM-DA66-00751A
...
4-2-3
Hanger-Rail Low L SAM-DA61-05974A
...
4-2-4
Fixer-Gear SAM-DA61-03154A
...
4-2
Assembly Rail-Slide Low L SAM-DA97-08803C
...
4-3-1
Gear-Rail R SAM-DA66-00750A
...
4-3-2
Fixer-Gear SAM-DA61-03154A
...
4-3-3
Hanger-Rail Low R SAM-DA61-05975A
...
4-3
Assembly Rail-Slide Low R SAM-DA97-08804C
...
4-4
Magnet SAM-DA61-03769B
...
4-5
Cap-Shaft Hole SAM-DA67-02795C
...
4
Assembly Hanger-Low SAM-DA97-14382A
...
5
Cover-Rail Low L SAM-DA63-05400A
...
6
Cover-Rail Low R SAM-DA63-05409A
...
7
Guide-Fre SAM-DA61-05850B
...
8-1
Reinf-Drawer Box SAM-DA61-03160A
...
8-2
Roller-Fre SAM-DA66-10104A
...
8-3
Fixer-Roller SAM-DA71-20145A
...
8
Assembly Tray Drawer SAM-DA97-08401C
...
9
Cap-Shaft Hole SAM-DA67-02795C
...
10-1
Sensor Temp SAM-DA32-00033C
...
10-2
Cover Sensor-Fre SAM-DA63-05470B
...
10
Assembly Cover-Sensor Fre SAM-DA97-08608A
...
11-1
Screw-Tapping SAM-6002-000471
...
11
Assembly Ice Maker SAM-DA97-15217A
...
12
Fixer-Rear SAM-DA61-09790A
...
13
Seal-Cutt Rubber SAM-DA72-60040W

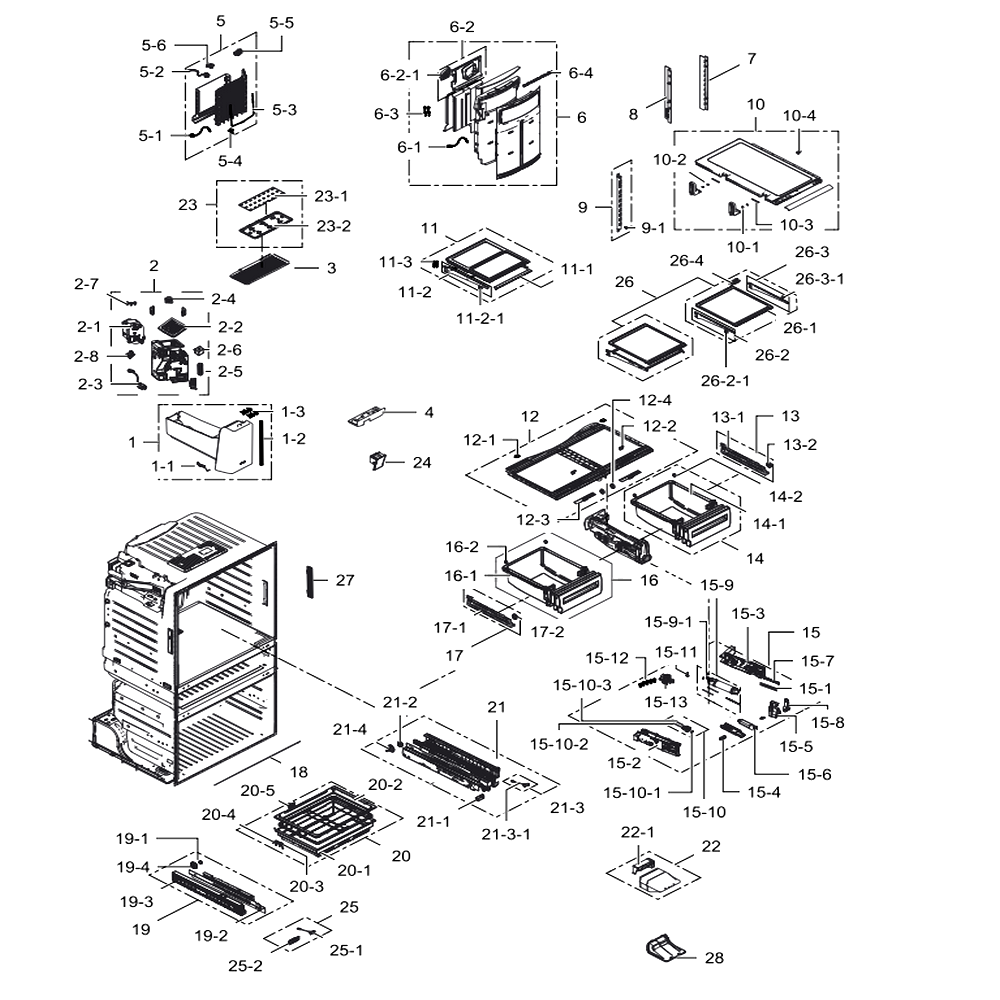

Refrigerator

...
...
1-1
Spring Etc-Dispenser SAM-DA61-20124D
...
1-2
Gasket-Tray Ice Bucket SAM-DA63-07185A
...
1-3
Screw-Tapping SAM-6002-000471
...
1
Assembly Tray Ice SAM-DA97-14474A
...
2-1
Motor Geared Ac Auger SAM-DA31-00105M
...
2-2
Motor Bldc Fan SAM-DA31-00070E
...
2-3
Assembly Wire Harness-Auger SAM-DA96-00682D
...
2-4
Grommet-Fan SAM-DA63-02513A
...
2-5
Spring Etc-Solenoid SAM-DA61-20140A
...
2-6
Valve-Solenoid SAM-DA74-40151G
...
2-7
Screw-Special SAM-DA60-00001B
...
2-8
Screw-Tapping SAM-6002-000471
...
2
Assembly Case-Fan Auger Motor SAM-DA97-12540A
...
3
Cover Lamp-Ref SAM-DA63-07816A
...
4
Guide-French SAM-DA61-04285A
...
5-1
Sensor Temp SAM-DA32-10104N
...
5-2
Thermo Bimetal-Protector SAM-DA47-00243C
...
5-3
Heater Metal Sheath SAM-DA47-00434A
...
5-4
Plate-Evap Heater SAM-DA61-03644A
...
5-5
Fixer-Senser SAM-DA61-03683A
...
5-6
Fixer-Heater Ref SAM-DA61-05835B
...
5
Assembly Evap-Ref SAM-DA96-00842A
...
6-1
Sensor Temp SAM-DA32-00011D
...
6-2-1
Motor Bldc Fan SAM-DA31-00287A
...
6-2
Assembly Case Motor-Ref SAM-DA97-16026A
...
6-3
Screw-Tapping SAM-6002-001204
...
6-4
Inlay SAM-DA64-04618A
...
6
Assembly Cover Evap-Ref SAM-DA97-16028A
...
7
Angle-Shelf Ref Side R SAM-DA61-05897A
...
8
Angle-Shelf Ref Side L SAM-DA61-05898A
...
9-1
Screw-Tapping SAM-6002-001397
...
9
Assembly Angle Shelf-Ref Middle SAM-DA97-13844D
...
10-1
Spring Etc-Hinge Shelf SAM-DA61-03705A
...
10-2
Roller-Hinge-Shelf SAM-DA66-00482A
...
10-3
Shaft-Hinge-Shelf SAM-DA66-00483A
...
10-4
Screw-Tapping SAM-6002-001397
...
10
Assembly Shelf Folder-Ref SAM-DA97-14315A
...
11-1
Trim-Shelf Quick Space SAM-DA64-03040F
...
11-2-1
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09550A
...
11-2
Assembly Hanger SAM-DA97-14348A
...
11-3
Screw-Tapping SAM-6002-001397
...
11
Assembly Shelf-Quick Space SAM-DA97-08463B
...
12-1
Fixer-Cover Veg SAM-DA61-03166A
...
12-2
Knob-Humidity SAM-DA64-03209A
...
12-3
Lever-Humidity SAM-DA66-00718A
...
12-4
Assy Roller; Rf9000jc,24 SAM-DA97-15997A
...
12
Assembly Cover Veg-Ref SAM-DA97-08402G
...
13-1
Rail-Veg R SAM-DA61-07326A
...
13-2
Assy Roller; Rf9000jc,24 SAM-DA97-15997A
...
13
Assembly Rail Veg-R SAM-DA97-11291A
...
14-1
Case-Veg R SAM-DA61-05875B
...
14-2
Assembly Roller SAM-DA97-15998A
...
14
Assembly Case Veg-Right SAM-DA97-08437D
...
15-1
Assembly Lamp Led SAM-DA41-00519S
...
15-2
Case-Filter Tank R SAM-DA61-07226A
...
15-3
Case-Filter Tank L SAM-DA61-07225A
...
15-4
Support-Case Filter SAM-DA61-05870A
...
15-5
Cover-Filter Tank SAM-DA63-05406B
...
15-6
Tray-Water Filter SAM-DA63-05407A
...
15-7
Cover-Led Filter SAM-DA63-05408B
...
15-8
Cap-Filter Tank SAM-DA67-02505B
...
15-9-1
Clip-Fitting Lock SAM-DA61-04522A
...
15-9
Assy Tank Water-Ref; Opus1-14,pp SAM-DA97-11283J
...
15-10-1
Clip-Fitting Lock SAM-DA61-04522A
...
15-10-2
Pipe-Water Line SAM-DA62-02429G
...
15-10-3
Pipe-Water Line SAM-DA62-01368B
...
15-10
Assembly Case-Filter SAM-DA97-08006D
...
15-11
Tube-Fitting L SAM-DA62-03103A
...
15-12
Screw-Tapping SAM-6002-000471
...
15-13
Valve Water SAM-DA62-04027A
...
15
Assembly Case Filter SAM-DA97-14365A
...
16-1
Case-Veg L SAM-DA61-05876B
...
16-2
Assembly Roller SAM-DA97-15998A
...
16
Assembly Case Veg-Left SAM-DA97-08438D
...
17-1
Rail-Veg L SAM-DA61-07327A
...
17-2
Assy Roller; Rf9000jc,24 SAM-DA97-15997A
...
17
Assembly Rail Veg-L SAM-DA97-11292A
...
18
Shaft-Gear Conv SAM-DA66-00733A
...
19-1
Fixer-Gear SAM-DA61-03154A
...
19-2
Hanger-Middle Left SAM-DA61-09188A
...
19-3
Cover-Rail Conv L SAM-DA63-05451A
...
19-4
Gear-Rail L SAM-DA66-00751A
...
19
Assembly Rail-Middle Left SAM-DA97-13781A
...
20-1
Case Convertible SAM-DA61-05860B
...
20-2
Cover Convertible SAM-DA63-05401B
...
20-3
Bracket Divider SAM-DA61-09409A
...
20-4
Roller-Divider SAM-DA66-00876A
...
20-5
Bracket Divider SAM-DA61-10717A
...
20
Assembly Case Convertible SAM-DA97-11930B
...
21-1
Magnet-Ass'y SAM-DA61-02738A
...
21-2
Fixer-Gear SAM-DA61-03154A
...
21-3-1
Switch Reed SAM-DA34-00043H
...
21-3
Assembly W/harness-Rail SAM-DA96-00640A
...
21-4
Gear-Rail R SAM-DA66-00750A
...
21
Assembly Rail-Middle Right SAM-DA97-13780A
...
22-1
Motor Dc-Damper SAM-DA31-00101C
...
22
Assembly Ins-Damper Conv SAM-DA97-08430A
...
23-1
Assy Lamp Led; 5,cem-1,240*10,white,smaw2 SAM-DA41-00676K
...
23-2
Case Lamp-Ref SAM-DA61-08236A
...
23
Assy Case Lamp-Ref; Aw4,long Led SAM-DA97-12606B
...
24
Assembly Cap Angle SAM-DA97-15412A
...
25-1
Switch Reed SAM-DA34-00043J
...
25-2
Cover Reed Switch SAM-DA63-07513A
...
25
Assembly Cover Switch SAM-DA97-13783A
...
26-1
Shelf-Ref Fix SAM-DA67-03779A
...
26-2-1
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09550A
...
26-2
Assembly Hanger-Left SAM-DA97-14323B
...
26-3-1
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09549A
...
26-3
Assembly Hanger-Right SAM-DA97-14322A
...
26-4
Screw-Tapping SAM-6002-001397
...
26
Assembly Shelf Insert-Ref Fix SAM-DA97-14324B
...
27
Cover Lamp-Led Side SAM-DA63-07276A
...
28
Cover Motor-Damper SAM-DA63-05477A

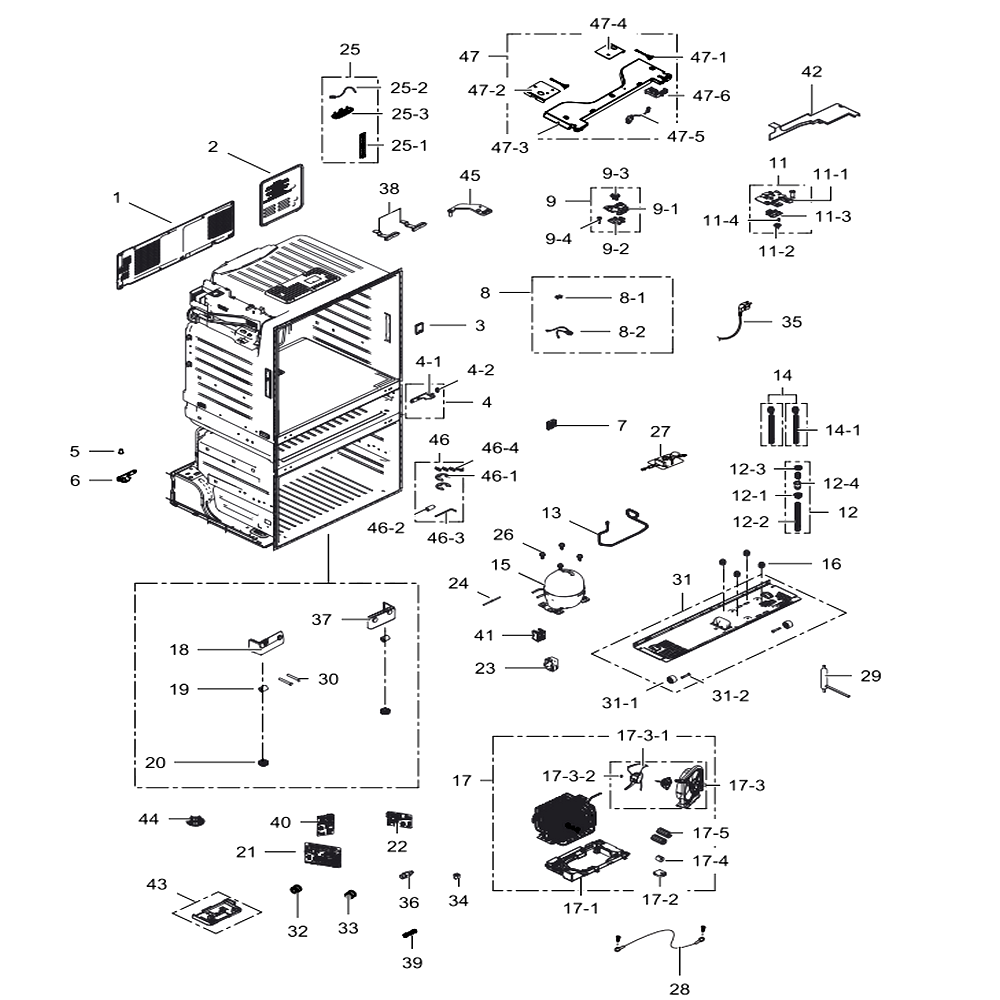

Cabinet

...
...
1
Assembly Cover Comp SAM-DA97-12749A
...
2
Assembly Cover Pcb-Panel SAM-DA97-08442D
...
3
Assembly Cover-Tube Filter SAM-DA97-08413B
...
4-1
Hinge-Middle Right; Fdsr,zn,t6.0,131.5 * SAM-DA61-09967A
...
4-2
Shaft Hinge-Middle SAM-DA66-00688A
...
4
Assy Hinge-Middle Right; Fdsr,zndc, 131.5 SAM-DA97-14977A
...
5
Grommet Hinge-Mid SAM-DA63-06410A
...
6
Hinge-Mid L; Aw4,zn,t4.5,zndc 2 SAM-DA61-08318A
...
7
Fixer-Hose SAM-DA61-03467B
...
8-1
Relay Protector O/l SAM-DA34-00004D
...
8-2
Assembly Wire Harness-Comp SAM-DA39-00154M
...
8
Assembly Comp-Sub SAM-DA97-10848N
...
9-1
Hinge-Upp L SAM-DA61-08309A
...
9-2
Shim-Hinge Upp SAM-DA63-50192A
...
9-3
Cam-Auto Close L SAM-DA66-00950A
...
9-4
Screw-Tapping SAM-6002-000215
...
9
Assembly Hinge Upp-L SAM-DA97-12573A
...
11-1
Hinge-Up Right SAM-DA61-09970A
...
11-2
Cam-Auto Close R SAM-DA66-00951A
...
11-3
Shim-Hinge Upp SAM-DA63-50192A
...
11-4
Screw-Tapping SAM-6002-000215
...
11
Assembly Hinge-Up Right SAM-DA97-14976A
...
12-1
Fixer-Drain SAM-DA61-05021A
...
12-2
Tube Pvc SAM-DA62-01266B
...
12-3
Grommet-Drain SAM-DA63-02761A
...
12-4
Cap-Drain SAM-DA67-01301A
...
12
Assembly Cap-Drain SAM-DA97-04049E
...
13
Pipe Connect-Suction; C1220t-O,od6.35,t0. SAM-DA62-03691A
...
14-1
Tube Pvc SAM-DA62-01266E
...
14
Assembly Cap-Drain SAM-DA97-04049J
...
15
Cmp,refrigerator,r-134a; Cmp,refrigerator,r-134a SAM-NC1MV90ALP/E01
...
16
Grommet Comp SAM-DA63-02617A
...
17-1
Tray Drain-Water SAM-DA63-08236A
...
17-2
Grommet-Cond Sub SAM-DA63-04424A
...
17-3-1
Fan SAM-DA31-00320A
...
17-3-2
Spring Etc-Fan SAM-DA61-20128A
...
17-3
Assembly Support-Circuit Motor SAM-DA97-15765A
...
17-4
Grommet-Suct Pipe A SAM-DA63-40171B
...
17-5
Grommet-Immersion Pipe B SAM-DA63-07323A
...
17
Assembly Tray Drain Water SAM-DA97-15978A
...
18
Aw4-4d,pp,inox Gray SAM-DA63-06389E
...
19
Caster-Front SAM-DA61-04702A
...
20
Foot-Front SAM-DA61-00805F
...
21
Assy Pcb Eeprom; 0x25,d603, D606,aw3-14 F SAM-DA94-02663F
...
22
Assy Pcb Inverter; Inverter,aw3-14,163*98 SAM-DA92-00483N
...
23
Cover Relay; Msv,mppo,t2.0,5v-A,black,m-H SAM-DA63-06122A
...
24
Pipe-Connect Disc,b SAM-DA73-10190U
...
25-1
Assembly Lamp Led SAM-DA41-00519Q
...
25-2
Sensor Temp SAM-DA32-10109B
...
25-3
Cover Sensor-Fre SAM-DA63-05470B
...
25
Assembly Wire Harness-Main SAM-DA96-01041D
...
26
Bolt-Hex SAM-6011-001656
...
27
Coil Filter SAM-DA27-00043D
...
28
Wire Harness-Earth SAM-DA39-20389L
...
29
Dryer SAM-DA62-04309B
...
30
Caster-Rivet SAM-DA61-01920A
...
31-1
Caster-Rear SAM-DA61-04703A
...
31-2
Shaft-Caster SAM-DA66-00649B
...
31
Assembly Chassis-Comp SAM-DA97-12557A
...
32
Fitting-Lokring 33 SAM-DA60-00280A
...
33
Fitting-Lokring 43 SAM-DA60-00281A
...
34
Valve-Fitting Nut SAM-DA74-00070B
...
35
Cbf-Power Cord SAM-3903-001013
...
36
Valve-Fitting Pu SAM-DA62-00305A
...
37
Aw4-4d,pp,inox Gra SAM-DA63-06405D
...
38
Fixer Hinge-Upp SAM-DA61-04932A
...
39
Tube-Fitting SAM-DA62-03914A
...
40
Assembly Module SAM-DA92-00486A
...
41
Cover-Fixer Housing V SAM-DA63-02902B
...
42
Cover-Wire Harness Ice SAM-DA63-06894A
...
43
Assembly Case Lock SAM-DA97-14471A
...
44
Cover-Urethane SAM-DA63-03809A
...
45
Hinge-Up SAM-DA61-09968A
...
46-1
Shim Hinge-Middle SAM-DA63-07957A
...
46-2
Cap-Wrench SAM-DA67-03197A
...
46-3
Wrench-Spanner SAM-DA80-00026B
...
46-4
Fixer-Handle SAM-DA61-03734A
...
46
Assembly Install-Accessory SAM-DA99-03490P
...
47-1
Switch Reed SAM-DA34-00043A
...
47-2
Plate-Cover Hinge SAM-DA61-08227A
...
47-3
Top Table; Fdsr,abs,inox Gray SAM-DA64-04743A
...
47-4
Plate-Cover Hinge R SAM-DA61-08884A
...
47-5
Assembly Wire Harness-Top SAM-DA96-00962E
...
47-6
Cover Top Table; Fdsr,abs,hb,ebony Black, SAM-DA63-07930A
...
47
Assy Top Table; Fdsr,inox Gray SAM-DA97-14978D

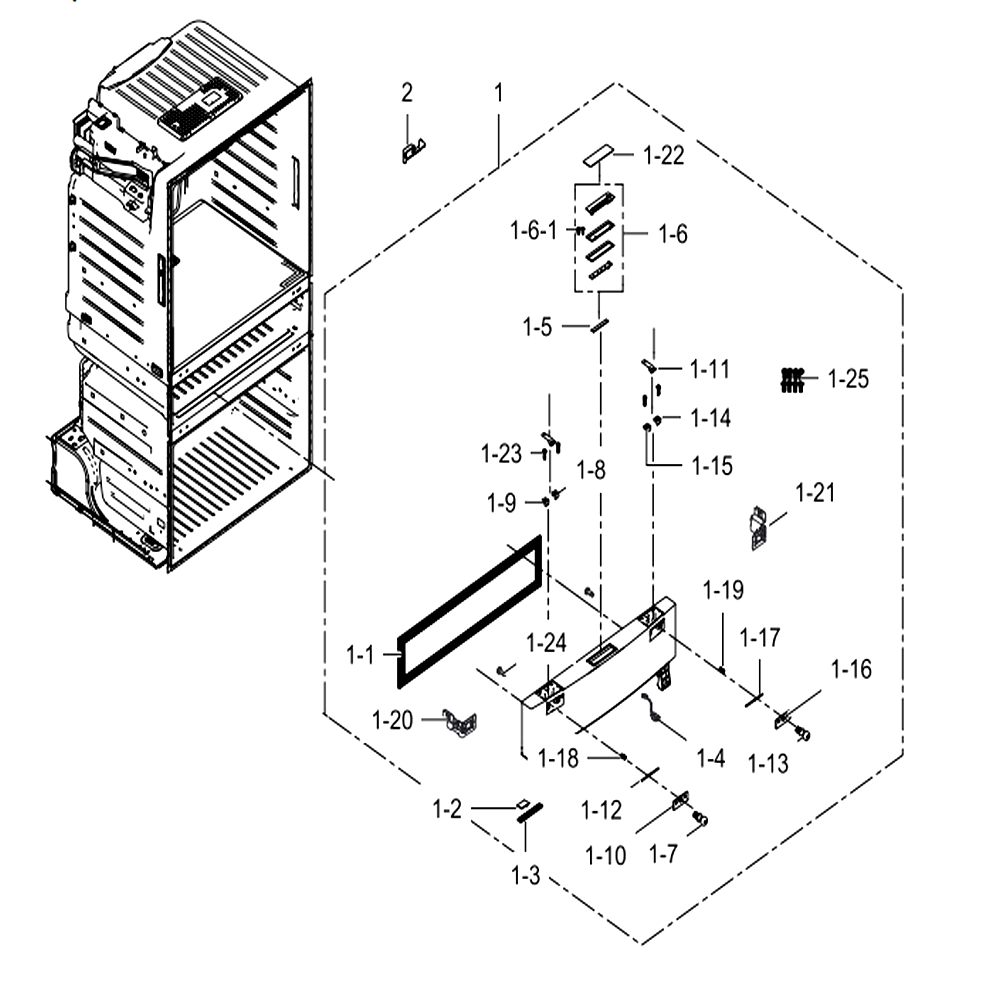

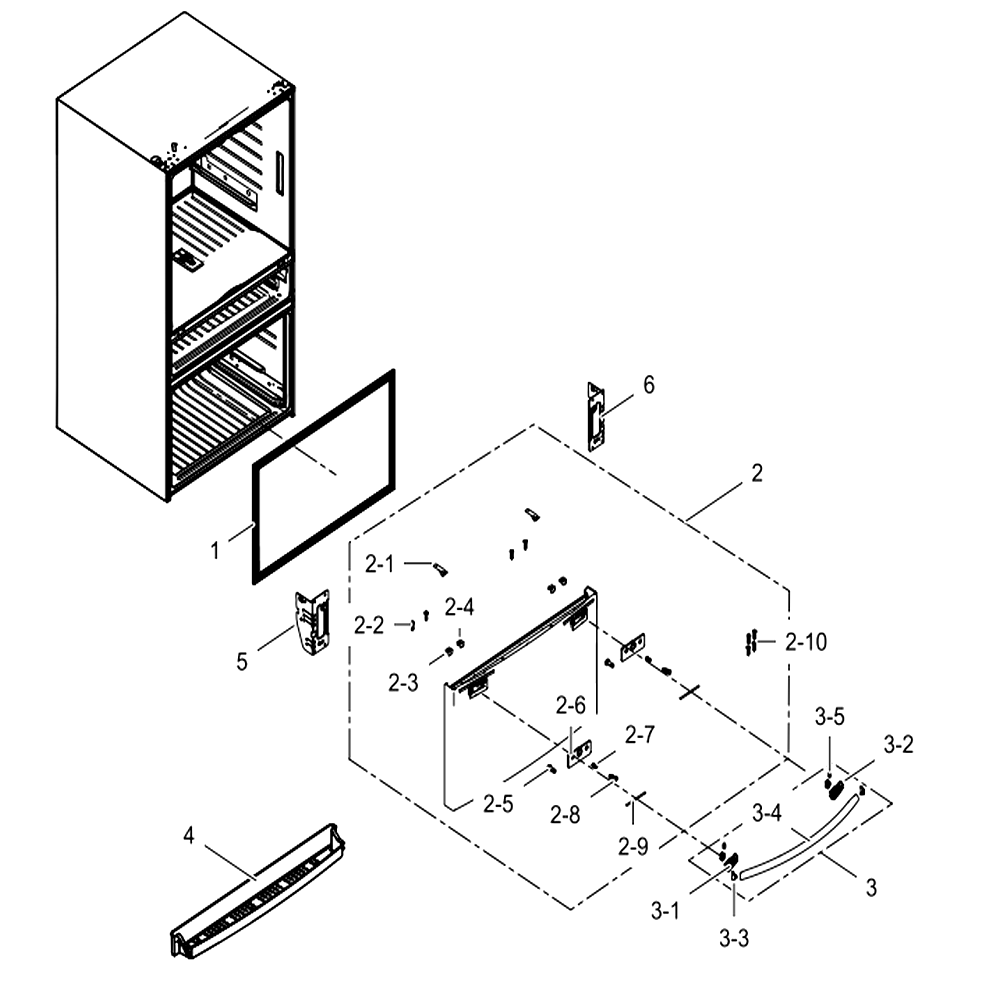

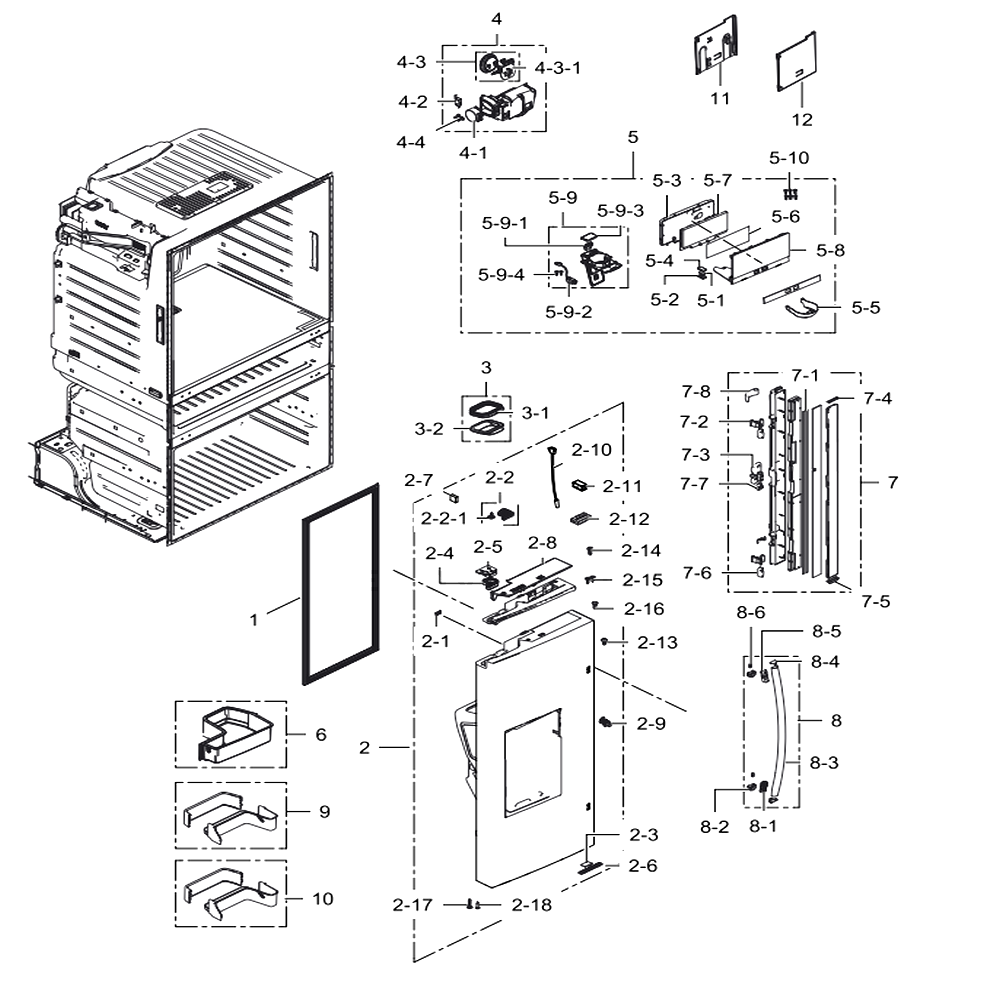

Freezer-door

...
...
1
Assy Gasket-Fre; Aw4-4d,gray SAM-DA97-12522S
...
2-1
Slider-Easy Handle; Aw4,pom,creamy-Sts,f2 SAM-DA61-08234A
...
2-2
Screw-Tapping SAM-6002-000215
...
2-3
Fixer-Shaft L SAM-DA61-05930A
...
2-4
Fixer-Shaft R SAM-DA61-05899A
...
2-5
Screw-Tapping SAM-6002-000630
...
2-6
Reinf-Cap Handle SAM-DA61-06658A
...
2-7
Spring Etc-Easy Handle SAM-DA61-04335A
...
2-8
Fixer-Handle SAM-DA61-03734A
...
2-9
Shaft-Cap Handle SAM-DA66-00579A
...
2-10
Screw-Tapping SAM-6002-000215
...
2
Assy Door Foam-Fre; Assy,inox Gray SAM-DA91-04003H
...
3-1
Support-Handle Fre SAM-DA61-08229A
...
3-2
Support-Handle Fre R SAM-DA61-08247A
...
3-3
Cap-Handle Fre SAM-DA67-02787A
...
3-4
Handle Bar-Fre; Aw1-12,aw4,al,t1.3,versai SAM-DA64-03945F
...
3-5
Screw-Set SAM-6009-001526
...
3
Assy Handle Bar-Fre; Aw4,al(a6063),versai SAM-DA97-12712C
...
4
Guard-Fre SAM-DA63-07512A
...
5
Hanger-Front Left SAM-DA61-09555A
...
6
Hanger-Front Right SAM-DA61-09556A

Flexzone-door

...
...
1-1
Assy Gasket-Middle; Aw4-4d,gray SAM-DA97-12522Q
...
1-2
Assy Lamp Led; 2,fr-4,20*30,white,smaw250 SAM-DA41-00676J
...
1-3
Cover-Cap Door Led SAM-DA63-05524A
...
1-4
Assembly Wire Harness-Display SAM-DA96-00641B
...
1-5
Cover Control SAM-DA63-05630C
...
1-6-1
Screw-Tapping SAM-6002-000630
...
1-6
Assembly Cover Control-Convertible SAM-DA97-10605C
...
1-7
Fixer-Handle SAM-DA61-03734A
...
1-8
Fixer-Shaft R SAM-DA61-05899A
...
1-9
Fixer-Shaft L SAM-DA61-05930A
...
1-10
Reinf-Cap Handle SAM-DA61-06658A
...
1-11
Slider-Easy Handle; Aw4,pom,creamy-Sts,f2 SAM-DA61-08234A
...
1-12
Shaft-Cap Handle SAM-DA66-00579A
...
1-13
Fixer-Handle SAM-DA61-03734A
...
1-14
Fixer-Shaft R SAM-DA61-05899A
...
1-15
Fixer-Shaft L SAM-DA61-05930A
...
1-16
Reinf-Cap Handle SAM-DA61-06658A
...
1-17
Shaft-Cap Handle SAM-DA66-00579A
...
1-18
Spring Etc-Easy Handle SAM-DA61-04335A
...
1-19
Spring Etc-Easy Handle SAM-DA61-04335A
...
1-20
Hanger-Front Middle Left SAM-DA61-09248A
...
1-21
Hanger-Front Middle Right SAM-DA61-09249A
...
1-22
Inlay-Film; Aw4-4d,pc,0.6,146.6,46.8,real SAM-DA64-04985A
...
1-23
Screw-Tapping SAM-6002-000215
...
1-24
Screw-Tapping SAM-6002-000630
...
1-25
Screw-Tapping SAM-6002-000613
...
1
Assy Door-Middle; Aw4-4d,rs Plate SAM-DA97-13797A
...
2
Cover-W/harness Conv Door SAM-DA63-05462C

Refrigerator-door-l

...
...
1
Assy Gasket-Ref; Aw4-4d,gray SAM-DA97-13015C
...
2-1
Magnet-A SAM-DA61-03769A
...
2-2-1
Roller-Auto Close SAM-DA66-00440A
...
2-2
Assembly Lever-Auto Close SAM-DA97-12625A
...
2-3
Assy Lamp Led; 2,fr-4,20*30,white,smaw250 SAM-DA41-00676J
...
2-4
Support Door-Close; Aw-Pjt,pk,m33r3a000,c SAM-DA61-02383E
...
2-5
Stopper-Door L SAM-DA61-08210A
...
2-6
Cover-Cap Door Led SAM-DA63-05524A
...
2-7
Grommet-Stopper SAM-DA63-40294A
...
2-8
Cover Cap Door-Ref Up Left; Aw4-4d,abs,hb SAM-DA63-06916D
...
2-9
Switch Door-Interlock SAM-DA34-00066C
...
2-10
Sensor Humidity SAM-DA32-00034B
...
2-11
Plate-Door Switch SAM-DA61-05274A
...
2-12
Grommet-Chassis Up SAM-DA63-04825A
...
2-13
Screw-Tapping SAM-6002-000217
...
2-14
Screw-Tapping SAM-6002-000466
...
2-15
Screw-Tapping SAM-6002-001122
...
2-16
Screw-Tapping SAM-6002-000613
...
2-17
Screw-Machine SAM-6001-001377
...
2-18
Screw-Tapping SAM-6002-001120
...
2
Assy Door Foam-Ref Left; Aw3-14,real Sts SAM-DA91-04145D
...
3-1
Gasket-Cap Chute Ice SAM-DA63-06945A
...
3-2
Cap-Chute Ice SAM-DA67-03312A
...
3
Assembly Cap-Chute Ice SAM-DA97-12594A
...
4-1
Motor Geared-Disp SAM-DA31-00079D
...
4-2
Switch-Micro SAM-3405-001117
...
4-3-1
Cover-Ice Route A SAM-DA63-04647A
...
4-3
Assembly Cover-Ice Route SAM-DA97-05368A
...
4-4
Screw-Tapping SAM-6002-001364
...
4
Assembly Guide Ice Route SAM-DA97-13829C
...
5-1
Assembly Pcb Kit SAM-DA41-00217A
...
5-2
Case Lamp-Led SAM-DA61-05687A
...
5-3
Cover Pcb-Panel Rear SAM-DA63-06377A
...
5-4
Cover-Lamp-Led SAM-DA63-02446A
...
5-5
Cover Ice SAM-DA63-07637A
...
5-6
Inlay-Film SAM-DA64-04669A
...
5-7
Assembly Module SAM-DA92-00596A
...
5-8
Assembly Cover Dispenser-Sub SAM-DA97-13808K
...
5-9-1
Switch-Micro; 250vac,1a,80,spst-No,t105 SAM-3405-001119
...
5-9-2
Assy-W/harness Disp SAM-DA96-00106G
...
5-9-3
Cover-Switch SAM-DA63-05449A
...
5-9-4
Screw-Tapping SAM-6002-000630
...
5-9
Assembly Lever Dispenser SAM-DA97-12628H
...
5-10
Screw-Tapping SAM-6002-000630
...
5
Assembly Cover Dispenser SAM-DA97-13809T
...
6
Assembly Guard-Ref Up SAM-DA97-13804C
...
7-1
Heater Cord-French SAM-DA47-00245T
...
7-2
Hinge-French SAM-DA61-08305A
...
7-3
Cover-Heater French SAM-DA63-03454B
...
7-4
Gasket-French Upp; Aw4,si,gray SAM-DA63-06959A
...
7-5
Gasket-French Low; Aw-Pjt,si,gray SAM-DA63-06842B
...
7-6
Cap-Case French SAM-DA67-01650A
...
7-7
Cap-Case French Mid SAM-DA67-01701A
...
7-8
Cap-Guide French Upp SAM-DA67-03358A
...
7
Assy French; Aw4-4d,thai Silver,120v SAM-DA97-12684D
...
8-1
Support-Handle Ref SAM-DA61-08228A
...
8-2
Bracket-Handle Ref SAM-DA61-08248A
...
8-3
Handle Bar-Ref L; Aw1-12 & Aw4,al,t1.3,ve SAM-DA64-03756K
...
8-4
Cap-Supt Handle Ref SAM-DA67-02788A
...
8-5
Support-Handle Ref Upp SAM-DA61-08246A
...
8-6
Screw-Set SAM-6009-001526
...
8
Assy Handle Bar-Ref L; Aw4,al(a6063),vers SAM-DA97-12715C
...
9
Assembly Guard-Ref Middle SAM-DA97-13818B
...
10
Assembly Guard-Ref Low SAM-DA97-13819B
...
11
Cap Reinf SAM-DA67-03916B
...
12
Cap Reinf SAM-DA67-03917B

Refrigerator-door-r

...
...
1-1
Magnet SAM-DA61-03769B
...
1-2
Support Door-Middle; Fdsr,pom,so301,cream SAM-DA61-09950A
...
1-3
Hinge-Low SAM-DA61-09969A
...
1-4-1
Roller-Auto Close SAM-DA66-00440A
...
1-4
Assembly Lever Auto Close SAM-DA97-14992A
...
1-5
Grommet-Stopper SAM-DA63-40294A
...
1-6
Screw-Tapping SAM-6002-000623
...
1-7
Assembly Lamp Led SAM-DA96-01119A
...
1-8
Grommet-Chassis Up SAM-DA63-04825A
...
1-9
Cover Lock SAM-DA63-08235A
...
1-10
Screw-Tapping SAM-6002-000239
...
1-11
Screw-Tapping SAM-6002-000538
...
1-13
Screw-Tapping SAM-6002-000613
...
1
Assy Door Foam-Ref Right; Aw4-4d,fdsr,rea SAM-DA91-04199H
...
2
Assy Gasket-Ref; Aw4-4d,gray SAM-DA97-13015C
...
3
Assy Gasket-Ref; Fdsr,4 Door(out Door) SAM-DA97-13915E
...
4-1
Mascot SAM-DA64-04021C
...
4-2
Magnet-A SAM-DA61-03769A
...
4-3
Stopper Door-Ref Low SAM-DA61-09951A
...
4-4
Grommet Hinge-Middle SAM-DA63-07545B
...
4-5
Rubber-Cap Hose SAM-DA73-00211A
...
4
Assy Door Foam-Ref Out; Fdsr-4d, Rs Plate SAM-DA91-04200A
...
5-1
Support-Handle Ref SAM-DA61-08228A
...
5-2
Bracket-Handle Ref SAM-DA61-08248A
...
5-3
Handle Bar; Fdsr,al,real Sts304,versaille SAM-DA64-03756L
...
5-4
Cap-Supt Handle Ref SAM-DA67-02788A
...
5-5
Support-Handle Ref Upp SAM-DA61-08246A
...
5-6
Screw-Set SAM-6009-001526
...
5-7
Handle Bar-Ref Right SAM-DA64-04747A
...
5-8
Lever SAM-DA66-01133A
...
5
Assy Handle-Ref; Fdsr,assy SAM-DA97-15014A
...
6-1
Support Wire-Up SAM-DA61-09976A
...
6
Assy Guard Dairy; Rf9000k,fdsr,fixer SAM-DA97-14644F
...
7-1
Support Wire-Low SAM-DA61-09948A
...
7
Assembly Guard-Ref Low Right SAM-DA97-14996A
...
8-1
Rail-Middle Right SAM-DA61-09232A
...
8-2
Grommet-Low SAM-DA63-07559A
...
8-3
Assembly Rail-Middle SAM-DA97-13887A
...
8-4
Assembly Rail-Up SAM-DA97-13895A
...
8-5
Grommet SAM-DA63-07548A
...
8-6
Screw-Tapping SAM-6002-000623
...
8
Assembly Tray-Low SAM-DA97-14997B
...
9-1
Screw-Tapping SAM-6002-001122
...
9
Assembly Tray-Low SAM-DA97-14997D
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
