Samsung RF28JBEDBSG/AA_0010

Model: RF28JBEDBSG/AA_0010

Save Part Not Listed?
product name

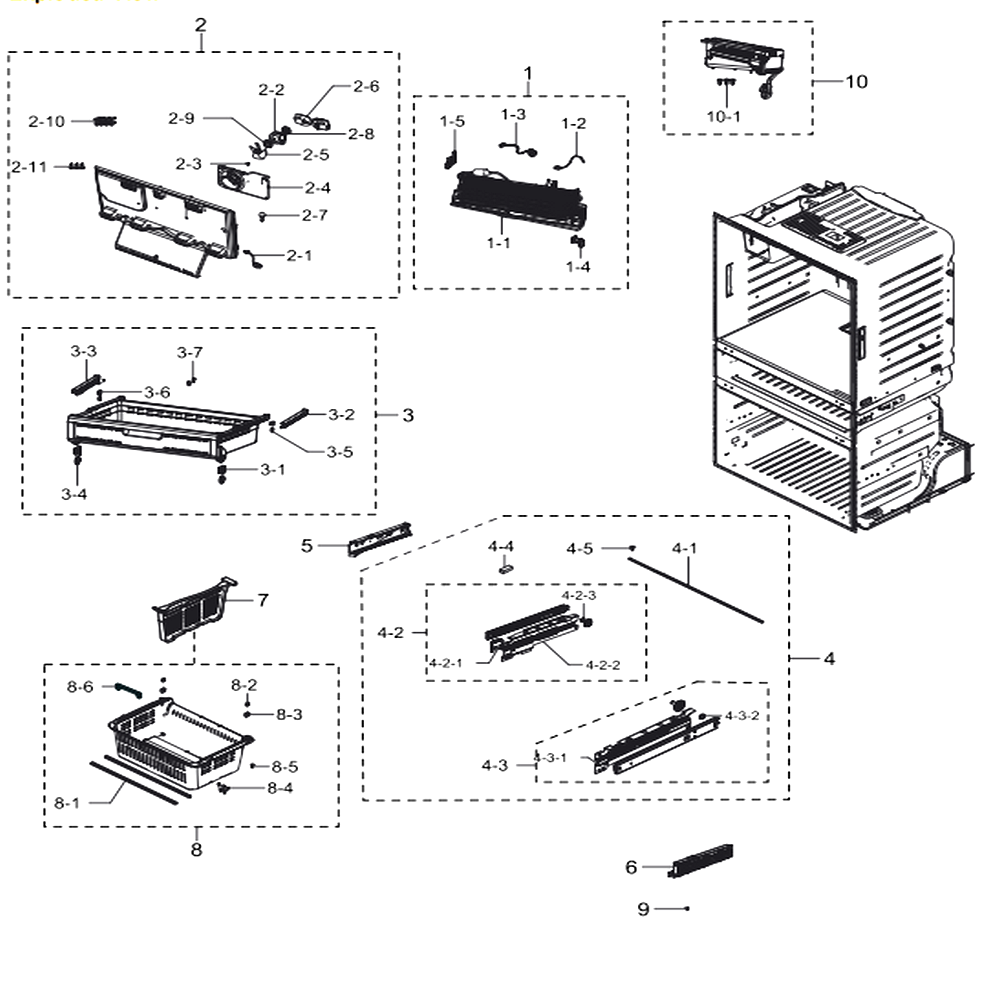

Freezer

...
...
1-1
Heater Metal Sheath SAM-DA47-00318H
...
1-2
Sensor Temp SAM-DA32-10104N
...
1-3
Thermo Bimetal-Protector SAM-DA47-00243B
...
1-4
Fixer-Heater Fre SAM-DA61-05845A
...
1-5
Fixer-Sensor Fre SAM-DA61-06182A
...
1
Assembly Evap-Fre SAM-DA96-00631D
...
2-1
Assembly Wire Harness-Motor SAM-DA96-00042D
...
2-2
Motor Bldc SAM-DA31-00146H
...
2-3
Spring Etc-Fan SAM-DA61-20128A
...
2-4
Case Motor-Fre SAM-DA61-05867B
...
2-5
Fan-Ax100w4cc-T1 SAM-DA31-00124A
...
2-6
Cover Motor-Bldc SAM-DA63-01809B
...
2-7
Grommet-Cover Chill SAM-DA63-40167A
...
2-8
Grommet-Motor,rear SAM-DA63-01146A
...
2-9
Grommet Motor SAM-DA63-01808A
...
2-10
Screw-Tapping SAM-6002-000215
...
2-11
Screw-Tapping SAM-6002-000213
...
2
Assembly Cover Evap-Fre SAM-DA97-08434E
...
3-1
Fixer-Roller Tray Fre Upp SAM-DA61-04154A
...
3-2
Guide-Tray Fre Upp R SAM-DA61-05185A
...
3-3
Guide-Tray Fre Upp L SAM-DA61-05186A
...
3-4
Roller-Tray Fre Upp SAM-DA66-00554A
...
3-5
Roller-Fre SAM-DA66-10104A
...
3-6
Fixer-Roller SAM-DA71-20277A
...
3-7
Screw-Tapping SAM-6002-001406
...
3
Assembly Tray-Fre Up SAM-DA97-08439D
...
4-1
Shaft; Aw3-14,cfrp,715.1,8x8,black,door F SAM-DA66-00437H
...
4-2-1
Switch Pressure SAM-DA34-00047B
...
4-2-2
Hanger-Rail Low L SAM-DA61-05974A
...
4-2-3
Fixer-Gear SAM-DA61-03154A
...
4-2
Assy Rail-Low Left; Aw3-14,rail Slide Low SAM-DA97-08803F
...
4-3-1
Hanger-Rail Low R SAM-DA61-05975A
...
4-3-2
Fixer-Gear SAM-DA61-03154A
...
4-3
Assy Rail-Low Right; Aw3-14,rail Slide Lo SAM-DA97-08804F
...
4-4
Magnet SAM-DA61-03769B
...
4-5
Cap-Shaft Hole SAM-DA67-02795C
...
4
Assembly Hanger-Low SAM-DA97-14382A
...
5
Cover-Rail Low L SAM-DA63-05400A
...
6
Cover-Rail Low R SAM-DA63-05409A
...
7
Guide-Fre SAM-DA61-05850B
...
8-1
Reinf-Drawer Box SAM-DA61-03160A
...
8-2
Roller-Fre SAM-DA66-10104A
...
8-3
Fixer-Roller SAM-DA71-20145A
...
8-4
Screw-Tapping SAM-6002-000213
...
8-5
Screw-Tapping SAM-6002-001406
...
8-6
Fixer-Rear; Aw3-14,hips,cool White,hb,s83 SAM-DA61-11261A
...
8
Assembly Tray Drawer SAM-DA97-08401C
...
9
Cap-Shaft Hole SAM-DA67-02795C
...
10-1
Screw-Tapping SAM-6002-000471
...
10
Assy Ice Maker; Aw4,115v, 60hz SAM-DA97-15217D

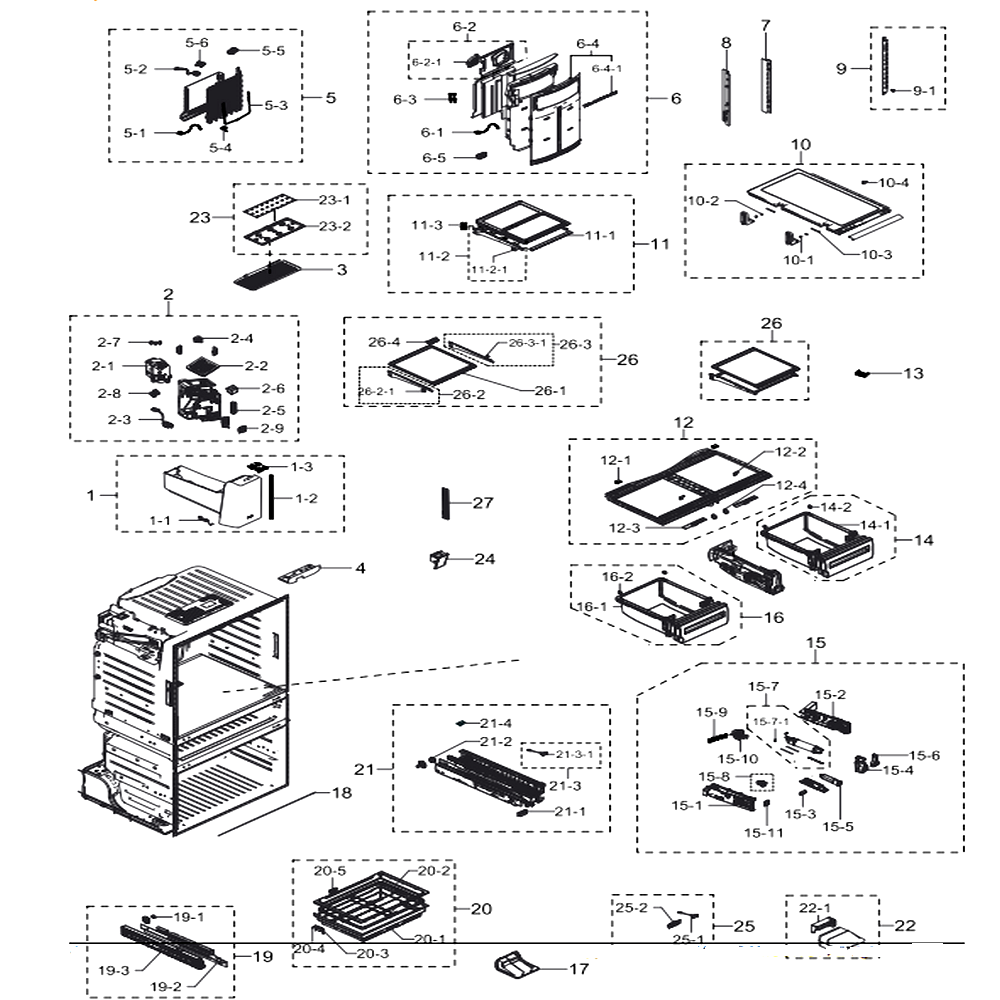

Refrigerator

...
...
1-1
Spring Etc-Dispenser SAM-DA61-20124D
...
1-2
Gasket-Tray Ice Bucket SAM-DA63-07185A
...
1-3
Screw-Tapping SAM-6002-000471
...
1
Assy Tray Ice;fdr,t-Type F/s SAM-DA97-14474C
...
2-1
Motor Geared Ac Auger SAM-DA31-00105M
...
2-2
Motor Bldc Fan SAM-DA31-00070E
...
2-3
Assembly Wire Harness-Auger SAM-DA96-00682D
...
2-4
Grommet-Fan SAM-DA63-02513A
...
2-5
Spring Etc-Solenoid SAM-DA61-20140A
...
2-6
Valve-Solenoid SAM-DA74-40151G
...
2-7
Screw-Special SAM-DA60-00001B
...
2-8
Screw-Tapping SAM-6002-000471
...
2-9
Fixer-Nut; Guggenheim,sts420,j2,sk5 SAM-DA71-00163B
...
2
Assy Case Auger Motor; Aw4-4d,115v 60hz SAM-DA97-12540G
...
3
Cover Lamp-Ref SAM-DA63-07816A
...
4
Guide-French SAM-DA61-04285A
...
5-1
Sensor Temp SAM-DA32-10104N
...
5-2
Thermo Bimetal-Protector SAM-DA47-00243C
...
5-3
Heater Metal Sheath SAM-DA47-00434A
...
5-4
Plate-Evap Heater SAM-DA61-03644A
...
5-5
Fixer-Senser SAM-DA61-03683A
...
5-6
Fixer-Heater Ref SAM-DA61-05835B
...
5
Assembly Evap-Ref SAM-DA96-00842A
...
6-1
Sensor Temp SAM-DA32-00011D
...
6-2-1
Motor Bldc Fan SAM-DA31-00287A
...
6-2
Assembly Case Motor-Ref SAM-DA97-16026A
...
6-3
Screw-Tapping SAM-6002-001204
...
6-4-1
Inlay SAM-DA64-04618A
...
6-4
Assy Plate Cooling; Aw3-14,al, T0.5 SAM-DA97-16025A
...
6-5
Grommet Fixer; Rf-H920g,rubber,black SAM-DA63-07761A
...
6
Assembly Cover Evap-Ref SAM-DA97-16028A
...
7
Angle-Shelf Ref Side R SAM-DA61-05897A
...
8
Angle-Shelf Ref Side L SAM-DA61-05898A
...
9-1
Screw-Tapping SAM-6002-001397
...
9
Assembly Angle Shelf-Ref Middle SAM-DA97-13844D
...
10-1
Spring Etc-Hinge Shelf SAM-DA61-03705A
...
10-2
Roller-Hinge-Shelf SAM-DA66-00482A
...
10-3
Shaft-Hinge-Shelf SAM-DA66-00483A
...
10-4
Screw-Tapping SAM-6002-001397
...
10
Assembly Shelf Folder-Ref SAM-DA97-14315A
...
11-1
Trim-Shelf Quick Space SAM-DA64-03040F
...
11-2-1
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09550A
...
11-2
Assy Hanger; Rf9000k,cool White,wt0057, S SAM-DA97-14348B
...
11-3
Screw-Tapping SAM-6002-001397
...
11
Assembly Shelf-Quick Space SAM-DA97-08463B
...
12-1
Fixer-Cover Veg SAM-DA61-03166A
...
12-2
Knob-Humidity SAM-DA64-03209A
...
12-3
Lever-Humidity SAM-DA66-00718A
...
12-4
Assy Roller; Rf9000jc,24 SAM-DA97-15997A
...
12
Assembly Cover Veg-Ref SAM-DA97-08402G
...
13
Fixer Cover; Aw3-14,hips,natural,s834s1 SAM-DA61-12488A
...
14-1
Case-Veg R SAM-DA61-05875B
...
14-2
Assembly Roller SAM-DA97-15998A
...
14
Assembly Case Veg-Right SAM-DA97-08437D
...
15-1
Case-Filter Tank R SAM-DA61-07226A
...
15-2
Case-Filter Tank L SAM-DA61-07225A
...
15-3
Support-Case Filter SAM-DA61-05870A
...
15-4
Cover-Filter Tank SAM-DA63-05406B
...
15-5
Tray-Water Filter SAM-DA63-05407A
...
15-6
Cap-Filter Tank SAM-DA67-02505B
...
15-7-1
Clip-Fitting Lock SAM-DA61-04522A
...
15-7
Assy Tank Water-Ref; Opus1-14,pp SAM-DA97-11283J
...
15-8
Assy Case Filter; H920g SAM-DA97-08006L
...
15-9
Screw-Tapping SAM-6002-000213
...
15-10
Valve Water; Ac110~127v,230,2way,l-Wire,1 SAM-DA62-04027C
...
15-11
Clip-Fitting Lock SAM-DA61-04522A
...
15
Assy Case Water Filter; Aw3-14,no Led SAM-DA97-14365H
...
16-1
Case-Veg L SAM-DA61-05876B
...
16-2
Assembly Roller SAM-DA97-15998A
...
16
Assembly Case Veg-Left SAM-DA97-08438D
...
17
Cover Motor-Damper SAM-DA63-05477A
...
18
Shaft; Aw3-14,cfrp,743.0,8x8,black,door M SAM-DA66-00733B
...
19-1
Fixer-Gear SAM-DA61-03154A
...
19-2
Hanger-Middle Left SAM-DA61-09188A
...
19-3
Cover-Rail Conv L SAM-DA63-05451A
...
19
Assy Rail; Aw4-4d(f/s),rail Middle Left, SAM-DA97-13781B
...
20-1
Case Convertible SAM-DA61-05860B
...
20-2
Cover Convertible SAM-DA63-05401B
...
20-3
Bracket Divider SAM-DA61-09409A
...
20-4
Roller-Divider SAM-DA66-00876A
...
20-5
Bracket Divider SAM-DA61-10717A
...
20
Assembly Case Convertible SAM-DA97-11930B
...
21-1
Magnet-Ass'y SAM-DA61-02738A
...
21-2
Fixer-Gear SAM-DA61-03154A
...
21-3-1
Switch Reed SAM-DA34-00043H
...
21-3
Assembly W/harness-Rail SAM-DA96-00640A
...
21-4
Grommet Wire; Rf9900m,pp,natural SAM-DA63-09098A
...
21
Assy Rail; Aw4-4d(f/s),rail Middle Right, SAM-DA97-13780B
...
22-1
Motor Dc-Damper SAM-DA31-00101C
...
22
Assembly Ins-Damper Conv SAM-DA97-08430A
...
23-1
Assy Lamp Led; 5,cem-1,240*10,white,smaw2 SAM-DA41-00676K
...
23-2
Case Lamp-Ref SAM-DA61-08236A
...
23
Assy Case Lamp-Ref; Aw4,long Led SAM-DA97-12606B
...
24
Assembly Cap Angle SAM-DA97-15412A
...
25-1
Switch Reed SAM-DA34-00043J
...
25-2
Cover Reed Switch SAM-DA63-07513A
...
25
Assembly Cover Switch SAM-DA97-13783A
...
26-1
Shelf-Ref Fix SAM-DA67-03779A
...
26-2-1
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09550A
...
26-2
Assy Hanger-Left; Aw3-14,cool White,wt005 SAM-DA97-14323D
...
26-3-1
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09549A
...
26-3
Assy Hanger-Right; Aw3-14,cool White,wt00 SAM-DA97-14322C
...
26-4
Screw-Tapping SAM-6002-001397
...
26
Assembly Shelf Insert-Ref Fix SAM-DA97-14324B
...
27
Cover Lamp-Led Side SAM-DA63-07276A

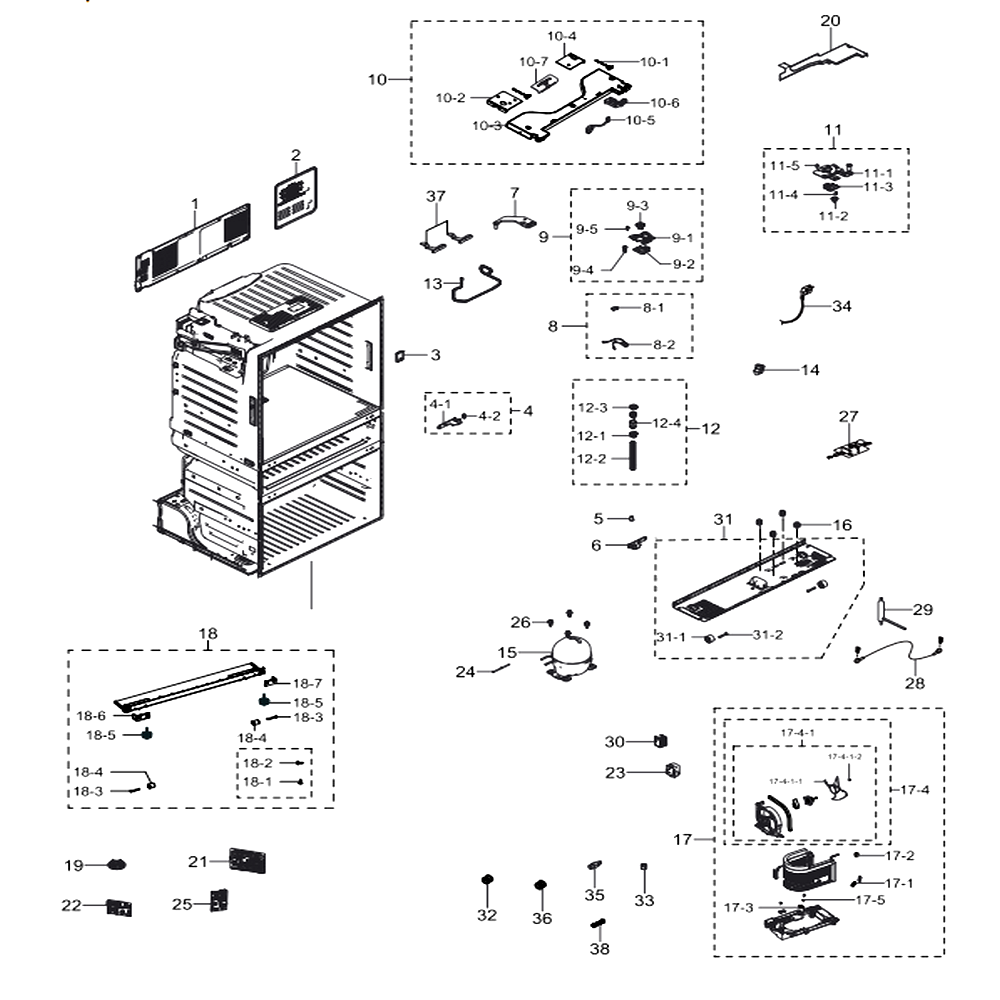

Cabinet

...
...
1
Assy Cover Comp; Polaris,gi-Sgcc,t0.25 SAM-DA97-12749J
...
2
Assembly Cover Pcb-Panel SAM-DA97-08442D
...
3
Assembly Cover-Tube Filter SAM-DA97-08413B
...
4-1
Hinge-Middle Right SAM-DA61-09967B
...
4-2
Shaft Hinge-Middle SAM-DA66-00688A
...
4
Assembly Hinge-Middle Right SAM-DA97-14977B
...
5
Grommet Hinge-Mid SAM-DA63-06410A
...
6
Hinge-Middle Left SAM-DA61-08318B
...
7
Hinge-Up SAM-DA61-09968A
...
8-1
Relay Protector O/l SAM-DA34-00004D
...
8-2
Assembly Wire Harness-Comp SAM-DA39-00154M
...
8
Assembly Comp-Sub SAM-DA97-10848N
...
9-1
Hinge-Upp L SAM-DA61-08309A
...
9-2
Shim-Hinge Upp SAM-DA63-50192A
...
9-3
Cam-Auto Close L SAM-DA66-00950A
...
9-4
Screw-Tapping SAM-6002-000215
...
9-5
Screw-Tapping SAM-6002-000213
...
9
Assembly Hinge Upp-L SAM-DA97-12573A
...
10-1
Switch Reed SAM-DA34-00043A
...
10-2
Plate-Cover Hinge SAM-DA61-08227A
...
10-3
Top Table SAM-DA64-04743B
...
10-4
Plate-Cover Hinge R SAM-DA61-08884A
...
10-5
Assembly Wire Harness-Top SAM-DA96-00962E
...
10-6
Cover Top Table; Fdsr,abs,hb,ebony Black, SAM-DA63-07930A
...
10-7
Cover Hinge-B; Rf9000k,abs,ebony Black,hg SAM-DA63-08442C
...
10
Assembly Top Table SAM-DA97-14978G
...
11-1
Hinge-Up Right SAM-DA61-09970A
...
11-2
Cam-Auto Close R SAM-DA66-00951A
...
11-3
Shim-Hinge Upp SAM-DA63-50192A
...
11-4
Screw-Tapping SAM-6002-000215
...
11-5
Screw-Tapping SAM-6002-000213
...
11
Assembly Hinge-Up Right SAM-DA97-14976A
...
12-1
Fixer-Drain SAM-DA61-05021A
...
12-2
Tube Pvc SAM-DA62-01266B
...
12-3
Grommet-Drain SAM-DA63-02761A
...
12-4
Cap-Drain SAM-DA67-01301A
...
12
Assembly Cap-Drain SAM-DA97-04049E
...
13
Pipe Connect-Suction; C1220t-O,od6.35,t0. SAM-DA62-03691A
...
14
Grommet; Brr9000m,nbr,capi Grommet SAM-DA63-08943A
...
15
Cmp,comp,refrigerator,r-134a; Cmp,comp,refrigerator,r-134a SAM-NC1MV90ASR/E01
...
16
Grommet Comp SAM-DA63-02617A
...
17-1
Grommet-Immersion Pipe B SAM-DA63-07323A
...
17-2
Grommet-Suct Pipe A SAM-DA63-40171B
...
17-3
Grommet-Cond Sub SAM-DA63-04424A
...
17-4-1-1
Fan SAM-DA31-00320A
...
17-4-1-2
Spring Etc-Fan SAM-DA61-20128A
...
17-4-1
Motor Bldc Fan; Rmf002assa,1120 Rpm,12v,0 SAM-DA31-00340A
...
17-4
Assy Support-Circuit Motor; Rh9000k SAM-DA97-15765C
...
17-5
Screw-Tapping SAM-6002-000213
...
17
Assy Tray Drain Water; Aw,pfc SAM-DA97-15978B
...
18-1
Screw-Tapping SAM-6002-000213
...
18-2
Screw-Tapping SAM-6002-000538
...
18-3
Caster-Rivet SAM-DA61-01920A
...
18-4
Caster-Front SAM-DA61-04702A
...
18-5
Foot-Front SAM-DA61-00805F
...
18-6
Cover-Leg Front R SAM-DA63-06405B
...
18-7
Cover-Leg Front L SAM-DA63-06389B
...
18
Assy Cabi Bottom-Front; Aw4-4d F/s,black SAM-DA97-12556F
...
19
Cover-Urethane SAM-DA63-03809A
...
20
Cover-Wire Harness Ice SAM-DA63-06894A
...
21
Assy Pcb Eeprom; 0x25,d603, D606,aw3-14 F SAM-DA94-02663F
...
22
Assy Pcb Inverter; Inverter,nw2,163*98.5, SAM-DA92-00763L
...
23
Cover Relay; Msv,mppo,t2.0,5v-A,black,m-H SAM-DA63-06122A
...
24
Pipe-Connect Disc,b SAM-DA73-10190U
...
25
Assembly Module SAM-DA92-00486A
...
26
Bolt-Hex SAM-6011-004061
...
27
Coil Filter SAM-DA27-00043D
...
28
Wire Harness-Earth SAM-DA39-20389L
...
29
Dryer SAM-DA62-04309B
...
30
Cover-Fixer Housing V SAM-DA63-02902B
...
31-1
Caster-Rear SAM-DA61-04703A
...
31-2
Shaft-Caster SAM-DA66-00649B
...
31
Assembly Chassis-Comp SAM-DA97-12557A
...
32
Fitting-Lokring 33 SAM-DA60-00280A
...
33
Valve-Fitting Nut SAM-DA74-00070B
...
34
Cbf-Power Cord; At,usa,us3f-1,3c,125v,15a SAM-3903-001003
...
35
Valve-Fitting Pu SAM-DA62-00305A
...
36
Fitting-Lokring 43 SAM-DA60-00281A
...
37
Fixer-Hinge;po-Sphc,t3,zn Coating SAM-DA61-04932B
...
38
Tube-Fitting SAM-DA62-03914A

Cabinet 2

...
...
1-1
Screw-Tapping SAM-6002-000215
...
1-2-1
Fixer Pipe; Fdr/t-Type Ice Room Model,sts SAM-DA61-12775A
...
1-2
Assy Pipe Suction; Aw3-14,compact Direct SAM-DA97-16138A
...
1-3-1
Assy Roller; Rf9000jc,24 SAM-DA97-15997A
...
1-3
Assembly Rail Veg-L SAM-DA97-11292A
...
1-4-1
Assembly Lamp Led SAM-DA41-00519Q
...

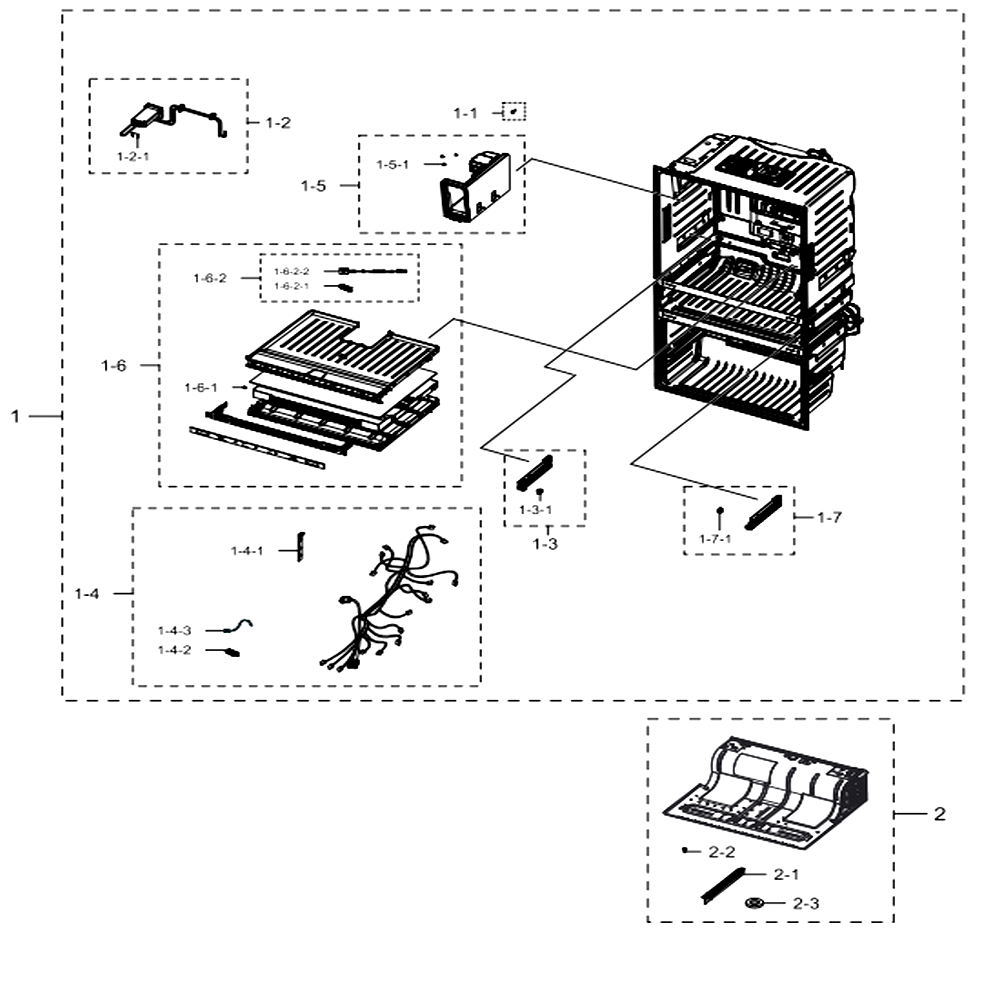

1-4-2
Cover Sensor-Fre SAM-DA63-05470B
...
1-4-3
Sensor Temp SAM-DA32-10109B
...
1-4
Assembly Wire Harness-Main SAM-DA96-01041D
...
1-5-1
Screw-Tapping SAM-6002-000471
...
1-5
Assy Case Ice; Aw4,urethane,assy SAM-DA97-12576B
...
1-6-1
Screw-Tapping SAM-6002-001204
...
1-6-2-1
Cover Sensor-Fre SAM-DA63-05470B
...
1-6-2-2
Sensor Temp SAM-DA32-00033C
...
1-6-2
Assembly Cover-Sensor Fre SAM-DA97-08608A
...
1-6
Assy Partition; Aw3-14,french SAM-DA97-08431D
...
1-7-1
Assy Roller; Rf9000jc,24 SAM-DA97-15997A
...
1-7
Assembly Rail Veg-R SAM-DA97-11291A
...
1
Assy Liner; Aw3-14 Fdsr,black SAM-DA94-01582E
...
2-1
Trim Blade; Aw2-14,pvc,gray SAM-DA64-05373C
...
2-2
Screw-Tapping SAM-6002-000213
...
2-3
Seal-Drain Hose; Aram10,pu Foam,t10,30 SAM-DA72-00238B
...
2
Assy Cabi Bottom-Rear; Aw3-14 Fdsr,no Sid SAM-DA97-08455Q

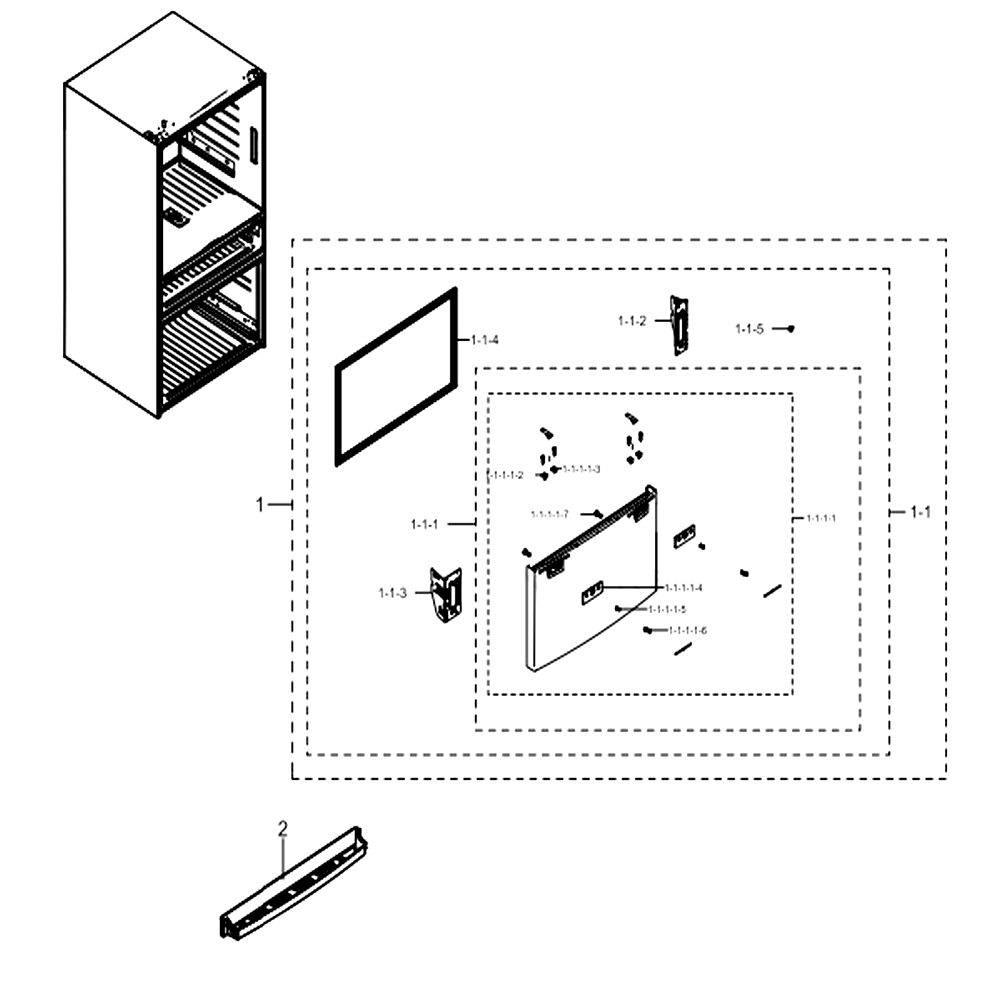

Freezer-door

...
...
1-1-1-1-2
Fixer-Shaft L SAM-DA61-05930A
...
1-1-1-1-3
Fixer-Shaft R SAM-DA61-05899A
...
1-1-1-1-4
Reinf-Cap Handle SAM-DA61-06658A
...
1-1-1-1-5
Spring Etc-Easy Handle; 08 Aw1,2-Pjt,hswr SAM-DA61-04335B
...
1-1-1-1-6
Fixer Handle; Aw3-14,swrch10a,m8 SAM-DA61-11161A
...
1-1-1-1-7
Screw-Tapping SAM-6002-000630
...
1-1-1-1
Assy Plate Door-Fre; Aw3-14 Fdsr,black Ca SAM-DA97-14207N
...
1-1-1
Assy Door Foam-Fre; Aw3-14,black Caviar,n SAM-DA91-04003U
...
1-1-2
Hanger-Front Right SAM-DA61-09556A
...
1-1-3
Hanger-Front Left SAM-DA61-09555A
...
1-1-4
Assembly Gasket-Fre SAM-DA97-12522T
...
1-1-5
Screw-Tapping SAM-6002-000613
...
1-1
Assy Door Fre; Aw3-14,sts430,black Caviar SAM-DA90-09373M
...
1
Assy Door Sub-Fre; Aw3-14,sts430,black Ca SAM-DA93-00219J
...
2
Guard-Fre SAM-DA63-07512A

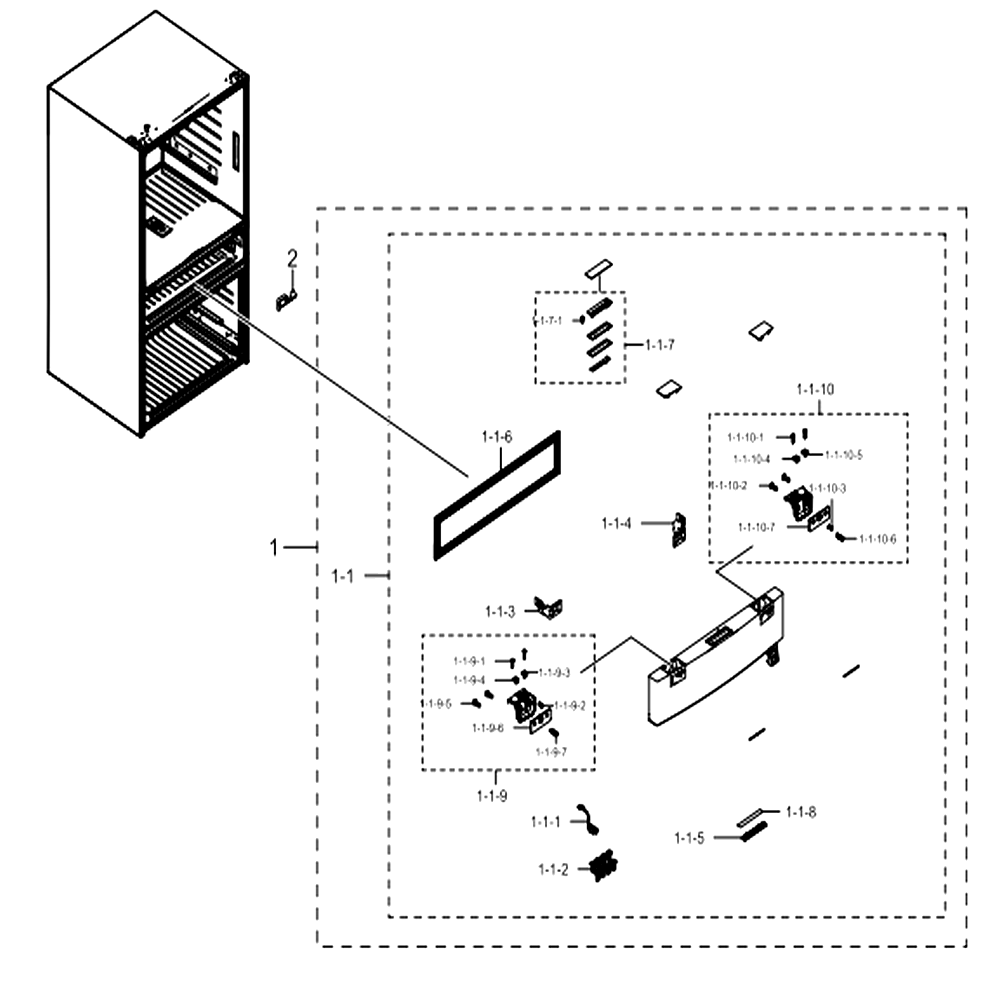

Flexzone-door

...
...
1-1-1
Assembly Wire Harness-Display SAM-DA96-00641B
...
1-1-2
Screw-Tapping SAM-6002-000613
...
1-1-3
Hanger-Front Middle Left SAM-DA61-09248A
...
1-1-4
Hanger-Front Middle Right SAM-DA61-09249A
...
1-1-5
Cover-Cap Door Led SAM-DA63-05524A
...
1-1-6
Assembly Gasket-Middle SAM-DA97-12522R
...
1-1-7-1
Screw-Tapping SAM-6002-000630
...
1-1-7
Assembly Cover Control-Convertible SAM-DA97-10605C
...
1-1-8
Assy Lamp Led; 2,fr-4,20*30,white,smaw250 SAM-DA41-00676J
...
1-1-9-1
Screw-Tapping SAM-6002-000215
...
1-1-9-2
Spring Etc-Easy Handle SAM-DA61-04335A
...
1-1-9-3
Fixer-Shaft R SAM-DA61-05899A
...
1-1-9-4
Fixer-Shaft L SAM-DA61-05930A
...
1-1-9-5
Screw-Tapping SAM-6002-000630
...
1-1-9-6
Reinf-Cap Handle SAM-DA61-06658A
...
1-1-9-7
Fixer Handle; Aw3-14,swrch10a,m8 SAM-DA61-11161A
...
1-1-9
Assy Support-Left; Aw4-4d,ebony Black SAM-DA97-13870C
...
1-1-10-1
Screw-Tapping SAM-6002-000215
...
1-1-10-2
Screw-Tapping SAM-6002-000630
...
1-1-10-3
Spring Etc-Easy Handle SAM-DA61-04335A
...
1-1-10-4
Fixer-Shaft L SAM-DA61-05930A
...
1-1-10-5
Fixer-Shaft R SAM-DA61-05899A
...
1-1-10-6
Fixer Handle; Aw3-14,swrch10a,m8 SAM-DA61-11161A
...
1-1-10-7
Reinf-Cap Handle SAM-DA61-06658A
...
1-1-10
Assy Support-Right; Aw4-4d,ebony Black SAM-DA97-13871C
...
1-1
Assembly Door SAM-DA97-13797M
...
1
Assy Door Sub-Middle; Aw3-14 Fdsr,middle, SAM-DA93-00220A
...
2
Cover-W/harness Conv Door SAM-DA63-05462C

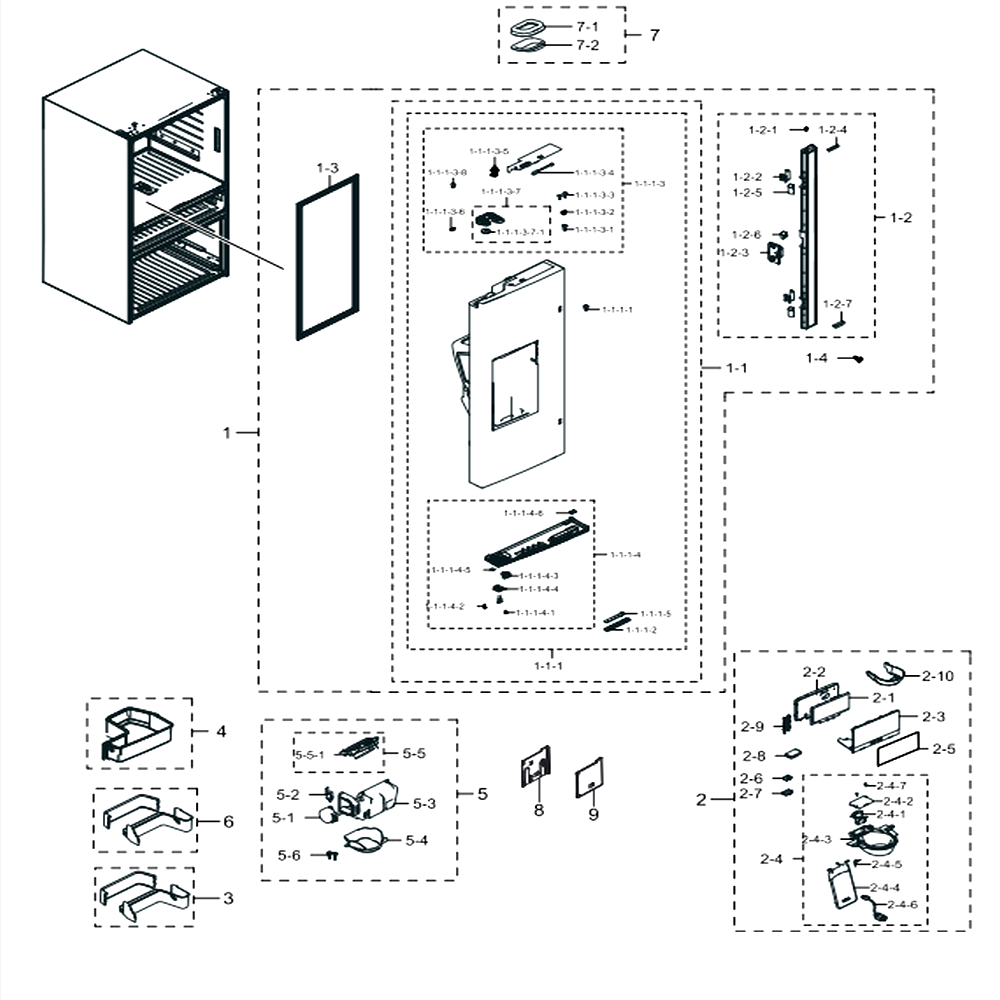

Refrigerator-door-l

...
...
1-1-1-1
Screw-Tapping SAM-6002-000217
...
1-1-1-2
Cover-Cap Door Led SAM-DA63-05524A
...
1-1-1-3-1
Screw-Tapping SAM-6002-000466
...
1-1-1-3-2
Screw-Tapping SAM-6002-000613
...
1-1-1-3-3
Screw-Tapping SAM-6002-001122
...
1-1-1-3-4
Sensor Humidity SAM-DA32-00034B
...
1-1-1-3-5
Switch Door-Interlock SAM-DA34-00066B
...
1-1-1-3-6
Magnet-A SAM-DA61-03769A
...
1-1-1-3-7-1
Roller-Auto Close SAM-DA66-00440A
...
1-1-1-3-7
Assembly Lever-Auto Close SAM-DA97-12625A
...
1-1-1-3-8
Cap-Shaft Hole SAM-DA67-02795C
...
1-1-1-3
Assy Cap Door-Ref Up Left; Aw3-14,enbony SAM-DA97-13883H
...
1-1-1-4-1
Screw-Machine SAM-6001-001377
...
1-1-1-4-2
Screw-Tapping SAM-6002-001120
...
1-1-1-4-3
Support Door-Close SAM-DA61-02383A
...
1-1-1-4-4
Stopper-Door L SAM-DA61-08210A
...
1-1-1-4-5
Grommet-Stopper SAM-DA63-40294A
...
1-1-1-4-6
Grommet-Chassis Up SAM-DA63-04825A
...
1-1-1-4
Assy Cap Door-Ref Low Left; Aw3-14,enbony SAM-DA97-14358C
...
1-1-1-5
Assy Lamp Led; 2,fr-4,20*30,white,smaw250 SAM-DA41-00676J
...
1-1-1
Assy Plate Door-Ref Left; Aw3-14 Fdsr,bla SAM-DA97-16102A
...
1-1
Assembly Door Foam-Ref Left SAM-DA91-04200C
...
1-2-1
Screw-Tapping SAM-6002-000213
...
1-2-2
Hinge-French SAM-DA61-08305A
...
1-2-3
Cover-Heater French SAM-DA63-03454B
...
1-2-4
Gasket-French Upp; Aw4,si,black SAM-DA63-06959B
...
1-2-5
Cap-Case French SAM-DA67-01650A
...
1-2-6
Cap-Case French Mid SAM-DA67-01701A
...
1-2-7
Gasket-French Low SAM-DA63-06842A
...
1-2
Assembly French SAM-DA97-12684E
...
1-3
Assembly Gasket-Ref SAM-DA97-13015D
...
1-4
Screw-Tapping SAM-6002-001406
...
1
Assy Door Sub-Ref Left; Aw3-14 Fdsr , Bla SAM-DA93-00223A
...
2-1
Assembly Module SAM-DA92-00596A
...
2-2
Cover Pcb-Panel Rear SAM-DA63-06377A
...
2-3
Assembly Cover Dispenser-Sub SAM-DA97-13808K
...
2-4-1
Switch-Micro; 250vac,1a,80,spst-No,t105 SAM-3405-001119
...
2-4-2
Cover-Switch SAM-DA63-05449A
...
2-4-3
Case Lever Dispenser; Aw4-4d,abs,ebony Bl SAM-DA61-09434A
...
2-4-4
Lever-Dispenser Water Sts; Aw3,pc,3022ir, SAM-DA66-00720A
...
2-4-5
Spring Etc-Lever Disp Water; Aw3,sts304 SAM-DA61-06034B
...
2-4-6
Assy-W/harness Disp SAM-DA96-00106G
...
2-4-7
Screw-Tapping SAM-6002-000630
...
2-4
Assembly Lever Dispenser SAM-DA97-12628H
...
2-5
Inlay-Film SAM-DA64-04669A
...
2-6
Assembly Pcb Kit SAM-DA41-00217A
...
2-7
Case Lamp-Led SAM-DA61-05687A
...
2-8
Cover-Lamp-Led SAM-DA63-02446A
...
2-9
Screw-Tapping SAM-6002-000630
...
2-10
Cover Ice SAM-DA63-07637A
...
2
Assembly Cover Dispenser SAM-DA97-13809T
...
3
Assembly Guard-Ref Low SAM-DA97-13819B
...
4
Assembly Guard-Ref Up SAM-DA97-13804C
...
5-1
Motor Geared-Disp SAM-DA31-00079D
...
5-2
Switch-Micro SAM-3405-001117
...
5-3
Case Ice Route; Aw4-4d,abs,i Black,hg-076 SAM-DA61-09432A
...
5-4
Guide Ice; Aw4-4d,hips,s834s1,natural,gui SAM-DA61-09433A
...
5-5-1
Cover-Ice Route A SAM-DA63-04647A
...
5-5
Assembly Cover-Ice Route SAM-DA97-05368A
...
5-6
Screw-Tapping SAM-6002-001364
...
5
Assembly Guide Ice Route SAM-DA97-13829C
...
6
Assembly Guard-Ref Middle SAM-DA97-13818B
...
7-1
Gasket; Fdsr,tpe,white SAM-DA63-08248A
...
7-2
Cap-Chute Ice SAM-DA67-03312A
...
7
Assembly Cap-Chute Ice SAM-DA97-12594A
...
8
Cap Reinf SAM-DA67-03916B
...
9
Cap Reinf SAM-DA67-03917B

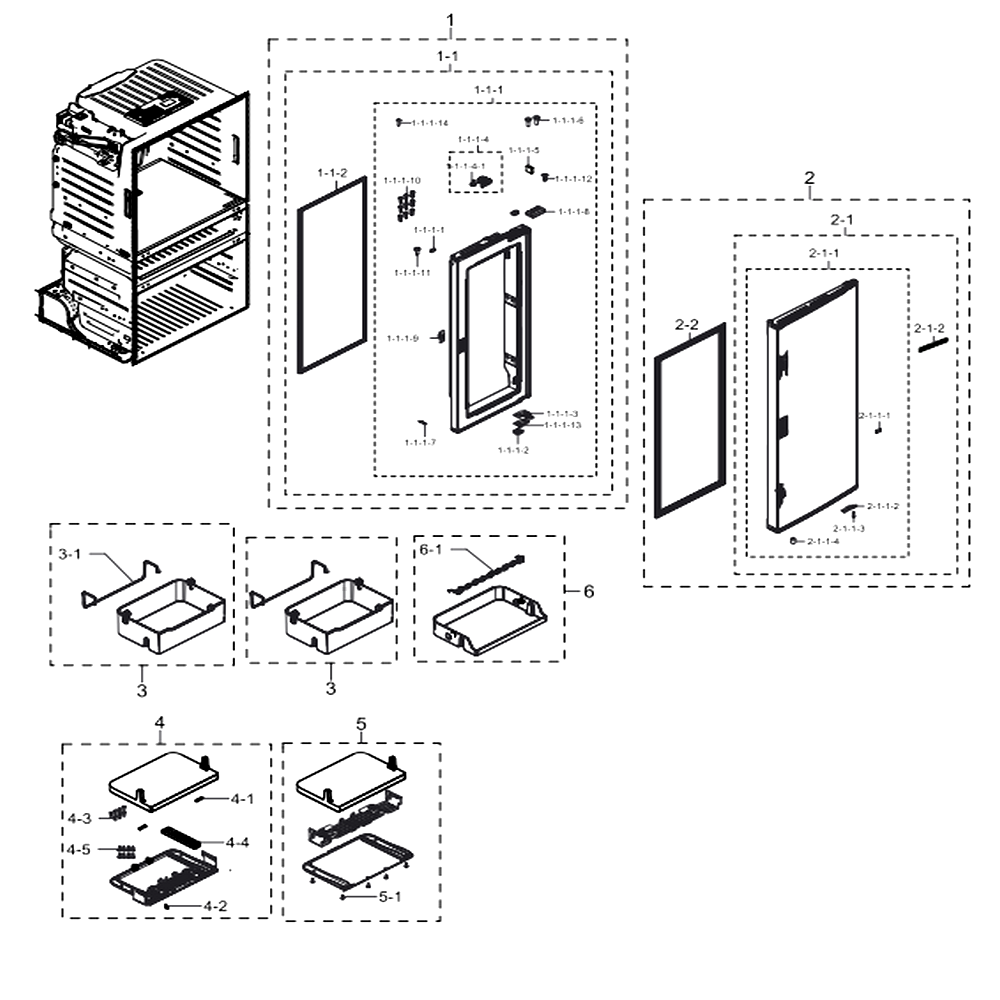

Refrigerator-door-r

...
...
1-1-1-1
Magnet SAM-DA61-03769B
...
1-1-1-2
Support Door-Middle SAM-DA61-09950B
...
1-1-1-3
Hinge-Low; Fdsr,po-Sphc,t4.0,eletrodeposi SAM-DA61-09969B
...
1-1-1-4
Roller-Auto Close SAM-DA66-00440A
...
1-1-1-5
Grommet-Stopper SAM-DA63-40294A
...
1-1-1-6
Screw-Tapping SAM-6002-000623
...
1-1-1-7
Assembly Lamp Led SAM-DA96-01119A
...
1-1-1-8
Grommet-Chassis Up SAM-DA63-04825A
...
1-1-1-9
Cover Lock SAM-DA63-08235A
...
1-1-1-10
Screw-Tapping SAM-6002-000239
...
1-1-1-11
Screw-Tapping SAM-6002-000538
...
1-1-1-12
Screw-Tapping SAM-6002-000613
...
1-1-1-13
Stopper Door-Ref; Po-Sphc,black,eletrodep SAM-DA61-09952B
...
1-1-1-14
Screw-Tapping SAM-6002-000215
...
1-1-1
Assy Door Foam-Ref Right; Aw3-14,fdsr,bla SAM-DA91-04484C
...
1-1-2
Assembly Gasket-Ref SAM-DA97-13015D
...
1-1
Assy Door Ref In-Right; Aw3-14 Fdsr , Bla SAM-DA91-04221C
...
1
Assy Door Sub-Ref In; Aw3-14 Fdsr,black C SAM-DA93-00221A
...
2-1-1-1
Magnet-A SAM-DA61-03769A
...
2-1-1-2
Stopper Door-Ref Low SAM-DA61-09951A
...
2-1-1-3
Grommet Hinge-Middle SAM-DA63-07545B
...
2-1-1-4
Rubber-Cap Hose SAM-DA73-00211A
...
2-1-1
Assy Plate Door-Ref Right; Aw3-14 Fdsr,bl SAM-DA97-14981C
...
2-1-2
Mascot; All,ni,t0.06,l90 SAM-DA64-04021D
...
2-1
Assembly Door Foam-Ref Right SAM-DA91-04200D
...
2-2
Assembly Gasket-Ref SAM-DA97-13915H
...
2
Assy Door Sub-Ref Right; Aw3-14 Fdsr , Bl SAM-DA93-00222A
...
3-1
Support Wire-Low SAM-DA61-09948A
...
3
Assembly Guard-Ref Low Right SAM-DA97-14996A
...
4-1
Grommet-A; Mouton12,si,cool White,name Ta SAM-DA63-07538A
...
4-2
Grommet-Low SAM-DA63-07559A
...
4-3
Screw-Tapping SAM-6002-000623
...
4-4
Assembly Rail-Up SAM-DA97-13895A
...
4-5
Screw-Tapping SAM-6002-000213
...
4
Assy Tray-Low; Aw2-14 Fdsr,roller Type SAM-DA97-14997E
...
5-1
Screw-Tapping SAM-6002-001122
...
5
Assembly Tray-Low SAM-DA97-14997D
...
6-1
Support Wire-Up SAM-DA61-09976A
...
6
Assy Guard Dairy; Rf9000k,fdsr,fixer SAM-DA97-14644F

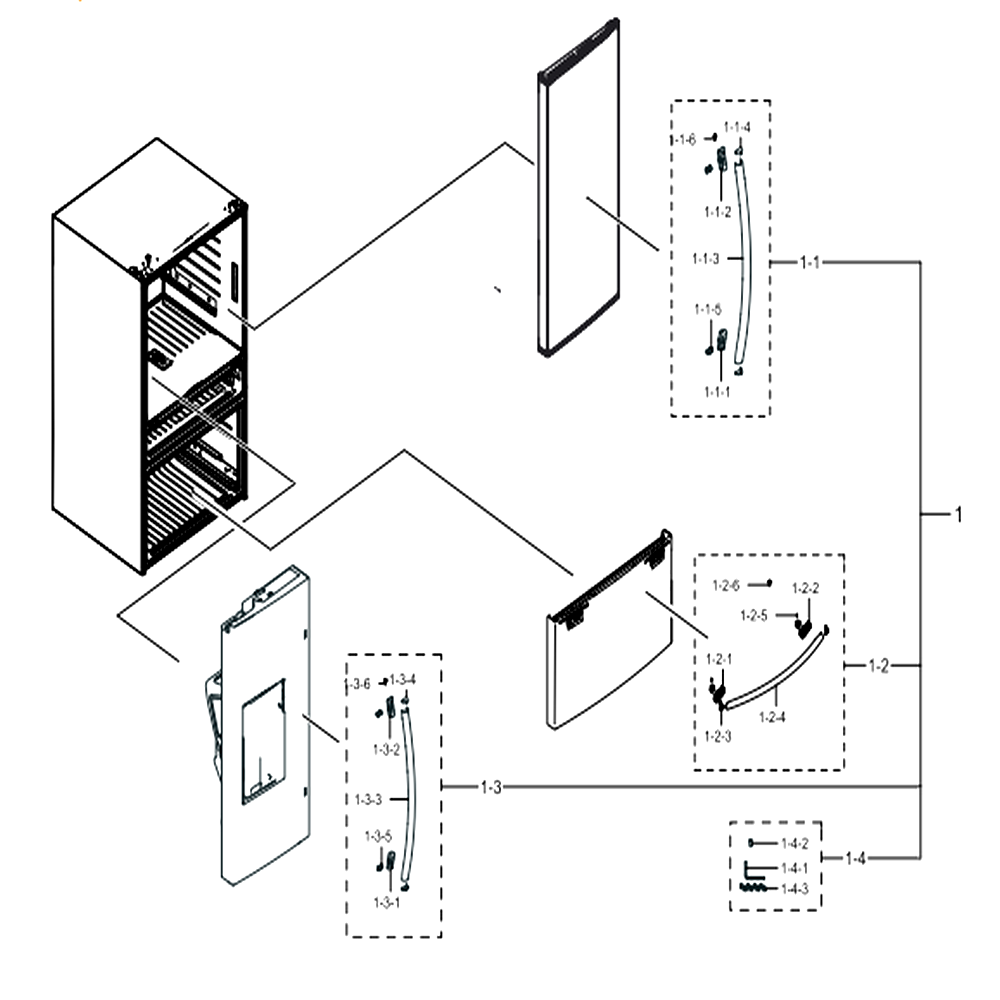

Assy Handle Kit

...
...
1-1-1
Support-Handle Ref SAM-DA61-08228A
...
1-1-2
Support-Handle Ref Upp SAM-DA61-08246A
...
1-1-3
Handle Bar-Ref Right SAM-DA64-03756Q
...
1-1-4
Cap-Supt Handle Ref SAM-DA67-02788A
...
1-1-5
Screw-Set SAM-6009-001526
...
1-1-6
Screw-Tapping SAM-6002-000213
...
1-1
Assembly Handle-Ref R SAM-DA97-15014D
...
1-2-1
Support-Handle Fre SAM-DA61-08229A
...
1-2-2
Support-Handle Fre R SAM-DA61-08247A
...
1-2-3
Cap-Handle Fre SAM-DA67-02787A
...
1-2-4
Handle Bar-Fre Low SAM-DA64-03945G
...
1-2-5
Screw-Set SAM-6009-001526
...
1-2-6
Screw-Tapping SAM-6002-000213
...
1-2
Assembly Handle-Fre SAM-DA97-12712D
...
1-3-1
Support-Handle Ref SAM-DA61-08228A
...
1-3-2
Support-Handle Ref Upp SAM-DA61-08246A
...
1-3-3
Handle Bar-Ref Left SAM-DA64-03756P
...
1-3-4
Cap-Supt Handle Ref SAM-DA67-02788A
...
1-3-5
Screw-Set SAM-6009-001526
...
1-3-6
Screw-Tapping SAM-6002-000213
...
1-3
Assembly Handle-Ref Left SAM-DA97-12715F
...
1-4-1
Wrench-Spanner SAM-DA80-00026B
...
1-4-2
Cap-Wrench SAM-DA67-03197A
...
1-4-3
Fixer Handle; Aw3-14,swrch10a,m8 SAM-DA61-11161A
...
1-4
Assy Install; Aw3-14,valve SAM-DA99-03490V
...
1
Assy Handle-Kit; Fdsr-4d,black Caviar Wit SAM-DA98-00823E
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
