Samsung RF28HMEDBSR/AA_0010

Model: RF28HMEDBSR/AA_0010

Save Part Not Listed?
product name

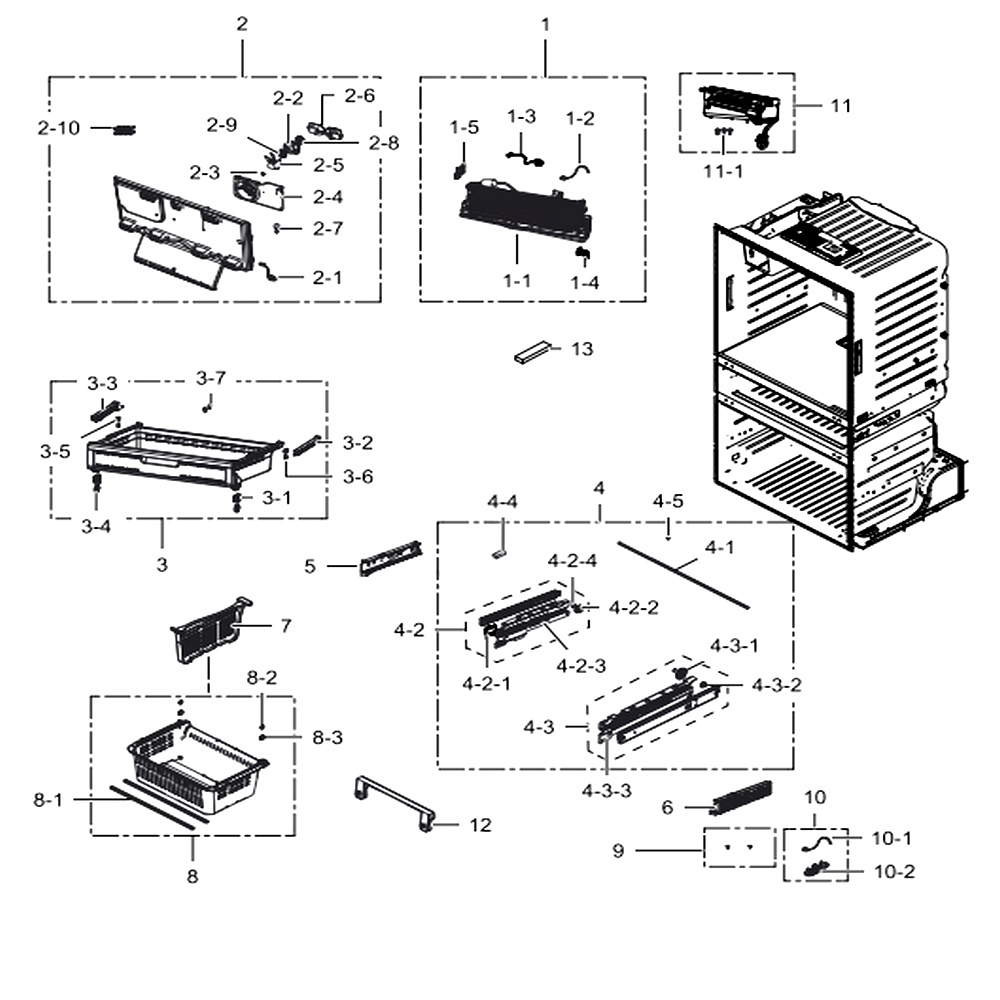

Freezer

...
...
1-1
Heater Metal Sheath SAM-DA47-00318H
...
1-2
Sensor Temp SAM-DA32-10104N
...
1-3
Thermo Bimetal-Protector SAM-DA47-00243B
...
1-4
Fixer-Heater Fre SAM-DA61-05845A
...
1-5
Fixer-Sensor Fre SAM-DA61-06182A
...
1
Assembly Evap-Fre SAM-DA96-00631D
...
2-1
Assembly Wire Harness-Motor SAM-DA96-00042D
...
2-2
Motor Bldc SAM-DA31-00146H
...
2-3
Spring Etc-Fan SAM-DA61-20128A
...
2-4
Case Motor-Fre SAM-DA61-05867B
...
2-5
Fan-Ax100w4cc-T1 SAM-DA31-00124A
...
2-6
Cover Motor-Bldc SAM-DA63-01809B
...
2-7
Grommet-Cover Chill SAM-DA63-40167A
...
2-8
Grommet-Motor,rear SAM-DA63-01146A
...
2-9
Grommet Motor SAM-DA63-01808A
...
2-10
Screw-Tapping SAM-6002-000215
...
2
Assembly Cover Evap-Fre SAM-DA97-08434E
...
3-1
Fixer-Roller Tray Fre Upp SAM-DA61-04154A
...
3-2
Guide-Tray Fre Upp R SAM-DA61-05185A
...
3-3
Guide-Tray Fre Upp L SAM-DA61-05186A
...
3-4
Roller-Tray Fre Upp SAM-DA66-00554A
...
3-5
Fixer-Roller SAM-DA71-20277A
...
3-6
Roller-Fre SAM-DA66-10104A
...
3-7
Screw-Tapping SAM-6002-001406
...
3
Assembly Tray-Fre Up SAM-DA97-08439D
...
4-1
Shaft-Gear SAM-DA66-00437B
...
4-2-1
Switch Pressure SAM-DA34-00047B
...
4-2-2
Gear-Rail L SAM-DA66-00751A
...
4-2-3
Hanger-Rail Low L SAM-DA61-05974A
...
4-2-4
Fixer-Gear SAM-DA61-03154A
...
4-2
Assembly Rail-Slide Low L SAM-DA97-08803C
...
4-3-1
Gear-Rail R SAM-DA66-00750A
...
4-3-2
Fixer-Gear SAM-DA61-03154A
...
4-3-3
Hanger-Rail Low R SAM-DA61-05975A
...
4-3
Assembly Rail-Slide Low R SAM-DA97-08804C
...
4-4
Magnet SAM-DA61-03769B
...
4-5
Cap-Shaft Hole SAM-DA67-02795C
...
4
Assembly Hanger-Low SAM-DA97-14382A
...
5
Cover-Rail Low L SAM-DA63-05400A
...
6
Cover-Rail Low R SAM-DA63-05409A
...
7
Guide-Fre SAM-DA61-05850B
...
8-1
Reinf-Drawer Box SAM-DA61-03160A
...
8-2
Roller-Fre SAM-DA66-10104A
...
8-3
Fixer-Roller SAM-DA71-20145A
...
8
Assembly Tray Drawer SAM-DA97-08401C
...
9
Cap-Shaft Hole SAM-DA67-02795C
...
10-1
Sensor Temp SAM-DA32-00033C
...
10-2
Cover Sensor-Fre SAM-DA63-05470B
...
10
Assembly Cover-Sensor Fre SAM-DA97-08608A
...
11-1
Screw-Tapping SAM-6002-000471
...
11
Assembly Ice Maker SAM-DA97-15217A
...
12
Fixer-Rear SAM-DA61-09790A
...
13
Seal-Cutt Rubber SAM-DA72-60040W

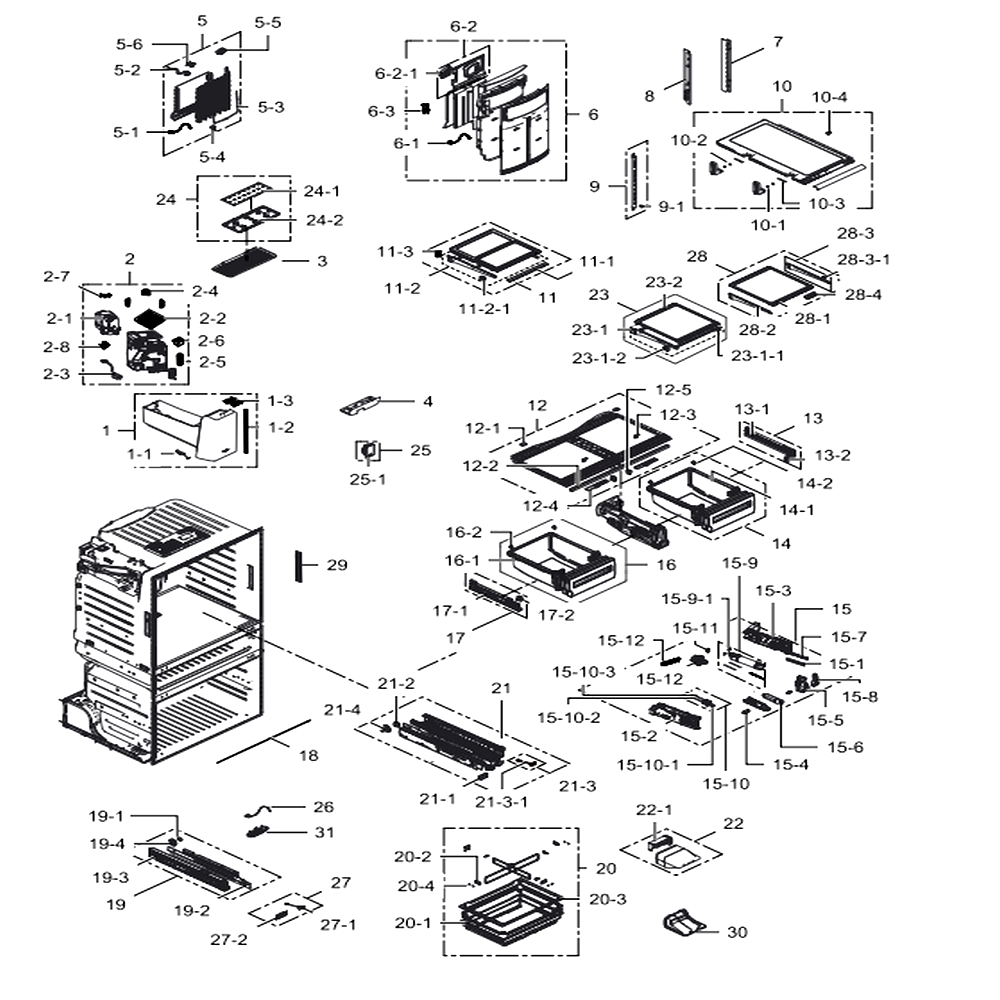

Refrigerator

...
...
1-1
Spring Etc-Dispenser SAM-DA61-20124D
...
1-2
Gasket-Tray Ice Bucket SAM-DA63-07185A
...
1-3
Screw-Tapping SAM-6002-000471
...
1
Assembly Tray Ice SAM-DA97-14474A
...
2-1
Motor Geared Ac Auger SAM-DA31-00105M
...
2-2
Motor Bldc Fan SAM-DA31-00070E
...
2-3
Assembly Wire Harness-Auger SAM-DA96-00682D
...
2-4
Grommet-Fan SAM-DA63-02513A
...
2-5
Spring Etc-Solenoid SAM-DA61-20140A
...
2-6
Valve-Solenoid SAM-DA74-40151G
...
2-7
Screw-Special SAM-DA60-00001B
...
2-8
Screw-Tapping SAM-6002-000471
...
2
Assembly Case-Fan Auger Motor SAM-DA97-12540A
...
3
Cover Lamp-Ref SAM-DA63-07816A
...
4
Guide-French SAM-DA61-04285A
...
5-1
Sensor Temp SAM-DA32-10104N
...
5-2
Thermo Bimetal-Protector SAM-DA47-00243C
...
5-3
Heater Metal Sheath SAM-DA47-00434A
...
5-4
Plate-Evap Heater SAM-DA61-03644A
...
5-5
Fixer-Senser SAM-DA61-03683A
...
5-6
Fixer-Heater Ref SAM-DA61-05835B
...
5
Assembly Evap-Ref SAM-DA96-00842A
...
6-1
Sensor Temp SAM-DA32-00011D
...
6-2-1
Motor Bldc Fan SAM-DA31-00287A
...
6-2
Assembly Case Motor-Ref SAM-DA97-16026A
...
6-3
Screw-Tapping SAM-6002-001204
...
6
Assy Cover Evap-Ref; Aw3-14 SAM-DA97-16028B
...
7
Angle-Shelf Ref Side R SAM-DA61-05897A
...
8
Angle-Shelf Ref Side L SAM-DA61-05898A
...
9-1
Screw-Tapping SAM-6002-001397
...
9
Assy Angle Shelf-Ref Middle; Opus1-14 SAM-DA97-13844B
...
10-1
Spring Etc-Hinge Shelf SAM-DA61-03705A
...
10-2
Roller-Hinge-Shelf SAM-DA66-00482A
...
10-3
Shaft-Hinge-Shelf SAM-DA66-00483A
...
10-4
Screw-Tapping SAM-6002-001397
...
10
Assembly Shelf Folder-Ref SAM-DA97-14315A
...
11-1
Trim-Shelf Quick Space SAM-DA64-03040F
...
11-2-1
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09550A
...
11-2
Assembly Hanger SAM-DA97-14348A
...
11-3
Screw-Tapping SAM-6002-001397
...
11
Assembly Shelf-Quick Space SAM-DA97-08463B
...
12-1
Fixer-Cover Veg SAM-DA61-03166A
...
12-2
Trim-Cover Veg Ref; Aw3,stainless-Sts304, SAM-DA64-03217A
...
12-3
Knob-Humidity SAM-DA64-03209A
...
12-4
Lever-Humidity SAM-DA66-00718A
...
12-5
Assy Roller; Rf9000jc,24 SAM-DA97-15997A
...
12
Assembly Cover Veg-Ref SAM-DA97-08402G
...
13-1
Rail-Veg R SAM-DA61-07326A
...
13-2
Assy Roller; Rf9000jc,24 SAM-DA97-15997A
...
13
Assembly Rail Veg-R SAM-DA97-11291A
...
14-1
Case-Veg R SAM-DA61-05875B
...
14-2
Assembly Roller SAM-DA97-15998A
...
14
Assembly Case Veg-Right SAM-DA97-08437D
...
15-1
Assembly Lamp Led SAM-DA41-00519S
...
15-2
Case-Filter Tank R SAM-DA61-07226A
...
15-3
Case-Filter Tank L SAM-DA61-07225A
...
15-4
Support-Case Filter SAM-DA61-05870A
...
15-5
Cover-Filter Tank SAM-DA63-05406B
...
15-6
Tray-Water Filter SAM-DA63-05407A
...
15-7
Cover-Led Filter SAM-DA63-05408B
...
15-8
Cap-Filter Tank SAM-DA67-02505B
...
15-9-1
Clip-Fitting Lock SAM-DA61-04522A
...
15-9
Assembly Tank Water-Ref SAM-DA97-11283H
...
15-10-1
Clip-Fitting Lock SAM-DA61-04522A
...
15-10-2
Pipe-Water Line SAM-DA62-02429G
...
15-10-3
Pipe-Water Line SAM-DA62-01368B
...
15-10
Assembly Case-Filter SAM-DA97-08006D
...
15-11
Tube-Fitting L SAM-DA62-03103A
...
15-12
Valve Water SAM-DA62-04027A
...
15
Assembly Case Filter SAM-DA97-14365A
...
16-1
Case-Veg L SAM-DA61-05876B
...
16-2
Assembly Roller SAM-DA97-15998A
...
16
Assembly Case Veg-Left SAM-DA97-08438D
...
17-1
Rail-Veg L SAM-DA61-07327A
...
17-2
Assy Roller; Rf9000jc,24 SAM-DA97-15997A
...
17
Assembly Rail Veg-L SAM-DA97-11292A
...
18
Shaft-Gear Conv SAM-DA66-00733A
...
19-1
Fixer-Gear SAM-DA61-03154A
...
19-2
Hanger-Middle Left SAM-DA61-09188A
...
19-3
Cover-Rail Conv L SAM-DA63-05451A
...
19-4
Gear-Rail L SAM-DA66-00751A
...
19
Assembly Rail-Middle Left SAM-DA97-13781A
...
20-1
Case-Convertible; Aw3,hips,cool White(sc- SAM-DA61-05860A
...
20-2
Bracket Divider SAM-DA61-09409A
...
20-3
Cover-Convertible; Aw3,hips,cool White(sc SAM-DA63-05401A
...
20-4
Roller-Divider SAM-DA66-00876A
...
20
Assy Case-Conv; Aw3,roller-Divider SAM-DA97-11930A
...
21-1
Magnet-Ass'y SAM-DA61-02738A
...
21-2
Fixer-Gear SAM-DA61-03154A
...
21-3-1
Switch Reed SAM-DA34-00043H
...
21-3
Assembly W/harness-Rail SAM-DA96-00640A
...
21-4
Gear-Rail R SAM-DA66-00750A
...
21
Assembly Rail-Middle Right SAM-DA97-13780A
...
22-1
Motor Dc-Damper SAM-DA31-00101C
...
22
Assembly Ins-Damper Conv SAM-DA97-08430A
...
23-1-1
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09549A
...
23-1-2
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09550A
...
23-1
Assy-Hanger Shelf Slide; Aw3,cool White,p SAM-DA97-08480A
...
23-2
Shelf Slide; Aw3-14,pp,cool White SAM-DA67-04064A
...
23
Assy Shelf Slide-Ref; Aw3 SAM-DA97-08461D
...
24-1
Assy Lamp Led; 5,cem-1,240*10,white,smaw2 SAM-DA41-00676K
...
24-2
Case Lamp-Ref SAM-DA61-08236A
...
24
Assy Case Lamp-Ref; Aw4,long Led SAM-DA97-12606B
...
25-1
Cap Cover Evap-Ref; Rf9000jc,hips,t3.0,hb SAM-DA67-03978B
...
25
Assy Cap Angle; Rf9000jc SAM-DA97-15412B
...
26
Sensor Temp SAM-DA32-10109B
...
27-1
Switch Reed SAM-DA34-00043J
...
27-2
Cover Reed Switch SAM-DA63-07513A
...
27
Assembly Cover Switch SAM-DA97-13783A
...
28-1
Shelf-Ref Fix SAM-DA67-03779A
...
28-2
Assy Hanger-Left; Opus1-14 SAM-DA97-14323A
...
28-3-1
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09549A
...
28-3
Assembly Hanger-Right SAM-DA97-14322A
...
28-4
Screw-Tapping SAM-6002-001397
...
28
Assy Shelf-Ref; Aw3-14,fixed Shelf SAM-DA97-14324A
...
29
Cover Lamp-Led Side SAM-DA63-07276A
...
30
Cover Motor-Damper SAM-DA63-05477A
...
31
Cover Sensor-Fre SAM-DA63-05470B

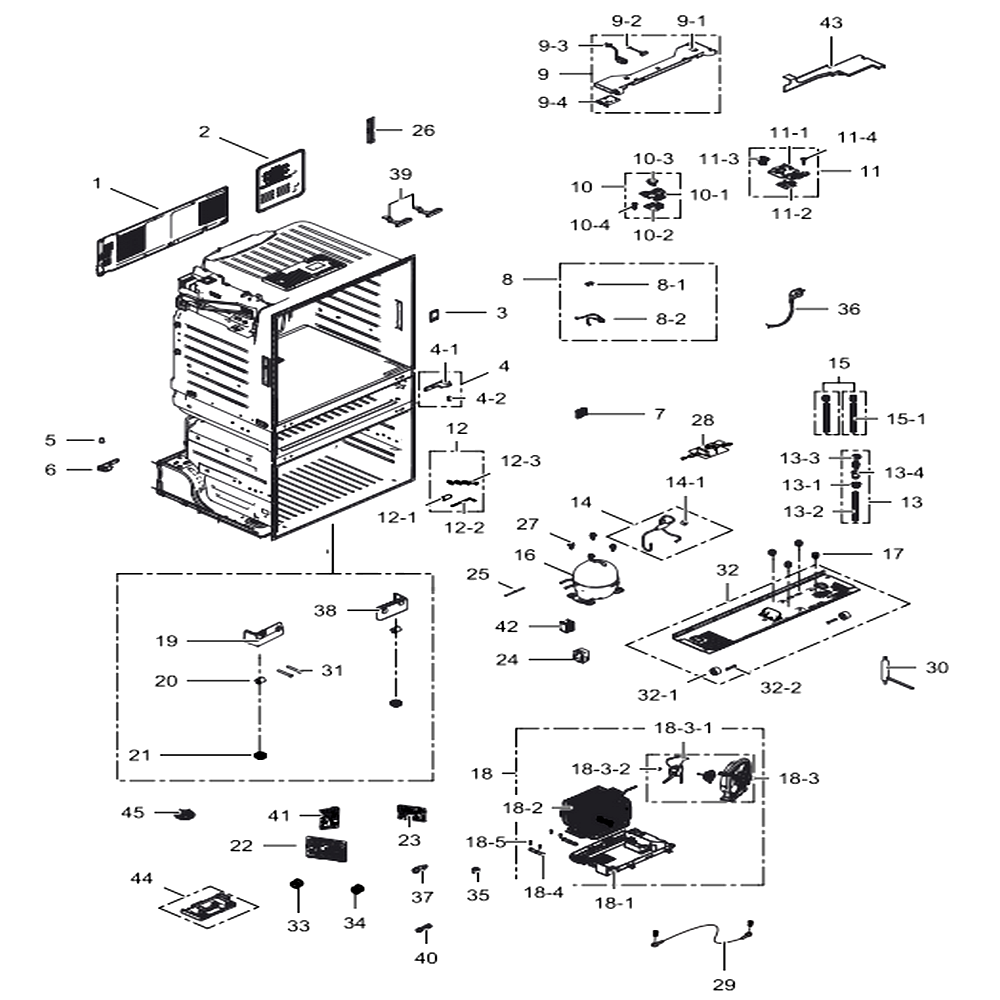

Cabinet

...
...
1
Assembly Cover Comp SAM-DA97-12749A
...
2
Assembly Cover Pcb-Panel SAM-DA97-08442D
...
3
Assembly Cover-Tube Filter SAM-DA97-08413B
...
4-1
Hinge-Middle Right; Aw4,zn,t4.5,zndc2,cr SAM-DA61-08317B
...
4-2
Shaft Hinge-Middle SAM-DA66-00688A
...
4
Assy Hinge-Middle Right; Aw4,zndc SAM-DA97-12612B
...
5
Grommet Hinge-Mid SAM-DA63-06410A
...
6
Hinge-Mid L; Aw4,zn,t4.5,zndc 2 SAM-DA61-08318A
...
7
Fixer-Hose SAM-DA61-03467B
...
8-1
Relay Protector O/l SAM-DA34-00004D
...
8-2
Assembly Wire Harness-Comp SAM-DA39-00154M
...
8
Assembly Comp-Sub SAM-DA97-10848N
...
9-1
Top Table; Romanee Conti,abs,inox Gray SAM-DA64-04477B
...
9-2
Switch Reed SAM-DA34-00043A
...
9-3
Assy W/harness-Reed Switch; Fdr,12vdc,all SAM-DA96-00962A
...
9-4
Plate-Cover Hinge SAM-DA61-08227A
...
9
Assy Top Table; Romanee Conti,inox Gray SAM-DA97-13703D
...
10-1
Hinge-Upp L SAM-DA61-08309A
...
10-2
Shim-Hinge Upp SAM-DA63-50192A
...
10-3
Cam-Auto Close L SAM-DA66-00950A
...
10-4
Screw-Tapping SAM-6002-000215
...
10
Assembly Hinge Upp-L SAM-DA97-12573A
...
11-1
Hinge-Upp R; Aw4,po-Sphc,t2.9,eletrodepos SAM-DA61-08310A
...
11-2
Shim-Hinge Upp SAM-DA63-50192A
...
11-3
Cam-Auto Close R SAM-DA66-00951A
...
11-4
Screw-Tapping SAM-6002-000215
...
11
Assy Hinge Upp-R; Aw4,t3.0,black SAM-DA97-12574A
...
12-1
Cap-Wrench SAM-DA67-03197A
...
12-2
Wrench-Spanner SAM-DA80-00026B
...
12-3
Fixer-Handle SAM-DA61-03734A
...
12
Valve SAM-DA99-03490Q
...
13-1
Fixer-Drain SAM-DA61-05021A
...
13-2
Tube Pvc SAM-DA62-01266B
...
13-3
Grommet-Drain SAM-DA63-02761A
...
13-4
Cap-Drain SAM-DA67-01301A
...
13
Assembly Cap-Drain SAM-DA97-04049E
...
14-1
Grommet-Suct Pipe B SAM-DA63-40171D
...
14
Assembly Pipe Connect SAM-DA97-08458G
...
15-1
Tube Pvc SAM-DA62-01266E
...
15
Assembly Cap-Drain SAM-DA97-04049J
...
16
Compressor SAM-MKV190CL2B/E01
...
17
Grommet Comp SAM-DA63-02617A
...
18-1
Tray-Drain Water; Aw4,pp,hb,gray,pp_S SAM-DA63-06897A
...
18-2
Assembly Pipe-Condenser SAM-DA97-08464F
...
18-3-1
Fan SAM-DA31-00320A
...
18-3-2
Spring Etc-Fan SAM-DA61-20128A
...
18-3
Assembly Support-Circuit Motor SAM-DA97-15765A
...
18-4
Grommet-Sub Cond SAM-DA63-40128A
...
18-5
Screw-Special SAM-6009-001252
...
18
Assy Tray Drain Water; Aw2-14,c-160i SAM-DA97-13784B
...
19
Aw4-4d,pp,inox Gray SAM-DA63-06389E
...
20
Caster-Front SAM-DA61-04702A
...
21
Foot-Front SAM-DA61-00805F
...
22
Assy Pcb Eeprom; 0x01,aw3-14,da92-00591d SAM-DA94-02663A
...
23
Assembly Pcb Inverter SAM-DA92-00483B
...
24
Cover Relay SAM-DA63-01866A
...
25
Pipe-Connect Disc,b SAM-DA73-10190U
...
26
Assembly Lamp Led SAM-DA41-00519Q
...
27
Bolt-Hex SAM-6011-001656
...
28
Coil Filter SAM-DA27-00043D
...
29
Wire Harness-Earth SAM-DA39-20389L
...
30
Dryer SAM-DA62-04309B
...
31
Caster-Rivet SAM-DA61-01920A
...
32-1
Caster-Rear SAM-DA61-04703A
...
32-2
Shaft-Caster SAM-DA66-00649B
...
32
Assembly Chassis-Comp SAM-DA97-12557A
...
33
Fitting-Lokring 33 SAM-DA60-00280A
...
34
Fitting-Lokring 43 SAM-DA60-00281A
...
35
Valve-Fitting Nut SAM-DA74-00070B
...
36
At,u.s.a,canada,us3f-1,3c,125v,15a,blac K,1500,20/100/100/150,spt-3 Awg18 105c,ul/ Csa,y,n,n,n,y SAM-3903-000796
...
37
Valve-Fitting Pu SAM-DA62-00305A
...
38
Aw4-4d,pp,inox Gra SAM-DA63-06405D
...
39
Fixer Hinge-Upp SAM-DA61-04932A
...
40
Tube-Fitting SAM-DA62-03914A
...
41
Assembly Module SAM-DA92-00486A
...
42
Cover-Fixer Housing V SAM-DA63-02902B
...
43
Cover-Wire Harness Ice SAM-DA63-06894A
...
44
Assembly Case Lock SAM-DA97-14471A
...
45
Cover-Urethane SAM-DA63-03809A

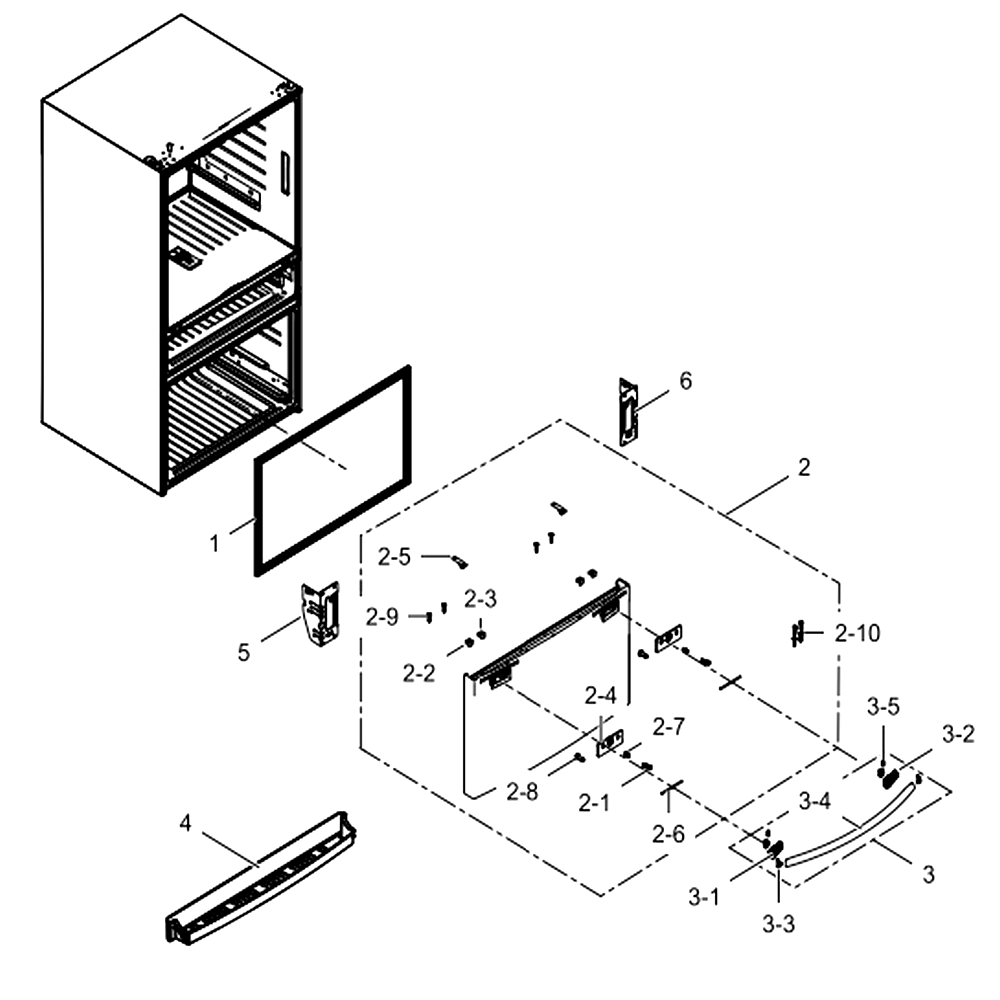

Freezer-door

...
...
1
Assy Gasket-Fre; Aw4-4d,gray SAM-DA97-12522S
...
2-1
Fixer-Handle SAM-DA61-03734A
...
2-2
Fixer-Shaft L SAM-DA61-05930A
...
2-3
Fixer-Shaft R SAM-DA61-05899A
...
2-4
Reinf-Cap Handle SAM-DA61-06658A
...
2-5
Slider-Easy Handle; Aw4,pom,creamy-Sts,f2 SAM-DA61-08234A
...
2-6
Shaft-Cap Handle SAM-DA66-00579A
...
2-7
Spring Etc-Easy Handle SAM-DA61-04335A
...
2-8
Screw-Tapping SAM-6002-000630
...
2-9
Screw-Tapping SAM-6002-000215
...
2-10
Screw-Tapping SAM-6002-000215
...
2
Assy Door Foam-Fre; Assy,inox Gray SAM-DA91-04003H
...
3-1
Support-Handle Fre SAM-DA61-08229A
...
3-2
Support-Handle Fre R SAM-DA61-08247A
...
3-3
Cap-Handle Fre SAM-DA67-02787A
...
3-4
Handle Bar-Fre; Aw1-12,aw4,al,t1.3,versai SAM-DA64-03945F
...
3-5
Screw-Set SAM-6009-001526
...
3
Assy Handle Bar-Fre; Aw4,al(a6063),versai SAM-DA97-12712C
...
4
Guard-Fre SAM-DA63-07512A
...
5
Hanger-Front Left SAM-DA61-09555A
...
6
Hanger-Front Right SAM-DA61-09556A

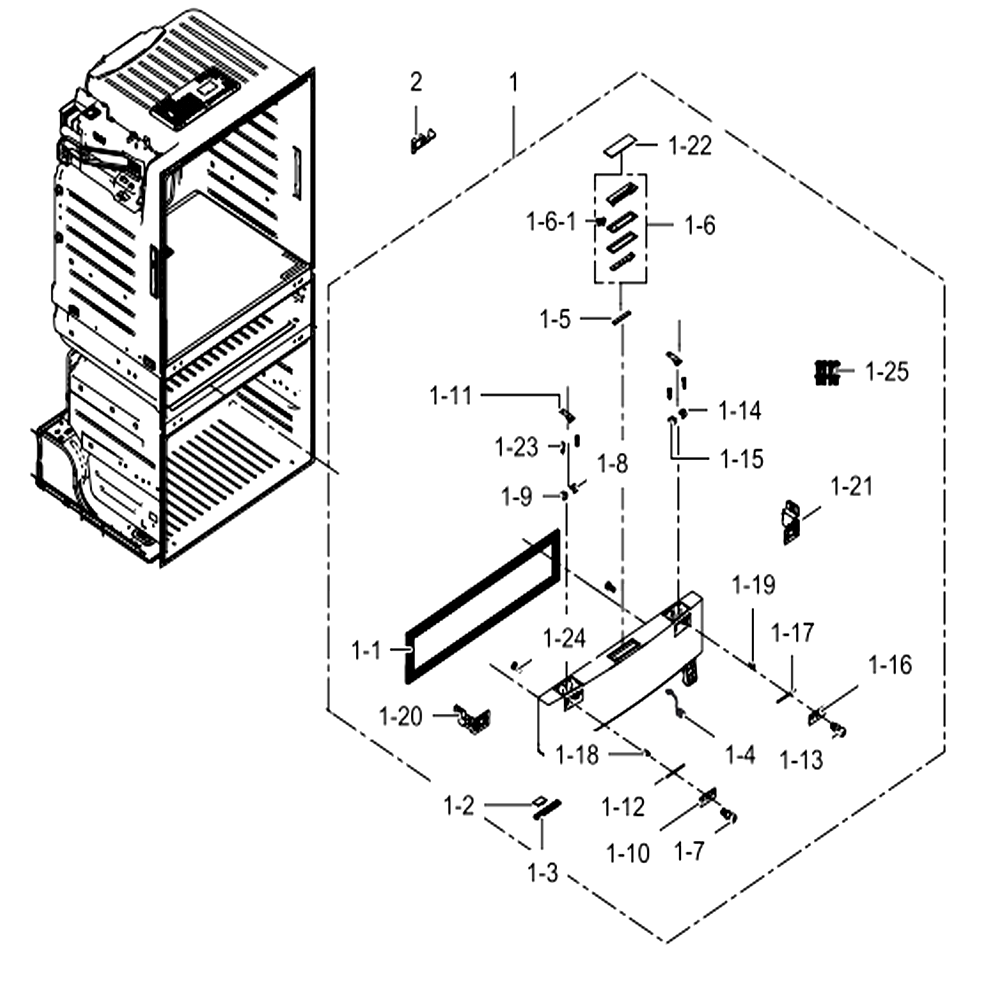

Flexzone-door

...
...
1-1
Assy Gasket-Middle; Aw4-4d,gray SAM-DA97-12522Q
...
1-2
Assy Lamp Led; 2,fr-4,20*30,white,smaw250 SAM-DA41-00676J
...
1-3
Cover-Cap Door Led SAM-DA63-05524A
...
1-4
Assembly Wire Harness-Display SAM-DA96-00641B
...
1-5
Cover Control SAM-DA63-05630C
...
1-6-1
Screw-Tapping SAM-6002-000630
...
1-6
Assembly Cover Control-Convertible SAM-DA97-10605C
...
1-7
Fixer-Handle SAM-DA61-03734A
...
1-8
Fixer-Shaft R SAM-DA61-05899A
...
1-9
Fixer-Shaft L SAM-DA61-05930A
...
1-10
Reinf-Cap Handle SAM-DA61-06658A
...
1-11
Slider-Easy Handle; Aw4,pom,creamy-Sts,f2 SAM-DA61-08234A
...
1-12
Shaft-Cap Handle SAM-DA66-00579A
...
1-13
Fixer-Handle SAM-DA61-03734A
...
1-14
Fixer-Shaft R SAM-DA61-05899A
...
1-15
Fixer-Shaft L SAM-DA61-05930A
...
1-16
Reinf-Cap Handle SAM-DA61-06658A
...
1-17
Shaft-Cap Handle SAM-DA66-00579A
...
1-18
Spring Etc-Easy Handle SAM-DA61-04335A
...
1-19
Spring Etc-Easy Handle SAM-DA61-04335A
...
1-20
Hanger-Front Middle Left SAM-DA61-09248A
...
1-21
Hanger-Front Middle Right SAM-DA61-09249A
...
1-22
Inlay; Aw4_4d,pc,real Sts304,conv, Print SAM-DA64-04526A
...
1-23
Screw-Tapping SAM-6002-000215
...
1-24
Screw-Tapping SAM-6002-000630
...
1-25
Screw-Tapping SAM-6002-000613
...
1
Assy Door-Middle; Aw4-4d,rs Plate SAM-DA97-13797A
...
2
Cover-W/harness Conv Door SAM-DA63-05462C

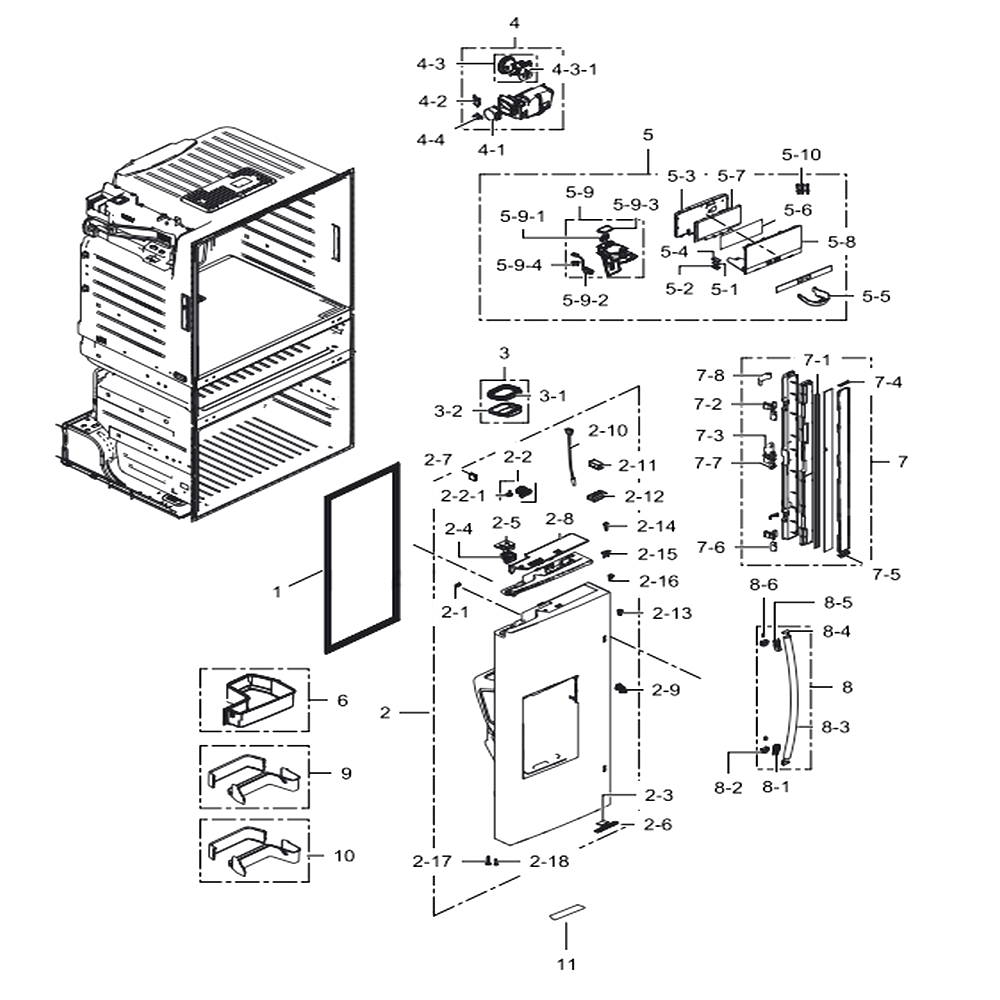

Refrigerator-door-l

...
...
1
Assy Gasket-Ref; Aw4-4d,gray SAM-DA97-13015C
...
2-1
Magnet-A SAM-DA61-03769A
...
2-2-1
Roller-Auto Close SAM-DA66-00440A
...
2-2
Assembly Lever-Auto Close SAM-DA97-12625A
...
2-3
Assy Lamp Led; 2,fr-4,20*30,white,smaw250 SAM-DA41-00676J
...
2-4
Support Door-Close; Aw-Pjt,pk,m33r3a000,c SAM-DA61-02383E
...
2-5
Stopper-Door L SAM-DA61-08210A
...
2-6
Cover-Cap Door Led SAM-DA63-05524A
...
2-7
Grommet-Stopper SAM-DA63-40294A
...
2-8
Cover Cap Door-Ref Up Left; Aw4-4d,abs,hb SAM-DA63-06916D
...
2-9
Switch Door-Interlock SAM-DA34-00066C
...
2-10
Sensor Humidity SAM-DA32-00034B
...
2-11
Plate-Door Switch SAM-DA61-05274A
...
2-12
Grommet-Chassis Up SAM-DA63-04825A
...
2-13
Screw-Tapping SAM-6002-000217
...
2-14
Screw-Tapping SAM-6002-000466
...
2-15
Screw-Tapping SAM-6002-001122
...
2-16
Screw-Tapping SAM-6002-000613
...
2-17
Screw-Machine; Fh,+,m5,l16,zpc(wht),swrch SAM-6001-000570
...
2-18
Screw-Tapping SAM-6002-001120
...
2
Assy Door Foam-Ref Left; Aw3-14,real Sts SAM-DA91-04145D
...
3-1
Gasket-Cap Chute Ice SAM-DA63-06945A
...
3-2
Cap-Chute Ice SAM-DA67-03312A
...
3
Assembly Cap-Chute Ice SAM-DA97-12594A
...
4-1
Motor Geared-Disp SAM-DA31-00079D
...
4-2
Switch-Micro SAM-3405-001117
...
4-3-1
Cover-Ice Route A SAM-DA63-04647A
...
4-3
Assembly Cover-Ice Route SAM-DA97-05368A
...
4-4
Screw-Tapping SAM-6002-001364
...
4
Assembly Guide Ice Route SAM-DA97-13829C
...
5-1
Assembly Pcb Kit SAM-DA41-00217A
...
5-2
Case Lamp-Led SAM-DA61-05687A
...
5-3
Cover Pcb-Panel Rear SAM-DA63-06377A
...
5-4
Cover-Lamp-Led SAM-DA63-02446A
...
5-5
Cover Ice SAM-DA63-07637A
...
5-6
Inlay-Film SAM-DA64-04669A
...
5-7
Assembly Module SAM-DA92-00596A
...
5-8
Assy Cover Dispenser-Sub; Aw3-14, Aw2-14, SAM-DA97-13808F
...
5-9-1
Switch-Micro; 250vac,1a,80,spst-No,t105 SAM-3405-001119
...
5-9-2
Assy-W/harness Disp SAM-DA96-00106G
...
5-9-3
Cover-Switch SAM-DA63-05449A
...
5-9-4
Screw-Tapping SAM-6002-000630
...
5-9
Assembly Lever Dispenser SAM-DA97-12628H
...
5-10
Screw-Tapping SAM-6002-000630
...
5
Assy Cover Dispenser; Aw3-14/aw2-14(mono) SAM-DA97-13809F
...
6
Assy Guard-Ref Up; Aw4-4d(cd) SAM-DA97-13804A
...
7-1
Heater Cord-French SAM-DA47-00245T
...
7-2
Hinge-French SAM-DA61-08305A
...
7-3
Cover-Heater French SAM-DA63-03454B
...
7-4
Gasket-French Upp; Aw4,si,gray SAM-DA63-06959A
...
7-5
Gasket-French Low; Aw-Pjt,si,gray SAM-DA63-06842B
...
7-6
Cap-Case French SAM-DA67-01650A
...
7-7
Cap-Case French Mid SAM-DA67-01701A
...
7-8
Cap-Guide French Upp SAM-DA67-03358A
...
7
Assy French; Aw4-4d,thai Silver,120v SAM-DA97-12684D
...
8-1
Support-Handle Ref SAM-DA61-08228A
...
8-2
Bracket-Handle Ref SAM-DA61-08248A
...
8-3
Handle Bar-Ref L; Aw1-12 & Aw4,al,t1.3,ve SAM-DA64-03756K
...
8-4
Cap-Supt Handle Ref SAM-DA67-02788A
...
8-5
Support-Handle Ref Upp SAM-DA61-08246A
...
8-6
Screw-Set SAM-6009-001526
...
8
Assy Handle Bar-Ref L; Aw4,al(a6063),vers SAM-DA97-12715C
...
9
Assy Guard-Ref Middle; Aw4-4d(c/d) SAM-DA97-13818A
...
10
Assy Guard-Ref Low; Aw4-4d(c/d) SAM-DA97-13819A
...
11
Tray Dispenser; Aw3,abs,inox Metal SAM-DA63-07931A

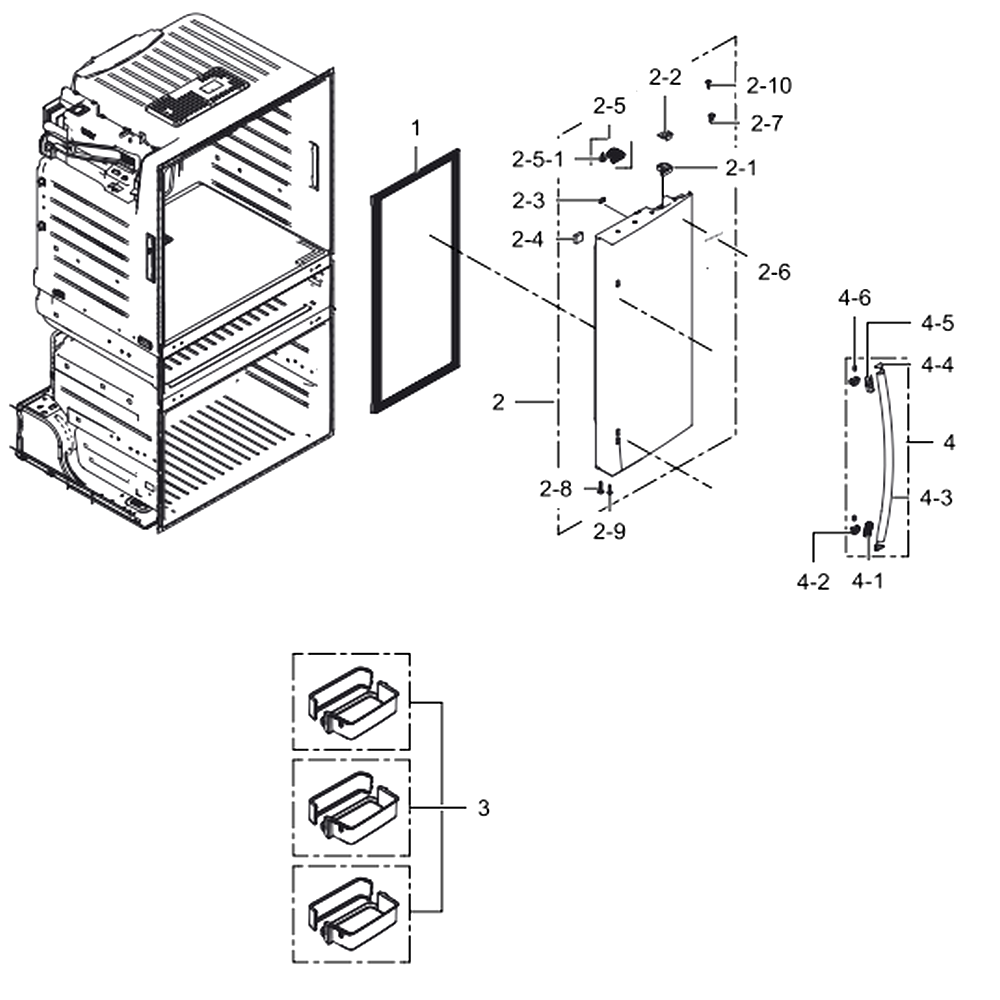

Refrigerator-door-r

...
...
1
Assy Gasket-Ref; Aw4-4d,gray SAM-DA97-13015C
...
2-1
Support Door-Close; Aw-Pjt,pk,m33r3a000,c SAM-DA61-02383E
...
2-2
Stopper-Door R; Aw4,po-Sphc,t2.9,black,t2 SAM-DA61-08196A
...
2-3
Magnet-A SAM-DA61-03769A
...
2-4
Grommet-Stopper SAM-DA63-40294A
...
2-5-1
Roller-Auto Close SAM-DA66-00440A
...
2-5
Assembly Lever-Auto Close SAM-DA97-12625A
...
2-6
Mascot SAM-DA64-04021C
...
2-7
Screw-Tapping SAM-6002-000613
...
2-8
Screw-Machine; Fh,+,m5,l16,zpc(wht),swrch SAM-6001-000570
...
2-9
Screw-Tapping SAM-6002-001120
...
2-10
Screw-Tapping SAM-6002-001122
...
2
Assy Door Foam-Ref Right; Aw3-14,real Sts SAM-DA91-04146A
...
3
Assy Guard-Ref Right; Aw4-4d(cd) SAM-DA97-13805A
...
4-1
Support-Handle Ref SAM-DA61-08228A
...
4-2
Bracket-Handle Ref SAM-DA61-08248A
...
4-3
Handle Bar-Ref R; Aw1-12 & Aw4,al,t1.3,ve SAM-DA64-03756G
...
4-4
Cap-Supt Handle Ref SAM-DA67-02788A
...
4-5
Support-Handle Ref Upp SAM-DA61-08246A
...
4-6
Screw-Set SAM-6009-001526
...
4
Assy Handle Bar-Ref R; Aw4,al(a6063),vers SAM-DA97-12714C
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
