Samsung RF28HFEDBSR/AA_0012

Model: RF28HFEDBSR/AA_0012

Save Part Not Listed?
product name

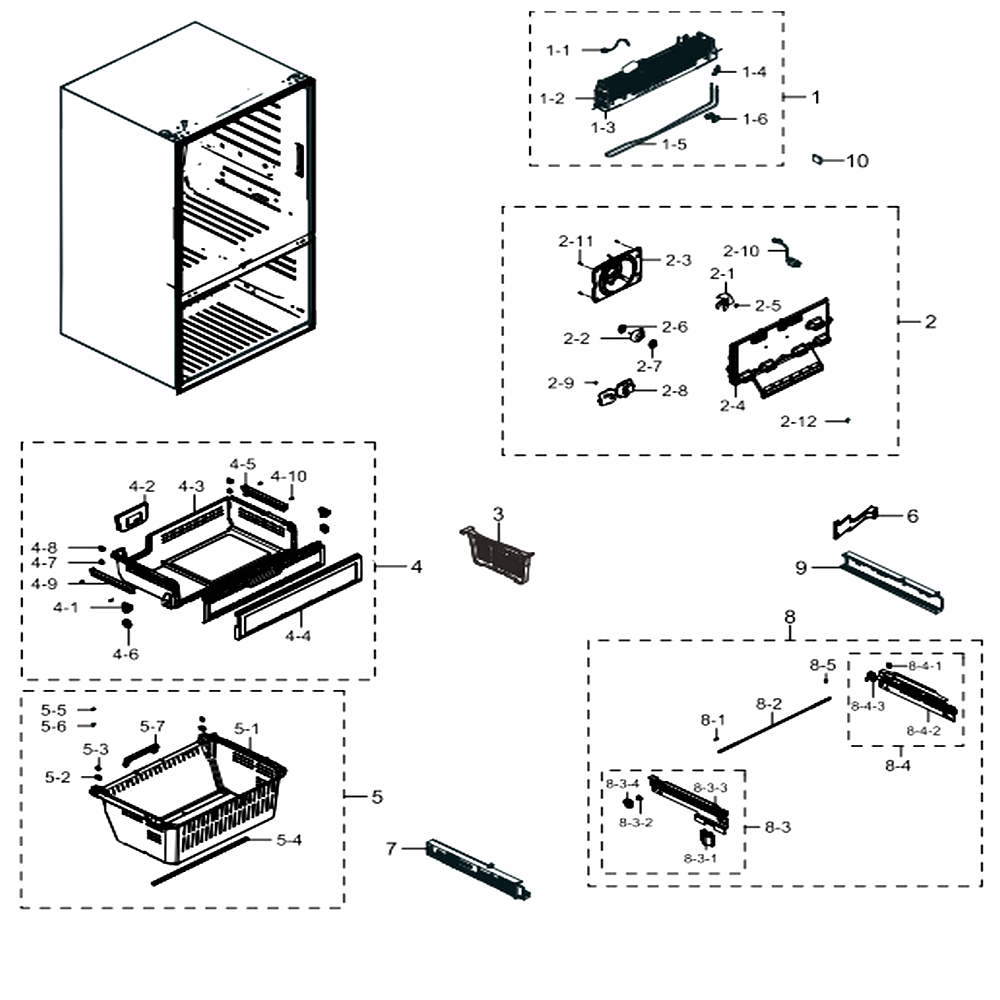

Freezer

...
...
1-1
Sensor Temp SAM-DA32-10104N
...
1-2
Evap Fre; Aw2 Nd-Ptj,pin,al SAM-DA59-00401A
...
1-3
Plate-Drain Fre; Aw2 Nd-Pjt,gl-Sazcc,t0.3 SAM-DA61-04225B
...
1-4
Fixer-Sensor Fre SAM-DA61-06182A
...
1-5
Heater Metal Sheath; Ac120v,aw2-14 Fre, 6 SAM-DA47-00318M
...
1-6
Fixer-Heater Fre SAM-DA61-05845A
...
1
Assy Evap-Fre; Aw2-14, Aw2 Cd-14,ul, 120v SAM-DA96-00632C
...
2-1
Fan-Ax100w4cc-T1 SAM-DA31-00124A
...
2-2
Motor Bldc SAM-DA31-00146H
...
2-3
Case Motor-Fre; Aw-Pjt,pp,gray,cntk-P-101 SAM-DA61-03183A
...
2-4
Cover Evap-Fre; Aw1,pp,hb,natural,bj750,e SAM-DA63-05126A
...
2-5
Spring Etc-Fan SAM-DA61-20128A
...
2-6
Grommet-Motor,rear SAM-DA63-01146A
...
2-7
Grommet Motor SAM-DA63-01808A
...
2-8
Cover Motor-Bldc SAM-DA63-01809B
...
2-9
Grommet-Cover Chill SAM-DA63-40167A
...
2-10
Assembly Wire Harness-Motor SAM-DA96-00042D
...
2-11
Screw-Tapping SAM-6002-000215
...
2-12
Screw-Tapping SAM-6002-000213
...
2
Assy Cover Evap-Fre; Aw2-Nd SAM-DA97-08541A
...
3
Guide-Fre; Aw2-14,pp,hb,bj750,cool White SAM-DA61-11260A
...
4-1
Fixer-Roller Tray Fre Upp SAM-DA61-04154A
...
4-2
Cap Tray-Fre Up; Aw2 Cd,hips,-,-,-,cool W SAM-DA67-02285A
...
4-3
Tray-Fre Upp; Aw2 Tim,hips,cool White(sc- SAM-DA63-05038A
...
4-4
Cover-Tray Fre Upp A; Aw2,hips,cool White SAM-DA63-04252C
...
4-5
Guide-Tray Fre Upp R SAM-DA61-05185A
...
4-6
Roller-Tray Fre Upp SAM-DA66-00554A
...
4-7
Roller-Fre SAM-DA66-10104A
...
4-8
Fixer-Roller SAM-DA71-20277A
...
4-9
Guide-Tray Fre Upp L SAM-DA61-05186A
...
4-10
Screw-Tapping SAM-6002-001406
...
4
Assy Tray-Fre Up; Aw2-14 SAM-DA97-07638Q
...
5-1
Tray Drawer-Box; Aw2-14,pp,hb,cool White SAM-DA63-08577A
...
5-2
Fixer-Roller SAM-DA71-20145A
...
5-3
Roller-Fre SAM-DA66-10104A
...
5-4
Reinf-Drawer Box SAM-DA61-03160A
...
5-5
Screw-Tapping SAM-6002-001406
...
5-6
Screw-Tapping SAM-6002-000213
...
5-7
Fixer-Rear; Aw3-14,hips,cool White,hb,s83 SAM-DA61-11261A
...
5
Assy Tray Drawer; Aw2-14 SAM-DA97-06276E
...
6
Cover-Wire Harness Ice SAM-DA63-06894A
...
7
Cover-Rail Low L; Aw-Pjt,abs,-,-,-,-,-,co SAM-DA63-03414A
...
8-1
Magnet SAM-DA61-03769B
...
8-2
Shaft-Gear SAM-DA66-00437B
...
8-3-1
Switch Pressure SAM-DA34-00047B
...
8-3-2
Fixer-Gear SAM-DA61-03154A
...
8-3-3
Hanger-Rail Low L; Opus1-14,secc1,cool Wh SAM-DA61-04437A
...
8-3-4
Gear-Rail L SAM-DA66-00751A
...
8-3
Assy Rail-Slide Low L; Aw2-Pjt,scp1 SAM-DA97-13661A
...
8-4-1
Fixer-Gear SAM-DA61-03154A
...
8-4-2
Hanger-Rail Low R; Aw-Pjt,secc1,t1.6,cool SAM-DA61-04439A
...
8-4-3
Gear-Rail R SAM-DA66-00750A
...
8-4
Assy Rail-Slide Low R; Aw2-Pjt,scp1 SAM-DA97-13662A
...
8-5
Cap-Shaft Hole SAM-DA67-02795C
...
8
Assy Hanger-Low; Aw2-14,ass'y SAM-DA97-14383A
...
9
Cover-Rail Low R; Aw-Pjt,abs,-,-,-,-,-,co SAM-DA63-03415A
...
10
Seal-Cutt Rubber SAM-DA72-60040W

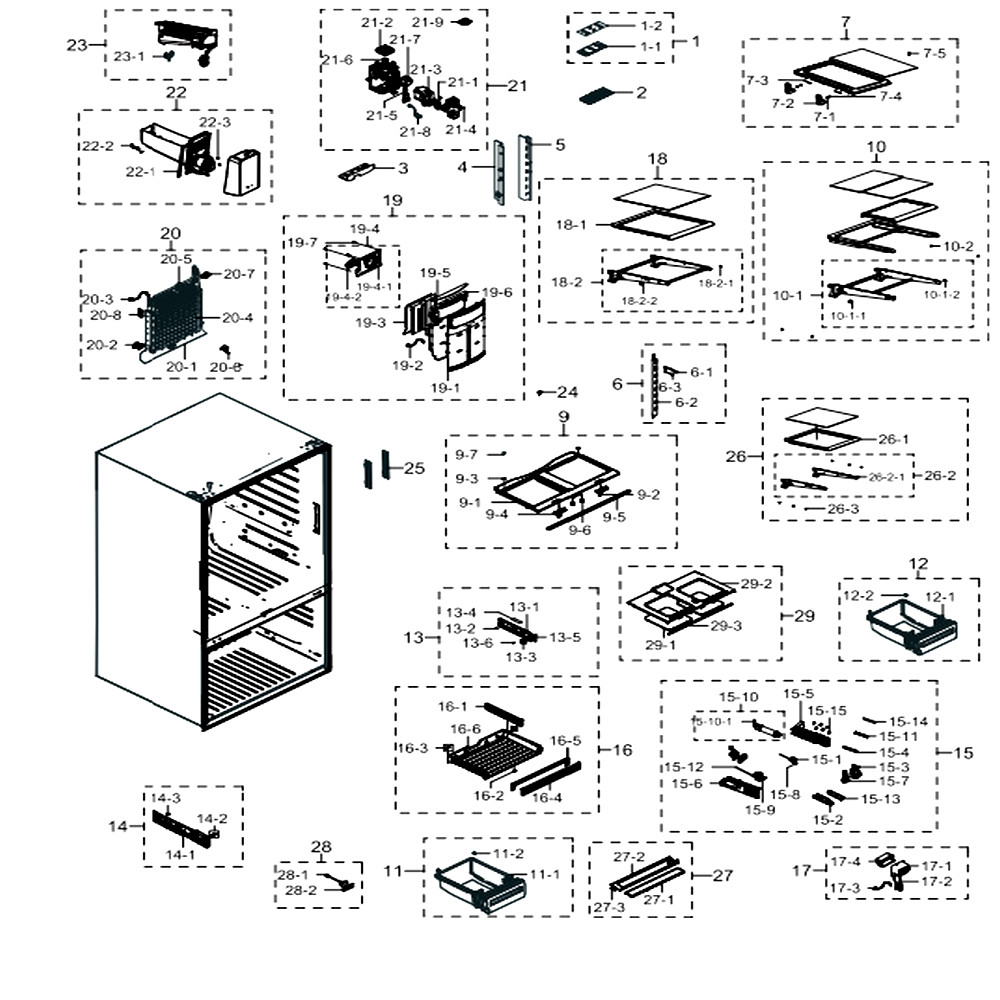

Fridge

...
...
1-1
Case Lamp-Ref SAM-DA61-08236A
...
1-2
Assy Lamp Led; 5,cem-1,240*10,white,smaw2 SAM-DA41-00676K
...
1
Assy Case Lamp-Ref; Aw4,long Led SAM-DA97-12606B
...
2
Cover Lamp-Ref SAM-DA63-07816A
...
3
Guide-French SAM-DA61-04285A
...
4
Angle-Shelf Ref Side L; Aw2(pantry),secc1 SAM-DA61-04330A
...
5
Angle-Shelf Ref Side R; Aw2(pantry),secc1 SAM-DA61-04329A
...
6-1
Support-Hanger; Aw2,secc1,t1.6,-,-,cool W SAM-DA61-04321A
...
6-2
Angle Shelf-Ref Middle; Aw2-14,egi-Secc,c SAM-DA61-09569A
...
6-3
Screw-Tapping SAM-6002-001397
...
6
Assy Angle Shelf-Ref Middle; Aw2-14 SAM-DA97-14319A
...
7-1
Spring Etc-Hinge Shelf SAM-DA61-03705A
...
7-2
Bracket-Hinge Shelf; Opus1-14,pc,cool Whi SAM-DA61-08215A
...
7-3
Shaft-Hinge-Shelf SAM-DA66-00483A
...
7-4
Roller-Hinge-Shelf SAM-DA66-00482A
...
7-5
Screw-Tapping SAM-6002-001397
...
7
Assy Shelf Folder-Ref; Aw2-14 SAM-DA97-14318A
...
9-1
Cover Veg-Ref; Aw2-Nd,hips,cool White,s83 SAM-DA63-05511A
...
9-2
Knob-Humidity; Queen,abs,-,-,-,-,-,-,- SAM-DA64-00817A
...
9-3
Fixer-Cover Veg SAM-DA61-03166A
...
9-4
Lever-Humidity; Aw,abs,cool White SAM-DA66-00438A
...
9-5
Reinf-Cover Veg SAM-DA61-04292A
...
9-6
Assy Roller; Rf9000jc,24 SAM-DA97-15997A
...
9-7
Screw-Tapping SAM-6002-000213
...
9
Assy Cover Veg-Ref; Aw2-Nd,reinf T2.0,qui SAM-DA97-08511B
...
10-1-1
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09550A
...
10-1-2
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09549A
...
10-1
Assy Hanger; Aw2-14,folder Shelf SAM-DA97-14350A
...
10-2
Screw-Tapping SAM-6002-001397
...
10
Assy Shelf Quick Space; Aw2-14 SAM-DA97-06416D
...
11-1
Case-Veg L SAM-DA61-05876B
...
11-2
Assembly Roller SAM-DA97-15998A
...
11
Assembly Case Veg-Left SAM-DA97-08438D
...
12-1
Case-Veg R SAM-DA61-05875B
...
12-2
Assembly Roller SAM-DA97-15998A
...
12
Assembly Case Veg-Right SAM-DA97-08437D
...
13-1
Cover Rail-Middle Right; Aw2-14,hips,hb,c SAM-DA63-06520B
...
13-2
Support-Roller Pantry; Aw-Pjt,pvc,blk SAM-DA61-03176A
...
13-3
Assy Roller; Latour,assy Pi 18 SAM-DA97-14447C
...
13-4
Assy Module; Pantry Display,aw2-14,96*14. SAM-DA92-00600A
...
13-5
Inlay-Control; Aw2-14,pc,ice Blue,t0.3 SAM-DA64-02578D
...
13-6
Screw-Tapping SAM-6002-000630
...
13
Assy Cover Rail Pantry-Right; Aw2-11 SAM-DA97-11542F
...
14-1
Cover Rail-Middle Left SAM-DA63-06521B
...
14-2
Assy Roller; Latour,assy Pi 18 SAM-DA97-14447C
...
14-3
Support-Roller Pantry; Aw-Pjt,pvc,blk SAM-DA61-03176A
...
14
Assy Cover Rail Pantry-Left; Aw2-11 SAM-DA97-11541B
...
15-1
Assy Case Filter; H920g SAM-DA97-08006L
...
15-2
Filter Water; Sseda,nsf 42 & 53 SAM-DA29-00019B
...
15-3
Cover-Filter Tank SAM-DA63-05406B
...
15-4
Assembly Lamp Led SAM-DA41-00519S
...
15-5
Case-Filter Tank L; Aw2-11,hips,cool Whit SAM-DA61-07496A
...
15-6
Case-Filter Tank R; Aw2-11,hips,w433.9,l1 SAM-DA61-07497A
...
15-7
Cap-Filter Tank SAM-DA67-02505B
...
15-8
Clip-Fitting Lock SAM-DA61-04522A
...
15-9
Valve Water; Ac110~127v,230,2way,l-Wire,1 SAM-DA62-04027C
...
15-10-1
Clip-Fitting Lock SAM-DA61-04522A
...
15-10
Assy Tank Water-Ref; Opus1-14,pp SAM-DA97-11283J
...
15-11
Cover-Led Filter SAM-DA63-05408B
...
15-12
Pipe-Water Line; Aw33,lldpe,id4.2,od6.35, SAM-DA62-03154A
...
15-13
Tray-Water Filter SAM-DA63-05407A
...
15-14
Cover-Seal Led; Aw3,pet,t0.5,transparent SAM-DA63-05928A
...
15-15
Screw-Tapping SAM-6002-000213
...
15
Assy Case Filter; Aw2-14,110v 60hz, P2 SAM-DA97-14487A
...
16-1
Guide-Pantry; Aw2-Pjt,hips,cool White(sc- SAM-DA61-04290A
...
16-2
Roller-Pantry; Aw2-Pjt,pom,-,-,ntr,-,- SAM-DA66-00580A
...
16-3
Assy Roller; Latour,assy Pi 18 SAM-DA97-14447C
...
16-4
Cover-Pantry Front; Aw2-Pjt,san,ntr SAM-DA63-04275B
...
16-5
Cover-Pantry Trim; Aw2-Pjt,hips,cool-Whit SAM-DA63-04276B
...
16-6
Case-Pantry; Aw2-11,hips,cool-White(sc-02 SAM-DA61-07602A
...
16
Assy Case Pantry; Aw2-14 SAM-DA97-11540D
...
17-1
Cover Motor-Front; Aw2-Pjt,pp,hb,natural, SAM-DA63-04274B
...
17-2
Nsby001tk1/du25-076,dc12 SAM-DA31-00071G
...
17-3
Dkst1329gw,px-41c, 502at,aw- SAM-DA32-00006R
...
17-4
Insulation-Motor Dc Damper; Aw-Pjt,ps Foa SAM-DA62-01380A
...
17
Assy Cover-Motor Damper; Aw2-Pjt,ntr,0.5w SAM-DA97-06324C
...
18-1
Shelf Slide SAM-DA67-04063A
...
18-2-1
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09549A
...
18-2-2
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09550A
...
18-2
Assy-Hanger Shelf Slide; Aw2,cool White SAM-DA91-02722A
...
18
Assy Shelf Slide-Ref; Aw2-14 SAM-DA97-10634B
...
19-1
Cover Evap-Ref; Aw4,pp,hb,cool White,bj75 SAM-DA63-06863A
...
19-2
Sensor Temp; Dkst1329gw,queen,-50 ~ 80 SAM-DA32-00011C
...
19-3
Insulation Cover Evap-Ref Rear; Aw4,ps Fo SAM-DA62-03634A
...
19-4-1
Case Motor-Ref; Aw4,hips,gray,cntk-H304,r SAM-DA61-08187B
...
19-4-2
Motor Bldc Fan SAM-DA31-00287A
...
19-4
Assy Case Motor-Ref; Aw4,assy SAM-DA97-12815B
...
19-5
Seal-Cover Ref Upp; Aw4,ojc-3000,white,t7 SAM-DA62-03680A
...
19-6
Insulation Cover Evap-Ref; Aw4,ps Foam,na SAM-DA62-03638A
...
19-7
Screw-Tapping SAM-6002-001204
...
19
Assy Cover Evap-Ref; Aw4 SAM-DA97-12608A
...
20-1
Aw3-Pjt,al,t0.3 SAM-DA61-06186B
...
20-2
Fixer-Heater Ref SAM-DA61-05835B
...
20-3
Sensor Temp SAM-DA32-10104N
...
20-4
Fin Tube,aw3 SAM-DA59-00399A
...
20-5
Ac120v,aw2 Ref, 144o SAM-DA47-00244U
...
20-6
Plate-Evap Heater SAM-DA61-03644A
...
20-7
Fixer-Senser SAM-DA61-03683A
...
20-8
Fixer-Fuse SAM-DA61-05160A
...
20
Assy Evap-Ref; Aw2-14, Aw2 Cd-14,ul, 120v SAM-DA96-00660F
...
21-1
Screw-Tapping SAM-6002-000471
...
21-2
Motor Bldc Fan SAM-DA31-00070E
...
21-3
Motor Geared Ac Auger SAM-DA31-00105M
...
21-4
Screw-Special SAM-DA60-00001B
...
21-5
Spring Etc-Solenoid SAM-DA61-20140A
...
21-6
Grommet-Fan SAM-DA63-02513A
...
21-7
Valve-Solenoid SAM-DA74-40151G
...
21-8
Assembly Wire Harness-Auger SAM-DA96-00682D
...
21-9
Fixer-Nut; Guggenheim,sts420,j2,sk5 SAM-DA71-00163B
...
21
Assy Case Auger Motor; Aw4-4d,115v 60hz SAM-DA97-12540G
...
22-1
Gasket-Tray Ice Bucket SAM-DA63-07185A
...
22-2
Spring Etc-Dispenser SAM-DA61-20124D
...
22-3
Screw-Tapping SAM-6002-000471
...
22
Assy Tray Ice;fdr,t-Type F/s SAM-DA97-14474C
...
23-1
Screw-Tapping SAM-6002-000471
...
23
Assembly Ice Maker SAM-DA97-15217A
...
24
Assy Cap-Angle; Aw4,pp,cool White SAM-DA97-12654A
...
25
Cover Lamp-Led Side SAM-DA63-07276A
...
26-1
Shelf Insert; Aw2-Nd,pp,cool White SAM-DA67-02014B
...
26-2-1
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09549A
...
26-2
Assy Hanger-Right; Aw2 14 SAM-DA97-14398A
...
26-3
Screw-Tapping SAM-6002-001397
...
26
Assy Shelf Insert-Ref Fix; Aw2-14 SAM-DA97-06391D
...
27-1
Cover-Slide Pantry A; Aw2-Pjt,san,hb,natu SAM-DA63-04280A
...
27-2
Cover-Slide Pantry B; Aw2-Pjt,abs,hb,cool SAM-DA63-04279A
...
27-3
Roller-Fre SAM-DA66-10104A
...
27
Assy Cover-Slide Pantry; Aw2-Pjt,-,-,-,-, SAM-DA97-06327A
...
28-1
Switch Reed SAM-DA34-00043J
...
28-2
Cover Reed Switch SAM-DA63-07513A
...
28
Assembly Cover Switch SAM-DA97-13783A
...
29-1
Window-Shelf Pantry; Aw-Pjt Best,gpps,2.5 SAM-DA64-02235A
...
29-2
Shelf-Pantry; Aw2-Nd Pjt,hips,cool-White( SAM-DA67-02519A
...
29-3
Reinf-Shelf Pantry; Aw-Pjt,egi-Secc,t1.2, SAM-DA61-03174A
...
29
Assy Shelf-Pantry; Aw2-Nd SAM-DA97-08417A

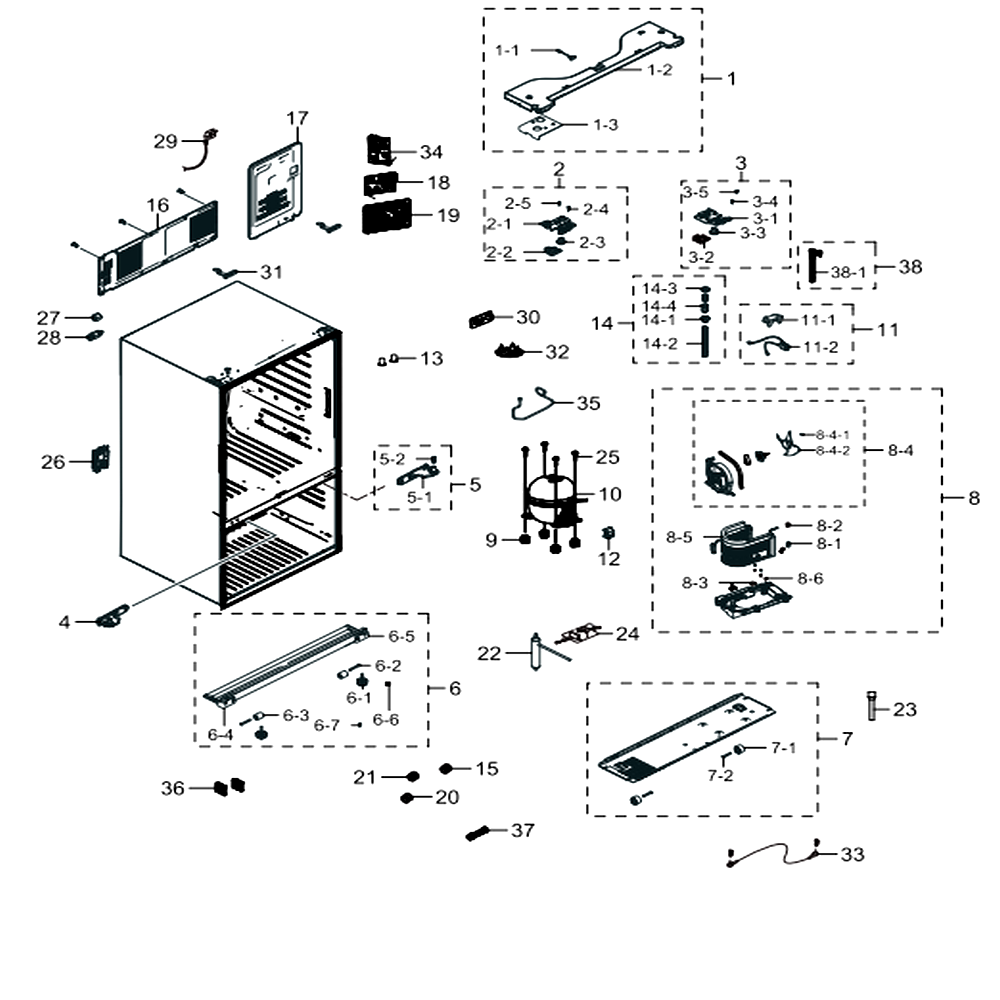

Cabinet

...
...
1-1
Switch Reed; Ul1007 Awg 22,280(680),25045 SAM-DA34-00043K
...
1-2
Top Table; Romanee Conti,abs,inox Gray SAM-DA64-04477B
...
1-3
Plate-Cover Hinge SAM-DA61-08227A
...
1
Assy Top Table; Romanee Conti,inox Gray SAM-DA97-13703D
...
2-1
Hinge-Upp L SAM-DA61-08309A
...
2-2
Shim-Hinge Upp SAM-DA63-50192A
...
2-3
Cam-Auto Close L SAM-DA66-00950A
...
2-4
Screw-Tapping SAM-6002-000215
...
2-5
Screw-Tapping SAM-6002-000213
...
2
Assembly Hinge Upp-L SAM-DA97-12573A
...
3-1
Hinge-Upp R; Aw4,po-Sphc,t2.9,eletrodepos SAM-DA61-08310A
...
3-2
Shim-Hinge Upp SAM-DA63-50192A
...
3-3
Cam-Auto Close R SAM-DA66-00951A
...
3-4
Screw-Tapping SAM-6002-000215
...
3-5
Screw-Tapping SAM-6002-000213
...
3
Assy Hinge Upp-R; Aw4,t3.0,black SAM-DA97-12574A
...
4
Hinge-Mid L; Aw4,zn,t4.5,zndc 2 SAM-DA61-08318A
...
5-1
Hinge-Middle Right; Aw4,zn,t4.5,zndc2,cr SAM-DA61-08317B
...
5-2
Shaft Hinge-Middle SAM-DA66-00688A
...
5
Assy Hinge-Middle Right; Aw4,zndc SAM-DA97-12612B
...
6-1
Foot-Front SAM-DA61-00805F
...
6-2
Caster-Rivet SAM-DA61-01920A
...
6-3
Caster-Front SAM-DA61-04702A
...
6-4
Aw4-4d,pp,inox Gray SAM-DA63-06389E
...
6-5
Aw4-4d,pp,inox Gra SAM-DA63-06405D
...
6-6
Screw-Tapping SAM-6002-000538
...
6-7
Screw-Tapping SAM-6002-000213
...
6
Assy Cabi Bottom-Front; Aw4-4d F/s,inox G SAM-DA97-12556E
...
7-1
Caster-Rear SAM-DA61-04703A
...
7-2
Shaft-Caster SAM-DA66-00649B
...
7
Assembly Chassis-Comp SAM-DA97-12557A
...
8-1
Grommet-Immersion Pipe B SAM-DA63-07323A
...
8-2
Grommet-Suct Pipe A SAM-DA63-40171B
...
8-3
Grommet-Cond Sub SAM-DA63-04424A
...
8-4-1
Spring Etc-Fan SAM-DA61-20128A
...
8-4-2
Fan SAM-DA31-00320A
...
8-4
Assembly Support-Circuit Motor SAM-DA97-15765A
...
8-5
Assy Condenser-Main; Pfc,la+ce,al SAM-DA97-15972C
...
8-6
Screw-Tapping SAM-6002-000213
...
8
Assy Tray Drain Water; Aw,pfc SAM-DA97-15978B
...
9
Grommet Comp SAM-DA63-02617A
...
10
Cmp,refrigerator,r-134a; Cmp,refrigerator,r-134a SAM-NC1MV90ALP/E01
...
11-1
Relay Protector O/l SAM-DA34-00004D
...
11-2
Assembly Wire Harness-Comp SAM-DA39-00154M
...
11
Assembly Comp-Sub SAM-DA97-10848N
...
12
Cover Relay; Msv,mppo,t2.0,5v-A,black,m-H SAM-DA63-06122A
...
13
Grommet Hinge-Mid SAM-DA63-06410A
...
14-1
Fixer-Drain SAM-DA61-05021A
...
14-2
Tube Pvc SAM-DA62-01266B
...
14-3
Grommet-Drain SAM-DA63-02761A
...
14-4
Cap-Drain SAM-DA67-01301A
...
14
Assembly Cap-Drain SAM-DA97-04049E
...
15
Fitting-Lokring 43 SAM-DA60-00281A
...
16
Assembly Cover Comp SAM-DA97-12749A
...
17
Assembly Cover Pcb-Panel SAM-DA97-08442D
...
18
Assy Pcb Inverter; Inverter,aw3-14,163*98 SAM-DA92-00483N
...
19
Assy Pcb Eeprom; 0x21,d606,aw2-14,da92-00 SAM-DA94-02679G
...
20
Fitting-Lokring 33 SAM-DA60-00280A
...
21
Fitting-Lokring; Sum23,lokring 2 N St 20 SAM-DA60-00325A
...
22
Dryer SAM-DA62-04309B
...
23
Pipe-Connect Disc,b SAM-DA73-10190U
...
24
Coil Filter SAM-DA27-00043D
...
25
Bolt-Hex SAM-6011-004061
...
26
Assembly Cover-Tube Filter SAM-DA97-08413B
...
27
Valve-Fitting Nut SAM-DA74-00070B
...
28
Valve-Fitting Pu SAM-DA62-00305A
...
29
At,u.s.a,canada,us3f-1,3c,125v,15a,blac K,1500,20/100/100/150,spt-3 Awg18 105c,ul/ Csa,y,n,n,n,y SAM-3903-000796
...
30
Assy Cover-Fixer Water; Opus1,assy SAM-DA97-08494B
...
31
Fixer Hinge-Upp SAM-DA61-04932A
...
32
Cover-Urethane SAM-DA63-03809A
...
33
Wire Harness-Earth SAM-DA39-20389L
...
34
Assembly Module SAM-DA92-00486A
...
35
Pipe Connect-Suction; C1220t-O,od6.35,t0. SAM-DA62-03691A
...
36
Fixer-Hose SAM-DA61-03467B
...
37
Tube-Fitting SAM-DA62-03914A
...
38-1
Tube Pvc SAM-DA62-01266E
...
38
Assembly Cap-Drain SAM-DA97-04049J

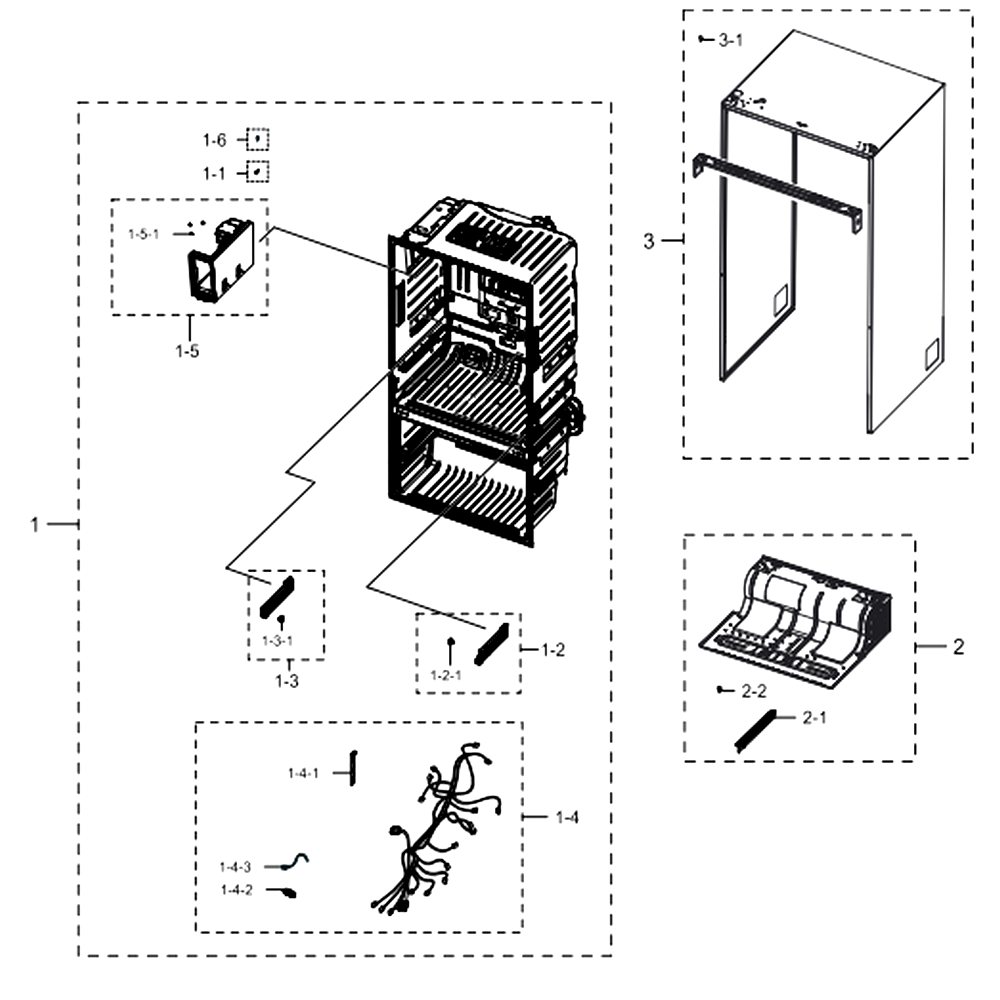

Cabinet 2

...
...
1-1
Screw-Tapping SAM-6002-000215
...
1-2-1
Assy Roller; Rf9000jc,24 SAM-DA97-15997A
...
1-2
Assembly Rail Veg-R SAM-DA97-11291A
...
1-3-1
Assy Roller; Rf9000jc,24 SAM-DA97-15997A
...
1-3
Assembly Rail Veg-L SAM-DA97-11292A
...
1-4-1
Assembly Lamp Led SAM-DA41-00519Q
...
1-4-2
Cover Sensor-Fre SAM-DA63-05470B
...
1-4-3
Sensor Temp SAM-DA32-10109B
...
1-4
Assy Wire Harness-Main; Fdr,100~127vac,ul SAM-DA96-01042B
...
1-5-1
Screw-Tapping SAM-6002-000471
...
1-5
Assy Case Ice; Aw4,urethane,assy SAM-DA97-12576B
...
1-6
Screw-Tapping SAM-6002-000213
...
1
Assy Liner; Aw2-14, Mono Ice Maker SAM-DA94-01584B
...
2-1
Trim Blade; Aw2-14,pvc,gray SAM-DA64-05373C
...
2-2
Screw-Tapping SAM-6002-000213
...
2
Assy Cabi Bottom-Rear; Aw2-14,no Side Coo SAM-DA97-08455U
...
3-1
Screw-Tapping SAM-6002-001122
...
3
Assy Cabi Frame; Aw2-14,real Sts,e-Cost SAM-DA97-14380E

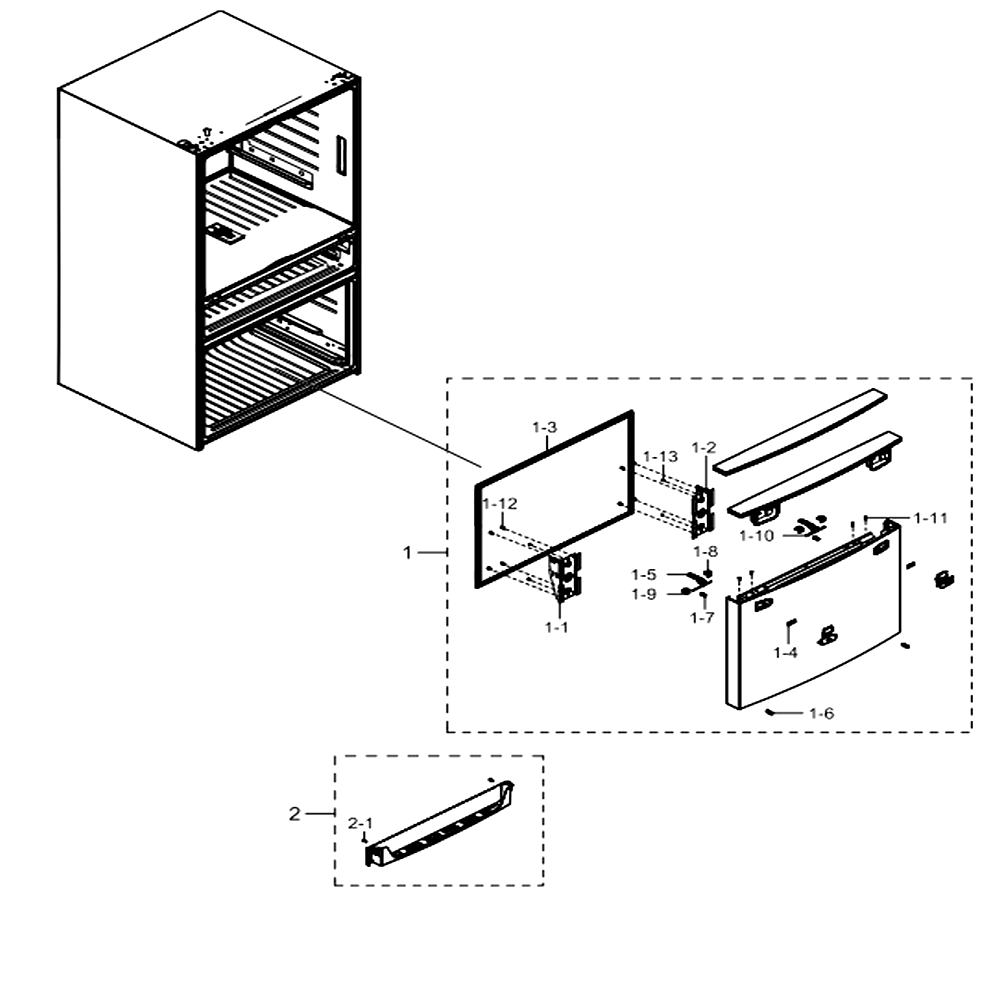

Freezer-door

...
...
1-1
Hanger-Rail Front L; Aw-Pjt,secc1,t2.0,co SAM-DA61-03153B
...
1-2
Hanger-Rail Front R; Aw-Pjt,secc1,t2.0,co SAM-DA61-03155B
...
1-3
Assy-Gasket Door Fre; Aw4,gray(sc-97478) SAM-DA97-12522J
...
1-4
Reinf-Cap Handle SAM-DA61-06658A
...
1-5
Slider-Easy Handle; Aw4,pom,creamy-Sts,f2 SAM-DA61-08234A
...
1-6
Fixer Handle; Aw3-14,swrch10a,m8 SAM-DA61-11161A
...
1-7
Spring Etc-Easy Handle SAM-DA61-04335A
...
1-8
Fixer-Shaft R SAM-DA61-05899A
...
1-9
Fixer-Shaft L SAM-DA61-05930A
...
1-10
Shaft-Cap Handle SAM-DA66-00579A
...
1-11
Screw-Tapping SAM-6002-000215
...
1-12
Screw-Tapping SAM-6002-000613
...
1-13
Screw-Tapping SAM-6002-000217
...
1
Assy Door; Aw2-14,rs Plate SAM-DA97-14300Q
...
2-1
Grommet-Cover Slide; Et05-Pjt,si,white SAM-DA63-02750A
...
2
Assy Guard Fre; Aw2 Cd,hips,t2.3,cool Whi SAM-DA97-12963A

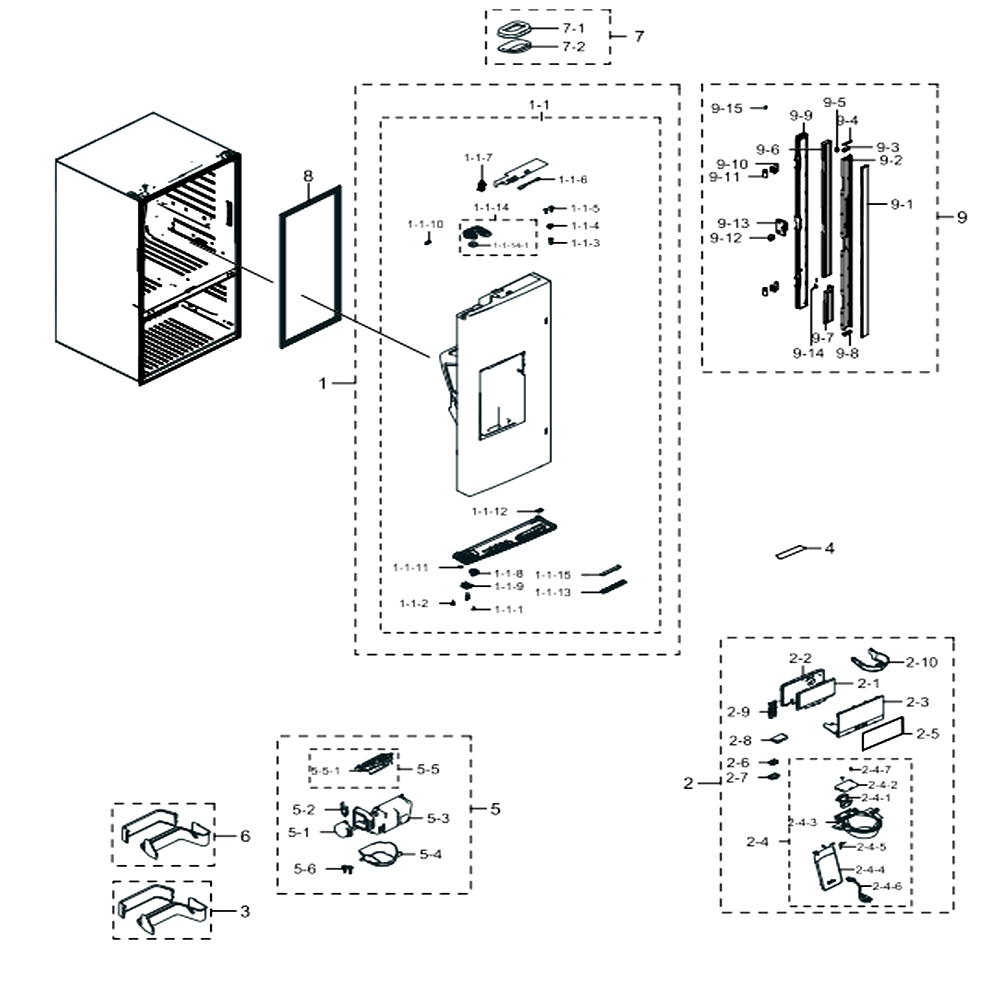

Fridge-door-l

...
...
1-1-1
Screw-Machine SAM-6001-001377
...
1-1-2
Screw-Tapping SAM-6002-001120
...
1-1-3
Screw-Tapping SAM-6002-000466
...
1-1-4
Screw-Tapping SAM-6002-000613
...
1-1-5
Screw-Tapping SAM-6002-001122
...
1-1-6
Sensor Humidity SAM-DA32-00034B
...
1-1-7
Switch Door-Interlock SAM-DA34-00066C
...
1-1-8
Support Door-Close; Aw-Pjt,pk,m33r3a000,c SAM-DA61-02383E
...
1-1-9
Stopper-Door L SAM-DA61-08210A
...
1-1-10
Magnet-A SAM-DA61-03769A
...
1-1-11
Grommet-Stopper SAM-DA63-40294A
...
1-1-12
Grommet-Chassis Up SAM-DA63-04825A
...
1-1-13
Cover-Cap Door Led SAM-DA63-05524A
...
1-1-14-1
Roller-Auto Close SAM-DA66-00440A
...
1-1-14
Assembly Lever-Auto Close SAM-DA97-12625A
...
1-1-15
Assy Lamp Led; 2,fr-4,20*30,white,smaw250 SAM-DA41-00676J
...
1-1
Assy Plate Door-Ref Left; Aw2-14,inox Gra SAM-DA97-12578G
...
1
Assy Door Foam-Ref Left; Aw2-14,real Sts SAM-DA91-04147D
...
2-1
Assembly Module SAM-DA92-00596A
...
2-2
Cover Pcb-Panel Rear SAM-DA63-06377A
...
2-3
Assy Cover Dispenser-Sub; Aw3-14, Aw2-14, SAM-DA97-13808F
...
2-4-1
Switch-Micro; 250vac,1a,80,spst-No,t105 SAM-3405-001119
...
2-4-2
Cover-Switch SAM-DA63-05449A
...
2-4-3
Case Lever Dispenser; Aw4-4d,abs,ebony Bl SAM-DA61-09434A
...
2-4-4
Lever-Dispenser Water Sts; Aw3,pc,3022ir, SAM-DA66-00720A
...
2-4-5
Spring Etc-Lever Disp Water; Aw3,sts304 SAM-DA61-06034B
...
2-4-6
Assy-W/harness Disp SAM-DA96-00106G
...
2-4-7
Screw-Tapping SAM-6002-000630
...
2-4
Assembly Lever Dispenser SAM-DA97-12628H
...
2-5
Inlay-Film SAM-DA64-04669A
...
2-6
Assembly Pcb Kit SAM-DA41-00217A
...
2-7
Case Lamp-Led SAM-DA61-05687A
...
2-8
Cover-Lamp-Led SAM-DA63-02446A
...
2-9
Screw-Tapping SAM-6002-000630
...
2-10
Cover Ice SAM-DA63-07637A
...
2
Assy Cover Dispenser; Aw3-14/aw2-14(mono) SAM-DA97-13809F
...
3
Assy Guard-Ref Low SAM-DA97-14302A
...
4
Tray Dispenser; Aw3,abs,inox Metal SAM-DA63-07931A
...
5-1
Motor Geared-Disp SAM-DA31-00079D
...
5-2
Switch-Micro SAM-3405-001117
...
5-3
Case Ice Route; Aw4-4d,abs,i Black,hg-076 SAM-DA61-09432A
...
5-4
Guide Ice; Aw4-4d,hips,s834s1,natural,gui SAM-DA61-09433A
...
5-5-1
Cover-Ice Route A SAM-DA63-04647A
...
5-5
Assembly Cover-Ice Route SAM-DA97-05368A
...
5-6
Screw-Tapping SAM-6002-001364
...
5
Assembly Guide Ice Route SAM-DA97-13829C
...
6
Assy Guard-Ref Middle SAM-DA97-14301A
...
7-1
Gasket; Fdsr,tpe,white SAM-DA63-08248A
...
7-2
Cap-Chute Ice SAM-DA67-03312A
...
7
Assembly Cap-Chute Ice SAM-DA97-12594A
...
8
Assy-Gasket Door Ref; Aw4,gray SAM-DA97-05253W
...
9-1
Plate-French; Aw4,egi-Secc,t0.6,thai Silv SAM-DA61-08271A
...
9-2
Case-French Front; Aw4,abs,cool White(sc- SAM-DA61-08273A
...
9-3
Cap-Guide French Upp SAM-DA67-03358A
...
9-4
Gasket-French Upp; Aw4,si,gray SAM-DA63-06959A
...
9-5
Spring Etc-Etc Cap Guide; Aw4,sts304,3.0, SAM-DA61-08315A
...
9-6
Insulation-French; Aw4,ps Foam,natural,sf SAM-DA62-03660A
...
9-7
Insulation-Low; Aw4,ps Foam,natural,sg-40 SAM-DA62-03666A
...
9-8
Gasket-French Low; Aw-Pjt,si,gray SAM-DA63-06842B
...
9-9
Case-French; Aw4,abs,cool White(sc-02740r SAM-DA61-08272A
...
9-10
Hinge-French SAM-DA61-08305A
...
9-11
Cap-Case French SAM-DA67-01650A
...
9-12
Cap-Case French Mid SAM-DA67-01701A
...
9-13
Cover-Heater French SAM-DA63-03454B
...
9-14
Rfh920g,sts304 SAM-DA61-08314B
...
9-15
Screw-Tapping SAM-6002-000213
...
9
Assy-French; Aw4,thai-Silver SAM-DA97-12624A

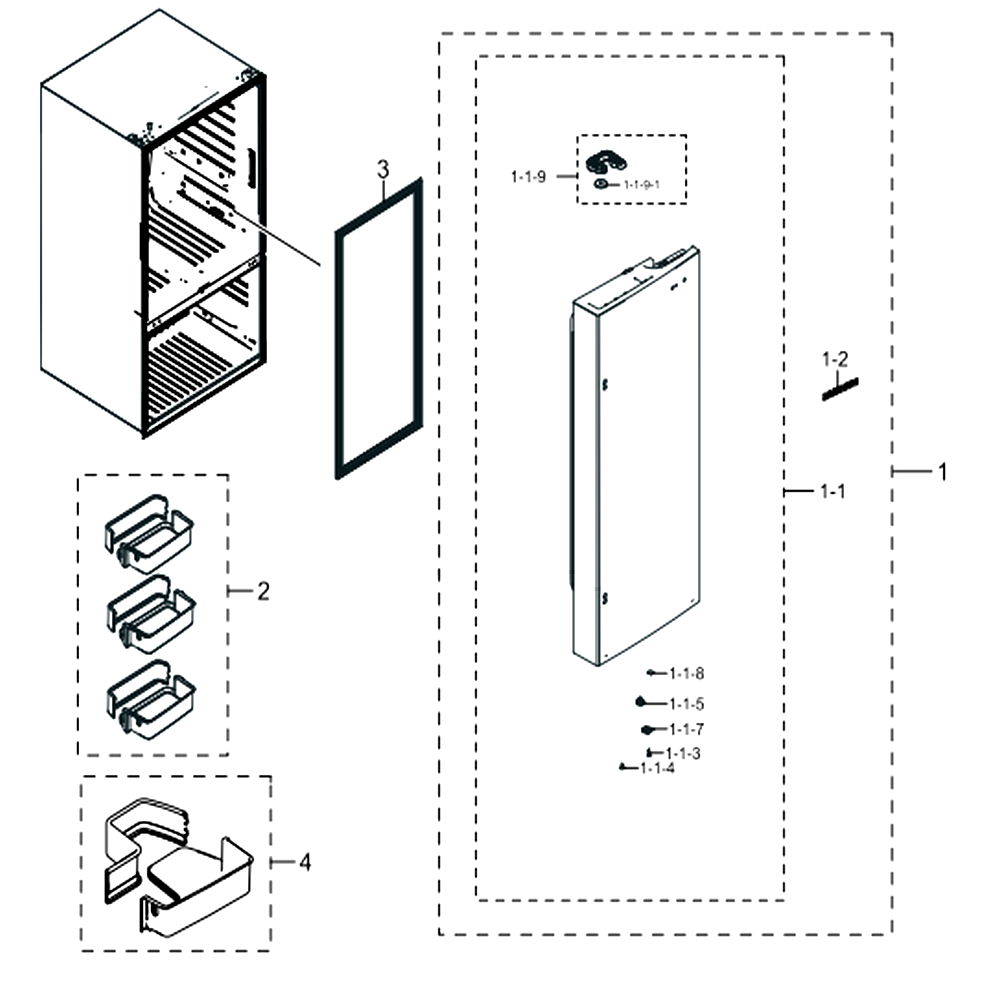

Fridge-door-r

...
...
1-1-3
Screw-Tapping SAM-6002-001120
...
1-1-4
Screw-Machine SAM-6001-001377
...
1-1-5
Support Door-Close; Aw-Pjt,pk,m33r3a000,c SAM-DA61-02383E
...
1-1-7
Stopper-Door R; Aw4,po-Sphc,t2.9,black,t2 SAM-DA61-08196A
...
1-1-8
Grommet-Stopper SAM-DA63-40294A
...
1-1-9-1
Roller-Auto Close SAM-DA66-00440A
...
1-1-9
Assembly Lever-Auto Close SAM-DA97-12625A
...
1-1
Assy-Plate Door Ref R; Aw2-14,inox Gray SAM-DA97-12580F
...
1-2
Mascot; All,ni,t0.06,l90 SAM-DA64-04021D
...
1
Assy Door Foam-Ref Right; Aw2-14, Real St SAM-DA91-04158A
...
2
Assy Guard-Ref Right SAM-DA97-13805B
...
3
Assy-Gasket Door Ref; Aw4,gray SAM-DA97-05253W
...
4
Assy Guard-Ref Up SAM-DA97-13804B

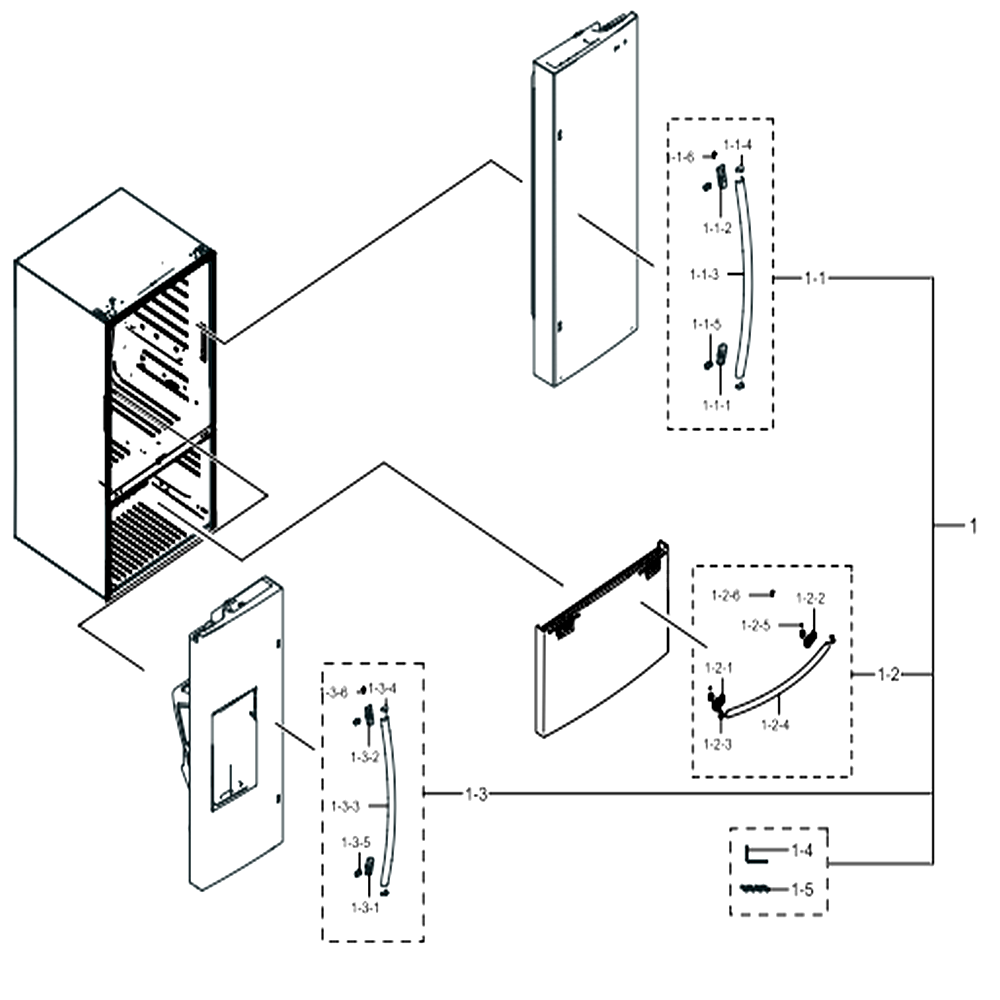

Assy Handle-kit

...
...
1-1-1
Support-Handle Ref SAM-DA61-08228A
...
1-1-2
Support-Handle Ref Upp SAM-DA61-08246A
...
1-1-3
Handle Bar-Ref R; Aw1-12 & Aw4,al,t1.3,ve SAM-DA64-03756G
...
1-1-4
Cap-Supt Handle Ref SAM-DA67-02788A
...
1-1-5
Screw-Set SAM-6009-001526
...
1-1-6
Screw-Tapping SAM-6002-000213
...
1-1
Assy Handle Bar-Ref R; Aw4,al(a6063),vers SAM-DA97-12714C
...
1-2-1
Support-Handle Fre SAM-DA61-08229A
...
1-2-2
Support-Handle Fre R SAM-DA61-08247A
...
1-2-3
Cap-Handle Fre SAM-DA67-02787A
...
1-2-4
Handle Bar-Fre; Aw1-12,aw4,al,t1.3,versai SAM-DA64-03945F
...
1-2-5
Screw-Set SAM-6009-001526
...
1-2-6
Screw-Tapping SAM-6002-000213
...
1-2
Assy Handle Bar-Fre; Aw4,al(a6063),versai SAM-DA97-12712C
...
1-3-1
Support-Handle Ref SAM-DA61-08228A
...
1-3-2
Support-Handle Ref Upp SAM-DA61-08246A
...
1-3-3
Handle Bar-Ref L; Aw1-12 & Aw4,al,t1.3,ve SAM-DA64-03756K
...
1-3-4
Cap-Supt Handle Ref SAM-DA67-02788A
...
1-3-5
Screw-Set SAM-6009-001526
...
1-3-6
Screw-Tapping SAM-6002-000213
...
1-3
Assy Handle Bar-Ref L; Aw4,al(a6063),vers SAM-DA97-12715C
...
1-4
Wrench-Spanner SAM-DA80-00026B
...
1-5
Fixer Handle; Aw3-14,swrch10a,m8 SAM-DA61-11161A
...
1
Assy Handle-Kit; Aw4,-,-,-,-,-,-,al SAM-DA99-03914F
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
