Samsung RF28HDEDBSR/AA_0051

Model: RF28HDEDBSR/AA_0051

Save Part Not Listed?
product name

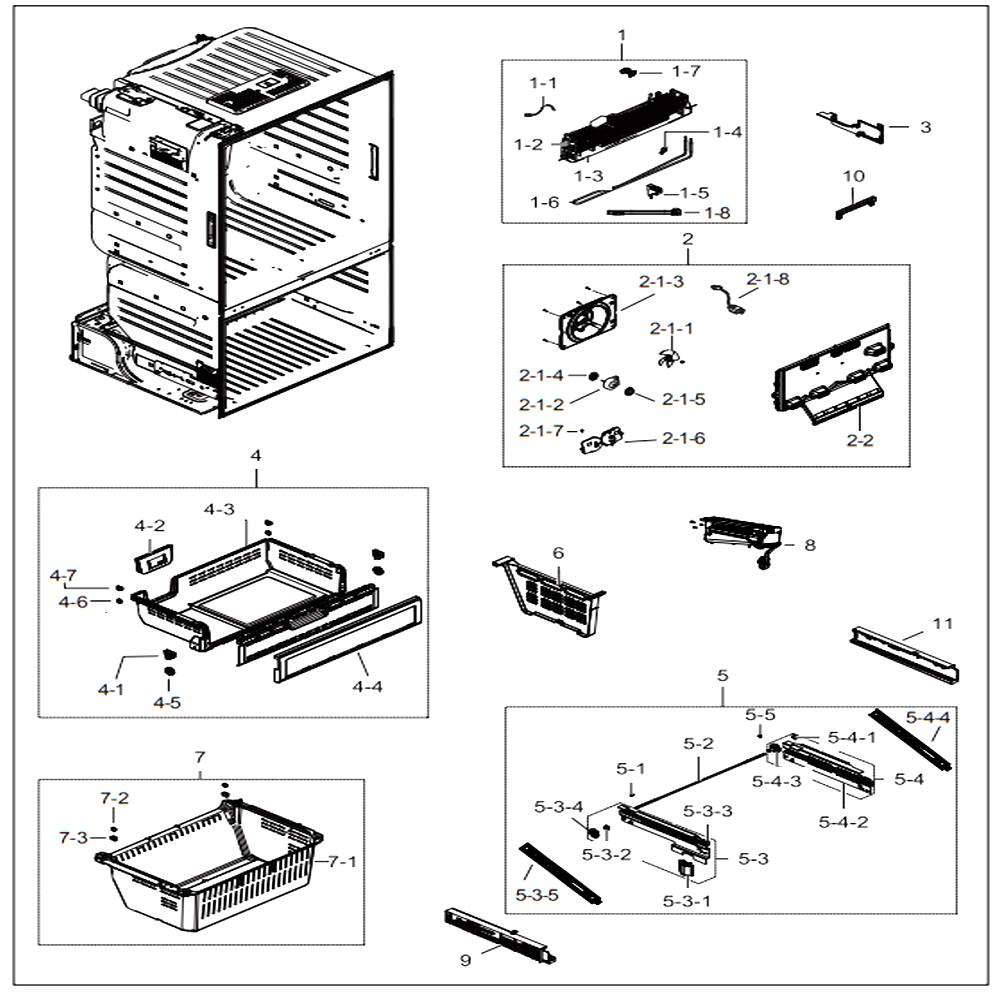

Freezer

...
...
1-1
Sensor Temp SAM-DA32-10104N
...
1-2
Evap Fre; Aw2 Nd-Ptj,pin,al SAM-DA59-00401A
...
1-3
Plate-Drain Fre; Aw2 Nd-Pjt,gl-Sazcc,t0.3 SAM-DA61-04225B
...
1-4
Fixer-Sensor Fre SAM-DA61-06182A
...
1-5
Plate-Evap Fre Mid; Aw3-Pjt,al,t0.8 SAM-DA61-06630A
...
1-6
Heater Metal Sheath; Ac120v,aw2-14 Fre, 6 SAM-DA47-00318M
...
1-7
Fixer-Heater Fre SAM-DA61-05845A
...
1
Assy Evap-Fre; Aw2-14, Aw2 Cd-14,ul, 120v SAM-DA96-00632C
...
2-1-1
-,aw-Pjt,abs,-,da31-001 SAM-DA31-00230A
...
2-1-2
Motor Bldc SAM-DA31-00146H
...
2-1-3
Case Motor-Fre; Aw-Pjt,pp,gray,cntk-P-101 SAM-DA61-03183A
...
2-1-4
Grommet-Motor,rear SAM-DA63-01146A
...
2-1-5
Grommet Motor SAM-DA63-01808A
...
2-1-6
Cover Motor-Bldc SAM-DA63-04651B
...
2-1-7
Grommet-Cover Chill SAM-DA63-40167A
...
2-1-8
Assembly Wire Harness-Motor SAM-DA96-00042D
...
2-1
Assy Motor Fan-Fre SAM-DA96-01177A
...
2-2
Cover Evap-Fre; Aw1,pp,hb,natural,bj750,e SAM-DA63-05126A
...
2
Assy Cover Evap-Fre; Aw2-Nd SAM-DA97-08541A
...
3
Cover-Wire Harness Ice SAM-DA63-06894A
...
4-1
Aw-Pjt,pa66,na SAM-DA61-04813A
...
4-2
Cap Tray-Fre Up; Aw2 Cd,hips,-,-,-,cool W SAM-DA67-02285A
...
4-3
Case Basket-Fre Up SAM-DA61-11063A
...
4-4
Cover-Tray Fre Upp A; Aw2,hips,cool White SAM-DA63-04252C
...
4-5
Aw-Pjt(samsung),pom, SAM-DA66-00639A
...
4-6
Aw-Sem,pom,500p,natural,da66- SAM-DA61-04804A
...
4-7
Aw1-12,pa66,natural,v2,101f SAM-DA61-04805B
...
4
Assy Tray-Fre Up SAM-DA97-07638T
...
5-1
Magnet SAM-DA61-03769B
...
5-2
Shaft-Gear SAM-DA66-00437B
...
5-3-1
Switch Pressure SAM-DA34-00047B
...
5-3-2
Aw-Pjt,pom,-,natural,da61-031 SAM-DA61-04801A
...
5-3-3
Hanger-Rail Low L; Opus1-14,secc1,cool Wh SAM-DA61-04437A
...
5-3-4
Aw-Pjt,pom,ntr SAM-DA66-00771A
...
5-3-5
Aw2-Pjt,cr-Scp1,w53.5,l SAM-DA61-09087A
...
5-3
Assy Rail-Slide Low L; Aw2-Pjt,scp1 SAM-DA97-13661A
...
5-4-1
Aw-Pjt,pom,-,natural,da61-031 SAM-DA61-04801A
...
5-4-2
Hanger-Rail Low R; Aw-Pjt,secc1,t1.6,cool SAM-DA61-04439A
...
5-4-3
Aw-Pjt,pom,ntr SAM-DA66-00767A
...
5-4-4
Aw2-Pjt,cr-Scp1,w53.5,l SAM-DA61-09088A
...
5-4
Assy Rail-Slide Low R; Aw2-Pjt,scp1 SAM-DA97-13662A
...
5-5
Aw-Pjt,abs,hg-0760gp,i Bl SAM-DA67-02138A
...
5
Assy Hanger-Low; Aw2-14,ass'y SAM-DA97-14383A
...
6
Guide-Fre; Aw2-14,pp,hb,bj750, Ep542rs,co SAM-DA61-04253B
...
7-1
Tray Drawer-Box; Aw2-14,pp,hb,cool White SAM-DA63-04251B
...
7-2
Aw-Sem,pom,500p,natural,da66- SAM-DA61-04804A
...
7-3
Aw1-12,pa66,natural,v2,101f SAM-DA61-04805B
...
7
Assy Tray Drawer; Aw2-14 SAM-DA97-06276E
...
8
Assembly Ice Maker SAM-DA97-15217A
...
9
Aw-Pjt,abs,cool White,h SAM-DA63-04604A
...
10
Fixer-Rear SAM-DA61-09790A
...
11
Aw-Pjt,abs,cool White,h SAM-DA63-04605A

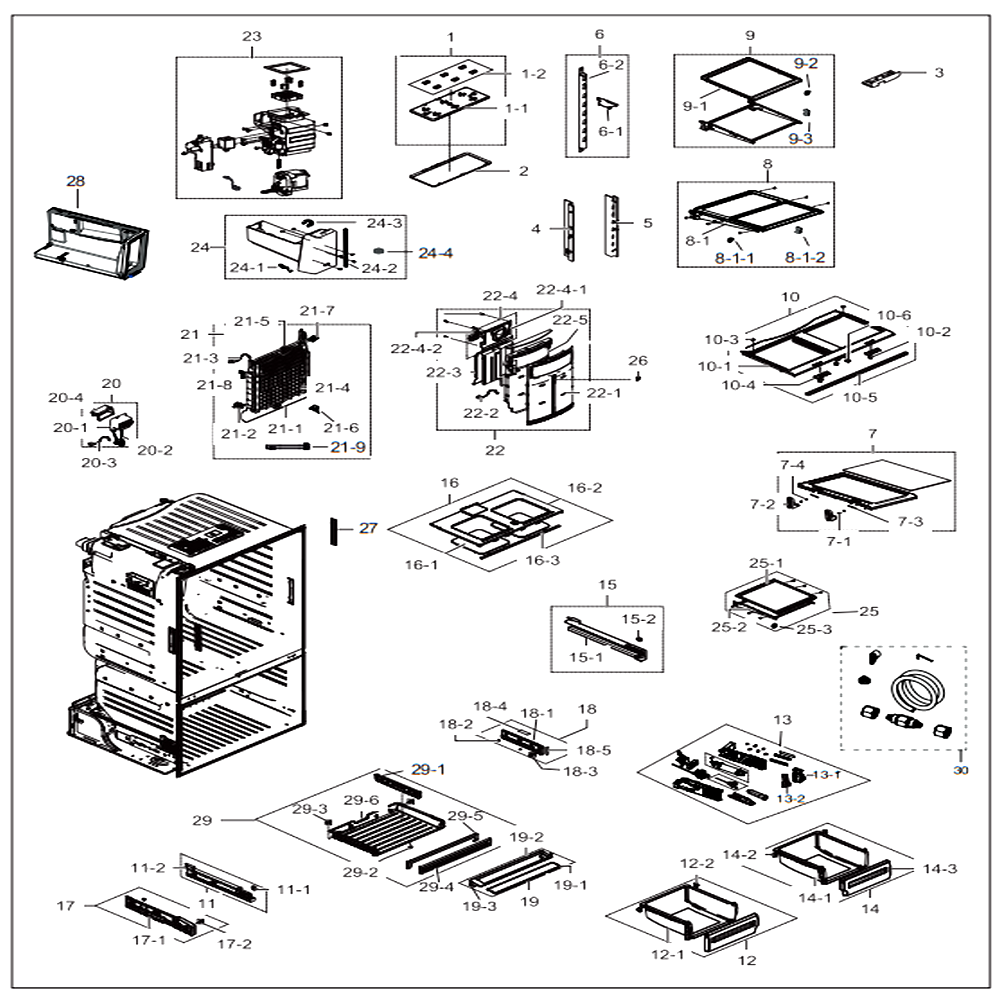

Fridge

...
...
1-1
Case Lamp-Ref SAM-DA61-08236A
...
1-2
Assy Lamp Led; 5,cem-1,240*10,white,smaw2 SAM-DA41-00676K
...
1
Assembly Case Lamp-Ref SAM-DA97-12606A
...
2
Aw4,gpps,tp Blue,147f SAM-DA63-06921A
...
3
Guide-French SAM-DA61-04285A
...
4
Angle-Shelf Ref Side L; Aw2(pantry),secc1 SAM-DA61-04330A
...
5
Angle-Shelf Ref Side R; Aw2(pantry),secc1 SAM-DA61-04329A
...
6-1
Support-Hanger; Aw2,secc1,t1.6,-,-,cool W SAM-DA61-04321A
...
6-2
Angle Shelf-Ref Middle; Aw2-14,egi-Secc,c SAM-DA61-09569A
...
6
Assy Angle Shelf-Ref Middle; Aw2-14 SAM-DA97-14319A
...
7-1
Spring Etc-Hinge Shelf SAM-DA61-03705A
...
7-2
Bracket-Hinge Shelf; Opus1-14,pc,cool Whi SAM-DA61-08215A
...
7-3
Shaft-Hinge-Shelf SAM-DA66-00483A
...
7-4
Roller-Hinge-Shelf SAM-4 DA66-00482A
...
7
Assy Shelf Folder-Ref; Aw2-14 SAM-DA97-14318A
...
8-1-1
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09549A
...
8-1-2
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09550A
...
8-1
Assy Hanger; Aw2-14,folder Shelf SAM-DA97-14350A
...
8
Assy Shelf Quick Space; Aw2-14 SAM-DA97-06416D
...
9-1
Shelf Slide SAM-DA67-04063A
...
9-2
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09549A
...
9-3
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09550A
...
9
Assy Shelf Slide-Ref; Aw2-14 SAM-DA97-10634B
...
10-1
Cover Veg-Ref; Aw2-Nd,hips,cool White,s83 SAM-DA63-05511A
...
10-2
Knob-Humidity; Queen,abs,-,-,-,-,-,-,- SAM-DA64-00817A
...
10-3
Aw-Pjt,hips,cool White,d SAM-DA61-04809A
...
10-4
Lever-Humidity SAM-DA66-00638A
...
10-5
Reinf-Cover Veg SAM-DA61-04292A
...
10-6
Assy Roller; Rf9000jc,24 SAM-DA97-15997A
...
10
Assy Cover Veg-Ref; Aw2-Nd,reinf T2.0,qui SAM-DA97-08511B
...
11-1
Assy Roller; Rf9000jc,24 SAM-DA97-15997A
...
11-2
Rail-Veg L SAM-DA61-07327A
...
11
Assembly Rail Veg-L SAM-DA97-11292A
...
12-1
Case-Veg L SAM-DA61-05876B
...
12-2
Assembly Roller SAM-DA97-15998A
...
12
Assembly Case Veg-Left SAM-DA97-08438D
...
13-1
Cover-Filter Tank SAM-DA63-05406B
...
13-2
Cap-Filter Tank SAM-DA67-02505B
...
13
Assy Case Filter; Aw2-14,110v 60hz, P2 SAM-DA97-14487A
...
14-1
Assembly Case Veg-Right SAM-DA97-08437D
...
14-2
Assembly Roller SAM-DA97-15998A
...
14-3
Cover Veg-Front R; Aw3,gpps,ntr SAM-DA63-05412B
...
14
Assembly Case Veg-Right SAM-DA97-08437D
...
15-1
Rail-Veg R SAM-DA61-07326A
...
15-2
Assy Roller; Rf9000jc,24 SAM-DA97-15997A
...
15
Assembly Rail Veg-R SAM-DA97-11291A
...
16-1
Window-Shelf Pantry SAM-DA64-02740A
...
16-2
Shelf-Pantry; Aw2-Nd Pjt,hips,cool-White( SAM-DA67-02519A
...
16-3
Reinf-Shelf Pantry SAM-DA61-04822A
...
16
Assy Shelf-Pantry; Aw2-Nd SAM-DA97-08417A
...
17-1
Cover Rail-Middle Left SAM-DA63-06521B
...
17-2
Assy Roller; Latour,assy Pi 18 SAM-DA97-14447C
...
17
Assy Cover Rail Pantry-Left; Aw2-11 SAM-DA97-11541B
...
18-1
Cover Rail-Middle Right; Aw2-14,hips,hb,c SAM-DA63-06520B
...
18-2
Support-Roller Pantry; Aw-Pjt,pvc,blk SAM-DA61-03176A
...
18-3
Assy Roller; Latour,assy Pi 18 SAM-DA97-14447C
...
18-4
Assy Module; Pantry Display,aw2-14,96*14. SAM-DA92-00600A
...
18-5
Inlay-Control; Aw2-14,pc,ice Blue,t0.3 SAM-DA64-02578D
...
18
Assy Cover Rail Pantry-Right; Aw2-11 SAM-DA97-11542F
...
19-1
Cover-Slide Pantry A; Aw2-Pjt,san,hb,natu SAM-DA63-04280A
...
19-2
Cover-Slide Pantry B; Aw2-Pjt,abs,hb,cool SAM-DA63-04279A
...
19-3
Roller-Fre SAM-DA66-10104A
...
19
Assy Cover-Slide Pantry; Aw2-Pjt,-,-,-,-, SAM-DA97-06327A
...
20-1
Cover-Motor Dc Damper SAM-DA63-04655A
...
20-2
Nsby001tk1/du25-076,dc12 SAM-DA31-00071G
...
20-3
Dkst1329gw,px-41c, 502at,aw- SAM-DA32-00006R
...
20-4
Insulation-Motor Dc Damper SAM-DA62-02057A
...
20
Aw-Sem,without H SAM-DA97-07189E
...
21-1
Aw3-Pjt,al,t0.3 SAM-DA61-06186B
...
21-2
Fixer-Heater Ref SAM-DA61-05835B
...
21-3
Sensor Temp SAM-DA32-10104N
...
21-4
Fin Tube,aw3 SAM-DA59-00399A
...
21-5
Ac120v,aw2 Ref, 144o SAM-DA47-00244U
...
21-6
Plate-Evap Heater SAM-DA61-03644A
...
21-7
Aw-Pjt,pp,-,-,-,-,black,-,- SAM-DA61-04800B
...
21-8
Fixer-Fuse SAM-DA61-05160A
...
21
Assy Evap-Ref; Aw2-14, Aw2 Cd-14,ul, 120v SAM-DA96-00660F
...
22-1
Cover Evap-Ref; Aw4,pp,hb,cool White,bj75 SAM-DA63-06863A
...
22-2
Sensor Temp; Dkst1329gw,queen,-50 ~ 80 SAM-DA32-00011C
...
22-3
Insulation Cover Evap-Ref Rear; Aw4,ps Fo SAM-DA62-03634A
...
22-4-1
Aw4,abs,light Gray,cntk-A SAM-DA61-08187A
...
22-4-2
Motor Bldc Fan SAM-DA31-00287A
...
22-4
Aw4,assy SAM-DA97-12815C
...
22-5
Insulation Cover Evap-Ref; Aw4,ps Foam,na SAM-DA62-03638A
...
22
Assy Cover Evap-Ref SAM-DA97-12608B
...
23
Assy Case Auger Motor; Aw4-4d,115v 60hz SAM-DA97-12540G
...
24-1
Spring Etc-Dispenser SAM-DA61-20124D
...
24-2
Gasket-Tray Ice Bucket SAM-DA63-07185A
...
24-3
Fastener-Ring SAM-DA60-00231A
...
24-4
Nut-Hex SAM-DA60-30108A
...
24
Assy Tray Ice SAM-DA97-12604D
...
25-1
Shelf Insert; Aw2-Nd,pp,cool White SAM-DA67-02014B
...
25-2
Assy Hanger-Right; Aw2 14 SAM-DA97-14398A
...
25-3
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09549A
...
25
Assy Shelf Insert-Ref Fix; Aw2-14 SAM-DA97-06391D
...
26
Cap-Angle SAM-DA67-03308A
...
27
Cover Lamp-Led Side SAM-DA63-07276A
...
28
Assy Case-Ice Room SAM-DA97-13405A
...
29-1
Guide-Pantry; Aw2-Pjt,hips,cool White(sc- SAM-DA61-04290A
...
29-2
Aw-Pjt,pom,-,-,natural,-,d SAM-DA66-00637A
...
29-3
Assy Roller; Latour,assy Pi 18 SAM-DA97-14447C
...
29-4
Cover-Pantry Front; Aw2-Pjt,san,ntr SAM-DA63-04275B
...
29-5
Cover-Pantry Trim; Aw2-Pjt,hips,cool-Whit SAM-DA63-04276B
...
29-6
Case-Pantry; Aw2-11,hips,cool-White(sc-02 SAM-DA61-07602A
...
29
Assy Case Pantry; Aw2-14 SAM-DA97-11540C
...
30
Assy Install; Aw3-14,valve SAM-DA99-03490V

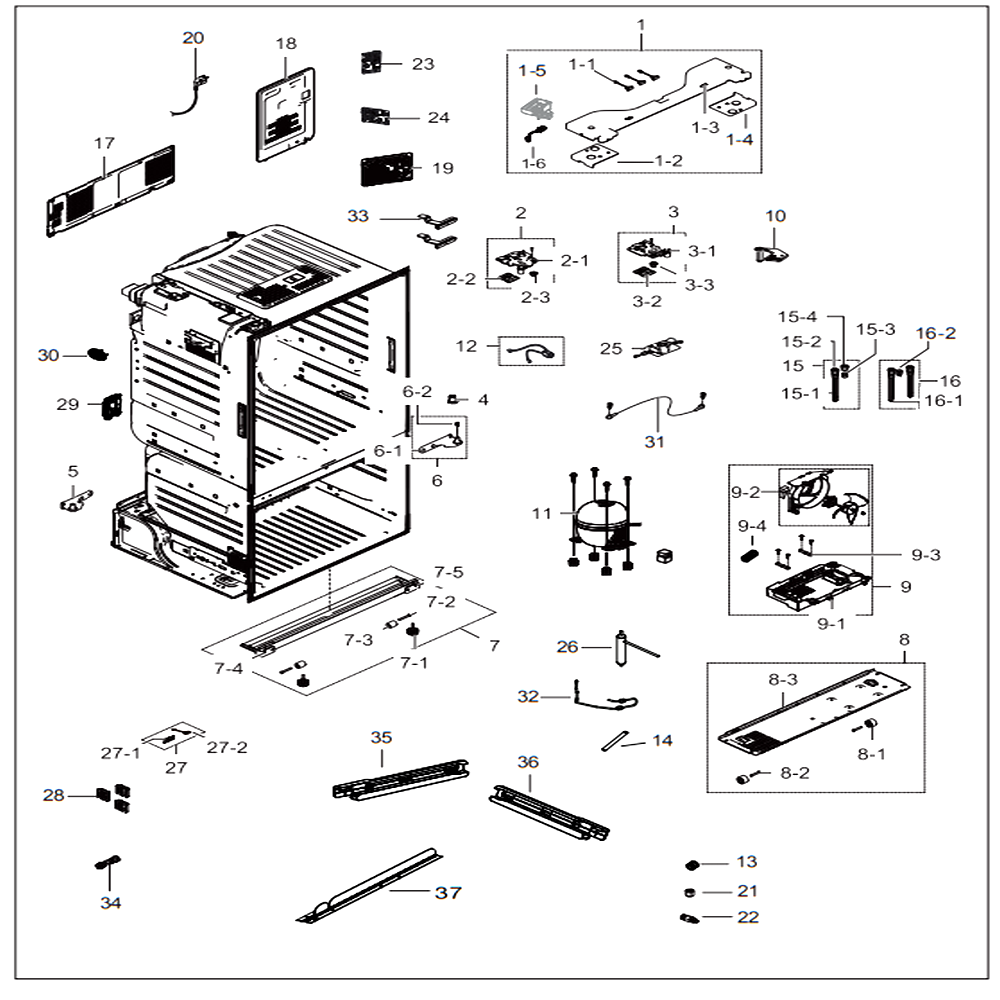

Cabinet

...
...
1-1
Switch Reed SAM-DA34-00043A
...
1-2
Plate-Cover Hinge SAM-DA61-08227A
...
1-3
Top Table SAM-DA64-04743D
...
1-4
Plate-Cover Hinge R SAM-DA61-08884A
...
1-5
Cover Top Table; Fdsr,abs,hb,ebony Black, SAM-DA63-07930A
...
1-6
Assembly Wire Harness-Top SAM-DA96-00962E
...
1
Assy Top Table; Fdsr,inox Gray SAM-DA97-14978D
...
2-1
Hinge-Upp L SAM-DA61-08309A
...
2-2
Shim-Hinge Upp SAM-DA63-50192A
...
2-3
Cam-Auto Close L SAM-DA66-00950A
...
2
Assembly Hinge Upp-L SAM-DA97-12573A
...
3-1
Hinge-Up Right SAM-DA61-09970A
...
3-2
Shim-Hinge Upp SAM-DA63-50192A
...
3-3
Cam-Auto Close R SAM-DA66-00951A
...
3
Assembly Hinge-Up Right SAM-DA97-14976A
...
4
Grommet Hinge-Mid SAM-DA63-06410A
...
5
Hinge-Mid L; Aw4,zn,t4.5,zndc 2 SAM-DA61-08318A
...
6-1
Hinge-Middle Right; Fdsr,zn,t6.0,131.5 * SAM-DA61-09967A
...
6-2
Shaft Hinge-Middle SAM-DA66-00688A
...
6
Assy Hinge-Middle Right; Fdsr,zndc, 131.5 SAM-DA97-14977A
...
7-1
Foot-Front SAM-DA61-04721D
...
7-2
Caster-Rivet SAM-DA61-01920A
...
7-3
Caster-Front SAM-DA61-04702A
...
7-4
Aw4-4d,pp,inox Gray SAM-DA63-06389E
...
7-5
Aw4-4d,pp,inox Gra SAM-DA63-06405D
...
7
Assy Cabi Bottom-Front; Aw4-4d F/s,inox G SAM-DA97-12556E
...
8-1
Caster-Rear SAM-DA61-04703A
...
8-2
Shaft-Caster SAM-DA66-00649B
...
8-3
Chassis Comp SAM-DA64-04152E
...
8
Assembly Chassis-Comp SAM-DA97-12557A
...
9-1
Tray Drain-Water SAM-DA63-08236A
...
9-2
Assy Support-Circuit Motor; Rh9000k SAM-DA97-15765C
...
9-3
Grommet-Cond Sub SAM-DA63-04424A
...
9-4
Grommet-Immersion Pipe B SAM-DA63-07323A
...
9
Assembly Tray Drain Water SAM-DA97-15978A
...
10
Hinge-Up SAM-DA61-09968A
...
11
Compressor SAM-NC1MV90ALP/SM1
...
12
Assembly Wire Harness-Comp SAM-DA39-00154M
...
13
Fitting-Lokring 16; Sum23,16, 11smnpb30k SAM-DA60-00279A
...
14
Pipe-Connect SAM-DA62-00314C
...
15-1
Tube Pvc SAM-DA62-01266B
...
15-2
Fixer-Drain SAM-DA61-05021A
...
15-3
Cap-Drain SAM-DA67-01301A
...
15-4
Grommet-Drain SAM-DA63-02761A
...
15
Assembly Cap-Drain SAM-DA97-04049E
...
16-1
Tube Pvc SAM-DA62-01266E
...
16-2
Grommet-Drain,hose; W2-Pjt,nbr,white SAM-DA63-00951B
...
16
Ibaci,l197.7 SAM-DA97-04049P
...
17
Assembly Cover Comp SAM-DA97-12749A
...
18
Assy Cover Pcb Panel; Aw3 SAM-DA97-08442A
...
19
Assy Pcb Main SAM-DA92-00593M
...
20
At,u.s.a,canada,us3f-1,3c,125v,15a,blac K,1500,20/100/100/150,spt-3 Awg18 105c,ul/ Csa,y,n,n,n,y SAM-3903-000796
...
21
Valve-Fitting Nut SAM-DA74-00070B
...
22
Valve-Fitting Pu SAM-DA62-00305A
...
23
Assembly Module SAM-DA92-00486A
...
24
Assy Pcb Inverter; Inverter,aw3-14,163*98 SAM-DA92-00483N
...
25
Coil Filter SAM-DA27-00043D
...
26
Dryer SAM-DA62-04309B
...
27-1
Cover Reed Switch SAM-DA63-07513A
...
27-2
Switch Reed SAM-DA34-00043J
...
27
Assembly Cover Switch SAM-DA97-13783A
...
28
Fixer-Hose SAM-DA61-04712C
...
29
Assembly Cover-Tube Filter SAM-DA97-08413B
...
30
Cover-Urethane SAM-DA63-04598B
...
31
Wire Harness-Earth SAM-DA39-20389L
...
32
Pipe-Connect Suction SAM-DA62-03601B
...
33
Fixer Hinge-Upp SAM-DA61-04932A
...
34
Tube-Fitting SAM-DA62-03914A
...
35
Opus1,hips,natural,s-834s SAM-DA61-07328A
...
36
Opus1,hips,natural,s834s1 SAM-DA61-07329A
...
37
Trim-Blade SAM-DA64-02631A

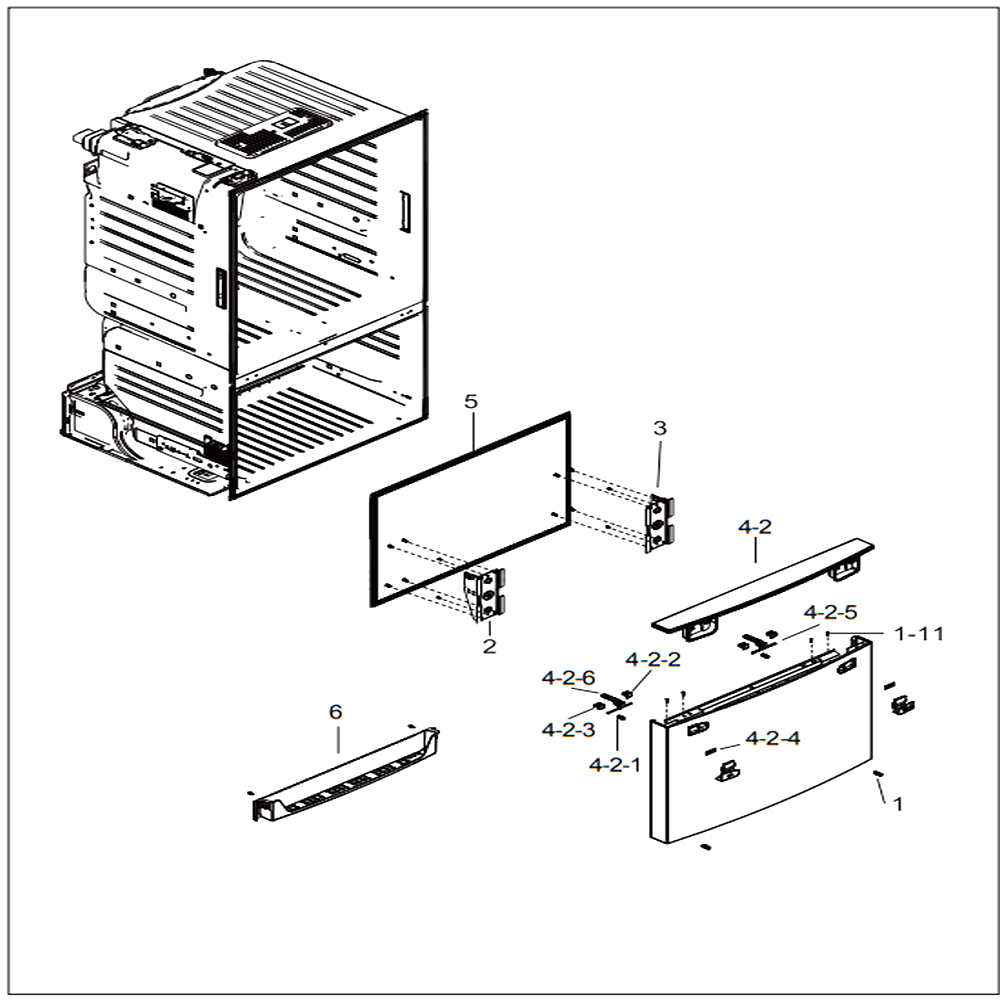

Door Fre

...
...
1
Fixer Handle; Aw3-14,swrch10a,m8 SAM-DA61-11161A
...
2
Aw-Pjt,egi-Secc,t2.0 SAM-DA61-04840A
...
3
Aw-Pjt,secc1,-,cool SAM-DA61-04841A
...
4-2-1
Spring Etc-Easy Handle; 08 Aw1,2-Pjt,hswr SAM-DA61-04335B
...
4-2-2
Fixer-Shaft R SAM-DA61-05899A
...
4-2-3
Fixer-Shaft L SAM-DA61-05930A
...
4-2-4
Reinf-Cap Handle SAM-DA61-06658A
...
4-2-5
Aw3,mswr10,92,5,zpc3(y) SAM-DA66-00579B
...
4-2-6
Slider-Easy Handle; Aw4,pom,creamy-Sts,f2 SAM-DA61-08234A
...
4-2
Assy Cap Door-Fre Up SAM-DA97-16584A
...
4
Assy Door-Fre SAM-DA97-14300K
...
5
Assy-Gasket Door Fre; Aw4,gray(sc-97478) SAM-DA97-12522J
...
6
Assy Guard Fre; Aw2 Cd,hips,t2.3,cool Whi SAM-DA97-12963A

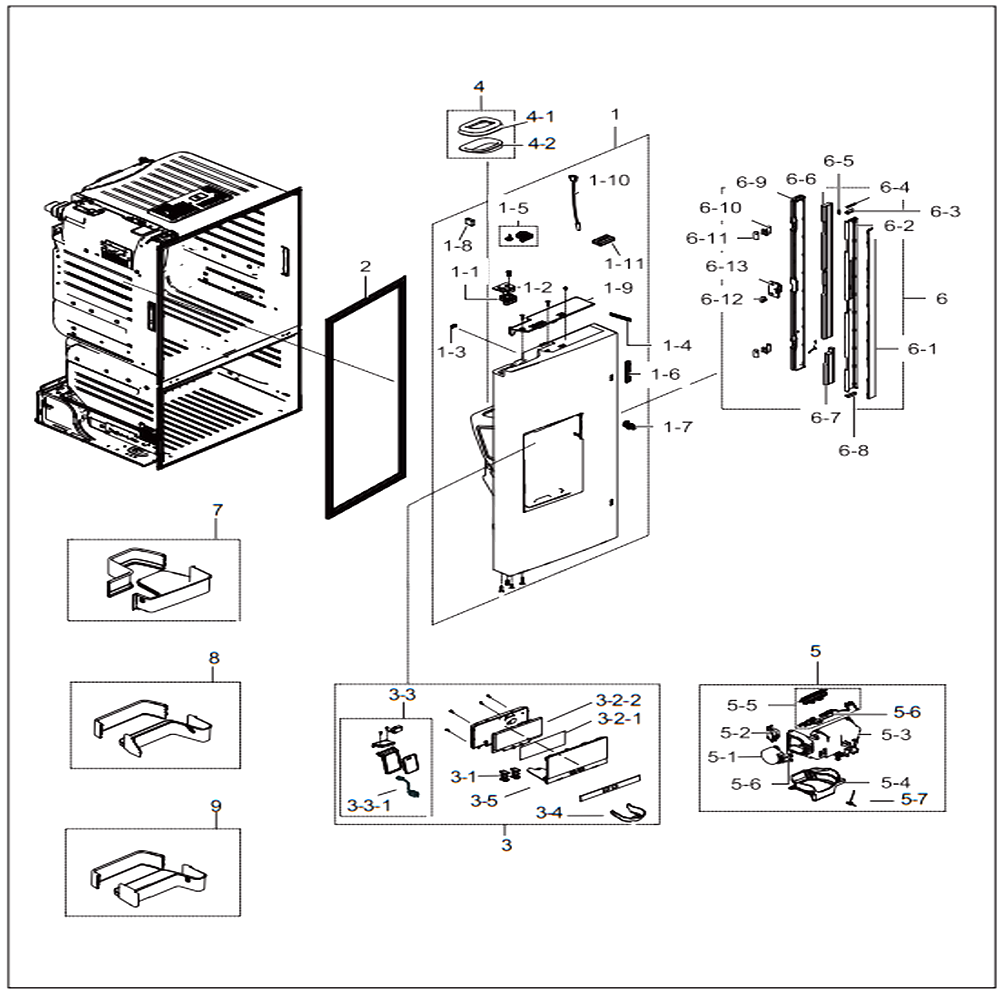

Door Ref Left

...
...
1-1
Support Door-Close SAM-DA61-05001A
...
1-2
Stopper-Door L SAM-DA61-08210A
...
1-3
Magnet-A SAM-DA61-03769A
...
1-4
Assy Lamp Led; 2,fr-4,20*30,white,smaw250 SAM-DA41-00676J
...
1-5
Aw1-12,pom,black SAM-DA97-13070A
...
1-6
Cover-Cap Door Led SAM-DA63-05524A
...
1-7
Switch Door-Interlock SAM-DA34-00066C
...
1-8
Grommet-Stopper SAM-DA63-40294A
...
1-9
Cover Cap Door-Ref Up Left; Aw4,abs,t2.3, SAM-DA63-06916F
...
1-10
Sensor Humidity SAM-DA32-00034B
...
1-11
Grommet-Chassis Up SAM-DA63-04825A
...
1
Assy Door Foam-Ref Left; Aw2-14,real Sts SAM-DA91-04147D
...
2
Assy Gasket-Ref; Aw2-Cd-14,aw2-Cd-14, Gra SAM-DA97-13015E
...
3-1
Assy-Lamp Door SAM-DA97-02847F
...
3-2-1
Inlay-Film SAM-DA64-04669A
...
3-2-2
Assembly Module SAM-DA92-00596A
...
3-2
Assy Pba Display SAM-DA97-15667A
...
3-3-1
Assy-W/harness Disp SAM-DA96-00106G
...
3-3
Assembly Lever Dispenser SAM-DA97-12628H
...
3-4
Cover Ice SAM-DA63-07637A
...
3-5
Assy Cover Dispenser-Sub; Aw3-14, Aw2-14, SAM-DA97-13808F
...
3
Assy Cover Dispenser; Aw3-14/aw2-14(mono) SAM-DA97-13809F
...
4-1
Gasket; Fdsr,tpe,white SAM-DA63-08248A
...
4-2
Cap-Chute Ice SAM-DA67-03312A
...
4
Assembly Cap-Chute Ice SAM-DA97-12594A
...
5-1
Motor Geared-Disp SAM-DA31-00079D
...
5-2
Switch-Micro SAM-3405-001117
...
5-3
Case Ice Route; Aw4-4d,abs,i Black,hg-076 SAM-DA61-09432A
...
5-4
Guide Ice; Aw4-4d,hips,s834s1,natural,gui SAM-DA61-09433A
...
5-5
Assembly Cover-Ice Route SAM-DA97-08117B
...
5-6
Cover-Ice Route A SAM-DA63-04647A
...
5-7
Spring Etc-Cover Ice Route SAM-DA61-01914A
...
5
Assembly Guide Ice Route SAM-DA97-13829C
...
6-1
Plate-French; Aw4,egi-Secc,t0.6,thai Silv SAM-DA61-08271A
...
6-2
Case-French Front; Aw4,abs,cool White(sc- SAM-DA61-08273A
...
6-3
Cap-Guide French Upp SAM-DA67-03358A
...
6-4
Gasket-French Upp; Aw4,si,gray SAM-DA63-06959A
...
6-5
Spring Etc-Etc Cap Guide; Aw4,sts304,3.0, SAM-DA61-08315A
...
6-6
Insulation-French; Aw4,ps Foam,natural,sf SAM-DA62-03660A
...
6-7
Insulation-Low; Aw4,ps Foam,natural,sg-40 SAM-DA62-03666A
...
6-8
Gasket-French Low; Aw-Pjt,si,gray SAM-DA63-06842B
...
6-9
Case-French; Aw4,abs,cool White(sc-02740r SAM-DA61-08272A
...
6-10
Hinge-French SAM-DA61-08305A
...
6-11
Aw-Pjt,abs,cool White,ab SAM-DA67-02146A
...
6-12
Aw-Pjt,abs,cool Whit SAM-DA67-02154A
...
6-13
Aw-Pjt,pc,-,-,-,-,-, SAM-DA63-04645A
...
6
Assy-French; Aw4,thai-Silver SAM-DA97-12624A
...
7
Assembly Guard-Ref Up SAM-DA97-13804C
...
8
Assy Guard-Ref Middle; Aw2-14,caribean Bl SAM-DA97-14301C
...
9
Assy Guard-Ref Low; Aw2-14,caribean Blue SAM-DA97-14302C

Door Ref Right

...
...
1-1
Cover Lock SAM-DA63-08235A
...
1-2
Support Door-Middle; Fdsr,pom,so301,cream SAM-DA61-09950A
...
1-3
Stopper Door-Ref; Po-Sphc,black,eletrodep SAM-DA61-09952B
...
1-4
Hinge-Low; Fdsr,po-Sphc,t4.0,eletrodeposi SAM-DA61-09969B
...
1-5
Grommet-Chassis Up SAM-DA63-04825A
...
1-6
Grommet-Stopper SAM-DA63-40294A
...
1-7
Magnet SAM-DA61-03769B
...
1-8
Assembly Lever Auto Close SAM-DA97-14992A
...
1-9
Assembly Lamp Led SAM-DA96-01119A
...
1-10
Grommet-A; Mouton12,si,cool White,name Ta SAM-DA63-07538A
...

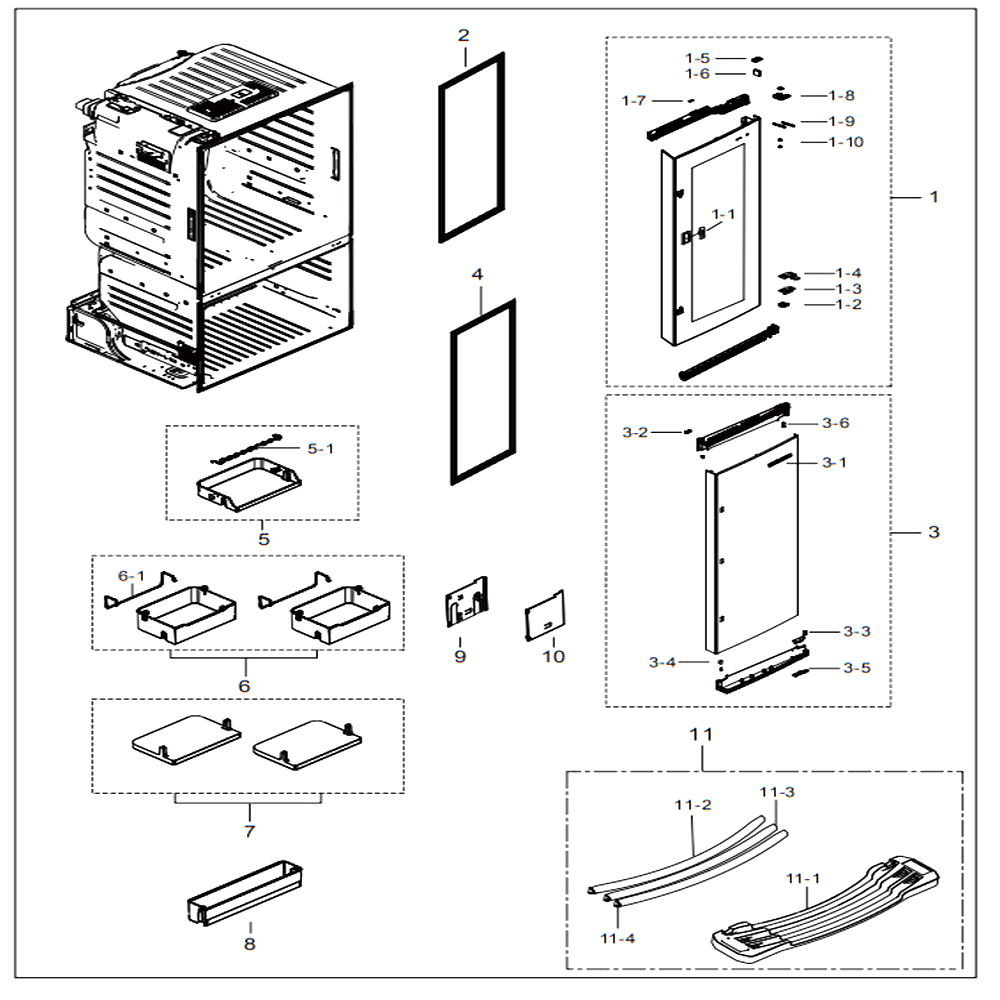

1
Assy Door Foam-Ref Right; Aw2-14,fdsr,k13 SAM-DA91-04171L
...
2
Assy Gasket-Ref; Aw2-Cd-14,aw2-Cd-14, Gra SAM-DA97-13015E
...
3-1
Mascot SAM-DA64-04021A
...
3-2
Magnet-A SAM-DA61-03769A
...
3-3
Grommet Hinge-Middle SAM-DA63-07545B
...
3-4
Rubber-Cap Hose SAM-DA73-00211A
...
3-5
Stopper Door-Ref Low SAM-DA61-09951A
...
3-6
Grommet Hinge-Middle SAM-DA63-07545B
...
3
Assy Door Foam-Ref Right; Fdsr-3d, Rs Pla SAM-DA91-04198A
...
4
Assy Gasket-Ref; Fdsr,3 Door(out Door) SAM-DA97-13915D
...
5-1
Support Wire-Up SAM-DA61-09976A
...
5
Assy Guard Dairy; Fdsr,assy Guard, Fixer SAM-DA97-14644D
...
6-1
Support Wire-Low SAM-DA61-09948A
...
6
Assembly Guard-Ref Low Right SAM-DA97-14996A
...
7
Assy Tray-Low; Aw2-14 Fdsr,roller Type SAM-DA97-14997E
...
8
Assy Guard Bottle; Fdsr,assy Guard SAM-DA97-14645A
...
9
Cap Reinf SAM-DA67-03916B
...
10
Cap Reinf SAM-DA67-03917B
...
11-1
Cushion Handle SAM-DA69-01766A
...
11-2
Assy Handle Bar-Fre; Aw4,al(a6063),versai SAM-DA97-12712C
...
11-3
Assy Handle-Ref; Fdsr,assy SAM-DA97-15014A
...
11-4
Assy Handle Bar-Ref L; Aw4,al(a6063),vers SAM-DA97-12715C
...
11
Assy Handle-Kit SAM-DA98-00822A
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
