Samsung RF28HDEDBSR/AA_0001

Model: RF28HDEDBSR/AA_0001

Save Part Not Listed?
product name

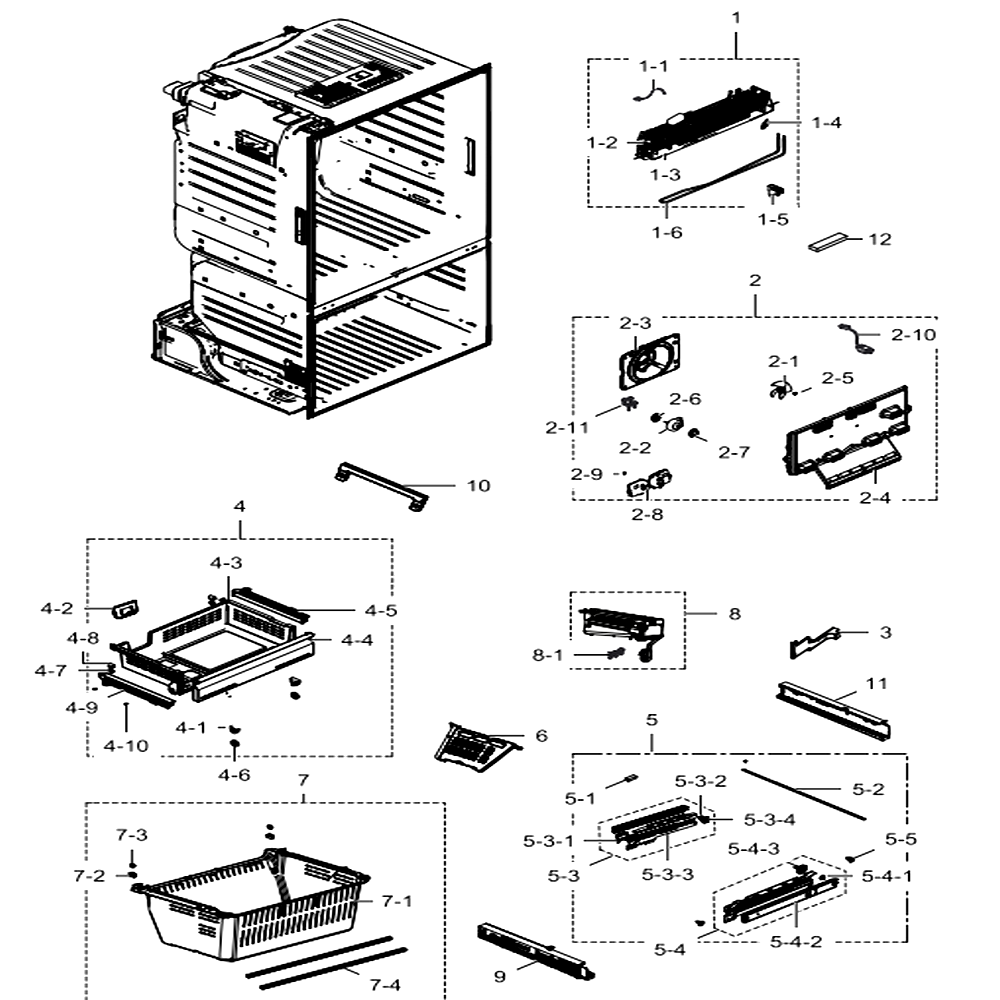

Freeze

...
...
1-1
Sensor Temp SAM-DA32-10104N
...
1-2
Evap Fre; Aw2 Nd-Ptj,pin,al SAM-DA59-00401A
...
1-3
Plate-Drain Fre; Aw2 Nd-Pjt,gl-Sazcc,t0.3 SAM-DA61-04225B
...
1-4
Fixer-Sensor Fre SAM-DA61-06182A
...
1-5
Plate-Evap Fre Mid; Aw3-Pjt,al,t0.8 SAM-DA61-06630A
...
1-6
Heater Metal Sheath; Ac120v,aw2-14 Fre, 6 SAM-DA47-00318M
...
1
Assy Evap-Fre; Aw2-14, Aw2 Cd-14,ul, 120v SAM-DA96-00632C
...
2-1
Fan-Ax100w4cc-T1 SAM-DA31-00124A
...
2-2
Motor Bldc SAM-DA31-00146H
...
2-3
Case Motor-Fre; Aw-Pjt,pp,gray,cntk-P-101 SAM-DA61-03183A
...
2-4
Cover Evap-Fre; Aw1,pp,hb,natural,bj750,e SAM-DA63-05126A
...
2-5
Spring Etc-Fan SAM-DA61-20128A
...
2-6
Grommet-Motor,rear SAM-DA63-01146A
...
2-7
Grommet Motor SAM-DA63-01808A
...
2-8
Cover Motor-Bldc SAM-DA63-01809B
...
2-9
Grommet-Cover Chill SAM-DA63-40167A
...
2-10
Assembly Wire Harness-Motor SAM-DA96-00042D
...
2-11
Screw-Tapping SAM-6002-000215
...
2
Assy Cover Evap-Fre; Aw2-Nd SAM-DA97-08541A
...
3
Cover-Wire Harness Ice SAM-DA63-06894A
...
4-1
Fixer-Roller Tray Fre Upp SAM-DA61-04154A
...
4-2
Cap Tray-Fre Up; Aw2 Cd,hips,-,-,-,cool W SAM-DA67-02285A
...
4-3
Tray-Fre Upp; Aw2 Tim,hips,cool White(sc- SAM-DA63-05038A
...
4-4
Cover-Tray Fre Upp A; Aw2,hips,cool White SAM-DA63-04252C
...
4-5
Guide-Tray Fre Upp R SAM-DA61-05185A
...
4-6
Roller-Tray Fre Upp SAM-DA66-00554A
...
4-7
Roller-Fre SAM-DA66-10104A
...
4-8
Fixer-Roller SAM-DA71-20277A
...
4-9
Guide-Tray Fre Upp L SAM-DA61-05186A
...
4-10
Screw-Tapping SAM-6002-001406
...
4
Assy Tray-Fre Up; Aw2-14 SAM-DA97-07638Q
...
5-1
Magnet SAM-DA61-03769B
...
5-2
Shaft-Gear SAM-DA66-00437B
...
5-3-1
Switch Pressure SAM-DA34-00047B
...
5-3-2
Fixer-Gear SAM-DA61-03154A
...
5-3-3
Hanger-Rail Low L; Opus1-14,secc1,cool Wh SAM-DA61-04437A
...
5-3-4
Gear-Rail L SAM-DA66-00751A
...
5-3
Assy Rail-Slide Low L; Aw2-Pjt,scp1 SAM-DA97-13661A
...
5-4-1
Fixer-Gear SAM-DA61-03154A
...
5-4-2
Hanger-Rail Low R; Aw-Pjt,secc1,t1.6,cool SAM-DA61-04439A
...
5-4-3
Gear-Rail R SAM-DA66-00750A
...
5-4
Assy Rail-Slide Low R; Aw2-Pjt,scp1 SAM-DA97-13662A
...
5-5
Cap-Shaft Hole SAM-DA67-02795C
...
5
Assy Hanger-Low; Aw2-14,ass'y SAM-DA97-14383A
...
6
Guide-Fre; Aw2-14,pp,hb,bj750, Ep542rs,co SAM-DA61-04253B
...
7-1
Tray Drawer-Box; Aw2-14,pp,hb,cool White SAM-DA63-04251B
...
7-2
Fixer-Roller SAM-DA71-20145A
...
7-3
Roller-Fre SAM-DA66-10104A
...
7-4
Reinf-Drawer Box SAM-DA61-03160A
...
7
Assy Tray Drawer; Aw2-14 SAM-DA97-06276E
...
8-1
Screw-Tapping SAM-6002-000471
...
8
Assy Ice Maker; Aw-Pjt,115v,60hz SAM-DA97-12317A
...
9
Cover-Rail Low L; Aw-Pjt,abs,-,-,-,-,-,co SAM-DA63-03414A
...
10
Fixer-Rear SAM-DA61-09790A
...
11
Cover-Rail Low R; Aw-Pjt,abs,-,-,-,-,-,co SAM-DA63-03415A
...
12
Seal-Cutt Rubber SAM-DA72-60040W

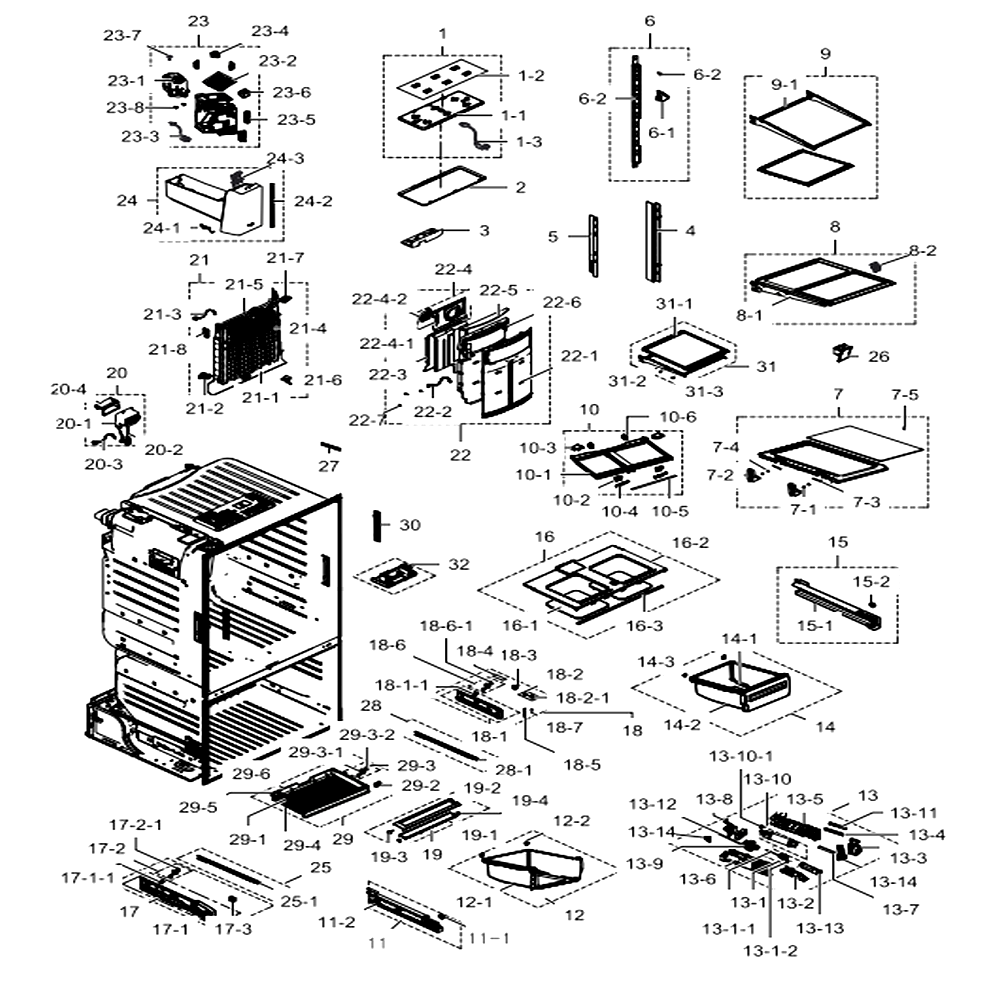

Fridge

...
...
1-1
Case Lamp-Ref SAM-DA61-08236A
...
1-2
Assembly Lamp Led SAM-DA41-00676G
...
1-3
Assembly W/harness-Led Ref SAM-DA96-00961A
...
1
Assembly Case Lamp-Ref SAM-DA97-12606A
...
2
Cover Lamp-Ref SAM-DA63-07816A
...
3
Guide-French SAM-DA61-04285A
...
4
Angle-Shelf Ref Side R; Aw2(pantry),secc1 SAM-DA61-04329A
...
5
Angle-Shelf Ref Side L; Aw2(pantry),secc1 SAM-DA61-04330A
...
6-1
Support-Hanger; Aw2,secc1,t1.6,-,-,cool W SAM-DA61-04321A
...
6-2
Angle Shelf-Ref Middle; Aw2-14,egi-Secc,c SAM-DA61-09569A
...
6
Assy Angle Shelf-Ref Middle; Aw2-14 SAM-DA97-14319A
...
7-1
Spring Etc-Hinge Shelf SAM-DA61-03705A
...
7-2
Bracket-Hinge Shelf; Opus1-14,pc,cool Whi SAM-DA61-08215A
...
7-3
Shaft-Hinge-Shelf SAM-DA66-00483A
...
7-4
Roller-Hinge-Shelf SAM-DA66-00482A
...
7-5
Screw-Tapping SAM-6002-001397
...
7
Assy Shelf Folder-Ref; Aw2-14 SAM-DA97-14318A
...
8-1
Assy Hanger; Aw2-14,folder Shelf SAM-DA97-14350A
...
8-2
Screw-Tapping SAM-6002-001397
...
8
Assy Shelf Quick Space; Aw2-14 SAM-DA97-06416D
...
9-1
Assy Shelf-Slide Weld; Aw2,welding Shelf SAM-DA97-10633A
...
9
Assy Shelf-Slide Ref; Aw2,welding Shelf SAM-DA97-10634A
...
10-1
Cover Veg-Ref; Aw2-Nd,hips,cool White,s83 SAM-DA63-05511A
...
10-2
Knob-Humidity; Queen,abs,-,-,-,-,-,-,- SAM-DA64-00817A
...
10-3
Fixer-Cover Veg SAM-DA61-03166A
...
10-4
Lever-Humidity; Aw,abs,cool White SAM-DA66-00438A
...
10-5
Reinf-Cover Veg SAM-DA61-04292A
...
10-6
Roller-Fre SAM-DA66-10104A
...
10
Assy Cover Veg-Ref; Aw2-Nd,reinf T2.0 SAM-DA97-08511A
...
11-1
Roller-Fre SAM-DA66-10104A
...
11-2
Rail-Veg L SAM-DA61-07327A
...
11
Assembly Rail Veg-L SAM-DA97-11292A
...
12-1
Case-Veg L SAM-DA61-05876B
...
12-2
Assy Roller; Aw3-14,assy SAM-DA97-14447A
...
12
Assembly Case Veg-Left SAM-DA97-08438D
...
13-1-1
Pipe-Water Line SAM-DA62-02429G
...
13-1-2
Clip-Fitting Lock SAM-DA61-04522A
...
13-1
Assembly Case-Filter SAM-DA97-08006D
...
13-2
Filter Water; Sseda SAM-DA29-00019A
...
13-3
Cover-Filter Tank SAM-DA63-05406B
...
13-4
Assembly Lamp Led SAM-DA41-00519S
...
13-5
Case-Filter Tank L; Aw2-11,hips,cool Whit SAM-DA61-07496A
...
13-6
Case-Filter Tank R; Aw2-11,hips,w433.9,l1 SAM-DA61-07497A
...
13-7
Cover-Seal Led; Aw3,pet,t0.5,transparent SAM-DA63-05928A
...
13-8
Tube-Fitting L SAM-DA62-03103A
...
13-9
Valve Water SAM-DA62-04027A
...
13-10-1
Clip-Fitting Lock SAM-DA61-04522A
...
13-10
Assy Tank Water; Aw33,pp,ntr,hose:2.25m SAM-DA97-11283D
...
13-11
Cover-Led Filter SAM-DA63-05408B
...
13-12
Pipe-Water Line SAM-DA62-01368B
...
13-13
Tray-Water Filter SAM-DA63-05407A
...
13-14
Cap-Filter Tank SAM-DA67-02505B
...
13
Assy Case Filter; Aw2-14,110v 60hz, P2 SAM-DA97-14487A
...
14-1
Case-Veg R SAM-DA61-05875B
...
14-2
Cover Veg-Front R; Aw3,gpps,ntr SAM-DA63-05412B
...
14-3
Assy Roller; Aw3-14,assy SAM-DA97-14447A
...
14
Assembly Case Veg-Right SAM-DA97-08437D
...
15-1
Rail-Veg R SAM-DA61-07326A
...
15-2
Roller-Fre SAM-DA66-10104A
...
15
Assembly Rail Veg-R SAM-DA97-11291A
...
16-1
Window-Shelf Pantry; Aw-Pjt Best,gpps,2.5 SAM-DA64-02235A
...
16-2
Shelf-Pantry; Aw2-Nd Pjt,hips,cool-White( SAM-DA67-02519A
...
16-3
Reinf-Shelf Pantry; Aw-Pjt,egi-Secc,t1.2, SAM-DA61-03174A
...
16
Assy Shelf-Pantry; Aw2-Nd SAM-DA97-08417A
...
17-1-1
Nut-Hexagon SAM-6021-001125
...
17-1
Cover-Rail Pantry L; Aw2-11,hips,cool-Whi SAM-DA63-06521A
...
17-2-1
Guide-Washer; Aw2-Pjt,sts304,0.5,12.0,-,- SAM-DA61-04008A
...
17-2
Assy-Roller A; Aw2-Pjt SAM-DA97-05932A
...
17-3
Support-Roller Pantry; Aw-Pjt,pvc,blk SAM-DA61-03176A
...
17
Assy Cover-Rail Pantry L; Aw2-11 SAM-DA97-11541A
...
18-1-1
Nut-Hexagon SAM-6021-001125
...
18-1
Cover-Rail Pantry R; Aw2-11,hips,cool-Whi SAM-DA63-06520A
...
18-2-1
Guide-Washer; Aw2-Pjt,sts304,0.5,12.0,-,- SAM-DA61-04008A
...
18-2
Support-Roller Pantry; Aw-Pjt,pvc,blk SAM-DA61-03176A
...
18-3
Support-Roller Pantry; Aw-Pjt,pvc,blk SAM-DA61-03176A
...
18-4
Assy Module; Pantry Display,aw2-14,96*14. SAM-DA92-00600A
...
18-5
Inlay-Control; Aw2-14,pc,ice Blue,t0.3 SAM-DA64-02578D
...
18-6-1
Guide-Washer; Aw2-Pjt,sts304,0.5,12.0,-,- SAM-DA61-04008A
...
18-6
Assy-Roller A; Aw2-Pjt SAM-DA97-05932A
...
18-7
Screw-Tapping SAM-6002-000630
...
18
Assy Cover Rail Pantry-Right; Aw2-14,ice SAM-DA97-11542D
...
19-1
Cover-Slide Pantry A; Aw2-Pjt,san,hb,natu SAM-DA63-04280A
...
19-2
Cover-Slide Pantry B; Aw2-Pjt,abs,hb,cool SAM-DA63-04279A
...
19-3
Grommet-Cover Chill SAM-DA63-40167A
...
19-4
Roller-Fre SAM-DA66-10104A
...
19
Assy Cover-Slide Pantry; Aw2-Pjt,-,-,-,-, SAM-DA97-06327A
...
20-1
Cover Motor-Front; Aw2-Pjt,pp,hb,natural, SAM-DA63-04274B
...
20-2
Nsby001tk1/du25-076,dc12 SAM-DA31-00071G
...
20-3
Dkst1329gw,px-41c, 502at,aw- SAM-DA32-00006R
...
20-4
Insulation-Motor Dc Damper; Aw-Pjt,ps Foa SAM-DA62-01380A
...
20
Assy Cover-Motor Damper; Aw2-Pjt,ntr,0.5w SAM-DA97-06324C
...
21-1
Aw3-Pjt,al,t0.3 SAM-DA61-06186B
...
21-2
Fixer-Heater Ref SAM-DA61-05835B
...
21-3
Sensor Temp SAM-DA32-10104N
...
21-4
Fin Tube,aw3 SAM-DA59-00399A
...
21-5
Ac120v,aw2 Ref, 144o SAM-DA47-00244U
...
21-6
Plate-Evap Heater SAM-DA61-03644A
...
21-7
Fixer-Senser SAM-DA61-03683A
...
21-8
Fixer-Fuse SAM-DA61-05160A
...
21
Assy Evap-Ref; Aw2-14, Aw2 Cd-14,ul, 120v SAM-DA96-00660F
...
22-1
Cover Evap-Ref; Aw4,pp,hb,cool White,bj75 SAM-DA63-06863A
...
22-2
Sensor Temp; Dkst1329gw,queen,-50 ~ 80 SAM-DA32-00011C
...
22-3
Insulation Cover Evap-Ref Rear; Aw4,ps Fo SAM-DA62-03634A
...
22-4-1
Aw4,abs,light Gray,cntk-A SAM-DA61-08187A
...
22-4-2
Motor Bldc Fan SAM-DA31-00287A
...
22-4
Assy Case Motor-Ref; Aw4,assy SAM-DA97-12815B
...
22-5
Seal-Cover Ref Upp; Aw4,ojc-3000,white,t7 SAM-DA62-03680A
...
22-6
Insulation Cover Evap-Ref; Aw4,ps Foam,na SAM-DA62-03638A
...
22-7
Screw-Tapping SAM-6002-001204
...
22
Assy Cover Evap-Ref; Aw4 SAM-DA97-12608A
...
23-1
Motor Geared Ac Auger SAM-DA31-00105M
...
23-2
Motor Bldc Fan SAM-DA31-00070E
...
23-3
Assembly Wire Harness-Auger SAM-DA96-00682D
...
23-4
Grommet-Fan SAM-DA63-02513A
...
23-5
Spring Etc-Solenoid SAM-DA61-20140A
...
23-6
Valve-Solenoid SAM-DA74-40151G
...
23-7
Screw-Tapping SAM-6002-000471
...
23-8
Screw-Special SAM-DA60-00001B
...
23
Assembly Case-Fan Auger Motor SAM-DA97-12540A
...
24-1
Spring Etc-Dispenser SAM-DA61-20124D
...
24-2
Gasket-Tray Ice Bucket SAM-DA63-07185A
...
24-3
Screw-Tapping SAM-6002-000471
...
24
Assembly Tray Ice SAM-DA97-14474A
...
25-1
Rail-Pantry L; Opus1-14,egi-Secc,cool Whi SAM-DA61-07607A
...
25
Assy Rail-Pantry L; Aw2-11 SAM-DA97-11538A
...
26
Assy Cap-Angle; Aw4,pp,cool White SAM-DA97-12654A
...
27
Assembly Lamp Led SAM-DA41-00519Q
...
28-1
Rail-Pantry R; Opus1-14,egi-Secc,cool Whi SAM-DA61-07601A
...
28
Assy Rail-Pantry R; Aw2-11 SAM-DA97-11539A
...
29-1
Guide-Pantry; Aw2-Pjt,hips,cool White(sc- SAM-DA61-04290A
...
29-2
Roller-Pantry; Aw2-Pjt,pom,-,-,ntr,-,- SAM-DA66-00580A
...
29-3-1
Roller-Rail; Aw2-Pjt,pom,19.0,-,-,-,n109- SAM-DA66-00548A
...
29-3-2
Guide-Washer; Aw2-Pjt,sts304,0.5,12.0,-,- SAM-DA61-04008A
...
29-3
Aw2-Pjt,-,-,- SAM-DA97-05931A
...
29-4
Cover-Pantry Front; Aw2-Pjt,san,ntr SAM-DA63-04275B
...
29-5
Cover-Pantry Trim; Aw2-Pjt,hips,cool-Whit SAM-DA63-04276B
...
29-6
Case-Pantry; Aw2-11,hips,cool-White(sc-02 SAM-DA61-07602A
...
29
Assy Case-Pantry; Aw2-11 SAM-DA97-11540A
...
30
Cover Lamp-Led Side SAM-DA63-07276A
...
31-1
Shelf Insert; Aw2-Nd,pp,cool White SAM-DA67-02014B
...
31-2
Assy Hanger-Right; Aw2 14 SAM-DA97-14398A
...
31-3
Screw-Tapping SAM-6002-001397
...
31
Assy Shelf Insert-Ref Fix; Aw2-14 SAM-DA97-06391D
...
32
Assembly Case Lock SAM-DA97-14471A

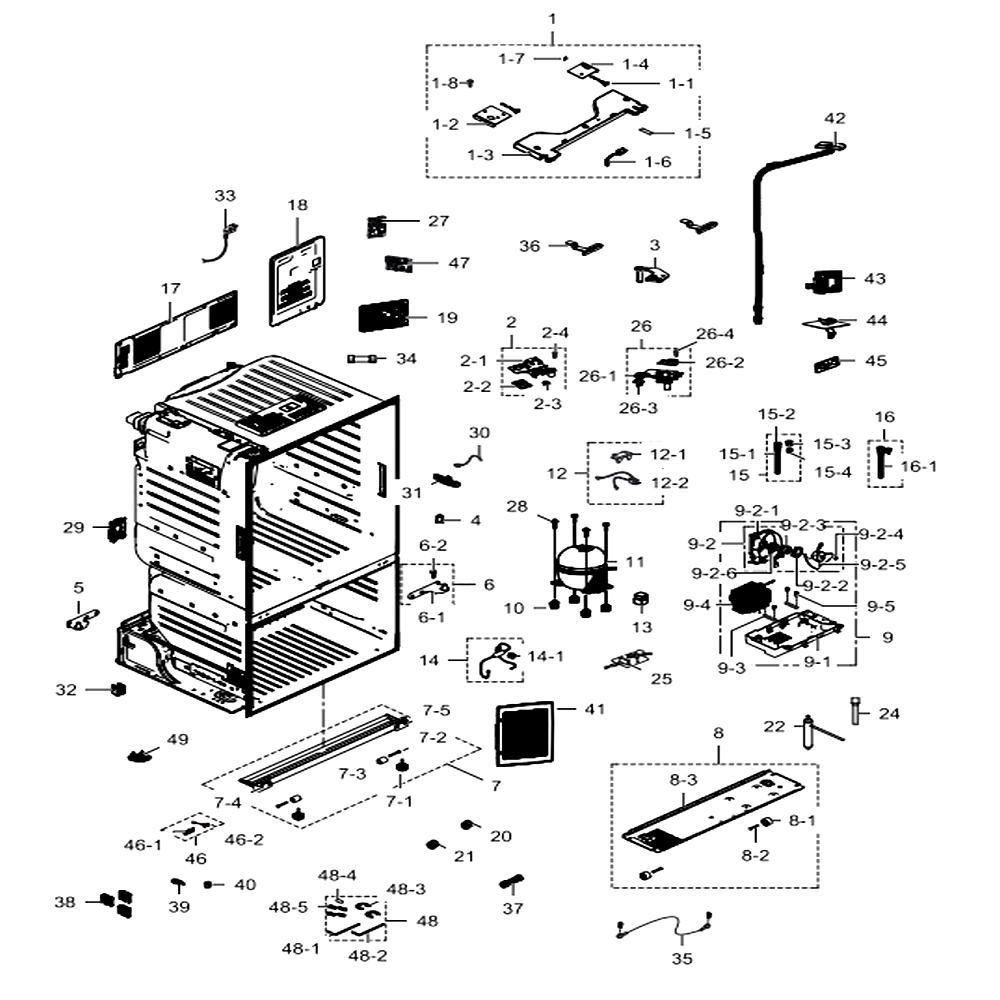

Cabinet

...
...
1-1
Switch Reed SAM-DA34-00043A
...
1-2
Plate-Cover Hinge SAM-DA61-08227A
...
1-3
Top Table; Fdsr,abs,inox Gray SAM-DA64-04743A
...
1-4
Plate-Cover Hinge R SAM-DA61-08884A
...
1-5
Assy Module; Sub Pba,fdsr,dc Voltage Down SAM-DA92-00650A
...
1-6
Assy Wire Harness-Top; Fdr,100~127vac,ul, SAM-DA96-00962C
...
1-7
Clip-Fitting Lock SAM-DA61-04522A
...
1-8
Screw-Tapping SAM-6002-000630
...
1
Assy Top Table; Fdsr,inox Gray SAM-DA97-14978A
...
2-1
Hinge-Upp L SAM-DA61-08309A
...
2-2
Shim-Hinge Upp SAM-DA63-50192A
...
2-3
Cam-Auto Close L SAM-DA66-00950A
...
2-4
Screw-Tapping SAM-6002-000215
...
2
Assembly Hinge Upp-L SAM-DA97-12573A
...
3
Hinge-Up SAM-DA61-09968A
...
4
Grommet Hinge-Mid SAM-DA63-06410A
...
5
Hinge-Mid L; Aw4,zn,t4.5,zndc 2 SAM-DA61-08318A
...
6-1
Hinge-Middle Right; Fdsr,zn,t6.0,131.5 * SAM-DA61-09967A
...
6-2
Bolt-Socket SAM-6011-001442
...
6
Assy Hinge-Middle Right; Fdsr,zndc, 131.5 SAM-DA97-14977A
...
7-1
Foot-Front SAM-DA61-00805F
...
7-2
Caster-Rivet SAM-DA61-01920A
...
7-3
Caster-Front SAM-DA61-04702A
...
7-4
Aw4-4d,pp,inox Gray SAM-DA63-06389E
...
7-5
Aw4-4d,pp,inox Gra SAM-DA63-06405D
...
7
Assy Cabi Bottom-Front; Aw4-4d F/s,inox G SAM-DA97-12556E
...
8-1
Caster-Rear SAM-DA61-04703A
...
8-2
Shaft-Caster SAM-DA66-00649A
...
8-3
Chassis-Comp; Aw4,gi-Sgcc,t1.4,- SAM-DA64-04152A
...
8
Assembly Chassis-Comp SAM-DA97-12557A
...
9-1
Tray-Drain Water; Aw4,pp,hb,gray,pp_S SAM-DA63-06897A
...
9-2-1
Support-Circuit Motor SAM-DA61-08427A
...
9-2-2
Bracket-Circuit Motor SAM-DA61-08428A
...
9-2-3
Motor Bldc-Circuit SAM-DA31-00305C
...
9-2-4
Spring Etc-Fan SAM-DA61-20128A
...
9-2-5
Fan SAM-DA31-00320A
...
9-2-6
Grommet-Motor SAM-DA63-07065A
...
9-2
Assembly Support-Circuit Motor SAM-DA97-12842A
...
9-3
Grommet-Sub Cond SAM-DA63-40128A
...
9-4
Assembly Pipe-Condenser SAM-DA97-08464F
...
9-5
Screw-Special SAM-6009-001252
...
9
Assy Tray Drain Water; Aw4-4d,c160 SAM-DA97-13784A
...
10
Grommet Comp SAM-DA63-02617A
...
11
Compressor SAM-MKV190CL2B/E01
...
12-1
Relay Protector O/l SAM-DA34-00004D
...
12-2
Assembly Wire Harness-Comp SAM-DA39-00154M
...
12
Assembly Comp-Sub SAM-DA97-10848N
...
13
Cover Relay SAM-DA63-01866A
...
14-1
Grommet-Suct Pipe B SAM-DA63-40171D
...
14
Assembly Pipe Connect SAM-DA97-08458G
...
15-1
Tube Pvc SAM-DA62-01266B
...
15-2
Fixer-Drain SAM-DA61-05021A
...
15-3
Cap-Drain SAM-DA67-01301A
...
15-4
Grommet-Drain SAM-DA63-02761A
...
15
Assembly Cap-Drain SAM-DA97-04049E
...
16-1
Tube Pvc SAM-DA62-01266E
...
16
Assembly Cap-Drain SAM-DA97-04049J
...
17
Assembly Cover Comp SAM-DA97-12749A
...
18
Assy Cover Pcb Panel; Aw3 SAM-DA97-08442A
...
19
Assy Pcb Main; Ice & Water,mono,fdsr,aw2-14 SAM-DA92-00593D
...
20
Fitting-Lokring 33 SAM-DA60-00280A
...
21
Fitting-Lokring 43 SAM-DA60-00281A
...
22
Dryer SAM-DA62-04309B
...
24
Pipe-Connect Disc,b SAM-DA73-10190U
...
25
Coil Filter-Emi SAM-DA27-00022B
...
26-1
Hinge-Up Right SAM-DA61-09970A
...
26-2
Shim-Hinge Upp SAM-DA63-50192A
...
26-3
Cam-Auto Close R SAM-DA66-00951A
...
26-4
Screw-Tapping SAM-6002-000215
...
26
Assembly Hinge-Up Right SAM-DA97-14976A
...
27
Assembly Module SAM-DA92-00486A
...
28
Bolt-Hex SAM-6011-001656
...
29
Assembly Cover-Tube Filter SAM-DA97-08413B
...
30
Sensor Temp SAM-DA32-00033C
...
31
Cover Sensor-Fre SAM-DA63-05470B
...
32
Cover-Fixer Housing Ref; Opus,hips,ntr SAM-DA63-06382B
...
33
Cbf-Power Cord SAM-3903-000786
...
34
Fuse-Axial Lead; 250v,6.3,time Lag,cerami SAM-3601-001729
...
35
Wire Harness-Earth SAM-DA39-20389L
...
36
Fixer Hinge-Upp SAM-DA61-04932A
...
37
Tube-Fitting SAM-DA62-03914A
...
38
Fixer-Hose SAM-DA61-03467B
...
39
Valve-Fitting Pu SAM-DA62-00305A
...
40
Valve-Fitting Nut SAM-DA74-00070B
...
41
Cover Unit; Aw3-14,abs,hb,inox Gray,hg-07 SAM-DA63-07680A
...
42
Assy Drain-Hose Ref; Aw4,- SAM-DA97-12583A
...
43
Assy Drain-Hose Ice Sub; Aw4 SAM-DA97-12881A
...
44
Assy Drain Hose-Fre; Aw2-14 SAM-DA97-14450A
...
45
Assy Cover-Fixer Water; Opus1,assy SAM-DA97-08494B
...
46-1
Cover Reed Switch SAM-DA63-07513A
...
46-2
Switch Reed SAM-DA34-00043J
...
46
Assembly Cover Switch SAM-DA97-13783A
...
47
Assembly Pcb Inverter SAM-DA92-00483B
...
48-1
Wrench-Spanner SAM-DA80-00002F
...
48-2
Wrench-Spanner SAM-DA80-00026B
...
48-3
Fastener-Ring Insert; Aw,sk-5h,23,t1.0, SAM-DA60-00143B
...
48-4
Cap-Wrench SAM-DA67-03197A
...
48-5
Fixer-Handle SAM-DA61-03734A
...
48
Assembly Install-Accessory SAM-DA99-03490P
...
49
Cover-Urethane SAM-DA63-03809A

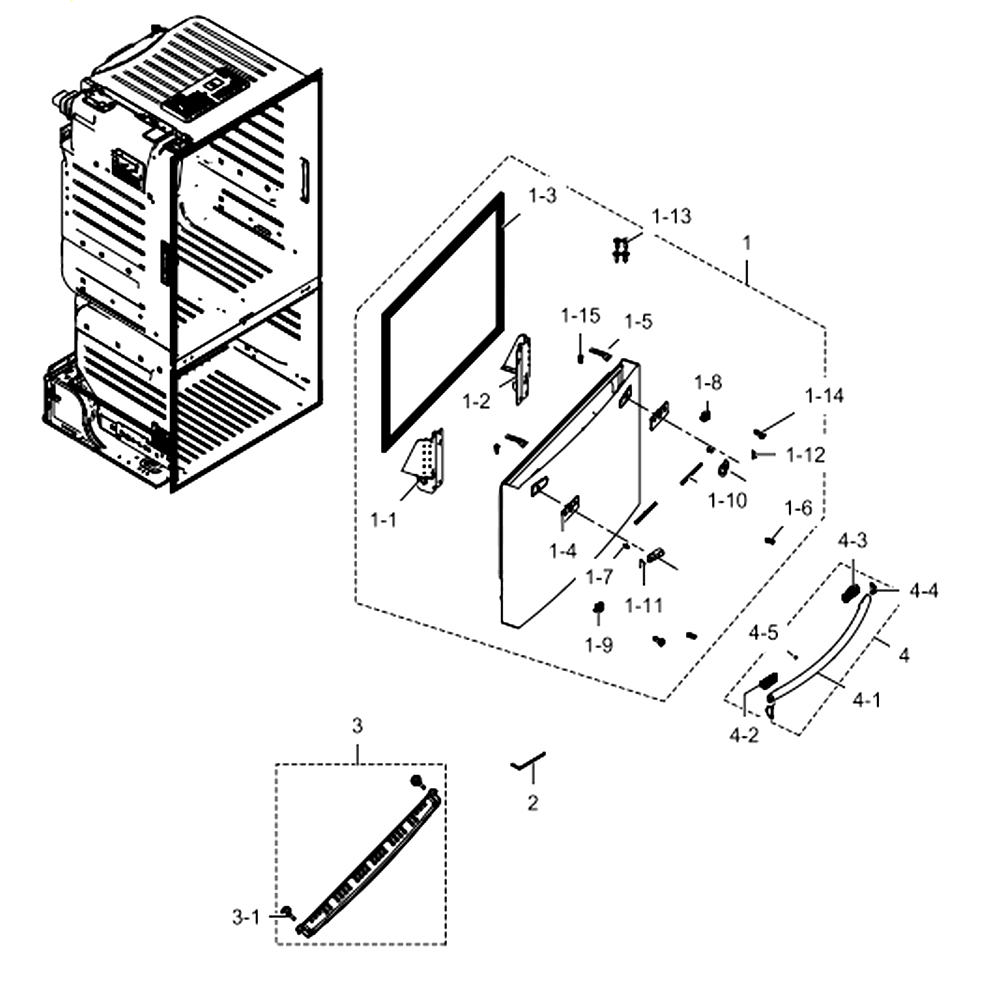

Freeze Door

...
...
1-1
Hanger-Rail Front L; Aw-Pjt,secc1,t2.0,co SAM-DA61-03153B
...
1-2
Hanger-Rail Front R; Aw-Pjt,secc1,t2.0,co SAM-DA61-03155B
...
1-3
Assy-Gasket Door Fre; Aw4,gray(sc-97478) SAM-DA97-12522J
...
1-4
Reinf-Cap Handle SAM-DA61-06658A
...
1-5
Slider-Easy Handle; Aw4,pom,creamy-Sts,f2 SAM-DA61-08234A
...
1-6
Fixer-Handle SAM-DA61-03734A
...
1-7
Spring Etc-Easy Handle SAM-DA61-04335A
...
1-8
Fixer-Shaft R SAM-DA61-05899A
...
1-9
Fixer-Shaft L SAM-DA61-05930A
...
1-10
Shaft-Cap Handle SAM-DA66-00579A
...
1-11
Cap Handle-Fre L; Aw1-12,aw4,abs+pc,hb,hr SAM-DA67-03330A
...
1-12
Cap Handle-Fre R; Aw1-12,aw4,abs+pc,hb,hr SAM-DA67-03331A
...
1-13
Screw-Tapping SAM-6002-000217
...
1-14
Screw-Tapping SAM-6002-000613
...
1-15
Screw-Tapping SAM-6002-000215
...
1
Assy Door-Fre; Aw2-14,rs Plate SAM-DA97-14300A
...
2
Wrench-Spanner SAM-DA80-00026B
...
3-1
Grommet-Cover Slide; Et05-Pjt,si,white SAM-DA63-02750A
...
3
Assy Guard Fre; Aw2 Cd,hips,t2.3,cool Whi SAM-DA97-12963A
...
4-1
Handle Bar-Fre; Aw1-12,aw4,al,t1.3,versai SAM-DA64-03945F
...
4-2
Support-Handle Fre SAM-DA61-08229A
...
4-3
Support-Handle Fre R SAM-DA61-08247A
...
4-4
Cap-Handle Fre SAM-DA67-02787A
...
4-5
Screw-Set SAM-6009-001526
...
4
Assy Handle Bar-Fre; Aw4,al(a6063),versai SAM-DA97-12712C

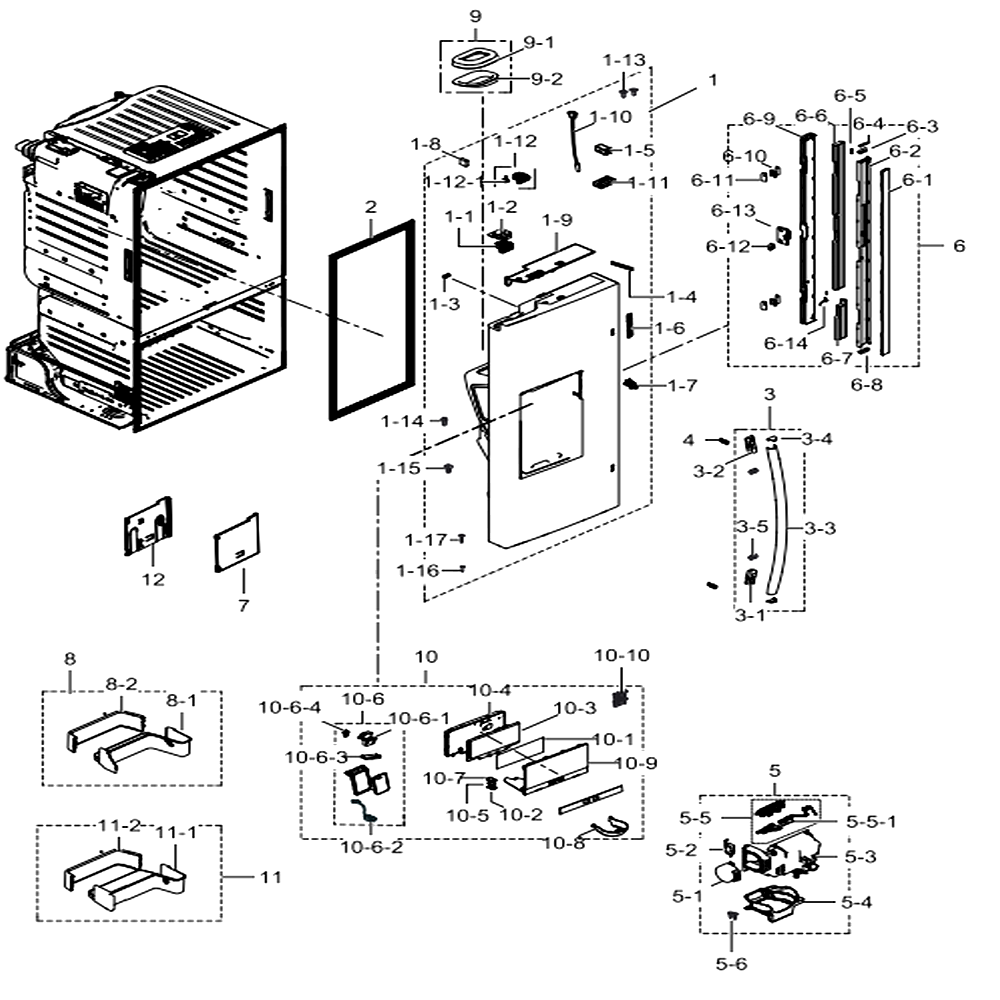

Fridge Door Left

...
...
1-1
Support Door-Close; Aw-Pjt,pk,m33r3a000,c SAM-DA61-02383E
...
1-2
Stopper-Door L SAM-DA61-08210A
...
1-3
Magnet-A SAM-DA61-03769A
...
1-4
Assembly Lamp Led SAM-DA41-00676G
...
1-5
Plate-Door Switch SAM-DA61-05274A
...
1-6
Cover-Cap Door Led SAM-DA63-05524A
...
1-7
Switch Door-Interlock SAM-DA34-00066C
...
1-8
Grommet-Stopper SAM-DA63-40294A
...
1-9
Cover-Cap Door Ref Upp L; Aw4,abs,creamy SAM-DA63-06916A
...
1-10
Sensor Humidity SAM-DA32-00034B
...
1-11
Grommet-Chassis Up SAM-DA63-04825A
...
1-12-1
Roller-Auto Close SAM-DA66-00440A
...
1-12
Assembly Lever-Auto Close SAM-DA97-12625A
...
1-13
Screw-Tapping SAM-6002-001122
...
1-14
Screw-Tapping SAM-6002-000466
...
1-15
Screw-Tapping SAM-6002-000613
...
1-16
Screw-Tapping SAM-6002-001120
...
1-17
Screw-Machine SAM-6001-001377
...
1
Assy Door Foam-Ref Left; Aw2-14,real Sts SAM-DA91-04147D
...
2
Assy Gasket-Ref; Aw2-Cd-14,aw2-Cd-14, Gra SAM-DA97-13015E
...
3-1
Support-Handle Ref SAM-DA61-08228A
...
3-2
Support-Handle Ref Upp SAM-DA61-08246A
...
3-3
Handle Bar-Ref L; Aw1-12 & Aw4,al,t1.3,ve SAM-DA64-03756K
...
3-4
Cap-Supt Handle Ref SAM-DA67-02788A
...
3-5
Screw-Set SAM-6009-001526
...
3
Assy Handle Bar-Ref L; Aw4,al(a6063),vers SAM-DA97-12715C
...
4
Fixer-Handle SAM-DA61-03734A
...
5-1
Motor Geared-Disp SAM-DA31-00079D
...
5-2
Switch-Micro SAM-DA34-00011A
...
5-3
Case Ice Route; Aw4-4d,abs,i Black,hg-076 SAM-DA61-09432A
...
5-4
Guide Ice; Aw4-4d,hips,s834s1,natural,gui SAM-DA61-09433A
...
5-5-1
Cover-Ice Route A; Aw-Pjt,pc+abs(hi-1001b SAM-DA63-03770A
...
5-5
Assembly Cover-Ice Route SAM-DA97-05368A
...
5-6
Screw-Tapping SAM-6002-001364
...
5
Assembly Guide Ice Route SAM-DA97-13829C
...
6-1
Plate-French; Aw4,egi-Secc,t0.6,thai Silv SAM-DA61-08271A
...
6-2
Case-French Front; Aw4,abs,cool White(sc- SAM-DA61-08273A
...
6-3
Cap-Guide French Upp SAM-DA67-03358A
...
6-4
Gasket-French Upp; Aw4,si,gray SAM-DA63-06959A
...
6-5
Spring Etc-Etc Cap Guide; Aw4,sts304,3.0, SAM-DA61-08315A
...
6-6
Insulation-French; Aw4,ps Foam,natural,sf SAM-DA62-03660A
...
6-7
Insulation-Low; Aw4,ps Foam,natural,sg-40 SAM-DA62-03666A
...
6-8
Gasket-French Low; Aw-Pjt,si,gray SAM-DA63-06842B
...
6-9
Case-French; Aw4,abs,cool White(sc-02740r SAM-DA61-08272A
...
6-10
Hinge-French SAM-DA61-08305A
...
6-11
Cap-Case French SAM-DA67-01650A
...
6-12
Cap-Case French Mid SAM-DA67-01701A
...
6-13
Cover-Heater French SAM-DA63-03454B
...
6-14
Aw4,sts304,1.4,5.2,8.0 SAM-DA61-08314A
...
6
Assy-French; Aw4,thai-Silver SAM-DA97-12624A
...
7
Cap Reinf SAM-DA67-03917B
...
8-1
Guard-Ref Middle; Aw2-Cd14,hips,cool Whit SAM-DA63-07677A
...
8-2
Cover Guard-Middle Low; Aw2cd-14,gpps,hb, SAM-DA63-07682B
...
8
Assy Guard-Ref Middle; Aw2-14,caribean Bl SAM-DA97-14301C
...
9-1
Gasket-Cap Chute Ice SAM-DA63-06945A
...
9-2
Cap-Chute Ice SAM-DA67-03312A
...
9
Assembly Cap-Chute Ice SAM-DA97-12594A
...
10-1
Inlay-Film SAM-DA64-04669A
...
10-2
Case Lamp-Led SAM-DA61-05687A
...
10-3
Assembly Module SAM-DA92-00596A
...
10-4
Cover Pcb-Panel Rear SAM-DA63-06377A
...
10-5
Assembly Pcb Kit SAM-DA41-00217A
...
10-6-1
Switch Micro SAM-DA34-00011B
...
10-6-2
Assy-W/harness Disp SAM-DA96-00106G
...
10-6-3
Cover-Switch SAM-DA63-05449A
...
10-6-4
Screw-Tapping SAM-6002-000630
...
10-6
Assembly Lever Dispenser SAM-DA97-12628H
...
10-7
Cover-Lamp-Led SAM-DA63-02446A
...
10-8
Cover Ice SAM-DA63-07637A
...
10-9
Assy Cover Dispenser-Sub; Aw3-14, Aw2-14, SAM-DA97-13808F
...
10-10
Screw-Tapping SAM-6002-000630
...
10
Assy Cover Dispenser; Aw3-14/aw2-14(mono) SAM-DA97-13809F
...
11-1
Guard-Ref Low; Aw2-Cd14,hips,cool White SAM-DA63-07678A
...
11-2
Cover Guard-Middle Low; Aw2cd-14,gpps,hb, SAM-DA63-07682B
...
11
Assy Guard-Ref Low; Aw2-14,caribean Blue SAM-DA97-14302C
...
12
Cap Reinf SAM-DA67-03916B

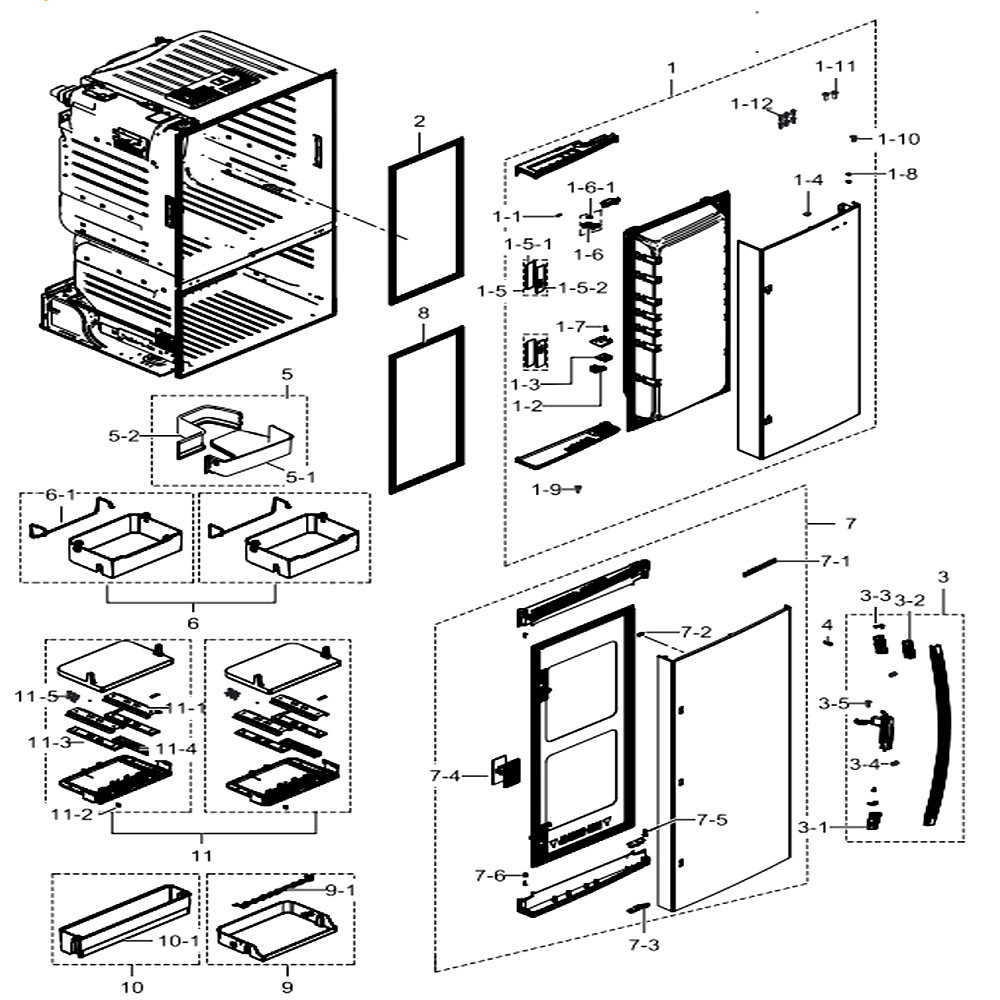

Fridge Door Right

...
...
1-1
Magnet SAM-DA61-03769B
...
1-2
Support Door-Middle; Fdsr,pom,so301,cream SAM-DA61-09950A
...
1-3
Hinge-Low SAM-DA61-09969A
...
1-4
Grommet-Stopper SAM-DA63-40294A
...
1-5-1
Cover Lamp-Side Left; Rfh920g,abs,hb,natu SAM-DA63-07813A
...
1-5-2
Assy Lamp Led; 12ea,fr-4,44.5*7,white,dem SAM-DA96-01060B
...
1-5
Assy Case Lamp-Ref Left; Fdsr SAM-DA97-14543B
...
1-6-1
Roller-Auto Close SAM-DA66-00440A
...
1-6
Assembly Lever Auto Close SAM-DA97-14992A
...
1-7
Grommet Hinge-Middle SAM-DA63-07545B
...
1-8
Grommet-A; Mouton12,si,cool White,name Ta SAM-DA63-07538A
...
1-9
Screw-Tapping; Th,+,-,2,m4,l14,zpc(wht),s SAM-6002-000521
...
1-10
Screw-Tapping SAM-6002-000613
...
1-11
Screw-Tapping SAM-6002-000623
...
1-12
Screw-Tapping SAM-6002-000239
...
1
Assy Door Foam-Ref Right; Fdsr-3d, Rs Pla SAM-DA91-04171C
...
2
Assy Gasket-Ref; Aw2-Cd-14,aw2-Cd-14, Gra SAM-DA97-13015E
...
3-1
Support-Handle Ref SAM-DA61-08228A
...
3-2
Support-Handle Ref Upp SAM-DA61-08246A
...
3-3
Cap-Supt Handle Ref SAM-DA67-02788A
...
3-4
Screw-Set SAM-6009-001526
...
3-5
Screw-Tapping SAM-6002-000630
...
3
Assy Handle-Ref; Fdsr,assy SAM-DA97-15014A
...
4
Fixer-Handle SAM-DA61-03734A
...
5-1
Guard-Dispenser; Aw4-4d(c/d),hips,cool Wh SAM-DA63-07509A
...
5-2
Cover Guard-Ref Up; Aw2cd-14,gpps,hb,cari SAM-DA63-07528B
...
5
Assembly Guard-Ref Up SAM-DA97-13804C
...
6-1
Support Wire-Low SAM-DA61-09948A
...
6
Assembly Guard-Ref Low Right SAM-DA97-14996A
...
7-1
Mascot SAM-DA64-04021C
...
7-2
Magnet-A SAM-DA61-03769A
...
7-3
Stopper Door-Ref Low SAM-DA61-09951A
...
7-4
Guide-Ref; Fdsr,abs,hb,cntk-A204,gray,scr SAM-DA61-09964A
...
7-5
Rubber-Cap Hose SAM-DA73-00211A
...
7-6
Grommet Hinge-Middle SAM-DA63-07545B
...
7
Assy Door Foam-Ref Right; Fdsr-3d, Rs Pla SAM-DA91-04198A
...
8
Assy Gasket-Ref; Fdsr,3 Door(out Door) SAM-DA97-13915D
...
9-1
Support Wire-Up SAM-DA61-09976A
...
9
Assembly Guard Dairy SAM-DA97-14644A
...
10-1
Guard-Ref Sub; Fdsr,gpps,caribean Blue SAM-DA63-07918A
...
10
Assy Guard Bottle; Fdsr,assy Guard SAM-DA97-14645A
...
11-1
Rail-Middle Right SAM-DA61-09232A
...
11-2
Grommet-Low SAM-DA63-07559A
...
11-3
Assembly Rail-Middle SAM-DA97-13887A
...
11-4
Assembly Rail-Up SAM-DA97-13895A
...
11-5
Screw-Tapping SAM-6002-001122
...
11
Assy Tray-Low; Fdsr,slide Guard Tray SAM-DA97-14997A
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
