Samsung RF26J7500SR/AA_0003

Model: RF26J7500SR/AA_0003

Save Part Not Listed?
product name

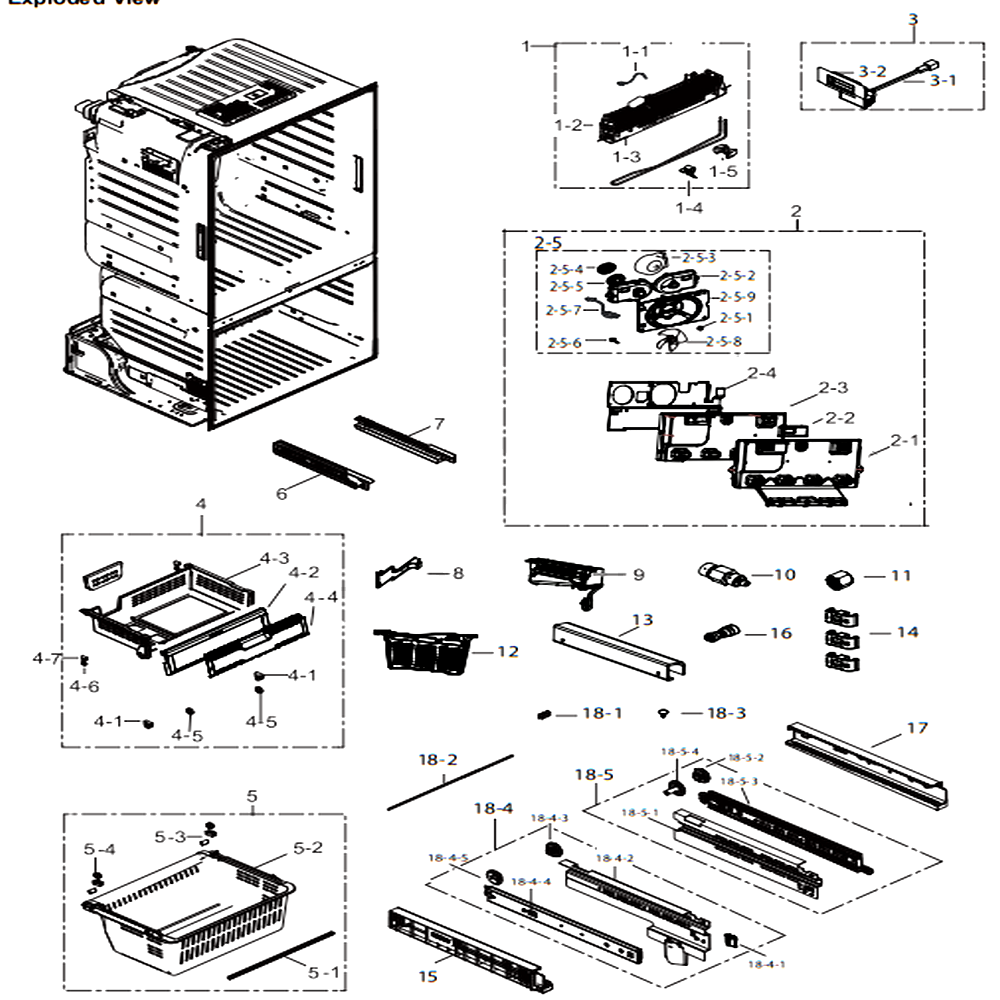

Freezer

...
...
1-1
Sensor Temp SAM-DA32-10104N
...
1-2
Thermo Bimetal-Protector SAM-DA47-00243B
...
1-3
Ac120v,opus1 Fre, 62 SAM-DA47-00318E
...
1-4
Fixer-Heater Fre SAM-DA61-05845A
...
1-5
Fixer-Sensor Fre SAM-DA61-06182A
...
1
Opus1-Pjt,fin,120v/230w SAM-DA96-00843A
...
2-1
Opus1,pp,hb,natural,bj750 SAM-DA63-06359A
...
2-2
Opus1,ps Foam,ntr,mo SAM-DA62-03140A
...
2-3
Opus1,ps Foam, SAM-DA62-03141A
...
2-4
Opus1-14,gl-Sazcc,t0.3 SAM-DA61-07343B
...
2-5-1
Spring Etc-Fan SAM-DA61-20128A
...
2-5-2
Cover Motor-Bldc SAM-DA63-04651B
...
2-5-3
Motor Bldc SAM-DA31-00146H
...
2-5-4
Grommet-Motor,rear SAM-DA63-01146A
...
2-5-5
Grommet Motor SAM-DA63-01808A
...
2-5-6
Grommet-Cover Chill SAM-DA63-40167A
...
2-5-7
Assembly Wire Harness-Motor SAM-DA96-00042D
...
2-5-8
-,aw-Pjt,abs,-,da31-001 SAM-DA31-00230A
...
2-5-9
Opus1-14,hips,natural,s83 SAM-DA61-07344B
...
2-5
Opus1-14,natural SAM-DA96-00959E
...
2
Opus1 SAM-DA97-11321C
...
3-1
Switch Reed SAM-DA34-00043J
...
3-2
Cover Reed Switch SAM-DA63-07513A
...
3
Assembly Cover Switch SAM-DA97-13783A
...
4-1
Aw-Pjt,pa66,na SAM-DA61-04813A
...
4-2
Opus1-14,hips,hb,co SAM-DA63-06262A
...
4-3
Opus1,hips,hb,cool White SAM-DA63-06263A
...
4-4
Opus1,gpps,hb,tp Bl SAM-DA63-06264A
...
4-5
Aw-Pjt(samsung),pom, SAM-DA66-00639A
...
4-6
Aw-Sem,pom,500p,natural,da66- SAM-DA61-04804A
...
4-7
Aw1-12,pa66,natural,v2,101f SAM-DA61-04805B
...
4
Opus1,assy SAM-DA97-11319A
...
5-1
Opus1,po-Sphc,t1.6 SAM-DA61-07224A
...
5-2
Opus1-14,pp,hb,cool Whit SAM-DA63-06257B
...
5-3
Aw1-12,pa66,natural,v2,101f SAM-DA61-04805B
...
5-4
Aw-Sem,pom,500p,natural,da66- SAM-DA61-04804A
...
5
Opus1-14 SAM-DA97-11320B
...
6
Opus1,hips,natural,s-834s SAM-DA61-07328A
...
7
Opus1,hips,natural,s834s1 SAM-DA61-07329A
...
8
Cover-Wire Harness Ice SAM-DA63-06894A
...
9
Assembly Ice Maker SAM-DA97-15217A
...
10
Valve-Fitting Pu SAM-DA62-00305A
...
11
Valve-Fitting Nut SAM-DA74-00070B
...
12
Opus1-14,pp,hb,bj750,cool Whit SAM-DA61-07219B
...
13
Opus1-14,hips,hb,s834s1,cool W SAM-DA61-09796A
...
14
Fixer-Hose SAM-DA61-04712C
...
15
Aw-Pjt,abs,cool White,h SAM-DA63-04604A
...
16
Tube-Fitting SAM-DA62-03914A
...
17
Aw-Pjt,abs,cool White,h SAM-DA63-04605A
...
18-1
Magnet SAM-DA61-03769B
...
18-2
Opus1,sm25c,black,electro-Dep SAM-DA66-00834A
...
18-3
Aw-Pjt,abs,hg-0760gp,i Bl SAM-DA67-02138A
...
18-4-1
Switch Pressure SAM-DA34-00047B
...
18-4-2
Hanger-Rail Low L; Opus1-14,secc1,cool Wh SAM-DA61-04437A
...
18-4-3
Aw-Pjt,pom,-,natural,da61-031 SAM-DA61-04801A
...
18-4-4
Aw2-Pjt,cr-Scp1,w53.5,l SAM-DA61-09087A
...
18-4-5
Aw-Pjt,pom,ntr SAM-DA66-00771A
...
18-4
Assy Rail-Slide Low L; Aw2-Pjt,scp1 SAM-DA97-13661A
...
18-5-1
Hanger-Rail Low R; Aw-Pjt,secc1,t1.6,cool SAM-DA61-04439A
...
18-5-2
Aw-Pjt,pom,-,natural,da61-031 SAM-DA61-04801A
...
18-5-3
Aw2-Pjt,cr-Scp1,w53.5,l SAM-DA61-09088A
...
18-5-4
Aw-Pjt,pom,ntr SAM-DA66-00767A
...
18-5
Assy Rail-Slide Low R; Aw2-Pjt,scp1 SAM-DA97-13662A
...
18
Opus1-14,ass'y SAM-DA97-14384A

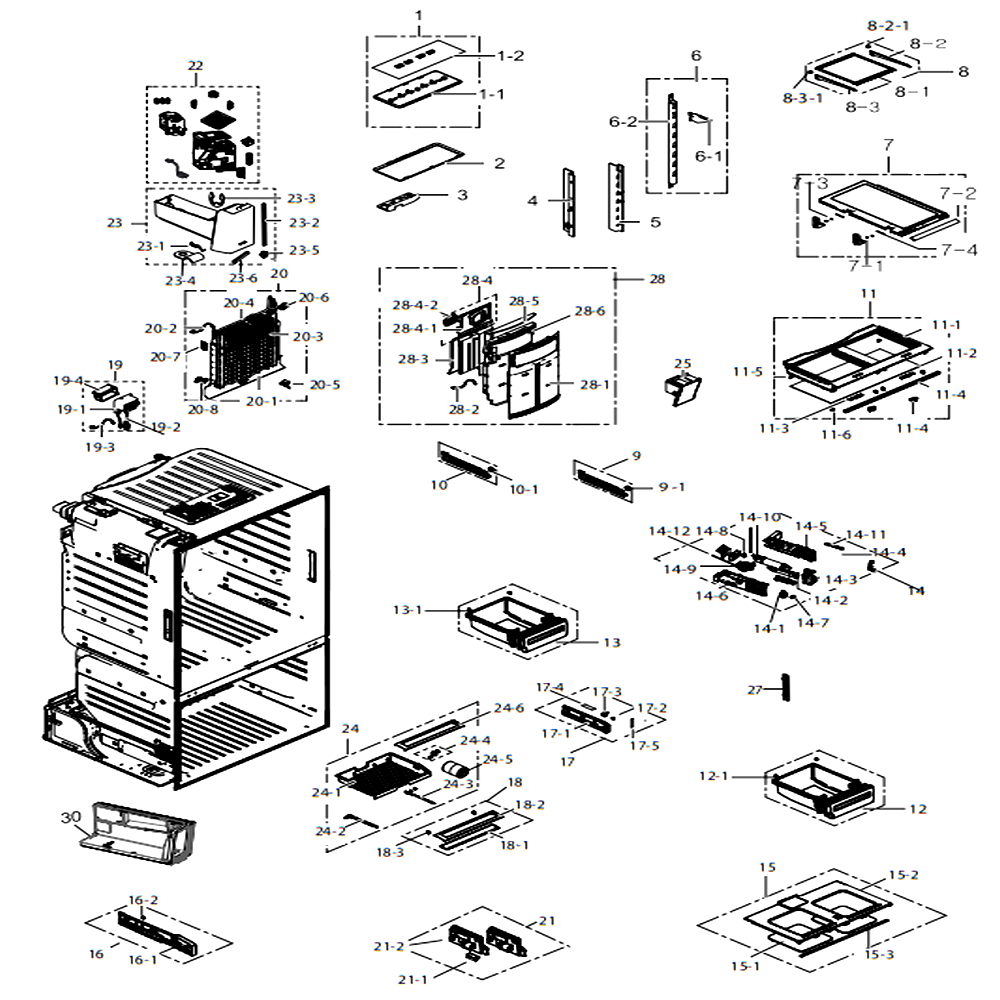

Fridge

...
...
1-1
Case Lamp-Ref SAM-DA61-08236A
...
1-2
Assy Lamp Led; 5,cem-1,240*10,white,smaw2 SAM-DA41-00676K
...
1
Assembly Case Lamp-Ref SAM-DA97-12606A
...
2
Aw4,gpps,tp Blue,147f SAM-DA63-06921A
...
3
Guide-French SAM-DA61-04285A
...
4
Angle-Shelf Ref Side L SAM-DA61-05898A
...
5
Angle-Shelf Ref Side R SAM-DA61-05897A
...
6-1
Opus1-14,egi-Secc,cool Wh SAM-DA61-05895A
...
6-2
Angle-Shelf Ref Mid; Gi-Sgcc,t2.5,cool Wh SAM-DA61-08264A
...
6
Assy Angle-Shelf Ref Mid; Aw4,2.5,447.5,c SAM-DA97-12633A
...
7-1
Spring Etc-Hinge Shelf SAM-DA61-03705A
...
7-2
Opus1-14,stainless-S SAM-DA64-03040N
...
7-3
Roller-Hinge-Shelf SAM-DA66-00482A
...
7-4
Shaft-Hinge-Shelf SAM-DA66-00483A
...
7
Opus1-14 SAM-DA97-14317A
...
8-1
Opus1-14,pp,cool White SAM-DA67-03018A
...
8-2-1
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09549A
...
8-2
Assembly Hanger-Right SAM-DA97-14322A
...
8-3-1
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09550A
...
8-3
Assembly Hanger-Left SAM-DA97-14323B
...
8
Opus1-14,- SAM-DA97-11267B
...
9-1
Assy Roller; Rf9000jc,24 SAM-DA97-15997A
...
9
Assembly Rail Veg-R SAM-DA97-11291A
...
10-1
Assy Roller; Rf9000jc,24 SAM-DA97-15997A
...
10
Assembly Rail Veg-L SAM-DA97-11292A
...
11-1
Opus1-14,hips,hb,cool Whit SAM-DA63-06333A
...
11-2
711.0*338.0,t3.2,temperd SAM-DA01-00662A
...
11-3
Lever-Humidity SAM-DA66-00718A
...
11-4
Opus1-14,shp1,t1.6,black SAM-DA61-07315A
...
11-5
Aw-Pjt,hips,cool White,d SAM-DA61-04809A
...
11-6
Assy Roller; Rf9000jc,24 SAM-DA97-15997A
...
11-7
Opus1-Pjt,abs,cool White(s SAM-DA64-03209B
...
11
Opus1,cool White,assy SAM-DA97-11287A
...
12-1
Assembly Roller SAM-DA97-15998A
...
12
Opus1-14,assy SAM-DA97-11323B
...
13-1
Assembly Roller SAM-DA97-15998A
...
13
Opus1-14,assy SAM-DA97-11322B
...
14-1
Cover-Filter Tank SAM-DA63-05406B
...
14-2
Filter Water; Sseda SAM-DA29-00019A
...
14-4
Cap-Filter Tank SAM-DA67-02505B
...
14-5
Case-Filter Tank L; Aw2-11,hips,cool Whit SAM-DA61-07496A
...
14-6
Case-Filter Tank R; Aw2-11,hips,w433.9,l1 SAM-DA61-07497A
...
14-8
Tube-Fitting L SAM-DA62-03103A
...
14-9
Valve Water SAM-DA62-04027A
...
14-10
Assy Tank Water-Ref; Opus1-14,pp SAM-DA97-11283J
...
14-11
Cover-Led Filter SAM-DA63-05408B
...
14-12
Lldpe,white,i.d4.2, O.d6 SAM-DA62-01368A
...
14
Opus-3d,110v 60hz SAM-DA97-15340A
...
15-1
Window-Shelf Pantry SAM-DA64-02740A
...
15-2
Rf7500j,hips,cool White SAM-DA67-03979A
...
15-3
Rf7500j,cr-Spcc,t1.2,-,l691 SAM-DA61-10382A
...
15
Rf7500j,assy SAM-DA97-15406A
...
16-1
Cover Rail-Middle Left SAM-DA63-06521B
...
16-2
Assy Roller; Latour,assy Pi 18 SAM-DA97-14447C
...
16
Assy Cover Rail Pantry-Left; Aw2-11 SAM-DA97-11541B
...
17-1
Cover Rail-Middle Right; Aw2-14,hips,hb,c SAM-DA63-06520B
...
17-2
Support-Roller Pantry; Aw-Pjt,pvc,blk SAM-DA61-03176A
...
17-3
Assy Roller; Latour,assy Pi 18 SAM-DA97-14447C
...
17-4
Assy Module; Pantry Display,aw2-14,96*14. SAM-DA92-00600A
...
17-5
Inlay-Control; Aw2-14,pc,ice Blue,t0.3 SAM-DA64-02578D
...
17
Assy Cover Rail Pantry-Right; Aw2-11 SAM-DA97-11542F
...
18-1
Rf7500j,abs,t2.5,hb,cool W SAM-DA63-08023A
...
18-2
Rf7500j,gpps,t3.0,hb,tp Bl SAM-DA63-08024A
...
18-3
Aw-Sem,pom,500p,natural,da66- SAM-DA61-04804A
...
18
Rf7500j,assy SAM-DA97-15407A
...
19-1
Cover-Motor Dc Damper SAM-DA63-04655A
...
19-2
Nsby001tk1/du25-076,dc12 SAM-DA31-00071G
...
19-3
Dkst1329gw,px-41c, 502at,aw- SAM-DA32-00006R
...
19-4
Insulation-Motor Dc Damper SAM-DA62-02057A
...
19
Aw-Sem,without H SAM-DA97-07189E
...
20-1
Aw3-Pjt,al,t0.3 SAM-DA61-06186B
...
20-2
Sensor Temp SAM-DA32-10104N
...
20-3
Fin Tube,aw3 SAM-DA59-00399A
...
20-4
Ac120v,aw2 Ref, 144o SAM-DA47-00244U
...
20-5
Plate-Evap Heater SAM-DA61-03644A
...
20-6
Aw-Pjt,pp,-,-,-,-,black,-,- SAM-DA61-04800B
...
20-7
Fixer-Fuse SAM-DA61-05160A
...
20-8
Fixer-Heater Ref SAM-DA61-05835B
...
20
Rf7500j,120v/100w SAM-DA96-00660G
...
21-1
Magnet SAM-DA61-09659A
...
21-2
Assembly Lamp Led SAM-DA41-00519Q
...
21
Assembly Case Lock SAM-DA97-14471A
...
22
Assy Case Auger Motor; Aw4-4d,115v 60hz SAM-DA97-12540G
...
23-1
Spring Etc-Dispenser SAM-DA61-20124D
...
23-2
Gasket-Tray Ice Bucket SAM-DA63-07185A
...
23-3
Fastener-Ring SAM-DA60-00231A
...
23-4
Aw-Pjt,sts304,t0.8 SAM-DA61-03723B
...
23-5
Nut-Hex SAM-DA60-30108A
...
23-6
Magnet SAM-DA61-09659A
...
23
Assy Tray Ice SAM-DA97-12604D
...
24-1
Rf7500j,hips,cool White,s834 SAM-DA61-10374A
...
24-2
Rail-Pantry R; Opus1-14,egi-Secc,cool Whi SAM-DA61-07601A
...
24-3
Rail-Pantry L; Opus1-14,egi-Secc,cool Whi SAM-DA61-07607A
...
24-4
Assy Roller; Latour,assy Pi 18 SAM-DA97-14447C
...
24-5
Aw-Pjt,pom,-,-,natural,-,d SAM-DA66-00637A
...
24-6
Rf7500j,gpps,hb,tp Bl SAM-DA63-08022A
...
24
Rf7500j,assy SAM-DA97-15405A
...
25
Assy Cap-Angle; Aw4,pp,cool White SAM-DA97-12654A
...
26-1
Assy Case-Ice Room SAM-DA97-13405A
...
26
Aw1-12,assy SAM-DA97-13395A
...
27
Cover Lamp-Led Side SAM-DA63-07276A
...
28-1
Cover Evap-Ref; Aw4,pp,hb,cool White,bj75 SAM-DA63-06863A
...
28-2
Sensor Temp; Dkst1329gw,queen,-50 ~ 80 SAM-DA32-00011C
...
28-3
Insulation Cover Evap-Ref Rear; Aw4,ps Fo SAM-DA62-03634A
...
28-4-1
Aw4,abs,light Gray,cntk-A SAM-DA61-08187A
...
28-4-2
Motor Bldc Fan SAM-DA31-00287A
...
28-4
Aw4,assy SAM-DA97-12815C
...
28-5
Insulation Cover Evap-Ref; Aw4,ps Foam,na SAM-DA62-03638A
...
28
Assy Cover Evap-Ref SAM-DA97-12608B

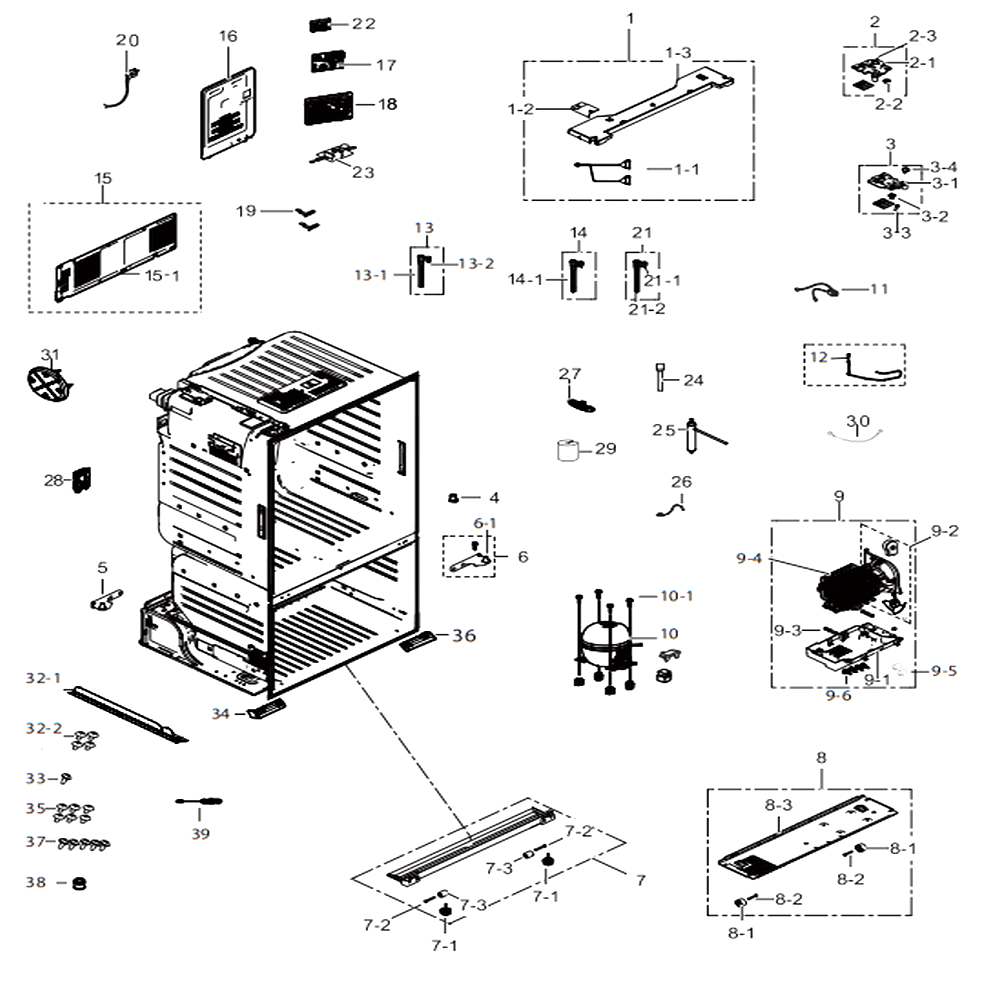

Cabinet

...
...
1-1
Switch Reed; Ul1007 Awg 22,280(680),25045 SAM-DA34-00043K
...
1-2
Plate-Cover Hinge SAM-DA61-08227A
...
1-3
Opus1-14,abs,inox Gray SAM-DA64-04629A
...
1
Opus1-14,inox Gray SAM-DA97-14475A
...
2-1
Hinge-Upp L SAM-DA61-08309A
...
2-2
Cam-Auto Close L SAM-DA66-00950A
...
2-3
Shim-Hinge Upp SAM-DA63-50192A
...
2
Assembly Hinge Upp-L SAM-DA97-12573A
...
3-1
Hinge-Upp R; Aw4,po-Sphc,t2.9,eletrodepos SAM-DA61-08310A
...
3-2
Cam-Auto Close R SAM-DA66-00951A
...
3-3
Shim-Hinge Upp SAM-DA63-50192A
...
3
Assy Hinge Upp-R; Aw4,t3.0,black SAM-DA97-12574A
...
4
Grommet Hinge-Mid SAM-DA63-06410A
...
5
Aw,al,t5.0,aldc 6,t5.0 SAM-DA61-07771A
...
6-1
Shaft Hinge-Middle SAM-DA66-00688A
...
6
Aw3,ni Cr Flatng,aldc SAM-DA97-12659A
...
7-1
Foot-Front SAM-DA61-04721D
...
7-2
Caster-Rivet SAM-DA61-01920A
...
7-3
Caster-Front SAM-DA61-04702A
...
7
Opus-14,inox Gray SAM-DA97-11395D
...
8-1
Caster-Rear SAM-DA61-04703A
...
8-2
Shaft-Caster SAM-DA66-00649B
...
8-3
Opus1,sbhg1,t1.2,w819.6,l21 SAM-DA64-03887A
...
8
Opus1 SAM-DA97-11314A
...
9-1
Opus1,pp,hb,black,pp Sc SAM-DA63-06379B
...
9-2
Assy Support-Circuit Motor; Rh9000k SAM-DA97-15765C
...
9-3
Grommet-Sub Cond SAM-DA63-40128A
...
9-4
Opus1 SAM-DA97-11491A
...
9-5
Grommet-Suct Pipe A SAM-DA63-40171B
...
9-6
Screw-Special SAM-6009-001252
...
9
Opus1 14,c160 SAM-DA97-11316C
...
10-1
Screw-Hex SAM-DA60-10123E
...
10
Compressor SAM-NC1MV90ALP/SM1
...
11
Assembly Wire Harness-Comp SAM-DA39-00154M
...
12
Pipe-Connect Suction SAM-DA62-03601B
...
13-1
Tube Pvc SAM-DA62-01266E
...
13-3
Grommet-Drain Hose; V2-Pjt,nbr,black SAM-DA63-00951C
...
13
Opus,grommet Drain Hose W SAM-DA97-04049R
...
14-1
Tube Pvc SAM-DA62-01266E
...
14
Ibaci,l197.7 SAM-DA97-04049P
...
15-1
Rf7500j,gi-Sgcc,0.25,-,-,-,he SAM-DA63-08098A
...
15
Rf7500j,hemming SAM-DA97-15661A
...
16
Assy Cover Pcb Panel; Aw3 SAM-DA97-08442A
...
17
Assy Pcb Inverter; Inverter,aw3-14,163*98 SAM-DA92-00483N
...
18
K1 Comp, 3door,rf7500j(opu SAM-DA92-00384R
...
19
Fixer Hinge-Upp SAM-DA61-04932A
...
20
At,u.s.a,canada,us3f-1,3c,125v,15a,blac K,1500,20/100/100/150,spt-3 Awg18 105c,ul/ Csa,y,n,n,n,y SAM-3903-000796
...
21-1
Tube Pvc SAM-DA62-01266B
...
21-2
Grommet-Drain SAM-DA63-02761A
...
21
Assembly Cap-Drain SAM-DA97-04049E
...
22
Assembly Module SAM-DA92-00486A
...
23
Coil Filter SAM-DA27-00043D
...
24
Pipe-Connect SAM-DA62-00314C
...
25
Dryer SAM-DA62-04309B
...
26
Sensor Temp SAM-DA32-00033C
...
27
Cover Sensor-Fre SAM-DA63-05470B
...
28
Assembly Cover-Tube Filter SAM-DA97-08413B
...
29
Grommet-Suct Pipe A SAM-DA63-40171B
...
30
Wire Harness-Earth SAM-DA39-20389L
...
31
Cover-Urethane SAM-DA63-04598B
...
32-1
Trim-Blade SAM-DA64-02631A
...
32-2
Screw-Tapping SAM-6002-000217
...
32
Rf7500j,n/a Side C SAM-DA97-11396C
...
33
Screw-Tapping SAM-6006-001170
...
34
Aw4-4d,pp,inox Gray SAM-DA63-06389E
...
35
Screw-Tapping SAM-6002-000217
...
36
Aw4-4d,pp,inox Gra SAM-DA63-06405D
...
37
Screw-Tapping SAM-6006-001170
...
38
Fitting-Lokring 16; Sum23,16, 11smnpb30k SAM-DA60-00279A
...
39
Assembly Cover-Sensor Fre SAM-DA97-08608A

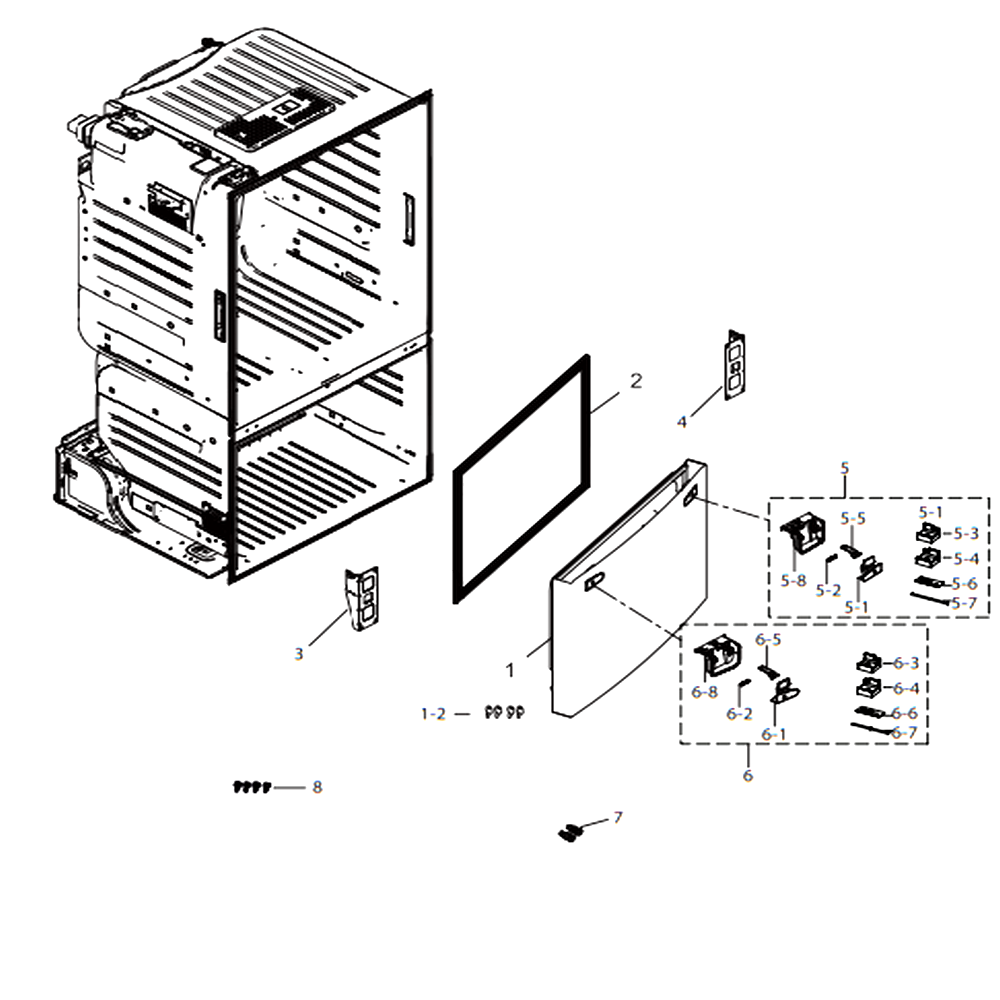

Freeze Door

...
...
1-2
Screw-Tapping SAM-6002-000217
...
1
Sts430j1l #4 SAM-DA91-04291A
...
2
Opus-3d,opus-3d, Fre, Gr SAM-DA97-15350A
...
3
Aw-Pjt,egi-Secc,t2.0 SAM-DA61-04840A
...
4
Aw-Pjt,secc1,-,cool SAM-DA61-04841A
...
5-1
Rf7500j,abs+pc,t3.0 SAM-DA67-04045A
...
5-2
Spring Etc-Easy Handle; 08 Aw1,2-Pjt,hswr SAM-DA61-04335B
...
5-3
Fixer-Shaft R SAM-DA61-05899A
...
5-4
Fixer-Shaft L SAM-DA61-05930A
...
5-5
Aw3,pom,creamy-Sts SAM-DA61-06014A
...
5-6
Reinf-Cap Handle SAM-DA61-06658A
...
5-7
Aw3,mswr10,92,5,zpc3(y) SAM-DA66-00579B
...
5-8
Aw1-12,abs,hg-076 SAM-DA61-08267D
...
5
Rf7500j,sem, Inox Gra SAM-DA97-13236G
...
6-1
Rf7500j,abs+pc,t3.0, SAM-DA67-04044A
...
6-2
Spring Etc-Easy Handle; 08 Aw1,2-Pjt,hswr SAM-DA61-04335B
...
6-3
Fixer-Shaft R SAM-DA61-05899A
...
6-4
Fixer-Shaft L SAM-DA61-05930A
...
6-5
Aw3,pom,creamy-Sts SAM-DA61-06014A
...
6-6
Reinf-Cap Handle SAM-DA61-06658A
...
6-7
Aw3,mswr10,92,5,zpc3(y) SAM-DA66-00579B
...
6-8
Aw1-12,abs,hg-0760 SAM-DA61-08268D
...
6
Rf7500j,sem, Inox Gray SAM-DA97-13237G
...
7
Fixer Handle; Aw3-14,swrch10a,m8 SAM-DA61-11161A
...
8
Bolt-Hex SAM-6011-001656

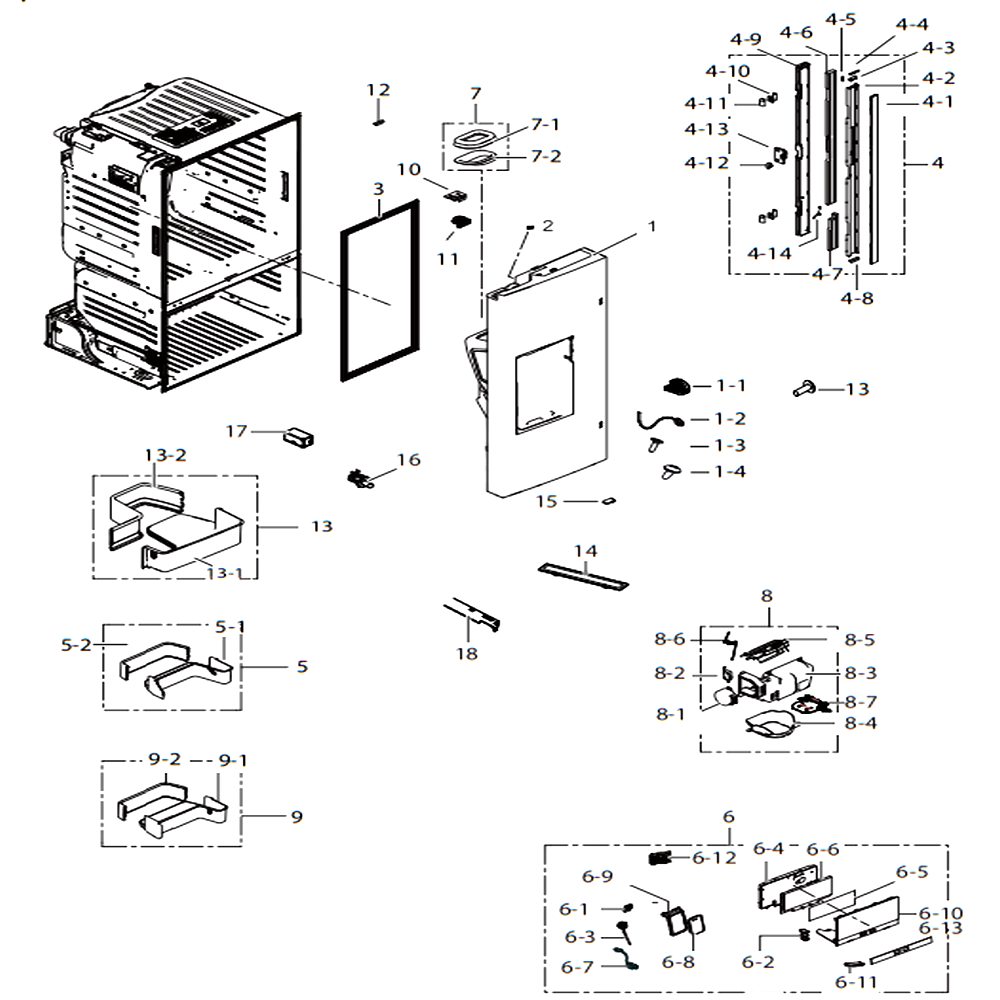

Fridge Door Left

...
...
1-1
Support Door-Close SAM-DA61-05001A
...
1-2
Sensor Humidity SAM-DA32-00034B
...
1-3
Screw-Tapping SAM-6002-000217
...
1-4
Screw-Tapping SAM-6006-001170
...
1
Sts430j1l #4 SAM-DA91-04324A
...
2
Magnet-A SAM-DA61-03769A
...
3
Opus-3d,opus-3d, Ref, Gr SAM-DA97-15349A
...
4-1
Plate-French; Aw4,egi-Secc,t0.6,thai Silv SAM-DA61-08271A
...
4-2
Case-French Front; Aw4,abs,cool White(sc- SAM-DA61-08273A
...
4-3
Cap-Guide French Upp SAM-DA67-03358A
...
4-4
Gasket-French Upp; Aw4,si,gray SAM-DA63-06959A
...
4-5
Spring Etc-Etc Cap Guide; Aw4,sts304,3.0, SAM-DA61-08315A
...
4-6
Insulation-French; Aw4,ps Foam,natural,sf SAM-DA62-03660A
...
4-7
Insulation-Low; Aw4,ps Foam,natural,sg-40 SAM-DA62-03666A
...
4-8
Gasket-French Low; Aw-Pjt,si,gray SAM-DA63-06842B
...
4-9
Case-French; Aw4,abs,cool White(sc-02740r SAM-DA61-08272A
...
4-10
Hinge-French SAM-DA61-08305A
...
4-11
Aw-Pjt,abs,cool White,ab SAM-DA67-02146A
...
4-12
Aw-Pjt,abs,cool Whit SAM-DA67-02154A
...
4-13
Aw-Pjt,pc,-,-,-,-,-, SAM-DA63-04645A
...
4-14
Rfh920g,sts304 SAM-DA61-08314B
...
4
Assy-French; Aw4,thai-Silver SAM-DA97-12624A
...
5-1
Opus1,hips,t2.5,cool White SAM-DA63-06504A
...
5-2
Opus1,gpps,t5.0,tp B SAM-DA63-06511A
...
5
Opus1,inlay Type SAM-DA97-11522B
...
6-1
Switch-Micro; 250vac,1a,80,spst-No,t105 SAM-3405-001119
...
6-2
Assy-Lamp Door SAM-DA97-02847F
...
6-3
Spring Etc-Lever Disp Ice SAM-DA61-06033B
...
6-4
Cover Pcb-Rear SAM-DA63-06377B
...
6-5
Inlay-Film SAM-DA64-04669A
...
6-6
Assembly Module SAM-DA92-00596A
...
6-7
Assy-W/harness Disp SAM-DA96-00106G
...
6-8
Plate-Lever Dispenser SAM-DA61-07362A
...
6-9
Aw1-12,abs,hg-0760,cream SAM-DA66-00850C
...
6-10
Opus1-14,black SAM-DA97-15563A
...
6-11
Cover-Switch SAM-DA63-05449A
...
6-12
Assy Pba Display SAM-DA97-15667A
...
6-13
Opus14,black Sm SAM-DA97-14346A
...
6
Opus14,black Smog, SAM-DA97-14424A
...
7-1
Gasket; Fdsr,tpe,white SAM-DA63-08248A
...
7-2
Cap-Chute Ice SAM-DA67-03312A
...
7
Assembly Cap-Chute Ice SAM-DA97-12594A
...
8-1
Motor Geared-Disp SAM-DA31-00079D
...
8-2
Switch-Micro SAM-3405-001117
...
8-3
Aw-Pjt,abs,i Black,hg-076 SAM-DA61-03526A
...
8-4
Aw4,hips,hb,s834s1,n SAM-DA61-08219A
...
8-5
Assembly Cover-Ice Route SAM-DA97-08117B
...
8-6
Spring Etc-Cover Ice Route SAM-DA61-01914A
...
8-7
Cover-Ice Route A SAM-DA63-04647A
...
8
Aw1-12,120v/100w SAM-DA97-08680G
...
9-1
Opus1,hips,t2.5,cool Whit SAM-DA63-06507A
...
9-2
Opus1,gpps,t5.0,hb,tp SAM-DA63-06510A
...
9
Opus1,inlay Type SAM-DA97-11521B
...
10
Aw-Pjt,po-Sphc,black,heat SAM-DA61-03211A
...
11
Aw1-12,pom,black SAM-DA97-13070A
...
12
Grommet-Stopper SAM-DA63-40294A
...
13-1
Opus1,hips,t2.5,cool Whi SAM-DA63-06503A
...
13-2
Opus1,gpps,t5.0,w2 SAM-DA63-06512A
...
13
Opus1,inlay Type SAM-DA97-11523B
...
14
Cover-Cap Door Led SAM-DA63-05524A
...
15
Assy Lamp Led; 2,fr-4,20*30,white,smaw250 SAM-DA41-00676J
...
16
Switch Door-Interlock SAM-DA34-00066C
...
17
Plate-Door Switch SAM-DA61-05274A
...
18
Cover Cap Door-Ref Up Left; Aw4-4d,abs,hb SAM-DA63-06916D

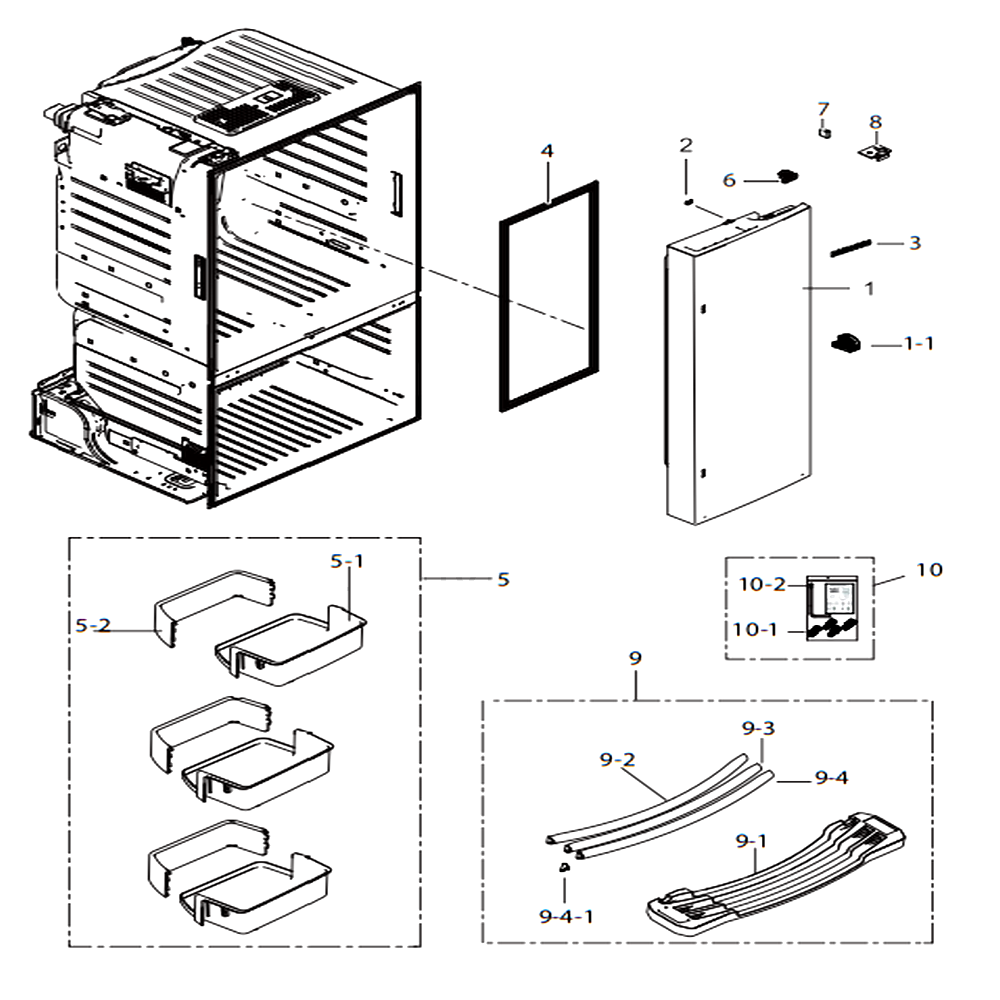

Fridge Door Right

...
...
1-1
Support Door-Close SAM-DA61-05001A
...
1
Sts430j1l #4 SAM-DA91-04323A
...
2
Magnet-A SAM-DA61-03769A
...
3
Mascot SAM-DA64-04021A
...
4
Opus-3d,opus-3d, Ref, Gr SAM-DA97-15349A
...
5-1
Opus1,hips,t2.5,cool White SAM-DA63-06508A
...
5-2
Opus1,gpps,t5.0,hb,tp SAM-DA63-06509A
...
5
Opus1,inlay Type SAM-DA97-11520B
...
6
Aw1-12,pom,black SAM-DA97-13070A
...
7
Grommet-Stopper SAM-DA63-40294A
...
8
Aw-Pjt,po-Sphc,black,heat SAM-DA61-03212A
...
9-1
Ibaci (3door),eps,174,835 SAM-DA69-01516A
...
9-2
Assy Handle Bar-Ref R; Aw4,al(a6063),vers SAM-DA97-12714C
...
9-3
Assy Handle Bar-Ref L; Aw4,al(a6063),vers SAM-DA97-12715C
...
9-4-1
Nw2_Fdr,abs,ntr,ni-Cr Plating SAM-DA67-02633A
...
9-4
Ibaci,al(a6063),vers SAM-DA97-13074C
...
9
Ibaci-Fdr,versailles SAM-DA99-04145C
...
10-1
Fixer Handle; Aw3-14,swrch10a,m8 SAM-DA61-11161A
...
10-2
Cap-Wrench SAM-DA67-03197A
...
10
Valve SAM-DA99-03490Q
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
