Samsung RF265BEAESR/AA_0000

Model: RF265BEAESR/AA_0000

Save Part Not Listed?
product name

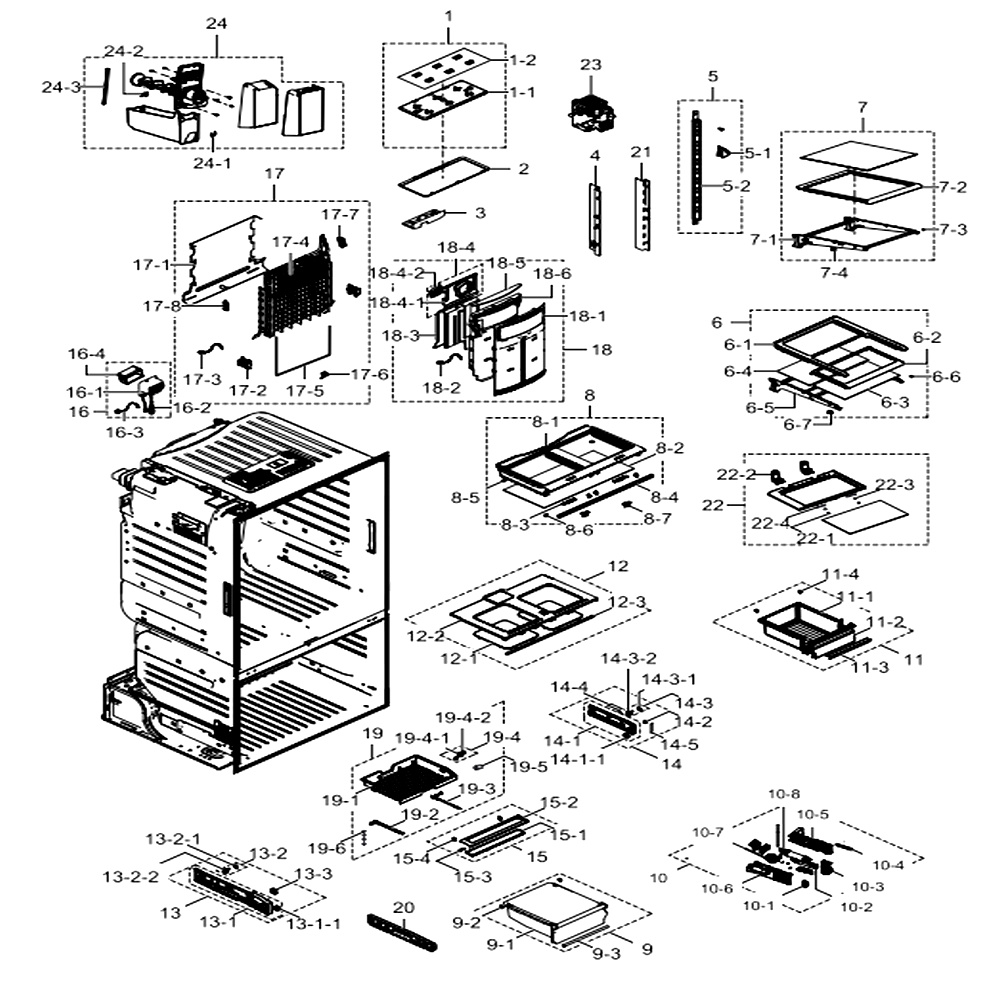

Freezer

...
...
1-1
Sensor Temp SAM-DA32-10104N
...
1-2
Pin,115v,aw-Pjt SAM-DA59-00358B
...
1-3
Aw-Sem,sazcc,t0.3,-,-,-, SAM-DA61-04814B
...
1-4
Plate-Evap Heater SAM-DA61-03644A
...
1-5
Aw2,pbt,natural,v-0 SAM-DA61-05689A
...
1-6
Fixer-Sensor Fre SAM-DA61-06182A
...
1-7
Thermo Bimetal-Protector SAM-DA47-00243B
...
1-8
Ac120v,aw2-11 Fre, 6 SAM-DA47-00424M
...
1
Aw1 Most E?cient,fin,120 SAM-DA96-00460L
...
2-1
Aw1-12,pp,ntr SAM-DA63-06941A
...
2-2
Aw1-12,ps Foam SAM-DA62-03659A
...
2-3
Aw1-12,ps Foam SAM-DA62-03658A
...
2-4
Aw1-12,gl-Sazcc,t SAM-DA61-05328C
...
2-5
Seal-Cover Evap Fre; Aw1-12,foam-Pe+al,t2 SAM-DA62-03675A
...
2-6
Thermo Bimetal-Protector SAM-DA47-00243B
...
2-7
Assembly Wire Harness-Motor SAM-DA96-00042D
...
2-8
Grommet-Cover Chill SAM-DA63-40167A
...
2-9
Screw-Tapping SAM-6002-000215
...
2-10-1
Screw-Tapping SAM-6002-000213
...
2-10-2
Motor Bldc SAM-DA31-00146H
...
2-10-3
Spring Etc-Fan SAM-DA61-20128A
...
2-10-4
Grommet-Motor,rear SAM-DA63-01146A
...
2-10-5
Grommet Motor SAM-DA63-01808A
...
2-10-6
-,aw-Pjt,abs,-,da31-001 SAM-DA31-00230A
...
2-10-7
Aw-Pjt,pp,-,w125,l170,bla SAM-DA61-04850B
...
2-10-8
Cover Motor-Bldc SAM-DA63-04651B
...
2-10
12vdc,rpm2950,inverte SAM-DA96-00959D
...
2
Aw1-12 SAM-DA97-12617A
...
3
Assy Case-Ice Room SAM-DA97-13405A
...
4-1
Aw-Pjt,pa66,na SAM-DA61-04813A
...
4-2
Aw-Sem,pom,500p,natural,da66- SAM-DA61-04804A
...
4-3
Aw1-12 Hub,hips,cool White SAM-DA63-06935B
...
4-4
Aw1-12,hips,cool Whit SAM-DA63-06936A
...
4-5
Aw-Pjt(samsung),pom, SAM-DA66-00639A
...
4-6
Aw1-12,pa66,natural,v2,101f SAM-DA61-04805B
...
4
Aw1-12 Hub SAM-DA97-12641D
...
5
Aw-Pjt,sm25c,-,-,-,-,- SAM-DA66-00437A
...
6
Aw-Pjt,pp,-,-,-,cool Wh SAM-DA61-04796A
...
7
Aw-Pjt,abs,cool White,h SAM-DA63-04605A
...
8-1
Aw-Pjt,egi-Secc,t1.6,c SAM-DA61-04816A
...
8-2
Rail Slide-Low Right; Aw1-12 Hub,cr-Spcc, SAM-DA61-08814B
...
8-3
Aw-Pjt,pom,ntr SAM-DA66-00767A
...
8-4
Aw-Pjt,pom,-,natural,da61-031 SAM-DA61-04801A
...
8
Assy Rail-Low Right; Aw1-12 Hub SAM-DA97-10595C
...
9-1
Aw-Pjt,egi-Secc,t1.6,c SAM-DA61-04817A
...
9-2
Rail Slide-Low Left; Aw1-12 Hub,cr-Spcc,t SAM-DA61-08813B
...
9-3
Aw-Pjt,pom,ntr SAM-DA66-00771A
...
9-4
Aw-Pjt,-,cool White,-,-, SAM-DA34-00049A
...
9-5
Aw-Pjt,pom,-,natural,da61-031 SAM-DA61-04801A
...
9
Assy Rail-Low Left; Aw1-12 Hub SAM-DA97-10594C
...
10
Aw-Pjt,abs,cool White,h SAM-DA63-04604A
...
11-1
Reinf-Drawer Box SAM-DA61-04824A
...
11-2
Aw-Pjt,pp,cool White SAM-DA63-06038A
...
11-3
Aw1-12,pa66,natural,v2,101f SAM-DA61-04805B
...
11-4
Aw-Sem,pom,500p,natural,da66- SAM-DA61-04804A
...
11-5
Screw-Tapping SAM-6002-000213
...
11
Aw1-Pjt,da63-06038a SAM-DA97-07024C
...
12
Opus1,hips,natural,s-834s SAM-DA61-07328A
...
13
Opus1,hips,natural,s834s1 SAM-DA61-07329A
...
14
Assembly Ice Maker SAM-DA97-15217A
...
15
Switch-Door SAM-DA34-10120E
...
16
Cover-Wire Harness Ice SAM-DA63-06894A
...
17
Tube-Fitting SAM-DA62-03914A

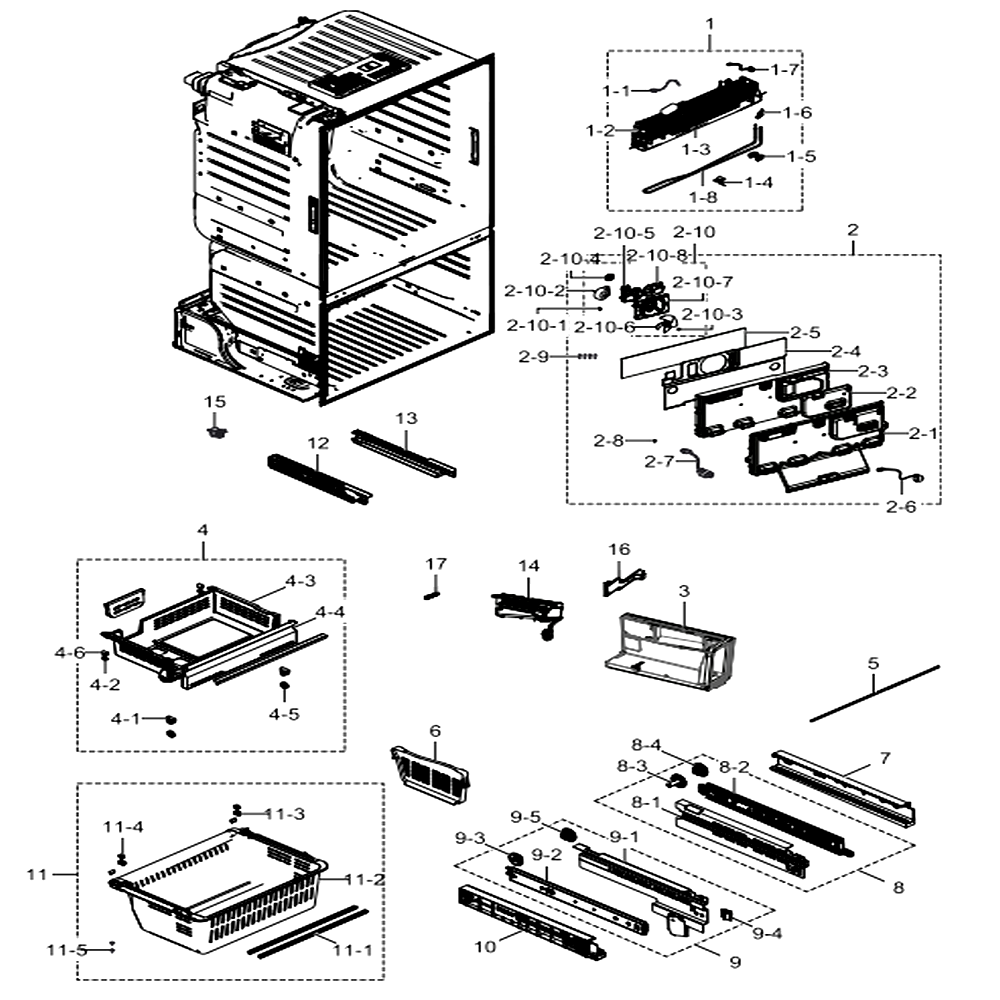

Fridge

...
...
1-1
Aw1-12,hips,natural,hb,s83 SAM-DA61-08237A
...
1-2
Assy Lamp Led; 5,cem-1,240*10,white,smaw2 SAM-DA41-00676K
...
1
Aw1-12 SAM-DA97-12607A
...
2
Aw4,gpps,tp Blue,147f SAM-DA63-06921A
...
3
Aw-Pjt,pc-Abs (hi-1001b),co SAM-DA61-04795A
...
4
Aw1-12,egi-Secc,t2. SAM-DA61-08275A
...
5-1
Support-Hanger; Aw2,secc1,t1.6,-,-,cool W SAM-DA61-04321A
...
5-2
Aw1-12,egi-Secc,t2.0 SAM-DA61-08274A
...
5
Aw1-12,cool-Whi SAM-DA97-12729A
...
6-1
Aw1-12,abs,440.3, SAM-DA67-03348A
...
6-2
Aw1-12,abs,cool SAM-DA67-03347A
...
6-3
Aw1-12,gla SAM-DA01-00816A
...
6-4
Aw1-12,glas SAM-DA01-00808A
...
6-5
Aw1-12 SAM-DA97-12632A
...
6-6
Aw1-12,gla SAM-DA01-00816A
...
6-7
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09550A
...
6
Aw1-12 SAM-DA97-12730A
...
7-1
Aw1-12 SAM-DA97-12837A
...
7-2
Aw1-12 SAM-DA97-12838A
...
7-3
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09549A
...
7-4
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09550A
...
7
Aw1-12 SAM-DA97-12839A
...
8-1
Aw1-12pjt,hips,cool White( SAM-DA63-06946A
...
8-2
Glass SAM-DA01-00811A
...
8-3
Lever-Humidity SAM-DA66-00718A
...
8-4
Aw-Pjt,shp1,t2.0,-,-,bla SAM-DA61-04823A
...
8-5
Aw-Pjt,hips,cool White,d SAM-DA61-04809A
...
8-6
Aw-Sem,pom,500p,natural,da66- SAM-DA61-04804A
...
8-7
Knob-Humidity; Aw4,abs,natural,chromium P SAM-DA64-04173A
...
8
Aw1-12pjt,cool White, SAM-DA97-12727A
...
9-1
Aw1-12pjt,gpps,tp Blue,14 SAM-DA61-08269A
...
9-2
Aw-Sem,pom,500p,natural,da66- SAM-DA61-04804A
...
9-3
Aw1-12,hips,s834s1,cool SAM-DA64-03862C
...
9
Aw1-12,assy SAM-DA97-12725A
...
10-1
Assy Case Filter; H920g SAM-DA97-08006L
...
10-2
Filter Water; Sseda SAM-DA29-00019A
...
10-3
Aw1-12,hips,hb,cool Wh SAM-DA63-06934A
...
10-4
Assembly Lamp Led SAM-DA41-00519S
...
10-5
Case-Filter Tank L; Aw2-11,hips,cool Whit SAM-DA61-07496A
...
10-6
Case-Filter Tank R; Aw2-11,hips,w433.9,l1 SAM-DA61-07497A
...
10-7
Valve Water; Ac110~127v,230,2way,l-Wire,1 SAM-DA62-04027C
...
10-8
Cover-Led Filter SAM-DA63-05408B
...
10
Aw1-12,wht SAM-DA97-12661A
...
11-1
Aw1-12pjt,gpps,tp Blue,14 SAM-DA61-08270A
...
11-2
Aw1-12pjt,gpps,tp Blue SAM-DA63-06943A
...
11-3
Aw1-12,hips,s834s1,cool SAM-DA64-03862B
...
11-4
Aw-Sem,pom,500p,natural,da66- SAM-DA61-04804A
...
11
Aw1-12,assy SAM-DA97-12726A
...
12-1
Window-Shelf Pantry SAM-DA64-02740A
...
12-2
Aw-Pjt,hips,-,-,-,cool Whit SAM-DA67-02139A
...
12-3
Reinf-Shelf Pantry SAM-DA61-04822A
...
12
Aw-Pjt,da97-05370a SAM-DA97-07015A
...
13-1-1
Nut-Hexagon SAM-6021-001125
...
13-1
Aw-Pjt,hips,cool Whi SAM-DA63-04611A
...
13-2-1
Guide-Washer; Aw2-Pjt,sts304,0.5,12.0,-,- SAM-DA61-04008A
...
13-2-2
Roller-Rail; Aw2-Pjt,pom,19.0,-,-,-,n109- SAM-DA66-00548A
...
13-2
Assy-Roller A; Aw2-Pjt SAM-DA97-05932A
...
13-3
Support-Roller Pantry; Aw-Pjt,pvc,blk SAM-DA61-03176A
...
13
Aw-Pjt,-,-,-,-, SAM-DA97-07016A
...
14-1-1
Nut-Hexagon SAM-6021-001125
...
14-1
Aw-Pjt,hips,-,576h,c SAM-DA63-04612A
...
14-2
Support-Roller Pantry; Aw-Pjt,pvc,blk SAM-DA61-03176A
...
14-3-1
Guide-Washer; Aw2-Pjt,sts304,0.5,12.0,-,- SAM-DA61-04008A
...
14-3-2
Roller-Rail; Aw2-Pjt,pom,19.0,-,-,-,n109- SAM-DA66-00548A
...
14-3
Assy-Roller A; Aw2-Pjt SAM-DA97-05932A
...
14-4
Led Display,aw2-Pjt,pantry SAM-DA92-00151A
...
14-5
Aw1-12,pc,t0.3,21.08 SAM-DA64-04243A
...
14
Aw(ge)-Pjt,assy SAM-DA97-05384F
...
15-1
Aw-Pjt(samsung),gpp SAM-DA63-04614A
...
15-2
Aw-Sem,abs,cool Whi SAM-DA63-04615C
...
15-3
Grommet-Cover Chill SAM-DA63-40167A
...
15-4
Aw-Sem,pom,500p,natural,da66- SAM-DA61-04804A
...
15
Aw-Pjt,da97-0538 SAM-DA97-07020C
...
16-1
Cover-Motor Dc Damper SAM-DA63-04655A
...
16-2
Nsby001tk1/du25-076,dc12 SAM-DA31-00071G
...
16-3
Dkst1329gw,px-41c, 502at,aw- SAM-DA32-00006R
...
16-4
Insulation-Motor Dc Damper SAM-DA62-02057A
...
16
Aw-Sem,without H SAM-DA97-07189E
...
17-1
Aw3-Pjt,al,t0.3 SAM-DA61-06186B
...
17-2
Fixer-Heater Ref SAM-DA61-05835B
...
17-3
Sensor Temp SAM-DA32-10104N
...
17-4
Fin Tube,aw3 SAM-DA59-00399A
...
17-5
Ac120v,aw2 Ref, 144o SAM-DA47-00244U
...
17-6
Plate-Evap Heater SAM-DA61-03644A
...
17-7
Aw-Pjt,pp,-,-,-,-,black,-,- SAM-DA61-04800B
...
17-8
Fixer-Fuse SAM-DA61-05160A
...
17
Aw1-12,120v/100w SAM-DA96-00660J
...
18-1
Aw1-12,pp,cool White,bj75 SAM-DA63-06919A
...
18-2
Px-41c,502at,dkst1329gw,quee SAM-DA32-10105X
...
18-3
Aw1-12,ps Foam, SAM-DA62-03649A
...
18-4-1
Aw4,abs,light Gray,cntk-A SAM-DA61-08187A
...
18-4-2
Motor Bldc Fan SAM-DA31-00287A
...
18-4
Aw4,assy SAM-DA97-12815C
...
18-5
Seal-Cover Ref Upp; Aw4,ojc-3000,white,t7 SAM-DA62-03680A
...
18-6
Aw1-12,ps Foam,ntr SAM-DA62-03648A
...
18
Aw1-12 SAM-DA97-12609A
...
19-1
Aw-Pjt,hips,-,-,-,cool White SAM-DA61-04806A
...
19-2
Aw-Pjt,-,-,-,-,da97-0 SAM-DA97-07013A
...
19-3
Aw-Pjt,-,-,-,-,da97-0 SAM-DA97-07001A
...
19-4-1
Roller-Rail; Aw2-Pjt,pom,19.0,-,-,-,n109- SAM-DA66-00548A
...
19-4-2
Guide-Washer; Aw2-Pjt,sts304,0.5,12.0,-,- SAM-DA61-04008A
...
19-4
Aw2-Pjt,-,-,- SAM-DA97-05931A
...
19-5
Aw-Pjt,pom,-,-,natural,-,d SAM-DA66-00637A
...
19-6
Screw-Tapping SAM-6002-000213
...
19
Aw1-12 SAM-DA97-07011C
...
20
Aw-Pjt,hips,cool White,da61 SAM-DA61-04794A
...
21
Aw-Sem,secc1,t2.0 SAM-DA61-04767A
...
22-1
Spring Etc-Hinge Shelf SAM-DA61-03705A
...
22-2
Aw1-12,pc,cool White SAM-DA61-08243A
...
22-3
Roller-Hinge-Shelf SAM-DA66-00482A
...
22-4
Shaft-Hinge-Shelf SAM-DA66-00483A
...
22
Aw1-12,kor SAM-DA97-12728A
...
23
Assy Case Auger Motor; Aw4-4d,115v 60hz SAM-DA97-12540G
...
24-1
Fastener-Ring SAM-DA60-00231A
...
24-2
Spring Etc-Dispenser SAM-DA61-20124D
...
24-3
Gasket-Tray Ice Bucket SAM-DA63-07185A
...
24
Assy Tray Ice SAM-DA97-12604D

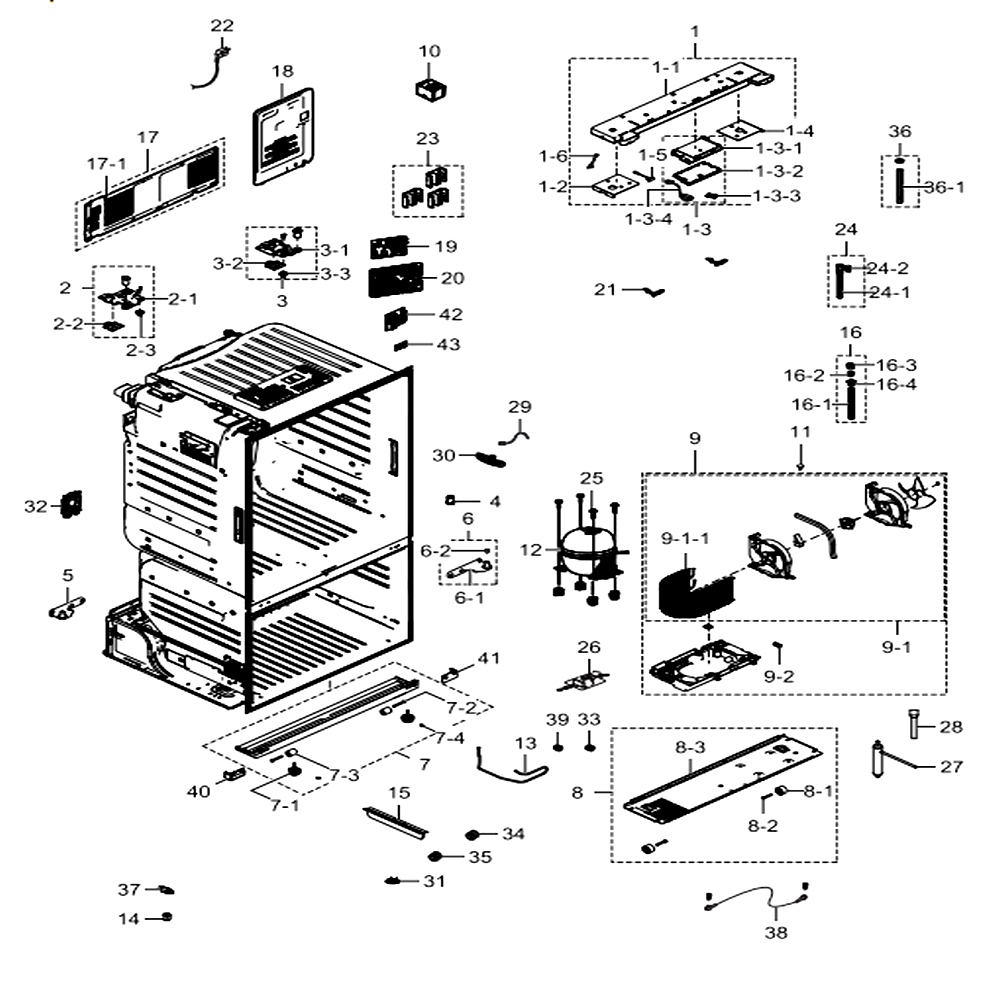

Cabinet

...
...
1-1
Top Table; Aw1-12 F/hub,abs,inox Gray,hg- SAM-DA64-05266A
...
1-2
Plate Cover; Gi-Sgcc,t0.25 SAM-DA61-11852A
...
1-3-1
Case Safety-In; Abs,natural SAM-DA61-11803A
...
1-3-2
Case Safety-Out; Abs,natural SAM-DA61-11802A
...
1-3-3
Assy Module; Std #9 Smps,aw1-12 Hub,60w ( SAM-DA92-00610C
...
1-3-4
Assy Wire Harness-Etc; Fdr,free Volt,all, SAM-DA96-01222A
...
1-3
Assy Case Safety; Aw1-12 Hub,smps, Perite SAM-DA97-17698A
...
1-4
Plate-Cover Hinge SAM-DA61-08227A
...
1-5
Switch Reed; Ul1007 Awg 22,280(680),25045 SAM-DA34-00043K
...
1-6
Assy Wire Harness-Top; T-Fdr,12vdc,all,na SAM-DA96-01174B
...
1
Assy Top Table; Aw1-12 Hub,abs,inox Gray SAM-DA97-17453A
...
2-1
Hinge-Upp L SAM-DA61-08309A
...
2-2
Shim-Hinge Upp SAM-DA63-50192A
...
2-3
Cam-Auto Close L SAM-DA66-00950A
...
2
Assembly Hinge Upp-L SAM-DA97-12573A
...
3-1
Hinge-Upp R; Aw4,po-Sphc,t2.9,eletrodepos SAM-DA61-08310A
...
3-2
Shim-Hinge Upp SAM-DA63-50192A
...
3-3
Cam-Auto Close R SAM-DA66-00951A
...
3
Assy Hinge Upp-R; Aw4,t3.0,black SAM-DA97-12574A
...
4
Grommet Hinge-Mid SAM-DA63-06410A
...
5
Aw,al,t5.0,aldc 6,t5.0 SAM-DA61-07771A
...
6-1
Hinge-Mid R; Aw,al,aldc 6,t5.0,w126.3,l50 SAM-DA61-07772A
...
6-2
Shaft Hinge-Middle SAM-DA66-00688A
...
6
Aw3,ni Cr Flatng,aldc SAM-DA97-12659A
...
7-1
Foot-Front SAM-DA61-04721D
...
7-2
Caster-Front SAM-DA61-04702A
...
7-3
Caster-Rivet SAM-DA61-01920A
...
7-4
Screw-Tapping SAM-6002-000213
...
7
Aw1-12,thai-Si SAM-DA97-12577D
...
8-1
Caster-Rear SAM-DA61-04703A
...
8-2
Shaft-Caster SAM-DA66-00649B
...
8-3
Aw1-12,gi-Sgcc,t1.4 SAM-DA64-04244A
...
8
Aw1-12,t1.4 SAM-DA97-12895A
...
9-1-1
Assy Condenser-Main; Pfc,al SAM-DA97-15972A
...
9-1
Assy Support-Circuit Motor; Rh9000k SAM-DA97-15765C
...
9-2
Grommet-Immersion Pipe B SAM-DA63-07323A
...
9
Assembly Tray Drain Water SAM-DA97-15978A
...
10
Aw-Pjt,gava,-,-,-, SAM-DA63-04629A
...
11
Aw-Pjt,abs,hg-0760gp,i Bl SAM-DA67-02138A
...
12
Cmp,comp,refrigerator,r-134a SAM-MSV172AL2J/SM3
...
13
Pipe-Connect Suction SAM-DA62-03601B
...
14
Valve-Fitting Nut SAM-DA74-00070B
...
15
Trim-Blade SAM-DA64-02631A
...
16-1
Tube-Pvc; Epel,sf-Pvc,t0.7,od19.4,l180,-, SAM-DA62-01266A
...
16-2
Grommet-Drain SAM-DA63-02761A
...
16-3
Cap-Drain; Aw-Pjt,hips,-,-,-,natural,da67 SAM-DA67-02128A
...
16-4
Fixer-Drain; Aw-Pjt,hips,-,natural,da61-0 SAM-DA61-04773A
...
16
Assembly Cap-Drain SAM-DA97-06970A
...
17-1
Cover Comp; Aw1-12,gi-Sgcc,t0.3,-,- SAM-DA63-07911B
...
17
Aw1-12,t0.3,foam Pe SAM-DA97-15162B
...
18
Assy Cover Pcb Panel; Aw3 SAM-DA97-08442A
...
19
Assy Pcb Inverter; Inverter,rf9000k,163*9 SAM-DA92-00763B
...
20
Assy Pcb Main; F-Hub, Ice & Water,aw1-12 Hu SAM-DA92-00939A
...
21
Fixer Hinge-Upp SAM-DA61-04932A
...
22
Cbf-Power Cord; At,usa,us3f-1,3c,125v,15a SAM-3903-001032
...
23
Fixer-Hose SAM-DA61-04712C
...
24-1
Nw2-Fdr,sf-Pvc,t0.7,l210,gray SAM-DA62-01266D
...
24-2
Grommet-Drain Hose; V2-Pjt,nbr,black SAM-DA63-00951C
...
24
Aw1-12,grommet Drain Hose SAM-DA97-04049Q
...
25
Screw-Hex SAM-DA60-10123E
...
26
Coil Filter SAM-DA27-00043D
...
27
Dryer SAM-DA62-04309B
...
28
Pipe-Connect SAM-DA62-00314C
...
29
Px41c/502at,aw4,-40~110 ?,5v SAM-DA32-00029U
...
30
Cover Sensor-Fre SAM-DA63-05470B
...
31
Cover-Urethane SAM-DA63-04598B
...
32
Assembly Cover-Tube Filter SAM-DA97-08413B
...
33
Grommet-Suct Pipe B SAM-DA63-40171D
...
34
Fitting-Lokring 43 SAM-DA60-00281A
...
35
Fitting-Lokring 33 SAM-DA60-00280A
...
36-1
Nw2-Fdr,sf-Pvc,t0.7,l210,gray SAM-DA62-01266D
...
36
Aw1-12 SAM-DA97-04049H
...
37
Valve-Fitting Pu SAM-DA62-00305A
...
38
Wire Harness-Earth SAM-DA39-20389E
...
39
Grommet-Suct Pipe A SAM-DA63-40171B
...
40
Aw4-4d,pp,inox Gray SAM-DA63-06389E
...
41
Aw4-4d,pp,inox Gra SAM-DA63-06405D
...
42
Assembly Module SAM-DA92-00486A
...
43
Assy Module; Y-Cap Filter,aw1-12 Hub,y-Ca SAM-DA92-00941A

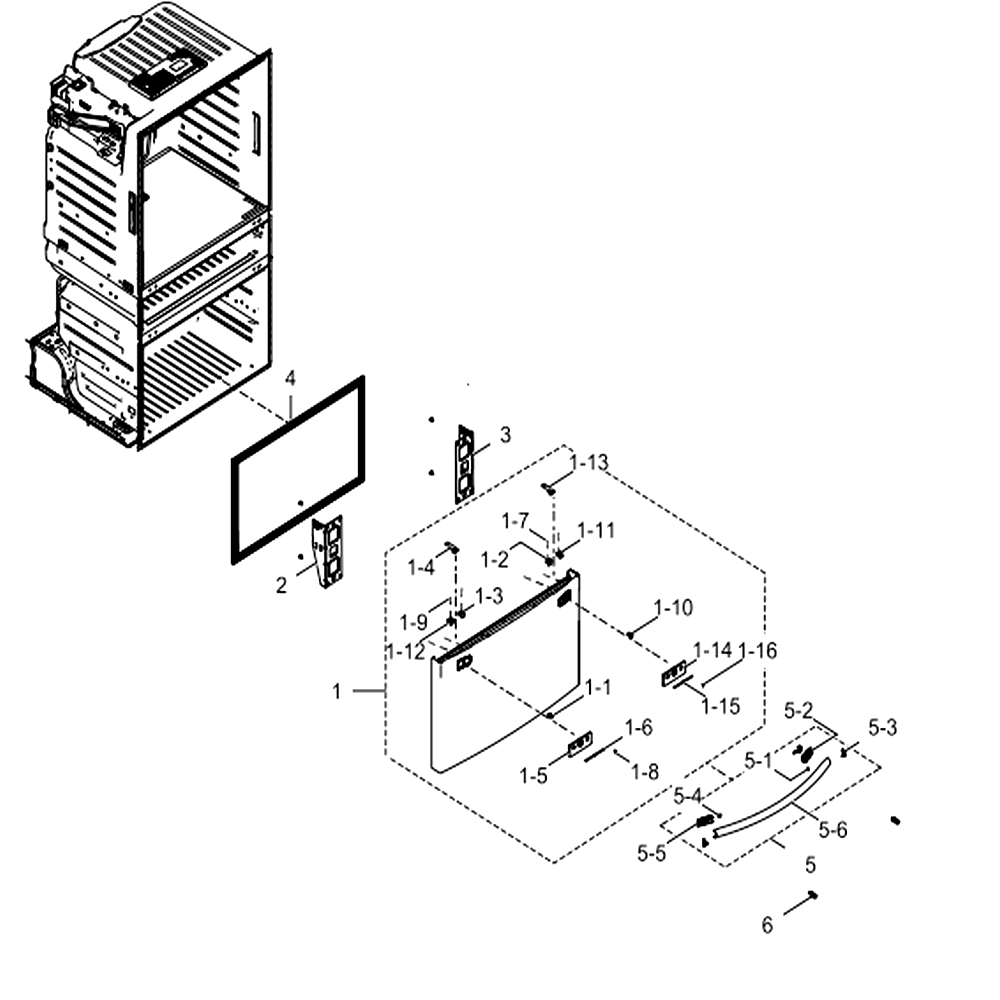

Freezer Door

...
...
1-1
Spring Etc-Easy Handle; 08 Aw1,2-Pjt,hswr SAM-DA61-04335B
...
1-2
Fixer-Shaft L SAM-DA61-05930A
...
1-3
Fixer-Shaft R SAM-DA61-05899A
...
1-4
Aw3,pom,creamy-Sts SAM-DA61-06014A
...
1-5
Reinf-Cap Handle SAM-DA61-06658A
...
1-6
Aw3,mswr10,92,5,zpc3(y) SAM-DA66-00579B
...
1-7
Screw-Tapping SAM-6002-000213
...
1-8
Screw-Tapping SAM-6002-000630
...
1-9
Screw-Tapping SAM-6002-000213
...
1-10
Spring Etc-Easy Handle; 08 Aw1,2-Pjt,hswr SAM-DA61-04335B
...
1-11
Fixer-Shaft R SAM-DA61-05899A
...
1-12
Fixer-Shaft L SAM-DA61-05930A
...
1-13
Aw3,pom,creamy-Sts SAM-DA61-06014A
...
1-14
Reinf-Cap Handle SAM-DA61-06658A
...
1-15
Aw3,mswr10,92,5,zpc3(y) SAM-DA66-00579B
...
1-16
Screw-Tapping SAM-6002-000630
...
1
Aw1-12_Sem,rs SAM-DA91-03910A
...
2
Aw-Pjt,egi-Secc,t2.0 SAM-DA61-04840A
...
3
Aw-Pjt,secc1,-,cool SAM-DA61-04841A
...
4
Aw-Pjt,pvc,gray (sc-9748 SAM-DA63-06541D
...
5-1
Screw-Set SAM-6009-001526
...
5-2
Support-Handle Fre R SAM-DA61-08247A
...
5-3
Cap-Handle Fre SAM-DA67-02787A
...
5-4
Screw-Tapping SAM-6002-000213
...
5-5
Support-Handle Fre SAM-DA61-08229A
...
5-6
Handle Bar-Fre; Aw1-12,aw4,al,t1.3,versai SAM-DA64-03945F
...
5
Assy Handle Bar-Fre; Aw4,al(a6063),versai SAM-DA97-12712C
...
6
Fixer Handle; Aw3-14,swrch10a,m8 SAM-DA61-11161A

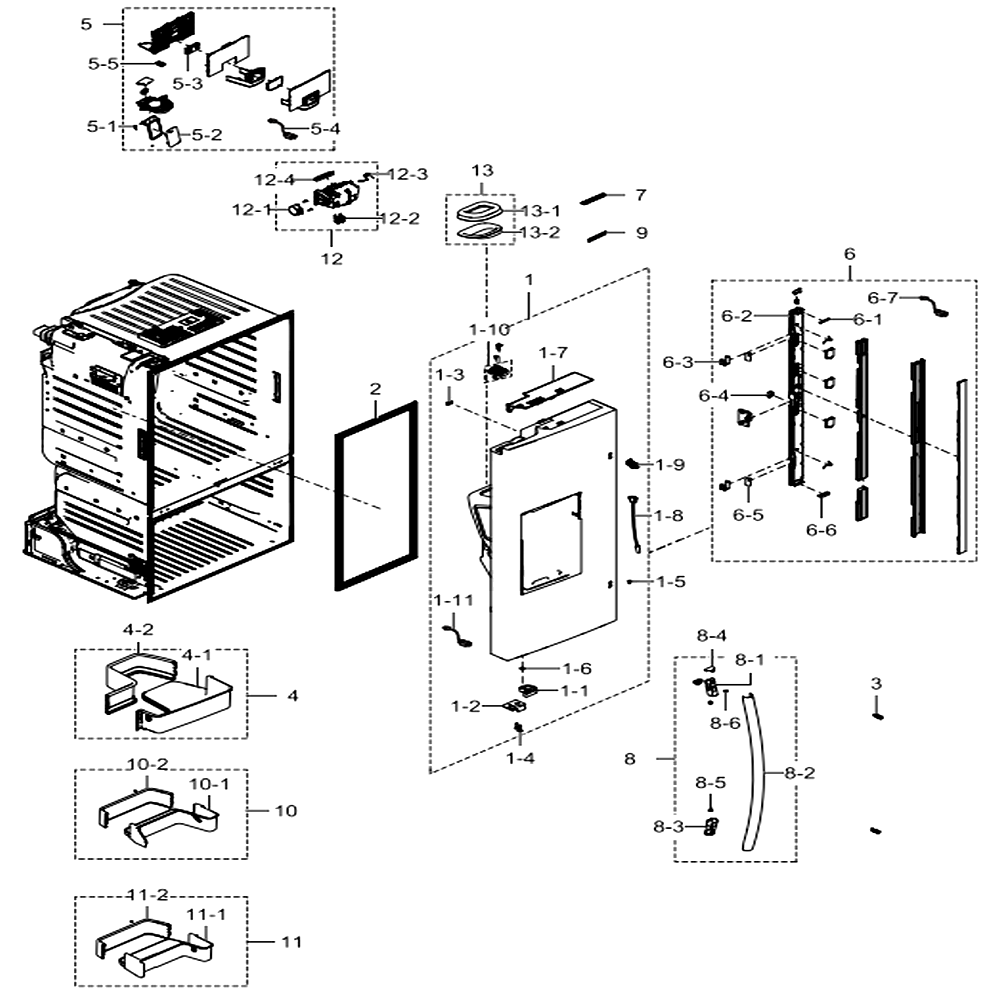

Fridge Door Left

...
...
1-1
Support Door-Close SAM-DA61-05001A
...
1-2
Aw-Pjt,po-Sphc,black,heat SAM-DA61-03211A
...
1-3
Magnet-A SAM-DA61-03769A
...
1-4
Screw-Tapping SAM-6002-001122
...
1-5
Screw-Tapping SAM-6006-001170
...
1-6
Grommet-Stopper SAM-DA63-40294A
...
1-7
Cover Cap Door-Ref Up Left; Aw4,abs,t2.3, SAM-DA63-06916F
...
1-8
Sensor Humidity SAM-DA32-00034B
...
1-9
Switch Door-Interlock SAM-DA34-00066C
...
1-10
Aw1-12,pom,black SAM-DA97-13070A
...
1-11
Assy Wire Harness-Door; Fdr,100~127vac,ul SAM-DA96-01221A
...
1
Assy Door Foam-Ref Left; Aw1-12 F-Hub,sr, SAM-DA91-03829V
...
2
Aw1 Pjt,pvc,w403.7,l978, SAM-DA63-06542A
...
3
Fixer Handle; Aw3-14,swrch10a,m8 SAM-DA61-11161A
...
4-1
Aw1-12,hips,cool White SAM-DA63-06966A
...
4-2
Aw1-12,gpps,tp Blu SAM-DA63-06992A
...
4
Aw1-12 SAM-DA97-12651A
...
5-1
Spring Etc-Lever Disp Ice SAM-DA61-06033B
...
5-2
Plate-Lever Dispenser SAM-DA61-07362A
...
5-3
Assy Module; Dispenser Pba,aw1-12 Hub,dis SAM-DA92-00940A
...
5-4
Assy Wire Harness-Display; Fdr,12vdc,ul+i SAM-DA96-01223A
...
5-5
Assy-Lamp Door SAM-DA97-02847F
...
5
Assy Cover Dispenser; Aw1-12 Family Hub SAM-DA97-17342A
...
6-1
Gasket-French Upp; Aw4,si,gray SAM-DA63-06959A
...
6-2
Case French; Abs,cool White SAM-DA61-11800A
...
6-3
Hinge-French SAM-DA61-08305A
...
6-4
Aw-Pjt,abs,cool Whit SAM-DA67-02154A
...
6-5
Aw-Pjt,abs,cool White,ab SAM-DA67-02146A
...
6-6
Gasket-French Low; Aw-Pjt,si,gray SAM-DA63-06842B
...
6-7
Assy Wire Harness-Etc; 12vdc,ul+iec,na,ul SAM-DA96-01178E
...
6
Assy French; Aw1-12 Hub,camera Module SAM-DA97-17452A
...
7
Cover-Cap Door Led SAM-DA63-05524A
...
8-1
Handle Bar-Ref L; Aw1-12 & Aw4,al,t1.3,ve SAM-DA64-03756K
...
8-2
Handle Bar-Ref L; Aw1-12 & Aw4,al,t1.3,ve SAM-DA64-03756K
...
8-3
Support-Handle Ref Upp SAM-DA61-08246A
...
8-4
Cap-Supt Handle Ref SAM-DA67-02788A
...
8-5
Screw-Tapping SAM-6002-000213
...
8-6
Screw-Set SAM-6009-001526
...
8
Assy Handle Bar-Ref L; Aw4,al(a6063),vers SAM-DA97-12715C
...
9
Assy Lamp Led; 2,fr-4,20*30,white,smaw250 SAM-DA41-00676J
...
10-1
Aw1-12,hips,cool White SAM-DA63-06964A
...
10-2
Aw4,gpps,t3.0,hb,tp SAM-DA63-06976A
...
10
Aw1-12 SAM-DA97-12652A
...
11-1
Aw1-12,hips,cool White SAM-DA63-06965A
...
11-2
Aw4,gpps,t3.0,hb,tp SAM-DA63-06976A
...
11
Aw1-12 SAM-DA97-12653A
...
12-1
Motor Geared-Disp SAM-DA31-00079D
...
12-2
Switch-Micro SAM-3405-001117
...
12-3
Spring Etc-Cover Ice Route SAM-DA61-01914A
...
12-4
Cover-Ice Route A SAM-DA63-04647A
...
12
Aw1-12,120v/100w SAM-DA97-08680G
...
13-1
Gasket; Fdsr,tpe,white SAM-DA63-08248A
...
13-2
Cap-Chute Ice SAM-DA67-03312A
...
13
Assembly Cap-Chute Ice SAM-DA97-12594A

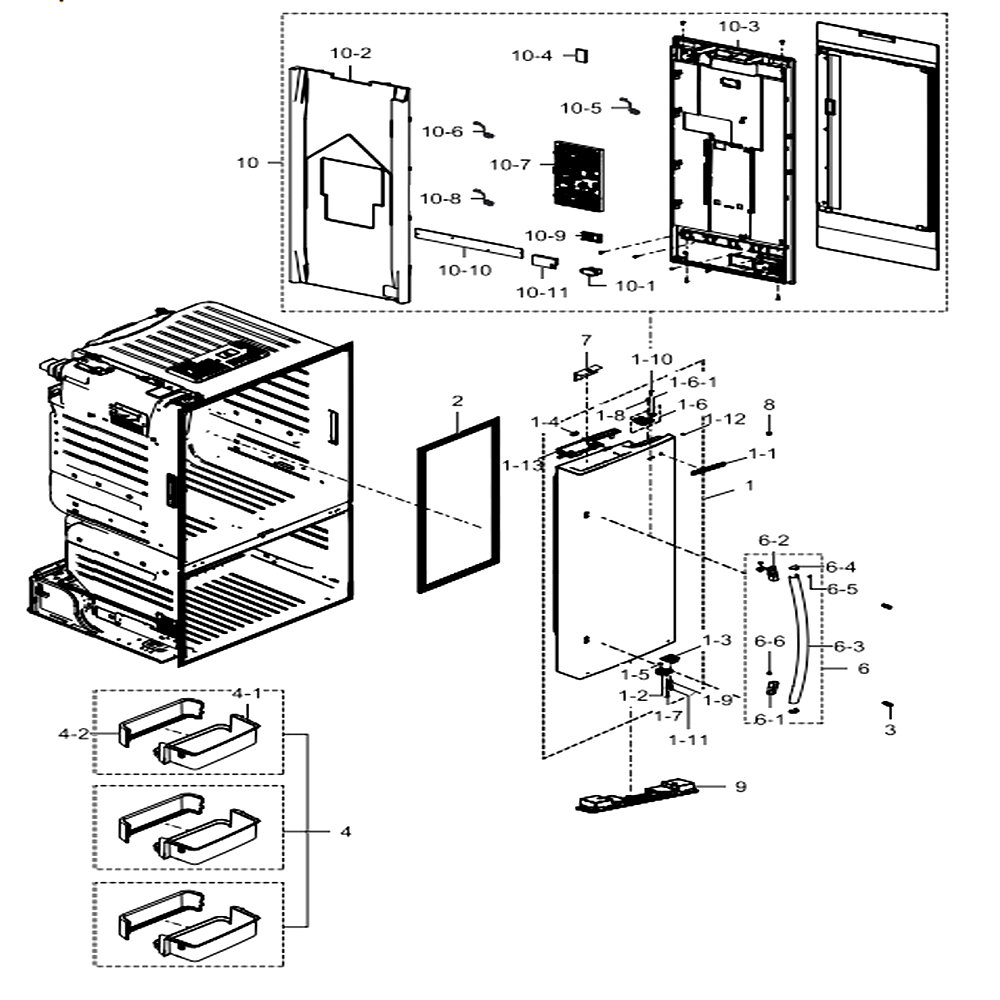

Fridge Door Right

...
...
1-1
Mascot SAM-DA64-04021A
...
1-2
Support Door-Close SAM-DA61-05001A
...
1-3
Aw-Pjt,po-Sphc,black,heat SAM-DA61-03212A
...
1-4
Magnet-A SAM-DA61-03769A
...
1-5
Grommet-Stopper SAM-DA63-40294A
...
1-6-1
Roller-Auto Close; Pa6,black SAM-DA66-00629B
...
1-6
Aw1-12,pom,black SAM-DA97-13070A
...
1-7
Screw-Machine SAM-6001-001377
...
1-8
Screw-Tapping SAM-6002-000613
...
1-9
Screw-Tapping SAM-6002-001120
...
1-10
Screw-Tapping SAM-6002-001122
...
1-11
Fh,+,m5,l25(15.5),zpc(wht),swrch18a,1 SAM-6009-001475
...
1-12
Grommet-Stopper SAM-DA63-40294A
...
1-13
Cover Cap Door-Ref Up; Abs,inox Gray SAM-DA63-08826A
...
1
Assy Door Foam-Ref; Aw1-12 F/hub SAM-DA91-04699A
...
2
Aw1 Pjt,pvc,w403.7,l978, SAM-DA63-06542A
...
3
Fixer Handle; Aw3-14,swrch10a,m8 SAM-DA61-11161A
...
4-1
Guard-Ref Right; Aw1-12,hips,t3.5,cool Wh SAM-DA63-08688A
...
4-2
Aw4,gpps,t3.0,hb,tp Bl SAM-DA63-06974A
...
4
Assy Guard-Ref Right; Aw1-12 SAM-DA97-17255A
...
6-1
Support-Handle Ref SAM-DA61-08228A
...
6-2
Support-Handle Ref Upp SAM-DA61-08246A
...
6-3
Handle Bar-Ref R; Aw1-12 & Aw4,al,t1.3,ve SAM-DA64-03756G
...
6-4
Cap-Supt Handle Ref SAM-DA67-02788A
...
6-5
Screw-Set SAM-6009-001526
...
6-6
Screw-Tapping SAM-6002-000213
...
6
Assy Handle Bar-Ref R; Aw4,al(a6063),vers SAM-DA97-12714C
...
7
Cover Lock; Abs,t2.5,inox Gray SAM-DA63-08449A
...
8
Cap-Screw SAM-DA67-30266K
...
9
Assy Cover Case-Speaker; Rf9500k,inox Gra SAM-DA97-16611C
...
10-1
Sensor Psd; Gp2y0a02yk0f,-10~60??5v SAM-DA32-00071A
...
10-2
Case Housing; Rb7000j,abs,i Black SAM-DA61-11178A
...
10-3
Case Display-Lcd; Rb7000j,abs,i Black SAM-DA61-11177A
...
10-4
W-Lan Module; Wcm730q,ieee802.11,2.4/5ghz SAM-4709-002552
...
10-5
Assy Wire Harness-Etc; Aw1-12,wifi/bt,mic SAM-DA96-01224A
...
10-6
Assy Wire Harness-Etc; Fdr,12vdc,all,na,u SAM-DA96-01224B
...
10-7
Assy Pcb Display; Kant 21.5' Lcd,aw1-12 F SAM-DA92-00965A
...
10-8
Assy Wire Harness; F_Hub 2.0,free Volt,lc SAM-DA96-01253A
...
10-9
Reflector; Rf9500k,abs,white SAM-DA67-04260A
...
10-10
Assy Module; 285*28*1.6t,rf9500k,led SAM-DA92-00791A
...
10-11
Assy Module; Mic,rb7500k,88*11*1.6t SAM-DA92-00789B
...
10
Assy Cover Display; Aw1-12 Hub,lcd Displa SAM-DA97-17068H
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
