Samsung RF263BEAESR/AA_0001

Model: RF263BEAESR/AA_0001

Save Part Not Listed?
product name

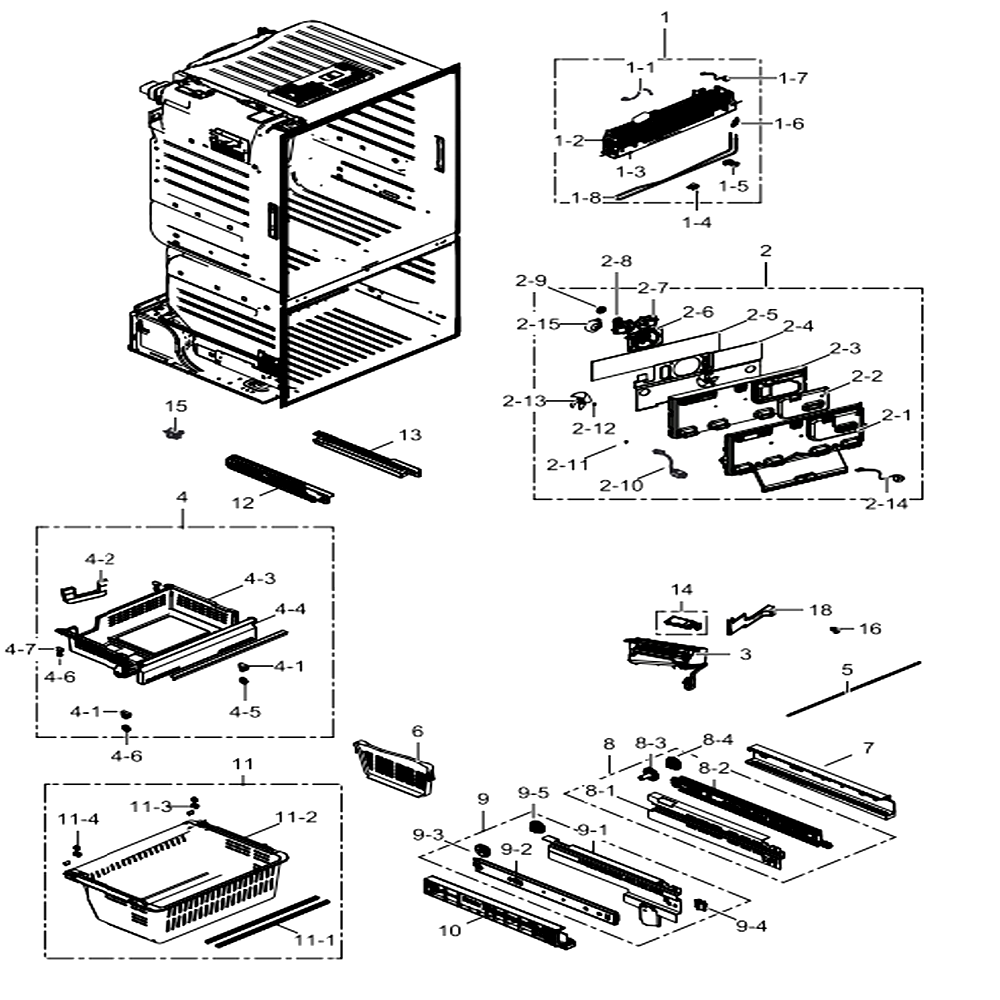

Freeze

...
...
1-1
Sensor Temp SAM-DA32-10104N
...
1-2
Pin,115v,aw-Pjt SAM-DA59-00358B
...
1-3
Aw-Sem,sazcc,t0.3,-,-,-, SAM-DA61-04814B
...
1-4
Plate-Evap Heater SAM-DA61-03644A
...
1-5
Aw2,pbt,natural,v-0 SAM-DA61-05689A
...
1-6
Fixer-Sensor Fre SAM-DA61-06182A
...
1-7
Thermo Bimetal-Protector SAM-DA47-00243B
...
1-8
Ac120v,aw2-11 Fre, 6 SAM-DA47-00424M
...
1
Aw1 Most E?cient,fin,120 SAM-DA96-00460L
...
2-1
Aw1-12,pp,ntr SAM-DA63-06941A
...
2-2
Aw1-12,ps Foam SAM-DA62-03659A
...
2-3
Aw1-12,ps Foam SAM-DA62-03658A
...
2-4
Aw1-12,gl-Sazcc,t SAM-DA61-05328C
...
2-5
Seal-Cover Evap Fre; Aw1-12,foam-Pe+al,t2 SAM-DA62-03675A
...
2-6
Case Motor-Fre; Aw-Pjt,pp,gray,cntk-P-101 SAM-DA61-03183A
...
2-7
Cover Motor-Bldc SAM-DA63-01809B
...
2-8
Grommet Motor SAM-DA63-01808A
...
2-9
Grommet-Motor,rear SAM-DA63-01146A
...
2-10
Assembly Wire Harness-Motor SAM-DA96-00042D
...
2-11
Grommet-Cover Chill SAM-DA63-40167A
...
2-12
Spring Etc-Fan SAM-DA61-20128A
...
2-13
Fan-Ax100w4cc-T1 SAM-DA31-00124A
...
2-14
Thermo Bimetal-Protector SAM-DA47-00243B
...
2-15
Motor Bldc SAM-DA31-00146H
...
2
Aw1-12 SAM-DA97-12617A
...
3
Assy Ice Maker; Aw-Pjt,115v,60hz SAM-DA97-12317A
...
4-1
Aw-Pjt,pa66,na SAM-DA61-04813A
...
4-2
Cap Tray-Fre Upp; Aw1-12,hips,hg-1760s,co SAM-DA67-03360A
...
4-3
Aw1-12,hips,cool White SAM-DA63-06935A
...
4-4
Aw1-12,hips,cool Whit SAM-DA63-06936A
...
4-5
Roller-Tray Fre Upp SAM-DA66-00554A
...
4-6
Roller-Tray Fre Upp SAM-DA66-00554A
...
4-7
Fixer-Roller SAM-DA71-20277A
...
4
Aw1-12,assy SAM-DA97-12641B
...
5
Aw-Pjt,sm25c,-,-,-,-,- SAM-DA66-00437A
...
6
Aw-Pjt,pp,-,-,-,cool Wh SAM-DA61-04796A
...
7
Aw-Pjt,abs,cool White,h SAM-DA63-04605A
...
8-1
Hanger-Rail Low R; Aw-Pjt,secc1,t1.6,cool SAM-DA61-03157A
...
8-2
Rail-Slide Low R; Aw-Pjt,stainless-Sts430 SAM-DA61-07475A
...
8-3
Gear-Rail R SAM-DA66-00750A
...
8-4
Fixer-Gear SAM-DA61-03154A
...
8
Aw-Pjt,t2.0,qty. R SAM-DA97-10595B
...
9-1
Hanger-Rail Low L; Aw-Pjt,secc1,t1.6,cool SAM-DA61-03156A
...
9-2
Rail-Slide Low L; Aw-Pjt,stainless-Sts430 SAM-DA61-07476A
...
9-3
Gear-Rail L SAM-DA66-00751A
...
9-4
Switch Pressure SAM-DA34-00047B
...
9-5
Fixer-Gear SAM-DA61-03154A
...
9
Aw-Pjt,t2.0,qty. R SAM-DA97-10594B
...
10
Aw-Pjt,abs,cool White,h SAM-DA63-04604A
...
11-1
Reinf-Drawer Box SAM-DA61-03160A
...
11-2
Tray-Drawer Box; Aw1,pp,cool White(sc-027 SAM-DA63-05986A
...
11-3
Fixer-Roller SAM-DA71-20145A
...
11-4
Roller-Fre SAM-DA66-10104A
...
11
Aw1-Pjt,da63-06038a SAM-DA97-07024C
...
12
Opus1,hips,natural,s-834s SAM-DA61-07328A
...
13
Opus1,hips,natural,s834s1 SAM-DA61-07329A
...
14
Assy-Latch; Aw4/(aw1-12 ),116*66*11,white SAM-DA97-12605A
...
15
Switch-Door SAM-DA34-10120E
...
16
Cap-Shaft Hole SAM-DA67-02795C
...
18
Cover-Wire Harness Ice SAM-DA63-06894A

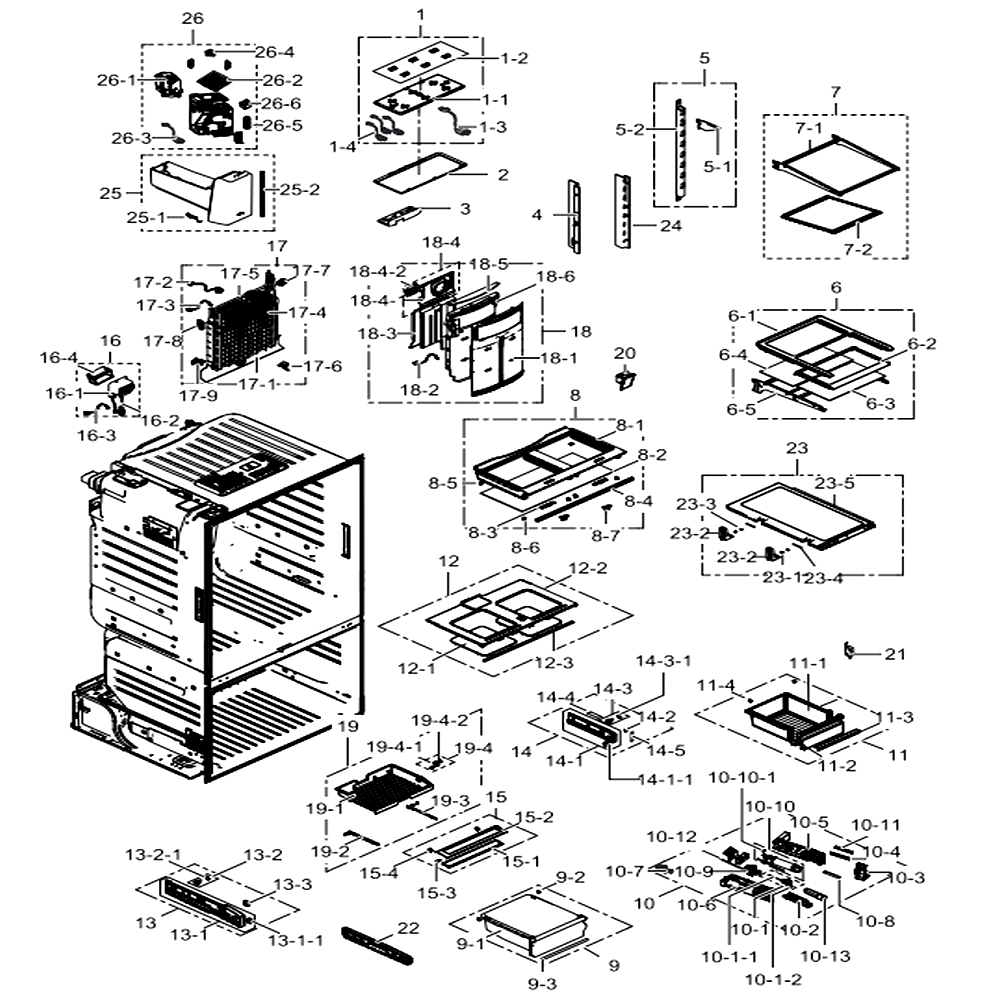

Fridge

...
...
1-1
Aw1-12,hips,natural,hb,s83 SAM-DA61-08237A
...
1-2
Assembly Lamp Led SAM-DA41-00676G
...
1-3
Assembly W/harness-Led Ref SAM-DA96-00961A
...
1-4
All,dc 12v,ul, Ie SAM-DA96-00961B
...
1
Aw1-12 SAM-DA97-12607A
...
2
Aw4,gpps,tp Blue,147f SAM-DA63-06921A
...
3
Guide-French; Aw-Pjt,pc-Abs,-,-,-,cool-Wh SAM-DA61-03202A
...
4
Aw-Sem,secc1,t2.0 SAM-DA61-04767A
...
5-1
Support-Hanger; Aw2,secc1,t1.6,-,-,cool W SAM-DA61-04321A
...
5-2
Aw1-12,egi-Secc,t2.0 SAM-DA61-08274A
...
5
Aw1-12,cool-Whi SAM-DA97-12729A
...
6-1
Aw1-12,abs,440.3, SAM-DA67-03348A
...
6-2
Aw1-12,abs,cool SAM-DA67-03347A
...
6-3
Aw1-12,gla SAM-DA01-00816A
...
6-4
Aw1-12,glas SAM-DA01-00808A
...
6-5
Aw1-12 SAM-DA97-12632A
...
6
Aw1-12 SAM-DA97-12730A
...
7-1
Aw1-12 SAM-DA97-12837A
...
7-2
Aw1-12 SAM-DA97-12838A
...
7
Aw1-12 SAM-DA97-12839A
...
8-1
Aw1-12pjt,hips,cool White( SAM-DA63-06946A
...
8-2
Glass SAM-DA01-00811A
...
8-3
Lever-Humidity SAM-DA66-00718A
...
8-4
Aw-Pjt,shp1,t2.0,-,-,bla SAM-DA61-04823A
...
8-5
Aw-Pjt,hips,cool White,d SAM-DA61-04809A
...
8-6
Roller-Fre SAM-DA66-10104A
...
8-7
Knob-Humidity; Aw4,abs,natural,chromium P SAM-DA64-04173A
...
8
Aw1-12pjt,cool White, SAM-DA97-12727A
...
9-1
Aw1-12pjt,gpps,tp Blue,14 SAM-DA61-08269A
...
9-2
Roller-Fre SAM-DA66-10104A
...
9-3
Aw1-12,hips,s834s1,cool SAM-DA64-03862C
...
9
Aw1-12,assy SAM-DA97-12725A
...
10-1-1
Pipe-Water Line SAM-DA62-02429G
...
10-1-2
Clip-Fitting Lock SAM-DA61-04522A
...
10-1
Assembly Case-Filter SAM-DA97-08006D
...
10-2
Filter Water; Sseda SAM-DA29-00019A
...
10-3
Aw1-12,hips,hb,cool Wh SAM-DA63-06934A
...
10-4
Assembly Lamp Led SAM-DA41-00519S
...
10-5
Case-Filter Tank L; Aw2-11,hips,cool Whit SAM-DA61-07496A
...
10-6
Case-Filter Tank R; Aw2-11,hips,w433.9,l1 SAM-DA61-07497A
...
10-7
Tube-Fitting L SAM-DA62-03103A
...
10-8
Cover-Seal Led; Aw3,pet,t0.5,transparent SAM-DA63-05928A
...
10-9
Valve Water SAM-DA62-04027A
...
10-10-1
Clip-Fitting Lock SAM-DA61-04522A
...
10-10
Aw1-12,pp,ntr,pp SAM-DA97-11283F
...
10-11
Cover-Led Filter SAM-DA63-05408B
...
10-12
Pipe-Water Line SAM-DA62-01368B
...
10-13
Tray-Water Filter SAM-DA63-05407A
...
10
Aw1-12,wht SAM-DA97-12661A
...
11-1
Aw1-12pjt,gpps,tp Blue,14 SAM-DA61-08270A
...
11-2
Aw1-12pjt,gpps,tp Blue SAM-DA63-06943A
...
11-3
Aw1-12,hips,s834s1,cool SAM-DA64-03862B
...
11-4
Roller-Fre SAM-DA66-10104A
...
11
Aw1-12,assy SAM-DA97-12726A
...
12-1
Window-Shelf Pantry; Aw-Pjt Best,gpps,2.5 SAM-DA64-02235A
...
12-2
Shelf-Pantry; Aw-Pjt,hips,2.5,-,-,cool Wh SAM-DA67-01781A
...
12-3
Reinf-Shelf Pantry; Aw-Pjt,egi-Secc,t1.2, SAM-DA61-03174A
...
12
Aw-Pjt,da97-05370a SAM-DA97-07015A
...
13-1-1
Nut-Hexagon SAM-6021-001125
...
13-1
Cover-Rail Pantry L; Aw-Pjt Best,hips,-,- SAM-DA63-03762A
...
13-2-1
Guide-Washer; Aw2-Pjt,sts304,0.5,12.0,-,- SAM-DA61-04008A
...
13-2
Assy-Roller A; Aw2-Pjt SAM-DA97-05932A
...
13-3
Support-Roller Pantry; Aw-Pjt,pvc,blk SAM-DA61-03176A
...
13
Aw-Pjt,-,-,-,-, SAM-DA97-07016A
...
14-1-1
Nut-Hexagon SAM-6021-001125
...
14-1
Aw-Pjt,hips,-,576h,c SAM-DA63-04612A
...
14-2
Support-Roller Pantry; Aw-Pjt,pvc,blk SAM-DA61-03176A
...
14-3-1
Guide-Washer; Aw2-Pjt,sts304,0.5,12.0,-,- SAM-DA61-04008A
...
14-3
Assy-Roller A; Aw2-Pjt SAM-DA97-05932A
...
14-4
Led Display,aw2-Pjt,pantry SAM-DA92-00151A
...
14-5
Aw1-12,pc,t0.3,21.08 SAM-DA64-04243A
...
14
Aw(ge)-Pjt,assy SAM-DA97-05384F
...
15-1
Cover-Slide Pantry A; Aw,gpps,-,-,-,-,-,n SAM-DA63-03764A
...
15-2
Cover-Slide Pantry B; Aw-Pjt Best,hips,co SAM-DA63-03765C
...
15-3
Grommet-Cover Chill SAM-DA63-40167A
...
15-4
Roller-Fre SAM-DA66-10104A
...
15
Aw-Pjt,da97-0538 SAM-DA97-07020C
...
16-1
Cover Motor-Front; Aw2-Pjt,pp,hb,natural, SAM-DA63-04274B
...
16-2
Nsby001tk1/du25-076,dc12 SAM-DA31-00071G
...
16-3
Dkst1329gw,px-41c, 502at,aw- SAM-DA32-00006R
...
16-4
Insulation-Motor Dc Damper; Aw-Pjt,ps Foa SAM-DA62-01380A
...
16
Aw-Sem,without H SAM-DA97-07189E
...
17-1
Aw-Sem,al,t0.4 SAM-DA61-06006A
...
17-2
Thermo Bimetal-Protector SAM-DA47-00243C
...
17-3
Sensor Temp SAM-DA32-10104N
...
17-4
Fin Tube,aw3 SAM-DA59-00399A
...
17-5
Aw3(r),120w,120v SAM-DA47-00244W
...
17-6
Plate-Evap Heater SAM-DA61-03644A
...
17-7
Fixer-Senser SAM-DA61-03683A
...
17-8
Fixer-Fuse SAM-DA61-05160A
...
17-9
Fixer-Heater Ref SAM-DA61-05835B
...
17
Aw2 Nd,pin,120v/120w SAM-DA96-00660E
...
18-1
Aw1-12,pp,cool White,bj75 SAM-DA63-06919A
...
18-2
Sensor Temp; Dkst1329gw,queen,-50 ~ 80 SAM-DA32-00011C
...
18-3
Aw1-12,ps Foam, SAM-DA62-03649A
...
18-4-1
Aw4,abs,light Gray,cntk-A SAM-DA61-08187A
...
18-4-2
Motor Bldc Fan SAM-DA31-00287A
...
18-4
Aw4,assy SAM-DA97-12815A
...
18-5
Seal-Cover Ref Upp; Aw4,ojc-3000,white,t7 SAM-DA62-03680A
...
18-6
Aw1-12,ps Foam,ntr SAM-DA62-03648A
...
18
Aw1-12 SAM-DA97-12609A
...
19-1
Case-Pantry; Aw,hips,-,-,-,cool White,- SAM-DA61-03164A
...
19-2
Assy Rail-Pantry L; Aw-Pjt,-,-,-,-,- SAM-DA97-04837A
...
19-3
Assy Rail-Pantry R; Aw-Pjt,-,-,-,-,- SAM-DA97-04838A
...
19-4-1
Roller-Rail; Aw2-Pjt,pom,19.0,-,-,-,n109- SAM-DA66-00548A
...
19-4-2
Guide-Washer; Aw2-Pjt,sts304,0.5,12.0,-,- SAM-DA61-04008A
...
19-4
Aw2-Pjt,-,-,- SAM-DA97-05931A
...
19
Aw-Pjt,-,-,-,-,da97-048 SAM-DA97-07011A
...
20
Assy Cap-Angle; Aw1-12,pp,cool White SAM-DA97-12655A
...
21
Switch-Micro SAM-DA34-00011A
...
22
Aw-Pjt,hips,cool White,da61 SAM-DA61-04794A
...
23-1
Spring Etc-Hinge Shelf SAM-DA61-03705A
...
23-2
Aw1-12,pc,cool White SAM-DA61-08243A
...
23-3
Roller-Hinge-Shelf SAM-DA66-00482A
...
23-4
Shaft-Hinge-Shelf SAM-DA66-00483A
...
23-5
Shelf-Insert Ref Fold; Aw1-12,abs,cool Wh SAM-DA67-03334A
...
23
Aw1-12,kor SAM-DA97-12728A
...
24
Aw1-12,egi-Secc,t2. SAM-DA61-08275A
...
25-1
Spring Etc-Dispenser SAM-DA61-20124D
...
25-2
Gasket-Tray Ice Bucket SAM-DA63-07185A
...
25
Aw4/(aw1-12 ),137,457,wht SAM-DA97-12604A
...
26-1
Motor Geared Ac Auger SAM-DA31-00105M
...
26-2
Motor Bldc Fan SAM-DA31-00070E
...
26-3
Assembly Wire Harness-Auger SAM-DA96-00682D
...
26-4
Grommet-Fan SAM-DA63-02513A
...
26-5
Spring Etc-Solenoid SAM-DA61-20140A
...
26-6
Valve-Solenoid SAM-DA74-40151G
...
26
Assembly Case-Fan Auger Motor SAM-DA97-12540A

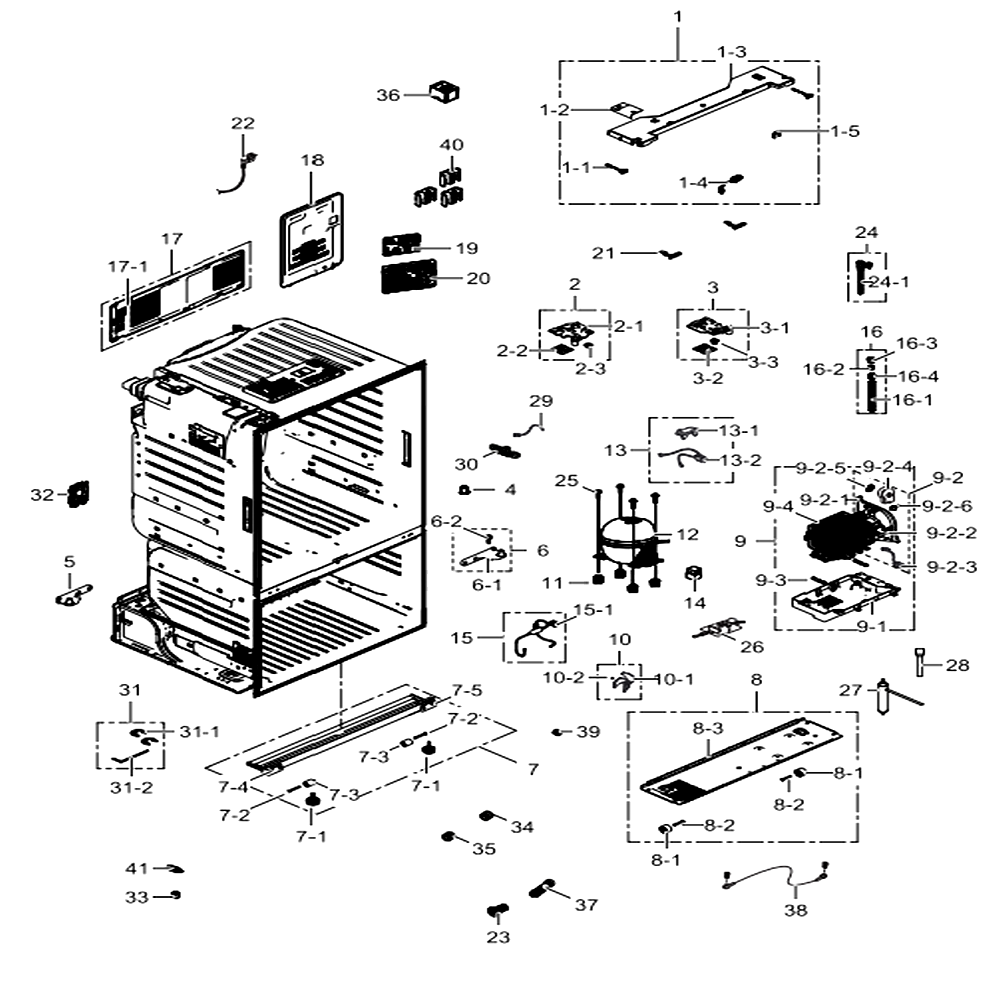

Cabinet

...
...
1-1
Switch Reed SAM-DA34-00043A
...
1-2
Plate-Cover Hinge SAM-DA61-08227A
...
1-3
Aw1-12,abs,creamy Sts,910,dispenser SAM-DA64-04189A
...
1-4
Assy W/harness-Reed Switch; Fdr,12vdc,all SAM-DA96-00962A
...
1-5
Clip-Fitting Lock SAM-DA61-04522A
...
1
Assy Top Table; Aw1-12,assy,creamy Sts,91 SAM-DA97-12707D
...
2-1
Hinge-Upp L SAM-DA61-08309A
...
2-2
Shim-Hinge Upp SAM-DA63-50192A
...
2-3
Cam-Auto Close L SAM-DA66-00950A
...
2
Assembly Hinge Upp-L SAM-DA97-12573A
...
3-1
Hinge-Upp R; Aw4,po-Sphc,t2.9,eletrodepos SAM-DA61-08310A
...
3-2
Shim-Hinge Upp SAM-DA63-50192A
...
3-3
Cam-Auto Close R SAM-DA66-00951A
...
3
Assy Hinge Upp-R; Aw4,t3.0,black SAM-DA97-12574A
...
4
Grommet Hinge-Mid SAM-DA63-06410A
...
5
Aw,al,t5.0,aldc 6,t5.0 SAM-DA61-07771A
...
6-1
Hinge-Mid R; Aw,al,aldc 6,t5.0,w126.3,l50 SAM-DA61-07772A
...
6-2
Bolt-Socket SAM-6011-001442
...
6
Aw3,ni Cr Flatng,aldc SAM-DA97-12659A
...
7-1
Foot-Front SAM-DA61-00805F
...
7-2
Caster-Rivet SAM-DA61-01920A
...
7-3
Caster-Front SAM-DA61-04702A
...
7-4
Opus-1,pp,natural,bj75 SAM-DA63-06389A
...
7-5
Opus-1,pp,creamy Stain SAM-DA63-06405A
...
7
Aw1-12,thai-Si SAM-DA97-12577D
...
8-1
Caster-Rear SAM-DA61-04703A
...
8-2
Shaft-Caster SAM-DA66-00649B
...
8-3
Aw1-12,gi-Sgcc,t1.4 SAM-DA64-04244A
...
8
Aw1-12,t1.4 SAM-DA97-12895A
...
9-1
Aw-Pjt,pp,black SAM-DA63-03450A
...
9-2-1
Next,abs Scrap,lig SAM-DA61-02349C
...
9-2-2
Bracket-Circuit Motor; Abs,next,-,-,-,ntr SAM-DA61-02355B
...
9-2-3
Wire-Harness Motor SAM-DA96-00042A
...
9-2-4
Motor Bldc SAM-DA31-00146B
...
9-2-5
Grommet-Motor,rear SAM-DA63-01146A
...
9-2-6
Grommet-Cover Chill SAM-DA63-40167A
...
9-2
Assy Support-Circuit Motor; Next,ntr,rpm1 SAM-DA97-03145N
...
9-3
Grommet-Sub Cond SAM-DA63-40128A
...
9-4
Assy Pipe-Spiral Cond; Aw2-Pjt,spiral Pit SAM-DA97-05093D
...
9
Assy Tray-Drain Water; Aw-Pjt,-,-,-,-,bld SAM-DA97-05043D
...
10-1
Fan-Turbo SAM-DA31-00015C
...
10-2
Spring Etc-Fan SAM-DA61-20128A
...
10
Fan-Assy SAM-DA31-00010D
...
11
Grommet Comp SAM-DA63-02617A
...
12
Compressor,bldc,9.08cc,115v,fan Cooling; Compressor,bldc,9.08cc,115v,fan Cooling SAM-MKV190CL2J/E01
...
13-1
Relay Protector O/l SAM-DA34-00004D
...
13-2
All,free Volt,ul+ SAM-DA39-00154L
...
13
Assy Comp-Sub; Wire Harness-Comp Sub,4tm4 SAM-DA97-10848M
...
14
Cover Relay SAM-DA63-01866A
...
15-1
Grommet-Suct Pipe B SAM-DA63-40171D
...
15
Assy Pipe-Connect; Aw Pjt SAM-DA97-12170A
...
16-1
Tube-Pvc; Epel,sf-Pvc,t0.7,od19.4,l180,-, SAM-DA62-01266A
...
16-2
Grommet-Drain SAM-DA63-02761A
...
16-3
Cap-Drain SAM-DA67-01301A
...
16-4
Fixer-Drain SAM-DA61-05021A
...
16
Assembly Cap-Drain SAM-DA97-06970A
...
17-1
Cover Comp; Aw2-11,gi-Sgcc,t0.25,w817.3,l SAM-DA63-06448A
...
17
Assy Cover-Comp; Aw1-12,t0.25,foam Pe SAM-DA97-11403B
...
18
Aw1-12,assy SAM-DA97-08442C
...
19
Inverter,aw1-12,197*98 SAM-DA92-00268A
...
20
Led Touch,aw1-12,13v,5v,mo SAM-DA92-00384B
...
21
Fixer Hinge-Upp SAM-DA61-04932A
...
22
Cbf-Power Cord SAM-3903-000786
...
23
Fixer-Valve Water SAM-DA71-20207A
...
24-1
Nw2-Fdr,sf-Pvc,t0.7,l210,gray SAM-DA62-01266D
...
24
Aw1-12 SAM-DA97-04049H
...
25
Screw-Hex SAM-DA60-10123E
...
26
Aw3-Pjt,20mh,82*60,-25 ~ +85 SAM-DA27-00019H
...
27
Dryer SAM-DA62-04309B
...
28
Pipe-Connect Disc,b SAM-DA73-10190U
...
29
Px41c/502at,aw4,-40~110 ?,5v SAM-DA32-00029U
...
30
Cover Sensor-Fre SAM-DA63-05470B
...
31-1
Fastener-Ring Insert; Aw,sk-5h,23,t1.0, SAM-DA60-00143B
...
31-2
Wrench-Spanner; Aw3,sm45c,zn Plating SAM-DA80-00002C
...
31
Valve SAM-DA99-03490L
...
32
Assembly Cover-Tube Filter SAM-DA97-08413B
...
33
Valve-Fitting Nut SAM-DA74-00070B
...
34
Fitting-Lokring 16; Sum23,16, 11smnpb30k SAM-DA60-00279A
...
35
Fitting-Lokring 33 SAM-DA60-00280A
...
36
Aw-Pjt,gava,-,-,-, SAM-DA63-04629A
...
37
Tube-Fitting SAM-DA62-03914A
...
38
Wire Harness-Earth SAM-DA39-20389L
...
39
Grommet-Suct Pipe B SAM-DA63-40171D
...
40
Fixer-Hose SAM-DA61-04712C
...
41
Valve-Fitting Pu SAM-DA62-00305A

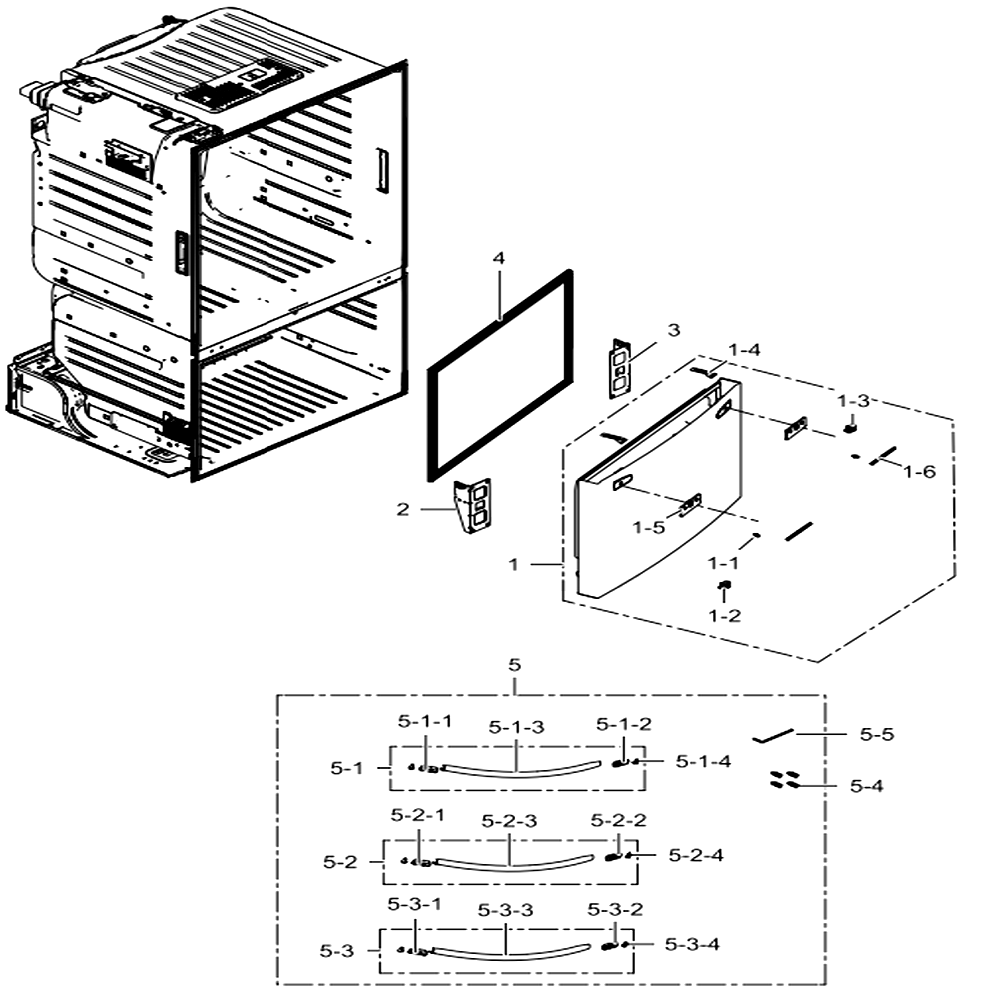

Freeze Door

...
...
1-1
Spring Etc-Easy Handle; 08 Aw1,2-Pjt,hswr SAM-DA61-04335B
...
1-2
Fixer-Shaft L SAM-DA61-05930A
...
1-3
Fixer-Shaft R SAM-DA61-05899A
...
1-4
Aw3,pom,creamy-Sts SAM-DA61-06014A
...
1-5
Reinf-Cap Handle SAM-DA61-06658A
...
1-6
Aw3,mswr10,92,5,zpc3(y) SAM-DA66-00579B
...
1
Assy Door Foam-Fre; Aw1-12,rs,plate SAM-DA91-03833A
...
2
Hanger-Rail Front L; Aw-Pjt,secc1,t2.0,co SAM-DA61-03153B
...
3
Hanger-Rail Front R; Aw-Pjt,secc1,t2.0,co SAM-DA61-03155B
...
4
Assy-Gasket Door Fre; Aw-Pjt,gray,aw New- SAM-DA97-05557Y
...
5-1-1
Support-Handle Fre SAM-DA61-08229A
...
5-1-2
Support-Handle Fre R SAM-DA61-08247A
...
5-1-3
Handle Bar-Fre; Aw1-12,aw4,al,t1.3,versai SAM-DA64-03945F
...
5-1-4
Cap-Handle Fre SAM-DA67-02787A
...
5-1
Assy Handle Bar-Fre; Aw4,al(a6063),versai SAM-DA97-12712C
...
5-2-1
Support-Handle Ref SAM-DA61-08228A
...
5-2-2
Support-Handle Ref Upp SAM-DA61-08246A
...
5-2-3
Handle Bar-Ref R; Aw1-12 & Aw4,al,t1.3,ve SAM-DA64-03756G
...
5-2-4
Cap-Supt Handle Ref SAM-DA67-02788A
...
5-2
Assy Handle Bar-Ref R; Aw4,al(a6063),vers SAM-DA97-12714C
...
5-3-1
Support-Handle Ref SAM-DA61-08228A
...
5-3-2
Support-Handle Ref Upp SAM-DA61-08246A
...
5-3-3
Handle Bar-Ref L; Aw1-12 & Aw4,al,t1.3,ve SAM-DA64-03756K
...
5-3-4
Cap-Supt Handle Ref SAM-DA67-02788A
...
5-3
Assy Handle Bar-Ref L; Aw4,al(a6063),vers SAM-DA97-12715C
...
5-4
Fixer-Handle SAM-DA61-03734A
...
5-5
Wrench-Spanner SAM-DA80-00026B
...
5
Aw1-12,aw4,al,patent SAM-DA99-03914C

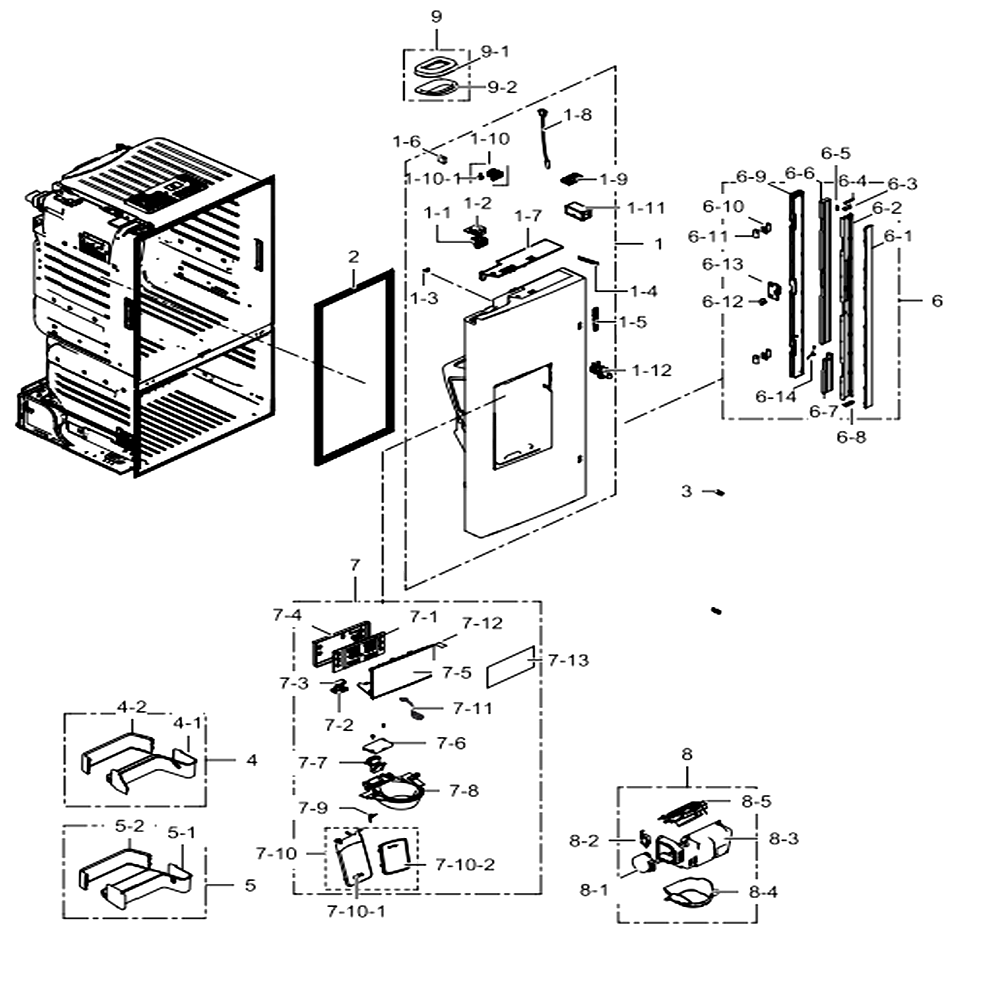

Fridge Door Left

...
...
1-1
Support Door-Close; Aw-Pjt,pk,m33r3a000,c SAM-DA61-02383E
...
1-2
Aw-Pjt,po-Sphc,black,heat SAM-DA61-03211A
...
1-3
Magnet-A SAM-DA61-03769A
...
1-4
Assembly Lamp Led SAM-DA41-00676G
...
1-5
Cover-Cap Door Led SAM-DA63-05524A
...
1-6
Grommet-Stopper SAM-DA63-40294A
...
1-7
Cover-Cap Door Ref Upp L; Aw4,abs,creamy SAM-DA63-06916A
...
1-8
Sensor Humidity SAM-DA32-00034B
...
1-9
Grommet-Chassis Up SAM-DA63-04825A
...
1-10-1
Roller-Auto Close SAM-DA66-00440A
...
1-10
Assembly Lever-Auto Close SAM-DA97-12625A
...
1-11
Plate-Door Switch SAM-DA61-05274A
...
1-12
Switch Door-Interlock SAM-DA34-00066C
...
1
Assy Door Foam Ref-L; Aw1-12,26cuft,rs,ea SAM-DA91-03829A
...
2
Assy-Gasket Door Ref; Aw-Pjt,gray,-,- SAM-DA97-05253B
...
3
Fixer-Handle SAM-DA61-03734A
...
4-1
Aw1-12,hips,cool White SAM-DA63-06964A
...
4-2
Aw4,gpps,t3.0,hb,tp SAM-DA63-06976A
...
4
Aw1-12 SAM-DA97-12652A
...
5-1
Aw1-12,hips,cool White SAM-DA63-06965A
...
5-2
Aw4,gpps,t3.0,hb,tp SAM-DA63-06976A
...
5
Aw1-12 SAM-DA97-12653A
...
6-1
Aw1-12,egi-Secc,t0.8,thai Silver SAM-DA61-08321A
...
6-2
Aw1-12,abs,cool White SAM-DA61-08320A
...
6-3
Cap-Guide French Upp SAM-DA67-03358A
...
6-4
Gasket-French Upp; Aw4,si,gray SAM-DA63-06959A
...
6-5
Spring Etc-Etc Cap Guide; Aw4,sts304,3.0, SAM-DA61-08315A
...
6-6
Aw1-12,ps Foam,sf-401h SAM-DA62-03668A
...
6-7
Aw1-12,ps Foam,sf- SAM-DA62-03669A
...
6-8
Gasket-French Low; Aw-Pjt,si,gray SAM-DA63-06842B
...
6-9
Aw1-12,abs,cool White SAM-DA61-08319A
...
6-10
Hinge-French SAM-DA61-08305A
...
6-11
Aw-Pjt,abs,cool White,ab SAM-DA67-02146A
...
6-12
Aw-Pjt,abs,cool Whit SAM-DA67-02154A
...
6-13
Aw-Pjt,pc,-,-,-,-,-, SAM-DA63-04645A
...
6-14
Aw4,sts304,1.4,5.2,8.0 SAM-DA61-08314A
...
6
Aw1-12,thai-Silver SAM-DA97-12683A
...
7-1
Led Touch Display,aw SAM-DA92-00368B
...
7-2
Case Lamp-Led SAM-DA61-05687A
...
7-3
Cover-Lamp-Led SAM-DA63-02446A
...
7-4
Aw1-12,hips,ntr SAM-DA63-06949A
...
7-5
Aw1-12,abs,black Smog SAM-DA63-06947A
...
7-6
Cover-Switch SAM-DA63-05449A
...
7-7
Switch Micro SAM-DA34-00011B
...
7-8
Aw1-12,abs,hb,i Blac SAM-DA63-06948A
...
7-9
Spring Etc-Lever Disp Ice SAM-DA61-06033B
...
7-10-1
Lever-Dispenser SAM-DA66-00850A
...
7-10-2
Plate-Lever Dispenser SAM-DA61-07362A
...
7-10
Assembly Lever Disp SAM-DA97-11867A
...
7-11
Assy-W/harness Disp SAM-DA96-00106G
...
7-12
Assembly Pcb Kit SAM-DA41-00217A
...
7-13
Inlay-Display; Aw1-12-Pjt,pet+uv Coating, SAM-DA64-04236B
...
7
Assy Cover Disp; Aw1-12,rs, Mono,sts Cove SAM-DA97-12675B
...
8-1
Motor Geared-Disp SAM-DA31-00079D
...
8-2
Switch-Micro SAM-DA34-00011A
...
8-3
Aw-Pjt,abs,i Black,hg-076 SAM-DA61-03526A
...
8-4
Aw4,hips,hb,s834s1,n SAM-DA61-08219A
...
8-5
Assembly Cover-Ice Route SAM-DA97-05368A
...
8
Assy Case-Ice Route; Aw4,120v SAM-DA97-08680E
...
9-1
Gasket-Cap Chute Ice SAM-DA63-06945A
...
9-2
Cap-Chute Ice SAM-DA67-03312A
...
9
Assembly Cap-Chute Ice SAM-DA97-12594A

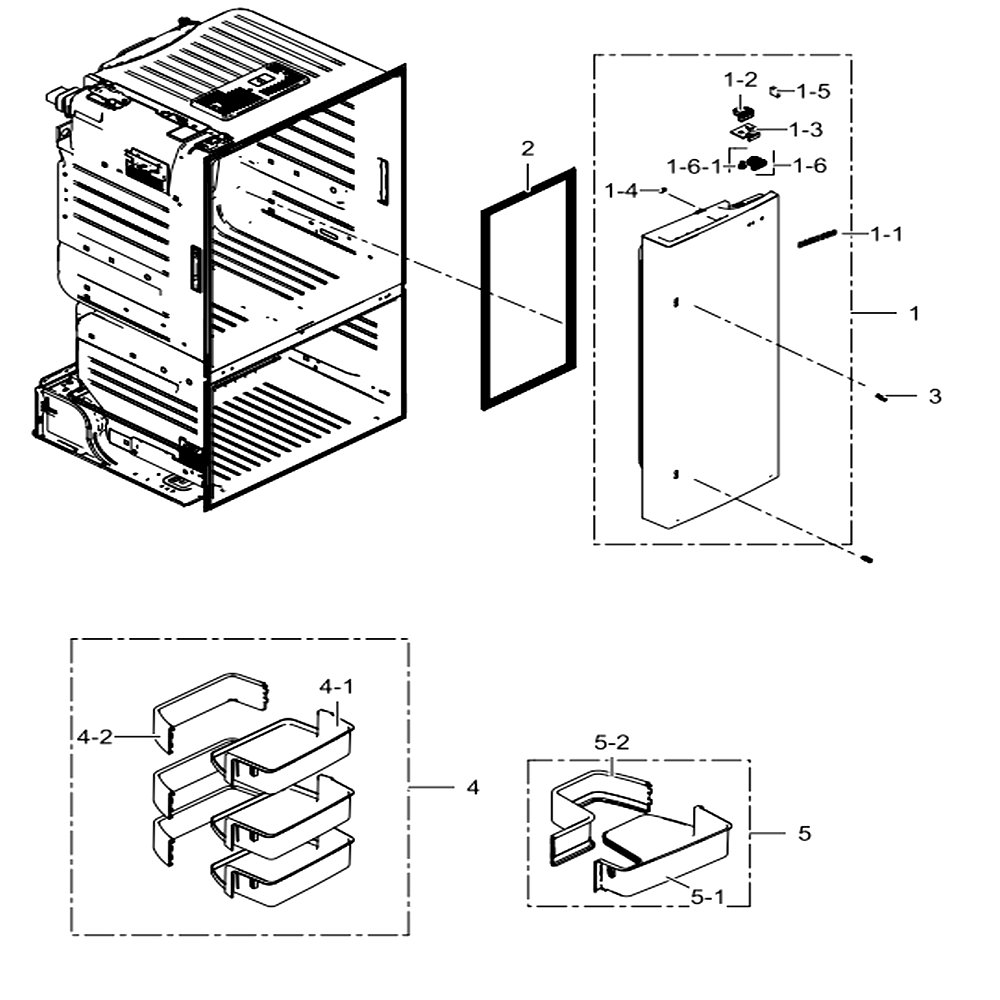

Fridge Door Right

...
...
1-1
Mascot SAM-DA64-04021C
...
1-2
Support Door-Close; Aw-Pjt,pk,m33r3a000,c SAM-DA61-02383E
...
1-3
Aw-Pjt,po-Sphc,black,heat SAM-DA61-03212A
...
1-4
Magnet-A SAM-DA61-03769A
...
1-5
Grommet-Stopper SAM-DA63-40294A
...
1-6-1
Roller-Auto Close SAM-DA66-00440A
...
1-6
Assembly Lever-Auto Close SAM-DA97-12625A
...
1
Aw1-12_Sem,rs SAM-DA91-03909A
...
2
Assy-Gasket Door Ref; Aw-Pjt,gray,-,- SAM-DA97-05253B
...
3
Fixer-Handle SAM-DA61-03734A
...
4-1
Aw1-12,hips,cool White,s834s SAM-DA63-06963A
...
4-2
Aw4,gpps,t3.0,hb,tp Bl SAM-DA63-06974A
...
4
Aw1-12 SAM-DA97-12650A
...
5-1
Aw1-12,hips,cool White SAM-DA63-06966A
...
5-2
Aw1-12,gpps,tp Blu SAM-DA63-06992A
...
5
Aw1-12 SAM-DA97-12651A
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
