Samsung RF263BEAESR/AA_0000

Model: RF263BEAESR/AA_0000

Save Part Not Listed?
product name

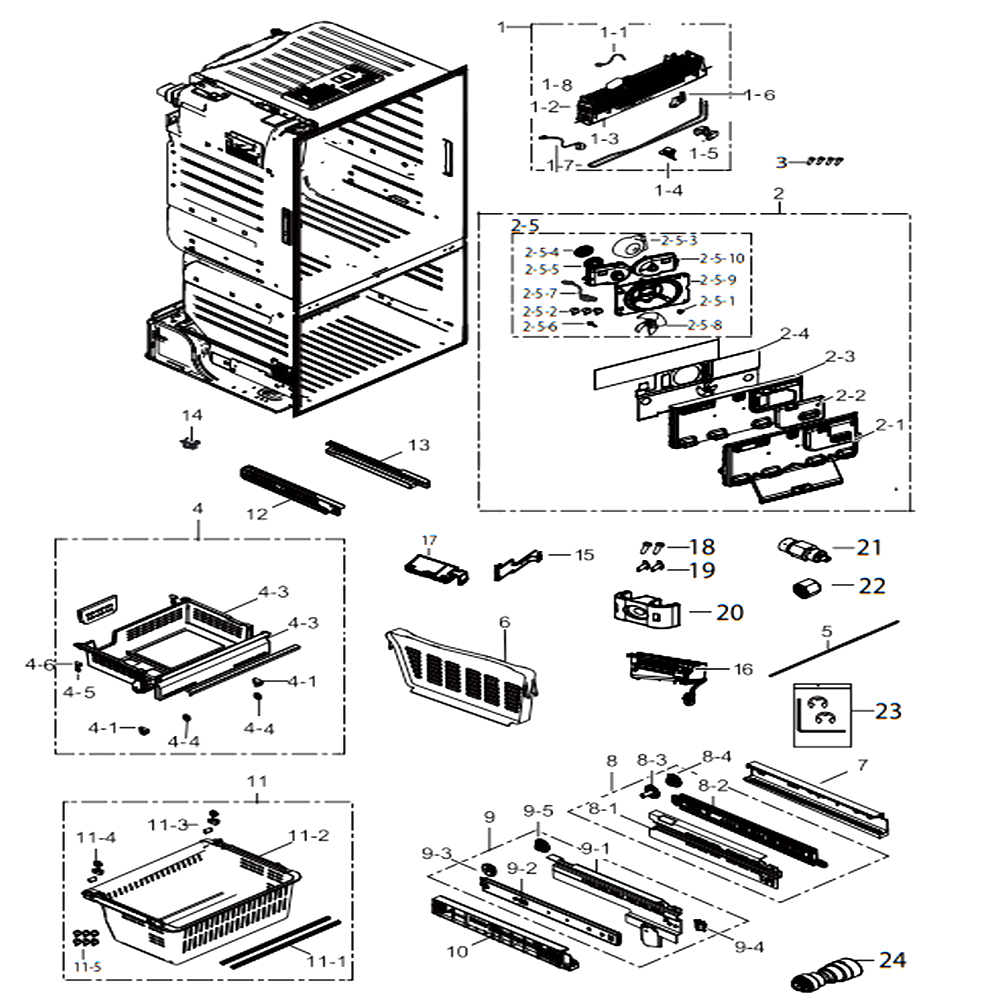

Freezer

...
...
1-1
Sensor Temp SAM-DA32-10104N
...
1-2
Pin,115v,aw-Pjt SAM-DA59-00358B
...
1-3
Aw-Sem,sazcc,t0.3,-,-,-, SAM-DA61-04814B
...
1-4
Plate-Evap Heater SAM-DA61-03644A
...
1-5
Aw2,pbt,natural,v-0 SAM-DA61-05689A
...
1-6
Fixer-Sensor Fre SAM-DA61-06182A
...
1-7
Ac120v,aw2-11 Fre, 6 SAM-DA47-00424M
...
1-8
Thermo Bimetal-Protector SAM-DA47-00243B
...
1
Aw1 Most E?cient,fin,120 SAM-DA96-00460L
...
2-1
Aw1-12,pp,ntr SAM-DA63-06941A
...
2-2
Aw1-12,ps Foam SAM-DA62-03659A
...
2-3
Aw1-12,ps Foam SAM-DA62-03658A
...
2-4
Aw1-12,gl-Sazcc,t SAM-DA61-05328C
...
2-5-1
Spring Etc-Fan SAM-DA61-20128A
...
2-5-2
Screw-Tapping SAM-6002-000213
...
2-5-3
Motor Bldc SAM-DA31-00146H
...
2-5-4
Grommet-Motor,rear SAM-DA63-01146A
...
2-5-5
Grommet Motor SAM-DA63-01808A
...
2-5-6
Grommet-Cover Chill SAM-DA63-40167A
...
2-5-7
Assembly Wire Harness-Motor SAM-DA96-00042D
...
2-5-8
-,aw-Pjt,abs,-,da31-001 SAM-DA31-00230A
...
2-5-9
Aw-Pjt,pp,-,w125,l170,bla SAM-DA61-04850B
...
2-5-10
Cover Motor-Bldc SAM-DA63-04651B
...
2-5
12vdc,rpm2950,inverte SAM-DA96-00959D
...
2
Aw1-12 SAM-DA97-12617A
...
3
Screw-Tapping SAM-6002-000215
...
4-1
Aw-Pjt,pa66,na SAM-DA61-04813A
...
4-2
Aw1-12,hips,cool White SAM-DA63-06935A
...
4-3
Aw1-12,hips,cool Whit SAM-DA63-06936A
...
4-4
Aw-Pjt(samsung),pom, SAM-DA66-00639A
...
4-5
Aw-Sem,pom,500p,natural,da66- SAM-DA61-04804A
...
4-6
Aw1-12,pa66,natural,v2,101f SAM-DA61-04805B
...
4
Aw1-12,assy SAM-DA97-12641B
...
5
Aw-Pjt,sm10c,cool White,powde SAM-DA66-00437D
...
6
Aw-Pjt,pp,-,-,-,cool Wh SAM-DA61-04796A
...
7
Aw-Pjt,abs,cool White,h SAM-DA63-04605A
...
8-1
Aw-Pjt,egi-Secc,t1.6,c SAM-DA61-04816A
...
8-2
Aw2-Pjt,cr-Scp1,w53.5,l SAM-DA61-09088A
...
8-3
Aw-Pjt,pom,ntr SAM-DA66-00767A
...
8-4
Aw-Pjt,pom,-,natural,da61-031 SAM-DA61-04801A
...
8
Aw-Pjt,t2.0,qty. R SAM-DA97-10595B
...
9-1
Aw-Pjt,egi-Secc,t1.6,c SAM-DA61-04817A
...
9-2
Aw2-Pjt,cr-Scp1,w53.5,l SAM-DA61-09087A
...
9-3
Aw-Pjt,pom,ntr SAM-DA66-00771A
...
9-4
Aw-Pjt,-,cool White,-,-, SAM-DA34-00049A
...
9-5
Aw-Pjt,pom,-,natural,da61-031 SAM-DA61-04801A
...
9
Aw-Pjt,t2.0,qty. R SAM-DA97-10594B
...
10
Aw-Pjt,abs,cool White,h SAM-DA63-04604A
...
11-1
Reinf-Drawer Box SAM-DA61-04824A
...
11-2
Aw-Pjt,pp,cool White SAM-DA63-06038A
...
11-3
Aw1-12,pa66,natural,v2,101f SAM-DA61-04805B
...
11-4
Aw-Sem,pom,500p,natural,da66- SAM-DA61-04804A
...
11-5
Screw-Tapping SAM-6002-000213
...
11
Aw1-Pjt,da63-06038a SAM-DA97-07024C
...
12
Opus1,hips,natural,s-834s SAM-DA61-07328A
...
13
Opus1,hips,natural,s834s1 SAM-DA61-07329A
...
14
Switch-Door SAM-DA34-10120E
...
15
Cover-Wire Harness Ice SAM-DA63-06894A
...
16
Assy Ice Maker; Aw-Pjt,115v,60hz SAM-DA97-12317A
...
17
Assy-Latch; Aw4/(aw1-12 ),116*66*11,white SAM-DA97-12605A
...
18
Screw-Tapping SAM-6002-000215
...
19
Screw-Tapping SAM-6002-001406
...
20
Fixer-Hose SAM-DA61-04712C
...
21
Valve-Fitting Pu SAM-DA62-00305A
...
22
Valve-Fitting Nut SAM-DA74-00070B
...
23
Valve SAM-DA99-03490L
...
24
Tube-Fitting SAM-DA62-03914A

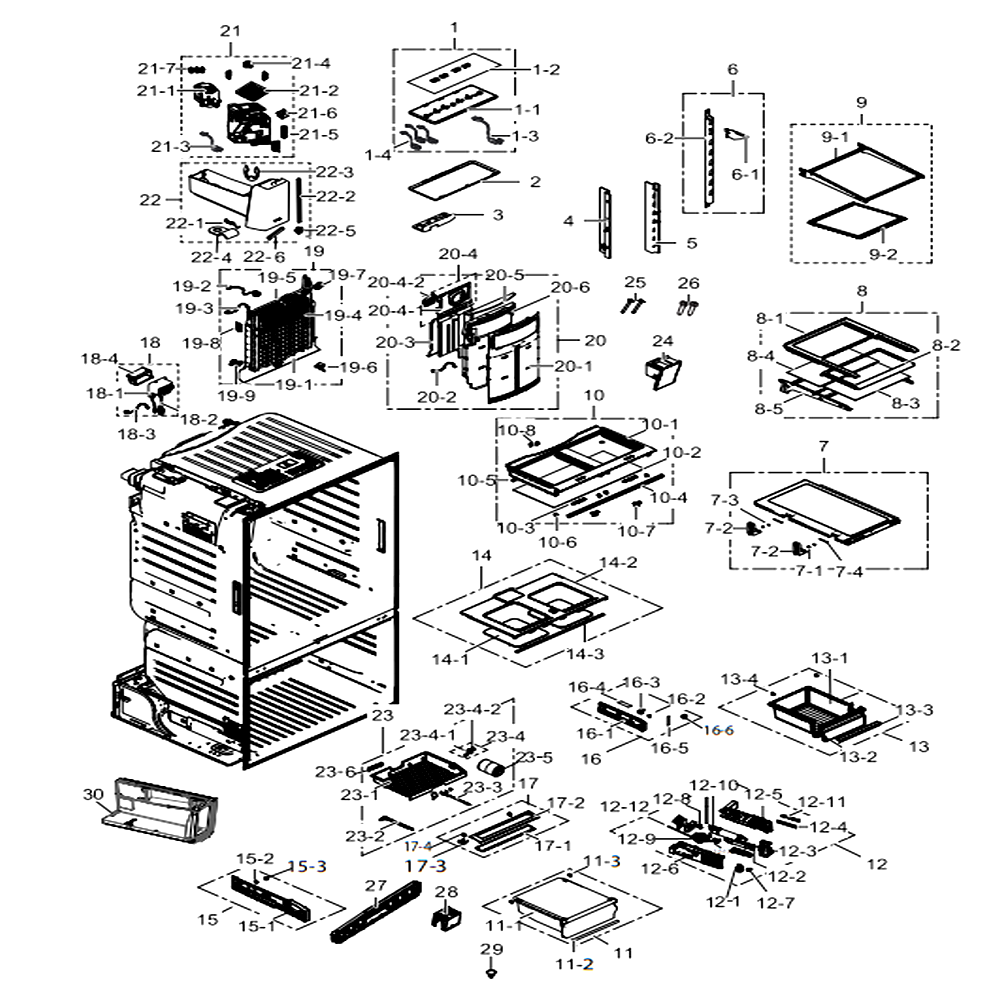

Fridge

...
...
1-1
Aw1-12,hips,natural,hb,s83 SAM-DA61-08237A
...
1-2
Assembly Lamp Led SAM-DA41-00676G
...
1-3
Assembly W/harness-Led Ref SAM-DA96-00961A
...
1-4
All,dc 12v,ul, Ie SAM-DA96-00961B
...
1
Aw1-12 SAM-DA97-12607A
...
2
Aw4,gpps,tp Blue,147f SAM-DA63-06921A
...
3
Aw-Pjt,pc-Abs (hi-1001b),co SAM-DA61-04795A
...
4
Aw-Sem,secc1,t2.0 SAM-DA61-04767A
...
5
Aw1-12,egi-Secc,t2. SAM-DA61-08275A
...
6-1
Support-Hanger; Aw2,secc1,t1.6,-,-,cool W SAM-DA61-04321A
...
6-2
Aw1-12,egi-Secc,t2.0 SAM-DA61-08274A
...
6
Aw1-12,cool-Whi SAM-DA97-12729A
...
7-1
Spring Etc-Hinge Shelf SAM-DA61-03705A
...
7-2
Aw1-12,pc,cool White SAM-DA61-08243A
...
7-3
Roller-Hinge-Shelf SAM-DA66-00482A
...
7-4
Shaft-Hinge-Shelf SAM-DA66-00483A
...
7
Aw1-12,kor SAM-DA97-12728A
...
8-1
Aw1-12,abs,440.3, SAM-DA67-03348A
...
8-2
Aw1-12,abs,cool SAM-DA67-03347A
...
8-3
Aw1-12,gla SAM-DA01-00816A
...
8-4
Aw1-12,glas SAM-DA01-00808A
...
8-5
Aw1-12 SAM-DA97-12632A
...
8
Aw1-12 SAM-DA97-12730A
...
9-1
Aw1-12 SAM-DA97-12837A
...
9-2
Aw1-12 SAM-DA97-12838A
...
9
Aw1-12 SAM-DA97-12839A
...
10-1
Aw1-12pjt,hips,cool White( SAM-DA63-06946A
...
10-2
Glass SAM-DA01-00811A
...
10-3
Lever-Humidity SAM-DA66-00718A
...
10-4
Aw-Pjt,shp1,t2.0,-,-,bla SAM-DA61-04823A
...
10-5
Aw-Pjt,hips,cool White,d SAM-DA61-04809A
...
10-6
Aw-Sem,pom,500p,natural,da66- SAM-DA61-04804A
...
10-7
Knob-Humidity; Aw4,abs,natural,chromium P SAM-DA64-04173A
...
10-8
Screw-Tapping SAM-6002-000213
...
10
Aw1-12pjt,cool White, SAM-DA97-12727A
...
11-1
Aw1-12pjt,gpps,tp Blue,14 SAM-DA61-08269A
...
11-2
Aw1-12,hips,s834s1,cool SAM-DA64-03862C
...
11-3
Aw-Sem,pom,500p,natural,da66- SAM-DA61-04804A
...
11
Aw1-12,assy SAM-DA97-12725A
...
12-1
Assembly Case-Filter SAM-DA97-08006D
...
12-2
Filter Water; Sseda SAM-DA29-00019A
...
12-3
Aw1-12,hips,hb,cool Wh SAM-DA63-06934A
...
12-4
Assembly Lamp Led SAM-DA41-00519S
...
12-5
Case-Filter Tank L; Aw2-11,hips,cool Whit SAM-DA61-07496A
...
12-6
Case-Filter Tank R; Aw2-11,hips,w433.9,l1 SAM-DA61-07497A
...
12-7
Tube-Fitting L SAM-DA62-03103A
...
12-8
Tube-Fitting L SAM-DA62-03103A
...
12-9
Valve Water-2way; Opus,pom,1.0~8.0k,blue, SAM-DA62-03150A
...
12-10
Aw1-12,pp,ntr,pp SAM-DA97-11283F
...
12-11
Cover-Led Filter SAM-DA63-05408B
...
12-12
Pipe-Water Line; Aw33,lldpe,id4.2,od6.35, SAM-DA62-03154A
...
12-13
Screw-Tapping SAM-6002-001406
...
12
Aw1-12,wht SAM-DA97-12661A
...
13-1
Aw1-12pjt,gpps,tp Blue,14 SAM-DA61-08270A
...
13-2
Aw1-12pjt,gpps,tp Blue SAM-DA63-06943A
...
13-3
Aw1-12,hips,s834s1,cool SAM-DA64-03862B
...
13-4
Aw-Sem,pom,500p,natural,da66- SAM-DA61-04804A
...
13
Aw1-12,assy SAM-DA97-12726A
...
14-1
Window-Shelf Pantry SAM-DA64-02740A
...
14-2
Aw-Pjt,hips,-,-,-,cool Whit SAM-DA67-02139A
...
14-3
Reinf-Shelf Pantry SAM-DA61-04822A
...
14
Aw-Pjt,da97-05370a SAM-DA97-07015A
...
15-1
Aw-Pjt,hips,cool Whi SAM-DA63-04611A
...
15-2
Roller-Rail; Aw2-Pjt,pom,19.0,-,-,-,n109- SAM-DA66-00548A
...
15-3
Nut-Hexagon SAM-6021-001125
...
15
Aw-Pjt,-,-,-,-, SAM-DA97-07016A
...
16-1
Aw-Pjt,hips,-,576h,c SAM-DA63-04612A
...
16-2
Support-Roller Pantry; Aw-Pjt,pvc,blk SAM-DA61-03176A
...
16-3
Assy-Roller A; Aw2-Pjt SAM-DA97-05932A
...
16-4
Led Display,aw2-Pjt,pantry SAM-DA92-00151A
...
16-5
Aw1-12,pc,t0.3,21.08 SAM-DA64-04243A
...
16-6
Nut-Hexagon SAM-6021-001125
...
16
Aw(ge)-Pjt,assy SAM-DA97-05384F
...
17-1
Aw-Pjt(samsung),gpp SAM-DA63-04614A
...
17-2
Aw-Sem,abs,cool Whi SAM-DA63-04615C
...
17-3
Grommet-Cover Chill SAM-DA63-40167A
...
17-4
Aw-Sem,pom,500p,natural,da66- SAM-DA61-04804A
...
17
Aw-Pjt,da97-0538 SAM-DA97-07020C
...
18-1
Cover-Motor Dc Damper SAM-DA63-04655A
...
18-2
Nsby001tk1/du25-076,dc12 SAM-DA31-00071G
...
18-3
Dkst1329gw,px-41c, 502at,aw- SAM-DA32-00006R
...
18-4
Insulation-Motor Dc Damper SAM-DA62-02057A
...
18
Aw-Sem,without H SAM-DA97-07189E
...
19-1
Aw-Sem,al,t0.4 SAM-DA61-06006A
...
19-2
Thermo Bimetal-Protector SAM-DA47-00243C
...
19-3
Sensor Temp SAM-DA32-10104N
...
19-4
Fin Tube,aw3 SAM-DA59-00399A
...
19-5
Aw3(r),120w,120v SAM-DA47-00244W
...
19-6
Plate-Evap Heater SAM-DA61-03644A
...
19-7
Aw-Pjt,pp,-,-,-,-,black,-,- SAM-DA61-04800B
...
19-8
Fixer-Fuse SAM-DA61-05160A
...
19-9
Fixer-Heater Ref SAM-DA61-05835B
...
19
Aw2 Nd,pin,120v/120w SAM-DA96-00660E
...
20-1
Aw1-12,pp,cool White,bj75 SAM-DA63-06919A
...
20-2
Px-41c,502at,dkst1329gw,quee SAM-DA32-10105X
...
20-3
Aw1-12,ps Foam, SAM-DA62-03649A
...
20-4-1
Aw4,abs,light Gray,cntk-A SAM-DA61-08187A
...
20-4-2
Motor Bldc Fan SAM-DA31-00287A
...
20-4
Aw4,assy SAM-DA97-12815A
...
20-5
Aw1-12,ps Foam,ntr SAM-DA62-03648A
...
20
Aw1-12 SAM-DA97-12609A
...
21-1
Motor Geared Ac Auger SAM-DA31-00105M
...
21-2
Motor Bldc Fan SAM-DA31-00070E
...
21-3
Assembly Wire Harness-Auger SAM-DA96-00682D
...
21-4
Grommet-Fan SAM-DA63-02513A
...
21-5
Spring Etc-Solenoid SAM-DA61-20140A
...
21-6
Valve-Solenoid SAM-DA74-40151G
...
21-7
Screw-Special SAM-DA60-00001B
...
21
Assembly Case-Fan Auger Motor SAM-DA97-12540A
...
22-1
Spring Etc-Dispenser SAM-DA61-20124D
...
22-2
Gasket-Tray Ice Bucket SAM-DA63-07185A
...
22-3
Fastener-Ring SAM-DA60-00231A
...
22-4
Aw-Pjt,sts304,t0.8 SAM-DA61-03723B
...
22-5
Nut-Hex SAM-DA60-30108A
...
22-6
Pin-Spiral SAM-DA60-90136A
...
22
Aw4/(aw1-12 ),137,457,wht SAM-DA97-12604A
...
23-1
Aw-Pjt,hips,-,-,-,cool White SAM-DA61-04806A
...
23-2
Aw-Pjt,-,-,-,-,da97-0 SAM-DA97-07013A
...
23-3
Aw-Pjt,-,-,-,-,da97-0 SAM-DA97-07001A
...
23-4-1
Roller-Rail; Aw2-Pjt,pom,19.0,-,-,-,n109- SAM-DA66-00548A
...
23-4-2
Guide-Washer; Aw2-Pjt,sts304,0.5,12.0,-,- SAM-DA61-04008A
...
23-4
Aw2-Pjt,-,-,- SAM-DA97-05931A
...
23-5
Aw-Pjt,pom,-,-,natural,-,d SAM-DA66-00637A
...
23-6
Screw-Tapping SAM-6002-000213
...
23
Aw-Pjt,-,-,-,-,da97-048 SAM-DA97-07011A
...
24
Aw1-12,pp,-,hb,bj750,cool Whit SAM-DA67-03326A
...
25
Th,+,1,m4,l35,zpc(wht),swr SAM-6002-001432
...
26
Screw-Tapping SAM-6002-000215
...
27
Aw-Pjt,hips,cool White,da61 SAM-DA61-04794A
...
28
Aw-Pjt,gava,-,-,-, SAM-DA63-04629A
...
29
Aw-Pjt,abs,hg-0760gp,i Bl SAM-DA67-02138A
...
30-1
Assy Case-Ice Room SAM-DA97-13405A
...
30
Aw1-12,assy SAM-DA97-13395A

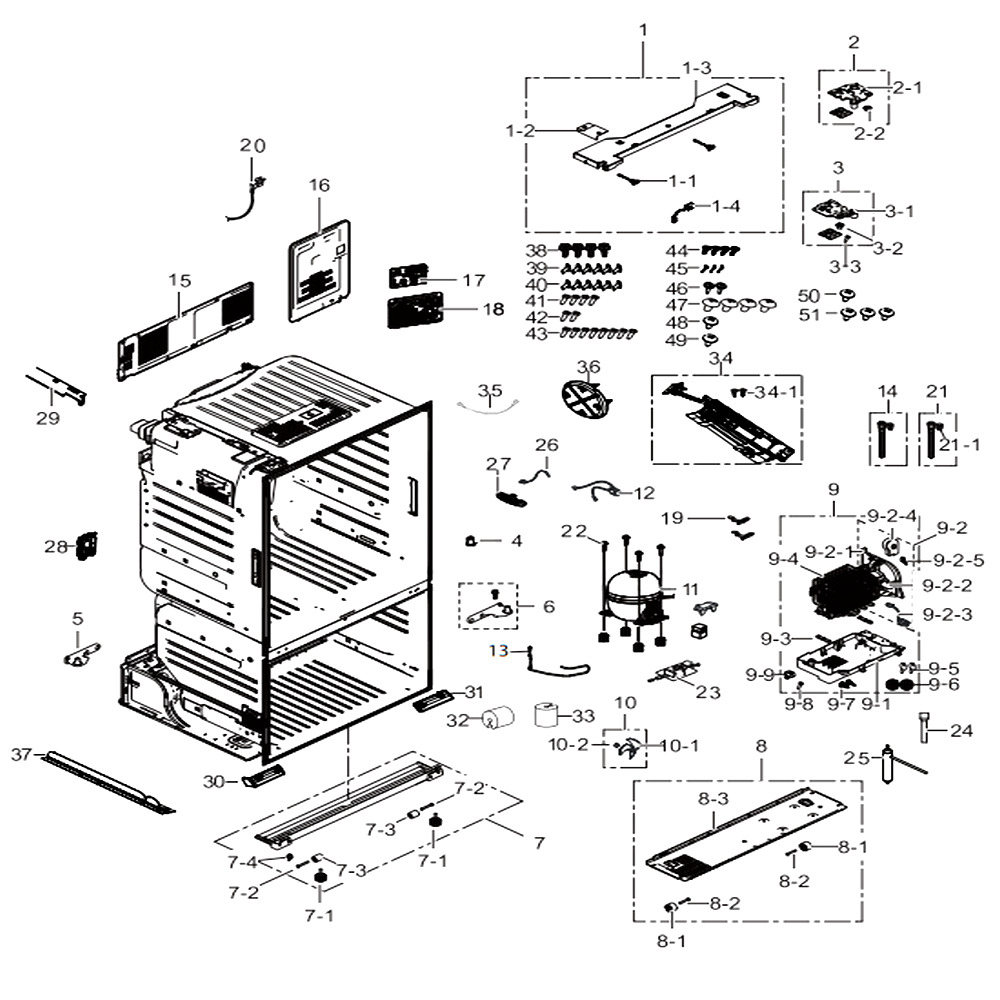

Cabinet

...
...
1-1
Switch Reed SAM-DA34-00043A
...
1-2
Plate-Cover Hinge SAM-DA61-08227A
...
1-3
Aw1-12,abs,creamy Sts,910,dispenser SAM-DA64-04189A
...
1-4
Assy W/harness-Reed Switch; Fdr,12vdc,all SAM-DA96-00962A
...
1
Aw1-12,assy,creamy Sts,910,dispenser SAM-DA97-12707A
...
2-1
Hinge-Upp L SAM-DA61-08309A
...
2-2
Cam-Auto Close L SAM-DA66-00950A
...
2
Assembly Hinge Upp-L SAM-DA97-12573A
...
3-1
Hinge-Upp R; Aw4,po-Sphc,t2.9,eletrodepos SAM-DA61-08310A
...
3-2
Cam-Auto Close R SAM-DA66-00951A
...
3-3
Screw-Tapping SAM-6002-000215
...
3
Assy Hinge Upp-R; Aw4,t3.0,black SAM-DA97-12574A
...
4
Grommet Hinge-Mid SAM-DA63-06410A
...
5
Aw,al,t5.0,aldc 6,t5.0 SAM-DA61-07771A
...
6
Aw3,ni Cr Flatng,aldc SAM-DA97-12659A
...
7-1
Foot-Front SAM-DA61-04721D
...
7-2
Caster-Rivet SAM-DA61-01920A
...
7-3
Caster-Front SAM-DA61-04702A
...
7-4
Screw-Tapping SAM-6002-000213
...
7
Aw1-12,thai-Si SAM-DA97-12577D
...
8-1
Caster-Rear SAM-DA61-04703A
...
8-2
Shaft-Caster SAM-DA66-00649A
...
8-3
Aw1-12,gi-Sgcc,t1.4 SAM-DA64-04244A
...
8
Aw1-12,t1.4 SAM-DA97-12895A
...
9-1
Aw-Pjt,pp,black SAM-DA63-03450A
...
9-2-1
Next,abs Scrap,lig SAM-DA61-02349C
...
9-2-2
Aw-Pjt,abs,light G SAM-DA61-04764B
...
9-2-3
Assembly W/harness-Motor SAM-DA96-00042P
...
9-2-4
Motor Bldc SAM-DA31-00146B
...
9-2-5
Grommet-Cover Chill SAM-DA63-40167A
...
9-2
Assy,light Gr SAM-DA97-03145U
...
9-3
Grommet-Sub Cond SAM-DA63-40128A
...
9-4
Assembly Pipe Spiral Cond SAM-DA97-06988D
...
9-5
Screw-Tapping SAM-6002-000217
...
9-6
Grommet-Motor,rear SAM-DA63-01146A
...
9-7
Screw-Special SAM-6009-001252
...
9-8
Screw-Tapping SAM-6002-000215
...
9-9
Screw-Tapping SAM-6002-000239
...
9
Aw-Pjt,bldc SAM-DA97-05043H
...
10-1
4010(ntr) SAM-DA31-00228A
...
10-2
Spring Etc-Fan SAM-DA61-20128A
...
10
Assembly Fan-Circuit SAM-DA96-00504A
...
11
Compressor SAM-MKV190CL2J/SM1
...
12
All,free Volt,ul+ SAM-DA39-00154L
...
13
Pipe-Connect Suction SAM-DA62-03601B
...
14
Aw1-12 SAM-DA97-04049H
...
15
Aw1-12,t0.3,foam Pe SAM-DA97-15162B
...
16
Aw1-12,assy SAM-DA97-08442C
...
17
Inverter,aw1-12,197*98 SAM-DA92-00268A
...
18
Led Touch,aw1-12,13v,5v,mo SAM-DA92-00384B
...
19
Fixer Hinge-Upp SAM-DA61-04932A
...
20
Cbf-Power Cord SAM-3903-000786
...
21-1
Grommet-Drain SAM-DA63-02761A
...
21
Assembly Cap-Drain SAM-DA97-06970A
...
22
M8,l45,zpc2-Y,mswr10 SAM-6011-003803
...
23
Aw3-Pjt,20mh,82*60,-25 ~ +85 SAM-DA27-00019H
...
24
Pipe-Connect SAM-DA62-00314C
...
25
Dryer SAM-DA62-04309B
...
26
Px41c/502at,aw4,-40~110 ?,5v SAM-DA32-00029U
...
27
Cover Sensor-Fre SAM-DA63-05470B
...
28
Assembly Cover-Tube Filter SAM-DA97-08413B
...
29
Aw4,hips,v-0,natural,f-74 SAM-DA63-06916E
...
30
Opus-1,pp,natural,bj75 SAM-DA63-06389A
...
31
Opus-1,pp,creamy Stain SAM-DA63-06405A
...
32
Grommet-Suct Pipe A SAM-DA63-40171B
...
33
Grommet-Suct Pipe B SAM-DA63-40171D
...
34-1
Fh,+,-,2,m4.0,l14,pass,sts SAM-6002-000458
...
34
Aw1-12,assy,grom SAM-DA97-12611A
...
35
Wire Harness-Earth SAM-DA39-20389E
...
36
Cover-Urethane SAM-DA63-04598B
...
37
Trim-Blade SAM-DA64-02631A
...
38
Screw-Hex SAM-DA60-10123E
...
39
Screw-Tapping SAM-6002-001406
...
40
Screw-Tapping SAM-6002-001406
...
41
Screw-Tapping SAM-6002-000215
...
42
Screw-Tapping SAM-6002-000215
...
43
Screw-Tapping SAM-6002-000215
...
44
M6,l20,zpc(wht),swrch18a,fh Hea SAM-6003-001727
...
45
Th,+,-,1,m4,l30,zpc(wht),s SAM-6002-000601
...
46
Screw-Tapping SAM-6006-001083
...
47
Screw-Tapping SAM-6002-000217
...
48
Screw-Tapping SAM-6002-000213
...
49
Screw-Tapping SAM-6002-000213
...
50
Screw-Tapping SAM-6002-000213
...
51
Screw-Tapping SAM-6002-000213

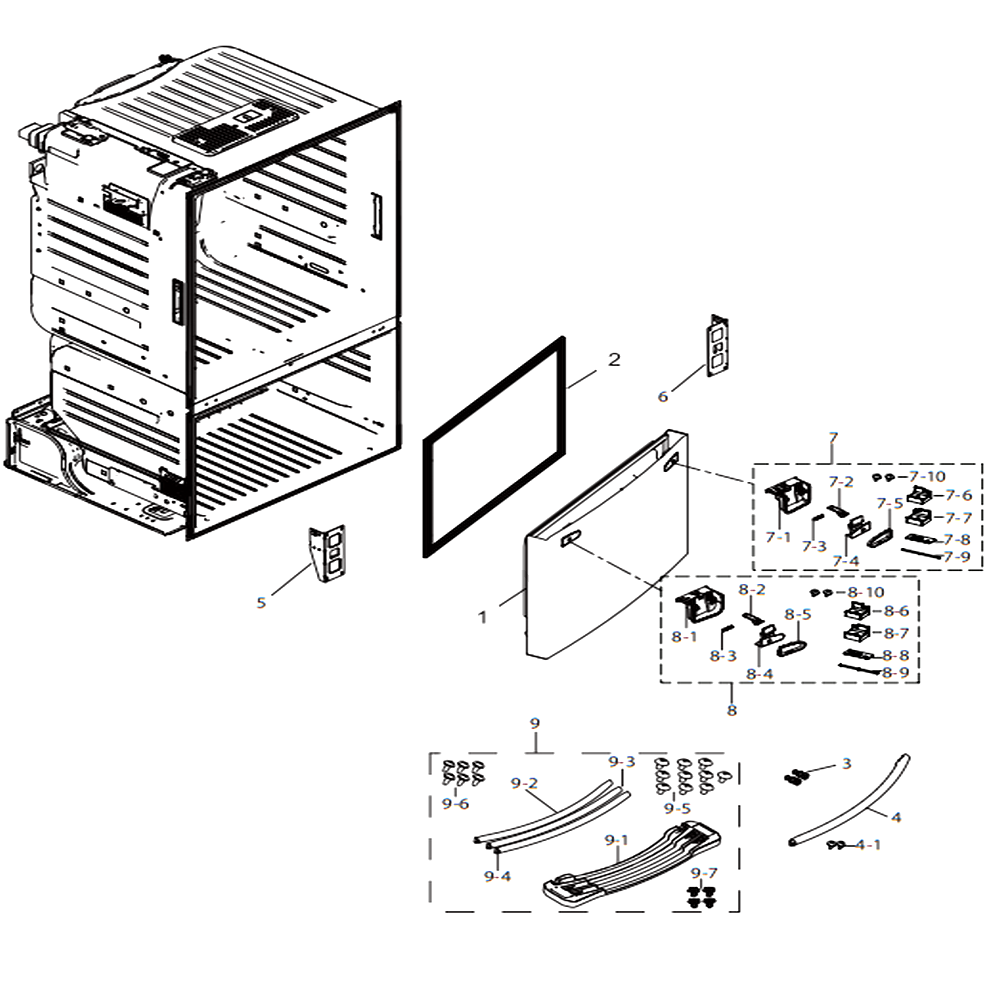

Freeze Door

...
...
1
Aw1-12_Sem,rs SAM-DA91-03910A
...
2
Aw-Pjt,pvc,gray (sc-9748 SAM-DA63-06541D
...
3
Fixer-Handle SAM-DA61-03734A
...
4-1
Screw-Tapping SAM-6002-000213
...
4
Handle Bar-Fre; Aw1-12,aw4,al,t1.3,versai SAM-DA64-03945F
...
5
Aw-Pjt,egi-Secc,t2.0 SAM-DA61-04840A
...
6
Aw-Pjt,secc1,-,cool SAM-DA61-04841A
...
7-1
Aw1-12,abs,132.7,creamy Sts SAM-DA61-08267A
...
7-2
Aw3,pom,creamy-Sts SAM-DA61-06014A
...
7-3
Spring Etc-Easy Handle; 08 Aw1,2-Pjt,hswr SAM-DA61-04335B
...
7-4
Support-Handle Fre SAM-DA61-08229A
...
7-5
Aw4,abs,t1.5,creamy Sts SAM-DA64-04159A
...
7-6
Fixer-Shaft R SAM-DA61-05899A
...
7-7
Fixer-Shaft L SAM-DA61-05930A
...
7-8
Reinf-Cap Handle SAM-DA61-06658A
...
7-9
Aw3,mswr10,92,5,zpc3(y) SAM-DA66-00579B
...
7-10
Screw-Tapping SAM-6002-000213
...
7
Aw1-12_Sem,versailles Silver SAM-DA97-13236A
...
8-1
Aw1-12,abs,132.7,creamy Sts SAM-DA61-08268A
...
8-2
Aw3,pom,creamy-Sts SAM-DA61-06014A
...
8-3
Spring Etc-Easy Handle; 08 Aw1,2-Pjt,hswr SAM-DA61-04335B
...
8-4
Support-Handle Fre SAM-DA61-08229A
...
8-5
Aw4,abs,t1.5,creamy Sts SAM-DA64-04158A
...
8-6
Fixer-Shaft R SAM-DA61-05899A
...
8-7
Fixer-Shaft L SAM-DA61-05930A
...
8-8
Reinf-Cap Handle SAM-DA61-06658A
...
8-9
Aw3,mswr10,92,5,zpc3(y) SAM-DA66-00579B
...
8-10
Screw-Tapping SAM-6002-000213
...
8
Aw1-12_Sem,versailles Silver SAM-DA97-13237A
...
9-1
Cushion Handle SAM-DA69-01461A
...
9-2
Assy Handle Bar-Fre; Aw4,al(a6063),versai SAM-DA97-12712C
...
9-3
Assy Handle Bar-Ref R; Aw4,al(a6063),vers SAM-DA97-12714C
...
9-4
Assy Handle Bar-Ref L; Aw4,al(a6063),vers SAM-DA97-12715C
...
9-5
Screw-Tapping SAM-6002-000217
...
9-6
Screw-Tapping SAM-6006-001170
...
9-7
Screw-Hex SAM-DA60-10123E
...
9
Aw1-12,aw4,al,patent SAM-DA99-03914C

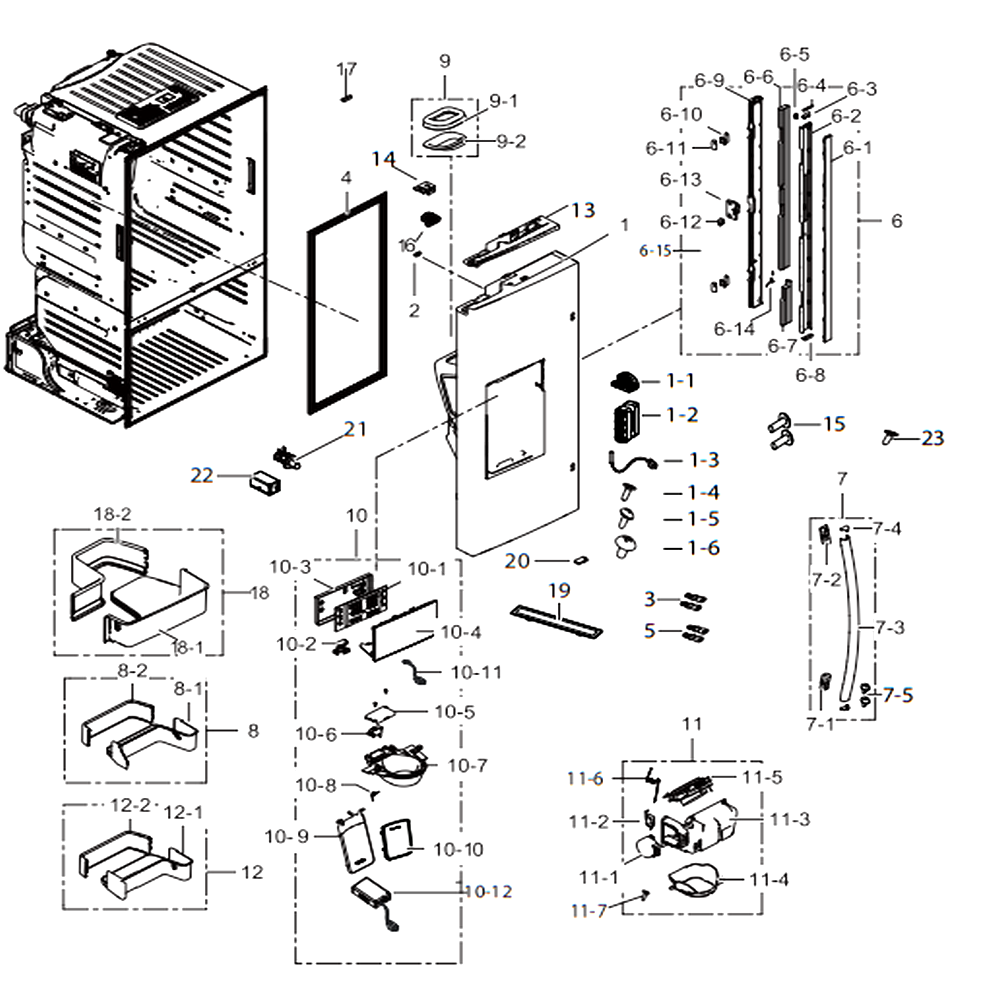

Fridge Door Left

...
...
1-1
Aw-Sem,pom,hb,500p,na SAM-DA61-05001C
...
1-2
Grommet-Chassis Up SAM-DA63-04825A
...
1-3
Sensor Humidity SAM-DA32-00034B
...
1-4
Screw-Tapping SAM-6002-001122
...
1-5
Screw-Tapping SAM-6006-001170
...
1-6
Screw-Tapping SAM-6002-000217
...
1
Aw1-12,rs SAM-DA91-03908A
...
2
Magnet-A SAM-DA61-03769A
...
3
Fixer-Handle SAM-DA61-03734A
...
4
Aw1 Pjt,pvc,w403.7,l978, SAM-DA63-06542A
...
5
Fixer-Handle SAM-DA61-03734A
...
6-1
Aw1-12,egi-Secc,t0.8,thai Silver SAM-DA61-08321A
...
6-2
Aw1-12,abs,cool White SAM-DA61-08320A
...
6-3
Cap-Guide French Upp SAM-DA67-03358A
...
6-4
Gasket-French Upp; Aw4,si,gray SAM-DA63-06959A
...
6-5
Spring Etc-Etc Cap Guide; Aw4,sts304,3.0, SAM-DA61-08315A
...
6-6
Aw1-12,ps Foam,sf-401h SAM-DA62-03668A
...
6-7
Aw1-12,ps Foam,sf- SAM-DA62-03669A
...
6-8
Gasket-French Low; Aw-Pjt,si,gray SAM-DA63-06842B
...
6-9
Aw1-12,abs,cool White SAM-DA61-08319A
...
6-10
Hinge-French SAM-DA61-08305A
...
6-11
Aw-Pjt,abs,cool White,ab SAM-DA67-02146A
...
6-12
Aw-Pjt,abs,cool Whit SAM-DA67-02154A
...
6-13
Aw-Pjt,pc,-,-,-,-,-, SAM-DA63-04645A
...
6-14
Aw4,sts304,1.4,5.2,8.0 SAM-DA61-08314A
...
6
Aw1-12,thai-Silver SAM-DA97-12683A
...
7-1
Support-Handle Ref SAM-DA61-08228A
...
7-2
Support-Handle Ref Upp SAM-DA61-08246A
...
7-3
Handle Bar-Ref L; Aw1-12 & Aw4,al,t1.3,ve SAM-DA64-03756K
...
7-4
Cap-Supt Handle Ref SAM-DA67-02788A
...
7-5
Screw-Tapping SAM-6002-000213
...
7
Assy Handle Bar-Ref L; Aw4,al(a6063),vers SAM-DA97-12715C
...
8-1
Aw1-12,hips,cool White SAM-DA63-06964A
...
8-2
Aw4,gpps,t3.0,hb,tp SAM-DA63-06976A
...
8
Aw1-12 SAM-DA97-12652A
...
9-1
Gasket-Cap Chute Ice SAM-DA63-06945A
...
9-2
Cap-Chute Ice SAM-DA67-03312A
...
9
Assembly Cap-Chute Ice SAM-DA97-12594A
...
10-1
Led Touch Display,aw SAM-DA92-00368B
...
10-2
Assy-Lamp Door SAM-DA97-02847F
...
10-3
Aw1-12,hips,ntr SAM-DA63-06949A
...
10-4
Aw1-12,abs,black Smog SAM-DA63-06947A
...
10-5
Cover-Switch SAM-DA63-05449A
...
10-6
Switch Micro SAM-DA34-00011B
...
10-7
Aw1-12,abs,hb,i Blac SAM-DA63-06948A
...
10-8
Spring Etc-Lever Disp Ice SAM-DA61-06033B
...
10-9
Aw1-12,abs,hg-0760,cream SAM-DA66-00850C
...
10-10
Plate-Lever Dispenser SAM-DA61-07362A
...
10-11
Assy-W/harness Disp SAM-DA96-00106G
...
10
Aw1-12,rs, Mono,sts Cove SAM-DA97-12675K
...
11-1
Motor Geared-Disp SAM-DA31-00079D
...
11-2
Switch-Micro SAM-DA34-00011A
...
11-3
Aw-Pjt,abs,i Black,hg-076 SAM-DA61-03526A
...
11-4
Aw4,hips,hb,s834s1,n SAM-DA61-08219A
...
11-5
Assembly Cover-Ice Route SAM-DA97-08117B
...
11-6
Spring Etc-Cover Ice Route SAM-DA61-01914A
...
11-7
Screw-Tapping SAM-6002-001122
...
11
Assy Case-Ice Route; Aw4,120v SAM-DA97-08680E
...
12-1
Aw1-12,hips,cool White SAM-DA63-06965A
...
12-2
Aw4,gpps,t3.0,hb,tp SAM-DA63-06976A
...
12
Aw1-12 SAM-DA97-12653A
...
13
Aw1-12,abs,creamy-Sts SAM-DA67-03339A
...
14
Aw-Pjt,po-Sphc,black,heat SAM-DA61-03211A
...
15
Screw-Tapping SAM-6002-001406
...
16
Aw1-12,pom,black SAM-DA97-13070A
...
17
Grommet-Stopper SAM-DA63-40294A
...
18-1
Aw1-12,hips,cool White SAM-DA63-06966A
...
18-2
Aw1-12,gpps,tp Blu SAM-DA63-06992A
...
18
Aw1-12 SAM-DA97-12651A
...
19
Aw-Pjt,gpps,t2,tp Blu SAM-DA63-06131B
...
20
Assembly Lamp Led SAM-DA41-00676G
...
21
Switch Door-Interlock SAM-DA34-00066C
...
22
Plate-Door Switch SAM-DA61-05274A
...
23
Screw-Tapping SAM-6002-001122

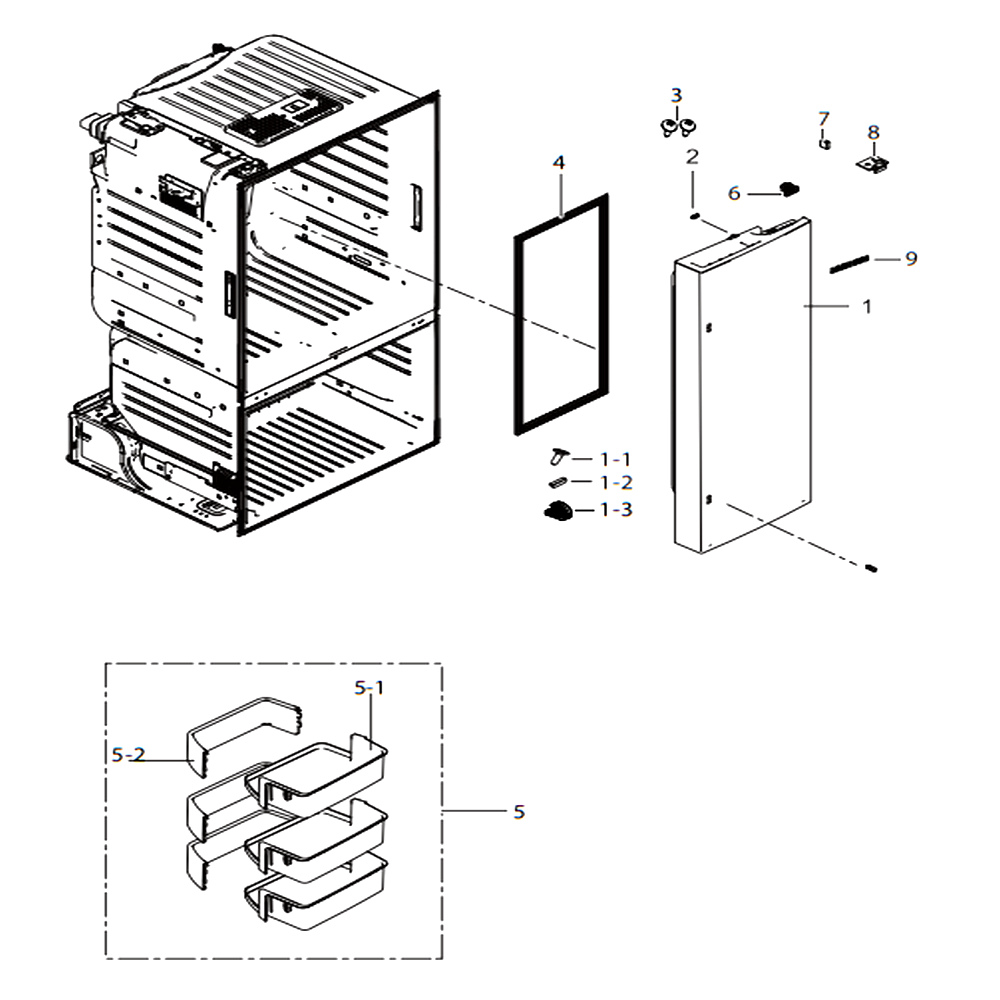

Fridge Door Right

...
...
1-1
Screw-Tapping SAM-6002-001122
...
1-2
Grommet-Stopper SAM-DA63-40294A
...
1-3
Aw-Sem,pom,hb,500p,na SAM-DA61-05001C
...
1
Aw1-12_Sem,rs SAM-DA91-03909A
...
2
Magnet-A SAM-DA61-03769A
...
3
Screw-Tapping SAM-6002-000213
...
4
Aw1 Pjt,pvc,w403.7,l978, SAM-DA63-06542A
...
5-1
Aw1-12,hips,cool White,s834s SAM-DA63-06963A
...
5-2
Aw4,gpps,t3.0,hb,tp Bl SAM-DA63-06974A
...
5
Aw1-12 SAM-DA97-12650A
...
6
Aw1-12,pom,black SAM-DA97-13070A
...
7
Grommet-Stopper SAM-DA63-40294A
...
8
Aw-Pjt,po-Sphc,black,heat SAM-DA61-03212A
...
12
Mascot SAM-DA64-04021A
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
