Samsung RF260BEAESR/AA_0002

Model: RF260BEAESR/AA_0002

Save Part Not Listed?
product name

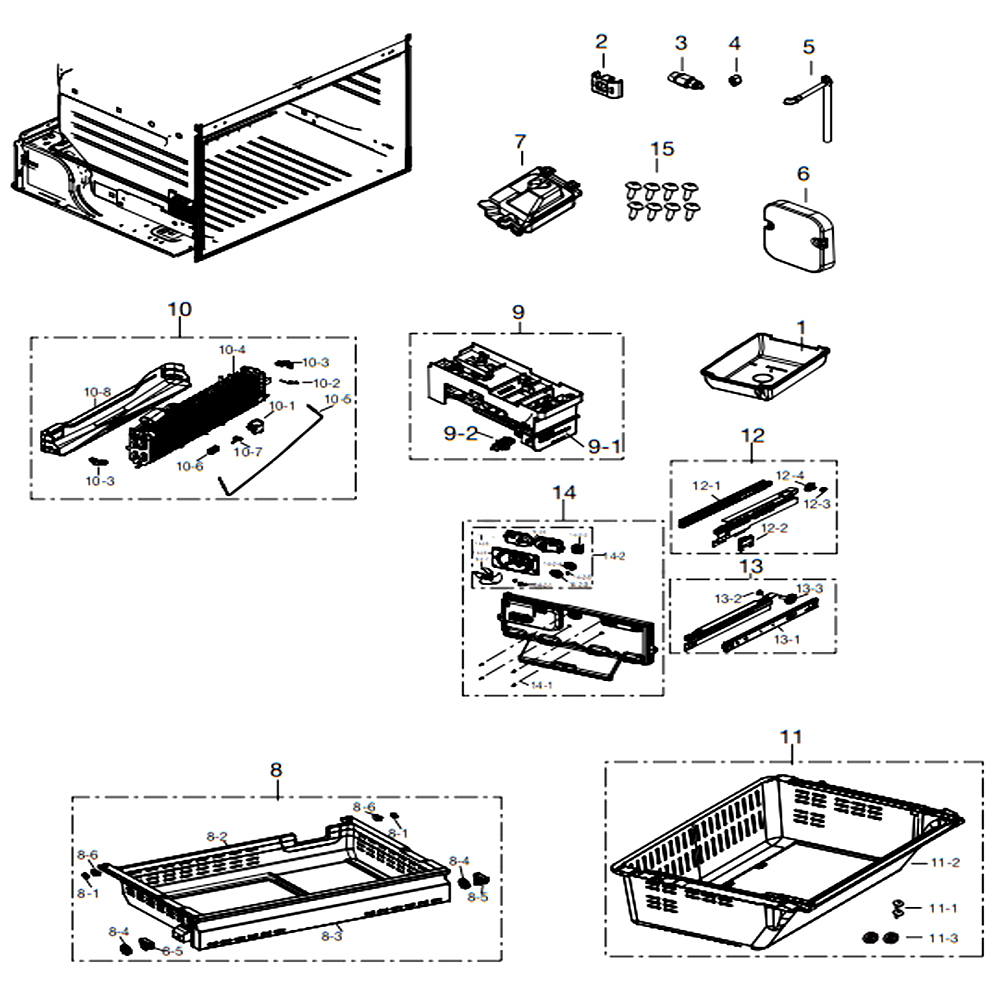

Freezer

...
...
1
Aw-Sem,pp,cool White(sc-02 SAM-DA61-05358A
...
2
Fixer-Hose SAM-DA61-04712C
...
3
Valve-Fitting Pu SAM-DA62-00305A
...
4
Valve-Fitting Nut SAM-DA74-00070B
...
5
Aw2-11,hose L0.36m, SAM-DA97-00209Z
...
6
Aw-Sem,pp,bla SAM-DA97-06990B
...
7
Assembly Cover-Tube Filter SAM-DA97-08413B
...
8-1
Aw-Sem,pom,500p,natural,da66- SAM-DA61-04804A
...
8-2
Aw1-12,hips,cool White SAM-DA63-06935A
...
8-3
Aw1-12,hips,cool Whit SAM-DA63-06936A
...
8-4
Aw-Pjt(samsung),pom, SAM-DA66-00639A
...
8-5
Aw-Pjt,pa66,na SAM-DA61-04813A
...
8-6
Aw1-12,pa66,natural,v2,101f SAM-DA61-04805B
...
8
Aw1-12 SAM-DA97-12641A
...
9-1
Assy SAM-DA59-00294B
...
9-2
Cover Sensor SAM-DA63-02183A
...
9
Aw4 SAM-DA97-07603B
...
10-1
Thermo Bimetal-Protector SAM-DA47-00243B
...
10-2
Sensor Temp SAM-DA32-10104N
...
10-3
Aw2,pbt,natural,v-0 SAM-DA61-05689A
...
10-4
Pin,115v,aw-Pjt SAM-DA59-00358B
...
10-5
Ac120v,aw2-11 Fre, 6 SAM-DA47-00424M
...
10-6
Fixer-Sensor Fre SAM-DA61-06182A
...
10-7
Plate-Evap Heater SAM-DA61-03644A
...
10-8
Aw-Sem,sazcc,t0.3,-,-,-, SAM-DA61-04814B
...
10
Aw1 Most E?cient,fin,120 SAM-DA96-00460L
...
11-1
Screw-Tapping SAM-6002-000213
...
11-2
Aw-Pjt,pp,cool White SAM-DA63-06038A
...
11-3
Aw-Sem,pom,500p,natural,da66- SAM-DA61-04804A
...
11
Aw1-Pjt,da63-06038a SAM-DA97-07024C
...
12-1
Aw2-Pjt,cr-Scp1,w53.5,l SAM-DA61-09087A
...
12-2
Aw-Pjt,-,cool White,-,-, SAM-DA34-00049A
...
12-3
Aw-Pjt,pom,-,natural,da61-031 SAM-DA61-04801A
...
12-4
Aw-Pjt,pom,ntr SAM-DA66-00771A
...
12
Aw-Pjt,t2.0,qty. R SAM-DA97-10594B
...
13-1
Aw2-Pjt,cr-Scp1,w53.5,l SAM-DA61-09088A
...
13-2
Aw-Pjt,pom,-,natural,da61-031 SAM-DA61-04801A
...
13-3
Aw-Pjt,pom,ntr SAM-DA66-00767A
...
13
Aw-Pjt,t2.0,qty. R SAM-DA97-10595B
...
14-1
Screw-Tapping SAM-6002-000215
...
14-2-1
Screw-Tapping SAM-6002-000213
...
14-2-2
Motor Bldc SAM-DA31-00146H
...
14-2-3
Grommet-Motor,rear SAM-DA63-01146A
...
14-2-4
Grommet Motor SAM-DA63-01808A
...
14-2-5
Grommet-Cover Chill SAM-DA63-40167A
...
14-2-6
Assembly Wire Harness-Motor SAM-DA96-00042D
...
14-2-7
-,aw-Pjt,abs,-,da31-001 SAM-DA31-00230A
...
14-2-8
Aw-Pjt,pp,-,w125,l170,bla SAM-DA61-04850B
...
14-2-9
Cover Motor-Bldc SAM-DA63-04651B
...
14-2
12vdc,rpm2950,inverte SAM-DA96-00959D
...
14
Aw1-12 SAM-DA97-12617A
...
15
Screw-Tapping SAM-6002-001306

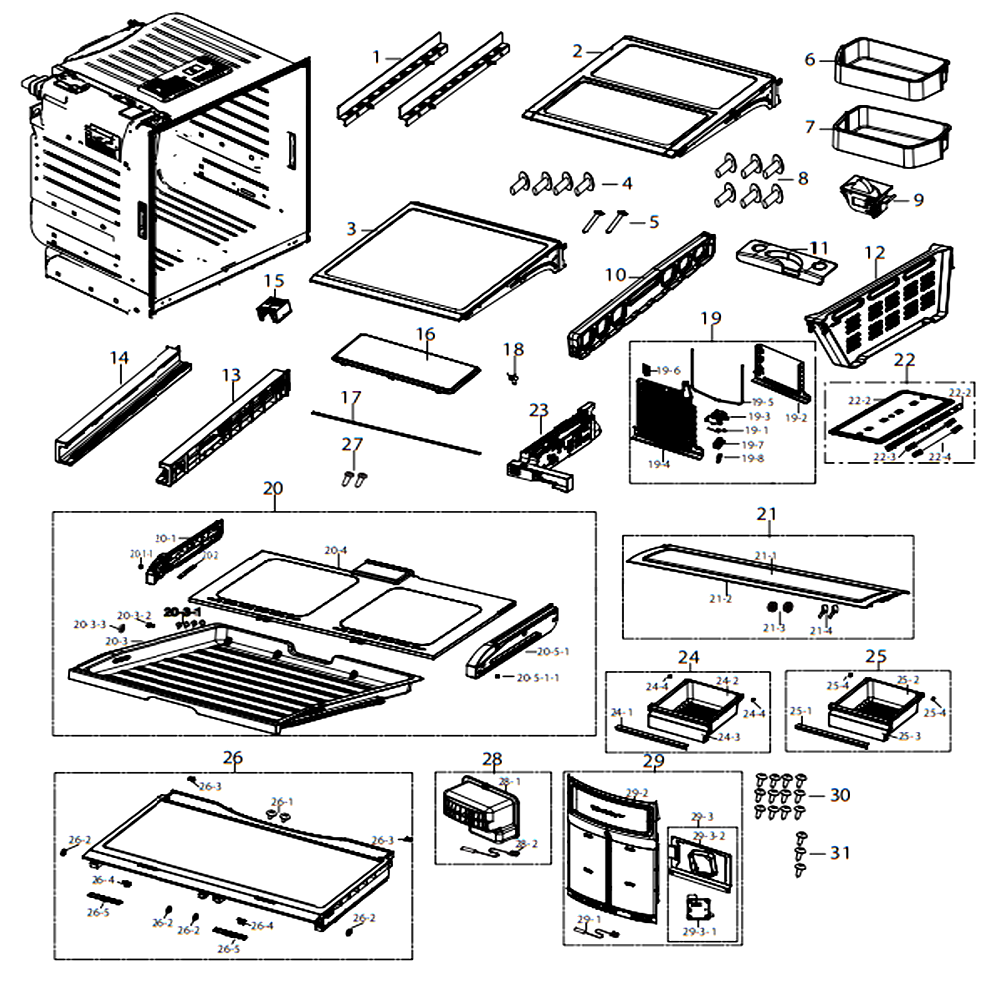

Fridge

...
...
1
Aw1-12,egi-Secc,t2. SAM-DA61-08275A
...
2
Aw1-12 SAM-DA97-12730A
...
3
Aw1-12,insert Type SAM-DA97-12839B
...
4
Screw-Tapping SAM-6002-001406
...
5
Th,+,1,m4,l35,zpc(wht),swr SAM-6002-001432
...
6
Aw1-12 SAM-DA97-12650A
...
7
Aw1-12 SAM-DA97-12657A
...
8
Screw-Tapping SAM-6002-001406
...
9
Switch-Door SAM-DA34-10120E
...
10
Aw-Pjt,hips,cool White,da61 SAM-DA61-04794A
...
11
Aw-Pjt,pc-Abs (hi-1001b),co SAM-DA61-04795A
...
12
Aw-Pjt,pp,-,-,-,cool Wh SAM-DA61-04796A
...
13
Aw-Pjt,abs,cool White,h SAM-DA63-04604A
...
14
Aw-Pjt,abs,cool White,h SAM-DA63-04605A
...
15
Aw-Pjt,gava,-,-,-, SAM-DA63-04629A
...
16
Aw4,gpps,tp Blue,147f SAM-DA63-06921A
...
17
Aw-Pjt,sm25c,-,-,-,-,- SAM-DA66-00437A
...
18
Aw-Pjt,abs,hg-0760gp,i Bl SAM-DA67-02138A
...
19-1
Sensor Temp SAM-DA32-10104N
...
19-2
Aw-Sem,al,t0.4 SAM-DA61-06006A
...
19-3
Fixer-Heater Ref SAM-DA61-05835B
...
19-4
Fin Tube,aw3 SAM-DA59-00399A
...
19-5
Ac120v,aw2 Ref, 144o SAM-DA47-00244U
...
19-6
Fixer-Fuse SAM-DA61-05160A
...
19-7
Aw-Pjt,pp,-,-,-,-,black,-,- SAM-DA61-04800B
...
19-8
Plate-Evap Heater SAM-DA61-03644A
...
19
Aw1-12,120v/100w SAM-DA96-00660J
...
20-1-1
Nut-Hexagon SAM-6021-001125
...
20-1
Aw-Pjt,hips,-,576h,c SAM-DA63-04612A
...
20-2
Led Display,aw2-Pjt,pantry SAM-DA92-00151A
...
20-3-1
Screw-Tapping SAM-6002-000213
...
20-3-2
Aw2-Pjt,-,-,- SAM-DA97-05931A
...
20-3-3
Aw-Pjt,pom,-,-,natural,-,d SAM-DA66-00637A
...
20-3
Aw-Pjt,-,-,-,-,da97-048 SAM-DA97-07011A
...
20-4
Aw-Pjt,da97-05370a SAM-DA97-07015A
...
20-5-1-1
Nut-Hexagon SAM-6021-001125
...
20-5-1
Aw-Pjt,hips,cool Whi SAM-DA63-04611A
...
20-5
Aw-Pjt,-,-,-,-, SAM-DA97-07016A
...
20
Aw(ge)-Pjt,assy SAM-DA97-05384F
...
21-1
Aw-Pjt(samsung),gpp SAM-DA63-04614A
...
21-2
Aw-Sem,abs,cool Whi SAM-DA63-04615C
...
21-3
Aw-Sem,pom,500p,natural,da66- SAM-DA61-04804A
...
21-4
Grommet-Cover Chill SAM-DA63-40167A
...
21
Aw-Pjt,da97-0538 SAM-DA97-07020C
...
22-1
Assembly Lamp Led SAM-DA41-00676G
...
22-2
Aw1-12,hips,natural,hb,s83 SAM-DA61-08237A
...
22-3
Assembly W/harness-Led Ref SAM-DA96-00961A
...
22-4
All,dc 12v,ul, Ie SAM-DA96-00961B
...
22
Aw1-12 SAM-DA97-12607A
...
23
Aw1-12,wht SAM-DA97-12663A
...
24-1
Aw1-12,hips,s834s1,cool SAM-DA64-03862C
...
24-2
Aw1-12pjt,gpps,tp Blue,14 SAM-DA61-08269A
...
24-3
Aw1-12pjt,gpps,tp Blue SAM-DA63-06944A
...
24-4
Aw-Sem,pom,500p,natural,da66- SAM-DA61-04804A
...
24
Aw1-12,assy SAM-DA97-12725A
...
25-1
Aw1-12pjt,gpps,tp Blue,14 SAM-DA61-08270A
...
25-2
Aw1-12pjt,gpps,tp Blue SAM-DA63-06943A
...
25-3
Aw1-12,hips,s834s1,cool SAM-DA64-03862B
...
25-4
Aw-Sem,pom,500p,natural,da66- SAM-DA61-04804A
...
25
Aw1-12,assy SAM-DA97-12726A
...
26-1
Screw-Tapping SAM-6002-000213
...
26-2
Aw-Sem,pom,500p,natural,da66- SAM-DA61-04804A
...
26-3
Aw-Pjt,hips,cool White,d SAM-DA61-04809A
...
26-4
Knob-Humidity; Aw4,abs,natural,chromium P SAM-DA64-04173A
...
26-5
Lever-Humidity SAM-DA66-00718A
...
26
Aw1-12pjt,cool White, SAM-DA97-12727A
...
27
Screw-Tapping SAM-6002-000215
...
28-1
Nsby001tk1/du25-076,dc12 SAM-DA31-00071G
...
28-2
Dkst1329gw,px-41c, 502at,aw- SAM-DA32-00006R
...
28
Aw-Sem,without H SAM-DA97-07189E
...
29-1
Px-41c,502at,dkst1329gw,quee SAM-DA32-10105X
...
29-2
Aw1-12,pp,cool White,bj75 SAM-DA63-06919A
...
29-3-1
Motor Bldc Fan SAM-DA31-00287A
...
29-3-2
Aw4,abs,light Gray,cntk-A SAM-DA61-08187A
...
29-3
Aw4,assy SAM-DA97-12815C
...
29
Aw1-12,angle-Shelf R SAM-DA97-12609C
...
30
Screw-Tapping SAM-6002-001306
...
31
Screw-Tapping SAM-6002-001306

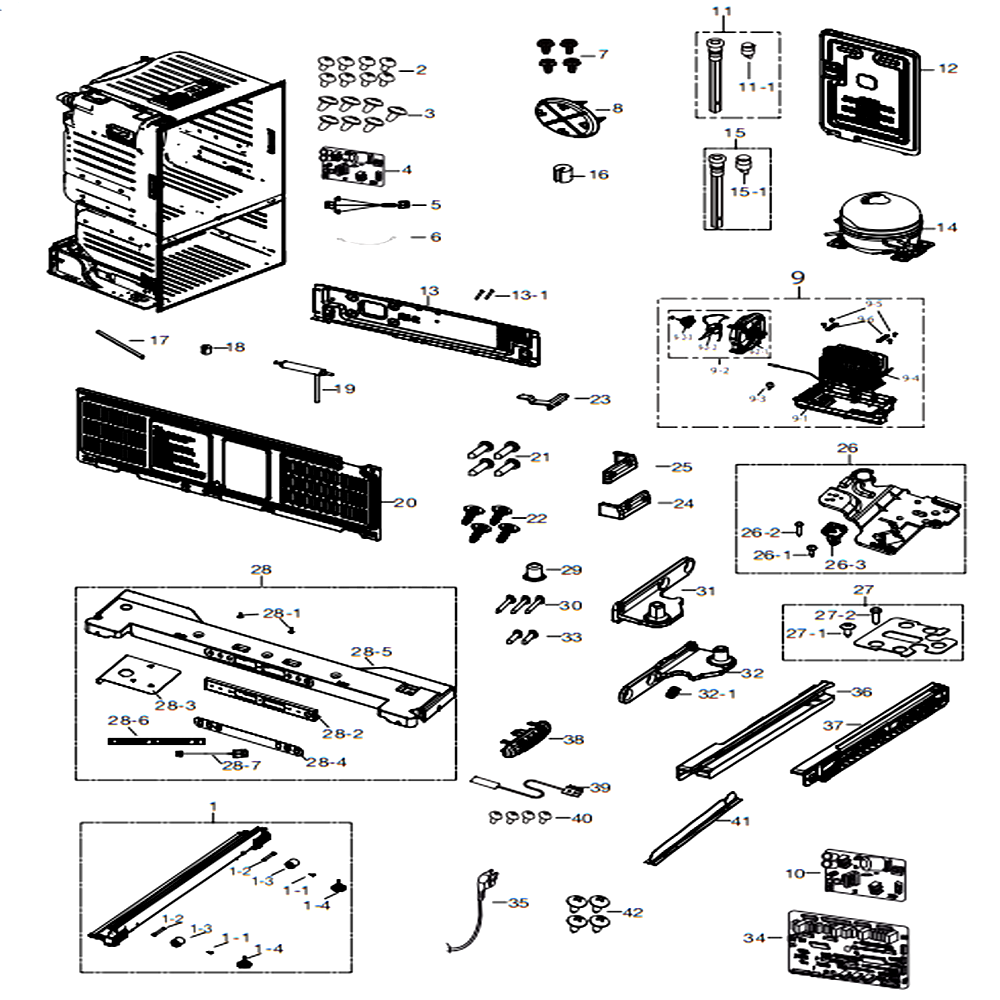

Cabinet

...
...
1-1
Screw-Tapping SAM-6002-000213
...
1-2
Caster-Rivet SAM-DA61-01920A
...
1-3
Caster-Front SAM-DA61-04702A
...
1-4
Foot-Front SAM-DA61-04721D
...
1
Aw1-12,thai-Si SAM-DA97-12577D
...
2
Screw-Tapping SAM-6002-000217
...
3
Screw-Tapping SAM-6006-001170
...
4
Aw3-Pjt,20mh,82*60,-25 ~ +85 SAM-DA27-00019H
...
5
All,free Volt,ul+ SAM-DA39-00154L
...
6
Wire Harness-Earth SAM-DA39-20389E
...
7
Screw-Hex SAM-DA60-10123E
...
8
Cover-Urethane SAM-DA63-04598B
...
9-1
Aw-Pjt,pp,black SAM-DA63-03450A
...
9-2-1
Abs,cntk A-204,gray,recycl SAM-DA61-10587A
...
9-2-2
Fan SAM-DA31-00320A
...
9-2-3
Arcs2088la,1120,12v,0.14, SAM-DA31-00278C
...
9-2
Assembly Support-Circuit Motor SAM-DA97-15765A
...
9-3
Screw-Tapping SAM-6002-000213
...
9-4-1
Screw-Tapping SAM-6002-000239
...
9-4
Assembly Pipe Spiral Cond SAM-DA97-06988D
...
9-5
Screw-Special SAM-6009-001252
...
9-6
Grommet-Sub Cond SAM-DA63-40128A
...
9
Aw1-12,seeda,ibaci SAM-DA97-05043L
...
10
Inverter,rs5000ha,197* SAM-DA92-00215R
...
11-1
Grommet-Drain Hose; V2-Pjt,nbr,black SAM-DA63-00951C
...
11
Aw1-12,grommet Drain Hose SAM-DA97-04049Q
...
12
Assy Cover Pcb Panel; Aw3 SAM-DA97-08442A
...
13-1
Shaft-Caster SAM-DA66-00649B
...
13
Aw1-12,t1.4 SAM-DA97-12895A
...
14
Cmp,comp,refrigerator,r-134a SAM-MSV172AL2J/SM1
...
15-1
Grommet-Drain SAM-DA63-02761A
...
15
Assembly Cap-Drain SAM-DA97-06970A
...
16
Grommet-Suct Pipe A SAM-DA63-40171B
...
17
Pipe-Connect SAM-DA62-00314C
...
18
Grommet-Suct Pipe B SAM-DA63-40171D
...
19
Dryer SAM-DA62-04309B
...
20
Aw1-12,t0.3,foam Pe SAM-DA97-15162B
...
21
Screw-Tapping SAM-6002-000215
...
22
M6,l20,zpc(wht),swrch18a,fh Hea SAM-6003-001727
...
23
Fixer Hinge-Upp SAM-DA61-04932A
...
24
Aw4-4d,pp,inox Gray SAM-DA63-06389E
...
25
Aw4-4d,pp,inox Gra SAM-DA63-06405D
...
26-1
Screw-Tapping SAM-6002-000213
...
26-2
Screw-Tapping SAM-6002-000215
...
26-3
Cam-Auto Close L SAM-DA66-00950A
...
26
Assembly Hinge Upp-L SAM-DA97-12573A
...
27-1
Screw-Tapping SAM-6002-000213
...
27-2
Screw-Tapping SAM-6002-000215
...
27
Assy Hinge Upp-R; Aw4,t3.0,black SAM-DA97-12574A
...
28-1
Screw-Tapping SAM-6002-001122
...
28-2
Aw-Sem,hips,-,-,s834s1,ntr SAM-DA61-04793A
...
28-3
Plate-Cover Hinge SAM-DA61-08227A
...
28-4
Aw1-12,pc,0.25,299.3,27.8, SAM-DA64-02076L
...
28-5
Aw1-12,abs,inox Gray,resin SAM-DA64-04190D
...
28-6
Led Display,aw1-12,int. SAM-DA92-00152A
...
28-7
Assy W/harness-Reed Switch; Fdr,12vdc,all SAM-DA96-00962A
...
28
Aw1-12,aw1-12,assy,inox G SAM-DA97-12706D
...
29
Grommet Hinge-Mid SAM-DA63-06410A
...
30
Th,+,-,1,m4,l30,zpc(wht),s SAM-6002-000601
...
31
Aw,al,t5.0,aldc 6,t5.0 SAM-DA61-07771A
...
32-1
Shaft Hinge-Middle SAM-DA66-00688A
...
32
Aw3,ni Cr Flatng,aldc SAM-DA97-12659A
...
33
Screw-Tapping SAM-6002-000215
...
34-1
Assy Pcb Smd SAM-DA94-02482A
...
34-2
Assy Pcb Auto SAM-DA94-02481A
...
34
Led Touch, No Disp.,aw1-12 SAM-DA92-00384N
...
35
At,u.s.a,canada,us3f-1,3c,125v,15a,blac K,1500,20/100/100/150,spt-3 Awg18 105c,ul/ Csa,y,n,n,n,y SAM-3903-000796
...
36
Opus1,hips,natural,s-834s SAM-DA61-07328A
...
37
Opus1,hips,natural,s834s1 SAM-DA61-07329A
...
38
Cover Sensor-Fre SAM-DA63-05470B
...
39
Px41c/502at,aw4,-40~110 ?,5v SAM-DA32-00029U
...
40
Screw-Tapping SAM-6002-000217
...
41
Trim-Blade SAM-DA64-02631A
...
42
Screw-Tapping SAM-6002-000213

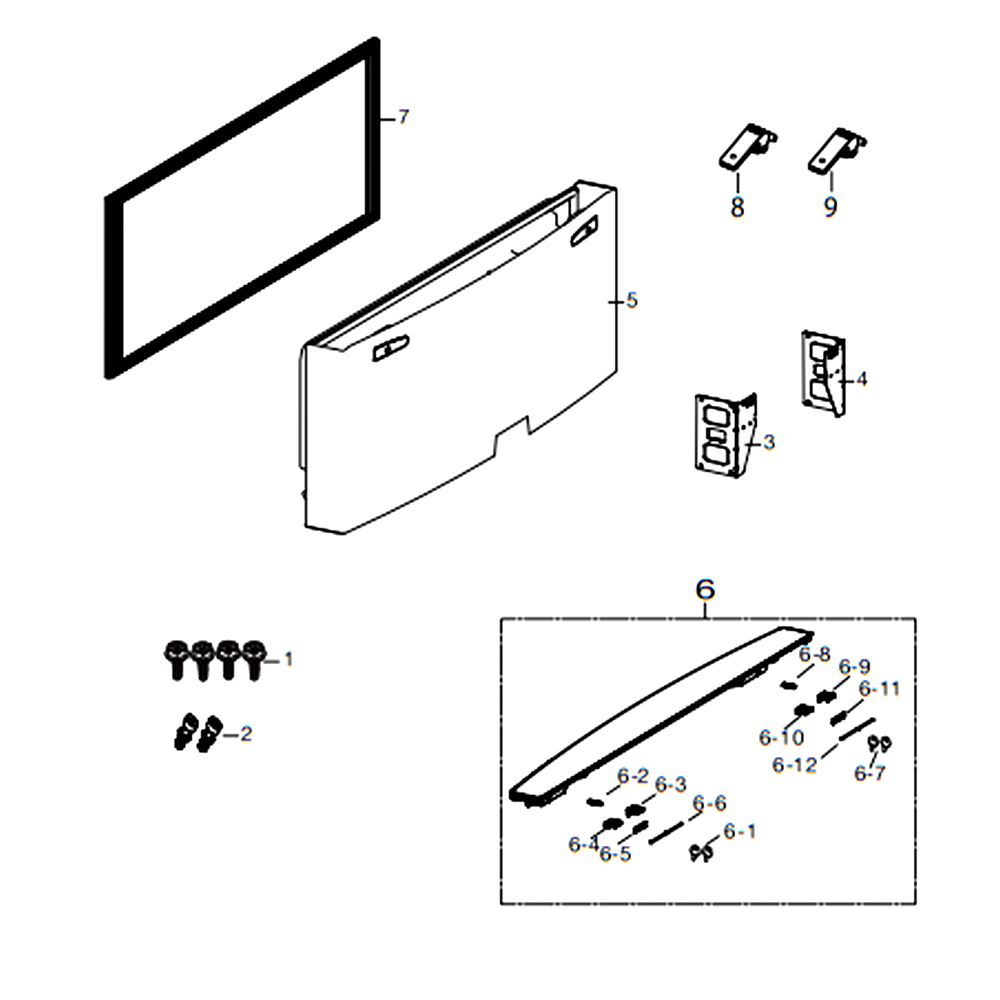

Door Fre

...
...
1
Screw-Hex SAM-DA60-10123E
...
2
Fixer-Handle SAM-DA61-03734A
...
3
Aw-Pjt,egi-Secc,t2.0 SAM-DA61-04840A
...
4
Aw-Pjt,secc1,-,cool SAM-DA61-04841A
...
5
Aw1-12_Sem,rs SAM-DA91-03910A
...
6-1
Screw-Tapping SAM-6002-000213
...
6-2
Spring Etc-Easy Handle; 08 Aw1,2-Pjt,hswr SAM-DA61-04335B
...
6-3
Fixer-Shaft R SAM-DA61-05899A
...
6-4
Fixer-Shaft L SAM-DA61-05930A
...
6-5
Reinf-Cap Handle SAM-DA61-06658A
...
6-6
Aw3,mswr10,92,5,zpc3(y) SAM-DA66-00579B
...
6-7
Screw-Tapping SAM-6002-000213
...
6-8
Spring Etc-Easy Handle; 08 Aw1,2-Pjt,hswr SAM-DA61-04335B
...
6-9
Fixer-Shaft R SAM-DA61-05899A
...
6-10
Fixer-Shaft L SAM-DA61-05930A
...
6-11
Reinf-Cap Handle SAM-DA61-06658A
...
6-12
Aw3,mswr10,92,5,zpc3(y) SAM-DA66-00579B
...
6
Aw1-12,assy,cremy SAM-DA97-13226A
...
7
Aw-Pjt,pvc,gray (sc-9748 SAM-DA63-06541D
...
8
Aw3,pom,creamy-Sts SAM-DA61-06014A
...
9
Aw3,pom,creamy-Sts SAM-DA61-06014A

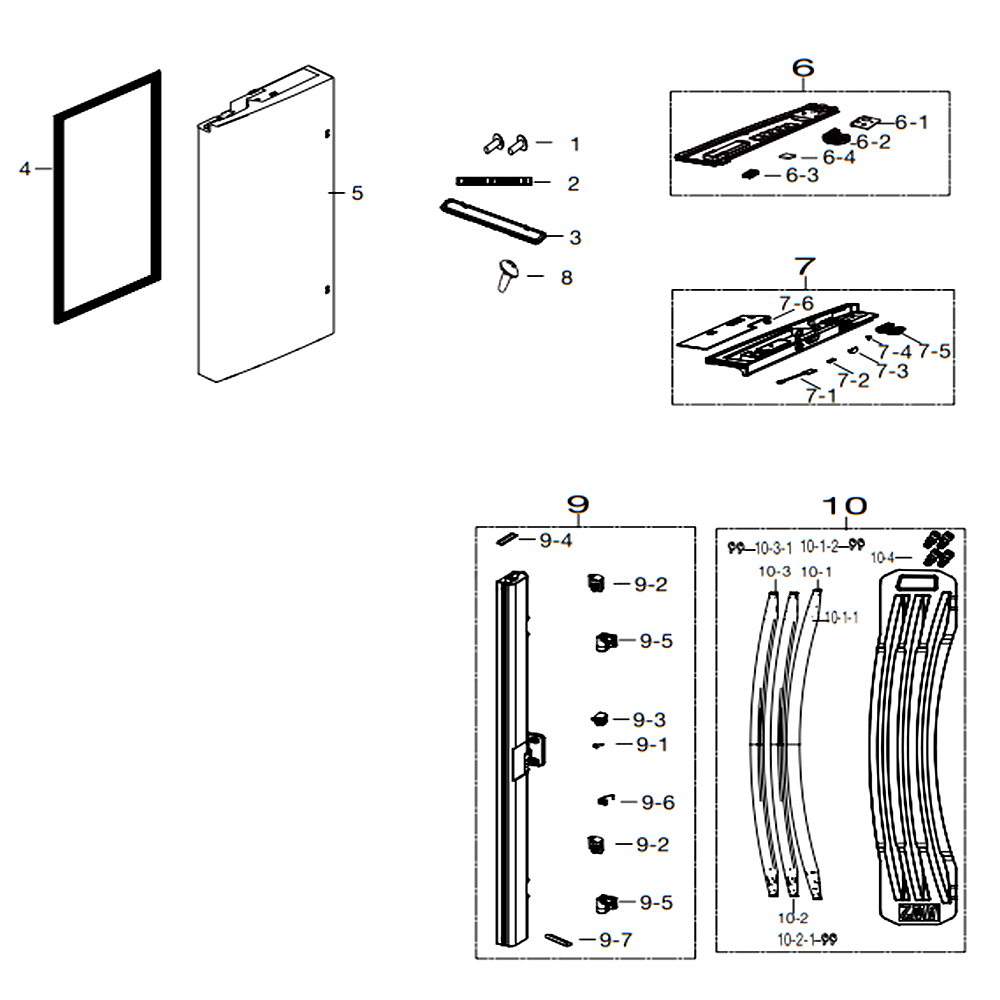

Door Ref L

...
...
1
Screw-Tapping SAM-6002-001406
...
2
Assembly Lamp Led SAM-DA41-00676G
...
3
Aw-Pjt,gpps,t2,tp Blu SAM-DA63-06131B
...
4
Aw1 Pjt,pvc,w403.7,l978, SAM-DA63-06542A
...
5
Aw1-12,rs,plate,no SAM-DA91-03924A
...
6-1
Aw-Pjt,po-Sphc,black,heat SAM-DA61-03211A
...
6-2
Aw-Sem,pom,hb,500p,na SAM-DA61-05001C
...
6-3
Grommet-Chassis Up SAM-DA63-04825A
...
6-4
Grommet-Stopper SAM-DA63-40294A
...
6
Aw1-12,assy,crem SAM-DA97-13225A
...
7-1
Sensor Humidity SAM-DA32-00034B
...
7-2
Magnet-A SAM-DA61-03769A
...
7-3
Cap-Interlock Switch Holemouton- SAM-DA67-03218B
...
7-4
Screw-Tapping SAM-6002-001122
...
7-5
Aw1-12,pom,black SAM-DA97-13070A
...
7-6
Aw4,hips,v-0,natural,f-74 SAM-DA63-06916E
...
7
Aw1-12,assy,451, SAM-DA97-13295A
...
8
Screw-Tapping SAM-6006-001170
...
9-1
Screw-Tapping SAM-6002-000213
...
9-2
Aw-Pjt,abs,cool White,ab SAM-DA67-02146A
...
9-3
Aw-Pjt,abs,cool Whit SAM-DA67-02154A
...
9-4
Gasket-French Upp; Aw4,si,gray SAM-DA63-06959A
...
9-5
Hinge-French SAM-DA61-08305A
...
9-6
Rfh920g,sts304 SAM-DA61-08314B
...
9-7
Gasket-French Low; Aw-Pjt,si,gray SAM-DA63-06842B
...
9
Aw1-12,thai-Silver SAM-DA97-12683A
...
10-1-1
Handle Bar-Fre; Aw1-12,aw4,al,t1.3,versai SAM-DA64-03945F
...
10-1-2
Screw-Tapping SAM-6002-000213
...
10-1
Assy Handle Bar-Fre; Aw4,al(a6063),versai SAM-DA97-12712C
...
10-2-1
Screw-Tapping SAM-6002-000213
...
10-2
Assy Handle Bar-Ref R; Aw4,al(a6063),vers SAM-DA97-12714C
...
10-3-1
Screw-Tapping SAM-6002-000213
...
10-3
Assy Handle Bar-Ref L; Aw4,al(a6063),vers SAM-DA97-12715C
...
10-4
Fixer-Handle SAM-DA61-03734A
...
10
Aw1-12,aw4,al,patent SAM-DA99-03914C

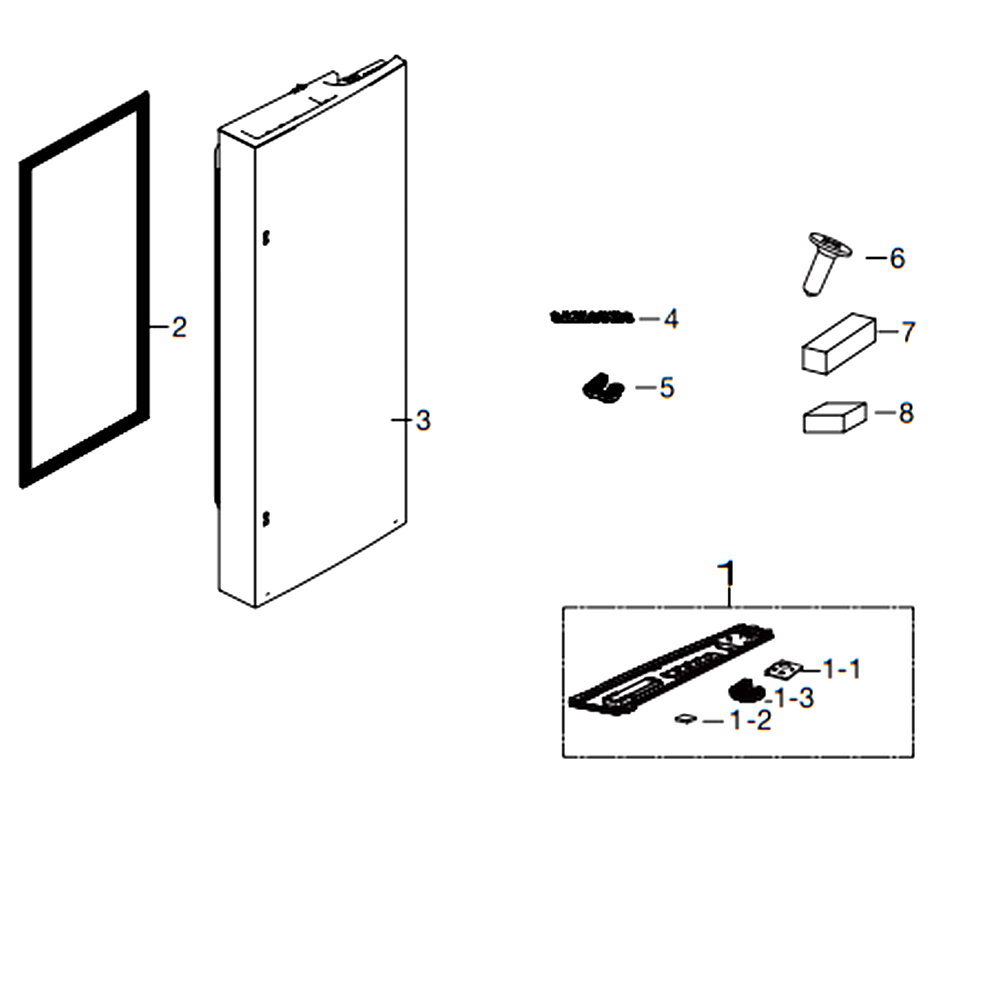

Door Ref R

...
...
1-1
Aw-Pjt,po-Sphc,black,heat SAM-DA61-03212A
...
1-2
Grommet-Stopper SAM-DA63-40294A
...
1-3
Aw-Sem,pom,hb,500p,na SAM-DA61-05001C
...
1
Aw1-12,assy,crem SAM-DA97-13224A
...
2
Aw1 Pjt,pvc,w403.7,l978, SAM-DA63-06542A
...
3
Aw1-12_Sem,rs SAM-DA91-03909A
...
4
Mascot SAM-DA64-04021A
...
5
Aw1-12,pom,black SAM-DA97-13070A
...
6
Screw-Tapping SAM-6002-001122
...
7
Magnet-A SAM-DA61-03769A
...
8
Grommet-Stopper SAM-DA63-40294A
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
