Samsung RF24FSEDBSR/AA_0021

Model: RF24FSEDBSR/AA_0021

Save Part Not Listed?
product name

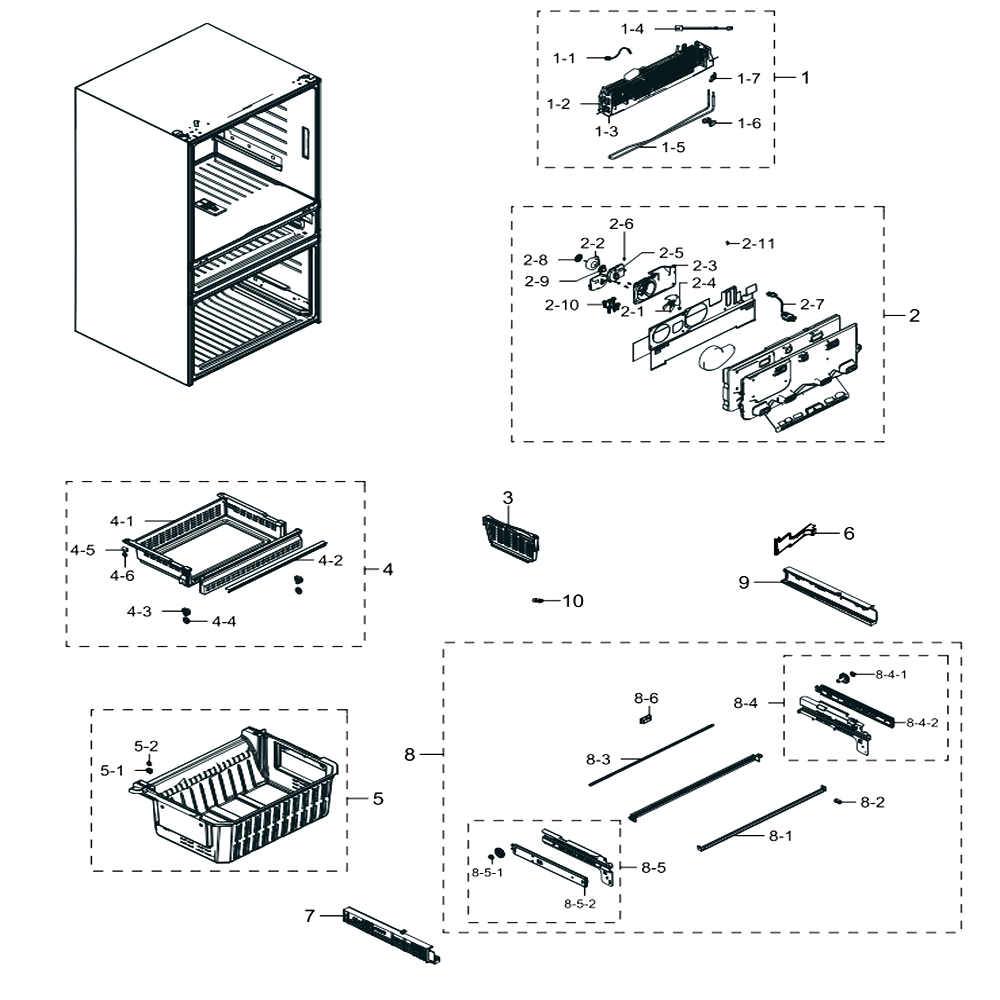

Freezer

...
...
1-1
Sensor Temp SAM-DA32-10104N
...
1-2
Evap Fre; Fin Tube,aw3 SAM-DA59-00400A
...
1-3
Plate-Drain Fre; Aw3-Pjt,gl-Sazcc,t0.3 SAM-DA61-05842A
...
1-4
Thermo Bimetal-Protector SAM-DA47-00243B
...
1-5
Heater Metal Sheath SAM-DA47-00318H
...
1-6
Fixer-Heater Fre SAM-DA61-05845A
...
1-7
Fixer-Sensor Fre SAM-DA61-06182A
...
1
Assembly Evap-Fre SAM-DA96-00631D
...
2-1
Fan-Ax100w4cc-T1 SAM-DA31-00124A
...
2-2
Motor Bldc SAM-DA31-00146H
...
2-3
Case Motor-Fre SAM-DA61-05867B
...
2-4
Spring Etc-Fan SAM-DA61-20128A
...
2-5
Cover Motor-Bldc SAM-DA63-01809B
...
2-6
Grommet-Cover Chill SAM-DA63-40167A
...
2-7
Assembly Wire Harness-Motor SAM-DA96-00042D
...
2-8
Grommet-Motor,rear SAM-DA63-01146A
...
2-9
Grommet Motor SAM-DA63-01808A
...
2-10
Screw-Tapping SAM-6002-000215
...
2-11
Screw-Tapping SAM-6002-000213
...
2
Assembly Cover Evap-Fre SAM-DA97-08434E
...
3
Guide-Fre; Aw4-4d (c/d),pp,hb,bj750,cool SAM-DA61-09233A
...
4-1
Tray-Fre Up; Rf8000mc,hips,cool White SAM-DA63-07499B
...
4-2
Trim-Tray Fre; Aw4,hips,s834s1,cool White SAM-DA64-03862F
...
4-3
Fixer-Roller Tray Fre Upp SAM-DA61-04154A
...
4-4
Roller-Tray Fre Upp SAM-DA66-00554A
...
4-5
Fixer-Roller SAM-DA71-20277A
...
4-6
Roller-Fre SAM-DA66-10104A
...
4
Assy Tray-Fre Up; Rf8000mc,assy SAM-DA97-13773C
...
5-1
Fixer-Roller SAM-DA71-20277A
...
5-2
Roller-Fre SAM-DA66-10104A
...
5
Assy Tray-Fre Low; Rf8000mc,assy SAM-DA97-13774B
...
6
Cover Air-Wire Harness Ice; Aw4 Cd,hips,c SAM-DA63-07496A
...
7
Cover-Rail Low L; Aw2 Cd,abs,-,-,-,-,-,co SAM-DA63-04942A
...
8-1
Reinf-Hanger Front; Aw4,egi-Secc,t1.6,coo SAM-DA61-08526A
...
8-2
Cover-Fixer Magnet; Mouton,hips,cool Whit SAM-DA63-06739A
...
8-3
Shaft-Gear; Aw4,sm25c,715.1,black Electro SAM-DA66-00437F
...
8-4-1
Fixer-Gear SAM-DA61-03154A
...
8-4-2
Rail-Slide Low R; Aw2-Cd,scp1,zpc2,assy SAM-DA61-08819A
...
8-4
Assy Rail-Low Right; Aw4-4d,rail Slide Lo SAM-DA97-13775B
...
8-5-1
Fixer-Gear SAM-DA61-03154A
...
8-5-2
Rail-Slide Low L; Aw2-Cd,scp1,zpc2,assy SAM-DA61-08818A
...
8-5
Assy Rail; Aw4-4d,rail Slide Low Left, 8x SAM-DA97-13777B
...
8-6
Magnet-Ass'y SAM-DA61-02738A
...
8
Assy Hanger-Low; Aw4-4d (c/d),fdr SAM-DA97-13782A
...
9
Cover-Rail Low R; Aw2 Cd,abs,-,-,-,-,-,co SAM-DA63-04941A
...
10
Grommet; Brr9000m,nbr,capi Grommet SAM-DA63-08943A

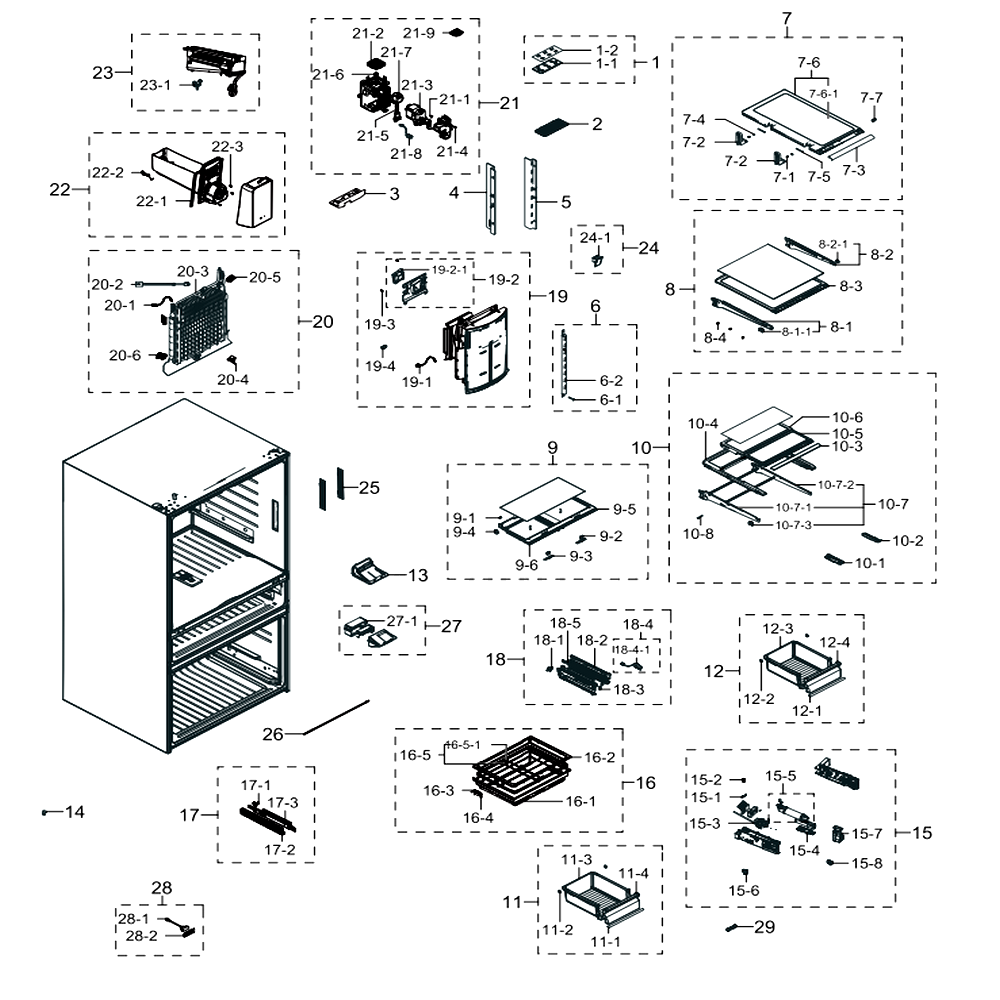

Refrigerator

...
...
1-1
Case Lamp-Ref SAM-DA61-08236A
...
1-2
Assy Lamp Led; 5,cem-1,240*10,white,smaw2 SAM-DA41-00676K
...
1
Assy Case Lamp-Ref; Aw4,long Led SAM-DA97-12606B
...
2
Cover Lamp-Ref SAM-DA63-07816A
...
3
Guide-French SAM-DA61-04285A
...
4
Angle-Shelf Ref Side L SAM-DA61-05898A
...
5
Angle-Shelf Ref Side R SAM-DA61-05897A
...
6-1
Screw-Tapping SAM-6002-001397
...
6-2
Angle Shelf-Ref Middle; Cr-Spcc,t2.5,cool SAM-DA61-09166B
...
6
Assy Angle Shelf-Ref Middle; Opus1-14 SAM-DA97-13844B
...
7-1
Spring Etc-Hinge Shelf SAM-DA61-03705A
...
7-2
Bracket-Hinge Shelf; Opus1-14,pc,cool Whi SAM-DA61-08215A
...
7-3
Trim-Shelf Insert Ref Fold; Aw4,sts304,-, SAM-DA64-04223A
...
7-4
Roller-Hinge-Shelf SAM-DA66-00482A
...
7-5
Shaft-Hinge-Shelf SAM-DA66-00483A
...
7-6-1
Glass-Shelf Ref Fold; Glass SAM-DA01-00887A
...
7-6
Shelf Folder; Aw4-4d,pp,cool White,aw4-Cd SAM-DA67-03693A
...
7-7
Screw-Tapping SAM-6002-001397
...
7
Assy Shelf Folder; Aw4-Cd SAM-DA97-13836A
...
8-1-1
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09550A
...
8-1
Hanger-Left; Aw4-4d,cd,egi-Secc,cool Whit SAM-DA61-09194A
...
8-2-1
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09549A
...
8-2
Hanger-Right; Aw4-4d,cd,egi-Secc,cool Whi SAM-DA61-09193A
...
8-3
Shelf-Ref Fix; Aw4-4d,pp,cool White,aw4-C SAM-DA67-03724A
...
8-4
Screw-Tapping SAM-6002-001397
...
8
Assy Shelf-Ref; Aw4-Cd,fix SAM-DA97-13831A
...
9-1
Fixer-Cover Veg SAM-DA61-03166A
...
9-2
Knob-Humidity; Aw4,abs,natural,chromium P SAM-DA64-04173A
...
9-3
Lever-Humidity SAM-DA66-00718A
...
9-4
Assy Roller; Rf9000jc,24 SAM-DA97-15997A
...
9-5
Cover Veg-Ref; Aw4-4d,hips,cool White,hg- SAM-DA63-07497A
...
9-6
Case Lock-A; Rf9000jc,pom,natural,k300 SAM-DA61-10523A
...
9
Assy Cover Veg-Ref; Aw4-Cd SAM-DA97-13840A
...
10-1
Support Rail-Left; Aw4-4d,abs,hg-0760gp,c SAM-DA61-09300A
...
10-2
Support Rail-Right; Aw4-4d,abs,hg-0760gp, SAM-DA61-09299A
...
10-3
Trim-Shelf Quick Space; Aw4,sts304,-,t0.4 SAM-DA64-04222A
...
10-4
Shelf-Rear; Aw4-4d,pp,cool White,aw4-Cd SAM-DA67-03696A
...
10-5
Shelf-Front; Aw4-4d,pp,cool White,aw4-F/s SAM-DA67-03713A
...
10-6
Shelf-Middle; Aw4-4d,pp,cool White,aw-Cd SAM-DA67-03698A
...
10-7-1
Hanger-Low Left; Aw4-Cd,egi-Secc,t2.0 SAM-DA61-09197A
...
10-7-2
Hanger-Low Right; Aw4-Cd,egi-Secc,t2.0 SAM-DA61-09195A
...
10-7-3
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09550A
...
10-7
Assy Shelf Hanger-Right; Aw4-Cd SAM-DA97-13832A
...
10-8
Screw-Tapping SAM-6002-001397
...
10
Assy Shelf Folder-Ref; Aw4-Cd,slide In SAM-DA97-13834A
...
11-1
Trim Cover-Ref; Aw4-Cd,hips,s834s1,cool W SAM-DA64-03862R
...
11-2
Assembly Roller SAM-DA97-15998A
...
11-3
Case Veg-Ref Left; Aw4-4d,gpps,natural,hf SAM-DA61-09161A
...
11-4
Cover Veg-Front Left; Aw4-Cd,gpps,natural SAM-DA63-07552A
...
11
Assy Case Veg-Left; Aw4-Cd SAM-DA97-13842B
...
12-1
Trim Cover-Ref; Aw4-Cd,hips,s834s1,cool W SAM-DA64-03862Q
...
12-2
Assembly Roller SAM-DA97-15998A
...
12-3
Case Veg-Ref Right; Aw4-4d,gpps,natural,h SAM-DA61-09160A
...
12-4
Cover Veg-Front Right; Aw4-4d,gpps,natura SAM-DA63-07553A
...
12
Assy Case Veg-Right; Aw4-Cd SAM-DA97-13841B
...
13
Cover Motor-Damper SAM-DA63-05477A
...
14
Cap-Shaft Hole SAM-DA67-02795C
...
15-1
Clip-Fitting Lock SAM-DA61-04522A
...
15-2
Tube-Fitting L SAM-DA62-03103A
...
15-3
Valve Water SAM-DA62-04027A
...
15-4
Tray-Water Filter SAM-DA63-05407A
...
15-5
Assy Tank Water-Ref; H920g,pp SAM-DA97-13854C
...
15-6
Screw-Tapping SAM-6002-000213
...
15-7
Cover-Filter Tank; Aw4,hips,w72.4,l167.7, SAM-DA63-06885A
...
15-8
Assy Case Filter; H920g SAM-DA97-08006L
...
15
Assy Case Water Filter; Aw4-Cd,no Led SAM-DA97-14528F
...
16-1
Case Convertible; Aw4-Cd,hips,cool White, SAM-DA61-09162A
...
16-2
Cover Convertible; Aw4-Cd,hips,cool White SAM-DA63-07489A
...
16-3
Bracket Divider SAM-DA61-09409A
...
16-4
Roller-Divider SAM-DA66-00876A
...
16-5-1
Guide Tray-Low; Aw4-4d Cd,sts204,natural, SAM-DA61-09333A
...
16-5
Assy Divider Wire-In; Aw4-Cd,fdr, Electro SAM-DA97-13914A
...
16
Assy Case Convertible; Aw4-4d C/d,fdr SAM-DA97-13814A
...
17-1
Fixer-Gear SAM-DA61-03154A
...
17-2
Cover Rail-Middle Left; Aw4-Cd,abs,cool W SAM-DA63-07515A
...
17-3
Rail-Slide Low L; Aw2-Cd,scp1,zpc2,assy SAM-DA61-08818A
...
17
Assy Rail-Middle Left; Aw4-4d,aw4-4d, Mid SAM-DA97-13779C
...
18-1
Fixer-Gear SAM-DA61-03154A
...
18-2
Cover Rail-Middle Right; Aw4-Cd,abs,cool SAM-DA63-07514A
...
18-3
Magnet-Ass'y SAM-DA61-02738A
...
18-4-1
Switch Reed SAM-DA34-00043H
...
18-4
Assy Wire Harness-Rail; All,12vdc,all,ul, SAM-DA96-00640B
...
18-5
Rail-Slide Low R; Aw2-Cd,scp1,zpc2,assy SAM-DA61-08819A
...
18
Assy Rail-Middle Right; Aw4-4d,aw4-4d, Mi SAM-DA97-13778C
...
19-1
Sensor Temp SAM-DA32-00011D
...
19-2-1
Motor Bldc Fan SAM-DA31-00287A
...
19-2
Assembly Case Motor-Ref SAM-DA97-16026A
...
19-3
Screw-Tapping SAM-6002-001204
...
19-4
Grommet Fixer; Rf-H920g,rubber,black SAM-DA63-07761A
...
19
Assy Cover Evap-Ref; Aw3-14 SAM-DA97-16028B
...
20-1
Sensor Temp SAM-DA32-10104N
...
20-2
Thermo Bimetal-Protector SAM-DA47-00243C
...
20-3
Heater Metal Sheath SAM-DA47-00434A
...
20-4
Plate-Evap Heater SAM-DA61-03644A
...
20-5
Fixer-Senser SAM-DA61-03683A
...
20-6
Fixer-Heater Ref SAM-DA61-05835B
...
20
Assembly Evap-Ref SAM-DA96-00842A
...
21-1
Screw-Tapping SAM-6002-000471
...
21-2
Motor Bldc Fan SAM-DA31-00070E
...
21-3
Motor Geared Ac Auger SAM-DA31-00105M
...
21-4
Screw-Special SAM-DA60-00001B
...
21-5
Spring Etc-Solenoid SAM-DA61-20140A
...
21-6
Grommet-Fan SAM-DA63-02513A
...
21-7
Valve-Solenoid SAM-DA74-40151G
...
21-8
Assy Wire Harness-Auger; Fdr,free Volt,ul SAM-DA96-00682E
...
21-9
Fixer-Nut; Guggenheim,sts420,j2,sk5 SAM-DA71-00163B
...
21
Assy Case Auger Motor; Rf9900jc,115v 60hz SAM-DA97-12540K
...
22-1
Gasket-Tray Ice Bucket SAM-DA63-07185A
...
22-2
Spring Etc-Dispenser SAM-DA61-20124D
...
22-3
Screw-Tapping SAM-6002-000471
...
22
Assy Tray Ice; Fdr,t-Type C/d SAM-DA97-14504C
...
23-1
Screw-Tapping SAM-6002-000471
...
23
Assy Ice Maker; Aw4-Cd,120v-60hz SAM-DA97-18859A
...
24-1
Cap Cover Evap-Ref; Rf9000jc,hips,t3.0,hb SAM-DA67-03978B
...
24
Assy Cap Angle; Rf9000jc SAM-DA97-15412B
...
25
Cover Lamp-Led Side SAM-DA63-07276A
...
26
Shaft; Aw3-14,cfrp,743.0,8x8,black,door M SAM-DA66-00733B
...
27-1
Motor Dc-Damper SAM-DA31-00101C
...
27
Assembly Ins-Damper Conv SAM-DA97-08430A
...
28-1
Switch Reed SAM-DA34-00043J
...
28-2
Cover Reed Switch SAM-DA63-07513A
...
28
Assembly Cover Switch SAM-DA97-13783A
...
29
Tube-Fitting SAM-DA62-03914A

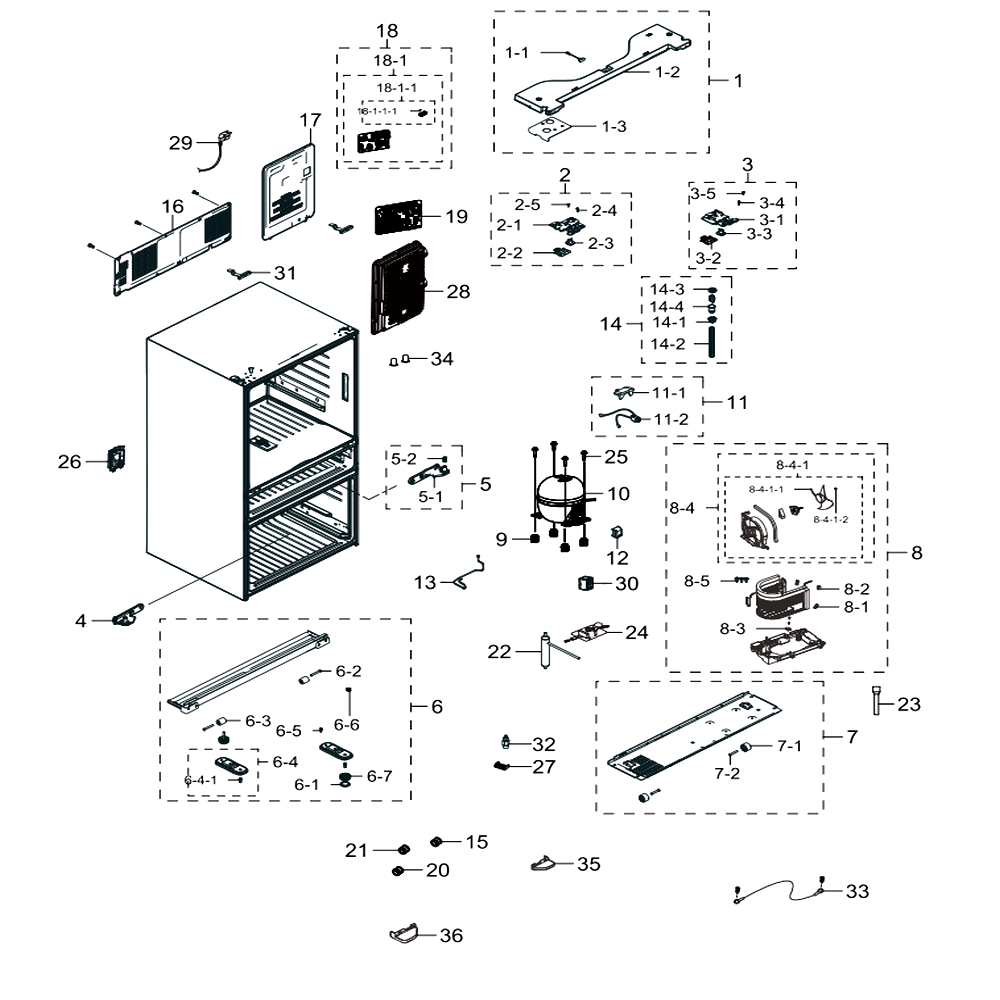

Cabinet

...
...
1-1
Switch Reed; Ul1007 Awg 22,280(680),25045 SAM-DA34-00043K
...
1-2
Top Table; Romanee Conti,abs,inox Gray SAM-DA64-04477B
...
1-3
Plate-Cover Hinge SAM-DA61-08227A
...
1
Assy Top Table; Romanee Conti,inox Gray SAM-DA97-13703D
...
2-1
Hinge-Upp L SAM-DA61-08309A
...
2-2
Shim-Hinge Upp SAM-DA63-50192A
...
2-3
Cam-Auto Close L SAM-DA66-00950A
...
2-4
Screw-Tapping SAM-6002-000215
...
2-5
Screw-Tapping SAM-6002-000213
...
2
Assembly Hinge Upp-L SAM-DA97-12573A
...
3-1
Hinge-Upp R; Aw4,po-Sphc,t2.9,eletrodepos SAM-DA61-08310A
...
3-2
Shim-Hinge Upp SAM-DA63-50192A
...
3-3
Cam-Auto Close R SAM-DA66-00951A
...
3-4
Screw-Tapping SAM-6002-000215
...
3-5
Screw-Tapping SAM-6002-000213
...
3
Assy Hinge Upp-R; Aw4,t3.0,black SAM-DA97-12574A
...
4
Hinge-Mid L; Aw4,zn,t4.5,zndc 2 SAM-DA61-08318A
...
5-1
Hinge-Middle Right; Aw4,zn,t4.5,zndc2,cr SAM-DA61-08317B
...
5-2
Shaft Hinge-Middle SAM-DA66-00688A
...
5
Assy Hinge-Middle Right; Aw4,zndc SAM-DA97-12612B
...
6-1
Foot SAM-DA61-07973B
...
6-2
Caster-Rivet SAM-DA61-01920A
...
6-3
Caster-Front SAM-DA61-04702A
...
6-4-1
Shaft-Leg Front SAM-DA66-00793A
...
6-4
Assy Support-Front; Aw4-4d C/d SAM-DA97-13807A
...
6-5
Screw-Tap Tite SAM-DA60-10004A
...
6-6
Screw-Tapping SAM-6002-000213
...
6-7
Foot-Front SAM-DA61-07972B
...
6
Assy Cabi Bottom-Front; Aw4-4d C/d,noble SAM-DA97-12556D
...
7-1
Caster-Rear SAM-DA61-04703A
...
7-2
Shaft-Caster SAM-DA66-00649B
...
7
Assembly Chassis-Comp SAM-DA97-12557A
...
8-1
Grommet-Immersion Pipe B SAM-DA63-07323A
...
8-2
Grommet-Suct Pipe A SAM-DA63-40171B
...
8-3
Grommet-Cond Sub SAM-DA63-04424A
...
8-4-1-1
Fan SAM-DA31-00320A
...
8-4-1-2
Spring Etc-Fan SAM-DA61-20128A
...
8-4-1
Motor Bldc Fan; Rmf002assa,1120 Rpm,12v,0 SAM-DA31-00340A
...
8-4
Assy Support-Circuit Motor; Rh9000k SAM-DA97-15765C
...
8-5
Screw-Tapping SAM-6002-000213
...
8
Assy Tray Drain Water; Aw,pfc SAM-DA97-15978B
...
9
Grommet Comp; Usp05,epdm,od27.0,black SAM-DA63-02617C
...
10
Cmp,refrigerator,r-134a; Cmp,refrigerator,r-134a SAM-NC1MV90ALP/E01
...
11-1
Relay Protector O/l SAM-DA34-00004D
...
11-2
Assembly Wire Harness-Comp SAM-DA39-00154M
...
11
Assembly Comp-Sub SAM-DA97-10848N
...
12
Cover Relay; Msv,mppo,t2.0,5v-A,black,m-H SAM-DA63-06122A
...
13
Pipe Connect-Suction; C1220t-O,od6.35,t0. SAM-DA62-03691A
...
14-1
Fixer-Drain SAM-DA61-05021A
...
14-2
Tube Pvc SAM-DA62-01266B
...
14-3
Grommet-Drain SAM-DA63-02761A
...
14-4
Cap-Drain SAM-DA67-01301A
...
14
Assembly Cap-Drain SAM-DA97-04049E
...
15
Fitting-Lokring 43 SAM-DA60-00281A
...
16
Assy Cover Comp; Polaris,gi-Sgcc,t0.25 SAM-DA97-12749J
...
17
Assembly Cover Pcb-Panel SAM-DA97-08442D
...
18-1-1-1
Screw-Taptype; Rh,+,-,2s,m3,l10,zpc(wht), SAM-6003-000333
...
18-1-1
Assy Heat Sink 1; 15,5v,heamil 11,esse3 A SAM-DA94-00647A
...
18-1
Assy Pcb Manual; Inverter,sseda,197*98.5, SAM-DA94-03271A
...
18
Assy Pcb Inverter; Inverter,sseda,197*98. SAM-DA92-00215X
...
19
Assy Pcb Eeprom; 0x23,d602, D606,aw4-Cd I SAM-DA94-02275P
...
20
Fitting-Lokring 33 SAM-DA60-00280A
...
21
Fitting-Lokring; Sum23,lokring 2 N St 20 SAM-DA60-00325A
...
22
Dryer SAM-DA62-04309B
...
23
Pipe-Connect Disc,b SAM-DA73-10190U
...
24
Coil Filter-Emi SAM-DA27-00022B
...
25
Bolt-Hex SAM-6011-004061
...
26
Assembly Cover-Tube Filter SAM-DA97-08413B
...
27
Fixer Cover; Aw3-14,hips,natural,s834s1 SAM-DA61-12488A
...
28
Assy Case Pcb-Panel; Aw4 SAM-DA97-11883B
...
29
At,u.s.a,canada,us3f-1,3c,125v,15a,blac K,1500,20/100/100/150,spt-3 Awg18 105c,ul/ Csa,y,n,n,n,y SAM-3903-000796
...
30
Cover-Fixer Housing V SAM-DA63-02902B
...
31
Fixer-Hinge;po-Sphc,t3,zn Coating SAM-DA61-04932B
...
32
Valve-Fitting Pu SAM-DA62-00305A
...
33
Wire Harness-Earth SAM-DA39-20389L
...
34
Grommet Hinge-Mid SAM-DA63-06410A
...
35
Cover Leg-Front Right; Aw4-4d (c/d),pp,hb SAM-DA63-07484A
...
36
Cover Leg-Front Left; Aw4-4d (c/d),pp,hb, SAM-DA63-07485A

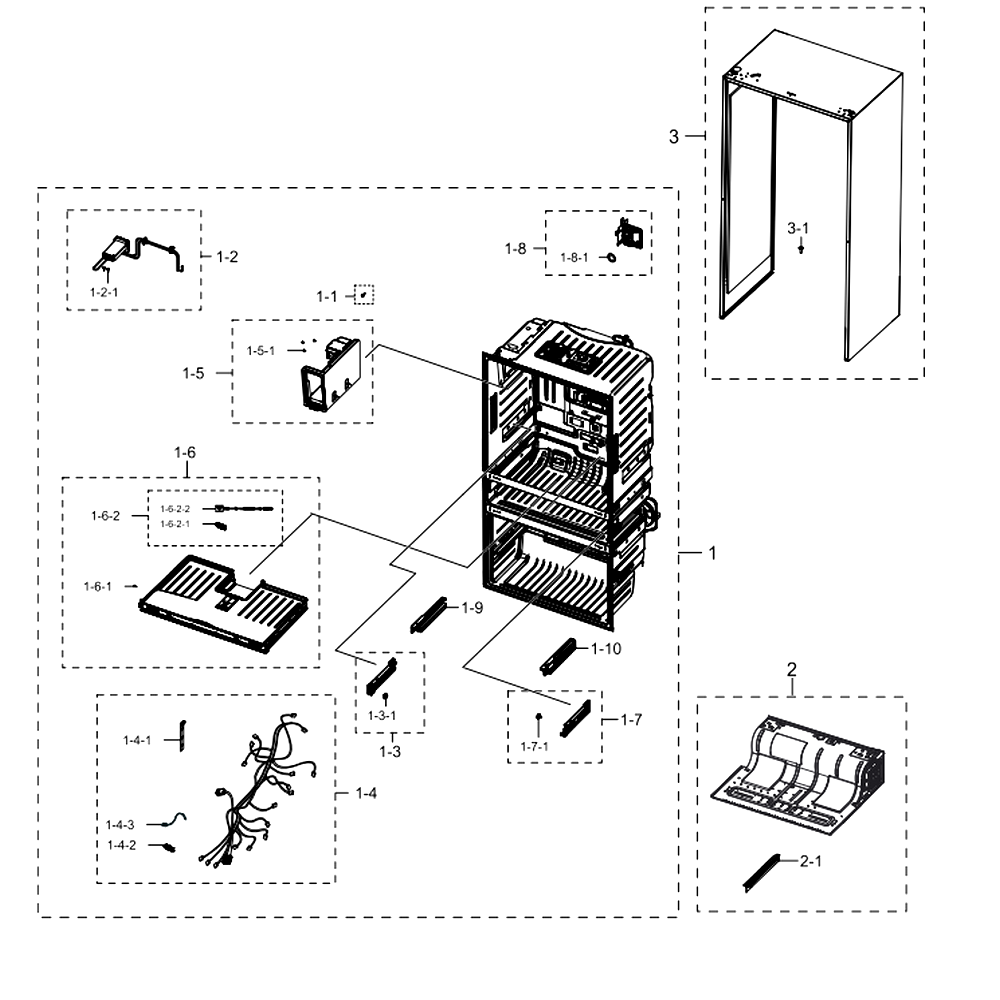

Cabinet-2

...
...
1-1
Screw-Tapping SAM-6002-000215
...
1-2-1
Fixer Pipe; Fdr/t-Type Ice Room Model,sts SAM-DA61-12775A
...
1-2
Assy Pipe Direct Ice; Aw4-4d Cd,c1220t-0, SAM-DA97-13863A
...
1-3-1
Assy Roller; Rf9000jc,24 SAM-DA97-15997A
...
1-3
Assy Rail-Left; Aw4-Cd,veg SAM-DA97-13838A
...
1-4-1
Assembly Lamp Led SAM-DA41-00519Q
...
1-4-2
Cover Sensor-Fre SAM-DA63-05470B
...
1-4-3
Sensor Temp SAM-DA32-10109B
...
1-4
Assy Wire Harness-Main; Aw4-4d,cd(ice & Wat SAM-DA96-01022B
...
1-5-1
Screw-Tapping SAM-6002-000471
...
1-5
Assy Case Ice; Aw4 Cd SAM-DA97-13763A
...
1-6-1
Screw-Tapping SAM-6002-001204
...
1-6-2-1
Cover Sensor-Fre SAM-DA63-05470B
...
1-6-2-2
Sensor Temp SAM-DA32-00033C
...
1-6-2
Assembly Cover-Sensor Fre SAM-DA97-08608A
...
1-6
Assy Partition; Aw4-4d C/d SAM-DA97-13801A
...
1-7-1
Assy Roller; Rf9000jc,24 SAM-DA97-15997A
...
1-7
Assy Rail-Right; Aw4-Cd,veg SAM-DA97-13837A
...
1-8-1
Seal-Drain Hose; Aram10,pu Foam,t10,30 SAM-DA72-00238B
...
1-8
Assy Drain Hose-Middle; Aw4,4door SAM-DA97-13860A
...
1-9
Rail-Fre Up Left; Aw4-4d,hips,natural,s83 SAM-DA61-09208A
...
1-10
Rail-Fre Up Right; Aw4-4d,hips,natural,s8 SAM-DA61-09204A
...
1
Assy Liner; C/d SAM-DA94-01434A
...
2-1
Trim Blade; Aw3-14,pvc,gray SAM-DA64-05373A
...
2
Assy Cabi Bottom-Rear; Aw2-Cd-14,urethane SAM-DA97-13803B
...
3-1
Screw-Tapping SAM-6002-001122
...
3
Assy Cabi Frame; Aw4 4d(rf24*/sparkling(n SAM-DA97-13919B

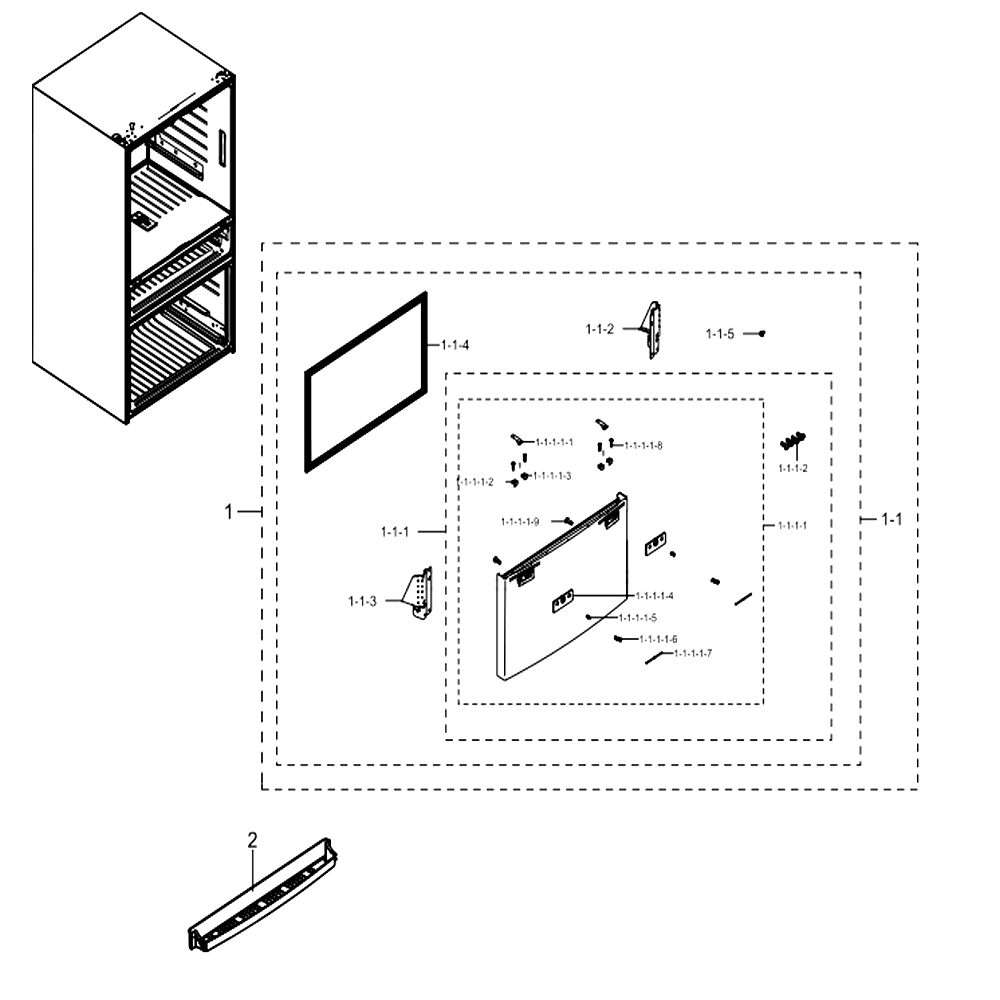

Freezer-door

...
...
1-1-1-1-1
Slider-Easy Handle; Aw4,pom,creamy-Sts,f2 SAM-DA61-08234A
...
1-1-1-1-2
Fixer-Shaft L SAM-DA61-05930A
...
1-1-1-1-3
Fixer-Shaft R SAM-DA61-05899A
...
1-1-1-1-4
Reinf-Cap Handle SAM-DA61-06658A
...
1-1-1-1-5
Spring Etc-Easy Handle; 08 Aw1,2-Pjt,hswr SAM-DA61-04335B
...
1-1-1-1-6
Fixer Handle; Aw3-14,swrch10a,m8 SAM-DA61-11161A
...
1-1-1-1-7
Shaft-Handle; Aw4,cfrp,105,5 SAM-DA66-00579D
...
1-1-1-1-8
Screw-Tapping SAM-6002-000215
...
1-1-1-1-9
Screw-Tapping SAM-6002-000630
...
1-1-1-1
Assy Plate Door-Fre; Aw4-4d,rs Plate SAM-DA97-14207A
...
1-1-1-2
Screw-Tapping SAM-6002-001406
...
1-1-1
Assy Door Foam-Fre; Aw4-4d,rs Plate SAM-DA91-04290A
...
1-1-2
Hanger-Front Right; Aw4-4d,egi-Secc,cool SAM-DA61-09247A
...
1-1-3
Hanger-Front Left; Aw4-4d,egi-Secc,cool W SAM-DA61-09245A
...
1-1-4
Assy Gasket-Fre; Aw4-4d,gray SAM-DA97-12522S
...
1-1-5
Screw-Tapping SAM-6002-000613
...
1-1
Assy Door Fre; Real Sts201,rs SAM-DA90-08947K
...
1
Assy Door Sub-Fre; Real Sts201,rs SAM-DA93-00224A
...
2
Guard-Fre SAM-DA63-07512A

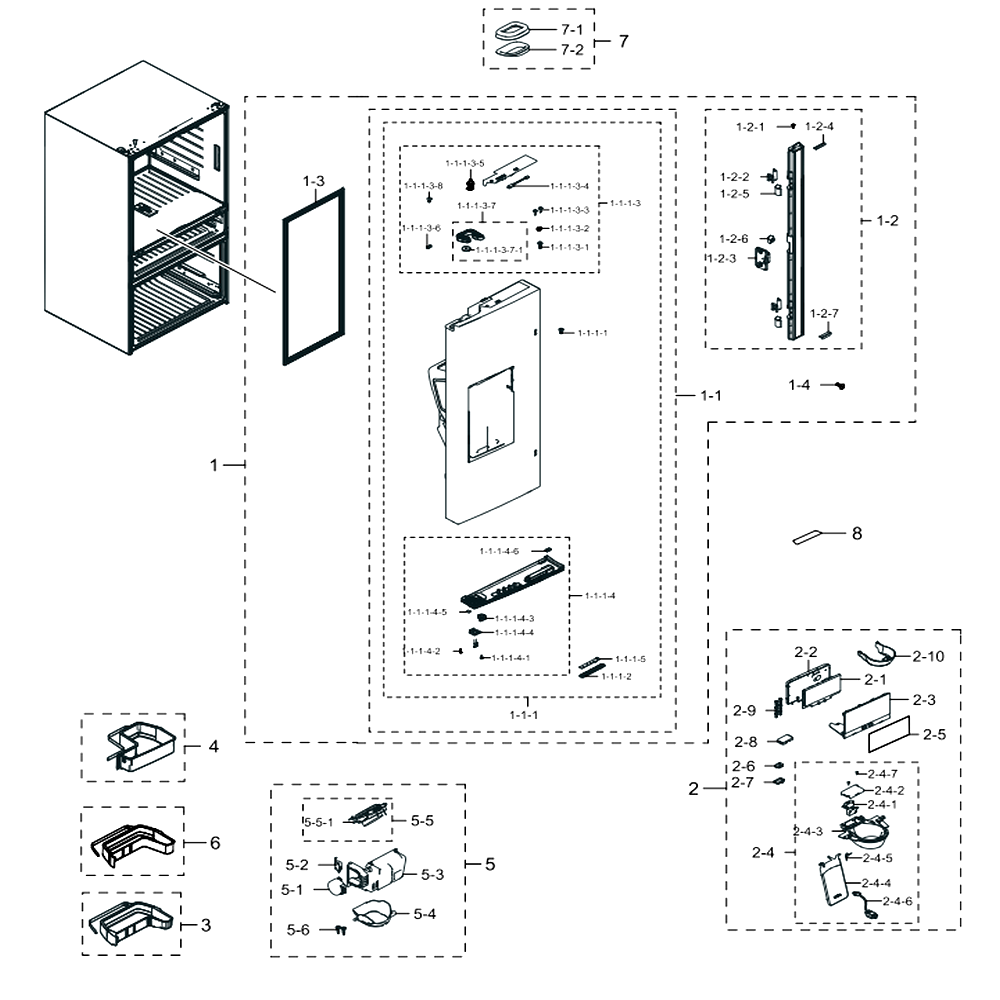

Refrigerator-door-l

...
...
1-1-1-1
Screw-Tapping SAM-6002-000217
...
1-1-1-2
Cover-Cap Door Led SAM-DA63-05524A
...
1-1-1-3-1
Screw-Tapping SAM-6002-000466
...
1-1-1-3-2
Screw-Tapping SAM-6002-000613
...
1-1-1-3-3
Screw-Tapping SAM-6002-001122
...
1-1-1-3-4
Sensor Humidity SAM-DA32-00034B
...
1-1-1-3-5
Switch Door-Interlock SAM-DA34-00066C
...
1-1-1-3-6
Magnet-A SAM-DA61-03769A
...
1-1-1-3-7-1
Roller-Auto Close SAM-DA66-00440A
...
1-1-1-3-7
Assembly Lever-Auto Close SAM-DA97-12625A
...
1-1-1-3-8
Cap-Shaft Hole SAM-DA67-02795C
...
1-1-1-3
Assy Cap Door-Ref Up Left; Aw3-14,lever A SAM-DA97-13883F
...
1-1-1-4-1
Screw-Machine SAM-6001-001377
...
1-1-1-4-2
Screw-Tapping SAM-6002-001120
...
1-1-1-4-3
Support Door-Close; Aw-Pjt,pk,m33r3a000,c SAM-DA61-02383E
...
1-1-1-4-4
Stopper-Door L SAM-DA61-08210A
...
1-1-1-4-5
Grommet-Stopper SAM-DA63-40294A
...
1-1-1-4-6
Grommet-Chassis Up SAM-DA63-04825A
...
1-1-1-4
Assy Cap Door-Ref Low Left; Aw3-14,inox G SAM-DA97-14358D
...
1-1-1-5
Assy Lamp Led; 2,fr-4,20*30,white,smaw250 SAM-DA41-00676J
...
1-1-1
Assy Plate Door-Ref Left; Aw3-14,rs Plate SAM-DA97-14208E
...
1-1
Assy Door Foam-Ref Left; Aw3-14,real Sts SAM-DA91-04145D
...
1-2-1
Screw-Tapping SAM-6002-000213
...
1-2-2
Hinge-French SAM-DA61-08305A
...
1-2-3
Cover-Heater French SAM-DA63-03454B
...
1-2-4
Gasket-French Upp; Aw4,si,gray SAM-DA63-06959A
...
1-2-5
Cap-Case French SAM-DA67-01650A
...
1-2-6
Cap-Case French Mid SAM-DA67-01701A
...
1-2-7
Gasket-French Low; Aw-Pjt,si,gray SAM-DA63-06842B
...
1-2
Assy French; Aw4-4d,thai Silver,120v SAM-DA97-12684D
...
1-3
Assy Gasket-Ref; Aw4-4d,gray SAM-DA97-13015C
...
1-4
Screw-Tapping SAM-6002-001406
...
1
Assy Door Sub-Ref Left; Aw3-14,real Sts SAM-DA93-00228A
...
2-1
Assy Module; Led Display,aw4-4d,i/w(ice A SAM-DA92-00451B
...
2-2
Cover Pcb-Panel Rear SAM-DA63-06377A
...
2-3
Assy Cover Dispenser-Sub; Aw4_Contour,met SAM-DA97-13808A
...
2-4-1
Switch-Micro; 250vac,1a,80,spst-No,t105 SAM-3405-001119
...
2-4-2
Cover-Switch SAM-DA63-05449A
...
2-4-3
Case Lever Dispenser; Aw4-4d,abs,ebony Bl SAM-DA61-09434A
...
2-4-4
Lever-Dispenser Water Sts; Aw3,pc,3022ir, SAM-DA66-00720A
...
2-4-5
Spring Etc-Lever Disp Water; Aw3,sts304 SAM-DA61-06034B
...
2-4-6
Assy Wire Harness-Dispenser; All,12vdc,al SAM-DA96-00106J
...
2-4-7
Screw-Tapping SAM-6002-000630
...
2-4
Assy Lever Dispenser; Aw4-4d,cd/no Sparkl SAM-DA97-12628N
...
2-5
Inlay-Film; Aw4-4d,pet,black,white Led, 3 SAM-DA64-04551A
...
2-6
Assembly Pcb Kit SAM-DA41-00217A
...
2-7
Case Lamp-Led SAM-DA61-05687A
...
2-8
Cover-Lamp-Led SAM-DA63-02446A
...
2-9
Screw-Tapping SAM-6002-000630
...
2-10
Cover Ice SAM-DA63-07637A
...
2
Assy Cover Dispenser; Aw4_4d_Cd_Contour,s SAM-DA97-13809B
...
3
Assy Guard-Ref Low; Aw4-4d(c/d) SAM-DA97-13819A
...
4
Assy Guard-Ref Up; Aw4-4d(cd) SAM-DA97-13804A
...
5-1
Motor Geared-Disp SAM-DA31-00079D
...
5-2
Switch-Micro SAM-3405-001117
...
5-3
Case Ice Route; Aw4-4d,abs,i Black,hg-076 SAM-DA61-09432A
...
5-4
Guide Ice; Aw4-4d,hips,s834s1,natural,gui SAM-DA61-09433A
...
5-5-1
Cover-Ice Route A SAM-DA63-04647A
...
5-5
Assembly Cover-Ice Route SAM-DA97-05368A
...
5-6
Screw-Tapping SAM-6002-001364
...
5
Assembly Guide Ice Route SAM-DA97-13829C
...
6
Assy Guard-Ref Middle; Aw4-4d(c/d) SAM-DA97-13818A
...
7-1
Gasket; Fdsr,tpe,white SAM-DA63-08248A
...
7-2
Cap-Chute Ice SAM-DA67-03312A
...
7
Assembly Cap-Chute Ice SAM-DA97-12594A
...
8
Tray Dispenser; Aw3,abs,inox Metal SAM-DA63-07931A

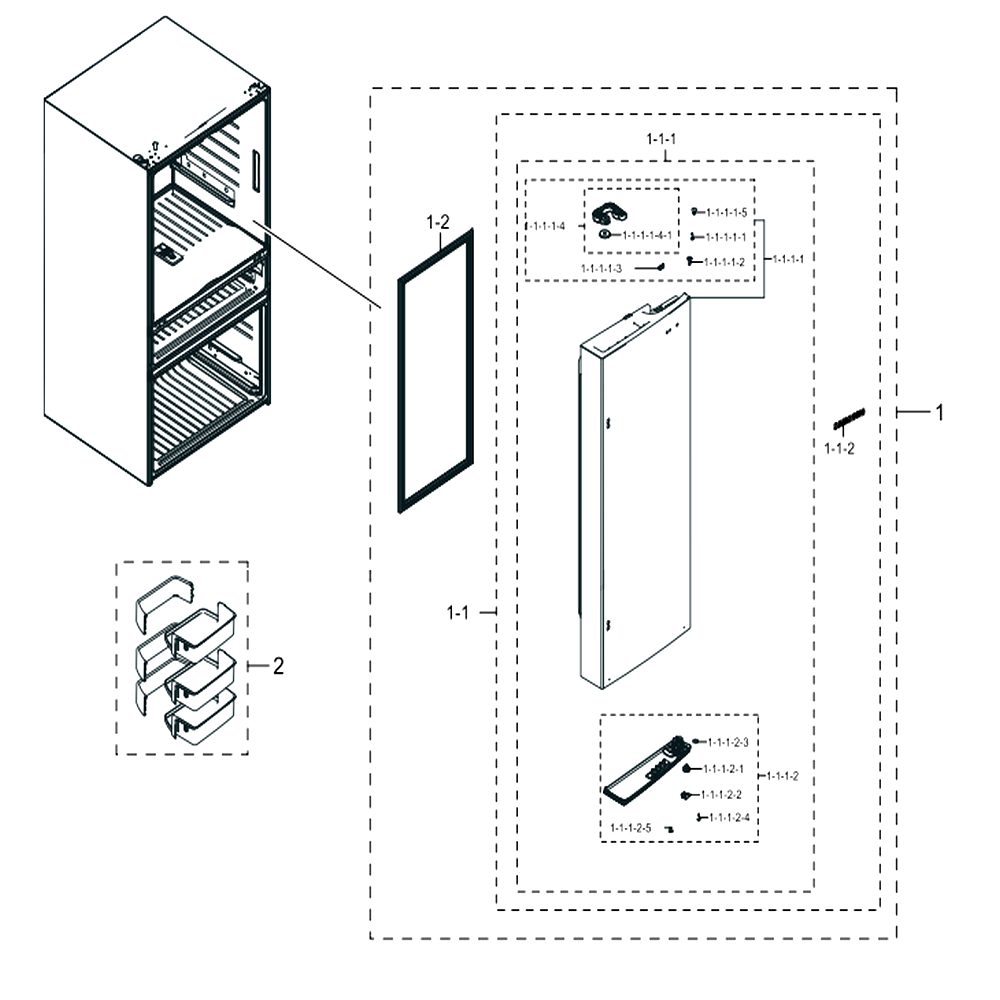

Refrigerator-door-r

...
...
1-1-1-1-1
Screw-Tapping SAM-6002-000613
...
1-1-1-1-2
Screw-Tapping SAM-6002-001122
...
1-1-1-1-3
Magnet-A SAM-DA61-03769A
...
1-1-1-1-4-1
Roller-Auto Close SAM-DA66-00440A
...
1-1-1-1-4
Assembly Lever-Auto Close SAM-DA97-12625A
...
1-1-1-1-5
Cap-Shaft Hole SAM-DA67-02795C
...
1-1-1-1
Assy Cap Door-Ref Up Right; Aw3-14,lever SAM-DA97-13867D
...
1-1-1-2-1
Support Door-Close; Aw-Pjt,pk,m33r3a000,c SAM-DA61-02383E
...
1-1-1-2-2
Stopper-Door R; Aw4,po-Sphc,t2.9,black,t2 SAM-DA61-08196A
...
1-1-1-2-3
Grommet-Stopper SAM-DA63-40294A
...
1-1-1-2-4
Screw-Tapping SAM-6002-001120
...
1-1-1-2-5
Screw-Machine SAM-6001-001377
...
1-1-1-2
Assy Cap Door-Ref Low Right; Aw3-14,inox- SAM-DA97-14359A
...
1-1-1
Assy Plate Door-Ref Right; Aw3-14,rs Plat SAM-DA97-14206H
...
1-1-2
Mascot; All,ni,t0.06,l90 SAM-DA64-04021D
...
1-1
Assy Door Foam-Ref Right; Aw3-14,real Sts SAM-DA91-04146A
...
1-2
Assy Gasket-Ref; Aw4-4d,gray SAM-DA97-13015C
...
1
Assy Door Sub-Ref Right; Aw3-14,real Sts SAM-DA93-00237A
...
2
Assy Guard-Ref Right; Aw4-4d(cd) SAM-DA97-13805A

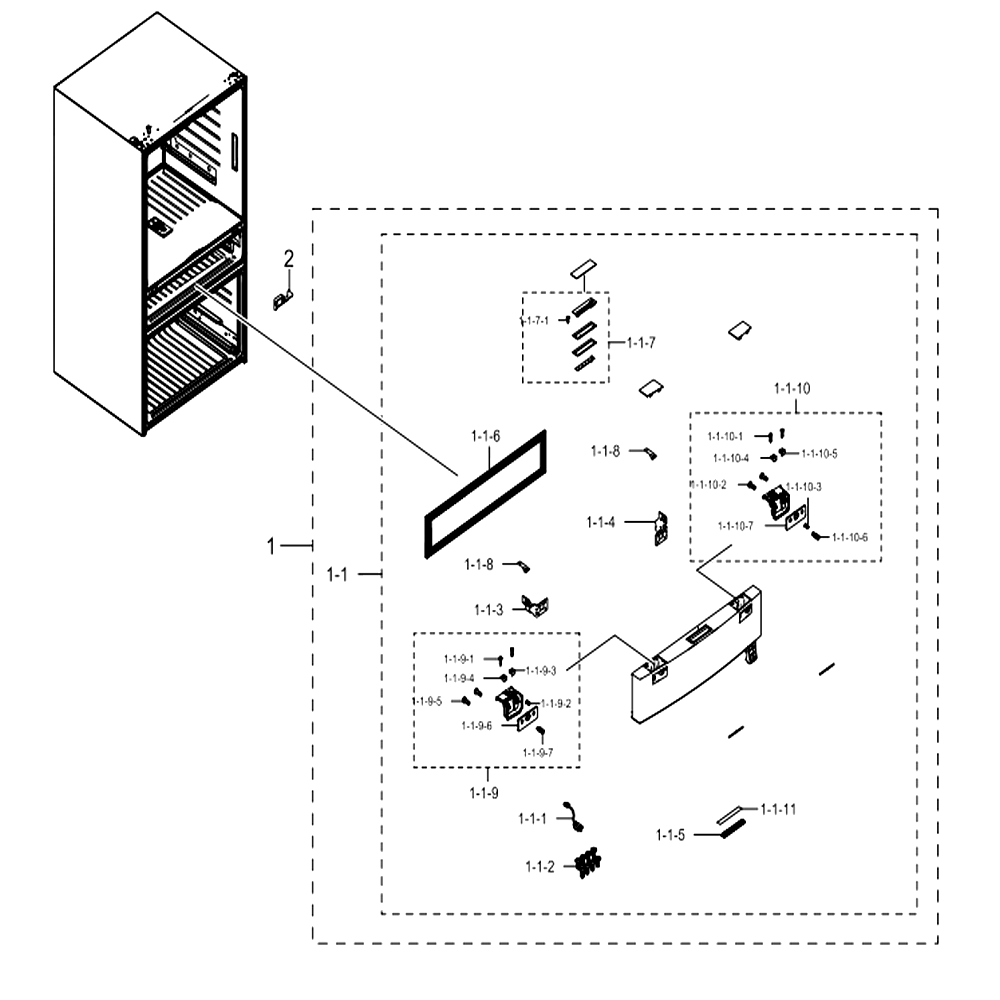

Flexzone-door

...
...
1-1-1
Assembly Wire Harness-Display SAM-DA96-00641B
...
1-1-2
Screw-Tapping SAM-6002-000613
...
1-1-3
Hanger-Front Middle Left SAM-DA61-09248A
...
1-1-4
Hanger-Front Middle Right SAM-DA61-09249A
...
1-1-5
Cover-Cap Door Led SAM-DA63-05524A
...
1-1-6
Assy Gasket-Middle; Aw4-4d,gray SAM-DA97-12522Q
...
1-1-7-1
Screw-Tapping SAM-6002-000630
...
1-1-7
Assembly Cover Control-Convertible SAM-DA97-10605C
...
1-1-8
Slider-Easy Handle; Aw4,pom,creamy-Sts,f2 SAM-DA61-08234A
...
1-1-9-1
Screw-Tapping SAM-6002-000215
...
1-1-9-2
Spring Etc-Easy Handle SAM-DA61-04335A
...
1-1-9-3
Fixer-Shaft R SAM-DA61-05899A
...
1-1-9-4
Fixer-Shaft L SAM-DA61-05930A
...
1-1-9-5
Screw-Tapping SAM-6002-000630
...
1-1-9-6
Reinf-Cap Handle SAM-DA61-06658A
...
1-1-9-7
Fixer Handle; Aw3-14,swrch10a,m8 SAM-DA61-11161A
...
1-1-9
Assy Support-Left; Aw3-14,assy,inox Gray SAM-DA97-13870D
...
1-1-10-1
Screw-Tapping SAM-6002-000215
...
1-1-10-2
Screw-Tapping SAM-6002-000630
...
1-1-10-3
Spring Etc-Easy Handle SAM-DA61-04335A
...
1-1-10-4
Fixer-Shaft L SAM-DA61-05930A
...
1-1-10-5
Fixer-Shaft R SAM-DA61-05899A
...
1-1-10-6
Fixer Handle; Aw3-14,swrch10a,m8 SAM-DA61-11161A
...
1-1-10-7
Reinf-Cap Handle SAM-DA61-06658A
...
1-1-10
Assy Support-Right; Aw3-14,assy,inox Gray SAM-DA97-13871D
...
1-1-11
Assy Lamp Led; 2,fr-4,20*30,white,smaw250 SAM-DA41-00676J
...
1-1
Assy Door-Middle; Aw4-4d,rs Plate SAM-DA97-13797A
...
1
Assy Door Sub-Middle; Aw4-4d,rs Plate SAM-DA93-00220B
...
2
Cover-W/harness Conv Door SAM-DA63-05462C

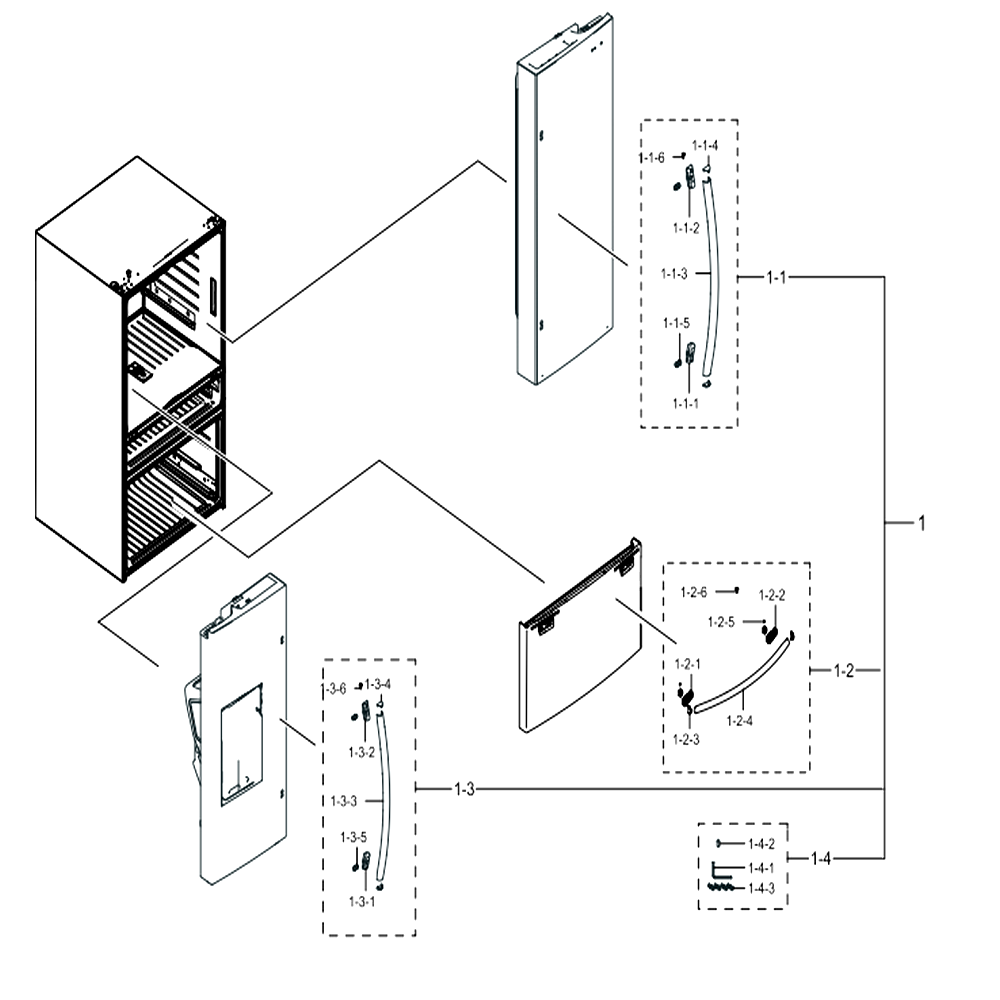

Assy?handle-kit

...
...
1-1-1
Support-Handle Ref SAM-DA61-08228A
...
1-1-2
Support-Handle Ref Upp SAM-DA61-08246A
...
1-1-3
Handle Bar-Ref R; Aw1-12 & Aw4,al,t1.3,ve SAM-DA64-03756G
...
1-1-4
Cap-Supt Handle Ref SAM-DA67-02788A
...
1-1-5
Screw-Set SAM-6009-001526
...
1-1-6
Screw-Tapping SAM-6002-000213
...
1-1
Assy Handle Bar-Ref R; Aw4,al(a6063),vers SAM-DA97-12714C
...
1-2-1
Support-Handle Fre SAM-DA61-08229A
...
1-2-2
Support-Handle Fre R SAM-DA61-08247A
...
1-2-3
Cap-Handle Fre SAM-DA67-02787A
...
1-2-4
Handle Bar-Fre; Aw1-12,aw4,al,t1.3,versai SAM-DA64-03945F
...
1-2-5
Screw-Set SAM-6009-001526
...
1-2-6
Screw-Tapping SAM-6002-000213
...
1-2
Assy Handle Bar-Fre; Aw4,al(a6063),versai SAM-DA97-12712C
...
1-3-1
Support-Handle Ref SAM-DA61-08228A
...
1-3-2
Support-Handle Ref Upp SAM-DA61-08246A
...
1-3-3
Handle Bar-Ref L; Aw1-12 & Aw4,al,t1.3,ve SAM-DA64-03756K
...
1-3-4
Cap-Supt Handle Ref SAM-DA67-02788A
...
1-3-5
Screw-Set SAM-6009-001526
...
1-3-6
Screw-Tapping SAM-6002-000213
...
1-3
Assy Handle Bar-Ref L; Aw4,al(a6063),vers SAM-DA97-12715C
...
1-4-1
Wrench-Spanner SAM-DA80-00026B
...
1-4-2
Cap-Wrench SAM-DA67-03197A
...
1-4-3
Fixer Handle; Aw3-14,swrch10a,m8 SAM-DA61-11161A
...
1-4
Assy Install; Aw3-14,valve SAM-DA99-03490W
...
1
Assy Handle-Kit; Aw3,versailles Sts With SAM-DA99-04011J
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
