Samsung RF24FSEDBSR/AA_0019

Model: RF24FSEDBSR/AA_0019

Save Part Not Listed?
product name

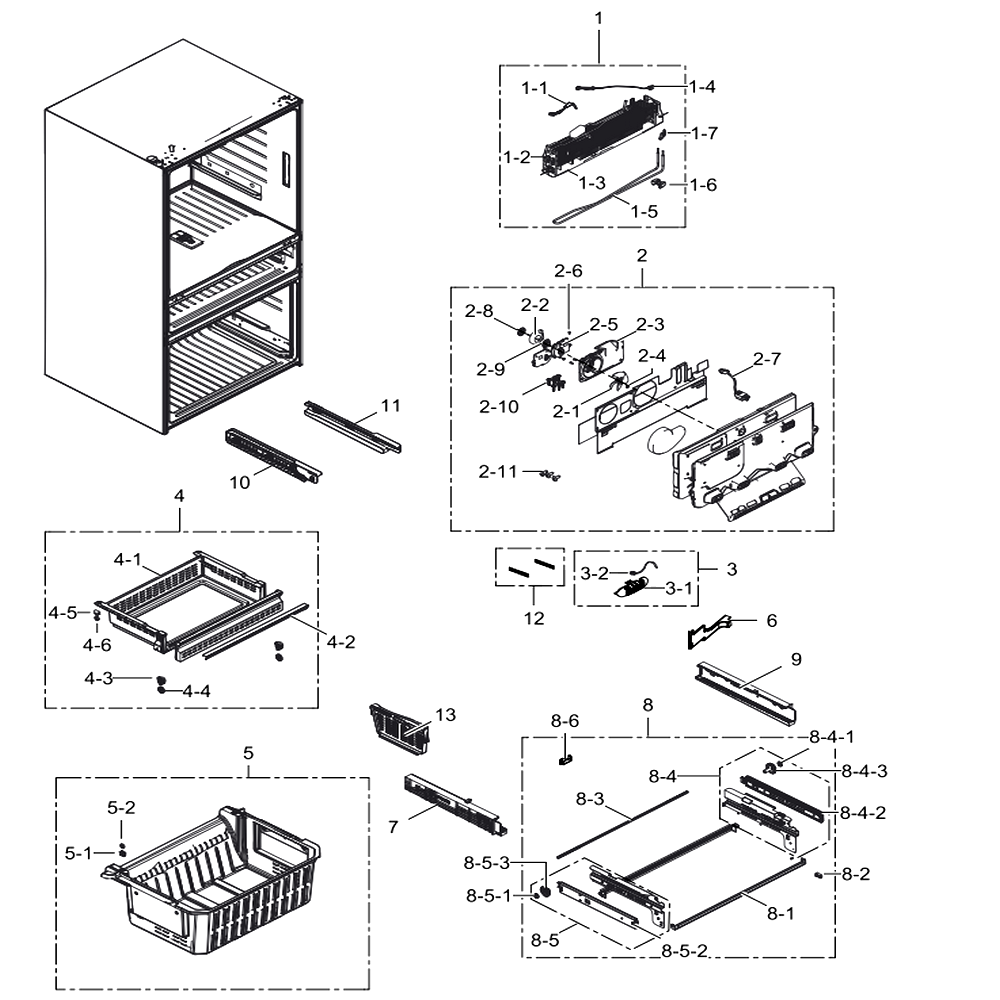

Freezer

...
...
1-1
Sensor Temp SAM-DA32-10104N
...
1-2
Evap Fre; Fin Tube,aw3 SAM-DA59-00400A
...
1-3
Plate-Drain Fre; Aw3-Pjt,gl-Sazcc,t0.3 SAM-DA61-05842A
...
1-4
Thermo Bimetal-Protector SAM-DA47-00243B
...
1-5
Heater Metal Sheath SAM-DA47-00318H
...
1-6
Fixer-Heater Fre SAM-DA61-05845A
...
1-7
Fixer-Sensor Fre SAM-DA61-06182A
...
1
Assembly Evap-Fre SAM-DA96-00631D
...
2-1
Fan-Ax100w4cc-T1 SAM-DA31-00124A
...
2-2
Motor Bldc SAM-DA31-00146H
...
2-3
Case Motor-Fre SAM-DA61-05867B
...
2-4
Spring Etc-Fan SAM-DA61-20128A
...
2-5
Cover Motor-Bldc SAM-DA63-01809B
...
2-6
Grommet-Cover Chill SAM-DA63-40167A
...
2-7
Assembly Wire Harness-Motor SAM-DA96-00042D
...
2-8
Grommet-Motor,rear SAM-DA63-01146A
...
2-9
Grommet Motor SAM-DA63-01808A
...
2-10
Screw-Tapping SAM-6002-000215
...
2-11
Screw-Tapping SAM-6002-000213
...
2
Assembly Cover Evap-Fre SAM-DA97-08434E
...
3-1
Cover Sensor-Fre SAM-DA63-05470B
...
3-2
Sensor Temp SAM-DA32-00033C
...
3
Assembly Cover-Sensor Fre SAM-DA97-08608A
...
4-1
Tray-Fre Up; Rf8000mc,hips,cool White SAM-DA63-07499B
...
4-2
Trim-Tray Fre; Aw4,hips,s834s1,cool White SAM-DA64-03862F
...
4-3
Fixer-Roller Tray Fre Upp SAM-DA61-04154A
...
4-4
Roller-Tray Fre Upp SAM-DA66-00554A
...
4-5
Fixer-Roller SAM-DA71-20277A
...
4-6
Roller-Fre SAM-DA66-10104A
...
4
Assy Tray-Fre Up; Rf8000mc,assy SAM-DA97-13773C
...
5-1
Fixer-Roller SAM-DA71-20277A
...
5-2
Roller-Fre SAM-DA66-10104A
...
5
Assy Tray-Fre Low; Rf8000mc,assy SAM-DA97-13774B
...
6
Cover Air-Wire Harness Ice; Aw4 Cd,hips,c SAM-DA63-07496A
...
7
Cover Rail-Low Left; Abs,cool White SAM-DA63-04942B
...
8-1
Reinf-Hanger Front; Aw4,egi-Secc,t1.6,coo SAM-DA61-08526A
...
8-2
Cover-Fixer Magnet; Mouton,hips,cool Whit SAM-DA63-06739A
...
8-3
Shaft-Gear; Aw4,sm25c,715.1,black Electro SAM-DA66-00437F
...
8-4-1
Fixer-Gear SAM-DA61-03154A
...
8-4-2
Rail-Slide Low R; Aw2-Cd,scp1,zpc2,assy SAM-DA61-08819A
...
8-4-3
Gear-Rail R SAM-DA66-00750A
...
8-4
Assy Rail-Low Right; Aw4-4d (c/d),fdr SAM-DA97-13775A
...
8-5-1
Fixer-Gear SAM-DA61-03154A
...
8-5-2
Rail-Slide Low L; Aw2-Cd,scp1,zpc2,assy SAM-DA61-08818A
...
8-5-3
Gear-Rail L SAM-DA66-00751A
...
8-5
Assy Rail-Low Left; Aw4-4d (c/d),fdr SAM-DA97-13777A
...
8-6
Magnet-Ass'y SAM-DA61-02738A
...
8
Assy Hanger-Low; Aw4-4d (c/d),fdr SAM-DA97-13782A
...
9
Cover Rail-Low Right; Abs,cool White SAM-DA63-04941B
...
10
Rail-Fre Up Left; Aw4-4d,hips,natural,s83 SAM-DA61-09208A
...
11
Rail-Fre Up Right; Aw4-4d,hips,natural,s8 SAM-DA61-09204A
...
12
Assembly Lamp Led SAM-DA41-00519Q
...
13
Guide-Fre; Aw4-4d (c/d),pp,hb,bj750,cool SAM-DA61-09233A

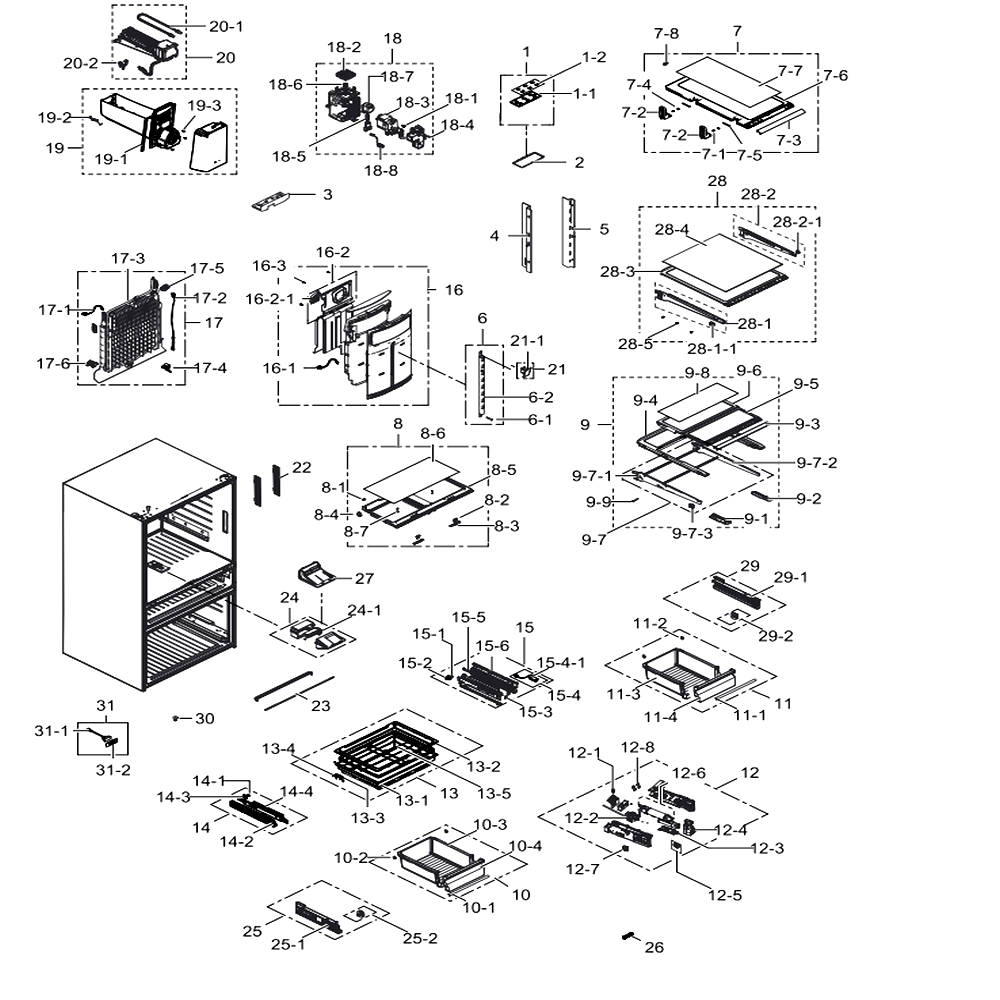

Refrigerator

...
...
1-1
Case Lamp-Ref SAM-DA61-08236A
...
1-2
Assy Lamp Led; 5,cem-1,240*10,white,smaw2 SAM-DA41-00676K
...
1
Assy Case Lamp-Ref; Aw4,long Led SAM-DA97-12606B
...
2
Cover Lamp-Ref SAM-DA63-07816A
...
3
Guide-French SAM-DA61-04285A
...
4
Angle-Shelf Ref Side L SAM-DA61-05898A
...
5
Angle-Shelf Ref Side R SAM-DA61-05897A
...
6-1
Screw-Tapping SAM-6002-001397
...
6-2
Angle Shelf-Ref Middle; Cr-Spcc,t2.5,cool SAM-DA61-09166B
...
6
Assy Angle Shelf-Ref Middle; Opus1-14 SAM-DA97-13844B
...
7-1
Spring Etc-Hinge Shelf SAM-DA61-03705A
...
7-2
Bracket-Hinge Shelf; Opus1-14,pc,cool Whi SAM-DA61-08215A
...
7-3
Trim-Shelf Insert Ref Fold; Aw4,sts304,-, SAM-DA64-04223A
...
7-4
Roller-Hinge-Shelf SAM-DA66-00482A
...
7-5
Shaft-Hinge-Shelf SAM-DA66-00483A
...
7-6
Shelf Folder; Aw4-4d,pp,cool White,aw4-Cd SAM-DA67-03693A
...
7-7
Glass-Shelf Ref Fold; Glass SAM-DA01-00887A
...
7-8
Screw-Tapping SAM-6002-001397
...
7
Assy Shelf Folder; Aw4-Cd SAM-DA97-13836A
...
8-1
Fixer-Cover Veg SAM-DA61-03166A
...
8-2
Knob-Humidity; Aw4,abs,natural,chromium P SAM-DA64-04173A
...
8-3
Lever-Humidity SAM-DA66-00718A
...
8-4
Assy Roller; Rf9000jc,24 SAM-DA97-15997A
...
8-5
Cover Veg-Ref; Aw4-4d,hips,cool White,hg- SAM-DA63-07497A
...
8-6
Glass; Glass SAM-DA01-00891A
...
8-7
Case Lock-A; Rf9000jc,pom,natural,k300 SAM-DA61-10523A
...
8
Assy Cover Veg-Ref; Aw4-Cd SAM-DA97-13840A
...
9-1
Support Rail-Left; Aw4-4d,abs,hg-0760gp,c SAM-DA61-09300A
...
9-2
Support Rail-Right; Aw4-4d,abs,hg-0760gp, SAM-DA61-09299A
...
9-3
Trim-Shelf Quick Space; Aw4,sts304,-,t0.4 SAM-DA64-04222A
...
9-4
Shelf-Rear; Aw4-4d,pp,cool White,aw4-Cd SAM-DA67-03696A
...
9-5
Shelf-Front; Aw4-4d,pp,cool White,aw4-F/s SAM-DA67-03713A
...
9-6
Shelf-Middle; Aw4-4d,pp,cool White,aw-Cd SAM-DA67-03698A
...
9-7-1
Hanger-Low Left; Aw4-Cd,egi-Secc,t2.0 SAM-DA61-09197A
...
9-7-2
Hanger-Low Right; Aw4-Cd,egi-Secc,t2.0 SAM-DA61-09195A
...
9-7-3
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09550A
...
9-7
Assy Shelf Hanger-Right; Aw4-Cd SAM-DA97-13832A
...
9-8
Glass-Shelf Ref Middle; Glass SAM-DA01-00894A
...
9-9
Screw-Tapping SAM-6002-001397
...
9
Assy Shelf Folder-Ref; Aw4-Cd,slide In SAM-DA97-13834A
...
10-1
Trim Cover-Ref; Aw4-Cd,hips,s834s1,cool W SAM-DA64-03862R
...
10-2
Assembly Roller SAM-DA97-15998A
...
10-3
Case Veg-Ref Left; Aw4-4d,gpps,natural,hf SAM-DA61-09161A
...
10-4
Cover Veg-Front Left; Aw4-Cd,gpps,natural SAM-DA63-07552A
...
10
Assy Case Veg-Left; Aw4-Cd SAM-DA97-13842B
...
11-1
Trim Cover-Ref; Aw4-Cd,hips,s834s1,cool W SAM-DA64-03862Q
...
11-2
Assembly Roller SAM-DA97-15998A
...
11-3
Case Veg-Ref Right; Aw4-4d,gpps,natural,h SAM-DA61-09160A
...
11-4
Cover Veg-Front Right; Aw4-4d,gpps,natura SAM-DA63-07553A
...
11
Assy Case Veg-Right; Aw4-Cd SAM-DA97-13841B
...
12-1
Tube-Fitting L SAM-DA62-03103A
...
12-2
Valve Water SAM-DA62-04027A
...
12-3
Tray-Water Filter SAM-DA63-05407A
...
12-4
Cover-Filter Tank; Aw4,hips,w72.4,l167.7, SAM-DA63-06885A
...
12-5
Assy Case Filter; H920g SAM-DA97-08006L
...
12-6
Assy Tank Water-Ref; H920g,pp SAM-DA97-13854C
...
12-7
Screw-Tapping SAM-6002-000471
...
12-8
Clip-Fitting Lock SAM-DA61-04522A
...
12
Assy Case Water Filter; Aw4-Cd,no Led SAM-DA97-14528F
...
13-1
Case Convertible; Aw4-Cd,hips,cool White, SAM-DA61-09162A
...
13-2
Cover Convertible; Aw4-Cd,hips,cool White SAM-DA63-07489A
...
13-3
Bracket Divider SAM-DA61-09409A
...
13-4
Roller-Divider SAM-DA66-00876A
...
13-5
Guide Tray-Low; Aw4-4d Cd,sts204,natural, SAM-DA61-09333A
...
13
Assy Case Convertible; Aw4-4d C/d,fdr SAM-DA97-13814A
...
14-1
Fixer-Gear SAM-DA61-03154A
...
14-2
Cover Rail-Middle Left; Aw4-Cd,abs,cool W SAM-DA63-07515A
...
14-3
Gear-Rail L SAM-DA66-00751A
...
14-4
Rail-Slide Low L; Aw2-Cd,scp1,zpc2,assy SAM-DA61-08818A
...
14
Assy Rail-Middle Left; Aw4-4d (c/d),fdr SAM-DA97-13779A
...
15-1
Fixer-Gear SAM-DA61-03154A
...
15-2
Gear-Rail R SAM-DA66-00750A
...
15-3
Magnet-Ass'y SAM-DA61-02738A
...
15-4-1
Switch Reed SAM-DA34-00043H
...
15-4
Assy Wire Harness-Rail; All,12vdc,all,ul, SAM-DA96-00640B
...
15-5
Rail-Slide Low R; Aw2-Cd,scp1,zpc2,assy SAM-DA61-08819A
...
15-6
Cover Rail-Middle Right; Aw4-Cd,abs,cool SAM-DA63-07514A
...
15
Assy Rail-Middle Right; Aw4-4d (c/d),fdr SAM-DA97-13778A
...
16-1
Sensor Temp SAM-DA32-00011D
...
16-2-1
Motor Bldc Fan SAM-DA31-00287A
...
16-2
Assembly Case Motor-Ref SAM-DA97-16026A
...
16-3
Screw-Tapping SAM-6002-001204
...
16
Assy Cover Evap-Ref; Aw3-14 SAM-DA97-16028B
...
17-1
Sensor Temp SAM-DA32-10104N
...
17-2
Thermo Bimetal-Protector SAM-DA47-00243C
...
17-3
Heater Metal Sheath SAM-DA47-00434A
...
17-4
Plate-Evap Heater SAM-DA61-03644A
...
17-5
Fixer-Senser SAM-DA61-03683A
...
17-6
Fixer-Heater Ref SAM-DA61-05835B
...
17
Assembly Evap-Ref SAM-DA96-00842A
...
18-1
Screw-Tapping SAM-6002-000471
...
18-2
Motor Bldc Fan SAM-DA31-00070E
...
18-3
Motor Geared Ac Auger SAM-DA31-00105M
...
18-4
Screw-Special SAM-DA60-00001B
...
18-5
Spring Etc-Solenoid SAM-DA61-20140A
...
18-6
Grommet-Fan SAM-DA63-02513A
...
18-7
Valve-Solenoid SAM-DA74-40151G
...
18-8
Assy Wire Harness-Auger; Fdr,free Volt,ul SAM-DA96-00682E
...
18
Assy Case Auger Motor; Rf9900jc,115v 60hz SAM-DA97-12540K
...
19-1
Gasket-Tray Ice Bucket SAM-DA63-07185A
...
19-2
Spring Etc-Dispenser SAM-DA61-20124D
...
19-3
Screw-Tapping SAM-6002-000471
...
19
Assy Tray Ice; Fdr,t-Type C/d SAM-DA97-14504C
...
20-1
Heater-Icemaker; Ac120v,6cube, 120ohm,120 SAM-DA47-00462C
...
20-2
Screw-Tapping SAM-6002-000471
...
20
Assy Ice Maker; Aw4-Cd,120v-60hz SAM-DA97-13718C
...
21-1
Cap Cover Evap-Ref; Rf9000jc,hips,t3.0,hb SAM-DA67-03978B
...
21
Assy Cap Angle; Rf9000jc SAM-DA97-15412B
...
22
Cover Lamp-Led Side SAM-DA63-07276A
...
23
Shaft-Gear Conv SAM-DA66-00733A
...
24-1
Motor Dc-Damper SAM-DA31-00101C
...
24
Assembly Ins-Damper Conv SAM-DA97-08430A
...
25-1
Rail-Left; Aw4-4d,hips,white,hg-1760sf,aw SAM-DA61-09178A
...
25-2
Assy Roller; Rf9000jc,24 SAM-DA97-15997A
...
25
Assy Rail-Left; Aw4-Cd,veg SAM-DA97-13838A
...
26
Tube-Fitting SAM-DA62-03914A
...
27
Cover Motor-Damper SAM-DA63-05477A
...
28-1-1
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09550A
...
28-1
Hanger-Left; Aw4-4d,cd,egi-Secc,cool Whit SAM-DA61-09194A
...
28-2-1
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09549A
...
28-2
Hanger-Right; Aw4-4d,cd,egi-Secc,cool Whi SAM-DA61-09193A
...
28-3
Shelf-Ref Fix; Aw4-4d,pp,cool White,aw4-C SAM-DA67-03724A
...
28-4
Glass-Shelf Ref Fix; Glass SAM-DA01-00888A
...
28-5
Screw-Tapping SAM-6002-001397
...
28
Assy Shelf-Ref; Aw4-Cd,fix SAM-DA97-13831A
...
29-1
Rail-Right; Aw4-4d,hips,cool White,hg-176 SAM-DA61-09177A
...
29-2
Assy Roller; Rf9000jc,24 SAM-DA97-15997A
...
29
Assy Rail-Right; Aw4-Cd,veg SAM-DA97-13837A
...
30
Cap-Shaft Hole SAM-DA67-02795C
...
31-1
Switch Reed SAM-DA34-00043J
...
31-2
Cover Reed Switch SAM-DA63-07513A
...
31
Assembly Cover Switch SAM-DA97-13783A

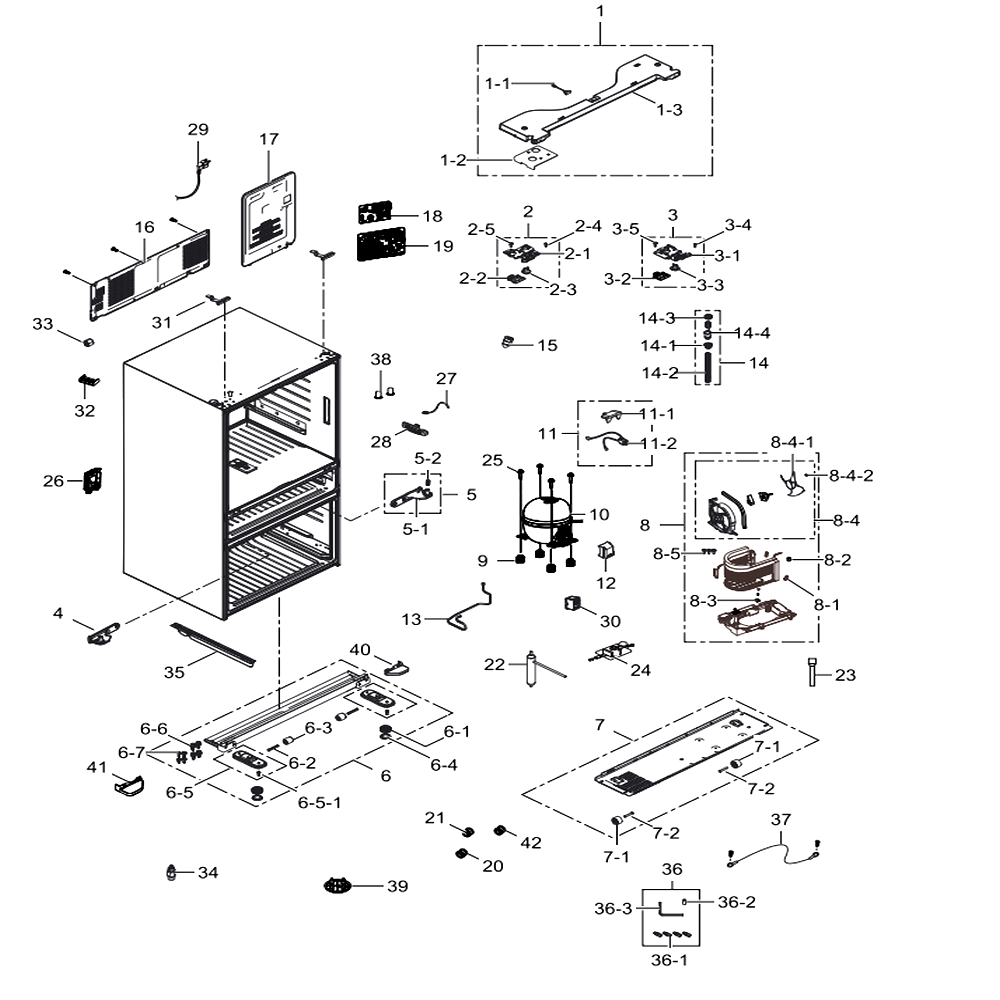

Cabinet

...
...
1-1
Switch Reed; Ul1007 Awg 22,280(680),25045 SAM-DA34-00043K
...
1-2
Plate-Cover Hinge SAM-DA61-08227A
...
1-3
Top Table; Romanee Conti,abs,inox Gray SAM-DA64-04477B
...
1
Assy Top Table; Romanee Conti,inox Gray SAM-DA97-13703D
...
2-1
Hinge-Upp L SAM-DA61-08309A
...
2-2
Shim-Hinge Upp SAM-DA63-50192A
...
2-3
Cam-Auto Close L SAM-DA66-00950A
...
2-4
Screw-Tapping SAM-6002-000215
...
2-5
Screw-Tapping SAM-6002-000213
...
2
Assembly Hinge Upp-L SAM-DA97-12573A
...
3-1
Hinge-Upp R; Aw4,po-Sphc,t2.9,eletrodepos SAM-DA61-08310A
...
3-2
Shim-Hinge Upp SAM-DA63-50192A
...
3-3
Cam-Auto Close R SAM-DA66-00951A
...
3-4
Screw-Tapping SAM-6002-000215
...
3-5
Screw-Tapping SAM-6002-000213
...
3
Assy Hinge Upp-R; Aw4,t3.0,black SAM-DA97-12574A
...
4
Hinge-Mid L; Aw4,zn,t4.5,zndc 2 SAM-DA61-08318A
...
5-1
Hinge-Middle Right; Aw4,zn,t4.5,zndc2,cr SAM-DA61-08317B
...
5-2
Shaft Hinge-Middle SAM-DA66-00688A
...
5
Assy Hinge-Middle Right; Aw4,zndc SAM-DA97-12612B
...
6-1
Foot-Front SAM-DA61-07972B
...
6-2
Caster-Rivet SAM-DA61-01920A
...
6-3
Caster-Front SAM-DA61-04702A
...
6-4
Foot SAM-DA61-07973B
...
6-5-1
Shaft-Leg Front SAM-DA66-00793A
...
6-5
Assy Support-Front; Aw4-4d C/d SAM-DA97-13807A
...
6-6
Screw-Tap Tite SAM-DA60-10004A
...
6-7
Screw-Tapping SAM-6002-000213
...
6
Assy Cabi Bottom-Front; Aw4-4d C/d,noble SAM-DA97-12556D
...
7-1
Caster-Rear SAM-DA61-04703A
...
7-2
Shaft-Caster SAM-DA66-00649B
...
7
Assembly Chassis-Comp SAM-DA97-12557A
...
8-1
Grommet-Immersion Pipe B SAM-DA63-07323A
...
8-2
Grommet-Suct Pipe A SAM-DA63-40171B
...
8-3
Grommet-Cond Sub SAM-DA63-04424A
...
8-4-1
Fan SAM-DA31-00320A
...
8-4-2
Spring Etc-Fan SAM-DA61-20128A
...
8-4
Assembly Support-Circuit Motor SAM-DA97-15765A
...
8-5
Screw-Tapping SAM-6002-000213
...
8
Assy Tray Drain Water; Aw,pfc SAM-DA97-15978B
...
9
Grommet Comp SAM-DA63-02617A
...
10
Cmp,refrigerator,r-134a; Cmp,refrigerator,r-134a SAM-NC1MV90ALP/E01
...
11-1
Relay Protector O/l SAM-DA34-00004D
...
11-2
Assembly Wire Harness-Comp SAM-DA39-00154M
...
11
Assembly Comp-Sub SAM-DA97-10848N
...
12
Cover Relay; Msv,mppo,t2.0,5v-A,black,m-H SAM-DA63-06122A
...
13
Pipe Connect-Suction; C1220t-O,od6.35,t0. SAM-DA62-03691A
...
14-1
Fixer-Drain SAM-DA61-05021A
...
14-2
Tube Pvc SAM-DA62-01266B
...
14-3
Grommet-Drain SAM-DA63-02761A
...
14-4
Cap-Drain SAM-DA67-01301A
...
14
Assembly Cap-Drain SAM-DA97-04049E
...
15
Grommet; Brr9000m,nbr,capi Grommet SAM-DA63-08943A
...
16
Assembly Cover Comp SAM-DA97-12749A
...
17
Assembly Cover Pcb-Panel SAM-DA97-08442D
...
18
Assy Pcb Inverter; Inverter,sseda,197*98. SAM-DA92-00215X
...
19
Assy Pcb Eeprom; 0x23,d602, D606,aw4-Cd I SAM-DA94-02275P
...
20
Fitting-Lokring 33 SAM-DA60-00280A
...
21
Fitting-Lokring; Sum23,lokring 2 N St 20 SAM-DA60-00325A
...
22
Dryer SAM-DA62-04309B
...
23
Pipe-Connect Disc,b SAM-DA73-10190U
...
24
Coil Filter-Emi SAM-DA27-00022B
...
25
Bolt-Hex SAM-6011-004061
...
26
Assembly Cover-Tube Filter SAM-DA97-08413B
...
27
Sensor Temp SAM-DA32-10109B
...
28
Cover Sensor-Fre SAM-DA63-05470B
...
29
At,u.s.a,canada,us3f-1,3c,125v,15a,blac K,1500,20/100/100/150,spt-3 Awg18 105c,ul/ Csa,y,n,n,n,y SAM-3903-000796
...
30
Cover-Fixer Housing V SAM-DA63-02902B
...
31
Fixer-Hinge;po-Sphc,t3,zn Coating SAM-DA61-04932B
...
32
Fixer Cover; Aw3-14,hips,natural,s834s1 SAM-DA61-12488A
...
33
Valve-Fitting Nut SAM-DA74-00070B
...
34
Valve-Fitting Pu SAM-DA62-00305A
...
35
Trim Blade; Aw3-14,pvc,gray SAM-DA64-05373A
...
36-1
Fixer Handle; Aw3-14,swrch10a,m8 SAM-DA61-11161A
...
36-2
Cap-Wrench SAM-DA67-03197A
...
36-3
Wrench-Spanner SAM-DA80-00026B
...
36
Assy Install; Aw3-14,valve SAM-DA99-03490W
...
37
Wire Harness-Earth SAM-DA39-20389L
...
38
Grommet Hinge-Mid SAM-DA63-06410A
...
39
Cover-Urethane SAM-DA63-03809A
...
40
Cover Leg-Front Right; Aw4-4d (c/d),pp,hb SAM-DA63-07484A
...
41
Cover Leg-Front Left; Aw4-4d (c/d),pp,hb, SAM-DA63-07485A
...
42
Fitting Lokring;sum23,id5.07,cond Out SAM-DA60-00358A

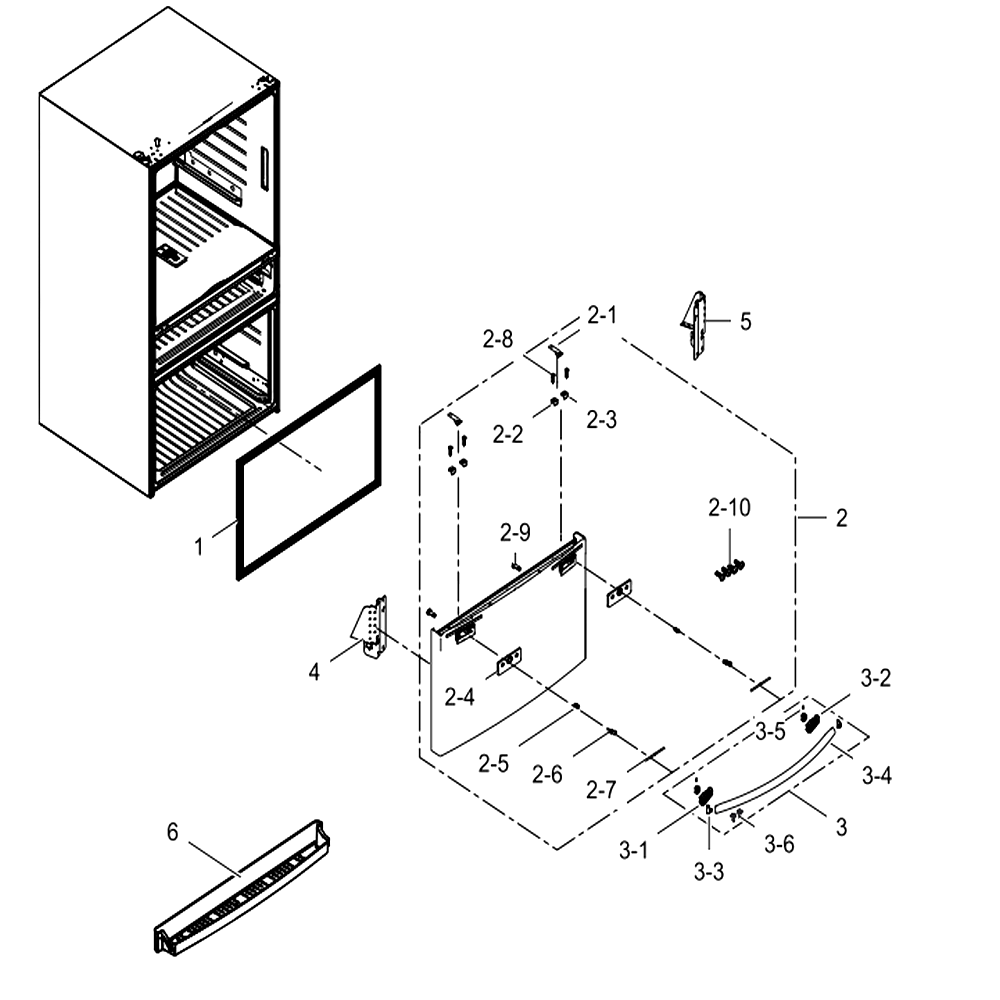

Freezer-door

...
...
1
Assy Gasket-Fre; Aw4-4d,gray SAM-DA97-12522S
...
2-1
Slider-Easy Handle; Aw4,pom,creamy-Sts,f2 SAM-DA61-08234A
...
2-2
Fixer-Shaft L SAM-DA61-05930A
...
2-3
Fixer-Shaft R SAM-DA61-05899A
...
2-4
Reinf-Cap Handle SAM-DA61-06658A
...
2-5
Spring Etc-Easy Handle; 08 Aw1,2-Pjt,hswr SAM-DA61-04335B
...
2-6
Fixer Handle; Aw3-14,swrch10a,m8 SAM-DA61-11161A
...
2-7
Shaft-Cap Handle SAM-DA66-00579A
...
2-8
Screw-Tapping SAM-6002-000215
...
2-9
Screw-Tapping SAM-6002-000630
...
2-10
Screw-Tapping SAM-6002-001406
...
2
Assy Door Foam-Fre; Aw4-4d,rs Plate SAM-DA91-04290A
...
3-1
Support-Handle Fre SAM-DA61-08229A
...
3-2
Support-Handle Fre R SAM-DA61-08247A
...
3-3
Cap-Handle Fre SAM-DA67-02787A
...
3-4
Handle Bar-Fre; Aw1-12,aw4,al,t1.3,versai SAM-DA64-03945F
...
3-5
Screw-Set SAM-6009-001526
...
3-6
Screw-Tapping SAM-6002-000213
...
3
Assy Handle Bar-Fre; Aw4,al(a6063),versai SAM-DA97-12712C
...
4
Hanger-Front Left; Aw4-4d,egi-Secc,cool W SAM-DA61-09245A
...
5
Hanger-Front Right; Aw4-4d,egi-Secc,cool SAM-DA61-09247A
...
6
Guard-Fre SAM-DA63-07512A

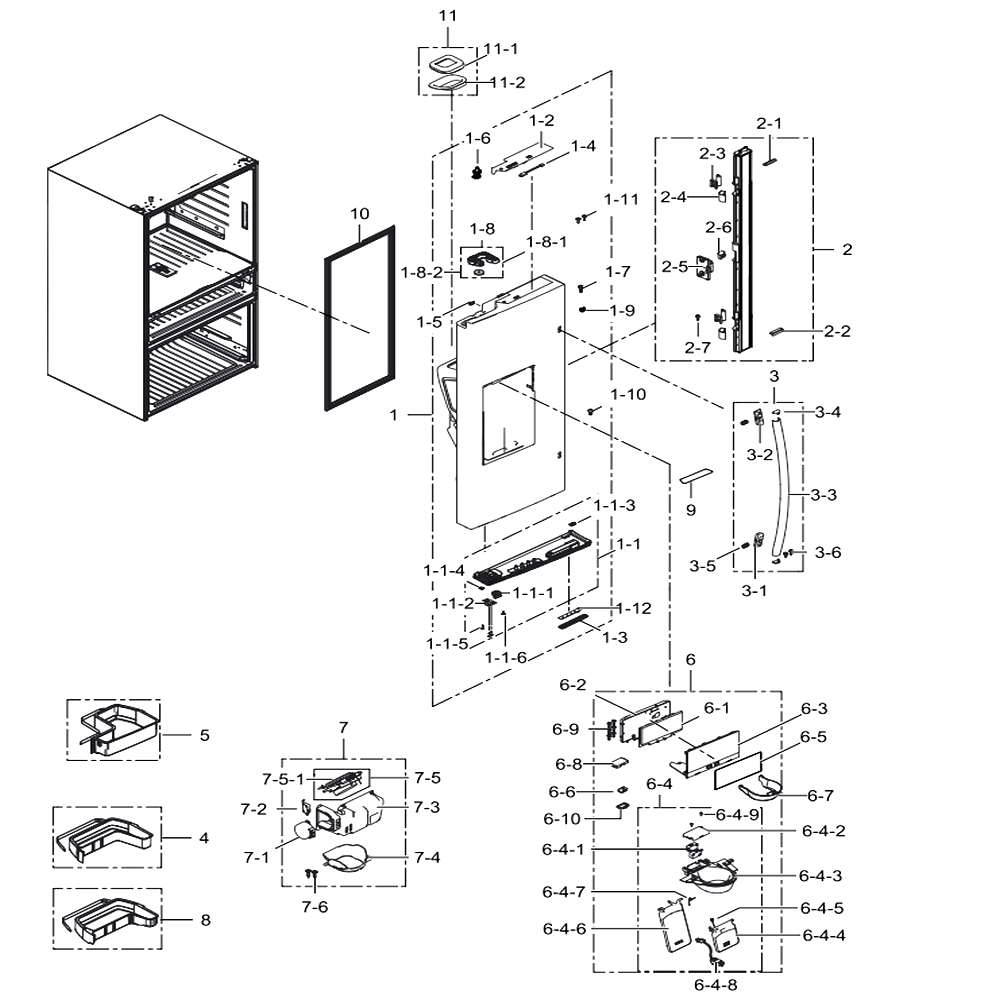

Refrigerator-door-l

...
...
1-1-1
Support Door-Close; Aw-Pjt,pk,m33r3a000,c SAM-DA61-02383E
...
1-1-2
Stopper-Door L SAM-DA61-08210A
...
1-1-3
Grommet-Chassis Up SAM-DA63-04825A
...
1-1-4
Grommet-Stopper SAM-DA63-40294A
...
1-1-5
Screw-Machine SAM-6001-001377
...
1-1-6
Screw-Tapping SAM-6002-001120
...
1-1
Assy Cap Door-Ref Low Left; Aw3-14,inox G SAM-DA97-14358D
...
1-2
Cover Cap Door-Ref Up Left; Aw4,abs,t2.3, SAM-DA63-06916F
...
1-3
Cover-Cap Door Led SAM-DA63-05524A
...
1-4
Sensor Humidity SAM-DA32-00034B
...
1-5
Magnet-A SAM-DA61-03769A
...
1-6
Switch Door-Interlock SAM-DA34-00066C
...
1-7
Screw-Tapping SAM-6002-000466
...
1-8-1
Lever-Auto Close; Aw4,pom,black SAM-DA66-00952A
...
1-8-2
Roller-Auto Close SAM-DA66-00440A
...
1-8
Assembly Lever-Auto Close SAM-DA97-12625A
...
1-9
Screw-Tapping SAM-6002-000613
...
1-10
Screw-Tapping SAM-6002-000217
...
1-11
Screw-Tapping SAM-6002-001122
...
1-12
Assy Lamp Led; 2,fr-4,20*30,white,smaw250 SAM-DA41-00676J
...
1
Assy Door Foam-Ref Left; Aw3-14,real Sts SAM-DA91-04145D
...
2-1
Gasket-French Upp; Aw4,si,gray SAM-DA63-06959A
...
2-2
Gasket-French Low; Aw-Pjt,si,gray SAM-DA63-06842B
...
2-3
Hinge-French SAM-DA61-08305A
...
2-4
Cap-Case French SAM-DA67-01650A
...
2-5
Cover-Heater French SAM-DA63-03454B
...
2-6
Cap-Case French Mid SAM-DA67-01701A
...
2-7
Screw-Tapping SAM-6002-000213
...
2
Assy French; Aw4-4d,thai Silver,120v SAM-DA97-12684D
...
3-1
Support-Handle Ref SAM-DA61-08228A
...
3-2
Support-Handle Ref Upp SAM-DA61-08246A
...
3-3
Handle Bar-Ref L; Aw1-12 & Aw4,al,t1.3,ve SAM-DA64-03756K
...
3-4
Cap-Supt Handle Ref SAM-DA67-02788A
...
3-5
Screw-Set SAM-6009-001526
...
3-6
Screw-Tapping SAM-6002-000213
...
3
Assy Handle Bar-Ref L; Aw4,al(a6063),vers SAM-DA97-12715C
...
4
Assy Guard-Ref Middle; Aw4-4d(c/d) SAM-DA97-13818A
...
5
Assy Guard-Ref Up; Aw4-4d(cd) SAM-DA97-13804A
...
6-1
Assy Module; Led Display,aw4-4d,i/w(ice A SAM-DA92-00451B
...
6-2
Cover Pcb-Panel Rear SAM-DA63-06377A
...
6-3
Assy Cover Dispenser-Sub; Aw4_Contour,met SAM-DA97-13808A
...
6-4-1
Switch-Micro; 250vac,1a,80,spst-No,t105 SAM-3405-001119
...
6-4-2
Cover-Switch SAM-DA63-05449A
...
6-4-3
Case Lever Dispenser; Aw4-4d,abs,ebony Bl SAM-DA61-09434A
...
6-4-4
Lever-Dispenser Ice Sts; Aw3,pc,3022ir,na SAM-DA66-00721A
...
6-4-5
Spring Etc-Lever Disp Ice; Aw3,sts304 SAM-DA61-06033A
...
6-4-6
Lever-Dispenser Water Sts; Aw3,pc,3022ir, SAM-DA66-00720A
...
6-4-7
Spring Etc-Lever Disp Water; Aw3,sts304 SAM-DA61-06034B
...
6-4-8
Assy Wire Harness-Dispenser; All,12vdc,al SAM-DA96-00106J
...
6-4-9
Screw-Tapping SAM-6002-000630
...
6-4
Assy Lever Dispenser; Aw4-4d,cd/no Sparkl SAM-DA97-12628N
...
6-5
Inlay-Film; Aw4-4d,pet,black,white Led, 3 SAM-DA64-04551A
...
6-6
Assembly Pcb Kit SAM-DA41-00217A
...
6-7
Cover Ice SAM-DA63-07637A
...
6-8
Cover-Lamp-Led SAM-DA63-02446A
...
6-9
Screw-Tapping SAM-6002-000630
...
6-10
Case Lamp-Led SAM-DA61-05687A
...
6
Assy Cover Dispenser; Aw4_4d_Cd_Contour,s SAM-DA97-13809B
...
7-1
Motor Geared-Disp SAM-DA31-00079D
...
7-2
Switch-Micro SAM-3405-001117
...
7-3
Case Ice Route; Aw4-4d,abs,i Black,hg-076 SAM-DA61-09432A
...
7-4
Guide Ice; Aw4-4d,hips,s834s1,natural,gui SAM-DA61-09433A
...
7-5-1
Cover-Ice Route A SAM-DA63-04647A
...
7-5
Assembly Cover-Ice Route SAM-DA97-05368A
...
7-6
Screw-Tapping SAM-6002-001364
...
7
Assembly Guide Ice Route SAM-DA97-13829C
...
8
Assy Guard-Ref Low; Aw4-4d(c/d) SAM-DA97-13819A
...
9
Tray Dispenser; Aw3,abs,inox Metal SAM-DA63-07931A
...
10
Assy Gasket-Ref; Aw4-4d,gray SAM-DA97-13015C
...
11-1
Gasket; Fdsr,tpe,white SAM-DA63-08248A
...
11-2
Cap-Chute Ice SAM-DA67-03312A
...
11
Assembly Cap-Chute Ice SAM-DA97-12594A

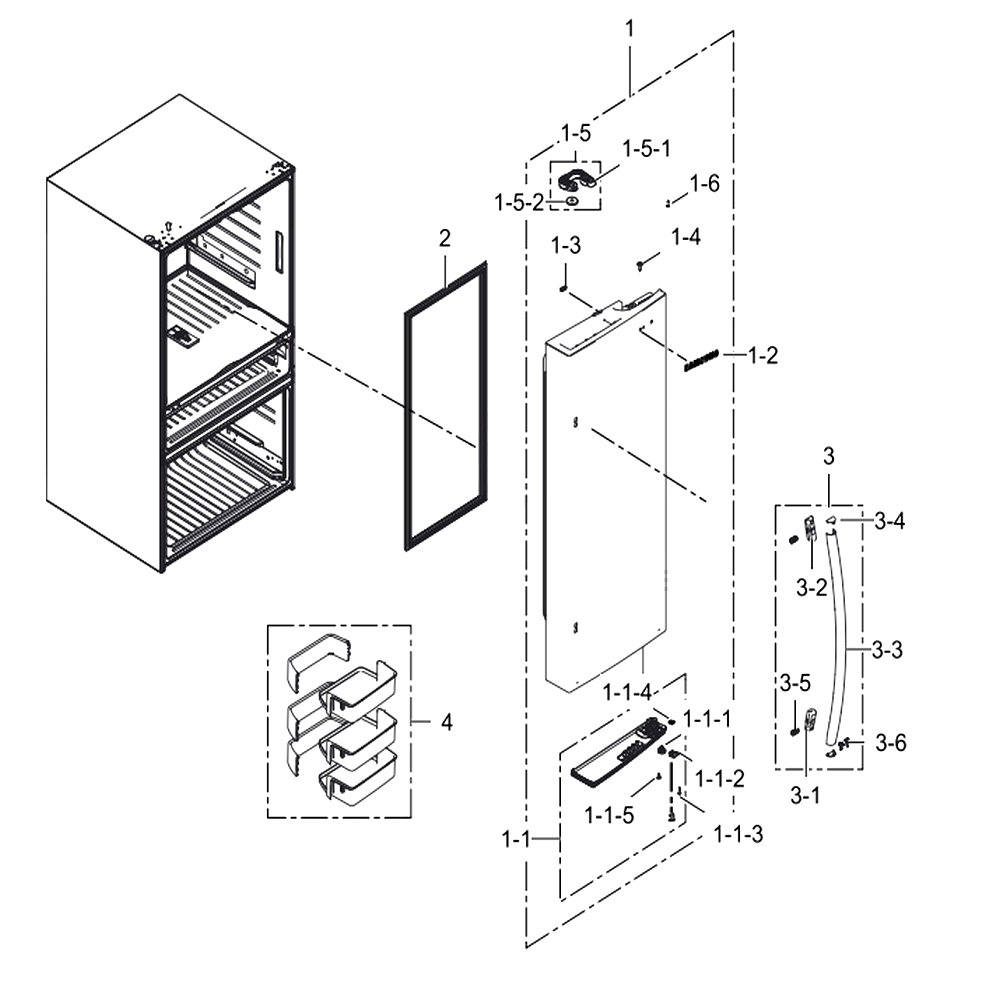

Refrigerator-door-r

...
...
1-1-1
Support Door-Close; Aw-Pjt,pk,m33r3a000,c SAM-DA61-02383E
...
1-1-2
Stopper-Door R; Aw4,po-Sphc,t2.9,black,t2 SAM-DA61-08196A
...
1-1-3
Screw-Tapping SAM-6002-001120
...
1-1-4
Grommet-Stopper SAM-DA63-40294A
...
1-1-5
Screw-Machine SAM-6001-001377
...
1-1
Assy Cap Door-Ref Low Right; Aw3-14,inox- SAM-DA97-14359A
...
1-2
Mascot; All,ni,t0.06,l90 SAM-DA64-04021D
...
1-3
Magnet-A SAM-DA61-03769A
...
1-4
Screw-Tapping SAM-6002-001122
...
1-5-1
Lever-Auto Close; Aw4,pom,black SAM-DA66-00952A
...
1-5-2
Roller-Auto Close SAM-DA66-00440A
...
1-5
Assembly Lever-Auto Close SAM-DA97-12625A
...
1-6
Screw-Tapping SAM-6002-000613
...
1
Assy Door Foam-Ref Right; Aw3-14,real Sts SAM-DA91-04146A
...
2
Assy Gasket-Ref; Aw4-4d,gray SAM-DA97-13015C
...
3-1
Support-Handle Ref SAM-DA61-08228A
...
3-2
Support-Handle Ref Upp SAM-DA61-08246A
...
3-3
Handle Bar-Ref R; Aw1-12 & Aw4,al,t1.3,ve SAM-DA64-03756G
...
3-4
Cap-Supt Handle Ref SAM-DA67-02788A
...
3-5
Screw-Set SAM-6009-001526
...
3-6
Screw-Tapping SAM-6002-000213
...
3
Assy Handle Bar-Ref R; Aw4,al(a6063),vers SAM-DA97-12714C
...
4
Assy Guard-Ref Right; Aw4-4d(cd) SAM-DA97-13805A

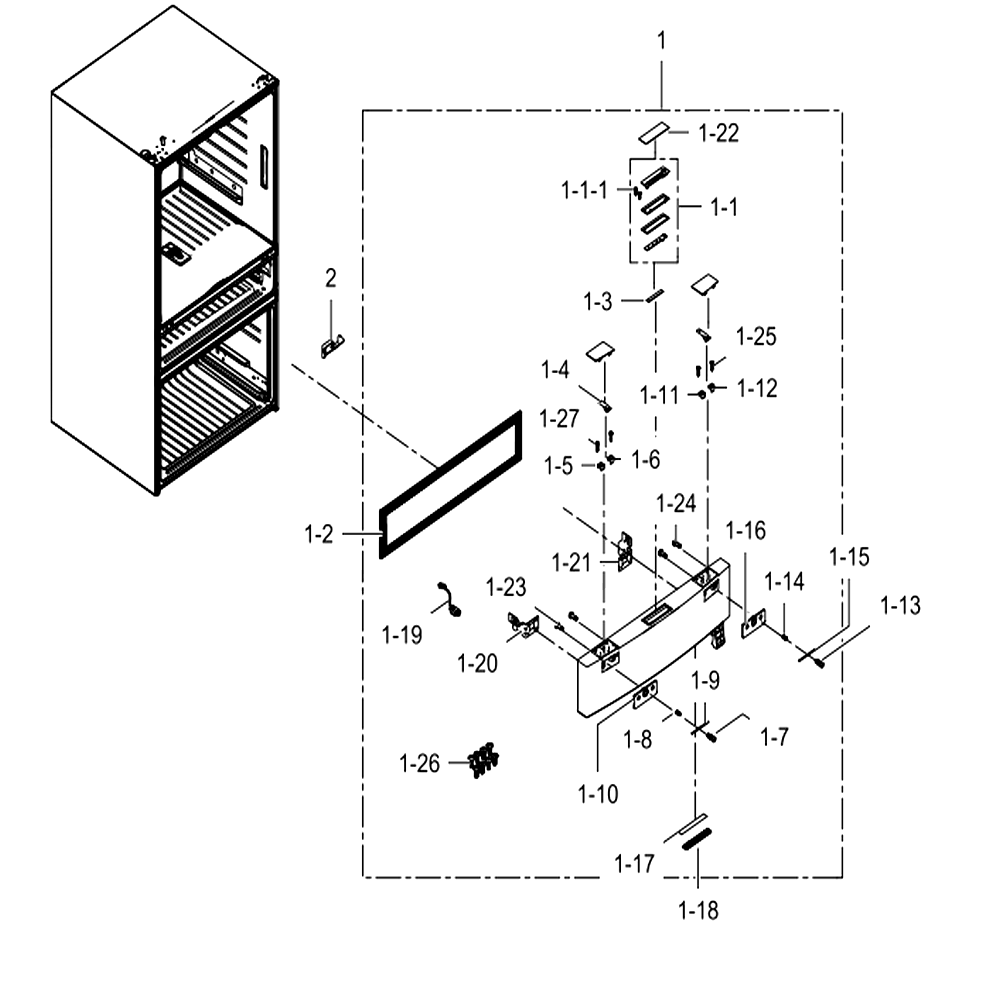

Flexzone-door

...
...
1-1-1
Screw-Tapping SAM-6002-000630
...
1-1
Assembly Cover Control-Convertible SAM-DA97-10605C
...
1-2
Assy Gasket-Middle; Aw4-4d,gray SAM-DA97-12522Q
...
1-3
Cover Control SAM-DA63-05630C
...
1-4
Slider-Easy Handle; Aw4,pom,creamy-Sts,f2 SAM-DA61-08234A
...
1-5
Fixer-Shaft L SAM-DA61-05930A
...
1-6
Fixer-Shaft R SAM-DA61-05899A
...
1-7
Fixer Handle; Aw3-14,swrch10a,m8 SAM-DA61-11161A
...
1-8
Spring Etc-Easy Handle SAM-DA61-04335A
...
1-9
Shaft-Cap Handle SAM-DA66-00579A
...
1-10
Reinf-Cap Handle SAM-DA61-06658A
...
1-11
Fixer-Shaft L SAM-DA61-05930A
...
1-12
Fixer-Shaft R SAM-DA61-05899A
...
1-13
Fixer Handle; Aw3-14,swrch10a,m8 SAM-DA61-11161A
...
1-14
Spring Etc-Easy Handle SAM-DA61-04335A
...
1-15
Shaft-Cap Handle SAM-DA66-00579A
...
1-16
Reinf-Cap Handle SAM-DA61-06658A
...
1-17
Assy Lamp Led; 2,fr-4,20*30,white,smaw250 SAM-DA41-00676J
...
1-18
Cover-Cap Door Led SAM-DA63-05524A
...
1-19
Assembly Wire Harness-Display SAM-DA96-00641B
...
1-20
Hanger-Front Middle Left SAM-DA61-09248A
...
1-21
Hanger-Front Middle Right SAM-DA61-09249A
...
1-22
Inlay-Film; Aw4-4d,pc,0.6,146.6,46.8,real SAM-DA64-04985A
...
1-23
Screw-Tapping SAM-6002-000630
...
1-24
Screw-Tapping SAM-6002-000630
...
1-25
Screw-Tapping SAM-6002-000215
...
1-26
Screw-Tapping SAM-6002-000613
...
1-27
Screw-Tapping SAM-6002-000215
...
1
Assy Door-Middle; Aw4-4d,rs Plate SAM-DA97-13797A
...
2
Cover-W/harness Conv Door SAM-DA63-05462C
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
