Samsung RF23M8570SR/AA_0001

Model: RF23M8570SR/AA_0001

Save Part Not Listed?

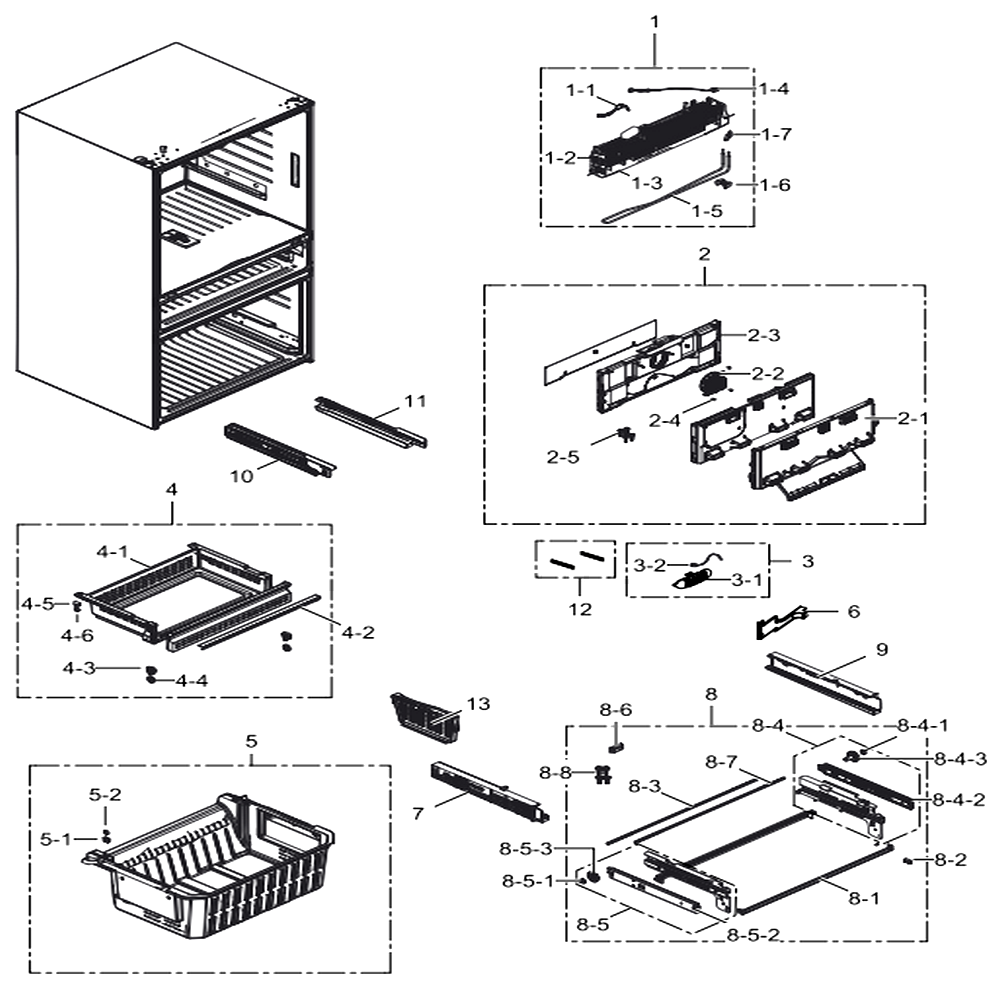

product name

Freezer

...
...
1-1
Sensor Temp; Sc41199-021a, Tube,200mm,13. SAM-DA32-00070M
...
1-2
Evaporator-Fre; Fin Tube,rf8000mc, Accum SAM-DA59-00400B
...
1-3
Plate-Drain Fre; Aw3-Pjt,gl-Sazcc,t0.3 SAM-DA61-05842A
...
1-4
Thermo Fuse-Assy; Ac250v,10a,109~110??s SAM-DA47-00301B
...
1-5
Heater Metal Sheath; Ac120v,aw4-4d Fre, 6 SAM-DA47-00318N
...
1-6
Fixer-Heater Fre SAM-DA61-05845A
...
1-7
Fixer-Sensor Fre SAM-DA61-06182A
...
1
Assy Evap-Fre; Rf8000mc,fin Tube,120v, 23 SAM-DA96-00631G
...
2-1
Cover Evap-Fre; Rf8000mc,pp,natural SAM-DA63-08774A
...
2-2
Motor Bldc Fan; 12035ge-12m-Yt,17757%,1 SAM-DA31-00334B
...
2-3
Cover Evap-Fre Rear; Rf8000mc,pp,gray SAM-DA63-08783A
...
2-4
Screw-Tapping SAM-6002-000471
...
2-5
Screw-Tapping SAM-6002-001204
...
2
Assy Cover Evap-Fre; Rf8000mc,plate Cooli SAM-DA97-17363A
...
3-1
Cover Sensor-Fre SAM-DA63-05470B
...
3-2
Sensor Temp; Sc41200-021a,1000mm,13.2kohm SAM-DA32-00070L
...
3
Assy Cover Sensor-Fre; Rf8000mc SAM-DA97-08608C
...
4-1
Tray-Fre Up; Rf8000mc,hips,cool White SAM-DA63-07499B
...
4-2
Trim-Tray Fre; Aw4,hips,s834s1,cool White SAM-DA64-03862F
...
4-3
Fixer-Roller Tray Fre Upp SAM-DA61-04154A
...
4-4
Roller-Tray Fre Upp SAM-DA66-00554A
...
4-5
Fixer-Roller SAM-DA71-20277A
...
4-6
Roller-Fre SAM-DA66-10104A
...
4
Assy Tray-Fre Up; Rf8000mc,assy SAM-DA97-13773C
...
5-1
Fixer-Roller SAM-DA71-20277A
...
5-2
Roller-Fre SAM-DA66-10104A
...
5
Assy Tray-Fre Low; Rf8000mc,assy SAM-DA97-13774B
...
6
Cover Air-Wire Harness Ice; Aw4 Cd,hips,c SAM-DA63-07496A
...
7
Cover Rail-Low Left; Abs,cool White SAM-DA63-04942B
...
8-1
Reinf-Hanger Front; Aw4,egi-Secc,t1.6,coo SAM-DA61-08526A
...
8-2
Cover-Fixer Magnet; Mouton,hips,cool Whit SAM-DA63-06739A
...
8-3
Shaft-Gear; Aw4,sm25c,715.1,black Electro SAM-DA66-00437F
...
8-4-1
Fixer-Gear SAM-DA61-03154A
...
8-4-2
Assy Rail-Right; Rf8000mc SAM-DA97-17604A
...
8-4-3
Gear-Rail R SAM-DA66-00750A
...
8-4
Assy Rail-Low Right; Rf8000mc SAM-DA97-17580A
...
8-5-1
Fixer-Gear SAM-DA61-03154A
...
8-5-2
Assy Rail-Left; Rf8000mc SAM-DA97-17603A
...
8-5-3
Gear-Rail L SAM-DA66-00751A
...
8-5
Assy Rail-Low Left; Rf8000mc SAM-DA97-17579A
...
8-6
Magnet-Ass'y SAM-DA61-02738A
...
8-7
Shaft-Gear SAM-DA66-00437B
...
8-8
Screw-Tapping; Th,+,-,2s,m4,l12,zpc(wht), SAM-6002-000588
...
8
Assy Hanger-Low; Rf8000mc SAM-DA97-17578A
...
9
Cover Rail-Low Right; Abs,cool White SAM-DA63-04941B
...
10
Rail-Fre Up Left; Aw4-4d,hips,natural,s83 SAM-DA61-09208A
...
11
Rail-Fre Up Right; Aw4-4d,hips,natural,s8 SAM-DA61-09204A
...
12
Assembly Lamp Led SAM-DA96-01119A
...
13
Guide-Fre; Aw4-4d (c/d),pp,hb,bj750,cool SAM-DA61-09233A

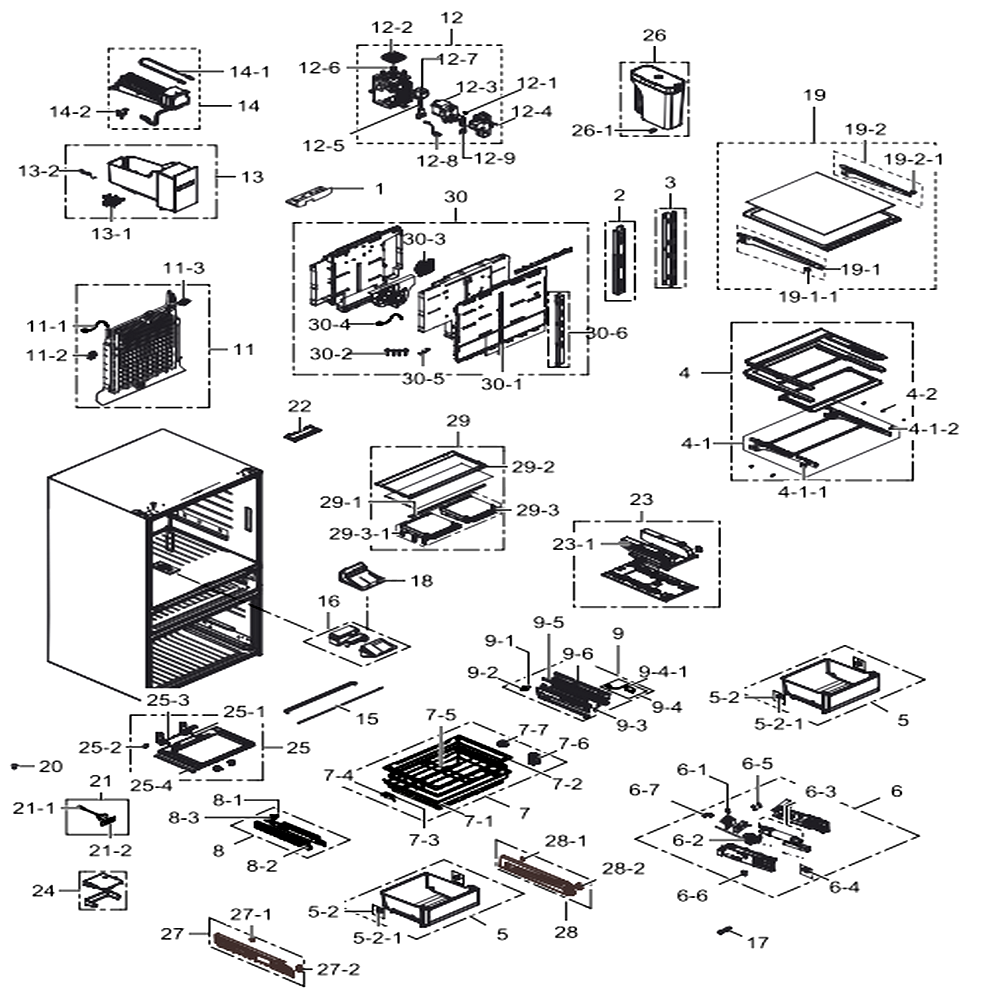

Refrigerator

...
...
1
Guide-French SAM-DA61-04285A
...
2
Assy Angle Shelf; Rf8000mc,sv9005, Sts#4, SAM-DA97-17945B
...
3
Assy Angle Shelf; Rf8000mc,sv9005, Sts#4, SAM-DA97-14568B
...
4-1-1
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09550A
...
4-1-2
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09549A
...
4-1
Assy Hanger; Rf9900jc,folder Hanger,powde SAM-DA97-15903A
...
4-2
Screw-Tapping SAM-6002-001397
...
4
Assy Shelf Folder; Rf8000mc,basic SAM-DA97-17965A
...
5-2-1
Roller; Aw3-14,pom,natural SAM-DA66-01096A
...
5-2
Assy Roller; Aw3-14,assy SAM-DA97-14447A
...
5
Assy Case Veg; Rf8000m,non Stamping, Non SAM-DA97-17911A
...
6-1
Tube-Fitting L; Pom,dark Holder Gray,1/4i SAM-DA62-02414A
...
6-2
Valve Water SAM-DA62-04027A
...
6-3
Assy Tank Water-Ref; H920g,pp SAM-DA97-13854C
...
6-4
Assy Case Filter; H920g SAM-DA97-08006L
...
6-5
Clip-Fitting Lock SAM-DA61-04522A
...
6-6
Screw-Tapping SAM-6002-000213
...
6-7
Tube-Fitting L SAM-DA62-03103A
...
6
Assy Case Filter; Rf8000mc SAM-DA97-17394B
...
7-1
Case Convertible; Aw4-Cd,hips,cool White, SAM-DA61-09162A
...
7-2
Cover Convertible; Aw4-Cd,hips,cool White SAM-DA63-07489A
...
7-3
Bracket Divider SAM-DA61-09409A
...
7-4
Roller-Divider SAM-DA66-00876A
...
7-5
Guide Tray-Low; Aw4-4d Cd,sts204,natural, SAM-DA61-09333A
...
7-6
Fixer Wire; Rf8000mc,abs,cool White,hg-07 SAM-DA61-11991A
...
7-7
Grommet-Handle; Rf8000mc,si,cool Gray 7c SAM-DA63-08907A
...
7
Assy Case Convertible; Rf8000mc,smart Div SAM-DA97-13814E
...
8-1
Fixer-Gear SAM-DA61-03154A
...
8-2
Cover Rail-Middle Left; Aw4-Cd,abs,cool W SAM-DA63-07515A
...
8-3
Gear-Rail L SAM-DA66-00751A
...
8
Assy Rail-Middle Left; Rf8000mc,soft Damp SAM-DA97-13779B
...
9-1
Fixer-Gear SAM-DA61-03154A
...
9-2
Gear-Rail R SAM-DA66-00750A
...
9-3
Magnet-Ass'y SAM-DA61-02738A
...
9-4-1
Switch Reed SAM-DA34-00043H
...
9-4
Assy Wire Harness-Rail; All,12vdc,all,ul, SAM-DA96-00640B
...
9-5
Rail Slide-Low Right; Rf8000m,abs,cool Wh SAM-DA61-12175A
...
9-6
Cover Rail-Middle Right; Aw4-Cd,abs,cool SAM-DA63-07514A
...
9
Assy Rail-Middle Right; Rf8000mc,soft Dam SAM-DA97-13778B
...
11-1
Sensor Temp; Sc41199-021a, Tube,200mm,13. SAM-DA32-00070M
...
11-2
Fixer Wire; Aw3-Pjt,pp,t2.0,natural,hb,bj SAM-DA61-06013B
...
11-3
Fixer-Senser SAM-DA61-03683A
...
11
Assy Evap-Ref; Rf8000mc,fin Tube,flat Cab SAM-DA96-01002B
...
12-1
Screw-Tapping SAM-6002-000471
...
12-2
Motor Bldc Fan SAM-DA31-00070E
...
12-3
Motor Geared Ac Auger SAM-DA31-00105M
...
12-4
Screw-Special SAM-DA60-00001B
...
12-5
Spring Etc-Solenoid SAM-DA61-20140A
...
12-6
Grommet-Fan SAM-DA63-02513A
...
12-7
Valve-Solenoid SAM-DA74-40151G
...
12-8
Assy Wire Harness-Auger; Fdr,free Volt,ul SAM-DA96-00682E
...
12-9
Fixer-Nut; Guggenheim,sts420,j2,sk5 SAM-DA71-00163B
...
12
Assy Case Auger Motor; Rf9900jc,115v 60hz SAM-DA97-12540K
...
13-1
Screw-Tapping SAM-6002-000471
...
13-2
Spring Etc-Dispenser SAM-DA61-20124D
...
13
Assy Tray Ice; Rf8000mc SAM-DA97-17285A
...
14-1
Heater-Icemaker; Ac120v,6cube, 120ohm,120 SAM-DA47-00462C
...
14-2
Screw-Tapping SAM-6002-000471
...
14
Assy Ice Maker; Aw4-Cd,120v-60hz SAM-DA97-13718C
...
15
Shaft-Gear Conv SAM-DA66-00733A
...
16
Assy Ins Damper-Ref; Rf8000mc,flat Cable SAM-DA97-08430B
...
17
Tube-Fitting SAM-DA62-03914A
...
18
Cover Motor-Damper SAM-DA63-05477A
...
19-1-1
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09550A
...
19-1
Assy Hanger-Low; Rf8000mc,cool White,basi SAM-DA97-15901B
...
19-2-1
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09549A
...
19-2
Assy Hanger-Right; Rf9900jc,assy SAM-DA97-15900A
...
19
Assy Shelf-Ref; Rf8000mc,basic SAM-DA97-15899B
...
20
Cap-Shaft Hole SAM-DA67-02795C
...
21-1
Switch Reed SAM-DA34-00043J
...
21-2
Cover Reed Switch SAM-DA63-07513A
...
21
Assembly Cover Switch SAM-DA97-13783A
...
22
Assy Cover Lamp; Rf8000k SAM-DA97-16143A
...
23-1
Support-Roller Pantry; Aw-Pjt,pvc,blk SAM-DA61-03176A
...
23
Assy Rail-Middle; Rf8000mc,assy SAM-DA97-17938A
...
24
Assy Cover Case; Rf8000m,hot Stamping SAM-DA97-17685B
...
25-1
Spring Etc-Hinge Shelf SAM-DA61-03705A
...
25-2
Roller-Hinge-Shelf SAM-DA66-00482A
...
25-3
Shaft-Hinge-Shelf SAM-DA66-00483A
...
25-4
Trim Shelf-Ref Fold; Rf8000mc,abs,sh-0160 SAM-DA64-04685F
...
25
Assy Shelf Ref Fold; Rf8000mc,basic SAM-DA97-17980A
...
26-1
Magnet-Ass'y SAM-DA61-02738A
...
26
Assy Tank Water-Ref; Rf8000mc SAM-DA97-17395A
...
27-1
Support-Roller Pantry; Aw-Pjt,pvc,blk SAM-DA61-03176A
...
27-2
Assembly Roller SAM-DA97-15998A
...
27
Assy Rail-Ref Low Left; Rf8000mc SAM-DA97-17368A
...
28-1
Support-Roller Pantry; Aw-Pjt,pvc,blk SAM-DA61-03176A
...
28-2
Assembly Roller SAM-DA97-15998A
...
28
Assy Rail-Ref Low Right; Ra8000mc SAM-DA97-17369A
...
29-1
Reinf-Cover Veg; Aw2 Cd,po-Sphc,t2.0,blac SAM-DA61-05222B
...
29-2
Shelf Vegetable-Low; Rf8000mc,hips,cool W SAM-DA67-04465A
...
29-3-1
Grommet-Rail; Chilled,pa6 SAM-DA63-40305A
...
29-3
Assy Cover Veg-Up; Rf8000mc,premium SAM-DA97-17968A
...
29
Assy Shelf Veg-Low; Rf8000mc,basic SAM-DA97-17981A
...
30-1
Cover Evap-Ref; Rf8000mc,hips,cool White SAM-DA63-08772B
...
30-2
Screw-Tapping SAM-6002-001204
...
30-3
Motor Bldc Fan; 12035ge-12m-Yt,17757%,1 SAM-DA31-00334B
...
30-4
Sensor Temp; Sc41198-021a,1000mm,13.2kohm SAM-DA32-00070K
...
30-5
Screw-Tapping SAM-6002-000471
...
30-6
Assy Angle Shelf-Ref Middle; Rf8000mc,sv9 SAM-DA97-17944B
...
30
Assy Cover Evap-Ref; Rf8000mc SAM-DA97-17362B

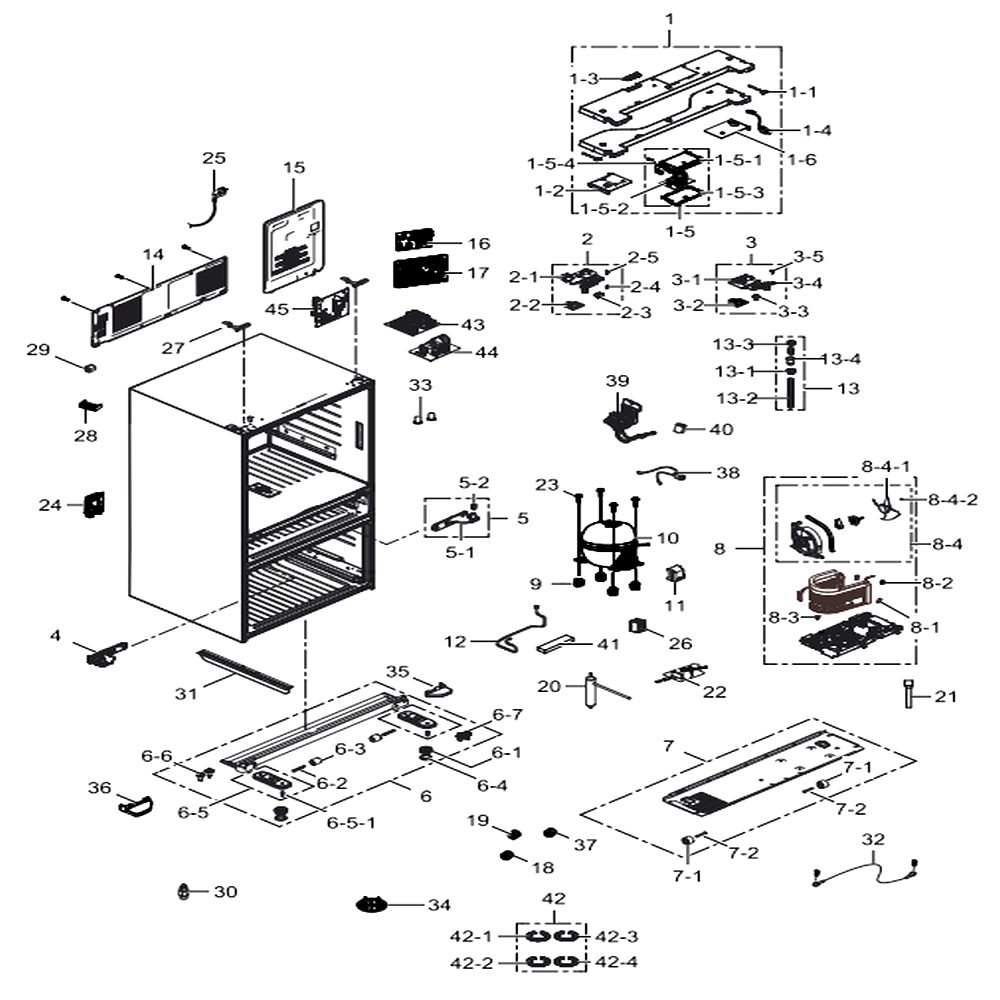

Cabinet

...
...
1-1
Switch Reed; Ul1007 Awg 22,280(680),25045 SAM-DA34-00043K
...
1-2
Plate-Cover Hinge SAM-DA61-08227A
...
1-3
Cover Hinge-B; Rf9000k,abs,inox Gray,hg-0 SAM-DA63-08442A
...
1-4
Assy Wire Harness-Top; T-Fdr,12vdc,ul,ul, SAM-DA96-01174D
...
1-5-1
Case Safety-In; Abs,natural SAM-DA61-11803A
...
1-5-2
Assy Module; Std #9 Smps,aw1-12 Hub,60w ( SAM-DA92-00610C
...
1-5-3
Case Safety-Out; Abs,natural SAM-DA61-11802A
...
1-5-4
Assy Wire Harness-Etc; Fdr,free Volt,all, SAM-DA96-01222A
...
1-5
Assy Case Safety; Aw1-12 Hub,smps, Perite SAM-DA97-17698A
...
1-6
Plate-Cover Hinge R SAM-DA61-08884A
...
1
Assy Top Table; Rf8000mc,inox Gray,f/h SAM-DA97-17979A
...
2-1
Hinge-Up Left; Rf8000mc,po-Sphc,t3.0 SAM-DA61-11701A
...
2-2
Shim-Hinge Upp SAM-DA63-50192A
...
2-3
Cam-Auto Close L SAM-DA66-00950A
...
2-4
Screw-Tapping SAM-6002-000215
...
2-5
Screw-Tapping SAM-6002-000213
...
2
Assy Hinge-Up Left; Rf8000mc,t3.0,black SAM-DA97-17428A
...
3-1
Hinge-Up Right; Rf8000mc,po-Sphc,t3.0 SAM-DA61-11698A
...
3-2
Shim-Hinge Upp SAM-DA63-50192A
...
3-3
Cam-Auto Close R SAM-DA66-00951A
...
3-4
Screw-Tapping SAM-6002-000215
...
3-5
Screw-Tapping SAM-6002-000213
...
3
Assy Hinge-Up Right; Rf8000mc,t3.0,black SAM-DA97-17429A
...
4
Hinge-Middle Left; Rf8000mc,zn,t4.5,zndc2 SAM-DA61-11648A
...
5-1
Hinge-Middle Right; Rf8000mc,zn,t4.5,zndc SAM-DA61-11649A
...
5-2
Shaft Hinge-Middle SAM-DA66-00688A
...
5
Assy Hinge-Middle Right; Rf8000mc,t4.5,si SAM-DA97-17430A
...
6-1
Foot-Front SAM-DA61-07972B
...
6-2
Caster-Rivet SAM-DA61-01920A
...
6-3
Caster-Front SAM-DA61-04702A
...
6-4
Foot SAM-DA61-07973B
...
6-5-1
Shaft-Leg Front SAM-DA66-00793A
...
6-5
Assy Support-Front; Aw4-4d C/d SAM-DA97-13807A
...
6-6
Screw-Tapping SAM-6002-000213
...
6-7
Screw-Tap Tite SAM-DA60-10004A
...
6
Assy Cabi Bottom-Front; Aw4-4d C/d,noble SAM-DA97-12556D
...
7-1
Caster-Rear SAM-DA61-04703A
...
7-2
Shaft-Caster SAM-DA66-00649B
...
7
Assy Chassis Comp; Aw4-K,handle SAM-DA97-12557C
...
8-1
Grommet-Immersion Pipe B SAM-DA63-07323A
...
8-2
Grommet-Suct Pipe A SAM-DA63-40171B
...
8-3
Screw-Tapping SAM-6002-000213
...
8-4-1
Fan SAM-DA31-00320A
...
8-4-2
Spring Etc-Fan SAM-DA61-20128A
...
8-4
Assy Support-Circuit Motor; Rf8000mc,c 16 SAM-DA97-15765E
...
8
Assy Tray Drain Water; Rf8000mc,pfc B SAM-DA97-17854A
...
9
Grommet Comp SAM-DA63-02617A
...
10
Cmp,comp,refrigerator,r-600a; Cmp,comp,refrigerator,r-600a SAM-NF54K9151AME01
...
11
Cover Relay; Msv,mppo,t2.0,5v-A,black,m-H SAM-DA63-06122A
...
12
Pipe Connect-Suction; Cu,6.35,0.6,c1220t- SAM-DA62-03691B
...
13-1
Fixer-Drain SAM-DA61-05021A
...
13-2
Tube Pvc SAM-DA62-01266B
...
13-3
Grommet-Drain SAM-DA63-02761A
...
13-4
Cap-Drain SAM-DA67-01301A
...
13
Assembly Cap-Drain SAM-DA97-04049E
...
14
Assy Cover Comp; Polaris,gi-Sgcc,t0.25 SAM-DA97-12749B
...
15
Assembly Cover Pcb-Panel SAM-DA97-08442D
...
16
Assy Pcb Inverter; Inverter,lc3_3050_V2,1 SAM-DA92-00763K
...
17
Assy Pcb Eeprom; 0x61,d606, D607,rf8000mc SAM-DA94-03757B
...
18
Fitting-Lokring 33 SAM-DA60-00280A
...
19
Fitting-Lokring; Sum23,lokring 2 N St 20 SAM-DA60-00325A
...
20
Dryer; C1220t-H,114,single Mouth,r-600a O SAM-DA62-04309D
...
21
Pipe Connect-Disc; Rf8000mc,cu,od6.35,t0. SAM-DA73-10190Y
...
22
Coil Filter; 22mh,82*60,ac 8a,0.47uf / 0. SAM-DA27-00058A
...
23
Bolt-Hex SAM-6011-004061
...
24
Assembly Cover-Tube Filter SAM-DA97-08413B
...
25
Cbf-Power Cord; At,usa,us3f-1,3c,125v,15a SAM-3903-001003
...
26
Cover-Fixer Housing V SAM-DA63-02902B
...
27
Fixer-Hinge;po-Sphc,t3,zn Coating SAM-DA61-04932B
...
28
Fixer Cover; Aw3-14,hips,natural,s834s1 SAM-DA61-12488A
...
29
Valve-Fitting Nut SAM-DA74-00070B
...
30
Valve-Fitting Pu SAM-DA62-00305A
...
31
Trim Blade; Aw3-14,pvc,gray SAM-DA64-05373A
...
32
Wire Harness-Earth SAM-DA39-20389L
...
33
Grommet Hinge-Mid SAM-DA63-06410A
...
34
Cover-Urethane SAM-DA63-03809A
...
35
Cover Leg-Front Right; Aw4-4d (c/d),pp,hb SAM-DA63-07484A
...
36
Cover Leg-Front Left; Aw4-4d (c/d),pp,hb, SAM-DA63-07485A
...
37
Fitting Lokring;sum23,id5.07,cond Out SAM-DA60-00358A
...
38
Assy Wire Harness-Comp; All,free Volt,ul+ SAM-DA96-01170C
...
39
Valve Step; Dc12v,module,2way,left/left B SAM-DA62-04678D
...
40
Grommet; Brr9000m,nbr,capi Grommet SAM-DA63-08943A
...
41
Seal Cutt-Rubber; Rr2500k,rubber,black,t5 SAM-DA62-01018A
...
42-1
Fastener-Hinge; Romanee Conti,pom,black SAM-DA60-00314A
...
42-2
Fastener-Hinge; Romanee Conti,pom,t1.5,bl SAM-DA60-00314B
...
42-3
Fastener-Hinge; Romanee Conti,pom,t2.0,bl SAM-DA60-00314C
...
42-4
Fastener-Hinge; Romanee Conti,pom,t2.5,bl SAM-DA60-00314D
...
42
Assy Accessory; Romanee Conti,adjustment SAM-DA99-04158A
...
43
Assembly Module SAM-DA92-00486A
...
44
Assy Module; Pba-Fuse Block,rf8000mc,30*5 SAM-DA92-00945B
...
45
Assy Module; Y-Cap Filter,aw1-12 Hub,y-Ca SAM-DA92-00941A

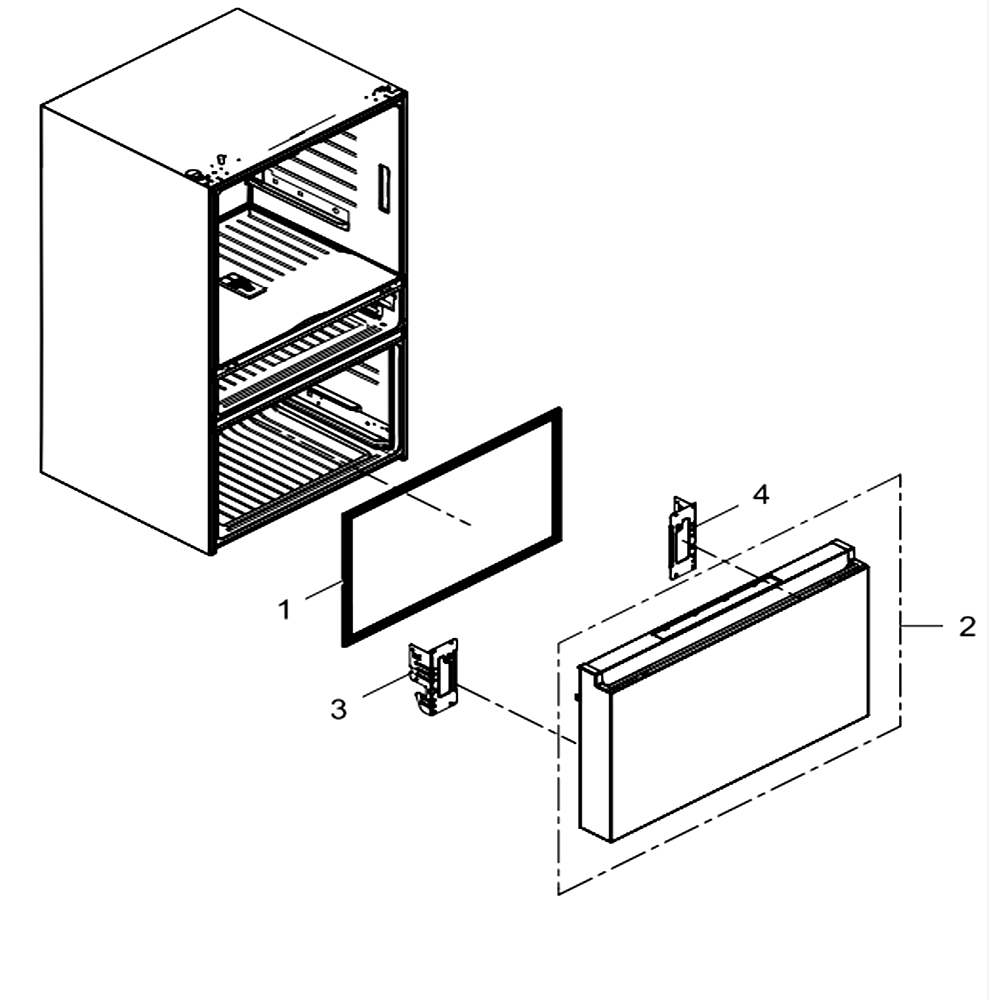

Freezer-door

...
...
1
Assy Gasket-Fre; Rf8000mc,gray SAM-DA97-15249E
...
2
Assy Door Foam-Fre; Rf8000mc,real Sts,sts SAM-DA91-04714C
...
3
Hanger-Front Left; Aw4-4d,egi-Secc,cool W SAM-DA61-09245A
...
4
Hanger-Front Right; Aw4-4d,egi-Secc,cool SAM-DA61-09247A

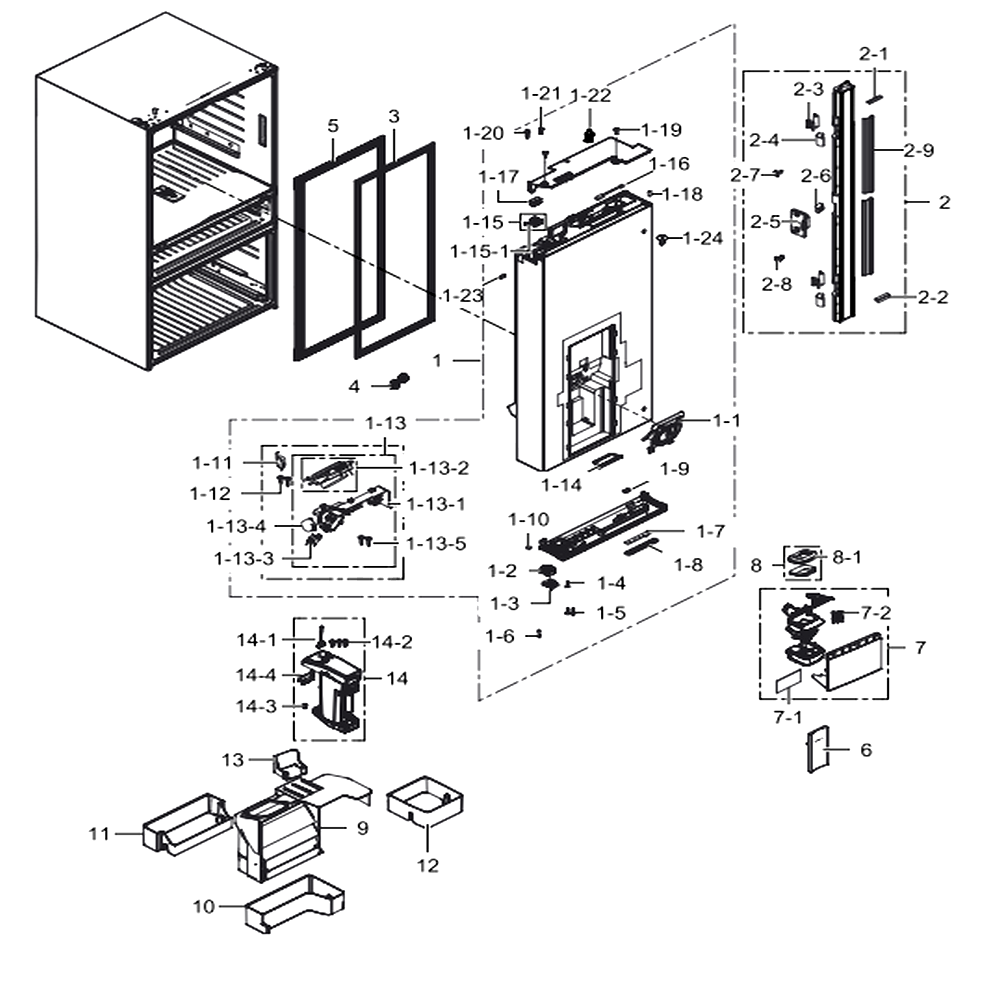

Refrigerator-door-l

...
...
1-1
Assy Guide Ice Route; Rf8000mc SAM-DA97-17298A
...
1-2
Support Cap Door-Left; Rf9000k,pom,t3.5,k SAM-DA61-10856A
...
1-3
Stopper Door-Left; Rf8000mc,po-Sphc,t2.9 SAM-DA61-11905A
...
1-4
Screw-Machine SAM-6001-001377
...
1-5
Screw-Tapping SAM-6002-000473
...
1-6
Screw-Tapping SAM-6006-001170
...
1-7
Assy Lamp Led; 2,fr-4,20*30,white,smaw250 SAM-DA41-00676J
...
1-8
Cover-Cap Door Led SAM-DA63-05524A
...
1-9
Grommet-Chassis Up SAM-DA63-04825A
...
1-10
Grommet-Stopper SAM-DA63-40294A
...
1-11
Switch-Micro SAM-3405-001117
...
1-12
Screw-Tapping; Fh,+,1,m4,l16,pass,sts304 SAM-6002-001615
...
1-13-1
Case Ice Route; Rf8000mc,abs,i Black SAM-DA61-11734A
...
1-13-2
Assy Cover Ice Route; Rf8000mc SAM-DA97-17295A
...
1-13-3
Switch-Micro SAM-3405-001117
...
1-13-4
Motor Geared-Disp SAM-DA31-00079D
...
1-13-5
Screw-Tapping SAM-6002-001122
...
1-13
Assy Case Ice Route; Rf8000mc,110v SAM-DA97-17296A
...
1-14
Tray Dispenser; Rf8000mc,abs,inox Metal SAM-DA63-08789A
...
1-15-1
Roller-Auto Close SAM-DA66-00440A
...
1-15
Assembly Lever-Auto Close SAM-DA97-12625A
...
1-16
Sensor Humidity; 5v,0~100%rh,ref SAM-DA32-00074A
...
1-17
Plate-Door Switch SAM-DA61-05274A
...
1-18
Rubber-Cap Hose SAM-DA73-00211A
...
1-19
Screw-Tapping SAM-6002-001122
...
1-20
Screw-Tapping SAM-6002-000466
...
1-21
Screw-Tapping SAM-6002-000613
...
1-22
Switch Door-Interlock SAM-DA34-00066C
...
1-23
Magnet-A SAM-DA61-03769A
...
1-24
Cap-Shaft Hole SAM-DA67-02795C
...
1
Assy Door Foam-Ref Left; Rf8000mc,sts201, SAM-DA91-04693J
...
2-1
Gasket-French Upp; Aw4,si,gray SAM-DA63-06959A
...
2-2
Gasket French-Low; Rf9000jc,si,gray,0.80 SAM-DA63-08421A
...
2-3
Hinge-French SAM-DA61-08305A
...
2-4
Cap-Case French SAM-DA67-01650A
...
2-5
Cover-Heater French SAM-DA63-03454B
...
2-6
Cap-Case French Mid SAM-DA67-01701A
...
2-7
Screw-Tapping SAM-6002-000213
...
2-8
Screw-Tapping SAM-6002-000471
...
2-9
Gasket French; Mouton12,pvc-Sf,white SAM-DA63-07560B
...
2
Assy French; Rf8000mc,f-Hub SAM-DA97-17723A
...
3
Gasket-In; Rf8000mc,pvc,white SAM-DA63-09025A
...
4
Cap-Screw SAM-DA67-30266K
...
5
Assy Gasket-Ref; Rf8000mc,gray SAM-DA97-15249C
...
6
Assy Lever Dispenser; Rf8000mc SAM-DA97-17297A
...
7-1
Assy Module; Dispenser Pba,rf8000mc,rf800 SAM-DA92-00944A
...
7-2
Screw-Tapping SAM-6002-000630
...
7
Assy Cover Dispenser; Rf8000mc,real Sts SAM-DA97-17299A
...
8-1
Gasket-Cap Chute Ice; Rf8000mc,si,white SAM-DA63-09013A
...
8
Assy Cap Chute Ice; Rf8000mc SAM-DA97-17451A
...
9
Assy Guard Utility; Rf8000mc SAM-DA97-17683A
...
10
Guard-Ref Low; Rf8000m,san,t3.0,ntr,no St SAM-DA63-08755B
...
11
Guard-Ref Middle; Rf8000m,san,t3.0,ntr,no SAM-DA63-08756B
...
12
Guard-Ref Up; Rf8000m,san,t3.0,ntr,no Sta SAM-DA63-08757B
...
13
Guard-Top; Rf8000m,gpps,t3.0,tp Blue,no S SAM-DA63-08761B
...
14-1
Switch Reed SAM-DA34-00043A
...
14-2
Screw-Tapping SAM-6002-000213
...
14-3
Screw-Tapping SAM-6002-000217
...
14-4
Case Basket-Middle; Hips,cool White,rf800 SAM-DA61-12345A
...
14
Assy Case Inner; Rf8000mc SAM-DA97-17399A

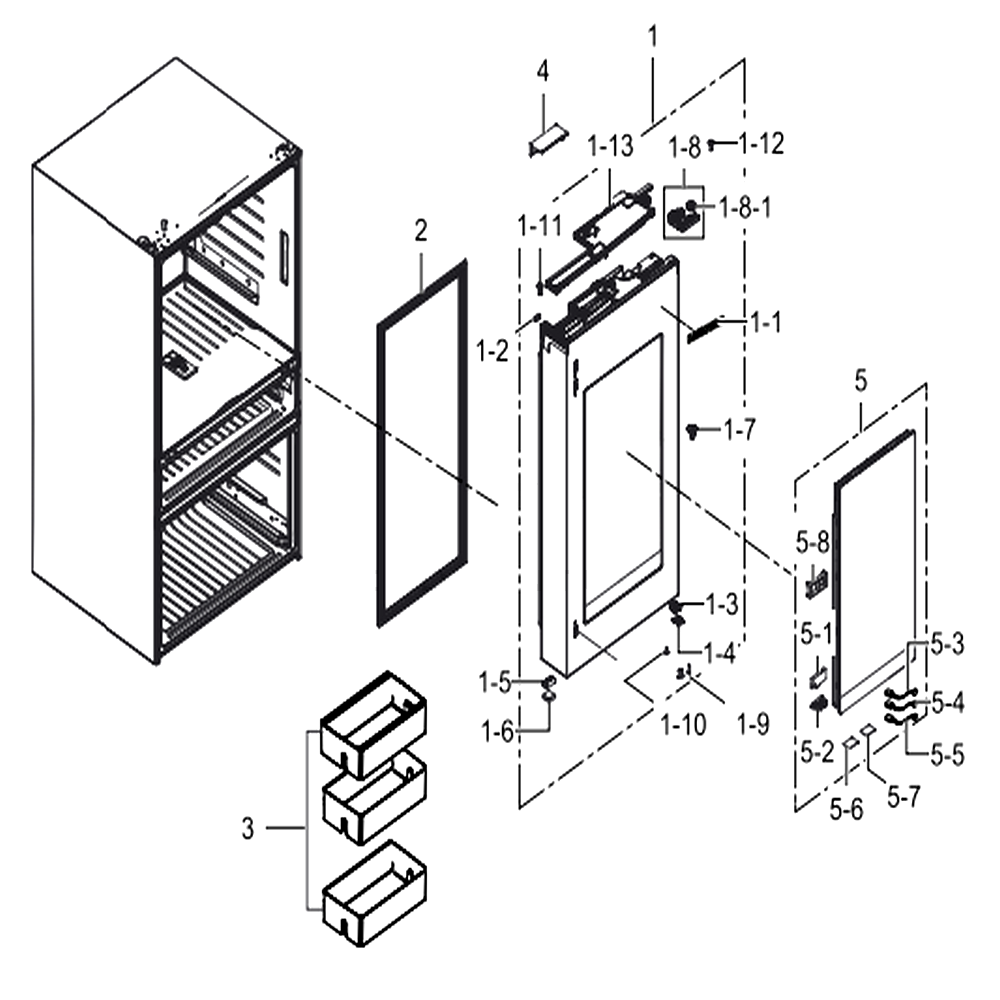

Refrigerator-door-r

...
...
1-1
Mascot; All,ni,t0.06,l90 SAM-DA64-04021D
...
1-2
Magnet-A SAM-DA61-03769A
...
1-3
Support Cap Door-Right; Rf9000k,pom,t3.5, SAM-DA61-10855A
...
1-4
Stopper Door-Right; Rf8000mc,po-Sphc,t2.9 SAM-DA61-11906A
...
1-5
Grommet-Chassis Up SAM-DA63-04825A
...
1-6
Grommet-Stopper SAM-DA63-40294A
...
1-7
Cap-Shaft Hole SAM-DA67-02795C
...
1-8-1
Roller-Auto Close SAM-DA66-00440A
...
1-8
Assembly Lever-Auto Close SAM-DA97-12625A
...
1-9
Screw-Tapping SAM-6006-001170
...
1-10
Screw-Machine SAM-6001-001377
...
1-11
Screw-Tapping SAM-6002-000613
...
1-12
Screw-Tapping SAM-6002-001122
...
1-13
Cover Cap Door-Ref Up; Abs,inox Gray SAM-DA63-08826A
...
1
Assy Door Foam-Ref Right; Rf8000mc,real S SAM-DA91-04720C
...
2
Assy Gasket-Ref; Rf8000mc,gray SAM-DA97-15249C
...
3
Guard-Ref Right; Rf8000m,san,t3.0,ntr,f-H SAM-DA63-08937B
...
4
Cover Lock; Abs,t2.5,inox Gray SAM-DA63-08449A
...
5-1
W-Lan Module; Wcm730q,ieee802.11,2.4/5ghz SAM-4709-002552
...
5-2
Sensor Psd; Gp2y0a02yk0f,-10~60??5v SAM-DA32-00071A
...
5-3
Assy Wire Harness-Etc; Aw1-12,wifi/bt,mic SAM-DA96-01224A
...
5-4
Assy Wire Harness-Etc; Fdr,12vdc,all,na,u SAM-DA96-01224B
...
5-5
Assy Wire Harness; F_Hub 2.0,free Volt,lc SAM-DA96-01253A
...
5-6
Assy Module; Mic,rb7500k,88*11*1.6t SAM-DA92-00789B
...
5-7
Assy Module; 285*28*1.6t,rf9500k,led SAM-DA92-00791A
...
5-8
Reflector; Rf9500k,abs,white SAM-DA67-04260A
...
5
Assy Cover Display; Rf8000mc,lcd Display, SAM-DA97-17068F

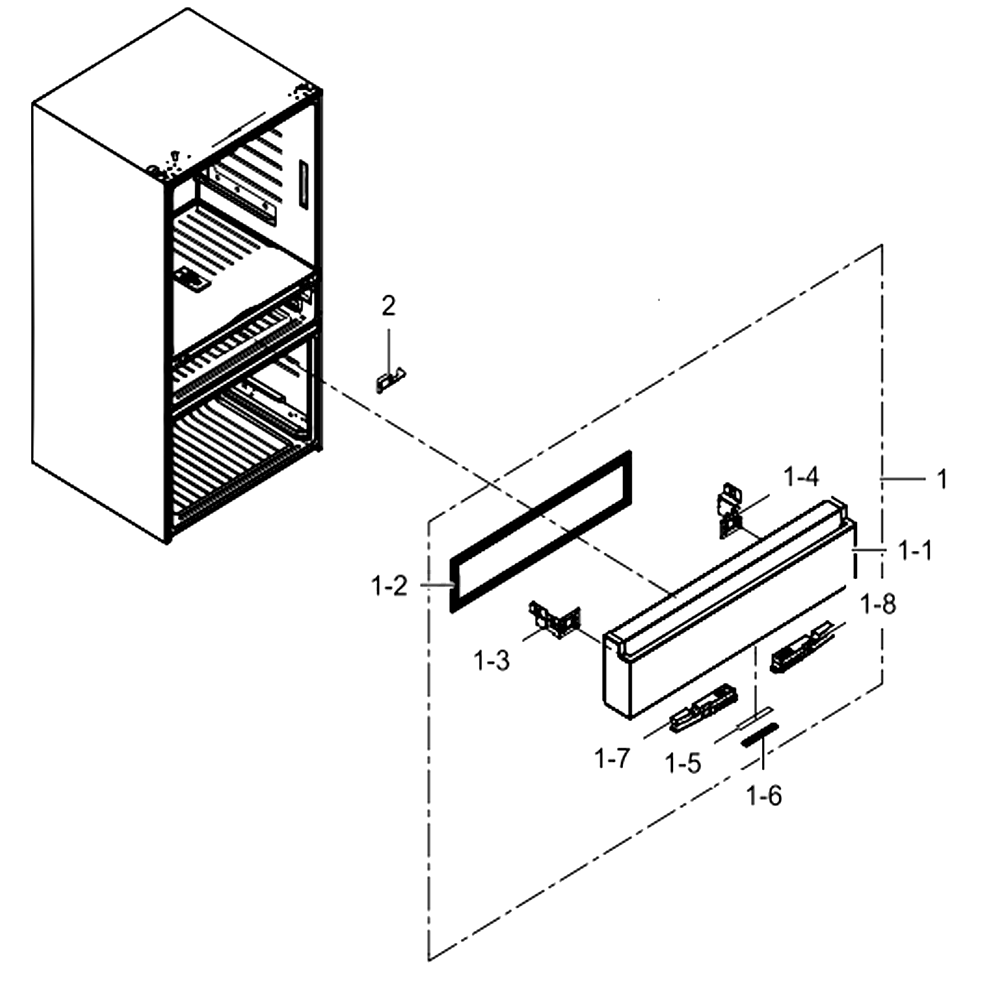

Flexzone-door

...
...
1-1
Assy Door Foam-Middle; Rf8000mc,real Sts, SAM-DA91-04715H
...
1-2
Assy Gasket-Middle; Rf8000mc,gray SAM-DA97-15249D
...
1-3
Hanger-Front Middle Left SAM-DA61-09248A
...
1-4
Hanger-Front Middle Right SAM-DA61-09249A
...
1-5
Assy Lamp Led; 2,fr-4,20*30,white,smaw250 SAM-DA41-00676J
...
1-6
Cover-Cap Door Led SAM-DA63-05524A
...
1-7
Speaker; 282*463*40.5,10w SAM-3001-002840
...
1-8
Speaker; 282*463*40.5,10w SAM-3001-002843
...
1
Assy Door Sub-Middle; Rf8000mc,real Sts,s SAM-DA93-00687H
...
2
Cover-W/harness Conv Door SAM-DA63-05462C
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
