Samsung RF23J9011SR/AA_0002

Model: RF23J9011SR/AA_0002

Save Part Not Listed?
product name

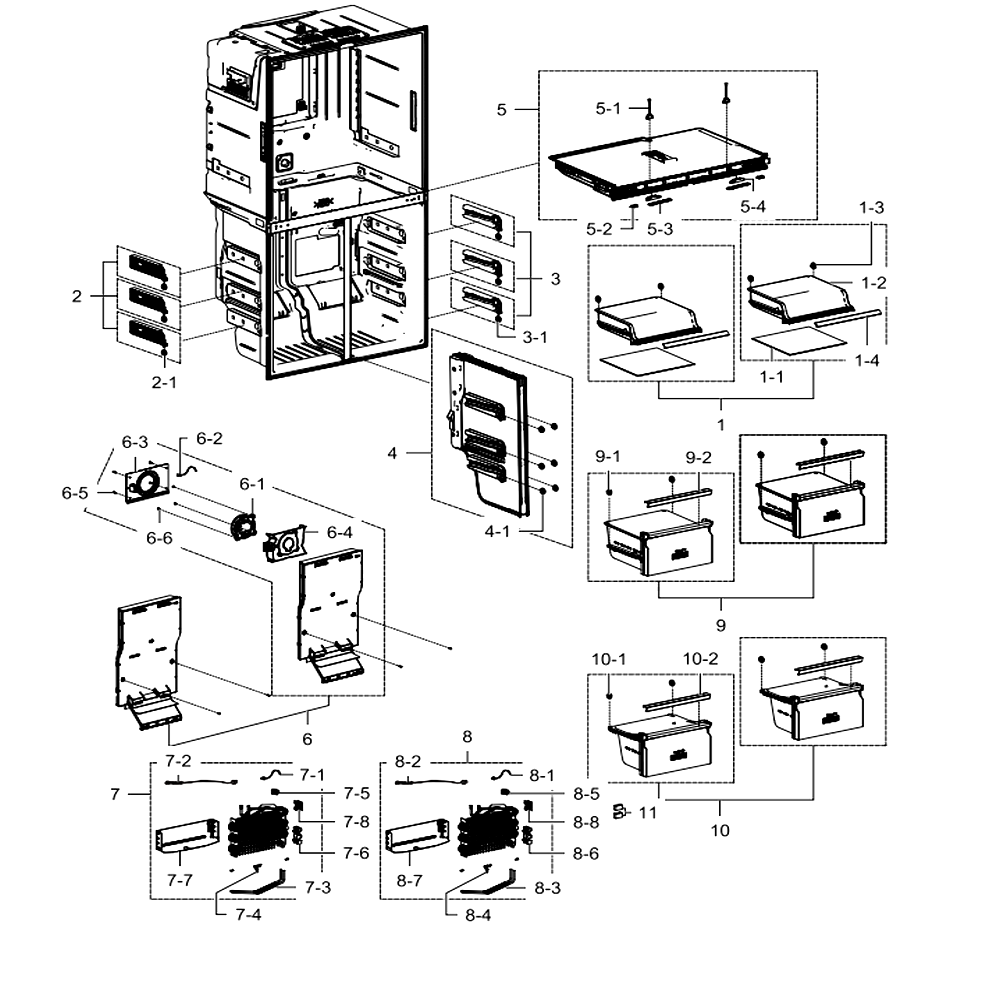

Freezer

...
...
1-1
Glass Tempered-Shelf Fre Up; Glass SAM-DA01-01001H
...
1-2
Case Basket-Up; Rf9000jc,hips,cool White, SAM-DA61-10367A
...
1-3
Assembly Roller SAM-DA97-15998A
...
1-4
Trim-Shelf Fre; Romanee,hips,s-834s1,cool SAM-DA64-04307B
...
1
Assy Case Basket-Fre Up; Rf9000jc,silver SAM-DA97-15355C
...
2-1
Assembly Roller SAM-DA97-15998A
...
2
Assy Rail-Left; Rf9000jc SAM-DA97-15419A
...
3-1
Assembly Roller SAM-DA97-15998A
...
3
Assy Rail-Right; Rf9000jc SAM-DA97-15420A
...
4-1
Assembly Roller SAM-DA97-15998A
...
4
Assy Partition-Fre V; Rf9000jc,usa_Vip SAM-DA97-15343B
...
5-1
Switch Reed SAM-DA34-00043A
...
5-2
Assembly Lamp Led SAM-DA41-00676G
...
5-3
Cover-Cap Door Led SAM-DA63-05524A
...
5-4
Cap Door Switch; Sveta-Pjt,pp,t1.5,hb,bj7 SAM-DA67-02385A
...
5
Assy Partition-Up; Rf9000jc SAM-DA97-15418A
...
6-1
Motor Bldc Fan; Ares2120ra,18704%,12v,m SAM-DA31-00334A
...
6-2
Sensor Temp; Dkst1329gw,queen,-50 ~ 80 SAM-DA32-00011C
...
6-3
Case-Motor Fre SAM-DA61-08425A
...
6-4
Guide Air; Romanee-Conti,hips,ntr SAM-DA61-08658A
...
6-5
Screw-Tapping SAM-6002-001204
...
6-6
Screw-Tapping SAM-6002-000471
...
6
Assy Cover Evap-Fre; Romanee-Conti,pp,coo SAM-DA97-13001A
...
7-1
Sensor Temp SAM-DA32-10104N
...
7-2
Thermo Fuse-Assy; Ac250v,10a,109~110s SAM-DA47-00301D
...
7-3
Heater Metal Sheath; Ac120v,romanee Conti SAM-DA47-00318K
...
7-4
Plate-Evap Heater SAM-DA61-03644A
...
7-5
Fixer-Senser SAM-DA61-03683A
...
7-6
Fixer-Heater Wire Ref; Hm/ggh/haemil,pp,n SAM-DA61-06700A
...
7-7
Plate-Drain Evap Fre; Romanee Conti,al,t0 SAM-DA61-08675A
...
7-8
Fixer-Thermo Fuse; Sr-42.4636,pp,t2.0,nat SAM-DA71-20265A
...
7
Assy Evap-Fre; Rfh920g,120v/121w SAM-DA96-01021B
...
8-1
Sensor Temp SAM-DA32-10104N
...
8-2
Thermo Fuse-Assy; Ac250v,10a,109~110s SAM-DA47-00301D
...
8-3
Heater Metal Sheath; Ac120v,romanee Conti SAM-DA47-00318K
...
8-4
Plate-Evap Heater SAM-DA61-03644A
...
8-5
Fixer-Senser SAM-DA61-03683A
...
8-6
Fixer-Heater Wire Ref; Hm/ggh/haemil,pp,n SAM-DA61-06700A
...
8-7
Plate-Drain Evap Fre; Romanee Conti,al,t0 SAM-DA61-08675A
...
8-8
Fixer-Thermo Fuse; Sr-42.4636,pp,t2.0,nat SAM-DA71-20265A
...
8
Assy Evap-Fre; Rf9000jc,120v,121w SAM-DA96-00987B
...
9-1
Assembly Roller SAM-DA97-15998A
...
9-2
Trim-Tray Fre; Romanee,hips,s834s1,cool W SAM-DA64-04323B
...
9
Assy Case Basket-Middle; Rf9000jc,silver SAM-DA97-15359C
...
10-1
Assembly Roller SAM-DA97-15998A
...
10-2
Trim-Tray Fre; Romanee,hips,s834s1,cool W SAM-DA64-04323B
...
10
Assy Case Basket-Low; Rf9000jc,silver Tri SAM-DA97-15356C
...
11
Seal Cutt-Rubber; Rr2500k,rubber,black,t5 SAM-DA62-01018A

Fridge

...
...
1-1
Assembly Lamp Led SAM-DA41-00676G
...
1-2
Assembly W/harness-Led Ref SAM-DA96-00961A
...
1
Assembly Case Lamp-Ref SAM-DA97-12606A
...
2
Cover Lamp-Ref SAM-DA63-07816A
...
3
Angle-Shelf Ref Side L; Gi-Sgcc,2.5,cool SAM-DA61-08693A
...
4
Angle-Shelf Ref Side R; Gi-Sgcc,2.5,cool- SAM-DA61-08632A
...
5-1
Angle-Shelf Ref Mid; Gi-Sgcc,t2.5,cool Wh SAM-DA61-08264A
...
5-2
Screw-Tapping SAM-6002-001397
...
5
Assy Angle-Shelf Ref Mid; Aw4,2.5,447.5,c SAM-DA97-12633A
...
6-1-1
Glass-Shelf Ref Fix; Glass SAM-DA01-00888A
...
6-1
Shelf-Ref Fix; Rf9000jc,pp,cool White SAM-DA67-03971A
...
6-2
Hanger-Left; Aw4-4d,cd,egi-Secc,cool Whit SAM-DA61-09194A
...
6-3
Hanger-Right; Aw4-4d,cd,egi-Secc,cool Whi SAM-DA61-09193A
...
6-4
Trim-Shelf Ref; Romanee,abs,cool White(sc SAM-DA64-04348A
...
6-5
Screw-Tapping SAM-6002-001397
...
6
Assy Shelf-Ref; Rf9000jc SAM-DA97-15368B
...
7-1
Cover-Filter Tank; Aw4,hips,w72.4,l167.7, SAM-DA63-06885A
...
7-2
Clip-Fitting Lock SAM-DA61-04522A
...
7-3
Case Filter-Left; Aw4-Cd,hips,cool White, SAM-DA61-09242A
...
7-4
Case Filter-Right; Aw4-Cd,hips,cool White SAM-DA61-09243A
...
7-5
Tube-Fitting L; Pom,dark Holder Gray,1/4i SAM-DA62-02414A
...
7-6
Tube-Fitting L SAM-DA62-03103A
...
7-7
Cover-Led Filter SAM-DA63-05408B
...
7-8
Tray-Water Filter SAM-DA63-05407A
...
7-9
Valve Water SAM-DA62-04027A
...
7-10
Screw-Tapping SAM-6002-000471
...
7
Assy Case Filter; T-9000cd,110v SAM-DA97-15417B
...
8-1-1
Hanger-Low Left; Aw4-Cd,egi-Secc,t2.0 SAM-DA61-09197A
...
8-1-2
Hanger-Low Right; Aw4-Cd,egi-Secc,t2.0 SAM-DA61-09195A
...
8-1
Assy Shelf Hanger-Right; Aw4-Cd SAM-DA97-13832A
...
8-2
Support Rail-Left; Aw4-4d,abs,hg-0760gp,c SAM-DA61-09300A
...
8-3
Support Rail-Right; Aw4-4d,abs,hg-0760gp, SAM-DA61-09299A
...
8-4-1
Glass-Shelf Ref Middle; Glass SAM-DA01-00894A
...
8-4
Shelf-Middle; Aw4-4d,pp,cool White,aw-Cd SAM-DA67-03698A
...
8-5
Screw-Tapping SAM-6002-001397
...
8
Assy Shelf Quick Space; Rf9000jc SAM-DA97-15363A
...
9-1
Fixer-Cover Veg SAM-DA61-03166A
...
9-2
Assembly Roller SAM-DA97-14447B
...
9-3
Reinf-Cover Veg SAM-DA61-04292A
...
9-4
Trim-Shelf Fre; Romanee,hips,s-834s1,cool SAM-DA64-04307D
...
9-5
Case Lock-A; Rf9000jc,pom,natural,k300 SAM-DA61-10523A
...
9-6
Knob-Humidity; Aw4,abs,natural,chromium P SAM-DA64-04173A
...
9-7
Lever-Humidity SAM-DA66-00718A
...
9-8
Glass; Glass SAM-DA01-00891A
...
9
Assy Cover Veg-Ref; Rf9000jc,silver Trim SAM-DA97-15360A
...
10
Cover Lamp-Led Side SAM-DA63-07276A
...
11-1
Gasket-Tray Ice Bucket SAM-DA63-07185A
...
11-2
Spring Etc-Dispenser SAM-DA61-20124D
...
11-3
Screw-Tapping SAM-6002-000471
...
11
Assy Tray Ice; Aw2-Cd-14,magnet Type SAM-DA97-14504A
...
12-1
Cover Veg-Front Left; Aw4-Cd,gpps,natural SAM-DA63-07552A
...
12-2
Trim Basket-Left; Rf9000jc,hips,s834s1,co SAM-DA64-03862T
...
12-3
Assembly Roller SAM-DA97-15998A
...
12-4
Case Veg-Ref Left; Aw4-4d,gpps,natural,hf SAM-DA61-09161A
...
12
Assy Case Veg-Left; Rf9000jc,silver Trim SAM-DA97-13842C
...
13-1
Cover Veg-Front Right; Aw4-4d,gpps,natura SAM-DA63-07553A
...
13-2
Trim Basket-Right; Rf9000jc,hips,s834s1,c SAM-DA64-03862S
...
13-3
Assembly Roller SAM-DA97-15998A
...
13-4
Case Veg-Ref Right; Aw4-4d,gpps,natural,h SAM-DA61-09160A
...
13
Assy Case Veg-Right; Rf9000jc,silver SAM-DA97-13841C
...
14-1
Fixer Locker; Rf9000jc,pa66,natural,kn331 SAM-DA61-10534A
...
14-2
Assy Wire Harness-Humidity; All,12vdc,ul+ SAM-DA96-00801B
...
14-3
Cover Deodorizer-Left; Rf9000jc,hips,hb,c SAM-DA63-08102D
...
14-4
Motor Bldc Fan; Ares2120ra,18704%,12v,m SAM-DA31-00334A
...
14-5
Sensor Temp; Dkst1329gw,queen,-50 ~ 80 SAM-DA32-00011C
...
14-6
Sensor Humidity SAM-DA32-00034B
...
14-7
Case-Motor Fre SAM-DA61-08425A
...
14-8
Guide Air; Romanee-Conti,hips,ntr SAM-DA61-08658A
...
14-9
Cover Deodorizer-Right; Rf9000jc,hips,hb, SAM-DA63-08019D
...
14-10
Screw-Tapping SAM-6002-001204
...
14-11
Screw-Tapping SAM-6002-000471
...
14
Assy Cover Evap-Ref; Rf9000jc,no Plate Co SAM-DA97-15409D
...
15-1
Cap Cover Evap-Ref; Rf9000jc,hips,t3.0,hb SAM-DA67-03978B
...
15
Assy Cap Angle; Rf9000jc SAM-DA97-15412B
...
16-1
Sensor Temp SAM-DA32-10104N
...
16-2
Fixer-Wire SAM-DA61-06013A
...
16-3
Fixer-Senser SAM-DA61-03683A
...
16
Assy Evap-Ref; Romanee Conti_Disp,fin Tub SAM-DA96-01002A
...
17
Guide-French SAM-DA61-04285A
...
18-1
Tray Egg; Epel,gpps,natural,t2.5,w324.5,h SAM-DA63-02492A
...
18
Assy Tray Egg; Romanee-Conti,- SAM-DA97-02806K
...
19
Assembly Lamp Led SAM-DA41-00519Q
...
20-1
Assembly Roller SAM-DA97-14447B
...
20
Assy Rail-Left; Aw4-Cd,veg SAM-DA97-13838A
...
21-1
Assembly Roller SAM-DA97-14447B
...
21
Assy Rail-Right; Aw4-Cd,veg SAM-DA97-13837A
...
22-1-1
Glass-Shelf Ref Fold; Glass SAM-DA01-00887A
...
22-1
Shelf Folder; Rf9000jc,pp,cool White SAM-DA67-03970A
...
22-2
Spring Etc-Hinge Shelf SAM-DA61-03705A
...
22-3
Trim-Shelf Ref; Romanee,abs,white,245.5 SAM-DA64-04348C
...
22-4
Roller-Hinge-Shelf SAM-DA66-00482A
...
22-5
Shaft-Hinge-Shelf SAM-DA66-00483A
...
22-6
Screw-Tapping SAM-6002-001397
...
22
Assy Shelf Folder; Rf9000jc SAM-DA97-15362A
...
23-1
Screw-Tapping SAM-6002-000471
...
23
Assy Ice Maker; Aw4-Cd,120v-60hz SAM-DA97-13718A
...
24-1
Motor Bldc Fan SAM-DA31-00070E
...
24-2
Motor Geared Ac Auger SAM-DA31-00105M
...
24-3
Spring Etc-Solenoid SAM-DA61-20140A
...
24-4
Grommet-Fan SAM-DA63-02513A
...
24-5
Valve-Solenoid SAM-DA74-40151G
...
24-6
Assy Wire Harness-Auger; Fdr,free Volt,ul SAM-DA96-00682E
...
24-7
Screw-Tapping SAM-6002-000471
...
24-8
Screw-Special SAM-DA60-00001B
...
24
Assy Case Fan-Auger Motor; Aw4-Cd,120v/60 SAM-DA97-12540D
...
25
Cover Air-Wire Harness Ice; Aw4 Cd,hips,c SAM-DA63-07496A
...
26
Assembly Case Lock SAM-DA97-14471A

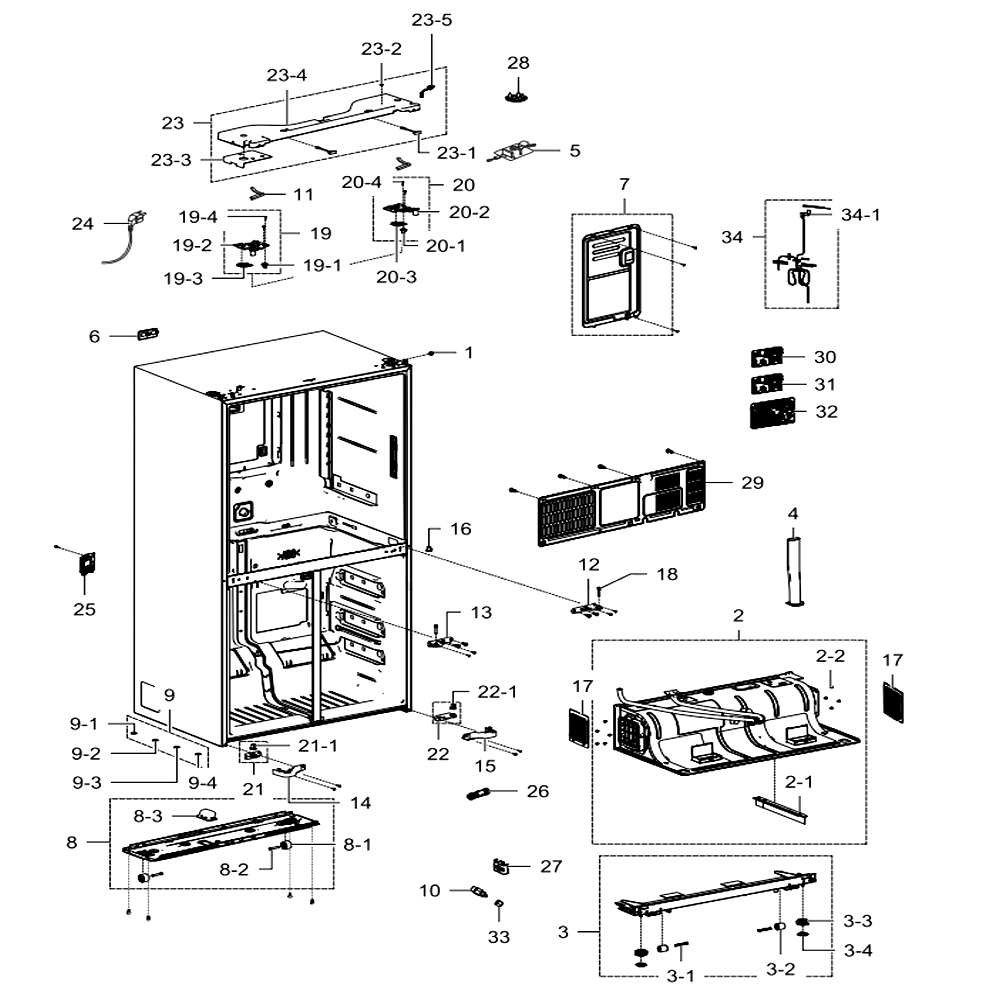

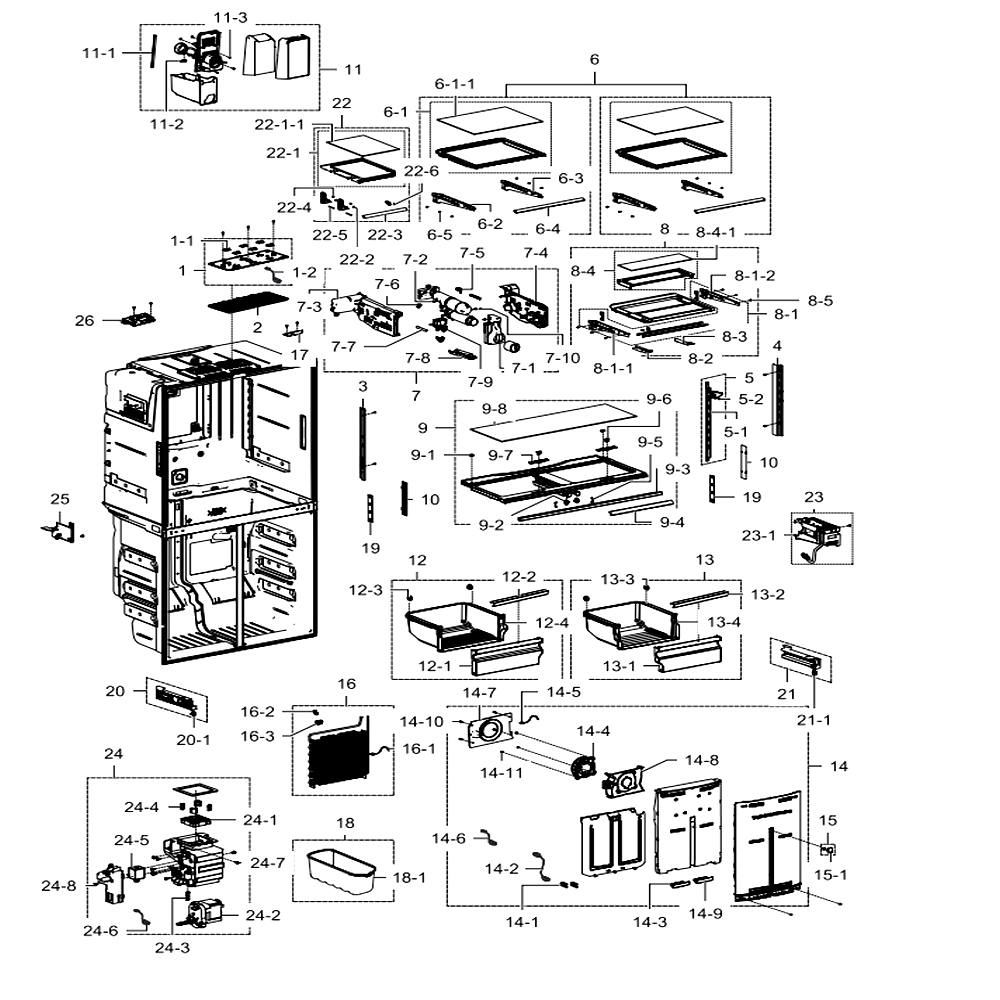

Cabinet

...
...
1
Bolt-Etc; M8,l14.1(3.4),fe-Fzb,scm435,3-B SAM-6011-001694
...
2-1
Trim-Blade; Aw2-Cd,pvc,shgs-L130-67-01g,n SAM-DA64-02950A
...
2-2
Screw-Tapping SAM-6002-000239
...
2
Assy Cabi Bottom-Rear; Rf9000jc,dispenser SAM-DA97-15375A
...
3-1
Caster-Rivet SAM-DA61-01920A
...
3-2
Caster-Front SAM-DA61-04702A
...
3-3
Foot-Front SAM-DA61-07972B
...
3-4
Foot SAM-DA61-07973B
...
3
Assy Cabi Bottom-Front; Rf9000jc SAM-DA97-15376A
...
4
Assy Guide Hose-Bottom; Aw3-14,foam Pe SAM-DA97-14866A
...
5
Coil Filter-Emi SAM-DA27-00022B
...
6
Assy Cover-Fixer Water; Opus1,assy SAM-DA97-08494B
...
7
Assy Cover Pba-Main; Romanee-Conti SAM-DA97-13181C
...
8-1
Caster-Rear SAM-DA61-04703A
...
8-2
Shaft-Caster SAM-DA66-00649B
...
8-3
Handle-Chassis Comp; Haemil,pp,bj750,natu SAM-DA64-04085A
...
8
Assy Chassis Comp; Romanee-Conti,t1.4,dua SAM-DA97-13195A
...
9-1
Fastener-Hinge; Romanee Conti,pom,black SAM-DA60-00314A
...
9-2
Fastener-Hinge; Romanee Conti,pom,t1.5,bl SAM-DA60-00314B
...
9-3
Fastener-Hinge; Romanee Conti,pom,t2.0,bl SAM-DA60-00314C
...
9-4
Fastener-Hinge; Romanee Conti,pom,t2.5,bl SAM-DA60-00314D
...
9
Assy Accessory; Romanee Conti,adjustment SAM-DA99-04158A
...
10
Valve-Fitting Pu SAM-DA62-00305A
...
11
Fixer Hinge-Upp SAM-DA61-04932A
...
12
Hinge-Mid R; Romanee Conti,zn,zndc2,cr Pl SAM-DA61-08678A
...
13
Hinge-Mid L; Romanee Conti,zn,zndc2,cr Pl SAM-DA61-08679A
...
14
Cover Leg-Front L; Romanee Conti,pp,inox SAM-DA63-07232A
...
15
Cover Leg-Front R; Romanee Conti,pp,inox SAM-DA63-07233A
...
16
Grommet Hinge-Mid; Romanee Conti,pom,blac SAM-DA63-07306A
...
17
Cover Unit; Aw3-14,abs,hb,inox Gray,hg-07 SAM-DA63-07680A
...
18
Shaft Hinge-Mid; Romanee Conti,swch10a,l4 SAM-DA66-00987A
...
19-1
Cam-Auto Close L SAM-DA66-00950A
...
19-2
Hinge-Upp L SAM-DA61-08309A
...
19-3
Shim-Hinge Upp SAM-DA63-50192A
...
19-4
Screw-Tapping SAM-6002-000215
...
19
Assembly Hinge Upp-L SAM-DA97-12573A
...
20-1
Cam-Auto Close R SAM-DA66-00951A
...
20-2
Hinge-Upp R; Po-Sphc,t2.9,electrodepositi SAM-DA61-08677A
...
20-3
Shim-Hinge Upp SAM-DA63-50192A
...
20-4
Screw-Tapping SAM-6002-000215
...
20
Assy Hinge-Upp R; Romanee Conti,t2.9,adju SAM-DA97-12991A
...
21-1
Grommet Hinge; Romanee Conti,pom,black SAM-DA63-07231A
...
21
Assy Hinge-Low Left; Rf9000,black Paintin SAM-DA97-12992B
...
22-1
Grommet Hinge; Romanee Conti,pom,black SAM-DA63-07231A
...
22
Assy Hinge-Low Right; Rf9000,black Painti SAM-DA97-12993B
...
23-1
Switch Reed SAM-DA34-00043A
...
23-2
Clip-Fitting Lock SAM-DA61-04522A
...
23-3
Plate-Cover Hinge SAM-DA61-08227A
...
23-4
Top Table; Romanee Conti,abs,inox Gray SAM-DA64-04477B
...
23-5
Assy W/harness-Reed Switch; Fdr,12vdc,all SAM-DA96-00962A
...
23
Assy Top Table; Romanee Conti Exp,inox Gr SAM-DA97-13703G
...
24
Cbf-Power Cord SAM-3903-000786
...
25
Assy Cover-Tube Filter; Romanee-Conti SAM-DA97-08413C
...
26
Tube-Fitting SAM-DA62-03914A
...
27
Fixer-Hose SAM-DA61-03467B
...
28
Cover-Urethane SAM-DA63-03809A
...
29
Assy Cover Comp; Polaris,gi-Sgcc,t0.25 SAM-DA97-12749B
...
30
Assy Pcb Inverter; Inverter,romanee Conti SAM-DA92-00215P
...
31
Assy Pcb Inverter; Inverter,3050,148*98.5 SAM-DA92-00459B
...
32
Assy Pcb Main; Pba Main,rf9000jc,197*178, SAM-DA92-00606E
...
33
Valve-Fitting Nut SAM-DA74-00070B
...
34-1
Seal Cutt-Rubber; Rr2500k,rubber,black,t5 SAM-DA62-01018A
...
34
Assy Pipe Direct Ice-Fre; Rf9000jc,parall SAM-DA97-15429A

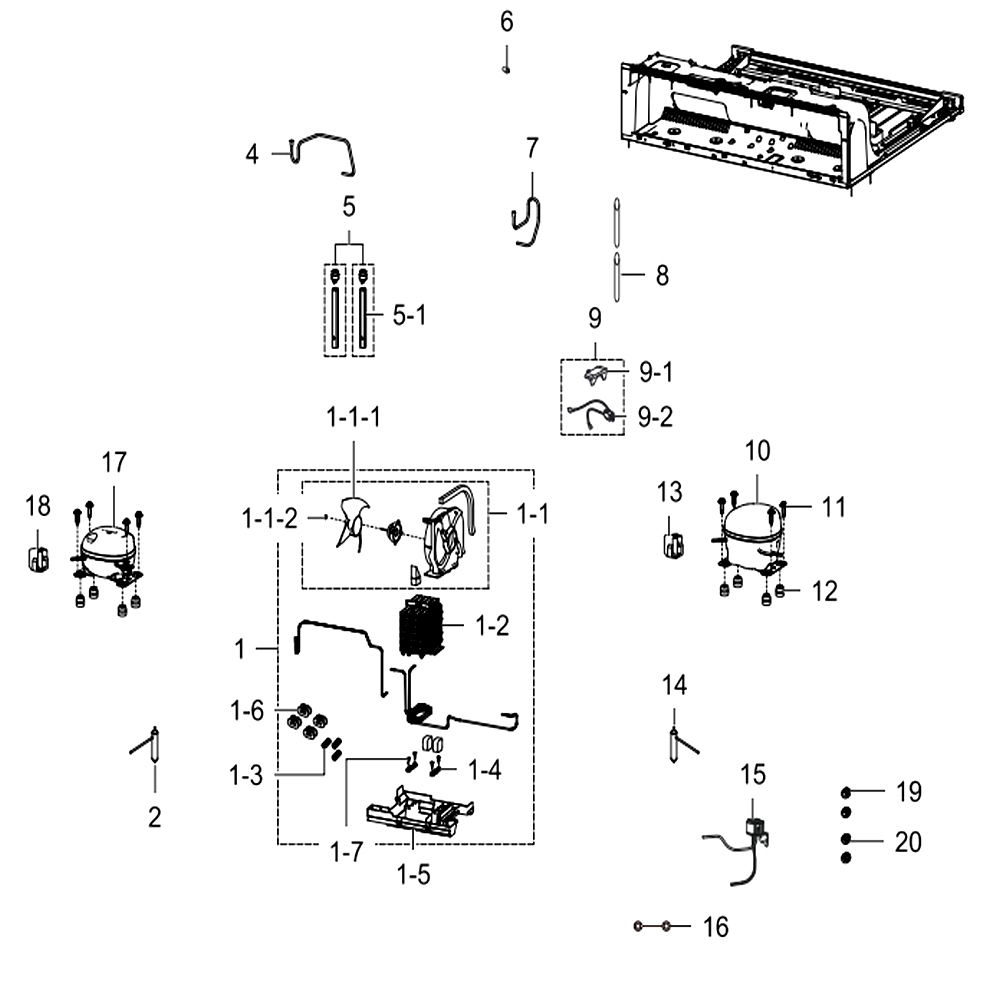

Cycle

...
...
1-1-1
Fan SAM-DA31-00320A
...
1-1-2
Spring Etc-Fan SAM-DA61-20128A
...
1-1
Assy Support-Circuit Motor; C 160i SAM-DA97-15765B
...
1-2
Assy Condenser; Romanee Conti,parallel Sf SAM-DA97-13770A
...
1-3
Grommet-Immersion Pipe B SAM-DA63-07323A
...
1-4
Grommet-Sub Cond SAM-DA63-40128A
...
1-5
Tray-Drain Water; Romanee-Conti,pp,hb,gra SAM-DA63-07324A
...
1-6
Grommet-Immersion Pipe A; Romanee Conti,n SAM-DA63-07322A
...
1-7
Screw-Special SAM-6009-001252
...
1
Assy Tray Drain Water; Romanee-Conti,c-16 SAM-DA97-13771C
...
2
Dryer;c1220t-H,118,single Mouth,16.0,6g SAM-DA62-04309C
...
4
Pipe-Connect Suction Ref; Romanee-Conti,c SAM-DA62-03896A
...
5-1
Tube Pvc; Romanee_Conti,sf-Pvc,t0.7,l165, SAM-DA62-01266J
...
5
Assy Cap-Drain; Romanee_Conti,l175.5,gray SAM-DA97-04049M
...
6
Grommet-Suct Pipe B SAM-DA63-40171D
...
7
Pipe-Connect Suction Fre; Romanee-Conti,c SAM-DA62-03897A
...
8
Pipe-Connect Disc,b SAM-DA73-10190U
...
9-1
Relay Protector O/l SAM-DA34-00004D
...
9-2
Wire Harness-Comp SAM-DA39-00154J
...
9
Assembly Comp-Sub SAM-DA97-08310H
...
10
Compressor,115/220v; Compressor,115/220v SAM-NC1MV43AMP/E01
...
11
Bolt-Hex SAM-6011-004061
...
12
Grommet Comp SAM-DA63-02617A
...
13
Cover Relay SAM-DA63-01866A
...
14
Dryer SAM-DA62-04309A
...
15
Valve Step; Dc12v,module,80mm,2way,right SAM-DA97-08630B
...
16
Wire Harness-Earth SAM-DA39-20389L
...
17
Compressor,bldc Ipm,7.19cc,115/220v,stat; Compressor,bldc Ipm,7.19cc,115/220v,stat SAM-MSV172AL1B/E01
...
18
Cover Relay; Msv,mppo,t2.0,5v-A,black,m-H SAM-DA63-06122A
...
19
Fitting-Lokring 33 SAM-DA60-00280A
...
20
Fitting-Lokring 43 SAM-DA60-00281A

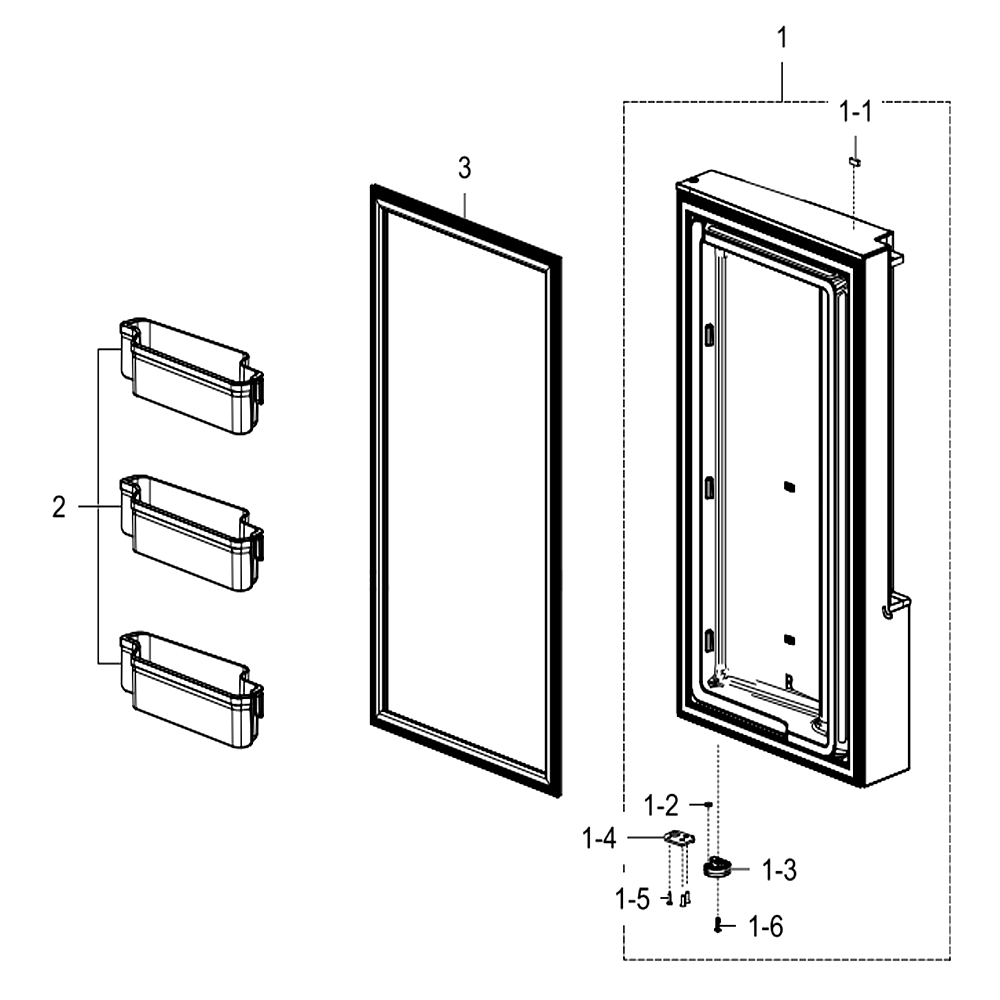

Freezer Door R

...
...
1-1
Magnet-A SAM-DA61-03769A
...
1-2
Grommet-Stopper SAM-DA63-40294A
...
1-3
Support Door-Close; Aw-Pjt,pk,m33r3a000,c SAM-DA61-02383E
...
1-4
Stopper Door-R; Romanee Conti,po-Sphc,bla SAM-DA61-08817A
...
1-5
Screw-Tapping SAM-6002-001120
...
1-6
Screw-Machine SAM-6001-000716
...
1
Assy Door Foam-Fre Right; Sts201,disp Y, SAM-DA91-04310B
...
2
Guard-Fre Right; Romanee,gpps,t3.0,tp Blu SAM-DA63-07288C
...
3
Assy-Gasket Door Fre; Romanee,gray SAM-DA97-12971E

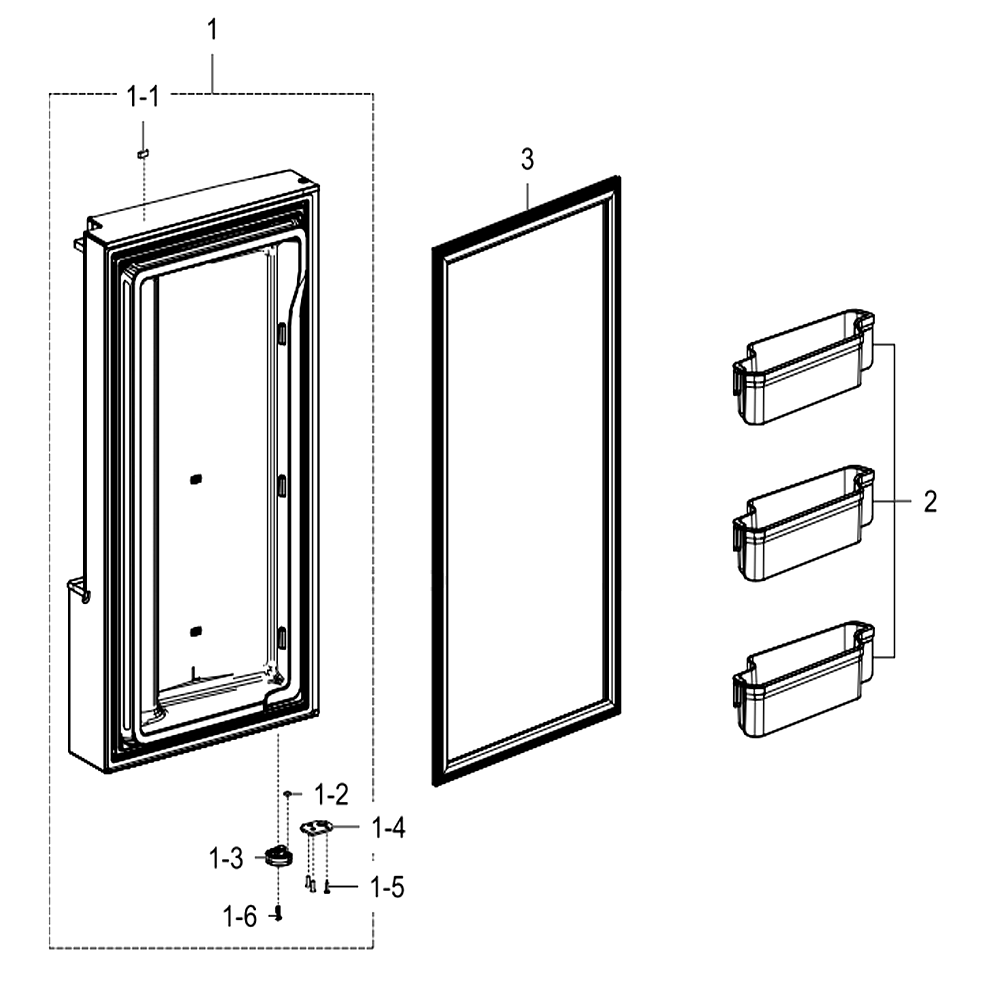

Freezer Door L

...
...
1-1
Magnet-A SAM-DA61-03769A
...
1-2
Grommet-Stopper SAM-DA63-40294A
...
1-3
Support Door-Close; Aw-Pjt,pk,m33r3a000,c SAM-DA61-02383E
...
1-4
Stopper Door-L; Romanee Conti,po-Sphc,bla SAM-DA61-08816A
...
1-5
Screw-Tapping SAM-6002-001120
...
1-6
Screw-Machine SAM-6001-000716
...
1
Assy Door Foam-Fre Left; Dy01,silver Hand SAM-DA91-04321B
...
2
Guard-Fre Left; Romanee,gpps,t3.0,tp Blue SAM-DA63-07289C
...
3
Assy-Gasket Door Fre; Romanee,gray SAM-DA97-12971E

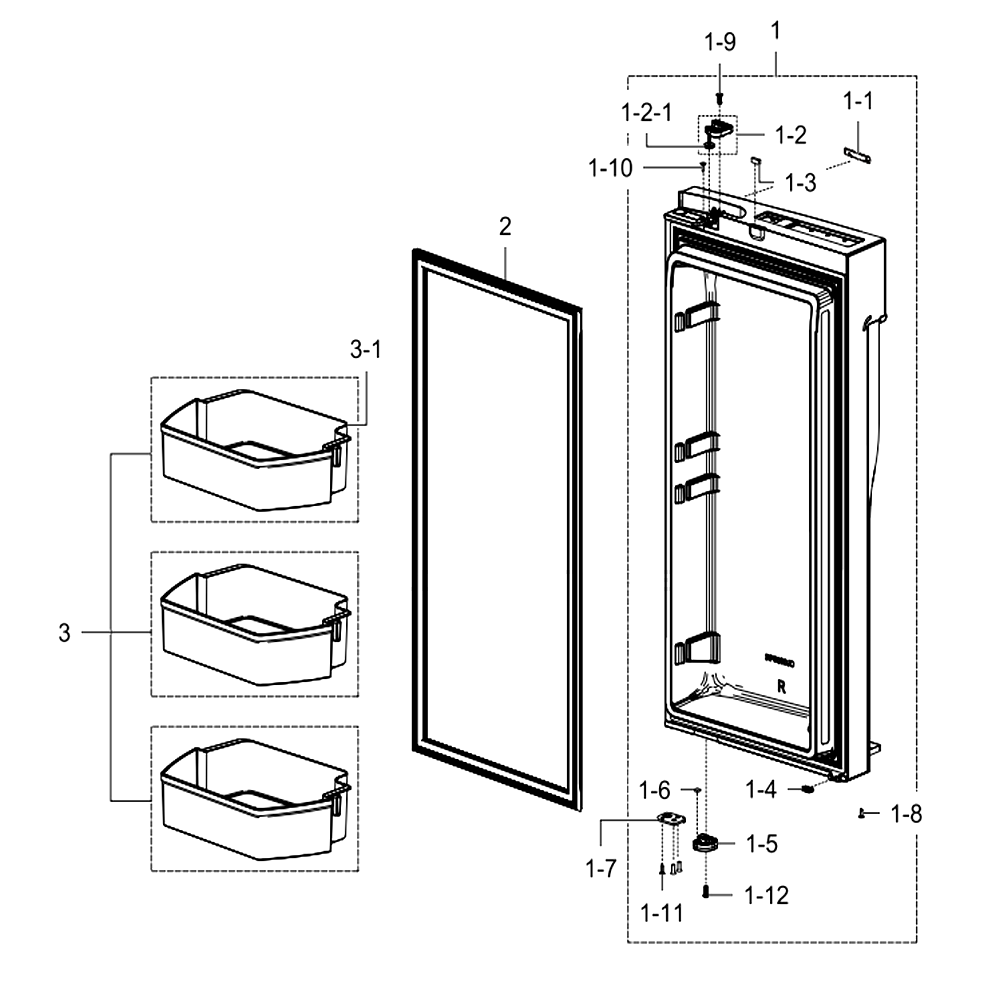

Fridge Door R

...
...
1-1
Mascot SAM-DA64-04021C
...
1-2-1
Roller-Auto Close SAM-DA66-00440A
...
1-2
Assembly Lever-Auto Close SAM-DA97-12625A
...
1-3
Magnet-A SAM-DA61-03769A
...
1-4
Grommet-Chassis Up SAM-DA63-04825A
...
1-5
Support Door-Close; Aw-Pjt,pk,m33r3a000,c SAM-DA61-02383E
...
1-6
Grommet-Stopper SAM-DA63-40294A
...
1-7
Stopper Door-R; Romanee Conti,po-Sphc,bla SAM-DA61-08817A
...
1-8
Screw-Tapping SAM-6002-001122
...
1-9
Screw-Tapping SAM-6002-000613
...
1-10
Screw-Tapping SAM-6002-001122
...
1-11
Screw-Tapping SAM-6002-001120
...
1-12
Screw-Machine SAM-6001-000716
...
1
Assy Door Foam-Ref Right; Dy01,silver Han SAM-DA91-04318B
...
2
Assy Gasket-Ref; Rf9000jc,gray SAM-DA97-13015G
...
3-1
Guard-Ref Right; Rf9000jc,gpps,t3.0,tp Bl SAM-DA63-08015A
...
3
Assy Guard-Ref Right; Rf9000jc,hot Stampi SAM-DA97-15560A

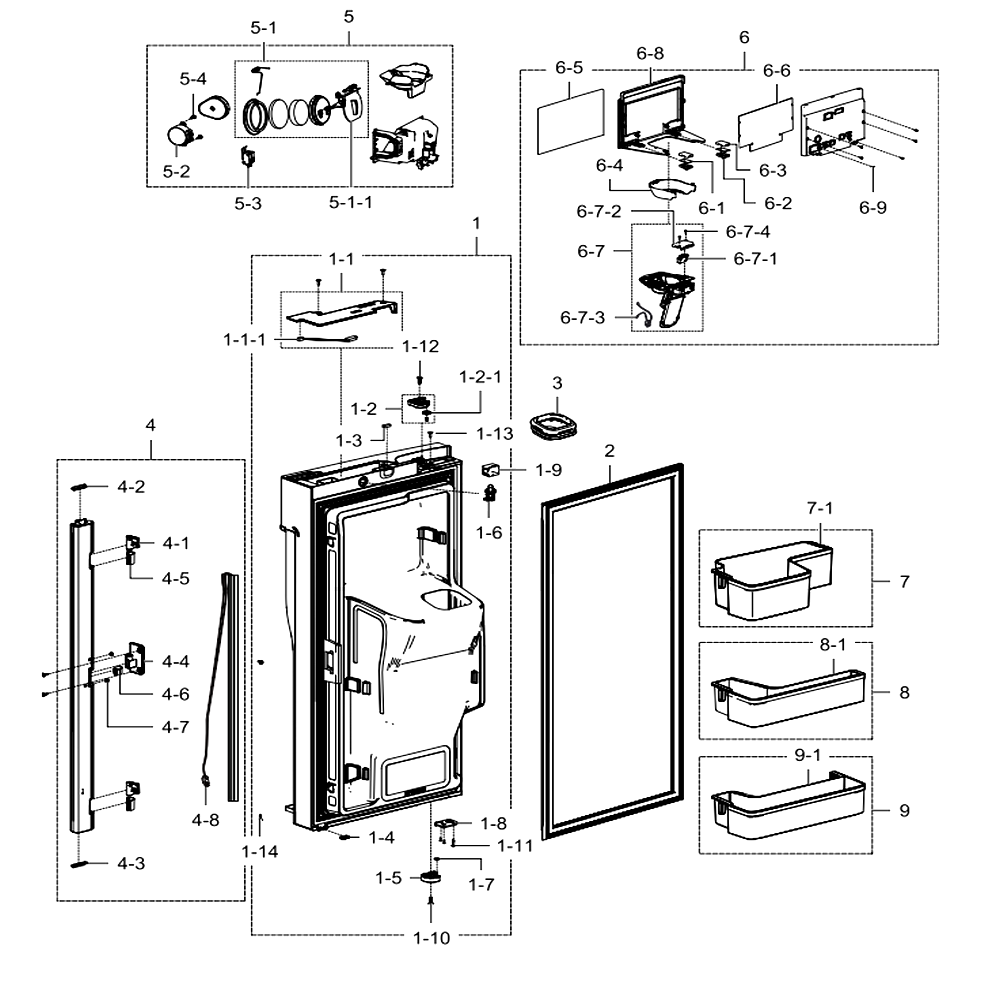

Fridge Door L

...
...
1-1-1
Sensor Humidity SAM-DA32-00034B
...
1-1
Assy Cover Display; Romanee Conti,inox Gr SAM-DA97-13014A
...
1-2-1
Roller-Auto Close SAM-DA66-00440A
...
1-2
Assembly Lever-Auto Close SAM-DA97-12625A
...
1-3
Magnet-A SAM-DA61-03769A
...
1-4
Grommet-Chassis Up SAM-DA63-04825A
...
1-5
Support Door-Close; Aw-Pjt,pk,m33r3a000,c SAM-DA61-02383E
...
1-6
Switch Door-Interlock SAM-DA34-00066C
...
1-7
Grommet-Stopper SAM-DA63-40294A
...
1-8
Stopper Door-L; Romanee Conti,po-Sphc,bla SAM-DA61-08816A
...
1-9
Cover-Fixer Housing V SAM-DA63-02902B
...
1-10
Screw-Machine SAM-6001-000716
...
1-11
Screw-Tapping SAM-6002-001120
...
1-12
Screw-Tapping SAM-6002-000613
...
1-13
Screw-Tapping SAM-6002-001122
...
1-14
Screw-Tapping SAM-6002-001122
...
1
Assy Door Foam-Ref Left; Dy01,silver Hand SAM-DA91-04315F
...
2
Assy Gasket-Ref; Rf9000jc,gray SAM-DA97-13015G
...
3
Assy Cap-Chute Ice; Romanee Conti,hips,12 SAM-DA97-13431A
...
4-1
Hinge-French SAM-DA61-08305A
...
4-2
Gasket-French Upp; Aw4,si,gray SAM-DA63-06959A
...
4-3
Gasket-French Low; Aw-Pjt,si,gray SAM-DA63-06842B
...
4-4
Cover-Heater French; Romanee Conti,pc,coo SAM-DA63-07287A
...
4-5
Cap-Case French SAM-DA67-01650A
...
4-6
Cap-Case French Mid SAM-DA67-01701A
...
4-7
Grommet-A; Mouton12,si,cool White,name Ta SAM-DA63-07538A
...
4-8
Heater Cord-French; Ac120v,romanee-Conti, SAM-DA47-00245U
...
4
Assy French; Rf9000jc,urban Silver SAM-DA97-15342B
...
5-1-1
Cover-Ice Route A SAM-DA63-04647A
...
5-1
Assembly Cover-Ice Route SAM-DA97-05368A
...
5-2
Motor Geared-Disp SAM-DA31-00079D
...
5-3
Switch-Micro SAM-3405-001117
...
5-4
Screw-Tapping SAM-6002-001364
...
5
Assembly Guide Ice Route SAM-DA97-13829C
...
6-1
Assembly Pcb Kit SAM-DA41-00217A
...
6-2
Case Lamp-Led SAM-DA61-05687A
...
6-3
Cover-Lamp-Led SAM-DA63-02446A
...
6-4
Cover Ice SAM-DA63-07637A
...
6-5
Inlay-Film; Rf9000jc,pet,black,dispenser, SAM-DA64-04847A
...
6-6
Assy Module; Assy Module,rf9000jc,led Whi SAM-DA92-00662C
...
6-7-1
Switch Micro SAM-DA34-00011B
...
6-7-2
Cover-Switch SAM-DA63-05449A
...
6-7-3
Assy Wire Harness-Dispenser; All,12vdc,al SAM-DA96-00106J
...
6-7-4
Screw-Tapping SAM-6002-000630
...
6-7
Assy Lever Dispenser; Aw4-4d,cd/no Sparkl SAM-DA97-12628N
...
6-8
Assy Cover Dispenser-Sub; Rf9000jc,global SAM-DA97-15113C
...
6-9
Screw-Tapping SAM-6002-000630
...
6
Assy Cover Dispenser; Rf9000jc,global, No SAM-DA97-15112C
...
7-1
Guard-Dispenser; Rf9000jc,gpps,t3,tp Blue SAM-DA63-08012A
...
7
Assy Guard Dispenser; Rf9000jc,hot Stampi SAM-DA97-15558A
...
8-1
Guard-Ref Middle; Rf9000jc,gpps,t3,tp Blu SAM-DA63-08013A
...
8
Assy Guard-Ref Middle; Rf9000jc,hot Stamp SAM-DA97-15562A
...
9-1
Guard-Ref Low; Rf9000jc,gpps,t3,tp Blue,h SAM-DA63-08014A
...
9
Assy Guard-Ref Low; Rf9000jc,hot Stamping SAM-DA97-15559A
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
