Samsung RF23J9011SG/AA_0009

Model: RF23J9011SG/AA_0009

Save Part Not Listed?
product name

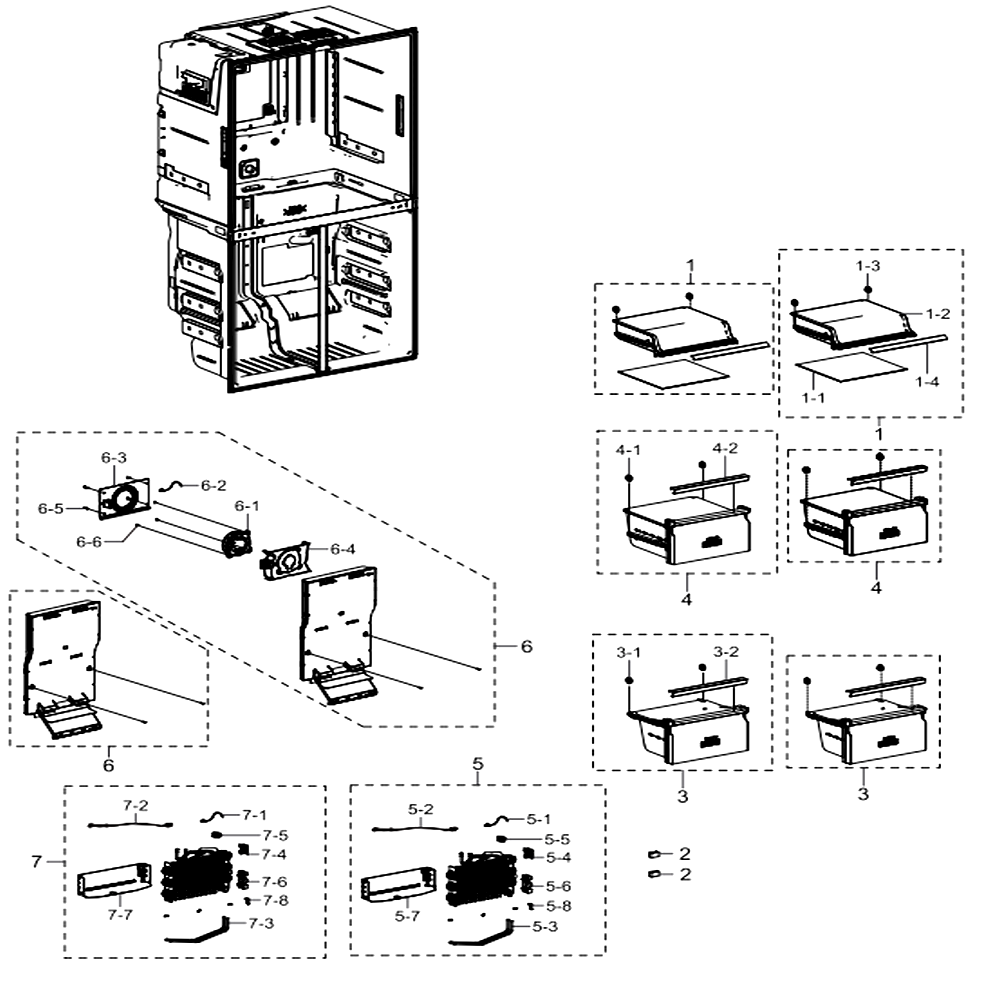

Freezer

...
...
1-1
Glass Tempered-Shelf Fre Up; Glass SAM-DA01-01001H
...
1-2
Case Basket-Up; Rf9000jc,hips,cool White, SAM-DA61-10367A
...
1-3
Assembly Roller SAM-DA97-15998A
...
1-4
Trim-Shelf Fre; Romanee,hips,s-834s1,cool SAM-DA64-04307B
...
1
Assy Case Basket-Fre Up; Rf9000jc,silver SAM-DA97-15355C
...
2
Seal Cutt-Rubber; Rr2500k,rubber,black,t5 SAM-DA62-01018A
...
3-1
Assembly Roller SAM-DA97-15998A
...
3-2
Trim-Tray Fre; Romanee,hips,s834s1,cool W SAM-DA64-04323B
...
3
Assy Case Basket-Low; Rf9000jc,silver Tri SAM-DA97-15356C
...
4-1
Assembly Roller SAM-DA97-15998A
...
4-2
Trim-Tray Fre; Romanee,hips,s834s1,cool W SAM-DA64-04323B
...
4
Assy Case Basket-Middle; Rf9000jc,silver SAM-DA97-15359C
...
5-1
Sensor Temp; Dkst1329gw,aw3,-50~80??5v, SAM-DA32-10104V
...
5-2
Thermo Fuse-Assy; Ac250v,10a,109~110s SAM-DA47-00301D
...
5-3
Heater Metal Sheath; Ac120v,romanee Conti SAM-DA47-00318K
...
5-4
Fixer-Thermo Fuse; Sr-42.4636,pp,t2.0,nat SAM-DA71-20265A
...
5-5
Fixer-Senser SAM-DA61-03683A
...
5-6
Fixer-Heater Wire Ref; Hm/ggh/haemil,pp,n SAM-DA61-06700A
...
5-7
Plate-Drain Evap Fre; Romanee Conti,al,t0 SAM-DA61-08675A
...
5-8
Plate Heater; Brf8000m,al,t0.7,a1100p-H14 SAM-DA61-12385A
...
5
Assy Evap-Fre; Rf9000k,fin Tube,120v,120w SAM-DA96-00987D
...
6-1
Motor Bldc Fan; Ares2120ra,18704%,12v,m SAM-DA31-00334A
...
6-2
Sensor Temp; Dkst1329gw,queen,-50 ~ 80 SAM-DA32-00011C
...
6-3
Case-Motor Fre SAM-DA61-08425A
...
6-4
Guide Air; Romanee-Conti,hips,ntr SAM-DA61-08658B
...
6-5
Screw-Tapping SAM-6002-001204
...
6-6
Screw-Tapping SAM-6002-000471
...
6
Assy Cover Evap-Fre; Romanee-Conti,pp,coo SAM-DA97-13001B
...
7-1
Sensor Temp; Dkst1329gw,aw3,-50~80??5v, SAM-DA32-10104V
...
7-2
Thermo Fuse-Assy; Ac250v,10a,109~110s SAM-DA47-00301D
...
7-3
Heater Metal Sheath; Ac120v,romanee Conti SAM-DA47-00318K
...
7-4
Fixer-Thermo Fuse; Sr-42.4636,pp,t2.0,nat SAM-DA71-20265A
...
7-5
Fixer-Senser SAM-DA61-03683A
...
7-6
Fixer-Heater Wire Ref; Hm/ggh/haemil,pp,n SAM-DA61-06700A
...
7-7
Plate-Drain Evap Fre; Romanee Conti,al,t0 SAM-DA61-08675A
...
7-8
Plate Heater; Brf8000m,al,t0.7,a1100p-H14 SAM-DA61-12385A
...
7
Assy Evap-Fre; Rf9000k,fin Tube,120v,120w SAM-DA96-01021E

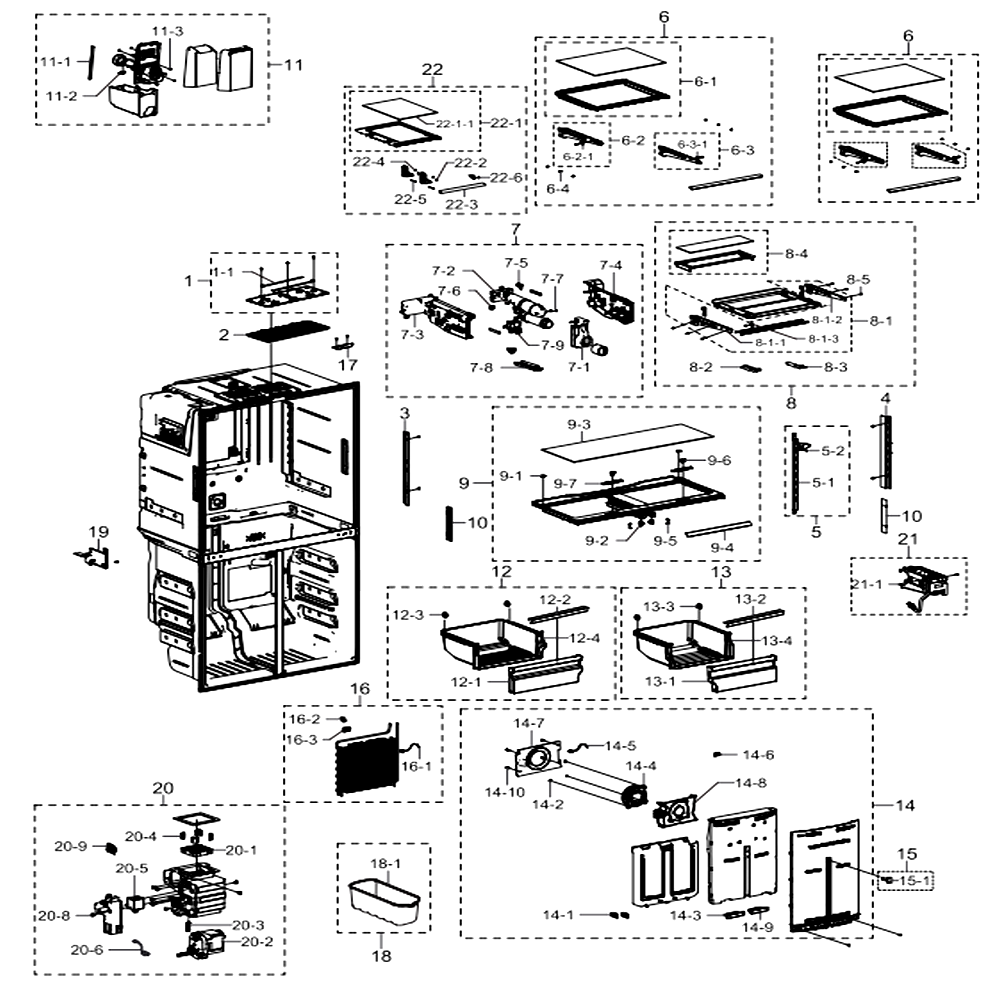

Fridge

...
...
1-1
Assy Lamp Led; 5,cem-1,240*10,white,smaw2 SAM-DA41-00676K
...
1
Assy Case Lamp-Ref; Aw4,long Led SAM-DA97-12606B
...
2
Cover Lamp-Ref SAM-DA63-07816A
...
3
Angle-Shelf Ref Side L; Gi-Sgcc,2.5,cool SAM-DA61-08693A
...
4
Angle-Shelf Ref Side R; Gi-Sgcc,2.5,cool- SAM-DA61-08632A
...
5-1
Angle-Shelf Ref Mid; Gi-Sgcc,t2.5,cool Wh SAM-DA61-08264A
...
5-2
Screw-Tapping SAM-6002-001397
...
5
Assy Angle-Shelf Ref Mid; Aw4,2.5,447.5,c SAM-DA97-12633A
...
6-1
Shelf-Ref Fix; Rf9000jc,pp,cool White SAM-DA67-03971A
...
6-2-1
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09550A
...
6-2
Hanger-Left; Aw4-4d,cd,egi-Secc,cool Whit SAM-DA61-09194A
...
6-3-1
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09549A
...
6-3
Hanger-Right; Aw4-4d,cd,egi-Secc,cool Whi SAM-DA61-09193A
...
6-4
Screw-Tapping SAM-6002-001397
...
6
Assy Shelf-Ref; Rf9000jc SAM-DA97-15368B
...
7-1
Cover-Filter Tank; Aw4,hips,w72.4,l167.7, SAM-DA63-06885A
...
7-2
Clip-Fitting Lock SAM-DA61-04522A
...
7-3
Case Filter-Left; Aw4-Cd,hips,cool White, SAM-DA61-09242A
...
7-4
Case Filter-Right; Aw4-Cd,hips,cool White SAM-DA61-09243A
...
7-5
Tube-Fitting L; Pom,dark Holder Gray,1/4i SAM-DA62-02414A
...
7-6
Tube-Fitting L SAM-DA62-03103A
...
7-7
Screw-Tapping SAM-6002-000213
...
7-8
Tray-Water Filter SAM-DA63-05407A
...
7-9
Valve Water SAM-DA62-04027A
...
7
Assy Case Filter; T-9000cd,110v SAM-DA97-15417B
...
8-1-1
Hanger-Low Left; Aw4-Cd,egi-Secc,t2.0 SAM-DA61-09197A
...
8-1-2
Hanger-Low Right; Aw4-Cd,egi-Secc,t2.0 SAM-DA61-09195A
...
8-1-3
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09550A
...
8-1
Assy Shelf Hanger-Right; Aw4-Cd SAM-DA97-13832A
...
8-2
Support Rail-Left; Aw4-4d,abs,hg-0760gp,c SAM-DA61-09300A
...
8-3
Support Rail-Right; Aw4-4d,abs,hg-0760gp, SAM-DA61-09299A
...
8-4
Shelf-Middle; Aw4-4d,pp,cool White,aw-Cd SAM-DA67-03698A
...
8-5
Screw-Tapping SAM-6002-001397
...
8
Assy Shelf Quick Space; Rf9000jc SAM-DA97-15363A
...
9-1
Fixer-Cover Veg SAM-DA61-03166A
...
9-2
Assy Roller; Rf9000jc,24 SAM-DA97-15997A
...
9-3
Glass; Glass SAM-DA01-00891A
...
9-4
Trim-Shelf Fre; Romanee,hips,s-834s1,cool SAM-DA64-04307D
...
9-5
Case Lock-A; Rf9000jc,pom,natural,k300 SAM-DA61-10523A
...
9-6
Knob-Humidity; Aw4,abs,natural,chromium P SAM-DA64-04173A
...
9-7
Lever-Humidity SAM-DA66-00718A
...
9
Assy Cover Veg-Ref; Rf9000jc,silver Trim SAM-DA97-15360A
...
10
Cover Lamp-Led Side SAM-DA63-07276A
...
11-1
Gasket-Tray Ice Bucket SAM-DA63-07185A
...
11-2
Spring Etc-Dispenser SAM-DA61-20124D
...
11-3
Screw-Tapping SAM-6002-000471
...
11
Assy Tray Ice; Fdr,t-Type C/d SAM-DA97-14504C
...
12-1
Cover Veg-Front Left; Aw4-Cd,gpps,natural SAM-DA63-07552A
...
12-2
Trim Basket-Left; Rf9000jc,hips,s834s1,co SAM-DA64-03862T
...
12-3
Assembly Roller SAM-DA97-15998A
...
12-4
Case Veg-Ref Left; Aw4-4d,gpps,natural,hf SAM-DA61-09161A
...
12
Assy Case Veg-Left; Rf9000jc,silver Trim SAM-DA97-13842C
...
13-1
Cover Veg-Front Right; Aw4-4d,gpps,natura SAM-DA63-07553A
...
13-2
Trim Basket-Right; Rf9000jc,hips,s834s1,c SAM-DA64-03862S
...
13-3
Assembly Roller SAM-DA97-15998A
...
13-4
Case Veg-Ref Right; Aw4-4d,gpps,natural,h SAM-DA61-09160A
...
13
Assy Case Veg-Right; Rf9000jc,silver SAM-DA97-13841C
...
14-1
Fixer Locker; Rf9000jc,pa66,natural,kn331 SAM-DA61-10534A
...
14-2
Screw-Tapping SAM-6002-000471
...
14-3
Cover Deodorizer-Left; Rf9000jc,hips,hb,c SAM-DA63-08102D
...
14-4
Motor Bldc Fan; Ares2120ra,18704%,12v,m SAM-DA31-00334A
...
14-5
Sensor Temp; Dkst1329gw,queen,-50 ~ 80 SAM-DA32-00011C
...
14-6
Grommet Fixer; Rf-H920g,rubber,black SAM-DA63-07761A
...
14-7
Case-Motor Fre SAM-DA61-08425A
...
14-8
Guide Air; Romanee-Conti,hips,ntr SAM-DA61-08658B
...
14-9
Cover Deodorizer-Right; Rf9000jc,hips,hb, SAM-DA63-08019D
...
14-10
Screw-Tapping SAM-6002-001204
...
14
Assy Cover Evap-Ref; Rf9000jc,no Plate Co SAM-DA97-15409Q
...
15-1
Cap Cover Evap-Ref; Rf9000jc,hips,t3.0,hb SAM-DA67-03978B
...
15
Assy Cap Angle; Rf9000jc SAM-DA97-15412B
...
16-1
Sensor Temp; Dkst1329gw,double_Insulation SAM-DA32-10104W
...
16-2
Fixer-Wire SAM-DA61-06013A
...
16-3
Fixer-Senser SAM-DA61-03683A
...
16
Assy Evap-Ref; Romanee Conti_Disp,fin Tub SAM-DA96-01002A
...
17
Guide-French SAM-DA61-04285A
...
18-1
Tray Egg; Epel,gpps,natural,t2.5,w324.5,h SAM-DA63-02492A
...
18
Assy Tray-Egg; Rosso,tp Blue SAM-DA97-02806F
...
19
Cover Air-Wire Harness Ice; Aw4 Cd,hips,c SAM-DA63-07496A
...
20-1
Motor Bldc Fan SAM-DA31-00070E
...
20-2
Motor Geared Ac Auger SAM-DA31-00105M
...
20-3
Spring Etc-Solenoid SAM-DA61-20140A
...
20-4
Grommet-Fan SAM-DA63-02513A
...
20-5
Valve-Solenoid SAM-DA74-40151G
...
20-6
Assy Wire Harness-Auger; Fdr,free Volt,ul SAM-DA96-00682E
...
20-8
Screw-Special SAM-DA60-00001B
...
20-9
Fixer-Nut; Guggenheim,sts420,j2,sk5 SAM-DA71-00163B
...
20
Assy Case Auger Motor; Rf9900jc,115v 60hz SAM-DA97-12540K
...
21-1
Screw-Tapping SAM-6002-000471
...
21
Assy Ice Maker; Aw4-Cd,120v-60hz SAM-DA97-18859A
...
22-1-1
Glass-Shelf Ref Fold; Glass SAM-DA01-00887A
...
22-1
Shelf Folder; Rf9000jc,pp,cool White SAM-DA67-03970A
...
22-2
Spring Etc-Hinge Shelf SAM-DA61-03705A
...
22-3
Trim-Shelf Ref; Romanee,abs,white,245.5 SAM-DA64-04348C
...
22-4
Roller-Hinge-Shelf SAM-DA66-00482A
...
22-5
Shaft-Hinge-Shelf SAM-DA66-00483A
...
22-6
Screw-Tapping SAM-6002-001397
...
22
Assy Shelf Folder; Rf9000jc SAM-DA97-15362A

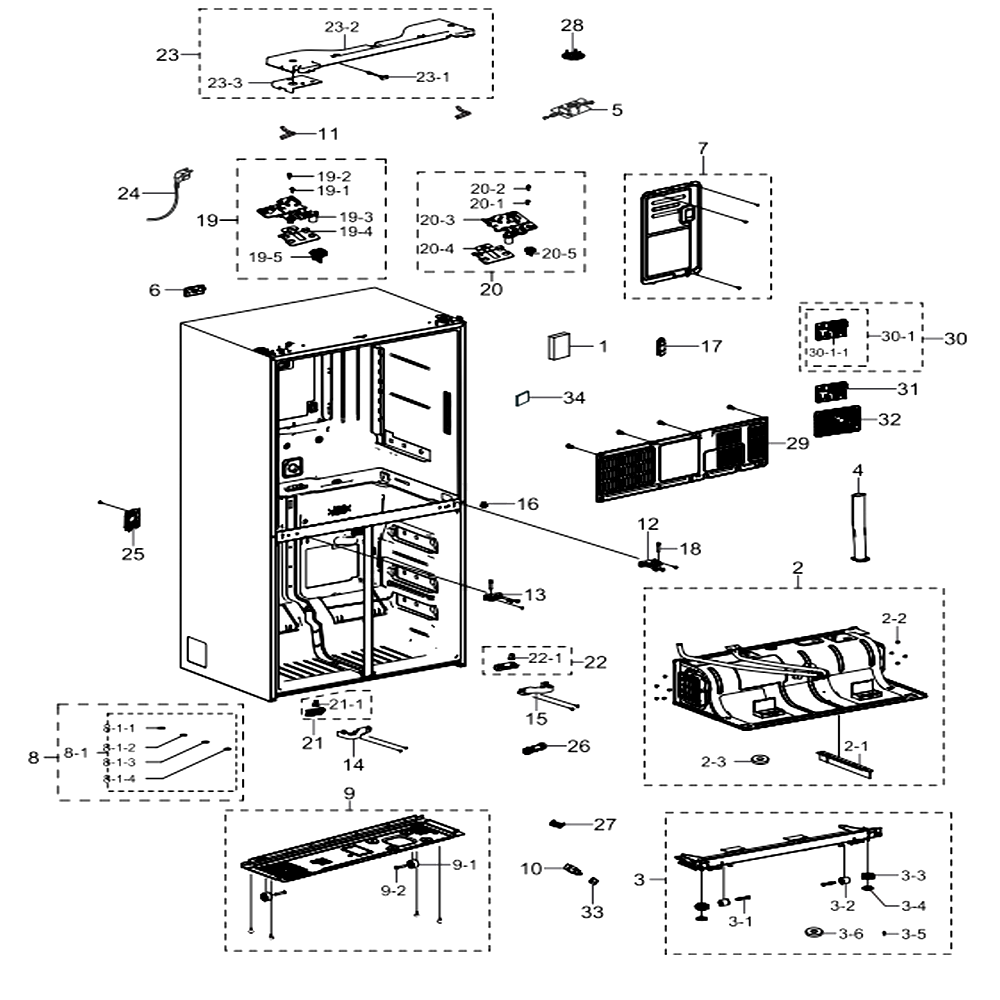

Cabinet

...
...
1
Seal Cutt-Rubber; Rr2500k,rubber,black,t5 SAM-DA62-01018A
...
2-1
Trim Blade; Aw3-14,pvc,gray SAM-DA64-05373A
...
2-2
Screw-Tapping SAM-6002-000239
...
2-3
Seal-Drain Hose; Aram10,pu Foam,t10,30 SAM-DA72-00238B
...
2
Assy Cabi Bottom-Rear; Rf9000jc,dispenser SAM-DA97-15375F
...
3-1
Caster-Rivet SAM-DA61-01920A
...
3-2
Caster-Front SAM-DA61-04702A
...
3-3
Foot-Front SAM-DA61-07972B
...
3-4
Foot SAM-DA61-07973B
...
3-5
Screw-Tapping SAM-6002-000213
...
3-6
Seal-Drain Hose; Aram10,pu Foam,t10,30 SAM-DA72-00238B
...
3
Assy Cabi Bottom-Front; Rf9000jc,black SAM-DA97-15376C
...
4
Assy Guide Hose-Bottom; Aw3-14,foam Pe SAM-DA97-14866A
...
5
Coil Filter SAM-DA27-00043D
...
6
Assy Cover-Fixer Water; Opus1,assy SAM-DA97-08494B
...
7
Assy Cover Pba-Main; Romanee-Conti SAM-DA97-13181C
...
8-1-1
Fastener-Hinge; Romanee Conti,pom,black SAM-DA60-00314A
...
8-1-2
Fastener-Hinge; Romanee Conti,pom,t1.5,bl SAM-DA60-00314B
...
8-1-3
Fastener-Hinge; Romanee Conti,pom,t2.0,bl SAM-DA60-00314C
...
8-1-4
Fastener-Hinge; Romanee Conti,pom,t2.5,bl SAM-DA60-00314D
...
8-1
Assy Accessory; Romanee Conti,adjustment SAM-DA99-04158A
...
8
Assy Manual; Rf9000jc,rf23*,aa,english, F SAM-DA98-01606D
...
9-1
Caster-Rear SAM-DA61-04703A
...
9-2
Shaft-Caster SAM-DA66-00649B
...
9
Assembly Chassis-Comp SAM-DA97-12557A
...
10
Valve-Fitting Pu SAM-DA62-00305A
...
11
Fixer-Hinge;po-Sphc,t3,zn Coating SAM-DA61-04932B
...
12
Hinge-Middle Right; Rf9000n,zn,zndc2,zndc SAM-DA61-13156B
...
13
Hinge-Middle Left; Rf9000n,zn,zndc2,zndc2 SAM-DA61-13159B
...
14
Cover Leg-Front Left; Romanee Conti,pp,hb SAM-DA63-07232C
...
15
Cover Leg-Front Right; Romanee Conti,pp,h SAM-DA63-07233C
...
16
Grommet Hinge-Mid; Romanee Conti,pom,blac SAM-DA63-07306A
...
17
Grommet; Brr9000m,nbr,capi Grommet SAM-DA63-08943A
...
18
Shaft Hinge-Mid; Romanee Conti,swch10a,l4 SAM-DA66-00987A
...
19-1
Screw-Tapping SAM-6002-000213
...
19-2
Screw-Tapping SAM-6002-000215
...
19-3
Hinge-Up Left; Rf9000n,po-Sphc,t3,eletrod SAM-DA61-13155A
...
19-4
Shim-Hinge Upp SAM-DA63-50192A
...
19-5
Cam-Auto Close L SAM-DA66-00950A
...
19
Assy Hinge-Up Left; Rf9000n,t3,121.6,135. SAM-DA97-19422A
...
20-1
Screw-Tapping SAM-6002-000213
...
20-2
Screw-Tapping SAM-6002-000215
...
20-3
Hinge-Up Right; Rf9000n,po-Sphc,t3,electr SAM-DA61-13154A
...
20-4
Shim-Hinge Upp SAM-DA63-50192A
...
20-5
Cam-Auto Close R SAM-DA66-00951A
...
20
Assy Hinge-Up Right; Rf9000n,t3,105.4,135 SAM-DA97-19423A
...
21-1
Grommet Hinge; Romanee Conti,pom,black SAM-DA63-07231A
...
21
Assy Hinge-Low Left; Rf9000n,black Painti SAM-DA97-19473A
...
22-1
Grommet Hinge; Romanee Conti,pom,black SAM-DA63-07231A
...
22
Assy Hinge-Low Right; Rf9000n,black Paint SAM-DA97-19474A
...
23-1
Switch Reed; Ul1007 Awg 22,280(680),25045 SAM-DA34-00043K
...
23-2
Top Table; Romanee Conti,abs,ebony Black SAM-DA64-04477D
...
23-3
Plate-Cover Hinge SAM-DA61-08227A
...
23
Assy Top Table; Aw4-4d,ebony Black SAM-DA97-13703L
...
24
Cbf-Power Cord; At,usa,us3f-1,3c,125v,15a SAM-3903-001003
...
25
Assembly Cover-Tube Filter SAM-DA97-08413B
...
26
Tube-Fitting SAM-DA62-03914A
...
27
Fixer Cover; Aw3-14,hips,natural,s834s1 SAM-DA61-12488A
...
28
Cover-Urethane SAM-DA63-03809A
...
29
Assy Cover Comp; Polaris,gi-Sgcc,t0.25 SAM-DA97-12749J
...
30-1-1
Assy Pcb Auto; Inverter,aw3-14,163*98.5,y SAM-DA94-04247A
...
30-1
Assy Pcb Smd; Inverter,aw3-14,163*98.5,y, SAM-DA94-04249A
...
30
Assy Pcb Inverter; Inverter,aw3-14,163*98 SAM-DA92-00763M
...
31
Assembly Module SAM-DA92-00486A
...
32
Assy Pcb Eeprom; 0x88,d601,d602,d603,d608 SAM-DA94-04405P
...
33
Valve-Fitting Nut SAM-DA74-00070B
...
34
Seal Cutt-Rubber; W2-05,rubber,black,t8,w SAM-DA72-60040Y

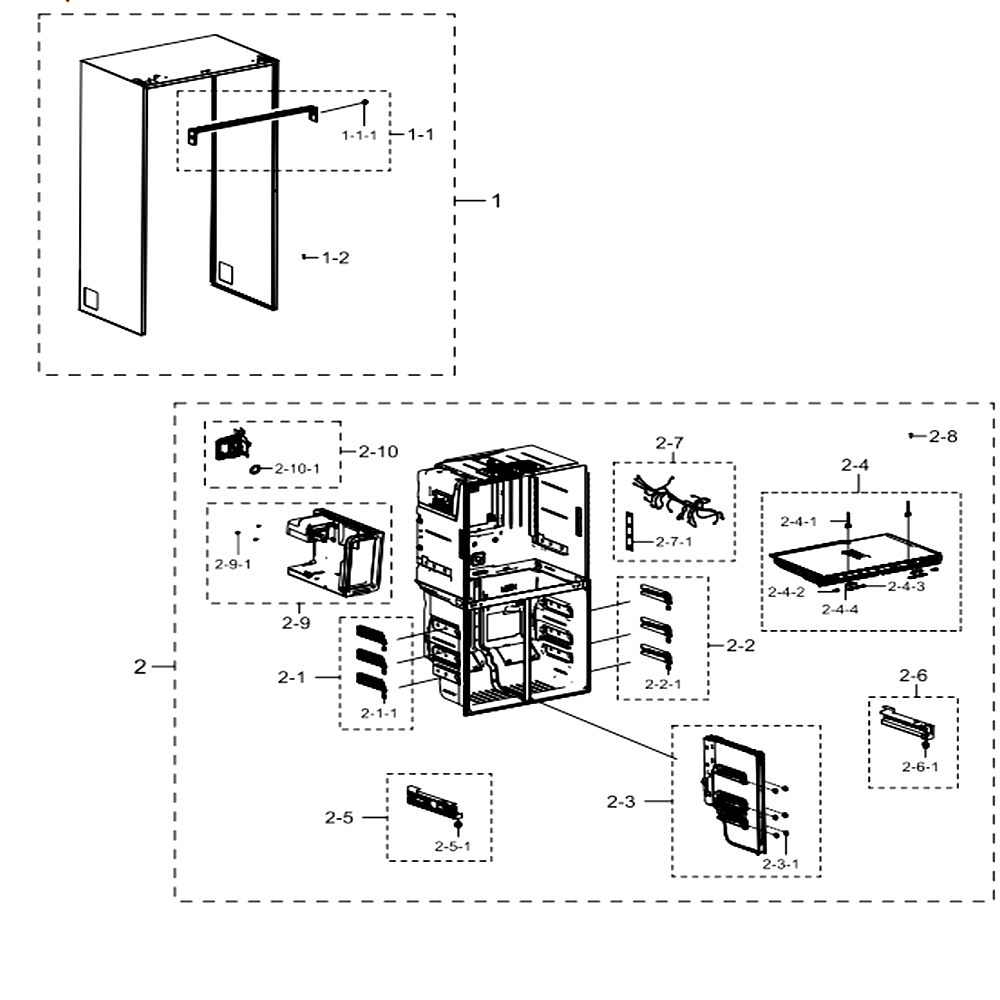

Cabinet-2

...
...
1-1-1
Bolt-Etc; M8,l14.1(3.4),fe-Fzb,scm435,3-B SAM-6011-001694
...
1-1
Assy Reinf Cabi-Flange Up; Aw-Pjt SAM-DA97-06920Q
...
1-2
Screw-Tapping SAM-6002-001122
...
1
Assy Cabi Frame; Rf9000jc,all Black,disp SAM-DA97-15569L
...
2-1-1
Assembly Roller SAM-DA97-15998A
...
2-1
Assy Rail-Left; Rf9000jc SAM-DA97-15419A
...
2-2-1
Assembly Roller SAM-DA97-15998A
...
2-2
Assy Rail-Right; Rf9000jc SAM-DA97-15420A
...
2-3-1
Assembly Roller SAM-DA97-15998A
...
2-3
Assy Partition-Fre V; Rf9000jc,assy SAM-DA97-15343A
...
2-4-1
Switch Reed SAM-DA34-00043J
...
2-4-2
Assy Lamp Led; 2,fr-4,20*30,white,smaw250 SAM-DA41-00676J
...
2-4-3
Cover-Cap Door Led SAM-DA63-05524A
...
2-4-4
Cap Door Switch; Sveta-Pjt,pp,t1.5,hb,bj7 SAM-DA67-02385A
...
2-4
Assy Partition-Up; Rf9000jc,slim Hinge Ty SAM-DA97-15418B
...
2-5-1
Assy Roller; Rf9000jc,24 SAM-DA97-15997A
...
2-5
Assy Rail-Left; Aw4-Cd,veg SAM-DA97-13838A
...
2-6-1
Assy Roller; Rf9000jc,24 SAM-DA97-15997A
...
2-6
Assy Rail-Right; Aw4-Cd,veg SAM-DA97-13837A
...
2-7-1
Assembly Lamp Led SAM-DA41-00519Q
...
2-7
Assy Wire Harness-Main; Rf9000jc,dispense SAM-DA96-01120E
...
2-8
Screw-Tapping SAM-6002-000215
...
2-9-1
Screw-Tapping SAM-6002-000471
...
2-9
Assy Case Ice; Aw4 Cd SAM-DA97-13763A
...
2-10-1
Seal-Drain Hose; Aram10,pu Foam,t10,30 SAM-DA72-00238B
...
2-10
Assy Drain Hose-Middle; Aw4,4door SAM-DA97-13860A
...
2
Assy Liner; Rf9000jc,all Black,115/60,spi SAM-DA94-02020S

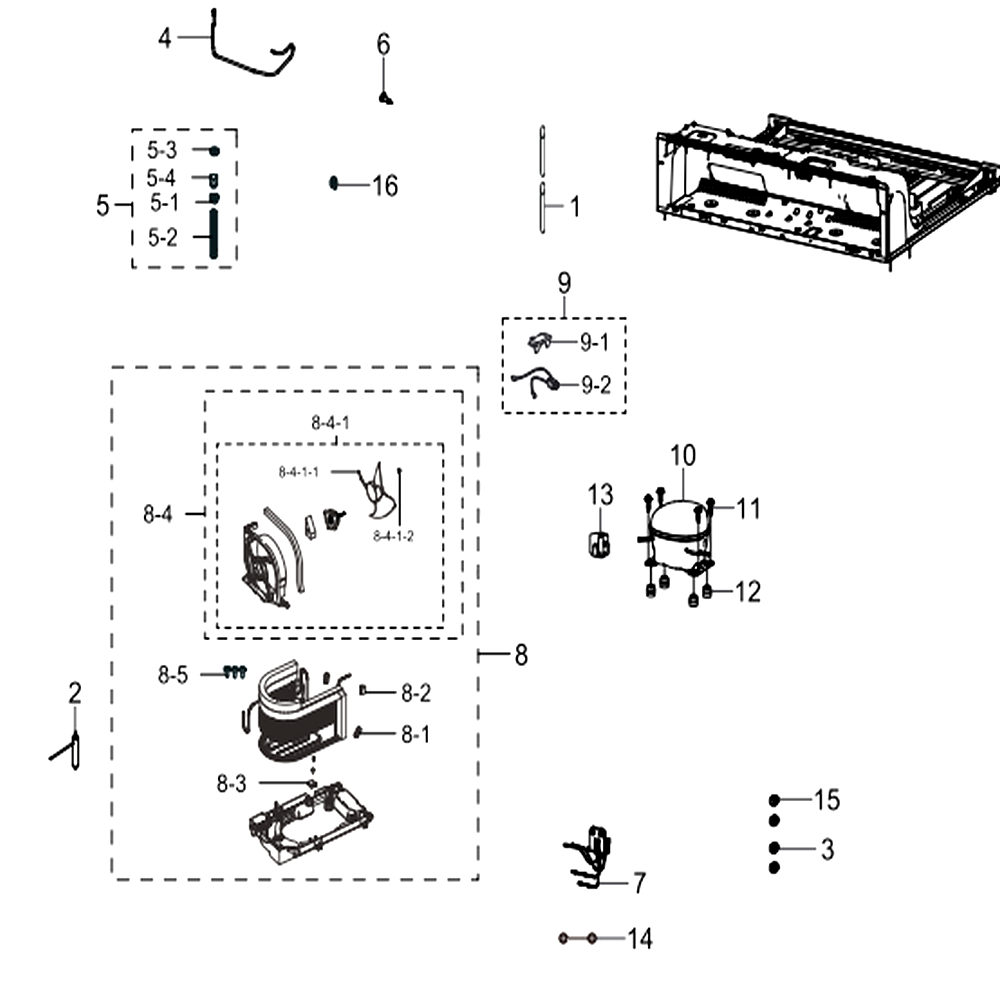

Cycle

...
...
1
Pipe-Connect Disc,b SAM-DA73-10190U
...
2
Dryer SAM-DA62-04309A
...
3
Fitting-Lokring 43 SAM-DA60-00281A
...
4
Pipe Connect-Suction; C1220t-O,od6.35,t0. SAM-DA62-03691A
...
5-1
Fixer-Drain SAM-DA61-05021A
...
5-2
Tube Pvc SAM-DA62-01266B
...
5-3
Grommet-Drain SAM-DA63-02761A
...
5-4
Cap-Drain SAM-DA67-01301A
...
5
Assembly Cap-Drain SAM-DA97-04049E
...
6
Fixer-Step,motor; Ruby,swrch1,-,zpc3-Y,- SAM-DK61-00464A
...
7
Valve Step; Dc12v,module,80mm,3way,all Op SAM-DA62-04617D
...
8-1
Grommet-Immersion Pipe B SAM-DA63-07323A
...
8-2
Grommet-Suct Pipe A SAM-DA63-40171B
...
8-3
Grommet-Cond Sub SAM-DA63-04424A
...
8-4-1-1
Fan SAM-DA31-00320A
...
8-4-1-2
Spring Etc-Fan SAM-DA61-20128A
...
8-4-1
Motor Bldc Fan; Rmf002assa,1120 Rpm,12v,0 SAM-DA31-00340A
...
8-4
Assy Support-Circuit Motor; Rh9000k SAM-DA97-15765C
...
8-5
Screw-Tapping SAM-6002-000213
...
8
Assy Tray Drain Water; Aw,pfc SAM-DA97-15978B
...
9-1
Relay Protector O/l SAM-DA34-00004D
...
9-2
Wire Harness-Comp SAM-DA39-00154J
...
9
Assembly Comp-Sub SAM-DA97-08310H
...
10
Cmp,refrigerator,r-134a; Cmp,refrigerator,r-134a SAM-NC1MV90ALP/E01
...
11
Bolt-Hex SAM-6011-004061
...
12
Grommet Comp; Usp05,epdm,od27.0,black SAM-DA63-02617C
...
13
Cover Relay; Msv,mppo,t2.0,5v-A,black,m-H SAM-DA63-06122A
...
14
Wire Harness-Earth SAM-DA39-20389L
...
15
Fitting-Lokring 33 SAM-DA60-00280A
...
16
Grommet-Drain Hose; V2-Pjt,nbr,black SAM-DA63-00951C

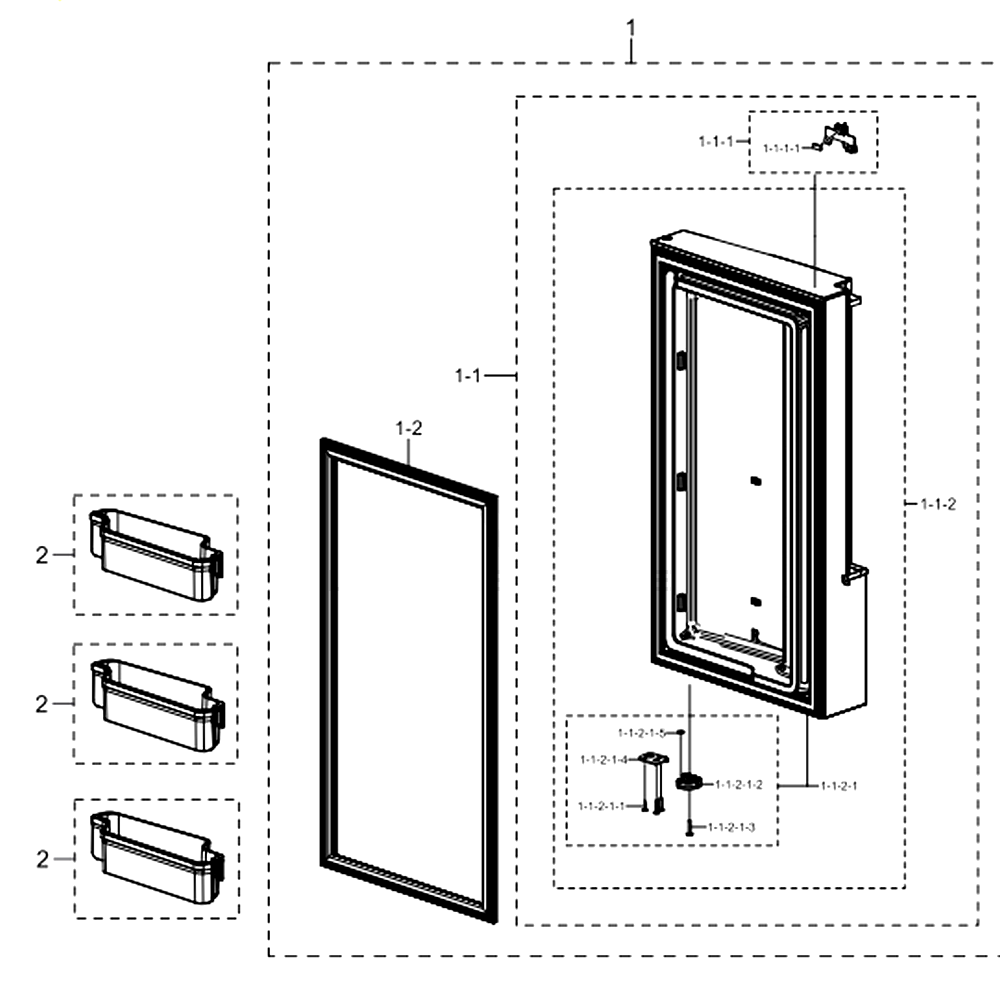

Freezer Door R

...
...
1-1-1-1
Magnet-A SAM-DA61-03769A
...
1-1-1
Assy Magnet; Rf9000jc SAM-DA97-19541A
...
1-1-2-1-1
Screw-Tapping SAM-6002-001120
...
1-1-2-1-2
Support Door-Close SAM-DA61-02383A
...
1-1-2-1-3
Screw-Machine SAM-6001-000715
...
1-1-2-1-4
Stopper Door-R; Romanee Conti,po-Sphc,bla SAM-DA61-08817A
...
1-1-2-1-5
Grommet-Stopper SAM-DA63-40294A
...
1-1-2-1
Assy Cap Door-Low Right; Rf9000jc,i Black SAM-DA97-13735E
...
1-1-2
Assy Plate Door-Fre Right; Rf9000jc,115/6 SAM-DA97-16778A
...
1-1
Assy Door Foam-Fre Right; Rf9000jc,black SAM-DA91-04310J
...
1-2
Assy Gasket-Fre; Rf9000n,black SAM-DA97-19431B
...
1
Assy Door Sub-Fre Right; Rf9000jc,black C SAM-DA93-00033A
...
2
Guard-Fre Right; Romanee,gpps,t3.0,tp Blu SAM-DA63-07288C

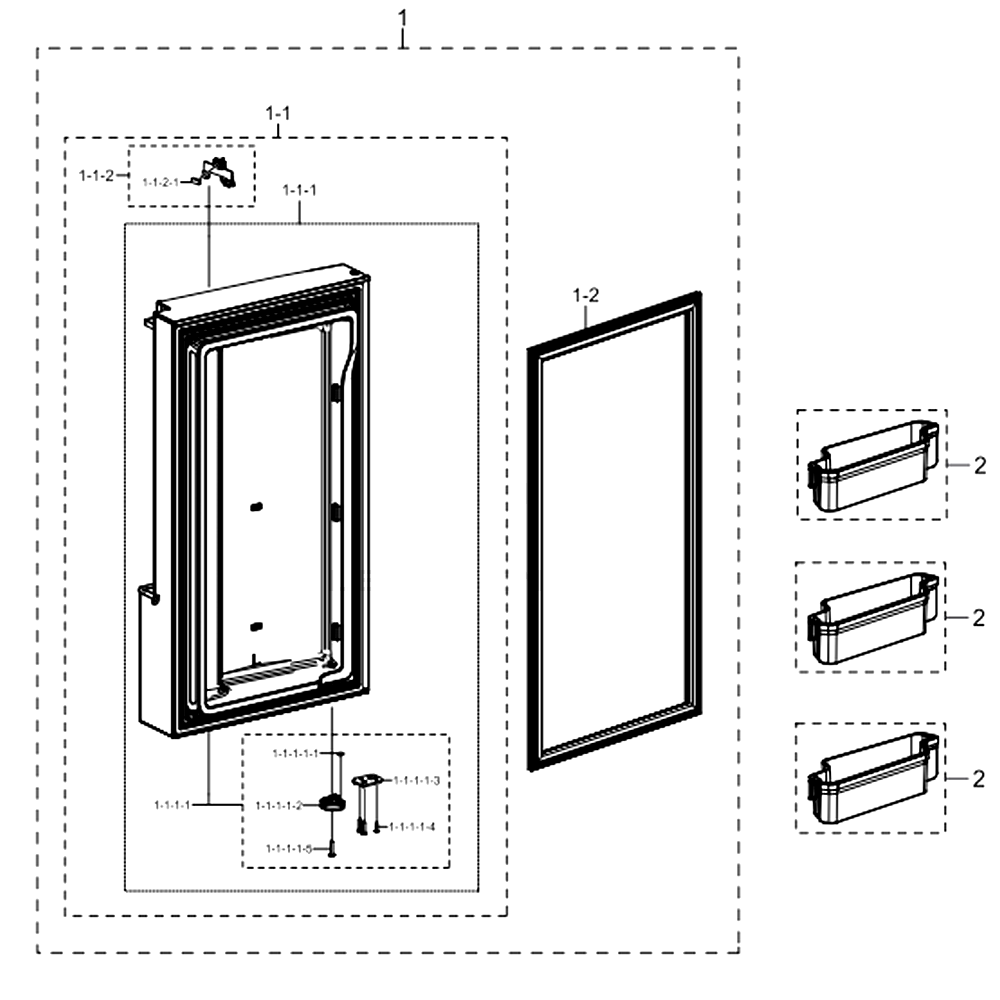

Freezer Door L

...
...
1-1-1-1-1
Grommet-Stopper SAM-DA63-40294A
...
1-1-1-1-2
Support Door-Close SAM-DA61-02383A
...
1-1-1-1-3
Stopper Door-L; Romanee Conti,po-Sphc,bla SAM-DA61-08816A
...
1-1-1-1-4
Screw-Tapping SAM-6002-001120
...
1-1-1-1-5
Screw-Machine SAM-6001-000715
...
1-1-1-1
Assy Cap Door-Low Left; Rf9000jc,i Black SAM-DA97-13734E
...
1-1-1
Assy Plate Door-Fre Left; Rf9000jc,115/60 SAM-DA97-15383Z
...
1-1-2-1
Magnet-A SAM-DA61-03769A
...
1-1-2
Assy Magnet; Rf9000jc SAM-DA97-19541A
...
1-1
Assy Door Foam-Fre Left; Rf9000jc,black C SAM-DA91-04321J
...
1-2
Assy Gasket-Fre; Rf9000n,black SAM-DA97-19431B
...
1
Assy Door Sub-Fre Left; Rf9000jc,black Ca SAM-DA93-00032A
...
2
Guard-Fre Left; Romanee,gpps,t3.0,tp Blue SAM-DA63-07289C

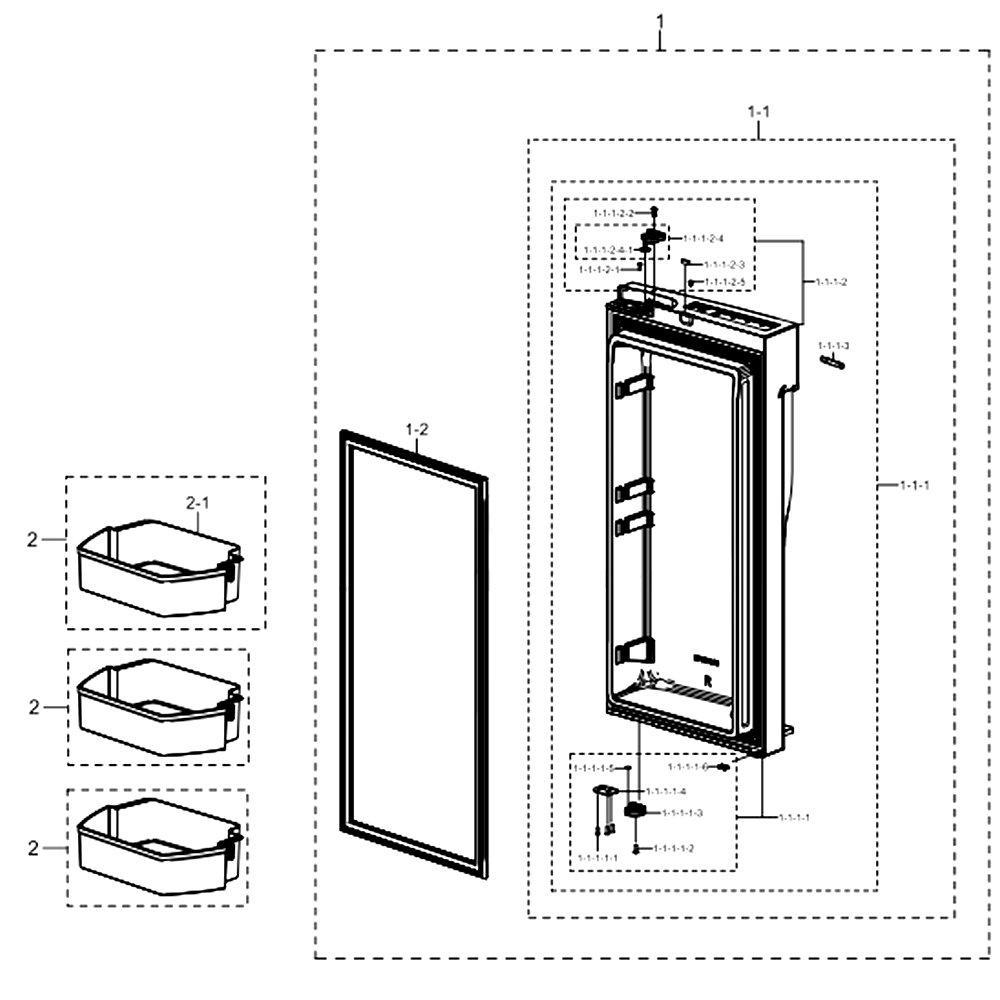

Fridge Door R

...
...
1-1-1-1-1
Screw-Tapping SAM-6002-001120
...
1-1-1-1-2
Screw-Machine SAM-6001-000716
...
1-1-1-1-3
Support Cap Door-Right; Rf9000k,pom,k-300 SAM-DA61-10855B
...
1-1-1-1-4
Stopper Door-R; Romanee Conti,po-Sphc,bla SAM-DA61-08817A
...
1-1-1-1-5
Grommet-Stopper SAM-DA63-40294A
...
1-1-1-1-6
Grommet-Cap Door; Rf9500m,si,black,t5.0, SAM-DA63-04825B
...
1-1-1-1
Assy Cap Door-Ref Low Right; Rf9000k,i Bl SAM-DA97-16595F
...
1-1-1-2-1
Screw-Tapping SAM-6002-001122
...
1-1-1-2-2
Screw-Tapping SAM-6002-000613
...
1-1-1-2-3
Magnet-A SAM-DA61-03769A
...
1-1-1-2-4-1
Roller-Auto Close SAM-DA66-00440A
...
1-1-1-2-4
Assembly Lever-Auto Close SAM-DA97-12625A
...
1-1-1-2-5
Cap-Shaft Hole SAM-DA67-02795C
...
1-1-1-2
Assy Cap Door-Ref Up Right; Rf9000jc,5v-B SAM-DA97-13848F
...
1-1-1-3
Mascot SAM-DA64-04021C
...
1-1-1
Assy Plate Door-Ref Right; Rf9000jc,black SAM-DA97-16683N
...
1-1
Assy Door Foam-Ref Right; Rf9000jc,black SAM-DA91-04570K
...
1-2
Assy Gasket-Ref; Rf9000n,black SAM-DA97-19430B
...
1
Assy Door Sub-Ref Right; Rf9000jc,black C SAM-DA93-00031A
...
2-1
Guard-Ref Right; Rf9000jc,gpps,t3.0,tp Bl SAM-DA63-08015A
...
2
Assy Guard-Ref Right; Rf9000jc,hot Stampi SAM-DA97-15560A

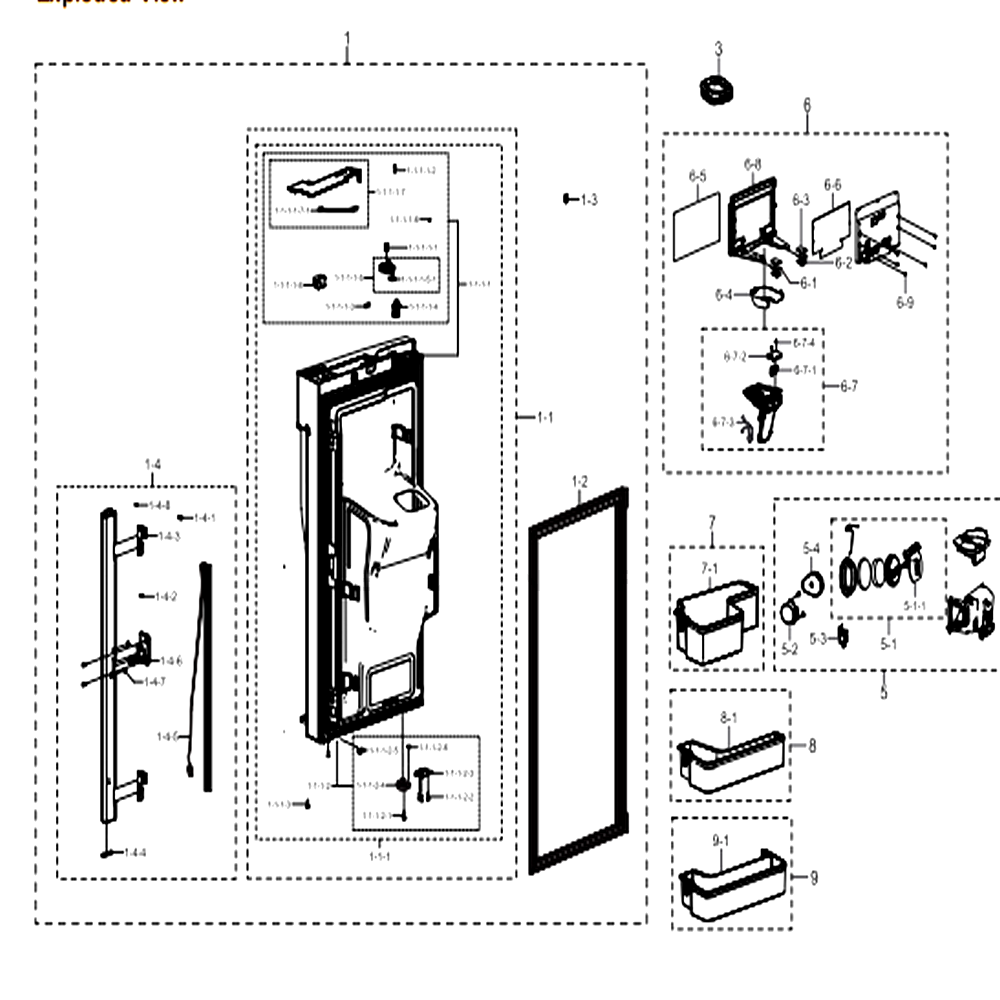

Fridge Door L

...
...
1-1-1-1-1
Screw-Tapping SAM-6002-000613
...
1-1-1-1-2
Screw-Tapping SAM-6002-001122
...
1-1-1-1-3
Magnet-A SAM-DA61-03769A
...
1-1-1-1-4
Switch Door-Interlock SAM-DA34-00066B
...
1-1-1-1-5-1
Roller-Auto Close SAM-DA66-00440A
...
1-1-1-1-5
Assembly Lever-Auto Close SAM-DA97-12625A
...
1-1-1-1-6
Cap-Shaft Hole SAM-DA67-02795C
...
1-1-1-1-7-1
Sensor Humidity SAM-DA32-00034B
...
1-1-1-1-7
Assy Cover Display; Rf9000jc,i Black, Sen SAM-DA97-13014E
...
1-1-1-1-8
Cover-Fixer Housing V SAM-DA63-02902B
...
1-1-1-1
Assy Cap Door-Ref Up Left; Rf9000jc,5v-B, SAM-DA97-13847K
...
1-1-1-2-1
Screw-Machine SAM-6001-000716
...
1-1-1-2-2
Screw-Tapping SAM-6002-001120
...
1-1-1-2-3
Stopper Door-L; Romanee Conti,po-Sphc,bla SAM-DA61-08816A
...
1-1-1-2-4
Support Cap Door-Left; Rf9000k,pom,so301, SAM-DA61-10856B
...
1-1-1-2-5
Grommet-Cap Door; Rf9500m,si,black,t5.0, SAM-DA63-04825B
...
1-1-1-2-6
Grommet-Stopper SAM-DA63-40294A
...
1-1-1-2
Assy Cap Door-Ref Low Left; Rf9000k,i Bla SAM-DA97-16589F
...
1-1-1-3
Screw-Tapping SAM-6002-001122
...
1-1-1
Assy Plate Door-Ref Left; Rf9000jc,black SAM-DA97-16682R
...
1-1
Assy Door Foam-Ref Left; Rf9000jc,black C SAM-DA91-04569K
...
1-2
Assy Gasket-Ref; Rf9000n,black SAM-DA97-19430B
...
1-3
Screw-Tapping SAM-6002-001406
...
1-4-1
Screw-Tapping SAM-6002-000213
...
1-4-2
Screw-Tapping SAM-6002-000217
...
1-4-3
Hinge-French SAM-DA61-08305A
...
1-4-4
Gasket French-Low; Rf9000jc,si,black,0.80 SAM-DA63-08421B
...
1-4-5
Heater Cord-French; Ac120v,romanee-Conti, SAM-DA47-00245U
...
1-4-6
Cap-Case French Mid SAM-DA67-01701A
...
1-4-7
Grommet-A; Mouton12,si,cool White,name Ta SAM-DA63-07538A
...
1-4-8
Screw-Tapping SAM-6002-000471
...
1-4
Assy French; Rf9000jc,all Black, 110v, Ad SAM-DA97-17722K
...
1
Assy Door Sub-Ref Left; Rf9000jc,black Ca SAM-DA93-00030A
...
3
Assy Cap-Chute Ice; Romanee Conti,hips,12 SAM-DA97-13431A
...
5-1-1
Cover-Ice Route A SAM-DA63-04647A
...
5-1
Assembly Cover-Ice Route SAM-DA97-05368A
...
5-2
Motor Geared-Disp SAM-DA31-00079D
...
5-3
Switch-Micro SAM-3405-001117
...
5-4
Screw-Tapping SAM-6002-001364
...
5
Assembly Guide Ice Route SAM-DA97-13829C
...
6-1
Assembly Pcb Kit SAM-DA41-00217A
...
6-2
Case Lamp-Led SAM-DA61-05687A
...
6-3
Cover-Lamp-Led SAM-DA63-02446A
...
6-4
Cover Ice SAM-DA63-07637A
...
6-5
Inlay-Film; Rf9000jc,pet,black,dispenser, SAM-DA64-04847A
...
6-6
Assy Module; Rf9000jc,led White, Ice Blue SAM-DA92-00662E
...
6-7-1
Switch-Micro; 250vac,1a,80,spst-No,t105 SAM-3405-001119
...
6-7-2
Cover-Switch SAM-DA63-05449A
...
6-7-3
Assy Wire Harness-Dispenser; All,12vdc,al SAM-DA96-00106J
...
6-7-4
Screw-Tapping SAM-6002-000630
...
6-7
Assy Lever Dispenser; Aw4-4d,cd/no Sparkl SAM-DA97-12628N
...
6-8
Assy Cover Dispenser-Sub; Rf9000jc,global SAM-DA97-15113C
...
6-9
Screw-Tapping SAM-6002-000630
...
6
Assy Cover Dispenser; Rf9000jc,global,no SAM-DA97-15112K
...
7-1
Guard-Dispenser; Rf9000jc,gpps,t3,tp Blue SAM-DA63-08012A
...
7
Assy Guard Dispenser; Rf9000jc,hot Stampi SAM-DA97-15558A
...
8-1
Guard-Ref Middle; Rf9000jc,gpps,t3,tp Blu SAM-DA63-08013A
...
8
Assy Guard-Ref Middle; Rf9000jc,hot Stamp SAM-DA97-15562A
...
9-1
Guard-Ref Low; Rf9000jc,gpps,t3,tp Blue,h SAM-DA63-08014A
...
9
Assy Guard-Ref Low; Rf9000jc,hot Stamping SAM-DA97-15559A
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
