Samsung RF22NPEDBSR/AA_0001

Model: RF22NPEDBSR/AA_0001

Save Part Not Listed?
product name

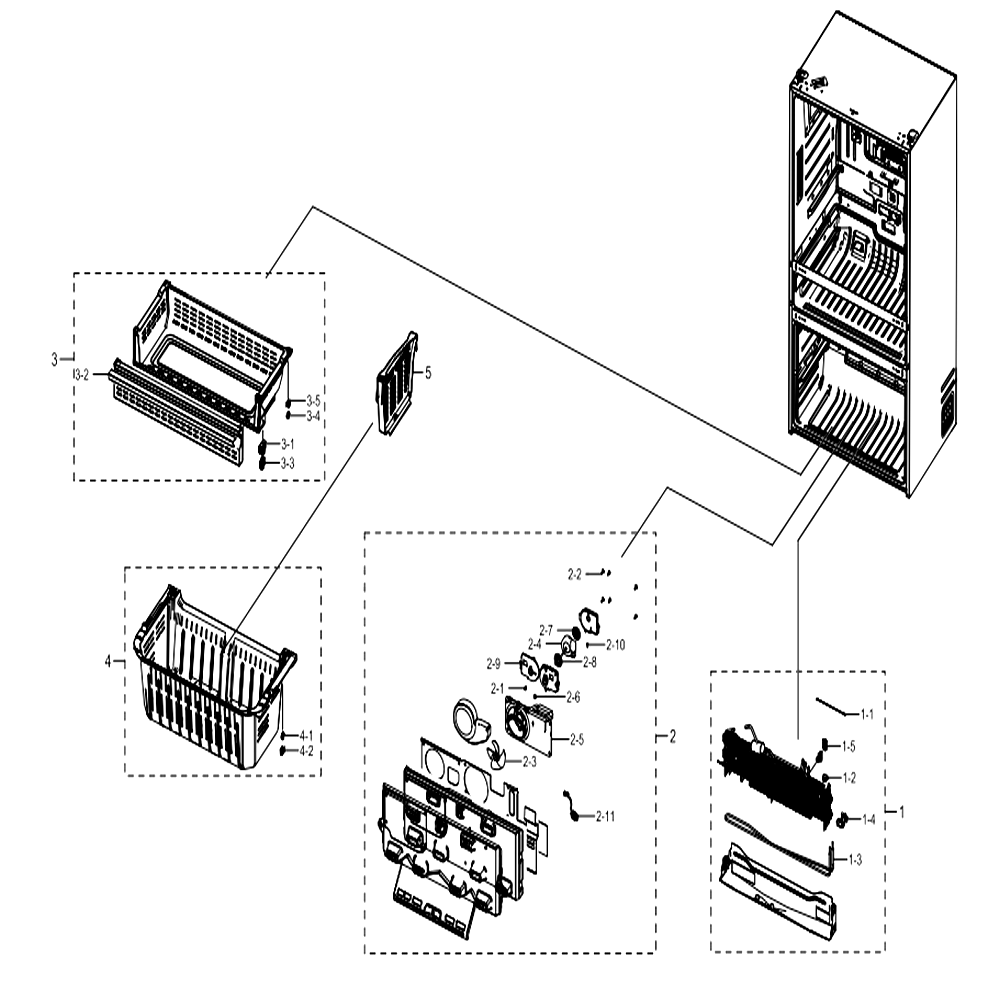

Freezer

...
...
1-1
Sensor Temp SAM-DA32-10104N
...
1-2
Thermo Bimetal-Protector SAM-DA47-00243B
...
1-3
Heater Metal Sheath SAM-DA47-00318H
...
1-4
Fixer-Heater Fre SAM-DA61-05845A
...
1-5
Fixer-Sensor Fre SAM-DA61-06182A
...
1
Assembly Evap-Fre SAM-DA96-00631D
...
2-1
Screw-Tapping SAM-6002-000213
...
2-2
Screw-Tapping SAM-6002-000215
...
2-3
Fan-Ax100w4cc-T1 SAM-DA31-00124A
...
2-4
Motor Bldc SAM-DA31-00146H
...
2-5
Case Motor-Fre SAM-DA61-05867B
...
2-6
Spring Etc-Fan SAM-DA61-20128A
...
2-7
Grommet-Motor,rear SAM-DA63-01146A
...
2-8
Grommet Motor SAM-DA63-01808A
...
2-9
Cover Motor-Bldc SAM-DA63-01809B
...
2-10
Grommet-Cover Chill SAM-DA63-40167A
...
2-11
Assembly Wire Harness-Motor SAM-DA96-00042D
...
2
Assembly Cover Evap-Fre SAM-DA97-08434E
...
3-1
Fixer-Roller Tray Fre Upp SAM-DA61-04154A
...
3-2
Trim-Tray Fre; Aw4,hips,s834s1,cool White SAM-DA64-03862F
...
3-3
Roller-Tray Fre Upp SAM-DA66-00554A
...
3-4
Roller-Fre SAM-DA66-10104A
...
3-5
Fixer-Roller SAM-DA71-20277A
...
3
Assy Tray-Fre Up; Rf8000mc,assy SAM-DA97-13773C
...
4-1
Roller-Fre SAM-DA66-10104A
...
4-2
Fixer-Roller SAM-DA71-20277A
...
4
Assy Tray-Fre Low; Rf8000mc,assy SAM-DA97-13774B
...
5
Guide-Fre; Aw4-4d (c/d),pp,hb,bj750,cool SAM-DA61-09233A

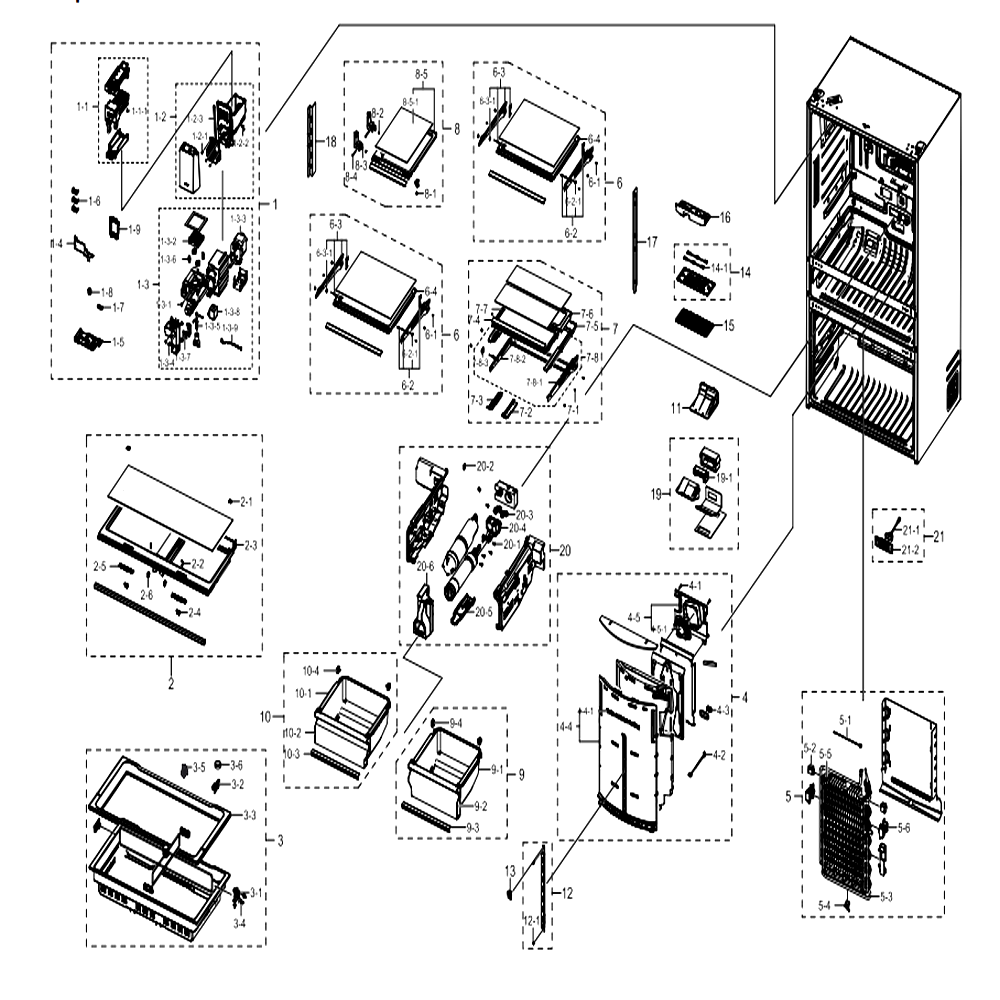

Fridge

...
...
1-1-1
Screw-Tapping SAM-6002-000471
...
1-1
Assy Ice Maker; Aw4-Cd,120v-60hz SAM-DA97-18859A
...
1-2-1
Screw-Tapping SAM-6002-000471
...
1-2-2
Spring Etc-Dispenser SAM-DA61-20124D
...
1-2-3
Gasket-Tray Ice Bucket SAM-DA63-07185A
...
1-2
Assy Tray Ice; Fdr,t-Type C/d SAM-DA97-14504C
...
1-3-1
Screw-Tapping SAM-6002-000471
...
1-3-2
Motor Bldc Fan SAM-DA31-00070E
...
1-3-3
Motor Geared Ac Auger SAM-DA31-00105M
...
1-3-4
Screw-Special SAM-DA60-00001B
...
1-3-5
Spring Etc-Solenoid SAM-DA61-20140A
...
1-3-6
Grommet-Fan SAM-DA63-02513A
...
1-3-7
Fixer-Nut; Guggenheim,sts420,j2,sk5 SAM-DA71-00163B
...
1-3-8
Valve-Solenoid SAM-DA74-40151G
...
1-3-9
Assy Wire Harness-Auger; Fdr,free Volt,ul SAM-DA96-00682E
...
1-3
Assy Case Auger Motor; Rf9900jc,115v 60hz SAM-DA97-12540K
...
1-4
Cover Air-Wire Harness Ice; Aw4 Cd,hips,c SAM-DA63-07496A
...
1-5
Case Magnet; Aw3-14,abs,cool White,hf-066 SAM-DA61-09570A
...
1-6
Fixer Cover; Aw3-14,hips,natural,s834s1 SAM-DA61-12488A
...
1-7
Valve-Fitting Pu SAM-DA62-00305A
...
1-8
Valve-Fitting Nut SAM-DA74-00070B
...
1-9
Assembly Cover-Tube Filter SAM-DA97-08413B
...
1
Assy Ice Maker; Aw4,4d,cd,110v SAM-DA90-08034J
...
2-1
Fixer-Cover Veg SAM-DA61-03166A
...
2-2
Case Lock-A; Rf9000jc,pom,natural,k300 SAM-DA61-10523A
...
2-3
Cover Veg-Ref; Aw4-4d,hips,cool White,hg- SAM-DA63-07497A
...
2-4
Knob-Humidity; Aw4,abs,natural,chromium P SAM-DA64-04173A
...
2-5
Lever-Humidity SAM-DA66-00718A
...
2-6
Assy Roller; Rf9000jc,24 SAM-DA97-15997A
...
2
Assy Cover Veg-Ref; Aw4-Cd SAM-DA97-13840A
...
3-1
Bracket Divider SAM-DA61-09409A
...
3-2
Bracket Divider SAM-DA61-10717A
...
3-3
Cover Convertible; Aw4-4d-Cd,hips,inox Gr SAM-DA63-07489B
...
3-4
Roller-Divider SAM-DA66-00876A
...
3-5
Fixer Wire; Rf8000mc,abs,cool White,hg-07 SAM-DA61-11991A
...
3-6
Grommet-Handle; Rf8000mc,si,cool Gray 7c SAM-DA63-08907A
...
3
Assy Case Convertible; Rf8000mc,smart Div SAM-DA97-13814D
...
4-1
Screw-Tapping SAM-6002-001204
...
4-2
Sensor Temp SAM-DA32-00011D
...
4-3
Grommet Fixer; Rf-H920g,rubber,black SAM-DA63-07761A
...
4-4-1
Inlay SAM-DA64-04618A
...
4-4
Assy Plate Cooling; Aw3-14,al, T0.5 SAM-DA97-16025A
...
4-5-1
Motor Bldc Fan SAM-DA31-00287A
...
4-5
Assembly Case Motor-Ref SAM-DA97-16026A
...
4
Assembly Cover Evap-Ref SAM-DA97-16028A
...
5-1
Sensor Temp SAM-DA32-10104N
...
5-2
Thermo Bimetal-Protector SAM-DA47-00243C
...
5-3
Heater Metal Sheath SAM-DA47-00434A
...
5-4
Plate-Evap Heater SAM-DA61-03644A
...
5-5
Fixer-Senser SAM-DA61-03683A
...
5-6
Fixer-Heater Ref SAM-DA61-05835B
...
5
Assembly Evap-Ref SAM-DA96-00842A
...
6-1
Screw-Tapping SAM-6002-001397
...
6-2-1
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09549A
...
6-2
Hanger-Right; Aw4-4d,cd,egi-Secc,cool Whi SAM-DA61-09193A
...
6-3-1
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09550A
...
6-3
Hanger-Left; Aw4-4d,cd,egi-Secc,cool Whit SAM-DA61-09194A
...
6-4
Shelf-Ref Fix; Aw4-4d,pp,cool White,aw4-C SAM-DA67-03724A
...
6
Assy Shelf-Ref; Aw4-Cd,fix SAM-DA97-13831A
...
7-1
Screw-Tapping SAM-6002-001397
...
7-2
Support Rail-Right; Aw4-4d,abs,hg-0760gp, SAM-DA61-09299A
...
7-3
Support Rail-Left; Aw4-4d,abs,hg-0760gp,c SAM-DA61-09300A
...
7-4
Trim-Shelf Quick Space; Aw4,sts304,-,t0.4 SAM-DA64-04222A
...
7-5
Shelf-Rear; Aw4-4d,pp,cool White,aw4-Cd SAM-DA67-03696A
...
7-6
Shelf-Middle; Aw4-4d,pp,cool White,aw-Cd SAM-DA67-03698A
...
7-7
Shelf-Front; Aw4-4d,pp,cool White,aw4-F/s SAM-DA67-03713A
...
7-8-1
Hanger-Low Right; Aw4-Cd,egi-Secc,t2.0 SAM-DA61-09195A
...
7-8-2
Hanger-Low Left; Aw4-Cd,egi-Secc,t2.0 SAM-DA61-09197A
...
7-8-3
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09550A
...
7-8
Assy Shelf Hanger-Right; Aw4-Cd SAM-DA97-13832A
...
7
Assy Shelf Folder-Ref; Aw4-Cd,slide In SAM-DA97-13834A
...
8-1
Screw-Tapping SAM-6002-001397
...
8-2
Spring Etc-Hinge Shelf SAM-DA61-03705A
...
8-3
Roller-Hinge-Shelf SAM-DA66-00482A
...
8-4
Shaft-Hinge-Shelf SAM-DA66-00483A
...
8-5-1
Glass-Shelf Ref Fold; Glass SAM-DA01-00887A
...
8-5
Shelf Folder; Aw4-4d,pp,cool White,aw4-Cd SAM-DA67-03693A
...
8
Assy Shelf Folder; Aw4-Cd SAM-DA97-13836A
...
9-1
Case Veg-Ref Right; Aw4-4d,gpps,natural,h SAM-DA61-09160A
...
9-2
Cover Veg-Front Right; Aw4-4d,gpps,natura SAM-DA63-07553A
...
9-3
Trim Cover-Ref; Aw4-Cd,hips,s834s1,cool W SAM-DA64-03862Q
...
9-4
Assembly Roller SAM-DA97-15998A
...
9
Assy Case Veg-Right; Aw4-Cd SAM-DA97-13841B
...
10-1
Case Veg-Ref Left; Aw4-4d,gpps,natural,hf SAM-DA61-09161A
...
10-2
Cover Veg-Front Left; Aw4-Cd,gpps,natural SAM-DA63-07552A
...
10-3
Trim Cover-Ref; Aw4-Cd,hips,s834s1,cool W SAM-DA64-03862R
...
10-4
Assembly Roller SAM-DA97-15998A
...
10
Assy Case Veg-Left; Aw4-Cd SAM-DA97-13842B
...
11
Cover Motor-Damper SAM-DA63-05477A
...
12-1
Screw-Tapping SAM-6002-001397
...
12
Assembly Angle Shelf-Ref Middle SAM-DA97-13844D
...
13
Assembly Cap Angle SAM-DA97-15412A
...
14-1
Assy Lamp Led; 5,cem-1,240*10,white,smaw2 SAM-DA41-00676K
...
14
Assy Case Lamp-Ref; Aw4,long Led SAM-DA97-12606B
...
15
Cover Lamp-Ref SAM-DA63-07816A
...
16
Guide-French SAM-DA61-04285A
...
17
Angle-Shelf Ref Side R SAM-DA61-05897A
...
18
Angle-Shelf Ref Side L SAM-DA61-05898A
...
19-1
Motor Dc-Damper SAM-DA31-00101C
...
19
Assembly Ins-Damper Conv SAM-DA97-08430A
...
20-1
Screw-Tapping SAM-6002-000213
...
20-2
Clip-Fitting Lock SAM-DA61-04522A
...
20-3
Tube-Fitting L SAM-DA62-03103A
...
20-4
Valve Water SAM-DA62-04027A
...
20-5
Tray-Water Filter SAM-DA63-05407A
...
20-6
Cover-Filter Tank; Aw4,hips,w72.4,l167.7, SAM-DA63-06885A
...
20
Assy Case Water Filter; Aw4-Cd,no Led SAM-DA97-14528F
...
21-1
Switch Reed SAM-DA34-00043J
...
21-2
Cover Reed Switch SAM-DA63-07513A
...
21
Assembly Cover Switch SAM-DA97-13783A

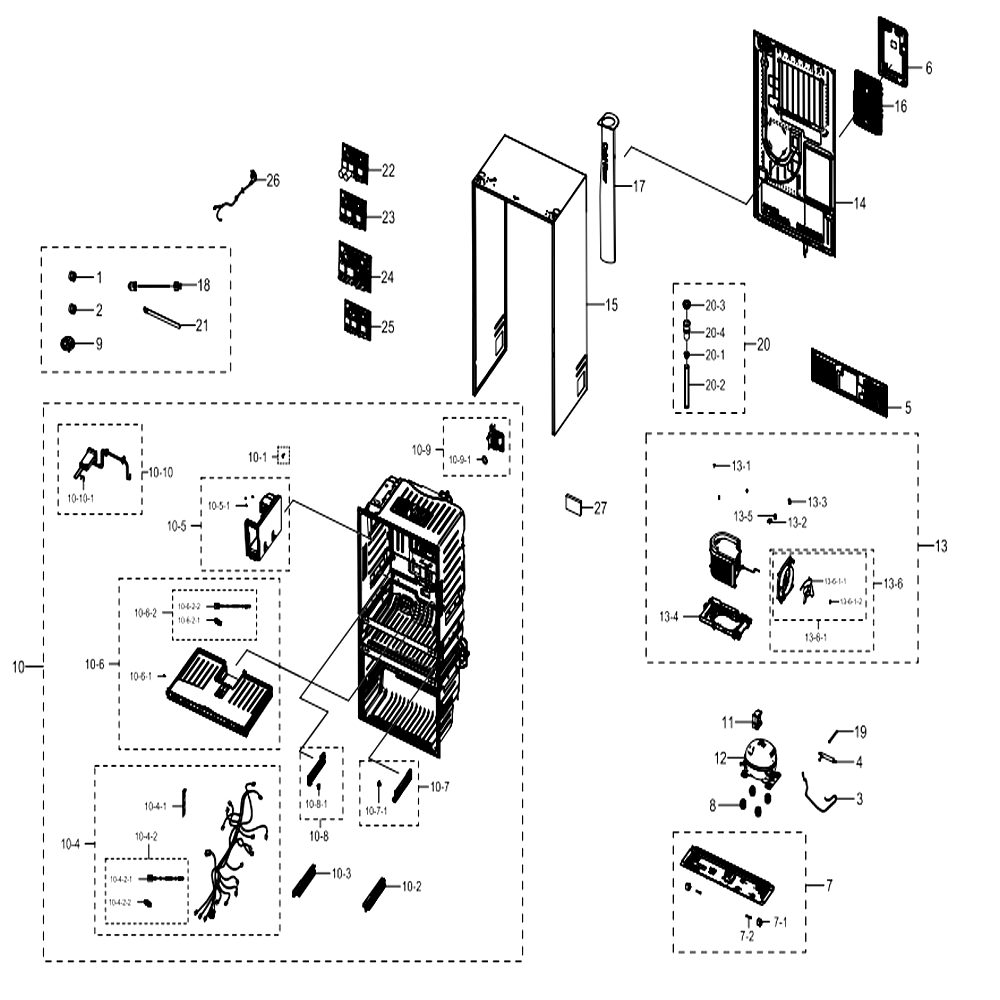

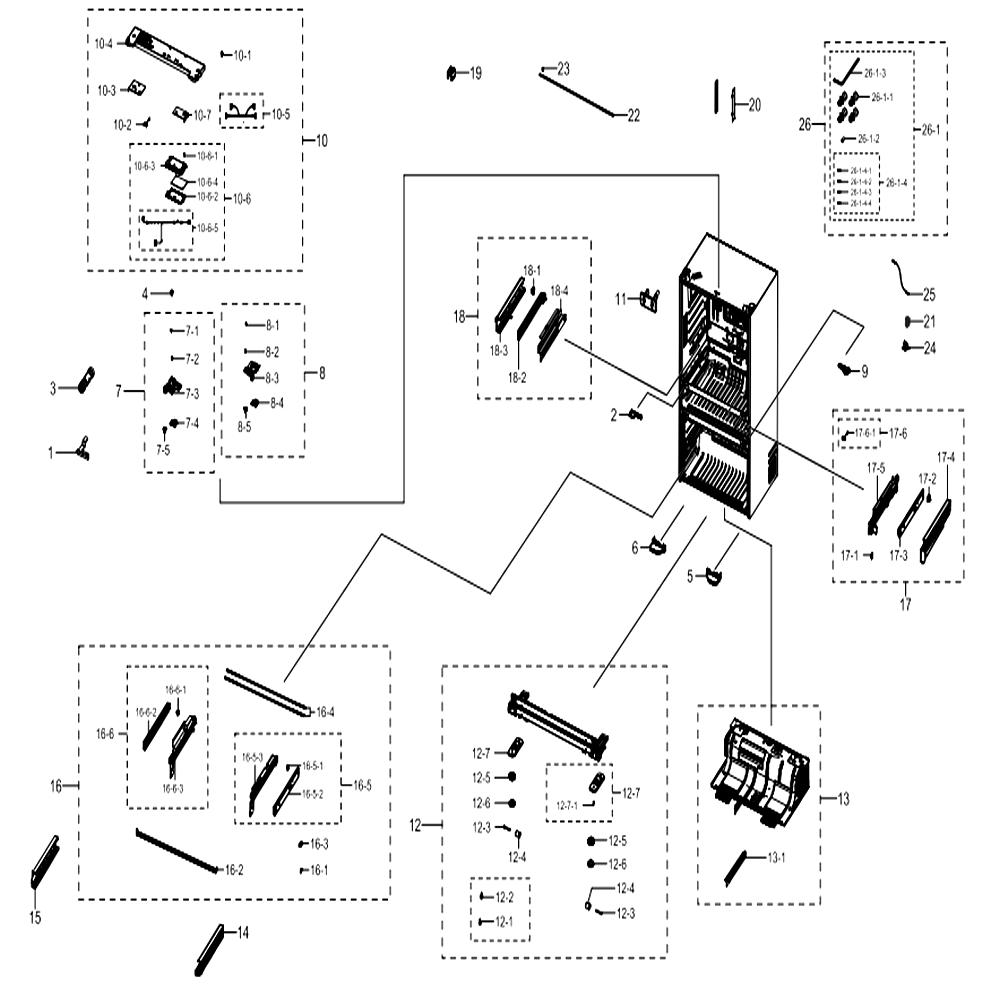

Cabinet

...
...
1
Fixer-Hinge;po-Sphc,t3,zn Coating SAM-DA61-04932B
...
2
Hinge-Middle Left; Rf9000k,zn,zndc2,zndc2 SAM-DA61-10859A
...
3
Tube-Fitting SAM-DA62-03914A
...
4
Grommet Hinge-Mid SAM-DA63-06410A
...
5
Cover Leg-Front Right; Aw4-4d (c/d),pp,hb SAM-DA63-07484A
...
6
Cover Leg-Front Left; Aw4-4d (c/d),pp,hb, SAM-DA63-07485A
...
7-1
Screw-Tapping SAM-6002-000213
...
7-2
Screw-Tapping SAM-6002-000215
...
7-3
Hinge-Upp L SAM-DA61-08309A
...
7-4
Shim-Hinge Upp SAM-DA63-50192A
...
7-5
Cam-Auto Close L SAM-DA66-00950A
...
7
Assembly Hinge Upp-L SAM-DA97-12573A
...
8-1
Screw-Tapping SAM-6002-000213
...
8-2
Screw-Tapping SAM-6002-000215
...
8-3
Hinge-Upp R; Aw4,po-Sphc,t2.9,eletrodepos SAM-DA61-08310A
...
8-4
Shim-Hinge Upp SAM-DA63-50192A
...
8-5
Cam-Auto Close R SAM-DA66-00951A
...
8
Assy Hinge Upp-R; Aw4,t3.0,black SAM-DA97-12574A
...
9
Hinge-Middle Right; Rf9000k,zn,t4.5,zndc2 SAM-DA61-10861A
...
10-1
Screw-Tapping SAM-6002-000213
...
10-2
Switch Reed; Ul1007 Awg 22,280(680),25045 SAM-DA34-00043K
...
10-3
Plate-Cover Hinge SAM-DA61-08227A
...
10-4
Top Table; Aw3 F/hub,abs,inox Gray,hg-076 SAM-DA64-05806A
...
10-5
Assy Wire Harness-Top; T-Fdr,12vdc,all,na SAM-DA96-01174B
...
10-6-1
Screw-Tapping SAM-6002-000630
...
10-6-2
Case Safety-Out; Abs,natural SAM-DA61-11802A
...
10-6-3
Case Safety-In; Abs,natural SAM-DA61-11803A
...
10-6-4
Assy Module; Std #9 Smps,aw1-12 Hub,60w ( SAM-DA92-00610C
...
10-6-5
Assy Wire Harness-Etc; Rf8000mc,family Hu SAM-DA96-01222B
...
10-6
Assy Case Safety; Rf8000mc,f-Hub, Smps, P SAM-DA97-17698B
...
10-7
Plate-Cover Hinge R SAM-DA61-08884A
...
10
Assy Top Table; Aw3 F/hub,inox Gray, Smps SAM-DA97-19296A
...
11
Assy Cover-Fixer Water; Opus1,assy SAM-DA97-08494B
...
12-1
Screw-Tapping SAM-6002-000213
...
12-2
Screw-Tap Tite SAM-DA60-10004A
...
12-3
Caster-Rivet SAM-DA61-01920A
...
12-4
Caster-Front SAM-DA61-04702A
...
12-5
Foot-Front SAM-DA61-07972B
...
12-6
Foot SAM-DA61-07973B
...
12-7-1
Shaft-Leg Front SAM-DA66-00793A
...
12-7
Assy Support-Front; Aw4-4d C/d SAM-DA97-13807A
...
12
Assy Cabi Bottom-Front; Aw4-4d C/d,noble SAM-DA97-12556D
...
13-1
Trim Blade; Aw3-14,pvc,gray SAM-DA64-05373A
...
13
Assy Cabi Bottom-Rear; Aw2-Cd-14,urethane SAM-DA97-13803B
...
14
Cover-Rail Low R; Aw2 Cd,abs,-,-,-,-,-,co SAM-DA63-04941A
...
15
Cover-Rail Low L; Aw2 Cd,abs,-,-,-,-,-,co SAM-DA63-04942A
...
16-1
Magnet-Ass'y SAM-DA61-02738A
...
16-2
Reinf-Hanger Front; Aw4,egi-Secc,t1.6,coo SAM-DA61-08526A
...
16-3
Cover-Fixer Magnet; Mouton,hips,cool Whit SAM-DA63-06739A
...
16-4
Shaft-Gear; Aw4,sm25c,715.1,black Electro SAM-DA66-00437F
...
16-5-1
Fixer-Gear SAM-DA61-03154A
...
16-5-2
Rail-Slide Low R; Aw2-Cd,scp1,zpc2,assy SAM-DA61-08819A
...
16-5-3
Hanger-Low Right; Aw4-4d(c/d),egi-Secc,co SAM-DA61-09163A
...
16-5
Assy Rail-Low Right; Aw4-4d,rail Slide Lo SAM-DA97-13775B
...
16-6-1
Fixer-Gear SAM-DA61-03154A
...
16-6-2
Rail-Slide Low L; Aw2-Cd,scp1,zpc2,assy SAM-DA61-08818A
...
16-6-3
Hanger-Low Left; Aw4-4d(c/d),egi-Secc,coo SAM-DA61-09192A
...
16-6
Assy Rail; Aw4-4d,rail Slide Low Left, 8x SAM-DA97-13777B
...
16
Assy Hanger-Low; Aw4-4d (c/d),fdr SAM-DA97-13782A
...
17-1
Magnet-Ass'y SAM-DA61-02738A
...
17-2
Fixer-Gear SAM-DA61-03154A
...
17-3
Rail-Slide Low R; Aw2-Cd,scp1,zpc2,assy SAM-DA61-08819A
...
17-4
Cover Rail-Middle Right; Aw4-Cd,abs,cool SAM-DA63-07514A
...
17-5
Hanger-Middle Right; Aw4-4d (c/d),egi-Sec SAM-DA61-09186A
...
17-6-1
Switch Reed SAM-DA34-00043H
...
17-6
Assy Wire Harness-Rail; All,12vdc,all,ul, SAM-DA96-00640B
...
17
Assy Rail-Middle Right; Aw4-4d,aw4-4d, Mi SAM-DA97-13778C
...
18-1
Fixer-Gear SAM-DA61-03154A
...
18-2
Rail-Slide Low L; Aw2-Cd,scp1,zpc2,assy SAM-DA61-08818A
...
18-3
Cover Rail-Middle Left; Aw4-Cd,abs,cool W SAM-DA63-07515A
...
18-4
Hanger-Middle Left; Aw4-4d(c/d),egi-Secc, SAM-DA61-09187A
...
18
Assy Rail-Middle Left; Aw4-4d,aw4-4d, Mid SAM-DA97-13779C
...
19
Cover-Fixer Housing V SAM-DA63-02902B
...
20
Cover Lamp-Led Side SAM-DA63-07276A
...
21
Grommet; Brr9000m,nbr,capi Grommet SAM-DA63-08943A
...
22
Shaft; Aw3-14,cfrp,743.0,8x8,black,door M SAM-DA66-00733B
...
23
Cap-Shaft Hole SAM-DA67-02795C
...
24
Coil Filter SAM-DA27-00043D
...
25
Wire Harness-Earth SAM-DA39-20389L
...
26-1-1
Fixer Handle; Aw3-14,swrch10a,m8 SAM-DA61-11161A
...
26-1-2
Cap-Wrench SAM-DA67-03197A
...
26-1-3
Wrench-Spanner SAM-DA80-00026B
...
26-1-4-1
Fastener-Hinge; Romanee Conti,pom,black SAM-DA60-00314A
...
26-1-4-2
Fastener-Hinge; Romanee Conti,pom,t1.5,bl SAM-DA60-00314B
...
26-1-4-3
Fastener-Hinge; Romanee Conti,pom,t2.0,bl SAM-DA60-00314C
...
26-1-4-4
Fastener-Hinge; Romanee Conti,pom,t2.5,bl SAM-DA60-00314D
...
26-1-4
Assy Accessory; Romanee Conti,adjustment SAM-DA99-04158A
...
26-1
Assy Install; Aw3-14,valve SAM-DA99-03490W
...
26
Assy Handle-Kit; Aw3,versailles Sts With SAM-DA99-04011J

Cabinet 2

...
...
1
Fitting-Lokring 33 SAM-DA60-00280A
...
2
Fitting-Lokring 43 SAM-DA60-00281A
...
3
Pipe Connect-Suction; C1220t-O,od6.35,t0. SAM-DA62-03691A
...
4
Dryer SAM-DA62-04309B
...
5
Assy Cover Comp; Polaris,gi-Sgcc,t0.25 SAM-DA97-12749J
...
6
Assembly Cover Pcb-Panel SAM-DA97-08442D
...
7-1
Caster-Rear SAM-DA61-04703A
...
7-2
Shaft-Caster SAM-DA66-00649B
...
7
Assembly Chassis-Comp SAM-DA97-12557A
...
8
Grommet Comp; Usp05,epdm,od27.0,black SAM-DA63-02617C
...
9
Cover-Urethane SAM-DA63-03809A
...
10-1
Screw-Tapping SAM-6002-000215
...
10-2
Rail-Fre Up Right; Aw4-4d,hips,natural,s8 SAM-DA61-09204A
...
10-3
Rail-Fre Up Left; Aw4-4d,hips,natural,s83 SAM-DA61-09208A
...
10-4-1
Assembly Lamp Led SAM-DA41-00519Q
...
10-4-2-1
Sensor Temp SAM-DA32-00033C
...
10-4-2-2
Cover Sensor-Fre SAM-DA63-05470B
...
10-4-2
Assembly Cover-Sensor Fre SAM-DA97-08608A
...
10-4
Assy Wire Harness-Main; Aw4-Cd,dispenser, SAM-DA96-01325A
...
10-5-1
Screw-Tapping SAM-6002-000471
...
10-5
Assy Case Ice; Aw4 Cd SAM-DA97-13763A
...
10-6-1
Screw-Tapping SAM-6002-001204
...
10-6-2-1
Sensor Temp SAM-DA32-00033C
...
10-6-2-2
Cover Sensor-Fre SAM-DA63-05470B
...
10-6-2
Assembly Cover-Sensor Fre SAM-DA97-08608A
...
10-6
Assy Partition; Aw4-Cd,slim Hinge SAM-DA97-13801C
...
10-7-1
Assy Roller; Rf9000jc,24 SAM-DA97-15997A
...
10-7
Assy Rail-Right; Aw4-Cd,veg SAM-DA97-13837A
...
10-8-1
Assy Roller; Rf9000jc,24 SAM-DA97-15997A
...
10-8
Assy Rail-Left; Aw4-Cd,veg SAM-DA97-13838A
...
10-9-1
Seal-Drain Hose; Aram10,pu Foam,t10,30 SAM-DA72-00238B
...
10-9
Assy Drain Hose-Middle; Aw4,4door SAM-DA97-13860A
...
10-10-1
Fixer Pipe; Fdr/t-Type Ice Room Model,sts SAM-DA61-12775A
...
10-10
Assy Pipe Direct Ice; Aw4-4d Cd,c1220t-0, SAM-DA97-13863A
...
10
Assy Liner; Aw4,cd,f-Hub,110v,sr SAM-DA94-01434D
...
11
Cover Relay; Msv,mppo,t2.0,5v-A,black,m-H SAM-DA63-06122A
...
12
Cmp,refrigerator,r-134a; Cmp,refrigerator,r-134a SAM-NC1MV90ALP/E01
...
13-1
Screw-Tapping SAM-6002-000213
...
13-2
Grommet-Cond Sub SAM-DA63-04424A
...
13-3
Grommet-Immersion Pipe B SAM-DA63-07323A
...
13-4
Tray Drain-Water SAM-DA63-08236A
...
13-5
Grommet-Suct Pipe A SAM-DA63-40171B
...
13-6-1-1
Fan SAM-DA31-00320A
...
13-6-1-2
Spring Etc-Fan SAM-DA61-20128A
...
13-6-1
Motor Bldc Fan; Rmf002assa,1120 Rpm,12v,0 SAM-DA31-00340A
...
13-6
Assy Support-Circuit Motor; Rh9000k SAM-DA97-15765C
...
13
Assy Tray Drain Water; Aw,pfc SAM-DA97-15978B
...
14
Assy Cabi Rear; Aw4 4door,e-Cost SAM-DA97-13843F
...
15
Assy Cabi Frame; Aw4,cd,sr,f-Hub SAM-DA97-13919W
...
16
Assy Case Pba-Main; Aw4-4d SAM-DA97-14519B
...
17
Assy Guide Hose-Bottom; Aw3-14,foam Pe SAM-DA97-14866A
...
18
Assy Wire Harness-Comp; All,all,free Volt SAM-DA96-01170A
...
19
Pipe-Connect Disc,b SAM-DA73-10190U
...
20-1
Fixer-Drain SAM-DA61-05021A
...
20-2
Tube Pvc SAM-DA62-01266B
...
20-3
Grommet-Drain SAM-DA63-02761A
...
20-4
Cap-Drain SAM-DA67-01301A
...
20
Assembly Cap-Drain SAM-DA97-04049E
...
21
Holder-Wire; Gi-Sgcc,black SAM-DB61-00206A
...
22
Assy Pcb Inverter; Inverter,rf9000k,163*9 SAM-DA92-00763B
...
23
Assembly Module SAM-DA92-00486A
...
24
Assy Pcb Eeprom; 0x41,d607,aw4-Cd F-Hub,m SAM-DA94-04226A
...
25
Assy Module; Y-Cap Filter,aw1-12 Hub,y-Ca SAM-DA92-00941A
...
26
Cbf-Power Cord; At,usa,us3f-1,3c,125v,15a SAM-3903-001003
...
27
Seal Cutt-Rubber; W2-05,rubber,black,t8,w SAM-DA72-60040Y

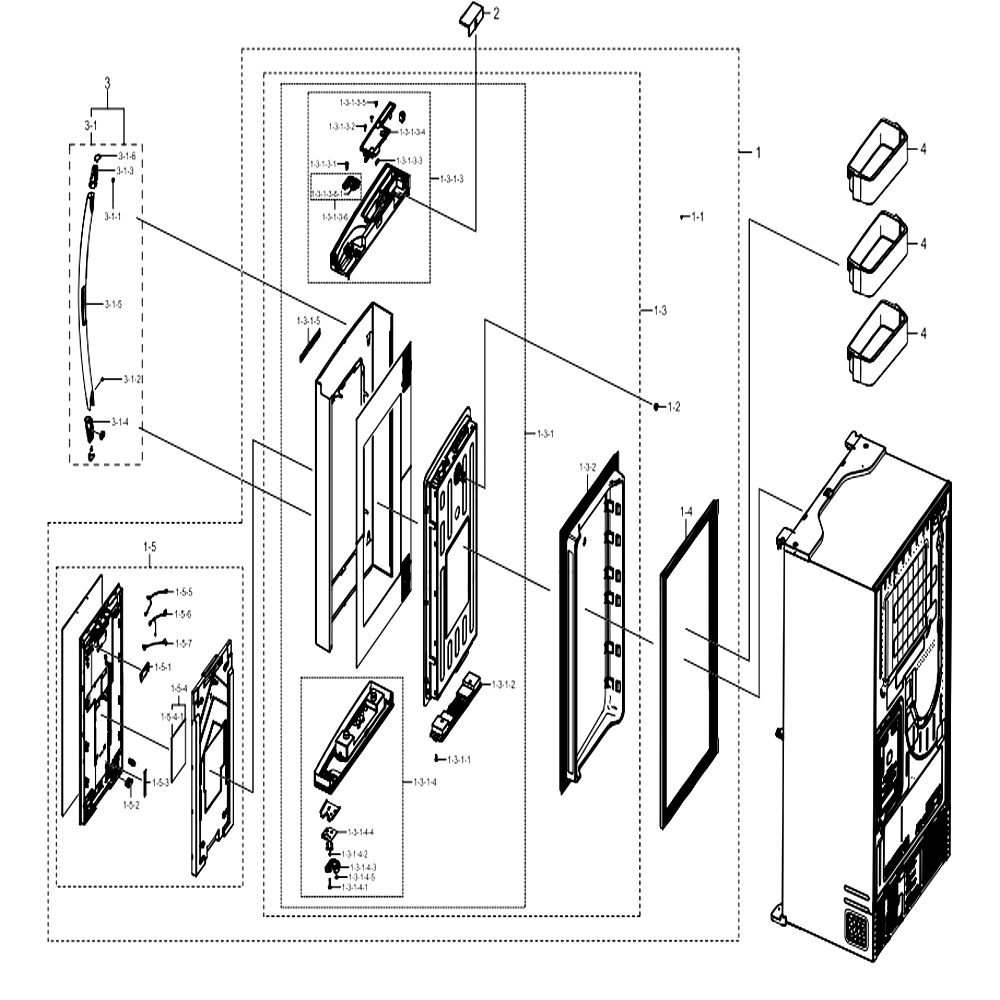

Fridge Door Right

...
...
1-1
Screw-Tapping SAM-6002-000215
...
1-2
Cap-Screw SAM-DA67-30266K
...
1-3-1-1
Screw-Tapping SAM-6002-001122
...
1-3-1-2
Assy Cover Case-Speaker; Rf9500k,inox Gra SAM-DA97-16611C
...
1-3-1-3-1
Screw-Tapping SAM-6002-000613
...
1-3-1-3-2
Screw-Tapping SAM-6002-001122
...
1-3-1-3-3
Magnet-A SAM-DA61-03769A
...
1-3-1-3-4
Cover Cap Door-Ref Up; Abs,inox Gray SAM-DA63-08826A
...
1-3-1-3-5
Cap-Shaft Hole SAM-DA67-02795C
...
1-3-1-3-6-1
Roller-Auto Close SAM-DA66-00440A
...
1-3-1-3-6
Assembly Lever-Auto Close SAM-DA97-12625A
...
1-3-1-3
Assy Cap Door-Ref Up Right; Aw3 F/hub,ino SAM-DA97-19298A
...
1-3-1-4-1
Screw-Machine SAM-6001-001377
...
1-3-1-4-2
Screw-Tapping SAM-6002-001120
...
1-3-1-4-3
Support Door-Close; Aw-Pjt,pk,m33r3a000,c SAM-DA61-02383E
...
1-3-1-4-4
Stopper-Door R; Aw4,po-Sphc,t2.9,black,t2 SAM-DA61-08196A
...
1-3-1-4-5
Grommet-Stopper SAM-DA63-40294A
...
1-3-1-4
Assy Cap Door-Ref Low Right; Aw3 F/hub,in SAM-DA97-19300C
...
1-3-1-5
Mascot SAM-DA64-04021C
...
1-3-1
Assy Plate Door-Ref Right; Aw3 F/hub,real SAM-DA97-19294C
...
1-3-2
Panel-Ref Right; Aw3 F/hub,abs,t1,w429.7, SAM-DA64-05807A
...
1-3
Assy Door Foam-Ref Right; Aw3,f-Hub,sts20 SAM-DA91-04146R
...
1-4
Assy Gasket-Ref; Aw4-4d,gray SAM-DA97-13015C
...
1-5-1
W-Lan Module; Wcm730q,ieee802.11,2.4/5ghz SAM-4709-002552
...
1-5-2
Sensor Psd; Ora1l17,5v SAM-DA32-00080A
...
1-5-3
Assy Module; Mic, 88*11*1.6t,rf9500n,88*1 SAM-DA92-00789D
...
1-5-4-1
Assy Pcb Smd; Kant-Ms_21.5" Lcd,aw4-12_F- SAM-DA94-04242A
...
1-5-4
Assy Pcb Display; Kant-Ms_21.5" Lcd,aw4-1 SAM-DA92-01071A
...
1-5-5
Assy Wire Harness-Etc; Aw1-12,wifi/bt,mic SAM-DA96-01224A
...
1-5-6
Assy Wire Harness-Etc; Aw3-14 Hub,lcd, Pr SAM-DA96-01224E
...
1-5-7
Assy Wire Harness; F_Hub 2.0,free Volt,lc SAM-DA96-01253A
...
1-5
Assy Cover Display; Aw3/4 F-Hub,27.5",s/w SAM-DA97-17068P
...
1
Assy Door Sub-Ref Right; Aw3,f-Hub,sts201 SAM-DA93-00237L
...
2
Cover Lock; Abs,t2.5,inox Gray SAM-DA63-08449A
...
3-1-1
Screw-Tapping SAM-6002-000213
...
3-1-2
Screw-Set SAM-6009-001526
...
3-1-3
Support-Handle Ref SAM-DA61-08228A
...
3-1-4
Support-Handle Ref Upp SAM-DA61-08246A
...
3-1-5
Handle Bar-Ref R; Aw1-12 & Aw4,al,t1.3,ve SAM-DA64-03756G
...
3-1-6
Cap-Supt Handle Ref SAM-DA67-02788A
...
3-1
Assy Handle Bar-Ref R; Aw4,al(a6063),vers SAM-DA97-12714C
...
3
Assy Handle-Kit; Aw3,versailles Sts With SAM-DA99-04011J
...
4
Assy Guard-Ref Right; Aw3 F/hub,aw4_Cd F/ SAM-DA97-19241A

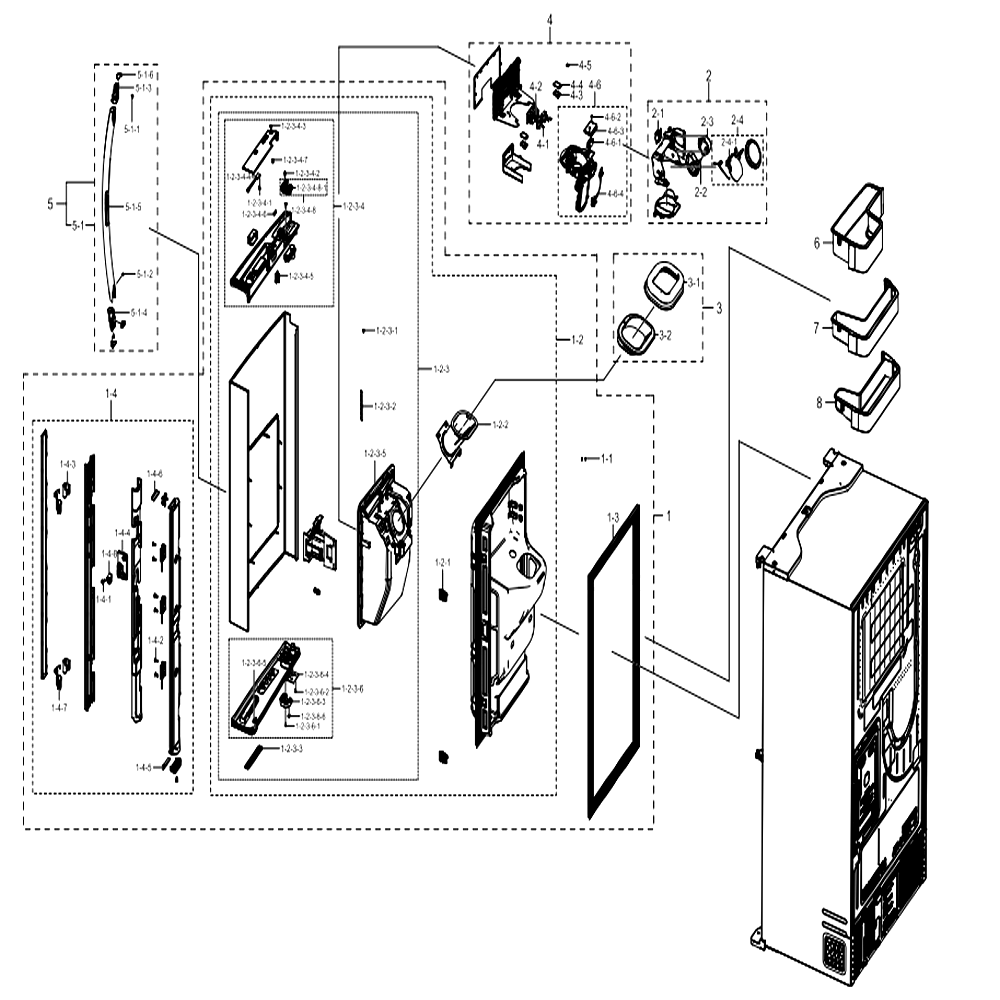

Fridge Door Left

...
...
1-1
Screw-Tapping SAM-6002-001406
...
1-2-1
Assy-Grommet French; Aw-Pjt,-,-,- SAM-DA97-05038A
...
1-2-2
Assy Guide-Ice Route; Aw4,t2.5,cool White SAM-DA97-12593A
...
1-2-3-1
Screw-Tapping SAM-6002-000217
...
1-2-3-2
Assy Lamp Led; 2,fr-4,20*30,white,smaw250 SAM-DA41-00676J
...
1-2-3-3
Cover-Cap Door Led SAM-DA63-05524A
...
1-2-3-4-1
Screw-Tapping SAM-6002-000466
...
1-2-3-4-2
Screw-Tapping SAM-6002-000613
...
1-2-3-4-3
Screw-Tapping SAM-6002-001122
...
1-2-3-4-4
Sensor Humidity SAM-DA32-00034B
...
1-2-3-4-5
Switch Door-Interlock SAM-DA34-00066C
...
1-2-3-4-6
Magnet-A SAM-DA61-03769A
...
1-2-3-4-7
Cap-Shaft Hole SAM-DA67-02795C
...
1-2-3-4-8-1
Roller-Auto Close SAM-DA66-00440A
...
1-2-3-4-8
Assembly Lever-Auto Close SAM-DA97-12625A
...
1-2-3-4
Assy Cap Door-Ref Up Left; Aw3 F/hub,inox SAM-DA97-13883Q
...
1-2-3-5
Assy Case Dispenser; Aw3 F/hub,inox Metal SAM-DA97-13952K
...
1-2-3-6-1
Screw-Machine SAM-6001-000716
...
1-2-3-6-2
Screw-Tapping SAM-6002-001120
...
1-2-3-6-3
Support Cap Door-Left; Rf9000k,pom,t3.5,k SAM-DA61-10856A
...
1-2-3-6-4
Stopper Door-L; Romanee Conti,po-Sphc,bla SAM-DA61-08816A
...
1-2-3-6-5
Grommet-Chassis Up SAM-DA63-04825A
...
1-2-3-6-6
Grommet-Stopper SAM-DA63-40294A
...
1-2-3-6
Assy Cap Door-Ref Low Left; Aw3-14,inox G SAM-DA97-14358H
...
1-2-3
Assy Plate Door-Ref Left; Aw3 F/hub,rs,di SAM-DA97-16102L
...
1-2
Assy Door Foam-Ref Left; Aw3,,f-Hub,sts20 SAM-DA91-04200K
...
1-3
Assy Gasket-Ref; Aw4-4d,gray SAM-DA97-13015C
...
1-4-1
Screw-Tapping SAM-6002-000213
...
1-4-2
Screw-Tapping SAM-6002-000630
...
1-4-3
Hinge-French SAM-DA61-08305A
...
1-4-4
Cover-Heater French SAM-DA63-03454B
...
1-4-5
Gasket-French Low; Aw-Pjt,si,gray SAM-DA63-06842B
...
1-4-6
Gasket-French Upp; Aw4,si,gray SAM-DA63-06959A
...
1-4-7
Cap-Case French SAM-DA67-01650A
...
1-4-8
Cap-Case French Mid SAM-DA67-01701A
...
1-4
Assy French; Aw3 F/hub,camera, Silver, 11 SAM-DA97-17723E
...
1
Assy Door Sub-Ref Left; Aw3,f-Hub,sts201, SAM-DA93-00228E
...
2-1
Switch-Micro SAM-3405-001117
...
2-2
Screw-Tapping SAM-6002-001364
...
2-3
Motor Geared-Disp SAM-DA31-00079D
...
2-4-1
Cover-Ice Route A SAM-DA63-04647A
...
2-4
Assembly Cover-Ice Route SAM-DA97-05368A
...
2
Assy Case-Ice Route; Aw4,120v SAM-DA97-08680E
...
3-1
Gasket; Fdsr,tpe,white SAM-DA63-08248A
...
3-2
Cap-Chute Ice SAM-DA67-03312A
...
3
Assembly Cap-Chute Ice SAM-DA97-12594A
...
4-1
Screw-Tapping SAM-6002-000630
...
4-2
Assembly Pcb Kit SAM-DA41-00217A
...
4-3
Case Lamp-Led SAM-DA61-05687A
...
4-4
Cover-Lamp-Led SAM-DA63-02446A
...
4-5
Assy Module; Dispenser Pba,aw1-12 Hub,dis SAM-DA92-00940A
...
4-6-1
Switch-Micro; 250vac,1a,80,spst-No,t105 SAM-3405-001119
...
4-6-2
Screw-Tapping SAM-6002-000630
...
4-6-3
Cover-Switch SAM-DA63-05449A
...
4-6-4
Assy Wire Harness-Display; 12vdc,ul+iec,n SAM-DA96-01223C
...
4-6
Assy Lever Dispenser; Aw3 F/hub,1-Lever SAM-DA97-12628S
...
4
Assy Cover Dispenser; Aw3 F/hub,real Sts SAM-DA97-19305A
...
5-1-1
Screw-Tapping SAM-6002-000213
...
5-1-2
Screw-Set SAM-6009-001526
...
5-1-3
Support-Handle Ref SAM-DA61-08228A
...
5-1-4
Support-Handle Ref Upp SAM-DA61-08246A
...
5-1-5
Handle Bar-Ref L; Aw1-12 & Aw4,al,t1.3,ve SAM-DA64-03756K
...
5-1-6
Cap-Supt Handle Ref SAM-DA67-02788A
...
5-1
Assy Handle Bar-Ref L; Aw4,al(a6063),vers SAM-DA97-12715C
...
5
Assy Handle-Kit; Aw3,versailles Sts With SAM-DA99-04011J
...
6
Assy Guard-Ref Up; Aw4-4d(cd) SAM-DA97-13804A
...
7
Assy Guard-Ref Middle; Aw4-4d(c/d) SAM-DA97-13818A
...
8
Assy Guard-Ref Low; Aw4-4d(c/d) SAM-DA97-13819A

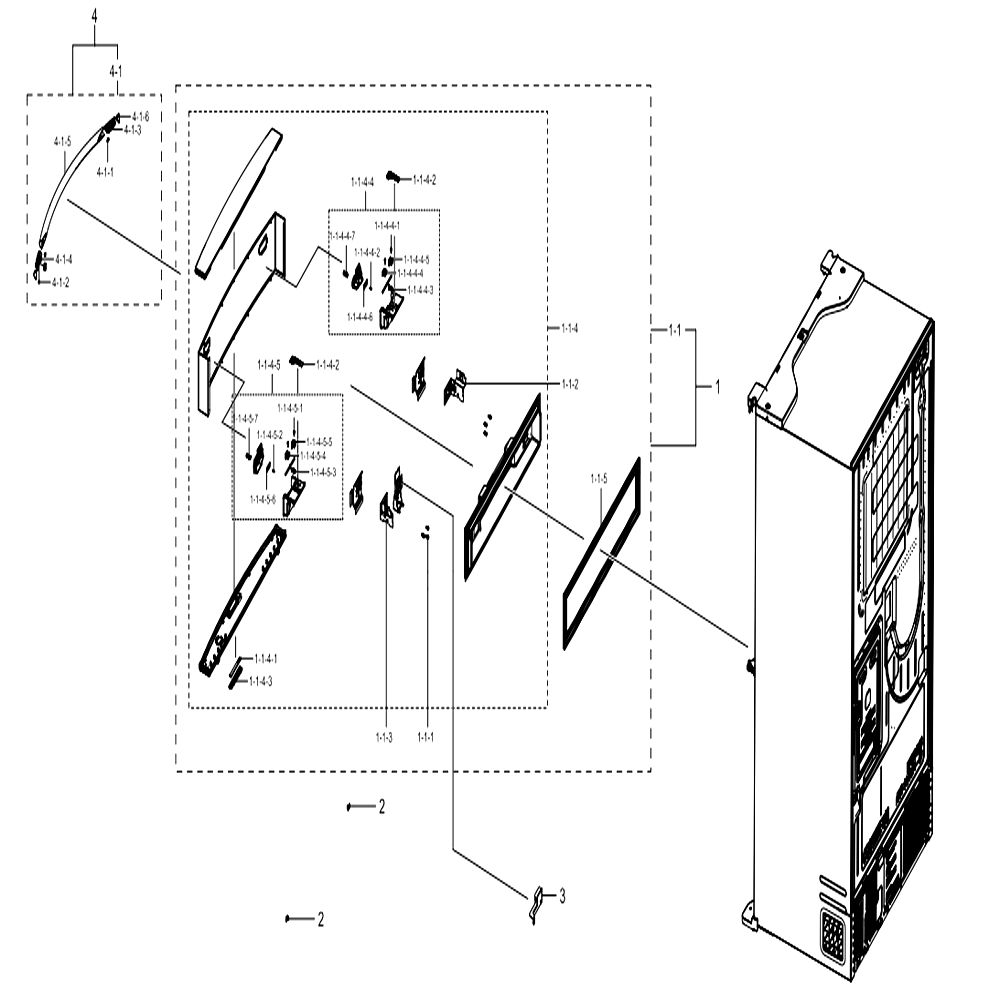

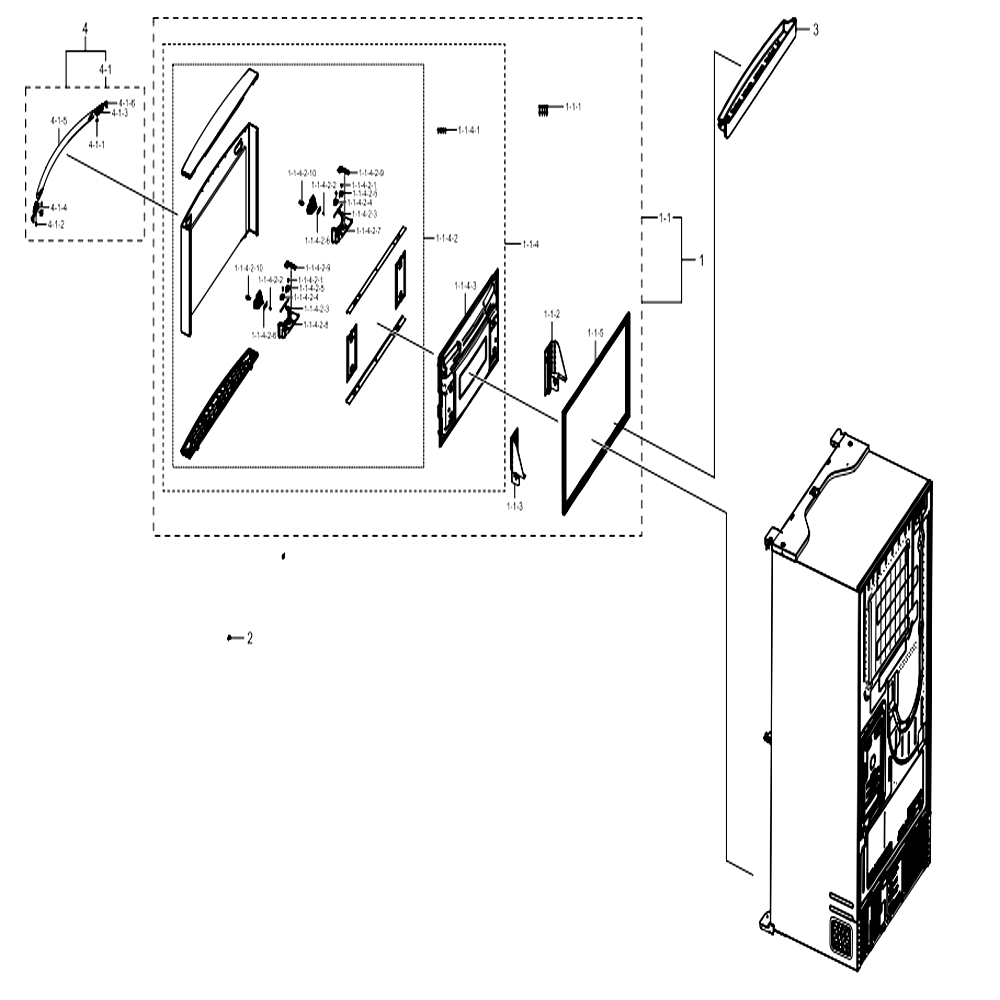

Mid Door

...
...
1-1-1
Screw-Tapping SAM-6002-000613
...
1-1-2
Hanger-Front Middle Left SAM-DA61-09248A
...
1-1-3
Hanger-Front Middle Right SAM-DA61-09249A
...
1-1-4-1
Assy Lamp Led; 2,fr-4,20*30,white,smaw250 SAM-DA41-00676J
...
1-1-4-2
Slider-Easy Handle; Aw4,pom,creamy-Sts,f2 SAM-DA61-08234A
...
1-1-4-3
Cover-Cap Door Led SAM-DA63-05524A
...
1-1-4-4-1
Screw-Tapping SAM-6002-000215
...
1-1-4-4-2
Screw-Tapping SAM-6002-000630
...
1-1-4-4-3
Spring Etc-Easy Handle SAM-DA61-04335A
...
1-1-4-4-4
Fixer-Shaft R SAM-DA61-05899A
...
1-1-4-4-5
Fixer-Shaft L SAM-DA61-05930A
...
1-1-4-4-6
Reinf-Cap Handle SAM-DA61-06658A
...
1-1-4-4-7
Fixer Handle; Aw3-14,swrch10a,m8 SAM-DA61-11161A
...
1-1-4-4
Assy Support-Left; Aw3-14,assy,inox Gray SAM-DA97-13870D
...
1-1-4-5-1
Screw-Tapping SAM-6002-000215
...
1-1-4-5-2
Screw-Tapping SAM-6002-000630
...
1-1-4-5-3
Spring Etc-Easy Handle SAM-DA61-04335A
...
1-1-4-5-4
Fixer-Shaft R SAM-DA61-05899A
...
1-1-4-5-5
Fixer-Shaft L SAM-DA61-05930A
...
1-1-4-5-6
Reinf-Cap Handle SAM-DA61-06658A
...
1-1-4-5-7
Fixer Handle; Aw3-14,swrch10a,m8 SAM-DA61-11161A
...
1-1-4-5
Assy Support-Right; Aw3-14,assy,inox Gray SAM-DA97-13871D
...
1-1-4
Assy Door Foam-Middle; Aw3 F/hub,f/hub, R SAM-DA91-04926A
...
1-1-5
Assy Gasket-Middle; Aw4-4d,gray SAM-DA97-12522Q
...
1-1
Assy Door; Aw3 F/hub,mid, Rs, No Display SAM-DA97-13797Q
...
1
Assy Door Sub-Middle; Aw3 F/hub,real Sts, SAM-DA93-00220J
...
2
Bolt-Hex SAM-6011-001656
...
3
Cover-W/harness Conv Door SAM-DA63-05462C
...
4-1-1
Screw-Tapping SAM-6002-000213
...
4-1-2
Screw-Set SAM-6009-001526
...
4-1-3
Support-Handle Fre SAM-DA61-08229A
...
4-1-4
Support-Handle Fre R SAM-DA61-08247A
...
4-1-5
Handle Bar-Fre; Aw1-12,aw4,al,t1.3,versai SAM-DA64-03945F
...
4-1-6
Cap-Handle Fre SAM-DA67-02787A
...
4-1
Assy Handle Bar-Fre; Aw4,al(a6063),versai SAM-DA97-12712C
...
4
Assy Handle-Kit; Aw3,versailles Sts With SAM-DA99-04011J

Freezer-door

...
...
1-1-1
Screw-Tapping SAM-6002-000613
...
1-1-2
Hanger-Front Left; Aw4-4d,egi-Secc,cool W SAM-DA61-09245A
...
1-1-3
Hanger-Front Right; Aw4-4d,egi-Secc,cool SAM-DA61-09247A
...
1-1-4-1
Screw-Tapping SAM-6002-001406
...
1-1-4-2-1
Screw-Tapping SAM-6002-000215
...
1-1-4-2-2
Screw-Tapping SAM-6002-000630
...
1-1-4-2-3
Spring Etc-Easy Handle; 08 Aw1,2-Pjt,hswr SAM-DA61-04335B
...
1-1-4-2-4
Fixer-Shaft R SAM-DA61-05899A
...
1-1-4-2-5
Fixer-Shaft L SAM-DA61-05930A
...
1-1-4-2-6
Reinf-Cap Handle SAM-DA61-06658A
...
1-1-4-2-7
Support Cap Door-Left; Aw3-14,abs,hb,cr-0 SAM-DA61-08211D
...
1-1-4-2-8
Support Cap Door-Right; Aw3-14,abs,hb,cr- SAM-DA61-08226D
...
1-1-4-2-9
Slider-Easy Handle; Aw4,pom,creamy-Sts,f2 SAM-DA61-08234A
...
1-1-4-2-10
Fixer Handle; Aw3-14,swrch10a,m8 SAM-DA61-11161A
...
1-1-4-2
Assy Plate Door-Fre; Aw4-4d,rs Plate SAM-DA97-14207A
...
1-1-4-3
Panel-Fre; Aw4-4d,abs,qu-191s,cool White SAM-DA64-04494A
...
1-1-4
Assy Door Foam-Fre; Aw4-4d,rs Plate SAM-DA91-04290A
...
1-1-5
Assy Gasket-Fre; Aw4-4d,gray SAM-DA97-12522S
...
1-1
Assy Door Fre; Real Sts201,rs SAM-DA90-08947K
...
1
Assy Door Sub-Fre; Real Sts201,rs SAM-DA93-00224A
...
2
Bolt-Hex SAM-6011-001656
...
3
Guard-Fre SAM-DA63-07512A
...
4-1-1
Screw-Tapping SAM-6002-000213
...
4-1-2
Screw-Set SAM-6009-001526
...
4-1-3
Support-Handle Fre SAM-DA61-08229A
...
4-1-4
Support-Handle Fre R SAM-DA61-08247A
...
4-1-5
Handle Bar-Fre; Aw1-12,aw4,al,t1.3,versai SAM-DA64-03945F
...
4-1-6
Cap-Handle Fre SAM-DA67-02787A
...
4-1
Assy Handle Bar-Fre; Aw4,al(a6063),versai SAM-DA97-12712C
...
4
Assy Handle-Kit; Aw3,versailles Sts With SAM-DA99-04011J
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
