Samsung RF22KREDBSG/AA_0002

Model: RF22KREDBSG/AA_0002

Save Part Not Listed?
product name

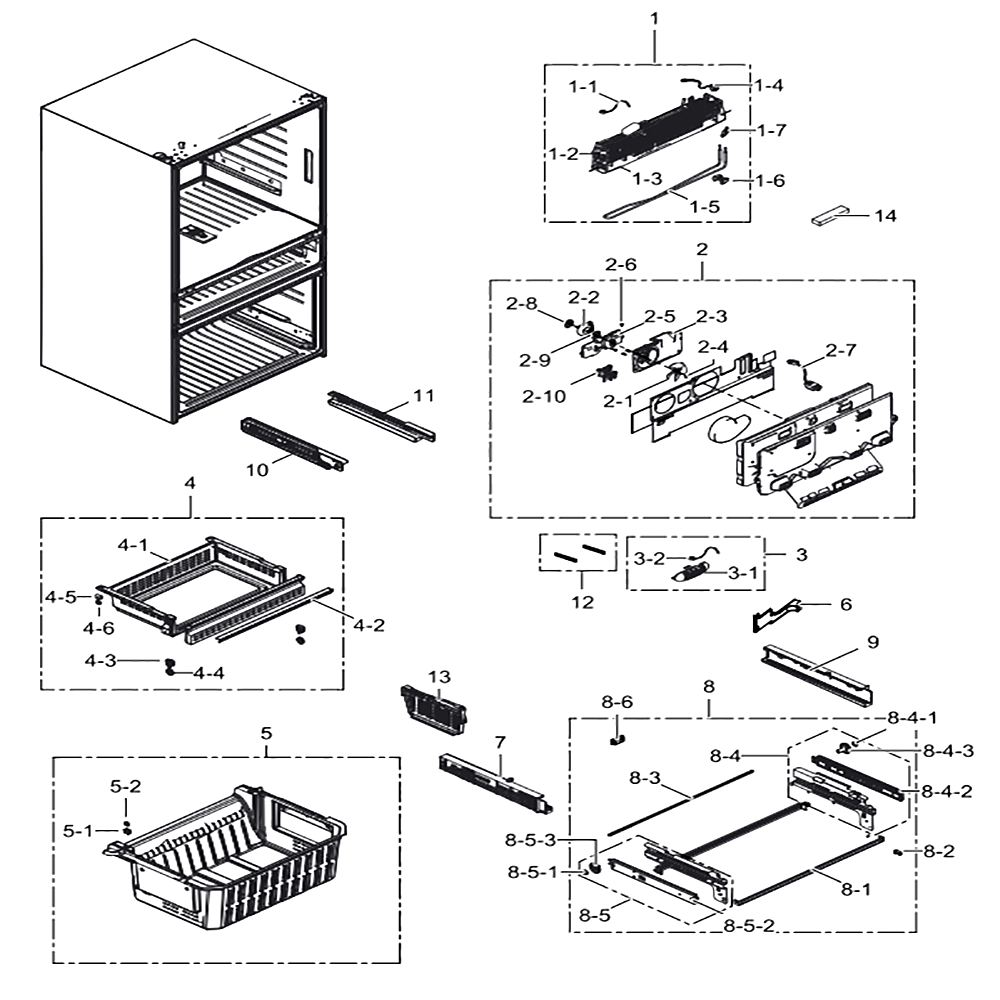

Freezer

...
...
1-1
Sensor Temp SAM-DA32-10104N
...
1-2
Evap Fre; Fin Tube,aw3 SAM-DA59-00400A
...
1-3
Plate-Drain Fre; Aw3-Pjt,gl-Sazcc,t0.3 SAM-DA61-05842A
...
1-4
Thermo Bimetal-Protector SAM-DA47-00243B
...
1-5
Heater Metal Sheath SAM-DA47-00318H
...
1-6
Fixer-Heater Fre SAM-DA61-05845A
...
1-7
Fixer-Sensor Fre SAM-DA61-06182A
...
1
Assembly Evap-Fre SAM-DA96-00631D
...
2-1
Fan-Ax100w4cc-T1 SAM-DA31-00124A
...
2-2
Motor Bldc SAM-DA31-00146H
...
2-3
Case Motor-Fre SAM-DA61-05867B
...
2-4
Spring Etc-Fan SAM-DA61-20128A
...
2-5
Cover Motor-Bldc SAM-DA63-01809B
...
2-6
Grommet-Cover Chill SAM-DA63-40167A
...
2-7
Assembly Wire Harness-Motor SAM-DA96-00042D
...
2-8
Grommet-Motor,rear SAM-DA63-01146A
...
2-9
Grommet Motor SAM-DA63-01808A
...
2-10
Screw-Tapping SAM-6002-000215
...
2
Assembly Cover Evap-Fre SAM-DA97-08434E
...
3-1
Cover Sensor-Fre SAM-DA63-05470B
...
3-2
Sensor Temp SAM-DA32-00033C
...
3
Assembly Cover-Sensor Fre SAM-DA97-08608A
...
4-1
Tray-Fre Up; Aw4-4d (c/d),hips,cool White SAM-DA63-07499A
...
4-2
Trim-Tray Fre; Aw4,hips,s834s1,cool White SAM-DA64-03862F
...
4-3
Fixer-Roller Tray Fre Upp SAM-DA61-04154A
...
4-4
Roller-Tray Fre Upp SAM-DA66-00554A
...
4-5
Fixer-Roller SAM-DA71-20277A
...
4-6
Roller-Fre SAM-DA66-10104A
...
4
Assy Tray-Fre Up; Aw4-4d (c/d),fdr SAM-DA97-13773A
...
5-1
Fixer-Roller SAM-DA71-20277A
...
5-2
Roller-Fre SAM-DA66-10104A
...
5
Assy Tray-Fre Low; Aw4-4d (c/d),fdr SAM-DA97-13774A
...
6
Cover Air-Wire Harness Ice; Aw4 Cd,hips,c SAM-DA63-07496A
...
7
Cover-Rail Low L; Aw2 Cd,abs,-,-,-,-,-,co SAM-DA63-04942A
...
8-1
Reinf-Hanger Front; Aw4,egi-Secc,t1.6,coo SAM-DA61-08526A
...
8-2
Cover-Fixer Magnet; Mouton,hips,cool Whit SAM-DA63-06739A
...
8-3
Shaft-Gear; Aw4,sm25c,715.1,black Electro SAM-DA66-00437F
...
8-4-1
Fixer-Gear SAM-DA61-03154A
...
8-4-2
Rail-Slide Low R; Aw2-Cd,scp1,zpc2,assy SAM-DA61-08819A
...
8-4-3
Gear-Rail R SAM-DA66-00750A
...
8-4
Assy Rail-Low Right; Aw4-4d (c/d),fdr SAM-DA97-13775A
...
8-5-1
Fixer-Gear SAM-DA61-03154A
...
8-5-2
Rail-Slide Low L; Aw2-Cd,scp1,zpc2,assy SAM-DA61-08818A
...
8-5-3
Gear-Rail L SAM-DA66-00751A
...
8-5
Assy Rail-Low Left; Aw4-4d (c/d),fdr SAM-DA97-13777A
...
8-6
Magnet-Ass'y SAM-DA61-02738A
...
8
Assy Hanger-Low; Aw4-4d (c/d),fdr SAM-DA97-13782A
...
9
Cover-Rail Low R; Aw2 Cd,abs,-,-,-,-,-,co SAM-DA63-04941A
...
10
Rail-Fre Up Left; Aw4-4d,hips,natural,s83 SAM-DA61-09208A
...
11
Rail-Fre Up Right; Aw4-4d,hips,natural,s8 SAM-DA61-09204A
...
12
Assembly Lamp Led SAM-DA41-00519Q
...
13
Guide-Fre; Aw4-4d (c/d),pp,hb,bj750,cool SAM-DA61-09233A
...
14
Seal-Cutt Rubber SAM-DA72-60040W

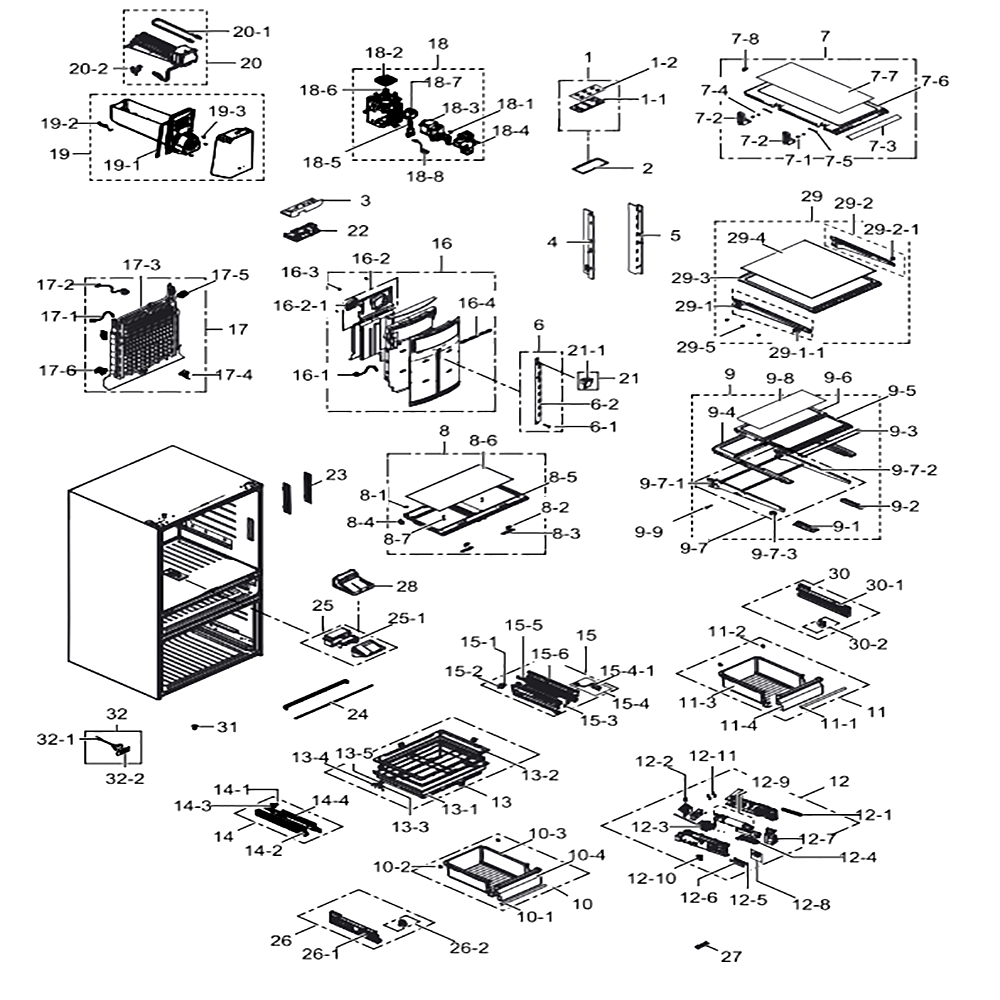

Refrigerator

...
...
1-1
Case Lamp-Ref SAM-DA61-08236A
...
1-2
Assy Lamp Led; 5,cem-1,240*10,white,smaw2 SAM-DA41-00676K
...
1
Assy Case Lamp-Ref; Aw4,long Led SAM-DA97-12606B
...
2
Cover Lamp-Ref SAM-DA63-07816A
...
3
Guide-French SAM-DA61-04285A
...
4
Angle-Shelf Ref Side L SAM-DA61-05898A
...
5
Angle-Shelf Ref Side R SAM-DA61-05897A
...
6-1
Screw-Tapping SAM-6002-001397
...
6-2
Angle Shelf-Ref Middle; Cr-Spcc,t2.5,inox SAM-DA61-09166D
...
6
Assembly Angle Shelf-Ref Middle SAM-DA97-13844D
...
7-1
Spring Etc-Hinge Shelf SAM-DA61-03705A
...
7-2
Bracket-Hinge Shelf; Opus1-14,pc,cool Whi SAM-DA61-08215A
...
7-3
Trim-Shelf Insert Ref Fold; Aw4,sts304,-, SAM-DA64-04223A
...
7-4
Roller-Hinge-Shelf SAM-DA66-00482A
...
7-5
Shaft-Hinge-Shelf SAM-DA66-00483A
...
7-6
Shelf Folder; Aw4-4d,pp,cool White,aw4-Cd SAM-DA67-03693A
...
7-7
Glass-Shelf Ref Fold; Glass SAM-DA01-00887A
...
7-8
Screw-Tapping SAM-6002-001397
...
7
Assy Shelf Folder; Aw4-Cd SAM-DA97-13836A
...
8-1
Fixer-Cover Veg SAM-DA61-03166A
...
8-2
Knob-Humidity; Aw4,abs,natural,chromium P SAM-DA64-04173A
...
8-3
Lever-Humidity SAM-DA66-00718A
...
8-4
Assy Roller; Rf9000jc,24 SAM-DA97-15997A
...
8-5
Cover Veg-Ref; Aw4-4d,hips,cool White,hg- SAM-DA63-07497A
...
8-6
Glass; Glass SAM-DA01-00891A
...
8-7
Case Lock-A; Rf9000jc,pom,natural,k300 SAM-DA61-10523A
...
8
Assy Cover Veg-Ref; Aw4-Cd SAM-DA97-13840A
...
9-1
Support Rail-Left; Aw4-4d,abs,hg-0760gp,c SAM-DA61-09300A
...
9-2
Support Rail-Right; Aw4-4d,abs,hg-0760gp, SAM-DA61-09299A
...
9-3
Trim-Shelf Quick Space; Aw4,sts304,-,t0.4 SAM-DA64-04222A
...
9-4
Shelf-Rear; Aw4-4d,pp,cool White,aw4-Cd SAM-DA67-03696A
...
9-5
Shelf-Front; Aw4-4d,pp,cool White,aw4-F/s SAM-DA67-03713A
...
9-6
Shelf-Middle; Aw4-4d,pp,cool White,aw-Cd SAM-DA67-03698A
...
9-7-1
Hanger-Low Left; Aw4-Cd,egi-Secc,t2.0 SAM-DA61-09197A
...
9-7-2
Hanger-Low Right; Aw4-Cd,egi-Secc,t2.0 SAM-DA61-09195A
...
9-7-3
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09550A
...
9-7
Assy Shelf Hanger-Right; Aw4-Cd SAM-DA97-13832A
...
9-8
Glass-Shelf Ref Middle; Glass SAM-DA01-00894A
...
9-9
Screw-Tapping SAM-6002-001397
...
9
Assy Shelf Folder-Ref; Aw4-Cd,slide In SAM-DA97-13834A
...
10-1
Trim Cover-Ref; Aw4-Cd,hips,s834s1,cool W SAM-DA64-03862R
...
10-2
Assembly Roller SAM-DA97-15998A
...
10-3
Case Veg-Ref Left; Aw4-4d,gpps,natural,hf SAM-DA61-09161A
...
10-4
Cover Veg-Front Left; Aw4-Cd,gpps,natural SAM-DA63-07552A
...
10
Assy Case Veg-Left; Aw4-Cd SAM-DA97-13842B
...
11-1
Trim Cover-Ref; Aw4-Cd,hips,s834s1,cool W SAM-DA64-03862Q
...
11-2
Assembly Roller SAM-DA97-15998A
...
11-3
Case Veg-Ref Right; Aw4-4d,gpps,natural,h SAM-DA61-09160A
...
11-4
Cover Veg-Front Right; Aw4-4d,gpps,natura SAM-DA63-07553A
...
11
Assy Case Veg-Right; Aw4-Cd SAM-DA97-13841B
...
12-1
Assembly Lamp Led SAM-DA41-00519S
...
12-2
Tube-Fitting L SAM-DA62-03103A
...
12-3
Valve Water SAM-DA62-04027A
...
12-4
Tray-Water Filter SAM-DA63-05407A
...
12-5
Cover-Led Filter SAM-DA63-05408B
...
12-6
Cover-Seal Led; Aw3,pet,t0.5,transparent SAM-DA63-05928A
...
12-7
Cover-Filter Tank; Aw4,hips,w72.4,l167.7, SAM-DA63-06885A
...
12-8
Assy Case Filter; H920g SAM-DA97-08006L
...
12-9
Assy Tank Water-Ref; H920g,pp SAM-DA97-13854C
...
12-10
Screw-Tapping SAM-6002-000471
...
12-11
Clip-Fitting Lock SAM-DA61-04522A
...
12
Assy Case Water Filter; Aw4-Cd,110v 60hz SAM-DA97-14528D
...
13-1
Case Convertible; Aw4-4d-Cd,hips,inox Gra SAM-DA61-09162B
...
13-2
Cover Convertible; Aw4-4d-Cd,hips,inox Gr SAM-DA63-07489B
...
13-3
Bracket Divider SAM-DA61-09409A
...
13-4
Roller-Divider SAM-DA66-00876A
...
13-5
Bracket Divider SAM-DA61-10717A
...
13
Assy Case Convertible; Aw4-4d-Cd,inox Gra SAM-DA97-13814C
...
14-1
Fixer-Gear SAM-DA61-03154A
...
14-2
Cover Rail-Middle Left; Aw4-Cd,abs,cool W SAM-DA63-07515A
...
14-3
Gear-Rail L SAM-DA66-00751A
...
14-4
Rail-Slide Low L; Aw2-Cd,scp1,zpc2,assy SAM-DA61-08818A
...
14
Assy Rail-Middle Left; Aw4-4d (c/d),fdr SAM-DA97-13779A
...
15-1
Fixer-Gear SAM-DA61-03154A
...
15-2
Gear-Rail R SAM-DA66-00750A
...
15-3
Magnet-Ass'y SAM-DA61-02738A
...
15-4-1
Switch Reed SAM-DA34-00043H
...
15-4
Assy Wire Harness-Rail; All,12vdc,all,ul, SAM-DA96-00640B
...
15-5
Rail-Slide Low R; Aw2-Cd,scp1,zpc2,assy SAM-DA61-08819A
...
15-6
Cover Rail-Middle Right; Aw4-Cd,abs,cool SAM-DA63-07514A
...
15
Assy Rail-Middle Right; Aw4-4d (c/d),fdr SAM-DA97-13778A
...
16-1
Sensor Temp SAM-DA32-00011D
...
16-2-1
Motor Bldc Fan SAM-DA31-00287A
...
16-2
Assembly Case Motor-Ref SAM-DA97-16026A
...
16-3
Screw-Tapping SAM-6002-001204
...
16-4
Inlay SAM-DA64-04618A
...
16
Assembly Cover Evap-Ref SAM-DA97-16028A
...
17-1
Sensor Temp SAM-DA32-10104N
...
17-2
Thermo Bimetal-Protector SAM-DA47-00243C
...
17-3
Heater Metal Sheath SAM-DA47-00434A
...
17-4
Plate-Evap Heater SAM-DA61-03644A
...
17-5
Fixer-Senser SAM-DA61-03683A
...
17-6
Fixer-Heater Ref SAM-DA61-05835B
...
17
Assembly Evap-Ref SAM-DA96-00842A
...
18-1
Screw-Tapping SAM-6002-000471
...
18-2
Motor Bldc Fan SAM-DA31-00070E
...
18-3
Motor Geared Ac Auger SAM-DA31-00105M
...
18-4
Screw-Special SAM-DA60-00001B
...
18-5
Spring Etc-Solenoid SAM-DA61-20140A
...
18-6
Grommet-Fan SAM-DA63-02513A
...
18-7
Valve-Solenoid SAM-DA74-40151G
...
18-8
Assy Wire Harness-Auger; Fdr,free Volt,ul SAM-DA96-00682E
...
18
Assy Case Auger Motor; Rf9900jc,115v 60hz SAM-DA97-12540K
...
19-1
Gasket-Tray Ice Bucket SAM-DA63-07185A
...
19-2
Spring Etc-Dispenser SAM-DA61-20124D
...
19-3
Screw-Tapping SAM-6002-000471
...
19
Assy Tray Ice; Aw2-Cd-14,magnet Type SAM-DA97-14504A
...
20-1
Heater-Icemaker; Ac120v,6cube, 120ohm,120 SAM-DA47-00462C
...
20-2
Screw-Tapping SAM-6002-000471
...
20
Assy Ice Maker; Aw4-Cd,120v-60hz SAM-DA97-13718A
...
21-1
Cap Cover Evap-Ref; Rf9000jc,hips,t2.0,hb SAM-DA67-03978A
...
21
Assembly Cap Angle SAM-DA97-15412A
...
22
Assembly Case Lock SAM-DA97-14471A
...
23
Cover Lamp-Led Side SAM-DA63-07276A
...
24
Shaft-Gear Conv SAM-DA66-00733A
...
25-1
Motor Dc-Damper SAM-DA31-00101C
...
25
Assembly Ins-Damper Conv SAM-DA97-08430A
...
26-1
Rail-Left; Aw4-4d,hips,white,hg-1760sf,aw SAM-DA61-09178A
...
26-2
Assy Roller; Rf9000jc,24 SAM-DA97-15997A
...
26
Assy Rail-Left; Aw4-Cd,veg SAM-DA97-13838A
...
27
Tube-Fitting SAM-DA62-03914A
...
28
Cover Motor-Damper SAM-DA63-05477A
...
29-1-1
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09550A
...
29-1
Hanger-Left; Aw4-4d,cd,egi-Secc,cool Whit SAM-DA61-09194A
...
29-2-1
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09549A
...
29-2
Hanger-Right; Aw4-4d,cd,egi-Secc,cool Whi SAM-DA61-09193A
...
29-3
Shelf-Ref Fix; Aw4-4d,pp,cool White,aw4-C SAM-DA67-03724A
...
29-4
Glass-Shelf Ref Fix; Glass SAM-DA01-00888A
...
29-5
Screw-Tapping SAM-6002-001397
...
29
Assy Shelf-Ref; Aw4-Cd,fix SAM-DA97-13831A
...
30-1
Rail-Right; Aw4-4d,hips,cool White,hg-176 SAM-DA61-09177A
...
30-2
Assy Roller; Rf9000jc,24 SAM-DA97-15997A
...
30
Assy Rail-Right; Aw4-Cd,veg SAM-DA97-13837A
...
31
Cap-Shaft Hole SAM-DA67-02795C
...
32-1
Switch Reed SAM-DA34-00043J
...
32-2
Cover Reed Switch SAM-DA63-07513A
...
32
Assembly Cover Switch SAM-DA97-13783A

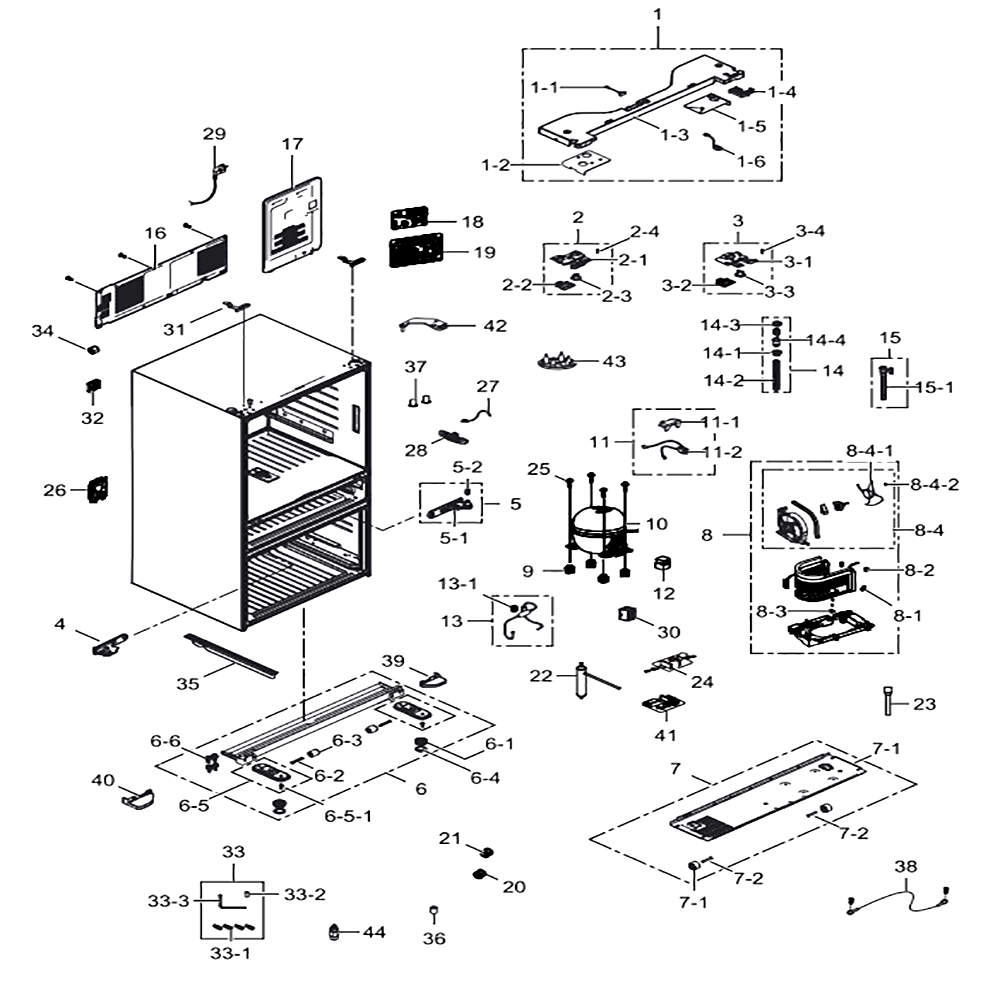

Cabinet

...
...
1-1
Switch Reed SAM-DA34-00043A
...
1-2
Plate-Cover Hinge SAM-DA61-08227A
...
1-3
Top Table SAM-DA64-04743B
...
1-4
Cover Top Table; Fdsr,abs,hb,ebony Black, SAM-DA63-07930A
...
1-5
Plate-Cover Hinge R SAM-DA61-08884A
...
1-6
Assembly Wire Harness-Top SAM-DA96-00962E
...
1
Assembly Top Table SAM-DA97-14978G
...
2-1
Hinge-Upp L SAM-DA61-08309A
...
2-2
Shim-Hinge Upp SAM-DA63-50192A
...
2-3
Cam-Auto Close L SAM-DA66-00950A
...
2-4
Screw-Tapping SAM-6002-000215
...
2
Assembly Hinge Upp-L SAM-DA97-12573A
...
3-1
Hinge-Up Right SAM-DA61-09970A
...
3-2
Shim-Hinge Upp SAM-DA63-50192A
...
3-3
Cam-Auto Close R SAM-DA66-00951A
...
3-4
Screw-Tapping SAM-6002-000215
...
3
Assembly Hinge-Up Right SAM-DA97-14976A
...
4
Hinge-Middle Left SAM-DA61-08318B
...
5-1
Hinge-Middle Right SAM-DA61-09967B
...
5-2
Shaft Hinge-Middle SAM-DA66-00688A
...
5
Assembly Hinge-Middle Right SAM-DA97-14977B
...
6-1
Foot-Front SAM-DA61-07972B
...
6-2
Caster-Rivet SAM-DA61-01920A
...
6-3
Caster-Front SAM-DA61-04702A
...
6-4
Foot SAM-DA61-07973B
...
6-5-1
Shaft-Leg Front SAM-DA66-00793A
...
6-5
Assy Support-Front; Aw4-4d C/d SAM-DA97-13807A
...
6-6
Screw-Tap Tite SAM-DA60-10004A
...
6
Assy Cabi Bottom-Front; Aw4-4d C/d,black SAM-DA97-12556H
...
7-1
Caster-Rear SAM-DA61-04703A
...
7-2
Shaft-Caster SAM-DA66-00649B
...
7
Assembly Chassis-Comp SAM-DA97-12557A
...
8-1
Grommet-Immersion Pipe B SAM-DA63-07323A
...
8-2
Grommet-Suct Pipe A SAM-DA63-40171B
...
8-3
Grommet-Cond Sub SAM-DA63-04424A
...
8-4-1
Fan SAM-DA31-00320A
...
8-4-2
Spring Etc-Fan SAM-DA61-20128A
...
8-4
Assembly Support-Circuit Motor SAM-DA97-15765A
...
8
Assembly Tray Drain Water SAM-DA97-15978A
...
9
Grommet Comp SAM-DA63-02617A
...
10
Compressor SAM-MKV190CL2B/E01
...
11-1
Relay Protector O/l SAM-DA34-00004D
...
11-2
Assembly Wire Harness-Comp SAM-DA39-00154M
...
11
Assembly Comp-Sub SAM-DA97-10848N
...
12
Cover Relay SAM-DA63-01866A
...
13-1
Grommet-Suct Pipe B SAM-DA63-40171D
...
13
Assy Pipe-Connect; Aw Pjt SAM-DA97-12170A
...
14-1
Fixer-Drain SAM-DA61-05021A
...
14-2
Tube Pvc SAM-DA62-01266B
...
14-3
Grommet-Drain SAM-DA63-02761A
...
14-4
Cap-Drain SAM-DA67-01301A
...
14
Assembly Cap-Drain SAM-DA97-04049E
...
15-1
Tube Pvc SAM-DA62-01266E
...
15
Assembly Cap-Drain SAM-DA97-04049J
...
16
Assembly Cover Comp SAM-DA97-12749A
...
17
Assembly Cover Pcb-Panel SAM-DA97-08442D
...
18
Assembly Pcb Inverter SAM-DA92-00483B
...
19
Assy Pcb Eeprom; 0x05,d603,aw4-4d Cd Fdsr SAM-DA94-02963B
...
20
Fitting-Lokring 43 SAM-DA60-00281A
...
21
Fitting-Lokring 33 SAM-DA60-00280A
...
22
Dryer SAM-DA62-04309B
...
23
Pipe-Connect Disc,b SAM-DA73-10190U
...
24
Coil Filter SAM-DA27-00043D
...
25
Bolt-Hex SAM-6011-004061
...
26
Assembly Cover-Tube Filter SAM-DA97-08413B
...
27
Sensor Temp SAM-DA32-10109B
...
28
Cover Sensor-Fre SAM-DA63-05470B
...
29
Cbf-Power Cord; At,usa,us3f-1,3c,125v,15a SAM-3903-001003
...
30
Cover-Fixer Housing V SAM-DA63-02902B
...
31
Fixer Hinge-Upp SAM-DA61-04932A
...
32
Fixer-Hose SAM-DA61-03467B
...
33-1
Fixer Handle; Aw3-14,swrch10a,m8 SAM-DA61-11161A
...
33-2
Cap-Wrench SAM-DA67-03197A
...
33-3
Wrench-Spanner SAM-DA80-00026B
...
33
Assy Install; Aw3-14,valve SAM-DA99-03490V
...
34
Valve-Fitting Nut SAM-DA74-00070B
...
35
Trim-Blade; Aw2-Cd,pvc,shgs-L130-67-01g,n SAM-DA64-02950A
...
36
Rubber-Cap Hose SAM-DA73-00211A
...
37
Grommet Hinge-Mid SAM-DA63-06410A
...
38
Wire Harness-Earth SAM-DA39-20389L
...
39
Cover Leg-Front Right; Aw4-4d C/d,pp,hb,e SAM-DA63-07484B
...
40
Cover Leg-Front Left; Aw4-4d C/d,pp,hb,eb SAM-DA63-07485B
...
41
Assembly Module SAM-DA92-00486A
...
42
Hinge-Up SAM-DA61-09968A
...
43
Cover-Urethane SAM-DA63-03809A
...
44
Valve-Fitting Pu SAM-DA62-00305A

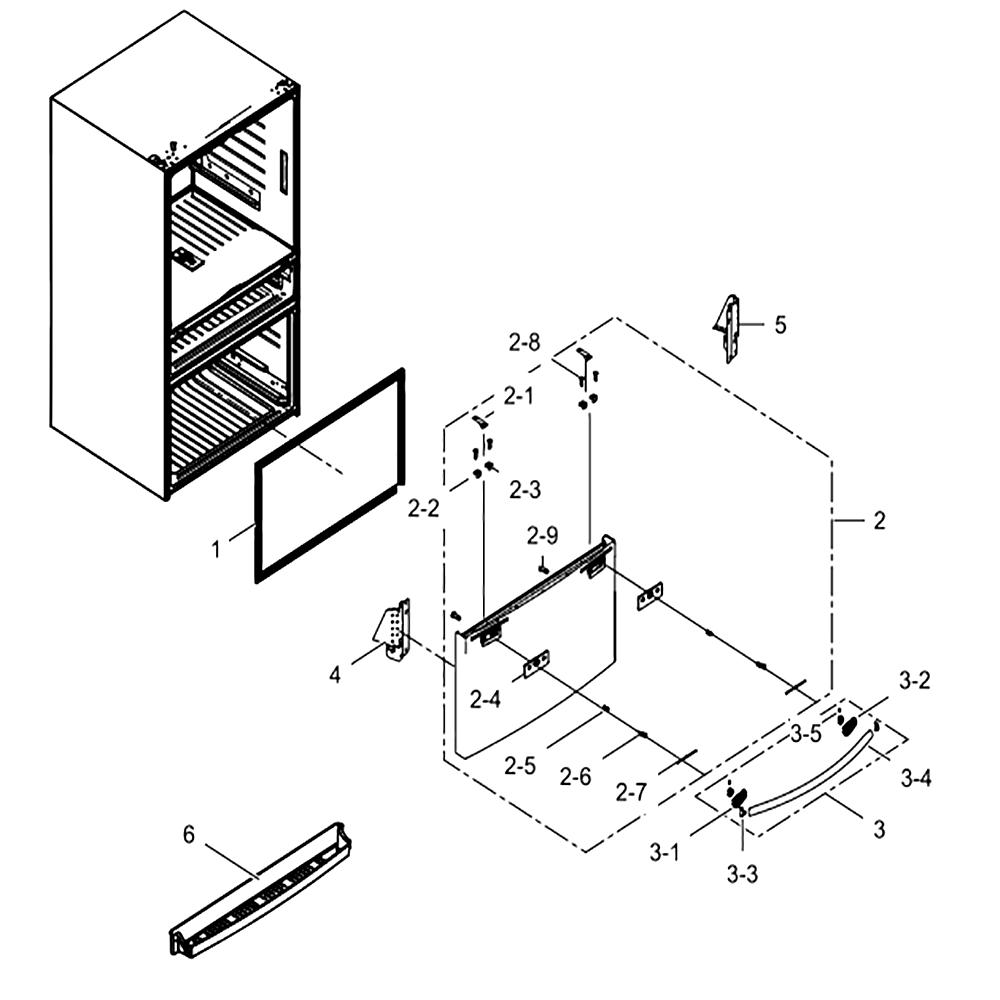

Freezer-door

...
...
1
Assembly Gasket-Fre SAM-DA97-12522T
...
2-1
Slider-Easy Handle SAM-DA61-08234B
...
2-2
Fixer-Shaft L SAM-DA61-05930A
...
2-3
Fixer-Shaft R SAM-DA61-05899A
...
2-4
Reinf-Cap Handle SAM-DA61-06658A
...
2-5
Spring Etc-Easy Handle SAM-DA61-04335A
...
2-6
Fixer Handle; Aw3-14,swrch10a,m8 SAM-DA61-11161A
...
2-7
Shaft-Cap Handle SAM-DA66-00579A
...
2-8
Screw-Tapping SAM-6002-000215
...
2-9
Screw-Tapping SAM-6002-000630
...
2
Assembly Door Foam-Fre SAM-DA91-04003N
...
3-1
Support-Handle Fre SAM-DA61-08229A
...
3-2
Support-Handle Fre R SAM-DA61-08247A
...
3-3
Cap-Handle Fre SAM-DA67-02787A
...
3-4
Handle Bar-Fre Low SAM-DA64-03945G
...
3-5
Screw-Set SAM-6009-001526
...
3
Assembly Handle-Fre SAM-DA97-12712D
...
4
Hanger-Front Left; Aw4-4d,egi-Secc,cool W SAM-DA61-09245A
...
5
Hanger-Front Right; Aw4-4d,egi-Secc,cool SAM-DA61-09247A
...
6
Guard-Fre SAM-DA63-07512A

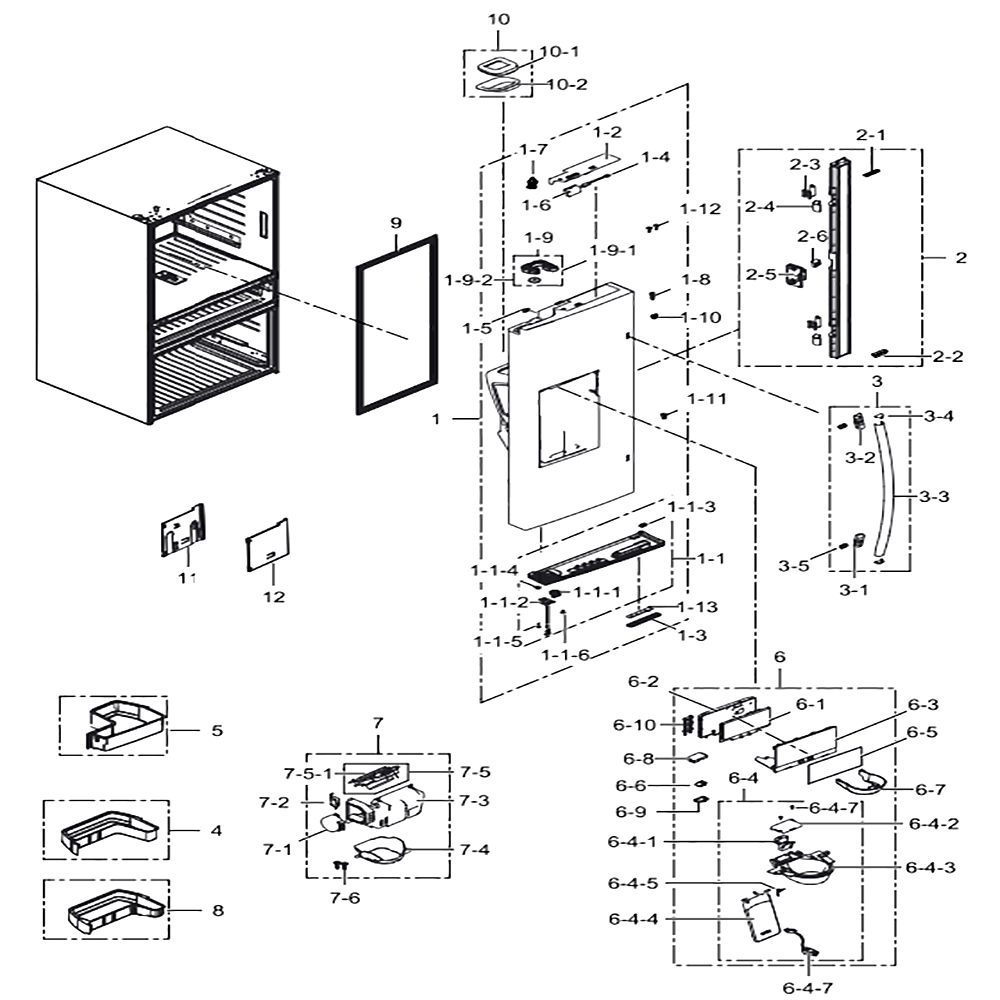

Refrigerator-door-l

...
...
1-1-1
Support Door-Close SAM-DA61-02383A
...
1-1-2
Stopper-Door L SAM-DA61-08210A
...
1-1-3
Grommet-Chassis Up SAM-DA63-04825A
...
1-1-4
Grommet-Stopper SAM-DA63-40294A
...
1-1-5
Screw-Machine SAM-6001-001377
...
1-1-6
Screw-Tapping SAM-6002-001120
...
1-1
Assy Cap Door-Ref Low Left; Aw3-14,enbony SAM-DA97-14358C
...
1-2
Cover-Cap Door Ref Upp L SAM-DA63-06916C
...
1-3
Cover-Cap Door Led SAM-DA63-05524A
...
1-4
Sensor Humidity SAM-DA32-00034B
...
1-5
Magnet-A SAM-DA61-03769A
...
1-6
Plate-Door Switch SAM-DA61-05274A
...
1-7
Switch Door-Interlock SAM-DA34-00066B
...
1-8
Screw-Tapping SAM-6002-000466
...
1-9-1
Lever-Auto Close; Aw4,pom,black SAM-DA66-00952A
...
1-9-2
Roller-Auto Close SAM-DA66-00440A
...
1-9
Assembly Lever-Auto Close SAM-DA97-12625A
...
1-10
Screw-Tapping SAM-6002-000613
...
1-11
Screw-Tapping SAM-6002-000217
...
1-12
Screw-Tapping SAM-6002-001122
...
1-13
Assy Lamp Led; 2,fr-4,20*30,white,smaw250 SAM-DA41-00676J
...
1
Assembly Door Foam-Ref Left SAM-DA91-04200C
...
2-1
Gasket-French Upp; Aw4,si,black SAM-DA63-06959B
...
2-2
Gasket-French Low SAM-DA63-06842A
...
2-3
Hinge-French SAM-DA61-08305A
...
2-4
Cap-Case French SAM-DA67-01650A
...
2-5
Cover-Heater French SAM-DA63-03454B
...
2-6
Cap-Case French Mid SAM-DA67-01701A
...
2
Assembly French SAM-DA97-12684E
...
3-1
Support-Handle Ref SAM-DA61-08228A
...
3-2
Support-Handle Ref Upp SAM-DA61-08246A
...
3-3
Handle Bar-Ref Left SAM-DA64-03756P
...
3-4
Cap-Supt Handle Ref SAM-DA67-02788A
...
3-5
Screw-Set SAM-6009-001526
...
3
Assembly Handle-Ref Left SAM-DA97-12715F
...
4
Assembly Guard-Ref Middle SAM-DA97-13818B
...
5
Assembly Guard-Ref Up SAM-DA97-13804C
...
6-1
Assembly Module SAM-DA92-00596A
...
6-2
Cover Pcb-Panel Rear SAM-DA63-06377A
...
6-3
Assembly Cover Dispenser-Sub SAM-DA97-13808K
...
6-4-1
Switch-Micro; 250vac,1a,80,spst-No,t105 SAM-3405-001119
...
6-4-2
Cover-Switch SAM-DA63-05449A
...
6-4-3
Case Lever Dispenser; Aw4-4d,abs,ebony Bl SAM-DA61-09434A
...
6-4-4
Lever-Dispenser Water Sts; Aw3,pc,3022ir, SAM-DA66-00720A
...
6-4-5
Spring Etc-Lever Disp Water; Aw3,sts304 SAM-DA61-06034B
...
6-4-7
Assy-W/harness Disp SAM-DA96-00106G
...
6-4
Assembly Lever Dispenser SAM-DA97-12628H
...
6-5
Inlay-Film SAM-DA64-04669A
...
6-6
Assembly Pcb Kit SAM-DA41-00217A
...
6-7
Cover Ice SAM-DA63-07637A
...
6-8
Cover-Lamp-Led SAM-DA63-02446A
...
6-9
Case Lamp-Led SAM-DA61-05687A
...
6-10
Screw-Tapping SAM-6002-000630
...
6
Assembly Cover Dispenser SAM-DA97-13809T
...
7-1
Motor Geared-Disp SAM-DA31-00079D
...
7-2
Switch-Micro SAM-3405-001117
...
7-3
Case Ice Route; Aw4-4d,abs,i Black,hg-076 SAM-DA61-09432A
...
7-4
Guide Ice; Aw4-4d,hips,s834s1,natural,gui SAM-DA61-09433A
...
7-5-1
Cover-Ice Route A SAM-DA63-04647A
...
7-5
Assembly Cover-Ice Route SAM-DA97-05368A
...
7-6
Screw-Tapping SAM-6002-001364
...
7
Assembly Guide Ice Route SAM-DA97-13829C
...
8
Assembly Guard-Ref Low SAM-DA97-13819B
...
9
Assembly Gasket-Ref SAM-DA97-13015D
...
10-1
Gasket; Fdsr,tpe,white SAM-DA63-08248A
...
10-2
Cap-Chute Ice SAM-DA67-03312A
...
10
Assembly Cap-Chute Ice SAM-DA97-12594A
...
11
Cap Reinf SAM-DA67-03916B
...
12
Cap Reinf SAM-DA67-03917B

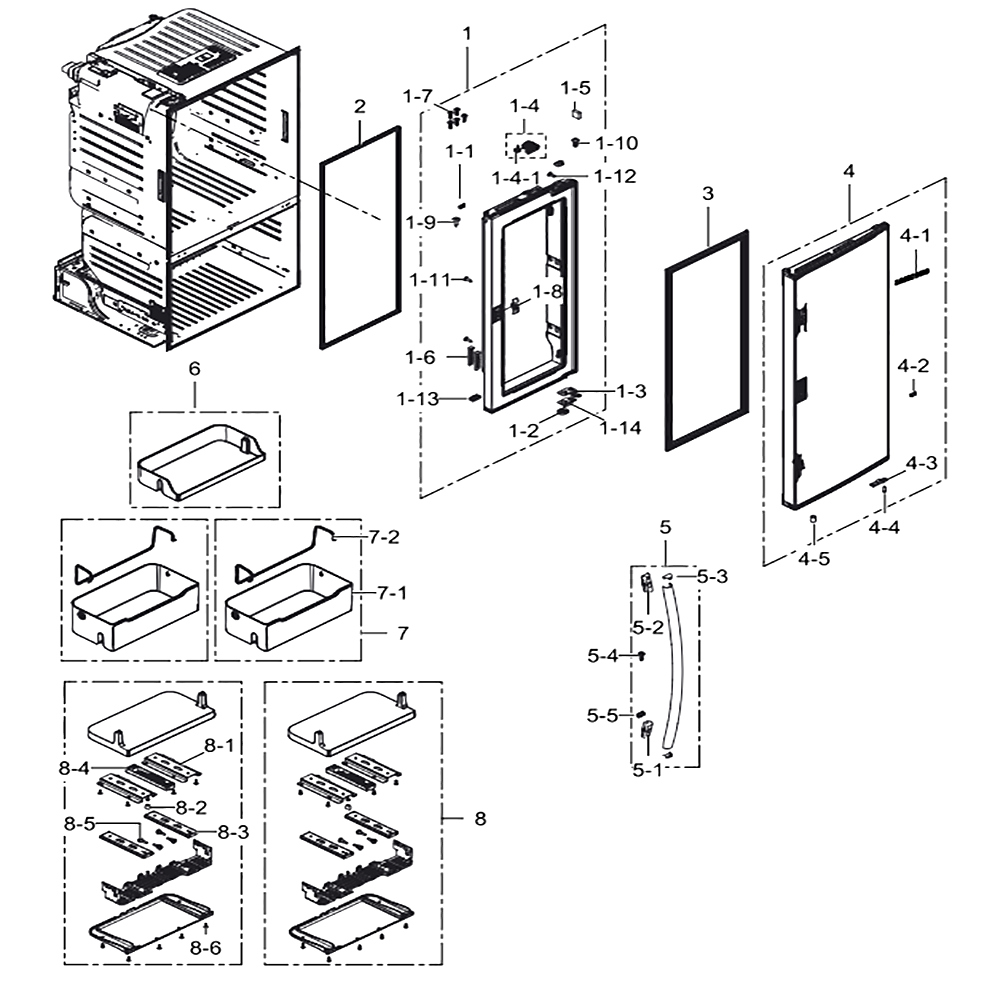

Refrigerator-door-r

...
...
1-1
Magnet SAM-DA61-03769B
...
1-2
Support Door-Middle SAM-DA61-09950B
...
1-3
Hinge-Low; Fdsr,po-Sphc,t4.0,eletrodeposi SAM-DA61-09969B
...
1-4-1
Roller-Auto Close SAM-DA66-00440A
...
1-4
Assembly Lever Auto Close SAM-DA97-14992A
...
1-5
Grommet-Stopper SAM-DA63-40294A
...
1-6
Assembly Lamp Led SAM-DA96-01119A
...
1-7
Screw-Tapping SAM-6002-000239
...
1-8
Cover Lock SAM-DA63-08235A
...
1-9
Screw-Tapping SAM-6002-000538
...
1-10
Screw-Tapping SAM-6002-000613
...
1-11
Screw-Tapping SAM-6002-000215
...
1-12
Screw-Tapping SAM-6002-000623
...
1-13
Grommet-Chassis Up SAM-DA63-04825A
...
1-14
Stopper Door-Ref; Po-Sphc,black,eletrodep SAM-DA61-09952B
...
1
Assy Door Foam-Ref Right; Aw3-14,fdsr,bla SAM-DA91-04484C
...
2
Assembly Gasket-Ref SAM-DA97-13015D
...
3
Assembly Gasket-Ref SAM-DA97-13915H
...
4-1
Mascot SAM-DA64-04021C
...
4-2
Magnet-A SAM-DA61-03769A
...
4-3
Stopper Door-Ref Low SAM-DA61-09951A
...
4-4
Grommet Hinge-Middle SAM-DA63-07545B
...
4-5
Rubber-Cap Hose SAM-DA73-00211A
...
4
Assembly Door Foam-Ref Right SAM-DA91-04200D
...
5-1
Support-Handle Ref SAM-DA61-08228A
...
5-2
Support-Handle Ref Upp SAM-DA61-08246A
...
5-3
Cap-Supt Handle Ref SAM-DA67-02788A
...
5-4
Screw-Tapping SAM-6002-000630
...
5-5
Screw-Set SAM-6009-001526
...
5
Assembly Handle-Ref R SAM-DA97-15014D
...
6
Assy Guard-Ref Up; Rf9000k-Cd,fdsr,fixer SAM-DA97-15186C
...
7-1
Guard-Ref Low Right; Aw2-Cd14 Fdsr,gpps,t SAM-DA63-07965A
...
7-2
Support Wire-Low SAM-DA61-09948A
...
7
Assy Guard-Ref Low Right; Fdsr,cd SAM-DA97-15185A
...
8-1
Rail-Middle Right; Aw2/cd-14,cr-Spcc,-,fd SAM-DA61-10301A
...
8-2
Grommet-Low SAM-DA63-07559A
...
8-3
Assy Rail-Middle; Fdsr,cd SAM-DA97-15188A
...
8-4
Assembly Rail-Up SAM-DA97-13895A
...
8-5
Grommet SAM-DA63-07548A
...
8-6
Screw-Tapping SAM-6002-001122
...
8
Assy Guard Utility; Fdsr,cd SAM-DA97-15187A

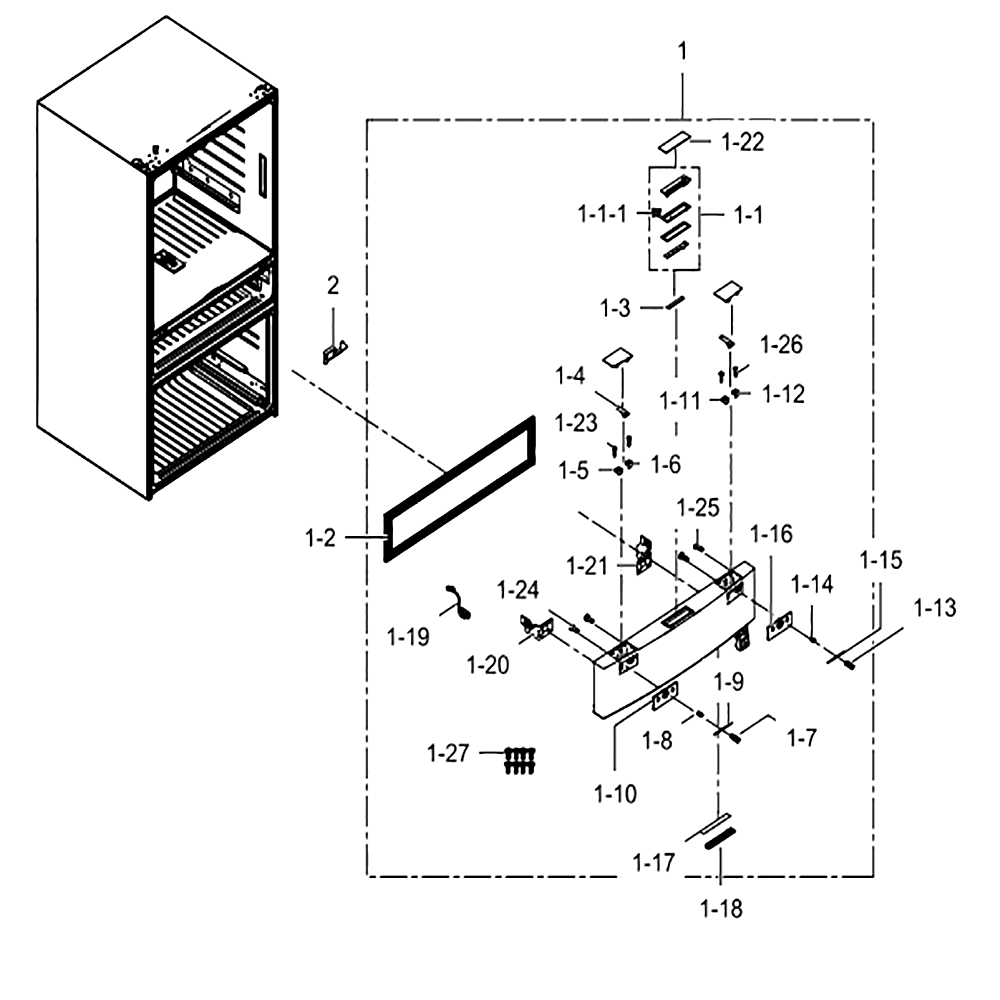

Flexzone-door

...
...
1-1-1
Screw-Tapping SAM-6002-000630
...
1-1
Assembly Cover Control-Convertible SAM-DA97-10605C
...
1-2
Assembly Gasket-Middle SAM-DA97-12522R
...
1-3
Cover Control SAM-DA63-05630C
...
1-4
Slider-Easy Handle SAM-DA61-08234B
...
1-5
Fixer-Shaft L SAM-DA61-05930A
...
1-6
Fixer-Shaft R SAM-DA61-05899A
...
1-7
Fixer Handle; Aw3-14,swrch10a,m8 SAM-DA61-11161A
...
1-8
Spring Etc-Easy Handle SAM-DA61-04335A
...
1-9
Shaft-Cap Handle SAM-DA66-00579A
...
1-10
Reinf-Cap Handle SAM-DA61-06658A
...
1-11
Fixer-Shaft L SAM-DA61-05930A
...
1-12
Fixer-Shaft R SAM-DA61-05899A
...
1-13
Fixer Handle; Aw3-14,swrch10a,m8 SAM-DA61-11161A
...
1-14
Spring Etc-Easy Handle SAM-DA61-04335A
...
1-15
Shaft-Cap Handle SAM-DA66-00579A
...
1-16
Reinf-Cap Handle SAM-DA61-06658A
...
1-17
Assy Lamp Led; 2,fr-4,20*30,white,smaw250 SAM-DA41-00676J
...
1-18
Cover-Cap Door Led SAM-DA63-05524A
...
1-19
Assembly Wire Harness-Display SAM-DA96-00641B
...
1-20
Hanger-Front Middle Left SAM-DA61-09248A
...
1-21
Hanger-Front Middle Right SAM-DA61-09249A
...
1-22
Inlay SAM-DA64-04526D
...
1-23
Screw-Tapping SAM-6002-000215
...
1-24
Screw-Tapping SAM-6002-000630
...
1-25
Screw-Tapping SAM-6002-000630
...
1-26
Screw-Tapping SAM-6002-000215
...
1-27
Screw-Tapping SAM-6002-000613
...
1
Assembly Door SAM-DA97-13797M
...
2
Cover-W/harness Conv Door SAM-DA63-05462C
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
