Samsung RF22K9381SR/AA_0004

Model: RF22K9381SR/AA_0004

Save Part Not Listed?
product name

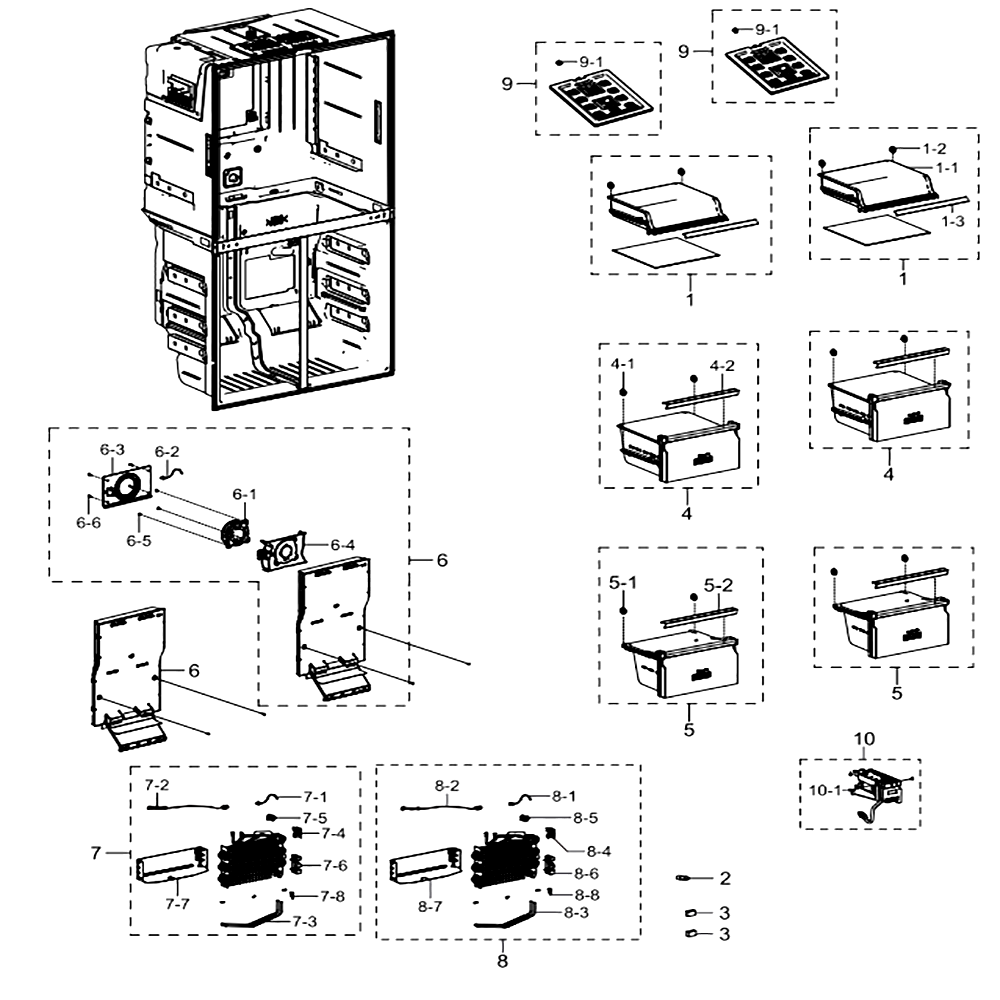

Freezer

...
...
1-1
Case Basket-Up; Rf9000jc,hips,cool White, SAM-DA61-10367A
...
1-2
Assembly Roller SAM-DA97-15998A
...
1-3
Trim-Shelf Fre; Romanee,hips,s-834s1,cool SAM-DA64-04307B
...
1
Assy Case Basket-Fre Up; Rf9000jc,silver SAM-DA97-15355C
...
2
Grommet; Brr9000m,nbr,capi Grommet SAM-DA63-08943A
...
3
Seal Cutt-Rubber; Rr2500k,rubber,black,t5 SAM-DA62-01018A
...
4-1
Assembly Roller SAM-DA97-15998A
...
4-2
Trim-Tray Fre; Romanee,hips,s834s1,cool W SAM-DA64-04323B
...
4
Assy Case Basket-Middle; Rf9000jc,silver SAM-DA97-15359C
...
5-1
Assembly Roller SAM-DA97-15998A
...
5-2
Trim-Tray Fre; Romanee,hips,s834s1,cool W SAM-DA64-04323B
...
5
Assy Case Basket-Low; Rf9000jc,silver Tri SAM-DA97-15356C
...
6-1
Motor Bldc Fan; Ares2120ra,18704%,12v,m SAM-DA31-00334A
...
6-2
Sensor Temp; Dkst1329gw,queen,-50 ~ 80 SAM-DA32-00011C
...
6-3
Case-Motor Fre SAM-DA61-08425A
...
6-4
Guide Air; Romanee-Conti,hips,ntr SAM-DA61-08658B
...
6-5
Screw-Tapping SAM-6002-000471
...
6-6
Screw-Tapping SAM-6002-001204
...
6
Assy Cover Evap-Fre; Romanee-Conti,pp,coo SAM-DA97-13001B
...
7-1
Sensor Temp; Dkst1329gw,aw3,-50~80??5v, SAM-DA32-10104V
...
7-2
Thermo Fuse-Assy; Ac250v,10a,109~110s SAM-DA47-00301D
...
7-3
Heater Metal Sheath; Ac120v,romanee Conti SAM-DA47-00318K
...
7-4
Fixer-Thermo Fuse; Sr-42.4636,pp,t2.0,nat SAM-DA71-20265A
...
7-5
Fixer-Senser SAM-DA61-03683A
...
7-6
Fixer-Heater Wire Ref; Hm/ggh/haemil,pp,n SAM-DA61-06700A
...
7-7
Plate-Drain Evap Fre; Romanee Conti,al,t0 SAM-DA61-08675A
...
7-8
Plate Heater; Brf8000m,al,t0.7,a1100p-H14 SAM-DA61-12385A
...
7
Assy Evap-Fre; Rf9000k,fin Tube,120v,120w SAM-DA96-01021E
...
8-1
Sensor Temp; Dkst1329gw,aw3,-50~80??5v, SAM-DA32-10104V
...
8-2
Thermo Fuse-Assy; Ac250v,10a,109~110s SAM-DA47-00301D
...
8-3
Heater Metal Sheath; Ac120v,romanee Conti SAM-DA47-00318K
...
8-4
Fixer-Thermo Fuse; Sr-42.4636,pp,t2.0,nat SAM-DA71-20265A
...
8-5
Fixer-Senser SAM-DA61-03683A
...
8-6
Fixer-Heater Wire Ref; Hm/ggh/haemil,pp,n SAM-DA61-06700A
...
8-7
Plate-Drain Evap Fre; Romanee Conti,al,t0 SAM-DA61-08675A
...
8-8
Plate Heater; Brf8000m,al,t0.7,a1100p-H14 SAM-DA61-12385A
...
8
Assy Evap-Fre; Rf9000k,fin Tube,120v,120w SAM-DA96-00987D
...
9-1
Cap-Ice Pack; Rt26/28/31,pp,t1.5,-,natura SAM-DA67-02855A
...
9
Assy Shelf Ice Pack; New T9000 SAM-DA97-16132A
...
10-1
Screw-Tapping SAM-6002-000471
...
10
Assy Ice Maker; Aw4-Cd,120v-60hz SAM-DA97-18859A

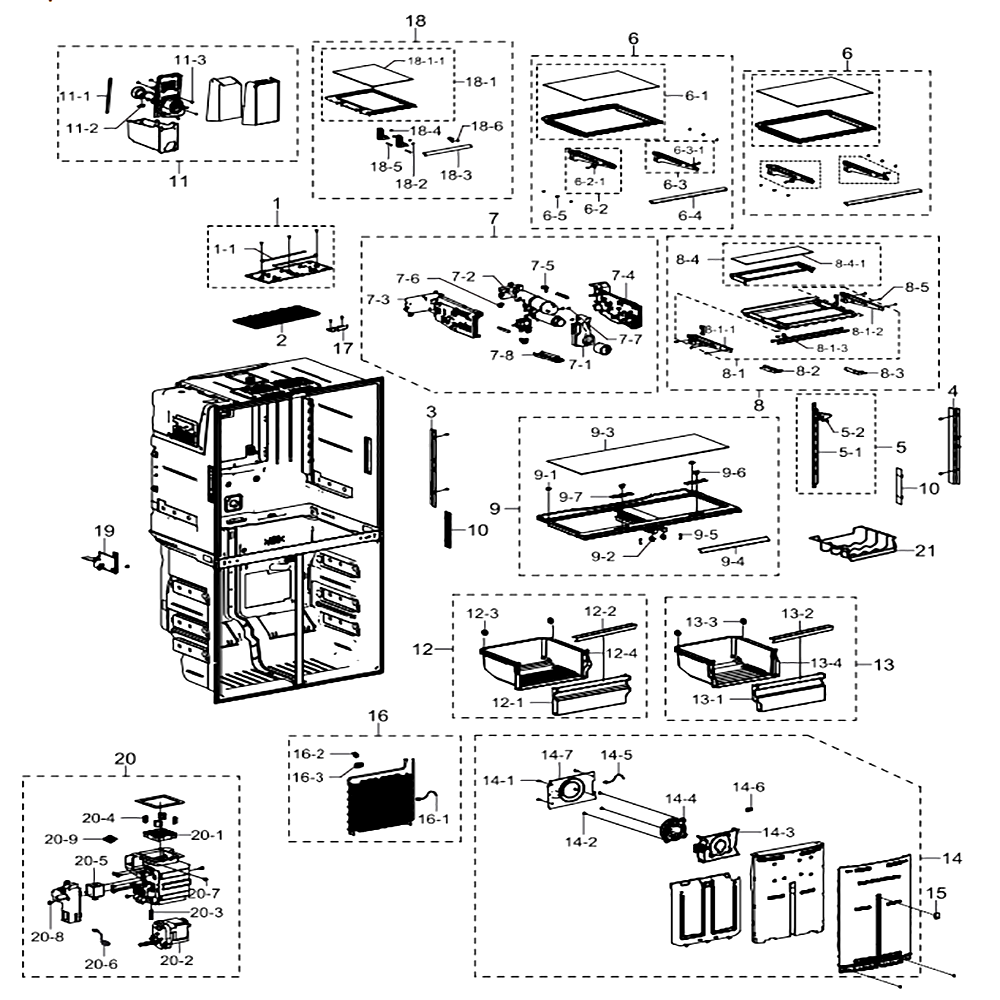

Fridge

...
...
1-1
Assy Lamp Led; 5,cem-1,240*10,white,smaw2 SAM-DA41-00676K
...
1
Assy Case Lamp-Ref; Aw4,long Led SAM-DA97-12606B
...
2
Cover Lamp-Ref SAM-DA63-07816A
...
3
Angle-Shelf Ref Side L; Gi-Sgcc,2.5,cool SAM-DA61-08693A
...
4
Angle-Shelf Ref Side R; Gi-Sgcc,2.5,cool- SAM-DA61-08632A
...
5-1
Angle Shelf-Ref Middle; Gi-Sgcc,t2.5,inox SAM-DA61-08264C
...
5-2
Screw-Tapping SAM-6002-001397
...
5
Assy Angle Shelf-Ref Middle; Rf9000jc,ino SAM-DA97-15620B
...
6-1
Shelf-Ref Fix; Rf9000jc,pp,cool White SAM-DA67-03971A
...
6-2-1
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09550A
...
6-2
Hanger-Left; Aw4-4d,cd,egi-Secc,cool Whit SAM-DA61-09194A
...
6-3-1
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09549A
...
6-3
Hanger-Right; Aw4-4d,cd,egi-Secc,cool Whi SAM-DA61-09193A
...
6-4
Trim-Shelf Ref; Romanee,abs,cool White(sc SAM-DA64-04348A
...
6-5
Screw-Tapping SAM-6002-001397
...
6
Assy Shelf-Ref; Rf9000jc SAM-DA97-15368B
...
7-1
Cover-Filter Tank; Aw4,hips,w72.4,l167.7, SAM-DA63-06885A
...
7-2
Clip-Fitting Lock SAM-DA61-04522A
...
7-3
Case Filter-Left; Aw4-Cd,hips,cool White, SAM-DA61-09242A
...
7-4
Case Filter-Right; Aw4-Cd,hips,cool White SAM-DA61-09243A
...
7-5
Tube-Fitting L; Pom,dark Holder Gray,1/4i SAM-DA62-02414A
...
7-6
Tube-Fitting L SAM-DA62-03103A
...
7-7
Screw-Tapping SAM-6002-000213
...
7-8
Tray-Water Filter SAM-DA63-05407A
...
7
Assy Case Filter; T-9000cd,110v SAM-DA97-15417B
...
8-1-1
Hanger-Low Left; Aw4-Cd,egi-Secc,t2.0 SAM-DA61-09197A
...
8-1-2
Hanger-Low Right; Aw4-Cd,egi-Secc,t2.0 SAM-DA61-09195A
...
8-1-3
Fixer; Aw2-14,pom,white,hb,k-300 SAM-DA61-09550A
...
8-1
Assy Shelf Hanger-Right; Aw4-Cd SAM-DA97-13832A
...
8-2
Support Rail-Left; Aw4-4d,abs,hg-0760gp,c SAM-DA61-09300A
...
8-3
Support Rail-Right; Aw4-4d,abs,hg-0760gp, SAM-DA61-09299A
...
8-4-1
Glass-Shelf Ref Middle; Glass SAM-DA01-00894A
...
8-4
Shelf-Middle; Aw4-4d,pp,cool White,aw-Cd SAM-DA67-03698A
...
8-5
Screw-Tapping SAM-6002-001397
...
8
Assy Shelf Quick Space; Rf9000jc SAM-DA97-15363A
...
9-1
Fixer-Cover Veg SAM-DA61-03166A
...
9-2
Assy Roller; Rf9000jc,24 SAM-DA97-15997A
...
9-3
Glass; Glass SAM-DA01-00891A
...
9-4
Trim-Shelf Fre; Romanee,hips,s-834s1,cool SAM-DA64-04307D
...
9-5
Case Lock-A; Rf9000jc,pom,natural,k300 SAM-DA61-10523A
...
9-6
Knob-Humidity; Aw4,abs,natural,chromium P SAM-DA64-04173A
...
9-7
Lever-Humidity SAM-DA66-00718A
...
9
Assy Cover Veg-Ref; Rf9000jc,silver Trim SAM-DA97-15360A
...
10
Cover Lamp-Led Side SAM-DA63-07276A
...
11-1
Gasket-Tray Ice Bucket SAM-DA63-07185A
...
11-2
Spring Etc-Dispenser SAM-DA61-20124D
...
11-3
Screw-Tapping SAM-6002-000471
...
11
Assy Tray Ice; Fdr,t-Type C/d SAM-DA97-14504C
...
12-1
Cover Veg-Front Left; Aw4-Cd,gpps,natural SAM-DA63-07552A
...
12-2
Trim Basket-Left; Rf9000jc,hips,s834s1,co SAM-DA64-03862T
...
12-3
Assembly Roller SAM-DA97-15998A
...
12-4
Case Veg-Ref Left; Aw4-4d,gpps,natural,hf SAM-DA61-09161A
...
12
Assy Case Veg-Left; Rf9000jc,silver Trim SAM-DA97-13842C
...
13-1
Cover Veg-Front Right; Aw4-4d,gpps,natura SAM-DA63-07553A
...
13-2
Trim Basket-Right; Rf9000jc,hips,s834s1,c SAM-DA64-03862S
...
13-3
Assembly Roller SAM-DA97-15998A
...
13-4
Case Veg-Ref Right; Aw4-4d,gpps,natural,h SAM-DA61-09160A
...
13
Assy Case Veg-Right; Rf9000jc,silver SAM-DA97-13841C
...
14-1
Screw-Tapping SAM-6002-001204
...
14-2
Screw-Tapping SAM-6002-000471
...
14-3
Guide Air; Romanee-Conti,hips,ntr SAM-DA61-08658B
...
14-4
Motor Bldc Fan; Ares2120ra,18704%,12v,m SAM-DA31-00334A
...
14-5
Sensor Temp; Dkst1329gw,queen,-50 ~ 80 SAM-DA32-00011C
...
14-6
Grommet Fixer; Rf-H920g,rubber,black SAM-DA63-07761A
...
14-7
Case-Motor Fre SAM-DA61-08425A
...
14
Assy Cover Evap-Ref; Rf9000jc,plate Cooli SAM-DA97-15409N
...
15
Assembly Cap Angle SAM-DA97-15412A
...
16-1
Sensor Temp; Dkst1329gw,double_Insulation SAM-DA32-10104W
...
16-2
Fixer-Wire SAM-DA61-06013A
...
16-3
Fixer-Senser SAM-DA61-03683A
...
16
Assy Evap-Ref; Romanee Conti_Disp,fin Tub SAM-DA96-01002A
...
17
Guide-French SAM-DA61-04285A
...
18-1-1
Glass-Shelf Ref Fold; Glass SAM-DA01-00887A
...
18-1
Shelf Folder; Rf9000jc,pp,cool White SAM-DA67-03970A
...
18-2
Spring Etc-Hinge Shelf SAM-DA61-03705A
...
18-3
Trim-Shelf Ref; Romanee,abs,white,245.5 SAM-DA64-04348C
...
18-4
Roller-Hinge-Shelf SAM-DA66-00482A
...
18-5
Shaft-Hinge-Shelf SAM-DA66-00483A
...
18-6
Screw-Tapping SAM-6002-001397
...
18
Assy Shelf Folder; Rf9000jc SAM-DA97-15362A
...
19
Cover Air-Wire Harness Ice; Aw4 Cd,hips,c SAM-DA63-07496A
...
20-1
Motor Bldc Fan SAM-DA31-00070E
...
20-2
Motor Geared Ac Auger SAM-DA31-00105M
...
20-3
Spring Etc-Solenoid SAM-DA61-20140A
...
20-4
Grommet-Fan SAM-DA63-02513A
...
20-5
Valve-Solenoid SAM-DA74-40151G
...
20-6
Assy Wire Harness-Auger; Fdr,free Volt,ul SAM-DA96-00682E
...
20-7
Screw-Tapping SAM-6002-000471
...
20-8
Screw-Special SAM-DA60-00001B
...
20-9
Fixer-Nut; Guggenheim,sts420,j2,sk5 SAM-DA71-00163B
...
20
Assy Case Auger Motor; Rf9900jc,115v 60hz SAM-DA97-12540K
...
21
Assy Rack Wine; Rf9000k,fdsr SAM-DA97-16721A

Cabinet

...
...

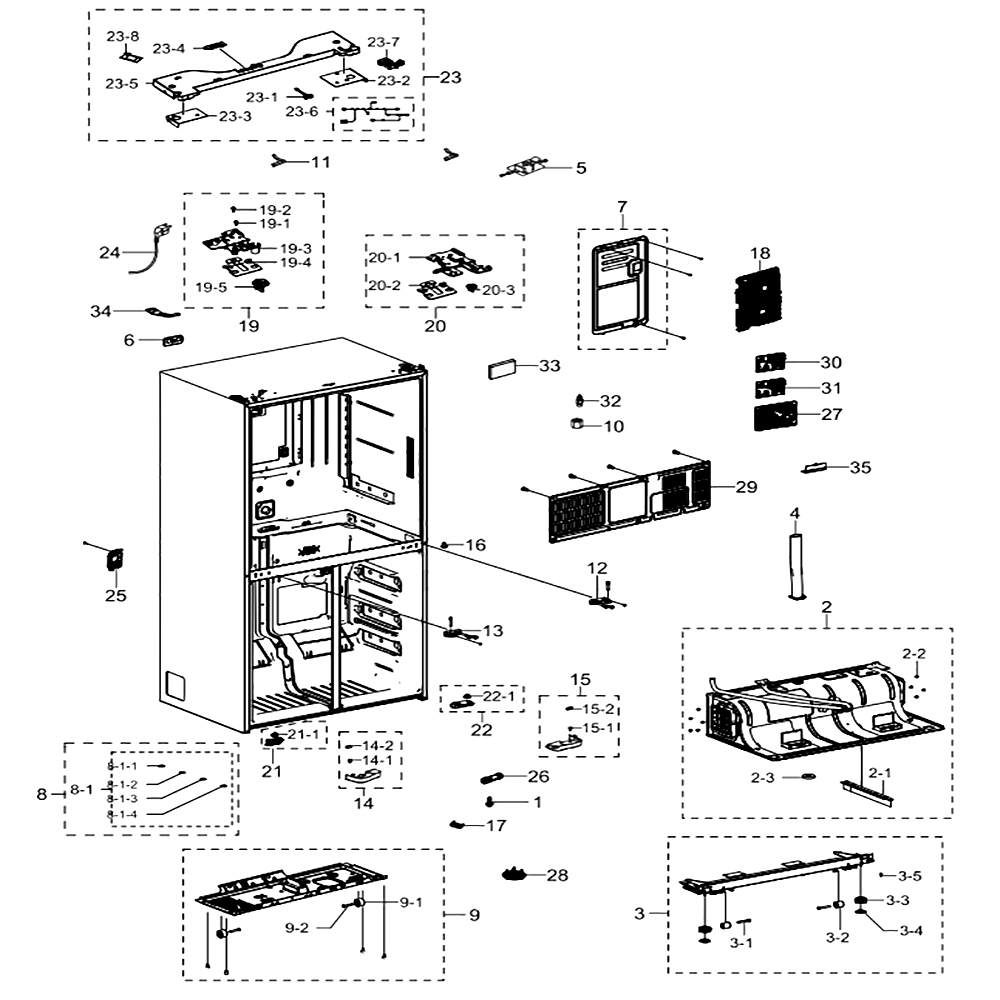

1
Screw-Hex SAM-DA60-10123E
...
2-1
Trim Blade; Aw3-14,pvc,gray SAM-DA64-05373A
...
2-2
Screw-Tapping SAM-6002-000239
...
2-3
Seal-Drain Hose; Aram10,pu Foam,t10,30 SAM-DA72-00238B
...
2
Assy Cabi Bottom-Rear; Rf9000jc,dispenser SAM-DA97-15375F
...
3-1
Caster-Rivet SAM-DA61-01920A
...
3-2
Caster-Front SAM-DA61-04702A
...
3-3
Foot-Front SAM-DA61-07972B
...
3-4
Foot SAM-DA61-07973B
...
3-5
Screw-Tapping SAM-6002-000213
...
3
Assy Cabi Bottom-Front; Rf9000k,export, U SAM-DA97-15376F
...
4
Assy Guide Hose-Bottom; Aw3-14,foam Pe SAM-DA97-14866A
...
5
Coil Filter SAM-DA27-00043D
...
6
Assy Cover-Fixer Water; Opus1,assy SAM-DA97-08494B
...
7
Assy Cover Pba-Main; Romanee-Conti SAM-DA97-13181C
...
8-1-1
Fastener-Hinge; Romanee Conti,pom,black SAM-DA60-00314A
...
8-1-2
Fastener-Hinge; Romanee Conti,pom,t1.5,bl SAM-DA60-00314B
...
8-1-3
Fastener-Hinge; Romanee Conti,pom,t2.0,bl SAM-DA60-00314C
...
8-1-4
Fastener-Hinge; Romanee Conti,pom,t2.5,bl SAM-DA60-00314D
...
8-1
Assy Accessory; Romanee Conti,adjustment SAM-DA99-04158A
...
8
Assy Manual; Rf9000jc Fdsr,rf22*,aa,engli SAM-DA98-01606P
...
9-1
Caster-Rear SAM-DA61-04703A
...
9-2
Shaft-Caster SAM-DA66-00649B
...
9
Assembly Chassis-Comp SAM-DA97-12557A
...
10
Valve-Fitting Nut SAM-DA74-00070B
...
11
Fixer-Hinge;po-Sphc,t3,zn Coating SAM-DA61-04932B
...
12
Hinge-Middle Right; Rf9000n,zn,zndc2,zndc SAM-DA61-13160A
...
13
Hinge-Middle Left; Rf9000n,zn,zndc2,zndc2 SAM-DA61-13159A
...
14-1
Cap-Shaft Hole SAM-DA67-02795C
...
14-2
Magnet-A SAM-DA61-03769A
...
14
Assy Cover Leg-Front; Rfh920g,l SAM-DA97-14537A
...
15-1
Cap-Shaft Hole SAM-DA67-02795C
...
15-2
Magnet-A SAM-DA61-03769A
...
15
Assy Cover Leg-Front; Rfh920g,r SAM-DA97-14538A
...
16
Grommet Hinge-Mid; Romanee Conti,pom,blac SAM-DA63-07306A
...
17
Fixer Cover; Aw3-14,hips,natural,s834s1 SAM-DA61-12488A
...
18
Assy Case Pba-Main; Latour,t2.0 SAM-DA97-16877A
...
19-1
Screw-Tapping SAM-6002-000213
...
19-2
Screw-Tapping SAM-6002-000215
...
19-3
Hinge-Up Left; Rf9000n,po-Sphc,t3,eletrod SAM-DA61-13155A
...
19-4
Shim-Hinge Upp SAM-DA63-50192A
...
19-5
Cam-Auto Close L SAM-DA66-00950A
...
19
Assy Hinge-Up Left; Rf9000n,t3,121.6,135. SAM-DA97-19422A
...
20-1
Hinge-Up Right; Rf9900k,po-Sphc,t3,po-Sph SAM-DA61-11048A
...
20-2
Shim-Hinge Upp SAM-DA63-50192A
...
20-3
Cam-Auto Close R SAM-DA66-00951A
...
20
Assy Hinge-Up Right; Rf9900k,t3.0,110.5,1 SAM-DA97-16748A
...
21-1
Grommet Hinge; Romanee Conti,pom,black SAM-DA63-07231A
...
21
Assy Hinge-Low Left; Rf9000n,black Painti SAM-DA97-19473A
...
22-1
Grommet Hinge; Romanee Conti,pom,black SAM-DA63-07231A
...
22
Assy Hinge-Low Right; Rf9000n,black Paint SAM-DA97-19474A
...
23-1
Switch Reed SAM-DA34-00043A
...
23-2
Plate-Cover Hinge SAM-DA61-08227A
...
23-3
Plate-Cover Hinge R SAM-DA61-08884A
...
23-4
Cover Hinge-B; Rf9000k,abs,inox Gray,hg-0 SAM-DA63-08442A
...
23-5
Top Table; Fdsr,abs,inox Gray SAM-DA64-04743A
...
23-6
Assy Wire Harness-Top; All,12vdc,ul+iec,u SAM-DA96-00962H
...
23-7
Cover Top Table; Fdsr,abs,hb,ebony Black, SAM-DA63-07930A
...
23-8
W-Lan Module; Swl-Cq52/ref,16k Ref,ieee80 SAM-4709-002353
...
23
Assy Top Table; Rf9000k,gray,fdsr,usa SAM-DA97-14978M
...
24
Cbf-Power Cord; At,usa,us3f-1,3c,125v,15a SAM-3903-001003
...
25
Assembly Cover-Tube Filter SAM-DA97-08413B
...
26
Tube-Fitting SAM-DA62-03914A
...
27
Assy Pcb Eeprom; 0xb8,d601,d602,d603,d605 SAM-DA94-04405A
...
28
Cover-Urethane SAM-DA63-03809A
...
29
Assy Cover Comp; Polaris,gi-Sgcc,t0.25 SAM-DA97-12749J
...
30
Assy Pcb Inverter; Inverter,aw3-14,163*98 SAM-DA92-00763M
...
31
Assembly Module SAM-DA92-00486A
...
32
Valve-Fitting Pu SAM-DA62-00305A
...
33
Seal Cutt-Rubber; W2-05,rubber,black,t8,w SAM-DA72-60040Y
...
34
Hinge-Up; Rf9000k,po-Sphc,t4.0,t4.0,81 * SAM-DA61-10819A
...
35

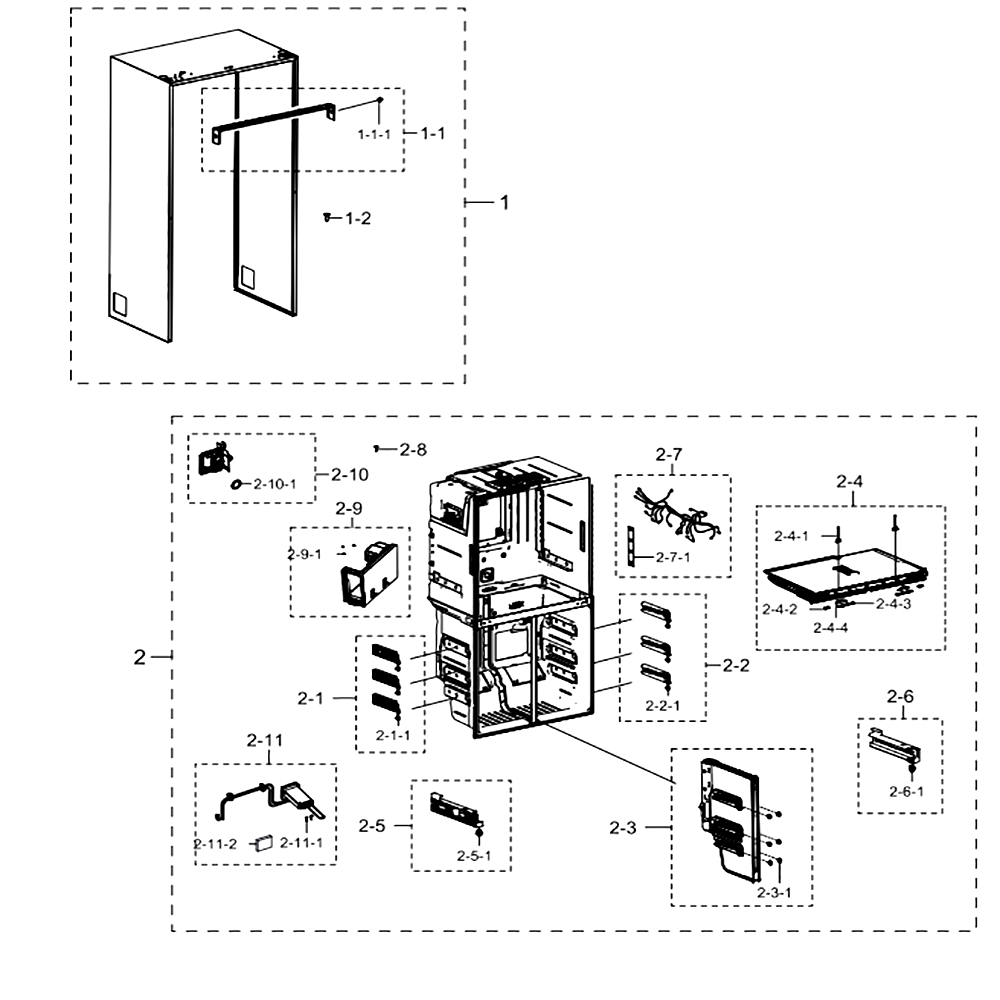

Plate-Up Front; Romanee Conti,al,t0.3,ald SAM-DA61-10371A

Cabinet-2

...
...
1-1-1
Bolt-Etc; M8,l14.1(3.4),fe-Fzb,scm435,3-B SAM-6011-001694
...
1-1
Assy Reinf Cabi-Flange Up; Aw-Pjt SAM-DA97-06920Q
...
1-2
Screw-Tapping SAM-6002-001122
...
1
Assy Cabi Frame; Rf9000jc Fdsr,urban Silv SAM-DA97-15569P
...
2-1-1
Assembly Roller SAM-DA97-15998A
...
2-1
Assy Rail-Left; Rf9000jc SAM-DA97-15419A
...
2-2-1
Assembly Roller SAM-DA97-15998A
...
2-2
Assy Rail-Right; Rf9000jc SAM-DA97-15420A
...
2-3-1
Assembly Roller SAM-DA97-15998A
...
2-3
Assy Partition-Fre V; Rf9000jc,assy SAM-DA97-15343A
...
2-4-1
Switch Reed SAM-DA34-00043A
...
2-4-2
Assy Lamp Led; 2,fr-4,20*30,white,smaw250 SAM-DA41-00676J
...
2-4-3
Cover-Cap Door Led SAM-DA63-05524A
...
2-4-4
Cap Door Switch; Sveta-Pjt,pp,t1.5,hb,bj7 SAM-DA67-02385A
...
2-4
Assy Partition-Up; Rf9000jc,slim Hinge Ty SAM-DA97-15418B
...
2-5-1
Assy Roller; Rf9000jc,24 SAM-DA97-15997A
...
2-5
Assy Rail-Left; Aw4-Cd,veg SAM-DA97-13838A
...
2-6-1
Assy Roller; Rf9000jc,24 SAM-DA97-15997A
...
2-6
Assy Rail-Right; Aw4-Cd,veg SAM-DA97-13837A
...
2-7-1
Assembly Lamp Led SAM-DA41-00519Q
...
2-7
Assy Wire Harness-Main; Rf9000jc,i & M, Fds SAM-DA96-01120H
...
2-8
Screw-Tapping SAM-6002-000215
...
2-9-1
Screw-Tapping SAM-6002-000471
...
2-9
Assy Case Ice; Aw4 Cd SAM-DA97-13763A
...
2-10-1
Seal-Drain Hose; Aram10,pu Foam,t10,30 SAM-DA72-00238B
...
2-10
Assy Drain Hose-Middle; Aw4,4door SAM-DA97-13860A
...
2-11-1
Fixer Pipe; Fdr/t-Type Ice Room Model,sts SAM-DA61-12775A
...
2-11-2
Seal Cutt-Rubber; Rr2500k,rubber,black,t5 SAM-DA62-01018A
...
2-11
Assy Pipe Suction; Rf9500k,od7.94,t0.5,c1 SAM-DA97-16563A
...
2
Assy Liner; Rf9000jc Fdsr,urban Silver SAM-DA94-02020T

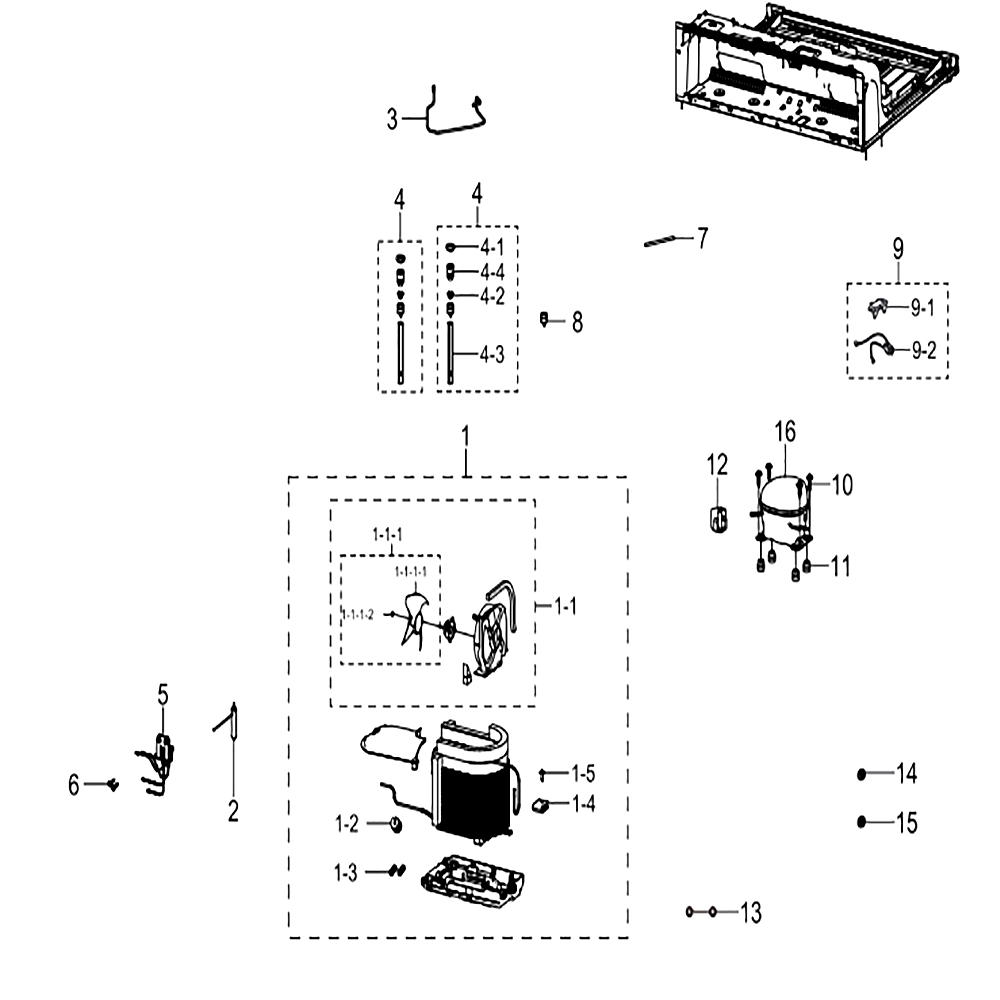

Cycle

...
...
1-1-1-1
Fan SAM-DA31-00320A
...
1-1-1-2
Spring Etc-Fan SAM-DA61-20128A
...
1-1-1
Motor Bldc Fan; Rmf002assa,1120 Rpm,12v,0 SAM-DA31-00340A
...
1-1
Assy Support-Circuit Motor; Rh9000k SAM-DA97-15765C
...
1-2
Grommet-Suct Pipe A SAM-DA63-40171B
...
1-3
Grommet-Immersion Pipe B SAM-DA63-07323A
...
1-4
Grommet-Cond Sub SAM-DA63-04424A
...
1-5
Screw-Tapping SAM-6002-000213
...
1
Assy Tray Drain Water; Aw,pfc SAM-DA97-15978B
...
2
Dryer SAM-DA62-04309A
...
3
Pipe Connect-Suction; C1220t-O,od6.35,t0. SAM-DA62-03691A
...
4-1
Grommet-Drain SAM-DA63-02761A
...
4-2
Fixer-Drain SAM-DA61-05021A
...
4-3
Tube Pvc SAM-DA62-01266B
...
4-4
Cap-Drain SAM-DA67-01301A
...
4
Assembly Cap-Drain SAM-DA97-04049E
...
5
Valve Step; Dc12v,module,80mm,3way,all Op SAM-DA62-04617D
...
6
Fixer-Step,motor; Ruby,swrch1,-,zpc3-Y,- SAM-DK61-00464A
...
7
Pipe-Connect Disc,b SAM-DA73-10190U
...
8
Grommet-Drain Hose; V2-Pjt,nbr,black SAM-DA63-00951C
...
9-1
Relay Protector O/l SAM-DA34-00004D
...
9-2
Wire Harness-Comp SAM-DA39-00154J
...
9
Assembly Comp-Sub SAM-DA97-08310H
...
10
Bolt-Hex SAM-6011-004061
...
11
Grommet Comp; Usp05,epdm,od27.0,black SAM-DA63-02617C
...
12
Cover Relay; Msv,mppo,t2.0,5v-A,black,m-H SAM-DA63-06122A
...
13
Wire Harness-Earth SAM-DA39-20389L
...
14
Fitting-Lokring 33 SAM-DA60-00280A
...
15
Fitting-Lokring 43 SAM-DA60-00281A
...
16
Cmp,refrigerator,r-134a; Cmp,refrigerator,r-134a SAM-NC1MV90ALP/E01

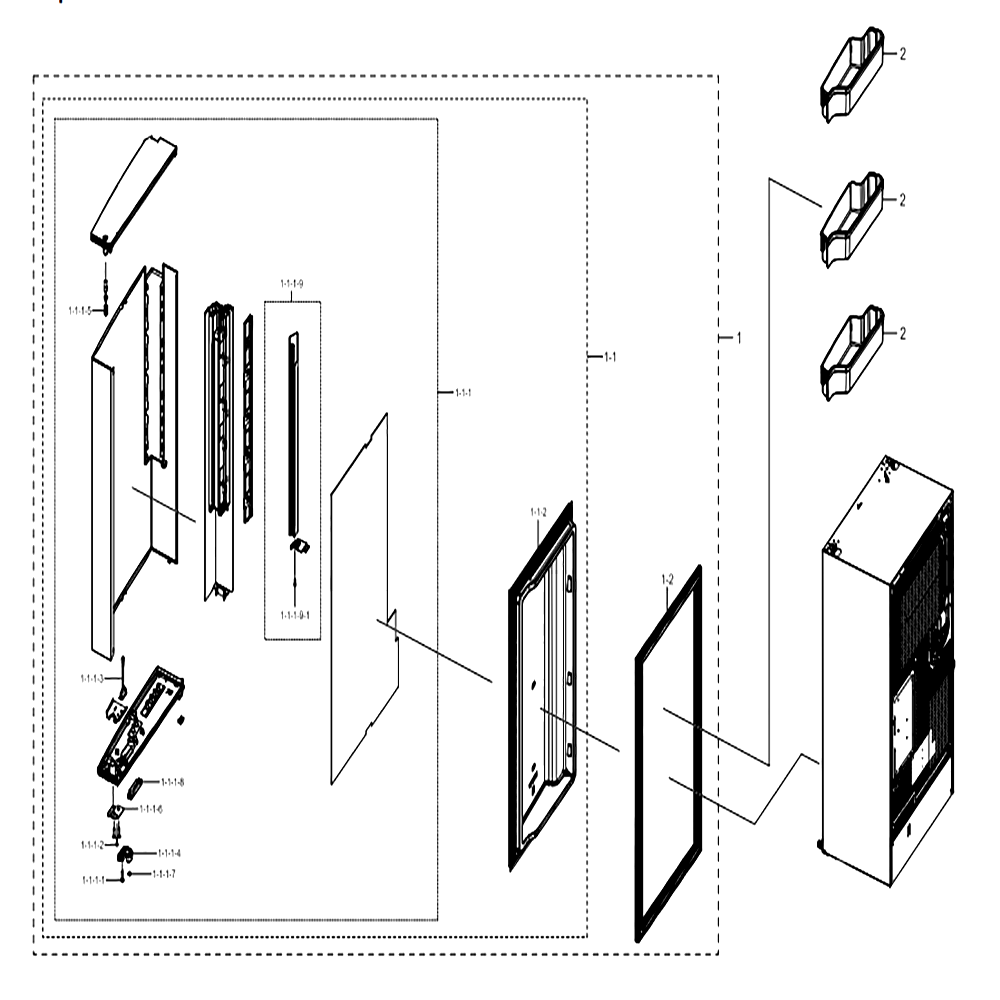

Freezer Door R

...
...
1-1-1-1
Screw-Machine SAM-6001-000716
...
1-1-1-2
Screw-Tapping SAM-6002-001120
...
1-1-1-3
Switch Reed SAM-DA34-00043J
...
1-1-1-4
Support Door-Close; Aw-Pjt,pk,m33r3a000,c SAM-DA61-02383E
...
1-1-1-5
Spring Etc-Handle; Sveta-Pjt,sts304,6.2 SAM-DA61-05366A
...
1-1-1-6
Stopper Door-R; Romanee Conti,po-Sphc,bla SAM-DA61-08817A
...
1-1-1-7
Grommet-Stopper SAM-DA63-40294A
...
1-1-1-8
Cap Door Switch; 3050-Pjt,pp,t1.5,hb,bj75 SAM-DA67-02385M
...
1-1-1-9-1
Screw-Tapping SAM-6002-000215
...
1-1-1-9
Assy Trim Handle; Rf9000k,abs+al, Fre R SAM-DA97-16160A
...
1-1-1
Assy Plate Door-Fre Right; Rf9000k,fdsr,s SAM-DA97-16720F
...
1-1-2
Panel-Fre Hb; Rf8000k,abs,qu-0191s,cool W SAM-DA64-04924A
...
1-1
Assy Door Foam-Fre Right; Rf9000jc Fdsr,r SAM-DA91-04586D
...
1-2
Assy Gasket-Fre; Rf9000n,gray SAM-DA97-19431A
...
1
Assy Door Sub-Fre Right; Rf9000jc Fdsr,re SAM-DA93-00029A
...
2
Assy Guard-Fre Low A; Rf8000k,guard Fre R SAM-DA97-16184A

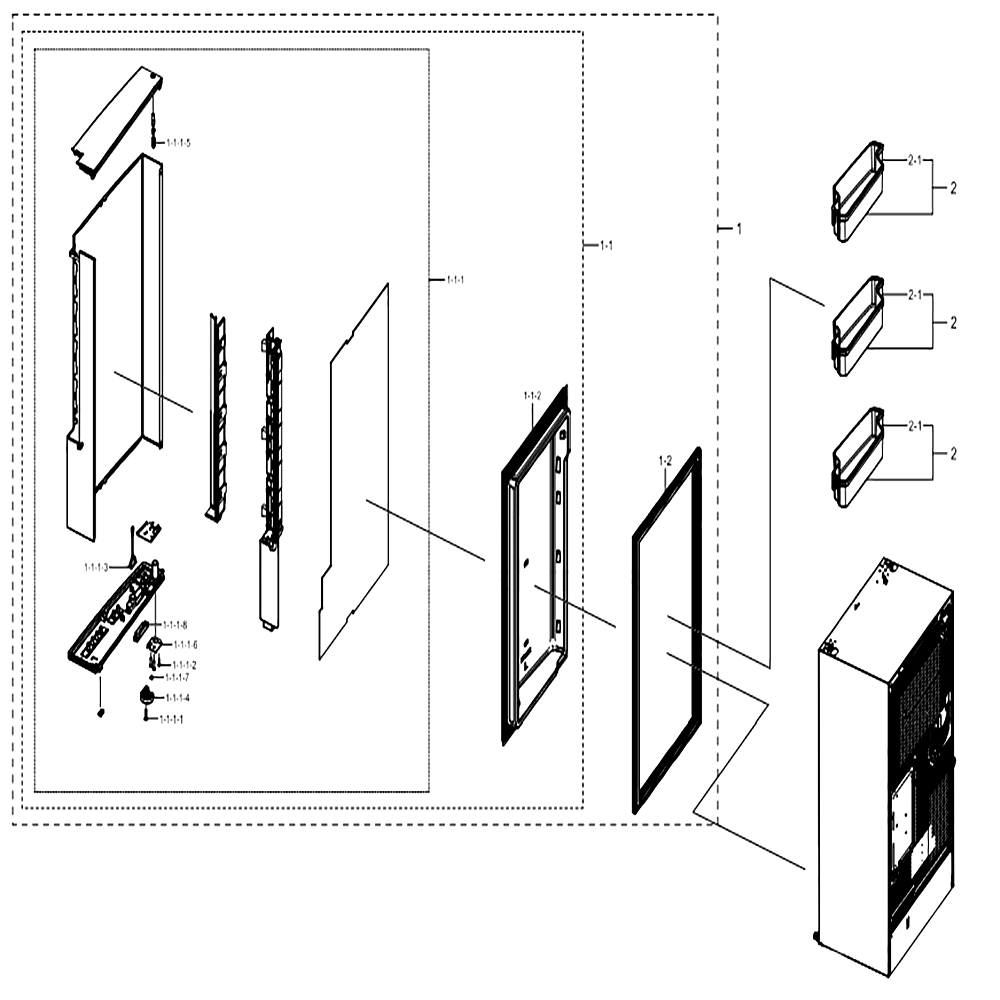

Freezer Door L

...
...
1-1-1-1
Screw-Machine SAM-6001-000716
...
1-1-1-2
Screw-Tapping SAM-6002-001120
...
1-1-1-3
Switch Reed SAM-DA34-00043J
...
1-1-1-4
Support Door-Close; Aw-Pjt,pk,m33r3a000,c SAM-DA61-02383E
...
1-1-1-5
Spring Etc-Handle; Sveta-Pjt,sts304,6.2 SAM-DA61-05366A
...
1-1-1-6
Stopper Door-L; Romanee Conti,po-Sphc,bla SAM-DA61-08816A
...
1-1-1-7
Grommet-Stopper SAM-DA63-40294A
...
1-1-1-8
Cap Door Switch; 3050-Pjt,pp,t1.5,hb,bj75 SAM-DA67-02385M
...
1-1-1
Assy Plate Door-Fre Left; Family Hub,rf95 SAM-DA97-15383X
...
1-1-2
Panel-Fre; Rf8000k,abs,qu-0191s,cool Whit SAM-DA64-04928A
...
1-1
Assy Door Foam-Fre Left; Rf9500k,real Sts SAM-DA91-04585B
...
1-2
Assy Gasket-Fre; Rf9000n,gray SAM-DA97-19431A
...
1
Assy Door Sub-Fre Left; Rf9500k,real Sts( SAM-DA93-00028A
...
2-1
Guard-Fre Left; Gpps,t3.0,tp Blue SAM-DA63-08282A
...
2
Assy Guard-Fre Low; Rf8000k,assy Guard-Fr SAM-DA97-16185A

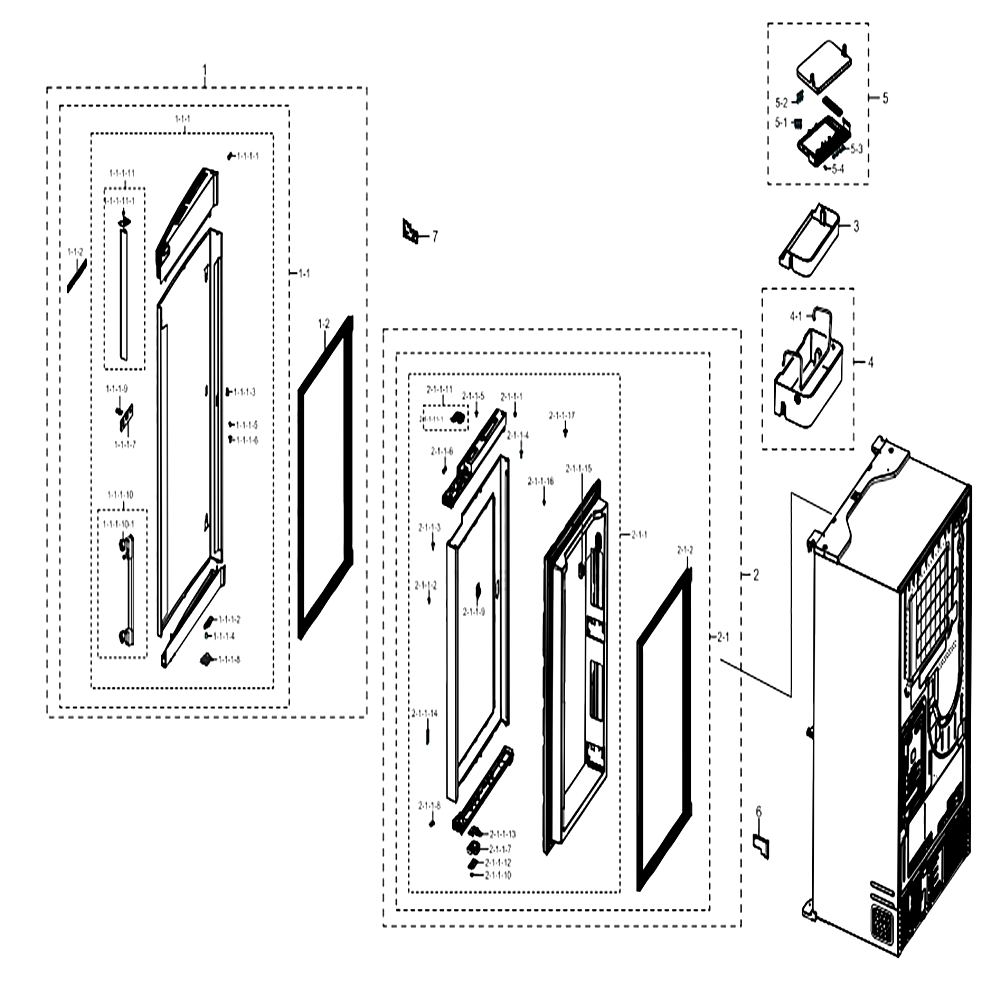

Fridge Door R

...
...
1-1-1-1
Magnet-A SAM-DA61-03769A
...
1-1-1-2
Stopper Door-Ref Low SAM-DA61-09951A
...
1-1-1-3
Grommet Hinge-Middle SAM-DA63-07545B
...
1-1-1-4
Rubber-Cap Hose SAM-DA73-00211A
...
1-1-1-5
Screw-Tapping SAM-6002-000213
...
1-1-1-6
Screw-Tapping SAM-6002-001122
...
1-1-1-7
Reinf-Cap Handle SAM-DA61-06658A
...
1-1-1-8
Support Cap Door-Right; Rf9000k,abs,t1.5, SAM-DA61-10854A
...
1-1-1-9
Fixer Handle; Aw3-14,swrch10a,m8 SAM-DA61-11161A
...
1-1-1-10-1
Bracket Handle; Food Show Case,pom,natura SAM-DA61-09327A
...
1-1-1-10
Assy Handle; Rf9000k SAM-DA97-16134B
...
1-1-1-11-1
Screw-Tapping SAM-6002-000215
...
1-1-1-11
Assy Handle-Ref Up; Rf9000k,fdsr SAM-DA97-16575A
...
1-1-1
Assy Plate Door-Ref; Rf9000k,fdsr,usa,sil SAM-DA97-16759A
...
1-1-2
Mascot; All,ni,t0.06,l90 SAM-DA64-04021D
...
1-1
Assy Door Foam-Out; Rf9000jc Fdsr,real St SAM-DA91-04574A
...
1-2
Assy Gasket; Rf9000k,dark-Gray SAM-DA97-13915J
...
1
Assy Door Sub-Out; Rf9000jc Fdsr,real Sts SAM-DA93-00027A
...
2-1-1-1
Screw-Tapping SAM-6002-000239
...
2-1-1-2
Screw-Tapping SAM-6002-001120
...
2-1-1-3
Screw-Tapping SAM-6002-000538
...
2-1-1-4
Screw-Tapping SAM-6002-000613
...
2-1-1-5
Screw-Tapping SAM-6002-000623
...
2-1-1-6
Magnet SAM-DA61-03769B
...
2-1-1-7
Support Door-Middle; Fdsr,pom,so301,cream SAM-DA61-09950A
...
2-1-1-8
Grommet-Chassis Up SAM-DA63-04825A
...
2-1-1-9
Cover Lock SAM-DA63-08235A
...
2-1-1-10
Grommet-Stopper SAM-DA63-40294A
...
2-1-1-11-1
Roller-Auto Close SAM-DA66-00440A
...
2-1-1-11
Assembly Lever Auto Close SAM-DA97-14992A
...
2-1-1-12
Stopper Door-Ref; Po-Sphc,black,eletrodep SAM-DA61-09952B
...
2-1-1-13
Hinge-Low; Rf9000k,po-Sphc,t4.0,eletrodep SAM-DA61-10818B
...
2-1-1-14
Assembly Lamp Led SAM-DA96-01119A
...
2-1-1-15
Fixer Guard-Up; Rh6900jc,hips,cool White, SAM-DA61-10323A
...
2-1-1-16
Screw-Tapping SAM-6002-000213
...
2-1-1-17
Screw-Tapping SAM-6006-001083
...
2-1-1
Assy Door Foam-Ref In; Rf9000k,real Sts(4 SAM-DA91-04487F
...
2-1-2
Assy Gasket-Ref; Rf9000n,gray SAM-DA97-19430A
...
2-1
Assy Door Ref In-Right; Rf9000k,real Sts( SAM-DA91-04494F
...
2
Assy Door Sub-Ref In; Rf9000k,real Sts(43 SAM-DA93-00026A
...
3
Assy Guard-Ref Up; Rf9000k-Cd,fdsr,fixer SAM-DA97-15186C
...
4-1
Support Wire-Low SAM-DA61-09948A
...
4
Assy Guard-Ref Low Right; Fdsr,cd SAM-DA97-15185A
...
5-1
Screw-Tapping SAM-6002-000213
...
5-2
Screw-Tapping SAM-6002-000623
...
5-3
Grommet-A; Mouton12,si,cool White,name Ta SAM-DA63-07538A
...
5-4
Grommet-Low SAM-DA63-07559A
...
5
Assy Guard Utility; Fdsr,cd SAM-DA97-15187B
...
6
Cap Reinf; Rf9000k,abs,hb,hg-0760gp,cool SAM-DA67-04145A
...
7
Cap Reinf; Rf9000k,abs,hb,hg-0760gp,cool SAM-DA67-04144A

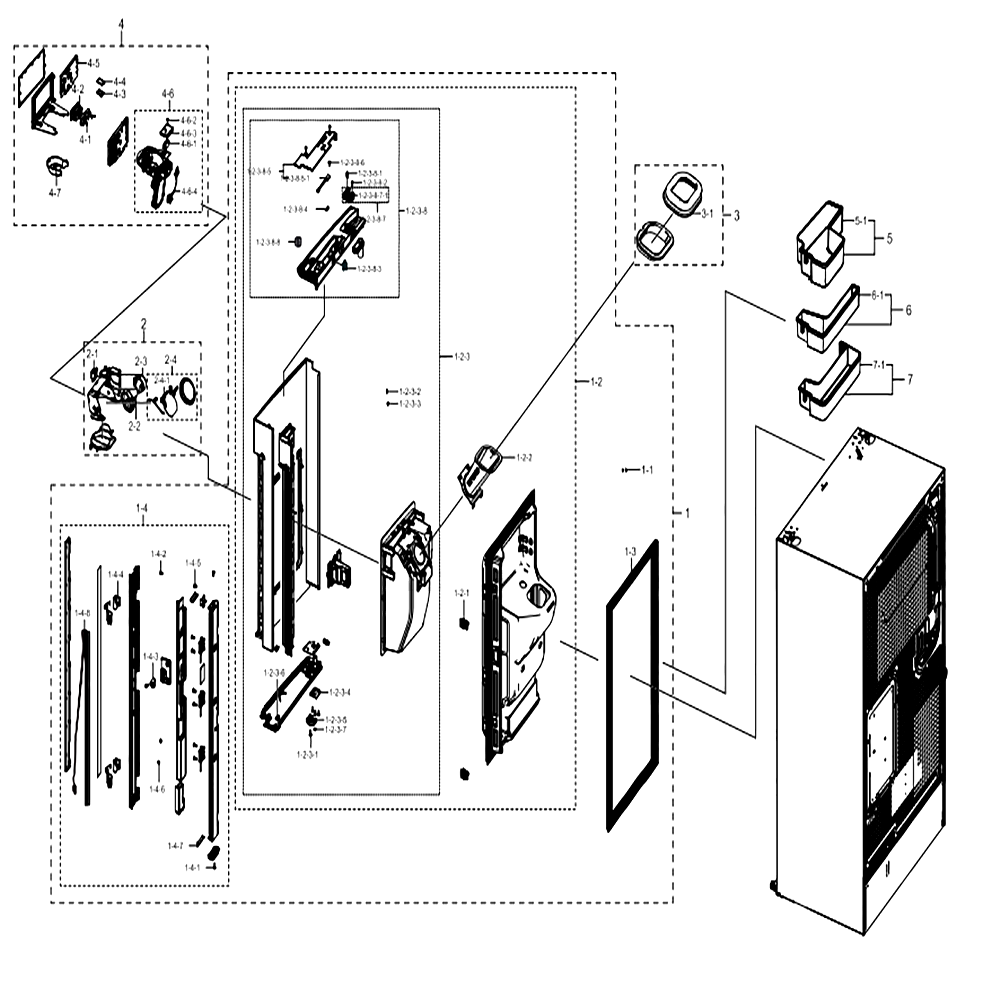

Fridge Door L

...
...
1-1
Screw-Tapping SAM-6002-001406
...
1-2-1
Assy-Grommet French; Mouton SAM-DA97-12475A
...
1-2-2
Assy Guide-Ice Route; Romanee Conti,cool SAM-DA97-13432A
...
1-2-3-1
Screw-Machine SAM-6001-000716
...
1-2-3-2
Screw-Tapping SAM-6002-001120
...
1-2-3-3
Screw-Tapping SAM-6002-001122
...
1-2-3-4
Stopper Door-L; Romanee Conti,po-Sphc,bla SAM-DA61-08816A
...
1-2-3-5
Support Cap Door-Left; Rf9000k,pom,t3.5,k SAM-DA61-10856A
...
1-2-3-6
Grommet-Chassis Up SAM-DA63-04825A
...
1-2-3-7
Grommet-Stopper SAM-DA63-40294A
...
1-2-3-8-1
Screw-Tapping SAM-6002-000613
...
1-2-3-8-2
Screw-Tapping SAM-6002-001122
...
1-2-3-8-3
Switch Door-Interlock SAM-DA34-00066C
...
1-2-3-8-4
Magnet-A SAM-DA61-03769A
...
1-2-3-8-5-1
Sensor Humidity SAM-DA32-00034B
...
1-2-3-8-5
Assy Cover Display; Romanee Conti,inox Gr SAM-DA97-13014A
...
1-2-3-8-6
Cap-Shaft Hole SAM-DA67-02795C
...
1-2-3-8-7-1
Roller-Auto Close SAM-DA66-00440A
...
1-2-3-8-7
Assembly Lever-Auto Close SAM-DA97-12625A
...
1-2-3-8-8
Cover-Fixer Housing V SAM-DA63-02902B
...
1-2-3-8
Assy Cap Door-Ref Up Left; Romanee Conti, SAM-DA97-13847J
...
1-2-3
Assy Plate Door-Ref Left; Rf9000k,fdsr,us SAM-DA97-15381Z
...
1-2
Assy Door Foam-Ref Left; Rf9000jc Fdsr,re SAM-DA91-04315M
...
1-3
Assy Gasket-Ref; Rf9000n,gray SAM-DA97-19430A
...
1-4-1
Screw-Tapping SAM-6002-000213
...
1-4-2
Screw-Tapping SAM-6002-000471
...
1-4-3
Cap-Case French Mid SAM-DA67-01701A
...
1-4-4
Hinge-French SAM-DA61-08305A
...
1-4-5
Screw-Tapping SAM-6002-000217
...
1-4-6
Grommet-A; Mouton12,si,cool White,name Ta SAM-DA63-07538A
...
1-4-7
Gasket French-Low; Rf9000jc,si,gray,0.80 SAM-DA63-08421A
...
1-4-8
Heater Cord-French; Ac120v,romanee-Conti, SAM-DA47-00245U
...
1-4
Assy French; Rf9000jc,thai Silver, 110v, SAM-DA97-17722J
...
1
Assy Door Sub-Ref Left; Rf9000jc Fdsr,rea SAM-DA93-00025A
...
2-1
Switch-Micro SAM-3405-001117
...
2-2
Screw-Tapping SAM-6002-001364
...
2-3
Motor Geared-Disp SAM-DA31-00079D
...
2-4-1
Cover-Ice Route A SAM-DA63-04647A
...
2-4
Assembly Cover-Ice Route SAM-DA97-05368A
...
2
Assembly Guide Ice Route SAM-DA97-13829C
...
3-1
Gasket-Cap Chute Ice; Romanee Conti,si,wh SAM-DA63-07422A
...
3
Assy Cap-Chute Ice; Romanee Conti,hips,12 SAM-DA97-13431A
...
4-1
Screw-Tapping SAM-6002-000630
...
4-2
Assembly Pcb Kit SAM-DA41-00217A
...
4-3
Case Lamp-Led SAM-DA61-05687A
...
4-4
Cover-Lamp-Led SAM-DA63-02446A
...
4-5
Assy Module; Display(pba),rf9000k,led Whi SAM-DA92-00758B
...
4-6-1
Switch-Micro; 250vac,1a,80,spst-No,t105 SAM-3405-001119
...
4-6-2
Screw-Tapping SAM-6002-000630
...
4-6-3
Cover-Switch SAM-DA63-05449A
...
4-6-4
Assy Wire Harness-Dispenser; All,12vdc,al SAM-DA96-00106J
...
4-6
Assy Lever Dispenser; Aw4-4d,cd/no Sparkl SAM-DA97-12628N
...
4-7
Cover Ice SAM-DA63-07637A
...
4
Assy Cover Dispenser; New T9000,dispenser SAM-DA97-15112E
...
5-1
Guard-Dispenser; Rf9000k,gpps,caribbean B SAM-DA63-08012C
...
5
Assy Guard Dispenser; Rf9000jc,caribian B SAM-DA97-15558B
...
6-1
Guard-Ref Middle; Rf9000k,gpps,caribbean SAM-DA63-08013C
...
6
Assy Guard-Ref Middle; Rf9000jc,caribian SAM-DA97-15562B
...
7-1
Guard-Ref Low; Rf9000k,gpps,caribbean Blu SAM-DA63-08014C
...
7
Assy Guard-Ref Low; Rf9000jc,caribian Blu SAM-DA97-15559B
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
