Samsung RF220NCTASR/AA_0002

Model: RF220NCTASR/AA_0002

Save Part Not Listed?
product name

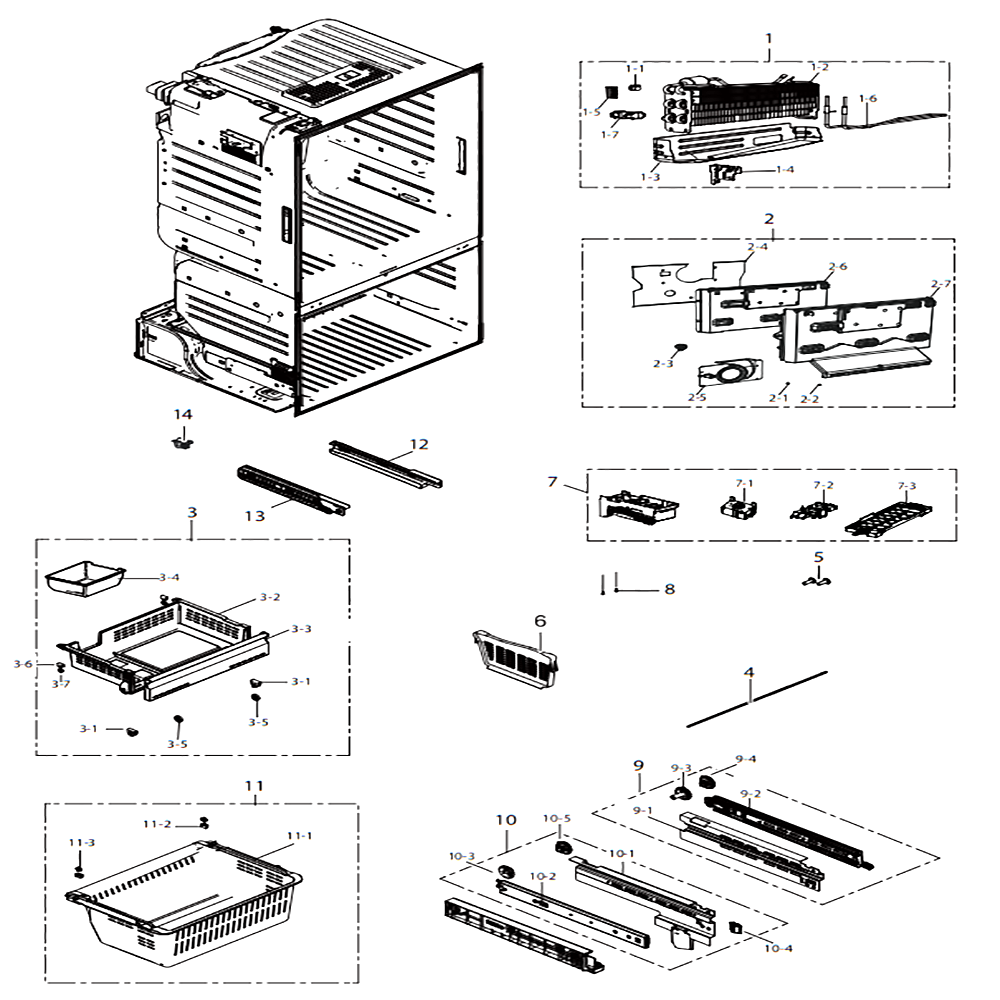

Freeze

...
...
1-1
Sensor Temp SAM-DA32-10104N
...
1-2
A1070/a1100,5raw Evap,barosa SAM-DA59-00546A
...
1-3
Barosa,sazcc,t0.3 SAM-DA61-08578A
...
1-4
Pbt,ntr SAM-DA61-08634A
...
1-5
Aw-Pjt,pp,natural,bj75 SAM-DA61-04799A
...
1-6
Ac120v,ibachi, 72ohm SAM-DA47-00457B
...
1-7
Barosa,al,-,t0.6 SAM-DA61-08629A
...
1
Ibaci,fin,120v,200w,5raw E SAM-DA96-00977B
...
2-1
Screw-Tapping SAM-6002-000213
...
2-2
Screw-Tapping SAM-6002-000215
...
2-3
Motor Bldc-Fan SAM-DA31-00287B
...
2-4
Ibaci,gl-Sazcc,t0.3,n SAM-DA61-08704A
...
2-5
Ibaci,pp,-,-,-,black,-,-, SAM-DA61-08705A
...
2-6
Ibaci,ps Foam,ntr SAM-DA62-03864A
...
2-7
Ibaci,pp,ntr SAM-DA63-07246A
...
2
Ibaci SAM-DA97-13192A
...
3-1
Aw-Pjt,pa66,na SAM-DA61-04813A
...
3-2
Ibaci,hips,cool White SAM-DA63-07256A
...
3-3
Ibaci,hips,t3.0,w622, SAM-DA63-07257A
...
3-4
Aw-Sem,pp,cool White(sc-02 SAM-DA61-05358A
...
3-5
Aw-Pjt(samsung),pom, SAM-DA66-00639A
...
3-6
Aw-Sem,pom,500p,natural,da66- SAM-DA61-04804A
...
3-7
Aw1-12,pa66,natural,v2,101f SAM-DA61-04805B
...
3
Ibaci SAM-DA97-13155C
...
4
Aw4,sm25c,553.6,black Electro SAM-DA66-00437G
...
5
Screw-Tapping SAM-6002-001406
...
6
Ibaci,pp,cool White SAM-DA61-08719A
...
7-1
Assy SAM-DA59-00294B
...
7-2
Cover Sensor SAM-DA63-02183A
...
7-3
Ad,pp,hb,natural SAM-DA63-02284B
...
7
Aw4 SAM-DA97-07603B
...
8
Screw-Tapping SAM-6002-001306
...
9-1
Aw-Pjt,egi-Secc,t1.6,c SAM-DA61-04816A
...
9-2
Aw2-Pjt,cr-Scp1,w53.5,l SAM-DA61-09088A
...
9-3
Aw-Pjt,pom,ntr SAM-DA66-00767A
...
9-4
Aw-Pjt,pom,-,natural,da61-031 SAM-DA61-04801A
...
9
Aw-Pjt,t2.0,qty. R SAM-DA97-10595B
...
10-1
Aw-Pjt,egi-Secc,t1.6,c SAM-DA61-04817A
...
10-2
Aw2-Pjt,cr-Scp1,w53.5,l SAM-DA61-09087A
...
10-3
Aw-Pjt,pom,ntr SAM-DA66-00771A
...
10-4
Aw-Pjt,-,cool White,-,-, SAM-DA34-00049A
...
10-5
Aw-Pjt,pom,-,natural,da61-031 SAM-DA61-04801A
...
10
Aw-Pjt,t2.0,qty. R SAM-DA97-10594B
...
11-1
Ibaci,pp,cool White SAM-DA63-07255A
...
11-2
Aw1-12,pa66,natural,v2,101f SAM-DA61-04805B
...
11-3
Aw-Sem,pom,500p,natural,da66- SAM-DA61-04804A
...
11
Ibaci,cool White SAM-DA97-13152A
...
12
Opus1,hips,natural,s-834s SAM-DA61-07328A
...
13
Opus1,hips,natural,s834s1 SAM-DA61-07329A
...
14
Switch-Door SAM-DA34-10120E

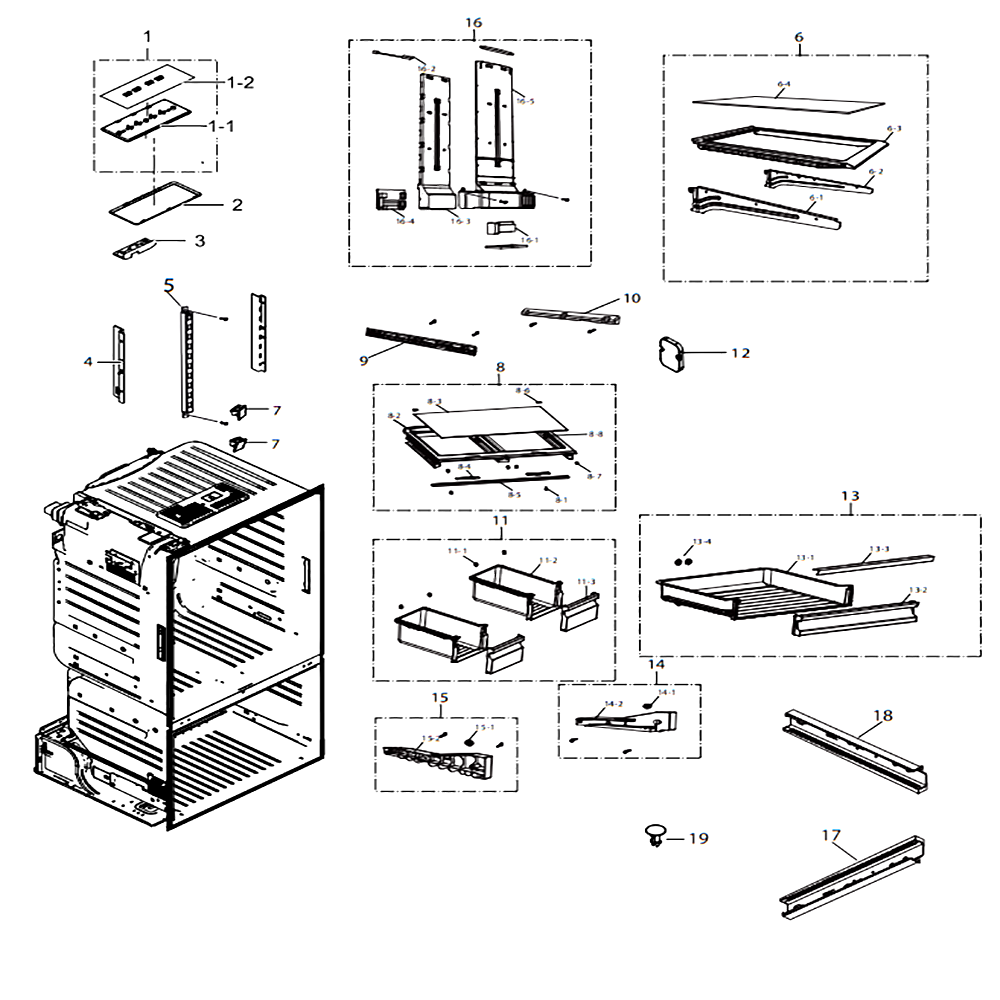

Fridge

...
...
1-1
Ibaci,hips,natural,hb,s834 SAM-DA61-08749A
...
1-2
Assy Lamp Led; 5,cem-1,240*10,white,smaw2 SAM-DA41-00676K
...
1
Ibaci SAM-DA97-13185A
...
2
Aw4,gpps,tp Blue,147f SAM-DA63-06921A
...
3
Ibaci,abs+pc,cool White(sc- SAM-DA61-08751A
...
4
Ibaci,egi-Secc,t2.0 SAM-DA61-08724A
...
5
Aw-Sem(rf265,266),se SAM-DA61-04847B
...
6-1
Ibaci,egi-Secc,t1.6,c SAM-DA61-08713A
...
6-2
Ibaci,egi-Secc,t1.6,c SAM-DA61-08714A
...
6-3
Ibaci,pp,cool White SAM-DA67-03524A
...
6-4
Ibach,glass SAM-DA01-00831A
...
6
Ibaci SAM-DA97-13133A
...
7
Ibaci,pp,cool White SAM-DA67-03495A
...
8-1
Screw-Tapping SAM-6002-000213
...
8-2
Ibaci,hips,cool White(sc-0 SAM-DA63-07248A
...
8-3
Ibaci,print,glass SAM-DA01-00846A
...
8-4
Lever-Humidity SAM-DA66-00718A
...
8-5
Ibaci-Pjt,shp1,t2.9 SAM-DA61-08696A
...
8-6
Aw-Pjt,hips,cool White,d SAM-DA61-04809A
...
8-7
Aw-Sem,pom,500p,natural,da66- SAM-DA61-04804A
...
8-8
Ibaci,hips,cool White(sc-0 SAM-DA64-04173B
...
8
Ibaci,cool White,assy SAM-DA97-13029A
...
9
Ibaci,hips,3,324 SAM-DA61-08785A
...
10
Ibaci,hips,cool SAM-DA61-08786A
...
11-1
Aw-Sem,pom,500p,natural,da66- SAM-DA61-04804A
...
11-2
Ibaci,gpps,transparency SAM-DA61-08717A
...
11-3
Ibaci Pjt,gpps,transp SAM-DA63-07234A
...
11
Ibaci,assy SAM-DA97-13018A
...
12
Aw-Sem,pp,bla SAM-DA97-06990B
...
13-1
Ibaci,hips,3.0,597.2,405,coo SAM-DA61-08706A
...
13-2
Ibaci,gpps,3.0,hb,tp SAM-DA63-07245A
...
13-3
Ibaci,hips,s834s1,cool W SAM-DA64-03862M
...
13-4
Aw-Sem,pom,500p,natural,da66- SAM-DA61-04804A
...
13
Ibaci SAM-DA97-13125A
...
14-1
Aw-Sem,pom,500p,natural,da66- SAM-DA61-04804A
...
14-2
Ibaci,hips,cool White,s834 SAM-DA61-08708A
...
14
Ibaci SAM-DA97-13128A
...
15-1
Aw-Sem,pom,500p,natural,da66- SAM-DA61-04804A
...
15-2
Ibaci,hips,cool White,s834 SAM-DA61-08707A
...
15
Ibaci SAM-DA97-13130A
...
16-1
-,core-Pjt,max 60ma,-,-, SAM-DA31-00043F
...
16-2
Px41c/502at/dkst1329gw,ibaci SAM-DA32-00057C
...
16-3
Ibaci,ps Foam,ntr SAM-DA62-03836A
...
16-4
Ibaci,ps Foam,ntr SAM-DA62-03837A
...
16-5
Ibaci,pp,t2.0,cool White SAM-DA63-07239A
...
16
Ibaci SAM-DA97-13075A
...
17
Aw-Pjt,abs,cool White,h SAM-DA63-04604A
...
18
Aw-Pjt,abs,cool White,h SAM-DA63-04605A
...
19
Aw-Pjt,abs,hg-0760gp,i Bl SAM-DA67-02138A

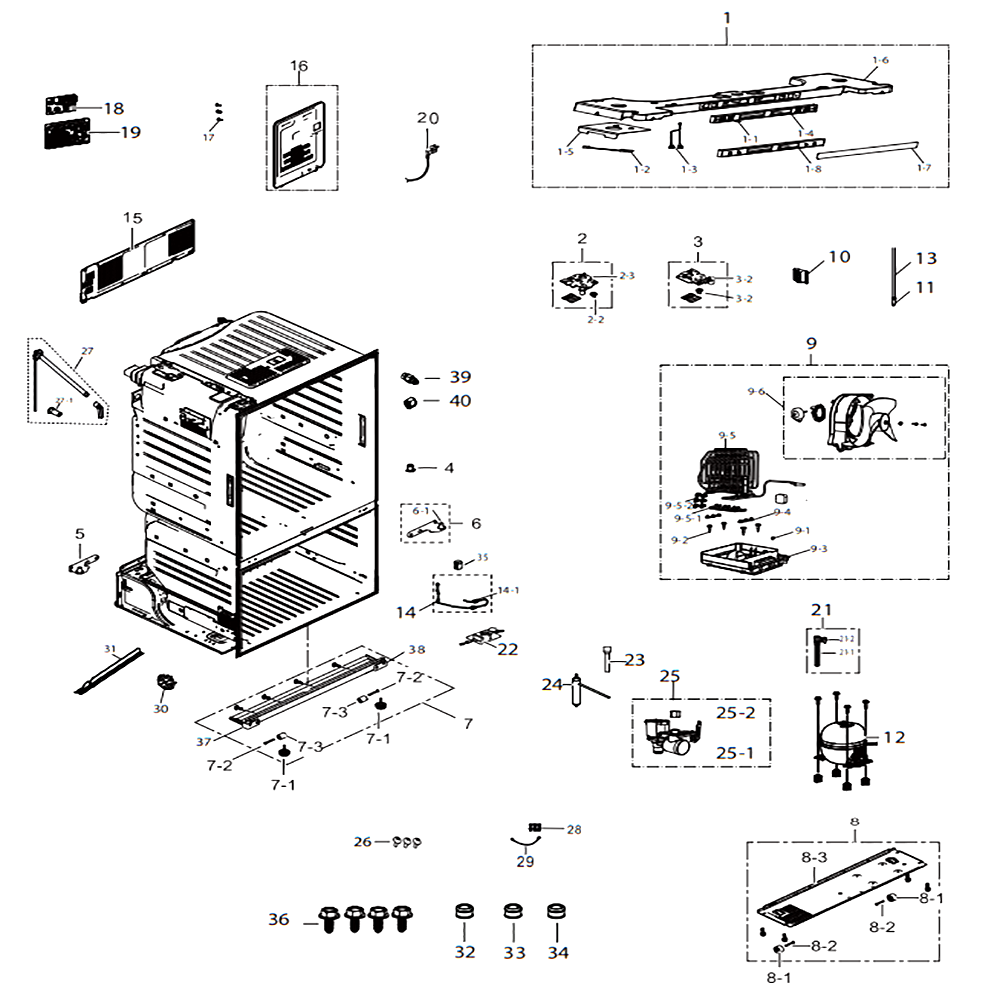

Cabinet

...
...
1-1
Screw-Tapping SAM-6002-001122
...
1-2
Sensor Humidity SAM-DA32-00034B
...
1-3
Switch Reed; Ul1007 Awg 22,280(680),25045 SAM-DA34-00043K
...
1-4
Ibaci,abs,natural SAM-DA61-08712A
...
1-5
Ibaci,gi-Sgcc,t0.3 SAM-DA61-08750A
...
1-6
Ibaci,abs,inox Gray,hb SAM-DA64-04321A
...
1-7
Ibaci,pc,0.25,299.3,26.8,c SAM-DA64-04361A
...
1-8
Led Display,tact,ibaci, SAM-DA92-00427A
...
1
Ibaci,abs,creamy Sts SAM-DA97-13287A
...
2-1
Hinge-Upp L SAM-DA61-08309A
...
2-2
Cam-Auto Close L SAM-DA66-00950A
...
2
Ibaci,t2.9,black SAM-DA97-12573B
...
3-1
Hinge-Upp R; Aw4,po-Sphc,t2.9,eletrodepos SAM-DA61-08310A
...
3-2
Cam-Auto Close R SAM-DA66-00951A
...
3
Ibaci,black SAM-DA97-12574B
...
4
Grommet Hinge-Mid SAM-DA63-06410A
...
5
Aw,al,t5.0,aldc 6,t5.0 SAM-DA61-07771A
...
6-1
Shaft Hinge-Middle SAM-DA66-00688A
...
6
Aw3,ni Cr Flatng,aldc SAM-DA97-12659A
...
7-1
Foot-Front SAM-DA61-04721D
...
7-2
Caster-Rivet SAM-DA61-01920A
...
7-3
Caster-Front SAM-DA61-04702A
...
7
Ibaci,silver SAM-DA97-13179A
...
8-1
Caster-Rear SAM-DA61-04703A
...
8-2
Shaft-Caster SAM-DA66-00649B
...
8-3
Ibaci,gi-Sgcc,t1.2,746,241, SAM-DA64-04331A
...
8
Ibaci,t1.2 SAM-DA97-13255A
...
9-1
Screw-Tapping SAM-6002-000213
...
9-2
Screw-Special SAM-6009-001252
...
9-3
Barosa,pp,234.5,220.1,n SAM-DA63-07158A
...
9-4
Grommet-Sub Cond SAM-DA63-40128A
...
9-5-1
Kayra,cr-Scp1,-,t1. SAM-DA61-07674A
...
9-5-2
Screw-Tapping SAM-6002-000239
...
9-5
Ibaci,fin Pitch 4.5 SAM-DA97-11700C
...
9-6
Rt7000k SAM-DA97-15765D
...
9
Ibaci SAM-DA97-13253B
...
10
Fixer-Hose SAM-DA61-04712C
...
11
Rubber-Cap Hose SAM-DA73-00211A
...
12
Cmp,comp,refrigerator,r-134a SAM-NC1MV72ASR/S
...
13
Pipe-Water Line Out SAM-DA62-00160C
...
14-1
Grommet-Suct Pipe B SAM-DA63-40171D
...
14
Pipe-Connect Suction SAM-DA62-03601B
...
15
Ibaci,gi-Sgcc SAM-DA97-13256A
...
16
Ibaci,t0.6,assy SAM-DA97-13217A
...
17
Screw-Tapping SAM-6002-000213
...
18
Inverter,ibaci,197*98. SAM-DA92-00768J
...
19
Led Touch,ibaci,210*197,11 SAM-DA92-00426G
...
20
At,u.s.a,canada,us3f-1,3c,125v,15a,blac K,1500,20/100/100/150,spt-3 Awg18 105c,ul/ Csa,y,n,n,n,y SAM-3903-000796
...
21-1
Tube Pvc SAM-DA62-01266E
...
21-2
Grommet-Drain Hose; V2-Pjt,nbr,black SAM-DA63-00951C
...
21
Opus,grommet Drain Hose W SAM-DA97-04049R
...
22
Sem-Sseda,20mh,40m,33?1,82*6 SAM-DA27-00019M
...
23
Pipe-Connect SAM-DA62-00314C
...
24
Dryer SAM-DA62-04309B
...
25-1
Ac110~127v,-,1way,#187,1,1,no SAM-DA62-01477A
...
25-2
Valve-Fitting Nut SAM-DA74-00070B
...
25
Ibaci,ibaci,110~12 SAM-DA97-13268A
...
26
Screw-Tapping SAM-6002-000217
...
27-1
Fixer-Valve Water B SAM-DA71-20208A
...
27
Aw2 Cd SAM-DA97-00209T
...
28
Screw-Tapping SAM-6006-001170
...
29
Wire Harness-Earth SAM-DA39-20389L
...
30
Cover-Urethane SAM-DA63-04598B
...
31
Trim-Blade SAM-DA64-02631A
...
33
Fitting-Lokring 43 SAM-DA60-00281A
...
34
Fitting-Lokring 33 SAM-DA60-00280A
...
35
Grommet-Suct Pipe A SAM-DA63-40171B
...
37
Aw4-4d,pp,inox Gray SAM-DA63-06389E
...
38
Aw4-4d,pp,inox Gra SAM-DA63-06405D
...
39
Valve-Fitting Pu SAM-DA62-00305A
...
40
Valve-Fitting Nut SAM-DA74-00070B

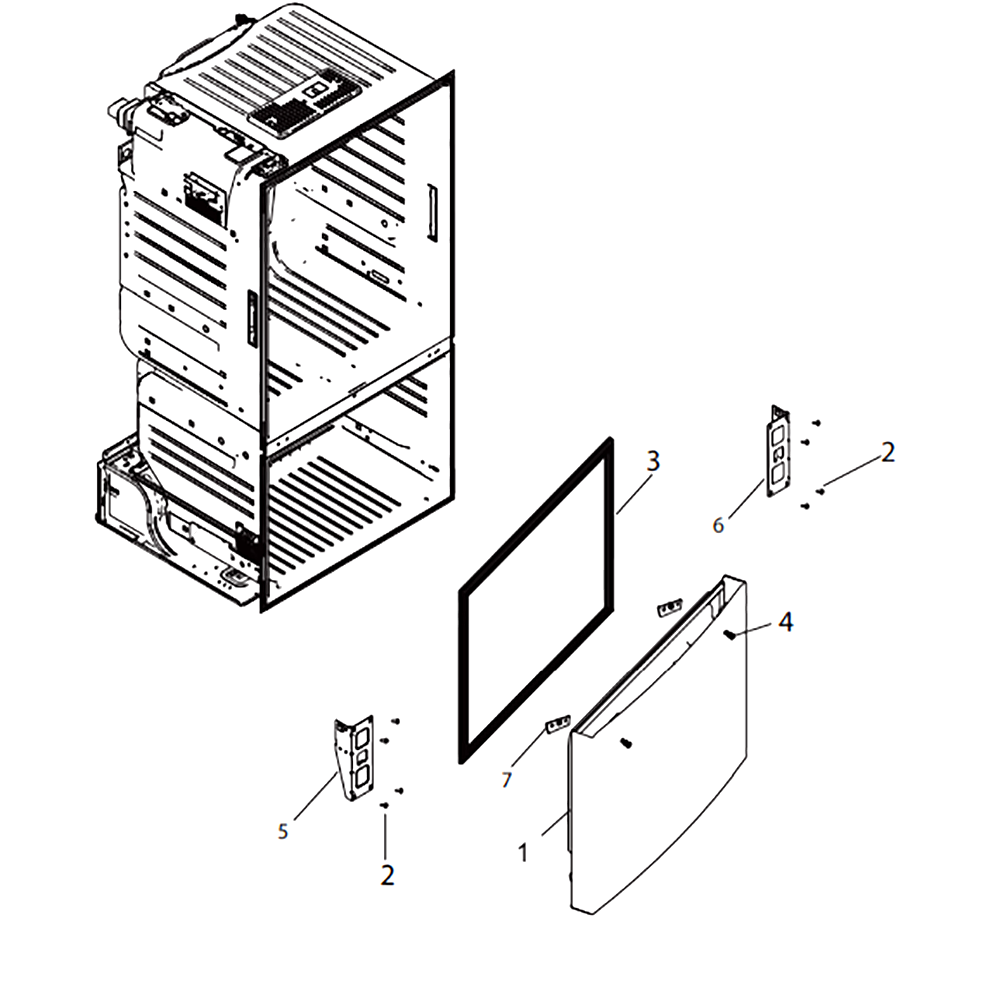

Freeze Door

...
...
1
Ibaci_Pjt SAM-DA91-03900A
...
2
Screw-Tapping SAM-6002-000613
...
3
Ibaci,gray SAM-DA97-12522L
...
4
Fixer Handle; Aw3-14,swrch10a,m8 SAM-DA61-11161A
...
5
Aw-Pjt,egi-Secc,t2.0 SAM-DA61-04840A
...
6
Aw-Pjt,secc1,-,cool SAM-DA61-04841A
...
7
Reinf-Cap Handle SAM-DA61-06658A

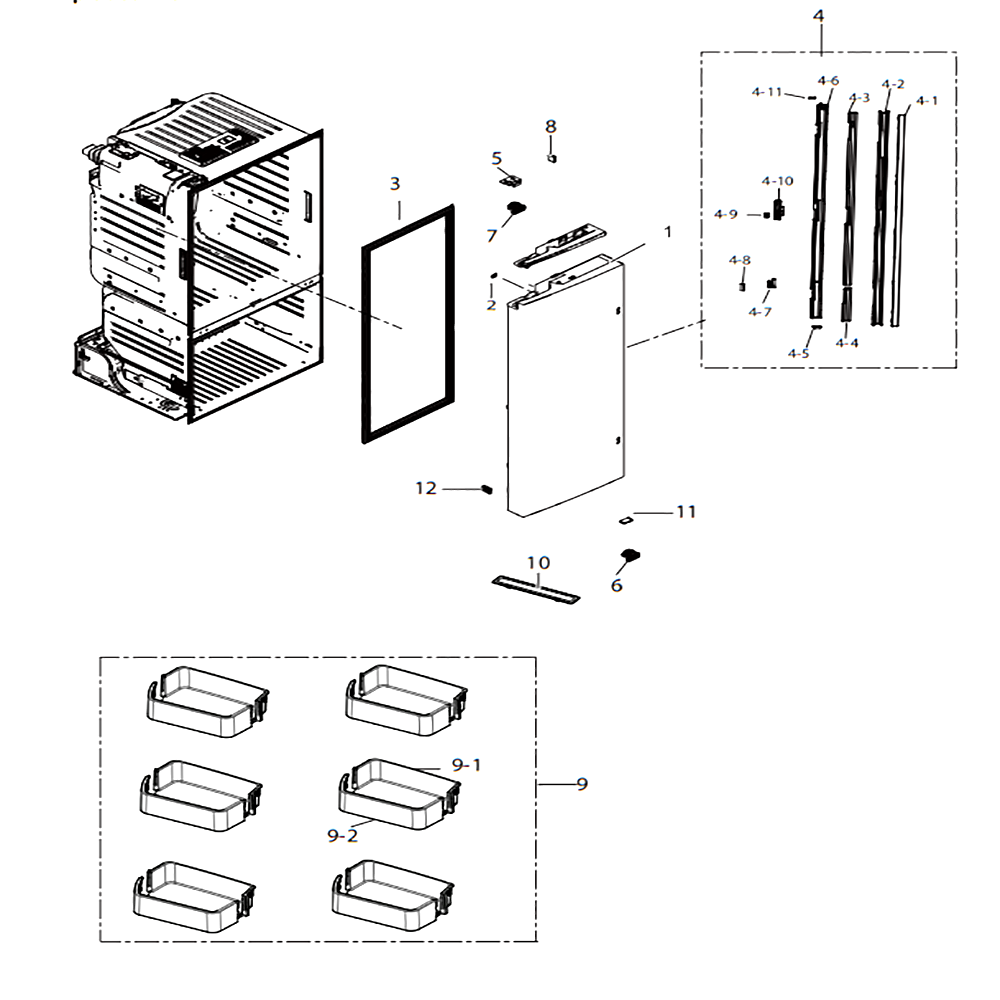

Fridge Door Left

...
...
1
Ibaci_Pjt SAM-DA91-03898A
...
2
Magnet-A SAM-DA61-03769A
...
3
Ibaci,gray SAM-DA97-05253Y
...
4-1
Ibaci,egi-Secc,t0.6,thai Si SAM-DA61-08676A
...
4-2
Ibaci,abs,cool White(s SAM-DA61-08669A
...
4-3
Ibaci,ps Foam,ntr,sf-4 SAM-DA62-03834A
...
4-4
Ibaci,ps Foam,ntr, SAM-DA62-03835A
...
4-5
Gasket-French Low; Aw-Pjt,si,gray SAM-DA63-06842B
...
4-6
Ibaci,abs,cool White(sc-0274 SAM-DA61-08668A
...
4-7
Hinge-French SAM-DA61-08305A
...
4-8
Aw-Pjt,abs,cool White,ab SAM-DA67-02146A
...
4-9
Aw-Pjt,abs,cool Whit SAM-DA67-02154A
...
4-10
Aw-Pjt,pc,-,-,-,-,-, SAM-DA63-04645A
...
4-11
Gasket-French Upp; Aw4,si,gray SAM-DA63-06959A
...
4
Ibaci,thai-Silver SAM-DA97-12947A
...
5
Stopper-Door L SAM-DA61-08210A
...
6
Aw-Sem,pom,hb,500p,na SAM-DA61-05001C
...
7
Aw1-12,pom,black SAM-DA97-13070A
...
8
Grommet-Stopper SAM-DA63-40294A
...
9-1
Ibaci,hips,cool White SAM-DA63-07206A
...
9-2
Ibaci,gpps,ntr,g116hv SAM-DA63-07208A
...
9
Ibaci,fdr SAM-DA97-12935A
...
10
Aw-Pjt,gpps,t2,tp Blu SAM-DA63-06131B
...
11
Assy Lamp Led; 2,fr-4,20*30,white,smaw250 SAM-DA41-00676J
...
12
Grommet-Chassis Up SAM-DA63-04825A

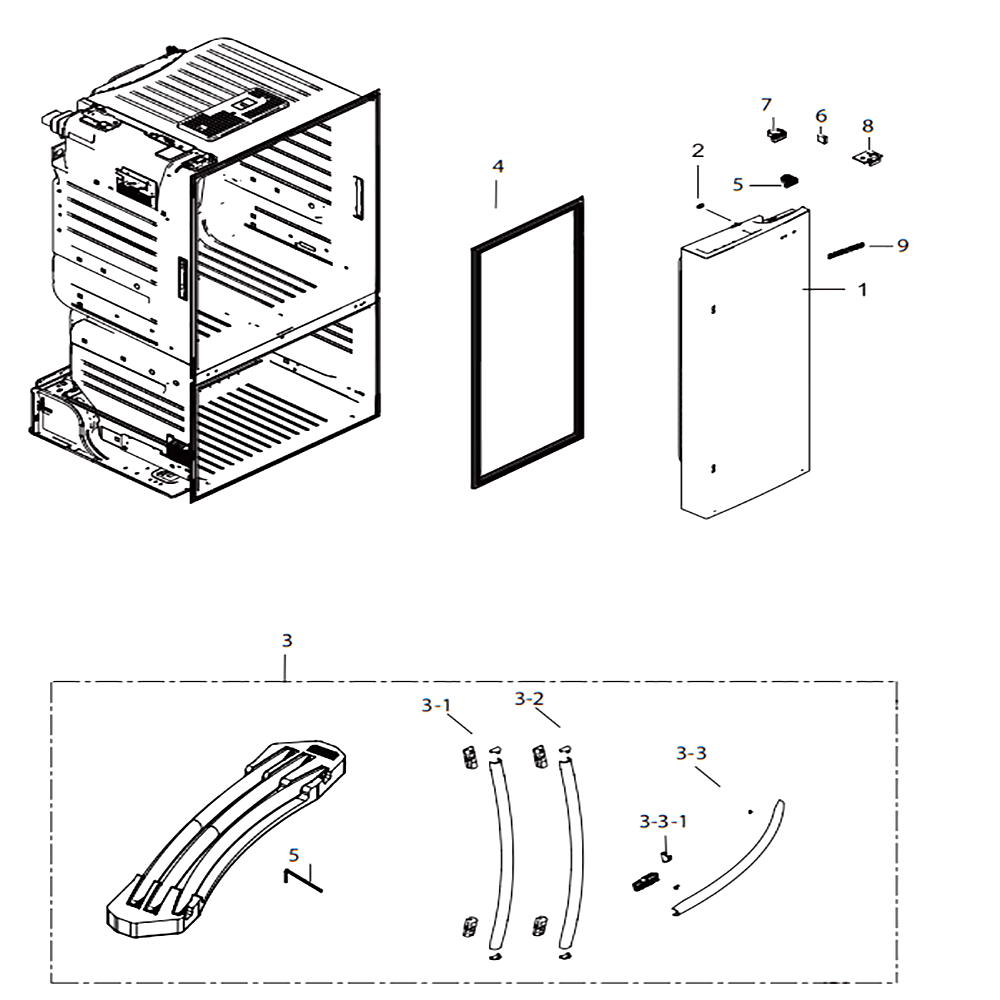

Fridge Door Right

...
...
1
Ibaci_Pjt SAM-DA91-03897A
...
2
Magnet-A SAM-DA61-03769A
...
3-1
Assy Handle Bar-Ref L; Aw4,al(a6063),vers SAM-DA97-12715C
...
3-2
Assy Handle Bar-Ref R; Aw4,al(a6063),vers SAM-DA97-12714C
...
3-3-1
Nw2_Fdr,abs,ntr,ni-Cr Plating SAM-DA67-02633A
...
3-3
Ibaci,al(a6063),vers SAM-DA97-13074C
...
3
Ibaci-Fdr,versailles SAM-DA99-04145C
...
4
Ibaci,gray SAM-DA97-05253Y
...
5
Aw1-12,pom,black SAM-DA97-13070A
...
6
Grommet-Stopper SAM-DA63-40294A
...
7
Aw-Sem,pom,hb,500p,na SAM-DA61-05001C
...
8
Stopper-Door R; Aw4,po-Sphc,t2.9,black,t2 SAM-DA61-08196A
...
9
Mascot SAM-DA64-04021A
