Samsung RF18HFENBSR/AA_0000

Model: RF18HFENBSR/AA_0000

Save Part Not Listed?
product name

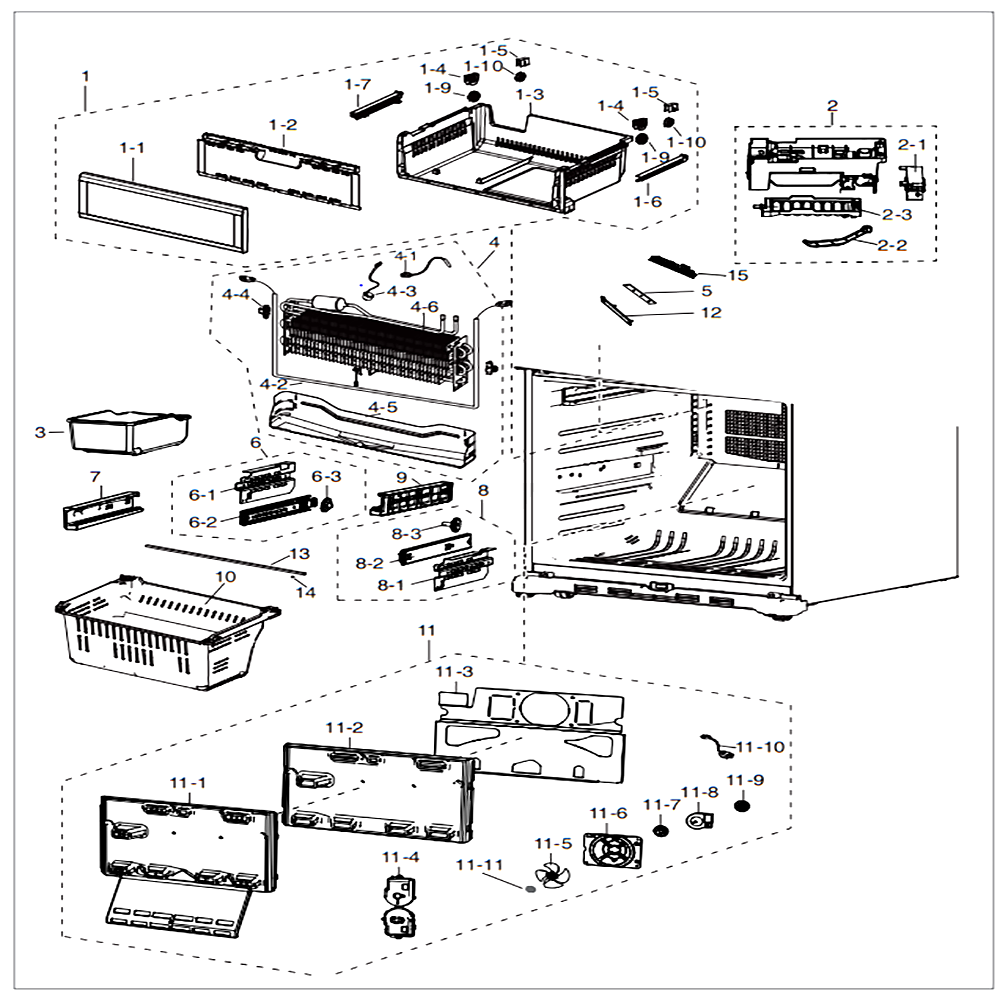

Freezer

...
...
1-1
Nw2-Pjt,hips,-,-,-,-,-,cool Wht,- SAM-DA63-04455A
...
1-2
Nw2-Pjt,gpps,-,tp Blue SAM-DA63-04456A
...
1-3
Nw2-Fdr,hips,cool White(sc-02740r),19cu.ft SAM-DA63-05360A
...
1-4
Nw2,pa66,natural SAM-DA61-07409A
...
1-5
Nw2,pom,ntr SAM-DA66-00856A
...
1-6
Nw2,abs,cool White SAM-DA61-07470A
...
1-7
Nw2,abs,cool White SAM-DA61-07441A
...
1-9
Nw2-Pjt,ssec,pom,ntr SAM-DA66-00854A
...
1-10
Nw2,pa66,natural,kn3311 SAM-DA61-07403A
...
1
Nw2-Fdr,19cu.ft SAM-DA97-11593A
...
2-1
Assy SAM-DA59-00294B
...
2-2
Aw,abs,-,-,-,ntr,- SAM-DA61-00954B
...
2-3
Nw2,pp,ntr SAM-DA63-06415A
...
2
Nw2, Nw2-Fdr SAM-DA97-05037D
...
3
Nw2,pp,cool White SAM-DA61-07401A
...
4-1
Nw2,5v,f-Def-Sensor,yellow,250 SAM-DA32-00024V
...
4-2
Ac120v,nw Fre, 60ohm,240w,incoloy840,-,- ,non,35965-9210,mg611532t,mgo SAM-DA47-00423A
...
4-3
125/250v,6a/3a,60,40,normal,wire SAM-DA47-00285P
...
4-4
Nw2,pp,natural,bj750 SAM-DA61-07410A
...
4-5
Nw2,al,t0.7 SAM-DA61-07451A
...
4-6
A1070/a1100,nw2-Pjt SAM-DA59-00373A
...
4
Nw2,120v/240w SAM-DA96-00844A
...
5
3ea,cem-1,110*20,white,smw250- 03,120ma~160ma,dc12v,min 55lx SAM-DA41-00674H
...
6-1
Nw2,scp1,t1.6,cool White,powder Coating SAM-DA61-07827A
...
6-2
Nw2(19ut),pom SAM-DA61-07853A
...
6-3
Nw2-Pjt,ssec,pom,ntr SAM-DA66-00857A
...
6
Nw2(19ut) SAM-DA97-12024A
...
7
Nw2-Pjt,abs,-,-,-,cool Wht,19cu Ft SAM-DA61-04508A
...
8-1
Nw2,scp1,t1.6,cool White,powder Coating SAM-DA61-07826A
...
8-2
Nw2(19ut),pom SAM-DA61-07851A
...
8-3
Nw2-Pjt,ssec,pom,ntr SAM-DA66-00855A
...
8
Nw2(19ut) SAM-DA97-12026A
...
9
Nw2-Pjt,abs,-,-,-,cool Wht,19cu Ft SAM-DA61-04509A
...
10
Nw2-Fdr,cool White,19cu.ft SAM-DA97-11598A
...
11-1
Nw2-Pjt,pp,bj-730,ntr SAM-DA63-04444A
...
11-2
Nw2,ps Foam SAM-DA62-03227A
...
11-3
Nw2-Pjt,gl-Sazcc,t0.3 SAM-DA61-04461A
...
11-4
Bldc-New,pp,ntr,-,-,-,-,-,bj-730 SAM-DA63-01809A
...
11-5
Nw2,ssec,abs SAM-DA31-00279A
...
11-6
Nw2,ssec,pp,ntr SAM-DA61-07440A
...
11-7
Grommet Motor SAM-DA63-01808A
...
11-8
Motor Bldc SAM-DA31-00146H
...
11-9
Grommet-Motor,rear SAM-DA63-01146A
...
11-10
Wire Harness Motor SAM-DA39-00060K
...
11-11
Spring Etc-Fan SAM-DA61-20128A
...
11
Nw2-Pjt,110v~240v SAM-DA97-11824A
...
12
Super Star,gpps,w35,l145,transparent SAM-DA63-05460B
...
13
Nw2-Pjt,sm25c,-,-,black,-,- SAM-DA66-00605A
...
14
Nw2-Pjt,ssec,pp,ntr SAM-DA67-03067A
...
15
Cc-Pjt,assy Ntr SAM-DA97-08671B

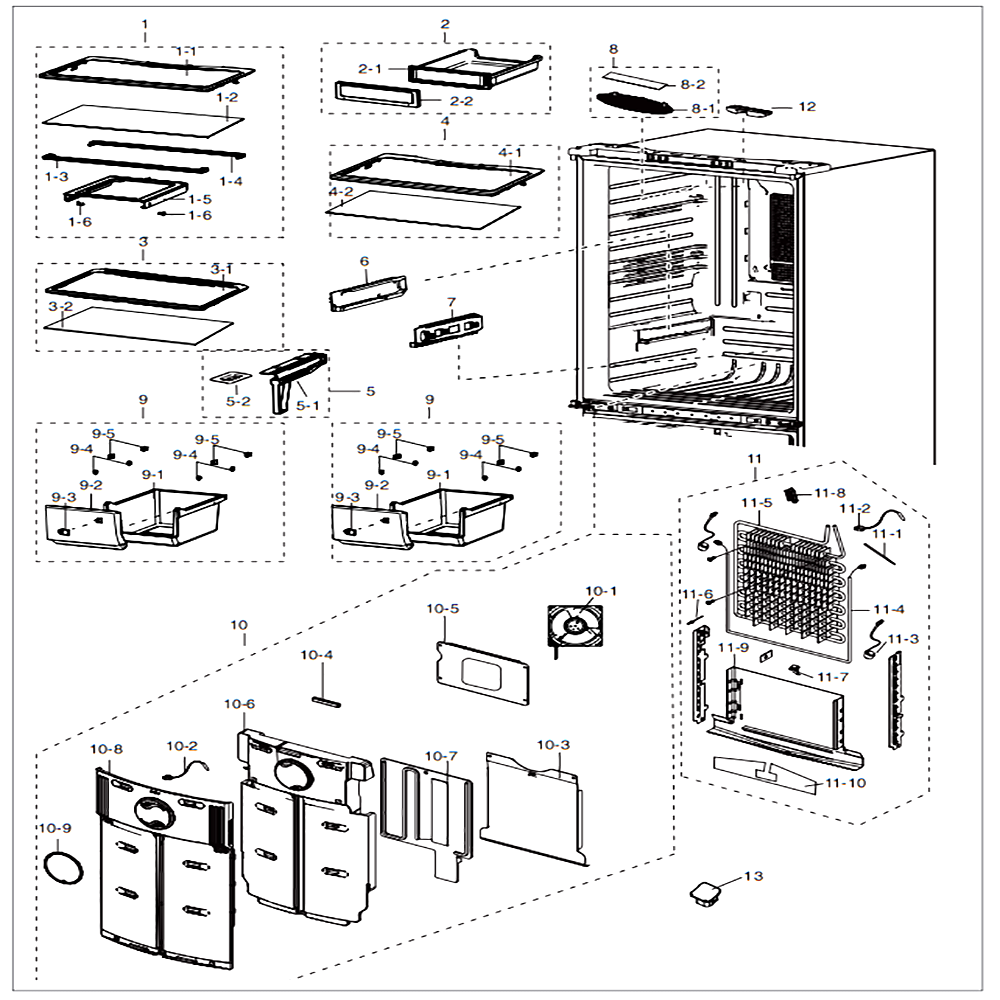

Fridge

...
...
1-1
Nw2,abs,cool White,19cu.f SAM-DA64-02644A
...
1-2
Nw2,glass,19cu.ft SAM-DA64-02646A
...
1-3
Nw2,hips,-,-,-, SAM-DA61-04511A
...
1-4
Nw2,hips,-,-,-,c SAM-DA61-04510A
...
1-5
Nw2,hips,-,-,-,coolwhite,19cu SAM-DA61-04503A
...
1-6
Grommet-Rail SAM-DA63-00202A
...
1
Nw2-Fdr,19cu.ft SAM-DA97-06685C
...
2-1
Nw2,gpps,-,-,tp Blue,19cu SAM-DA63-04463B
...
2-2
Nw2,hips,-,-,-,-,-, SAM-DA63-04465A
...
2
Nw2,-,-,-,-,19cu. SAM-DA97-06677B
...
3-1
Nw2,abs,cool White,19cu.f SAM-DA64-02644A
...
3-2
Nw2,glass,19cu.ft SAM-DA64-02646A
...
3
Nw2-Fdr,19cu.ft SAM-DA97-06687C
...
4-1
W2-Pjt,abs,-,t2.5,sc- SAM-DA64-00449B
...
4-2
W2-Pjt(50),glass,-,w708.5,l2 SAM-DA67-00505L
...
4
W2-Pjt,abs+shelf,glass(t4 SAM-DA97-00663C
...
5-1
W2-Pjt,abs,cool White,sc-0 SAM-DA61-00761B
...
5-2
Nw2,pp,cool White SAM-DA61-04875A
...
5
Nw2,-,-,-,-,19cu.ft SAM-DA97-07059A
...
6
W2-Pjt,abs,cool White,hg-0760g SAM-DA61-60126E
...
7
W2-Pjt,abs,t3.0,-,right,cool-Wh SAM-DA61-60127E
...
8-1
Nw2,nw2-Fdr,pc,natural SAM-DA63-05430C
...
8-2
8ea,cem-1,250*36,white,smw SAM-DA92-00206C
...
8
Nw2,nw2-Fdr SAM-DA97-08606D
...
9-1
W2-Pjt,hips,sc-02740r,cool SAM-DA61-00759B
...
9-2
Nw2-Pjt,gpps,-,tp Blue SAM-DA63-04445B
...
9-3
W2-Pjt,hips,cool White(sc- SAM-DA64-00656A
...
9-4
Nw2,pom,ntr SAM-DA66-00856A
...
9-5
Nw2,pa66,natural,kn3311 SAM-DA61-07403A
...
9
Nw2,19cu.ft SAM-DA97-11620B
...
10-1
Motor Bldc Fan SAM-DA31-00287A
...
10-2
Nw2,5v,f-Sensor,yellow,450 SAM-DA32-00024U
...
10-3
Nw2,al,t0.3 SAM-DA61-04701C
...
10-4
Nw2,abs,ntr SAM-DA61-07467A
...
10-5
Hips,t2.3,natural SAM-DA61-10689A
...
10-6
Nw2,ps Foam SAM-DA62-03226A
...
10-7
Nw2,ps Foam SAM-DA62-03228A
...
10-8
Nw2-Pjt,pp,cool White(sc- SAM-DA63-04439A
...
10-9
Nw2,ssec,abs,natural SAM-DA64-03903A
...
10
Nw2-Pjt,twin Cooling SAM-DA97-11823A
...
11-1
T1.2,w3.6,l146,nylon SAM-6501-000123
...
11-2
Nw2,5v,r-Def-Sensor,yellow,4 SAM-DA32-00024W
...
11-3
Ac250v,10a,109~110?,s.o SAM-DA47-00432A
...
11-4
Ac115v,nw2 Ref, 132. SAM-DA47-00424L
...
11-5
Fin Tube,nw2 Fdr-Pjt,a1070,a110 SAM-DA59-00526A
...
11-6
Al/mg2/steel,od3.2,l9,ntr SAM-6041-001027
...
11-7
Nw2,al,t0.7 SAM-DA61-07451A
...
11-9
Nw2,al,t0.3 SAM-DA61-07452A
...
11-10
Foam-Pe+al,gray,t1.5,w SAM-DA62-04183A
...
11
Nw2,115v 100w SAM-DA96-00845D
...
12
Nw2-Fdr,abs+pc,31.3,95.1,co SAM-DA61-05292A
...
13
Nw2_Fdr,hips,cool White SAM-DA97-11818A

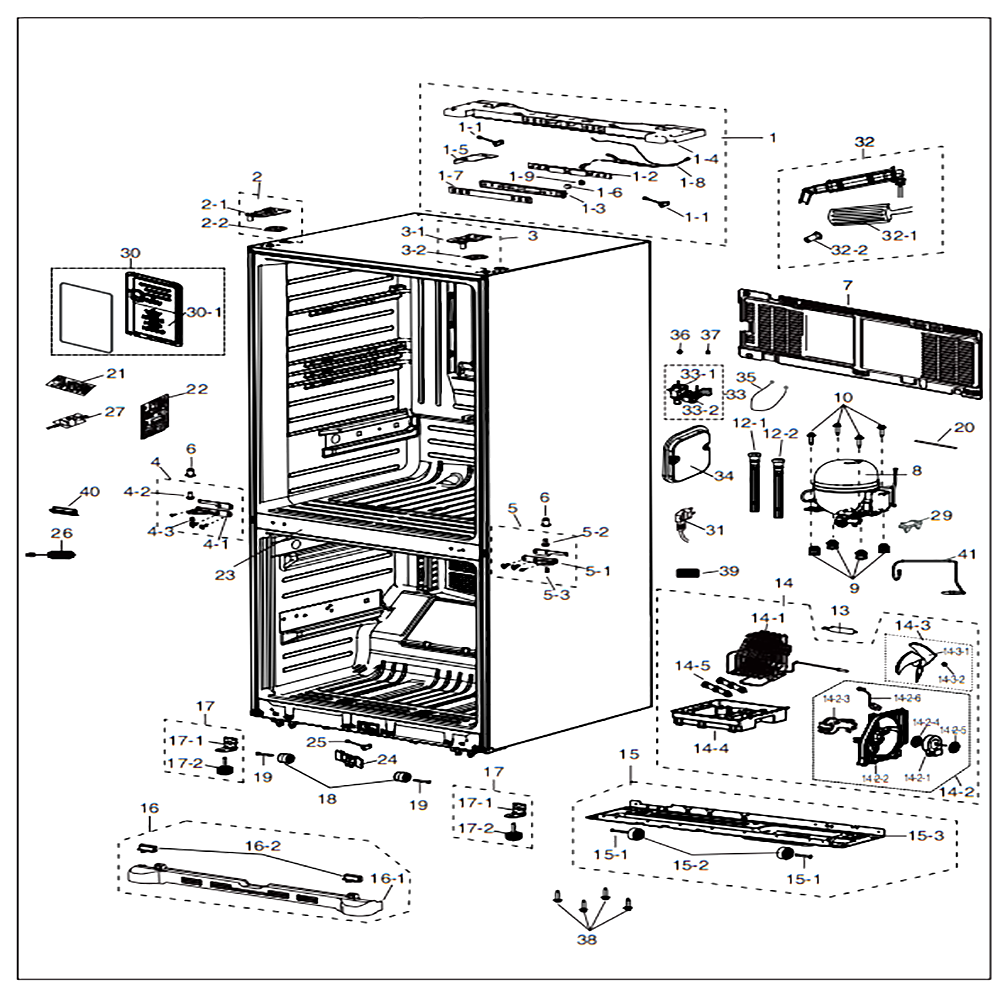

Cabinet

...
...
1-1
Switch Reed SAM-DA34-00043J
...
1-2
Assy Pcb Kit Led,nw2 Fdr-Pjt,300*19.5,f,auto Ice Maker,blue SAM-DA92-00202A
...
1-3
Nw2-Fdr,hips,l303.2,ntr SAM-DA61-05316A
...
1-4
Nw2-Fdr,abs,inox Gray SAM-DA64-02960E
...
1-5
Nw2-Pjt,ssec,gi-Sgcc,0.3,67.8,115 SAM-DA61-07406A
...
1-6
Nw2-Pjt,ssec,gpps,ntr SAM-DA64-03901A
...
1-7
Nw2-Fdr,pc,t0.25,creamy Sts(sc- 07009r),fahrenheit SAM-DA64-02981C
...
1-8
Fdr,220~240vac,ul+iec,ul,ul,t- Type,top,bottom,nw2 Fdr SAM-DA96-01236A
...
1-9
Nw2-Fdr,silicon,t1,id14 SAM-DA60-00318A
...
1
Nw2 Fdr,assy SAM-DA97-11802W
...
2-1
Nw2-Pjt,shp1,t3.0,-,-,black,-,- SAM-DA61-04475B
...
2-2
Nw2-Fdr,rd-Pvc,t2.0,natural SAM-DA63-02527C
...
2
Nw2-Fdr,t3.0,black SAM-DA97-06715C
...
3-1
Nw2-Pjt,cr-Spcc,t3.0 SAM-DA61-04476B
...
3-2
Nw2-Fdr,rd-Pvc,t2.0,natural SAM-DA63-02527C
...
3
Nw2-Fdr,t3.0,black SAM-DA97-06716D
...
4-1
Aw2,cr-Spcc,t4.5 SAM-DA61-07444D
...
4-2
Aw-Pjt,sm10c,od11.2 SAM-DA66-00864A
...
4-3
Bolt-Socket SAM-6011-001442
...
4
Nw2-Fdr,ni-Cr Plated,drawer-Type SAM-DA97-11594C
...
5-1
Aw2,scp1,ni-Cr+cu Plating SAM-DA61-07449D
...
5-2
Aw-Pjt,sm10c,od11.2 SAM-DA66-00864A
...
5-3
Bolt-Socket SAM-6011-001442
...
5
Nw2-Fdr,t4.5,ni-Cr Plated,drawer-Type SAM-DA97-11803C
...
6
Nw2-Pjt,ssec,pom,white SAM-DA63-06419A
...
7
Nw2-Fdr,t0.35,w263.6,l716.0 SAM-DA97-07835E
...
8
0 SAM-MKV172CL2J/SJ1
...
9
Grommet Comp SAM-DA63-02617A
...
10
Bolt-Hex SAM-DA60-20008A
...
12-1
Nw2,,-,soft-Pvc SAM-DA97-11608A
...
12-2
Nw2,l224.5 SAM-DA97-11608B
...
13
C1220t-H,115,single Mouth SAM-DA62-01469H
...
14-1
Nw2 Fdr SAM-DA97-17819A
...
14-2-1
Motor Bldc SAM-DA31-00146B
...
14-2-2
Nw2,ssec,abs,gray,abs-Scrap SAM-DA61-07425A
...
14-2-3
Nw2,ssec,abs,gray,abs-Scrap SAM-DA61-07427A
...
14-2-4
Grommet-Motor,rear SAM-DA63-01146A
...
14-2-5
Grommet Motor SAM-DA63-01808A
...
14-2-6
Wire-Harness Motor SAM-DA96-00042A
...
14-2
Nw2-Pjt,1550rpm,2.7w SAM-DA97-11726A
...
14-3-1
Fan-Turbo SAM-DA31-00015C
...
14-3-2
Spring Etc-Fan SAM-DA61-20128A
...
14-3
Fan-Assy SAM-DA31-00010D
...
14-4
Nw,pp Scrap,-,-,-,-,-,- SAM-DA63-04466B
...
14-5
Grommet-Sub Cond SAM-DA63-40128A
...
14
Nw2 SAM-DA97-17818A
...
15-1
Nw2,mswr10,l47,od8.2,zpc2 SAM-DA66-00863A
...
15-2
Nw2,ssec,pp,35,ntr,35 SAM-DA61-07434A
...
15-3
Nw2,gi-Sgcc,t1.2 SAM-DA64-02694A
...
15
Nw2/fdr,caster(tpe) SAM-DA97-11728A
...
16-1
Nw2,pp,-,-,inox Gray SAM-DA63-05106G
...
16-2
Nw2,pp,-,hb,bj750,inox Gray SAM-DA67-02071G
...
16
Nw2 Fdr,inox Gray, Drawer SAM-DA97-07836L
...
17-1
Nw2,shp1,t4.0,black SAM-DA61-04490A
...
17-2
Nw2,ssec,pp,black,mswr10 SAM-DA61-07421A
...
17
Nw2-Fdr,foot Front(da61-04977a) SAM-DA97-11589A
...
18
Nw2-Pjt,ssec,pp,natural,pp+tpe SAM-DA61-07592A
...
19
Caster-Rivet SAM-DA61-01920A
...
20
Cu,od6.35,t0.6 SAM-DA73-00050G
...
21
Assembly Pcb Inverter SAM-DA92-00111B
...
22
America, N W2-F D R , 148*148mm, 1 10- 240v,12v,12w,inverter Comp SAM-DA92-00420T
...
23
Nw2-Fdr SAM-DA97-11737B
...
24
Nw2-Fdr,pp,stainless Platinum(sc-03172r) SAM-DA63-04453C
...
25
Switch Reed SAM-DA34-00043J
...
26
Nw2,cool-White,sc-02740r SAM-DA97-11606A
...
27
14mh,82*60,ac 5a,0.68uf / 0.68uf,470pf / 470pf,nw2-Pjt,40,tps2005-D04,-45~ +85 ?, SAM-DA27-00027C
...
29
Relay Protector O/l SAM-DA34-00004D
...
30-1
Nw2,gi-Sgcc,t0.5,natural SAM-DA63-08838A
...
30
Nw2,assy SAM-DA97-17797A
...
31
At,u.s.a,canada,us3f-1,3c,125v,15a,blac K,1500,20/100/100/150,spt-3 Awg18 105c,ul/ Csa,y,n,n,n,y SAM-3903-000796
...
32-1
Ac115v,nw2, 1323ohm,10w,pvc,1860mm,315mm,25 5m,non,35151-0310,- SAM-DA47-00192A
...
32-2
Fixer-Valve Water B SAM-DA71-20208A
...
32
Nw2-Fdr,115v/10w SAM-DA97-18245B
...
33-1
Valve-Fitting Nut SAM-DA74-00070B
...
33-2
Ac110~127v,-,1way,#187,1,1,no SAM-DA62-01477A
...
33
Nw2-Fdr,nw2-Fdr SAM-DA97-06707D
...
34
Nw2 SAM-DA97-11611A
...
35
Wire Harness-Earth SAM-DA39-20389L
...
36
Fitting-Lokring 16; Sum23,16, 11smnpb30k SAM-DA60-00279A
...
37
Fitting-Lokring 33 SAM-DA60-00280A
...
38
M6,l16,zpc(wht),swrch18a,hwh Head SAM-DA60-10124A
...
39
Rubber,black,t3,w50,l80,- SAM-DA72-00218A
...
40
Nw2,rw52,swr52 SAM-DA97-13652A
...
41
Nw2-Pjt,ssec,inverter,c1220t SAM-DA97-11684A

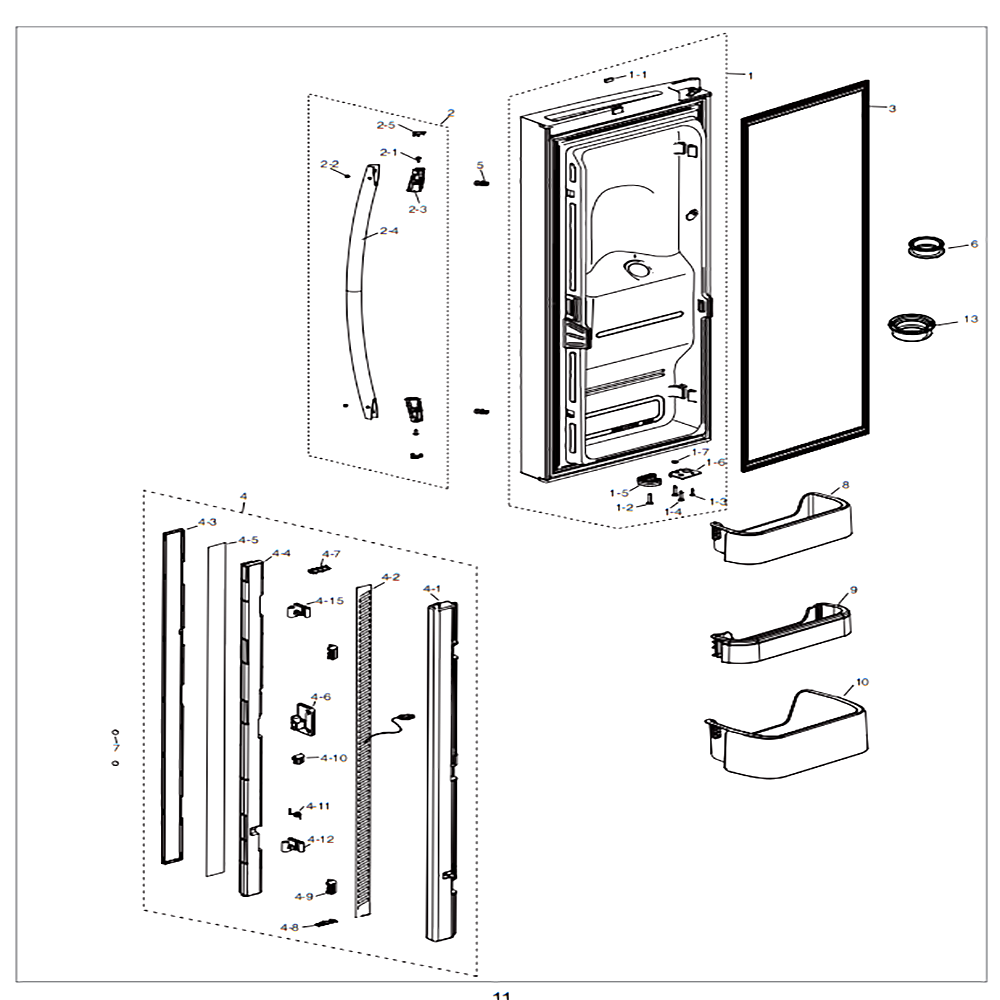

Fridge Door Left

...
...
1-1
Es-Pjt,ssec,ferrite,1600gauss SAM-DA61-03949A
...
1-2
Screw-Machine SAM-6001-000715
...
1-3
Screw-Tapping SAM-6002-001120
...
1-4
Fh,+,m5,l25(15.5),zpc(wht),swrch18a,1 SAM-6009-001475
...
1-5
Nw2,pom,creamy Sts SAM-DA61-07443C
...
1-6
Nw2-Pjt,ssec,scp1,t2.9 SAM-DA61-07462A
...
1-7
Nw2,si,black SAM-DA63-06439A
...
1
Nw2 Fdr ,urban Silver SAM-DA91-03655U
...
2-1
Screw-Tapping SAM-6002-000213
...
2-2
Screw-Set SAM-6009-001526
...
2-3
Nw2,pom,ntr,gf 10%,fixer SAM-DA61-08076A
...
2-4
Nw2,al,t1.3,real Stainless,a6063,horizontal Hair Line SAM-DA64-04089A
...
2-5
Nw2,abs,ntr,cr Plating SAM-DA67-03279A
...
2
Nw2,al(a6063),real Stainless SAM-DA97-12393A
...
3
Nw2-Fdr,pvc,gray SAM-DA63-07733A
...
4-1
Nw2-Fdr,abs,888.9,cool White (sc-02740r) SAM-DA61-05315A
...
4-2
Ac120v,nw2-Fdr, 2057ohm,7w,pvc,2680mm,664mm, 455,non,ylp-03v,- SAM-DA47-00439A
...
4-3
Nw2-Fdr,egi-Secc,t0.8,thai Silver,sc-03012t SAM-DA61-05291C
...
4-4
Nw2,ps Foam SAM-DA62-03229A
...
4-5
Nw2-Fdr,sponge+al,-,t3,w35,l880,- SAM-DA62-02294A
...
4-6
Nw2,ssec,pc SAM-DA63-06427A
...
4-7
Nw2,si,gray SAM-DA63-06440B
...
4-8
Nw2-Fdr,si,0.8,gray SAM-DA63-06442B
...
4-9
Nw2,ssec,abs,cool White SAM-DA61-07465A
...
4-10
Rmk42,abs SAM-DA67-02914A
...
4-11
Rfh920g,sts304 SAM-DA61-08314B
...
4
Nw2-Fdr,6w,thai Silver,- SAM-DA97-07661C
...
5
Fixer Handle; Aw3-14,swrch10a,m8 SAM-DA61-11161A
...
8
Nw2-Fdr,pp,w302.5,l116.7,cool White(sc-02740r) SAM-DA63-05035A
...
9
Nw2-Fdr,pp,cool White,sc-02740r SAM-DA63-05131A
...
10
Nw2-Fdr,pp,w304.6,l179.3,cool White(sc- 02740r) SAM-DA63-05036A

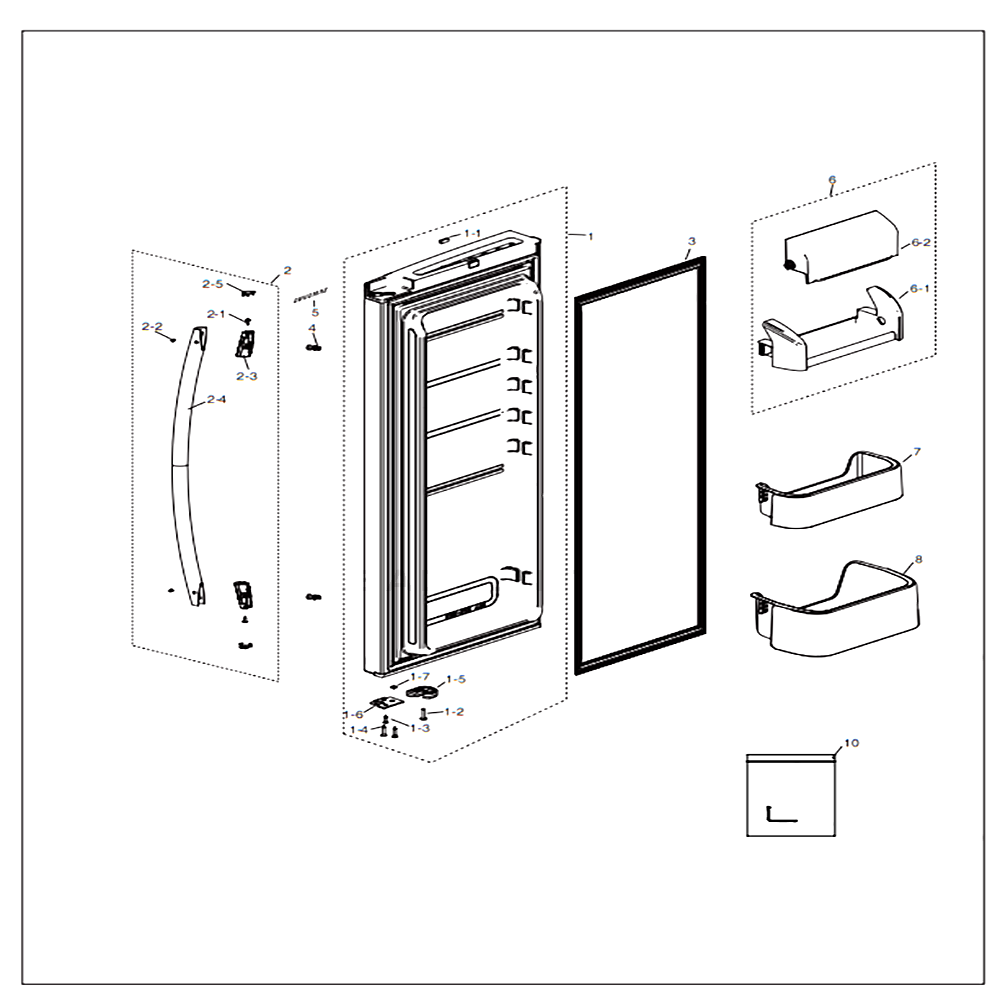

Fridge Door Right

...
...
1-1
Es-Pjt,ssec,ferrite,1600gauss SAM-DA61-03949A
...
1-2
Screw-Machine SAM-6001-000715
...
1-3
Screw-Tapping SAM-6002-001120
...
1-4
Fh,+,m5,l25(15.5),zpc(wht),swrch18a,1 SAM-6009-001475
...
1-5
Nw2,pom,creamy Sts SAM-DA61-07443C
...
1-6
Nw2-Pjt,ssec,scp1,t2.9 SAM-DA61-07463A
...
1-7
Nw2,si,black SAM-DA63-06439A
...
1
Nw2 Fdr ,urban Silver SAM-DA91-03654Z
...
2-1
Screw-Tapping SAM-6002-000213
...
2-2
Screw-Set SAM-6009-001526
...
2-3
Nw2,pom,ntr,gf 10%,fixer SAM-DA61-08076A
...
2-4
Nw2,al,t1.3,real Stainless,a6063,horizontal Hair Line SAM-DA64-04089A
...
2-5
Nw2,abs,ntr,cr Plating SAM-DA67-03279A
...
2
Nw2,al(a6063),real Stainless SAM-DA97-12393A
...
3
Nw2-Fdr,pvc,gray SAM-DA63-07733A
...
4
Fixer Handle; Aw3-14,swrch10a,m8 SAM-DA61-11161A
...
5
Mascot SAM-DA64-04021A
...
6-1
Nw2-Fdr,pp,295.9,cool White (sc-02740r) SAM-DA63-05042A
...
6-2
Nw2-Fdr,gpps,-,tp Blue,- SAM-DA63-05050A
...
6
Nw2-Fdr,cool White SAM-DA97-07681A
...
7
Nw2-Fdr,pp,w302.5,l116.7,cool White(sc-02740r) SAM-DA63-05035A
...
8
Nw2-Fdr,pp,w304.6,l179.3,cool White(sc- 02740r) SAM-DA63-05036A
...
9
Nw2-Fdr,pp,cool White,sc-02740r SAM-DA63-05131A
...
10
Aw, Nw2-Fdr SAM-DA99-01958T

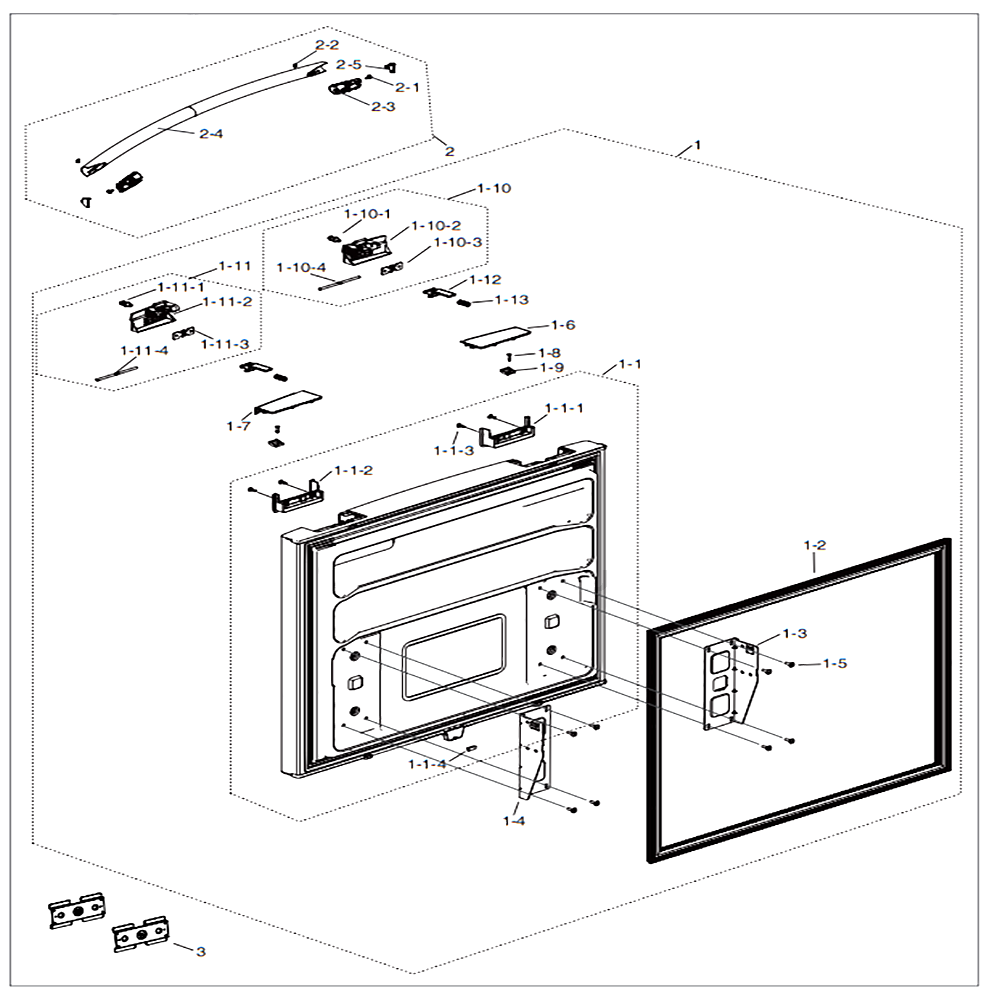

Freezer Door

...
...
1-1-1
Nw2-Fdr,abs,t3.0,hb,lg-121h,inox Gray,right SAM-DA67-02331G
...
1-1-2
Nw2-Fdr,abs,t3.0,hb,lg-121h,inox Gray,left SAM-DA67-02332G
...
1-1-3
Screw-Tapping SAM-6002-001122
...
1-1-4
Es-Pjt,ssec,ferrite,1600gauss SAM-DA61-03949A
...
1-1
Nw2 Fdr ,urban Silver SAM-DA91-03651R
...
1-2
Nw2-Fdr,nw2-Fdr,gray SAM-DA97-16990A
...
1-3
Nw2,ssec,egi-Secc,t2 SAM-DA61-07460A
...
1-4
Nw2,ssec,egi-Secc,t2 SAM-DA61-07461A
...
1-5
Screw-Tapping SAM-6002-000613
...
1-6-1
Nw2-Fdr,abs,5v-A,inox Gray,ve-0856 SAM-DA63-05034H
...
1-6
Nw2-Fdr,inox Gray,left SAM-DA97-15353C
...
1-7-1
Nw2-Fdr,abs,5v-A,inox Gray,ve-0856 SAM-DA63-05033H
...
1-7
Nw2-Fdr,inox Gray,right SAM-DA97-15354C
...
1-8
Screw-Tapping SAM-6002-000215
...
1-9
Nw2,pom,-,ntr,- SAM-DA61-04471A
...
1-10-1
Fixer Handle; Aw3-14,swrch10a,m8 SAM-DA61-11161A
...
1-10-2
Nw2,abs+pc,t3.0,hb,hr-1008b,creamy Stainless,versailles Silver(sc-05061s) SAM-DA67-02639E
...
1-10-3
Aw2-Pjt,hgi-Sghc,t2.0,53 SAM-DA61-05215A
...
1-10-4
Nw2-Fdr,sm45c,l105,od5.0,zpc3-W SAM-DA66-00682A
...
1-10
Nw2-Fdr,spray SAM-DA97-11912M
...
1-11-1
Fixer Handle; Aw3-14,swrch10a,m8 SAM-DA61-11161A
...
1-11-2
Nw2,abs+pc,t3.0,hb,hr-1008b,creamy Stainless,versailles Silver(sc-05061s) SAM-DA67-02638E
...
1-11-3
Aw2-Pjt,hgi-Sghc,t2.0,53 SAM-DA61-05215A
...
1-11-4
Nw2-Fdr,sm45c,l105,od5.0,zpc3-W SAM-DA66-00682A
...
1-11
Nw2-Fdr,spray SAM-DA97-11913M
...
1-12
Nw2,pom,-,-,-,creamy-Sts,- SAM-DA61-04474A
...
1-13
Nw2,hswr SAM-DA61-07469A
...
1
Nw2 Fdr,real Stainless,urban Silver SAM-DA90-06065H
...
2-1
Screw-Tapping SAM-6002-000213
...
2-2
Screw-Set SAM-6009-001526
...
2-3
Nw2-Fdr,pom,ntr,gf 10%,fixer SAM-DA61-08077A
...
2-4
Nw2-Fdr,al,versailles Sts,a6063,hair Line SAM-DA64-04090A
...
2-5
Nw2_Fdr,abs,ntr,ni-Cr Plating SAM-DA67-02633A
...
2
Nw2-Fdr,al(a6063),versailles Sts (sc-04094t),hair Line SAM-DA97-12394A
...
3
Aw-Pjt,tape-Double Face SAM-DA97-11774A
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
