Samsung QN75Q75FMFXZA_AA01

Model: QN75Q75FMFXZA_AA01

Save Part Not Listed?

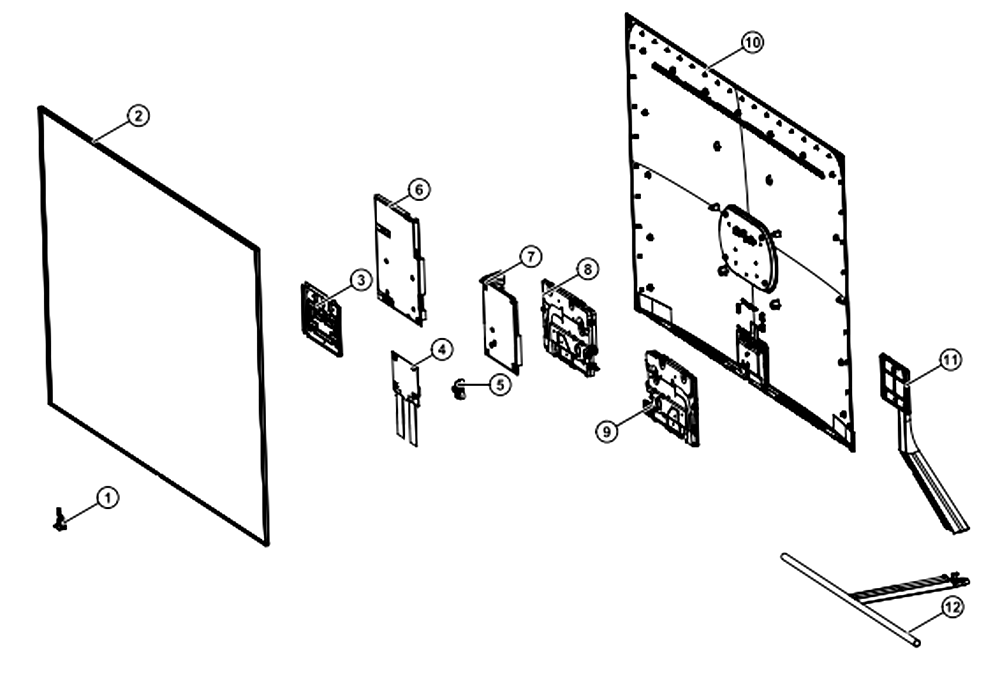

Main

Assy Board P-Function One Key; Q7f,q7c,q8 SAM-BN96-42259B

Product Lcd-Auo; Cy-Qm075flav2v/h,q7f,bas SAM-BN95-03854A

Assy Bracket P-Stand Link; 75q7f,hgi,natu SAM-BN96-42150A

Assy Pcb Main; Q7f SAM-BN94-12769A

Assy Inlet P; Q7,q8_65",ul10938 #22,300mm SAM-BN96-42288B

Dc Vss-Power Board; P2513q_Mhs,ac/dc,25w, SAM-BN44-00897A

Dc Vss-Driver Board; L75e8nc_Msm,dc/dc,22 SAM-BN44-00903A

Assy Speaker P-Front; Tv-Spk,q7f,6ohm,10w SAM-BN96-42182B

Network-Wlan Client SAM-BN59-01264A

Assy Cover P-Rear; 75q7f,pc+abs+ed20%,v-1 SAM-BN96-42845A

Assy Guide P-Stand; 75q7f,pc+abs,silver,s SAM-BN96-42160A

Assy Stand P-Bottom; 75q7f,pc+abs,silver, SAM-BN96-42145A

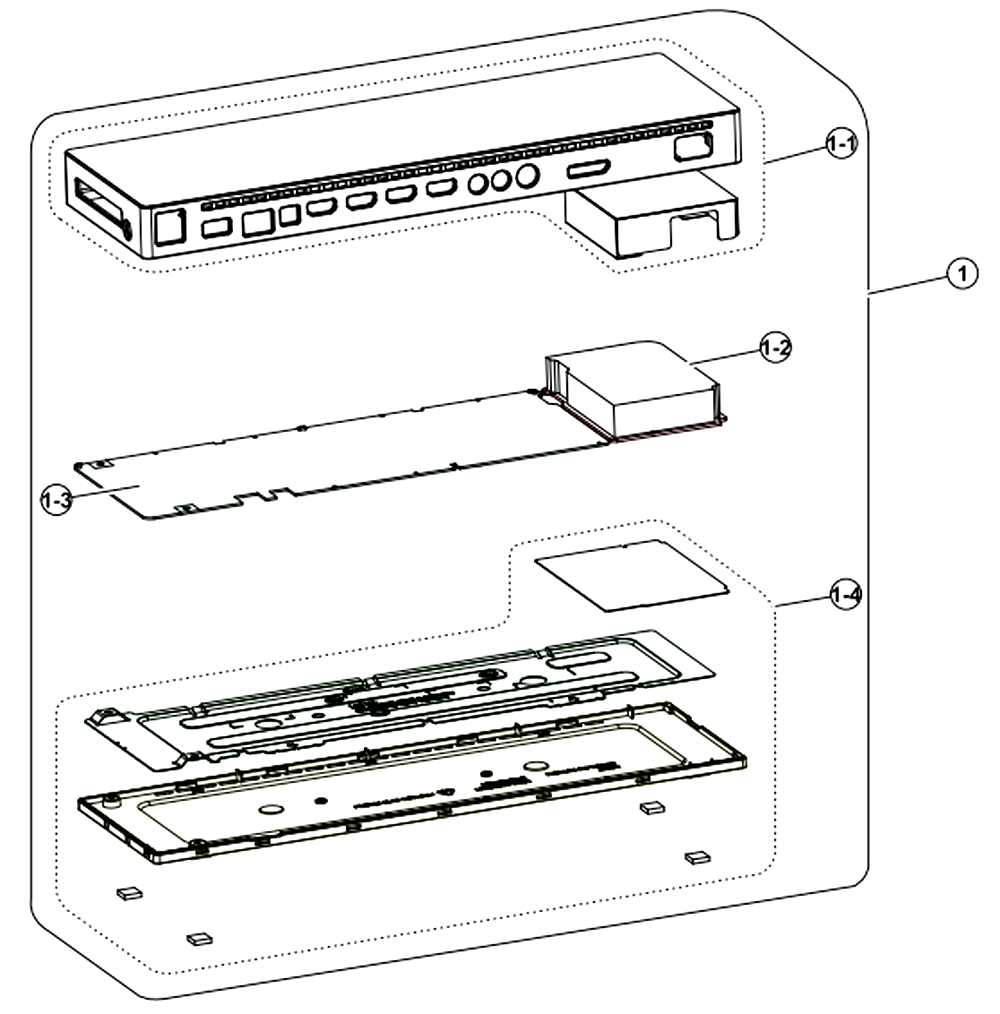

1-1

Assy Cover P-Oc Top; 55q7f,pc+abs,v-2,tp0 SAM-BN96-42189A

1-2

Dc Vss-Power Board; P2513q_Mhs,ac/dc,25w, SAM-BN44-00897A

1-3

Assy Pcb Oc; Qmq7cv SAM-BN94-12766A

1-4

Assy Cover P-Oc Bottom; 55q7f,pc+abs+gf15 SAM-BN96-42191A

Assy One Connect; Qmq7cv SAM-BN91-19681A

Model: 1AHF08390

$16.00

In Stock

Replaced By :

Add To Cart Add To Cart

Save

View All Details
