Samsung QN55Q7CDMFXZA-AA01

Model: QN55Q7CDMFXZA-AA01

Save Part Not Listed?
product name

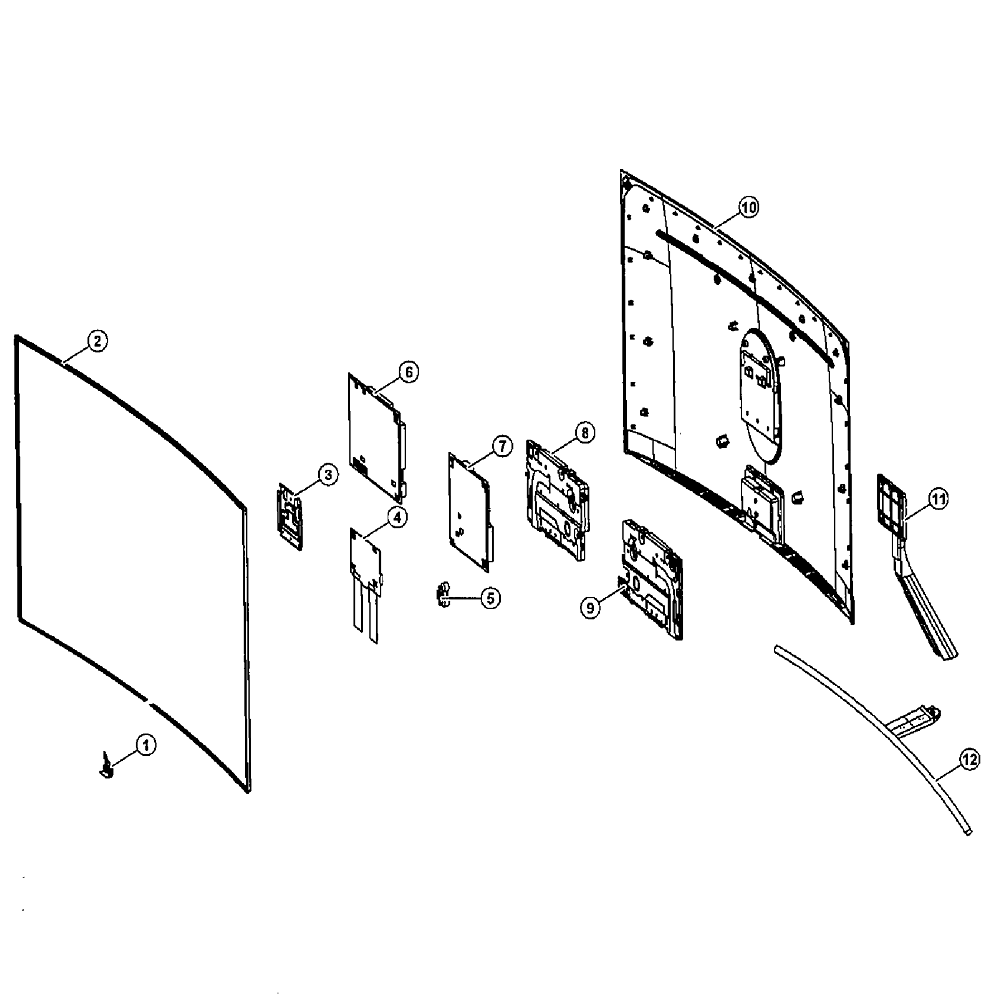

Lcd Tv

...
...
1
Assy Board P-Function One Key; Q7,q8 Wave SAM-BN96-42259A
...
2
Lcd Panel SAM-BN95-04051A
...
4
Pcb Main SAM-BN94-12284A
...
5
Assy Inlet P; Q7,q8_49 55",ul10938 #22,25 SAM-BN96-42288A
...
6
Power Pcb SAM-BN44-00900A
...
7
Dc Vss-Driver Board; L65e8nc_Msm,dc/dc,12 SAM-BN44-00902A
...
8
Assy Speaker P-Front; Tv-Spk,q7c,6ohm,10w SAM-BN96-42180C
...
9
Network-Wlan Client SAM-BN59-01264A
...
10
Rear Cover SAM-BN96-42811C
...
11
Stand Guide SAM-BN96-42139A
...
12
Bottle Stand SAM-BN96-42146A

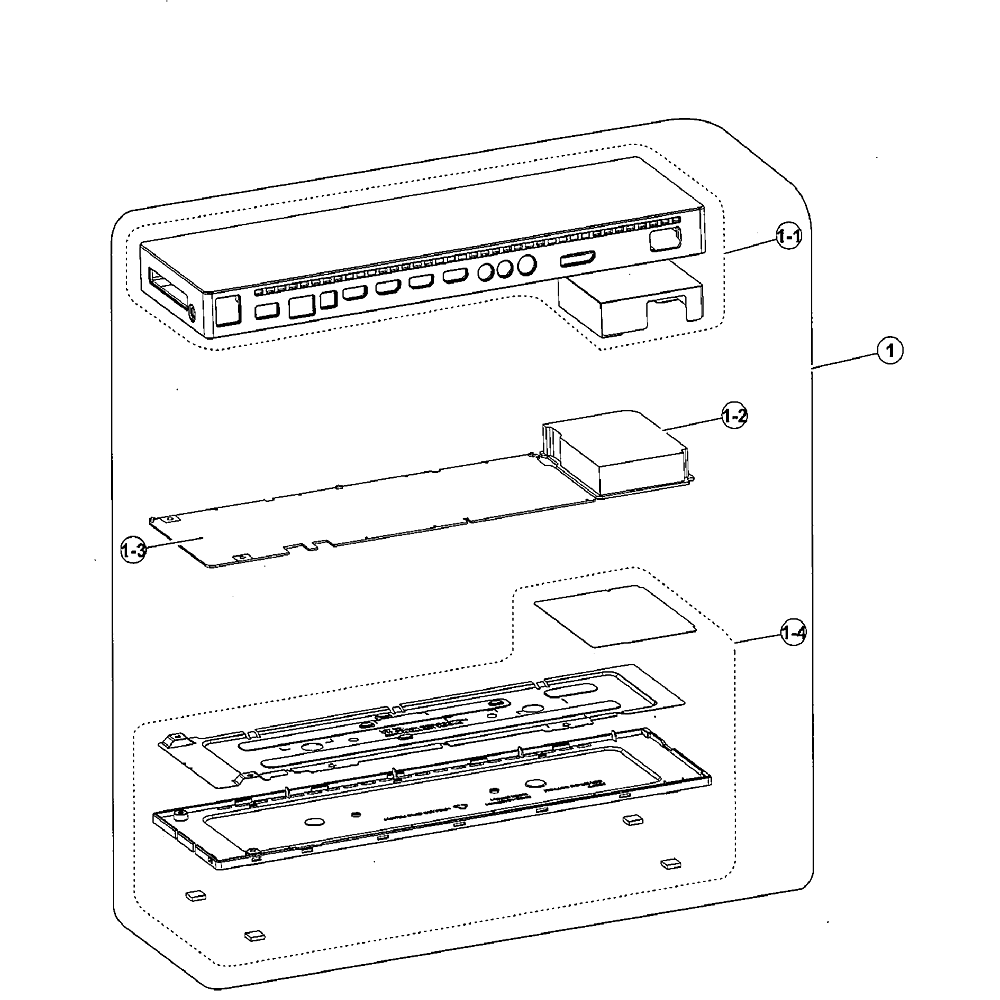

One Connect

...
...
1-1
Assy Cover P-Oc Top; 55q7f,pc+abs,v-2,tp0 SAM-BN96-42189A
...
1-2
Dc Vss-Power Board; P2513q_Mhs,ac/dc,25w, SAM-BN44-00897A
...
1-3
Pcb Connect SAM-BN94-12315A
...
1-4
Assy Cover P-Oc Bottom; 55q7f,pc+abs+gf15 SAM-BN96-42191A
...
1
One Connet SAM-BN91-19235A
