Samsung QN55Q65FNFXZA_FA01

Model: QN55Q65FNFXZA_FA01

Save Part Not Listed?

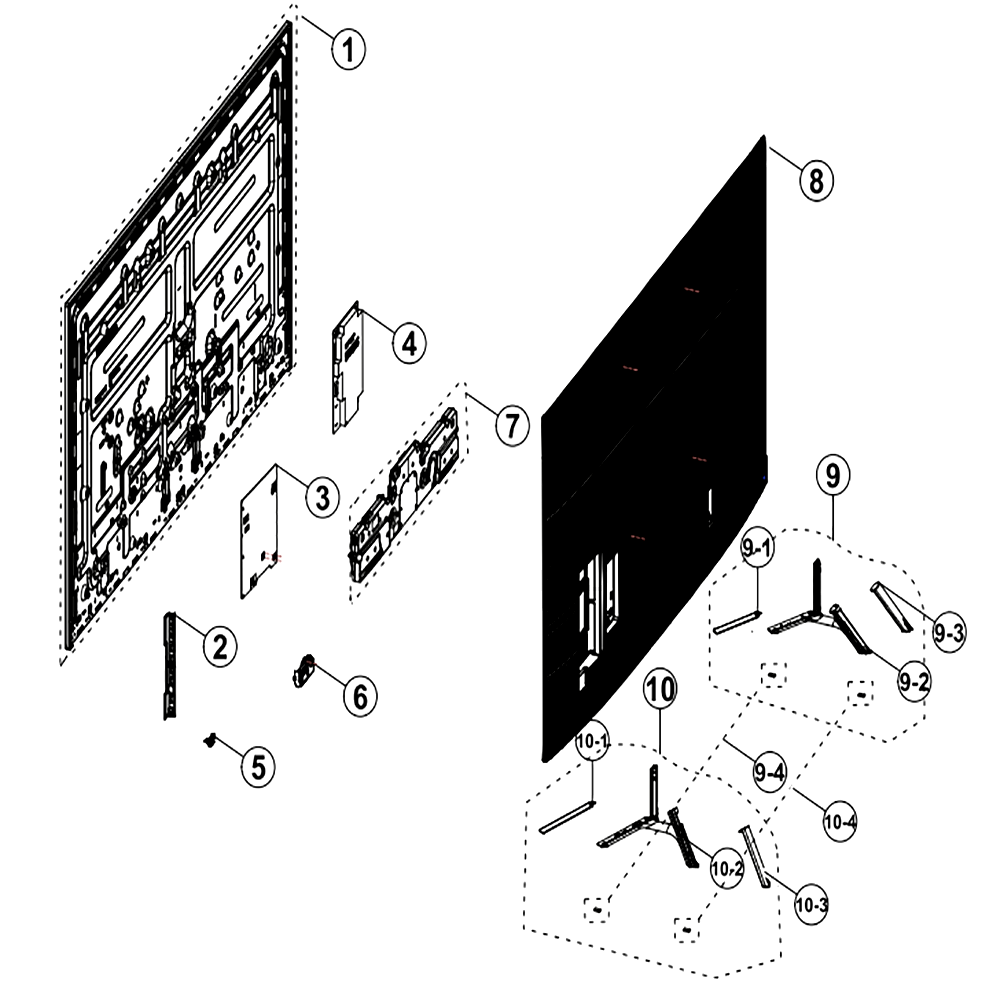

Main

Remote Control SAM-BN59-01298H

Product Lcd-Sdc; Cy-Qn055fllv6v/h,q6f,col SAM-BN95-04741C

Cover-Terminal Side; 65unu8000f,hips,hb,b SAM-BN63-17513A

Assy Pcb Main; Qnq6fs SAM-BN94-13028Q

Dc Vss-Pd Board; L55e7r_Nsm,ac/dc,181w,ac SAM-BN44-00878C

Assy Board P-Function One Key; Y18 Nu8000 SAM-BN96-39802J

Network-Wlan Client; Wcm730q,78.3x29.3x7. SAM-BN59-01264B

Assy Speaker P-Front; Tv-Spk,qnq6fs,6ohm, SAM-BN96-45633D

Assy Cover P-Rear; 55qnq6fs,pc+abs+ed20%, SAM-BN96-45827T

9-1

Cover-Stand Top Front Right; 55qnq6fs,abs SAM-BN63-17473B

Assy Stand P-Bracket Bottom Right; 55qnq6 SAM-BN96-45992B

9-4

Foot-Rubber; 40k5500,rubber,gray,w5,l10,t SAM-BN61-13520D

9-3

Cover-Stand Top Rear Right; 55qnq6fs,abs, SAM-BN63-17471B

9-2

Bracket-Stand Bottom Right; 55qnq6fs,aldc SAM-BN61-15507B

10-1

Cover-Stand Top Front Left; 55qnq6fs,abs, SAM-BN63-17478B

10-2

Bracket-Stand Bottom Left; 55qnq6fs,aldc, SAM-BN61-15523B

10-3

Cover-Stand Top Rear Left; 55qnq6fs,abs,h SAM-BN63-17477B

10-4

Foot-Rubber; Led_J4000,si,gray,w8,l15.5,t SAM-BN67-00538A

Assy Stand P-Bracket Bottom Left; 55qnq6f SAM-BN96-45996B
