product name

Samsung PCJ522RX

Model: PCJ522RX

Save Part Not Listed?
product name

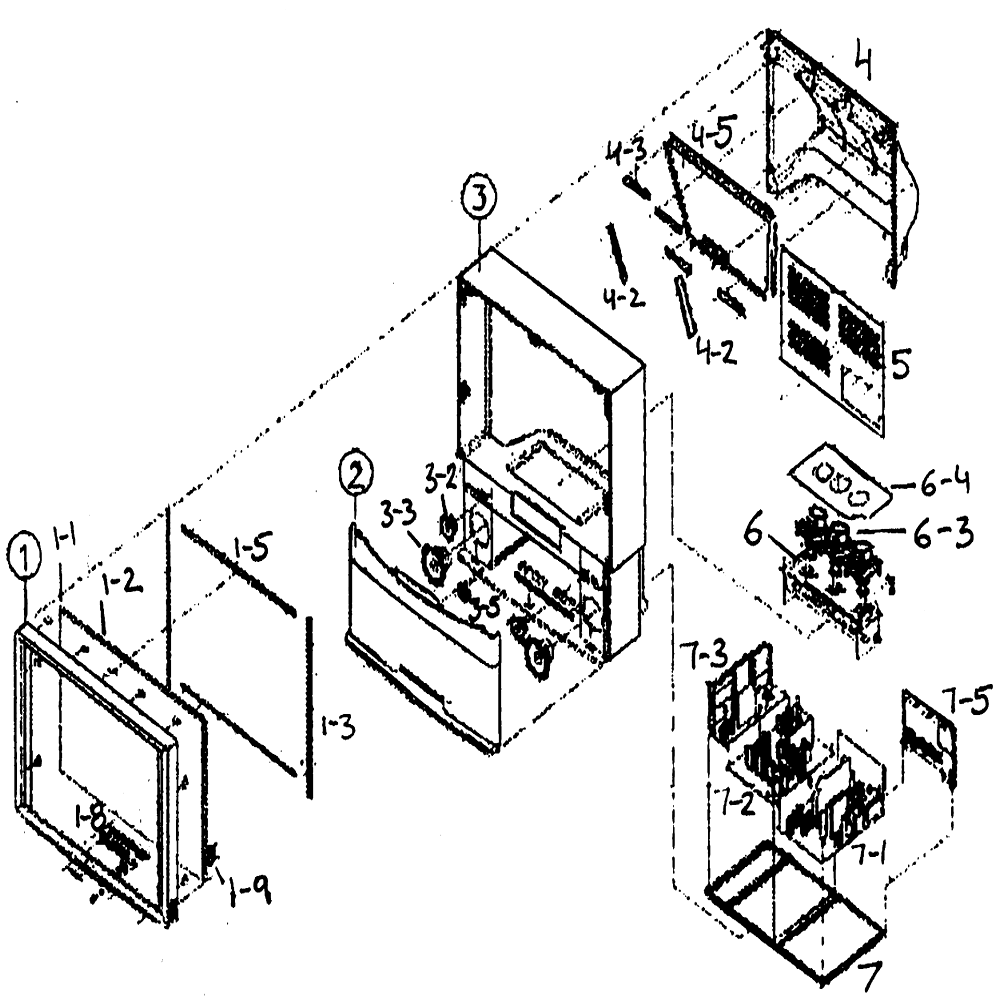

Cabinet Parts

...
...
1-1
Screen Front SAM-AA67-70048A
...
1-2
Screen Tint SAM-AA67-70065A
...
1-8
Assy Pcb,control(pcj522rx) SAM-CALLSTAC10
...
1-9
Assy Pcb,a/v Front(pcj522rx) SAM-CALLSTAC11
...
1
Frame SAM-AA91-10419M
...
2
Cabinet SAM-AA64-31357A
...
3-2
Audio Speaker SAM-3001-001107
...
3-3
Audio Speaker SAM-3001-000176
...
3-5
Asy Pcb Misc SAM-CALLSTAC12
...
3
Cabinet Middle(pcj522rx) SAM-AA91-00205A
...
4-3
Bracket,mirror(pcj522rx) SAM-AA61-10361A
...
4
Cabinet Back Top SAM-AA64-30714A
...
4-5
Mirror SAM-AA67-20026A
...
4-2
Bracket,mirror C(pcj522rx) SAM-AA61-10242A
...
5
Cabinet,back Board(pcj522rx) SAM-AA64-00501A
...
6-3
Assy Crt(r)(pcj522rx) SAM-AA94-01640A
...
6-4
Spacer,cover Dust(pcj522rx) SAM-AA60-00027A
...
6
Assy,bracket Main(pcj522rx) SAM-AA91-00241A
...
7-1
Assy Pcb,main(pcj522rx) SAM-CALLSTAC13
...
7-2
Assy Pcb,sub(pcj522rx) SAM-CALLSTAC14
...
7-3
Assy Pcb,conv.amp SAM-CALLSTAC15
...
7-5
Assy,terminal Board(pcj522rx) SAM-AA91-00158H
...
7
Chassis Holder SAM-AA61-00051B
