product name

Samsung NX60A6311SG-AA-02 Gas Range

Model: NX60A6311SG-AA-02

Save
 Part Not Listed?Part Not Listed?
product name

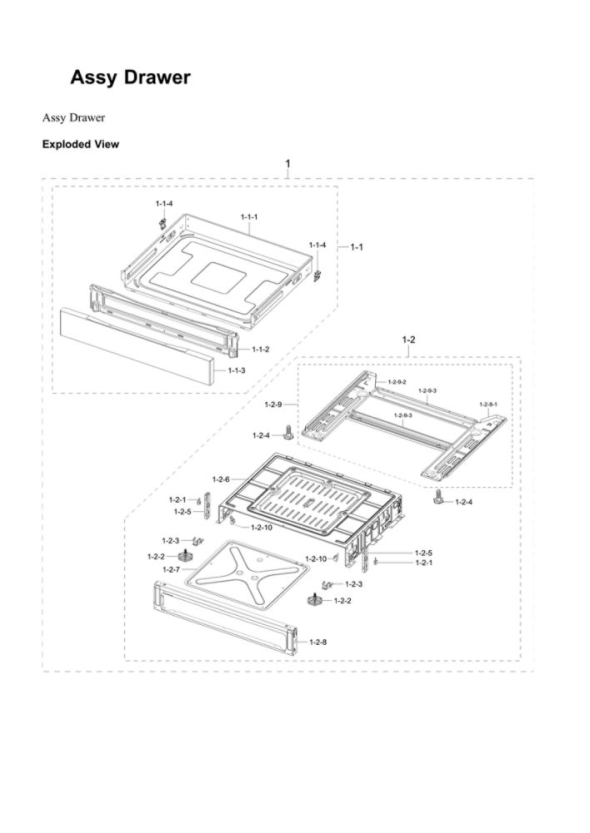

Samsung NX60A6311SG-AA-02

...
...
1
Assembly Drawer Main-Module SAM-DG90-01184B
...
1-1
Range Storage Drawer Assembly SAM-DG94-04105B
...
1-1-4
Range Storage Drawer Roller SAM-DG61-00279A
...
1-2
Assembly Pedestal SAM-DG94-04103A
...
1-2-1
Range Side Panel Spacer SAM-DG60-00007B
...
1-2-2
Leg Leveling (2) SAM-DG61-01956A
...
1-2-4
Range Leveling Leg SAM-DG61-00525A
...
1-2-10
Slider-Out SAM-DG61-00280A

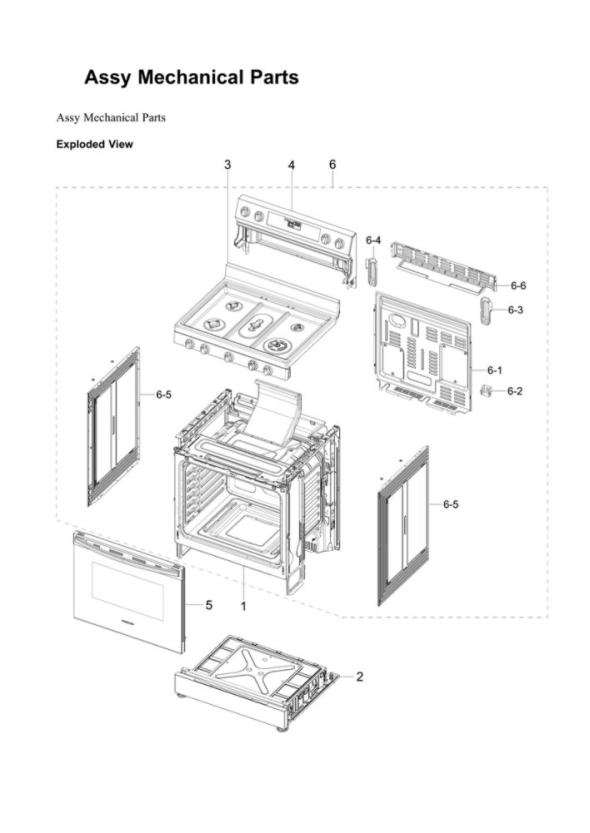

Samsung NX60A6311SG-AA-02

...
...
2
Assembly Drawer Main-Module SAM-DG90-01184B
...
5
Range Oven Door Assembly SAM-DG94-04082B
...
6-3
Cover Wire-Left SAM-DG63-00723A
...
6-4
Cover Wire-Right SAM-DG63-00724A
...
6-5
Assembly Panel Outer (2) SAM-DG94-04109A

Samsung NX60A6311SG-AA-02

...
...
1-1
Range Main Top SAM-DG94-04117A
...
1-2
Assembly Chassis Panel-Manifold SAM-DG94-04015A
...
1-2-1
Cover Bracket SAM-DG61-00515B
...
1-3-1-2
Burner Cup-Single SAM-DG62-00058F
...
1-3-1-3
Burner Cup SAM-DG62-00059D
...
1-3-1-4
Burner Cup SAM-DG62-00060F
...
1-3-1-5
Range Surface Burner SAM-DG62-00120A
...
1-3-1-6
Assembly Burner SAM-DG90-01153A
...
1-3-1-7
Assembly Valve SAM-DG94-03636A
...
1-3-1-8
Assembly Valve SAM-DG94-03637A
...
1-3-1-9
Assembly Valve SAM-DG94-03638A
...
1-3-1-10
Assembly Valve SAM-DG94-03639A
...
1-3-1-11
Assembly Valve-Cooktop SAM-DG94-03887A
...
1-3-1-18
Assembly Electrode SAM-DG96-00788A
...
1-3-1-19
Assembly Electrode SAM-DG96-00789A
...
1-3-1-20
Assembly Electrode SAM-DG96-00791A
...
1-3-1-21
Assembly Electrode SAM-DG96-00792B
...
1-3-1-22
Range Surface Burner Igniter SAM-DG94-00541A
...
1-3-1-23
Assembly Switch Ignition SAM-DG96-00838A
...
1-3-1-24
Range Surface Burner Igniter Spring SAM-DG61-00579A
...
1-3-1-25
Speed Bracket SAM-DG61-00769A
...
1-4
Assembly Knob SAM-DG94-04167M
...
1-5
Gasket (5) SAM-DG63-00731A
...
1-6
Range Spark Module SAM-DG96-00297A
...
2-1
Range Surface Burner Grate SAM-DG94-03921A
...
2-2
Range Griddle SAM-DG61-02036A
...
3-1
Range Surface Burner Head, Right SAM-DG62-00074C
...
3-2
Range Surface Burner Base SAM-DG62-00075B
...
3-3
Range Surface Burner Base SAM-DG62-00076B
...
3-4
Range Surface Burner, Center SAM-DG94-00607A
...
3-5
Range Surface Burner Base SAM-DG62-00121A
...
4-1-1
Range Surface Burner Cap SAM-DG62-00067A
...
4-1-2
Range Surface Burner Cap SAM-DG62-00070A
...
4-1-3
Range Surface Burner Cap SAM-DG62-00111A
...
4-1-4
Range Surface Burner Cap SAM-DG62-00122A
...
4-2
Range Oven Rack SAM-DG75-01001D
...
4-3
Range Anti-Tip Bracket SAM-DG94-00870B
...
4-4
Range Surface Burner Orifice Assembly SAM-DG96-00858A
...
4-4-1
Semi Nozzle SAM-DG62-00097A
...
4-4-2
Nozzle-Aux L SAM-DG62-00098A

Samsung NX60A6311SG-AA-02

...
...
1-1
Burner Broil SAM-DG62-00056D
...
1-2
Range Broil Igniter SAM-DG94-01441A
...
2-1
Range Bake Burner SAM-DG62-00066E
...
3
Range Oven Temperature Sensor SAM-DG32-00002B
...
4
Range Side Panel Spacer SAM-DG60-00007B
...
7
Gasket SAM-DG63-00720A
...
9
Range Broil Burner Orifice And Holder SAM-DG94-01436A
...
10
Assembly Sensor SAM-DG96-00602B
...
10-1
Range Oven Door Switch SAM-DG34-00006A
...
11
Bracket Cover-Bottom SAM-DG61-01915A
...
12-1
Assembly Bracket Bake SAM-DG94-03558B
...
12-2
Assembly Holder Nozzle SAM-DG94-03511B
...
13-6
Assembly Valve-Regulator SAM-DG94-03445C
...
13-7
Range Gas Control Valve SAM-DG94-03446A
...
13-10
Range Gas Supply Tube SAM-DG94-03513A
...
13-11
Assembly Tube SAM-DG94-03516A
...
13-12
Assembly Bracket Latch SAM-DG94-00761C
...
13-13
Range Power Cord SAM-DG96-00211A
...
14
Assembly Bracket Latch SAM-DG94-03544A
...
15
Cover Back-Sub SAM-DG63-00728A
...
16
Assembly Bracket-Top SAM-DG94-03926A
...
17
Assembly Tube-Broil SAM-DG94-03514A
...
18
Assembly Tube-Bake SAM-DG94-03512A
...
19
Range Oven Door Outer Panel Pad SAM-DG73-00003A
...
23
Range Oven Bottom Liner SAM-DG94-03713A
...
27
Range Oven Light Bulb SAM-DG97-00083A
...
28
Range Oven Door Hinge Support Bracket SAM-DG94-00362A
...
29
Assembly Bracket Sub SAM-DG94-03659A
...
30
Bracket Broil SAM-DG61-01912A

Samsung NX60A6311SG-AA-02

...
...
1
Range Oven Door Assembly SAM-DG94-04082B
...
1-1-2
Range Oven Door Inner Glass SAM-DG64-00092B
...
1-1-4
Range Oven Door Hinge SAM-DG94-00358E
...
1-2
Assembly Door Sub SAM-DG94-04083B
...
1-2-1
Range Oven Door Handle SAM-DG94-03005B
...
1-2-2
Holder Handle (2) SAM-DG61-01866A

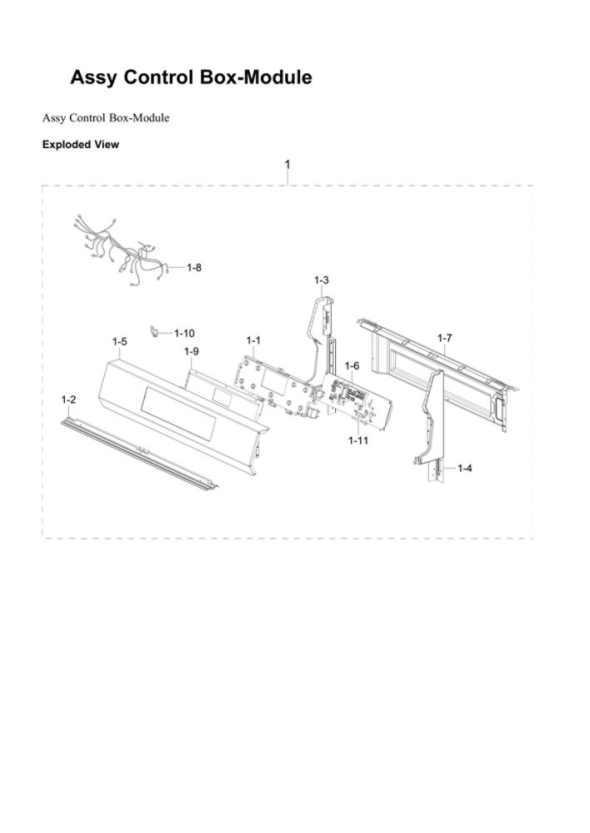

Samsung NX60A6311SG-AA-02

...
...
1-2
Assembly Bracket A/Guide SAM-DG94-03956A
...
1-3
Assembly Support Back Guard-Left SAM-DG94-03957B
...
1-4
Assembly Support Back Guard-Right SAM-DG94-03958B
...
1-5
Range Control Panel SAM-DG94-04031A
...
1-6
Range Oven Control Board SAM-DG94-04041C
...
1-8
Assembly Wire Harness-Main SAM-DG96-00836A
...
1-9
Range Touch Control Panel SAM-DG96-00850D
...
1-10
Wire SAM-DE65-20005A
...
1-11
Range Display Board SAM-DG92-01232C
...
...
...
