product name

Samsung NX58R5601SG-AA-01 Gas Range

Model: NX58R5601SG-AA-01

Save
 Part Not Listed?Part Not Listed?
product name

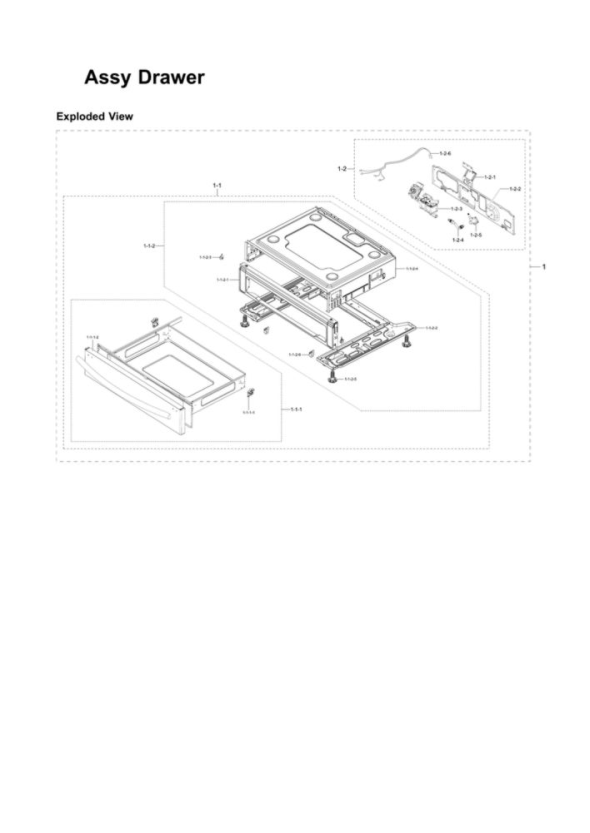

Samsung NX58R5601SG-AA-01

...
...
1-1-1
Drawer Assembly SAM-DG94-00504H
...
1-1-1-1
Range Storage Drawer Roller SAM-DG61-00279A
...
1-1-1-2
Range Storage Drawer Front Panel SAM-DG94-00507D
...
1-1-2-2
Range Warming Drawer Base Assembly SAM-DG94-00511B
...
1-1-2-3
Range Side Panel Spacer SAM-DG60-00007B
...
1-1-2-5
Range Leveling Leg SAM-DG61-00525A
...
1-1-2-6
Slider-Out SAM-DG61-00280A
...
1-2-3
Wall Oven Gas Valve SAM-DG94-00449A
...
1-2-4
Range Bake Burner Gas Supply Tube SAM-DG94-00466A
...
1-2-5
Range Bake Burner Elbow Tube And Orifice SAM-DG94-00548A
...
1-2-6
Range Wire Harness SAM-DG39-00049A

Samsung NX58R5601SG-AA-01

...
...
1-1
Range Oven Door Inner Glass Bracket SAM-DG60-00008A
...
1-3
Range Oven Door Inner Glass SAM-DG64-00092B
...
1-4
Range Oven Door Inner Glass SAM-DG64-00133A
...
1-5
Range Oven Door Handle SAM-DG94-03005B
...
1-6
Range Oven Door Liner SAM-DG94-00524A
...
1-7-2
Range Oven Door Outer Frame SAM-DG94-00948B

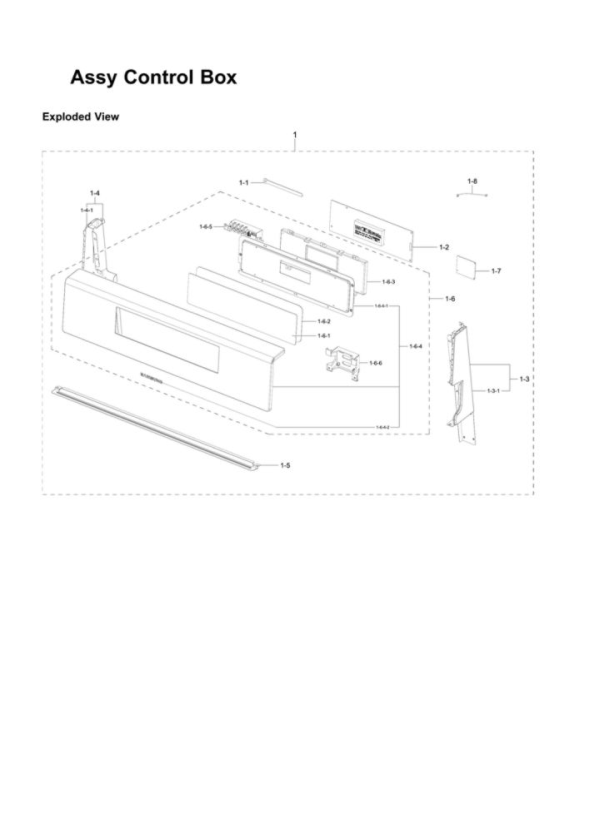

Samsung NX58R5601SG-AA-01

...
...
1-2
Range Oven Control Board SAM-DG92-01107A
...
1-3
Support Back SAM-DG94-02602A
...
1-4
Support Back SAM-DG94-02603A
...
1-5
Brckt Giud SAM-DG94-01339B
...
1-6-1
Range Membrane Switch SAM-DG34-00027D
...
1-6-2
Range Membrane Switch Support Bracket SAM-DG61-00495B
...
1-6-3
Range Display Board Retainer SAM-DG61-00519B
...
1-6-4
Control Pane SAM-DG94-02611E
...
1-6-4-2
Badge Logo SAM-DG64-00360C
...
1-6-5
Range Spark Module SAM-DG96-00297A
...
1-6-6
Holder Pcb SAM-DG61-00996A
...
1-7
Assembly Pcb Sub SAM-DG92-01108A
...
1-8
Assembly Wire Harness-Dc Signal SAM-DG96-00575A

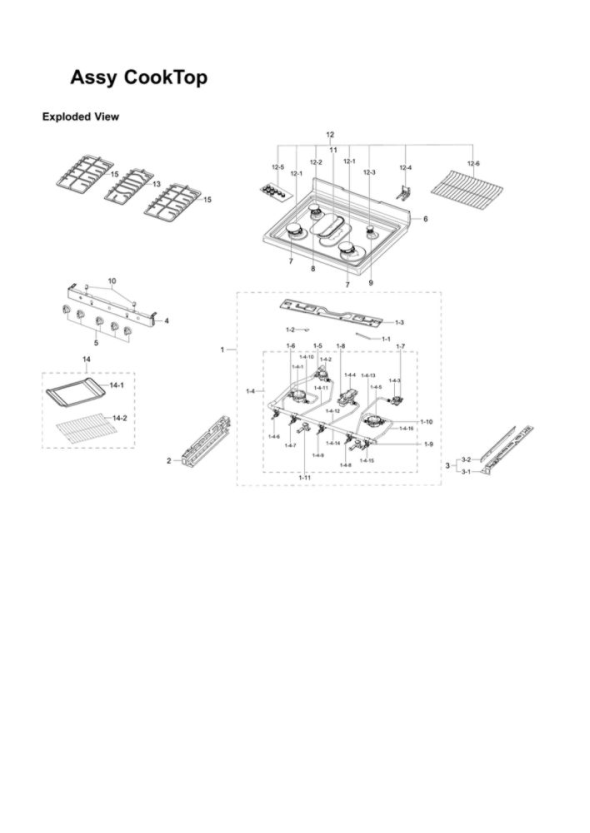

Samsung NX58R5601SG-AA-01

...
...
1-2
Range Surface Burner Igniter Spring SAM-DG61-00579A
...
1-3
Support SAM-DG61-00670A
...
1-4-1
Range Surface Burner Cup SAM-DG62-00058A
...
1-4-2
Range Surface Burner Cup SAM-DG62-00059A
...
1-4-3
Range Surface Burner Base SAM-DG62-00060B
...
1-4-4
Range Surface Burner Base SAM-DG62-00090A
...
1-4-5
Range Surface Burner Base Assembly, Right Front SAM-DG62-00082B
...
1-4-6
Range Surface Burner Valve, Rear SAM-DG94-00933B
...
1-4-7
Range Surface Burner Valve, Left Rear SAM-DG94-00934A
...
1-4-8
Range Surface Burner Valve SAM-DG94-00935A
...
1-4-9
Range Surface Burner Valve, Center SAM-DG94-00936A
...
1-4-10
Range Surface Burner Supply Tube SAM-DG94-01442A
...
1-4-11
Tube Assembly SAM-DG94-01443A
...
1-4-12
Range Surface Burner Supply Tube SAM-DG94-01444A
...
1-4-13
Range Surface Burner Supply Tube SAM-DG94-01445A
...
1-4-14
Range Surface Burner Manifold Assembly SAM-DG94-00528A
...
1-4-15
Range Surface Burner Valve SAM-DG94-00932C
...
1-4-16
Range Surface Burner Supply Tube, Right Front SAM-DG94-01446A
...
1-5
Range Surface Burner Igniter SAM-DG94-00539A
...
1-6
Range Surface Burner Igniter SAM-DG94-00540A
...
1-7
Range Surface Burner Igniter SAM-DG94-00541A
...
1-8
Range Surface Burner Igniter, Center SAM-DG94-00633A
...
1-9
Range Igniter Switch And Harness Assembly SAM-DG96-00298D
...
1-10
Range Extra Large Surface Burner Igniter SAM-DG94-00602A
...
1-11
Bracket-Ma SAM-DG61-00539A
...
4
Range Surface Burner Control Panel SAM-DG94-01213F
...
5
Range Surface Burner Knob (Black) SAM-DG64-00473B
...
6
Range Main Top SAM-DG94-00753E
...
7
Range Surface Burner Head, Right SAM-DG62-00074C
...
8
Range Surface Burner Base SAM-DG62-00075B
...
9
Range Surface Burner Base SAM-DG62-00076B
...
10
Cover Bracket SAM-DG61-00515B
...
11
Range Surface Burner, Center SAM-DG94-00607A
...
12-1
Range Surface Burner Cap SAM-DG62-00067A
...
12-2
Range Surface Burner Cap SAM-DG62-00070A
...
12-3
Range Surface Burner Cap SAM-DG62-00111A
...
12-4
Range Anti-Tip Bracket SAM-DG94-00870B
...
12-5
Range Lp Conversion Kit SAM-DG96-00340B
...
12-6
Range Oven Rack SAM-DG75-01001D
...
13
Range Surface Burner Grate, Center SAM-DG94-00938A
...
14-1
Range Griddle SAM-DG61-00563A
...
15
Range Surface Burner Side Grate SAM-DG94-00937A

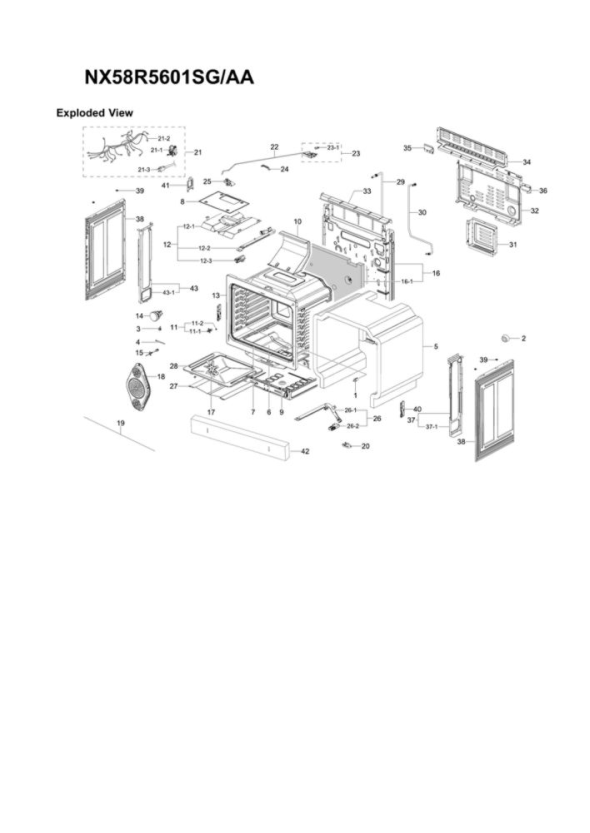

Samsung NX58R5601SG-AA-01

...
...
1
Range Oven Door Switch SAM-DG34-00006A
...
3
Range Side Panel Spacer SAM-DG60-00007B
...
6
Range Bake Burner Shield SAM-DG63-00235A
...
7
Range Oven Door Gasket SAM-DG63-00255B
...
9
Range Bake Burner Box SAM-DG94-00636A
...
10
Range Oven Vent SAM-DG94-00763A
...
11
Range Broil Burner Orifice And Holder SAM-DG94-01436A
...
12-1
Bracket-Br SAM-DG61-00522A
...
12-2
Range Broil Burner SAM-DG62-00056A
...
12-3
Range Oven Burner Igniter SAM-DG94-00520A
...
14
Range Oven Light Bulb SAM-DG97-00083A
...
15
Range Oven Temperature Sensor SAM-DG32-00002B
...
17
Range Convection Fan Blade SAM-DG67-00018A
...
18
Cover Casi SAM-DG97-00086B
...
21-1
Range Convection Fan Motor SAM-DG31-00014F
...
21-2
Range Wire Harness SAM-DG39-00048B
...
21-3
Range Power Cord SAM-DG96-00211A
...
23
Range Oven Door Latch Rod Bracket, Rear SAM-DG94-00761B
...
23-1
Microwave Door Interlock Switch SAM-3405-001034
...
24
Bracket SAM-DG61-00732A
...
25
Range Oven Door Latch Bracket, Front SAM-DG94-00754A
...
26-1
Range Bake Burner SAM-DG62-00066A
...
27
Range Bake Burner Flame Spreader SAM-DG61-00523A
...
28
Range Oven Bottom Liner SAM-DG61-00570A
...
29
Range Surface Burner Manifold Supply Tube SAM-DG94-00464A
...
30
Range Broil Burner Gas Supply Tube SAM-DG94-00465A
...
31
Range Convection Element Access Cover SAM-DG63-00236A
...
32
Range Rear Panel SAM-DG63-00234A
...
33
Rear Shield SAM-DG63-00231A
...
34
Oven Cover SAM-DG63-00233A
...
35
Cvr-Wire-L SAM-DG63-00253A
...
36
Cvr-Wire-R SAM-DG63-00254A
...
37
Assembly Bracket Panel SAM-DG94-02601A
...
37-1
Shield SAM-DG63-00261A
...
38
Range Side Panel SAM-DG64-00142G
...
39
Cover Bracket SAM-DG61-00550B
...
43
Assembly Bracket Panel SAM-DG94-02600A
...
...
...
