product name

Samsung NX58M6650WS/AA_0001

Model: NX58M6650WS/AA_0001

Save Part Not Listed?
product name

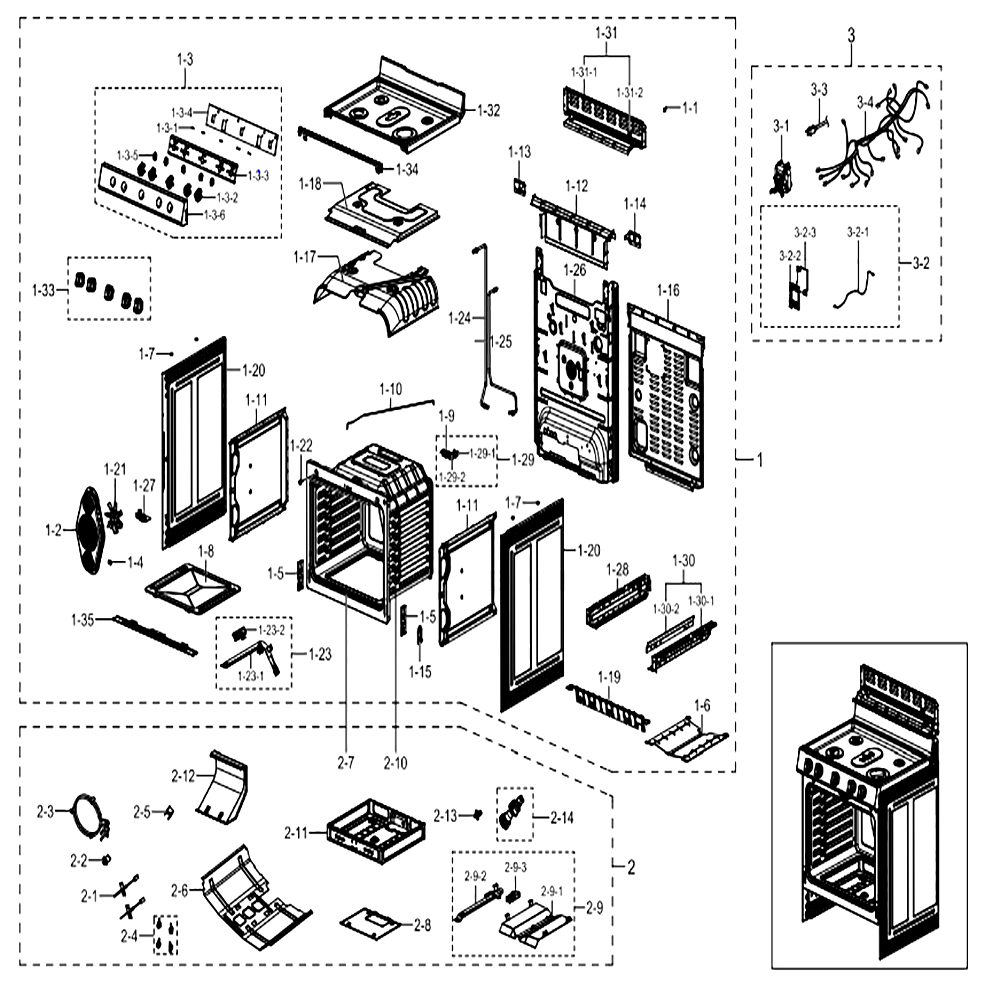

Main

...
...
1-1
Screw-Machine; Pwh,m4,l10,zpc(blk),swrch1 SAM-6001-002701
...
1-2
Assy Cover Casing; Ne597r0absr,cr-Spp,t0. SAM-DG97-00086B
...
1-3-1
Assy Module; Assy Knob Light,nx5000m-Pjt, SAM-DE92-04202A
...
1-3-2
Holder Led; Nx5000m,pc,knob Lighting SAM-DG61-01464A
...
1-3-3
Holder Support-Led; Nx5000m,gi-Sgcc,t0.6 SAM-DG61-01465A
...
1-3-4
Adiabatic; Glass Wool,t3.0,w97,l626,nx500 SAM-DG62-00245A
...
1-3-5
Gasket; Nx5000m,si,manifold SAM-DG63-00572A
...
1-3-6
Assy Panel Manifold Parts; Nx58m6650ws,st SAM-DG94-02186A
...
1-3
Assy Panel Manifold Parts; Nx5000m,sts201 SAM-DG94-02150A
...
1-4
Nut-Hexagon Cap SAM-6021-001211
...
1-5
Support-Hinge SAM-DG61-00188A
...
1-6
Bracket-Bake Spreader SAM-DG61-00523A
...
1-7
Bracket-Cooktop SAM-DG61-00550B
...
1-8
Cavity-Floor Coating SAM-DG61-00570A
...
1-9
Bracket-Latch Sub SAM-DG61-00732A
...
1-10
Spring Latch; Nx58h9500ws,hswr-Swrh,dia.4 SAM-DG61-00851A
...
1-11
Cover Adiabatic-Side SAM-DG62-00125A
...
1-12
Shield-Rear Sight SAM-DG63-00231A
...
1-13
Cover-Wire Lt SAM-DG63-00253A
...
1-14
Cover-Wire Rt SAM-DG63-00254A
...
1-15
Cover-Power Cord SAM-DG63-00260A
...
1-16
Cover Motor; Nx58j7750ss,gi-Sgcc,t0.4,-,c SAM-DG63-00393A
...
1-17
Cover Case-Top; Nx5000m,gi-Sgcd,t0.5 SAM-DG63-00570A
...
1-18
Cover Adiabatic-Top; Nx5000m,gi-Sgcc,t0.6 SAM-DG63-00571A
...
1-19
Shield-Frame; Nx5000m,gi-Sgcc,t0.5,w734,l SAM-DG63-00584A
...
1-20
Panel-Side Coating SAM-DG64-00142G
...
1-21
Fan Convection-Main; Fse1310ast,alcoat-Sa SAM-DG67-00018A
...
1-22
Rubber-Cushion SAM-DG73-00003A
...
1-23-1
Burner-Bake SAM-DG62-00066A
...
1-23-2
Assy Hot Surface Igniter; Nx58h9500ws,cer SAM-DG94-01012A
...
1-23
Assy Burner; Nx58h9500ws,slide In, Burner SAM-DG90-00195A
...
1-24
Assembly Tube-Manifold SAM-DG94-00464A
...
1-25
Assembly Tube-Broil SAM-DG94-00465A
...
1-26
Assembly Cover Back-Main SAM-DG94-00522A
...
1-27
Assembly Bracket-Latch Front SAM-DG94-00754A
...
1-28
Assembly Support-Side(l) SAM-DG94-00756A
...
1-29-1
Switch-Micro SAM-3405-001034
...
1-29-2
Cam-Door Latch; Fx710bgs,pa66+gf30%,black SAM-DG66-00025A
...
1-29
Assy Bracket Latch; Gas Oven,stss,assy La SAM-DG94-00761B
...
1-30-1
Support-Side(r); Nx583g0vbsr,gi-Sgcc,t0.5 SAM-DG61-00666A
...
1-30-2
Shield-Frame; Nx5000m,gi-Sgcc,t0.5,w450,l SAM-DG63-00293B
...
1-30
Assy Support Hinge-Sub; 30degree SAM-DG94-00789B
...
1-31-1
Cover Panel; Nx58m6850ss,gi-Sgcc,t0.4,cov SAM-DG63-00233B
...
1-31-2
Cover Wire; Nw51k7650ss,pp,natural,nw9000 SAM-DG63-00475A
...
1-31
Assy Cover Back; Nx58k6850ss,gi-Sgcc,cove SAM-DG94-01746A
...
1-32
Assy Frame Cook Top; Nx58m6650ws,dual Bur SAM-DG94-02139A
...
1-33
Assy Knob; Nx5000m,stss SAM-DG94-02141A
...
1-34
Bracket Guide; Nx5000m,gi-Sgcc,t1.6 SAM-DG61-01467A
...
1-35
Assy Bracket Sub; Nx5000m,cr-Spp,t0.8,bra SAM-DG94-02148A
...
1
Assy Body; Nx58m6650ws SAM-DG90-00753A
...
2-1
Sensor-Thermistor SAM-DG32-00002B
...
2-2
Switch-Door Plunger SAM-DG34-00006A
...
2-3
Heater Sheath-Convection; Shc-U386a,fx510 SAM-DG47-00017B
...
2-4
Spacer-Side Panel SAM-DG60-00007B
...
2-5
Bracket-Heater Convection SAM-DG61-00228A
...
2-6
Shield-Bake Burner SAM-DG63-00235A
...
2-7
Gasket Door SAM-DG63-00255B
...
2-8
Shield-Cavity Upper SAM-DG63-00258A
...
2-9-1
Bracket-Broil Spreader SAM-DG61-00522A
...
2-9-2
Burner-Broil SAM-DG62-00056A
...
2-9-3
Assy-Hot Surface Igniter SAM-DG94-00520A
...
2-9
Assy-Burner Broil SAM-DG94-00546A
...
2-10
Assy Cavity-Coating; Fx710bgs/xaa,5.7cu.f SAM-DG94-00613A
...
2-11
Assembly Bracket-Bake Burner Box SAM-DG94-00636A
...
2-12
Assembly Vent-Adiabatic SAM-DG94-00763A
...
2-13
Assy Holder Nozzle-Broil; Gas Oven Fst,13 SAM-DG94-01436A
...
2-14
Assembly Lamp Bulb SAM-DG97-00083A
...
2
Assy Cavity Adiabatic Main; Nx58m6650ws,5 SAM-DG90-00762A
...
3-1
Motor Ac Convection; 30" Oven,smc-U590d,2 SAM-DG31-00014F
...
3-2-1
Assy Wire Harness-Comm; Ne58k9850ws,12v,1 SAM-DG96-00433A
...
3-2-2
Holder Pcb-Wifi; Nx58k9850ss,pbt+gf,black SAM-DG61-01035A
...
3-2-3
Cover Pcb; Nx58k9850ss,pbt,black,kp213g15 SAM-DG63-00416A
...
3-2
Assy Holder Pcb-Wifi; Nx58k9850ss,artik05 SAM-DG94-01328B
...
3-3
Assembly Power Cord SAM-DG96-00211A
...
3-4
Assy Wire Harness-Main; Nx58m6650xx,120va SAM-DG96-00629A
...
3
Assy Electrical Parts; Nx58m6650ws,nx5000 SAM-DG90-00823A

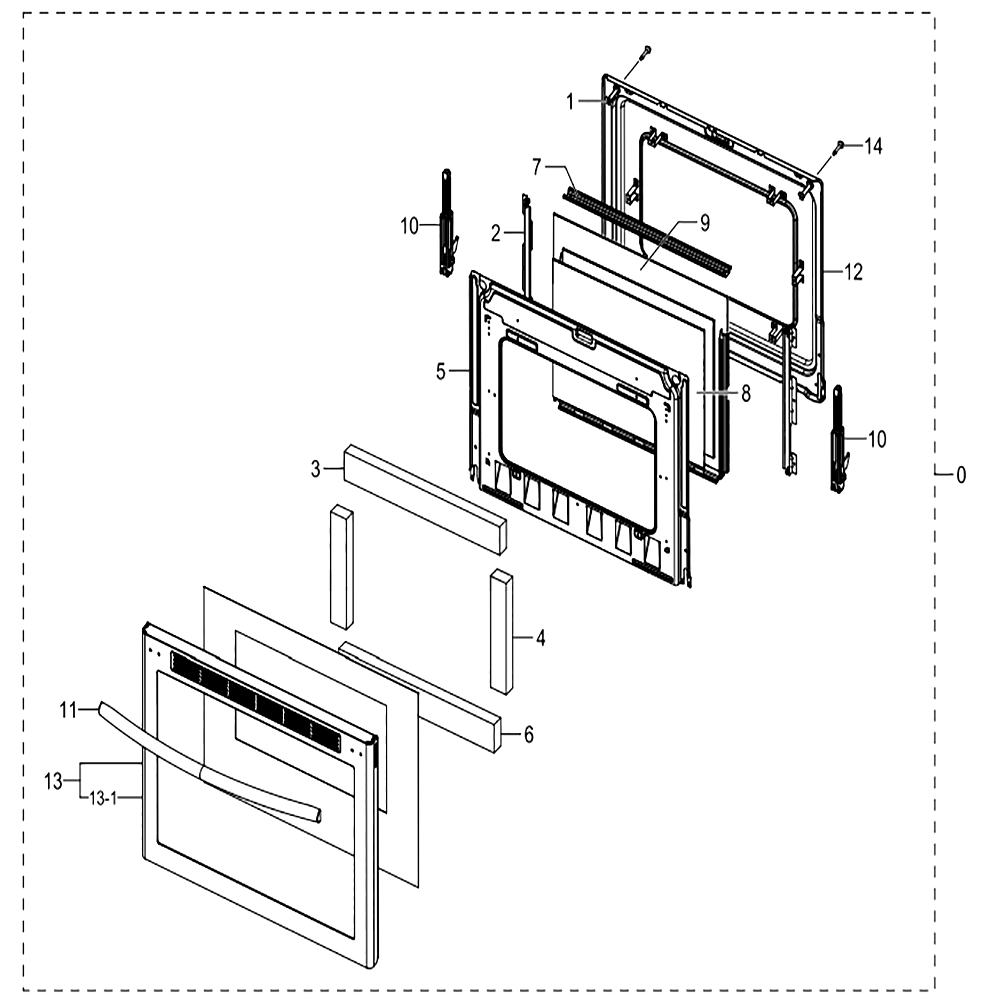

Assy Door

...
...
0
Assy Door; Nx58m6650ws,sts201,stss,nx5000 SAM-DG94-02178A
...
1
Spacer-Door E SAM-DG60-00008A
...
2
Bracket-Inner Glass SAM-DG61-00190C
...
3
Adiabatic-Door Top SAM-DG62-00008B
...
4
Adiabatic-Door Side SAM-DG62-00010A
...
5
Baffle Door SAM-DG62-00046B
...
6
Adiabatic-Door Top Sub SAM-DG62-00087A
...
7
Cover-Frame Inner Glass SAM-DG63-00077C
...
8
Glass-Inner SAM-DG64-00092B
...
9
Glass-Inner Sub SAM-DG64-00133A
...
10
Assembly Hinge SAM-DG94-00603B
...
11
Assembly Handle-Al SAM-DG94-00686A
...
12
Assembly Door E SAM-DG94-00524A
...
13-1
Assy Chassis Door; Nx58h5650ws,stss SAM-DG94-00948A
...
13
Assy Door Sub; Nx58j7750ss,stss,gas Flex SAM-DG94-00947B
...
14
Screw-Machine; Th,+,wp,m5,l57,zpc(blk),sw SAM-6001-002267

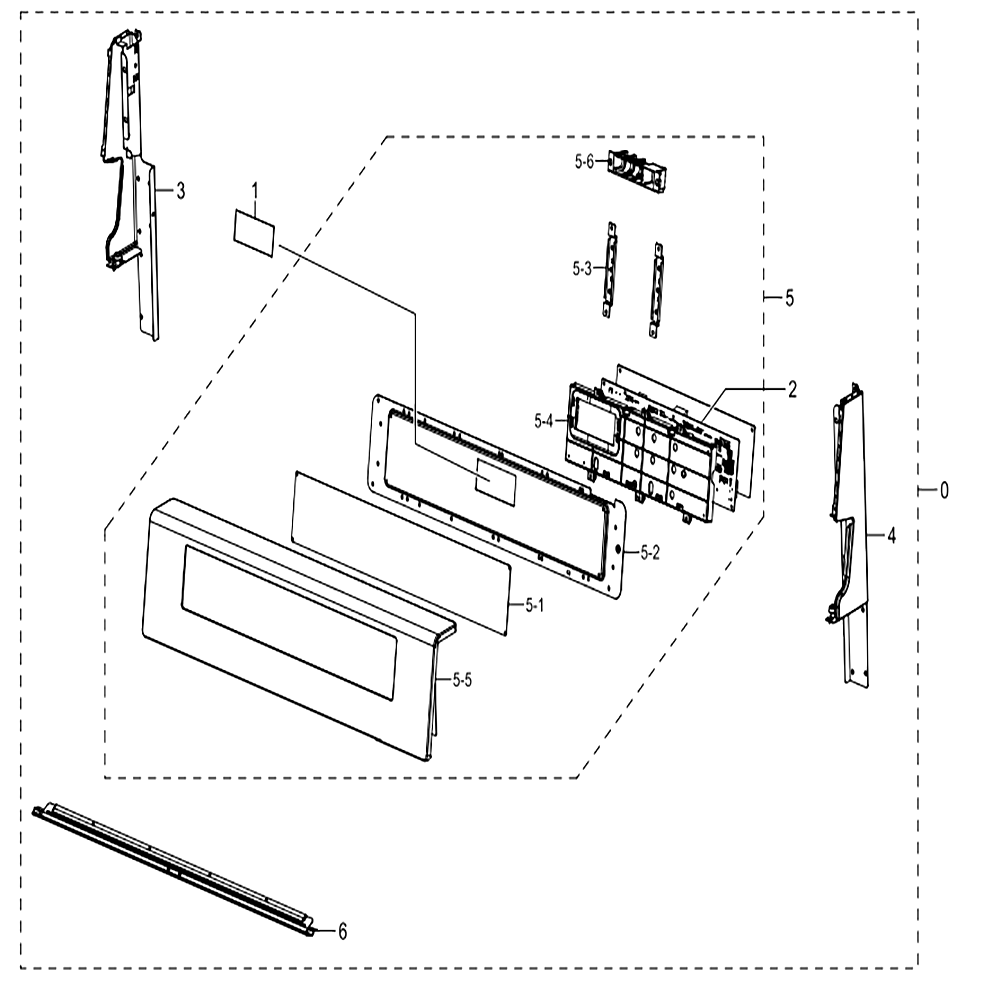

Assy Control Box

...
...
0
Assy Control Box; Nx58m6650ws,stss SAM-DG94-02409A
...
1
Led Display; 7s,6d,nx5000m Led,ibl,connec SAM-DE07-00134D
...
2
Assy Pcb Main; Nx5000m_Main_02,nx5000m,32 SAM-DG92-01073A
...
3
Assembly Support-Back Guard Lt SAM-DG94-00628A
...
4
Assembly Support-Back Guard Rt SAM-DG94-00629A
...
5-1
Switch Membrane; Nx5000m,pc,300-100g,best SAM-DG34-00045A
...
5-2
Bracket Panel; Nx5000m,gi-Sgcc,t0.8,embo SAM-DG61-01460A
...
5-3
Bracket Sub; Nx5000m,gi-Sgcc,t0.8 SAM-DG61-01461A
...
5-4
Holder Pcb-Main; Nx5000m,pbt+gf,2,black,v SAM-DG61-01462A
...
5-5
Assy Control Sub; Nx5000m,stss,stss430 SAM-DG94-00543F
...
5-6
Assy-Module Spark SAM-DG96-00297A
...
5
Assy Control; Nx58m6650ws,stss430 SAM-DG94-01022P
...
6
Assy Bracket A/guide; Nx5000m,spp,t0.8 SAM-DG94-01339B

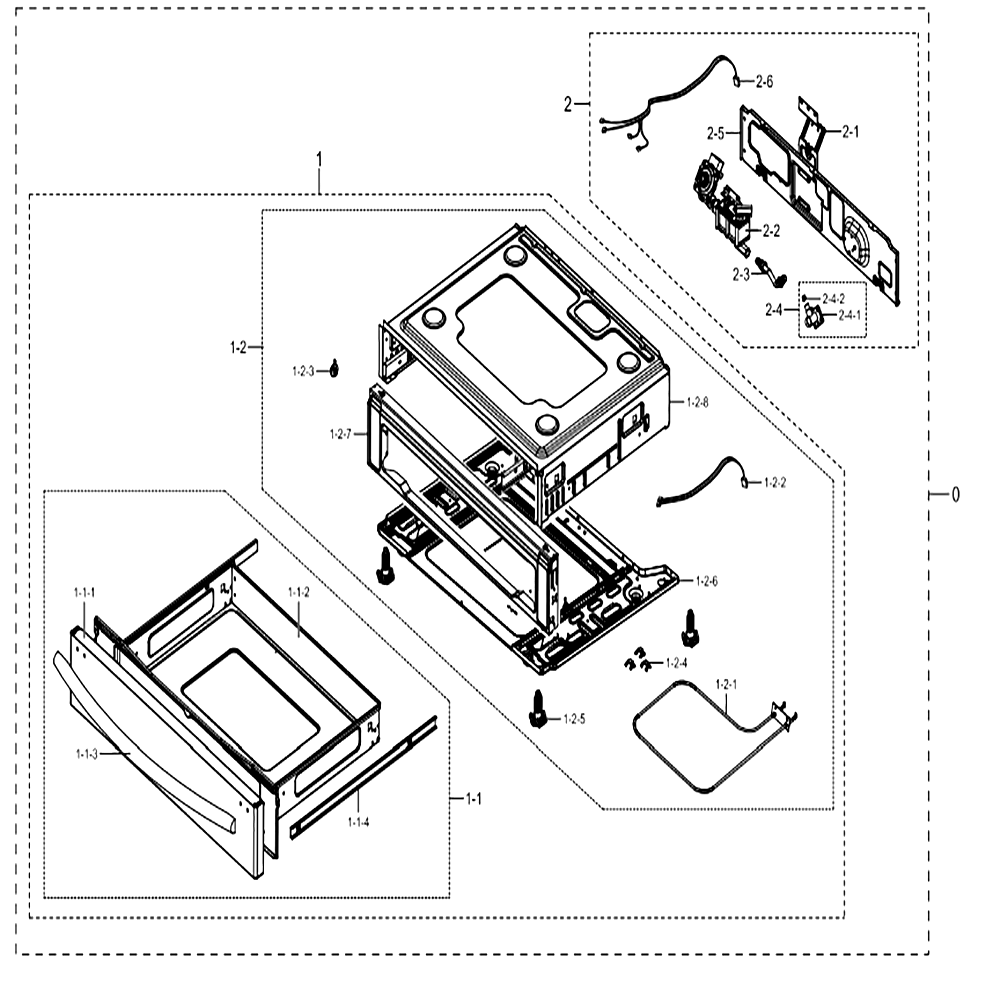

Assy Drawer

...
...
0
Assy Drawer Main; Nx58m6650ws,stss,best SAM-DG90-00759A
...
1-1-1
Assy Panel-Warming Drawer; Fx710bgs/xaa,s SAM-DG94-00507A
...
1-1-2
Assembly Cavity-Drawer SAM-DG94-00508A
...
1-1-3
Assembly Handle-Al SAM-DG94-00686A
...
1-1-4
Assy-Slider SAM-DG94-00550A
...
1-1
Assy Drawer; Fx710bgs/xaa,stss SAM-DG94-00504A
...
1-2-1
Heater Sheath-Warmer; Ac120v,gas Oven,600 SAM-DE47-00051A
...
1-2-2
Assy Wire Harness-Drawer; Dual Fuel,240va SAM-DG39-00050A
...
1-2-3
Spacer-Side Panel SAM-DG60-00007B
...
1-2-4
Bracket-Warming Heater SAM-DG61-00126A
...
1-2-5
Leg Leveling; Ne58k9850ws,pp,natural,441j SAM-DG61-00525C
...
1-2-6
Assy Base-Warmer Drawer; Fx710bgs/xaa,sgc SAM-DG94-00511A
...
1-2-7
Assy Trim-Pedestal; Nx58k9850ss,slide-In SAM-DG94-00512B
...
1-2-8
Assy Shield Drawer; Nx58h9500ws,sgcc T0.5 SAM-DG94-00608C
...
1-2
Assy Pedestal; Nx58m6650ws,stss,wifi SAM-DG94-02177A
...
1
Assy Drawer-Main-Sub; Nx58m6650ws,stss SAM-DG94-00505G
...
2-1
Support-Regulator SAM-DG61-00578A
...
2-2
Assembly Valve-Safety SAM-DG94-00449A
...
2-3
Assembly Tube-Bake SAM-DG94-00466A
...
2-4-1
Holder-Nozzle Bake; Fx710bgs,al SAM-DG61-00571A
...
2-4-2
Nozzle-Bake; Fx710bgs,brass,c366ibd SAM-DG62-00078A
...
2-4
Assembly Holder-Nozzle Bake SAM-DG94-00548A
...
2-5
Assy Base Plate Sub; Nx58h5650ws*,nx58h95 SAM-DG94-01236B
...
2-6
Assy Wire Harness-Sub; Nx58h9500ws,120vac SAM-DG96-00367A
...
2
Assy Cover Back-Sub; Nx58h9500ws,sgcc SAM-DG94-01011A

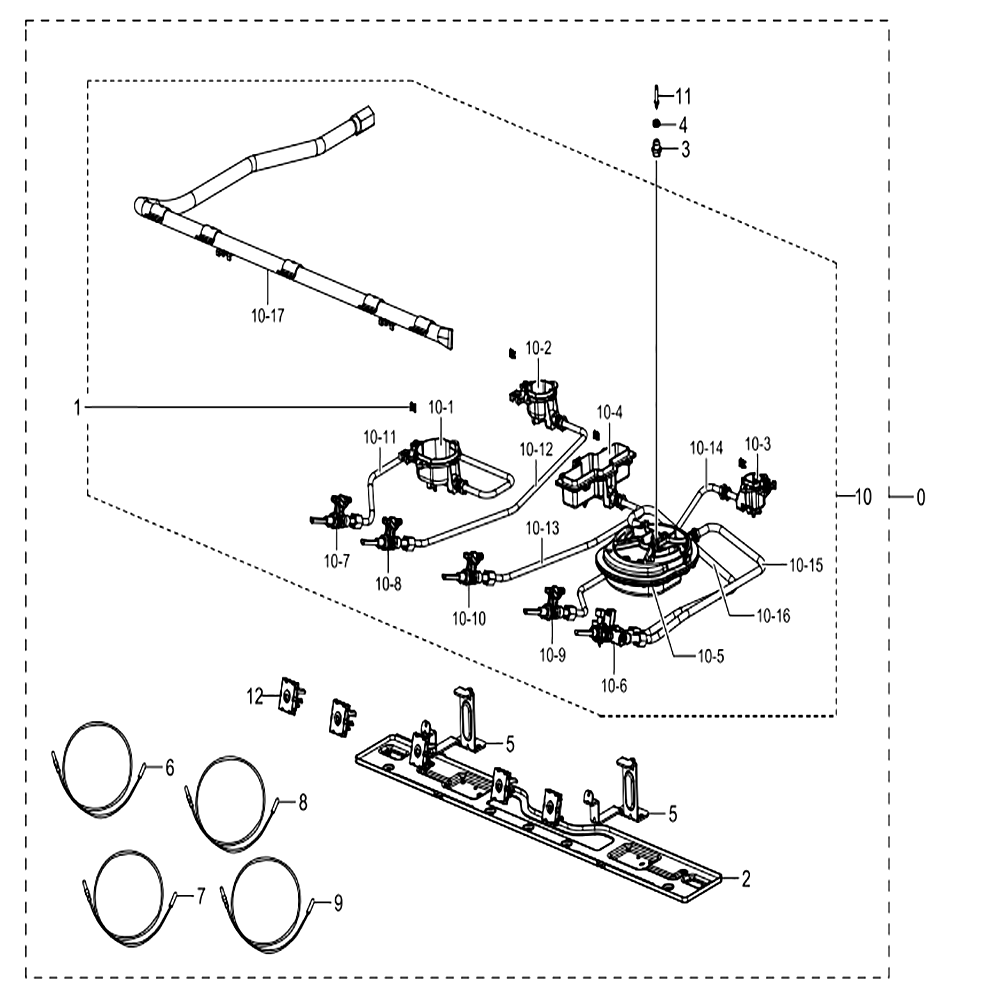

Assy Cooktop

...
...
0
Assy Cooktop; Nx58m6650ws,dual Burner Pow SAM-DG94-02152A
...
1
Bracket-Spring Electrode SAM-DG61-00579A
...
2
Support-Manifold Front SAM-DG61-00670A
...
3
Holder; Nx58f5700ws,brass,-,holder Electr SAM-DG61-00820A
...
4
Spring Etc; Nx58f5700ws,stainless-Sts301, SAM-DG61-00821A
...
5
Bracket Manifold; Nx5000m,gi-Sgcc,t2.3 SAM-DG61-01466A
...
6
Assy-Electrode(s) SAM-DG94-00539A
...
7
Assy-Electrode(m) SAM-DG94-00540A
...
8
Assy-Electrode(l) SAM-DG94-00541A
...
9
Assy-Electrode Fish SAM-DG94-00633A
...
10-1
Burner-Cup(r); Fx710bgs,aldc12,pi70,large SAM-DG62-00058A
...
10-2
Burner-Cup(sr) SAM-DG62-00059A
...
10-3
Burner-Cup(aux) SAM-DG62-00060B
...
10-4
Burner; Nx58m6650ws,aldc12,10k Btu,nx5000 SAM-DG62-00242A
...
10-5
Burner; Nx58m6650ws,aldc12,20k Btu,nx5000 SAM-DG62-00243A
...
10-6
Assy Valve Power; Nx58f5700ws,brass,dual SAM-DG94-00880A
...
10-7
Assy Valve Rear; Nx583g0vbsr,12,000btu,gr SAM-DG94-00933B
...
10-8
Assy Valve Sr; Fx710bgs,9,500btu,violet,4 SAM-DG94-00934A
...
10-9
Assy Valve Aux; Fx710bgs,5,000btu,pink,24 SAM-DG94-00935A
...
10-10
Assy Valve Fish; Fx710bgs,9,500btu,blue,7 SAM-DG94-00936A
...
10-11
Assy Tube Burner-Lf; Nx58m6650ws,dia 6.35 SAM-DG94-02129A
...
10-12
Assy Tube Burner-Lr; Nx5000m,dia 6.35,tub SAM-DG94-02130A
...
10-13
Assy Tube Burner-Fish; Nx5000m,dia 6.35,t SAM-DG94-02131A
...
10-14
Assy Tube Burner-Rr; Nx5000m,dia 6.35,tub SAM-DG94-02132A
...
10-15
Assy Tube Burner; Nx58m6650ws,dia 7.94,tu SAM-DG94-02133A
...
10-16
Assy Tube Burner; Nx58m6650ws,dia 7.94,tu SAM-DG94-02134A
...
10-17
Assy Valve Manifold-Elbow; Nx58m6650ws,nx SAM-DG94-02143A
...
10
Assy Valve Manifold; Nx58m6650ws,dual Val SAM-DG94-02154A
...
11
Assy Electrode Dual; Nx58f5700ws,real Dua SAM-DG96-00329A
...
12
Assy Switch Ignition; Nx58m6650ws/aa,igni SAM-DG96-00651A

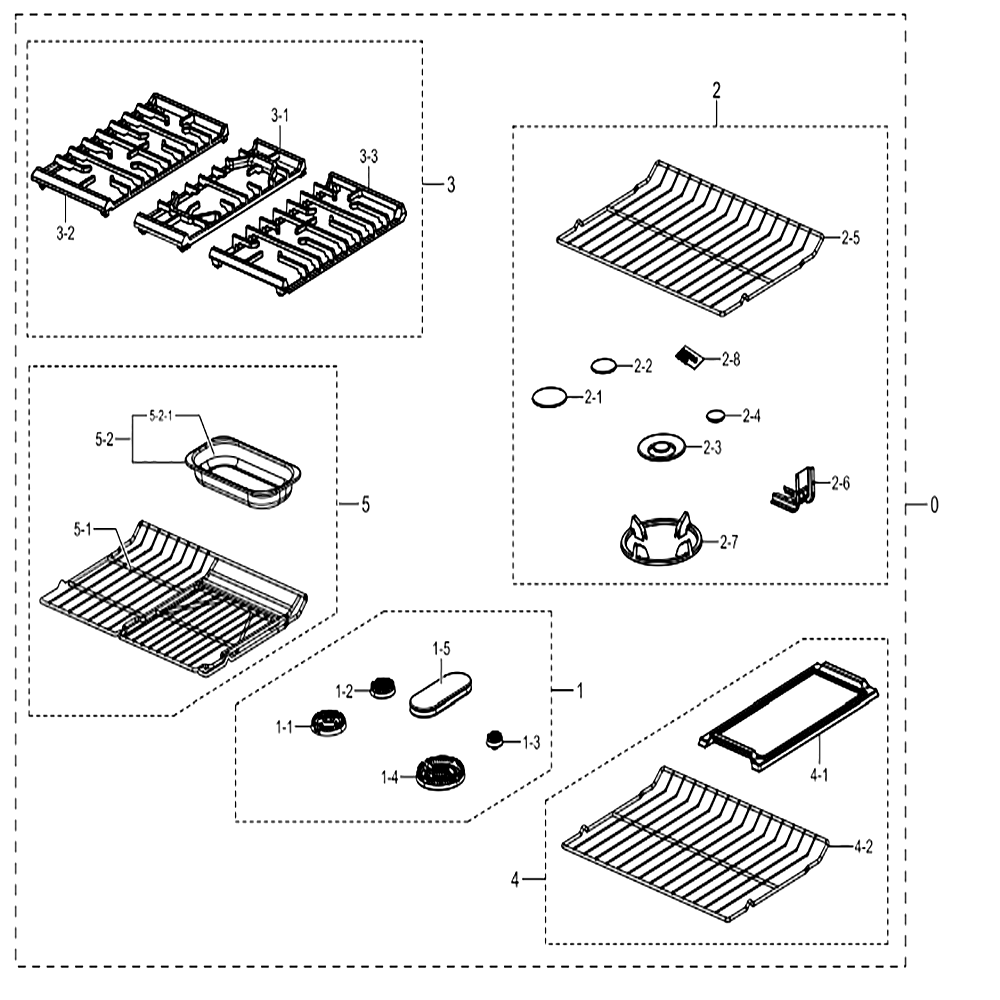

Accessory

...
...
0
Assy Accessory Parts; Nx58m6650ws,nx5000m SAM-DG90-00751A
...
1-1
Burner Head Right SAM-DG62-00074C
...
1-2
Burner-Head SAM-DG62-00075B
...
1-3
Burner-Head(aux) SAM-DG62-00076B
...
1-4
Burner Head Dual; Nx58f5700ws,alcd12,dual SAM-DG62-00132A
...
1-5
Assy-Burner Head Fish(b) SAM-DG94-00607A
...
1
Assy Packing Accessory; Nx58m6650ws,nx500 SAM-DG98-01494A
...
2-1
Burner-Cap(r) SAM-DG62-00067A
...
2-2
Burner-Cap(sr) SAM-DG62-00070A
...
2-3
Burner Cap Dual; Fx710bgs,cr-Spp,double-R SAM-DG62-00122A
...
2-4
Burner Cap Aux; Nx58h9500ws,cr-Spp,dia.50 SAM-DG62-00137A
...
2-5
Rack-Flat SAM-DG75-01001C
...
2-6
Assembly Bracket Sub SAM-DG94-00870B
...
2-7
Assy Grate; Nx58h5650ws,cast Iron,matt Bl SAM-DG94-00939A
...
2-8
Assy Nozzle Kit; Nx58m6650ws,dual Burner SAM-DG96-00649A
...
2
Assy Packing Burner Cap; Nx58m6650ws SAM-DG98-01496A
...
3-1
Assy Grate Center; Nx5000m,cast Iron,matt SAM-DG94-02084A
...
3-2
Assy Grate Side; Nx5000m,cast Iron,matt B SAM-DG94-02085A
...
3-3
Assy Grate Side; Nx5000m,cast Iron,matt B SAM-DG94-02086A
...
3
Assy Packing Grate; Nx5000m,nx58m6650ws SAM-DG98-01497A
...
4-1
Plate Griddle; Nx5000m,aldc12,matt Black SAM-DG61-01469A
...
4-2
Rack-Flat SAM-DG75-01001C
...
4
Assy Packing Griddle; Nx5000m,nx58m6650ws SAM-DG98-01508A
...
5-1
Assy-Split Rack; Fx710bgs/xaa,best SAM-DG94-00634A
...
5-2-1
Tray Steam-Half; Nx58m6650ws,sts304,t0.5 SAM-DG63-00513C
...
5-2
Assy Packing Tray; Nx58m6650ws,nx5000m, P SAM-DG98-01515A
...
5
Assy Packing Accessory; Nx58m6650ws,nx500 SAM-DG98-01514A
