Samsung NX58K9850SS/AA_0002

Model: NX58K9850SS/AA_0002

Save Part Not Listed?
product name

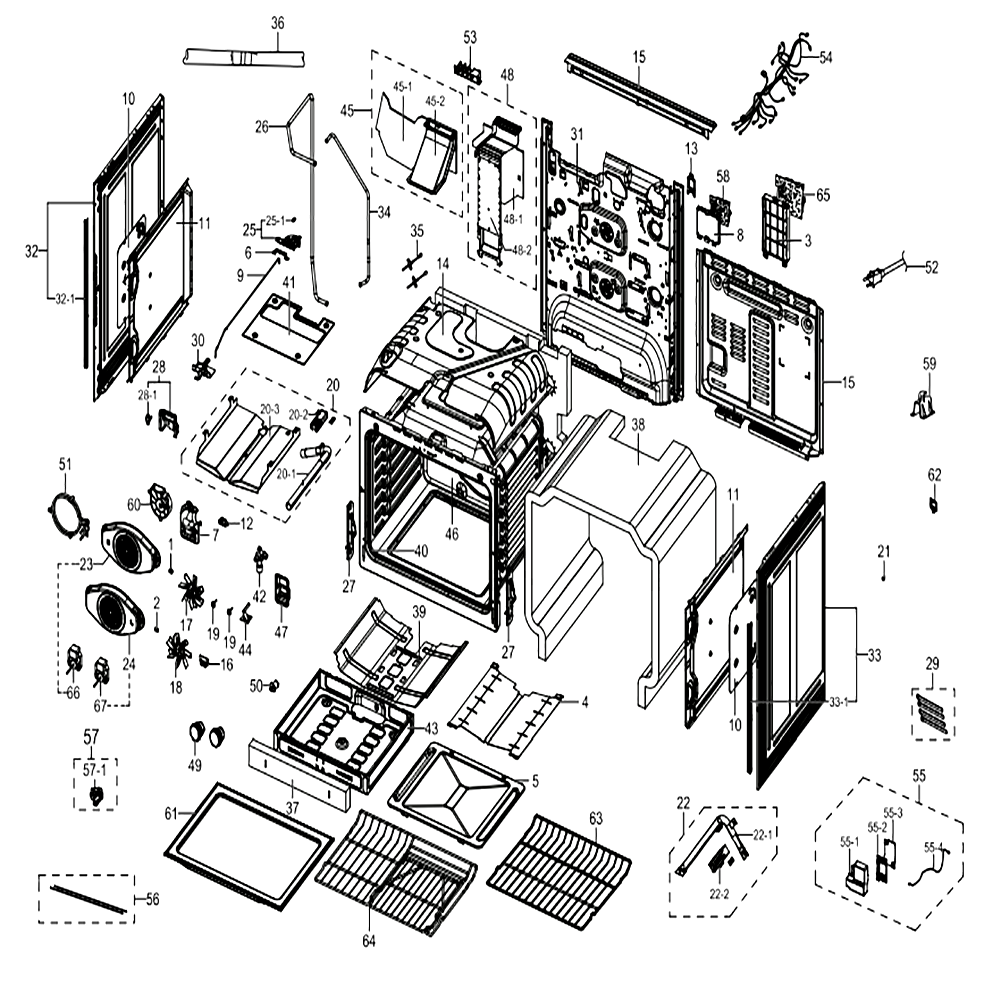

Main

...
...
1
Nut-Hexagon Cap; M4,ni Plt,swrch10a SAM-6021-001208
...
2
Nut-Hexagon Cap SAM-6021-001211
...
3
Holder-Pcb Main SAM-DG61-00060C
...
4
Bracket-Bake Spreader SAM-DG61-00523A
...
5
Cavity-Floor Coating SAM-DG61-00570A
...
6
Bracket-Latch Sub SAM-DG61-00732A
...
7
Bracket Cover; Nx58j7750ss,cr-Spp,t0.8,-, SAM-DG61-00947A
...
8
Holder Pcb-Sub; Nx58j7750ss,pbt+gf,black, SAM-DG61-00954A
...
9
Spring Latch; Nx58k7850ss,hswr-Swrh,dia4. SAM-DG61-01011B
...
10
Baffle-Door Sheet SAM-DG62-00094A
...
11
Cover Adiabatic-Side SAM-DG62-00125A
...
12
Cover-Hsi Wire SAM-DG63-00257A
...
13
Cover-Power Cord SAM-DG63-00260A
...
14
Cover Case-Top; Nx58h9500ws,gi-Sgcc,t0.5, SAM-DG63-00356A
...
15
Cover Back; Nx58k9850ss,gi-Sgcc,t0.4,slid SAM-DG63-00415A
...
16
Locker; Ny58j9850ws,zndc,dual Fuel Range SAM-DG64-00555A
...
17
Fan-Convection Upper SAM-DG67-00001B
...
18
Fan-Convection Lower SAM-DG67-00011B
...
19
Rubber-Cushion SAM-DG73-00003A
...
20-1
Burner Broil; Nx58k9850ss,alcoat-Sa1c,sli SAM-DG62-00056C
...
20-2
Assy-Hot Surface Igniter SAM-DG94-00520A
...
20-3
Bracket Broil; Nx58h9500ws,alcoat-Sa1c,t0 SAM-DG61-00830A
...
20
Assy Burner; Nx58k9850ss,slide-In Flex SAM-DG90-00169B
...
21
Screw-Machine; Pwh,m4,l10,zpc(blk),swrch1 SAM-6001-002701
...
22-1
Burner-Bake SAM-DG62-00066A
...
22-2
Assy Hot Surface Igniter; Nx58h9500ws,cer SAM-DG94-01012A
...
22
Assy Burner; Nx58h9500ws,slide In, Burner SAM-DG90-00195A
...
23
Assembly Cover Casing-Upper SAM-DG94-00489B
...
24
Assy Cover Casing-Lower; Ne599n1*, Fe710* SAM-DG94-00490B
...
25-1
Switch-Micro SAM-3405-001034
...
25
Assy Bracket Latch; Gas Oven,stss,assy La SAM-DG94-00761B
...
26
Assy Tube Manifold; Nx58h9500ws,11.11,sli SAM-DG94-00951A
...
27
Assy Support Hinge; Ny58j9850ws,damper 18 SAM-DG94-01120C
...
28-1
Thermostat SAM-DE47-20037A
...
28
Assy Duct Rear; Nx58j7750ss,gas Flex SAM-DG94-01168A
...
29
Cable Clamp SAM-6502-001117
...
30
Assy Bracket Latch; Ny58j9850ws,gi-Sgcc,d SAM-DG94-01268A
...
31
Assy Cover Back-Main; Nx58k9850ss,gi-Sgcc SAM-DG94-01325A
...
32-1
Cover Panel; Nx58k9850ss,pbt,black,kp213g SAM-DG63-00419A
...
32
Assy Panel Outer-Left; Nx58k9850ss,egi-Se SAM-DG94-01331A
...
33-1
Cover Panel; Nx58k9850ss,pbt,black,kp213g SAM-DG63-00418A
...
33
Assy Panel Outer-Right; Nx58k9850ss,egi-S SAM-DG94-01332A
...
34
Assy Tube; Nx58k9850ss,d9.525,t0.81,slide SAM-DG94-01394A
...
35
Thermistor-Sensor SAM-DG32-00004C
...
36
Assy Bracket Supporter; Ne58k9850ws,blk,n SAM-DG94-00915B
...
37
Adiabatic-Bake Burner Box SAM-DG62-00068A
...
38
Adiabatic Main; Nx58h9500ws,glass Wool,t2 SAM-DG62-00138A
...
39
Shield-Bake Burner SAM-DG63-00235A
...
40
Gasket Door SAM-DG63-00255B
...
41
Shield Cavity Upper; Nx58h9500ws,alcoat-S SAM-DG63-00353A
...
42
Assy Holder Nozzle-Broil; Gas Oven Fst,13 SAM-DG94-01436A
...
43
Assembly Bracket-Bake Burner Box SAM-DG94-00636A
...
44
Assy-Probe SAM-DG94-00674B
...
45-1
Adiabatic Vent; Nx58h9500ws,glass Wool,t6 SAM-DG62-00140A
...
45-2
Assy Vent Coating; Nx58k9850ss,slide-In F SAM-DG94-00957B
...
45
Assy Vent Adiabatic; Nx58k9850ss,slide-In SAM-DG94-00953B
...
46
Assy Cavity-Coating; Nx58k9850ss,5.8cu.ft SAM-DG94-01013B
...
47
Assy Duct Inner; Nx58j7750ss,gas Flex SAM-DG94-01158A
...
48-1
Adiabatic Vent; Glass Wool,t6,110kg/m^3, SAM-DG62-00172A
...
48-2
Assy Vent Welding; Nx58k9850ss,slide-In F SAM-DG94-01319A
...
48
Assy Vent Adiabatic; Nx58k9850ss,slide-In SAM-DG94-01318A
...
49
Assembly Lamp Bulb SAM-DG97-00083A
...
50
Switch-Door Plunger SAM-DG34-00006A
...
51
Heater Sheath-Convection; Ac120v,900w,sus SAM-DG47-00009B
...
52
Assembly Power Cord SAM-DG96-00211A
...
53
Assy-Module Spark SAM-DG96-00297A
...
54
Assy Wire Harness-Main; Nx9000k,120v 60hz SAM-DG96-00427A
...
55-1
Holder Pcb-Wifi; Nx58k9850ss,pbt+gf,black SAM-DG61-01035A
...
55-2
W-Lan Module; Swl-Cq52/ks,16k Ks,ieee802. SAM-4709-002441
...
55-3
Cover Pcb; Nx58k9850ss,pbt,black,kp213g15 SAM-DG63-00416A
...
55-4
Assy Wire Harness-Comm; Ne58k9850ws,12v,1 SAM-DG96-00433A
...
55
Assy Holder Pcb-Wifi; Nx9000k,slide-In Fl SAM-DG94-01328A
...
56
Steel Wire SAM-DG70-00004A
...
57-1
Switch-Micro SAM-3405-001034
...
57
Assy-Partition Switch SAM-DG97-00014J
...
58
Assy Pcb Sub; Bldc-Fan-Sub-01,nx9000k-Pjt SAM-DE92-03963B
...
59
Holder-Cable; Nx58k9850ss,pbt+gf,black,v0 SAM-DG61-01061A
...
60
Motor Bldc Fan; B9232h12b1-Sb-Oc-0834,280 SAM-DG31-00023B
...
61
Assy Partition; Ne59j78**,ne58k98**,cesp- SAM-DG94-01643B
...
62
Saddle; Tic-Wsd21.5,w30.5,h33.3,t3.5,nylo SAM-6502-001149
...
63
Rack Wire; Ne58k9430ss,ne9000k,mswr-Swrm, SAM-DG67-00108A
...
64
Assy-Split Rack; Fx710bgs/xaa,best SAM-DG94-00634A
...
65
Assy Pcb Main; Fm-New-Main-03,nx9000k,124 SAM-DE92-03960D
...
66
Motor Ac Convection; 30" Oven,smc-U590d,2 SAM-DG31-00014F
...
67
Motor Ac Convection; 30" Oven,smc-U590e,2 SAM-DG31-00022A

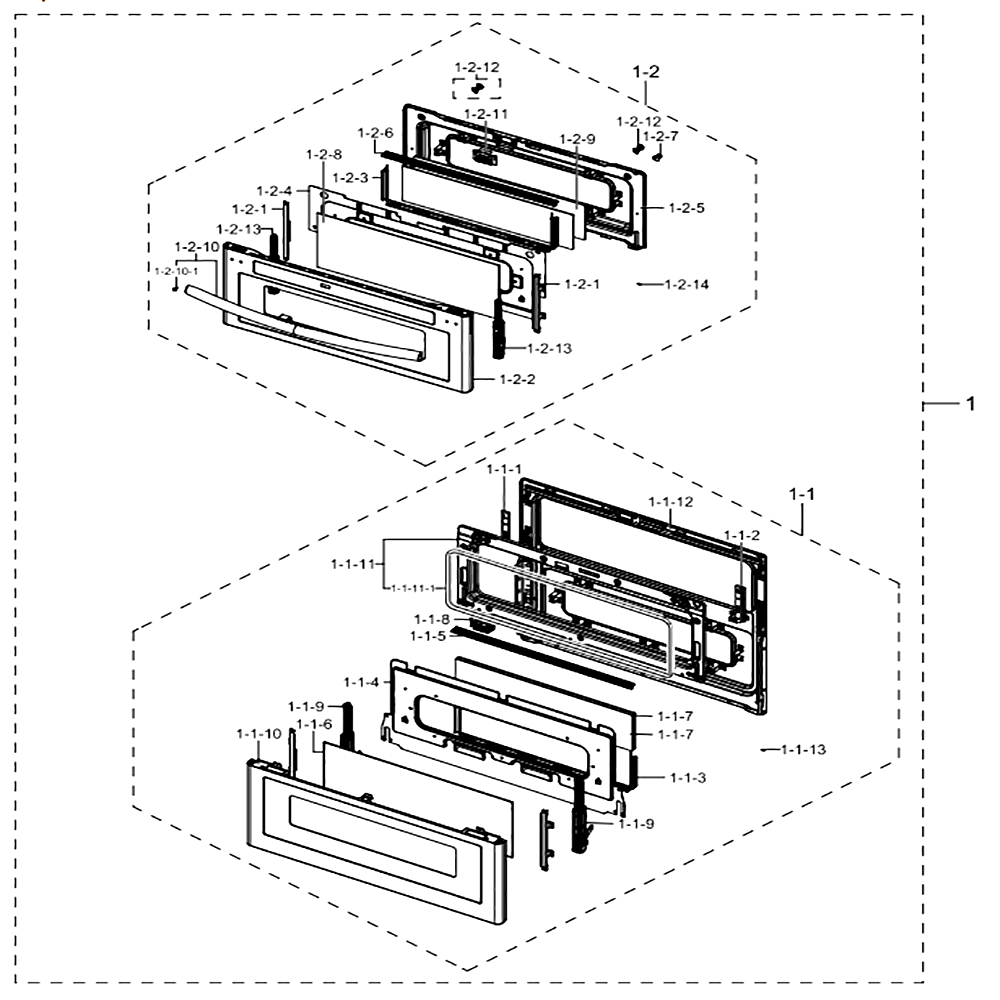

Assy Door

...
...
1-1-1
Bracket Hinge-Right; Ne59j7850ws,gi-Sgcc, SAM-DG61-00956A
...
1-1-2
Bracket Hinge-Left; Ne59j7850ws,gi-Sgcc,t SAM-DG61-00957A
...
1-1-3
Frame Inner Glass; Ny58j9850ws,gi-Sgcc,t0 SAM-DG61-00998A
...
1-1-4
Baffle Door-Low; Ny58j9850ws,alcoat-Sa1c, SAM-DG62-00160A
...
1-1-5
Cover Glass; Ne59j7850ws,gi-Sgcc,t0.5,dou SAM-DG63-00396A
...
1-1-6
Glass-Sub; Nx58k9850ss,glass,t3.2,w561.5, SAM-DG64-00540B
...
1-1-7
Glass-In; Ny58j9850ws,glass,t4.0,heat-Bar SAM-DG64-00559A
...
1-1-8
Assy Door Lock-Rear; Ne59j7850ws,flex-Bes SAM-DG94-01157A
...
1-1-9
Assy Hinge-Main; Ny58j9850ws,dual Fuel,du SAM-DG94-01273A
...
1-1-10
Assy Door Sub-Low; Nx58k9850ss,slide-In F SAM-DG94-01277C
...
1-1-11-1
Gasket Door; Ny58j9850ws,glass Fiber,1794 SAM-DG63-00411B
...
1-1-11
Assy Cover Front; Ny58j9850ws,spp,dual Fu SAM-DG94-01278A
...
1-1-12
Assy Door E-Coating; Ny58j9850ws,dual Fue SAM-DG94-01279A
...
1-1-13
Screw-Machine; Pwh,m4,l10,zpc(blk),swrch1 SAM-6001-002701
...
1-1
Assy Door-Main; Nx58k9850ss,sts,slide-In SAM-DG94-01515A
...
1-2-1
Bracket Holder; Ne59j7850ws,gi-Sgcc,t0.6, SAM-DG61-00965A
...
1-2-2
Assy Door Sub-Up; Nx58k9850ss,slide-In Fl SAM-DG94-01282B
...
1-2-3
Frame Inner Glass; Ny58j9850ws,gi-Sgcc,t0 SAM-DG61-00998A
...
1-2-4
Baffle Door-Up; Ny58j9850ws,alcoat-Sa1c SAM-DG62-00159A
...
1-2-5
Assy Door E-Coating; Ny58j9850ws,dual Fue SAM-DG94-01285A
...
1-2-6
Cover Glass; Ne59j7850ws,gi-Sgcc,t0.5,dou SAM-DG63-00396A
...
1-2-7
Button Push; Ny58j9850ws,al SAM-DG64-00525B
...
1-2-8
Glass-Sub; Nx58k9850ss,glass,t3.2,w561.5, SAM-DG64-00540B
...
1-2-9
Glass-In; Ny58j9850ws,glass,t4.0,heat-Bar SAM-DG64-00559A
...
1-2-10-1
Screw-Machine; Ph,+,-,m4,l8,zpc(wht),swrc SAM-6001-000618
...
1-2-10
Assy Handle; Ne59j7850ws,flex-Best SAM-DG94-01134A
...
1-2-11
Assy Door Lock-Front; Ne59j7850ws,flex-Be SAM-DG94-01156A
...
1-2-12
Assy Trim Kit; Ne59j7850ws,welding Spacer SAM-DG94-01238A
...
1-2-13
Assy Hinge-Up; Ny58j9850ws,dual Door SAM-DG94-01270A
...
1-2-14
Screw-Machine; Pwh,m4,l10,zpc(blk),swrch1 SAM-6001-002701
...
1-2
Assy Door-Up; Nx58k9850ss,slide-In Flex, SAM-DG94-01281B
...
1
Assy Door; Nx58k9850ss,slide-In Flex, Dua SAM-DG94-01269B

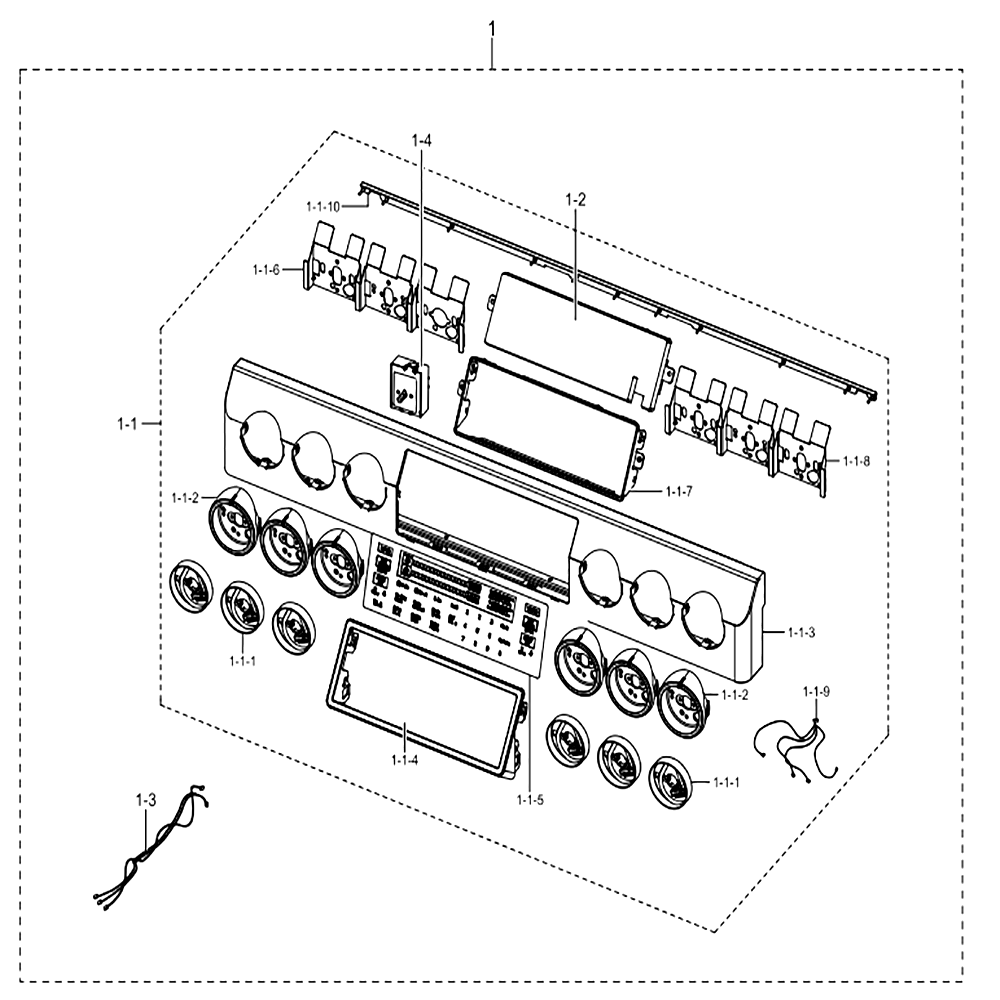

Assy Control Box

...
...
1-1-1
Assy Module; Assy Knob Light,nx9000k-Pjt, SAM-DE92-03972A
...
1-1-2
Holder Knob; Nx58k9850ss,abs+pc,natural,h SAM-DE61-01607A
...
1-1-3
Assy Control Chassis; Nx58k9850ss,sts430, SAM-DG94-01005D
...
1-1-4
Chassis Decoration; Nx58h9500ws,zn,-,natu SAM-DG64-00497A
...
1-1-5
Assy Touch; Nx58k9850,82.5 X 242.5 SAM-DG96-00473A
...
1-1-6
Bracket Control; Nx58h9500ws,gi-Sgcc,t0.8 SAM-DG61-00840A
...
1-1-7
Cover Control Panel; Nx58h9500ws,cr-Spcc, SAM-DG63-00355A
...
1-1-8
Bracket Control; Nx58h9500ss,gi-Sgcc,t0.8 SAM-DG61-00840B
...
1-1-9
Assy Wire Harness-Dc Signal; Nx9000k,120v SAM-DG96-00428A
...
1-1-10
Gasket; Silicone Rubber,l754,-,slide In SAM-DG63-00359A
...
1-1
Assy Control Sub; Nx58k9850ss,slide In Fl SAM-DG94-01588A
...
1-2
Assy Module; Assy Display,nx9000k-Pjt,gas SAM-DE92-03967B
...
1-3
Assy Wire Harness-Dc Signal; Nx58h9500ws, SAM-DG96-00368A
...
1-4
Switch Select Rotary; 5v,0.5a,nx58k9850ss SAM-DG34-00028B
...
1
Assy Control Box; Nx58k9850ss,slide In Fl SAM-DG94-01584A

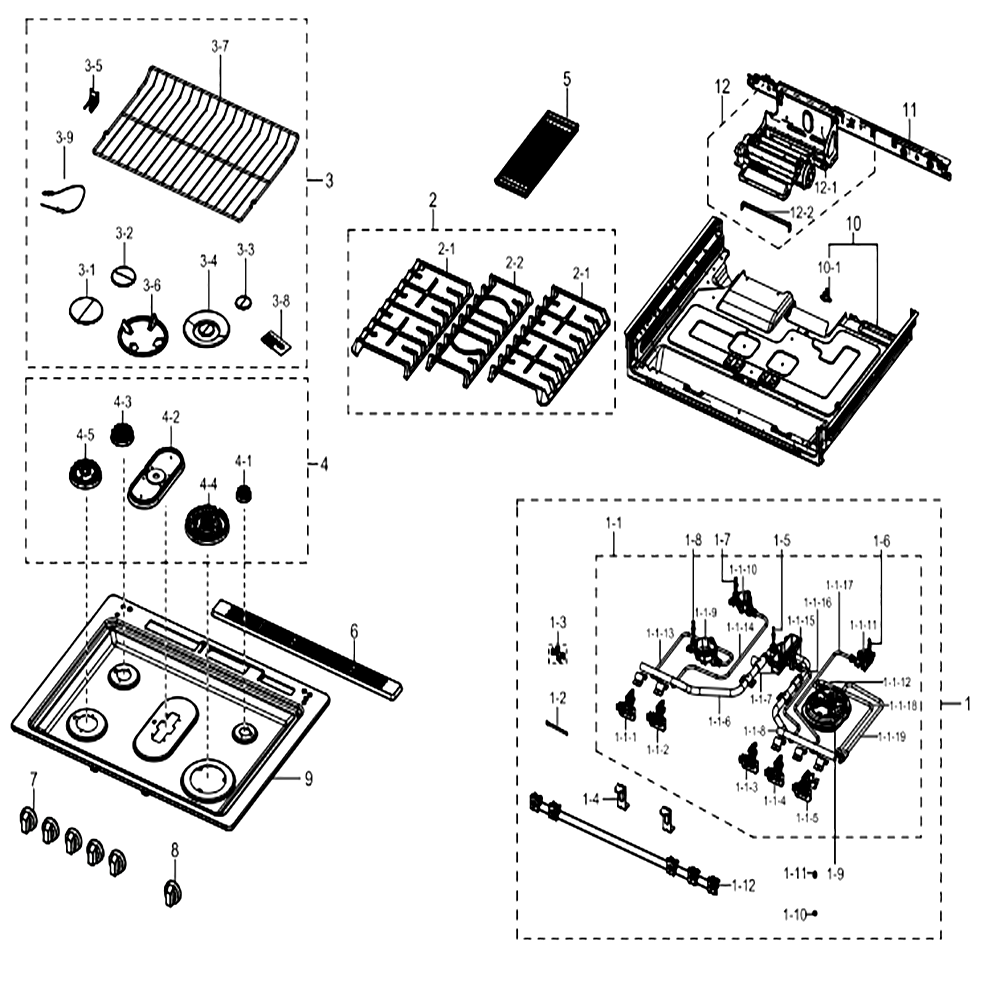

Assy Cooktop

...
...
1-1-1
Assy Valve Rear; Nx58h9500ws,rapid,red,sl SAM-DG94-00963A
...
1-1-2
Assy Valve Sr; Nx58h9500ws,semi-Rapid,vio SAM-DG94-00964A
...
1-1-3
Assy Valve Fish; Nx58h9500ws,fish,blue,sl SAM-DG94-00966A
...
1-1-4
Assy Valve Aux; Nx58h9500ws,aux,pink,slid SAM-DG94-00965A
...
1-1-5
Assy Valve Power; Nx58h9500ws,dual,slidei SAM-DG94-00962A
...
1-1-6
Assy Valve Manifold; Nx58h9500ws,stkm-11a SAM-DG94-01006A
...
1-1-7
Burner-Cup Fish(g); Fx710bgs,aldc12,l130. SAM-DG62-00061A
...
1-1-8
Assy Valve Manifold; Nx58h9500ws,stkm-11a SAM-DG94-01007A
...
1-1-9
Burner-Cup(r); Fx710bgs,aldc12,pi70,large SAM-DG62-00058A
...
1-1-10
Burner-Cup(sr) SAM-DG62-00059A
...
1-1-11
Burner-Cup(aux) SAM-DG62-00060B
...
1-1-12
Burner Cup; Ny58j9850ws,aldc12,dual Burne SAM-DG62-00162A
...
1-1-13
Assy Tube Burner; Nx58k9850ss,dia6.35,s/i SAM-DG94-01450A
...
1-1-14
Assy Tube Burner; Nx58k9850ss,dia6.35,s/i SAM-DG94-01451A
...
1-1-15
Assy Tube Manifold; Nx58h9500ws,11.11,sli SAM-DG94-01001A
...
1-1-16
Assy Tube Fish; Nx58h9500ws,6.35,slide In SAM-DG94-00998A
...
1-1-17
Assy Tube Burner; Nx58k9850ss,dia6.35,s/i SAM-DG94-01452A
...
1-1-18
Assy Tube Burner; Nx58k9850ss,dia7.94,s/i SAM-DG94-01453A
...
1-1-19
Assy Tube-Right Front; Nx58h9500ws,7.94,s SAM-DG94-01003A
...
1-1
Assy Valve Manifold; Ny58j9850ws,dual Fue SAM-DG94-00961C
...
1-2
Cable Clamp SAM-6502-001117
...
1-3
Bracket-Spring Electrode SAM-DG61-00579A
...
1-4
Bracket Manifold; Nx58h9500ws,gi-Sgcc,t2. SAM-DG61-00847A
...
1-5
Assy-Electrode Fish SAM-DG94-00633A
...
1-6
Assy-Electrode(s) SAM-DG94-00539A
...
1-7
Assy-Electrode(m) SAM-DG94-00540A
...
1-8
Assy-Electrode(l) SAM-DG94-00541A
...
1-9
Assy Electrode Dual; Nx58f5700ws,real Dua SAM-DG96-00329A
...
1-10
Spring Etc; Nx58f5700ws,stainless-Sts301, SAM-DG61-00821A
...
1-11
Holder; Nx58f5700ws,brass,-,holder Electr SAM-DG61-00820A
...
1-12
Assy Switch Ignition; Nx58k9850ss,slide-I SAM-DG96-00435A
...
1
Assy Cooktop; Nx58k9850ss,slide-In Flex SAM-DG94-00960C
...
2-1
Assy Grate Side; Nx58h5650ws,cast Iron,ma SAM-DG94-00937A
...
2-2
Assy Grate Center; Nx58h5650ws,cast Iron, SAM-DG94-00938A
...
2
Assy Packing Grate; Nx58h9500ws,grate Sid SAM-DG98-01112A
...
3-1
Burner-Cap(r) SAM-DG62-00067A
...
3-2
Burner-Cap(sr) SAM-DG62-00070A
...
3-3
Burner Cap Aux; Nx58h9500ws,cr-Spp,dia.50 SAM-DG62-00137A
...
3-4
Burner Cap Dual; Fx710bgs,cr-Spp,double-R SAM-DG62-00122A
...
3-5
Assembly Bracket Sub SAM-DG94-00870B
...
3-6
Assy Grate; Nx58h5650ws,cast Iron,matt Bl SAM-DG94-00939A
...
3-7
Rack Wire; Ne58k9430ss,ne9000k,mswr-Swrm, SAM-DG67-00108A
...
3-8
Assy Nozzle Kit; Nx58k9850ss,slide-In Fle SAM-DG96-00424A
...
3-9
Sensor-Probe SAM-DG32-00013A
...
3
Assy Packing Burner Cap; Nx58k9850ss,slid SAM-DG98-01150A
...
4-1
Burner-Head(aux) SAM-DG62-00076B
...
4-2
Assy-Burner Head Fish(g); Fx710bgs,spp,v1 SAM-DG94-00606A
...
4-3
Burner-Head SAM-DG62-00075B
...
4-4
Burner Head; Ny58j9850ws,brass,dual Burne SAM-DG62-00163A
...
4-5
Burner Head Right SAM-DG62-00074C
...
4
Assy Packing Accessory; Ny58j9850ws,packi SAM-DG98-01146A
...
5
Plate Griddle; Nx58h9500ws,cast Iron,w183 SAM-DG61-00859A
...
6
Assy Cover Air; Nx58h9500ws,cast Iron,sli SAM-DG94-00950A
...
7
Assy Knob; Nx58k9850ss,pc Abs,slide-In Fl SAM-DG94-01316A
...
8
Assy Knob; Nx58k9850ss,pc Abs,slide-In Fl SAM-DG94-01316B
...
9
Assy Frame; Nx58h9500ws,slide In, Stss SAM-DG94-00958A
...
10-1
Thermostat SAM-DE47-20037A
...
10
Assy Cooktop Sub; Nx58k9850ss,slide-In Fl SAM-DG94-00985B
...
11
Assy Bracket Guide; Nx58h9500ws,secc,assy SAM-DG94-00986A
...
12-1
Motor Ac Fan; Smb-U485b,120v,60hz,2450rpm SAM-DE31-00070B
...
12-2
Rack Protect; Nx58h9500ws,stainless-Sts44 SAM-DG75-01057A
...
12
Assy Motor; Nx58h9500ws,1500rpm,slide In SAM-DG96-00351A

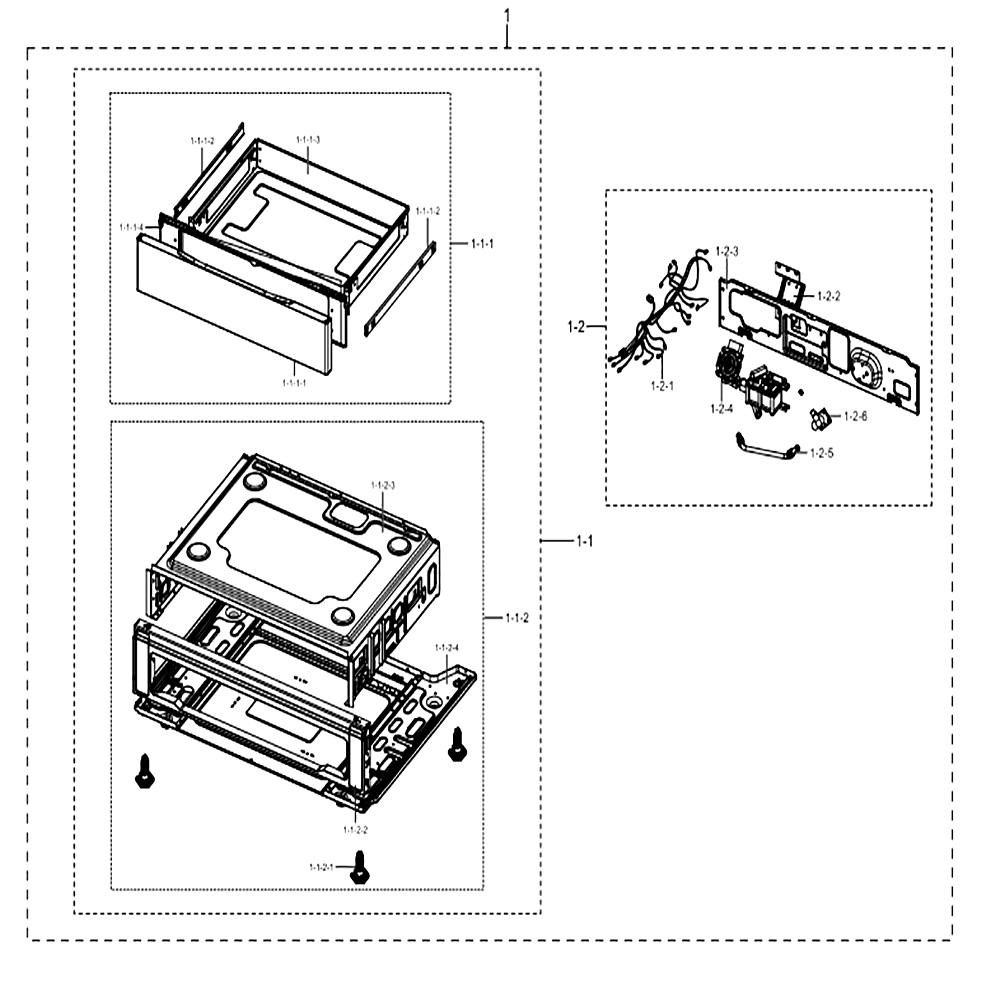

Assy Drawer

...
...
1-1-1-1
Assy Panel Warming Drawer; Ne58f9500ss,st SAM-DG94-00904B
...
1-1-1-2
Assy-Slider SAM-DG94-00550A
...
1-1-1-3
Assy Cavity Drawer; Nx58h9500ws,slide In SAM-DG94-00968A
...
1-1-1-4
Panel-Drawer SAM-DG64-00341A
...
1-1-1
Assy Drawer; Nx58k9850ss,slide-In Flex SAM-DG94-00959D
...
1-1-2-1
Leg Leveling; Ne58k9850ws,pp,natural,441j SAM-DG61-00525C
...
1-1-2-2
Assy Trim-Pedestal; Nx58k9850ss,slide-In SAM-DG94-00512B
...
1-1-2-3
Assy Shield Drawer; Nx58h9500ws,sgcc T0.5 SAM-DG94-00608C
...
1-1-2-4
Assy Base-Warmer Drawer; Fx710bgs/xaa,sgc SAM-DG94-00511A
...
1-1-2
Assy Pedestal; Nx58k9850ss,slide-In Flex SAM-DG94-00510E
...
1-1
Assy Drawer Main; Nx58k9850ss,cr-Spp,slid SAM-DG90-00174E
...
1-2-1
Assy Wire Harness-Sub; Nx9000k,120v 60hz, SAM-DG96-00367B
...
1-2-2
Support-Regulator SAM-DG61-00578A
...
1-2-3
Assy Base Plate Sub; Nx58j7750ss SAM-DG94-01236A
...
1-2-4
Assy Valve-Safety; Nx58j7750ss,gas Flex SAM-DG94-00449B
...
1-2-5
Assy Tube; Nx58j7750ss,9.525,tube Bake SAM-DG94-00466B
...
1-2-6
Assembly Holder-Nozzle Bake SAM-DG94-00548A
...
1-2
Assy Cover Back-Sub; Nx58k7850ss,assy Cov SAM-DG94-01011C
...
1
Assy Drawer Main; Nx58k9850ss,slide-In Fl SAM-DG90-00370A
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
