Samsung NX58K7850SS/AA_0002

Model: NX58K7850SS/AA_0002

Save Part Not Listed?
product name

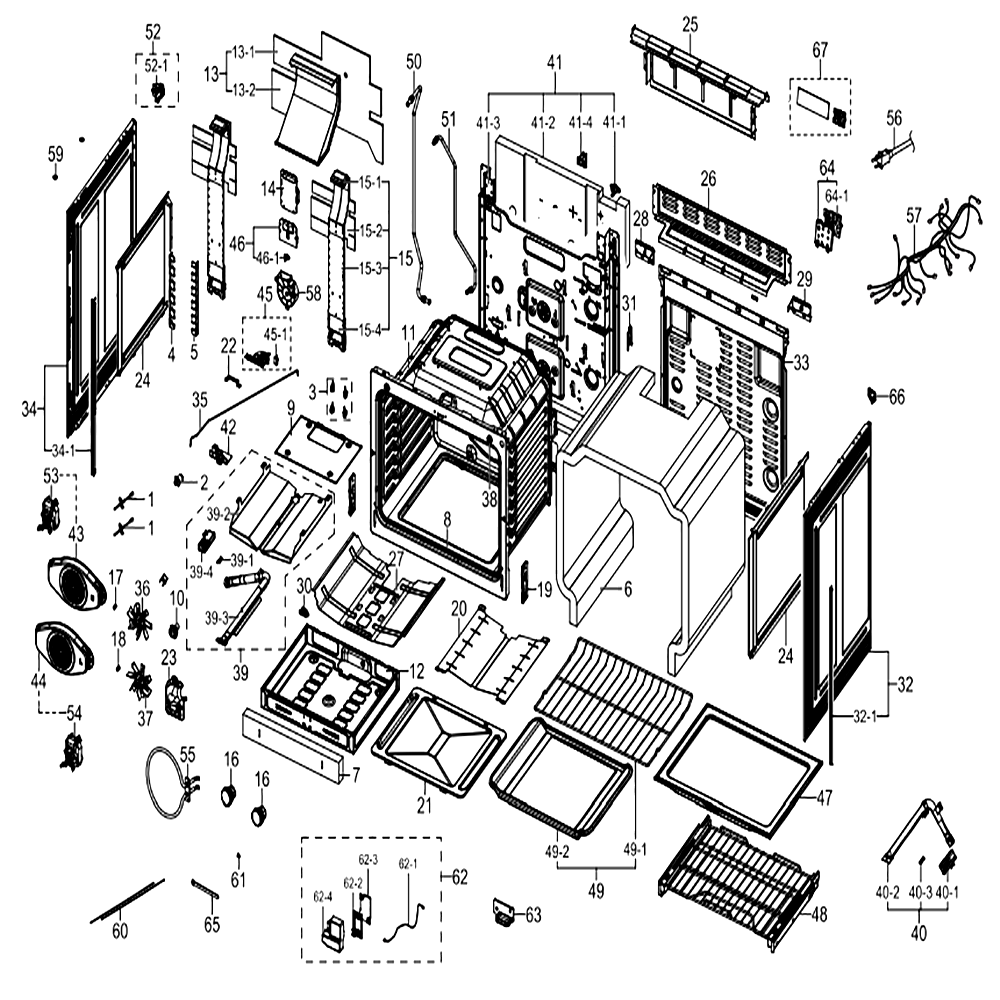

Main

...
...
1
Thermistor-Sensor SAM-DG32-00004C
...
2
Switch-Door Plunger SAM-DG34-00006A
...
3
Spacer-Side Panel SAM-DG60-00007B
...
4
Bracket Cavity SAM-DG61-00813A
...
5
Bracket Cavity SAM-DG61-00814A
...
6
Adiabatic-Main; Glass Wool,t38,nx7000k_Fl SAM-DG62-00175A
...
7
Adiabatic-Bake Burner Box SAM-DG62-00068A
...
8
Gasket Door SAM-DG63-00255B
...
9
Shield-Cavity Upper SAM-DG63-00258A
...
10
Assy Holder Nozzle-Broil; Gas Oven Fst,13 SAM-DG94-01436A
...
11
Assy Cavity-Coating; Nx58k7850ss,5.8cu.ft SAM-DG94-00613G
...
12
Assembly Bracket-Bake Burner Box SAM-DG94-00636A
...
13-1
Adiabatic Vent; Nx58j7750ss,glass Wool,t6 SAM-DG62-00110B
...
13-2
Assy Vent Coating; Nx58j7750ss,enamel Bla SAM-DG94-00518B
...
13
Assy Vent Adiabatic; Nx58j7750ss,gas Flex SAM-DG94-00763B
...
14
Assy Duct Inner; Nx58j7750ss,gas Flex SAM-DG94-01158A
...
15-1
Assy Vent Coating; Nx58j7750ss,gas Flex, SAM-DG94-01164A
...
15-2
Adiabatic Vent; Nx58j7750ss,glass Wool,t6 SAM-DG62-00155A
...
15-3
Assy Vent Welding; Nx58j7750ss,gas Flex, SAM-DG94-01163A
...
15-4
Assy Vent Coating; Nx58j7750ss,gas Flex, SAM-DG94-01166A
...
15
Assy Vent Adiabatic; Nx58j7750ss,gas Flex SAM-DG94-01161A
...
16
Assembly Lamp Bulb SAM-DG97-00083A
...
17
Nut-Hexagon Cap; M4,ni Plt,swrch10a SAM-6021-001208
...
18
Nut-Hexagon Cap SAM-6021-001211
...
19
Assy Support Hinge; Ny58j9850ws,damper 18 SAM-DG94-01120C
...
20
Bracket-Bake Spreader SAM-DG61-00523A
...
21
Cavity-Floor Coating SAM-DG61-00570A
...
22
Bracket-Latch Sub SAM-DG61-00732A
...
23
Bracket Cover; Nx58j7750ss,cr-Spp,t0.8,-, SAM-DG61-00947A
...
24
Cover Adiabatic-Side SAM-DG62-00125A
...
25
Shield-Rear Sight SAM-DG63-00231A
...
26
Cover-Back Guard Wire SAM-DG63-00233A
...
27
Shield-Bake Burner SAM-DG63-00235A
...
28
Cover-Wire Lt SAM-DG63-00253A
...
29
Cover-Wire Rt SAM-DG63-00254A
...
30
Cover-Hsi Wire SAM-DG63-00257A
...
31
Cover-Power Cord SAM-DG63-00260A
...
32-1
Cover Panel; Nx58k9850ss,pbt,black,kp213g SAM-DG63-00418A
...
32
Assy Panel Outer-Right; Nx58k9850ss,egi-S SAM-DG94-01332A
...
33
Cover Motor; Nx58j7750ss,gi-Sgcc,t0.4,-,c SAM-DG63-00393A
...
34-1
Cover Panel; Nx58k9850ss,pbt,black,kp213g SAM-DG63-00419A
...
34
Assy Panel Outer-Left; Nx58k9850ss,egi-Se SAM-DG94-01331A
...
35
Spring Latch; Nx58k7850ss,hswr-Swrh,dia4. SAM-DG61-01011B
...
36
Fan-Convection Upper SAM-DG67-00001B
...
37
Fan-Convection Lower SAM-DG67-00011B
...
38
Rubber-Cushion SAM-DG73-00003A
...
39-1
Spacer-Hsi; Fx710bgs,alcoat-Sa1c,l13,t1.0 SAM-DG60-00015A
...
39-2
Bracket Broil; Nx58h9500ws,alcoat-Sa1c,t0 SAM-DG61-00830A
...
39-3
Burner Broil; Nx58k9850ss,alcoat-Sa1c,sli SAM-DG62-00056C
...
39-4
Assy-Hot Surface Igniter SAM-DG94-00520A
...
39
Assy Burner; Nx58k9850ss,slide-In Flex SAM-DG90-00169B
...
40-1
Spacer-Hsi; Fx710bgs,alcoat-Sa1c,l13,t1.0 SAM-DG60-00015A
...
40-2
Burner-Bake SAM-DG62-00066A
...
40-3
Assy Hot Surface Igniter; Nx58h9500ws,cer SAM-DG94-01012A
...
40
Assy Burner; Nx58h9500ws,slide In, Burner SAM-DG90-00195A
...
41-1
Thermostat SAM-DE47-20037A
...
41-2
Adiabatic Casing-Rear; Nx58j7750ss,glass SAM-DG62-00156A
...
41-3
Cover Case; Nx58j7750ss,gi-Sgcc,t0.6,-,ba SAM-DG63-00394A
...
41-4
Cover Motor; Nx58h9500ws,pbt,v-0,kp212g15 SAM-DG63-00369A
...
41
Assy Cover Rear; Nx58k7850ss*,gas Flex Wi SAM-DG90-00284B
...
42
Assy Bracket Latch; Ny58j9850ws,gi-Sgcc,d SAM-DG94-01268A
...
43
Assembly Cover Casing-Upper SAM-DG94-00489B
...
44
Assy Cover Casing-Lower; Ne599n1*, Fe710* SAM-DG94-00490B
...
45-1
Switch-Micro SAM-3405-001034
...
45
Assy Bracket Latch; Gas Oven,stss,assy La SAM-DG94-00761B
...
46-1
Thermostat SAM-DE47-20037A
...
46
Assy Duct Rear; Nx58j7750ss,gas Flex SAM-DG94-01168A
...
47
Assy Partition; Ne59j78**,ne58k98**,cesp- SAM-DG94-01643B
...
48
Assembly Wire Rack SAM-DG94-00908A
...
49-1
Rack-Flat SAM-DG75-01001C
...
49-2
Plate-Griddle SAM-DG61-00563A
...
49
Assembly Packing-Griddle SAM-DG98-01033A
...
50
Assy Tube Manifold; Nx58j7750ss,dia.11.11 SAM-DG94-01159A
...
51
Assy Tube Burner; Nx58j7750ss,dia.9.525,b SAM-DG94-01160A
...
52-1
Switch-Micro SAM-3405-001034
...
52
Assy-Partition Switch SAM-DG97-00014J
...
53
Motor Ac Convection; 30" Oven,smc-U590d,2 SAM-DG31-00014F
...
54
Motor Ac Convection; 30" Oven,smc-U590e,2 SAM-DG31-00022A
...
55
Heater Sheath-Convection; Ac120v,900w,sus SAM-DG47-00009B
...
56
Assembly Power Cord SAM-DG96-00211A
...
57
Assy Wire Harness-Main; Nx58k7850ss,120v SAM-DG96-00442A
...
58
Motor Bldc Fan; B9232h12b1-Sb-Oc-0834,280 SAM-DG31-00023B
...
59
Bracket-Cooktop SAM-DG61-00550B
...
60
Steel Wire SAM-DG70-00004A
...
61
Screw-Machine; Pwh,m4,l10,zpc(blk),swrch1 SAM-6001-002701
...
62-1
Assy Wire Harness-Comm; Ne58k9850ws,12v,1 SAM-DG96-00433A
...
62-2
W-Lan Module; Cwam210s,range,pf#3,ieee802 SAM-4709-002627
...
62-3
Cover Pcb; Nx58k9850ss,pbt,black,kp213g15 SAM-DG63-00416A
...
62-4
Holder Pcb-Wifi; Nx58k9850ss,pbt+gf,black SAM-DG61-01035A
...
62
Assy Holder Pcb-Wifi; Nx58k9850ss,artik05 SAM-DG94-01328B
...
63
Locker; Ny58j9850ws,zndc,dual Fuel Range SAM-DG64-00555A
...
64-1
Assy Pcb Sub; Bldc-Fan-Sub-00,nx7000k-Pjt SAM-DE92-03963A
...
64
Assy Holder Pcb; Nx58k7850ss,smps Pba + H SAM-DG94-01350A
...
65
Cable Clamp SAM-6502-001117
...
66
Saddle; Tic-Wsd21.5,w30.5,h33.3,t3.5,nylo SAM-6502-001149
...
67
Assy Pcb Eeprom; Eep_05,de92-03959c,nx700 SAM-DG94-02414A

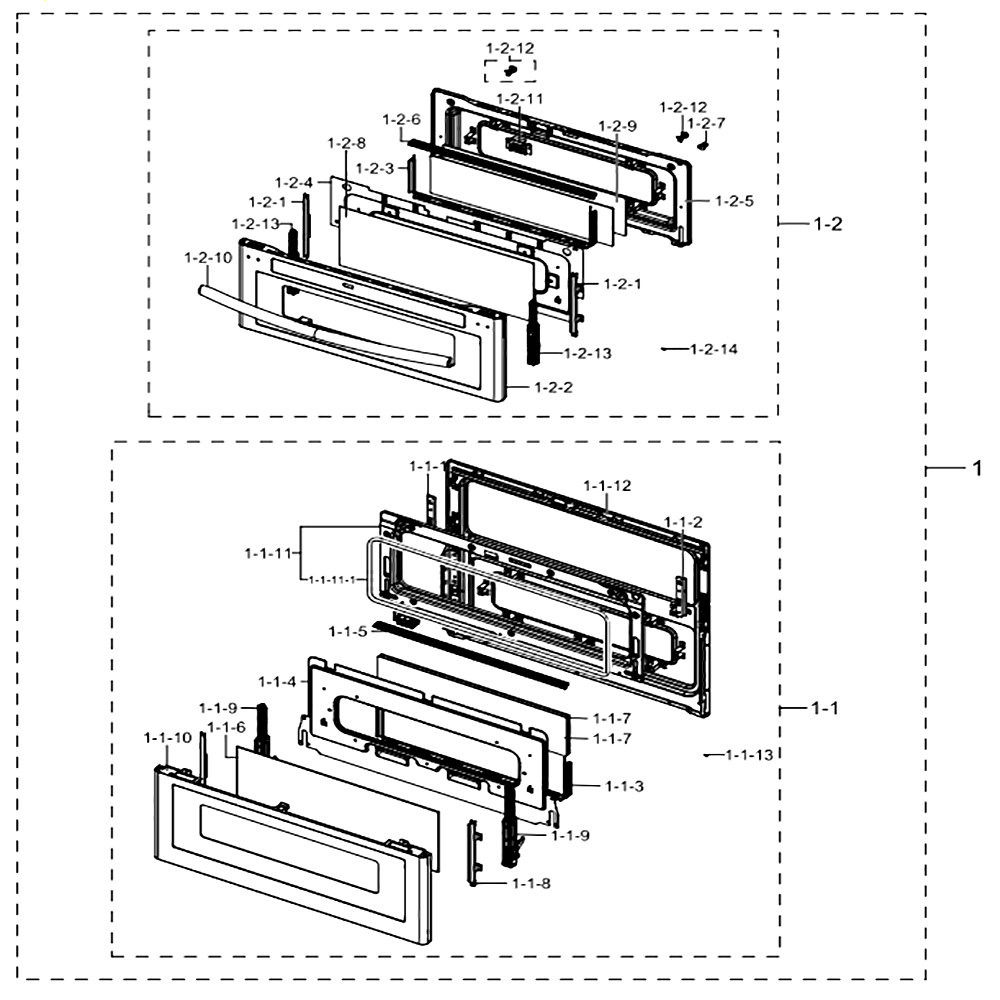

Assy Door

...
...
1-1-1
Bracket Hinge-Right; Ne59j7850ws,gi-Sgcc, SAM-DG61-00956A
...
1-1-2
Bracket Hinge-Left; Ne59j7850ws,gi-Sgcc,t SAM-DG61-00957A
...
1-1-3
Frame Inner Glass; Ny58j9850ws,gi-Sgcc,t0 SAM-DG61-00998A
...
1-1-4
Baffle Door-Low; Ny58j9850ws,alcoat-Sa1c, SAM-DG62-00160A
...
1-1-5
Cover Glass; Ne59j7850ws,gi-Sgcc,t0.5,dou SAM-DG63-00396A
...
1-1-6
Glass-Sub; Ne59j7850ws,glass,t3.2,w561.5, SAM-DG64-00540A
...
1-1-7
Glass-In; Ny58j9850ws,glass,t4.0,heat-Bar SAM-DG64-00559A
...
1-1-8
Bracket Holder; Ne59j7850ws,gi-Sgcc,t0.6, SAM-DG61-00965A
...
1-1-9
Assy Hinge-Main; Ny58j9850ws,dual Fuel,du SAM-DG94-01273A
...
1-1-10
Assy Door Sub-Low; Nx58k7850ss,dual Door SAM-DG94-01277B
...
1-1-11-1
Gasket Door; Ny58j9850ws,glass Fiber,1794 SAM-DG63-00411B
...
1-1-11
Assy Cover Front; Ny58j9850ws,spp,dual Fu SAM-DG94-01278A
...
1-1-12
Assy Door E-Coating; Ny58j9850ws,dual Fue SAM-DG94-01279A
...
1-1-13
Screw-Machine; Pwh,m4,l10,zpc(blk),swrch1 SAM-6001-002701
...
1-1
Assy Door-Main; Nx58k7850ss,sts,dual Door SAM-DG94-01275B
...
1-2-1
Bracket Holder; Ne59j7850ws,gi-Sgcc,t0.6, SAM-DG61-00965A
...
1-2-2
Assy Door Sub-Up; Nx58k7850ss*,fst Flex W SAM-DG94-01282C
...
1-2-3
Frame Inner Glass; Ny58j9850ws,gi-Sgcc,t0 SAM-DG61-00998A
...
1-2-4
Baffle Door-Up; Ny58j9850ws,alcoat-Sa1c SAM-DG62-00159A
...
1-2-5
Assy Door E-Coating; Nx58k7850ss*,fst Fle SAM-DG94-01285B
...
1-2-6
Cover Glass; Ne59j7850ws,gi-Sgcc,t0.5,dou SAM-DG63-00396A
...
1-2-7
Button Push; Ny58j9850ws,al SAM-DG64-00525B
...
1-2-8
Glass-Sub; Ne59j7850ws,glass,t3.2,w561.5, SAM-DG64-00540A
...
1-2-9
Glass-In; Ny58j9850ws,glass,t4.0,heat-Bar SAM-DG64-00559A
...
1-2-10
Assy Handle; Ne59j7850ws,flex-Best SAM-DG94-01134A
...
1-2-11
Assy Door Lock-Front; Ne59j7850ws,flex-Be SAM-DG94-01156A
...
1-2-12
Assy Trim Kit; Ne59j7850ws,welding Spacer SAM-DG94-01238A
...
1-2-13
Assy Hinge-Up; Ny58j9850ws,dual Door SAM-DG94-01270A
...
1-2-14
Screw-Machine; Pwh,m4,l10,zpc(blk),swrch1 SAM-6001-002701
...
1-2
Assy Door-Up; Nx58k7850ss*,flex Wifi Dual SAM-DG94-01281C
...
1
Assy Door; Nx58k7850ss,stss,dual Door SAM-DG94-01269C

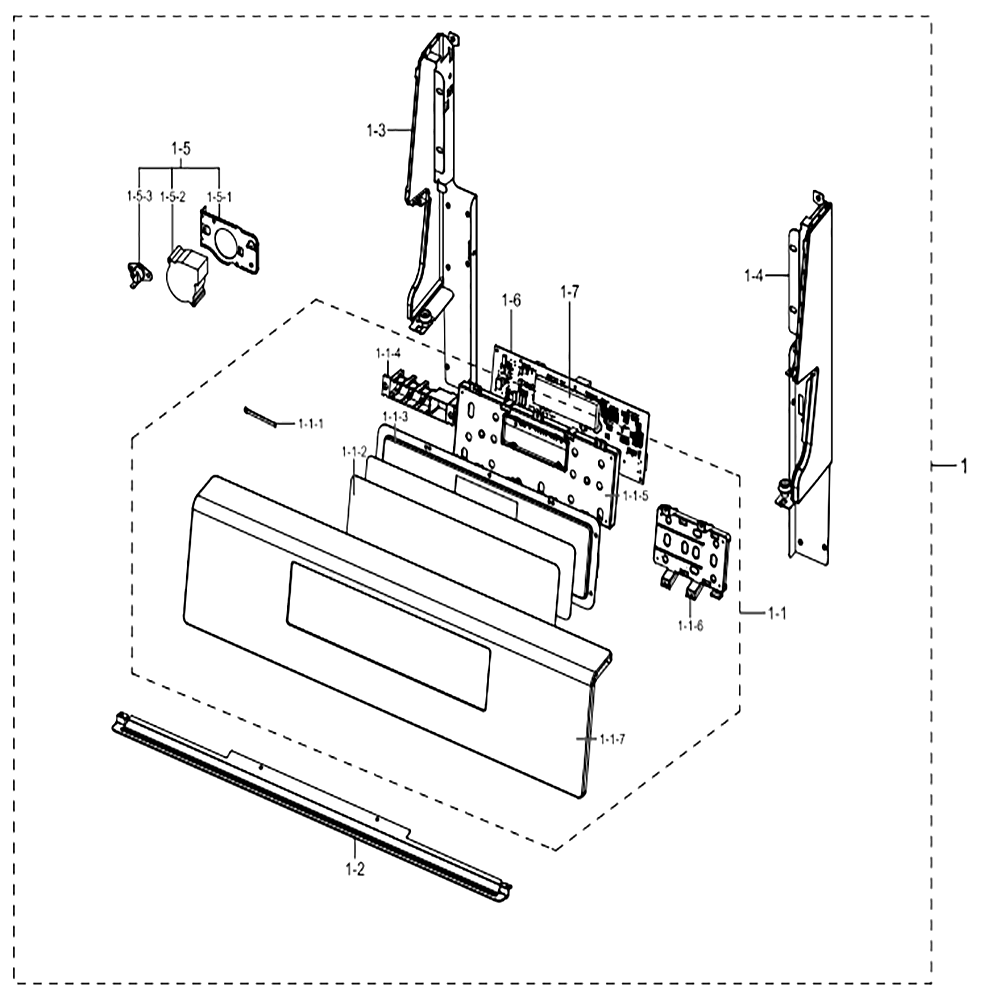

Assy Control Box

...
...
1-1-1
Cable Clamp SAM-6502-001117
...
1-1-2
Switch Membrane; Nx58k7850ss,pet,5v,300~3 SAM-DG34-00037A
...
1-1-3
Bracket Panel; Embo, Nx58j7750ss,gi-Sgcc, SAM-DG61-00495C
...
1-1-4
Assy-Module Spark SAM-DG96-00297A
...
1-1-5
Holder Pcb-Main; Nx58j7750ss,pbt+gf,black SAM-DG61-00953A
...
1-1-6
Holder Pcb-Sub; Nx58k7850ss,pbt+gf,black, SAM-DG61-01025A
...
1-1-7
Chassis Panel; Sts430,t0.6,w274,l780,best SAM-DG64-00339A
...
1-1
Assy Control; Nx58k7850ss*,sts,sts430,t0. SAM-DG94-01022M
...
1-2
Assy Bracket A/guide; Nx5000m,spp,t0.8 SAM-DG94-01339B
...
1-3
Assembly Support-Back Guard Lt SAM-DG94-00628A
...
1-4
Assembly Support-Back Guard Rt SAM-DG94-00629A
...
1-5-1
Bracket Supporter; Nx58j7750ss,gi-Sgcc,t1 SAM-DG61-00952A
...
1-5-2
Motor Bldc Fan; D06f-12b2s1 07a,4600rpm,1 SAM-DG31-00024A
...
1-5-3
Thermostat; 125/250v,15/7.5a,85,75,normal SAM-DE47-20032B
...
1-5
Assy Bracket Motor; Nx58j7750ss,gas Flex SAM-DG94-01199A
...
1-6
Assy Pcb Main; N1-Main-06,nx7000k-Pjt,292 SAM-DE92-03761G
...
1-7
Led Display; 7s,6d,nx7000k_Flex,ibl,conne SAM-DE07-00131B
...
1
Assy Control Box; Nx58k7850ss*,fst Flex W SAM-DG94-00941P

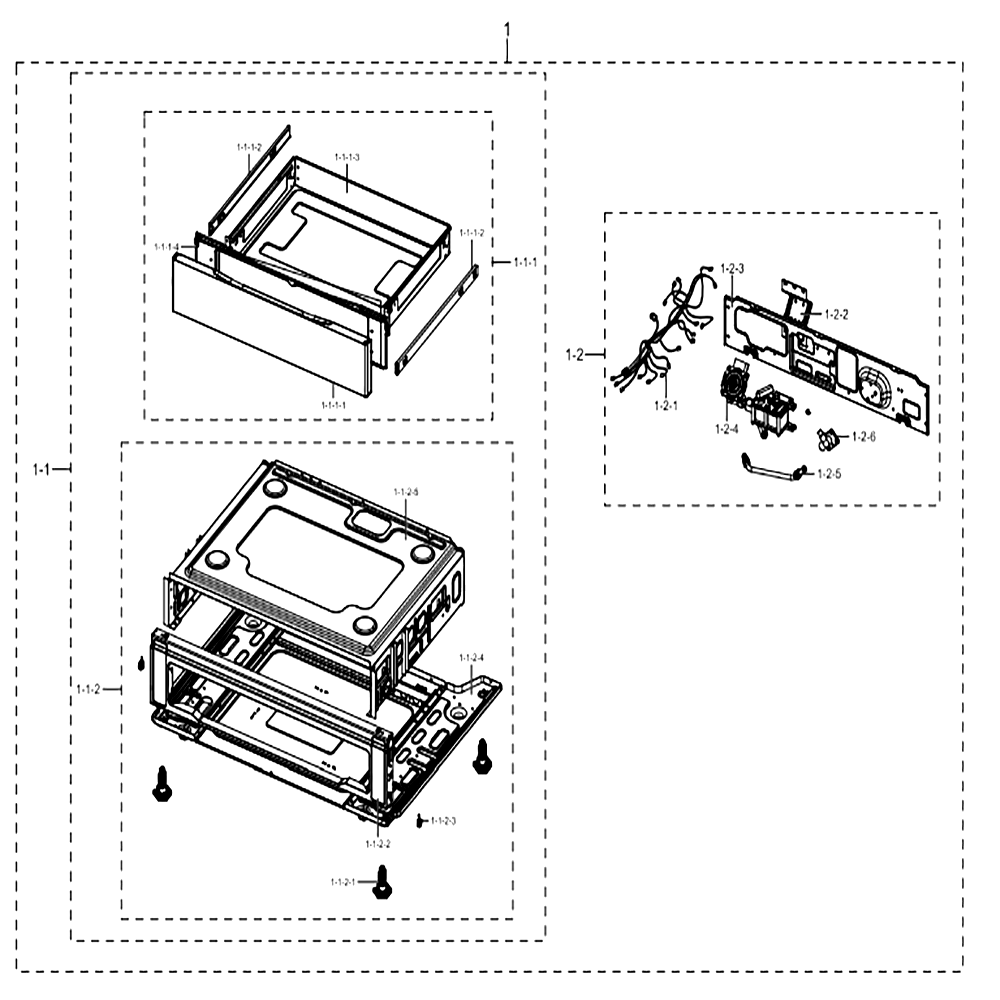

Assy Drawer

...
...
1-1-1-1
Assy Panel Warming Drawer; Ne58f9500ss,st SAM-DG94-00904B
...
1-1-1-2
Assy-Slider SAM-DG94-00550A
...
1-1-1-3
Assy Cavity Drawer; Nx58h9500ws,slide In SAM-DG94-00968A
...
1-1-1-4
Panel-Drawer SAM-DG64-00341A
...
1-1-1
Assy Drawer; Nx58k9850ss,slide-In Flex SAM-DG94-00959D
...
1-1-2-1
Leg Leveling; Ne58k9850ws,pp,natural,441j SAM-DG61-00525C
...
1-1-2-2
Assy Trim-Pedestal; Nx58k9850ss,slide-In SAM-DG94-00512B
...
1-1-2-3
Spacer-Side Panel SAM-DG60-00007B
...
1-1-2-4
Assy Base-Warmer Drawer; Fx710bgs/xaa,sgc SAM-DG94-00511A
...
1-1-2-5
Assy Shield Drawer; Nx58h9500ws,sgcc T0.5 SAM-DG94-00608C
...
1-1-2
Assy Pedestal; Nx58k7850ss,freestanding F SAM-DG94-00510H
...
1-1
Assy Drawer Main; Nx58k7850ss,cr-Spp,free SAM-DG90-00174K
...
1-2-1
Assy Wire Harness-Sub; Nx9000k,120v 60hz, SAM-DG96-00367B
...
1-2-2
Support-Regulator SAM-DG61-00578A
...
1-2-3
Assy Base Plate Sub; Nx58j7750ss SAM-DG94-01236A
...
1-2-4
Assy Valve-Safety; Nx58j7750ss,gas Flex SAM-DG94-00449B
...
1-2-5
Assy Tube; Nx58j7750ss,9.525,tube Bake SAM-DG94-00466B
...
1-2-6
Assembly Holder-Nozzle Bake SAM-DG94-00548A
...
1-2
Assy Cover Back-Sub; Nx58k7850ss,assy Cov SAM-DG94-01011C
...
1
Assy Drawer Main; Nx58k7850ss,freestandin SAM-DG90-00370D

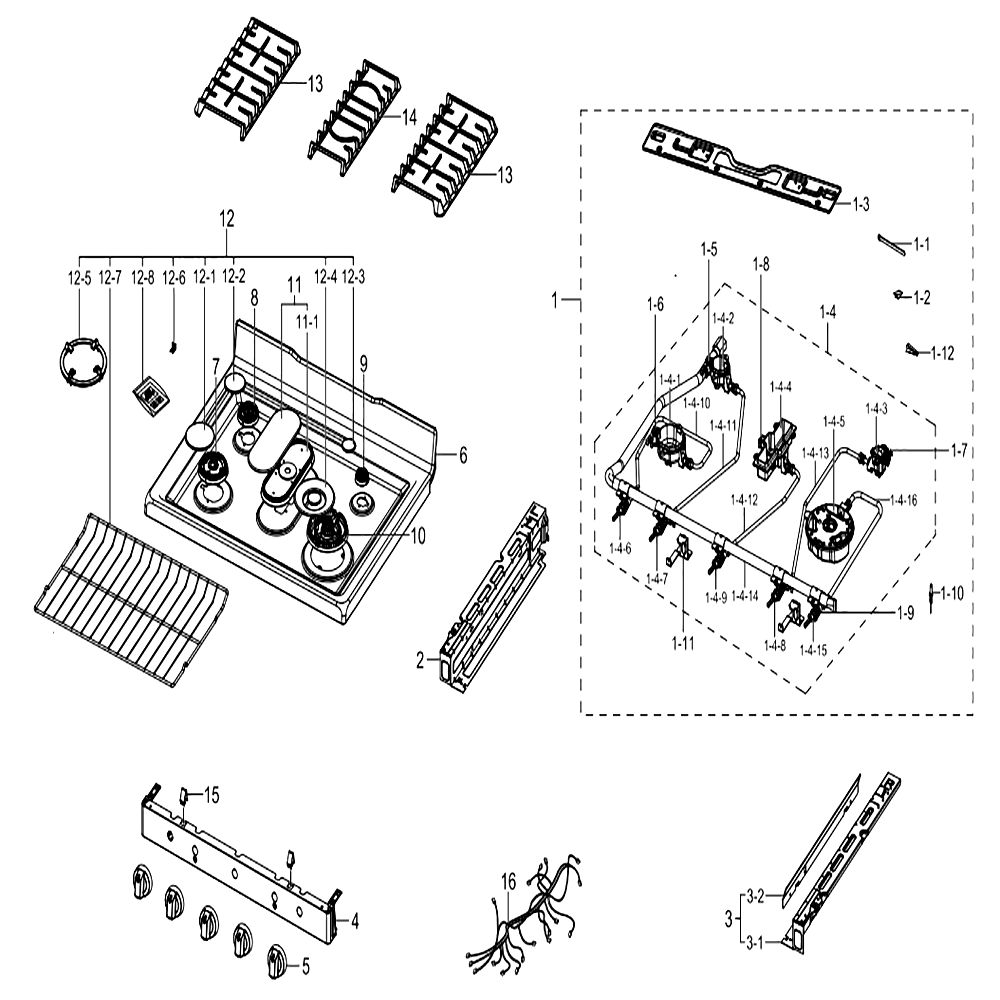

Assy Cook Top

...
...
1-1
Cable Clamp SAM-6502-001117
...
1-2
Bracket-Spring Electrode SAM-DG61-00579A
...
1-3
Support-Manifold Front SAM-DG61-00670A
...
1-4-1
Burner-Cup(r); Fx710bgs,aldc12,pi70,large SAM-DG62-00058A
...
1-4-2
Burner-Cup(sr) SAM-DG62-00059A
...
1-4-3
Burner-Cup(aux) SAM-DG62-00060B
...
1-4-4
Burner-Cup Fish(b) SAM-DG62-00090A
...
1-4-5
Burner Cup Dual; Fx710bgs,aldc12,double-R SAM-DG62-00120A
...
1-4-6
Assy Valve Rear; Nx583g0vbsr,12,000btu,gr SAM-DG94-00933B
...
1-4-7
Assy Valve Sr; Fx710bgs,9,500btu,violet,4 SAM-DG94-00934A
...
1-4-8
Assy Valve Aux; Fx710bgs,5,000btu,pink,24 SAM-DG94-00935A
...
1-4-9
Assy Valve Fish; Fx710bgs,9,500btu,blue,7 SAM-DG94-00936A
...
1-4-10
Assy Tube Burner; Nx58k3310ss,dia6.35,lf, SAM-DG94-01442A
...
1-4-11
Assy Tube Burner; Nx58k3310ss,dia6.35,lr, SAM-DG94-01443A
...
1-4-12
Assy Tube Burner; Nx58k3310ss,dia6.35,fis SAM-DG94-01444A
...
1-4-13
Assy Tube Burner; Nx58k3310ss,dia6.35,rr, SAM-DG94-01445A
...
1-4-14
Assembly Valve-Manifold Elbow SAM-DG94-00528A
...
1-4-15
Assy Valve Power; Fx710bgs,18,000btu,blac SAM-DG94-00932A
...
1-4-16
Assy Tube Burner; Nx58h5650ws,dia7.94,f/s SAM-DG94-01447A
...
1-4
Assy Valve Manifold; Nx58h5650ws,fish Bur SAM-DG94-00949A
...
1-5
Assy-Electrode(s) SAM-DG94-00539A
...
1-6
Assy-Electrode(m) SAM-DG94-00540A
...
1-7
Assy-Electrode(l) SAM-DG94-00541A
...
1-8
Assy-Electrode Fish SAM-DG94-00633A
...
1-9
Assy Switch Ignition; Nx58k7850ss SAM-DG96-00425A
...
1-10
Assy Electrode Dual; Fx710bgs/xaa,double- SAM-DG96-00319A
...
1-11
Bracket-Manifold SAM-DG61-00539A
...
1-12
Bracket Spring; Fx710bgs,stainless-Sts301 SAM-DG61-00769A
...
1
Assy Cooktop; Nx58k7850ss*,fst Flex Wifi SAM-DG94-01349A
...
2
Assembly Support-Side(l) SAM-DG94-00756A
...
3-1
Support-Side(r); Nx583g0vbsr,gi-Sgcc,t0.5 SAM-DG61-00666A
...
3-2
Shield-Cooktop; Nx583g0vbsr,gi-Sgcc,t0.5, SAM-DG63-00293A
...
3
Assembly Support-Side(r) SAM-DG94-00789A
...
4
Assy Panel Manifold Parts; Nx58k3310s*,st SAM-DG94-01213C
...
5
Knob Dial; Nx58h5650ws,pc+abs,hb,natural, SAM-DG64-00473A
...
6
Assy Frame Cook Top; Nx58h5650ws,black, D SAM-DG94-00943A
...
7
Burner Head Right SAM-DG62-00074C
...
8
Burner-Head SAM-DG62-00075B
...
9
Burner-Head(aux) SAM-DG62-00076B
...
10
Burner Head Dual; Fx710bgs,alcd12,double- SAM-DG62-00121A
...
11-1
Assy-Burner Cap Fish(b); Fx510bgs,spp,v1- SAM-DG94-00605A
...
11
Assy-Burner Head Fish(b) SAM-DG94-00607A
...
12-1
Burner-Cap(r) SAM-DG62-00067A
...
12-2
Burner-Cap(sr) SAM-DG62-00070A
...
12-3
Burner-Cap SAM-DG62-00111A
...
12-4
Burner Cap Dual; Fx710bgs,cr-Spp,double-R SAM-DG62-00122A
...
12-5
Assy Grate; Nx58h5650ws,cast Iron,matt Bl SAM-DG94-00939A
...
12-6
Assembly Bracket Sub SAM-DG94-00870B
...
12-7
Rack-Flat SAM-DG75-01001C
...
12-8
Assy Nozzle Kit; Nx58k7850sg,dual Door SAM-DG96-00470A
...
12
Assy Packing Burner Cap; Nx58k7850sg,nx70 SAM-DG98-01170A
...
13
Assy Grate Side; Nx58h5650ws,cast Iron,ma SAM-DG94-00937A
...
14
Assy Grate Center; Nx58h5650ws,cast Iron, SAM-DG94-00938A
...
15
Bracket-Spring Cooktop SAM-DG61-00515B
...
16
Assy Wire Harness-Cooktop; Nx58k7850ss,12 SAM-DG96-00443A
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
