Samsung NX58H9500WS/AA_0002

Model: NX58H9500WS/AA_0002

Save Part Not Listed?
product name

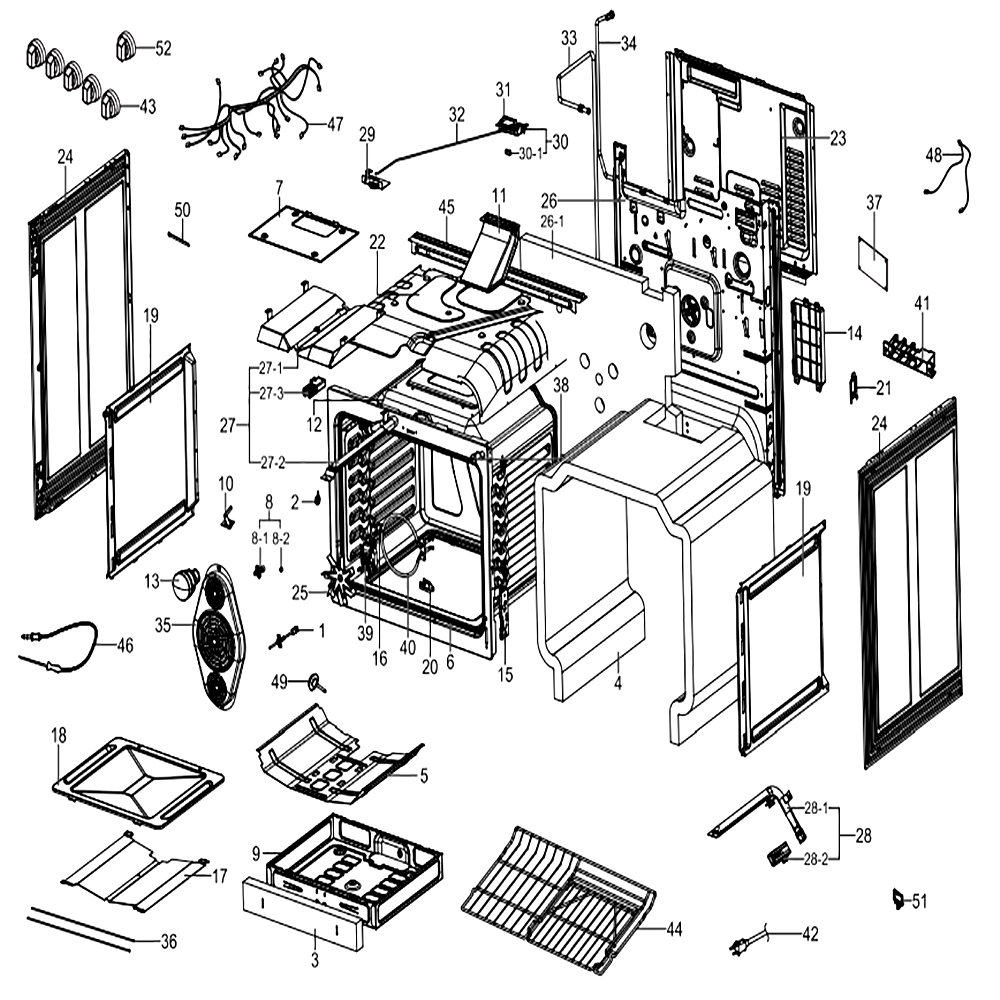

Main

...
...
1
Sensor-Thermistor SAM-DG32-00002B
...
2
Spacer-Side Panel SAM-DG60-00007B
...
3
Adiabatic-Bake Burner Box SAM-DG62-00068A
...
4
Adiabatic Main; Nx58h9500ws,glass Wool,t2 SAM-DG62-00138A
...
5
Shield-Bake Burner SAM-DG63-00235A
...
6
Gasket Door SAM-DG63-00255B
...
7
Shield Cavity Upper; Nx58h9500ws,alcoat-S SAM-DG63-00353A
...
8-1
Holder Nozzle-Broil; Gas Oven All,brass,a SAM-DG61-01066A
...
8-2
Nozzle Broil; Nx58h9500ws,brass,slide In SAM-DG62-00136A
...
8
Assy Holder Nozzle-Broil; Gas Oven Slidei SAM-DG94-01437A
...
9
Assembly Bracket-Bake Burner Box SAM-DG94-00636A
...
10
Assy-Probe SAM-DG94-00674B
...
11
Assy Vent Adiabatic; Nx58h9500ws,matt Bla SAM-DG94-00953A
...
12
Assy Cavity Coating; Nx58h9500ws,5.8cu.ft SAM-DG94-01013A
...
13
Assembly Lamp Bulb SAM-DG97-00083A
...
14
Holder-Pcb Main SAM-DG61-00060C
...
15
Support-Hinge SAM-DG61-00188A
...
16
Bracket-Heater Convection SAM-DG61-00228A
...
17
Bracket-Bake Spreader SAM-DG61-00523A
...
18
Cavity-Floor Coating SAM-DG61-00570A
...
19
Cover Adiabatic-Side SAM-DG62-00125A
...
20
Cover-Hsi Wire SAM-DG63-00257A
...
21
Cover-Power Cord SAM-DG63-00260A
...
22
Cover Case-Top; Nx58h9500ws,gi-Sgcc,t0.5, SAM-DG63-00356A
...
23
Cover Motor Convection; Nx58h9500ws,gi-Sg SAM-DG63-00357A
...
24
Assy Panel; Nx58h9500ws,egi,black,slide I SAM-DG94-01020A
...
25
Fan Convection-Main; Fse1310ast,alcoat-Sa SAM-DG67-00018A
...
26-1
Adiabatic Rear; Nx58h9500ws,glass Wool,t3 SAM-DG62-00139A
...
26
Assy Cover Rear; Nx58h9500ws,nx9000ha, Sl SAM-DG90-00167A
...
27-1
Bracket Broil; Nx58h9500ws,alcoat-Sa1c,t0 SAM-DG61-00830A
...
27-2
Burner Broil; Nx58h9500ws,alcoat-Sa1c,sli SAM-DG62-00056B
...
27-3
Assy-Hot Surface Igniter SAM-DG94-00520A
...
27
Assy Burner; Nx58h9500ws,slide In, Burner SAM-DG90-00169A
...
28-1
Burner-Bake SAM-DG62-00066A
...
28-2
Assy Hot Surface Igniter; Nx58h9500ws,cer SAM-DG94-01012A
...
28
Assy Burner; Nx58h9500ws,slide In, Burner SAM-DG90-00195A
...
29
Assembly Bracket-Latch Front SAM-DG94-00754A
...
30-1
Switch-Micro SAM-3405-001034
...
30
Assy Bracket Latch; Gas Oven,stss,assy La SAM-DG94-00761B
...
31
Bracket-Latch Sub SAM-DG61-00732A
...
32
Spring Latch; Nx58h9500ws,hswr-Swrh,dia.4 SAM-DG61-00851A
...
33
Assy Tube Manifold; Nx58h9500ws,11.11,sli SAM-DG94-00951A
...
34
Assy Tube Broil; Nx58h9500ws,9.525,slide SAM-DG94-00952A
...
35
Assy Cover Casing; Ne597r0absr,cr-Spp,t0. SAM-DG97-00086B
...
36
Steel Wire SAM-DG70-00004A
...
37
Assy Pcb Main; Nx58h9500ws/aa,oas-Fm-08/i SAM-DE92-02439J
...
38
Switch-Door Plunger SAM-DG34-00006A
...
39
Motor Ac Convection; 30" Oven,smc-U590d,2 SAM-DG31-00014F
...
40
Heater Sheath-Convection; Shc-U386a,fx510 SAM-DG47-00017B
...
41
Assy-Module Spark SAM-DG96-00297A
...
42
Assembly Power Cord SAM-DG96-00211A
...
43
Assy Knob Dial; Nx58h9500ws,pcabs,slide I SAM-DG94-00945A
...
44
Assy-Split Rack; Fx710bgs/xaa,best SAM-DG94-00634A
...
45
Assy Bracket Supporter; Ne58k9850ws,blk,n SAM-DG94-00915B
...
46
Sensor-Probe SAM-DG32-00013A
...
47
Assy Wire Harness-Main; Nx58h9500ws,120v, SAM-DG96-00366A
...
48
Assy Wire Harness-Dc Signal; Nx58h9500ws, SAM-DG96-00368A
...
49
Rubber-Cushion SAM-DG73-00003A
...
50
Cable Clamp SAM-6502-001117
...
51
Saddle; Tic-Wsd21.5,w30.5,h33.3,t3.5,nylo SAM-6502-001149
...
52
Assy Knob Dial; Nx58h9500ws,pcabs,warming SAM-DG94-00946A

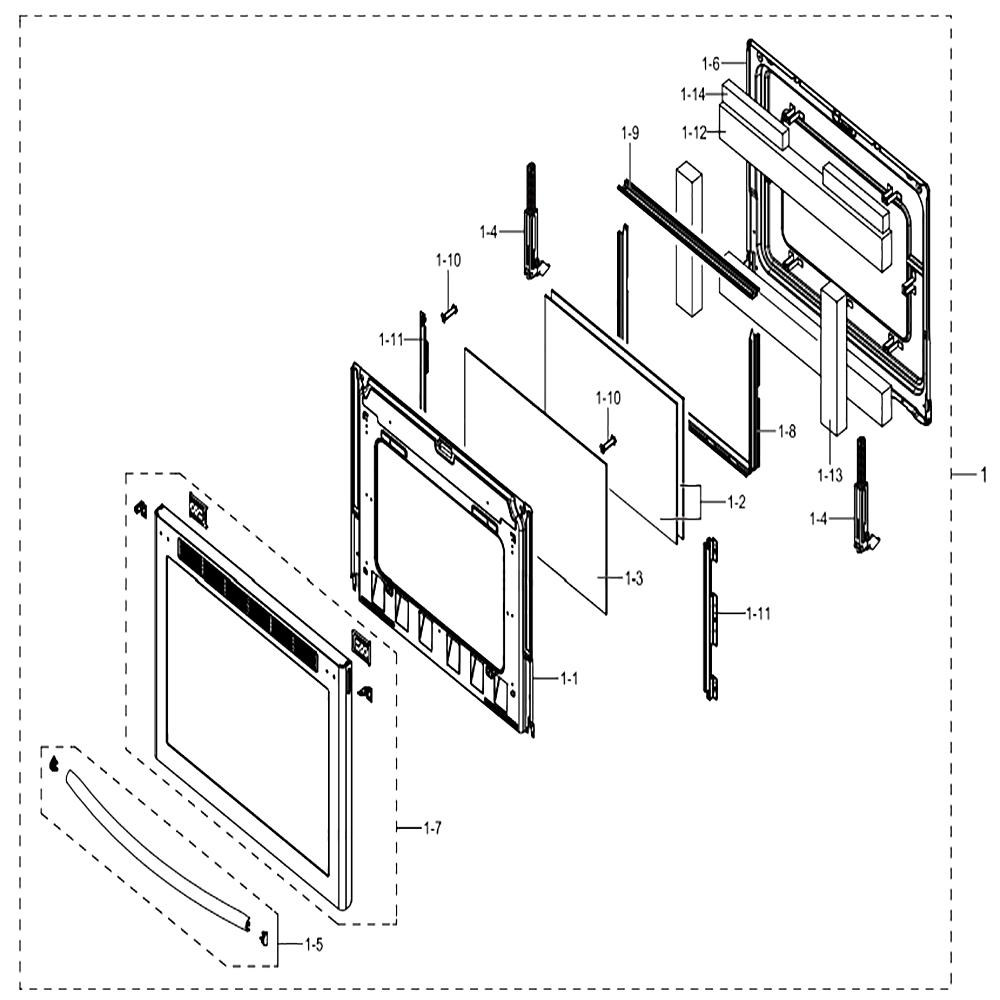

Assy Door

...
...
1-1
Baffle Door SAM-DG62-00046B
...
1-2
Glass-Inner SAM-DG64-00092A
...
1-3
Glass-Inner Sub SAM-DG64-00133A
...
1-4
Assembly Hinge SAM-DG94-00603B
...
1-5
Assembly Handle-Al SAM-DG94-00686A
...
1-6
Assembly Door E SAM-DG94-00899A
...
1-7
Assembly Door Sub SAM-DG94-00901A
...
1-8
Frame-Inner Glass SAM-DG61-00121C
...
1-9
Cover-Frame Inner Glass SAM-DG63-00077C
...
1-10
Spacer-Door E SAM-DG60-00008A
...
1-11
Bracket-Inner Glass SAM-DG61-00190C
...
1-12
Adiabatic-Door Top SAM-DG62-00008B
...
1-13
Adiabatic-Door Side SAM-DG62-00010A
...
1-14
Adiabatic-Door Top Sub SAM-DG62-00087A
...
1
Assembly Door SAM-DG94-00890A

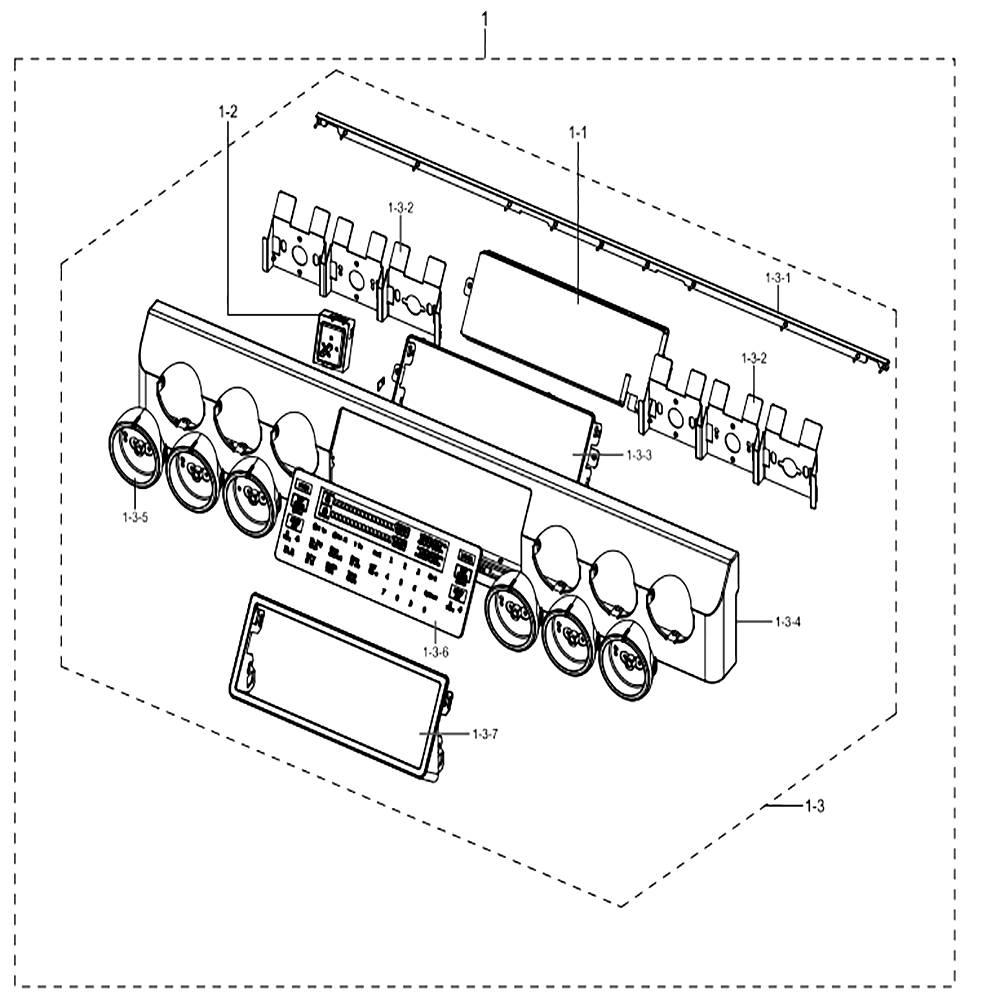

Assy Control

...
...
1-1
Assy Module; Assy Display,nx9900h-Pjt,gas SAM-DE96-01050C
...
1-2
Switch Select Rotary; 5v,0.5a,nx9000ha SAM-DG34-00028A
...
1-3-1
Gasket; Silicone Rubber,l754,-,slide In SAM-DG63-00359A
...
1-3-2
Bracket Control; Nx58h9500ws,gi-Sgcc,t0.8 SAM-DG61-00840A
...
1-3-3
Cover Control Panel; Nx58h9500ws,cr-Spcc, SAM-DG63-00355A
...
1-3-4
Assy Control Chassis; Nx58h9500ws,sts430, SAM-DG94-01005A
...
1-3-5
Holder Knob; Nx58h9500ws,abs+pc,natural,h SAM-DE61-01606A
...
1-3-6
Assy Touch; Nx58h9500,82.5 X 242.5 SAM-DG96-00471A
...
1-3-7
Chassis Decoration; Nx58h9500ws,zn,-,natu SAM-DG64-00497A
...
1-3
Assy Control Sub; Nx58h9500ws SAM-DG94-01585A
...
1
Assy Control Box; Nx58h9500ws SAM-DG94-01581A

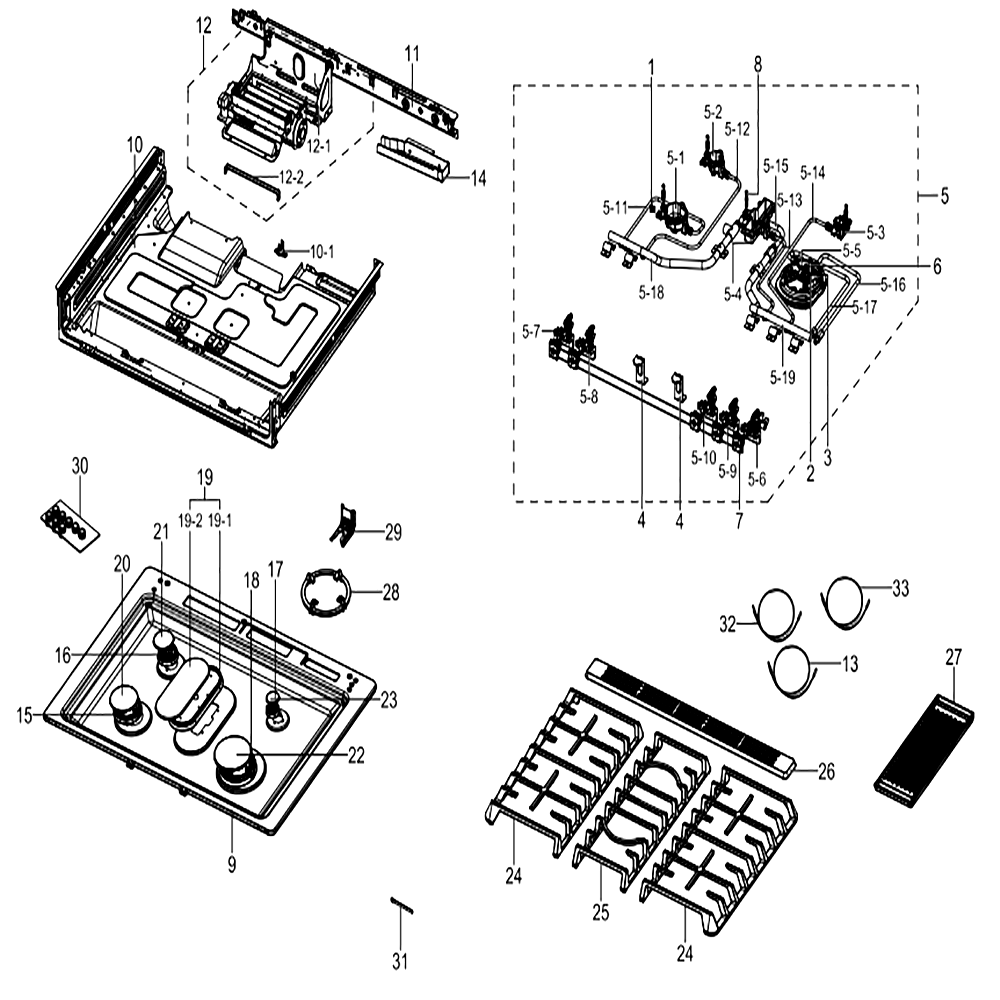

Assy Cook Top

...
...
1
Bracket-Spring Electrode SAM-DG61-00579A
...
2
Holder; Nx58f5700ws,brass,-,holder Electr SAM-DG61-00820A
...
3
Spring Etc; Nx58f5700ws,stainless-Sts301, SAM-DG61-00821A
...
4
Bracket Manifold; Nx58h9500ws,gi-Sgcc,t2. SAM-DG61-00847A
...
5-1
Burner-Cup(r); Fx710bgs,aldc12,pi70,large SAM-DG62-00058A
...
5-2
Burner-Cup(sr) SAM-DG62-00059A
...
5-3
Burner-Cup(aux) SAM-DG62-00060B
...
5-4
Burner-Cup Fish(g); Fx710bgs,aldc12,l130. SAM-DG62-00061A
...
5-5
Burner Cup Dual; Nx58h9500ws,alcd12,slide SAM-DG62-00131B
...
5-6
Assy Valve Power; Nx58h9500ws,dual,slidei SAM-DG94-00962A
...
5-7
Assy Valve Rear; Nx58h9500ws,rapid,red,sl SAM-DG94-00963A
...
5-8
Assy Valve Sr; Nx58h9500ws,semi-Rapid,vio SAM-DG94-00964A
...
5-9
Assy Valve Aux; Nx58h9500ws,aux,pink,slid SAM-DG94-00965A
...
5-10
Assy Valve Fish; Nx58h9500ws,fish,blue,sl SAM-DG94-00966A
...
5-11
Assy Tube Burner; Nx58k9850ss,dia6.35,s/i SAM-DG94-01450A
...
5-12
Assy Tube Burner; Nx58k9850ss,dia6.35,s/i SAM-DG94-01451A
...
5-13
Assy Tube Fish; Nx58h9500ws,6.35,slide In SAM-DG94-00998A
...
5-14
Assy Tube Burner; Nx58k9850ss,dia6.35,s/i SAM-DG94-01452A
...
5-15
Assy Tube Manifold; Nx58h9500ws,11.11,sli SAM-DG94-01001A
...
5-16
Assy Tube-Right Front; Nx58h9500ws,7.94,s SAM-DG94-01003A
...
5-17
Assy Tube Burner; Nx58k9850ss,dia7.94,s/i SAM-DG94-01453A
...
5-18
Assy Valve Manifold; Nx58h9500ws,stkm-11a SAM-DG94-01006A
...
5-19
Assy Valve Manifold; Nx58h9500ws,stkm-11a SAM-DG94-01007A
...
5
Assy Valve Manifold; Nx58h9500ws,nx9000ha SAM-DG94-00961A
...
6
Assy Electrode Dual; Nx58f5700ws,real Dua SAM-DG96-00329A
...
7
Assy Switch Ignition; Nx58h9500ws,slide I SAM-DG96-00298E
...
8
Assy-Electrode Fish SAM-DG94-00633A
...
9
Assy Frame; Nx58h9500ws,slide In, Stss SAM-DG94-00958A
...
10-1
Thermostat; Ac125/250v,15/16a,130c,0c,ver SAM-DG47-00010A
...
10
Assy Cooktop Sub; Nx58h9500ws,slide In, B SAM-DG94-00985A
...
11
Assy Bracket Guide; Nx58h9500ws,secc,assy SAM-DG94-00986A
...
12-1
Motor Ac Fan; Smb-U485b,120v,60hz,2450rpm SAM-DE31-00070B
...
12-2
Rack Protect; Nx58h9500ws,stainless-Sts44 SAM-DG75-01057A
...
12
Assy Motor; Nx58h9500ws,1500rpm,slide In SAM-DG96-00351A
...
13
Assy-Electrode(l) SAM-DG94-00541A
...
14
Bracket Barrier; Nx58h9500ws,gi-Sgcc,t0.5 SAM-DG61-00865A
...
15
Burner Head Right SAM-DG62-00074C
...
16
Burner-Head SAM-DG62-00075B
...
17
Burner-Head(aux) SAM-DG62-00076B
...
18
Burner Head Dual; Nx58f5700ws,alcd12,dual SAM-DG62-00132A
...
19-1
Assy-Burner Cap Fish(g); Fx710bgs,spp,v1- SAM-DG94-00549A
...
19-2
Burner-Head Fish(g); Fx710bgs,al,l230 SAM-DG62-00073A
...
19
Assy-Burner Head Fish(g); Fx710bgs,spp,v1 SAM-DG94-00606A
...
20
Burner-Cap(r) SAM-DG62-00067A
...
21
Burner-Cap(sr) SAM-DG62-00070A
...
22
Burner Cap Dual; Fx710bgs,cr-Spp,double-R SAM-DG62-00122A
...
23
Burner Cap Aux; Nx58h9500ws,cr-Spp,dia.50 SAM-DG62-00137A
...
24
Assy Grate Side; Nx58h5650ws,cast Iron,ma SAM-DG94-00937A
...
25
Assy Grate Center; Nx58h5650ws,cast Iron, SAM-DG94-00938A
...
26
Assy Cover Air; Nx58h9500ws,cast Iron,sli SAM-DG94-00950A
...
27
Plate Griddle; Nx58h9500ws,cast Iron,w183 SAM-DG61-00859A
...
28
Assy Grate; Nx58h5650ws,cast Iron,matt Bl SAM-DG94-00939A
...
29
Assembly Bracket Sub SAM-DG94-00870B
...
30
Assy Lp Kit; Nx58h9500ws,slide In,nx9000h SAM-DG96-00352A
...
31
Cable Clamp SAM-6502-001117
...
32
Assy-Electrode(m) SAM-DG94-00540A
...
33
Assy-Electrode(s) SAM-DG94-00539A

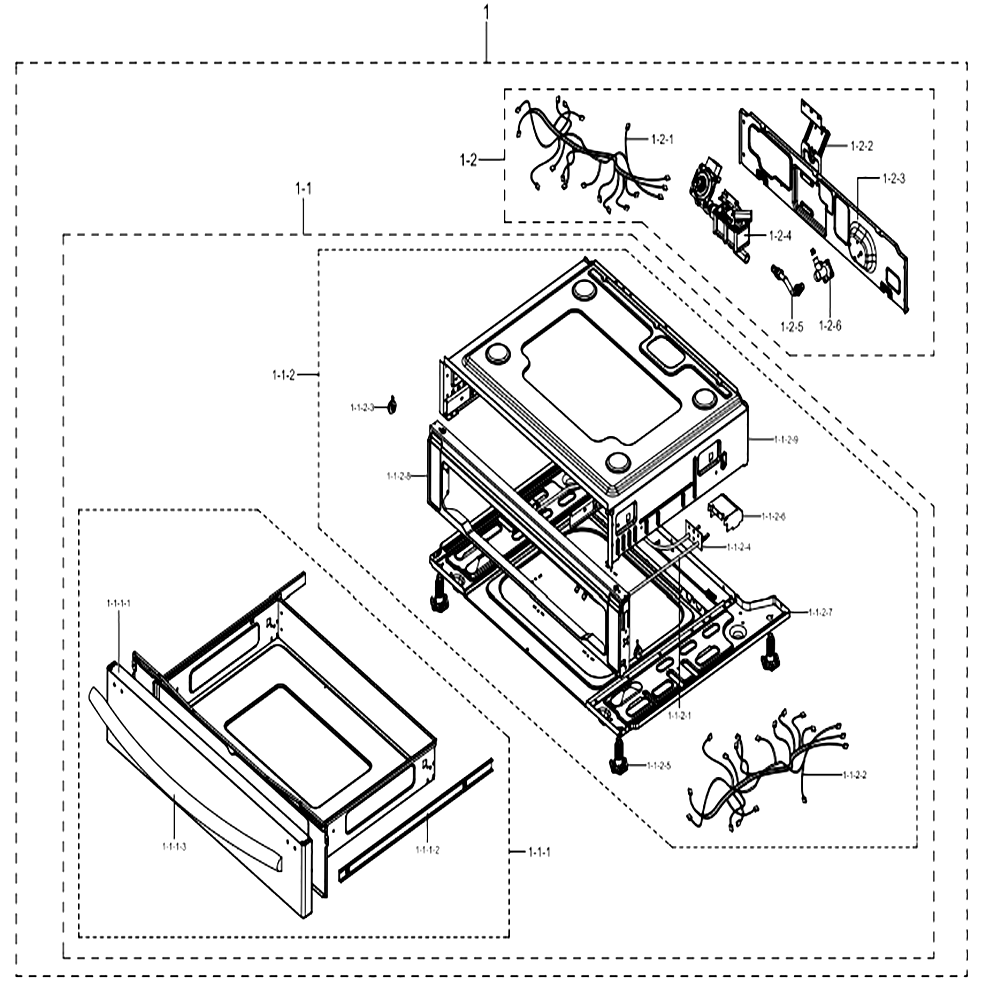

Assy Drawer

...
...
1-1-1-1
Assembly Panel Warming Drawer SAM-DG94-00904A
...
1-1-1-2
Assy-Slider SAM-DG94-00550A
...
1-1-1-3
Assembly Handle-Al SAM-DG94-00686A
...
1-1-1
Assy Drawer; Nx58h9500ws,stss,slide In SAM-DG94-00959A
...
1-1-2-1
Heater Sheath-Warmer; Ac120v,gas Oven,600 SAM-DE47-00051A
...
1-1-2-2
Assy Wire Harness-Drawer; Dual Fuel,240va SAM-DG39-00050A
...
1-1-2-3
Spacer-Side Panel SAM-DG60-00007B
...
1-1-2-4
Bracket-Warming Heater SAM-DG61-00126A
...
1-1-2-5
Leg Leveling; Ne58k9850ws,pp,natural,441j SAM-DG61-00525C
...
1-1-2-6
Cover-Warming Heater; Gi-Sgcc,t0.5,-,v1-G SAM-DG63-00222A
...
1-1-2-7
Assy Base-Warmer Drawer; Fx710bgs/xaa,sgc SAM-DG94-00511A
...
1-1-2-8
Assembly Trim-Pedestal Front SAM-DG94-00512A
...
1-1-2-9
Assy Shield Drawer; Nx58h9500ws,sgcc T0.5 SAM-DG94-00608C
...
1-1-2
Assy Pedestal; Nx58h9500ws,slider SAM-DG94-00510C
...
1-1
Assy Drawer Main; Nx58h9500ws,drawer Main SAM-DG90-00174A
...
1-2-1
Assy Wire Harness-Sub; Nx58h9500ws,120vac SAM-DG96-00367A
...
1-2-2
Support-Regulator SAM-DG61-00578A
...
1-2-3
Cover-Back Warmer SAM-DG63-00224A
...
1-2-4
Assembly Valve-Safety SAM-DG94-00449A
...
1-2-5
Assembly Tube-Bake SAM-DG94-00466A
...
1-2-6
Assembly Holder-Nozzle Bake SAM-DG94-00548A
...
1-2
Assy Cover Back-Sub; Nx58h9500ws,sgcc SAM-DG94-01011A
...
1
