Samsung NX58H5600SS/AA_0001

Model: NX58H5600SS/AA_0001

Save Part Not Listed?
product name

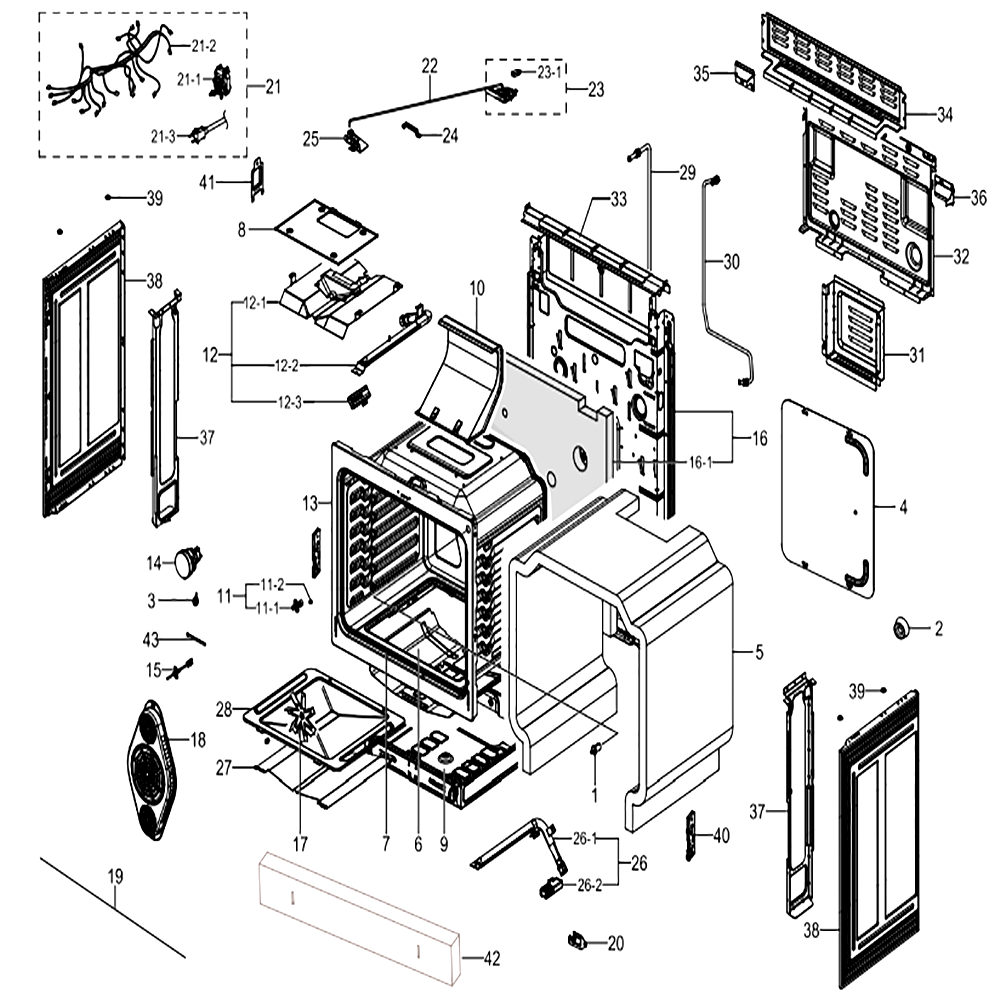

Main

...
...
1
Switch-Door Plunger SAM-DG34-00006A
...
2
Rubber-Cushion SAM-DG73-00003A
...
3
Spacer-Side Panel SAM-DG60-00007B
...
4
Baffle-Door Sheet SAM-DG62-00094A
...
5
Adiabatic-Main SAM-DG62-00062A
...
6
Shield-Bake Burner SAM-DG63-00235A
...
7
Gasket Door SAM-DG63-00255B
...
8
Shield-Cavity Upper SAM-DG63-00258A
...
9
Assembly Bracket-Bake Burner Box SAM-DG94-00636A
...
10
Assembly Vent-Adiabatic SAM-DG94-00763A
...
11-1
Holder Nozzle-Broil; Gas Oven All,brass,a SAM-DG61-01066A
...
11-2
Nozzle-Broil; Fx710bgs,brass,pi 1.64 SAM-DG62-00064A
...
11
Assy Holder Nozzle-Broil; Gas Oven Fst,13 SAM-DG94-01436A
...
12-1
Bracket-Broil Spreader SAM-DG61-00522A
...
12-2
Burner-Broil SAM-DG62-00056A
...
12-3
Assy-Hot Surface Igniter SAM-DG94-00520A
...
12
Assy-Burner Broil SAM-DG94-00546A
...
13
Assy Cavity-Coating; Fx510bgs/xaa,5.7cu.f SAM-DG94-00613B
...
14
Assembly Lamp Bulb SAM-DG97-00083A
...
15
Sensor-Thermistor SAM-DG32-00002B
...
16-1
Adiabatic-Rear SAM-DG62-00063A
...
16
Assembly Cover Back-Main SAM-DG94-00522A
...
17
Fan Convection-Main; Fse1310ast,alcoat-Sa SAM-DG67-00018A
...
18
Assy Cover Casing; Ne597r0absr,cr-Spp,t0. SAM-DG97-00086B
...
19
Steel Wire SAM-DG70-00004A
...
20
Cover-Hsi Wire SAM-DG63-00257A
...
21-1
Motor Ac Convection; 30" Oven,smc-U590d,2 SAM-DG31-00014F
...
21-2
Assy Wire Harness-Main; Fx510bgs,120vac,u SAM-DG39-00048B
...
21-3
Assembly Power Cord SAM-DG96-00211A
...
21
Assy Electrical Parts; Fx510bgs/xaa,v1-Be SAM-DG94-00569B
...
22
Latch-Rod SAM-DG66-00029A
...
23-1
Switch-Micro SAM-3405-001034
...
23
Assy Bracket Latch; Gas Oven,stss,assy La SAM-DG94-00761B
...
24
Bracket-Latch Sub SAM-DG61-00732A
...
25
Assembly Bracket-Latch Front SAM-DG94-00754A
...
26-1
Burner-Bake SAM-DG62-00066A
...
26-2
Assy-Hot Surface Igniter SAM-DG94-00520A
...
26
Assy-Burner Bake SAM-DG94-00547A
...
27
Bracket-Bake Spreader SAM-DG61-00523A
...
28
Cavity-Floor Coating SAM-DG61-00570A
...
29
Assembly Tube-Manifold SAM-DG94-00464A
...
30
Assembly Tube-Broil SAM-DG94-00465A
...
31
Cover-Convection SAM-DG63-00236A
...
32
Cover-Back Main Wire SAM-DG63-00234A
...
33
Shield-Rear Sight SAM-DG63-00231A
...
34
Cover-Back Guard Wire SAM-DG63-00233A
...
35
Cover-Wire Lt SAM-DG63-00253A
...
36
Cover-Wire Rt SAM-DG63-00254A
...
37
Shield-Side Panel SAM-DG63-00261A
...
38
Panel-Side Coating SAM-DG64-00142G
...
39
Bracket-Cooktop SAM-DG61-00550B
...
40
Support-Hinge SAM-DG61-00188A
...
41
Cover-Power Cord SAM-DG63-00260A
...
42
Adiabatic-Bake Burner Box SAM-DG62-00068A
...
43
Cable Clamp SAM-6502-001117

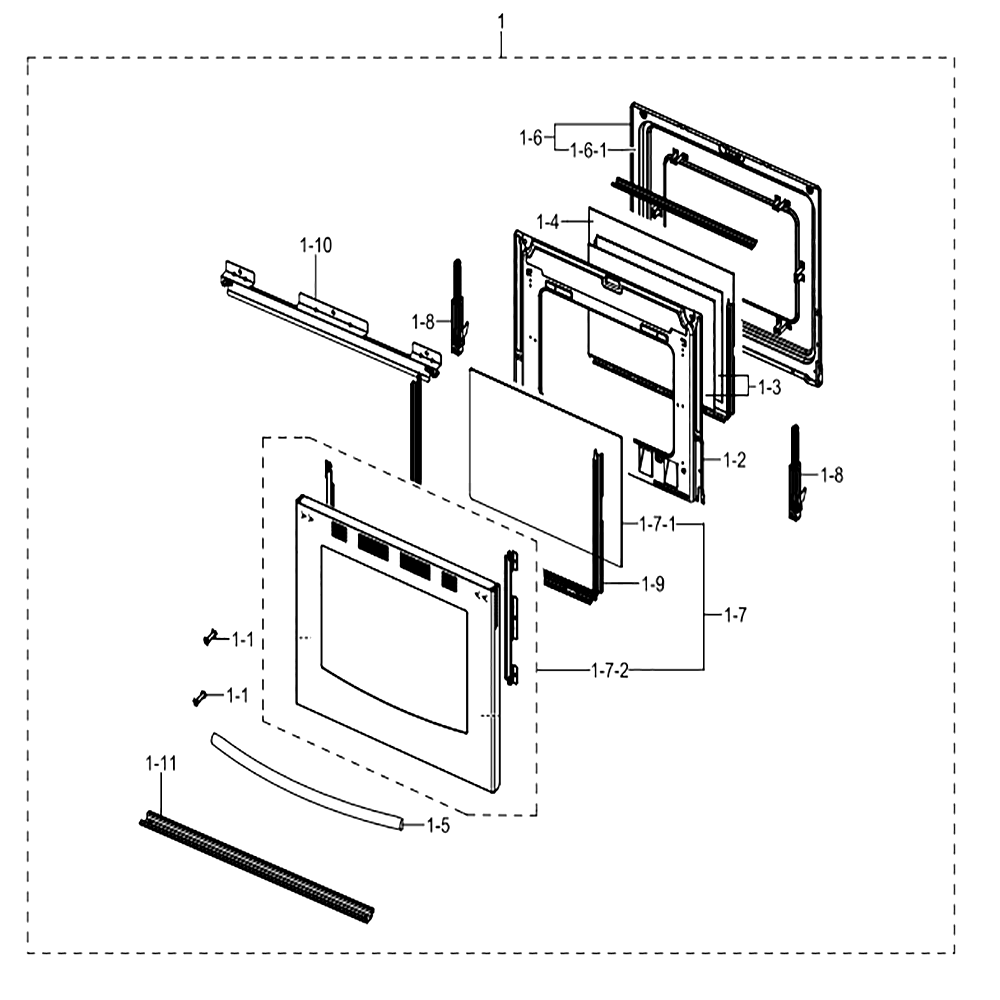

Assy Door

...
...
1-1
Spacer-Door E SAM-DG60-00008A
...
1-2
Baffle Door SAM-DG62-00046B
...
1-3
Glass-Inner SAM-DG64-00092B
...
1-4
Glass-Inner Sub SAM-DG64-00133A
...
1-5
Assembly Handle-Al SAM-DG94-00686A
...
1-6-1
Assy Door E-Welding; Fx710bgs/xaa,sts430, SAM-DG94-00525A
...
1-6
Assembly Door E SAM-DG94-00524A
...
1-7-1
Glass-Out; Nx58h5650ws,glass,t3.2,717.6,5 SAM-DG64-00471A
...
1-7-2
Assy Chassis Door; Nx58h5650ws,stss SAM-DG94-00948A
...
1-7
Assy Door Sub; Nx58h5650ws,stss SAM-DG94-00947A
...
1-8
Assembly Hinge SAM-DG94-00603B
...
1-9
Frame-Inner Glass SAM-DG61-00121C
...
1-10
Bracket-Inner Glass SAM-DG61-00190C
...
1-11
Cover-Frame Inner Glass SAM-DG63-00077C
...
1
Assy Door; Nx58h5650ws,stss SAM-DG94-00940A

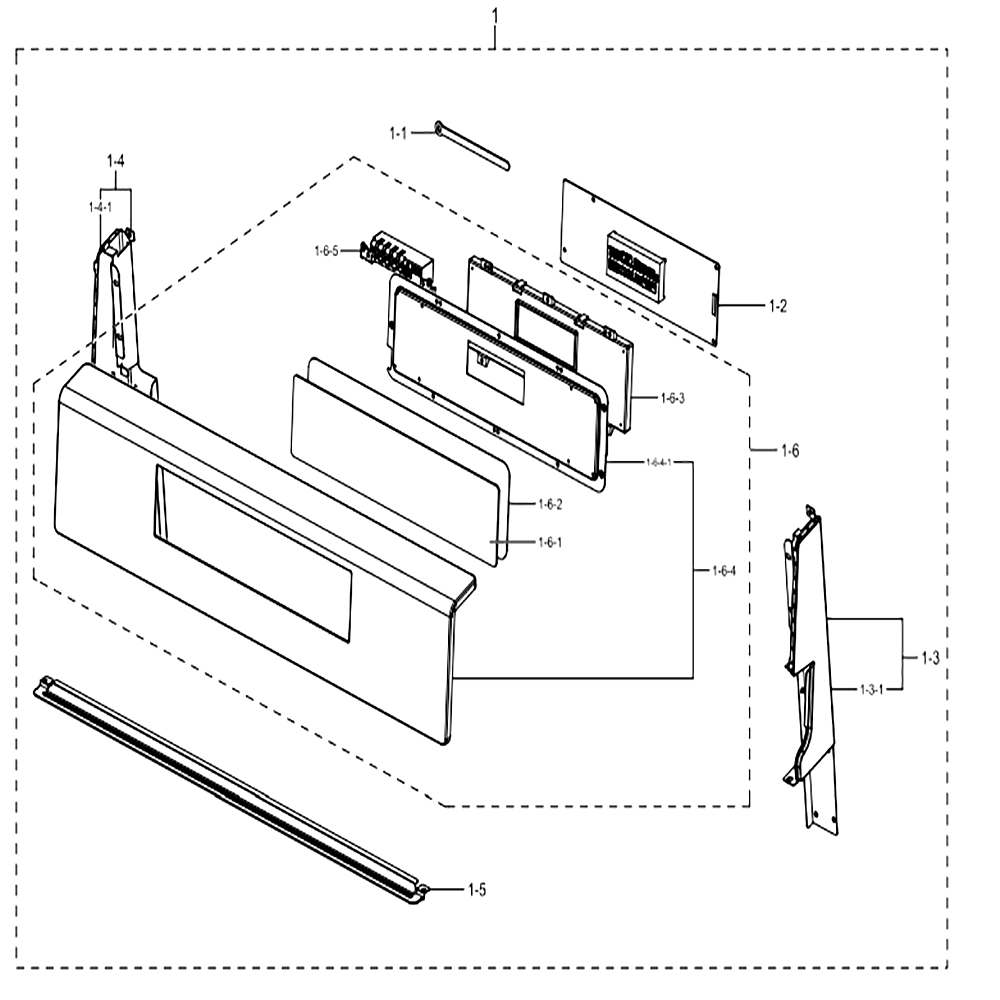

Assy Control Box

...
...
1-1
Cable Clamp SAM-6502-001117
...
1-2
Assy Pcb Main; Nx58h5600ss,oas-V1main-08, SAM-DE92-02588J
...
1-3-1
Support-Back Guard Rt SAM-DG61-00496A
...
1-3
Assembly Support-Back Guard Rt SAM-DG94-00629A
...
1-4-1
Support-Back Guard Lt SAM-DG61-00517A
...
1-4
Assembly Support-Back Guard Lt SAM-DG94-00628A
...
1-5
Assy Bracket A/guide; Nx5000m,spp,t0.8 SAM-DG94-01339B
...
1-6-1
Switch Membrane; Nx58j5600ss,pc,300-1000g SAM-DG34-00027B
...
1-6-2
Bracket-Membrane Panel SAM-DG61-00495B
...
1-6-3
Holder-Display Better SAM-DG61-00519B
...
1-6-4-1
Bracket-Pcb SAM-DG61-00518B
...
1-6-4
Assembly Control Sub SAM-DG94-00543B
...
1-6-5
Assy-Module Spark SAM-DG96-00297A
...
1-6
Assy Control; Nx58h5600ss*,sts,sts430,t0. SAM-DG94-01022F
...
1
Assy Control Box; Nx58h5600ss*,stss SAM-DG94-00941H

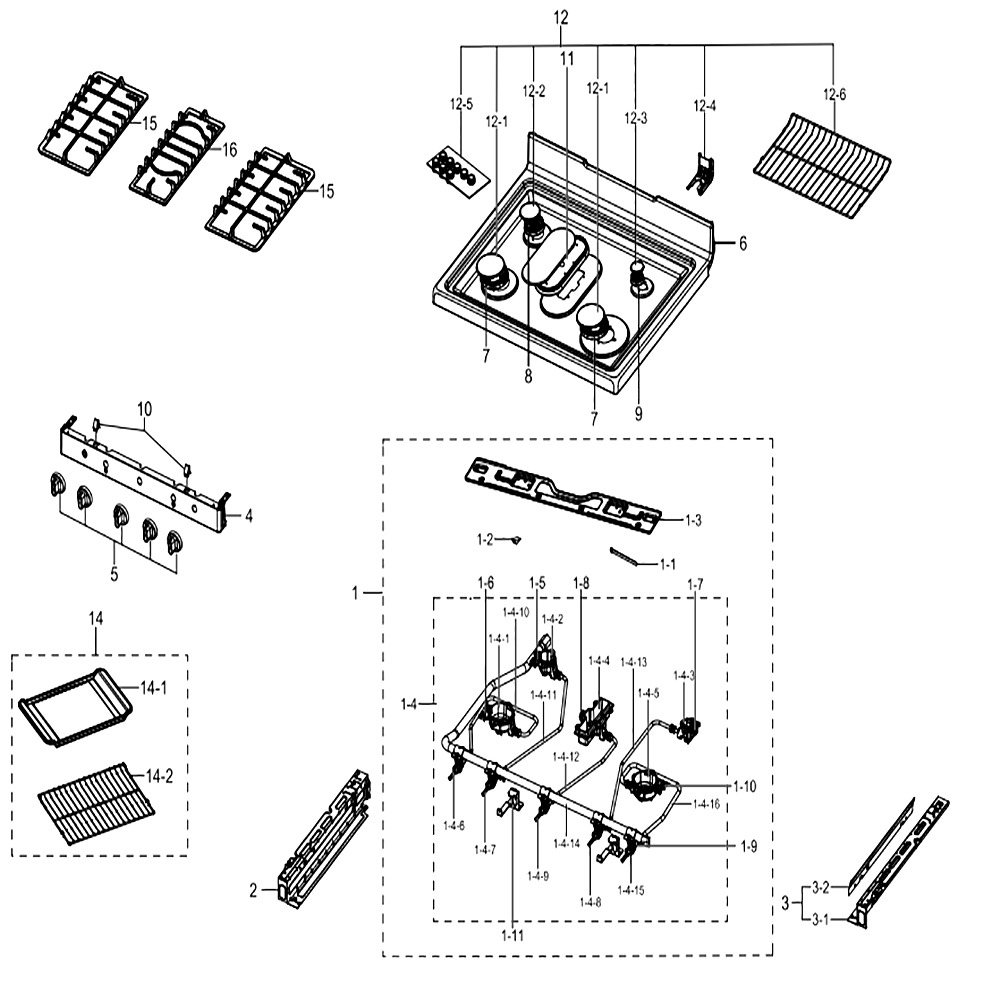

Assy Cook Top

...
...
1-1
Cable Clamp SAM-6502-001117
...
1-2
Bracket-Spring Electrode SAM-DG61-00579A
...
1-3
Support-Manifold Front SAM-DG61-00670A
...
1-4-1
Burner-Cup(r); Fx710bgs,aldc12,pi70,large SAM-DG62-00058A
...
1-4-2
Burner-Cup(sr) SAM-DG62-00059A
...
1-4-3
Burner-Cup(aux) SAM-DG62-00060B
...
1-4-4
Burner-Cup Fish(b) SAM-DG62-00090A
...
1-4-5
Burner-Cup Power SAM-DG62-00082B
...
1-4-6
Assy Valve Rear; Nx583g0vbsr,12,000btu,gr SAM-DG94-00933B
...
1-4-7
Assy Valve Sr; Fx710bgs,9,500btu,violet,4 SAM-DG94-00934A
...
1-4-8
Assy Valve Aux; Fx710bgs,5,000btu,pink,24 SAM-DG94-00935A
...
1-4-9
Assy Valve Fish; Fx710bgs,9,500btu,blue,7 SAM-DG94-00936A
...
1-4-10
Assy Tube Burner; Nx58k3310ss,dia6.35,lf, SAM-DG94-01442A
...
1-4-11
Assy Tube Burner; Nx58k3310ss,dia6.35,lr, SAM-DG94-01443A
...
1-4-12
Assy Tube Burner; Nx58k3310ss,dia6.35,fis SAM-DG94-01444A
...
1-4-13
Assy Tube Burner; Nx58k3310ss,dia6.35,rr, SAM-DG94-01445A
...
1-4-14
Assembly Valve-Manifold Elbow SAM-DG94-00528A
...
1-4-15
Assy Valve Power; Nx58f5300ss,16k,yellow, SAM-DG94-00932C
...
1-4-16
Assy Tube Burner; Nx58k3310ss,dia7.94,rf, SAM-DG94-01446A
...
1-4
Assy Valve Manifold; Nx58h5600ss,fish Bur SAM-DG94-00949B
...
1-5
Assy-Electrode(s) SAM-DG94-00539A
...
1-6
Assy-Electrode(m) SAM-DG94-00540A
...
1-7
Assy-Electrode(l) SAM-DG94-00541A
...
1-8
Assy-Electrode Fish SAM-DG94-00633A
...
1-9
Assy Switch Ignition; Fx710bgs,single Val SAM-DG96-00298D
...
1-10
Assy-Electrode(xl) SAM-DG94-00602A
...
1-11
Bracket-Manifold SAM-DG61-00539A
...
1
Assy Cooktop; Nx58h5600ss SAM-DG94-00942B
...
2
Assembly Support-Side(l) SAM-DG94-00756A
...
3-1
Support-Side(r); Nx583g0vbsr,gi-Sgcc,t0.5 SAM-DG61-00666A
...
3-2
Shield-Cooktop; Nx583g0vbsr,gi-Sgcc,t0.5, SAM-DG63-00293A
...
3
Assembly Support-Side(r) SAM-DG94-00789A
...
4
Assy Panel Manifold Parts; Nx58k3310s*,st SAM-DG94-01213C
...
5
Knob Dial; Nx58h5650ws,pc+abs,hb,natural, SAM-DG64-00473A
...
6
Assembly Frame Cook Top SAM-DG94-00753E
...
7
Burner Head Right SAM-DG62-00074C
...
8
Burner-Head SAM-DG62-00075B
...
9
Burner-Head(aux) SAM-DG62-00076B
...
10
Bracket-Spring Cooktop SAM-DG61-00515B
...
11
Assy-Burner Head Fish(b) SAM-DG94-00607A
...
12-1
Burner-Cap(r) SAM-DG62-00067A
...
12-2
Burner-Cap(sr) SAM-DG62-00070A
...
12-3
Burner-Cap SAM-DG62-00111A
...
12-4
Assembly Bracket Sub SAM-DG94-00870B
...
12-5
Assy Lp Kit; Nx58h5600ss,nx5000ha SAM-DG96-00340B
...
12-6
Rack-Flat SAM-DG75-01001C
...
12
Assy Packing Burner Cap; Nx58h5600ss SAM-DG98-01108B
...
14-1
Plate-Griddle SAM-DG61-00563A
...
14-2
Rack-Flat SAM-DG75-01001C
...
14
Assembly Packing-Griddle SAM-DG98-01033A
...
15
Assy Grate Side; Nx58h5650ws,cast Iron,ma SAM-DG94-00937A
...
16
Assy Grate Center; Nx58h5650ws,cast Iron, SAM-DG94-00938A

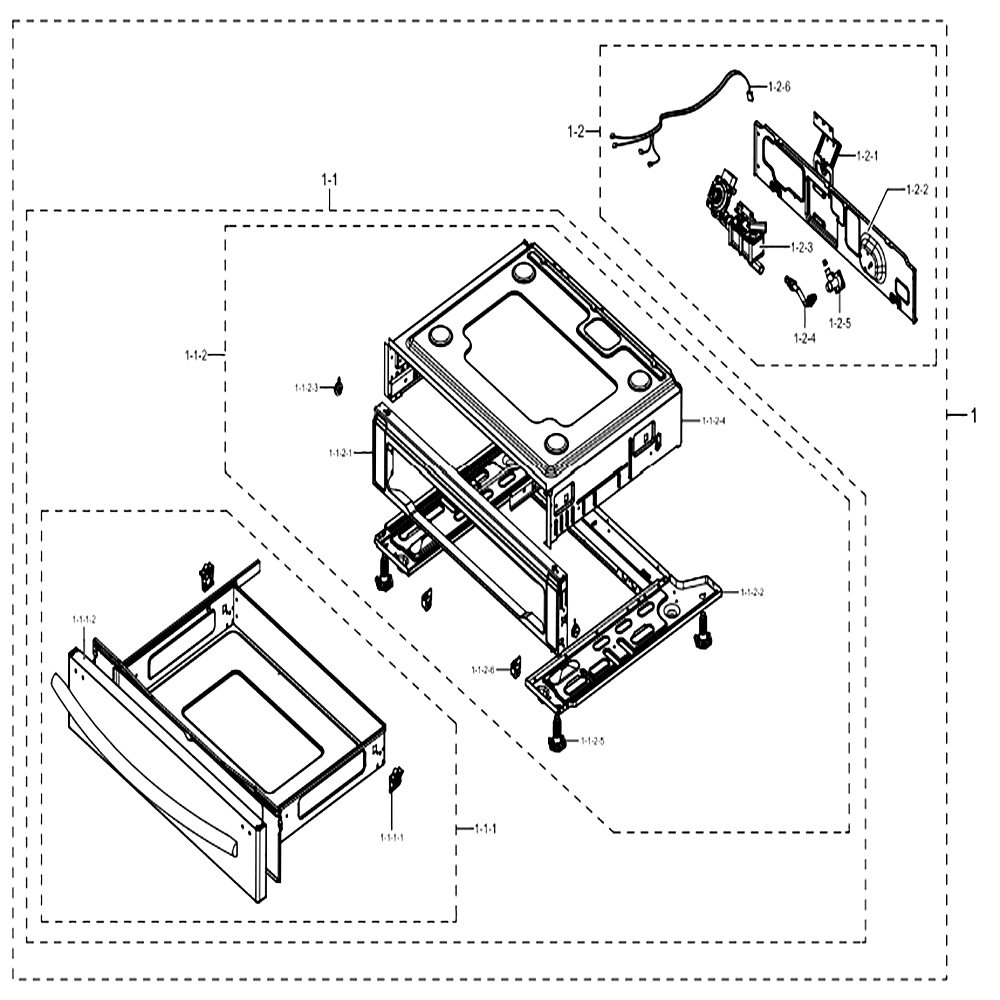

Assy Drawer

...
...
1-1-1-1
Slider-Inner SAM-DG61-00279A
...
1-1-1-2
Assembly Panel-Warming Drawer SAM-DG94-00507B
...
1-1-1
Assembly Drawer SAM-DG94-00504B
...
1-1-2-1
Assembly Trim-Pedestal Front SAM-DG94-00512A
...
1-1-2-2
Assembly Base-Warmer Drawer SAM-DG94-00511B
...
1-1-2-3
Spacer-Side Panel SAM-DG60-00007B
...
1-1-2-4
Assy-Shield Upper Drawer SAM-DG94-00608A
...
1-1-2-5
Leg Leveling; Ne58k9850ws,pp,natural,441j SAM-DG61-00525C
...
1-1-2-6
Slider-Outer SAM-DG61-00280A
...
1-1-2
Assembly Pedestal SAM-DG94-00510B
...
1-1
Assembly Drawer-Main Sub SAM-DG94-00505B
...
1-2-1
Support-Regulator SAM-DG61-00578A
...
1-2-2
Cover-Back Warmer SAM-DG63-00224A
...
1-2-3
Assembly Valve-Safety SAM-DG94-00449A
...
1-2-4
Assembly Tube-Bake SAM-DG94-00466A
...
1-2-5
Assembly Holder-Nozzle Bake SAM-DG94-00548A
...
1-2-6
Wire Harness-B SAM-DG39-00049A
...
1-2
Assembly Cover Back-Warmer Drawer SAM-DG94-00513A
...
1
Assy Drawer Main; Fx510bgs/xaa,v1-Better SAM-DG94-00506B
