Samsung NX58F5500SS_AA_0000

Model: NX58F5500SS_AA_0000

Save Part Not Listed?
product name

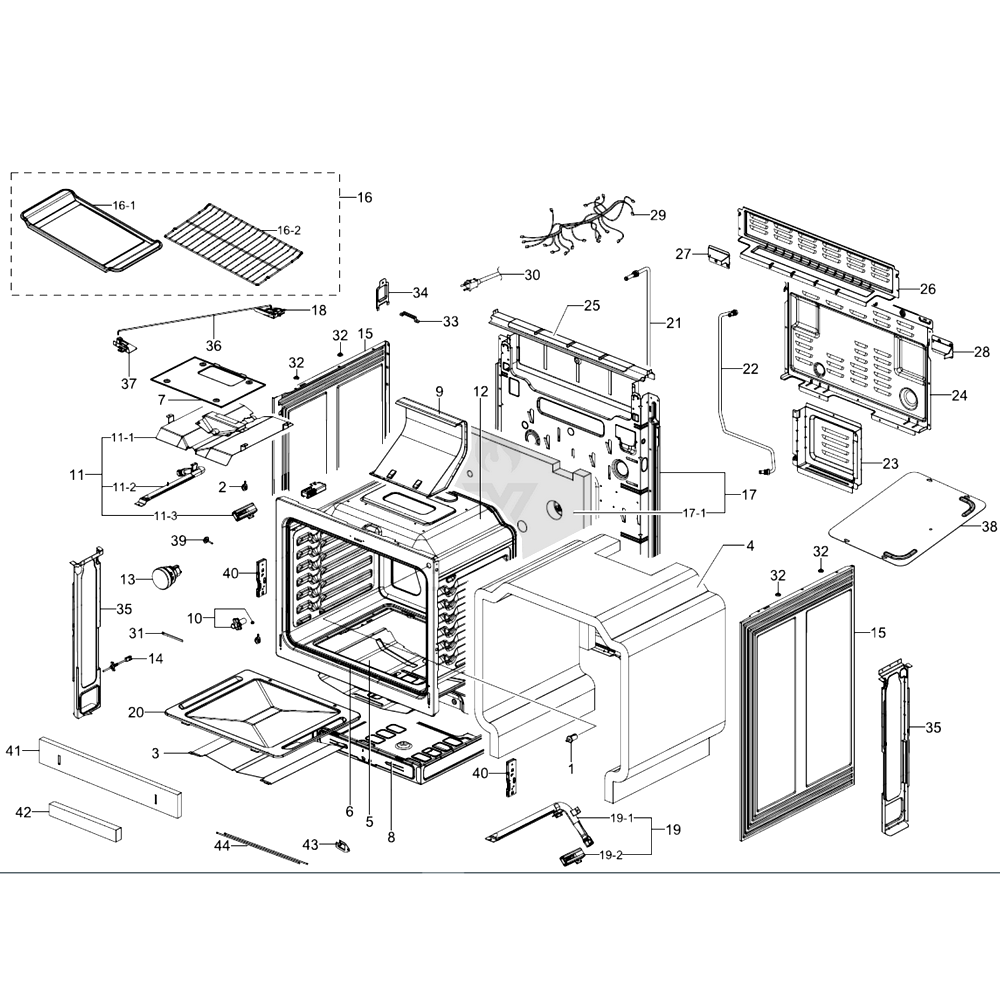

Main

...
...
1
Switch-Door Plunger SAM-DG34-00006A
...
2
Spacer-Side Panel SAM-DG60-00011A
...
3
Bracket-Bake Spreader SAM-DG61-00523A
...
4
Adiabatic-Main SAM-DG62-00062A
...
5
Shield-Bake Burner SAM-DG63-00235A
...
6
Gasket Door SAM-DG63-00255B
...
7
Shield-Cavity Upper SAM-DG63-00258A
...
8
Assembly Bracket-Bake Burner Box SAM-DG94-00636A
...
9
Assembly Vent-Adiabatic SAM-DG94-00763A
...
10
Assembly Holder-Nozzle Broil SAM-DG94-00521A
...
11-1
Bracket-Broil Spreader SAM-DG61-00522A
...
11-2
Burner-Broil SAM-DG62-00056A
...
11-3
Assy-Hot Surface Igniter SAM-DG94-00520A
...
11
Assy-Burner Broil SAM-DG94-00546A
...
12
Assembly Cavity Coating SAM-DG94-00613C
...
13
Assembly Lamp Bulb SAM-DG97-00083A
...
14
Sensor-Thermistor SAM-DG32-00002B
...
15
Panel-Side Coating SAM-DG64-00142G
...
16-1
Plate-Griddle SAM-DG61-00563A
...
16-2
Rack-Flat SAM-DG75-01001C
...
16
Assembly Packing-Griddle SAM-DG98-01033A
...
17-1
Adiabatic-Rear SAM-DG62-00063A
...
17
Assembly Cover Back-Main SAM-DG94-00522A
...
18
Assembly Bracket-Latch Rear SAM-DG94-00761A
...
19-1
Burner-Bake SAM-DG62-00066A
...
19-2
Assy-Hot Surface Igniter SAM-DG94-00520A
...
19
Assy-Burner Bake SAM-DG94-00547A
...
20
Cavity-Floor Coating SAM-DG61-00570A
...
21
Assembly Tube-Manifold SAM-DG94-00464A
...
22
Assembly Tube-Broil SAM-DG94-00465A
...
23
Cover-Convection SAM-DG63-00236A
...
24
Cover-Back Main Wire SAM-DG63-00234A
...
25
Shield-Rear Sight SAM-DG63-00231A
...
26
Cover-Back Guard Wire SAM-DG63-00233A
...
27
Cover-Wire Lt SAM-DG63-00253A
...
28
Cover-Wire Rt SAM-DG63-00254A
...
29
Wire Harness-Pba SAM-DG39-00048C
...
30
Assembly Power Cord SAM-DG96-00211A
...
31
Cable Clamp SAM-6502-001117
...
32
Bracket-Cooktop SAM-DG61-00550B
...
33
Bracket-Latch Sub SAM-DG61-00732A
...
34
Cover-Power Cord SAM-DG63-00260A
...
35
Shield-Side Panel SAM-DG63-00261A
...
36
Latch-Rod SAM-DG66-00029A
...
37
Assembly Bracket-Latch Front SAM-DG94-00754A
...
38
Baffle-Door Sheet SAM-DG62-00094A
...
39
Rubber-Cushion SAM-DG73-00003A
...
40
Support-Hinge SAM-DG61-00188A
...
41
Adiabatic-Bake Burner Box SAM-DG62-00068A
...
42
Adiabatic-Door Top Sub SAM-DG62-00087A
...
43
Cover-Hsi Wire SAM-DG63-00257A
...
44
Steel Wire SAM-DG70-00004A

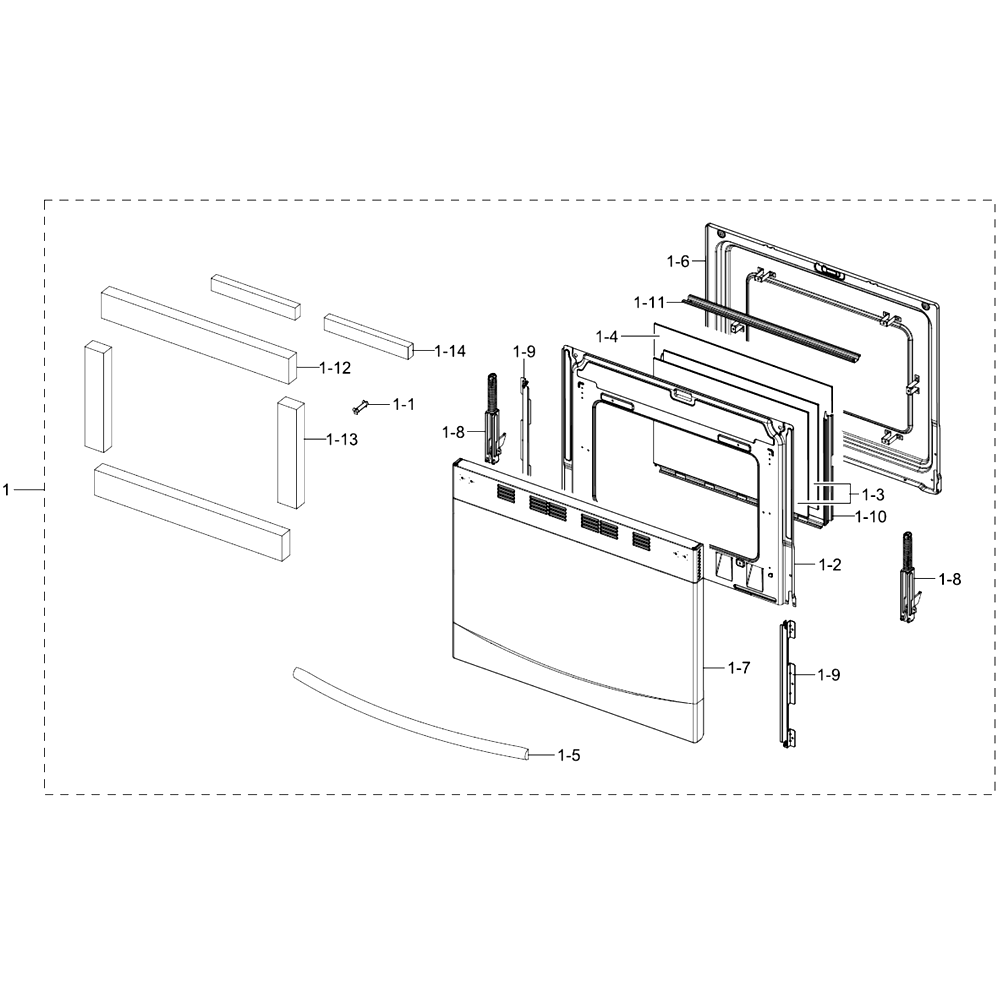

Assy Door

...
...
1-1
Spacer-Door E SAM-DG60-00008A
...
1-2
Baffle-Door SAM-DG62-00046A
...
1-3
Glass-Inner SAM-DG64-00092B
...
1-4
Glass-Inner Sub SAM-DG64-00133A
...
1-5
Assembly Handle-Al SAM-DG94-00686A
...
1-6
Assembly Door E SAM-DG94-00524A
...
1-7
Assembly Door Sub SAM-DG94-00744A
...
1-8
Assembly Hinge SAM-DG94-00603A
...
1-9
Bracket-Inner Glass SAM-DG61-00190C
...
1-10
Frame-Inner Glass SAM-DG61-00121C
...
1-11
Cover-Frame Inner Glass SAM-DG63-00077C
...
1-12
Adiabatic-Door Top SAM-DG62-00008B
...
1-13
Adiabatic-Door Side SAM-DG62-00010A
...
1-14
Adiabatic-Door Top Sub SAM-DG62-00087A
...
1
Assembly Door SAM-DG94-00758A

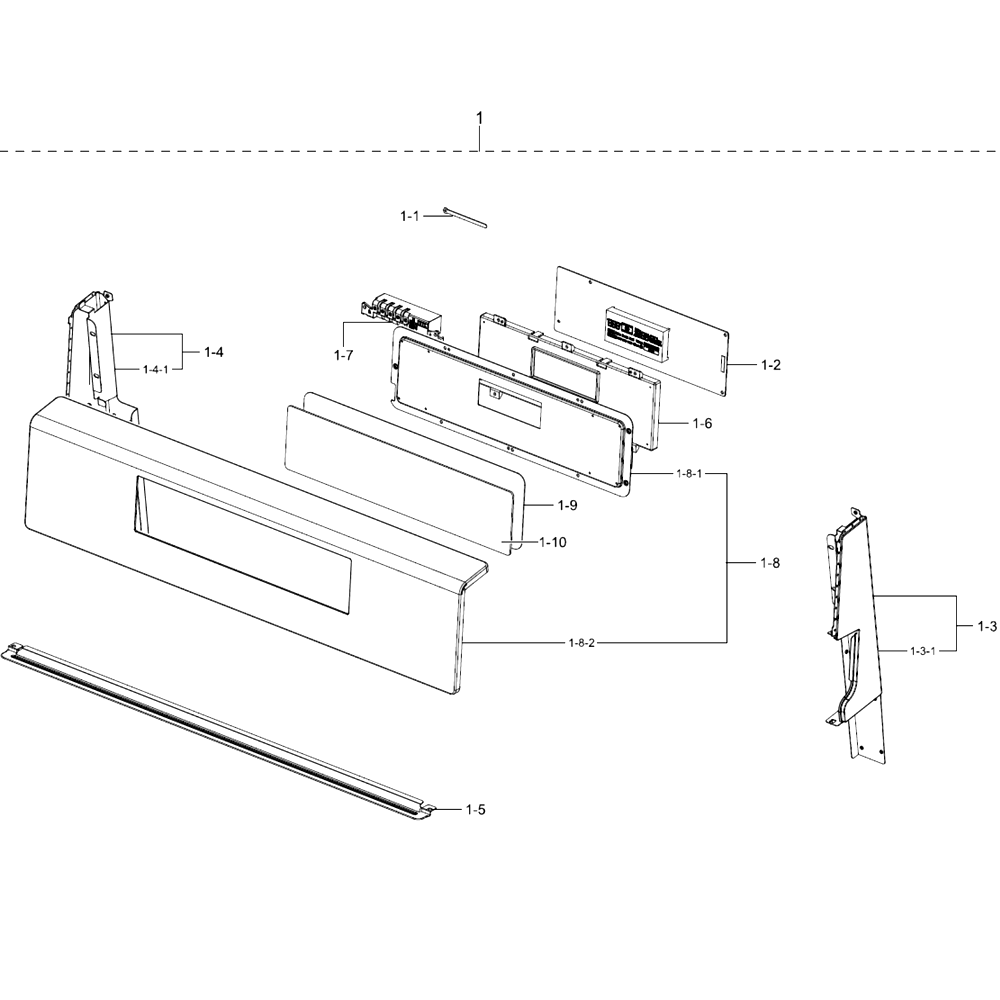

Assy Control

...
...
1-1
Cable Clamp SAM-6502-001117
...
1-2
Assembly Pcb Main SAM-DE92-02588G
...
1-3-1
Support-Back Guard Rt SAM-DG61-00496A
...
1-3
Assembly Support-Back Guard Rt SAM-DG94-00629A
...
1-4-1
Support-Back Guard Lt SAM-DG61-00517A
...
1-4
Assembly Support-Back Guard Lt SAM-DG94-00628A
...
1-5
Assembly Bracket-Lip SAM-DG94-00604A
...
1-6
Holder-Display Better SAM-DG61-00519B
...
1-7
Assy-Module Spark SAM-DG96-00297A
...
1-8-1
Bracket-Pcb SAM-DG61-00518B
...
1-8-2
Chassis-Panel SAM-DG64-00339B
...
1-8
Assembly Control Sub SAM-DG94-00543B
...
1-9
Bracket-Membrane Panel SAM-DG61-00495B
...
1-10
Switch Membrane SAM-DG34-00025A
...
1
Assembly Control Box SAM-DG94-00857A

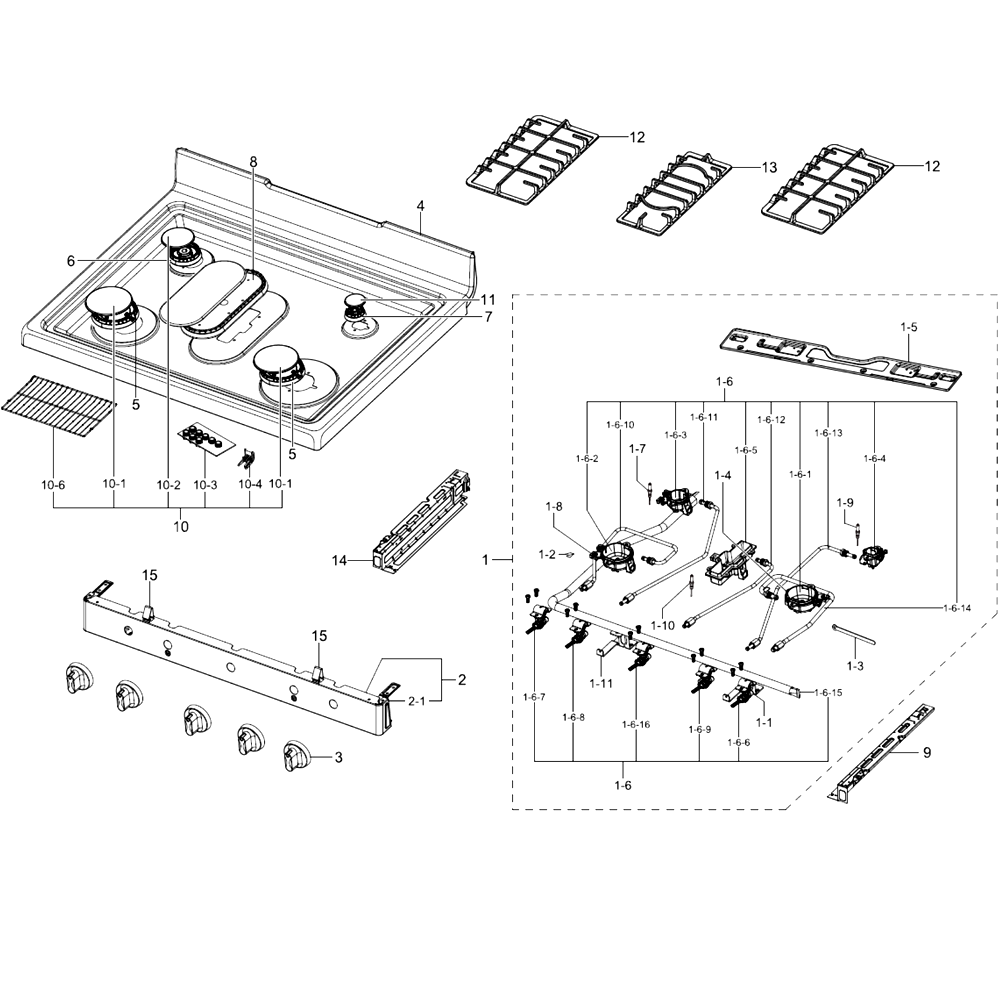

Assy Cooktop

...
...
1-1
Assy-Switch Ignition SAM-DG96-00298A
...
1-2
Bracket-Spring Electrode SAM-DG61-00579A
...
1-3
Cable Clamp SAM-6502-001117
...
1-4
Assy-Electrode(xl) SAM-DG94-00602A
...
1-5
Support-Manifold Front SAM-DG61-00670A
...
1-6-1
Burner-Cup Power SAM-DG62-00082B
...
1-6-2
Burner-Cup(r) SAM-DG62-00058B
...
1-6-3
Burner-Cup(sr) SAM-DG62-00059A
...
1-6-4
Burner-Cup(aux) SAM-DG62-00060B
...
1-6-5
Burner-Cup Fish(b) SAM-DG62-00090A
...
1-6-6
Assembly Valve Power SAM-DG94-00452C
...
1-6-7
Assembly Valve-Cooktop(r) SAM-DG94-00453B
...
1-6-8
Assembly Valve-Cooktop(sr) SAM-DG94-00454B
...
1-6-9
Assembly Valve-Cooktop(aux) SAM-DG94-00455B
...
1-6-10
Assembly Tube-Burner Lf SAM-DG94-00457A
...
1-6-11
Assembly Tube-Burner Lr SAM-DG94-00458A
...
1-6-12
Assembly Tube-Burner Fish SAM-DG94-00459A
...
1-6-13
Assembly Tube-Burner Rr SAM-DG94-00461A
...
1-6-14
Assembly Tube-Burner Power SAM-DG94-00614A
...
1-6-15
Assembly Valve-Manifold Elbow SAM-DG94-00528A
...
1-6-16
Assembly Valve-Cooktop Fish SAM-DG94-00456A
...
1-6
Assembly Valve Manifold SAM-DG94-00538E
...
1-7
Assy-Electrode(s) SAM-DG94-00539A
...
1-8
Assy-Electrode(m) SAM-DG94-00540A
...
1-9
Assy-Electrode(l) SAM-DG94-00541A
...
1-10
Assy-Electrode Fish SAM-DG94-00633A
...
1-11
Bracket-Manifold SAM-DG61-00539A
...
1
Assembly Cooktop SAM-DG94-00879A
...
2-1
Assembly Bracket-Manifold Panel SAM-DG94-00544A
...
2
Assembly Bracket-Manifold Rubber SAM-DG94-00656A
...
3
Knob-Dial SAM-DG64-00347A
...
4
Assembly Frame Cook Top SAM-DG94-00753E
...
5
Burner Head Right SAM-DG62-00074C
...
6
Burner-Head SAM-DG62-00075B
...
7
Burner-Head(aux) SAM-DG62-00076B
...
8
Assy-Burner Head Fish(b) SAM-DG94-00607A
...
9
Assembly Support-Side(r) SAM-DG94-00789A
...
10-1
Burner-Cap(r) SAM-DG62-00067A
...
10-2
Burner-Cap(sr) SAM-DG62-00070A
...
10-3
Assy-Lp Kit(better) SAM-DG94-00635A
...
10-4
Assembly Bracket Sub SAM-DG94-00870B
...
10-6
Rack-Flat SAM-DG75-01001C
...
10
Assembly Packing Burner Cap SAM-DG98-01088B
...
11
Burner-Cap SAM-DG62-00111A
...
12
Assy-Grate Side Coating SAM-DG94-00468B
...
13
Assy-Grate Center Coating SAM-DG94-00469B
...
14
Assembly Support-Side(l) SAM-DG94-00756A
...
15
Bracket-Spring Cooktop SAM-DG61-00515B

Assy Drawer

...
...
1-1
Support-Regulator SAM-DG61-00578A
...
1-2
Cover-Back Warmer SAM-DG63-00224A
...
1-3
Assembly Valve-Safety SAM-DG94-00449A
...
1-4
Assembly Tube-Bake SAM-DG94-00466A
...
1-5
Assembly Holder-Nozzle Bake SAM-DG94-00548A
...
1-6
Wire Harness-B SAM-DG39-00049A
...
1
Assembly Cover Back-Warmer Drawer SAM-DG94-00513A
...
2-1-1-2
Panel-Drawer SAM-DG64-00341A
...
2-1-1
Assembly Cavity-Drawer SAM-DG94-00508A
...
2-1-2
Slider-Inner SAM-DG61-00279A
...
2-1-3
Assembly Panel-Warming Drawer SAM-DG94-00507B
...
2-1
Assembly Drawer SAM-DG94-00504B
...
2-2-1
Spacer-Side Panel SAM-DG60-00011A
...
2-2-2
Leg-Leveling SAM-DG61-00525B
...
2-2-3-1
Trim-Pedestal Front SAM-DG64-00343A
...
2-2-3
Assembly Trim-Pedestal Front SAM-DG94-00512A
...
2-2-4
Assy-Shield Upper Drawer SAM-DG94-00608A
...
2-2-5
Slider-Outer SAM-DG61-00280A
...
2-2-6-1
Base-Drawer Rear SAM-DG61-00503A
...
2-2-6
Assembly Base-Warmer Drawer SAM-DG94-00511B
...
2-2
Assembly Pedestal SAM-DG94-00510B
...
2
Assembly Drawer-Main Sub SAM-DG94-00505B
