Samsung NE59N6630SS/AA_0000

Model: NE59N6630SS/AA_0000

Save Part Not Listed?
product name

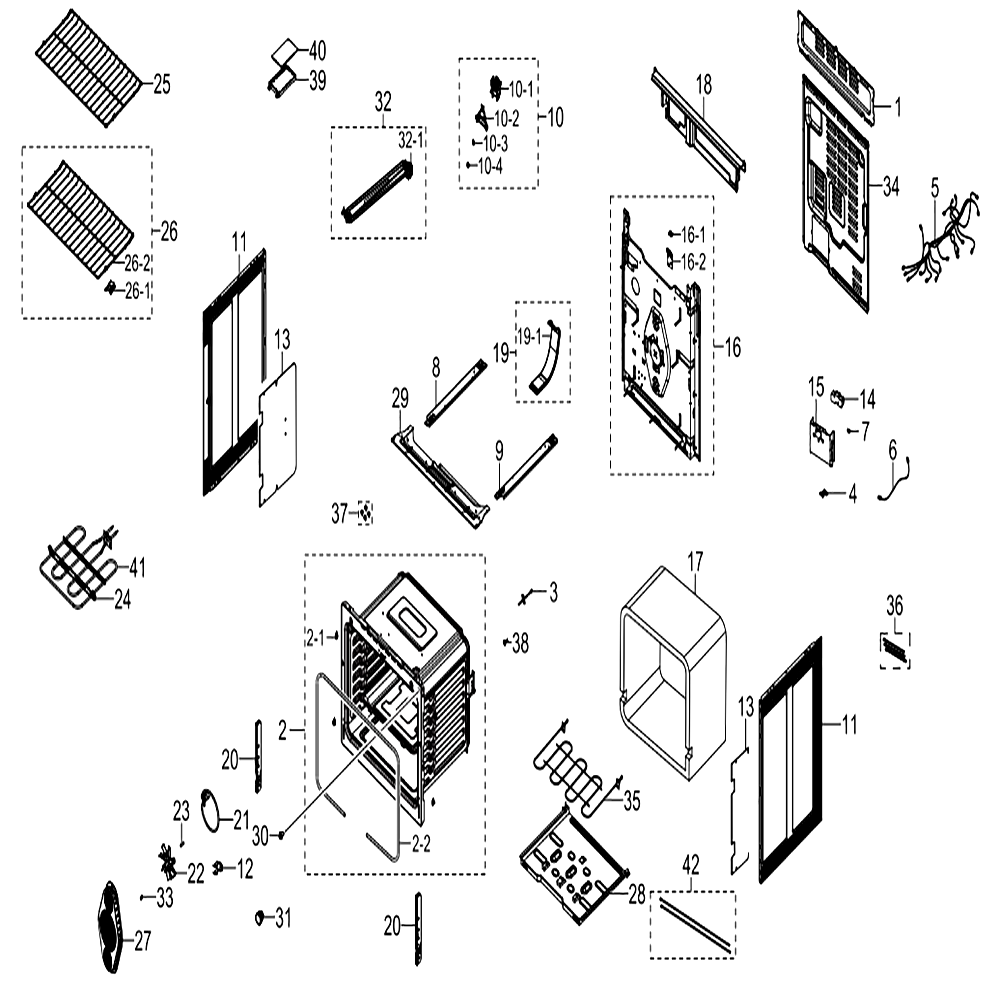

Main

...
...
1
Cover-Back Guard Wire; Fcq321hsux,gi-Sgcc SAM-DG63-00058B
...
2-1
Spacer-Side Panel SAM-DG60-00007B
...
2-2
Gasket Door; Ftq386lwux,glass Fiber,12pi, SAM-DG63-00093A
...
2
Assy Cavity-Coating; Ne59j7650ws,5.9,cera SAM-DG94-01112A
...
3
Sensor-Thermistor SAM-DG32-00002B
...
4
Ground-Terminal Block SAM-DG63-00107A
...
5
Assy Wire Harness-Main; Ne59n6630s*,240va SAM-DG96-00680A
...
6
Wire Harness-Sub SAM-DG39-00019A
...
7
Bracket-Ground; Ftq386lwux,gi-Sgcc,0.8,14 SAM-DG61-00212A
...
8
Support-Burner Lt; Ftq386**, Ftq352**, Fc SAM-DG61-00146A
...
9
Support-Burner Rt; Ftq386**, Ftq352**, Fc SAM-DG61-00147A
...
10-1
Motor Ac Convection SAM-DG31-00005C
...
10-2
Bracket Motor-Main; Ftq386lwux,egi-Secc,0 SAM-DG61-00215A
...
10-3
Cap-Motor Convection SAM-DG67-00028A
...
10-4
Nut-Flange SAM-DE60-30016A
...
10
Assembly Motor Convection SAM-DG96-00110E
...
11
Panel-Side Coating SAM-DG64-00142A
...
12
Bracket-Heater Convection SAM-DG61-00228A
...
13
Baffle-Door Sheet; Fe*,gi-Sgcc,embo SAM-DG62-00020D
...
14
Assy-Terminal Block SAM-DG96-00173A
...
15
Bracket-Cover Access SAM-DG61-00168B
...
16-1
Thermostat SAM-DE47-20037A
...
16-2
Bracket-Tco; Egi-Secc,t0.6 SAM-DE61-50490A
...
16
Assy Cover Back-Main; Ne59n66**,sgcc,t0.6 SAM-DG97-00123Q
...
17
Adiabatic-Main; Ftq386**/ Ftq352**,glass SAM-DG62-00011A
...
18
Assy Shield Rear; Ne59n66**,epoxy Coating SAM-DG94-02365A
...
19-1
Assy-Vent SAM-DG97-00058B
...
19
Assy Vent-Filter; 30" E-Oven,blk Coating, SAM-DG94-01087A
...
20
Assembly Support-Hinge SAM-DG94-00362A
...
21
Heater-Convection SAM-DG47-00017A
...
22
Fan Convection-Main; Fse1310ast,alcoat-Sa SAM-DG67-00018A
...
23
Spacer-Fan Convection SAM-DG60-00001A
...
24
Assembly Bracket Heater SAM-DG94-00911A
...
25
Rack-Flat SAM-DG75-01001C
...
26-1
Assembly Bracket Sub SAM-DG94-00870B
...
26-2
Rack-Flat SAM-DG75-01001C
...
26
Assembly Accessory-A SAM-DG97-00118C
...
27
Assembly Cover Casing SAM-DG97-00086C
...
28
Cover-Bake Heater; Fer500**,gi-Sgcc,t0.4, SAM-DG63-00065E
...
29
Bracket-Main Top; Fer300**,gi-Sgcc,t0.5,w SAM-DG61-00145C
...
30
Switch-Door Plunger SAM-DG34-00006A
...
31
Assembly Lamp Bulb SAM-DG97-00083A
...
32-1
Switch-Micro SAM-3405-001034
...
32
Assy Body Latch; Ne59j3420ss,a5 All Model SAM-DG94-01334A
...
33
Nut-Hexagon Cap SAM-6021-001211
...
34
Assy Cover Back-Main; Ne59m6850**,gi-Sgcc SAM-DG94-02187A
...
35
Heater Sheath-Bottom; Ac240v,3000w,sus309 SAM-DG47-00020B
...
36
Cable Clamp SAM-6502-001117
...
37
Guide-Cook Top; Ftq386**, Ftq352**, Fcq32 SAM-DG61-00148B
...
38
Rubber-Cushion SAM-DG73-00003A
...
39
Holder-Pcb Main SAM-DG61-00060C
...
40
Assy Pcb Main; Fm-New-Main-14,ne5000n,124 SAM-DG92-01084A
...
41
Heater Sheath-Grill; Ac240v,4200w,incoloy SAM-DG47-00068A
...
42
Steel Wire SAM-DG70-00004A

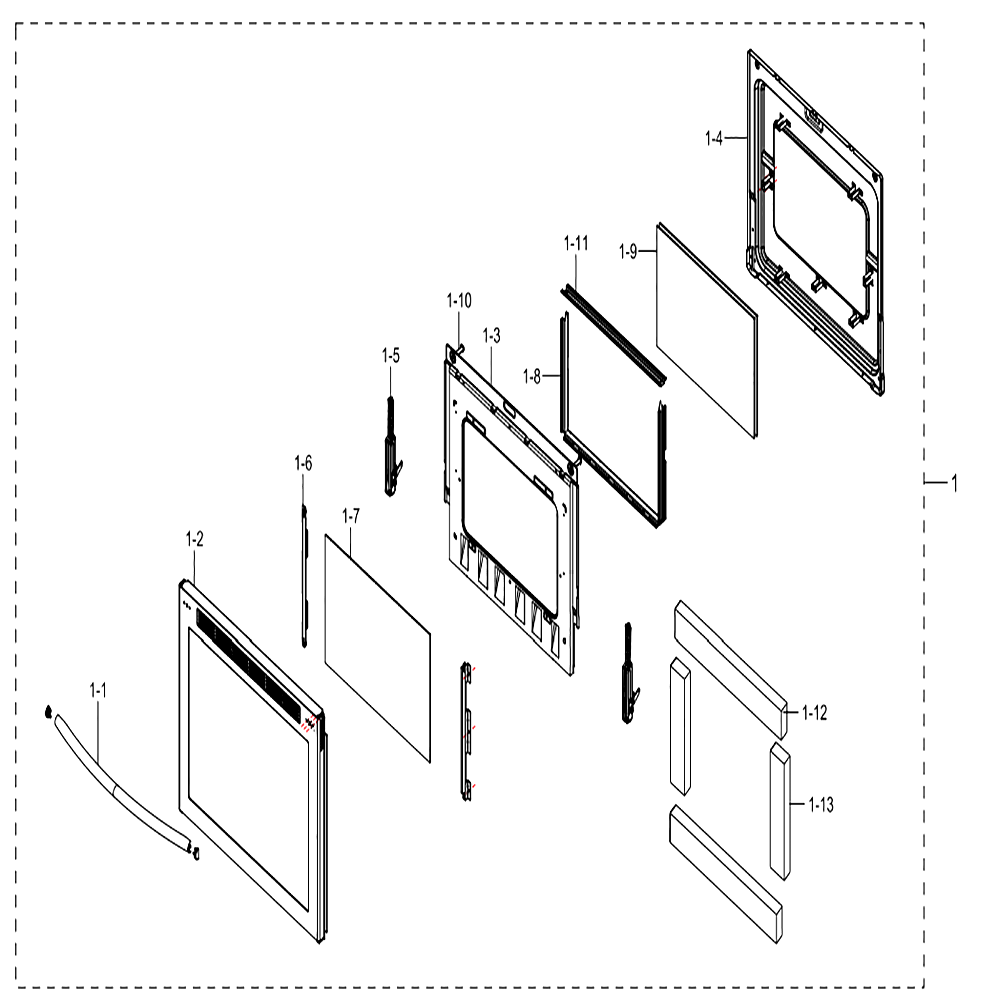

Assy Door

...
...
1-1
Assembly Handle-Al SAM-DG94-00686A
...
1-2
Assy Door Sub; Ne59n66**,sts430 J1l,stss SAM-DG94-01117C
...
1-3
Assembly Baffle Door SAM-DG97-00113D
...
1-4
Assembly Door E SAM-DG94-00063A
...
1-5
Assembly Hinge SAM-DG94-00358A
...
1-6
Bracket-Inner Glass SAM-DG61-00190C
...
1-7
Glass-Inner Sub SAM-DG64-00133A
...
1-8
Frame-Inner Glass SAM-DG61-00121C
...
1-9
Glass-Inner SAM-DG64-00092A
...
1-10
Spacer-Door E SAM-DG60-00008A
...
1-11
Cover-Frame Inner Glass SAM-DG63-00077C
...
1-12
Adiabatic Door-Top; Ftq386**/ Ftq352**,gl SAM-DG62-00008A
...
1-13
Adiabatic-Door Side SAM-DG62-00010A
...
1
Assy Door; Ne59n6650ss,stss,ne5000n SAM-DG94-01116D

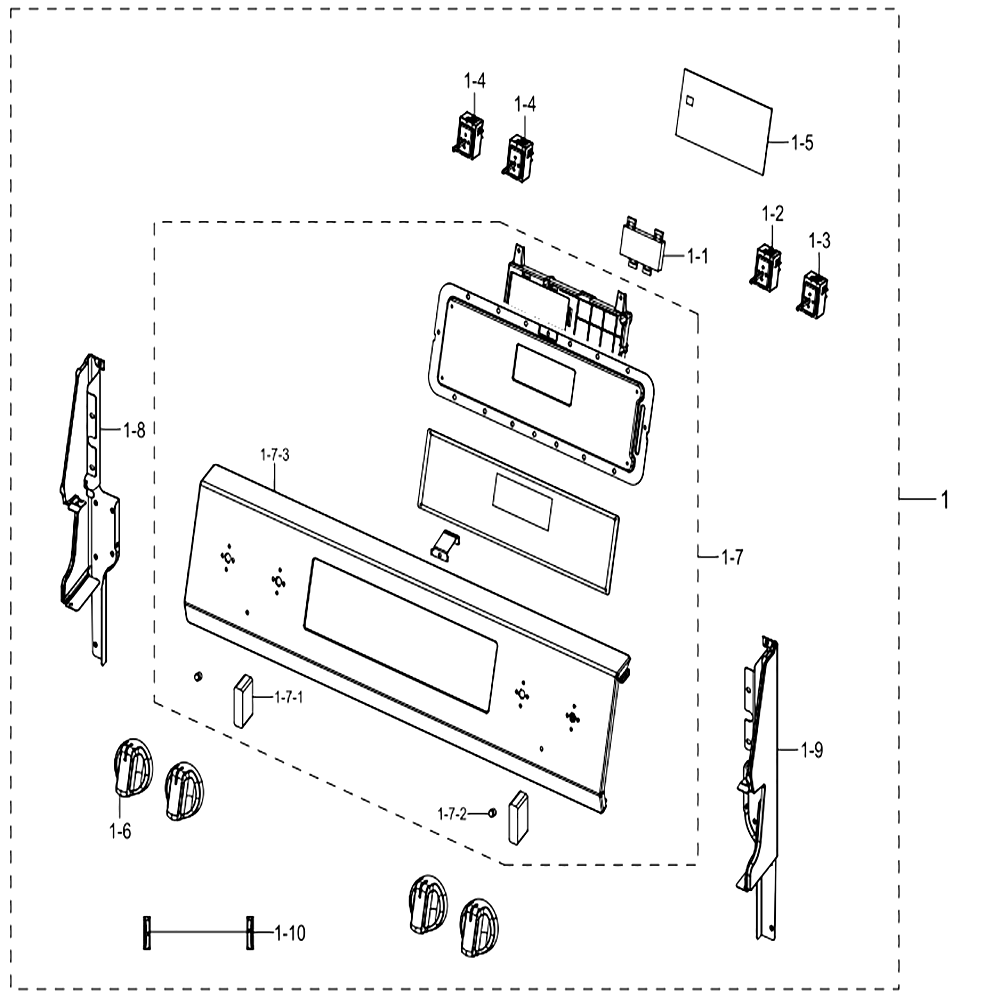

Assy Control

...
...
1-1
Led Display; 7s,7d,ne5000n_6630,ibl,conne SAM-DG07-01005A
...
1-2
Regulator-Energy D SAM-DG44-01006A
...
1-3
Regulator Energy-Triple; Per001-13,ne9000 SAM-DG44-01007B
...
1-4
Regulator-Energy Single SAM-DG44-01009A
...
1-5
Assy Pcb Sub; Slide-In-Ve-05,ne5000n,146x SAM-DG92-01069B
...
1-6
Assy Knob; Ne59n6630ss,zn,stss SAM-DG94-02373A
...
1-7-1
Indicator-Light SAM-DG64-00131A
...
1-7-2
Lens-Light SAM-DG67-00022A
...
1-7-3
Assy Control Sub; Ne59n6630,stss,sts430j1 SAM-DG94-02380A
...
1-7
Assy Control; Ne59n6630ss,stss,sts430j1l SAM-DG94-02375A
...
1-8
Assy Support Back Guard-Left; Ne59n66**,b SAM-DG94-02378A
...
1-9
Assy Support Back Guard-Right; Ne59n66**, SAM-DG94-02379A
...
1-10
Assy Wire Harness-Display; Ne7000j Pjt Al SAM-DG96-00348A
...
1
Assy Control Box; Ne59n6630ss/aa,stss,sts SAM-DG94-02370A

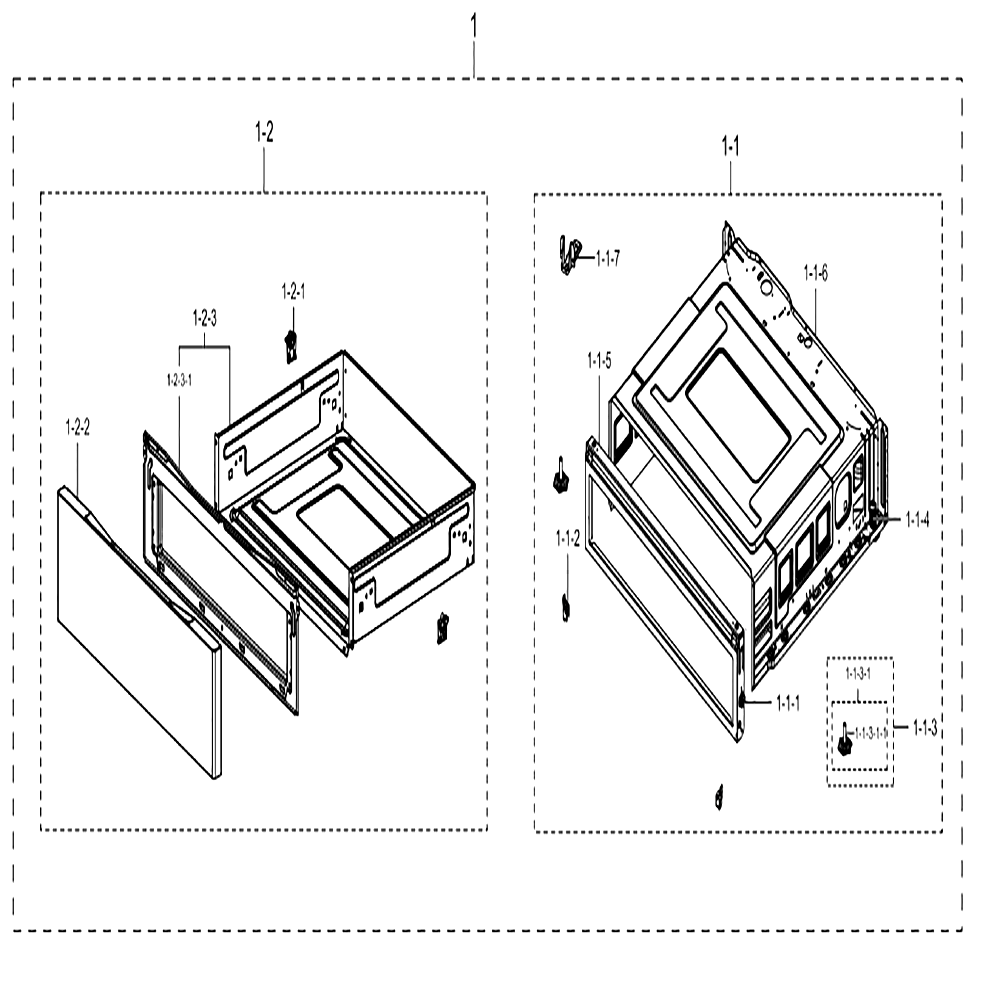

Assy Drawer

...
...
1-1-1
Spacer-Side Panel SAM-DG60-00007B
...
1-1-2
Slider-Outer SAM-DG61-00280A
...
1-1-3-1-1
Leg Leveling; Ne59m4310ss,cr-Spcc SAM-DG61-01504A
...
1-1-3-1
Assy Foot; Ne59m4320sg SAM-DG94-02225A
...
1-1-3
Assy Foot; Ne59m4320sg,assy Cover SAM-DG94-02252A
...
1-1-4
Leg Leveling; Ne58k9850ws,pp,natural,441j SAM-DG61-00525C
...
1-1-5
Trim-Pedstal; Ne59k3310ss,gi-Sgcc,t0.8,l2 SAM-DG64-00101C
...
1-1-6
Assy Shield Drawer; Ne59j7630ss,sgcc T0.5 SAM-DG94-00708B
...
1-1-7
Assy Bracket; Ne59m4320sg SAM-DG94-02226A
...
1-1
Assy Pedestal; Ne59m4320ss,stss,ne4000m SAM-DG94-02253B
...
1-2-1
Slider-Inner SAM-DG61-00279A
...
1-2-2
Assy Panel Warming Drawer; Ne59n6630/aa,s SAM-DG94-02356A
...
1-2-3-1
Panel-Drawer; Ftq387**, Ftq353**,gi-Sgcc, SAM-DG64-00096B
...
1-2-3
Assy Cavity Drawer; Ne59j3420ss,1.4 Cu.ft SAM-DG94-01246A
...
1-2
Assy Drawer; Ne59n6630ss,stss430j1l,ne500 SAM-DG94-02292E
...
1
Assy Drawer Main; Ne59n6630ss,ne5000n SAM-DG90-00789L

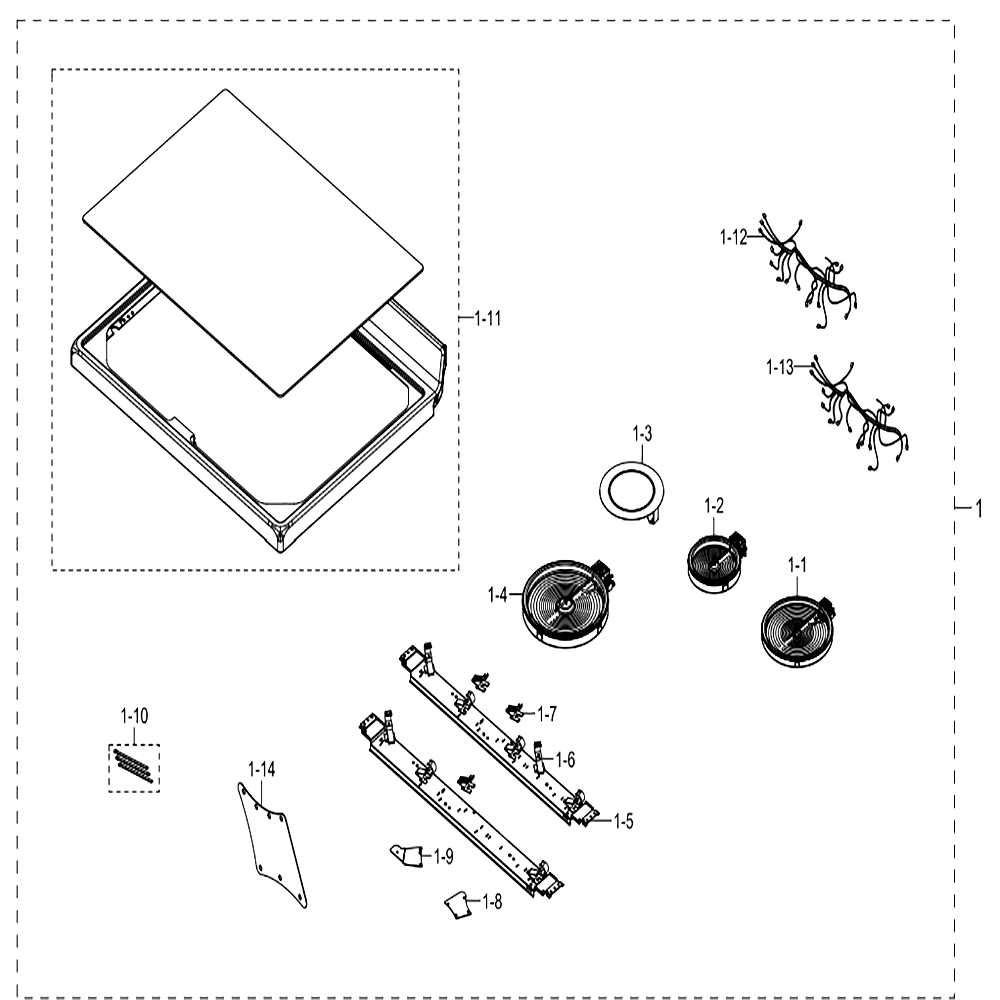

Assy Cooktop

...
...
1-1
Heater Radiant-Triple SAM-DG47-00065A
...
1-2
Heater Radiant-Single SAM-DG47-00060A
...
1-3
Heater-Radiant SAM-DG47-00024B
...
1-4
Heater Radiant-Dual; Ac240v,6"/9", 580lim SAM-DG47-00067A
...
1-5
Assembly Bracket Heater SAM-DG94-01059A
...
1-6
Support-Heater SAM-DG61-00286A
...
1-7
Support-Warming Heater SAM-DG61-00144B
...
1-8
Bracket-Heater Radiant A SAM-DG61-00229A
...
1-9
Bracket-Heater Radiant B SAM-DG61-00230A
...
1-10
Cable Clamp SAM-6502-001117
...
1-11
Assy Frame Cook Top; Ne59n6630ss,stss430j SAM-DG94-01301G
...
1-12
Assy Wire Harness-Cooktop; Ne7000j All,24 SAM-DG96-00417A
...
1-13
Assy Wire Harness-Cooktop; Newa4 & Ne59j7 SAM-DG96-00415A
...
1-14
Bracket Heater-Radiant; Ne59n66**,egi-Sec SAM-DG61-01603A
...
1
Assy Cooktop; Ne59n6630ss,ne5000n SAM-DG94-00001N
