product name

Samsung NE59M6850SS/AA_0002

Model: NE59M6850SS/AA_0002

Save Part Not Listed?
product name

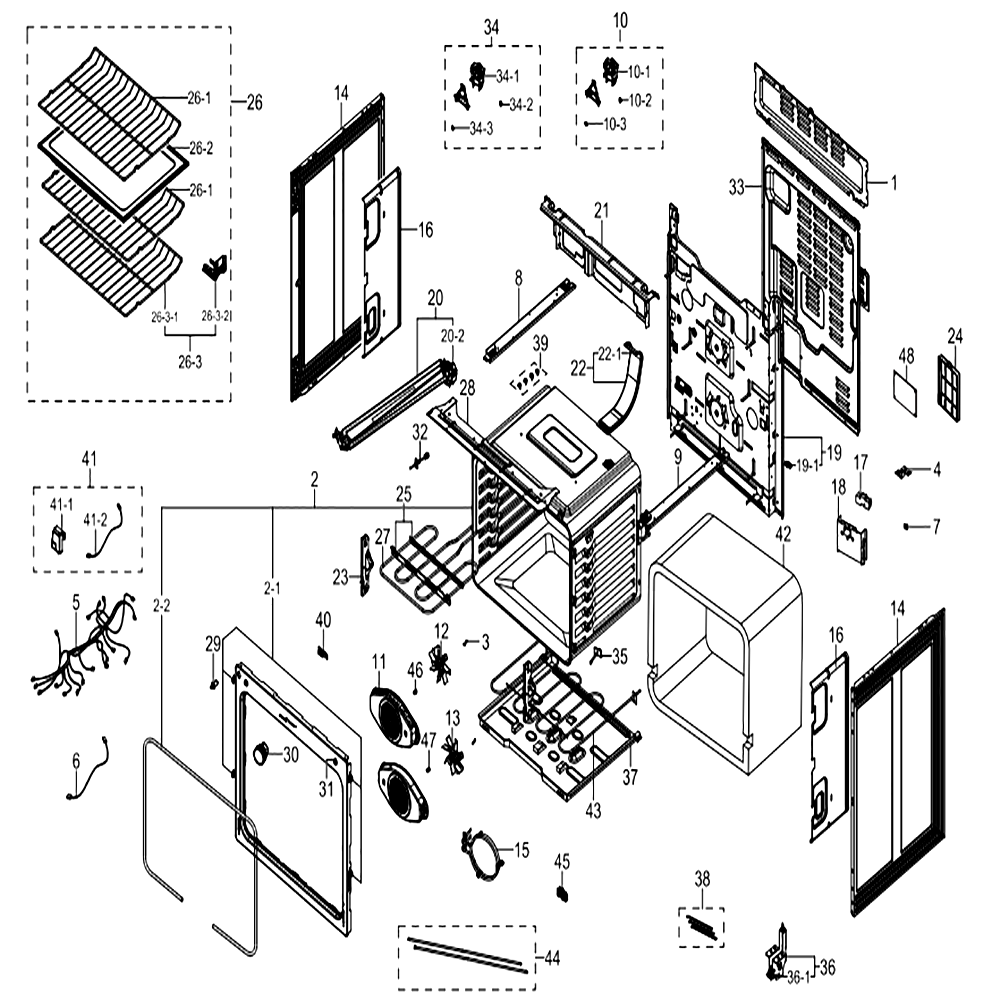

Main

...
...
1
Cover Back; Ne59m6850**,gi-Sgcc,t0.5,ne60 SAM-DG63-00058C
...
2-1
Spacer-Side Panel SAM-DG60-00007B
...
2-2
Gasket Door; Ftq386lwux,glass Fiber,12pi, SAM-DG63-00093A
...
2
Assy Cavity-Coating; Ne59j7850ws,5.9 Cu.f SAM-DG94-01128A
...
3
Spacer-Fan Convection SAM-DG60-00001A
...
4
Ground-Terminal Block SAM-DG63-00107A
...
5
Assy Wire Harness-Main; Ne59m6850,240vac, SAM-DG96-00547A
...
6
Wire Harness-Sub SAM-DG39-00019A
...
7
Bracket-Ground; Ftq386lwux,gi-Sgcc,0.8,14 SAM-DG61-00212A
...
8
Support-Burner Lt; Ftq386**, Ftq352**, Fc SAM-DG61-00146A
...
9
Support-Burner Rt; Ftq386**, Ftq352**, Fc SAM-DG61-00147A
...
10-1
Motor Ac Convection SAM-DG31-00005C
...
10-2
Nut-Flange SAM-DE60-30016A
...
10-3
Cap-Motor Convection SAM-DG67-00028A
...
10
Assembly Motor Convection SAM-DG96-00110E
...
11
Assembly Cover Casing-Upper SAM-DG94-00489B
...
12
Fan-Convection Upper SAM-DG67-00001B
...
13
Fan-Convection Lower SAM-DG67-00011B
...
14
Panel-Side Coating SAM-DG64-00142A
...
15
Heater Sheath-Convection; Ac240v,bkt Type SAM-DG47-00009C
...
16
Baffle Door; Ne59j7650ws,gi-Sgcc SAM-DG62-00148A
...
17
Assy-Terminal Block SAM-DG96-00173A
...
18
Bracket-Cover Access SAM-DG61-00168B
...
19-1
Thermostat SAM-DE47-20037A
...
19
Assy Cover Back-Main; Fe710drs,sgcc,t0.6, SAM-DG94-00488A
...
20-2
Switch-Micro SAM-3405-001034
...
20
Assy Body Latch; Ne59j7850ws,dual Door SAM-DG94-01334C
...
21
Assy-Shield Rear Sight Coating; Ne59j7650 SAM-DG94-00143E
...
22-1
Assy-Vent SAM-DG97-00058B
...
22
Assy Vent-Filter; 30" E-Oven,blk Coating, SAM-DG94-01087A
...
23
Assy Support Hinge; Ny58j9850ws,damper 18 SAM-DG94-01120C
...
24
Holder-Pcb Main SAM-DG61-00060C
...
25
Assembly Bracket Heater SAM-DG94-00911A
...
26-1
Rack-Flat SAM-DG75-01001C
...
26-2
Assy Partition; Ne59j78**,ne58k98**,cesp- SAM-DG94-01643B
...
26-3-1
Rack-Flat SAM-DG75-01001C
...
26-3-2
Assembly Bracket Sub SAM-DG94-00870B
...
26-3
Assembly Accessory-A SAM-DG97-00118C
...
26
Assy Accessory Parts; Ne59m6850ss,ne6000m SAM-DG90-00255B
...
27
Heater Sheath-Grill; Ac240v,4200w,incoloy SAM-DG47-00068A
...
28
Bracket-Main Top; Fer300**,gi-Sgcc,t0.5,w SAM-DG61-00145C
...
29
Switch-Door Plunger SAM-DG34-00006A
...
30
Assembly Lamp Bulb SAM-DG97-00083A
...
31
Rubber-Cushion SAM-DG73-00003A
...
32
Sensor-Thermistor SAM-DG32-00002B
...
33
Assy Cover Back-Main; Ne59m6850**,gi-Sgcc SAM-DG94-02187A
...
34-1
Motor Ac Convection; 30" Oven,smc-U386f,2 SAM-DG31-00007E
...
34-2
Nut-Flange SAM-DE60-30016A
...
34-3
Cap-Motor Convection SAM-DG67-00028A
...
34
Assy Motor Convection; Ne58h9970ws,120v,6 SAM-DG96-00110F
...
35
Thermistor-Sensor SAM-DG32-00004C
...
36-1
Switch-Micro SAM-3405-001034
...
36
Assy-Partition Switch SAM-DG97-00014J
...
37
Cover-Bake Heater; Fer500**,gi-Sgcc,t0.4, SAM-DG63-00065E
...
38
Cable Clamp SAM-6502-001117
...
39
Guide-Cook Top; Ftq386**, Ftq352**, Fcq32 SAM-DG61-00148B
...
40
Locker; Ne59j7850ws,zndc,zn-Ni Coating, D SAM-DG64-00526A
...
41-1
Holder Pcb-Wifi; Ne59m6850ss,pbt+gf,black SAM-DG61-01232A
...
41-2
Assy Wire Harness-Comm; Ne58k9850ws,12v,1 SAM-DG96-00433A
...
41
Assy Holder Pcb-Wifi; Ne59m6850ss,wifi,ne SAM-DG94-01402B
...
42
Adiabatic-Main; Ftq386**/ Ftq352**,glass SAM-DG62-00011A
...
43
Heater Sheath-Bottom; Ac240v,3000w,sus309 SAM-DG47-00020B
...
44
Steel Wire SAM-DG70-00004A
...
45
Cover Wire; Nw51k7650ss,pp,natural,nw9000 SAM-DG63-00475A
...
46
Nut-Hexagon Cap; M4,ni Plt,swrch10a SAM-6021-001208
...
47
Nut-Hexagon Cap SAM-6021-001211
...
48
Assy Pcb Main; Fm-New-Main-10,ne6000m,124 SAM-DE92-03960L

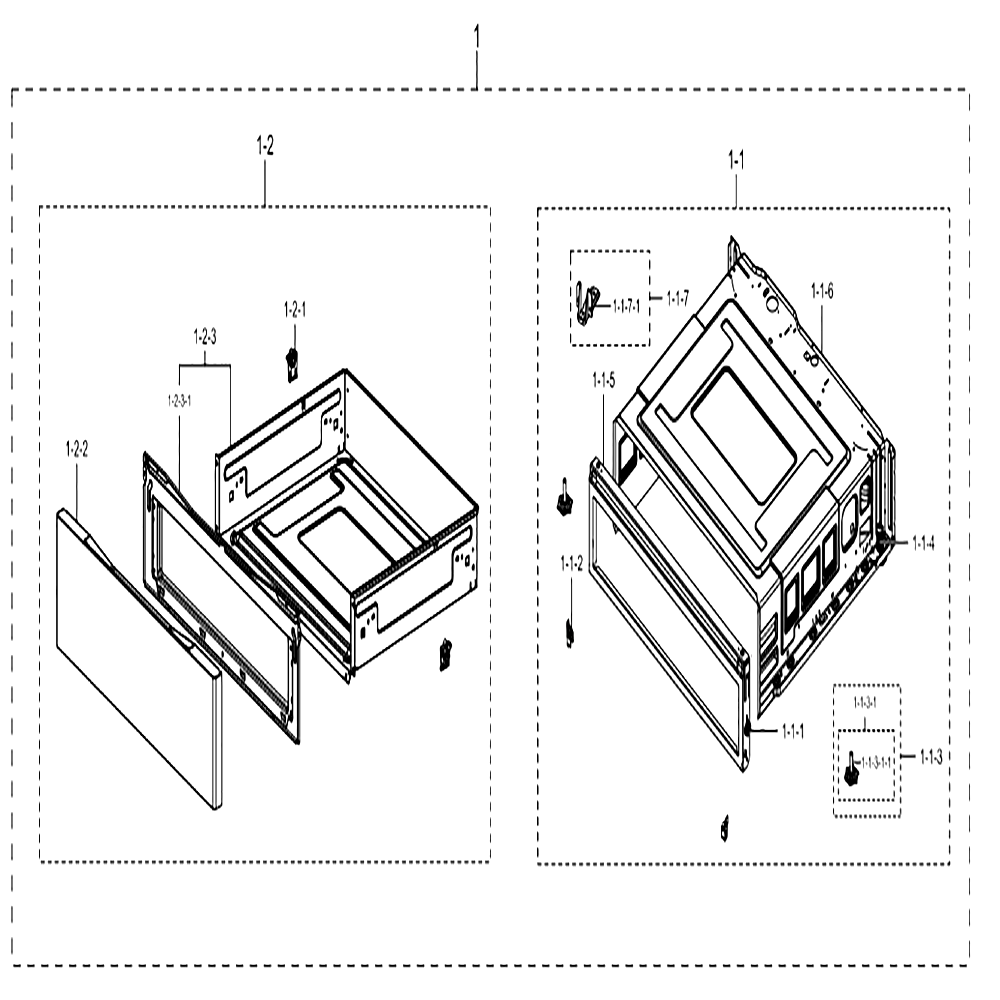

Assy Drawer

...
...
1-1-1
Spacer-Side Panel SAM-DG60-00007B
...
1-1-2
Slider-Outer SAM-DG61-00280A
...
1-1-3-1-1
Leg Leveling; Ne59m4310ss,cr-Spcc SAM-DG61-01504A
...
1-1-3-1
Assy Foot; Ne59m4320sg SAM-DG94-02225A
...
1-1-3
Assy Foot; Ne59m4320sg,assy Cover SAM-DG94-02252A
...
1-1-4
Leg Leveling; Ne58k9850ws,pp,natural,441j SAM-DG61-00525C
...
1-1-5
Trim-Pedestal; Ne59m6850ss,egi-Secc,t0.8, SAM-DG64-00101D
...
1-1-6
Assy Shield Drawer; Ne59j7630ss,sgcc T0.5 SAM-DG94-00708B
...
1-1-7-1
Bracket-Leg; Ne59m4310ss,cr-Spcc,t1.6 SAM-DG61-01503A
...
1-1-7
Assy Bracket; Ne59m4320sg SAM-DG94-02226A
...
1-1
Assy Pedestal; Ne59m6850ss,stss,ne6000m SAM-DG94-02253C
...
1-2-1
Slider-Inner SAM-DG61-00279A
...
1-2-2
Assy Panel-Warming Drawer Weld; Fer300sx* SAM-DG94-00357C
...
1-2-3-1
Panel-Drawer; Ftq387**, Ftq353**,gi-Sgcc, SAM-DG64-00096B
...
1-2-3
Assy Cavity Drawer; Fer300**,1.4cu.ft,a-4 SAM-DG97-00129F
...
1-2
Assy Drawer; Ne59j7630ss,stss,ne7000j SAM-DG94-02290A
...
1
Assy Drawer Main; Ne59m6850ss,ne6000m SAM-DG90-00789J

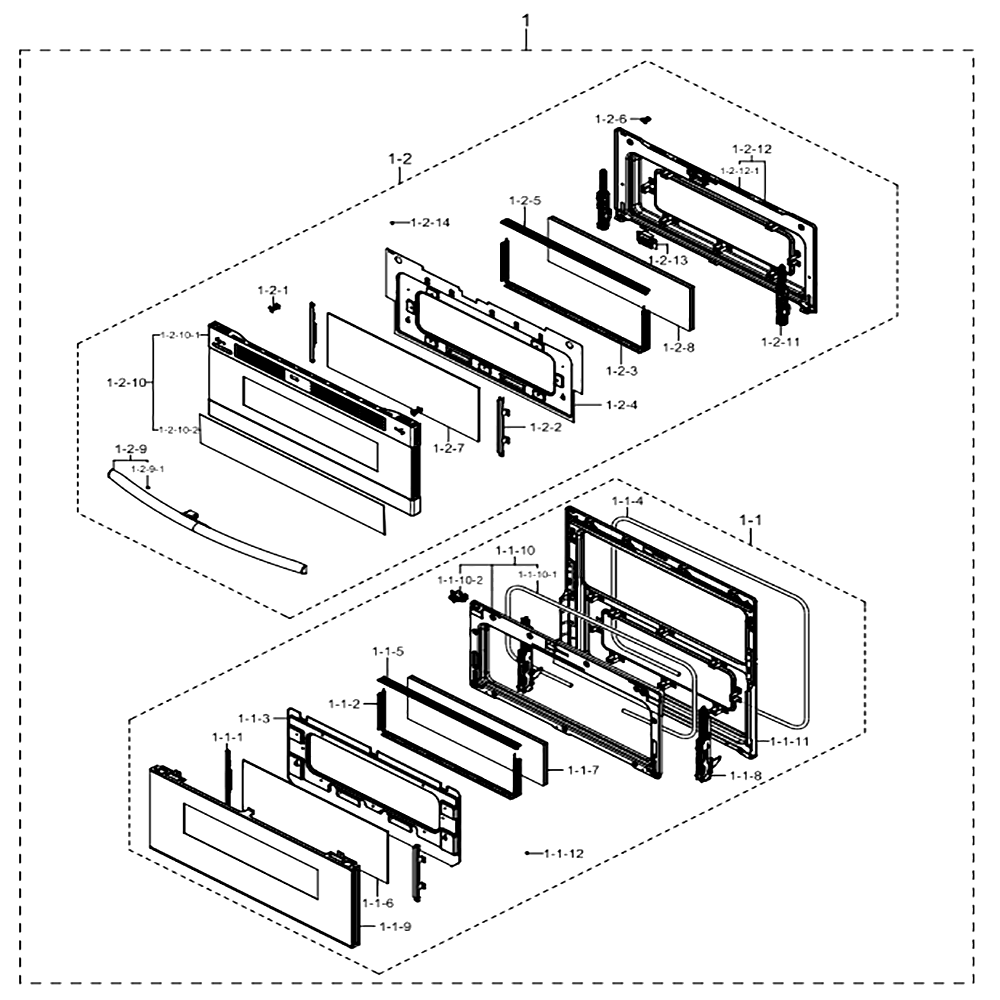

Assy Door

...
...
1-1-1
Bracket Holder; Ne59j7850ws,gi-Sgcc,t0.6, SAM-DG61-00965A
...
1-1-2
Frame Inner Glass; Ne59j7850ws,alcoat-Sa1 SAM-DG61-00966A
...
1-1-3
Baffle Door-Low; Ne59j7850ws,alcoat-Sa1c, SAM-DG62-00147A
...
1-1-4
Gasket Door; Ne59j7850ws,gf,l1688.6,sub SAM-DG63-00255D
...
1-1-5
Cover Glass; Ne59j7850ws,gi-Sgcc,t0.5,dou SAM-DG63-00396A
...
1-1-6
Glass-Sub; Ne59j7850ws,glass,t3.2,w561.5, SAM-DG64-00540A
...
1-1-7
Glass-In; Ne59j7850ws,glass,t4.0,w526,l16 SAM-DG64-00541A
...
1-1-8
Assy Hinge-Main; Ne59m6850** SAM-DG94-01139C
...
1-1-9
Assy Door Sub-Low; Ne59m6850ss,ne6000m SAM-DG94-01140C
...
1-1-10-1
Gasket Door; Ne59j7850ws,gf,l1688.6,flex- SAM-DG63-00255C
...
1-1-10-2
Assy Door Lock-Rear; Ne59j7850ws,flex-Bes SAM-DG94-01157A
...
1-1-10
Assy Cover Front-Coating; Ne59j7850ws,fle SAM-DG94-01145A
...
1-1-11
Assy Door E-Coating; Ne59j7850ws,flex-Bes SAM-DG94-01152A
...
1-1-12
Screw-Machine; Pwh,m4,l10,zpc(blk),swrch1 SAM-6001-002701
...
1-1
Assy Door-Main; Ne59m6850ss,ne6000m SAM-DG94-01138C
...
1-2-1
Assy Trim Kit; Ne59j7850ws,welding Spacer SAM-DG94-01238A
...
1-2-2
Bracket Holder; Ne59j7850ws,gi-Sgcc,t0.6, SAM-DG61-00965A
...
1-2-3
Frame Inner Glass; Ne59j7850ws,alcoat-Sa1 SAM-DG61-00966A
...
1-2-4
Baffle Door-Up; Ne59j7850ws,alcoat-Sa1c,d SAM-DG62-00146A
...
1-2-5
Cover Glass; Ne59j7850ws,gi-Sgcc,t0.5,dou SAM-DG63-00396A
...
1-2-6
Button Push; Ny58j9850ws,al SAM-DG64-00525B
...
1-2-7
Glass-Sub; Ne59j7850ws,glass,t3.2,w561.5, SAM-DG64-00540A
...
1-2-8
Glass-In; Ne59j7850ws,glass,t4.0,w526,l16 SAM-DG64-00541A
...
1-2-9-1
Screw-Machine; Ph,+,-,m4,l8,zpc(wht),swrc SAM-6001-000618
...
1-2-9
Assy Handle; Ne59j7850ws,flex-Best SAM-DG94-01134A
...
1-2-10-1
Assy Chassis Door-Up; Ne59m6850ss,stss,ne SAM-DG94-01148C
...
1-2-10-2
Assy Bracket Sub; Nx58m6850ss,al,t0.5,w33 SAM-DG94-01210E
...
1-2-10
Assy Door Sub-Up; Ne59m6850ss,stss,ne6000 SAM-DG94-01142C
...
1-2-11
Assy Hinge-Up; Ne59m6850ss SAM-DG94-01147B
...
1-2-12-1
Assy Door E-Up; Ne59j7850ws,flex-Best SAM-DG94-01143A
...
1-2-12
Assy Door E-Coating; Ne59j7850ws,flex-Bes SAM-DG94-01152B
...
1-2-13
Assy Door Lock-Front; Ne59j7850ws,flex-Be SAM-DG94-01156A
...
1-2-14
Screw-Machine; Pwh,m4,l10,zpc(blk),swrch1 SAM-6001-002701
...
1-2
Assy Door-Up; Ne59m6850ss,stss,ne6000m SAM-DG94-01141D
...
1
Assy Door; Ne59m6850ss,stss,ne6000m SAM-DG94-01123C

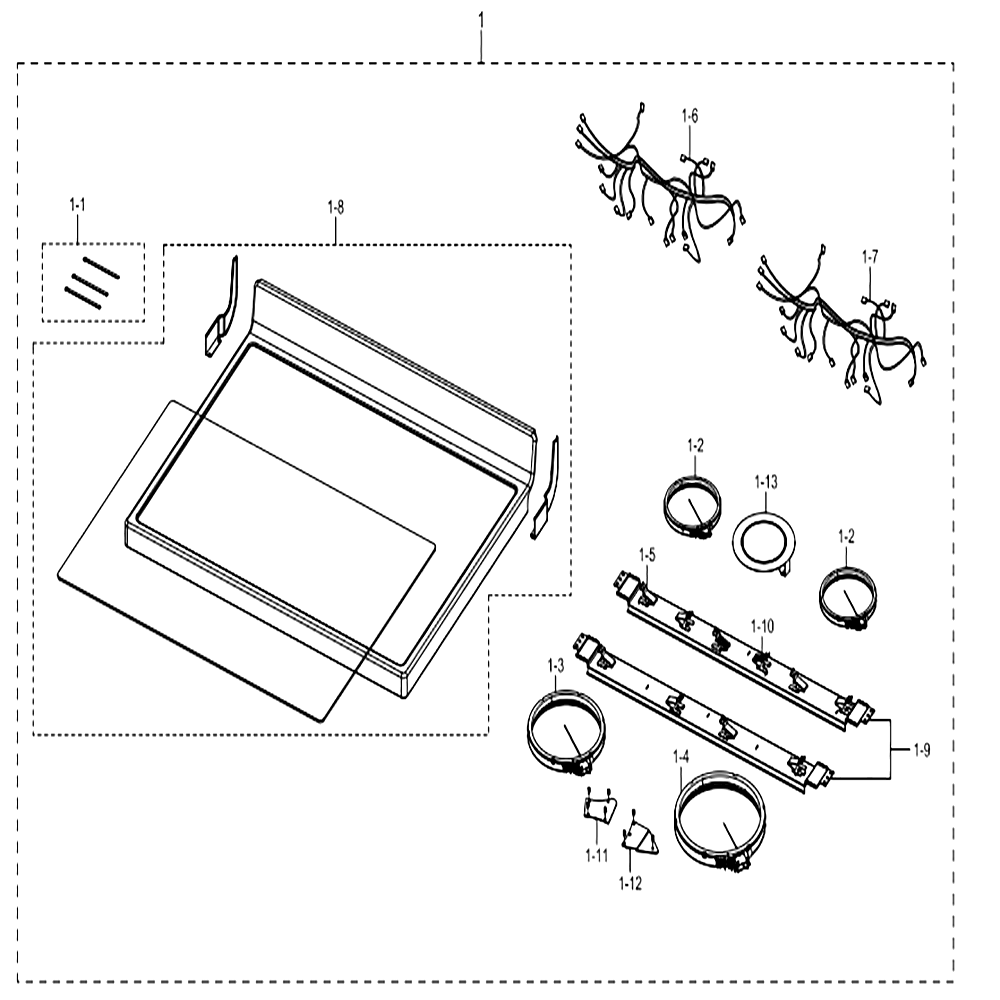

Assy Cook Top

...
...
1-1
Cable Clamp SAM-6502-001117
...
1-2
Heater Radiant-Single SAM-DG47-00060A
...
1-3
Heater Radiant-Dual; Ac240v,6"/9",1400w/3 SAM-DG47-00063A
...
1-4
Heater Radiant-Dual; Ac240v,9"/12",1900w( SAM-DG47-00064A
...
1-5
Support-Heater SAM-DG61-00286A
...
1-6
Assy Wire Harness-Cooktop; Newa4 & Ne59j7 SAM-DG96-00415A
...
1-7
Assy Wire Harness-Cooktop; Ne59j342***,co SAM-DG96-00416A
...
1-8
Assembly Frame-Cooktop SAM-DG94-00735C
...
1-9
Assembly Bracket Heater SAM-DG94-01059A
...
1-10
Support-Warming Heater SAM-DG61-00144B
...
1-11
Bracket-Heater Radiant A SAM-DG61-00229A
...
1-12
Bracket-Heater Radiant B SAM-DG61-00230A
...
1-13
Heater-Radiant SAM-DG47-00024B
...
1
Assy Cooktop; Ne59j3420ss SAM-DG94-01247A

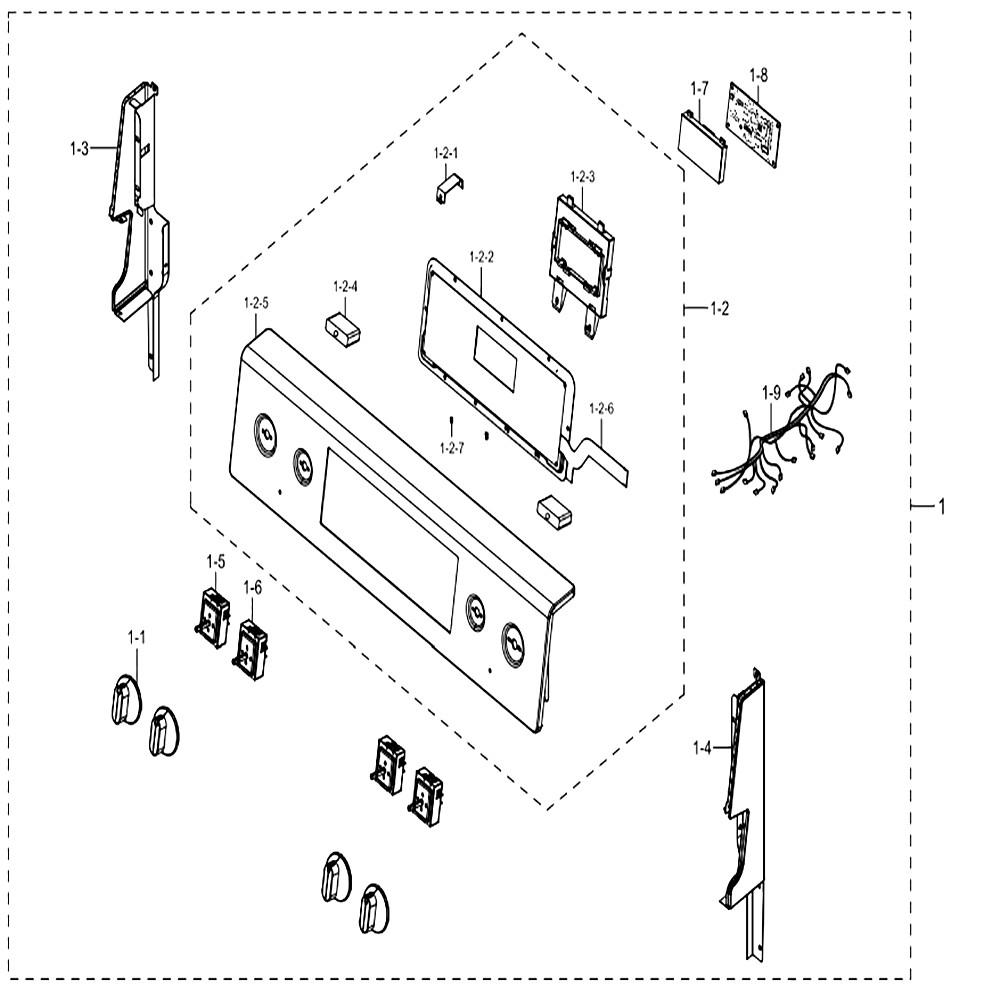

Assy Control Box

...
...
1-1
Assy Knob Dial; Ftq387*,zn,hair Line SAM-DG94-00207B
...
1-2-1
Bracket-Chassis Panel; Fse1310ast,egi-Sec SAM-DG61-00165A
...
1-2-2
Bracket Panel; Ne7000j,egi-Secc,t0.6,w400 SAM-DG61-00972A
...
1-2-3
Holder Display; Ne59m6850ss,pbt+gf,black, SAM-DG61-01233A
...
1-2-4
Indicator-Light SAM-DG64-00131A
...
1-2-5
Assy Control Sub; Ne59m6850ss,stss,ne6000 SAM-DG94-01675D
...
1-2-6
Assy Touch; Ne59m6850ss,black,touch Membr SAM-DG96-00559A
...
1-2-7
Lens-Light SAM-DG67-00022A
...
1-2
Assy Control; Ne59m6850ss,stss,sts430,ne6 SAM-DG94-01918A
...
1-3
Assy Support-Back Guard Lt; Ne*, Ftq*, Fe SAM-DG94-00123E
...
1-4
Assy Support-Back Guard Rt; Ne*, Ftq*, Fe SAM-DG94-00124E
...
1-5
Regulator Energy-Single; Per001-11,ne9000 SAM-DG44-01005B
...
1-6
Regulator Energy-Dual; Per001-12,ne9000k, SAM-DG44-01006B
...
1-7
Led Display; 7s,14d,ne6000m Led (elec Dua SAM-DE07-00130B
...
1-8
Assy Pcb Sub; Slide-In-Ve-04,ne6000m,146x SAM-DE92-03959E
...
1-9
Assy Wire Harness-Display; Ne7000j Pjt Al SAM-DG96-00348A
...
1
Assy Control Box; Ne59m6850ss,ne6000m SAM-DG94-01915A
