Samsung NE59M4310SS/AA_0000

Model: NE59M4310SS/AA_0000

Save Part Not Listed?
product name

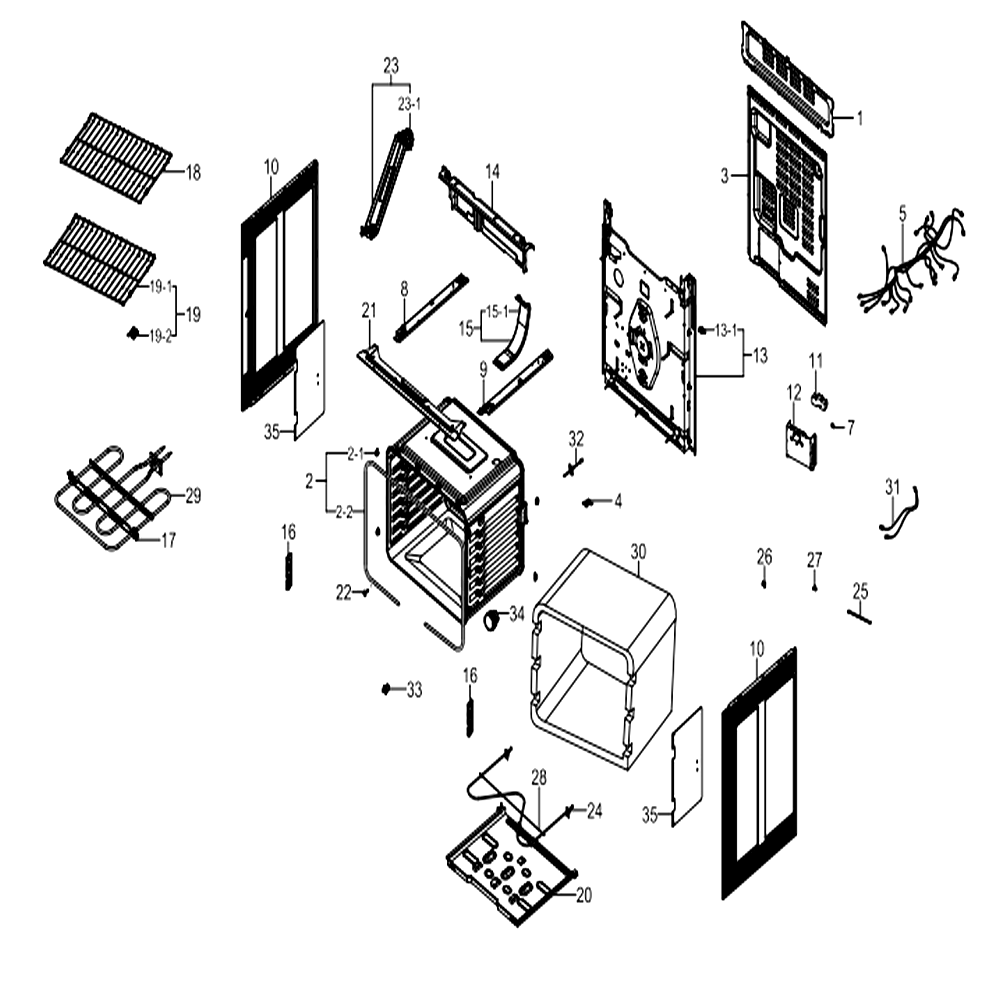

Main

...
...
1
Cover-Back Guard Wire; Fcq321hsux,gi-Sgcc SAM-DG63-00058B
...
2-1
Spacer-Side Panel SAM-DG60-00007B
...
2-2
Gasket Door; Ftq386lwux,glass Fiber,12pi, SAM-DG63-00093A
...
2
Assy Cavity Coating-Main; Ne59m4310**,5.9 SAM-DG94-00050E
...
3
Assy Cover Back-Main; Ne59m6850**,gi-Sgcc SAM-DG94-02187A
...
4
Ground-Terminal Block SAM-DG63-00107A
...
5
Assy Wire Harness-Main; Ne59m4310,240vac, SAM-DG96-00545A
...
7
Bracket-Ground; Ftq386lwux,gi-Sgcc,0.8,14 SAM-DG61-00212A
...
8
Support-Burner Lt; Ftq386**, Ftq352**, Fc SAM-DG61-00146A
...
9
Support-Burner Rt; Ftq386**, Ftq352**, Fc SAM-DG61-00147A
...
10
Panel-Side Coating SAM-DG64-00142A
...
11
Assy-Terminal Block SAM-DG96-00173A
...
12
Bracket-Cover Access SAM-DG61-00168B
...
13-1
Thermostat SAM-DE47-20037A
...
13
Assembly Cover Back-Main SAM-DG97-00123L
...
14
Assy-Shield Rear Sight Welding; Fer300**, SAM-DG94-00144D
...
15-1
Assy-Vent SAM-DG97-00058D
...
15
Assy Vent-Filter; 30" E-Oven,no Coating,a SAM-DG94-01086A
...
16
Assembly Support-Hinge SAM-DG94-00362A
...
17
Assembly Bracket-Broil Heater SAM-DG94-00218B
...
18
Rack-Flat SAM-DG75-01001C
...
19-1
Rack-Flat SAM-DG75-01001C
...
19-2
Assembly Bracket Sub SAM-DG94-00870B
...
19
Assembly Accessory-A SAM-DG97-00118C
...
20
Cover-Bake Heater; Fer300**,fer400**,gi-S SAM-DG63-00065D
...
21
Bracket-Main Top; Fer300**,gi-Sgcc,t0.5,w SAM-DG61-00145C
...
22
Rubber-Cushion SAM-DG73-00003A
...
23-1
Switch-Micro SAM-3405-001034
...
23
Assy Body Latch; Ne59j3420ss,a5 All Model SAM-DG94-01334A
...
24
Heater-Bake SAM-DG47-00038B
...
25
Cable Clamp SAM-6502-001117
...
26
Guide-Cook Top; Ftq386**, Ftq352**, Fcq32 SAM-DG61-00148B
...
27
Screw-Machine; Pwh,m4,l10,zpc(blk),swrch1 SAM-6001-002701
...
28
Steel Wire SAM-DG70-00004A
...
29
Heater-Broil SAM-DG47-00037A
...
30
Adiabatic-Main; Ftq386**/ Ftq352**,glass SAM-DG62-00011A
...
31
Wire Harness-Sub SAM-DG39-00019A
...
32
Sensor-Thermistor SAM-DG32-00002B
...
33
Switch-Door Plunger SAM-DG34-00006A
...
34
Assembly Lamp Bulb SAM-DG97-00083A
...
35
Baffle-Door Sheet; Fe*,gi-Sgcc,embo SAM-DG62-00020D

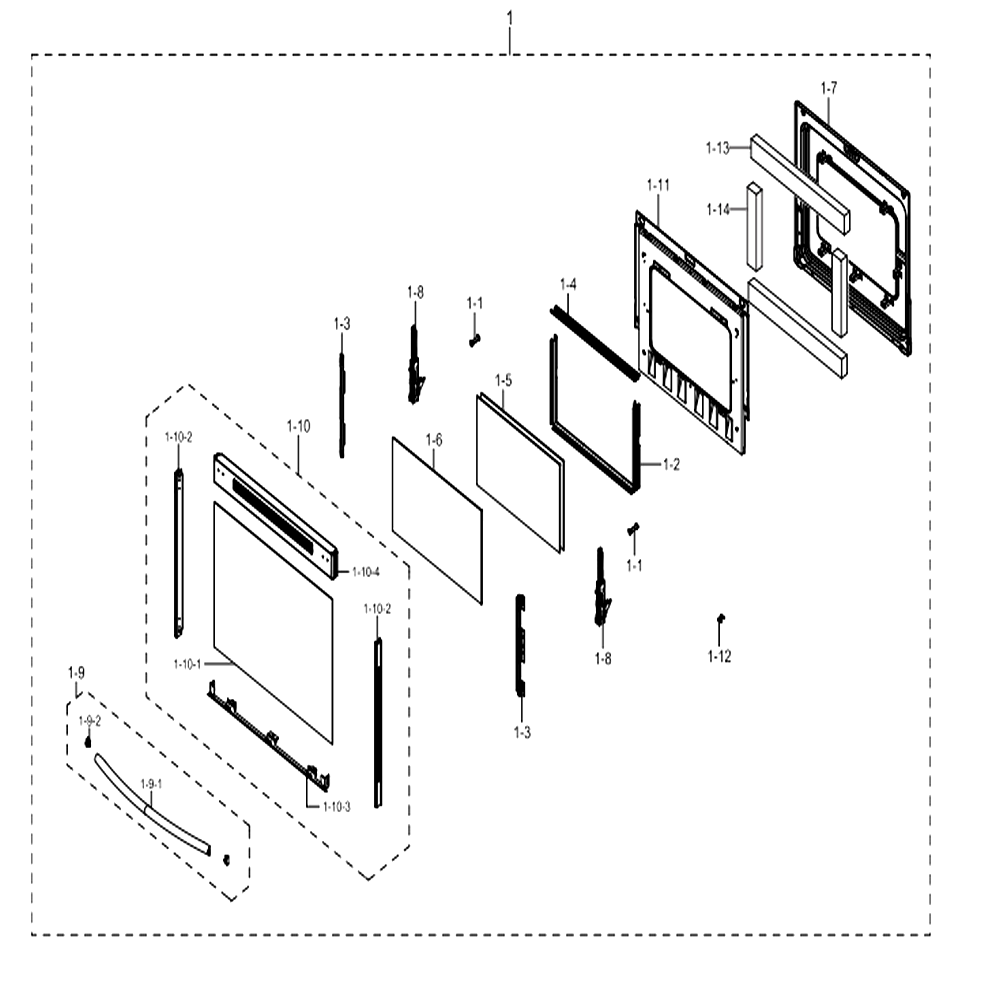

Assy Door

...
...
1-1
Spacer-Door E SAM-DG60-00008A
...
1-2
Frame-Inner Glass SAM-DG61-00121C
...
1-3
Bracket-Inner Glass SAM-DG61-00190C
...
1-4
Cover-Frame Inner Glass SAM-DG63-00077C
...
1-5
Glass-Inner SAM-DG64-00092A
...
1-6
Glass-Inner Sub SAM-DG64-00133A
...
1-7
Assembly Door E SAM-DG94-00063A
...
1-8
Assembly Hinge SAM-DG94-00358A
...
1-9-1
Handle-Al; Fe-R300sx*,al,t1.2,l716.6,al(5 SAM-DG64-00385A
...
1-9-2
Cap Handle; Fe-R300sx*,abs+pc,h16.5,hb,mc SAM-DG67-00058A
...
1-9
Assembly Handle-Al SAM-DG94-00686A
...
1-10-1
Glass-Out; Ne59k3310ss,glass,t3.2,w749.6, SAM-DG64-00090K
...
1-10-2
Assy Trim-Door; Ftq386**, Ftq352**, Fcq32 SAM-DG94-00122A
...
1-10-3
Assy Support-Glass; Ftq352**, Fcq321**,bl SAM-DG94-00129A
...
1-10-4
Assy-Chassis Door Welding; Fer300**,sts43 SAM-DG94-00217D
...
1-10
Assy Door Sub; Ne59k3310ss,stss,smog Glas SAM-DG94-01306D
...
1-11
Assembly Baffle Door SAM-DG97-00113D
...
1-12
Screw-Machine; Th,+,wp,m5,l57,zpc(blk),sw SAM-6001-002267
...
1-13
Adiabatic Door-Top; Ftq386**/ Ftq352**,gl SAM-DG62-00008A
...
1-14
Adiabatic-Door Side SAM-DG62-00010A
...
1
Assy Door; Ne59m4310ss,stss SAM-DG94-01691A

Assy Control Box

...
...
1-1
Heater-Radiant SAM-DG47-00024B
...
1-2
Heater Radiant-Single SAM-DG47-00060A
...
1-3
Heater Radiant-Dual; Ac240v,6"/9",1400w/3 SAM-DG47-00063A
...
1-4
Support-Warming Heater SAM-DG61-00144B
...
1-5
Support-Heater SAM-DG61-00286A
...
1-6
Assembly Bracket Heater SAM-DG94-01059A
...
1-7-1
Glass Top Plate; Ne59m4310ss,glass,t4,w71 SAM-DG64-00390D
...
1-7-2
Assy Cooktop Sub-Coating; Ne*,fe*,ftq*,t0 SAM-DG94-00725A
...
1-7
Assy Frame Cook Top; Ne59m4310ss,ne3000m SAM-DG94-00735R
...
1-8
Assy Wire Harness-Cooktop; Ne59j342***,co SAM-DG96-00416A
...
1-9
Assy Wire Harness-Cooktop; Newa4 & Ne59j7 SAM-DG96-00415A
...
1-10
Cable Clamp SAM-6502-001117
...
1
Assy Cooktop; Ne59m4310ss SAM-DG94-01685A

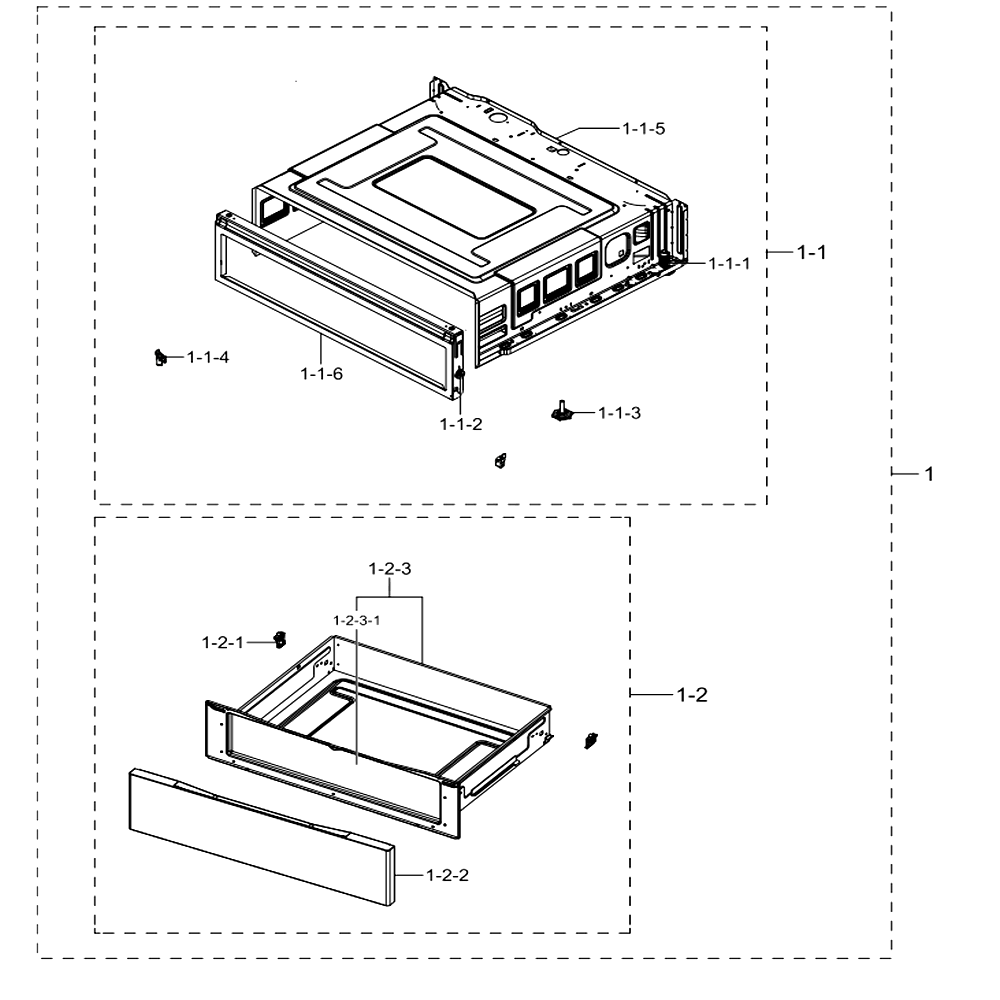

Assy Drawer

...
...
1-1-1
Leg Leveling; Ne59m6850ss,pp,natural,441j SAM-DG61-00432B
...
1-1-2
Spacer-Side Panel SAM-DG60-00007B
...
1-1-3
Leg Leveling; Ne59m6850ss,pp,natural,441j SAM-DG61-00294B
...
1-1-4
Slider-Outer SAM-DG61-00280A
...
1-1-5
Assy Shield Drawer; Ne595r0absr,sgcc T0.5 SAM-DG94-00708A
...
1-1-6
Trim-Pedstal; Ne59k3310ss,gi-Sgcc,t0.8,l2 SAM-DG64-00101C
...
1-1
Assy Pedestal; Ne59k3310ss,stss SAM-DG94-00710B
...
1-2-1
Slider-Inner SAM-DG61-00279A
...
1-2-2
Assy Panel-Warming Drawer Weld; Fer300sx* SAM-DG94-00357C
...
1-2-3-1
Panel-Drawer; Ftq387**, Ftq353**,gi-Sgcc, SAM-DG64-00096B
...
1-2-3
Assy Cavity Drawer; Ne59j3420ss,1.4 Cu.ft SAM-DG94-01246A
...
1-2
Assy Drawer; Ne59j3420ss,stss SAM-DG94-01245A
...
1
Assy Drawer Main; Ne59k3310ss SAM-DG90-00035F

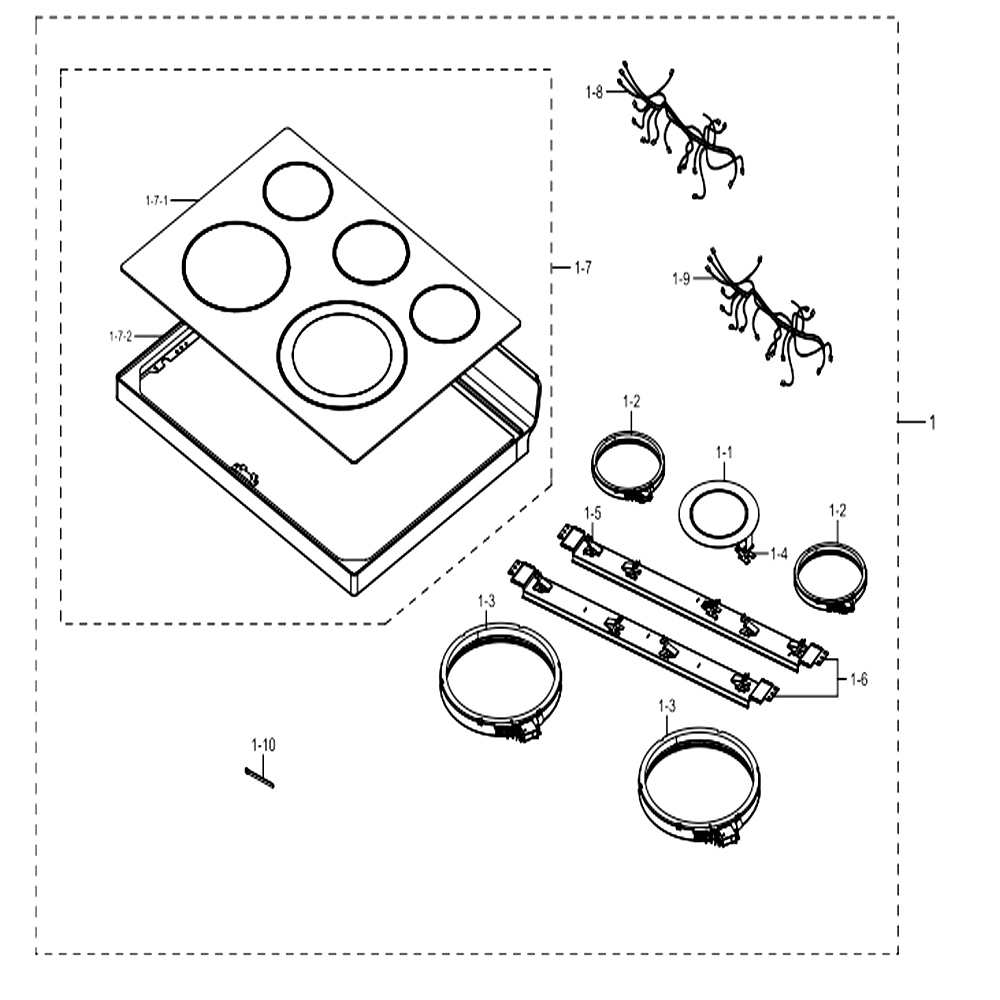

Assy Cook Top

...
...
1-1
Heater-Radiant SAM-DG47-00024B
...
1-2
Heater Radiant-Single SAM-DG47-00060A
...
1-3
Heater Radiant-Dual; Ac240v,6"/9",1400w/3 SAM-DG47-00063A
...
1-4
Support-Warming Heater SAM-DG61-00144B
...
1-5
Support-Heater SAM-DG61-00286A
...
1-6
Assembly Bracket Heater SAM-DG94-01059A
...
1-7-1
Glass Top Plate; Ne59m4310ss,glass,t4,w71 SAM-DG64-00390D
...
1-7-2
Assy Cooktop Sub-Coating; Ne*,fe*,ftq*,t0 SAM-DG94-00725A
...
1-7
Assy Frame Cook Top; Ne59m4310ss,ne3000m SAM-DG94-00735R
...
1-8
Assy Wire Harness-Cooktop; Ne59j342***,co SAM-DG96-00416A
...
1-9
Assy Wire Harness-Cooktop; Newa4 & Ne59j7 SAM-DG96-00415A
...
1-10
Cable Clamp SAM-6502-001117
...
1
Assy Cooktop; Ne59m4310ss SAM-DG94-01685A
