Samsung NE59J7850WS/AA_0002

Model: NE59J7850WS/AA_0002

Save Part Not Listed?
product name

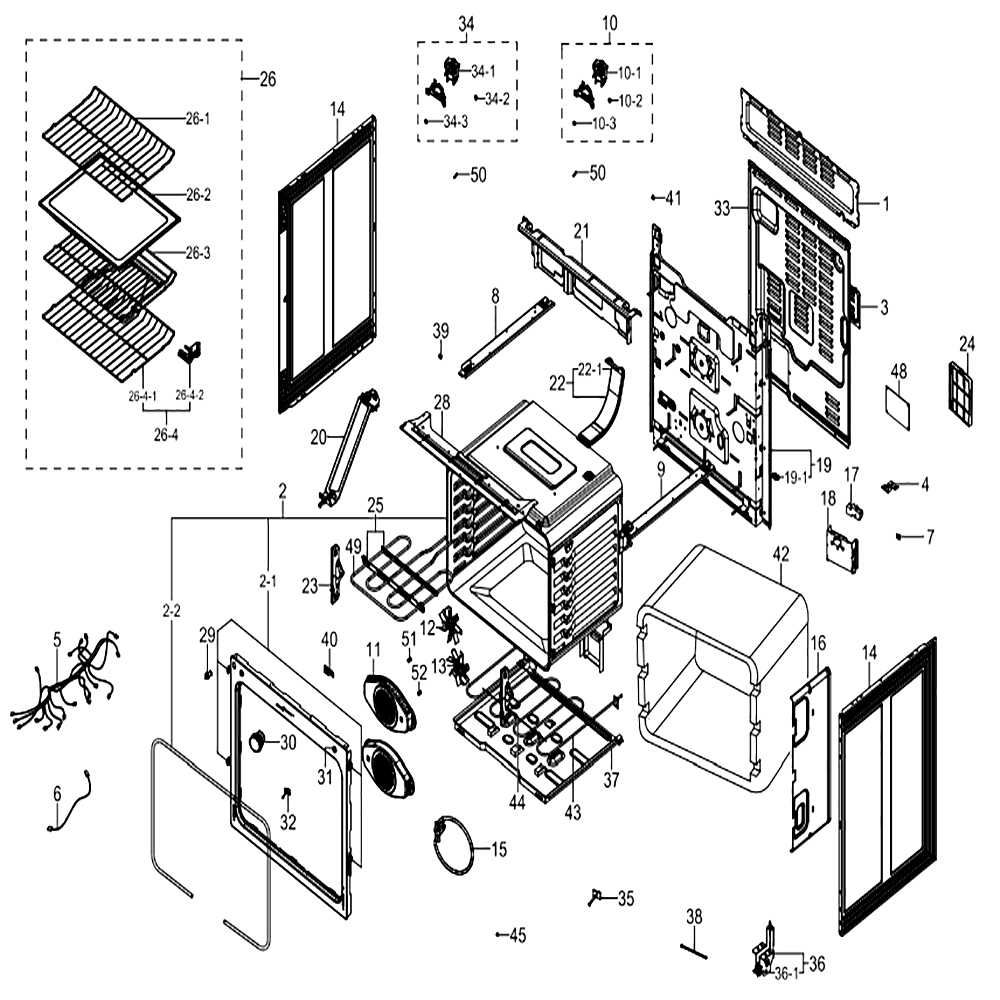

Main

...
...
1
Cover-Back Guard Wire; Fcq321hsux,gi-Sgcc SAM-DG63-00058B
...
2-1
Spacer-Side Panel SAM-DG60-00007B
...
2-2
Gasket Door; Ftq386lwux,glass Fiber,12pi, SAM-DG63-00093A
...
2
Assy Cavity-Coating; Ne59j7850ws,5.9 Cu.f SAM-DG94-01128A
...
3
Cover-Access SAM-DG63-00061B
...
4
Ground-Terminal Block SAM-DG63-00107A
...
5
Assy Wire Harness-Main; Ne59j7850ws,240v/ SAM-DG96-00382A
...
6
Wire Harness-Sub SAM-DG39-00019A
...
7
Bracket-Ground; Ftq386lwux,gi-Sgcc,0.8,14 SAM-DG61-00212A
...
8
Support-Burner Lt; Ftq386**, Ftq352**, Fc SAM-DG61-00146A
...
9
Support-Burner Rt; Ftq386**, Ftq352**, Fc SAM-DG61-00147A
...
10-1
Motor Ac Convection SAM-DG31-00005C
...
10-2
Nut-Flange SAM-DE60-30016A
...
10-3
Cap-Motor Convection SAM-DG67-00028A
...
10
Assembly Motor Convection SAM-DG96-00110E
...
11
Assembly Cover Casing-Upper SAM-DG94-00489B
...
12
Fan-Convection Upper SAM-DG67-00001B
...
13
Fan-Convection Lower SAM-DG67-00011B
...
14
Panel-Side Coating SAM-DG64-00142A
...
15
Heater-Convection Twin SAM-DG47-00009A
...
16
Baffle Door; Ne59j7650ws,gi-Sgcc SAM-DG62-00148A
...
17
Assy-Terminal Block SAM-DG96-00173A
...
18
Bracket-Cover Access SAM-DG61-00168B
...
19-1
Thermostat SAM-DE47-20037A
...
19
Assy Cover Back-Main; Fe710drs,sgcc,t0.6, SAM-DG94-00488A
...
20
Latch Door; Ne59j7850ws,sts430,-,double D SAM-DG66-00033A
...
21
Assy-Shield Rear Sight Coating; Ne59j7650 SAM-DG94-00143E
...
22-1
Assy-Vent SAM-DG97-00058B
...
22
Assy Vent-Filter; 30" E-Oven,blk Coating, SAM-DG94-01087A
...
23
Assy Support Hinge; Ne59j7850ws,damper- 2 SAM-DG94-01120A
...
24
Holder-Pcb Main SAM-DG61-00060C
...
25
Assembly Bracket Heater SAM-DG94-00911A
...
26-1
Rack-Flat SAM-DG75-01001C
...
26-2
Assy-Partition Flex SAM-DG94-00484A
...
26-3
Assy-Split Rack; Fx710bgs/xaa,best SAM-DG94-00634A
...
26-4-1
Rack-Flat SAM-DG75-01001C
...
26-4-2
Assembly Bracket Sub SAM-DG94-00870B
...
26-4
Assembly Accessory-A SAM-DG97-00118C
...
26
Assy Accessory Parts; Ne59j7850ws,double SAM-DG90-00255A
...
28
Bracket-Main Top; Fer300**,gi-Sgcc,t0.5,w SAM-DG61-00145C
...
29
Switch-Door Plunger SAM-DG34-00006A
...
30
Assembly Lamp Bulb SAM-DG97-00083A
...
31
Rubber-Cushion SAM-DG73-00003A
...
32
Sensor-Thermistor SAM-DG32-00002B
...
33
Cover-Back Main Wire SAM-DG63-00062B
...
34-1
Motor Ac Convection; 30" Oven,smc-U386f,2 SAM-DG31-00007E
...
34-2
Nut-Flange SAM-DE60-30016A
...
34-3
Cap-Motor Convection SAM-DG67-00028A
...
34
Assy Motor Convection; Ne58h9970ws,120v,6 SAM-DG96-00110F
...
35
Thermistor-Sensor SAM-DG32-00004C
...
36-1
Switch-Micro SAM-3405-001034
...
36
Assy-Partition Switch SAM-DG97-00014J
...
37
Cover-Bake Heater; Fer500**,gi-Sgcc,t0.4, SAM-DG63-00065E
...
38
Cable Clamp SAM-6502-001117
...
39
Guide-Cook Top; Ftq386**, Ftq352**, Fcq32 SAM-DG61-00148B
...
40
Locker; Ne59j7850ws,zndc,zn-Ni Coating, D SAM-DG64-00526A
...
41
Screw-Tapping; Th,+,no,2,m4,l8,ni Plt,sts SAM-DE60-10059A
...
42
Adiabatic-Main; Ftq386**/ Ftq352**,glass SAM-DG62-00011A
...
43
Heater Sheath-Bottom; Ac240v,3000w,sus309 SAM-DG47-00020B
...
44
Steel Wire SAM-DG70-00004A
...
45
Screw-Machine; Pwh,m4,l10,zpc(blk),swrch1 SAM-6001-002701
...
48
Assy Pcb Main; Oas-Fm-10,ne7000j-Pjt,124* SAM-DE92-02439L
...
49
Heater Sheath-Grill; Ac240v,4200w,incoloy SAM-DG47-00068A
...
50
Spacer-Fan Convection SAM-DG60-00001A
...
51
Nut-Hexagon Cap; M4,ni Plt,swrch10a SAM-6021-001208
...
52
Nut-Hexagon Cap SAM-6021-001211

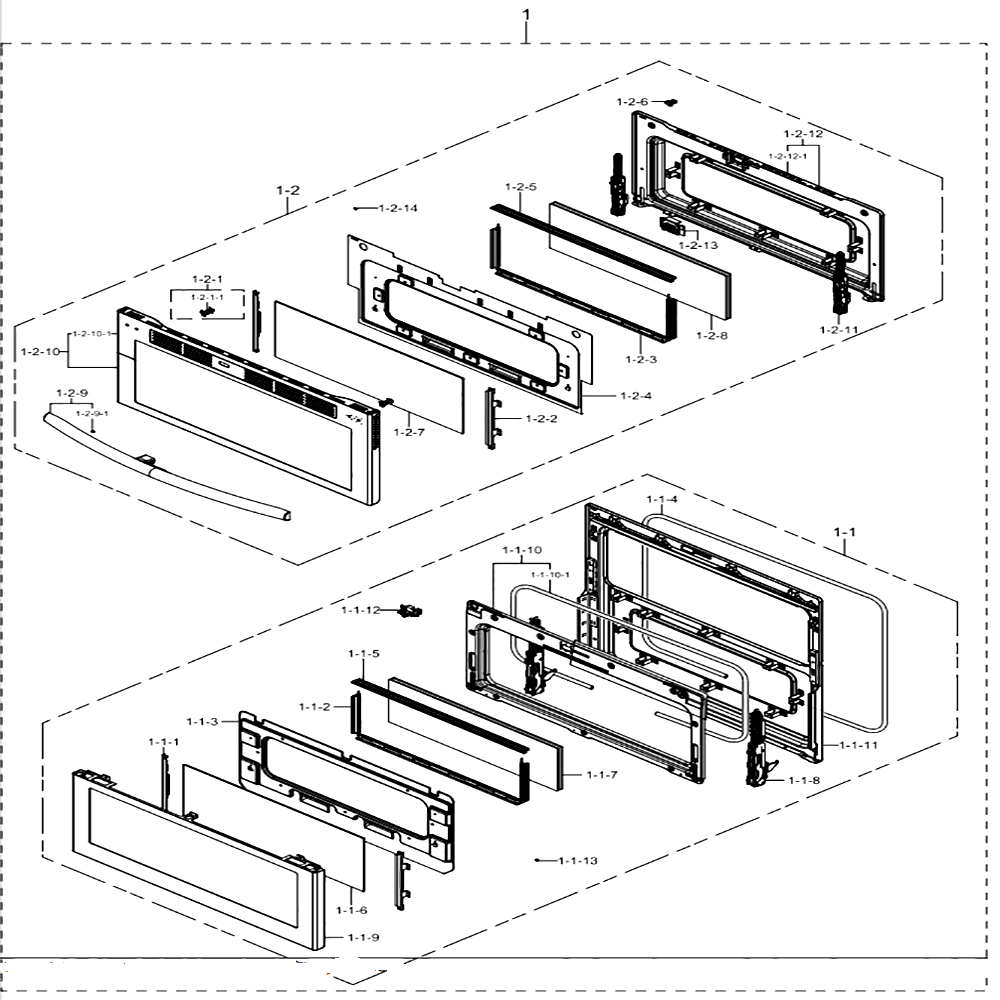

Assy Door

...
...
1-1-1
Bracket Holder; Ne59j7850ws,gi-Sgcc,t0.6, SAM-DG61-00965A
...
1-1-2
Frame Inner Glass; Ne59j7850ws,alcoat-Sa1 SAM-DG61-00966A
...
1-1-3
Baffle Door-Low; Ne59j7850ws,alcoat-Sa1c, SAM-DG62-00147A
...
1-1-4
Gasket Door; Ne59j7850ws,gf,l1688.6,sub SAM-DG63-00255D
...
1-1-5
Cover Glass; Ne59j7850ws,gi-Sgcc,t0.5,dou SAM-DG63-00396A
...
1-1-6
Glass-Sub; Ne59j7850ws,glass,t3.2,w561.5, SAM-DG64-00540A
...
1-1-7
Glass-In; Ne59j7850ws,glass,t4.0,w526,l16 SAM-DG64-00541A
...
1-1-8
Assy Hinge-Main; Ne59j7850ws,flex-Best SAM-DG94-01139B
...
1-1-9
Assy Door Sub-Low; Ne59j7850ws,stss,flex- SAM-DG94-01140A
...
1-1-10-1
Gasket Door; Ne59j7850ws,gf,l1688.6,flex- SAM-DG63-00255C
...
1-1-10
Assy Cover Front-Coating; Ne59j7850ws,fle SAM-DG94-01145A
...
1-1-11
Assy Door E-Coating; Ne59j7850ws,flex-Bes SAM-DG94-01152A
...
1-1-12
Assy Door Lock-Rear; Ne59j7850ws,flex-Bes SAM-DG94-01157A
...
1-1-13
Screw-Machine; Pwh,m4,l10,zpc(blk),swrch1 SAM-6001-002701
...
1-1
Assy Door-Main; Ne59j7850ws,stss,flex-Bes SAM-DG94-01138A
...
1-2-1-1
Spacer Door; Ne7000j,sk5,t0.6,dual Door SAM-DG60-00019A
...
1-2-1
Assy Trim Kit; Ne59j7850ws,welding Spacer SAM-DG94-01238A
...
1-2-2
Bracket Holder; Ne59j7850ws,gi-Sgcc,t0.6, SAM-DG61-00965A
...
1-2-3
Frame Inner Glass; Ne59j7850ws,alcoat-Sa1 SAM-DG61-00966A
...
1-2-4
Baffle Door-Up; Ne59j7850ws,alcoat-Sa1c,d SAM-DG62-00146A
...
1-2-5
Cover Glass; Ne59j7850ws,gi-Sgcc,t0.5,dou SAM-DG63-00396A
...
1-2-6
Button Push; Ne59j7850ws,al,dual Door SAM-DG64-00525A
...
1-2-7
Glass-Sub; Ne59j7850ws,glass,t3.2,w561.5, SAM-DG64-00540A
...
1-2-8
Glass-In; Ne59j7850ws,glass,t4.0,w526,l16 SAM-DG64-00541A
...
1-2-9-1
Screw-Machine; Ph,+,-,m4,l8,zpc(wht),swrc SAM-6001-000618
...
1-2-9
Assy Handle; Ne59j7850ws,flex-Best SAM-DG94-01134A
...
1-2-10-1
Assy Chassis Door-Up; Ne59j7850ws,stss,fl SAM-DG94-01148A
...
1-2-10
Assy Door Sub-Up; Ne59j7850ws,flex-Best SAM-DG94-01142A
...
1-2-11
Assy Hinge-Up; Ne59j7850ws,flex-Best SAM-DG94-01147A
...
1-2-12-1
Assy Door E-Up; Ne59j7850ws,flex-Best SAM-DG94-01143A
...
1-2-12
Assy Door E-Coating; Ne59j7850ws,flex-Bes SAM-DG94-01152B
...
1-2-13
Assy Door Lock-Front; Ne59j7850ws,flex-Be SAM-DG94-01156A
...
1-2-14
Screw-Machine; Pwh,m4,l10,zpc(blk),swrch1 SAM-6001-002701
...
1-2
Assy Door-Up; Ne59j7850ws,stss,flex-Best SAM-DG94-01141A
...
1
Assy Door; Ne59j7850ws,stss,flex-Best SAM-DG94-01123A

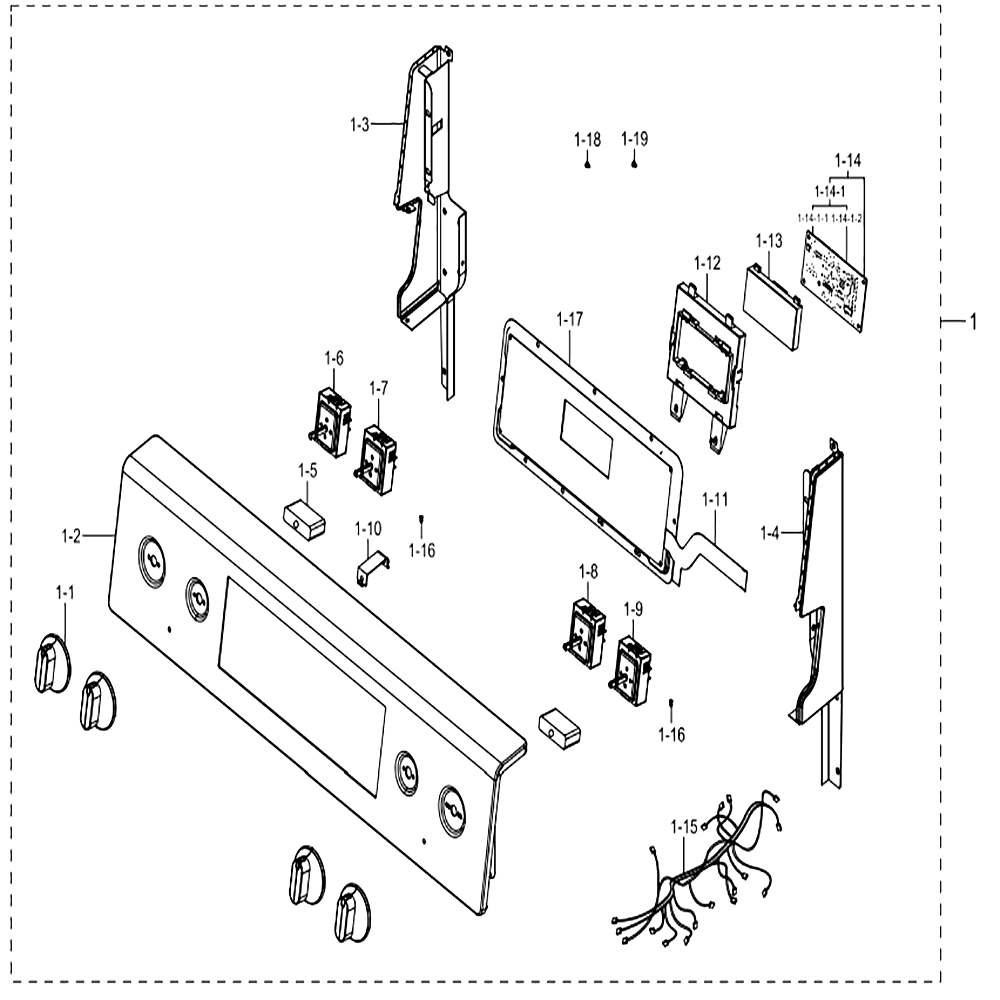

Assy Control

...
...
1-1
Assy Knob Dial; Ftq387*,zn,hair Line SAM-DG94-00207B
...
1-2
Assy Control Sub; Ne59j7650ws,stss,sts430 SAM-DG94-01115A
...
1-3
Assy Support-Back Guard Lt; Ne*, Ftq*, Fe SAM-DG94-00123E
...
1-4
Assy Support-Back Guard Rt; Ne*, Ftq*, Fe SAM-DG94-00124E
...
1-5
Indicator-Light SAM-DG64-00131A
...
1-6
Regulator-Energy S SAM-DG44-01005A
...
1-7
Regulator-Energy D SAM-DG44-01006A
...
1-8
Regulator-Energy T SAM-DG44-01007A
...
1-9
Regulator-Energy Single SAM-DG44-01009A
...
1-10
Bracket-Chassis Panel; Fse1310ast,egi-Sec SAM-DG61-00165A
...
1-11
Switch Membrane; Ne59j7850ws,pc,200 Grs ~ SAM-DG34-00032A
...
1-12
Holder Display; Ne59j7850ws,pbt,t10.5,bla SAM-DG61-00962A
...
1-13
Led Display; 7s,14d,ne7000j_Flex($1499),i SAM-DE07-00130A
...
1-14-1-1
Header-Board To Cable; Box,10p,1r,2mm,smd SAM-3711-006099
...
1-14-1-2
Header-Board To Cable; Box,5p,1r,2mm,smd- SAM-3711-008000
...
1-14-1
Assy Pcb Smd; Ne7000j_Sub,ne7000j-Pjt,120 SAM-DE94-03414A
...
1-14
Assy Pcb Sub; Ne7000j_Sub,ne7000j-Pjt,120 SAM-DE92-03773A
...
1-15
Assy Wire Harness-Display; Ne7000j Pjt Al SAM-DG96-00348A
...
1-16
Lens-Light SAM-DG67-00022A
...
1-17
Bracket Panel; Ne7000j,egi-Secc,t0.6,w400 SAM-DG61-00972A
...
1-18
Screw-Machine; Th,+,no,m4,l6,pass,sts430, SAM-DE60-00001A
...
1-19
Screw-Tapping; Th,+,no,2s,m4,l6,ni Plt,sw SAM-DE60-10065A
...
1
Assy Control Box; Ne59j7850ws,stss SAM-DG94-01122A

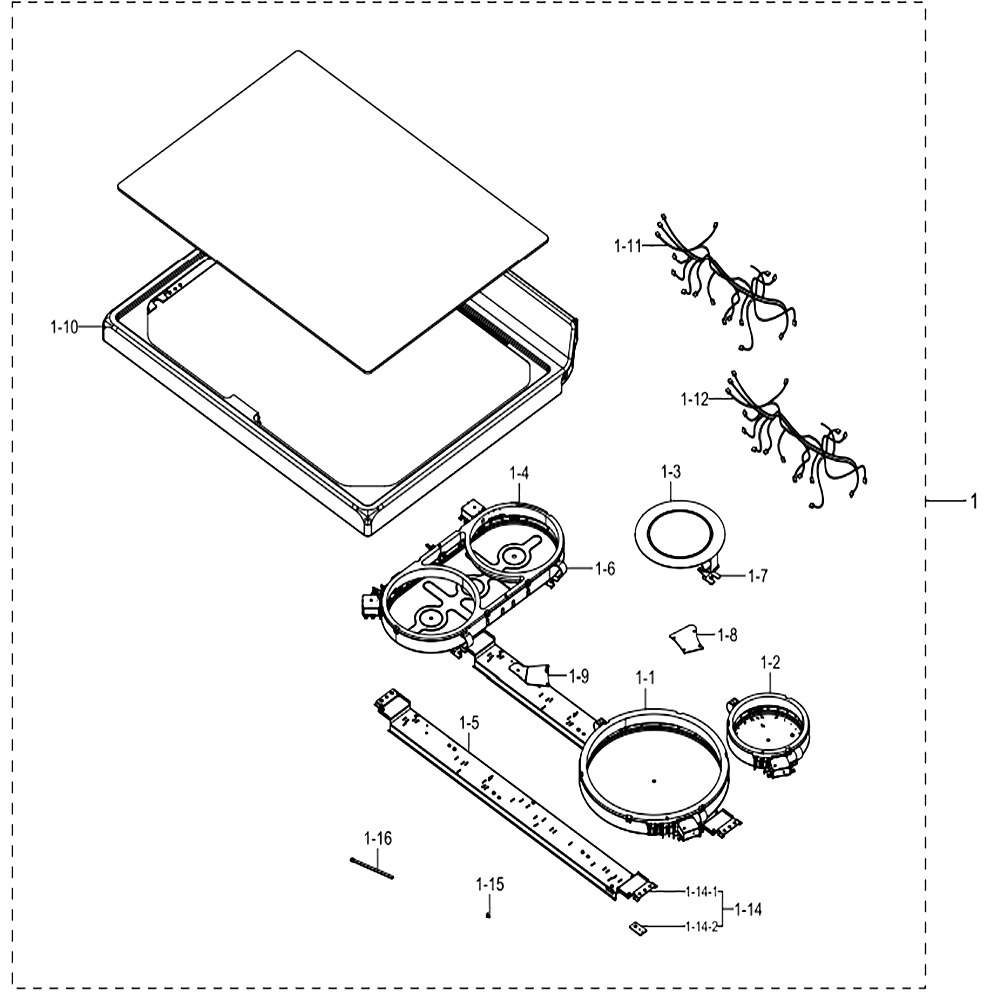

Assy Cook Top

...
...
1-1
Heater-Radiant Triple SAM-DG47-00021B
...
1-2
Heater-Radiant-Single SAM-DG47-00023A
...
1-3
Heater-Radiant SAM-DG47-00024B
...
1-4
Heater Radiant-Bridge SAM-DG47-00066A
...
1-5
Assembly Bracket Heater SAM-DG94-01059A
...
1-6
Support-Heater SAM-DG61-00286A
...
1-7
Support-Warming Heater SAM-DG61-00144B
...
1-8
Bracket-Heater Radiant A SAM-DG61-00229A
...
1-9
Bracket-Heater Radiant B SAM-DG61-00230A
...
1-10
Assy Frame Cook Top; Ne59j7650ws,ne7000j SAM-DG94-01114A
...
1-11
Assy Wire Harness-Cooktop; Ne59j7850ws,24 SAM-DG96-00376A
...
1-12
Assy Wire Harness-Cooktop; Ne59j7650ws,24 SAM-DG96-00377A
...
1-14-1
Bracket-Heater SAM-DG61-00142A
...
1-14-2
Bracket Burner SAM-DG61-00824A
...
1-14
Assembly Bracket Holder SAM-DG94-00920A
...
1-15
Screw-Tapping; Ph,+,no,1,m4,l10,zpc(wht), SAM-DE60-00003A
...
1-16
Cable Clamp SAM-6502-001117
...
1
Assy Cooktop; Ne59j7850ws,flex-Best SAM-DG94-01153A

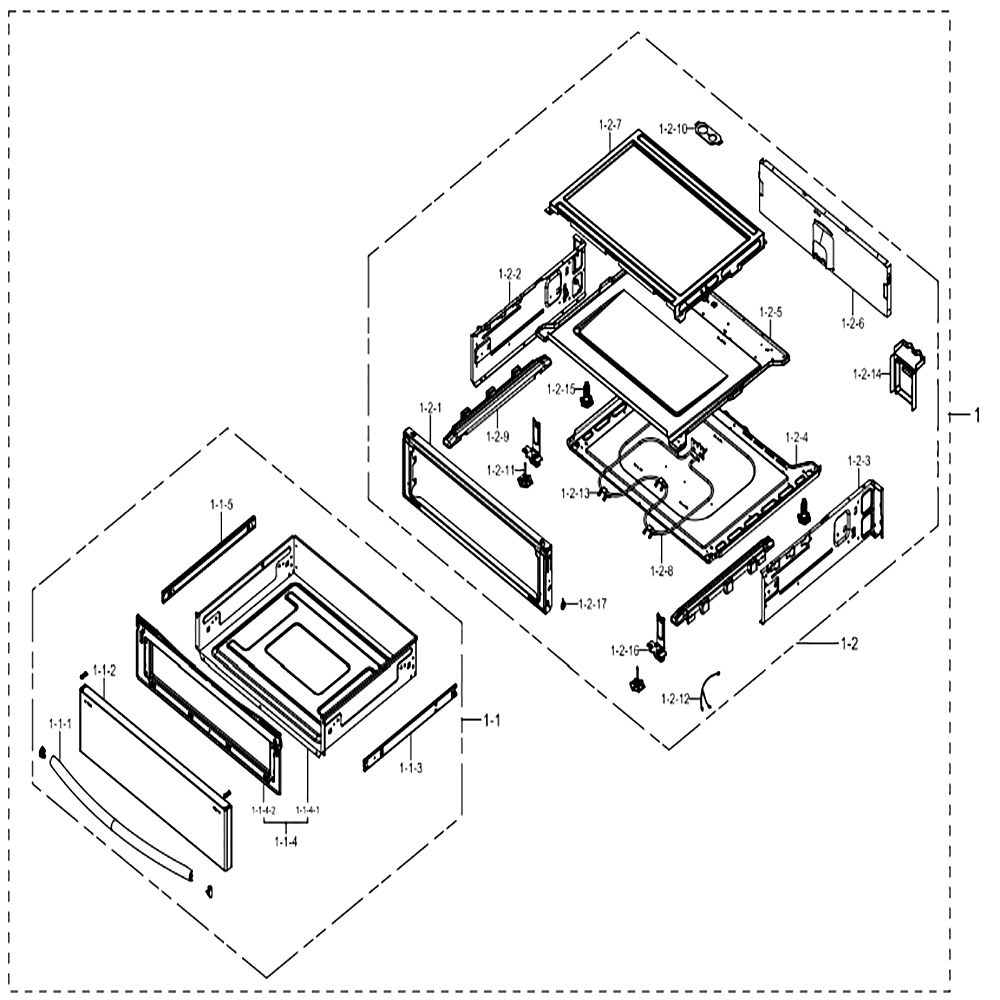

Assy Drawer

...
...
1-1-1
Assembly Handle-Al SAM-DG94-00686A
...
1-1-2
Assy Panel-Warming Drawer Weld; Ftq387**, SAM-DG94-00357B
...
1-1-3
Assy Slider Right; Ne597r0absr SAM-DG94-00983A
...
1-1-4-1
Assy Cavity Drawer; Ne595r1absr,1.4,epoxy SAM-DG94-00125D
...
1-1-4-2
Panel-Drawer; Ftq387**, Ftq353**,gi-Sgcc, SAM-DG64-00096B
...
1-1-4
Assy Cavity Drawer; Ne595r1absr,1.4,epoxy SAM-DG97-00129H
...
1-1-5
Assy Slider Left; Ne597r0absr SAM-DG94-00984A
...
1-1
Assy Drawer; Ne59j7650ws,stss,single Best SAM-DG94-01197A
...
1-2-1
Assy Trim-Pedestal Front; Fe710drs*,black SAM-DG94-00126B
...
1-2-2
Shield-Side Drawer Lt; Fe710drs*,gi-Sgcc, SAM-DG63-00056D
...
1-2-3
Shield-Side Drawer Rt; Fe710drs*,gi-Sgcc, SAM-DG63-00057D
...
1-2-4
Assy Base Bottom; Ne59j7850ws SAM-DG94-00910B
...
1-2-5
Shield-Upper Drawer; Fe710drs*,gi-Sgcc,t0 SAM-DG63-00217A
...
1-2-6
Cover-Back Warmer; A-1 Pjt,gi-Sgcc,t0.6,- SAM-DG63-00054A
...
1-2-7
Shield-Top Drawer; Fe710drs*,gi-Sgcc,t0.5 SAM-DG63-00218A
...
1-2-8
Heater-Warming Drawer SAM-DG47-00018A
...
1-2-9
Slider-Partition SAM-DG61-00543A
...
1-2-10
Bracket-Multi Connector SAM-DG61-00206A
...
1-2-11
Leg-Leveling A2 SAM-DG61-00294A
...
1-2-12
Assembly Wire Harness-Wd SAM-DG96-00134A
...
1-2-13
Bracket-Warming Heater SAM-DG61-00126A
...
1-2-14
Cover-Warming Heater SAM-DG63-00101B
...
1-2-15
Leg-Leveling SAM-DG61-00432A
...
1-2-16
Bracket-Leg Leveling SAM-DG61-00430A
...
1-2-17
Spacer-Side Panel SAM-DG60-00007B
...
1-2
Assy Pedestal; Ne59j7850ws,flex Best SAM-DG94-01170A
...
1
Assy Drawer Main; Ne59j7850ws,dual Door SAM-DG90-00258A
