Samsung NE59J7630SW-AA-03 Electric Range

Model: NE59J7630SW-AA-03

Save
 Part Not Listed?Part Not Listed?
product name

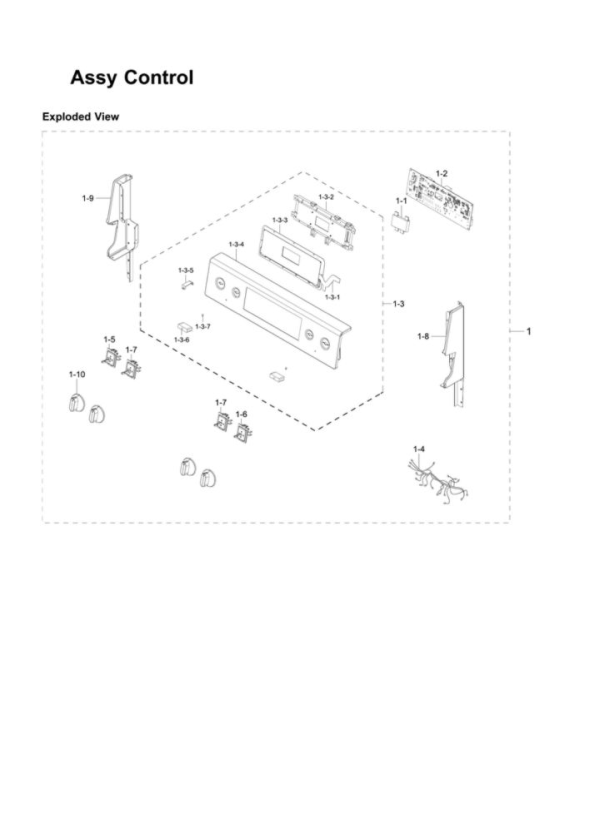

Samsung NE59J7630SW-AA-03

...
...
1-3-1
Range Membrane Switch SAM-DG34-00030B
...
1-1
Range Display Board SAM-DE07-00129A
...
1-10
Range Surface Element Knob SAM-DG94-00221B
...
1-9
Support Assembly SAM-DG94-00123F
...
1-8
Support Assembly SAM-DG94-00124F
...
1-7
Range Surface Element Control Switch SAM-DG44-01009A
...
1-6
Range Surface Element Control Switch SAM-DG44-01007B
...
1-5
Range Surface Element Control Switch SAM-DG44-01006A
...
1-3-7
Cooktop Indicator Light Lens SAM-DG67-00022A
...
1-2
Range Oven Control Board SAM-DE92-03761B
...
1-3-2
Range Control Panel Inner Bracket SAM-DG61-00627A
...
1-3-3
Range Oven Control Bracket SAM-DG61-00625A
...
1-3-5
Bracket Chassis Panel SAM-DG61-00165A
...
1-4
Range Display Wire Harness SAM-DG96-00348A
...
1-3-6
Range Indicator Light SAM-DG64-00131A
...
1-3-4
Control SAM-DG94-01115C

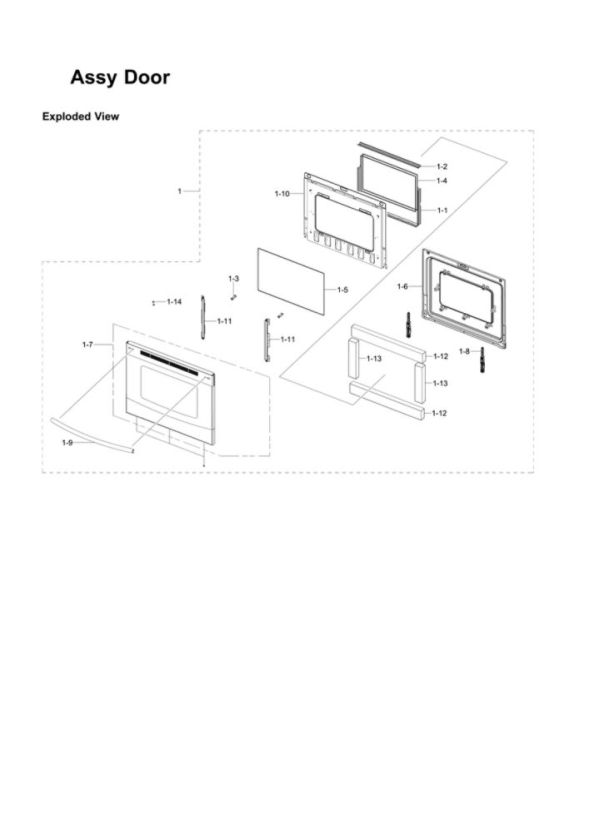

Samsung NE59J7630SW-AA-03

...
...
1-4
Range Oven Door Inner Glass SAM-DG64-00092A
...
1
Range Oven Door Assembly SAM-DG94-00223F
...
1-14
Screw SAM-6001-002267
...
1-10
Drive Baffle SAM-DG97-00113D
...
1-9
Range Oven Door Handle (White) SAM-DG94-00222B
...
1-7
Range Oven Door Outer Panel Assembly SAM-DG94-00224F
...
1-3
Range Oven Door Inner Glass Bracket SAM-DG60-00008A
...
1-5
Range Oven Door Inner Glass SAM-DG64-00133A
...
1-6
Range Oven Door Liner SAM-DG94-00063A
...
1-8
Range Oven Door Hinge SAM-DG94-00358A

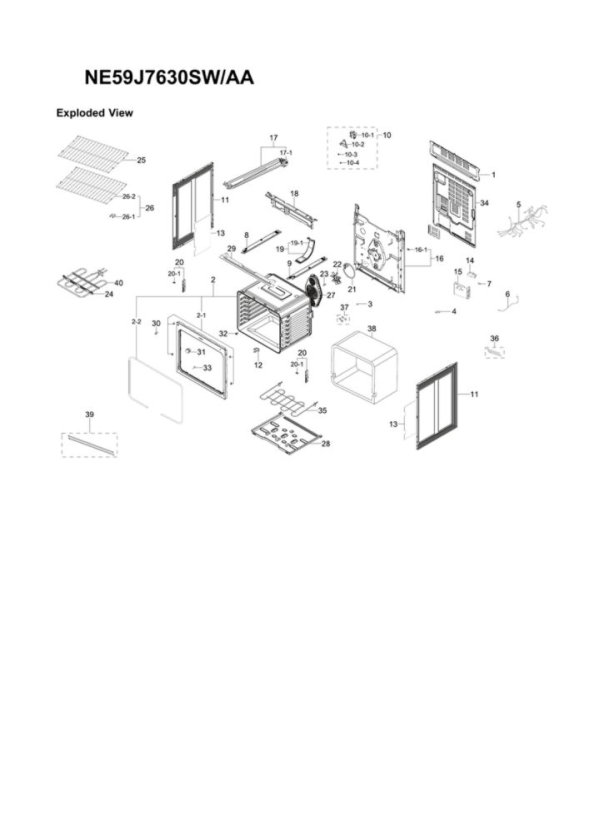

Samsung NE59J7630SW-AA-03

...
...
1
Range Control Panel Back Shield SAM-DG63-00058B
...
2-2
Range Oven Door Gasket SAM-DG63-00093A
...
2-1
Range Side Panel Spacer SAM-DG60-00007B
...
3
Range Convection Fan Blade Nut SAM-6021-001211
...
4
Range Terminal Block Grounding Strap Plate SAM-DG63-00107A
...
5
Range Wire Harness SAM-DG96-00378A
...
6
Range Wire Harness SAM-DG39-00019A
...
8
Support SAM-DG61-00146A
...
9
Support SAM-DG61-00147A
...
10
Range Convection Fan Motor Assembly SAM-DG96-00110E
...
10-4
Cooking Appliance Flange Nut SAM-DE60-30016A
...
10-3
Range Convection Fan Motor Cap SAM-DG67-00028A
...
10-1
Range Convection Fan Motor SAM-DG31-00005C
...
12
Heat Bracket SAM-DG61-00228A
...
14
Range Terminal Block SAM-DG96-00173A
...
16-1
Range High-Limit Thermostat SAM-DE47-20037A
...
16
Main Cover SAM-DG97-00123G
...
17-1
Microwave Door Interlock Switch SAM-3405-001034
...
17
Range Oven Door Lock Assembly SAM-DG94-01334A
...
18
Shield Assembly SAM-DG94-00144D
...
19-1
Vent Assembly SAM-DG97-00058D
...
20
Range Oven Door Hinge Support Bracket SAM-DG94-00362A
...
21
Range Convection Element SAM-DG47-00017A
...
22
Range Convection Fan Blade SAM-DG67-00018A
...
23
Range Convection Fan Blade Spacer SAM-DG60-00001A
...
24
Range Broil Element Bracket SAM-DG94-00911A
...
25
Range Oven Rack SAM-DG75-01001C
...
26
Range Anti-Tip Bracket Kit SAM-DG97-00118C
...
26-1
Range Anti-Tip Bracket SAM-DG94-00870B
...
27
Range Convection Fan Cover SAM-DG97-00086C
...
28
Range Bake Element Base SAM-DG63-00065E
...
30
Range Oven Door Switch SAM-DG34-00006A
...
31
Range Oven Light Bulb SAM-DG97-00083A
...
33
Range Oven Temperature Sensor SAM-DG32-00002B
...
34
Assembly Cover Back-Main SAM-DG94-02187A
...
35
Range Bake Element SAM-DG47-00020B
...
40
Range Broil Element SAM-DG47-00068A

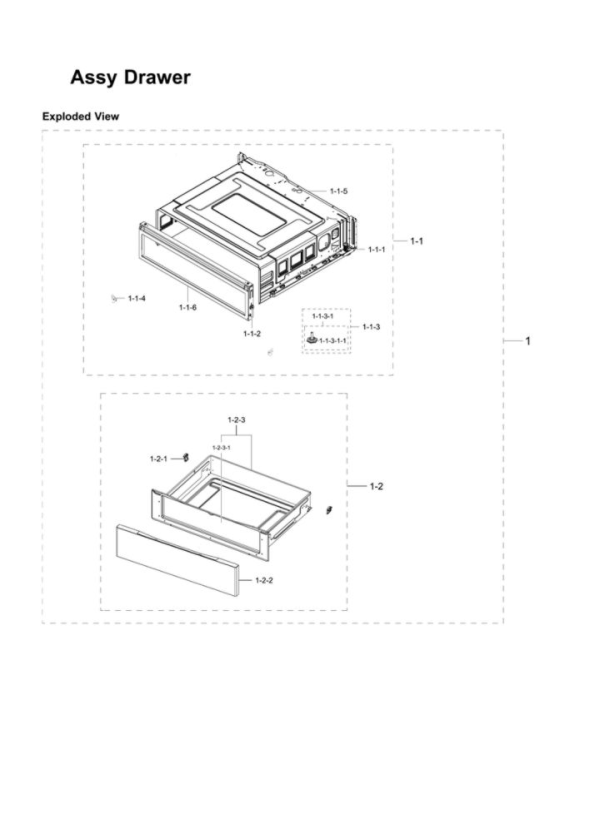

Samsung NE59J7630SW-AA-03

...
...
1-1-5
Assembly Shield Drawer SAM-DG94-00708B
...
1-1-2
Range Side Panel Spacer SAM-DG60-00007B
...
1-2-1
Range Storage Drawer Roller SAM-DG61-00279A
...
1-1-4
Slider-Out SAM-DG61-00280A
...
1-1-1
Range Leveling Leg SAM-DG61-00525C
...
1-2
Assembly Drawer SAM-DG94-02290C
...
1
Drawer Main SAM-DG90-00789C
...
1-1-3
Range Leveling Leg SAM-DG94-02252A
...
1-2-3-1
Range Warming Drawer Front Panel Liner SAM-DG64-00096B
...
1-1
Pedestal SAM-DG94-02253A
...
1-1-3-1-1
Leg Leveling (2) SAM-DG61-01504A

Samsung NE59J7630SW-AA-03

...
...
1-3
Range Warming Radiant Surface Element SAM-DG47-00024B
...
1-4
Range Dual Radiant Surface Element SAM-DG47-00067A
...
1-5
Range Radiant Element Support Bracket SAM-DG61-00286A
...
1-7
Range Surface Warming Element Support SAM-DG61-00144B
...
1-8
Range Surface Element Bracket SAM-DG61-00230A
...
1-9
Bracket,A SAM-DG61-00229A
...
1-10
Range Main Top Assembly (White) SAM-DG94-01135A
...
1-11
Range Main Top Wire Harness SAM-DG96-00415A
...
1-12
Harness SAM-DG96-00417A
...
1-1
Range Triple Radiant Element SAM-DG47-00065A
...
1-2
Range Radiant Surface Element, 6-In SAM-DG47-00060A
...
...
...
