Samsung NE595R0ABBB_AA

Model: NE595R0ABBB_AA

Save Part Not Listed?
product name

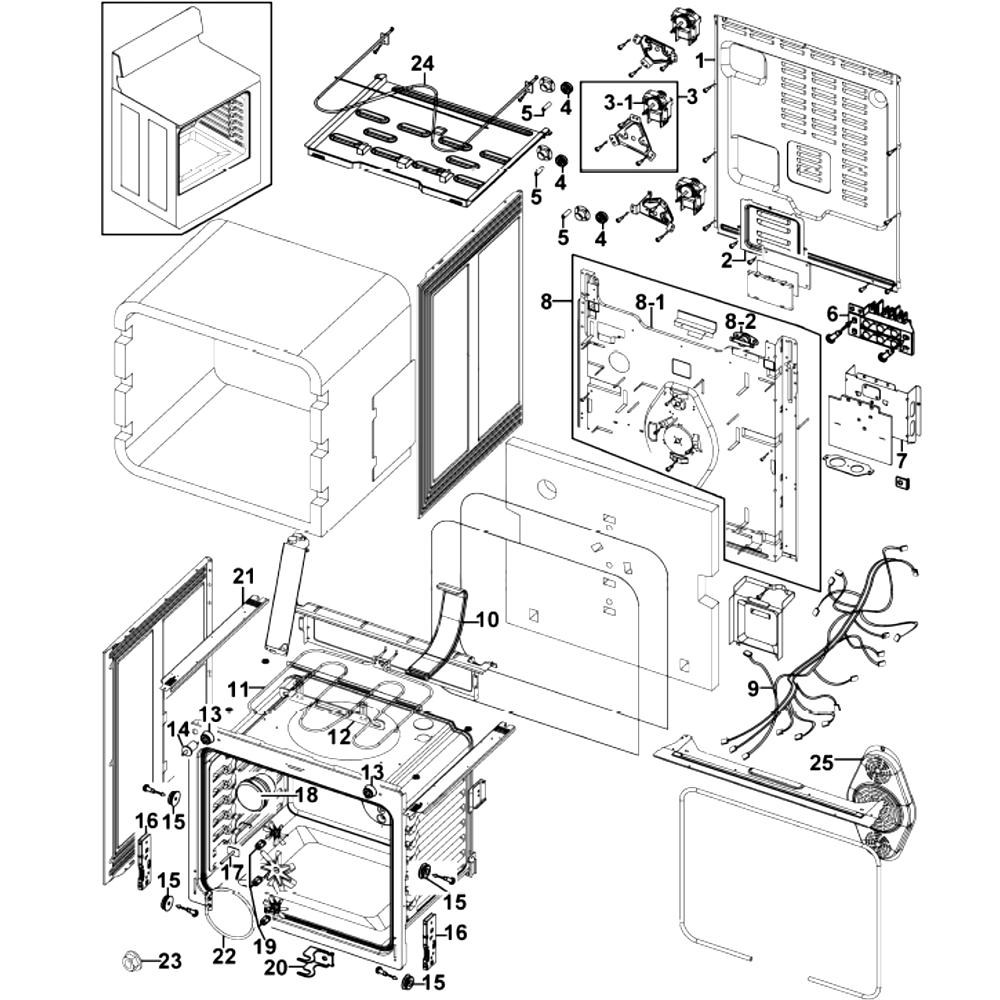

Assy Cavity

...
...
1
Cover-Back Main Wire SAM-DG63-00062B
...
2
Cover-Access SAM-DG63-00061B
...
3-1
Motor Convection SAM-DG31-00005A
...
3
Assembly Motor Convection SAM-DG96-00110A
...
4
Cap-Motor Convection SAM-DG67-00028A
...
5
Spacer-Fan Convection SAM-DG60-00001A
...
6
Assy-Terminal Block SAM-DG96-00173A
...
7
Bracket-Cover Access SAM-DG61-00168B
...
8-1
Assembly Cover Back-Main Sub SAM-DG97-00076A
...
8-2
Thermostat SAM-DE47-20037A
...
8
Assembly Cover Back-Main SAM-DG97-00123L
...
9
Assembly Wire Harness-A SAM-DG96-00266A
...
10
Assy-Vent SAM-DG97-00058B
...
11
Heater-Broil SAM-DG47-00055A
...
12
Assembly Bracket-Broil Heater SAM-DG94-00699A
...
13
Rubber-Cushion SAM-DG73-00003A
...
14
Switch-Door Plunger SAM-DG34-00006A
...
15
Spacer-Side Panel SAM-DG60-00007B
...
16
Assembly Support-Hinge SAM-DG94-00362A
...
17
Sensor-Thermistor SAM-DG32-00002B
...
18
Assembly Lamp Bulb SAM-DG97-00083A
...
19
Nut-Hexagon Cap SAM-6021-001211
...
20
Bracket-Heater Convection SAM-DG61-00228A
...
21
Latch-Door SAM-DG66-00017E
...
22
Heater-Convection SAM-DG47-00017A
...
23
Nut-Flange SAM-DE60-30016A
...
24
Heater-Bake SAM-DG47-00038B
...
25
Assembly Cover Casing SAM-DG97-00086C

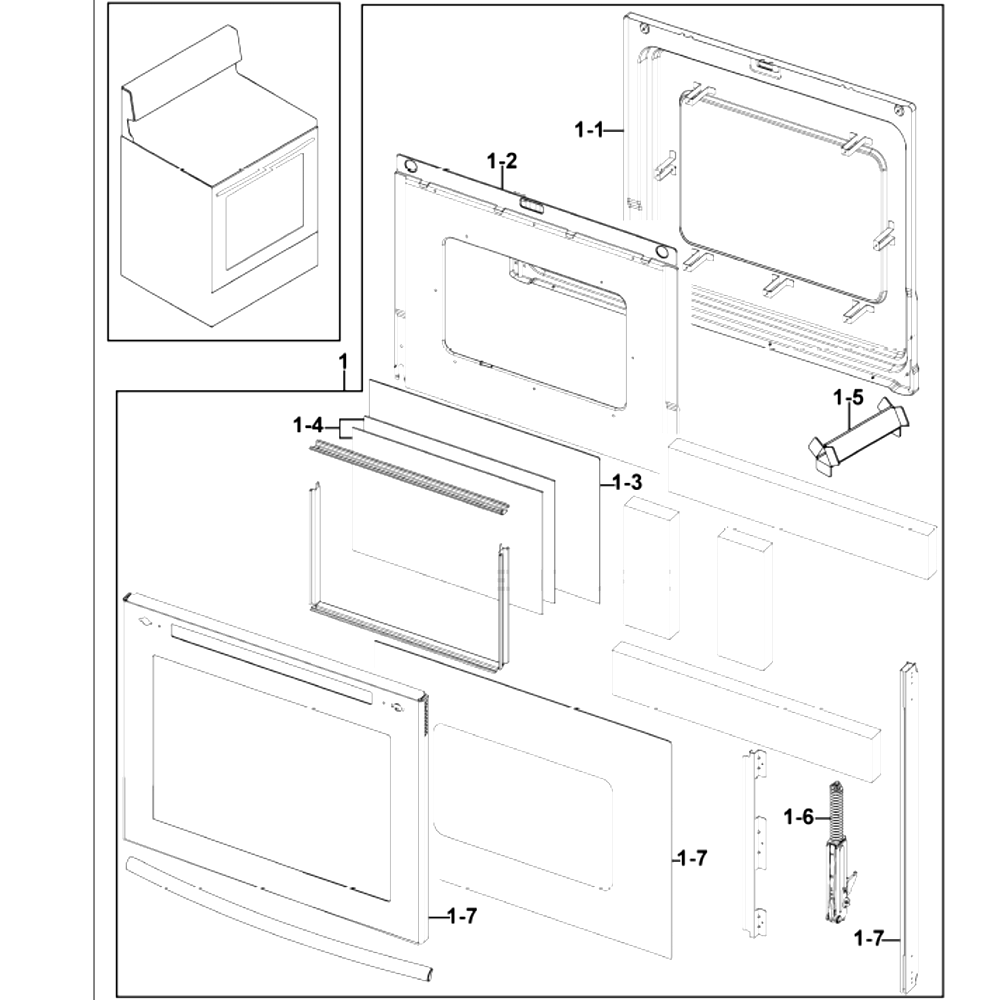

Assy Door

...
...
1
Assembly Door SAM-DG94-00223D
...
1-7
Assembly Door Sub SAM-DG94-00224A
...
1-6
Assembly Hinge SAM-DG94-00358A
...
1-5
Spacer-Door E SAM-DG60-00008A
...
1-3
Glass-Inner Sub SAM-DG64-00133A
...
1-4
Glass-Inner SAM-DG64-00092A
...
1-1
Assembly Door E SAM-DG94-00063A
...
1-2
Assembly Baffle Door SAM-DG97-00113D

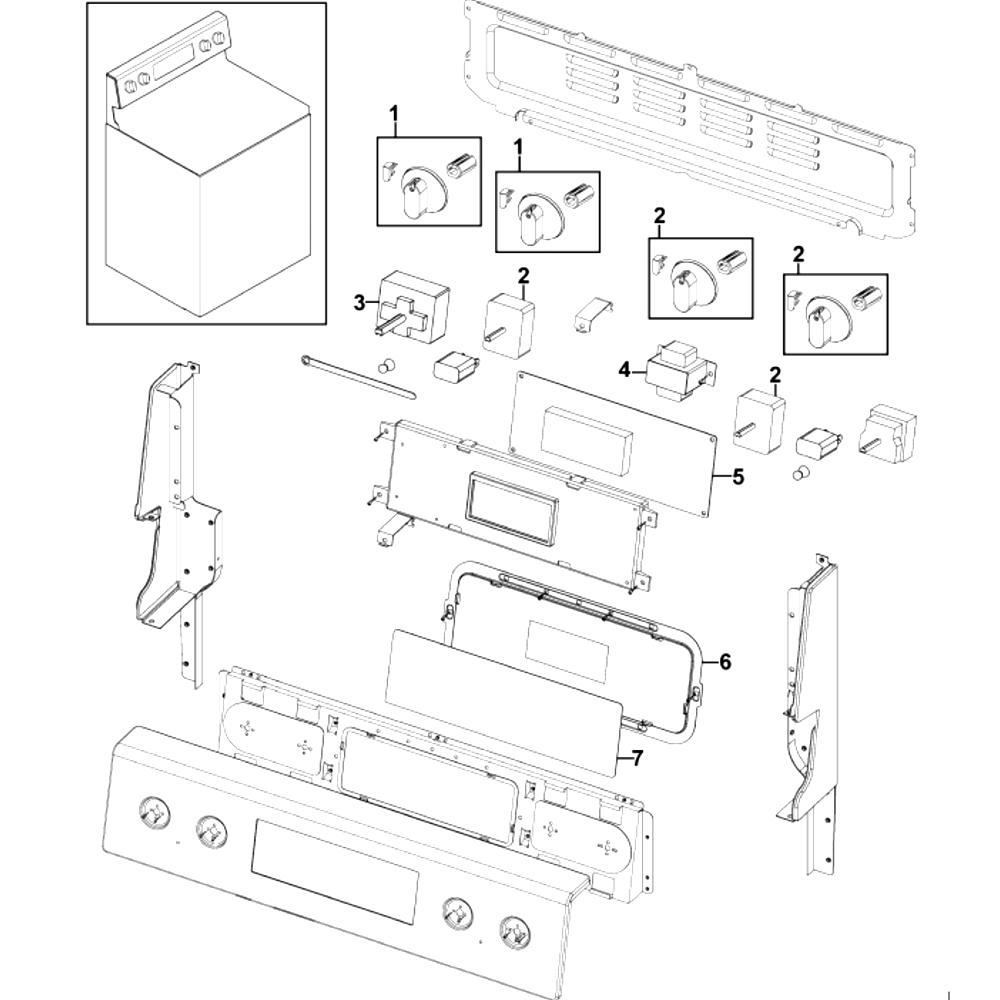

Assy Control

...
...
1
Regulator-Energy Dual SAM-DG44-01008A
...
2
Regulator-Energy Single SAM-DG44-01009A
...
3
Heater-Radiant Dual SAM-DG47-00043B
...
4
Trans L.v SAM-DE26-00146A
...
5
Assembly Pcb Main SAM-DE92-03045F
...
6
Bracket-Chassis Panel Sub(better) SAM-DG61-00625A
...
7
Switch Membrane SAM-DG34-00020A

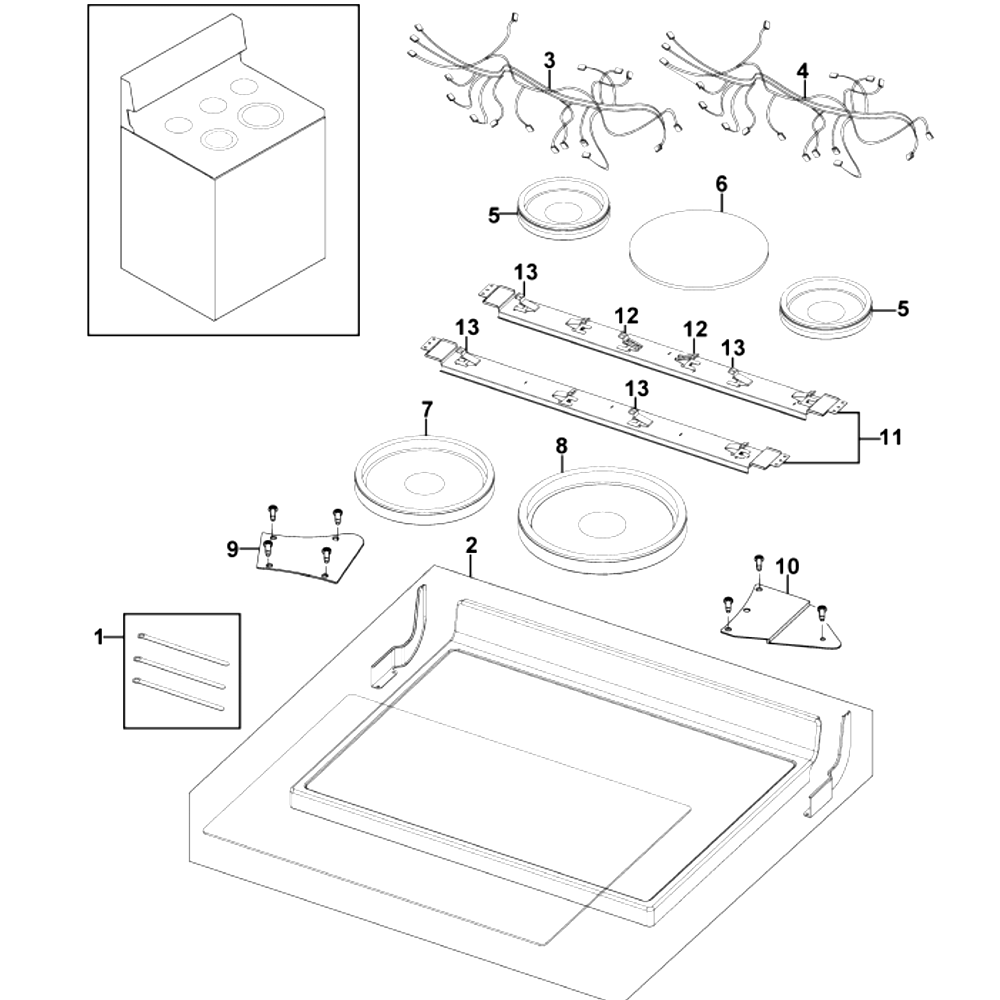

Assy Cooktop

...
...
1
Cable Clamp SAM-6502-001117
...
2
Assembly Frame-Cooktop SAM-DG94-00735C
...
3
Assembly Wire Harness-Cooktop A SAM-DG96-00270A
...
4
Assembly Wire Harness-Cooktop B SAM-DG96-00272A
...
5
Heater-Radiant-Single SAM-DG47-00023A
...
6
Heater-Radiant SAM-DG47-00024B
...
7
Heater-Radiant Dual SAM-DG47-00043B
...
8
Heater-Radiant Dual SAM-DG47-00056A
...
9
Bracket-Heater Radiant A SAM-DG61-00229A
...
10
Bracket-Heater Radiant B SAM-DG61-00230A
...
11
Bracket-Heater SAM-DG61-00142A
...
12
Support-Warming Heater SAM-DG61-00144B
...
13
Support-Heater SAM-DG61-00286A

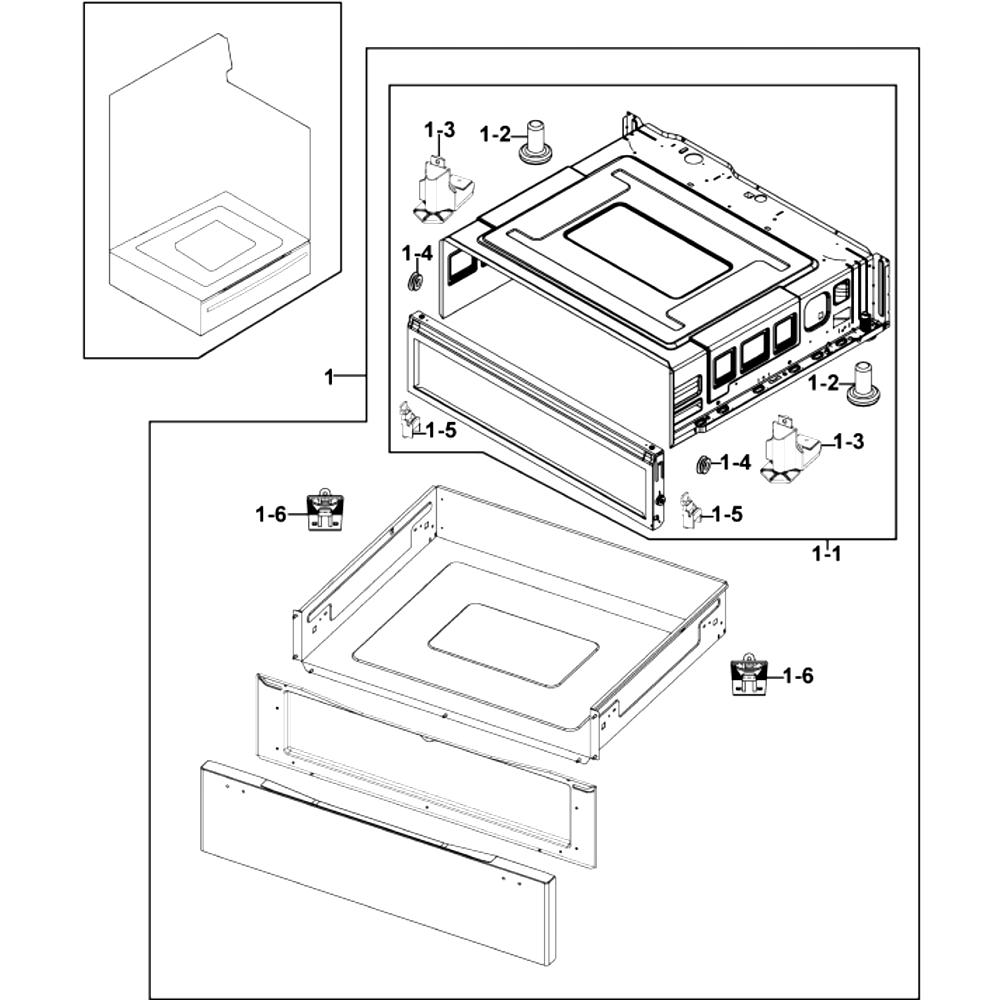

Assy Drawer

...
...
1-1
Assembly Pedestal SAM-DG94-00710A
...
1-2
Leg-Leveling SAM-DG61-00432A
...
1-3
Leg-Leveling A2 SAM-DG61-00294A
...
1-4
Spacer-Side Panel SAM-DG60-00007B
...
1-5
Slider-Outer SAM-DG61-00280A
...
1-6
Slider-Inner SAM-DG61-00279A
...
1
Assembly Drawer Main SAM-DG90-00035B
