Samsung NE58K9850WS/AA_0004

Model: NE58K9850WS/AA_0004

Save Part Not Listed?
product name

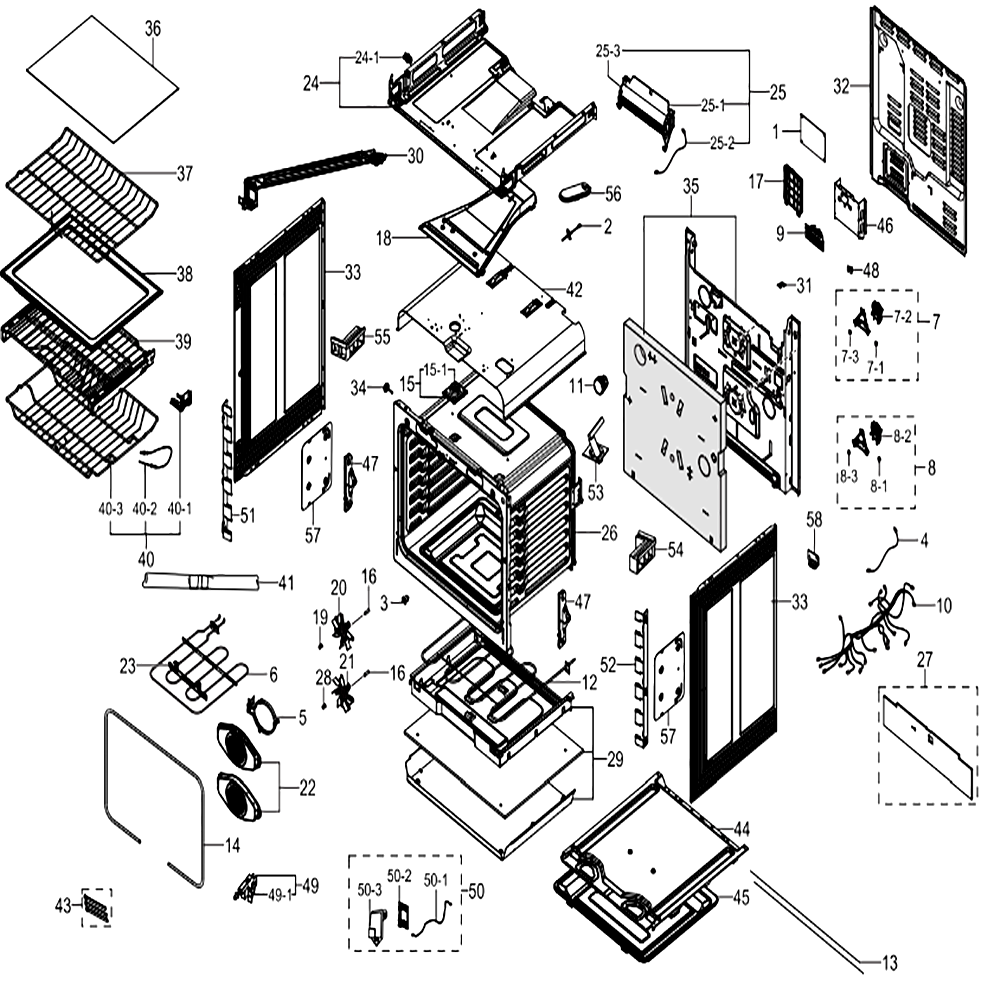

Main

...
...
1
Assy Pcb Main; Fm-New-Main-02,ne9000k,124 SAM-DE92-03960C
...
2
Thermistor-Sensor SAM-DG32-00004C
...
3
Switch-Door Plunger SAM-DG34-00006A
...
4
Wire Harness-Sub SAM-DG39-00019A
...
5
Heater Sheath-Convection; Ac240v,bkt Type SAM-DG47-00009C
...
6
Heater Sheath-Grill SAM-DG47-00058A
...
7-1
Nut-Flange SAM-DE60-30016A
...
7-2
Motor Ac Convection; 30" Oven,smc-U386f,2 SAM-DG31-00007E
...
7-3
Cap-Motor Convection SAM-DG67-00028A
...
7
Assy Motor Convection; Ne58h9970ws,120v,6 SAM-DG96-00110F
...
8-1
Nut-Flange SAM-DE60-30016A
...
8-2
Motor Ac Convection SAM-DG31-00005C
...
8-3
Cap-Motor Convection SAM-DG67-00028A
...
8
Assembly Motor Convection SAM-DG96-00110E
...
9
Assy-Terminal Block SAM-DG96-00173A
...
10
Assy Wire Harness-Main; Ne58k9850ws,240v/ SAM-DG96-00426A
...
11
Assembly Lamp Bulb SAM-DG97-00083A
...
12
Heater Sheath-Bottom SAM-DG47-00020A
...
13
Steel Wire SAM-DG70-00004A
...
14
Gasket Door SAM-DG63-00255B
...
15-1
Assembly Vent SAM-DG94-00905A
...
15
Assy Vent-Filter; Slide-In,alcoat,filter SAM-DG94-01266A
...
16
Spacer-Fan Convection SAM-DG60-00001A
...
17
Holder-Pcb Main SAM-DG61-00060C
...
18
Assy Duct Air; Ne58k9430ss,gi-Sgcc,t0.4 SAM-DG94-01314A
...
19
Nut-Hexagon Cap; M4,ni Plt,swrch10a SAM-6021-001208
...
20
Fan-Convection Upper SAM-DG67-00001B
...
21
Fan-Convection Lower SAM-DG67-00011B
...
22
Assembly Cover Casing-Upper SAM-DG94-00489B
...
23
Assembly Bracket Heater SAM-DG94-00911A
...
24-1
Thermostat SAM-DE47-20037A
...
24
Assembly Guide Air SAM-DG94-00913A
...
25-1
Bracket Motor SAM-DG61-00778A
...
25-2
Assy Wire Harness-Motor; Ne58k9430ss/ne58 SAM-DG96-00129B
...
25-3
Motor Ac Fan; Smb-U485c,2,120v,60hz,35w,1 SAM-DG31-00026A
...
25
Assy Motor; Ne58k9430ss,1450/1000,2 Step, SAM-DG96-00421A
...
26
Assy Cavity-Coating; Ne58k9850ws,5.9 Cu.f SAM-DG94-00898D
...
27
Adiabatic-Main; Glass Wool,t25,w1736,l510 SAM-DG62-00011C
...
28
Nut-Hexagon Cap SAM-6021-001211
...
29
Assembly Cover Heater SAM-DG94-00893A
...
30
Latch Door; Ne58k9850ws,sts430,dual Door SAM-DG66-00038A
...
31
Ground-Terminal Block SAM-DG63-00107A
...
32
Assy Cover Back-Main; Ne58k9850**,gi-Sgcc SAM-DG94-02188A
...
33
Panel-Side Coating SAM-DG64-00142A
...
34
Rubber-Cushion SAM-DG73-00003A
...
35
Assembly Cover Back-Main SAM-DG94-00894A
...
36
Assy Plate Top; Ne58f9710ws SAM-DG94-00897A
...
37
Rack Wire; Ne58k9430ss,ne9000k,mswr-Swrm, SAM-DG67-00108A
...
38
Assy Partition; Ne59j78**,ne58k98**,cesp- SAM-DG94-01643B
...
39
Assembly Wire Rack SAM-DG94-00908A
...
40-1
Assembly Bracket Sub SAM-DG94-00870B
...
40-2
Sensor-Probe SAM-DG32-00013A
...
40-3
Rack Wire-Bottom SAM-DG75-01056A
...
40
Assembly Accessory SAM-DG94-00912A
...
41
Assembly Bracket Supporter SAM-DG94-00915A
...
42
Cover Adiabatic-Top SAM-DG62-00124A
...
43
Cable Clamp SAM-6502-001117
...
44
Cover Adiabatic-Side SAM-DG62-00125A
...
45
Cavity Floor Coating SAM-DG61-00823A
...
46
Bracket-Cover Access SAM-DG61-00168B
...
47
Assy Support Hinge; Ny58j9850ws,damper 18 SAM-DG94-01120C
...
48
Bracket-Ground; Ftq386lwux,gi-Sgcc,0.8,14 SAM-DG61-00212A
...
49-1
Switch-Micro SAM-3405-001034
...
49
Assy-Partition Switch SAM-DG97-00014J
...
50-1
Assy Wire Harness-Comm; Ne58k9850ws,12v,1 SAM-DG96-00433A
...
50-2
W-Lan Module; Swl-Cq52/ks,16k Ks,ieee802. SAM-4709-002441
...
50-3
Holder Pcb-Wifi; Ne58k9850ws,pbt,black,kp SAM-DG61-01016A
...
50
Assy Holder Pcb-Wifi; Ne58k9850ws,wifi SAM-DG94-01402A
...
51
Bracket Cavity SAM-DG61-00813A
...
52
Bracket Cavity SAM-DG61-00814A
...
53
Assy-Probe SAM-DG94-00674B
...
54
Support Frame-Left; Ne58h9970ws,abs,-,w10 SAM-DG61-00869A
...
55
Support Frame-Right; Ne58h9970ws,abs,-,w1 SAM-DG61-00870A
...
56
Guide Air Vent; Ne58k9430ss,gi-Sgcc,t0.4, SAM-DG61-01022A
...
57
Baffle Door-Sub; Ne58k9850ws,gi-Sgcc,t0.4 SAM-DG62-00094B
...
58
Locker; Ny58j9850ws,zndc,dual Fuel Range SAM-DG64-00555A

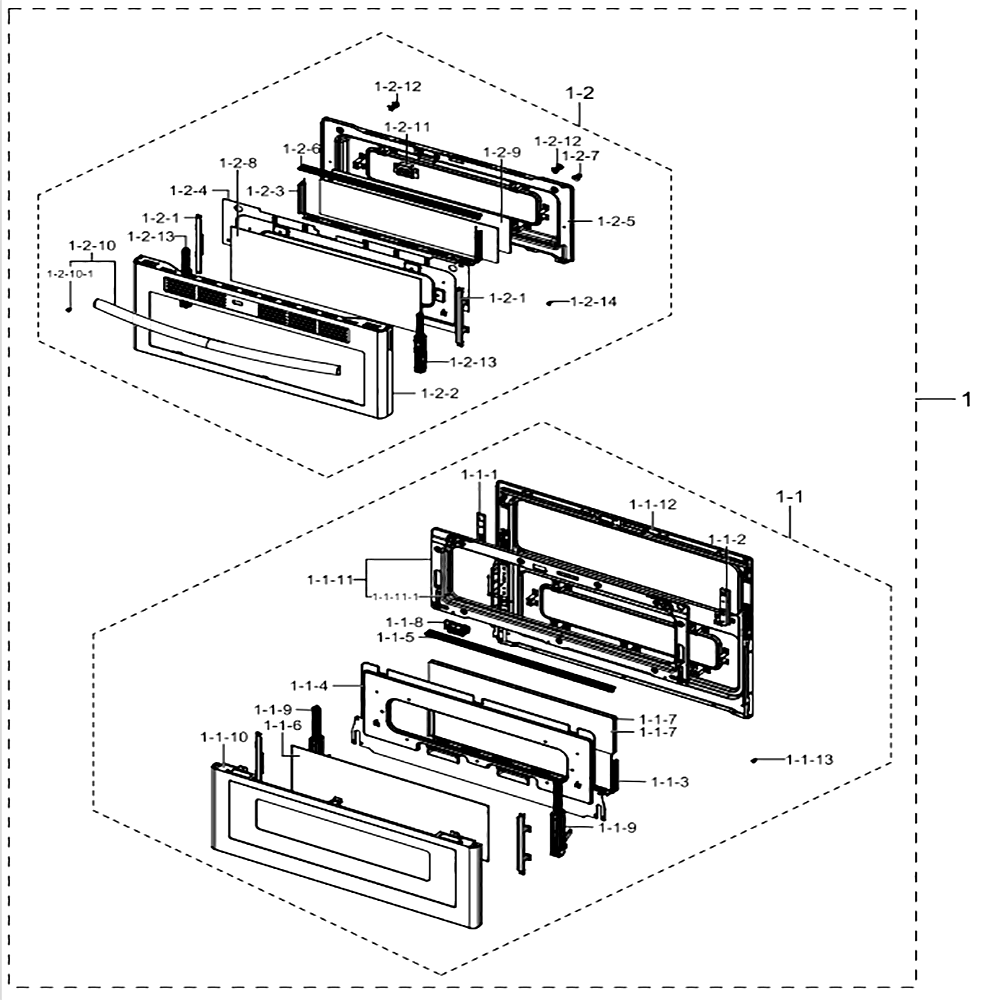

Assy Door

...
...
1-1-1
Bracket Hinge-Right; Ne59j7850ws,gi-Sgcc, SAM-DG61-00956A
...
1-1-2
Bracket Hinge-Left; Ne59j7850ws,gi-Sgcc,t SAM-DG61-00957A
...
1-1-3
Frame Inner Glass; Ny58j9850ws,gi-Sgcc,t0 SAM-DG61-00998A
...
1-1-4
Baffle Door-Low; Ny58j9850ws,alcoat-Sa1c, SAM-DG62-00160A
...
1-1-5
Cover Glass; Ne59j7850ws,gi-Sgcc,t0.5,dou SAM-DG63-00396A
...
1-1-6
Glass-Sub; Ne59j7850ws,glass,t3.2,w561.5, SAM-DG64-00540A
...
1-1-7
Glass-In; Ny58j9850ws,glass,t4.0,heat-Bar SAM-DG64-00559A
...
1-1-8
Assy Door Lock-Rear; Ne59j7850ws,flex-Bes SAM-DG94-01157A
...
1-1-9
Assy Hinge-Main; Ny58j9850ws,dual Fuel,du SAM-DG94-01273A
...
1-1-10
Assy Door Sub-Low; Nx58k9850ss,slide-In F SAM-DG94-01277C
...
1-1-11-1
Gasket Door; Ny58j9850ws,glass Fiber,1794 SAM-DG63-00411B
...
1-1-11
Assy Cover Front; Ny58j9850ws,spp,dual Fu SAM-DG94-01278A
...
1-1-12
Assy Door E-Coating; Ny58j9850ws,dual Fue SAM-DG94-01279A
...
1-1-13
Screw-Machine; Pwh,m4,l10,zpc(blk),swrch1 SAM-6001-002701
...
1-1
Assy Door-Main; Ne58k9850ws,sts,slide-In SAM-DG94-01275C
...
1-2-1
Bracket Holder; Ne59j7850ws,gi-Sgcc,t0.6, SAM-DG61-00965A
...
1-2-2
Assy Door Sub-Up; Nx58k9850ss,slide-In Fl SAM-DG94-01282B
...
1-2-3
Frame Inner Glass; Ny58j9850ws,gi-Sgcc,t0 SAM-DG61-00998A
...
1-2-4
Baffle Door-Up; Ny58j9850ws,alcoat-Sa1c SAM-DG62-00159A
...
1-2-5
Assy Door E-Coating; Nx58k7850ss*,fst Fle SAM-DG94-01285B
...
1-2-6
Cover Glass; Ne59j7850ws,gi-Sgcc,t0.5,dou SAM-DG63-00396A
...
1-2-7
Button Push; Ny58j9850ws,al SAM-DG64-00525B
...
1-2-8
Glass-Sub; Ne59j7850ws,glass,t3.2,w561.5, SAM-DG64-00540A
...
1-2-9
Glass-In; Ny58j9850ws,glass,t4.0,heat-Bar SAM-DG64-00559A
...
1-2-10-1
Screw-Machine; Ph,+,-,m4,l8,zpc(wht),swrc SAM-6001-000618
...
1-2-10
Assy Handle; Ne59j7850ws,flex-Best SAM-DG94-01134A
...
1-2-11
Assy Door Lock-Front; Ne59j7850ws,flex-Be SAM-DG94-01156A
...
1-2-12
Assy Trim Kit; Ne59j7850ws,welding Spacer SAM-DG94-01238A
...
1-2-13
Assy Hinge-Up; Ny58j9850ws,dual Door SAM-DG94-01270A
...
1-2-14
Screw-Machine; Pwh,m4,l10,zpc(blk),swrch1 SAM-6001-002701
...
1-2
Assy Door-Up; Ne58k9850ws,dual Door SAM-DG94-01395A
...
1
Assy Door; Ne58k9850ws,stss,dual Door SAM-DG94-01342A

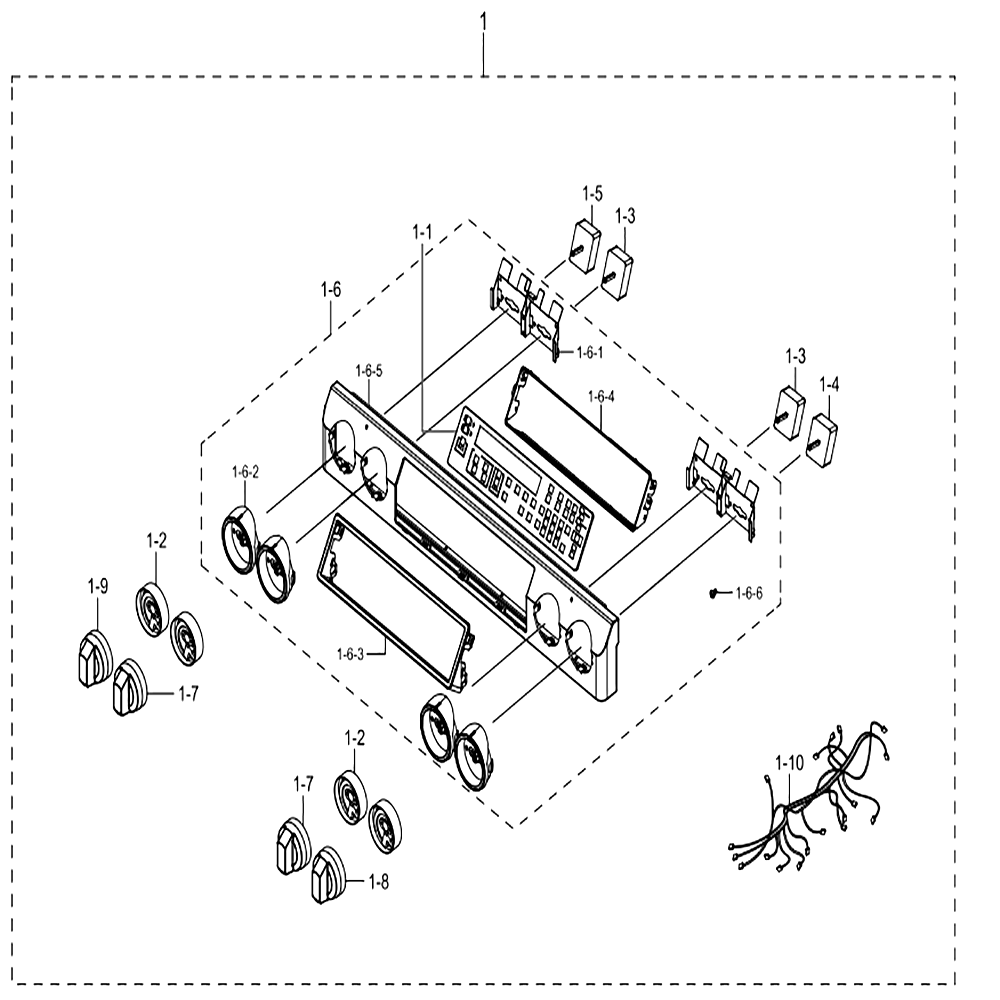

Assy Control

...
...
1-1
Assy Module; Assy Display,ne9000k-Pjt,ele SAM-DE92-03966B
...
1-2
Assy Module; Assy Knob Light,ne9000k-Pjt, SAM-DE92-03973A
...
1-3
Regulator Energy-Single; Per001-11,ne9000 SAM-DG44-01005B
...
1-4
Regulator Energy-Triple; Per001-13,ne9000 SAM-DG44-01007B
...
1-5
Regulator Energy-Dual; Per001-12,ne9000k, SAM-DG44-01006B
...
1-6-1
Bracket Control; Ne58f9710ws,gi-Sgcc,t0.8 SAM-DG61-00807A
...
1-6-2
Holder Knob; Ne58f9710,ne58k9850ws,abs+pc SAM-DE61-01605A
...
1-6-3
Chassis Decoration; Ne58f9710ws,zn,-,w360 SAM-DG64-00463A
...
1-6-4
Cover Control Panel; Ne58f9710ws,cr-Spcc, SAM-DG61-00780A
...
1-6-5
Assy Control Chassis; Ne58k9850ws,sts430, SAM-DG94-00919D
...
1-6-6
Screw-Tapping; Th,+,2s,m4,l10,ni Plt,sts4 SAM-6002-000558
...
1-6
Assy Control Sub; Ne58k9850ws,stss,dual D SAM-DG94-00888V
...
1-7
Assy Knob; Ne58k9850ws,pc-Abs,single SAM-DG94-01300A
...
1-8
Assy Knob; Ne58k9850ws,pc-Abs,triple SAM-DG94-01300C
...
1-9
Assy Knob; Ne58k9850ws,pc-Abs,bridge SAM-DG94-01300D
...
1-10
Assy Wire Harness-Display; Ne58k9850ws,24 SAM-DG96-00430A
...
1
Assy Control Box; Ne58k9850ws,slide-In,du SAM-DG94-01348F

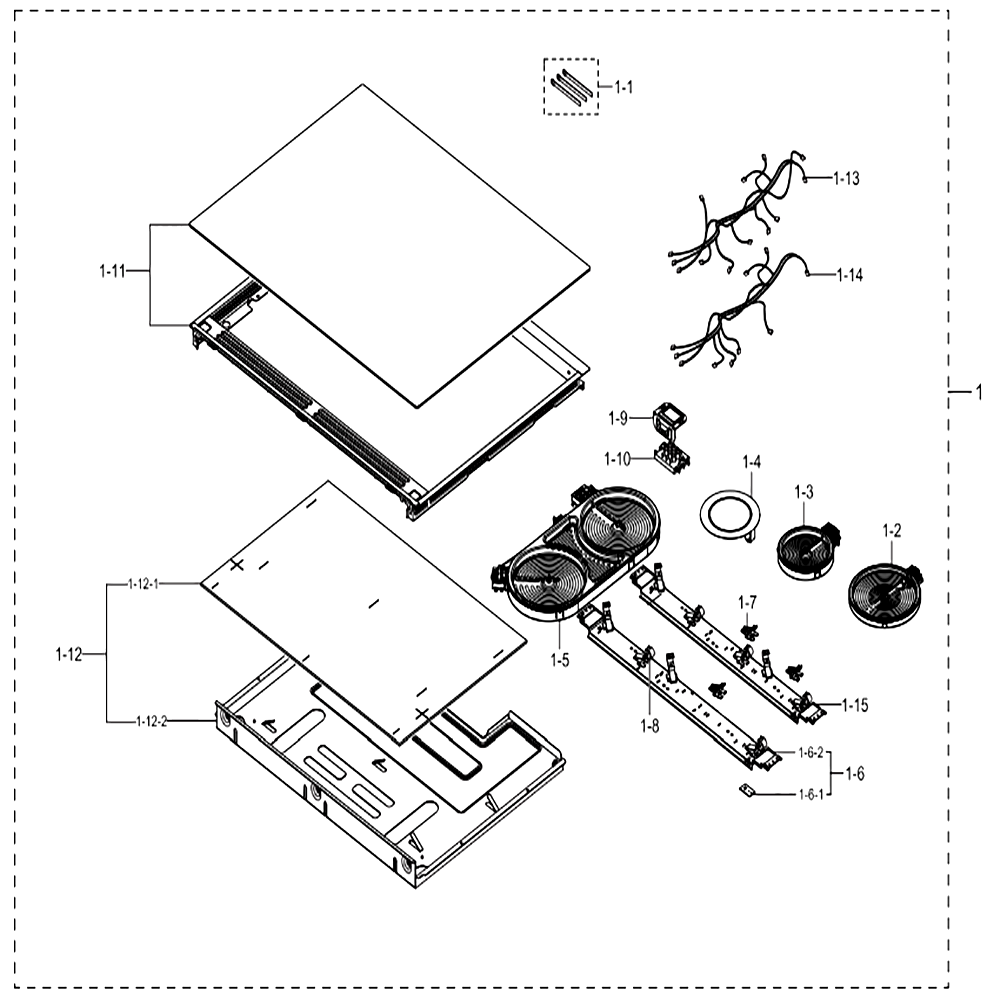

Assy Cook Top

...
...
1-1
Cable Clamp SAM-6502-001117
...
1-2
Heater Radiant-Triple SAM-DG47-00065A
...
1-3
Heater Radiant-Single SAM-DG47-00060A
...
1-4
Heater-Radiant SAM-DG47-00024B
...
1-5
Heater Radiant-Bridge; Ac240v,7"/7",1800w SAM-DG47-00072A
...
1-6-1
Bracket Burner SAM-DG61-00824A
...
1-6-2
Bracket-Heater SAM-DG61-00142A
...
1-6
Assembly Bracket Holder SAM-DG94-00920A
...
1-7
Support-Warming Heater SAM-DG61-00144B
...
1-8
Support-Heater SAM-DG61-00286A
...
1-9
Bracket Elec SAM-DG61-00782B
...
1-10
Indicator-Hot Surface SAM-DG64-00319A
...
1-11
Assembly Frame Cook Top SAM-DG94-00889A
...
1-12-1
Adiabatic Heater SAM-DG62-00127A
...
1-12-2
Cover Air Outlet SAM-DG63-00341A
...
1-12
Assembly Cover Air SAM-DG94-00918A
...
1-13
Assembly Wire Harness-Cooktop SAM-DG96-00341A
...
1-14
Assembly Wire Harness-Cooktop SAM-DG96-00342A
...
1-15
Assembly Bracket Heater SAM-DG94-01059A
...
1
Assembly Cooktop SAM-DG94-00891A

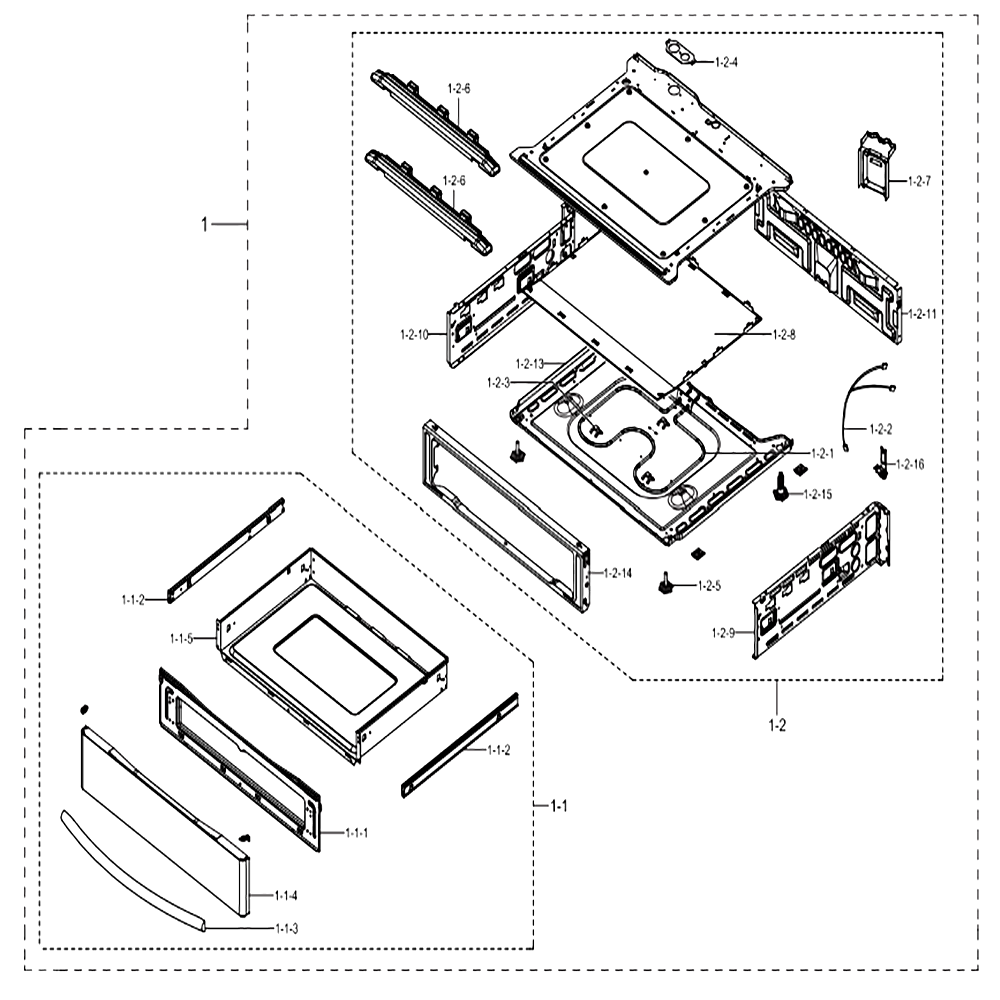

Assy Drawer

...
...
1-1-1
Panel Front SAM-DG64-00455A
...
1-1-2
Assy-Slider SAM-DG94-00550A
...
1-1-3
Assembly Handle-Al SAM-DG94-00686A
...
1-1-4
Assembly Panel Warming Drawer SAM-DG94-00904A
...
1-1-5
Assembly Cavity Drawer SAM-DG94-00907A
...
1-1
Assembly Drawer SAM-DG94-00903A
...
1-2-1
Heater-Warming Drawer SAM-DG47-00018A
...
1-2-2
Assembly Wire Harness-Wd SAM-DG96-00134A
...
1-2-3
Bracket-Warming Heater SAM-DG61-00126A
...
1-2-4
Bracket-Multi Connector SAM-DG61-00206A
...
1-2-5
Leg Leveling; Ne59m6850ss,pp,natural,441j SAM-DG61-00294B
...
1-2-6
Slider-Partition SAM-DG61-00543A
...
1-2-7
Cover-Warming Heater SAM-DG63-00101B
...
1-2-8
Cover Partition SAM-DG63-00336A
...
1-2-9
Shield Drawer-Right SAM-DG63-00337A
...
1-2-10
Shield Drawer-Left SAM-DG63-00338A
...
1-2-11
Cover Back Warmer SAM-DG63-00340A
...
1-2-13
Assy Base Bottom; Ne59j7850ws SAM-DG94-00910B
...
1-2-14
Assy Trim-Pedestal; Ne58k9850ws SAM-DG94-00916B
...
1-2-15
Leg Leveling; Ne58k9850ws,pp,natural,441j SAM-DG61-00525C
...
1-2-16
Bracket-Leg Leveling SAM-DG61-00430A
...
1-2
Assy Pedestal; Ne58k9850ws,stss,slide-In, SAM-DG94-02255C
...
1
Assy Drawer Main; Ne58k9850ws,slide-In,ne SAM-DG90-00791E
