product name

Samsung NE58F9710WS_AC_0000

Model: NE58F9710WS_AC_0000

Save Part Not Listed?
product name

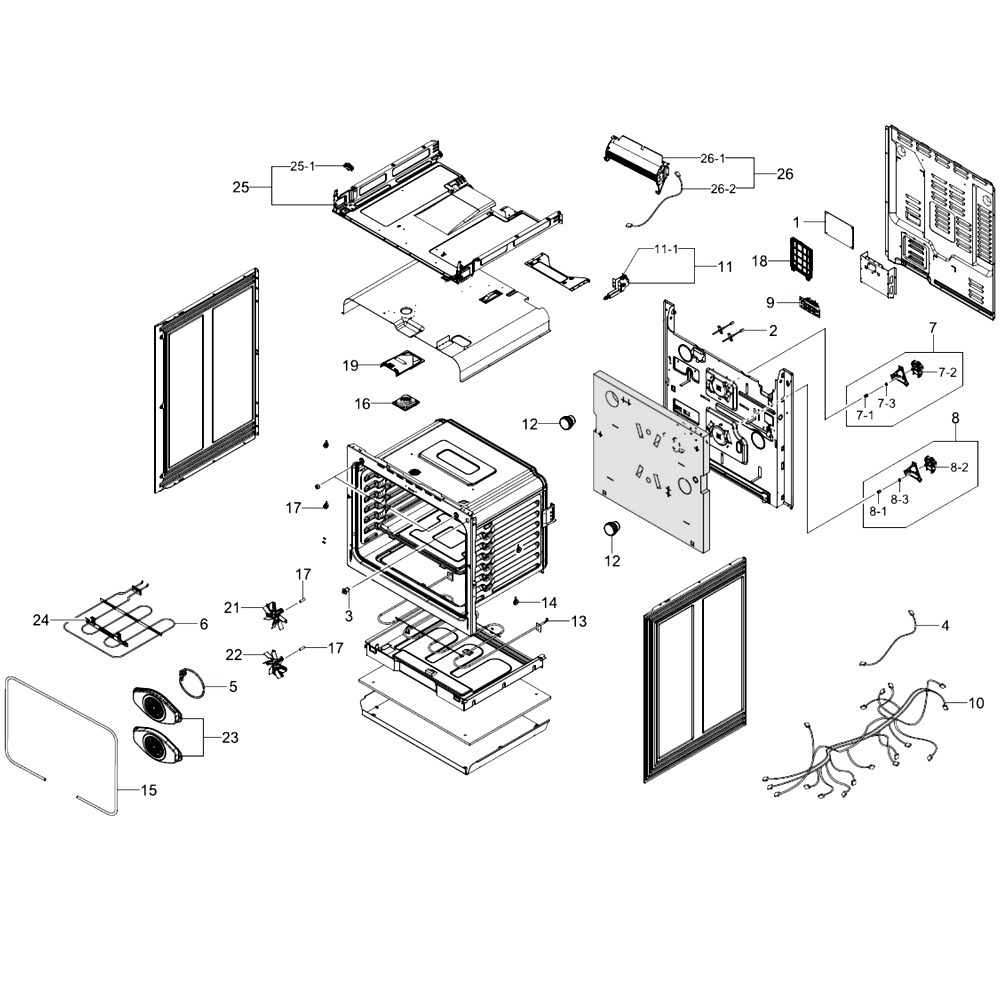

Main

...
...
1
Assembly Pcb Main SAM-DE92-02439G
...
2
Thermistor-Sensor SAM-DG32-00004C
...
3
Switch-Door Plunger SAM-DG34-00006A
...
4
Wire Harness-Sub SAM-DG39-00019A
...
5
Heater-Convection Twin SAM-DG47-00009A
...
6
Heater Sheath-Grill SAM-DG47-00058A
...
7-1
Nut-Flange SAM-DE60-30016A
...
7-2
Motor Convection SAM-DG31-00005A
...
7-3
Cap-Motor Convection SAM-DG67-00028A
...
7
Assembly Motor Convection SAM-DG96-00110A
...
8-1
Nut-Flange SAM-DE60-30016A
...
8-2
Motor Ac Convection SAM-DG31-00007C
...
8-3
Cap-Motor Convection SAM-DG67-00028A
...
8
Assembly Motor Convection-Reverse SAM-DG96-00110B
...
9
Assy-Terminal Block SAM-DG96-00173A
...
10
Assembly Wire Harness-Main SAM-DG96-00321A
...
11-1
Switch-Micro SAM-3405-001034
...
11
Assy-Partition Switch SAM-DG97-00014J
...
12
Assembly Lamp Bulb SAM-DG97-00083A
...
13
Heater Sheath-Bottom SAM-DG47-00020A
...
14
Spacer-Side Panel SAM-DG60-00011A
...
15
Gasket Door SAM-DG63-00255B
...
16
Assembly Vent SAM-DG94-00905A
...
17
Spacer-Fan Convection SAM-DG60-00001A
...
18
Holder-Pcb Main SAM-DG61-00060C
...
19
Guide Air Vent SAM-DG61-00801A
...
21
Fan-Convection Upper SAM-DG67-00001B
...
22
Fan-Convection Lower SAM-DG67-00011B
...
23
Assembly Cover Casing-Upper SAM-DG94-00489B
...
24
Assembly Bracket Heater SAM-DG94-00911A
...
25-1
Thermostat SAM-DE47-20037A
...
25
Assembly Guide Air SAM-DG94-00913A
...
26-1
Motor Ac Fan SAM-DE31-00070A
...
26-2
Assembly Wire Harness-Motor SAM-DG96-00129A
...
26
Assembly Motor SAM-DG96-00338A

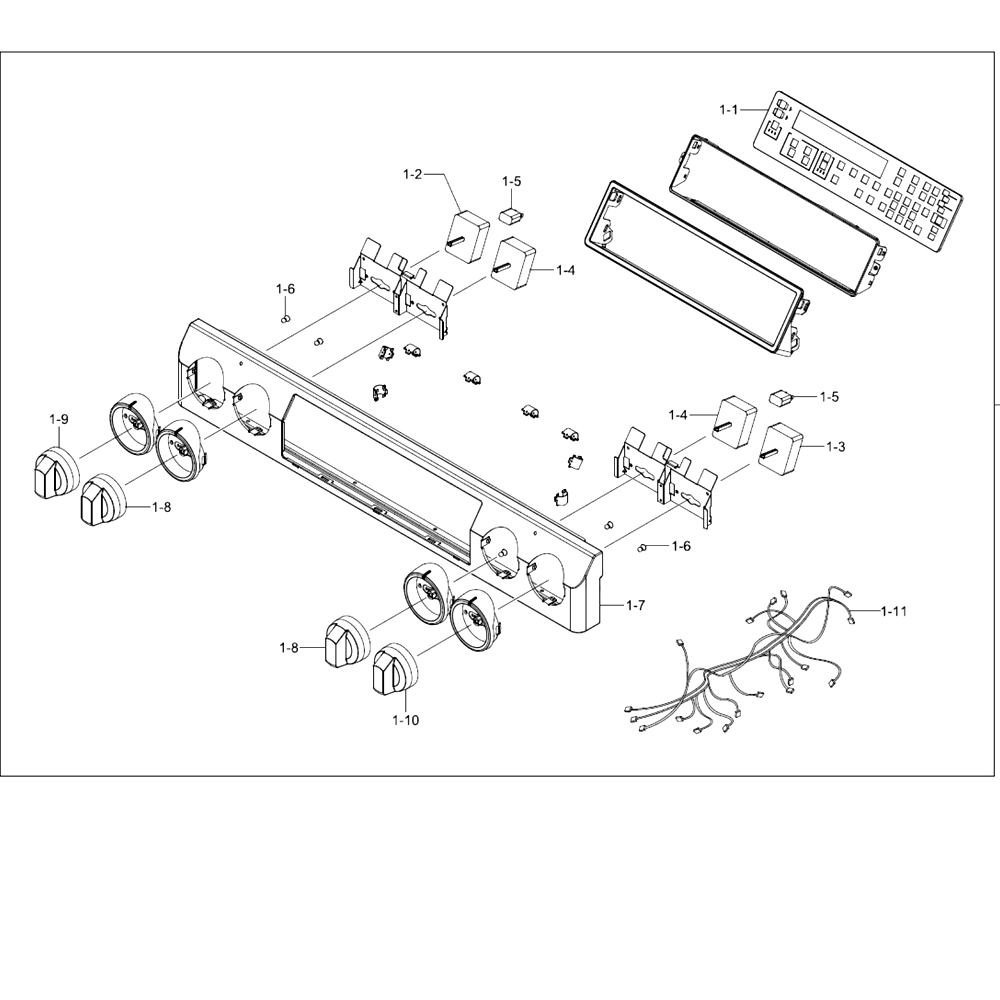

Assy Control Box

...
...
1-8
Assembly Knob Dial SAM-DG94-00906A
...
1
Assembly Control Box SAM-DG94-00892A
...
1-11
Assembly Wire Harness-Display SAM-DG96-00322A
...
1-10
Assembly Knob Dial SAM-DG94-00906D
...
1-9
Assembly Knob Dial SAM-DG94-00906C
...
1-7
Assembly Control Sub SAM-DG94-00888A
...
1-6
Lens-Light SAM-DG67-00022A
...
1-5
Indicator-Light SAM-DG64-00131A
...
1-4
Regulator-Energy Single SAM-DG44-01009A
...
1-3
Regulator-Energy T SAM-DG44-01007A
...
1-2
Regulator-Energy D SAM-DG44-01006A
...
1-1
Assembly Module SAM-DE96-01027A

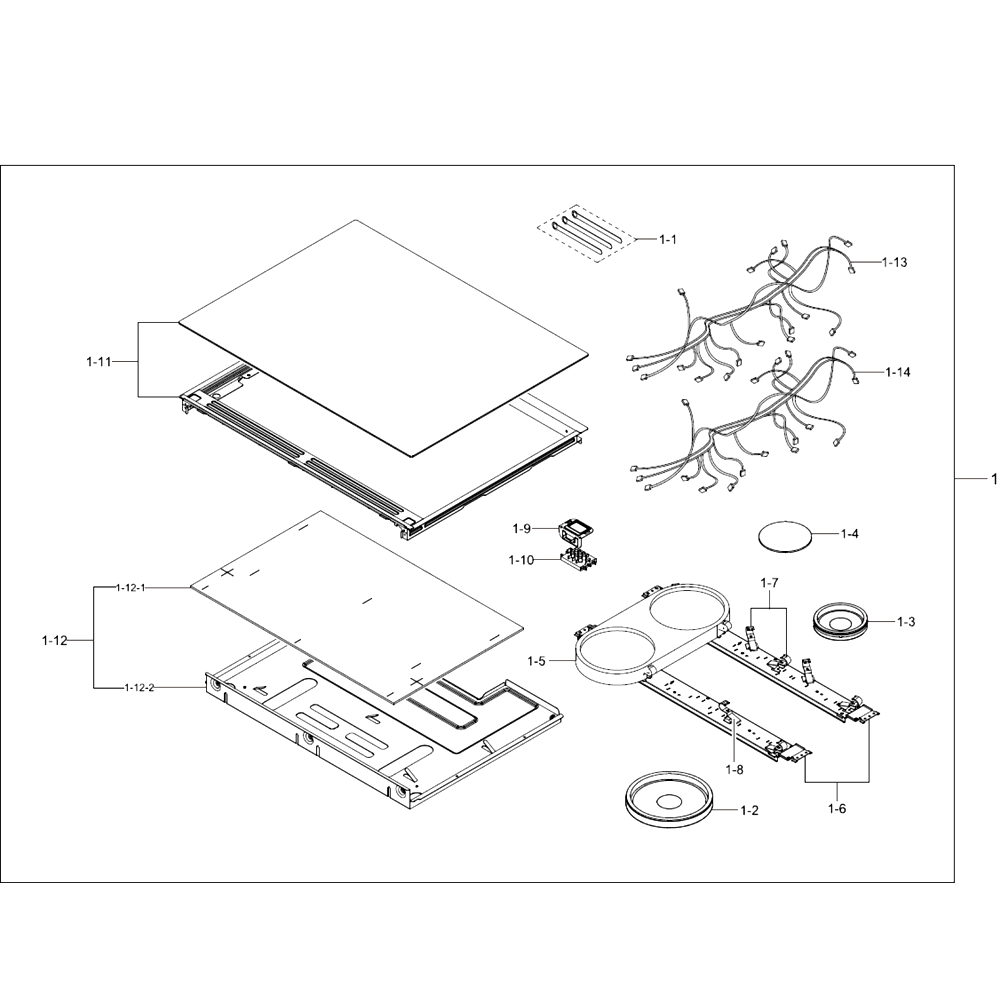

Assy Cooktop

...
...
1-1
Cable Clamp SAM-6502-001117
...
1
Assembly Cooktop SAM-DG94-00891A
...
1-14
Assembly Wire Harness-Heater SAM-DG96-00324A
...
1-13
Assembly Wire Harness-Heater SAM-DG96-00323A
...
1-12
Assembly Cover Air SAM-DG94-00918A
...
1-12-2
Cover Air Outlet SAM-DG63-00341A
...
1-12-1
Adiabatic Heater SAM-DG62-00127A
...
1-11
Assembly Frame Cook Top SAM-DG94-00889A
...
1-10
Indicator-Hot Surface SAM-DG64-00319A
...
1-8
Support-Heater SAM-DG61-00286A
...
1-7
Support-Warming Heater SAM-DG61-00144B
...
1-6
Bracket-Heater SAM-DG61-00142A
...
1-5
Heater Radiant-Triple SAM-DG47-00059A
...
1-4
Heater-Radiant SAM-DG47-00024B
...
1-3
Heater-Radiant-Single SAM-DG47-00023A
...
1-2
Heater-Radiant Triple SAM-DG47-00021B
...
1-9
Bracket Elec SAM-DG61-00782B

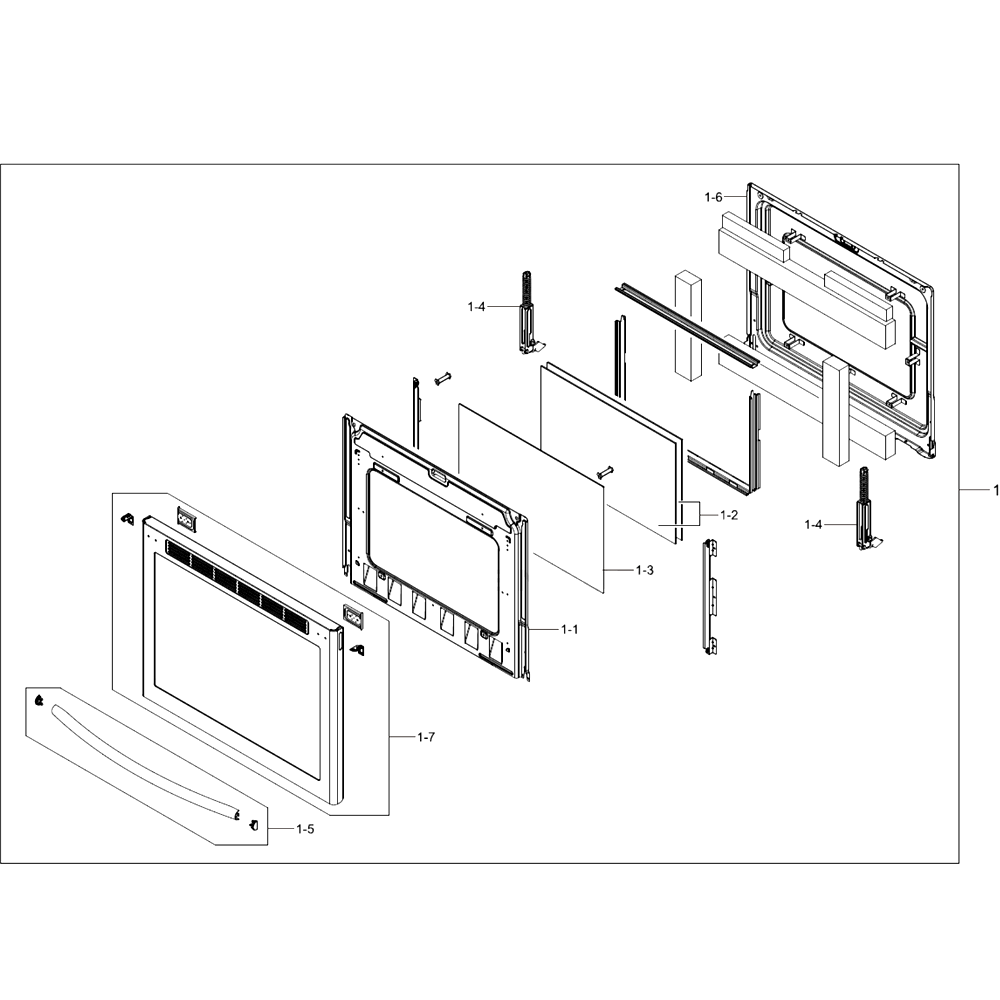

Assy Door

...
...
1-6
Assembly Door E SAM-DG94-00899A
...
1
Assembly Door SAM-DG94-00890A
...
1-7
Assembly Door Sub SAM-DG94-00901A
...
1-5
Assembly Handle-Al SAM-DG94-00686A
...
1-4
Assembly Hinge SAM-DG94-00603A
...
1-3
Glass-Inner Sub SAM-DG64-00133A
...
1-2
Glass-Inner SAM-DG64-00092A
...
1-1
Baffle-Door SAM-DG62-00046A

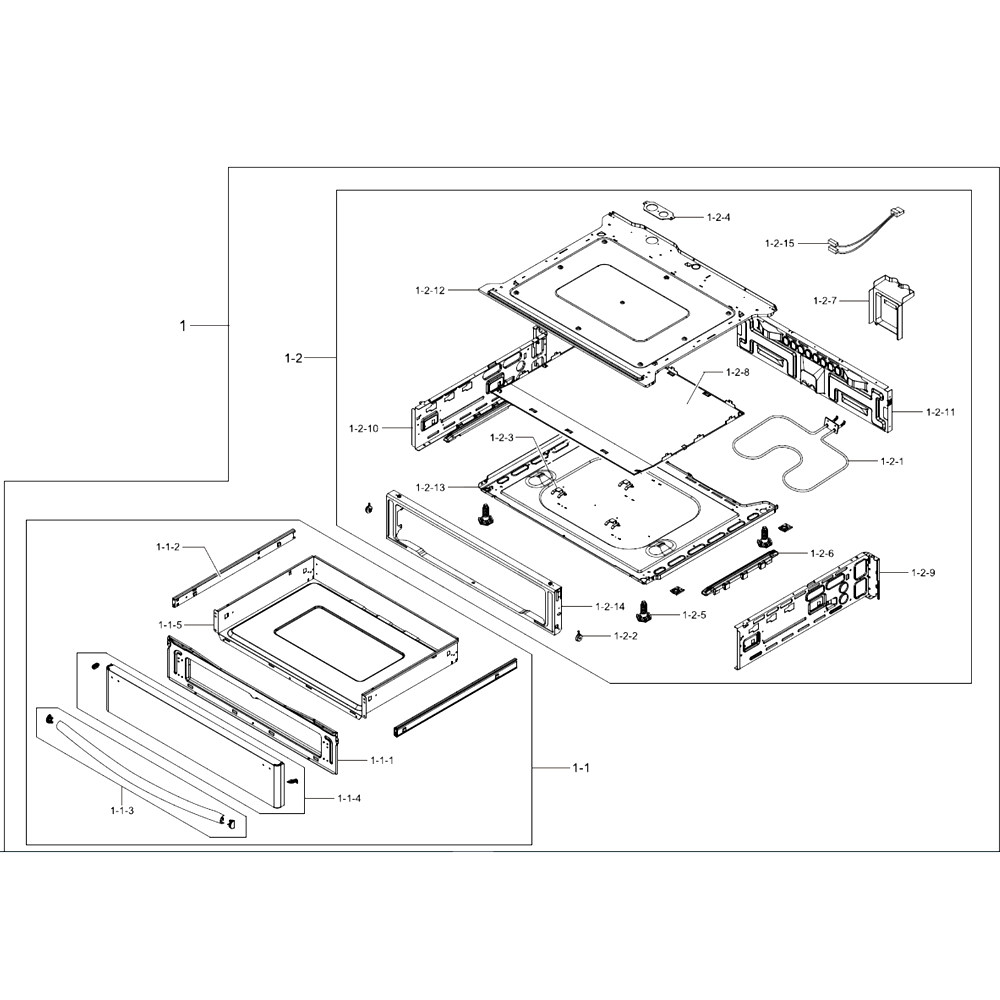

Assy Drawer

...
...
1
Assembly Drawer Main SAM-DG90-00154A
...
1-2
Assembly Pedestal SAM-DG94-00909A
...
1-2-15
Assembly Wire Harness-Wd SAM-DG96-00134A
...
1-2-14
Assembly Trim-Pedestal SAM-DG94-00916A
...
1-2-13
Assembly Base Bottom SAM-DG94-00910A
...
1-2-12
Shield Drawer-Up SAM-DG63-00342A
...
1-2-11
Cover Back Warmer SAM-DG63-00340A
...
1-2-10
Shield Drawer-Left SAM-DG63-00338A
...
1-2-9
Shield Drawer-Right SAM-DG63-00337A
...
1-2-8
Cover Partition SAM-DG63-00336A
...
1-2-7
Cover-Warming Heater SAM-DG63-00101B
...
1-2-6
Slider-Partition SAM-DG61-00543A
...
1-2-5
Leg-Leveling SAM-DG61-00525B
...
1-2-4
Bracket-Multi Connector SAM-DG61-00206A
...
1-2-3
Bracket-Warming Heater SAM-DG61-00126A
...
1-2-2
Spacer-Side Panel SAM-DG60-00011A
...
1-2-1
Heater-Warming Drawer SAM-DG47-00018A
...
1-1
Assembly Drawer SAM-DG94-00903A
...
1-1-5
Assembly Cavity Drawer SAM-DG94-00907A
...
1-1-4
Assembly Panel Warming Drawer SAM-DG94-00904A
...
1-1-3
Assembly Handle-Al SAM-DG94-00686A
...
1-1-2
Assy-Slider SAM-DG94-00550A
...
1-1-1
Panel Front SAM-DG64-00455A
