Samsung NE58F9500SS/AA_0004

Model: NE58F9500SS/AA_0004

Save Part Not Listed?
product name

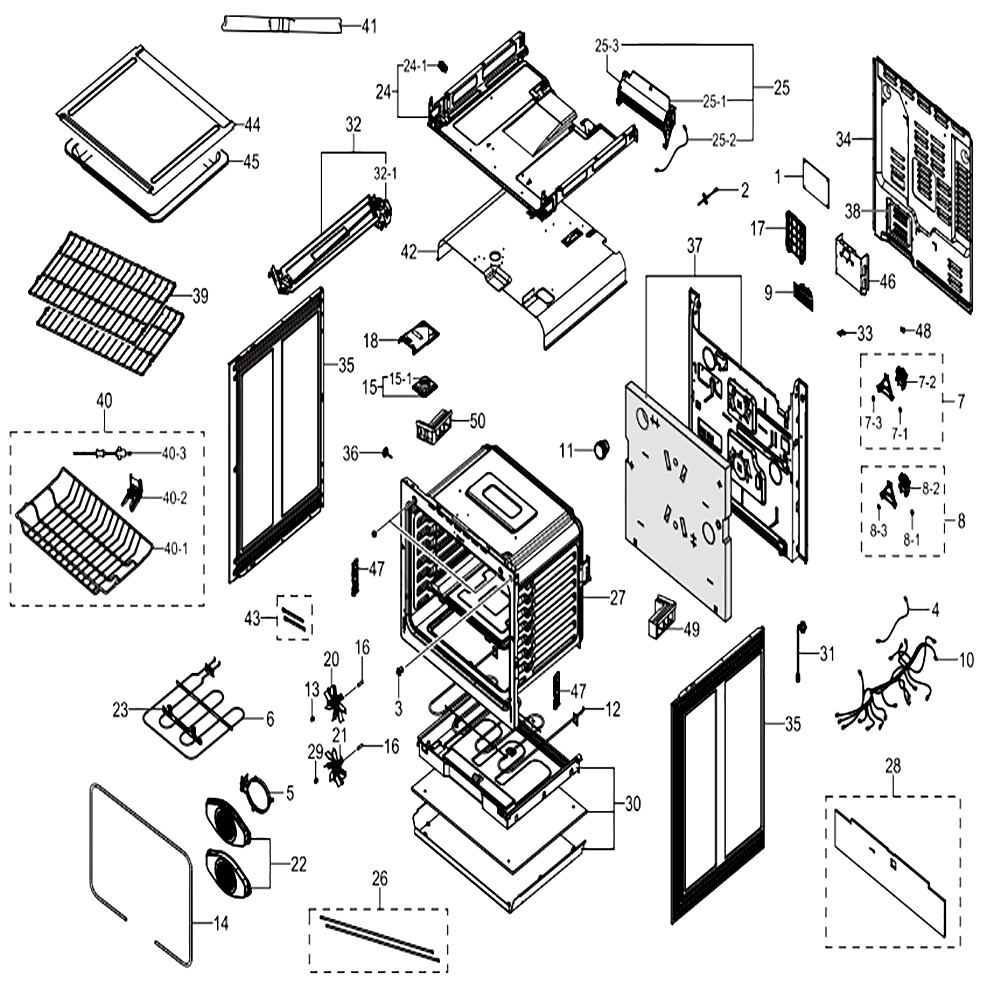

Main

...
...
1
Assy Pcb Main; Fm-New-Main-06,ne-F900a,12 SAM-DE92-03960G
...
2
Thermistor-Sensor SAM-DG32-00004C
...
3
Switch-Door Plunger SAM-DG34-00006A
...
4
Wire Harness-Sub SAM-DG39-00019A
...
5
Heater Sheath-Convection; Ac240v,bkt Type SAM-DG47-00009C
...
6
Heater Sheath-Grill SAM-DG47-00058A
...
7-1
Nut-Flange SAM-DE60-30016A
...
7-2
Motor Ac Convection SAM-DG31-00005C
...
7-3
Cap-Motor Convection SAM-DG67-00028A
...
7
Assembly Motor Convection SAM-DG96-00110E
...
8-1
Nut-Flange SAM-DE60-30016A
...
8-2
Motor Ac Convection SAM-DG31-00007C
...
8-3
Cap-Motor Convection SAM-DG67-00028A
...
8
Assembly Motor Convection-Reverse SAM-DG96-00110B
...
9
Assy-Terminal Block SAM-DG96-00173A
...
10
Assy Wire Harness-Main; Ne58f9500ss,240va SAM-DG96-00325A
...
11
Assembly Lamp Bulb SAM-DG97-00083A
...
12
Heater Sheath-Bottom SAM-DG47-00020A
...
13
Nut-Hexagon Cap; M4,ni Plt,swrch10a SAM-6021-001208
...
14
Gasket Door SAM-DG63-00255B
...
15-1
Assembly Vent SAM-DG94-00905A
...
15
Assy Vent-Filter; Slide-In,alcoat,filter SAM-DG94-01266A
...
16
Spacer-Fan Convection SAM-DG60-00001A
...
17
Holder-Pcb Main SAM-DG61-00060C
...
18
Guide Air Vent SAM-DG61-00801A
...
20
Fan-Convection Upper SAM-DG67-00001B
...
21
Fan-Convection Lower SAM-DG67-00011B
...
22
Assembly Cover Casing-Upper SAM-DG94-00489B
...
23
Assembly Bracket Heater SAM-DG94-00911A
...
24-1
Thermostat SAM-DE47-20037A
...
24
Assembly Guide Air SAM-DG94-00913A
...
25-1
Bracket Motor SAM-DG61-00778A
...
25-2
Assembly Wire Harness-Motor SAM-DG96-00129A
...
25-3
Motor Ac Fan SAM-DE31-00070A
...
25
Assembly Motor SAM-DG96-00338A
...
26
Steel Wire SAM-DG70-00004A
...
27
Assy Cavity Coating; Ne58f9500ss,c5.8,cer SAM-DG94-00898B
...
28
Adiabatic Main SAM-DG62-00129A
...
29
Nut-Hexagon Cap SAM-6021-001211
...
30
Assembly Cover Heater SAM-DG94-00893A
...
31
Assy-Probe SAM-DG94-00674B
...
32-1
Switch-Micro SAM-3405-001034
...
32
Assy Body Latch; Ne58f9500ss,slide-In SAM-DG94-01334B
...
33
Ground-Terminal Block SAM-DG63-00107A
...
34
Cover Back SAM-DG63-00343A
...
35
Panel-Side Coating SAM-DG64-00142A
...
36
Rubber-Cushion SAM-DG73-00003A
...
37
Assembly Cover Back-Main SAM-DG94-00894A
...
38
Cover-Access SAM-DG63-00061A
...
39
Rack Wire; Ne58k9430ss,ne9000k,mswr-Swrm, SAM-DG67-00108A
...
40-1
Rack Wire-Bottom SAM-DG75-01056A
...
40-2
Assembly Bracket Sub SAM-DG94-00870B
...
40-3
Sensor-Probe SAM-DG32-00013A
...
40
Assembly Accessory SAM-DG94-00912A
...
41
Assembly Bracket Supporter SAM-DG94-00915A
...
42
Cover Adiabatic-Top SAM-DG62-00124A
...
43
Cable Clamp SAM-6502-001117
...
44
Cover Adiabatic-Side SAM-DG62-00125A
...
45
Cavity Floor Coating SAM-DG61-00823A
...
46
Bracket-Cover Access SAM-DG61-00168B
...
47
Support-Hinge SAM-DG61-00188A
...
48
Bracket-Ground; Ftq386lwux,gi-Sgcc,0.8,14 SAM-DG61-00212A
...
49
Support Frame-Right; Ne58h9970ws,abs,-,w1 SAM-DG61-00870A
...
50
Support Frame-Left; Ne58h9970ws,abs,-,w10 SAM-DG61-00869A

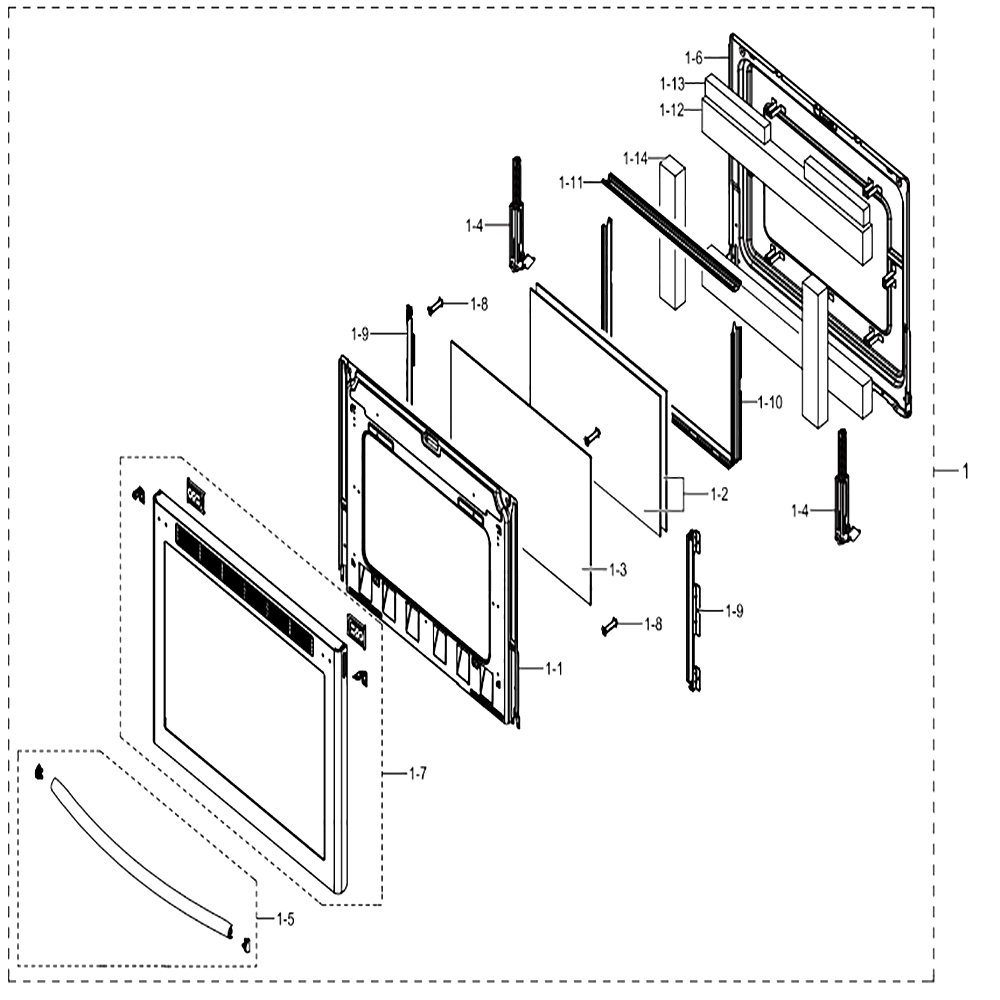

Assy Door

...
...
1-1
Baffle Door SAM-DG62-00046B
...
1-2
Glass-Inner SAM-DG64-00092A
...
1-3
Glass-Inner Sub SAM-DG64-00133A
...
1-4
Assembly Hinge SAM-DG94-00603B
...
1-5
Assembly Handle-Al SAM-DG94-00686A
...
1-6
Assembly Door E SAM-DG94-00899A
...
1-7
Assembly Door Sub SAM-DG94-00901A
...
1-8
Spacer-Door E SAM-DG60-00008A
...
1-9
Bracket-Inner Glass SAM-DG61-00190C
...
1-10
Frame-Inner Glass SAM-DG61-00121C
...
1-11
Cover-Frame Inner Glass SAM-DG63-00077C
...
1-12
Adiabatic-Door Top SAM-DG62-00008B
...
1-13
Adiabatic-Door Top Sub SAM-DG62-00087A
...
1-14
Adiabatic-Door Side SAM-DG62-00010A
...
1
Assembly Door SAM-DG94-00890A

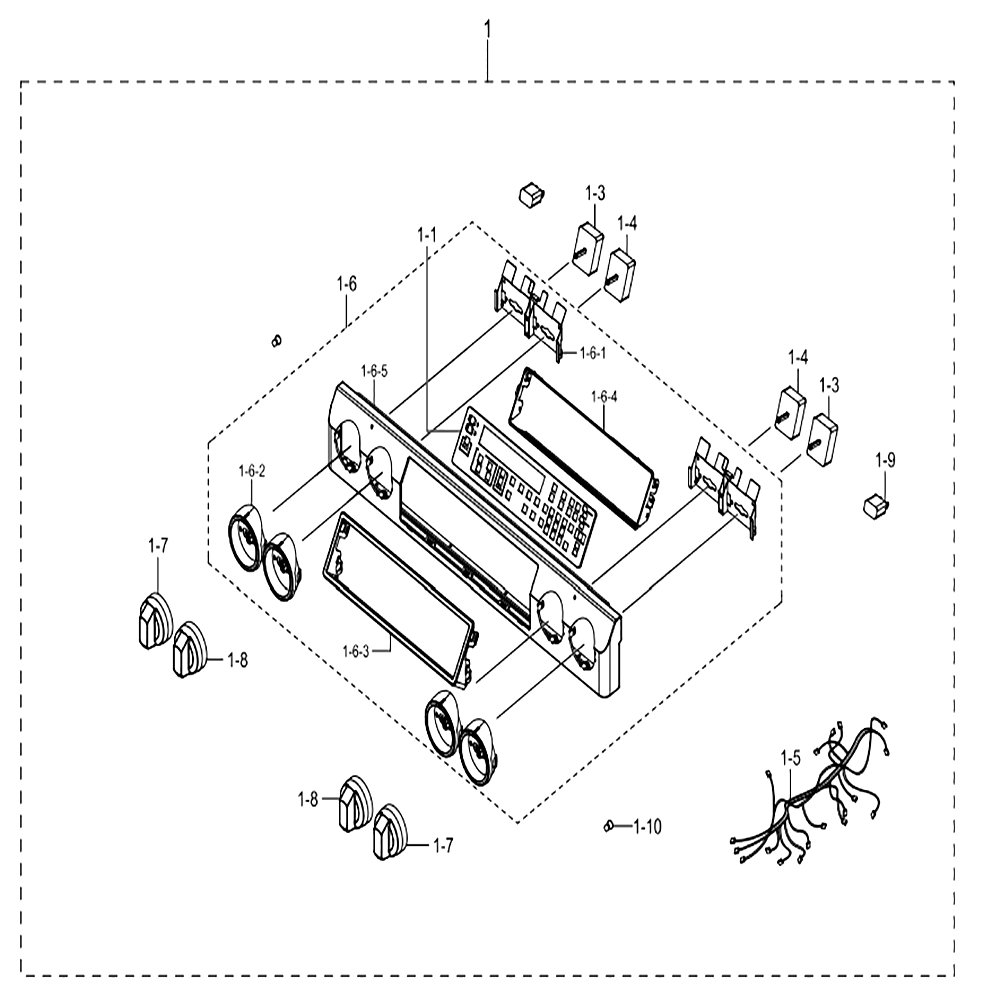

Assy Control

...
...
1-1
Assy Module; Assy Display,nef900a-Pjt,e-S SAM-DE96-01027D
...
1-3
Regulator Energy-Dual; Per001-12,ne9000k, SAM-DG44-01006B
...
1-4
Regulator-Energy Single SAM-DG44-01009A
...
1-5
Assy Wire Harness-Display; Ne58f9500ss,24 SAM-DG96-00326A
...
1-6-1
Bracket Control; Ne58f9710ws,gi-Sgcc,t0.8 SAM-DG61-00807A
...
1-6-2
Holder Knob; Ne58f9710,ne58k9850ws,abs+pc SAM-DE61-01605A
...
1-6-3
Chassis Decoration; Ne58f9710ws,zn,-,w360 SAM-DG64-00463A
...
1-6-4
Cover Control Panel; Ne58f9710ws,cr-Spcc, SAM-DG61-00780A
...
1-6-5
Assy Control Chassis; Ne58f9710ws,sts430j SAM-DG94-00919A
...
1-6
Assy Control Sub; Ne58f9500ss,stss,slide- SAM-DG94-00888S
...
1-7
Assy Knob Dial; Ne58f9500ss,pc-Abs,fe,dua SAM-DG94-00906B
...
1-8
Assembly Knob Dial SAM-DG94-00906A
...
1-9
Indicator-Light SAM-DG64-00131A
...
1-10
Lens-Light SAM-DG67-00022A
...
1
Assy Control Box; Ne58f9500ss,slide-In,be SAM-DG94-00892M

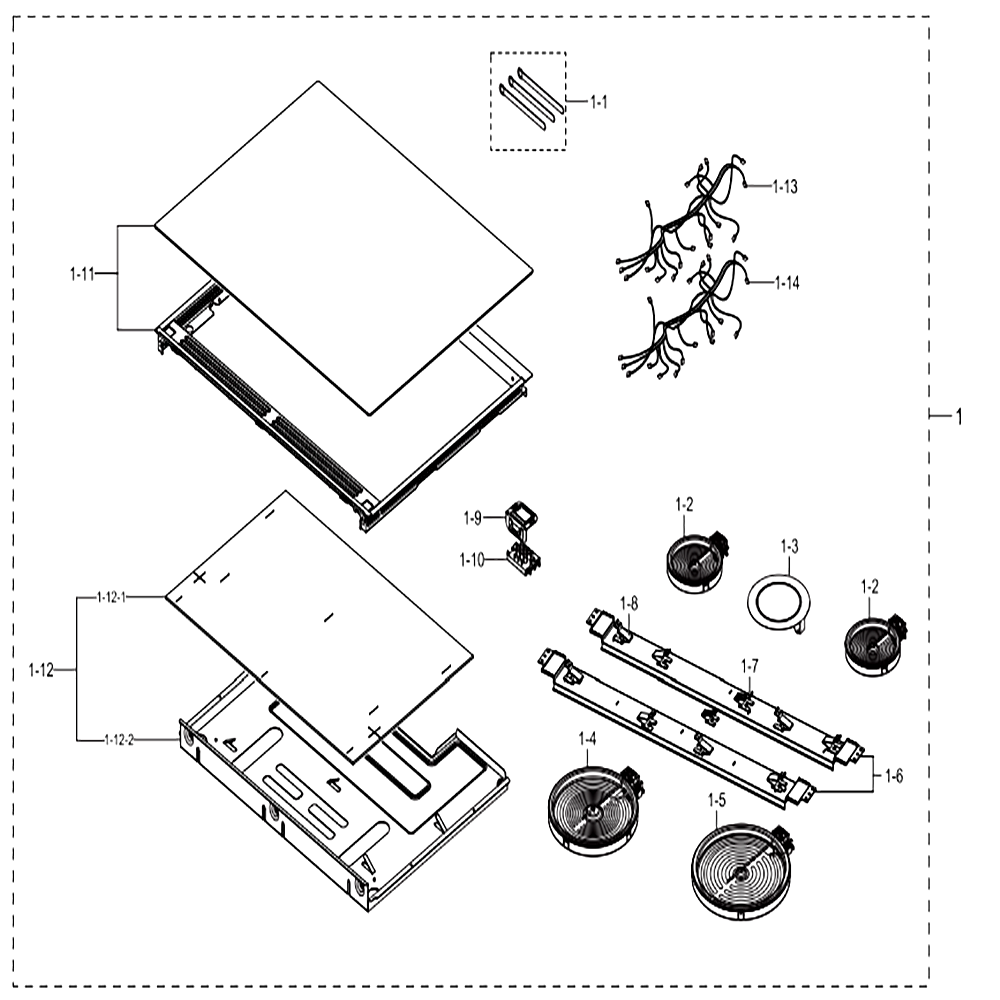

Assy Cook Top

...
...
1-1
Cable Clamp SAM-6502-001117
...
1-2
Heater Radiant-Single SAM-DG47-00060A
...
1-3
Heater-Radiant SAM-DG47-00024B
...
1-4
Heater Radiant-Dual; Ac240v,6"/9",1400w/3 SAM-DG47-00063A
...
1-5
Heater Radiant-Dual; Ac240v,9"/12",1900w( SAM-DG47-00064A
...
1-6
Assembly Bracket Heater SAM-DG94-01059A
...
1-7
Support-Warming Heater SAM-DG61-00144B
...
1-8
Support-Heater SAM-DG61-00286A
...
1-9
Bracket Elec SAM-DG61-00782B
...
1-10
Indicator-Hot Surface SAM-DG64-00319A
...
1-11
Assy Frame Cook Top; Ne58f9500ss,secc SAM-DG94-00889B
...
1-12-1
Adiabatic Heater SAM-DG62-00127A
...
1-12-2
Cover Air Outlet SAM-DG63-00341A
...
1-12
Assembly Cover Air SAM-DG94-00918A
...
1-13
Assy Wire Harness-Cooktop; Ne58f9500ss,24 SAM-DG96-00344A
...
1-14
Assy Wire Harness-Cooktop; Ne58f9500ss,24 SAM-DG96-00343A
...
1
Assy Cooktop; Ne58f9500ss,better SAM-DG94-00891B

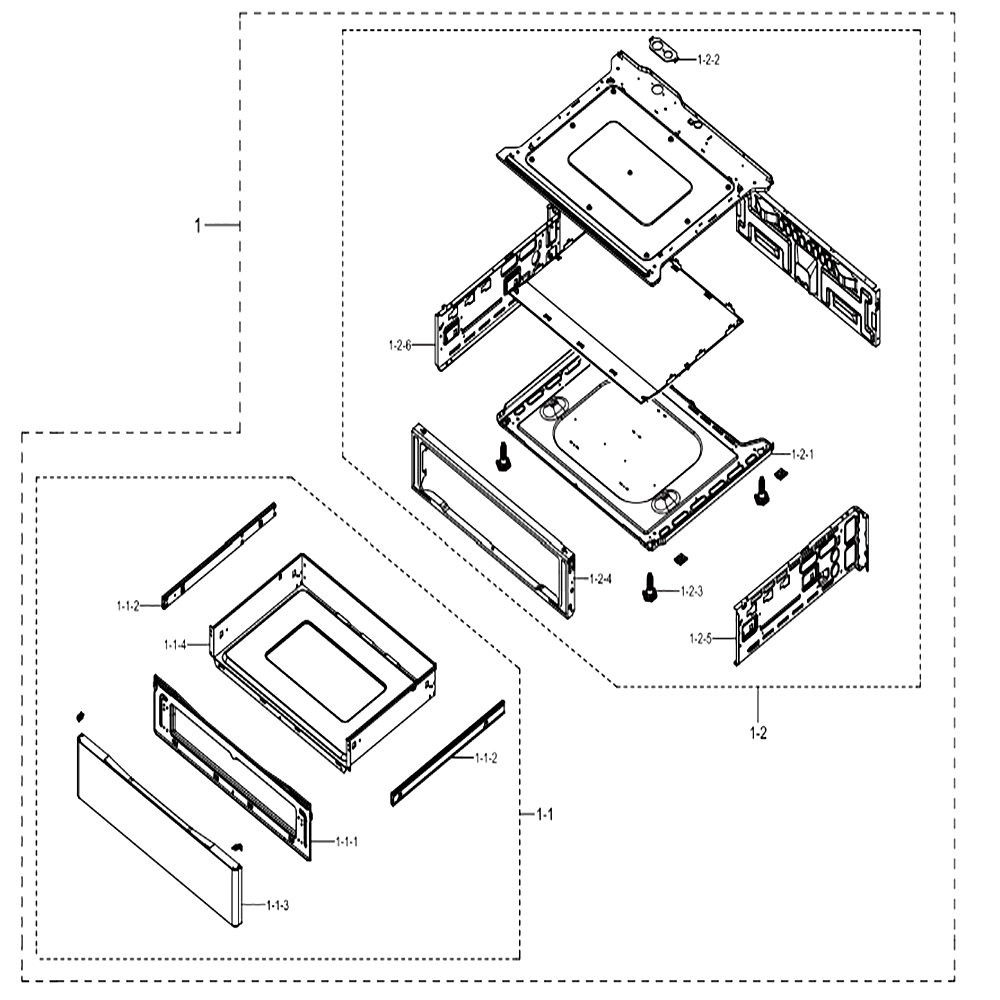

Assy Drawer

...
...
1-1-1
Panel Front SAM-DG64-00455A
...
1-1-2
Assy-Slider SAM-DG94-00550A
...
1-1-3
Assy Panel Warming Drawer; Ne58f9500ss,st SAM-DG94-00904B
...
1-1-4
Assembly Cavity Drawer SAM-DG94-00907A
...
1-1
Assy Drawer; Ne58f9500ss,-,better SAM-DG94-00903B
...
1-2-1
Assembly Base Bottom SAM-DG94-00910A
...
1-2-2
Bracket-Multi Connector SAM-DG61-00206A
...
1-2-3
Leg-Leveling SAM-DG61-00525B
...
1-2-4
Assembly Trim-Pedestal SAM-DG94-00916A
...
1-2-5
Shield Drawer-Right SAM-DG63-00337A
...
1-2-6
Shield Drawer-Left SAM-DG63-00338A
...
1-2
Assy Pedestal; Ne58f9500ss,-,better SAM-DG94-00909B
...
1
Assy Drawer Main; Ne58f9500ss,better SAM-DG90-00154B
