Samsung MX-FS8000/ZA-ZZ01

Model: MX-FS8000/ZA-ZZ01

Save Part Not Listed?
product name

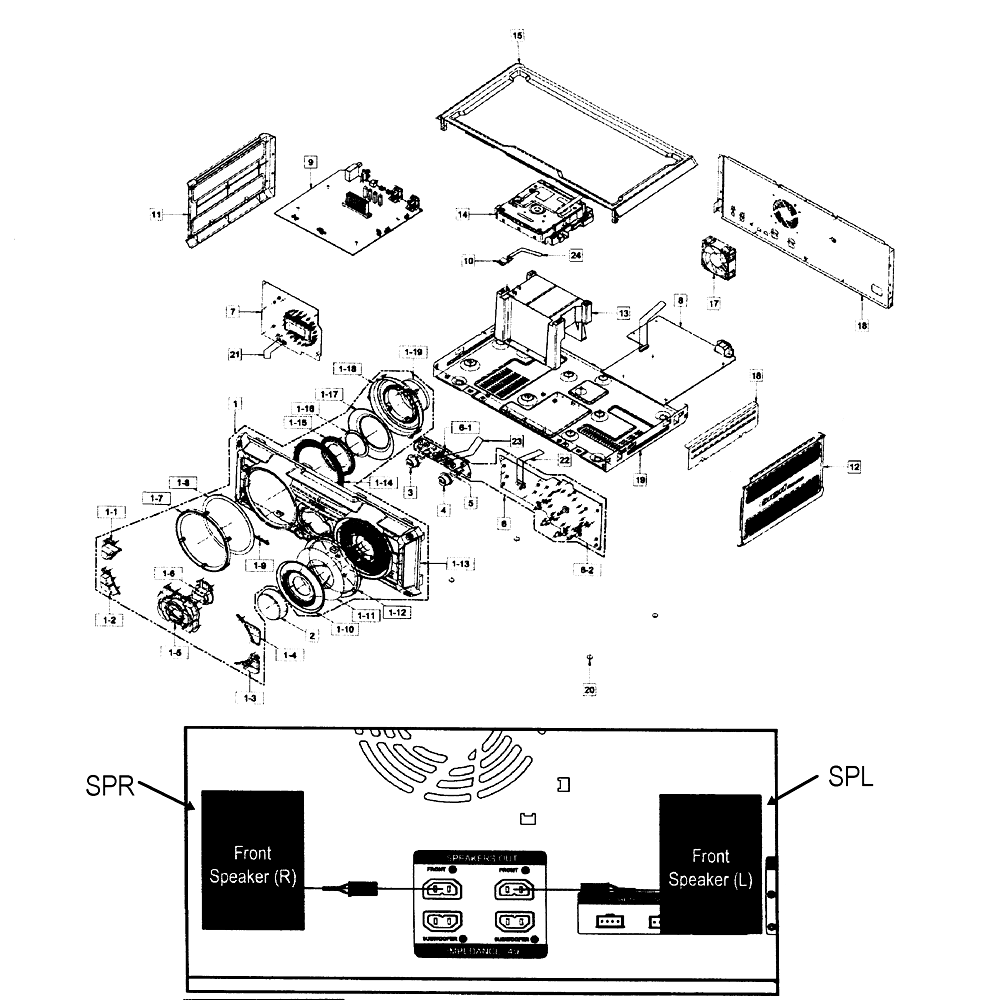

Cabinet Parts

...
...
SPL
Speaker, Left SAM-AH82-00788A
...
SPR
Speaker Rt SAM-AH82-00789A
...
1
Fr Cover SAM-AH96-02418B
...
2
Knob-Volum SAM-AH64-05709A
...
3
Deco-Usb-L SAM-AH64-05698A
...
4
Deco-Usb-R SAM-AH64-05698B
...
6
Pcb Front SAM-AH94-03082B
...
7
Pcb Vfd SAM-AH94-03083B
...
8
Power Pcb SAM-AH44-00301E
...
9
Home Electronics Main Control Board SAM-AH94-03081D
...
10
P-Rf-Mod B SAM-BN96-21952A
...
11
Cover-Side SAM-AH63-03190B
...
12
Cover-Side SAM-AH63-03191B
...
14
Deck Assembly SAM-AH96-02672A
...
15
Top Cover SAM-AH63-03192B
...
17
Fan SAM-3103-001324
...
18
Rear Cover SAM-AH63-03200C
...
21
Cable,135m SAM-AH96-01933D
...
22
Cable,320m SAM-AH96-01975K
...
23
Connector SAM-AH39-50002M
...
24
Connector SAM-AH39-01222B
