product name

Samsung ME21M706BAS/AA_0000

Model: ME21M706BAS/AA_0000

Save Part Not Listed?
product name

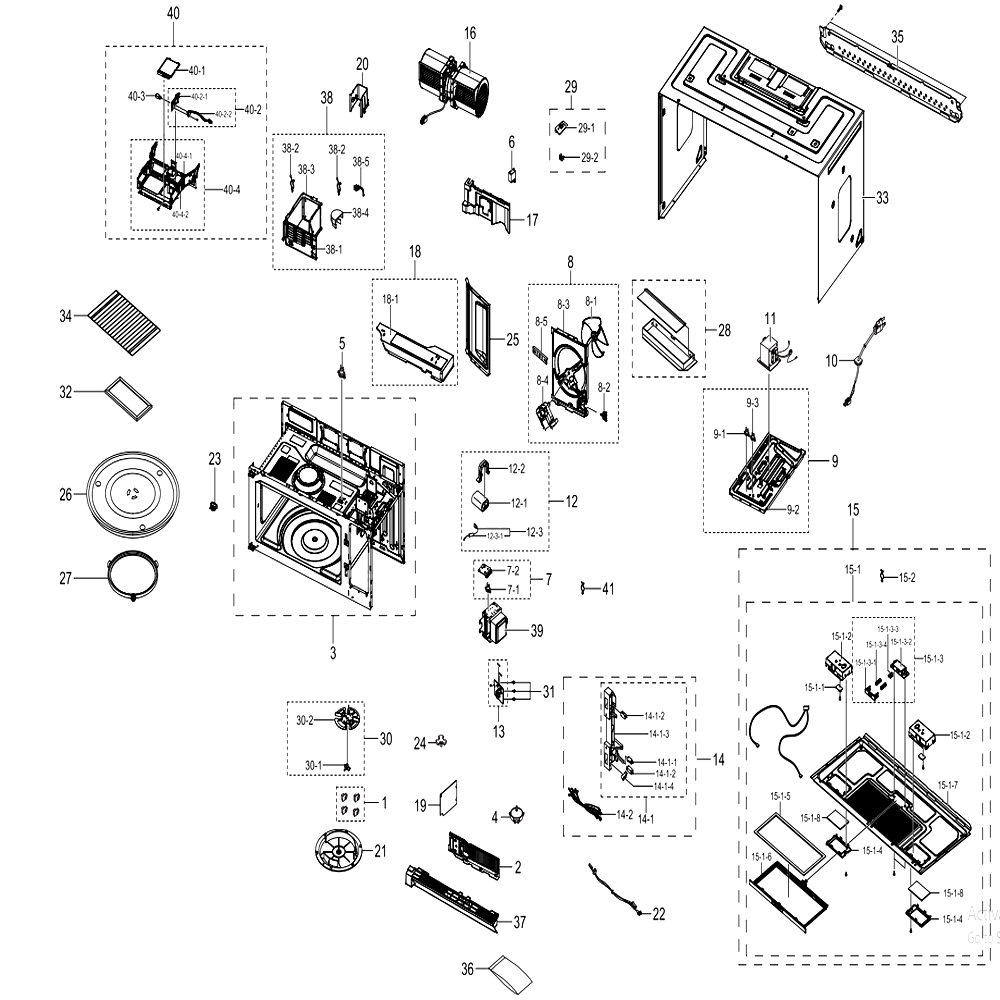

Main

...
...
1
Holder Rack; Ge Md4, Premium,polysulfone, SAM-DE61-00375B
...
2
Assy Cover Front; Ge Md4, Premium,spp,t0. SAM-DE94-02362C
...
3
Assy Cavity Coating; Me21f707mjt,2.1 Cu F SAM-DE94-02363K
...
4
Motor Ac Drive; Ssm-16hr,8,21v,60hz,3rpm, SAM-DE31-10172C
...
5
Thermostat; Ac125/250v,15a,120,0,rated Cu SAM-DG47-00010B
...
6
Capacitor-Motor SAM-DE59-50002A
...
7-1
Thermostat; 125/250v,15/7.5a,150,60,ge-Su SAM-DE47-20007B
...
7-2
Bracket-Tco; Smh9151b/xaa,egi-Secc SAM-DE61-01371A
...
7
Assy Thermostat; Me16k3000as/aa,160/60,br SAM-DE96-00912D
...
8-1
Blade-Fan; Modular4,pp SAM-DE31-00064A
...
8-2
Holder-Wire; Otr8,pp,natural,hb SAM-DE61-00164A
...
8-3
Assy Cover Motor; Pvm-9195sf2ss,egi-Secc, SAM-DE94-03304A
...
8-4
Motor Ac Fan; Smf-U2070b,2,120v,60hz,25w, SAM-DE31-00045B
...
8-5
Bracket-Cover Motor; 85059,egi-Secc,t0.8, SAM-DE61-01370A
...
8
Assy Cover Motor; Me21f707mjt/aa,egi-Secc SAM-DE94-02367H
...
9-1
Thermostat SAM-DE47-20034A
...
9-2
Base Plate; Modular4,cr-Spp,t0.6 SAM-DE61-01296B
...
9-3
Thermostat; 125/250v,15/7.5a,140,0,ge-Sur SAM-DE47-00050C
...
9
Assy Base Plate; Me21m706bag/aa,spp,t0.6 SAM-DE94-02379H
...
10
Assembly Power Cord SAM-DE96-00218C
...
11
Trans H.v; Shv-U1870c,120v,2500,2260v/3.4 SAM-DE26-00126A
...
12-1
C-Oil SAM-2501-001011
...
12-2
Bracket-Hvc SAM-DE61-00115A
...
12-3-1
Diode-H.v SAM-DE59-00002A
...
12-3
Assy-Hvd SAM-DE91-70063D
...
12
Assy Hvc; Smh7175,-,-,0.91uf Hvc,-,- SAM-DE96-00269A
...
13
Assy Noise Filter; Sn-Uf12e,250v/20a,250v SAM-DE96-00400E
...
14-1-1
Switch-Micro SAM-3405-001033
...
14-1-2
Switch-Micro SAM-3405-001034
...
14-1-3
Latch Body; Jvm1950, Pvm1940, Pvm2170,pp, SAM-DE66-00168B
...
14-1-4
Lever-Switch Lower SAM-DE66-90106B
...
14-1
Assy Body Latch; Smh2177, Jvm 1950,ml1-Md SAM-DE96-00414D
...
14-2
Assy Wire Harness-Main; Me21m706bag/aa,12 SAM-DE96-01104A
...
14
Assy Holder-Wire; Me21m706bag/aa,usa SAM-DE94-04176A
...
15-1-1
Assy Lamp Led; 4ea,metal,30*20,white,2003 SAM-DE41-00417A
...
15-1-2
Bracket-Bottom Lamp; Smh1927,egi-Secc,t0. SAM-DE61-01432A
...
15-1-3-1
Cover-Latch; Smh1927,pbt,w66.0,l15.0,v-0, SAM-DE63-00728A
...
15-1-3-2
Holder-Latch; Smh1927,pbt+gf,w96.0,l36.0, SAM-DE61-01435A
...
15-1-3-3
Latch-Inlet; Steam_Jupiter,pom SAM-DG66-00024A
...
15-1-3-4
Spring Etc; Hswr-Swrh,pi 0.6,pi 9.6,pi 10 SAM-DE61-01443A
...
15-1-3
Assy-Bottom Latch; Smh1927,pbt,ml1-Md4, O SAM-DE94-02912A
...
15-1-4
Cover-Cooktop Lamp; Jvm-1860,egi-Secc,t0. SAM-DE71-00120B
...
15-1-5
Filter-Air SAM-DE63-00196A
...
15-1-6
Holder Filter; Me18h704sf,pbt+gf,t3,black SAM-DE61-01552A
...
15-1-7
Assy Base Bottom; Me21k7010dg/aa,egi Secc SAM-DE94-02907E
...
15-1-8
Glass-Cook Top Lamp; Jvm-1860,glass,t3.2, SAM-DE67-00088A
...
15-1
Assy Base Bottom; Me21h706mq,one Touch Ea SAM-DE94-02906E
...
15-2
Cable Clamp; Dawh-2nc,id18.5,nylon6/6,ntr SAM-6502-001056
...
15
Assy Base Bottom; Me21h706mq,one Touch Ea SAM-DE94-02905G
...
16
Motor Ac Ventilation; Smv-460ual-1,2,120v SAM-DE31-00029K
...
17
Guide-Vent Air; Modular4,pp SAM-DE61-01297A
...
18-1
Guide-Stirrer Air; Modular4,egi-Secc,t0.4 SAM-DE61-01299A
...
18
Assy Guide-Stirrer Air; Pvm-1970dr1bb,t0. SAM-DE97-00754A
...
19
Cover Ceiling; Me21k7010ds/aa,mica Sheet, SAM-DE63-00845A
...
20
Cover Connector; Modular4,pp,t2,hb,natura SAM-DE63-00660A
...
21
Assy Cover Stirrer; Me21k7010ds/aa,mica S SAM-DE94-03615A
...
22
Assy Wire Harness-Power; Me21f707mjt,120v SAM-DE96-01026A
...
23
Door-Cap; Mhc4,pp,-,-,-,-,-,- SAM-DE64-01851A
...
24
Coupler SAM-DE67-00236A
...
25
Duct-Rear; Modular4,egi-Secc,t0.4 SAM-DE67-00261A
...
26
Tray Cooking; 85059,glass,t6 SAM-DE74-20002D
...
27
Assy Guide Roller; Jvm7195, Pvm9215,sps,t SAM-DE94-03688A
...
28
Assy-Hood Damper; Jvm-1870,-,jvm250bl Otr SAM-DE92-90242D
...
29-1
Bracket Supporter; Me17h703sh,gi-Sgcc,t1, SAM-DE61-01565A
...
29-2
Assy-Holder Nut SAM-DE92-90508A
...
29
Assy Bracket Supporter; Me17h703sh,otr6, SAM-DE94-03258A
...
30-1
Holder-Stirrer SAM-DE61-01061A
...
30-2
Blade-Stirrer; Modular4,alcoat-Sa1c,t0.5, SAM-DE66-00227A
...
30
Assy Stirrer; 85053,mhc-4,alp T0.6,sears SAM-DE94-02377A
...
31
Support-Pcb SAM-DE61-30129A
...
32
Filter Charcoal; Md4,activated Carbon,t10 SAM-DE63-30016G
...
33
Panel Outer; Modular4,egi-Secc,t0.4,w357. SAM-DE64-02379H
...
34
Rack Wire; 85052, 85053, 85059,mswr-Swrm, SAM-DE75-00083A
...
35
Plate-Mounting SAM-DE70-00561A
...
36
Assy Hard Ware; Smh1611b/xaa,ss Md-3 SAM-DE92-90505N
...
37
Grille; Me21f707mjt,pc,t2.5,w615.8,l85.1, SAM-DE64-02774A
...
38-1
Bracket Barrier; Jvm-1950dr1bb,egi-Secc,t SAM-DE61-01304B
...
38-2
Cable Clamp; Dawh-2nc,id18.5,nylon6/6,ntr SAM-6502-001056
...
38-3
Duct-Exhaust; Modular4,gi-Sgcc,t0.5 SAM-DE67-00264A
...
38-4
Holder-Sensor SAM-DE61-90111A
...
38-5
Sensor-Gas SAM-DE32-60011A
...
38
Assy Duct Exhaust; Me21k7010ds/aa,egi-Sec SAM-DE94-02372E
...
39
Assembly Mgt SAM-OM75P-21-ESGN
...
40-1
Cover Lamp; Modular4,egi-Secc,t0.4 SAM-DE63-00659A
...
40-2-1
Holder-Halogen Lamp; Modular4,egi-Secc,t0 SAM-DE61-01301A
...
40-2-2
Lamp Socket-Halogen; 250v,ul Spec,ceramic SAM-DE47-00032D
...
40-2
Assy Holder-Halogen; Jvm1950,pvm1970,pvm2 SAM-DE94-02742A
...
40-3
Lamp-Halogen; 130v,50w,ntr,380lm,13*41,9. SAM-4713-001581
...
40-4-1
Duct-Upper Rear; Modular4,egi-Secc,t0.4 SAM-DE67-00263A
...
40-4-2
Duct-Upper Front; Modular4,egi-Secc,t0.4 SAM-DE67-00262A
...
40-4
Assy Duct Upper-Sub; Jvm1950,pvm1970,pvm2 SAM-DE94-02373C
...
40
Assy Duct Upper; Jvm1950,pvm1970,pvm2170, SAM-DE94-02374C
...
41
Cable Clamp; Dawh-2nc,id18.5,nylon6/6,ntr SAM-6502-001056

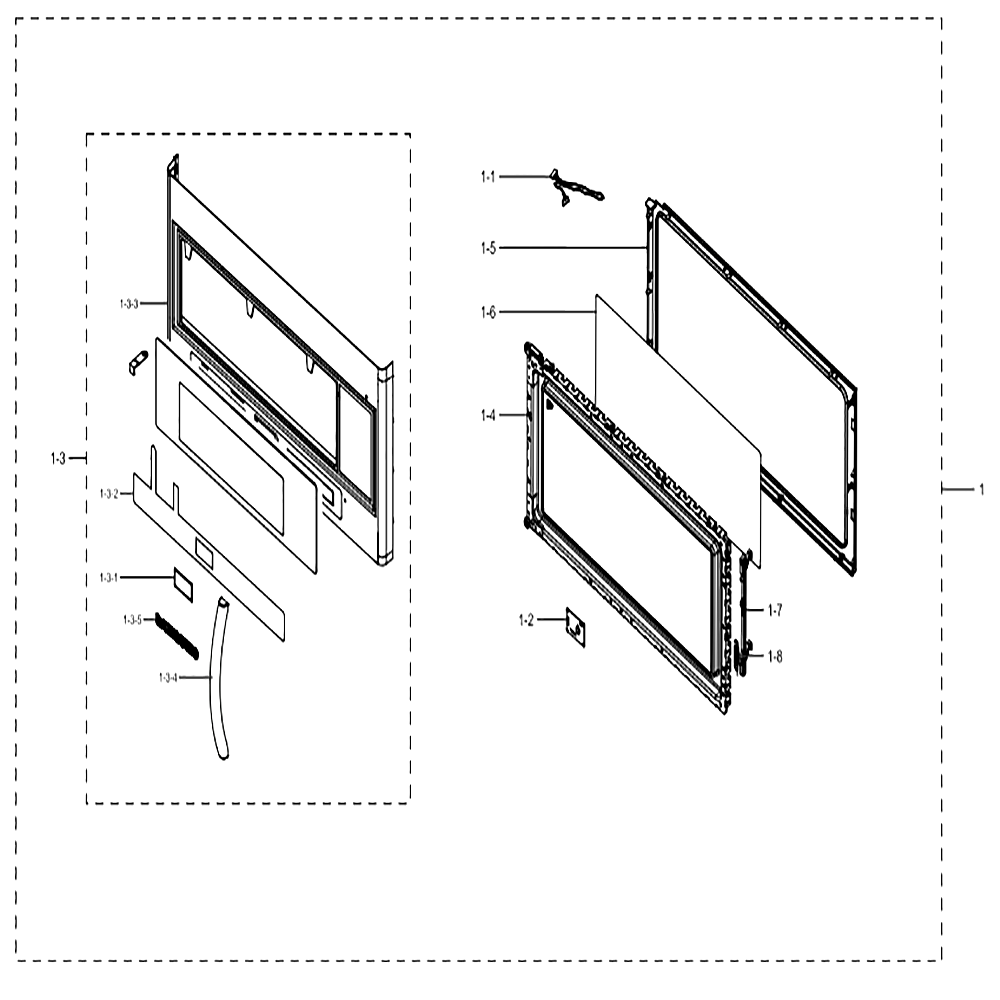

Assy Door

...
...
1-1
Assy Wire Harness-Display; Me7000m,12vdc, SAM-DE96-01106A
...
1-2
Assy Module; Top Chef Sub Module,me7000k, SAM-DE96-01028B
...
1-3-1
Window Display; Me21k7010ds/aa,acryl,t1.5 SAM-DE64-02950A
...
1-3-2
Switch Membrane; Me21k7010ds/aa,pet,120v SAM-DE34-00415B
...
1-3-3
Door A; Me21m706mqs,pc,hb,141r,ge Black,m SAM-DE64-03013A
...
1-3-4
Cover Handle; Me21m706mqs,pc,hb,ge Black, SAM-DE63-00891A
...
1-3-5
Badge Logo Inlet; Ni,t0.08,w9.19,l65,blac SAM-DG64-00360C
...
1-3
Assy Door A; Me21m706mqs,pc, Ge Black,sts SAM-DE94-04097A
...
1-4
Assy Door E; Maytag2.0,-,-,coating SAM-DE94-01471B
...
1-5
Door C; Me21f707mjt,pp,t1.5,hb,tb53,natur SAM-DE64-02777A
...
1-6
Film Door; Jvm-1860,polyester,pet,l479,t0 SAM-DE01-00127A
...
1-7
Door-Key SAM-DE64-01308A
...
1-8
Spring Etc-Key; Hswr-Swrh,d8.35,l47,turni SAM-DE61-01412A
...
1
Assy Door; Me21m706mqs,pc, Ge Black,stss, SAM-DE94-04094A

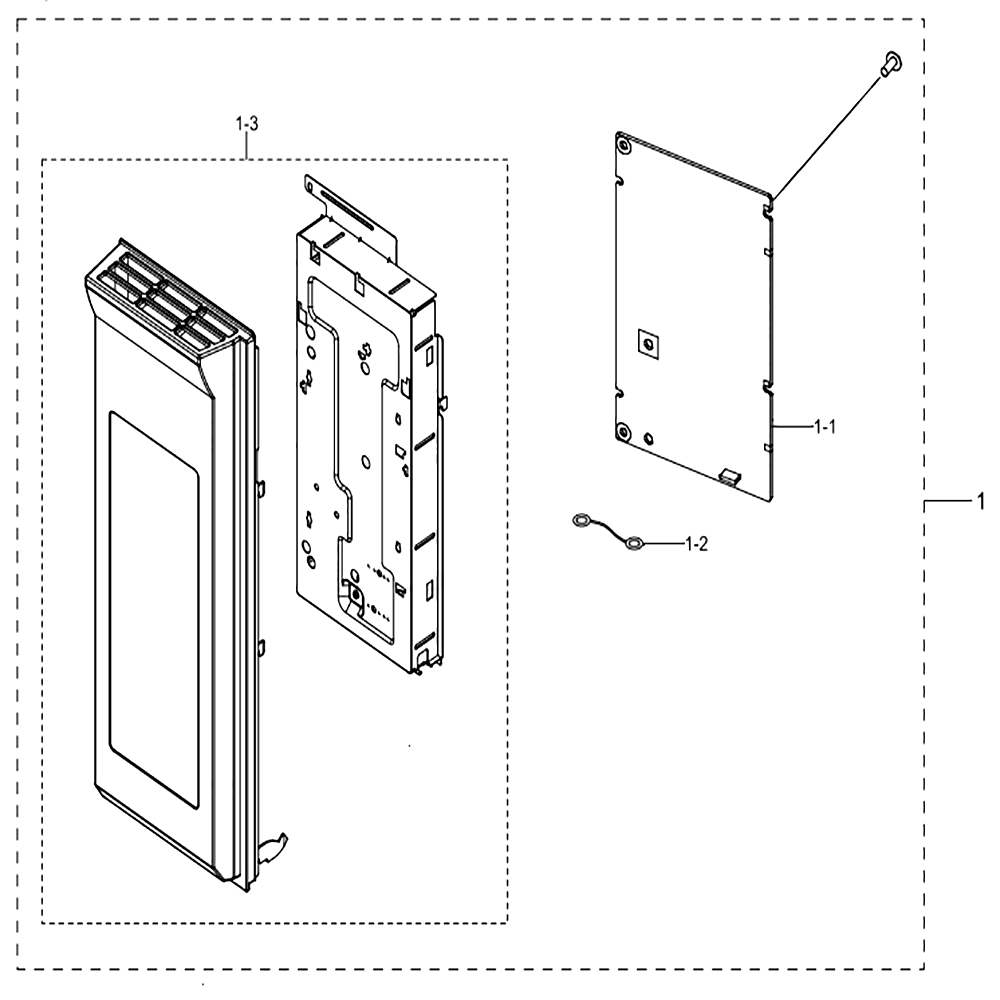

Assy Control Box

...
...
1-1
Assy Pcb Main; Me8000j (timpani_Wide),me7 SAM-DE92-03928C
...
1-2
Assy Wire Harness; Otr6allmodel,120vac,ul SAM-DE39-40673A
...
1-3
Assy Control Panel; Me21m706mqs,ge Black, SAM-DE94-04096A
...
1
Assy Control Box; Me21m706mqs,120v/60hz,p SAM-DE94-04095A
