Samsung ME18H704SFS/AA_0004

Model: ME18H704SFS/AA_0004

Save Part Not Listed?
product name

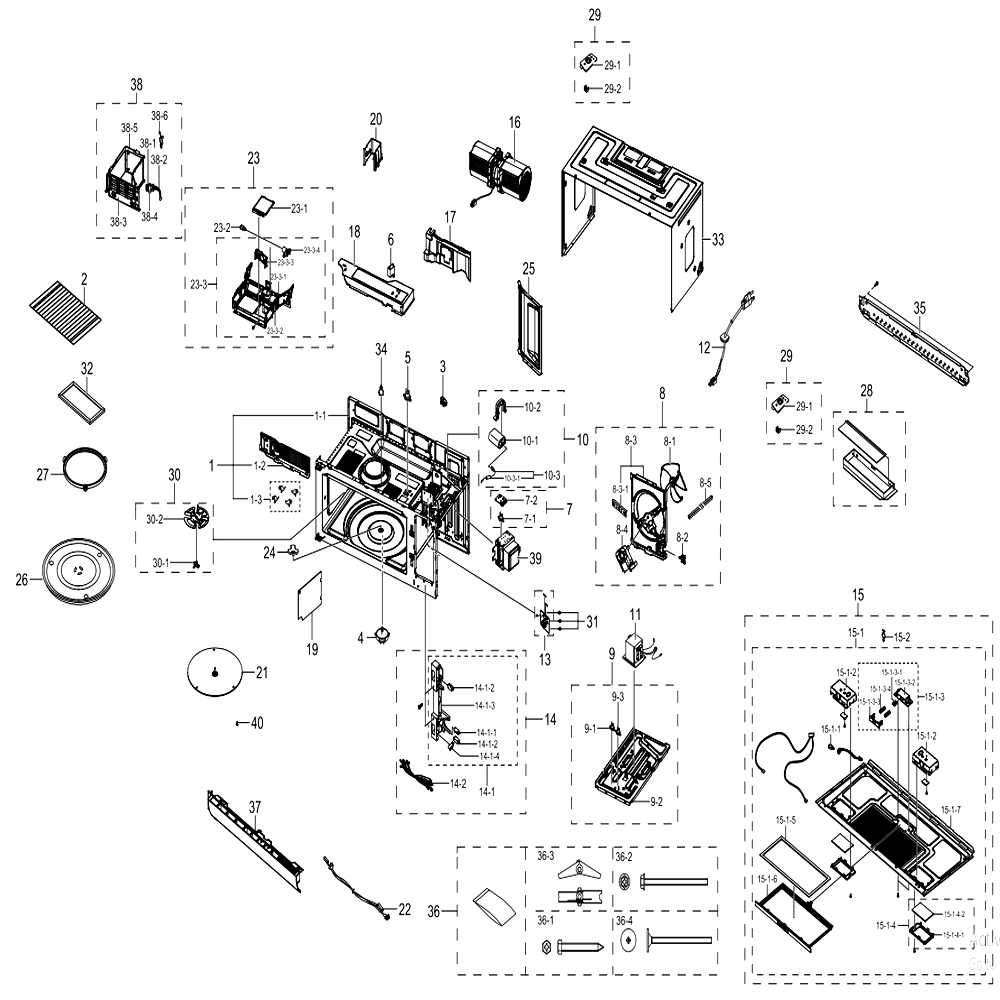

Main

...
...
1-1
Assy Cavity-Coating; Md4,1.9cu.ft,spp,t0. SAM-DE94-02363E
...
1-2
Assy Cover Front; Ge Md4, Premium,spp,t0. SAM-DE94-02362C
...
1-3
Holder Rack; Ge Md4, Premium,polysulfone, SAM-DE61-00375B
...
1
Assy Cavity Parts; Smh1927 SAM-DE90-01313A
...
2
Rack Wire; 85052, 85053, 85059,mswr-Swrm, SAM-DE75-00083A
...
3
Door-Cap; Mhc4,pp,-,-,-,-,-,- SAM-DE64-01851A
...
4
Motor Ac Drive; Ssm-16hr,8,21v,60hz,3rpm, SAM-DE31-10172C
...
5
Thermostat; 125/250v,15/7.5a,120,0,sod,18 SAM-DE47-20060A
...
6
Capacitor-Motor SAM-DE59-50002A
...
7-1
Thermostat; 125/250v,15/7.5a,150,60,ge-Su SAM-DE47-20007B
...
7-2
Bracket-Tco; Smh9151b/xaa,egi-Secc SAM-DE61-01371A
...
7
Assy Thermostat; Me16k3000as/aa,160/60,br SAM-DE96-00912D
...
8-1
Blade-Fan; Modular4,pp SAM-DE31-00064A
...
8-2
Holder-Wire; Otr8,pp,natural,hb SAM-DE61-00164A
...
8-3-1
Bracket-Cover Motor; 85059,egi-Secc,t0.8, SAM-DE61-01370A
...
8-3
Assy Cover Motor; Pvm-9195sf2ss,egi-Secc, SAM-DE94-03304A
...
8-4
Motor Ac Fan; Smf-U2070b,2,120v,60hz,25w, SAM-DE31-00045B
...
8-5
Cushion Sponge; Otr,pur Foam,t10,w10,l100 SAM-DE63-90004B
...
8
Assy Cover Motor; Me21f707mjt/aa,egi-Secc SAM-DE94-02367E
...
9-1
Thermostat SAM-DE47-20034A
...
9-2
Base Plate; Modular4,cr-Spp,t0.6,ge White SAM-DE61-01296C
...
9-3
Thermostat; 125/250v,15/7.5a,140,0,ge-Sur SAM-DE47-00050C
...
9
Assy Base Plate; Smh2117,spp,t0.6,ml1-Md4 SAM-DE94-02379F
...
10-1
C-Oil SAM-2501-001011
...
10-2
Bracket-Hvc SAM-DE61-00115A
...
10-3-1
Diode-H.v SAM-DE59-00002A
...
10-3
Assy-Hvd SAM-DE91-70063D
...
10
Assy Hvc; Smh7175,-,-,0.91uf Hvc,-,- SAM-DE96-00269A
...
11
Trans H.v; Shv-U1870c,120v,2500,2260v/3.4 SAM-DE26-00126A
...
12
Assembly Power Cord SAM-DE96-00218C
...
13
Assy Noise Filter; Sn-Uf12e,250v/20a,250v SAM-DE96-00400E
...
14-1-1
Switch-Micro SAM-3405-001033
...
14-1-2
Switch-Micro SAM-3405-001034
...
14-1-3
Latch Body; Jvm1950, Pvm1940, Pvm2170,pp, SAM-DE66-00168B
...
14-1-4
Lever-Switch Lower SAM-DE66-90106B
...
14-1
Assy Body Latch; Smh2177, Jvm 1950,ml1-Md SAM-DE96-00414D
...
14-2
Assy Wire Harness-Main; Me18h704,120v/60h SAM-DE96-01045A
...
14
Assy Holder-Wire; Me18h704sfb/aa,de96-010 SAM-DE94-03519L
...
15-1-1
Lamp-Halogen; 120v,20w,ntr,130lm,12x40,9. SAM-4713-001165
...
15-1-2
Bracket-Bottom Lamp; Smh1927,egi-Secc,t0. SAM-DE61-01432A
...
15-1-3-1
Latch-Inlet; Steam_Jupiter,pom SAM-DG66-00024A
...
15-1-3-2
Holder-Latch; Smh1927,pbt+gf,w96.0,l36.0, SAM-DE61-01435A
...
15-1-3-3
Cover-Latch; Smh1927,pbt,w66.0,l15.0,v-0, SAM-DE63-00728A
...
15-1-3-4
Spring Etc; Hswr-Swrh,pi 0.6,pi 9.6,pi 10 SAM-DE61-01443A
...
15-1-3
Assy-Bottom Latch; Smh1927,pbt,ml1-Md4, O SAM-DE94-02912A
...
15-1-4-1
Cover-Cooktop Lamp; Jvm-1860,egi-Secc,t0. SAM-DE71-00120B
...
15-1-4-2
Glass-Cook Top Lamp; Jvm-1860,glass,t3.2, SAM-DE67-00088A
...
15-1-4
Assy Cover Lamp; Me18h704sfs,egi-Secc,otr SAM-DE99-00359C
...
15-1-5
Filter-Air SAM-DE63-00196A
...
15-1-6
Holder Filter; Me18h704sf,pbt+gf,t3,black SAM-DE61-01552A
...
15-1-7
Assy Base Bottom; Me21k7010dg/aa,egi Secc SAM-DE94-02907E
...
15-1
Assy Base Bottom; Me18h704sf,egi-Secc SAM-DE94-02906C
...
15-2
Cable Clamp; Dawh-2nc,id18.5,nylon6/6,ntr SAM-6502-001056
...
15
Assy Base Bottom; Me18h704sf,one Touch Ea SAM-DE94-02905E
...
16
Motor Ac Ventilation; Smv-460ual-1,2,120v SAM-DE31-00029K
...
17
Guide-Vent Air; Modular4,pp SAM-DE61-01297A
...
18
Guide-Stirrer Air; Modular4,egi-Secc,t0.4 SAM-DE61-01299A
...
19
Cover Ceiling; Me21k7010ds/aa,mica Sheet, SAM-DE63-00845A
...
20
Cover Connector; Modular4,pp,t2,hb,natura SAM-DE63-00660A
...
21
Assy Cover Stirrer; Me21k7010ds/aa,mica S SAM-DE94-03615A
...
22
Assy Wire Harness-Power; Me21f707mjt,120v SAM-DE96-01026A
...
23-1
Cover Lamp; Modular4,egi-Secc,t0.4 SAM-DE63-00659A
...
23-2
Lamp-Incandescent SAM-4713-001013
...
23-3-1
Duct-Upper Rear; Modular4,egi-Secc,t0.4 SAM-DE67-00263A
...
23-3-2
Duct-Upper Front; Modular4,egi-Secc,t0.4 SAM-DE67-00262A
...
23-3-3
Holder Lamp; Modular4,egi-Secc,t0.4 SAM-DE61-01300A
...
23-3-4
Socket-Lamp SAM-DE47-00006A
...
23-3
Assy Duct Upper-Sub; 85053,secc,t0.4,mhc4 SAM-DE94-02373A
...
23
Assy Duct Upper; 85053,secc,t0.4,mhc4, La SAM-DE94-02374A
...
24
Coupler SAM-DE67-00236A
...
25
Duct-Rear; Modular4,egi-Secc,t0.4 SAM-DE67-00261A
...
26
Tray Cooking; 85059,glass,t6 SAM-DE74-20002D
...
27
Assy Guide Roller; Jvm7195, Pvm9215,sps,t SAM-DE94-03688A
...
28
Assy-Hood Damper; Jvm-1870,-,jvm250bl Otr SAM-DE92-90242D
...
29-1
Bracket Supporter; Me17h703sh,gi-Sgcc,t1, SAM-DE61-01565A
...
29-2
Assy-Holder Nut SAM-DE92-90508A
...
29
Assy Bracket Supporter; Me17h703sh,otr6, SAM-DE94-03258A
...
30-1
Holder-Stirrer SAM-DE61-01061A
...
30-2
Blade-Stirrer; Modular4,alcoat-Sa1c,t0.5, SAM-DE66-00227A
...
30
Assy Stirrer; 85053,mhc-4,alp T0.6,sears SAM-DE94-02377A
...
31
Support-Pcb SAM-DE61-30129A
...
32
Filter Charcoal; Md4,activated Carbon,t10 SAM-DE63-30016G
...
33
Panel Outer; Modular4,egi-Secc,t0.4,w357. SAM-DE64-02379H
...
34
Wire-Saddle SAM-DE66-00123A
...
35
Plate-Mounting SAM-DE70-00561A
...
36-1
Screw-Lag SAM-DE60-10111A
...
36-2
Bolt-Toggle SAM-DE60-20022A
...
36-3
Nut-Toggle SAM-DE60-30022A
...
36-4
Bolt-Flat SAM-DE60-20066A
...
36
Assy Hard Ware; Smh1611b/xaa,ss Md-3 SAM-DE92-90505N
...
37
Grille; Smh1927,pc,w613.8,l79.8,hb,ge Bla SAM-DE64-02629A
...
38-1
Sensor-Gas SAM-DE32-60011A
...
38-2
Assy Wire Harness-S; Pvm-1970 / Pvm-2170, SAM-DE96-00933A
...
38-3
Bracket Barrier; Jvm-1950dr1bb,egi-Secc,t SAM-DE61-01304B
...
38-4
Holder-Sensor SAM-DE61-90111A
...
38-5
Duct-Exhaust; Modular4,gi-Sgcc,t0.5 SAM-DE67-00264A
...
38-6
Cable Clamp; Dawh-2nc,id18.5,nylon6/6,ntr SAM-6502-001056
...
38
Assy Duct Exhaust; Smh2117s,sgcc,t0.5,ml1 SAM-DE94-02372C
...
39
Assembly Mgt SAM-OM75P-21-ESGN
...
40
Button-Locking; Jvm1950, Pvm1970, Pvm2170 SAM-DE66-20095E

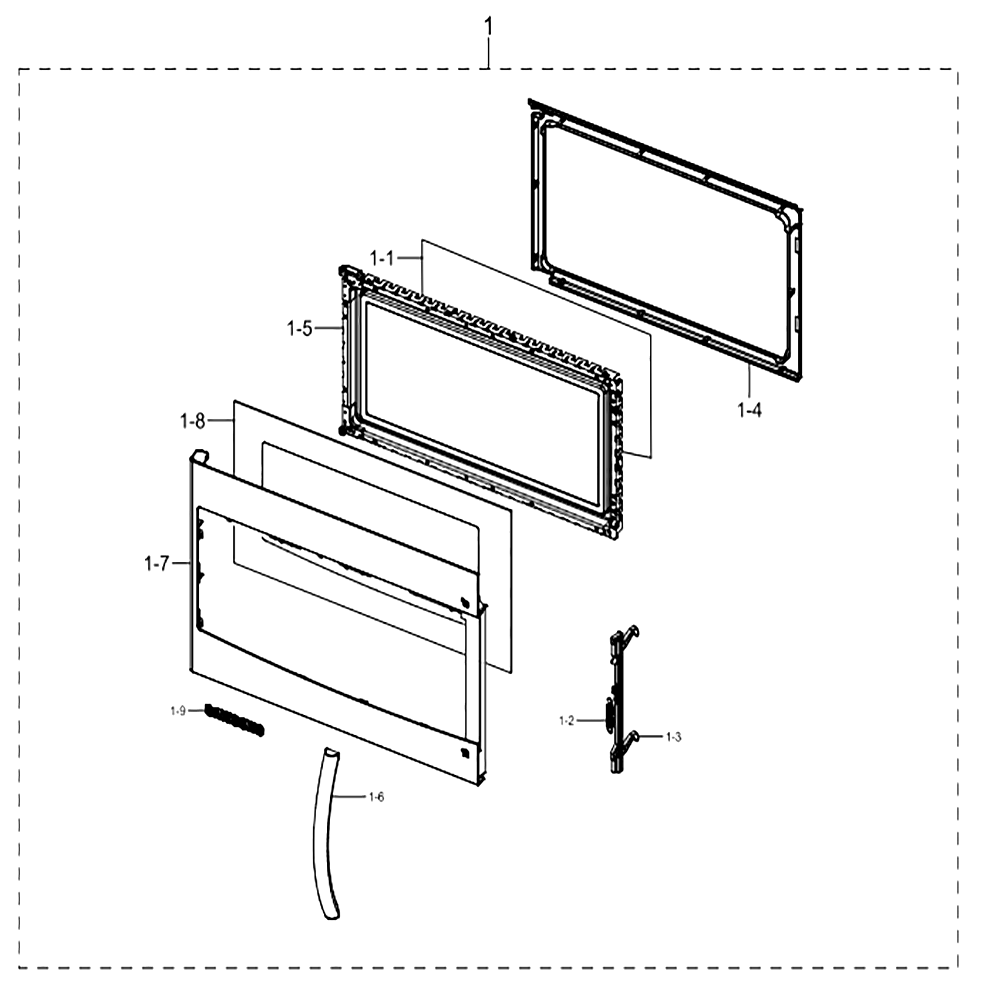

Assy Door

...
...
1-1
Film Door; Jvm-1860,polyester,pet,l479,t0 SAM-DE01-00127A
...
1-2
Spring-Key; Hswr-Swrh,pi0.95,,d8.35,l47 SAM-DE61-00086A
...
1-3
Door-Key SAM-DE64-01308A
...
1-4
Door C; Me21f707mjt,pp,t1.5,hb,tb53,natur SAM-DE64-02777A
...
1-5
Assy Door E; Smh7175,-,-,coating SAM-DE94-01470B
...
1-6
Assy Handle; Smh1927s/xaa,real Sts304 SAM-DE94-02933A
...
1-7
Assy Door A; Me18h704sf,pc,stss,anti Fing SAM-DE94-03160C
...
1-8
Screen Door-B; Me18h704sfs,glass,t3.2,w60 SAM-DE64-02816A
...
1-9
Badge Logo Inlet; Ni,t0.08,w9.19,l65,blac SAM-DG64-00360C
...
1
Assy Door; Me18h704sfs,pc Black,stss,anti SAM-DE94-03159E

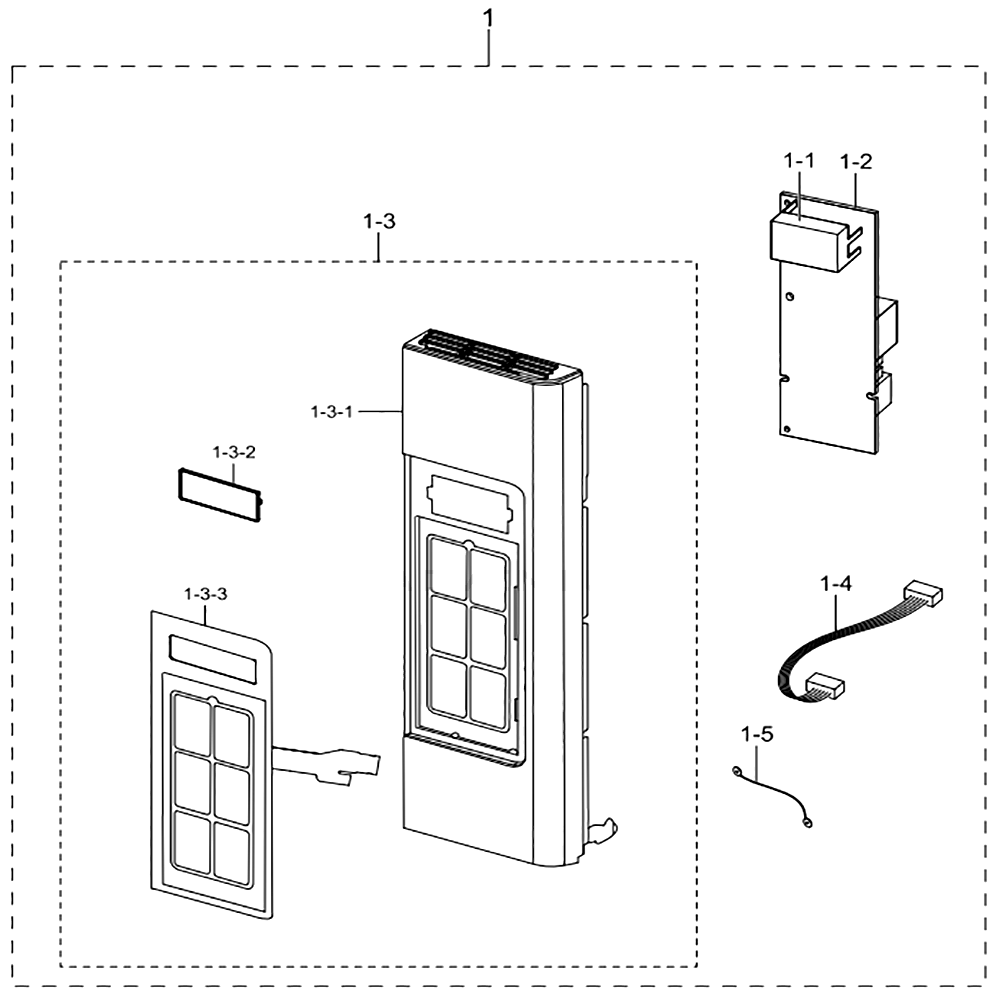

Assy Control Box

...
...
1-1
Led Display; Blue,hl-Led1045sb-C201-1,74* SAM-DE07-00114A
...
1-2
Assy Pcb Main; Me18h704sfs,me7000ha_1.8,1 SAM-DE92-03624B
...
1-3-1
Assy Control Panel Sub; Me18h704sfs,sts43 SAM-DE94-03163C
...
1-3-2
Window-Display SAM-DE64-00766A
...
1-3-3
Switch Membrane; Me18h704sfs,pc,120v,100- SAM-DE34-00427B
...
1-3
Assy Control Panel; Me18h704sfs,stss,pc B SAM-DE94-03162E
...
1-4
Assy Wire Harness-Display; Me18h704,120v/ SAM-DE96-01047A
...
1-5
Assy Wire Harness; Otr6allmodel,120vac,ul SAM-DE39-40673A
...
1
Assy Control Box; Me18h704sfs,120n/60hz,s SAM-DE94-03161E
